OWNER’S MANUAL & OPERATING INSTRUCTIONS
WINCH KIT
10000 lb.
10006 Santa Fe Springs Road
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 11008-20120905
11008
MODEL NUMBER
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
•Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
11008
10000 lb.
WINCH KIT
TABLE OF CONTENTS
Introduction ....................1
Introduction ..................1
This Booklet ................. 1
Accessories .................. 1
Manual Conventions ............... 2
Safety Rules ................... 3
Controls and Features .............. 5
Winch ..................... 5
Assembly ..................... 6
Assembling and wiring the Winch ...... 6
Operation ..................... 7
General Tips for Safe Operation ....... 7
Self Recovery ................. 7
Winching Techniques A-Z .......... 8
Maintenance ................... 9
Lubrication .................. 9
Cable Assembly Replacement ........ 9
Specifications .................. 10
Performance Specifications ........ 10

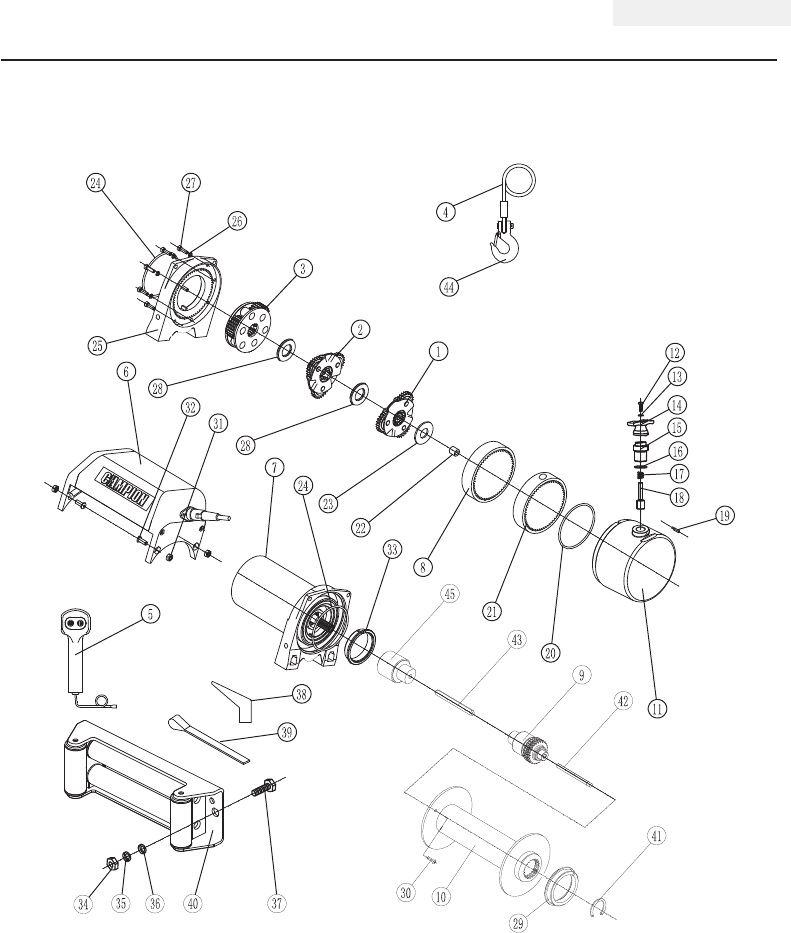

Parts Diagram ............... 11
Parts List .................. 12
Troubleshooting ................. 13
Warranty ..................... 14
Warranty Qualifications .......... 14
Repair/Replacement Warranty ....... 14
Do Not Return The Unit
To The Place Of Purchase ......... 14
Warranty Exclusions ............ 14
Limits of Implied Warranty
And Consequential Damage ........ 14
Contact Information ............ 14
Address ................. 14
Customer Service ........... 14
Technical Service ........... 14
1 REV 11008-20120905
ENGLISH 11008
INTRODUCTION
Introduction
Congratulations on your purchase of a Champion
Power Equipment winch. CPE designs and builds
winches to strict specifications. With proper use
and maintenance, this winch will bring years of
satisfying service.
This Booklet
Every effort has been made to ensure the accuracy
and completeness of the information in this manual.
We reserve the right to change, alter and/or improve
the product and this document at any time without
prior notice.
Accessories
Champion Power Equipment manufactures and
sells accessories designed to help you get the
most from your purchase. To find out more about
our covers, tree savers, hooks, fairleads, etc.,
please visit our web site at:
www.championpowerequipment.com
Record the model and serial numbers as well as date and place of purchase for future reference. Have
this information available when ordering parts and when making technical or warranty inquiries.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
11008
REV 11008-20120905 2
11008 ENGLISH
This manual uses the following symbols to help differentiate between different kinds of information.
The safety symbol is used with a key word to alert you to potential hazards in operating and owning
power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
CAUTION used without the safety alert
symbol indicates a potentially hazardous
situation which, if not avoided, may result in
property damage.
CAUTION
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your winch,
we can help. Please call our help line at
1-877-338-0999
NOTE
MANUAL CONVENTIONS
3 REV 11008-20120905
ENGLISH 11008
Do not use this winch for lifting or moving
people or animals.
DANGER
Keep yourself and others a safe distance to
the side of the cable when under tension.
DANGER
Never step over a cable or near a cable under
load.
DANGER
Read this manual thoroughly before operating
your winch. Failure to follow instructions could
result in serious injury or death.
WARNING
Do not exceed the rated capacity.
WARNING
The wire rope may break before the motor
stalls. For heavy loads at or near rated
capacity, use a pulley block/snatch block to
reduce the load on the wire rope.
WARNING
Do not move the vehicle to pull a load
(towing) on the winch cable. This could result
in cable breakage.
WARNING
Do not use the winch to secure or hold a
vehicle for a long period of time. Do not use
the winch to secure a vehicle for transport.
WARNING
Disconnect the remote control and battery
leads when not in use.
WARNING
Pull only on areas of the vehicle as specified
by the vehicle manufacturer.
WARNING
Avoid “shock loads” by using the control
switch intermittently to take up the slack in
the wire rope. “Shock loads” can far exceed
the rate capacity for the wire rope and drum.
Do not accelerate your vehicle while winching.
Loss of traction can cause a shock load on
the cable.
WARNING
Batteries contain acid and produce explosive
gases.
Keep sparks, flames and cigarettes away from
batteries at all times. Wear safety glasses and
protect the eyes at all times. Do not lean over
the batteries during operation.
WARNING
SAFETY RULES
REV 11008-20120905 4
11008 ENGLISH
Do not use as a hoist. Do not use for overhead
lifting.
WARNING
When re-spooling the cable, ensure that the
cable spools in the under-wind position with
the cable entering the drum from the bottom,
not the top.
To re-spool correctly, and while wearing
gloves, keep a slight load on the cable while
pushing the remote button to draw in the
cable. Walk toward the winch not allowing
the cable to slide through your hands. Do not
let your hands get within 12” of the winch
while re-spooling. Turn off the winch and
repeat the procedure until a few feet of cable
are left. Disconnect the remote control and
finish spooling by rotating the drum by hand
with the clutch disengaged. Keep hands clear
of the fairlead and drum while the winch is
under power .
WARNING
Use gloves to protect hands when handling
the cable. Never let the cable slide through
your hands.
CAUTION
Never release the free-spool clutch when
there is a load on the winch.
CAUTION
Use hook strap when handling the hook for
spooling or unspooling the wire rope.
CAUTION
Do not wrap the cable around any object and
hook it back onto itself.
CAUTION
Apply blocks to the wheels of the vehicle
when on an incline.
CAUTION
Duration of winching pulls should be kept as
short as possible.
If the motor becomes uncomfortably hot to
the touch, stop winching immediately and let
it cool down for a few minutes. Do not pull for
more than one minute at or near the rated load.
CAUTION
If the motor stalls, do not maintain power to
the winch.
Electric winches are designed and made for
intermittent use and should not be used in
constant duty applications.
CAUTION
SAFETY RULES
5 REV 11008-20120905
ENGLISH 11008
Read this owner’s manual before operating your winch. Familiarize yourself with the location and
function of the controls and features. Save this manual for future reference.
CONTROLS AND FEATURES
Winch
(1) Motor – 3.6 HP 12V DC motor provides power
to the planetary gear mechanism.
(2) Winch Drum – The winch drum is the cylinder
on which the wire rope is stored. It can feed or
wind the rope depending on the remote winch
switch.
(3) Roller Fairlead – When using the winch at an
angle the roller fairlead acts to guide the wire
rope onto the drum and minimizes damage
to the wire rope from abrasion on the winch
mount or bumper.
(4) Wire Rope – 3/8” x 85’ galvanized aircraft
cable designed specifically for load capacity of
10,000 lbs.
(5) Braking System – Braking action is
automatically applied to the winch drum by
a separate mechanical brake when the winch
motor is stopped and there is a load on the
wire rope.
(6) Solenoid – Power from the vehicle battery
flows through the weather sealed solenoid
switch before being directed to the winch
motor.
(7) Free spooling Clutch – The clutch allows the
operator to manually disengage (“Out”) the
spooling drum from the gear train, free spool.
Engaging the clutch (“In”) locks the winch into
the gear system.
(8) Planetary Gear System – The reduction gears
convert the winch motor power into extreme
pulling forces. This system allows high torque
while maintaining compact size and light
weight.
(9) Remote Switch – Dual switches for powering
the rope in or out of your winch drum.
(10) Clevis Hook – Provides a means for
connecting the looped ends of cables to
an anchor.
(11) Strap – Used to assist cable feed.
1
2
9
10
11
7
6
3
4
8
5
REV 11008-20120905 6
11008 ENGLISH
This CPE 10,000 lb winch is designed with a
bolt pattern that is standard in this class of
winch. Many winch mounting kits are available
that utilize this bolt pattern for the most popular
trucks and Sport Utility Vehicles. If you cannot
find a kit locally, contact CPE and we will provide
you with the name of a dealer near you.
Mounting bolts must be SAE grade 5 or better
and torque to 34 ft. lbs.
CAUTION
Battery cables should not be drawn taut.
Leave some slack for cable movement.
CAUTION
ASSEMBLY
Assembling and wiring the Winch
1. Insert 2 M10x35 bolts to the mounting
channel hole and attach the roller fairlead
to the mounting channel with the 2 Flat
Washers, Lock washers and Nut M10
provided.
2. Disengage the clutch by moving the Cam Ring
to the “Out” position. Release the wire rope
and pull through the slot in the front of the
channel.
3. Attach the clevis hook and hand strap.
4. Connect the battery leads. FOR WINCH TO
FUNCTION PROPERLY: Connect the red
(positive) lead to the positive (+) terminal
of the vehicle’s 12 volt battery. Connect
the black (negative) lead to the negative (–)
terminal of the vehicle’s 12 volt battery.
5. Attach the remote lead to the winch and test
for proper operation.
6. Check for proper drum rotation. Turn the
clutch handle to the “out” position (Free
spooling). Pull out some cable from the drum,
and then turn the clutch knob to the “In”
position to engage the gears. Press the cable
out button on the power switch. If the drum
is turning and releasing more cable then
your connections are accurate. If the drum
is turning and collecting more cable then
reverse the leads on the motor. Repeat and
check rotation.
Assembling and wiring the Winch Cont’d.
NEVER route electrical cables across any
sharp edges, through and/or near moving
parts, or near parts that may become hot.
CAUTION
7 REV 11008-20120905
ENGLISH 11008
OPERATION
General Tips for Safe Operation
Your 11008 winch is rated at a 10,000 lb.
capacity in first layer (max) when spooling the first
rope layer on the drum. Overloads can damage the
winch, motor and/or wire rope. For loads over
8,000 lbs. we recommend the use of the pulley
block/snatch block to double the wire rope line.
This will aid in two ways:
(a) reduce the number or rope layers on the drum,
as well as,
(b) reduce the load on the wire rope by as much
as 50%.
When doubling the line back to the vehicle,
attach to the tow hook, frame or other load bearing
part. The vehicle engine should be kept running
during operation of the winch to minimize battery
drain and maximize power and speed of the winch.
If the winch is used for a considerable time with
the engine off the battery may be drained and too
weak to restart the engine.
Get to know your winch before you actually need to
use it. We recommend that you set up a few test
runs to familiarize yourself with rigging techniques,
the sounds your winch makes under various loads,
the way the cable spools on the drum, etc.
Inspect the wire rope and equipment before each
use. A frayed or damaged rope shall be replaced
immediately. Use only manufacturer’s identical
replacement rope with the exact specifications.
Inspect the winch installation and bolts to ensure
that all bolts are tight before each operation. Store
the remote control inside your vehicle in a place
that it will not be damaged.
Any winch that appears to be damaged in any way,
is found to be worn, or operates abnormally MUST
BE REMOVED FROM SERVICE UNTIL REPAIRED.
It is recommended that the necessary repairs
be made by a manufacturer’s authorized repair
facility.
Pull only on areas of the vehicle as specified by
the vehicle manufacturer. Only attachments and/
or adapters supplied by the manufacturer are to
be used.
Self Recovery
Locate a suitable anchor such as a strong tree trunk
or boulder. Always use a sling as an anchor point.
A roller fairlead (not included) will help guide the
wire rope and to reduce binding on short side
pulls. Do not winch from an acute angle as the
wire rope will pile up on one side of the drum
causing damage to wire rope and the winch.
Short pulls from an angle can be used to straighten
the vehicle. Long pulls should be done with the wire
rope at a 90° angle to the winch/vehicle.
When pulling a heavy load, place a blanket or jacket
over the wire rope five or six feet from the hook.
In the event of a broken cable it will dampen the
snap back. For additional protection open the
hood of the vehicle. For pulls over 8,000 lbs., we
recommend the use of the snatch block/pulley
block to double line the wire rope.
This reduces the load on the winch and the strain
on the rope by approximately 50%.
RIGHT WRONG
SINGLE LINE DOUBLE LINE
REV 11008-20120905 8
11008 ENGLISH
OPERATION
Winching Techniques A-Z
(a) Take time to assess your situation and plan
your pull.
(b) Put on gloves to protect your hands.
(c) Disengage the clutch to allow free- spooling
and also save battery power.
(d) Attach the hook strap to the clevis hook.
(e) Pull out the wire rope to your desired anchor
point using the hook strap.
(f) Secure the clevis hook to the anchor point:
Sling, chain or snatch block. Do not attach
the hook back onto the wire rope.
(g) Engage the clutch.
(h) Connect the remote control to the winch. If
you are going to control the winch from inside
your vehicle then pass the remote through an
open window to avoid the wires being pinched
in the door.
(i) Start your engine to ensure power is being
replenished to the battery.
(j) Power in the wire rope guiding the wire under
tension to draw up the slack in the wire. Once
the wire is under tension, stand clear. Never
step over the wire rope.
(k) Double check your anchors and make sure all
connections are secure.
(l) Inspect the wire rope. Make sure there are at
least 5 wraps of wire rope around the winch
drum.
(m) Drape a blanket or jacket over the wire rope
approximately 5 to 6 feet from the hook.
Open the hood for added protection.
(n) Clear the area. Make sure all spectators stand
clear and that no one is directly in front or
behind the vehicle or anchor point.
(o) Begin winching. Be sure that the wire rope
is winding evenly and tightly around the
drum. The vehicle that is being winched can
be slowly driven to add assistance to the
winching process. Avoid shock loads; keep
the wire rope under tension.
Winching Techniques A-Z Cont’d.
(p) The vehicle to be winched should be placed
in neutral and the emergency brake released.
Only release the brake pedal when under full
tension. Avoid shock loads to the winch. This
can damage the winch, rope and vehicle.
(q) The winch is meant for intermittent use.
Under full load with a single line rig do not
power in for more than a minute without
letting the motor cool down for a few minutes
and then resume the winching operation.
(r) The winching operation is complete once the
vehicle is on stable ground and is able to
drive under its own power.
(s) Secure the vehicle. Be sure to set the brakes
and place the vehicle in park.
(t) Release the tension on the wire rope. The
winch is not meant to hold the vehicle for
long periods of time.
(u) Disconnect the wire rope from the anchor.
(v) Rewind the wire rope. Make sure that any wire
already on the drum has spooled tightly and
neatly. If not, draw out the wire and re-spool
from the point where the rope is tight.
(w) Keep your hands clear of the winch drum and
fairlead as the wire rope is being drawn in.
(x) Secure the hook and hook strap.
(y) Disconnect the remote control and store in a
clean, dry place.
(z) Clean and inspect connections and mounting
hardware for next winching operation.
9 REV 11008-20120905
ENGLISH 11008
MAINTENANCE
The owner/operator is responsible for all periodic
maintenance.
Lubrication
All moving parts within the Electric Winch having
been Lubricated using high temperature lithium
grease at the factory. No internal lubrication is
required. Lubricate Cable Assembly periodically
using a light penetrating oil.
Cable Assembly Replacement
It is recommended that any modifications be
performed by a manufacturer’s authorized repair
facility, and that only manufacturer-supplied parts
be used.
1. Move the clutch to the “Out” position.
2. Extend Cable Assembly to its full length.
Note how the existing cable is connectedto
the inside of the drum.
3. Remove old Cable Assembly and attach new
one.
4. Retract Cable Assembly onto drum being
careful not to allow kinking.
Complete all scheduled maintenance in a timely
manner. Correct any issue before operating the
winch.
Never operate a damaged or defective winch.
WARNING
Improper maintenance will void your warranty.
WARNING
For service or parts assistance, contact our
help line at 1-877-338-0999
NOTE
REV 11008-20120905 10
11008 ENGLISH
SPECIFICATIONS
Performance Specifications
– Rated Pull .................................... 10,000 lbs (4536 kg)
– Gear Reduction Ratio ....................................... 216:1
– Motor .......................... Series Wound Motor 3.6 HP/2.7 kW (12V DC)
– Duty Cycle ..................................... Intermittent Use Only
– Drum Size .................... 2.48” (D) x 8.84” (L) [63 mm (D) x 224.5 mm (L)]
– Cable ............................ 3/8” (D) x 85’ (L) [9.2 mm (D) x 26 m (L)]
– Gross Weight ...................................... 92.5 lbs. (42 kg)
– Net Weight ....................................... 85 lbs. (38.6 kg)
– Height ....................................... 10.5 inches (26.7 cm)
– Width ........................................ 5.6 inches (14.2 cm)
– Length ...................................... 21.9 inches (55.5 cm)
– Bolt Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10” x 4.5” (25.4 cm x 11.43 cm)
Line Speed and Motor Current (First Layer)
Line Pull LB 02000 4000 6000 8000 10000
KG 0907 1814 2722 3629 4536
Line Speed (12V DC) FPM 15.7 9.8 7. 2 5.9 4.9 3.9
MPM 4.8 3.0 2.2 1.8 1.5 1.2
Max Current A115 175 220 280 320 400
Run Time* Minutes 111111
Cooling Time** Minutes 555555
Line Pull and Cable Capacity Per Layer
Line of Cable 1234
Rated Line Pull LB 10000 8000 6600 5600
KG 4536 3629 2994 2540
Cable Capacity FT 18 39.4 64 85
M 5.5 12 19.5 26
– Use double line and snatch block for pulling loads over 8,000 lbs. (3628.7 kg).
* If the motor becomes uncomfortably hot to the touch, stop winching immediately and let it cool down for 5 minutes. Do not
pull for more than one minute at or near the rated load.
** Electric winches are designed and made for intermittent use and should not be used in constant duty applications.
11 REV 11008-20120905
ENGLISH 11008
SPECIFICATIONS
Parts Diagram
REV 11008-20120905 12
11008 ENGLISH
Parts List
#Part number Description Qty
1P1010100 Gear Carrier Assembly
-input 1
2P1010200 Gear Carrier Assembly
-intermediate 1
3P1010300-N Gear Carrier Assembly-
output 1
4P1010400 Cable Assembly 1
5P1011001-B Switch Assembly - B 1
6P1011002-
2-BF
Up-setting Solenoid
Assembly - Black Flat 1
7P1011004-BF Motor/End Bearing
Assembly - Black Flat 1
8P1011021 Gear Housing A 1
9810600-NA Brake Assembly 1
10 P1010900-
N-BF
Drum Assembly - Black
Flat 1
11 P1011005-
N-BF
Gear Housing End Cover
-Black Flat 1
12 P1011022 Pan Head Screws M5x15 1
13 P1011023 Washer 5 1
14 P1011024 Clutch Handle 1
15 P1011025 Clutch Seat 1
16 P1011026 Seal Ring 20x1.8 1
17 P1011027 Spring 1
18 P1011028 Clutch Pin 1
19 P1011029 Set Screws M4x8 1
20 P1011010 Gear Housing End Cover
Seal 1
21 P1011030 Gear Housing B 1
#Part number Description Qty
22 P1011012 Bushing 1
23 P1011013 Thrust Washer 1
24 P1011014 Motor/End Bearing Seal 2
25 P1011032-BF End Bearing - Black Flat 1
26 P1011016 Lock Washer 6 8
27 P1011017 Cap Screw M6×20 8
28 P1011018 Thrust Disc 2
29 P1010008 Bushing -Drum 1
30 P1010012 Cap Screw M6×10 1
31 P1010013 Lock Nut M8 4
32 P1010014 Hex Socket Head Screws
M8×22 4
33 P1010015 Motor/Drum Bushing 1
34 810024 Lock Nut M10 6
35 810023 Flat Washer 10 6
36 810022 Lock Washer 10 6
37 810021 Cap Scerw M10×35 6
38 810025-N Terminal Protector 3
39 410022 Strap 1
40 811000-BF Roller Fairlead - Black Flat 1
41 810035 Retainer-Ring 50 1
42 P1011034 Hexagonal Shaft II 1
43 P1011033 Hexagonal Shaft I 1
44 C10038 Clevis Hook3/8" 1
45 810033 Motor Coupling 1
13 REV 11008-20120905
ENGLISH 11008
TROUBLESHOOTING
Problem Cause Solution
Motor does not turn on Switch Assembly not connected
properly
Insert Switch Assembly all the way into the connector.
Loose battery cable connections Tighten nuts on all cable connections.
Contactor malfunctioning Tap contactor to loosen contacts. Apply 12 volts to
coil terminals directly. A clicking indicates proper
activation.
Defective Switch Assembly Replace Switch Assembly.
Defective motor Check for voltage at armature port with Switch
pressed. If voltage is present, Replace motor.
Water has entered motor Allow to drain and dry. Run in short bursts without
load until completely dry.
Motor runs but Cable
drum does not turn
Clutch (Cam Ring) not engaged Move Cam Ring to the "In" position. If problem
persists, a qualified technician needs to check and
repair.
Motor runs slowly or
without normal power
Insufficient current or voltage The battery is weak, recharge. Run winch with vehicle
motor running (Battery should have a strong charge)
Loose or corroded battery cable
connections.
Clean, Tighten, or replace.
Motor overheating winch running time too long Allow winch to cool down periodically.
Motor runs in one
direction only
Defective or stuck Contactor Tap Contactor to loosen contacts.
Repair or Replace contactor.
Defective Switch Assembly Replace Switch Assembly.
For further technical support:
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
REV 11008-20120905 14
11008 ENGLISH
WARRANTY
WARRANTY
CHAMPION POWER EQUIPMENT
2 YEAR LIMITED WARRANTY
Effective September 1, 2006. Replaces all undated
warranties and all warranties dated before September 1,
2006.
Warranty Qualifications
Champion Power Equipment (CPE) will register this
warranty upon receipt of your Warranty Registration Card
and a copy of your sales receipt from one of CPE’s retail
locations as proof of purchase.
Please submit your warranty registration and your proof of
purchase within ten (10) days of the date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the
mechanical and electrical components will be free of
defects in material and workmanship for a period of
one year (parts and labor) and two years (parts) from
the original date of purchase (90 days (parts and labor)
and 180 days (parts) for commercial & industrial
use). Transportation charges on product submitted for
repair or replacement under this warranty are the sole
responsibility of the purchaser. This warranty only applies
to the original purchaser and is not transferable.
Do Not Return The Unit
To The Place Of Purchase
Contact CPE’s Technical Service and CPE will
troubleshoot any issue via phone or e- mail. If the
problem is not corrected by this method, CPE will, at its
option, authorize evaluation, repair or replacement of the
defective part or component at a CPE Service Center.
CPE will provide you with a case number for warranty
service. Please keep it for future reference. Repairs
or replacements without prior authorization, or at an
unauthorized repair facility, will not be covered by this
warranty.
Warranty Exclusions
This warranty does not cover the following repairs and
equipment:
Normal Wear
Winches need periodic parts and service to perform well.
This warranty does not cover repair when normal use has
exhausted the life of a part or the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if this
winch is deemed to have been misused, neglected,
involved in an accident, abused, loaded beyond the
winch’s limits, modified, installed improperly or
connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty.
Other Exclusions
This warranty excludes: The winch cable. Cosmetic
defects such as paint, decals, etc. Accessory parts such
as storage covers. Failures due to acts of God and other
force majeure events beyond the manufacturer’s control.
Problems cause by parts that are not original Champion
Power Equipment parts.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to
cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using
this winch. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE
A unit provided as an exchange will be subject to the
warranty of the original unit. The length of the warranty
governing the exchanged unit will remain calculated by
reference to the purchase date of the original unit.
This warranty gives you certain legal rights which may
change from state to state. Your state may also have other
rights you may be entitled to that are not listed within this
warranty.
Contact Information
Address
Champion Power Equipment, Inc.
Customer Service
10006 Santa Fe Springs Rd.
Santa Fe Springs, CA 90670
www.championpowerequipment.com
Customer Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free:1-877-338-0999
Fax no.: 1 (562) 236-9429
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
