OWNER’S MANUAL & OPERATING INSTRUCTIONS
12039 Smith Ave.
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
8400 Starting Watts/6750 Rated Watts (LPG)
9375 Starting Watts/7500 Rated Watts (Gas)
DUAL FUEL GENERATOR
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 71531-20140424
Electric Start
71531
MODEL NUMBER
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
AN IMPORTANT MESSAGE ABOUT TEMPERATURE:
Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to
40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to
50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.
WARNING:
The Engine Exhaust from this product contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm.
71531
Electric Start
DUAL FUEL GENERATOR
8400 Starting Watts/6750 Rated Watts (LPG)
9375 Starting Watts/7500 Rated Watts (Gas)
TABLE OF CONTENTS
Introduction ............................. 1
Introduction ........................... 1
Portable Power Generator .................. 1
Accessories ........................... 1
This Booklet ........................... 1
Manual Conventions. . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Rules ............................. 3
Fuel Safety ........................... 5
Controls and Features ...................... 6
Generator ............................. 6
Generator Panel ........................ 7
Parts Included ......................... 8
Wheel Kit .......................... 8
Other ............................. 8
Assembly ............................... 9
Remove the Generator from the Shipping Carton .. 9
Install the Wheel Kit ..................... 9
Install the Support Leg ................... 9
Connect the Battery ..................... 9
Add Engine Oil ........................ 10
Add Fuel (Gas) ........................ 11
Connecting Liquid Petroleum Gas
(LPG) Cylinder ....................... 12
Grounding ........................... 12
Operation .............................. 13
Generator Location ..................... 13
Grounding ........................... 13
Surge Protection ....................... 13
Fuel Selector Switch .................... 14
Starting the Engine ..................... 14
Gas ............................. 14
LPG ............................ 14
Connecting Electrical Loads ............... 15
Stopping the Engine .................... 15
Do Not Overload Generator ................ 15
Capacity .......................... 15
Power Management ................... 16
Operation at High Altitude ............... 16
Maintenance and Storage ................... 17
Engine Maintenance .................... 17
Oil .............................. 17
Spark Plugs ........................ 17
Air Filter .......................... 17
Spark Arrester ...................... 18
Cleaning .......................... 18
Adjustments ........................ 18
Maintenance Schedule ................ 18
Generator Maintenance .................. 18
Storage .............................. 19
Generator Storage .................... 19
Generator Battery .................... 19
Disconnect the Battery ................ 19
Charge the Battery ................... 19
Specifications ........................... 20
Engine Specifications ................... 20
Generator Specifications ................. 20
Fuel ............................... 20
Oil ................................ 20
Spark Plugs .......................... 20
Maintenance Valve Clearance .............. 20
An Important Message About Temperature .... 20
Parts Diagram ........................ 21
Parts List ............................ 22
Engine Parts Diagram ................... 23
Engine Parts List ...................... 24
Wiring Diagram ........................ 25
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty .............................. 27
Warranty Qualifications .................. 27
Repair/Replacement Warranty .............. 27
Do Not Return The Unit To
The Place Of Purchase .................. 27
Warranty Exclusions .................... 27
Normal Wear ....................... 27
Installation, Use and Maintenance ........ 27
Other Exclusions ..................... 27
Limits of Implied Warranty
and Consequential Damage ............. 27
Contact Information. . . . . . . . . . . . . . . . . . . . . 27
Address ........................... 27
Customer Service .................... 27
Technical Service .................... 27
1 REV 71531-20140424
ENGLISH 71531
Introduction
Congratulations on your purchase of a Champion
Power Equipment generator. CPE designs and builds
generators to strict specifications. With proper use and
maintenance, this generator will bring years of satisfying
service.
Portable Power Generator
This unit is a gasoline or LPG engine driven, alternating
current (AC) generator. It is designed to supply electrical
power for lighting, appliances, tools and similar
equipment.
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Accessories
Champion Power Equipment manufactures and sells
accessories designed to help you get the most from your
purchase. To find out more about our covers and power
cables, please visit our web site at:
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the accuracy and
completeness of the information in this manual. We reserve
the right to change, alter and/or improve the product and
this document at any time without prior notice.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
71531
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
INTRODUCTION
REV 71531-20140424 2
71531 ENGLISH
MANUAL CONVENTIONS
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your generator, we can
help. Please call our help line at 1-877-338-0999
NOTE
3 REV 71531-20140424
ENGLISH 71531
SAFETY RULES
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death. If you start to feel dizzy or weak, get to fresh
air immediately.
Operate generator outdoors only in a well ventilated
area.
DO NOT operate the generator inside any building,
including garages, basements, crawlspaces and
sheds, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE: using a generator
indoors CAN KILL YOU IN MINUTES.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged
or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in damp
areas and areas containing conductive material such
as metal decking.
Use approved transfer equipment to isolate generator
from your electric utility and Notify your utility
company before connecting your generator to your
power system.
DANGER
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it
cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can
occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all
sides to ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from
combustible materials.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
Read this manual thoroughly before operating your
generator. Failure to follow instructions could result
in serious injury or death.
WARNING
REV 71531-20140424 4
71531 ENGLISH
SAFETY RULES
Improper treatment or use of the generator can
damage it, shorten its life and void your warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
CAUTION
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
WARNING
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it.
DO NOT overload the generator.
Start the generator and allow the engine to stabilize
before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Medical and Life Support Uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support
devices or life support appliances.
NEVER use this product to power medical devices
or medical appliances.
Inform your electricity provider immediately if you
or anyone in your household depends on electrical
equipment to live.
Inform your electrical provider immediately if a
loss of power would cause you or anyone in your
household to experience a medical emergency.
WARNING
Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
WARNING
5 REV 71531-20140424
ENGLISH 71531
Gasoline and Gasoline Vapors (Gas):
– GAS IS HIGHLY FLAMMABLE AND EXPLOSIVE.
– Gas can cause a fire or explosion if ignited.
– Gas is a liquid fuel but it’s vapors can ignite.
– Gas is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
– Gas has a distinctive odor, this will help detect
potential leaks quickly.
– In any gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be
turned OFF. This is because if a fire is extinguished
and a supply of fuel is not turned OFF, then an
explosion hazard could be created.
– Gas expands or contracts with ambient temperatures.
Never fill the gas tank to full capacity, as gas needs
room to expand if temperatures rise.
Liquefied Petroleum Gas (LPG):
– LPG IS HIGHLY FLAMMABLE AND EXPLOSIVE.
– Flammable gas under pressure can cause a fire or
explosion if ignited.
– LPG is heavier than air and can settle in low places
while dissipating.
– LPG has a distinctive odor added to help detect
potential leaks quickly.
– In any petroleum gas fire, flames should not be
extinguished unless by doing so the fuel supply
valve can be turned OFF. This is because if a fire is
extinguished and a supply of fuel is not turned OFF,
then an explosion hazard could be created.
– When exchanging LPG cylinders, be sure the cylinder
valve is of the same type.
– Always keep the LPG cylinder in an upright position.
– LPG will burn skin if it comes in contact with it.
Keep any and all LPG away from skin at all times.
SAFETY RULES
Fuel Safety
GASOLINE, GASOLINE VAPORS AND LIQUID
PETROLEUM GAS (LPG) ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
DANGER
When adding or removing Gas:
Turn the generator off and let it cool for at least two
minutes before removing the fuel cap. Loosen the cap
slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gas directly into the generator at the gas
station. Use an approved container to transfer the fuel to
the generator.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames, pilot
lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the gas cap, air filter, spark plug, fuel
lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before attempting to
start the engine.
Make certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Make certain that a LPG cylinder is not attached to
generator and is securely stowed away.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat
and other sources of ignition.
Do not store generator, gas or LPG cylinder near
furnances, water heaters, or any other appliances that
produce heat or have automatic ignitions.
Never use a gas container, LPG connector hose,
gas tank, LPG cylinder or any other fuel item that is
damaged or appears damaged.
WARNING
REV 71531-20140424 6
71531 ENGLISH
Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
CONTROLS AND FEATURES
(1) Gas Fuel Tank – 6.1 gallon (23 L) capacity fuel
tank.
(2) Choke – Used to start the engine.
(3) Air Cleaner – Protects the engine by filtering dust
and debris from the intake air.
(4) Recoil Starter – Used to manually start the engine.
(5) LPG Hose Connector
(6) Oil Filler Cap – Check and fill engine oil level.
(7) Battery – Used to start the engine electrically.
(8) Power Panel – See “Power Panel” section.
(9) Fuel Selector Switch – Used to select fuel source.
Generator
1
4
3
2
7
6
5
8
9
7 REV 71531-20140424
ENGLISH 71531

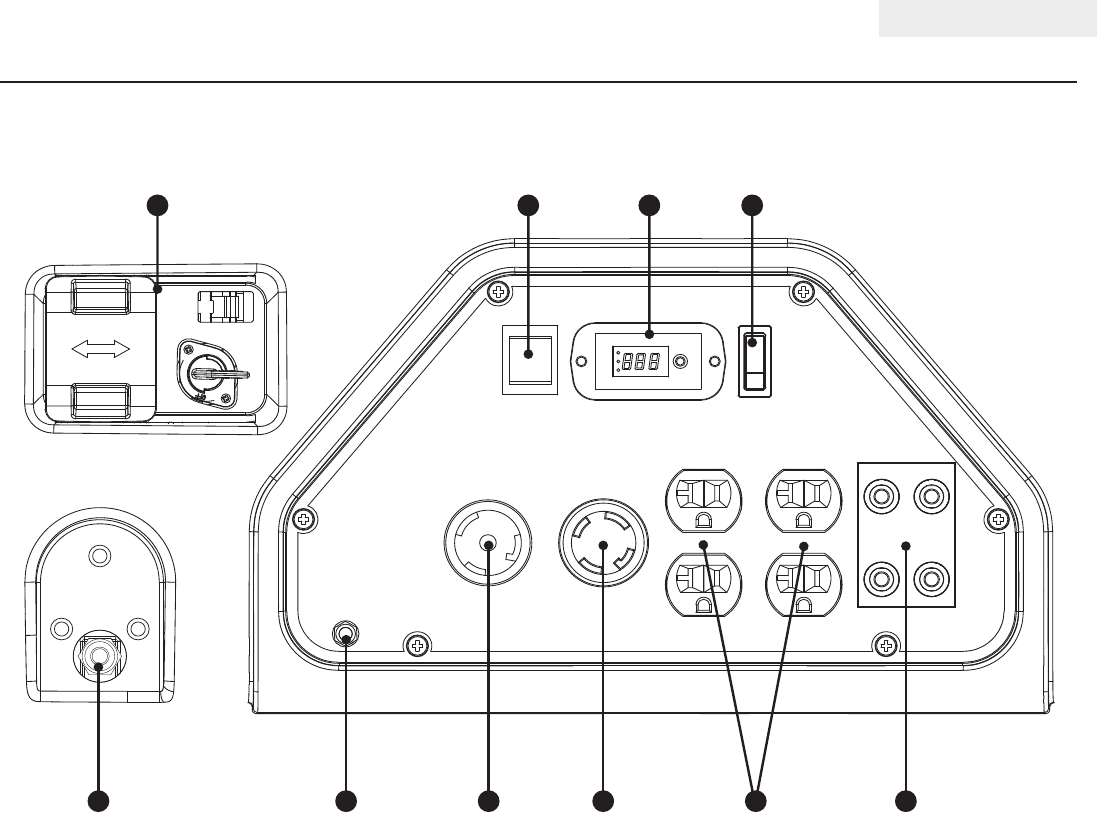

Generator Panel
1 2 3 4
5 76 8 10
(1) Fuel Selector Switch – Used to select and turn on
gas or LPG fuel source.
(2) Ignition Switch – Used to start or stop the
generator.
(3) Intelligauge – Three mode digital meter for
displaying running hours, voltage and hertz.
(4) Battery Switch – Enables/disables starting
electrically.
(5) LPG Hose Connector – Used to connect LPG hose
to generator.
(6) Ground Terminal – Consult an electrician for local
grounding regulations.
(7) 120 Volt AC, 30 Amp Twist-Lock Receptacle
(NEMA L5-30R) – May be used to supply electrical
power for the operation of 120 Volt AC, 30 Amp,
single phase 60 Hz electrical loads.
(8) 120/240 Volt AC, 30 Amp Twist-Lock Receptacle
(NEMA L14-30R) – May be used to supply
electrical power for the operation of 120
and/or 240 Volt AC, 30 Amp, single phase 60 Hz
electrical loads.
(9) 120 Volt AC, 20 Amp Duplex (2)
(NEMA 5-20R) – May be used to supply electrical
power for the operation of 120 Volt AC, 20 Amp,
single phase 60 Hz electrical loads.
(10) Circuit Breakers
CONTROLS AND FEATURES
9
REV 71531-20140424 8
71531 ENGLISH
Parts Included
Your 71531 Dual Fuel Generator ships with the following
parts:
Wheel Kit
– 9.5 in. (24.1 cm) Wheel ...................2
– Flange Bolt (M10x120 for Wheel) ............2
– Bushing ..............................2
– Flat Washer ø10 ........................2
– Lock Nut (M10) ........................2
– Support Leg w/Vibration Mounts .............1
– Flange Bolt (M8x16 for Support Leg) ..........2
– Flange Lock Nut (M8) ....................2
Other
– Oil ........................ 1.2 qt. (1.1 L)
– LPG Hose With Regulator 3.3 ft. (1 m) .........1
– Oil Funnel ............................1
– Spark Plug Socket ....................... 1
– Flange Bolt (M5x10 for Battery Terminals) ...... 2
– Flange Nut (M5) ........................2
CONTROLS AND FEATURES
(Battery Bolts)
9 REV 71531-20140424
ENGLISH 71531
ASSEMBLY
Your generator requires some assembly. This unit ships
from our factory without oil. It must be properly serviced
with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our help line at 1-877-338-0999. Please
have your serial number and model number available.
Remove the Generator from the Shipping Carton
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the
generator.
3. Carefully cut each corner of the box from top to
bottom. Fold each side flat on the ground to provide a
surface area to install the wheel kit and support leg.

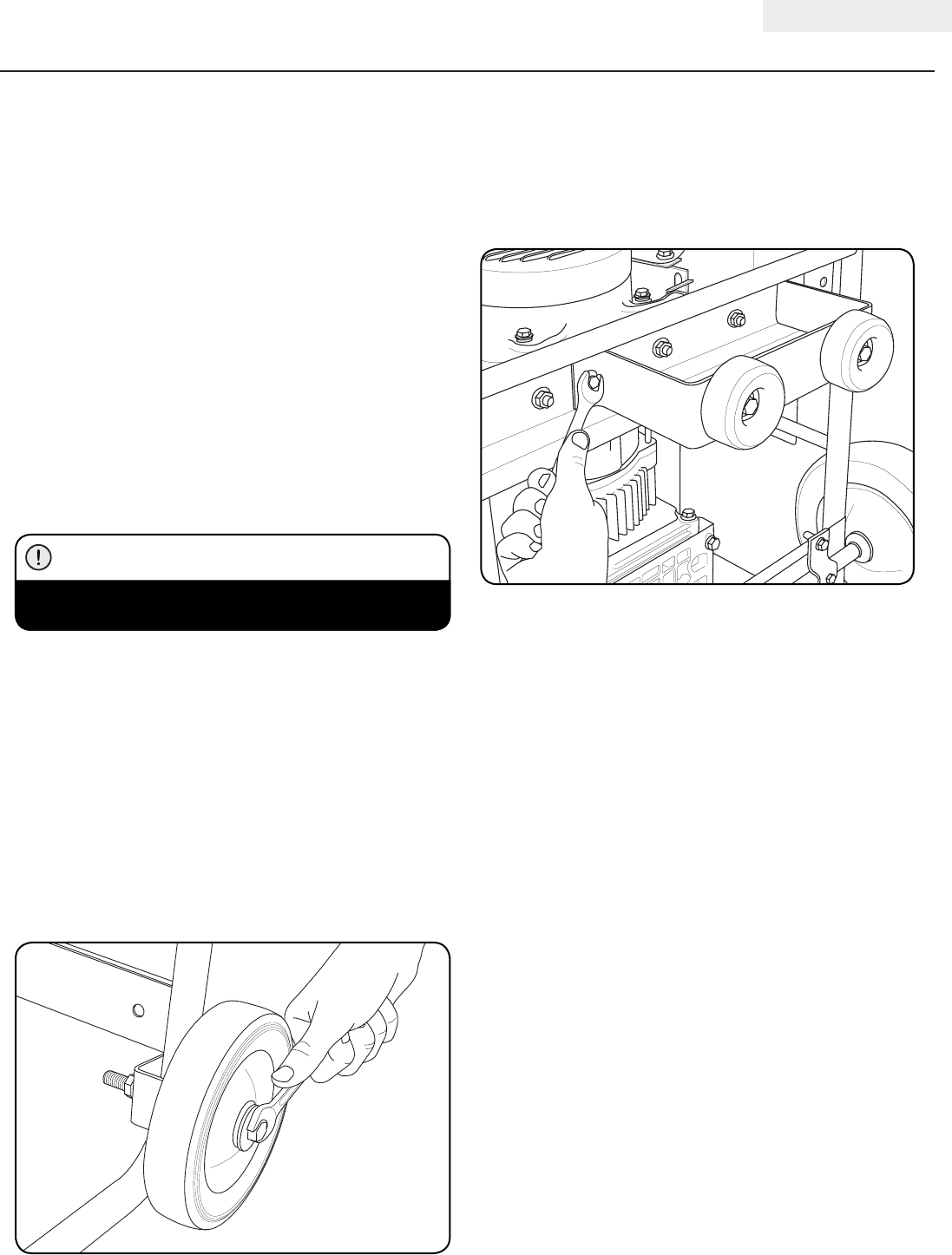

Install the Wheel Kit
You will need the following tools to install the wheels:
• 17 mm wrench OR adjustable wrench (not included)
• Socket wrench with a 16 mm socket (not included)
• Pliers (not included)
1. Before adding fuel and oil, tip the generator on it’s side.
2. Slide the M10x120 wheel bolt through the washer,
bushing and wheel.
3. Slide the bolt through the mount point on the frame.
4. Fasten securely with the M10 lock nut.
5. Repeat steps 2-4 to attach the second wheel.
Install the Support Leg
1. Attach the support leg to the generator frame with
flange bolt (M8x16) and flange lock nuts (M8).
2. Tip the generator slowly so that it rests on the
wheels and support leg.
The wheel kit is not intended for over-the-road use.
CAUTION
Connect the Battery
1. Remove the protective cover from the red (+) lead on
the battery.
2. Attach the red (+)lead to the red (+) terminal on the
battery with the cap screw (M5x10) and secure with
the nut (M5)
3. Repeat steps 1-2 for the black (–) battery lead.
REV 71531-20140424 10
71531 ENGLISH
1. Place the generator on a flat, level surface.

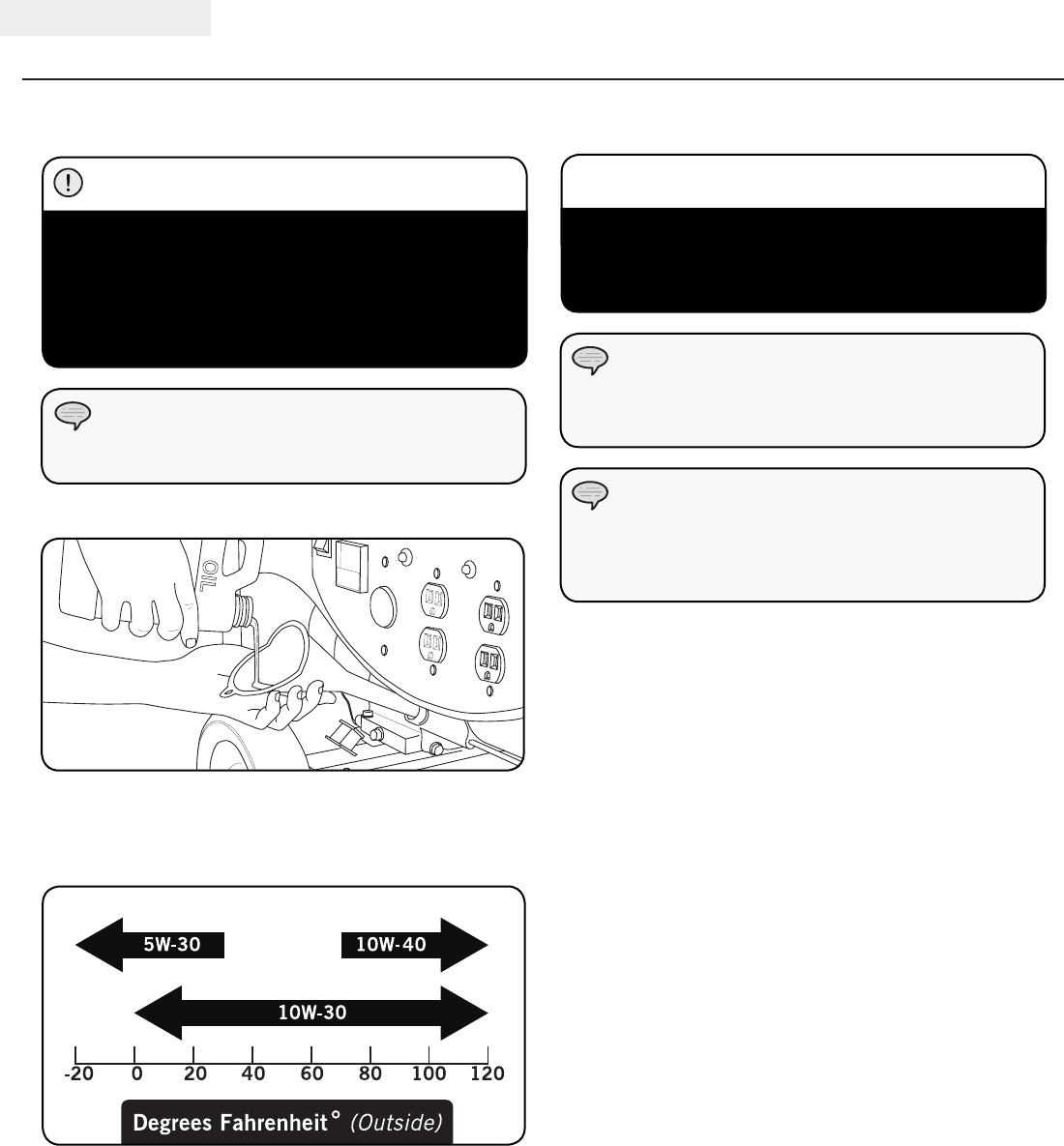

2. Remove oil fill cap/dipstick to add oil.
3. Add 1.2 qt. (1.1 L) of oil (included) and replace oil fill
cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level daily and add as needed.
The recommended oil type is 10W-30 automotive oil.
NOTE
The engine is equipped with a low oil shut-off and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
Add Engine Oil
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the generator as
a result of failure to follow these instructions will
void your warranty.
CAUTION
ASSEMBLY
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE
The generator rotor has a sealed, pre-lubricated ball
bearing that requires no additional lubrication for
the life of the bearing.
NOTE
Add Engine Oil Cont’d.
11 REV 71531-20140424
ENGLISH 71531
ASSEMBLY
Add Fuel (Gas) Cont’d.
Our engines work well with 10% or less ethanol
blend fuels. When using blended fuels there are
some issues worth noting:
– Ethanol-gasoline blends can absorb more water
than gasoline alone.
– These blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor.
– With gravity-fed fuel supplies, this compromised
fuel can be drawn into the carburetor and cause
damage to the engine and/or potential hazards.
– There are only a few suppliers of fuel stabilizer
that are formulated to work with ethanol blend
fuels.
– Any damages or hazards caused by using
improper fuel, improperly stored fuel, and/
or improperly formulated stabilizers, are not
covered by manufacture’s warranty.
It is advisable to always shut off the fuel supply,
run the engine to fuel starvation and drain the tank
when the equipment is not in use for more than 30
days.
NOTE
Add Fuel (Gas)
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol content
of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT OVERFILL.
Fuel can expand after filling. A minimum of
¼ in. (6.4 mm) of space left in the tank is required
for fuel expansion, more than ¼ in. (6.4 mm) is
recommended. Fuel can be forced out of the tank as
a result of expansion if it is overfilled, and can affect
the stable running condition of the product. When
filling the tank, it is recommended to leave enough
space for the fuel to expand.
6. Screw on the fuel cap and wipe away any spilled fuel.
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼ in. (6.4 mm) below the
top of the tank to allow for fuel expansion.
DO NOT pump gas directly into the generator at the
gas station. Use an approved container to transfer
the fuel to the generator.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION
Pouring fuel too fast through the fuel screen may
result in blow back of fuel at the operator while filling.
WARNING
REV 71531-20140424 12
71531 ENGLISH
ASSEMBLY
Do not allow children to tamper or play with the
cylinder or hose connections.
CAUTION
Use approved LPG cylinders equipped with an
OPD (overfilling prevention device) valve. Always
keep the cylinder in a vertical position with the
valve on top and installed at ground level on a flat
surface Cylinders must not be installed near any
heat source and should not be exposed to sun, rain,
and dust. When transporting and storing, turn off
the cylinder valve and fuel valve, and disconnect
the cylinder. Plug the outlet, usually by a plastic
protective cap, if one is available. Keep cylinders
away from heat and ventilated when in a vehicle.
CAUTION
Connecting LPG Cylinder Cont’d.
Grounding
Your generator must be properly connected to an
appropriate ground to help prevent electric shock.
A ground terminal connected to the frame of the generator
has been provided on the power panel. For remote
grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator
ground terminal and a copper rod driven into the ground.
We strongly recommend that you consult with a qualified
electrician to ensure compliance with local electrical codes.
Failure to properly ground the generator can result
in electric shock.
WARNING
– Use only standard 20 or 30 pound capacity LP
tanks with Type 1, right hand Acme threads.
– Verify the requalification date on the tank has
not expired.
– All new cylinders must be purged of air and
moisture prior to filling. Used cylinders that have
not been plugged or kept closed must also be
purged.
– The purging process should be done by a LPG
supplier. (Cylinders from an exchange supplier
should have been purged and filled properly
already).
– Always position the cylinder so the connection
between the valve and the gas inlet won’t cause
sharp bends or kinks in the hose.
NOTE

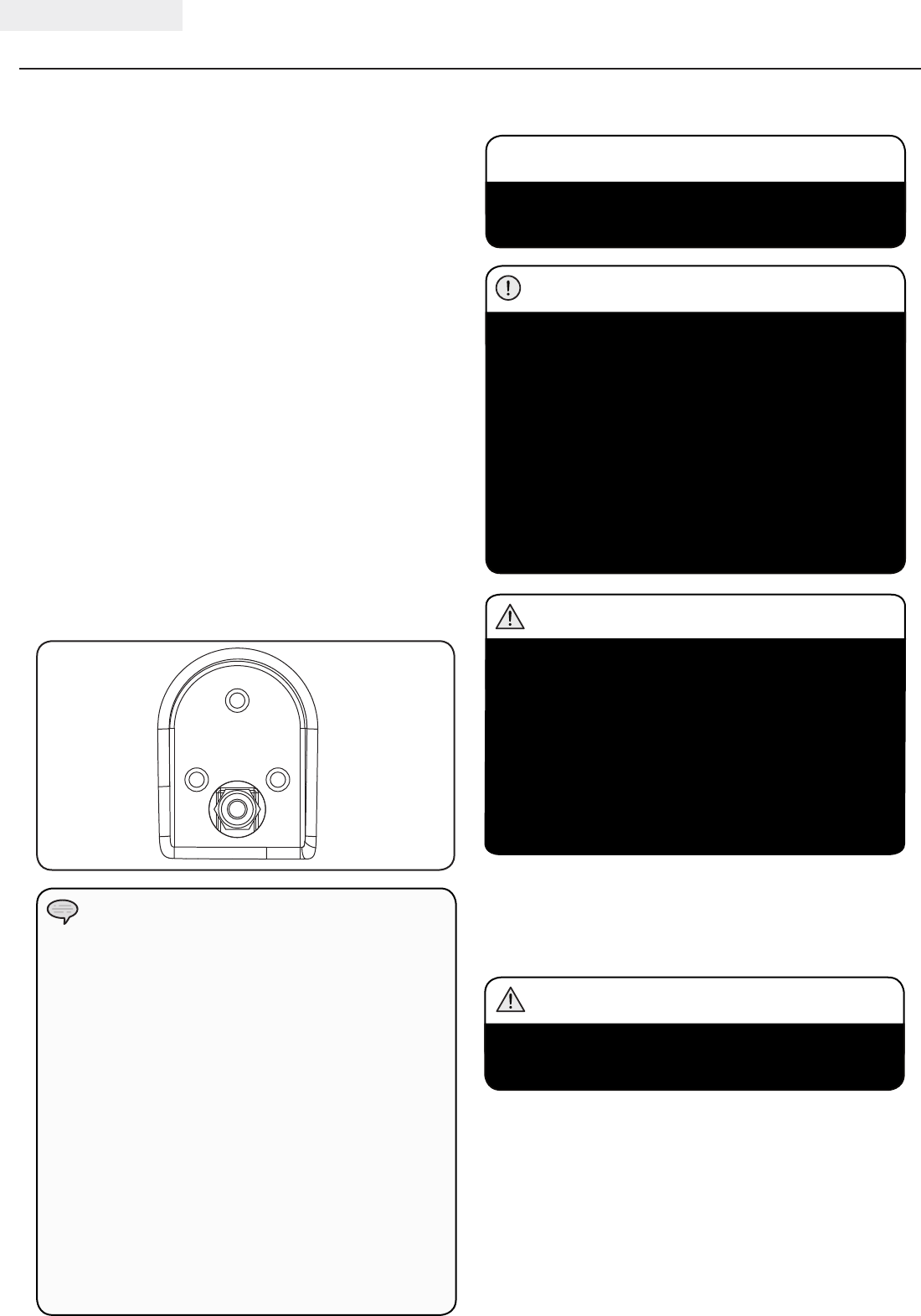

Connecting Liquid Petroleum Gas (LPG) Cylinder
1. Make sure the fuel valve on the generator is in the off
position.
2. Attach the LPG hose (included) to the LPG hose
connector on the side of the generator and tighten
with a 19 mm or adjustable wrench.
Important: DO NOT use tape or any other type of
sealant to seal LPG hose connection.
3. Remove the safety plug or cap from the cylinder
valve.
4. Attach the other end of the hose to the LPG
connector on the cylinder and hand tighten.
5. Check all connections for leaks by wetting the fittings
with a solution of soap and water. Bubbles which
appear or bubbles which grow indicate that a leak
exists. If a leak exists at a fitting then turn off the
gas valve at the tank and tighten the fitting. Turn the
gas back on and recheck the fitting with the soap
and water solution. If the leak continues or if the leak
is not at a fitting then do not use the generator and
contact customer service.
If there is a strong smell of gas: Close off the gas
supply at the cylinder. Use soapy water, which will
produce a large bubble at the point of any leak, to
check the hose, and connections on the cylinder valve
and the generator. Do not smoke or light a cigarette,
or check for leaks using a match, open flame source
or lighter. Contact a qualified technician to inspect
and repair the LPG system if a leak is found, before
using the generator.
WARNING
13 REV 71531-20140424
ENGLISH 71531
OPERATION
Generator Location
NEVER operate the generator inside any building,
including garages, basements, crawlspaces and sheds,
enclosure or compartment, including the generator
compartment of a recreational vehicle. Please consult
your local authority. In some areas, generators must
be registered with the local utility. Generators used at
construction sites may be subject to additional rules and
regulations. Generators should be on a flat, level surface
at all times. (Even while not in operation) Generators
must have at least 5 ft. (1.5 m) of clearance from all
combustible material. In addition to clearance from
all combustible material, generators must also have
at least 3 ft. (91.4 cm) of clearance on all sides to
allow for adequate cooling, maintenance and servicing.
Generators should never be started or operated in the
back of a SUV, camper, trailer, in the bed of a truck
(regular, flat or otherwise), under staircases/stairwells,
next to walls or buildings, or in any other location that
will not allow for adequate cooling of the generator
and/or the muffler. DO NOT contain generators during
operation. Allow generators to properly cool before
transport or storage.
Place the generator in a well-ventilated area. DO NOT
place the generator near vents or intakes where exhaust
fumes could be drawn into occupied or confined
spaces. Carefully consider wind and air currents when
positioning generator.
Failure to follow proper safety precautions may void
manufacturer’s warranty.
Do not operate or store the generator in rain, snow,
or wet weather.
Using a generator or electrical appliance in wet
conditions, such as rain or snow, or near a pool or
sprinkler system, or when your hands are wet, could
result in electrocution.
WARNING
WARNING
During operation the muffler and exhaust fumes
produced will become hot. If adequate cooling and
breathing space are not supplied, or if the generator
is blocked or contained, temperatures can become
extremely heated and may lead to fire.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are
designed to operate within a narrow voltage range and
may be affected by momentary voltage fluctuations.
While there is no way to prevent voltage fluctuations, you
can take steps to protect sensitive electronic equipment.
1. Install UL1449, CSA-listed, plug-in surge suppressors
on the outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet
styles. They’re designed to protect against virtually
all short-duration voltage fluctuations.
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
CAUTION
Grounding
The generator system ground connects the frame to the
ground terminals on the power panel.
– The generator (stator winding) is isolated from the
frame and from the AC receptacle ground pin.
– Electrical devices that require a grounded receptacle
pin connection will not function if the receptacle
ground pin is not functional.
REV 71531-20140424 14
71531 ENGLISH
OPERATION
The fuel selector switch cover is specifically
designed not to slide to either side while a specific
fuel has been selected and the valve is in the “ON”
position. Only when the fuel valves are in the “OFF”
position can the cover slide side to side.
NOTE
The fuel selector is locked into place once a
“CLICK” sound is made. Only then can a fuel valve
be turned to the vertical position.
NOTE
Fuel Selector Switch
The fuel selector switch on the front panel of the
generator is designed specifically to choose between the
fuel source desired, Gas or LPG.
To select a fuel source simply slide the switch cover to
either the right or left, and this will uncover the fuel
valve of the fuel selected.
The LPG fuel valve (A) is to the left of the switch cover.
The gas fuel valve (B) is to the right of the switch cover.
1A
2B
Once a fuel source has been selected, the user must
turn the fuel valve to the vertical position to open the
fuel valve. (1)
To turn a fuel valve to the off position the valve must be
in the horizontal position. (2)
Starting the Engine
Gas
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator.
Never start or stop the generator with electrical
devices plugged in or turned on.
3. Turn the gas fuel valve to the “ON” position.
4. Move the choke lever to the “CHOKE” position.
5. Flip the ignition switch to the “ON” position.
6. Turn the battery switch to the “ON” position.
7. ELECTRIC START: Press and hold the ignition switch
to the “START” position. Release as the engine
begins to roll over. If the engine fails to start within
five seconds, release the switch and wait at least ten
seconds before attempting to start the engine again.
8. RECOIL START: Pull the starter cord slowly until
resistance is felt and then pull rapidly.
9. Do not over-choke. As soon as engine starts, move the
choke lever to the “RUN” position.
LPG
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator.
Never start or stop the generator with electrical
devices plugged in or turned on.
3. Fully open the LPG cylinder fuel knob.
4. Turn the LPG fuel valve to the “ON” position.
5. Move the choke lever to the “RUN” position.
6. Flip the ignition switch to the “ON” position.
7. Turn the battery switch to the “ON” position.
8. ELECTRIC START: Press and hold the ignition switch
to the “START” position. Release as the engine
begins to roll over. If the engine fails to start within
five seconds, release the switch and wait at least ten
seconds before attempting to start the engine again.
9. RECOIL START: Pull the starter cord slowly three
or four times until resistance is felt. Next pull the
starter cord slowly until resistance is felt and then pull
rapidly.
Keep choke lever in “Choke” position for only 1
pull of the recoil starter. After first pull, move choke
lever to the “Run” position for up to the next 3
pulls of the recoil starter. Too much choke leads to
sparkplug fouling/engine flooding due to the lack of
incoming air. This will cause the engine not to start.
NOTE
15 REV 71531-20140424
ENGLISH 71531
OPERATION
Connecting Electrical Loads
1. Let the engine stabilize and warm up for a few
minutes after starting
2. Plug in and turn on the desired 120/240 Volt AC
single phase, 60 Hz electrical loads.
– DO NOT connect 3-phase loads to the generator.
– DO NOT connect 50 Hz loads to the generator.
– DO NOT overload the generator.
Connecting a generator to your electric utility company’s
power lines or to another power source may be against
the law. In addition this action, if done incorrectly, could
damage your generator and appliances and could cause
serious injury or even death to you or a utility worker who
may be working on nearby power lines. If you plan to run a
portable electric generator during an outage, please notify
your electric utility company immediately and remember
to plug your appliances directly into the generator. Do not
plug the generator into any electric outlet in your home.
Doing so could create a connection to the utility company
power lines. You are responsible for ensuring that your
generator’s electricity does not feed back into the electric
utility power lines.
If the generator will be connected to a building electrical
system, consult your local utility company or a qualified
electrician. Connections must isolate generator power from
utility power and must comply with all applicable laws and
codes.
NOTE
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start
or stop the generator with electrical devices plugged
in or turned on.
2. Let the generator run at no-load for several minutes
to stabilize internal temperatures of the engine and
generator.
3. Turn the Fuel Valve to the “OFF” position.
4. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
5. Press the engine switch to the “OFF” position.
6. Turn Battery Switch to the “Off” Position.
Important: Always ensure that the Fuel Valve and the
Engine Switch are in the “OFF” position when the
engine is not in use.
When turning off the generator after LPG operation, turn
the fuel knob on LPG cylinder off too. Make sure it is in
the fully closed position.
NOTE
If the engine will not be used for a period of two (2) weeks
or longer, please see the Storage section for proper engine
and fuel storage.
NOTE
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and
starting watts necessary for your purposes.
1. Select the electrical devices you plan on running at
the same time.
2. Total the running watts of these items. This is
the amount of power you need to keep your items
running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Surge wattage is the extra
burst of power needed to start some electric driven
equipment. Following the steps listed under “Power
Management” will guarantee that only one device will
be starting at a time.
If the engine starts but does not run make certain that
the generator is on a flat, level surface. The engine
is equipped with a low oil sensor that will prevent the
engine from running when the oil level falls below a
critical threshold.
NOTE
When the battery switch is in the “ON” position, the
switch will light up if the battery is sending out a
charge. If the switch does not light up while in the “ON”
position, check that the battery connection is still good.
NOTE
The supplied 12V 15AH battery does re-charge while the
engine is running, but it is also recommended that the
battery be fully charged at least once per month.
NOTE
Starting the Engine Cont’d.
If the ignition switch is held down in the “Start” position
longer than 5 seconds it could damage the starter.
CAUTION
REV 71531-20140424 16
71531 ENGLISH
OPERATION
Never exceed the specified capacity when adding
loads to the generator.
NOTE
Operation using the alternative main jet at
elevations lower than the recommended minimum
altitude can damage the engine. For operation at
lower elevations, the standard main jet must be
used. Operating the engine with the wrong engine
configuration at a given altitude may increase
its emissions and decrease fuel efficiency and
performance.
WARNING
Carburetor
Code Main Jet Part Number Altitude
P28-3-Z
Standard 47.1 31017. 2 1. Z
5500 Feet
(1676 Meters)
Altitude 47.131017.21.01.Z
P28-3-H
Standard 47.1 31017. 2 1. H
Altitude 47.131017.21.01.H
P28-3-Y
Standard 47.1 31017. 2 1.Y
Altitude 47.131017.21.01.Y
Do Not Overload Generator Cont’d. Operation at High Altitude Cont’d.
NOTE
Observing frost on LPG containers and regulators
is common during operation and normally is not
an indication of a problem. As LPG vaporizes and
travels from the tank to the generator engine it
expands. The amount of frost that forms can be
affected by the size of the container, the amount of
fuel being used, the humidity of the air and other
operating conditions. In unusual situations this
frost may eventually restrict the flow of gas to the
generator resulting in deteriorating performance.
For example, if the tank temperature is reduced
to a very low level then the rate at which the LPG
vaporizes is also reduced and may not provide
sufficient fuel flow to the engine. This is not an
indication of a problem with the generator but
only a problem with the flow of gas from the LPG
container. If generator performance seems to be
deteriorating at the same time that ice formation is
observed on tank valve, hose or regulator then some
actions may be taken to eliminate this symptom.
In these rare situations it can be helpful to reduce
or eliminate the cold fuel system effects by doing
one of the following:
– Exchanging fuel tanks to allow the first tank to
warm up, repeating as necessary
– Placing the LPG container at the end of the
generator near the handle, where engine fan air
flows out from the generator. This air is slightly
heated by flowing over the engine. The container
should not be placed in the path of the muffler
outlet.
– The container can be temporarily warmed by
pouring warm water over the top of the tank.
Operation at High Altitude
The density of air at high altitude is lower than at sea
level. Engine power is reduced as the air mass and air-
fuel ratio decrease. Engine power and generator output
will be reduced approximately 3½% for every 1000
feet of elevation above sea level. This is a natural trend
and cannot be changed by adjusting the engine. At high
altitudes increased exhaust emissions can also result
due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting,
increased fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural
power loss, Champion Power Equipment can provide a
high altitude carburetor main jet. The alternative main
jet and installation instructions can be obtained by
contacting Customer Support. Installation instructions
are also available in the Technical Bulletin area of the
Champion Power Equipment internet site.
The part number and recommended minimum altitude
for the application of the high altitude carburetor main
jet is listed in the table below.
In order to select the correct high altitude main jet
it is necessary to identify the carburetor model. For
this purpose, a code is stamped on the side of the
carburetor. Select the correct main jet part number
corresponding to the carburetor code found on your
particular carburetor.
Power Management
Use the following formula to convert voltage and
amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach
the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
17 REV 71531-20140424
ENGLISH 71531
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
Never operate a damaged or defective generator.
Tampering with the factory set governor will void
your warranty.
Air Filter
1. Remove the snap-on cover holding the air filter to
the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to remove all
excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in place.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Use the spark plug tool that shipped with your
generator to remove the plug.
3. Inspect the electrode on the plug. It must be clean and
not worn to produce the spark required for ignition.
4. Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
5. Refer to the spark plug recommendation chart when
replacing the plug.
6. Carefully thread the plug into the engine.
7. Use the spark plug tool to firmly install the plug.
8. Attach the spark plug wire to the plug.
For service or parts assistance, contact our help
line at 1-877-338-0999
NOTE
Maintenance, replacement, or repair of emission
control devices and systems may be performed
by any non-road engine repair establishment or
individual.
NOTE
WARNING
WARNING
Improper maintenance will void your warranty.
WARNING
Oil Cont’d.
0.7 - 0.8 mm
0.028 - 0.031 in.
MAINTENANCE AND STORAGE
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.

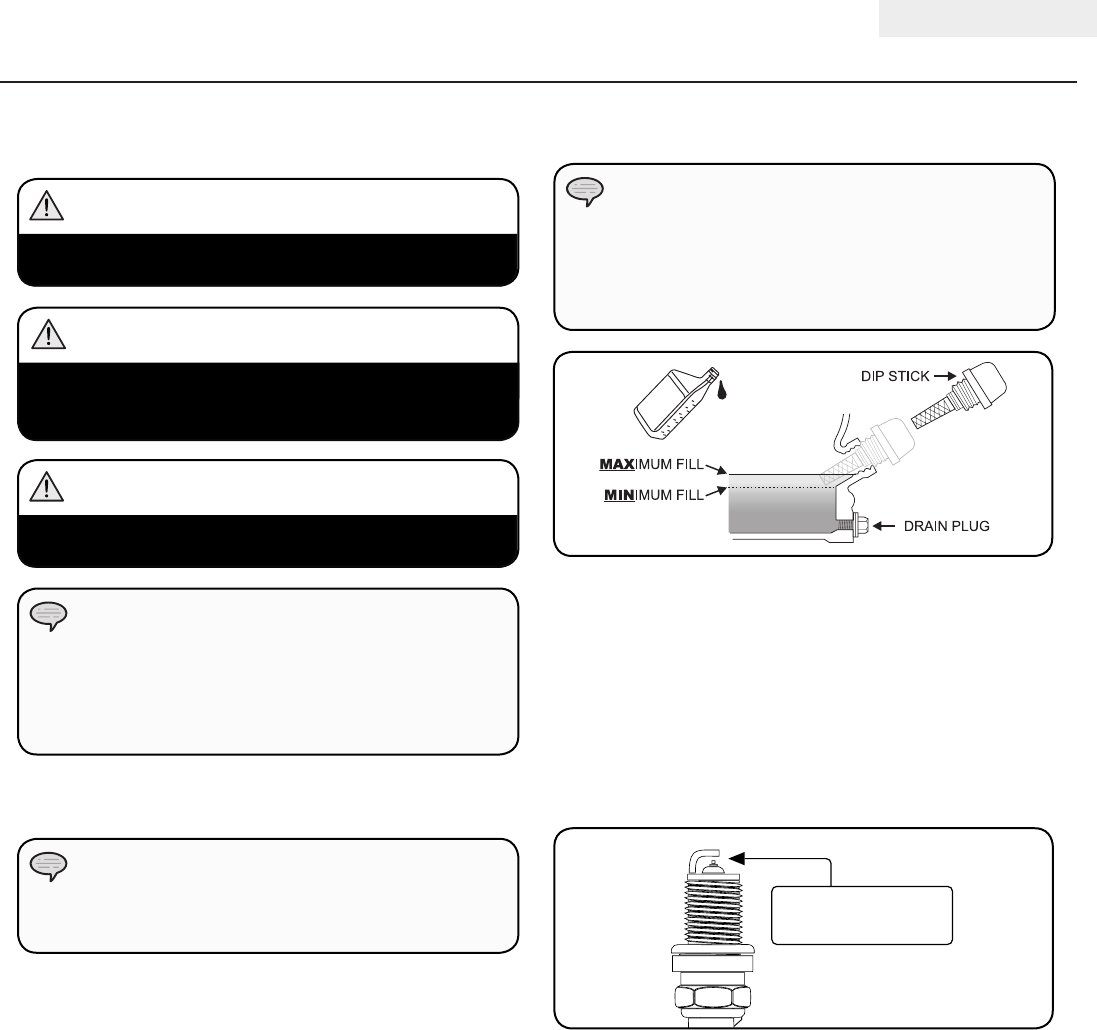

Oil

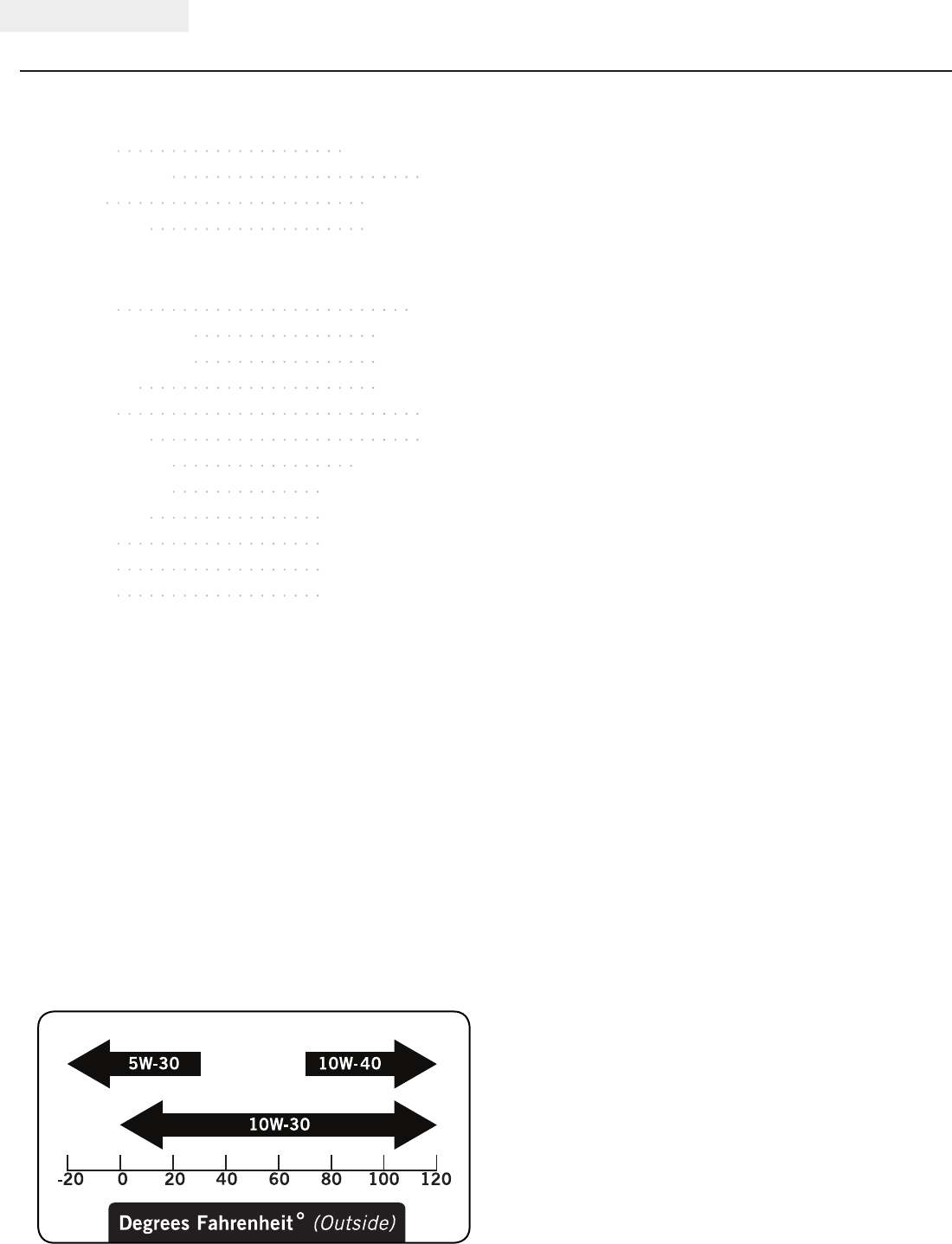

Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Remove the oil drain plug with a 15 mm socket and
extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add 1.2 qt. (1.1 L) of oil and replace oil fill
cap/dipstick. DO NOT OVERFILL.
6. Dispose of used oil at an approved waste
management facility.
REV 71531-20140424 18
71531 ENGLISH
Adjustments
The air-fuel mixture is not adjustable. Tampering with
the governor can damage your generator and your
electrical devices and will void your warranty. CPE
recommends that you contact our service line at
1-877-338-0999 for all other service and/or adjustment
needs.
Maintenance Schedule
Follow the service intervals indicated in the following
maintenance schedule.
Service your generator more frequently when operating
in adverse conditions.
Contact our helpline at 1-877-338-0999 to locate the
nearest Champion Power Equipment certified service
dealer for your generator or engine maintenance needs.
Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.
Cleaning
DO NOT spray engine with water.
CAUTION
Water can contaminate the fuel system.

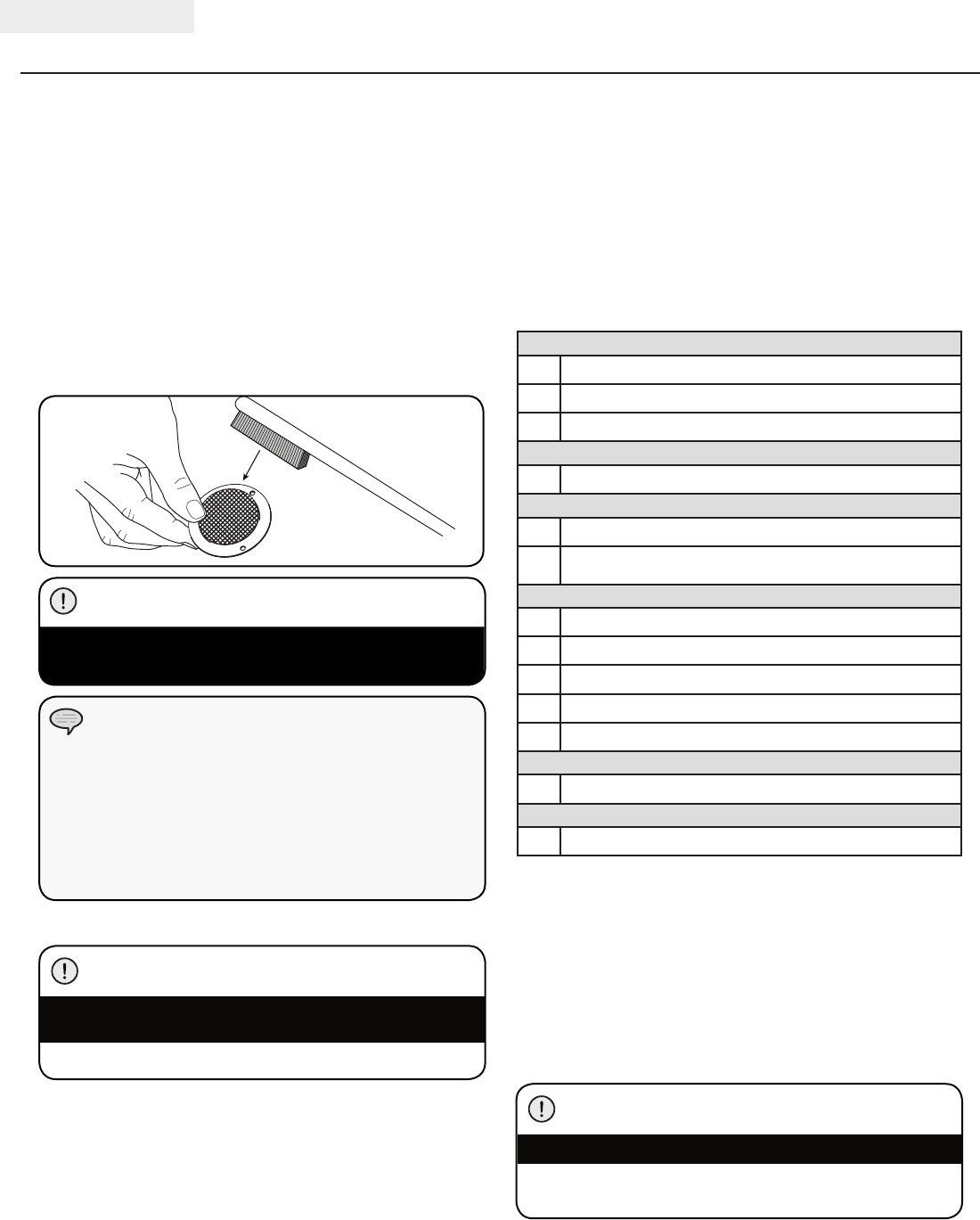

Spark Arrester
1. Allow the engine to cool completely before servicing
the spark arrester.
2. Remove the three screws holding the cover plate
which retains the end of the spark arrester to the
muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits from the spark
arrester screen with a wire brush.
5. Replace the spark arrester if it is damaged.
6. Position the spark arrester in the muffler and attach
with the three screws.
Failure to clean the spark arrester will result in degraded
engine performance.
CAUTION
MAINTENANCE AND STORAGE
Federal and local laws and administrative requirements
indicate when and where spark arresters are required.
When ordered, spark arresters are required for operation
of this generator in National Forest lands. In California,
this generator must not be used on any forest- covered
land, brush-covered land, or grass- covered land unless
the engine is equipped with a spark arrester.
NOTE
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
Generator Maintenance
Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in
a clean, dry operating environment. DO NOT expose the
unit to extreme conditions, excessive dust, dirt, moisture
or corrosive vapors.
Use a damp cloth to clean exterior surfaces of the generator.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the generator.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
DO NOT use a garden hose to clean the generator.
Water can enter the generator through the cooling
slots and damage the generator windings.
CAUTION
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
Check hoses for leaks
First 5 hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load or in hot
environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance*
Clean spark arrester
Clean fuel tank and filter*
Every 250 hours
Clean combustion chamber*
Every 3 years
Replace fuel line and LPG hose
19 REV 71531-20140424
ENGLISH 71531
MAINTENANCE AND STORAGE
Storage
The generator should be started at least once every 14
days and allowed to run for at least 20 minutes. For
longer term storage, please follow these guidelines.
Generator Storage
1. Add a properly formulated fuel stabilizer to the tank.
2. Be sure all appliances are disconnected from the
generator.
3. Run the generator for a few minutes so the treated
fuel cycles through the fuel system and carburetor.
4. Turn the fuel valve to the “Off” position.
5. Let the generator run until fuel starvation has
stopped the engine. This usually takes a few minutes.
6. The generator needs to cool acompletely before
cleaning and storage.
7. Clean the generator according to the maintenance
section.
8. Change the oil.
9. Remove the spark plug and pour about 1⁄2 ounce
(14.8 mL) of oil into the cylinder. Crank the engine
slowly to distribute the oil and lubricate the cylinder.
10. Reattach the spark plug.
11. Store the unit in a clean, dry place out of direct
sunlight.
Generator Battery
This product is equipped with an automatic battery
charging circuit. The battery will receive charging
voltage when the engine is running. The battery will
maintain a proper charge if the unit is used on a regular
basis (about once every two weeks). If it is used less
frequently, the battery should be connected to a trickle
charger or battery maintainer to keep the battery
properly charged. If the battery is not able to start the
engine, it can be started by manually pulling the engine
recoil cord. If the battery voltage is extremely low,
the charging circuit may not be able to re-charge the
battery. In this case, the battery must be connected to a
standard automotive style battery charger for re-charging
before it can be used.
Disconnect the Battery
1. Remove the protective cover from the black/negative
battery lead.
2. Disconnect the black/negative lead from the black/
negative terminal on the battery and store the cap
screw (M5x10) and nut (M5).
3. Repeat steps 1-2 for the red/positive battery lead.
4. Store the battery in a cool, dry place.
A Float Charger will maintain the battery condition
over long storage periods.
NOTE
Charge the Battery
For a generator equipped with batteries for electric
starting, proper battery maintenance and storage should
be followed. An automatic battery charger (not included)
with automatic trickle charging capability should be used
to charge the battery. Maximum charging rate should not
exceed 1.5 amps. Follow the instructions included with
the battery charger. The battery should be fully charged
at least once per month.
Generator exhaust contains odorless and colorless
carbon monoxide gas.
To avoid accidental or unintended ignition of your
remote start generator during periods of storage,
the following precautions should be followed:
– When storing the generator for short periods of
time make sure that the Ignition Switch, the Fuel
Valve and the Battery Switch are set in the OFF
position.
– When storing the generator for extended periods
of time make sure that the Ignition Switch, the
Fuel Valve and the Battery Switch are set in the
the the OFF position and the battery leads have
been disconnected from the battery.
DANGER
REV 71531-20140424 20
71531 ENGLISH
Oil
Use 10W-30 automotive oil.
Oil capacity is up to 1.2 qt. (1.1 L).
DO NOT OVERFILL.
Please reference the following chart for recommended
oil types for use in the generator.
Fuel
Fuel (Gas) capacity is 6.1 gal. (23 L).
– Use regular unleaded gasoline with a minimum
octane rating of 85 and an ethanol content of less
than 10% by volume.
– Use only an approved LPG cylinder equipped with an
OPD valve.
SPECIFICATIONS
Engine Specifications
– Model .....................YF190FD-2-L_G
– Displacement .......................439cc
– Type ........................4-Stroke OHV
– Start Type ....................Electric Start
Maintenance Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
Spark Plugs
OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
An Important Message About Temperature
Your Champion Power Equipment product is designed
and rated for continuous operation at ambient
temperatures up to 40°C (104°F). When your product is
needed your product may be operated at temperatures
ranging from -15°C (5°F) to 50°C (122°F) for short
periods. If the product is exposed to temperatures
outside this range during storage, it should be brought
back within this range before operation. In any event,
the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and
other vents.
Generator Specifications
– Model ........................... 71531
– Running Wattage .................7500 Watts
– Starting Wattage ................. 9375 Watts
– AC Load ...................... 120/240 V
– Phase ............................Single
– Frequency .........................60 Hz
– Fuel Capacity .................6.1 gal. (23 L)
– Gross Weight ..............213.4 lb. (96.8 kg)
– Net Weight ................202.4 lb. (91.8 kg)
– Height ................... 26.4 in. (67.1 cm)
– Width ...................28.7 in. (72.9 cm)
– Length. . . . . . . . . . . . . . . . . . . 27.8 in. (70.3 cm)
21 REV 71531-20140424
ENGLISH 71531
SPECIFICATIONS
Parts Diagram
22 2324
2526
27 28
29
30
31
32 33 34 35 36 37 3834 39
40
41
33 34 42434445
46
47
48
49
50
51
52
53
54
55
56
57
66
23
82
83
84
85
8687
88
44
65
1 2 45
6
7
8
9
10
11 1213
14 15
16
17
18
19
20
21
5
5
16
59
62
6364
60
61
67
68
69
70
71
72
73
7475
7677
78
79
80
81
76
89
9091
92
93
95
97
98
99
94
100
103 104
105106
68
107
76
108
111
110
112
114
116
65
117118
119
120
121122123 124 125
127
128
126
115
129
130
135
136
137
131 132
52
3
20
113
133
134
58
58
109
96
101
102
REV 71531-20140424 22
71531 ENGLISH Parts List
#Part Number Description Qty
12.06.006 Clamp (Ø7×Ø1) 3
22.05.001 Clamp (Ø8×6.5) 2
3152.070014.05 Pipe, Reversal Valve (810 mm) 1
4152.070013.03 Pipe, Air Cleaner (135 mm) 1
51.5789.0608 Flange Bolt M6×8 6
6152.070018.02 Board, Heat Insulation 1
7152.070702.06 Support Arm, Top 1
8152.070700.02 Carbon Canister (650cc) 1
91.16 674.0 812 Flange Bolt M8×12 2
10 152.070702.05 Support Arm, Bottom 1
11 122.070100.07 Fuel Tank Cap 1
12 122.070300.03 Fuel Filter 1
13 24.070800.00 Reversal Valve 1
14 152.071000.31.48 Fuel Tank, Yellow 1
15 1.5789.0620.2 Flange Bolt M6×20 4
16 1.93.06 Spring Washer Ø6 8
17 2.03.004 Washer (Ø24×Ø6.5×1.5) 4
18 122.070015.01 Mount Vibration, Fuel Tank 4
19 21.070600.01 Connect (copper) 1
20 2.06.016 Clamp (Ø8.7×b6) 4
21 152.070011.08 Fuel Pipe (265 mm) 1
22 45.090006.20 Holder, Air Cleaner 1
23 1.6177.1.06 Flange Lock Nut M6 3
24 1.848.08 Washer Ø8 2
25 1.93.08 Spring Washer Ø8 2
26 1.6175.08 Nut M8 2
27 46.100001.07 Muffler Gasket 1
28 46.101000.01.2 Muffler Assembly 1
29 1.9074.4.0510 Screw And Washer Assembly M5×10 3
30 46.101300.00 Spark Arrester Assembly 1
31 1.16 674.0 820 Flange Bolt M8×20 2
32 1.6175.05 Nut M5 2
33 1.97.1.05 Washer Ø5 4
34 1.93.05 Spring Washer Ø5 5
35 2.08.071 Bolt M5×229 2
36 1.97.1.06 Washer Ø6 4
37 152.190300.00 Carbon Brush Assembly 1
38 122.190004.01 Pinch, Carbon Brush 1
39 1.5783.0520 Bolt M5×20 1
40 1.16 674.0512.2 Flange Bolt M5×12 2
41 152.190003.00.48 Generator End Cover, Yellow 1
42 1.5783.0516 Bolt M5×16 2
43 122.190400.00 Terminal Block 1
44 1.16674.0516 Flange Bolt M5×16 3
45 153.190200.03 AVR (6KW) 1
46 152.190002.00 End Housing 1
47 2.08.069 Flange Bolt M6×194 4
48 153.191002.00 Stator Cover 1
49 2.08.070 Flange Bolt M10×280 1
50 153.191200.18 Stator Assembly, Al, 158 mm 1
51 1.7244.10 Lock Washer Ø10 1
52 1.96.10 Washer Ø10 3
53 153.191100.18 Rotor Assembly, Al, 158 mm 1
54 152.192300.00 Air Guide 1
55 152.190005.00 Rubber, Fore- Cover, A 1
56 152.190005.01 Rubber, Fore- Cover, B 1
57 47. 69 0 Engine 1
58 1.5789.0612 Flange Bolt M6×12 3
59 152.200702.02 Cover, Handle 1
60 152.200703.03 Long Pin, Handle 2
61 1.894.1.10 Circlip Ø10 2
62 152.200701.14 Handle, U Style 1
63 1.894.1.08 Circlip Ø8 2
64 152.200703.02 Short Pin, Handle 2
65 1.862.06 Lock Washer Ø6 2
66 5.1900.026 Grounding Line 150 mm 1
67 152.200800.09.2 Decorative Plate 1
68 152.070031.00 Jacket, LPG Hose 3
69 6.5.233.420.2 Frame 1
#Part Number Description Qty
70 1.6177.1.10 Flange Lock Nut M10 4
71 152.201200.03 Motor Mount, I 2
72 1.6182.10 Lock Nut M10 2
73 152.201701.09 9.5 in. PU Wheel 2
74 122.200016.01 Bushing (Ø16×Ø10.5×59) 2
75 1.5782.10120 Bolt M10 ×120 2
76 1.6177.1.08 Flange Lock Nut M8 9
77 152.201200.04 Motor Mount, II 2
78 1.5789.0816 Flange Bolt M8×16 2
79 152.200002.01.2 Support Leg (84 mm) 1
80 152.201400.00 Rubber, Support 2
81 1.5789.0825 Flange Bolt M8×25 2
82 1.9 074.3.0510 Screw And Washer Assembly M5×10 2
83 1.6177.1.05 Flange Lock Nut M5 2
84 9.1000.150 Battery 12V15AH 1
85 152.200904.00 Pinch, Rubber 1
86 5.1900.014 Black Wire, 320 mm, Battery 1
87 5.1900.021 Red Wire, 480 mm, Battery 1
88 152.200013.01 Jacket, Wire 3
89 152.201004.00 Lock Catch 2
90 152.200019.00.48 Switch Handle, Yellow 1
91 1.6170.03 Nut M3 1
92 5.1050.000 Switch 1
93 1.819.1.0330 Screw M3×30 1
94 2.06.023 Clip Ø20 4
95 1.6182.05 Lock Nut M5 1
96 122.070032.00 Sleeve, Knob 1
97 122.070025.02 Knob 1
98 1.823.0408 Screw M4×8 2
99 122.074000.01 Cut-off Valve, B 1
100 152.070012.05 Pipe (40 mm) 1
101 2.08.055 Bolt M6×14 3
102 47.130021.01 LPG Hose with regulator 3.3 ft. (1 m) 1
103 9.1500.002 Sleeve, Connector 1
104 47.136000.01 Pressure-reducing Valve 1
105 152.070012.06 Pipe (750 mm) 1
106 152.200018.00 Supporter 1
107 152.070031.01 Jacket, Fuel Hose 1
108 1.845.4816 Screw ST4.8 ×16 2
109 2.06.050 Clip (Ø8×Ø18) 1
110 1.845.3513 Screw ST3.5×13 1
111 122.070400.06 Fuel Cock 1
112 152.070011.09 Fuel Pipe (480 mm) 1
113 152.199.01.2 Control Panel 1
114 5.1000.001.3 Ignition Switch, Red 1
115 1.9074.4.0514.1 Screw M5×14, Black 6
116 5.1120.008 Receptacle L5-30R 1
117 1.5783.0622.3 Bolt M6×22, Green 1
118 1.6175.06.3 Nut M6, Green 2
119 1.97.1.06.3 Washer Ø6, Green 2
120 1.93.06.3 Spring Washer Ø6, Green 2
121 5.1120.009 Receptacle L14-30R 1
122 5.1120.010 Receptacle 5-20R Duplex 2
123 5.1210.930 A.C 30A Breaker, Push button 2
124 5.1210.920 A.C 20A Breaker, Push button 2
125 5.1810.003 VFO Diode 1
126 1.823.0514 Screw M5×14, Black 3
127 5.1800.004 Rectifier 1
128 5.1820.001 Charger 1
129 5.1000.000.3 Battery Switch, Red 1
130 5.1430.002 Intelligauge 1
131 1.9074.4.0414.1 Screw And Washer Assembly M4×14,
Black 2
132 1.6177.1.04.1 Flange Lock Nut M4, Black 10
133 1.5789.0615.1 Flange Bolt M6×15, Black 4
134 152.210002.17 Control Box 1
135 122.210003.01 Plug, Control Box 1
136 5.1330.017 Sheath, Wire 1
137 152.210003.02 Plug, End Cover 1
23 REV 71531-20140424
ENGLISH 71531
SPECIFICATIONS

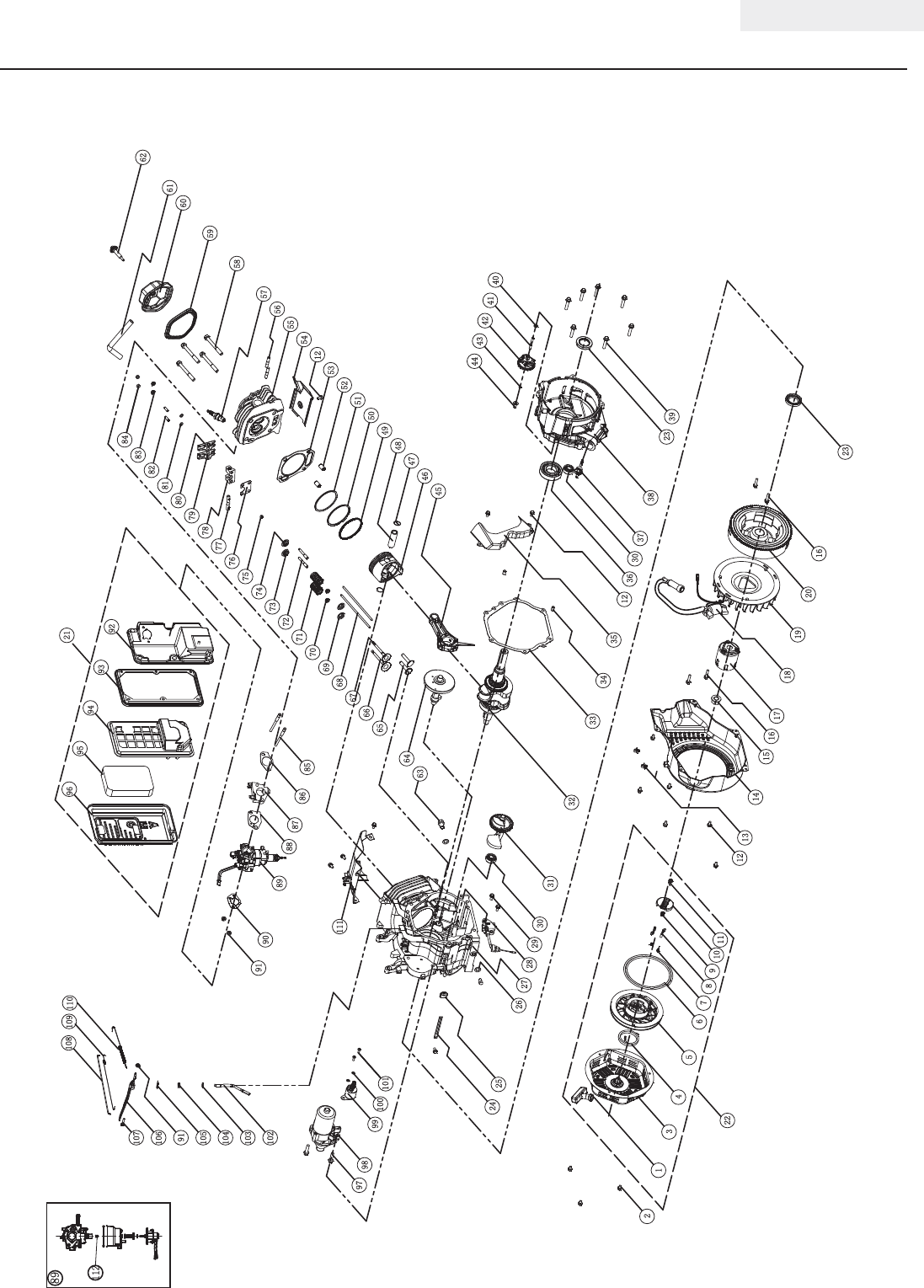

Engine Parts Diagram
45
64
40
102
103
104
105
91
106
107
110
109
108
85
10
1
2
3
4
5
6789
11
12 13
14
15 16 17
18
19
20
16
24 25
26 27 28 29 30
31
33
34
35
12 36 30 37
38
23 39
41
42
43
44
46
47
48
49
50
51
52
53
12
54
55
57
58
59
60
61
62
65
66
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
86
87
88
67
83
84
56
94
95
96
111
89
97 98
99 100101
23
93
89
112
63
32
92
21
22
90
91
REV 71531-20140424 24
71531 ENGLISH
#Part Number Description Qty
121.061300.00 Recoil Handle 1
21.5789.0608 Flange Bolt M6×8 3
346.061100.00.2 Recoil Starter Cover, Black 1
445.060005.00 Recoil Starter Spring 1
545.061102.00 Recoil Starter Reel 1
62.10.003 Rope (Ø5×1550) 1
745.060003.00 Spring, Ratchet 2
845.060002.00 Starter Ratchet (Iron) 2
945.060009.00 Spring, Ratchet Guide 1
10 45.060007.00 Ratchet Guide 1
11 45.060008.00 Screw, Ratchet Guide 1
12 1.5789.0612 Flange Bolt M6×12 12
13 2.05.009 Clamp (12.5×7) 2
14 47.080100.01.48 Fan Cover, Yellow 1
15 2.02.007 Nut (M16×1.5) 1
16 1.5789.0629 Flange Bolt M6×29 4
17 45.060001.00 Pulley, Starter 1
18 46.123000.03 Ignition Coil 1
19 47.080001.00 Cooling Fan 1
20 46.120100.05 Flywheel (Electric Start EPA) 1
21 46.091000.03 Air Cleaner Assembly 1
22 46.061000.00 Recoil Assembly 1
23 2.11.007 Oil Seal (Ø35×Ø52×8) 2
24 2.05.050 Wire Clip, 100 mm 1
25 45.030032.00 Sheath, Wire 1
26 2.03.023 Washer (Ø12.5×Ø20×2) 2
27 47.030100.01 Crankcase 1
28 45.127000.02 Oil Level Sensor 1
29 1.5789.0615 Flange Bolt M6×15 2
30 1.276.6202 Bearing 6202 2
31 47.050006.00 Weight Balancer 1
32 47.050100.01 Crankshaft 1
33 46.030008.00 Gasket, Crankcase Cover 1
34 2.04.001 Dowel Pin (Ø9×14) 2
35 46.080600.00 Air Guide, Right Side 1
36 1.276.6207 Bearing 6207 1
37 46.031000.01.48 Oil Dipstick Assembly, Yellow 1
38 45.030007.00 Cover, Crankcase 1
39 1.5789.0840.0.8 Flange Bolt M8×40 7
40 2.03.021.1 Washer (Ø6.4×Ø13×1), Black 1
41 45.110013.00 Shaft, Governor Gear 1
42 45.110100.00 Gear, Governor 1
43 21.110011.00 Clip, Governor Gear 1
44 45.110012.00 Bushing, Governor Gear 1
45 47.050200.00 Connecting Rod 1
46 47.050005.01 Piston 1
47 2.09.004 Circlip (Ø21×Ø1) 2
48 45.050003.00 Wrist Pin 1
49 46.050303.02 Ring, Oil 1
50 46.050302.02 Ring, Second Piston 1
51 46.050301.02 Ring, First Piston 1
52 2.04.004 Dowel Pin (Ø12×20) 2
53 46.030009.02 Gasket, Cylinder Head 1
54 46.080400.00 Air Guide, Lower 1
55 47.010100.01 Cylinder Head 1
56 2.01.010 Stud Bolt (M8×35) 2
57 2.15.002(F6RTC) Spark Plug (F6RTC) 1
#Part Number Description Qty
58 2.08.014 Flange Bolt M10×80 4
59 46.020002.00 Gasket, Cylinder Head Cover 1
60 47.021000.00 Cylinder Head Cover (CPE) 1
61 45.020001.02 Breather Tube 1
62 47.020100.00 Bolt, Cylinder Head Cover 1
63 2.08.039 Bolt, Drain (M12×1.5×15) 2
64 47.041000.01 Camshaft (EPA) 1
65 47.040004.00 Lifter, Valve 2
66 47.040002.00 Valve, Intake 1
67 47.040006.00 Valve, Exhaust 1
68 46.040005.00 Push Rod 2
69 45.040015.00 Retainer, Valve Spring (Down) 2
70 45.040017.00 Oil Seal, Valve 2
71 45.040003.00 Spring, Valve 2
72 23.040010.00 Bolt, Rocker Arm 2
73 45.040001.00 Retainer, Intake Valve Spring
(Up) 1
74 45.040007.00 Retainer, Exhaust Valve Spring
(Up) 1
75 45.040008.00 Rotator, Exhaust Valve 1
76 46.040004.00 Guide Plate, Push Rod 1
77 46.040016.00 Shaft, Rocker Arm 1
78 46.040201.00 Retainer, Rocker Arm 1
79 46.040009.00 Rocker Arm, Intake Valve 1
80 46.040018.00 Rocker Arm, Exhaust Valve 1
81 1.97.1.06 Washer Ø6 2
82 22.040012.00 Screw, Valve Adjustment 2
83 1.6177.1.06 Flange Lock Nut M6 2
84 21.040021.00 Nut, Lock (M6×0.5) 2
85 2.01.008 Stud Bolt (M6×M8×105) 2
86 46.130002.20 Gasket, Insulator (No Asbestos) 1
87 45.130001.00 Insulator, Carburetor 1
88 46.130003.20 Gasket, Carburetor 1
89 47.131000.25 Carburetor 1
90 46.130004.20 Gasket, Air Cleaner 1
91 1. 617 7.0 6 Flange Nut M6 3
92 46.091100.03 Base, Air Cleaner 1
93 45.091002.20 Seal, Air Cleaner 1
94 45.091001.20 Separator, Air Cleaner 1
95 45.091003.20 Element, Air Cleaner 1
96 46.091200.04 Cover, Air Cleaner 1
97 1.5789.0835 Flange Bolt M8×35 2
98 45.125100.00 Starter Motor Assembly 1
99 45.125200.03 Relay, Starter (three gear) 1
100 1.93.05 Spring Washer Ø5 2
101 1.16674.0516 Flange Bolt M5×16 2
102 45.110001.00 Shaft, Governor Arm 1
103 2.03.019 Washer (Ø8.2×Ø17×0.8) 1
104 2.11.006 Oil Seal (Ø7×Ø14×5) 1
105 45.110008.00 Pin, Shaft 1
106 45.110003.00 Arm, Governor 1
107 2.08.040 Bolt, Governor Arm (M6×21) 1
108 45.110006.00 Rod Governor 1
109 45.110005.00 Spring, Throttle Return 1
110 45.110007.00 Spring, Governor 1
111 46.080300.20 Air Guide, Upper 1
112 47. 131 017. 21 Standard Main Jet 1
47.131017.21.01 Altitude Main Jet /
25 REV 71531-20140424
ENGLISH 71531
Wiring Diagram
SPECIFICATIONS
L
W
G
B
Y
R
YELLOW
BLACK
BLUE
GREEN
RED
WHITE
Br
WHITE BLUE
GREEN YELLOW
WHITE GREEN
BROWN
BLACK WHITE
B/W
W/L
G/Y
W/G
B
Y
In INDIGO
ENGINE
BLOCK
GENERATOR
BLOCK
SPARKING PLUG
IGNITION COILOIL LEVEL
SW
CONTROL BOX BLOCK
COMBINATION SW
M
W
B
BATTERY STARTER
R
B
34
2
16
5
OFF
ON
ST
COMBINATION SWITCH
6
5
4
3
2
1
B/W
B/W
ST
ON
FUSE
10AY
VFO Diode
CCARNATION
SWITCH
AVR
W
R
Y
W
L
L
R
W
+
MW1
FW
EXW
MW2
B
L
Y
Y
L
L
L
B
R
B
R
DCW
multi-purpose meter
FUEL CUT
SOLENOIL
B/G
B/G
W/G
W/G
G
ORANGE
O
OFF
G/Y
G/Y
G/Y
34
5
2
16
G/Y
＋－
Charger
Br
G/Y
SWITCH
lb lla
G/Y
EARTH
TERMINAL
G/Y
G/Y
L14-30R
L5-30R
5-20R
B
W
W
R
R
RG/Y
B
B
W
G/Y
WW
CIRCUIT BREAKERCIRCUIT BREAKER
CIRCUIT BREAKERCIRCUIT BREAKER
30A
30A20A
20A
R
G/Y
W
DUPLEX ADUPLEX B
Module L
B
W
B
G
G
G
G/Y
Br
W/G
W/G
W
RB
B
G/Y
G/Y
Y
W/G
W
FUSE
1A
GAS
LPG
SWITCH
a
c
df
b
e
c e
a
bf
d
Br
REV 71531-20140424 26
71531 ENGLISH
TROUBLESHOOTING
For further technical support:
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
Problem Cause Solution
Generator will not start No fuel Add fuel
Faulty spark plug Replace spark plug
Unit loaded during start up Remove load from unit
Generator will not start;
Generator starts but runs roughly
Low oil level Fill crankcase to the proper level
Place generator on a flat, level surface
Choke in the wrong position Adjust choke
Spark plug wire loose Attach wire to spark plug
Generator will not start electrically Generator battery is dead Recharge generator battery
Battery switch is in the “OFF” position Turn battery switch to “ON” position
Generator shuts down during operation Out of fuel Fill the gasoline tank or fill LPG cylinder
Low oil level Fill crankcase to the proper level. Place
generator on a flat, level surface
Generator cannot supply enough power or
overheating
Generator is overloaded Review load and adjust. See “Power
Management”
Insufficient ventilation Check for air restriction. Move to a well
ventilated area
No AC output Cable not properly connected Check all connections
Connected device is defective Replace defective device
Circuit breaker is open Reset circuit breaker
Faulty brush assembly Replace brush assembly (Service Center)
Faulty AVR (auto voltage regulator) Replace AVR (Service Center)
Loose wiring Inspect and tighten wiring connections
Other Contact the help line
Repeated circuit breaker tripping Overload Review load and adjust. See “Power
Management”
Faulty cords or device Check for damaged, bare or frayed wires.
Replace defective device
27 REV 71531-20140424
ENGLISH 71531
WARRANTY
WARRANTY
CHAMPION POWER EQUIPMENT
2 YEAR LIMITED WARRANTY
Warranty Qualifications
Champion Power Equipment (CPE) will register this
warranty upon receipt of your Warranty Registration Card
and a copy of your sales receipt from one of CPE’s retail
locations as proof of purchase.
Please submit your warranty registration and your proof
of purchase within ten (10) days of the date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the
mechanical and electrical components will be free of
defects in material and workmanship for a period of
one year (parts and labor) and two years (parts) from
the original date of purchase (90 days (parts and
labor) and 180 days (parts) for commercial & industrial
use). Transportation charges on product submitted
for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only
applies to the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of Purchase
Contact CPE’s Technical Service and CPE will
troubleshoot any issue via phone or e-mail. If the
problem is not corrected by this method, CPE will, at its
option, authorize evaluation, repair or replacement of the
defective part or component at a CPE Service Center.
CPE will provide you with a case number for warranty
service. Please keep it for future reference. Repairs
or replacements without prior authorization, or at an
unauthorized repair facility, will not be covered by this
warranty.
Warranty Exclusions
This warranty does not cover the following repairs and
equipment:
Normal Wear
Generators need periodic parts and service to perform well.
This warranty does not cover repair when normal use has
exhausted the life of a part or the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if this
generator is deemed to have been misused, neglected,
involved in an accident, abused, loaded beyond the
generator’s limits, modified, installed improperly or
connected incorrectly to any electrical component.
Installation, Use and Maintenance Cont’d.
Normal maintenance such as spark plugs, air filters,
adjustments, fuel system cleaning and obstruction due
to buildup is not covered by this warranty.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and
storage covers.
– Failures due to acts of God and other force majeure
events beyond the manufacturer’s control.
– Problems caused by parts that are not original
Champion Power Equipment parts.
This warranty does not apply to generators used for
prime power in place of a utility.
Limits of Implied Warranty and Consequential Damage
Champion Power Equipment disclaims any obligation to
cover any loss of time, use of this product, freight, or
any incidental or consequential claim by anyone from
using this generator. THIS WARRANTY IS IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the
warranty of the original unit. The length of the warranty
governing the exchanged unit will remain calculated by
reference to the purchase date of the original unit.
This warranty gives you certain legal rights which may
change from state to state. Your state may also have
other rights you may be entitled to that are not listed
within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670
www.championpowerequipment.com
Customer Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
24/7 Tech Support: 1-562-204-1188
Champion Power Equipment, Inc. (CPE),
The United States Environment Protection Agency (U.S. EPA.) and the California Air Resources Board (CARB)
Emission Control System Warranty
Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air
Resources Board (CARB) emission regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The US EPA, California Air Resources Board, and CPE are pleased to explain the Federal and California Emission
Control Systems Warranty on your 2014 small off-road engine and engine powered equipment. In California, new,
small off-road engines and new equipment that use small off-engines must be designed, built and equipped to meet
the State’s stringent anti smog standards. In the other states, new engines and equipment must be designed, built
and equipped, at the time of sale, to meet U.S. EPA regulations for small non-road engines. CPE warrants the
emission control system on your small off-road engine and equipment for the period of time listed below, provided
there has been no abuse, neglect, unapproved modification, or improper maintenance of your equipment.
Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system,
catalytic converter and fuel lines. Also included may be hoses, belts, connectors and other emission related
assemblies. Where a warrantable condition exits, CPE will repair your small off-road engine at no cost to you
including diagnosis, parts and labor. For engines less than or equal to 80cc, only the fuel tank and fuel line is
subject to the evaporative emission control warranty requirements of this section.
MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:
This emission control system is warranted for two years, subject to provisions set forth below. If, during the
warranty period, emission related part on your engine is defective in materials or workmanship, the part will be
repaired or replaced by CPE.
OWNER WARRANTY RESPONSIBILITIES:
As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in
your Owner’s Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-
road engine, but CPE cannot deny warranty solely for the lack of receipts or for your failure to ensure the
performance of all scheduled maintenance.
As the small off-road engine owner, you should however be aware that CPE may deny you warranty coverage if
your small, off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved
modifications.
You are responsible for presenting your small off-road engine to an Authorized CPE service outlet or alternate
service outlet as described in (3)(f.) below, CPE dealer or CPE, Santa Fe Springs, Ca. as soon as a problem exists.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact:
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
tech@championpowerequipment.com
EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.
1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (for
other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine
or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months
thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent
purchaser that each of its small off-road engines is:
a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited
engines at or below 19 kilowatts and all applicable regulations adopted by the California Air Resources Board
and
b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical
in all material respects to the part as described in the engine manufacturer’s application for certification for a period
of two years.
3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:
a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners
Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it
shall be repaired or replaced by CPE according to Subsection “d” below. Any such part repaired or replaced under
the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.
b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the
Owners Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the
effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or
replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.
c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in
the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that
part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE
according to Subsection “d” below. Any such emissions-related part repaired or replaced under the ECS Warranty,
shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for
such emissions-related part.
d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be
performed at no charge to the owner at a CPE Authorized Service Outlet.
e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered
by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a CPE Authorized
Service Outlet.
f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the
following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S.
Census 2000 without a CPE Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile
limitation does not apply in the following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska,
Nevada, New Mexico, Oregon, Texas, Utah and Wyoming.
g. CPE shall be liable for damages to other original engine components or approved modifications
proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.
h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts
sufficient to meet the expected demand for such emission-related parts.
i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of
any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not
reduce CPE’s warranty obligation.
j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids
this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable
hereunder for failures of any warranted parts of a CPE engine caused by the use of such an unapproved add-on or
modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the
engine)
Systems covered by this
warranty
Parts Description
Fuel Metering System
Fuel regulator, Carburetor and internal parts
Air Induction System
Air cleaner, Intake manifold
Ignition System
Spark plug and parts, Magneto ignition system
Exhaust System
Exhaust manifold, catalytic converter
Miscellaneous Parts
Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed
systems.
Evaporative Emissions
Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Pressure
Relief Valves, Control Valves, Control Solenoids, Electronic Controls,
Vacuum Control Diaphragms, Control Cables, Control Linkages, Purge
Valves, Vapor Hoses, Liquid/Vapor Separator, Carbon Canister, Canister
Mounting Brackets, Carburetor Purge Port Connector
TO OBTAIN WARRANTY SERVICE:
You must take your CPE engine or the product on which it is installed, along with your warranty registration card or
other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is
authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business
hours. Alternate service locations defined in Section (3)(f.) above must be approved by CPE prior to service. Claims
for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because
the engine was not properly maintained and used.
If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty
service, please write or call Customer Service at Champion Power Equipment, Inc.
Champion Power Equipment, Inc.
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
Attn.: Customer Service
tech@championpowerequipment.com

Navigation menu
