Chaney Instrument 00896TX Digital Wireless Rain Gauge (433MHz) User Manual
Chaney Instrument Co. Digital Wireless Rain Gauge (433MHz)
User Manual
User Manual
Digital Wireless Rain Gauge
Rain Gauge Specifications:
- Outdoor rain gauge transmitter measures the rainfall and transmits the data
to an indoor rain monitor base unit which shows the rainfall information on
the LCD display.
- The display shows on of 3 available rain modes. No rain / Light rain /
Heavy rain.
- Range of rainfall measurement on the LCD display:
o IN (inch): 00.00 ~ 99.90
o MM (millimeter): 000.0 ~ 999.9
- Rainfall measurement can register accumulation up to:
o 99.90IN under inch display mode
o 999.9MM under millimeter display mode
- Transmission range is up to 100 feet in an open area without interference.
Interference from such things as metal siding or wall studs and security
systems can reduce the effective transmission range.
- Power requirement:
o Indoor rain monitor requires 2 “AAA” alkaline batteries (not
included).
o Outdoor rain gauge transmitter: 2 “AA” alkaline batteries (not
included).
Important Information:
1) For the initial set-up put the batteries in the indoor rain monitor base unit
first and then into the outdoor rain gauge transmitter.
2) For the outdoor rain gauge transmitter, please make sure the counting lever
inside the unit is placed in an upright position and is free to swing smoothly.
3) For the best reception and to avoid the outdoor rain gauge being immersed in
water while it is raining, please place the outdoor rain gauge on a flat surface
above ground level.
4) Do not store or locate the outdoor rain gauge and a counting lever close to
any source of magnetic interference or electrical equipment.
USING MANUAL
Know Your Product
Outdoor Rain Gauge Transmitter
- Measures the rainfall using the internal counting lever and transmits
rainfall & rain mode information to the indoor rain monitor base unit.
- Lever resolution: each lever swing = 0.02 inch (0.508 millimeter).
- Low battery condition will be detected and displayed on the indoor rain
monitor.

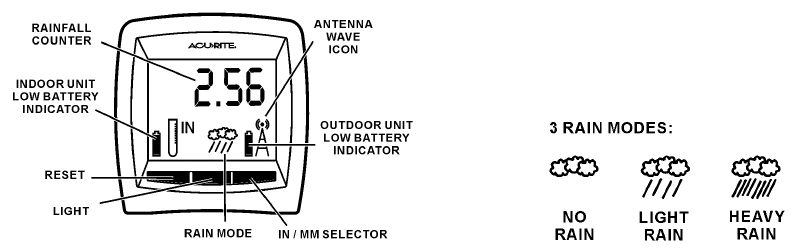

Indoor Rain Monitor
- LCD display
o 4 digit display for rainfall measurement
IN (inch): 00.00 ~ 99.90
MM (millimeter): 000.0 ~ 999.9
o IN / MM indicator
o 3 rain mode indicators (No rain / Light rain / Heavy rain)
o Antenna wave icon to show synchronization and connection status
o Low battery indicators for outdoor rain gauge and indoor rain monitor
- Function keys
o Reset key
Press the Reset key for 1 second to clear all information on
the LCD display. The rainfall data can be reset at any time. If
not reset the display will show the total of all rainfall since
the unit was activated or until the maximum allowable display
is reached. To monitor rainfall in a given time period it will
be necessary to reset the unit at the start of the time you
wish to measure.
o IN/ MM (Inch / Millimeter) selection key
Press the selection key for 2 seconds to view a rainfall
measurement in “IN” or “MM” display format.
o Light key
Press the Light key, the backlight will be turned on for 5
seconds.
o Alarm On/Off switch (located on back of unit)
To turn on the rain alert function, slide the Alarm switch to
“On” position.
To turn off the rain alert function, slide the Alarm switch to
“Off” position.
Getting Started (Power reset procedure)
1. Please make sure batteries are inserted into the indoor rain monitor first
and the display appears. The unit will go into “sync mode” for 6 minutes.
2. Insert batteries in the outdoor rain gauge transmitter.
3. In the “sync mode” the indoor rain monitor will receive the outdoor
transmission signal within 6 minutes.
4. At the synchronization period, the antenna wave icon will keep blinking on
the rain monitor display.
5. When the antenna wave icon stops blinking and remains on the display, this
means synchronization has occurred and the main unit has gotten the signal
from the transmitter unit.
6. Once the synchronization has occurred, the indoor rain monitor will detect
updated rainfall information from the transmitter every minute
automatically.
7. If the antenna wave icon does not appear on the display after the 6 minutes
synchronization period, it means synchronization has failed.
8. Indoor rain monitor will start synchronization again after 2 minutes until
synchronization successful.
During the synchronization period, press any key to stop the synchronization
procedure.
Rainfall Alert Mode description
- To activate the rain alert mode, slide the Alarm switch to the “On”
position. A beep alarm will sound for 10 seconds when the rain mode is
changing.
- Rain mode alert description:
o No Rain: Take an average of the rainfall less than 0.02IN/0.05MM on
the past few minutes
o Light Rain: Take an average of the rainfall between 0.02IN/0.5MM to
0.18IN/4.6MM on the past few minutes
o Heavy rain: Take an average of the rainfall equal or over 0.2IN/5.1MM
on the past few minutes
- To turn off an alert mode, slide an Alarm switch to “Off” position.
Date Transmission
• No Rain - If the latest rain mode was "No rain" and keep a "No rain" mode
condition on the past 5 minutes.
• Light Rain - If the latest rain mode was "Light rain" and keep a "Light rain"
mode condition on the past 3 minutes.
• Heavy Rain - If the latest rain mode was "Heavy rain" and keep a "Heavy rain"
mode condition on the past one minute.
Low battery indicator and battery changing
If you see that the low battery indicator(s) has changed to half-full status,
please install the fresh batteries as follows:
Indoor rain monitor
Remove the old batteries from the battery compartment and insert 2 fresh “AA”
alkaline batteries. Unit will sync with the outdoor transmitter unit
automatically.
NOTE: After battery replacement, if you find any data show on the indoor rain
monitor display, it must an acuminated data, please press the “RESET” button for
1 second to clear the display and start from 00.00IN or 000.0MM counting.
Outdoor rain gauge
To change the outdoor rain gauge batteries, you must press and holding the
“RESET” button for 5 seconds on the indoor rain monitor and let it re-sync again.
NOTE: After battery replacement, if you find any data show on the indoor rain
monitor display, it may a wrong counting during battery changing, please press
the “RESET” button for 1 second to clear the display and start from 00.00IN or
000.0MM counting.
“ERR” signal occurred on rain monitor display
When the indoor rain monitor notes an accumulative data out of the display range
(Maximum inch data is 99.90IN and millimeter data is 999.9MM), the unit will show
“ERR” signal on the display and sound for 1 minute. Press any key to clear “ERR”
signal and start from 00.00IN or 000.0MM counting.
Resetting the outdoor rain gauge and troubleshooting
The outdoor rain gauge is using a data accumulation method to transmit
information to the indoor rain monitor. If it is necessary to erase an
accumulated data on the outdoor rain gauge;
OR
In some unusual occasions, the unit may be affected by electrical interference
and respond abnormally or “ERR” signal occurred.
In such conditions, you must reset and re-sync both the indoor monitor & outdoor
rain gauge. If to do so, please follow the “Getting Started (Power reset)”
procedure.
NOTE: After reset both the indoor monitor & outdoor rain gauge, if you find any
data show on the indoor rain monitor display, it may a wrong counting during
place the batteries on the outdoor rain gauge, please press the “RESET” button
for 1 second to clear the display and start from 00.00IN or 000.0MM counting.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Tested To Comply With FCC Standards FOR HOME OR OFFICE USE
Model Name: Digital Wireless Rain Gauge
Model Number: 00896
The responsible party information:
Chaney Instrument Co,
965 S. Wells Street,
Lake Geneva, WI. 53147,
Tel: 262-248-4449.
