Wireless Signal Repeater
model 06053M

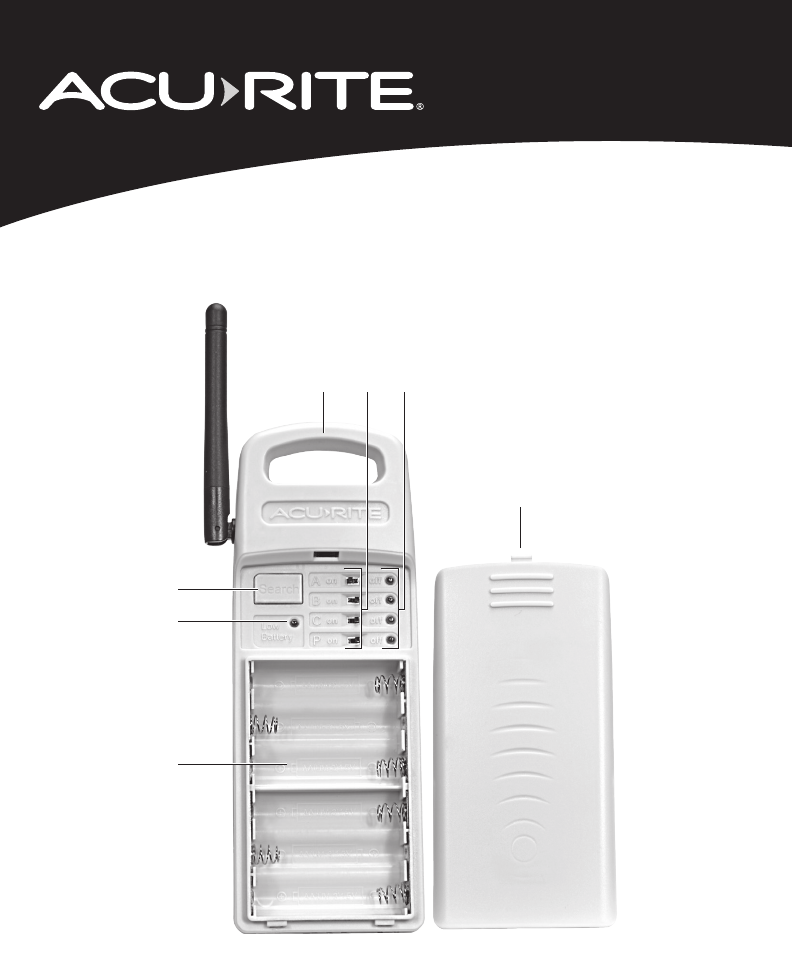

Features & Benets
1. Integrated Hanger
For easy placement.
2. Repeater On/Off Switches
For the corresponding channel
ID shown.
3. LED Indicator
Flashes when data is being
transmitted for indicated sensor.
4. Battery Compartment Cover
5. Battery Compartment
6. Low Battery Indicator
7. Search Button
Press to manually search for
available sensors.
7
6
5
1 2 3
4
2
Repeater Setup
Install or Replace Batteries
AcuRite recommends high quality
alkaline or lithium batteries in
the repeater for the best product
performance. Heavy duty or
rechargeable batteries are not
recommended.
The repeater requires lithium
batteries in low temperature
conditions. Cold temperatures can
cause alkaline batteries to function
improperly. Use lithium batteries in
the repeater for temperatures below
-4ºF / -20ºC.

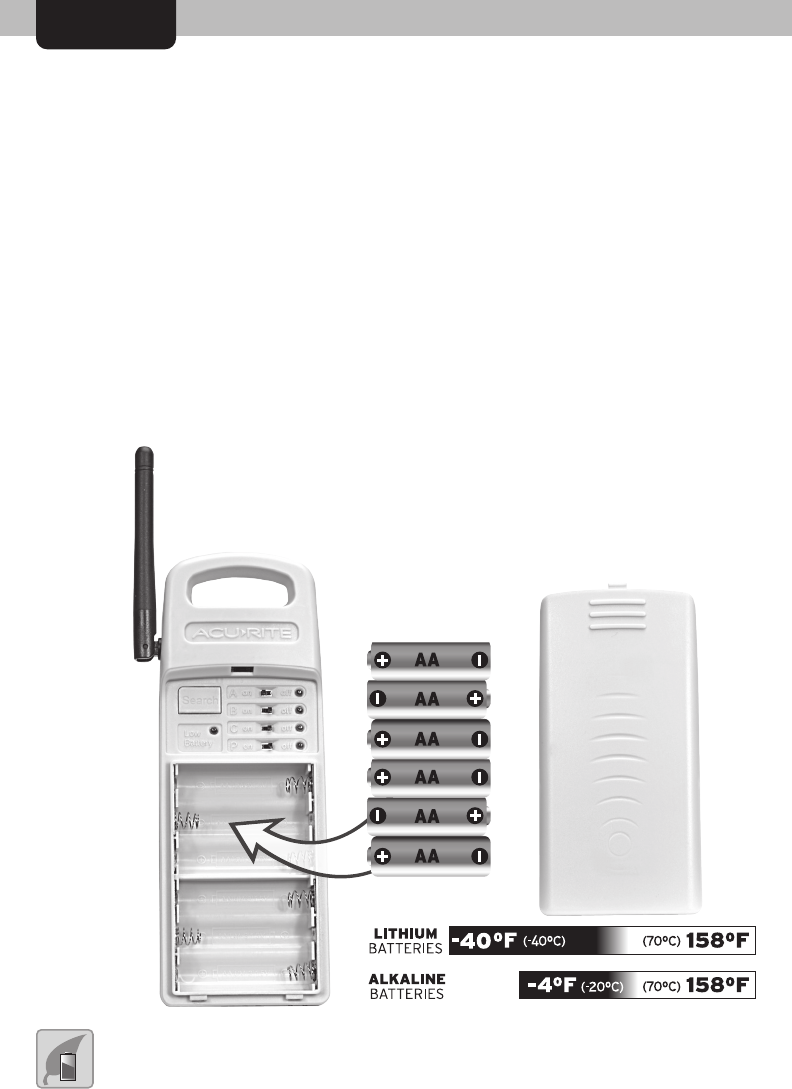

1. Slide off the battery compartment
cover.
2. Insert 6 x AA batteries into the
battery compartment, as shown.
Follow the polarity (+/-) diagram
in the battery compartment.
3. Replace the battery cover.
NOTE: When batteries need to
be changed, replace the upper 3
batteries before replacing the lower
3 batteries to avoid interrupting
signal transmission.
SETUP
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to
be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of
used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries
in re, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT
recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.
Install Batteries
6 AA batteries
3
Search for Available Sensors
Once the repeater is powered on (switches turned to ON in the battery
compartment), it will begin searching for sensors transmitting the corresponding
ID for 5-10 minutes. If you wish to connect a sensor after the initial 5-10 minute
search, press and release the "Search" button in the battery compartment to
manually search for sensors within range.
Connecting one sensor
1. Relocate the sensor near the repeater and take note of the A-B-C channel.
All compatible sensors have an A-B-C channel, except monitors (models
00275 and 00276) which use channel ID "P" on the repeater.
2. Turn ON the corresponding channel ID switch for this sensor in the battery
compartment of the repeater.
3.Waitforthechannel'sLEDindicatortoash,conrmingthatthesensoris
connected and is transmitting the sensor's signal.
Connecting multiple sensors
1. Of your available sensors, determine which ones need their wireless signal
repeated. Relocate those sensors near the repeater. Take note of the A-B-C
channels. All compatible sensors have an A-B-C channel, except monitors
(models 00275 and 00276) which use channel ID "P" on the repeater.
2. Turn ON the corresponding channel ID switches for these sensors in the
battery compartment of the repeater.
3.WaitfortheLEDindicatortoash*foreachactiverepeater,conrmingthat
the sensors are connected and are transmitting the sensor's signal.
*Iftherepeaterhasconnectedtomorethanonesensorwiththesamechannel
ID, the LED indicates how many sensors with that channel ID are being
repeated:
•Oneash:Indicatesthatonesensorwasrepeated.
•Twoashes:Indicatesthatthesecondoftwosensorswasrepeated.
•Threeashes:Indicatesthatthethirdofthreesensorswasrepeated.
NOTE: You may connect up to 3 sensors per channel ID, however for best
results, use separate A-B-C channel IDs for sensors that include this setting.
Refer to the corresponding sensor manual for instructions on setting the A-B-C
channel.
4
Placement for Maximum Range
Proper placement of the repeater is critical to the performance of this product.
Several factors may limit the sensor's ability to communicate with companion
products. The sensor's wireless signal may be limited by obstructions such as
buildings, roofs, natural landscapes or other objects that break the sensor's
"line-of-sight." Refer to the suggested placement options of the repeater below
to maximize wireless communication.

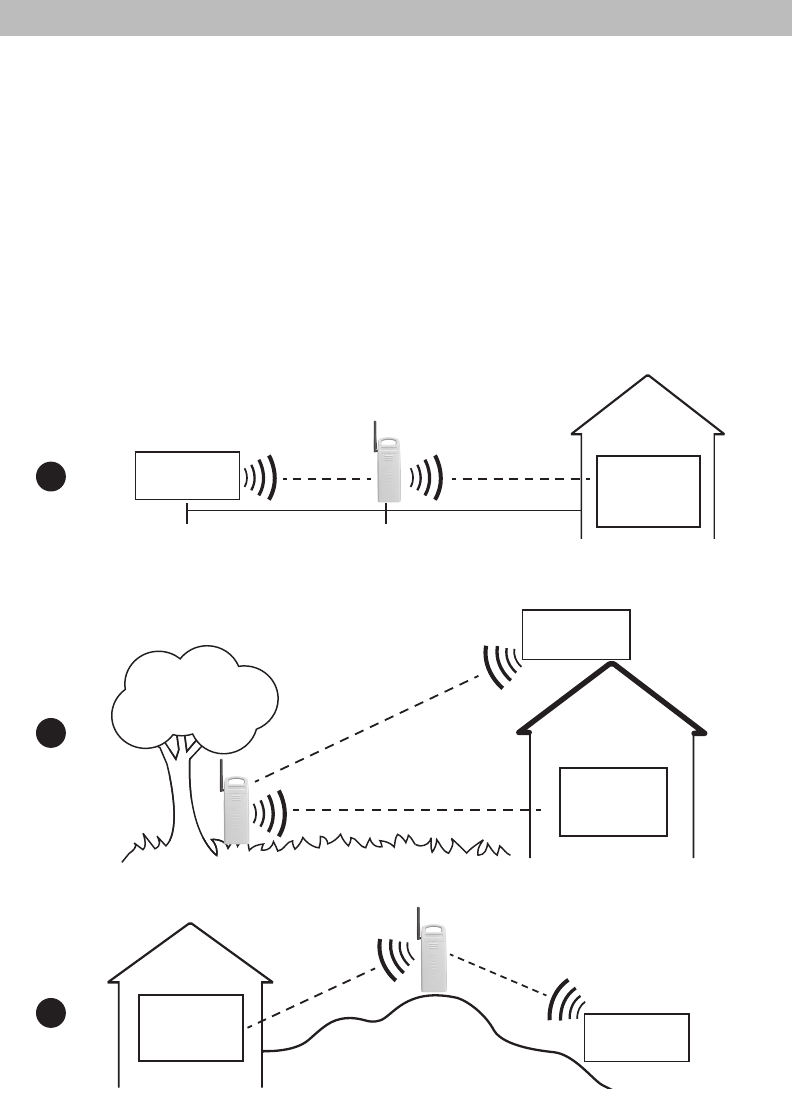

Suggested Placement
Position the repeater within 330 feet (100 m) of both the sensor and
companion unit. The repeater should be placed where it has a clear,
unobstructed line-of-sight from the sensor(s) to the companion unit.
Compatible
Sensor
Companion
Product
Companion
Product Compatible
Sensor
Compatible
Sensor
(100 meters)
(i.e. Display)
(330 feet maximum)
(100 meters)
(330 feet maximum)
Companion
Product
A
B
C
TIP: Additional repeaters (sold separately) may be used to extend wireless signal range.
5
Important Placement Guidelines
Repeater is water-resistant and is designed for general outdoor use, however,
to extend its life place the repeater in an area protected from direct weather
elements.
Hang the repeater using the integrated hang hole or hanger, or by using string
(not included) to hang it from a suitable location.
• Repeater must be within 330 ft (100 m) of companion units (sold seperately).
• To maximize wireless range, place repeater away from large metallic
items, thick walls, metal surfaces, or other objects that may limit wireless
communication.
• To prevent wireless interference, place repeater at least 3 ft (0.9 m) away
from electronic devices (TV, computer, microwave, radio, etc.).
Problem Possible Solution
Companion product (i.e.
Display) showing poor
sensor reception
If the companion product's wireless signal indicator
shows poor reception, it may be an indication that it
is still connecting directly to the sensor, instead of the
repeater.
1. Power down the companion product (unplug power
adapter, remove batteries).
2.Conrmthatthesensorisconnectedtotherepeater.
Therepeater'sactivechannelIDwillash,indicating
that the sensor's data is being transmitted.
3. Relocate the sensor to its original location.
4. Place the repeater according to suggested
placement (see page 4).
5. Power on the companion product.
Available sensor not
connecting to repeater
IftheLEDindicatordoesnotash:
• Relocate the repeater and/or Monitor/Sensor. The
products must be within 330 ft (100 m) of each other.
• Make sure products (Repeater, display, Monitors,
Sensors) are placed at least 3 feet (.9 m) away
from electronics that may interfere with the
wireless communication (such as TVs, microwaves,
computers, etc).
• Use standard alkaline batteries (or lithium
batteries in Repeater, Monitors and Sensors when
temperature is below -4ºF/-20ºC). Do not use
heavy duty or rechargeable batteries.
NOTE: It may take a few minutes for repeater and
sensors to synchronize after batteries are replaced.
6
BATTERY REQUIREMENTS 6 x AA alkaline or lithium batteries
RECEIVING RANGE 330 ft (100 m) depending on home construction
materials
TRANSMITTING RANGE 330 ft (100 m) depending on home construction
materials
Care & Maintenance
Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives.
FCC Information
This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or to this unit not expressly approved by the party responsible for compliance could void the
userʼs authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized to this equipment.
Such could void the user authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.
If your AcuRite product does not operate properly after trying
the troubleshooting steps, visit www.AcuRite.com or call
(877) 221-1252 for assistance.
This device complies with Industry Canadaʼs licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR dʼIndustrie Canada applicables aux appareils radio exempts de licence.
Lʼexploitation est autorisée aux deux conditions suivantes :
(1) lʼappareil ne doit pas produire de brouillage;
(2) lʼutilisateur de lʼappareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible dʼen
compromettre le fonctionnement.
7
PRODUCT REGISTRATION
Register online to receive 1 year warranty protection
www.AcuRite.com
IMPORTANT PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
Customer Support
AcuRite customer support is committed to providing you with best-in-
class service. For assistance, please have the model number of this
product available and contact us in any of the following ways:
(877) 221-1252
Visit us at www.AcuRite.com
► Installation Videos ► Register your Product
► Instruction Manuals ► Support User Forum
► Replacement Parts ► Submit Feedback & Ideas
Limited 1 Year Warranty
AcuRite is a wholly owned subsidiary of Chaney
Instrument Company. For purchases of AcuRite
products, AcuRite provides the benets and services set
forth herein. For purchases of Chaney products, Chaney
provides the benets and services set forth herein.
We warrant that all products we manufacture under this
warranty are of good material and workmanship and, when
properly installed and operated, will be free of defects for a
period of one year from the date of purchase.
Any product which, under normal use and service, is proven
to breach the warranty contained herein within ONE YEAR
from date of sale will, upon examination by us, and at our sole
option, be repaired or replaced by us. Transportation costs and
charges for returned goods shall be paid for by the purchaser.
We hereby disclaim all responsibility for such transportation
costs and charges. This warranty will not be breached, and we
will give no credit for products which have received normal
wear and tear not affecting the functionality of the product,
been damaged (including by acts of nature), tampered,
abused, improperly installed, or repaired or altered by others
than our authorized representatives.
Remedy for breach of this warranty is limited to repair or
replacement of the defective item(s). If we determine that repair
or replacement is not feasible, we may, at our option, refund
the amount of the original purchase price
THE ABOVE-DESCRIBED WARRANTY IS THE SOLE WARRANTY
FOR THE PRODUCTS AND IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ALL OTHER WARRANTIES
OTHER THAN THE EXPRESS WARRANTY SET FORTH HEREIN
ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY
AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE.
We expressly disclaim all liability for special, consequential,
or incidental damages, whether arising in tort or by contract
from any breach of this warranty. Some states do not allow the
exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
We further disclaim liability from personal injury relating to
its products to the extent permitted by law. By acceptance of
any of our products, the purchaser assumes all liability for the
consequences arising from their use or misuse. No person, rm
or corporation is authorized to bind us to any other obligation
or liability in connection with the sale of our products.
Furthermore, no person, rm or corporation is authorized
to modify or waive the terms of this warranty unless done in
writing and signed by a duly authorized agent of ours.
In no case shall our liability for any claim relating to our
products, your purchase or your use thereof, exceed the
original purchase price paid for the product.
Applicability of Policy
This Return, Refund, and Warranty Policy applies only to
purchases made in the United States and Canada. For
purchases made in a country other than the United States or
Canada, please consult the policies applicable to the country in
which you made your purchase.
Additionally, this Policy applies only to the original purchaser
of our products. We do cannot and do not offer any return,
refund, or warranty services if you buy products used or from
resale sites such as eBay or Craigslist.
Governing Law
This Return, Refund, and Warranty Policy is governed by the
laws of the United States and the State of Wisconsin. Any
dispute relating to this Policy shall be brought exclusively in the
federal or State courts having jurisdiction in Walworth County,
Wisconsin; and purchaser consents to jurisdiction within the
State of Wisconsin.
©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the
Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights
are the property of their respective owners. AcuRite uses patented technology.
Visit www.AcuRite.com/patents for details.
Printed in China
06053M INST 060316
It’s more than accurate, it’s
AcuRite offers an extensive assortment of precision instruments,
designed to provide you with information you can depend on to
Planyourdaywithcondence™.
www.AcuRite.com
Weather
Stations
Temperature
& Humidity
Weather
Alert Radio
Kitchen
Thermometers
& Timers
Clocks
