Instruction Manual
Lightning Detector Sensor
model 06045M
Features & Benets
1. Integrated Hanger
For easy placement.
2. Wireless Signal Indicator
Flashes when data is being
sent to the companion unit.
3. Interference Indicator
Flashes when interference is
detected (see page 4).
4. A-B-C Switch
Slide to select A-B-C channel.
5. Battery Compartment
6. Lightning Strike Indicator
Indicates a lightning strike has
occurred within 25 miles (40 km).
7. Battery Compartment Cover
2
4
3
5
7
6
1
Note: Under no circumstances shall the Lightning Detector, Chaney Instrument
Co. or the Primex Family of Companies be held responsible for any damages
whatsoever that may result from the use of or inability to use this product, including
without limitation any indirect, incidental, special, exemplary or consequential
damages, which are expressly disclaimed. This disclaimer of liability applies to
any damages or injury caused by any failure of performance, error, omission,
inaccuracy, interruption, deletion, defect, delay in operation or transmission
software virus, communication failure, theft or destruction or unauthorized access
to, alteration of, or use of the product, whether for breach of contract, tortuous
behavior (including, without limitation, strict liability), negligence, or under any
other cause of action, to the fullest extent permissible by law. This does not affect
any statutory rights which may not be disclaimed. The contents of this product,
including all lightning and weather data are provided “as is” and without warranty
or condition of any kind, express or implied, including, without limitation, any
warranty of merchantability or tness for a particular purpose. Chaney Instrument
Co. & the Primex Family of Companies do not warrant that this product or the
data that it provides will be free of errors, interruptions, viruses or other harmful
components. Chaney Instrument Co. & the Primex Family of Companies do not
warrant the accuracy or reliability of any lightning strike alerts, weather data or
other information provided by the product. Chaney Instrument Co. & the Primex
Family of Companies reserve the right to alter the product or withdraw it from the
market at its sole discretion.
2 3
Sensor Setup
Set the A-B-C Switch
The A-B-C switch is located inside the
battery compartment. Slide to set the
channel to A, B or C.
NOTE: If being used with a
companion product that has an A-B-C
channel, you must select the same
letter choice for both the sensor and
the product it is being paired with in
order for the units to synchronize.
Install or Replace Batteries
AcuRite recommends high quality
alkaline or lithium batteries in
the wireless sensor for the best
product performance. Heavy duty
or rechargeable batteries are not
recommended.
The sensor requires lithium batteries
in low temperature conditions. Cold
temperatures can cause alkaline
batteries to function improperly. Use
lithium batteries in the sensor for
temperatures below -4ºF / -20ºC.
1. Slide off the battery compartment
cover.
2. Insert 4 x AA batteries into the
battery compartment, as shown.
Follow the polarity (+/-) diagram
in the battery compartment.
3. Replace the battery cover.
SETUP
2Install Batteries
4 AA batteries
1A-B-C Switch
A B C
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be
used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used
batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire,
as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge
non-rechargeable batteries. DO NOT short-circuit the supply terminals.
Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of the sensor is critical to the accuracy and performance of this
product.
Sensor Placement
Sensor must be placed outside to observe outdoor conditions.
Sensor is water resistant and is designed for general outdoor use,
however, to extend its life place the sensor in an area protected
from direct weather elements.
Hang the sensor using the integrated hanger, or by using string
(not included) to hang it from a suitable location, like a well
covered tree branch. The best location is 4 to 8 feet above the
ground with permanent shade and plenty of fresh air to circulate
around the sensor.
Important Placement Guidelines
• Sensor must be within 330 feet (100 meters) of a companion unit
(sold separately).
MAXIMIZE WIRELESS RANGE
Place unit away from large metallic items, thick walls, metal surfaces, or other
objects that may limit wireless communication.
PREVENT WIRELESS INTERFERENCE
Place unit at least 3 feet (90 cm) away from electronic devices (TV, computer,
microwave, radio, etc.).
LOCATE AWAY FROM HEAT SOURCES
To ensure accurate temperature measurement, place sensor out of direct
sunlight and away from any heat sources.
LOCATE AWAY FROM HUMIDITY SOURCES
To ensure accurate humidity measurement, locate sensor away from humidity
sources. Avoid installing the sensor near indoor pools, spas, or other bodies of
water. Water sources may impact humidity accuracy.
Lightning Detection
The sensor detects cloud-to-cloud, cloud-to-ground and intra-cloud lightning.
When lightning is detected, the sensor will beep and the strike indicator will
ash for each of the rst 10 strikes. After 10 strikes, the sensor will enter silent
mode but will continue to ash. The sensor will stay in silent mode for 2 hours
after the last lightning detection.
1
2
4 5
False Detection
This sensor features advanced technology to distinguish between lightning
strikes and interference, however in rare cases the sensor may "false detect"
lightning activity due to interference. In these situations, verify there is no
lightning in the area and then relocate the sensor. If the false detections persist,
identify and relocate the source of interference or relocate the sensor.
Interference
The sensor features enhanced interference rejection capabilities to prevent
false lightning detection. When the detector cannot detect lightning due to
interference from nearby equipment, the sensor's interference indicator will ash.
• Electric motors (windshield wiper motor or fan motors in cars, hard drive and
optical drive motors on your PC and AV equipment, well pumps, sump pumps)
• CRT monitors (PC monitors, TV's)
• Fluorescent light xtures (turned off or on)
• Microwave ovens (while in use)
• PC's and mobile phones
WARNING: Take shelter IMMEDIATELY when lightning is present, whether or
not it has been detected by the Lightning Detector. If you are concerned about
lightning strikes, follow all safety precautions to keep yourself and others safe.
DO NOT rely on this Lightning Detector as your only source for warnings
about potentially deadly lightning strikes or other severe weather conditions.
Problem Possible Solution
Interference
Indicator is ashing
• Relocate the sensor.
• Make sure the sensor is placed at least 3 feet
(.9 m) away from electronics that may cause
interference (see Interference section above).
Troubleshooting
If your AcuRite product does not operate properly after trying
the troubleshooting steps, visit www.AcuRite.com or call
(877) 221-1252 for assistance.
Care & Maintenance
Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives.
Specications
LIGHTNING DETECTION RANGE 1 - 25 miles / 1.6 - 40km
TEMPERATURE RANGE -40ºF to 158ºF; -40ºC to 70ºC
HUMIDITY RANGE 1% to 99% RH (relative humidity)
POWER 4 x AA alkaline batteries or lithium batteries
WIRELESS RANGE 330 ft/100m depending on home
construction materials
OPERATING FREQUENCY 433.92 MHz
FCC Information
This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment.
Such modifications could void the user authority to operate the equipment.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
6 7
PRODUCT REGISTRATION
Register online to receive 1 year warranty protection
www.AcuRite.com
IMPORTANT PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
Customer Support
AcuRite customer support is committed to providing you with best-in-
class service. For assistance, please have the model number of this
product available and contact us in any of the following ways:
(877) 221-1252
Visit us at www.AcuRite.com
►Installation Videos ►Register your Product
►Instruction Manuals ►Support User Forum
►Replacement Parts ►Submit Feedback & Ideas
Limited 1 Year Warranty
AcuRite is a wholly owned subsidiary of Chaney
Instrument Company. For purchases of AcuRite
products, AcuRite provides the benets and services set
forth herein. For purchases of Chaney products, Chaney
provides the benets and services set forth herein.
We warrant that all products we manufacture under this
warranty are of good material and workmanship and, when
properly installed and operated, will be free of defects for a
period of one year from the date of purchase.
Any product which, under normal use and service, is proven
to breach the warranty contained herein within ONE YEAR
from date of sale will, upon examination by us, and at our sole
option, be repaired or replaced by us. Transportation costs and
charges for returned goods shall be paid for by the purchaser.
We hereby disclaim all responsibility for such transportation
costs and charges. This warranty will not be breached, and we
will give no credit for products which have received normal
wear and tear not affecting the functionality of the product,
been damaged (including by acts of nature), tampered,
abused, improperly installed, or repaired or altered by others
than our authorized representatives.
Remedy for breach of this warranty is limited to repair or
replacement of the defective item(s). If we determine that repair
or replacement is not feasible, we may, at our option, refund
the amount of the original purchase price
THE ABOVE-DESCRIBED WARRANTY IS THE SOLE WARRANTY
FOR THE PRODUCTS AND IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ALL OTHER WARRANTIES
OTHER THAN THE EXPRESS WARRANTY SET FORTH HEREIN
ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY
AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE.
We expressly disclaim all liability for special, consequential,
or incidental damages, whether arising in tort or by contract
from any breach of this warranty. Some states do not allow the
exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
We further disclaim liability from personal injury relating to
its products to the extent permitted by law. By acceptance of
any of our products, the purchaser assumes all liability for the
consequences arising from their use or misuse. No person, rm
or corporation is authorized to bind us to any other obligation
or liability in connection with the sale of our products.
Furthermore, no person, rm or corporation is authorized
to modify or waive the terms of this warranty unless done in
writing and signed by a duly authorized agent of ours.
In no case shall our liability for any claim relating to our
products, your purchase or your use thereof, exceed the
original purchase price paid for the product.
Applicability of Policy
This Return, Refund, and Warranty Policy applies only to
purchases made in the United States and Canada. For
purchases made in a country other than the United States or
Canada, please consult the policies applicable to the country in
which you made your purchase.
Additionally, this Policy applies only to the original purchaser
of our products. We do cannot and do not offer any return,
refund, or warranty services if you buy products used or from
resale sites such as eBay or Craigslist.
Governing Law
This Return, Refund, and Warranty Policy is governed by the
laws of the United States and the State of Wisconsin. Any
dispute relating to this Policy shall be brought exclusively in the
federal or State courts having jurisdiction in Walworth County,
Wisconsin; and purchaser consents to jurisdiction within the
State of Wisconsin.
©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the
Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copyrights
are the property of their respective owners. AcuRite uses patented technology.
Visit www.AcuRite.com/patents for details.
Printed in China
06045 INST 041316

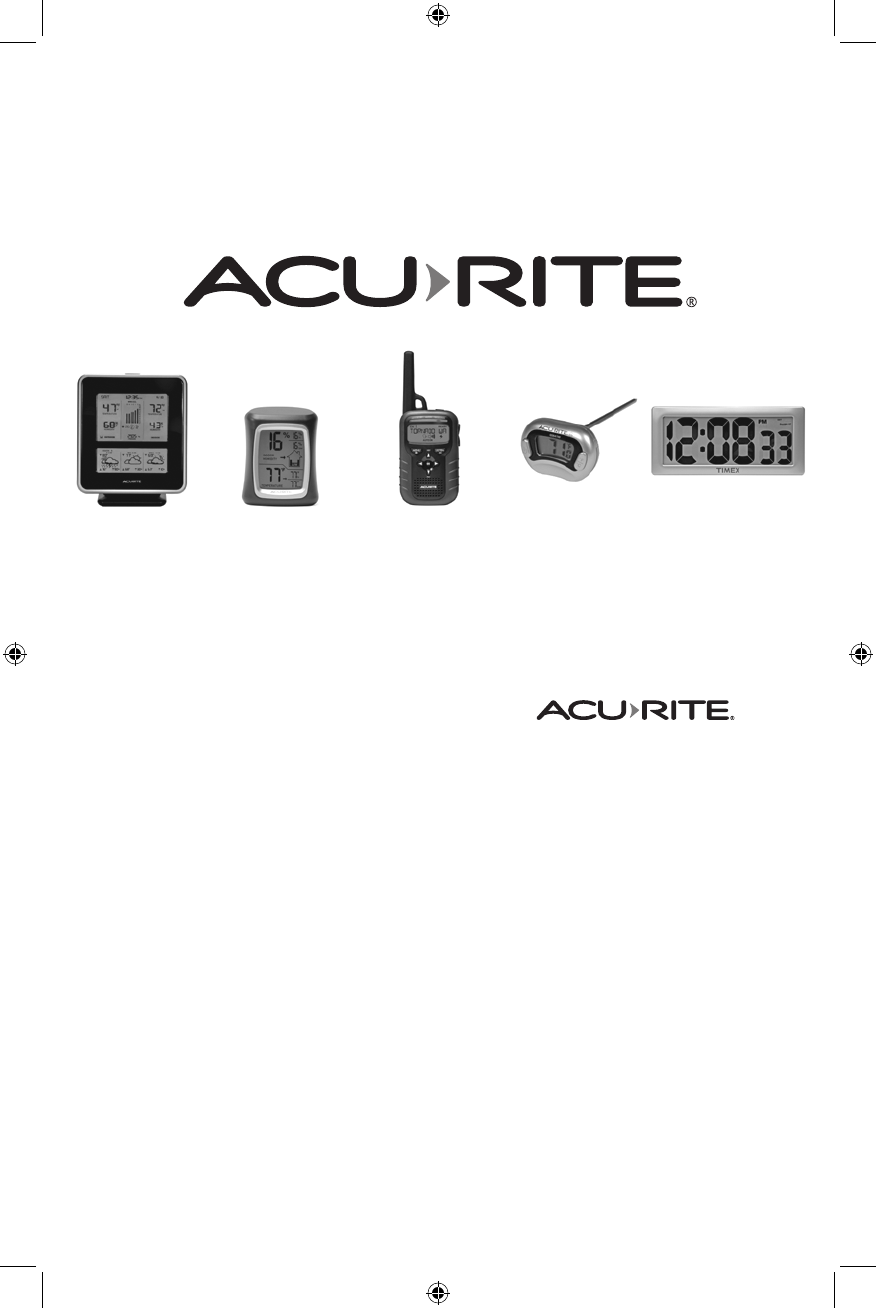

It’s more than accurate, it’s
AcuRite offers an extensive assortment of precision instruments,
designed to provide you with information you can depend on to
Plan your day with condence™.
www.AcuRite.com
Weather
Stations
Temperature
& Humidity
Weather
Alert Radio
Kitchen
Thermometers
& Timers
Clocks
