Chaney Instrument RF100VTXRA1 Wireless Thermometer User Manual

Chaney Instrument Co. Wireless Thermometer

User manual

Instruction Manual
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: Sensor ..... 2
Features & Benets: Display .... 3
Setup .................................... 6
Sensor Setup ......................... 6
Display Setup ........................ 7
Intelli-Time Clock .................... 8
Set the Time, Date & Units ...... 8
Backlight Settings ................... 8
Placement Guidelines ............. 9
Using the Weather Station .....10
Troubleshooting ....................11
Care & Maintenance ............. 13

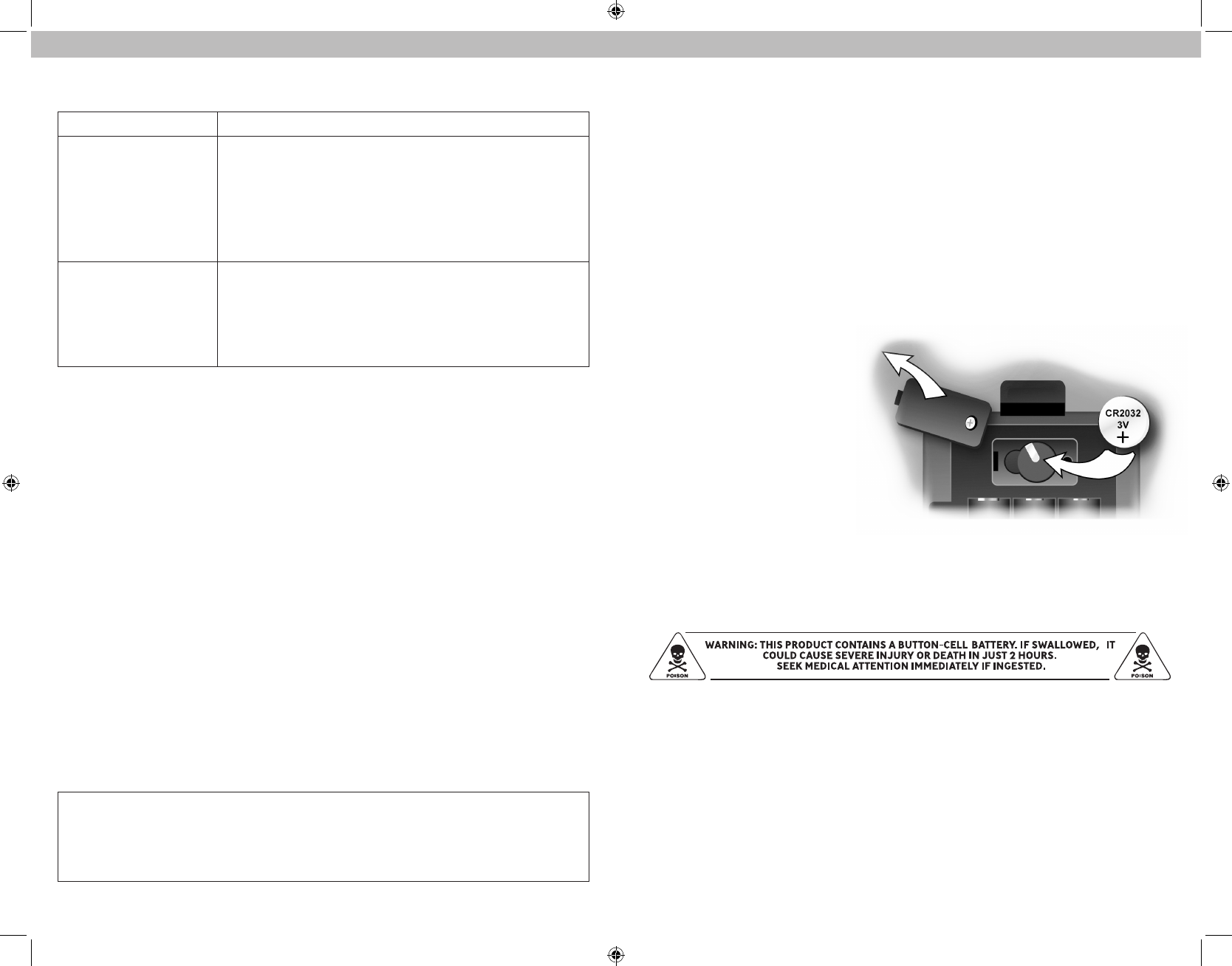

Replace Intelli-Time Battery ....13
Specications ........................14
FCC Information ...................14
Customer Support .................15
Warranty..............................15
Weather Station
model 02048/ 00592TXRA1
2 3
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display unit with tabletop stand
2. Power adapter
3. Outdoor sensor
4. Instruction Manual
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
IMPORTANT PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
►
Register a Product
Features & Benets
4
3
2
1
5

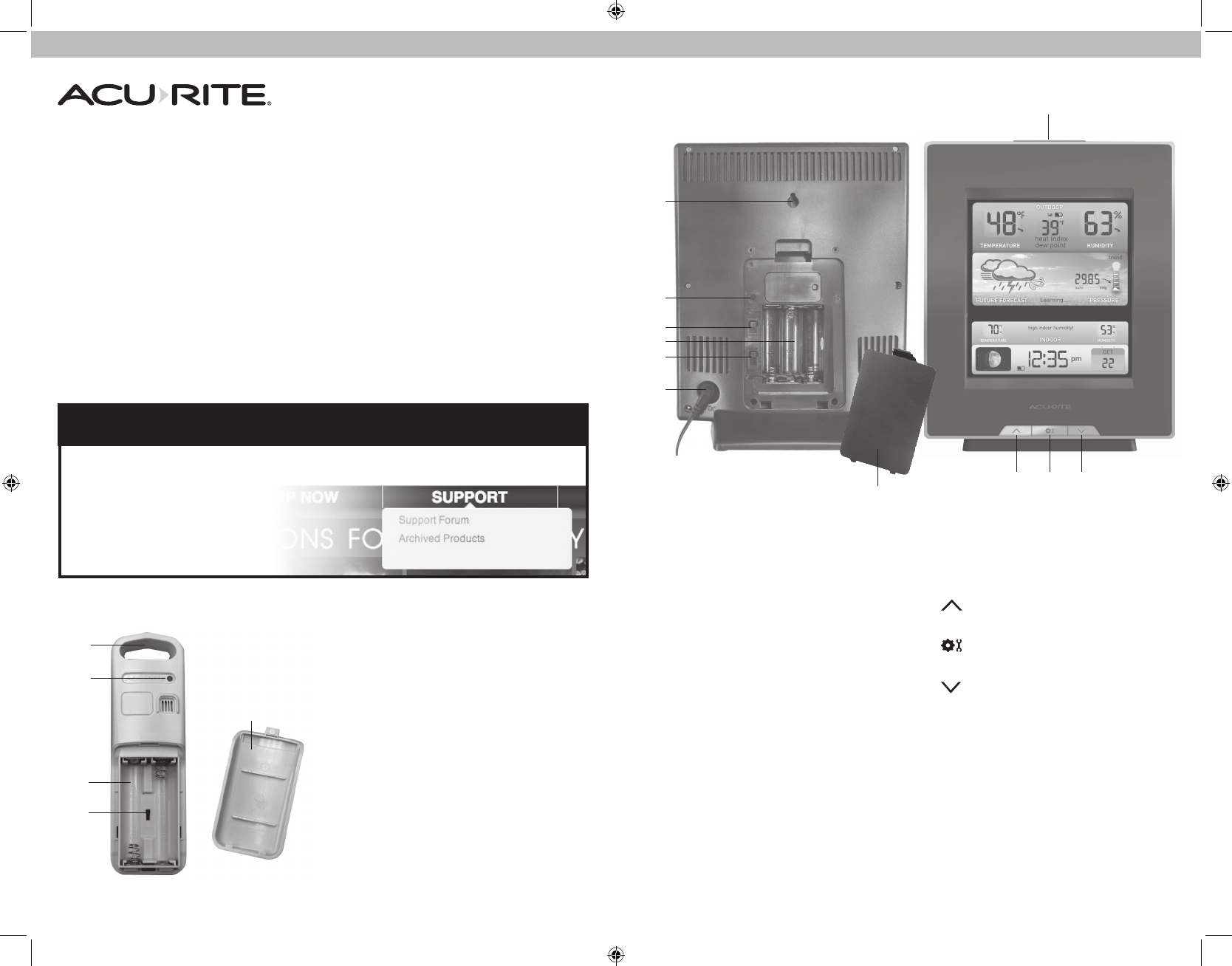

OUTDOOR SENSOR
1. Integrated Hanger
For easy placement.
2. Wireless Signal Indicator
Flashes when data is being sent
to the display unit.
3. Battery Compartment
4. A-B-C Switch
ID code that must match display’s
A-B-C switch to ensure units synchronize.
5. Battery Compartment Cover
6
7
11
8
10
9
Features & Benets
BACK OF DISPLAY UNIT
6. Integrated Hang Hole
for easy wall mounting.
7. Reset
Full reset to factory defaults.
8. A-B-C Switch
ID code that must match tower
sensor’s A-B-C switch to ensure units
synchronize.
9. Battery Compartment
10. “LIGHT” Switch
Controls the display’s backlight and
brightness: Off, Low, Medium, High
11. Plug-in for Power Adapter
12. Battery Compartment Cover
13
16
14 15
FRONT OF DISPLAY UNIT
13. “ “ Button
for setup preferences.
14. “ “ Button
for setup preferences.
15. “ “ Button
for setup preferences.
16. Momentary Backlight Button
Lights display for 7 seconds (only
applicable while on battery power).
12
4 5
Features & Benets
1
2
3
4
5 6 7
8
10
9
11
12
13141516

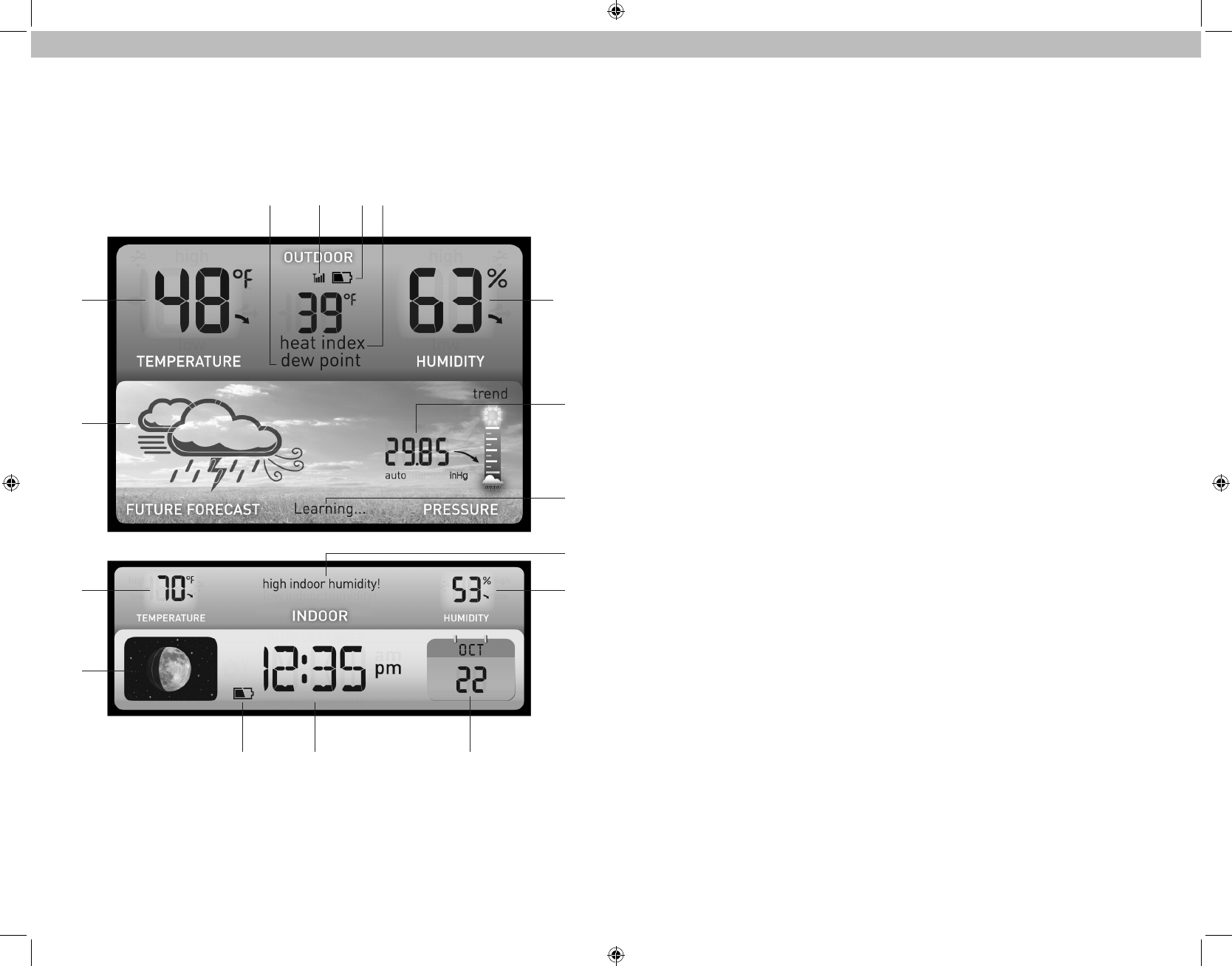

DISPLAY UNIT FRONT
1. Current Outdoor Temperature
Arrow icon indicates direction
temperature is trending.
2. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls data
from the outdoor sensor to generate
your personal forecast.
3. Current Indoor Temperature
Arrow icon indicates direction
temperature is trending.
4. Moon Phase
5. Display Low Battery Indicator
6. Intelli-Time® Clock
Automatically updates for
Daylight Saving Time.
7. Date
8. Current Indoor Humidity
Arrow icon indicates direction
humidity is trending.
9. Humidity Level Indicator
Indicates a high or low indoor
humidity level.
10. Learning Mode Icon
Disappears after weather forecast
self-calibration is complete.
11. Barometric Pressure
Arrow icon indicates direction
pressure is trending.
12. Current Outdoor Humidity
Arrow icon indicates direction
humidity is trending.
13. Heat Index
Displays Heat Index calculation when
temperature is 80°F (27°C) or above.
14. Sensor Low Battery Indicator
15. Outdoor Sensor Signal Strength
16. Dew Point
Displays Dew Point calculation when
temperature is 79°F (26°C) or below.
6 7
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be
used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used
batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire,
as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge
non-rechargeable batteries. DO NOT short-circuit the supply terminals.

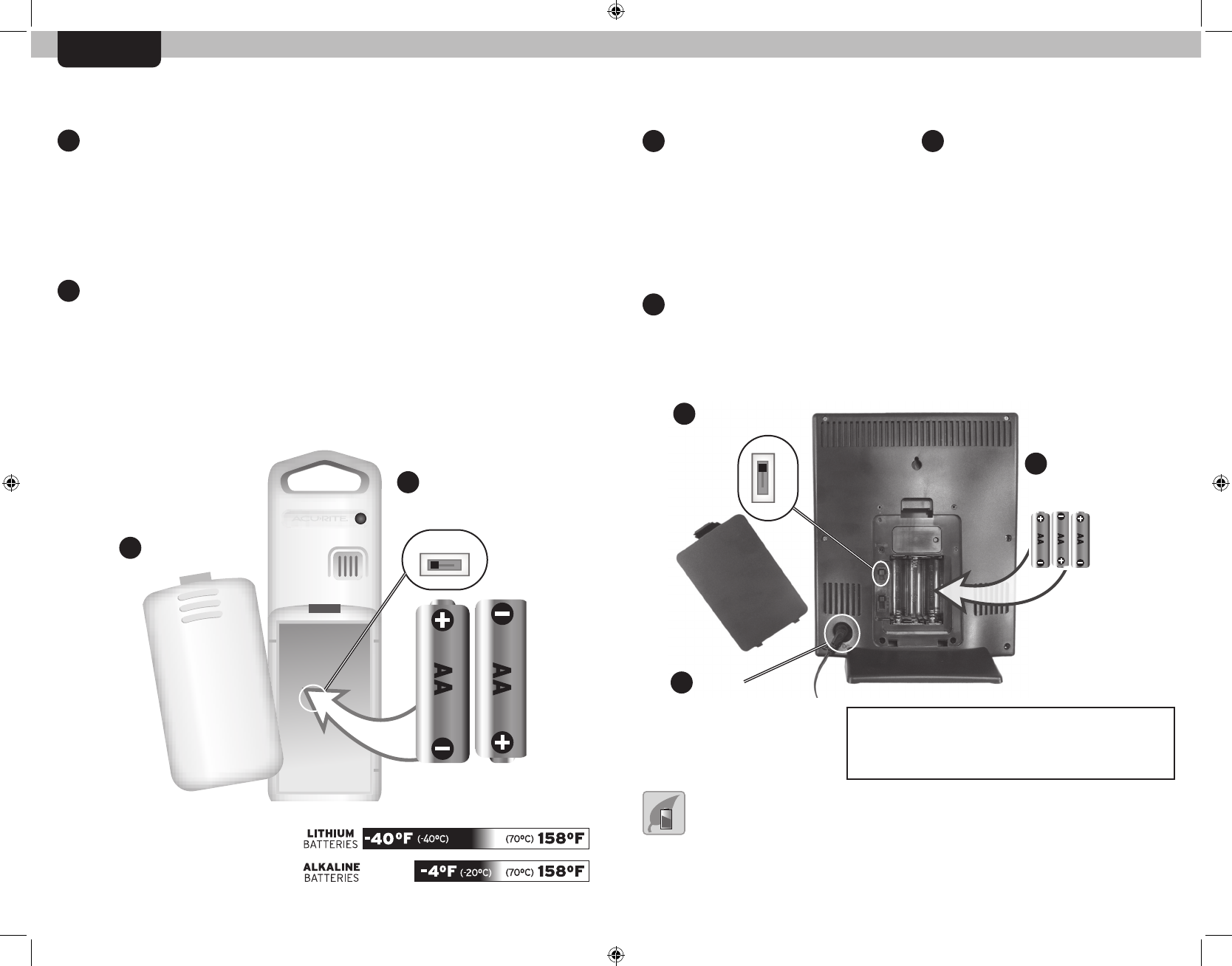

Display Unit Setup
Set the A-B-C Switch
Locate the A-B-C switch inside
the battery compartment. Set
the A-B-C switch to A, B or C.
You must select the same letter
choices for both the display unit
and the sensor in order for the
units to synchronize.
Plug in Power Adapter
For the best performance, plug
in the power adapter as the main
power source for this product.
Install or Replace Backup
Batteries (optional)
1. Remove the battery
compartment cover.
2. Insert 3 x AA alkaline
batteries into the battery
compartment, as shown.
Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
3
1
2
A B C
1A-B-C Switch
set to match
sensor
3Install Backup
Batteries
3 AA batteries
(optional)
2Plug in
Power Adapter
IMPORTANT: Batteries are a backup power source to
preserve records in the event of a power outage.
Power adapter is recommended as the primary power
source to enjoy the full functionality of this product.
SETUP
Set the A-B-C Switch
The A-B-C switch is located inside
the battery compartment. It can
be set to A, B or C. However,
you must select the same letter
choices for both the sensor and
the display unit in order for the
units to synchronize.
Install or Replace Batteries
AcuRite recommends high quality
alkaline or lithium batteries for
the best product performance.
Heavy duty or rechargeable
batteries are not recommended.
The sensor requires lithium
batteries in low temperature
conditions. Cold temperatures
can cause alkaline batteries
to function improperly. Use
lithium batteries in the sensor for
temperatures below -4ºF / -20ºC.
1. Slide off the battery
compartment cover. Take
note of the A-B-C switch
setting inside the battery
compartment.
2. Insert 2 x AA batteries into
the battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
Sensor Setup
2
1
1A-B-C Switch
set to match
display unit
2Install Batteries
2 AA batteries
A B C
8 9

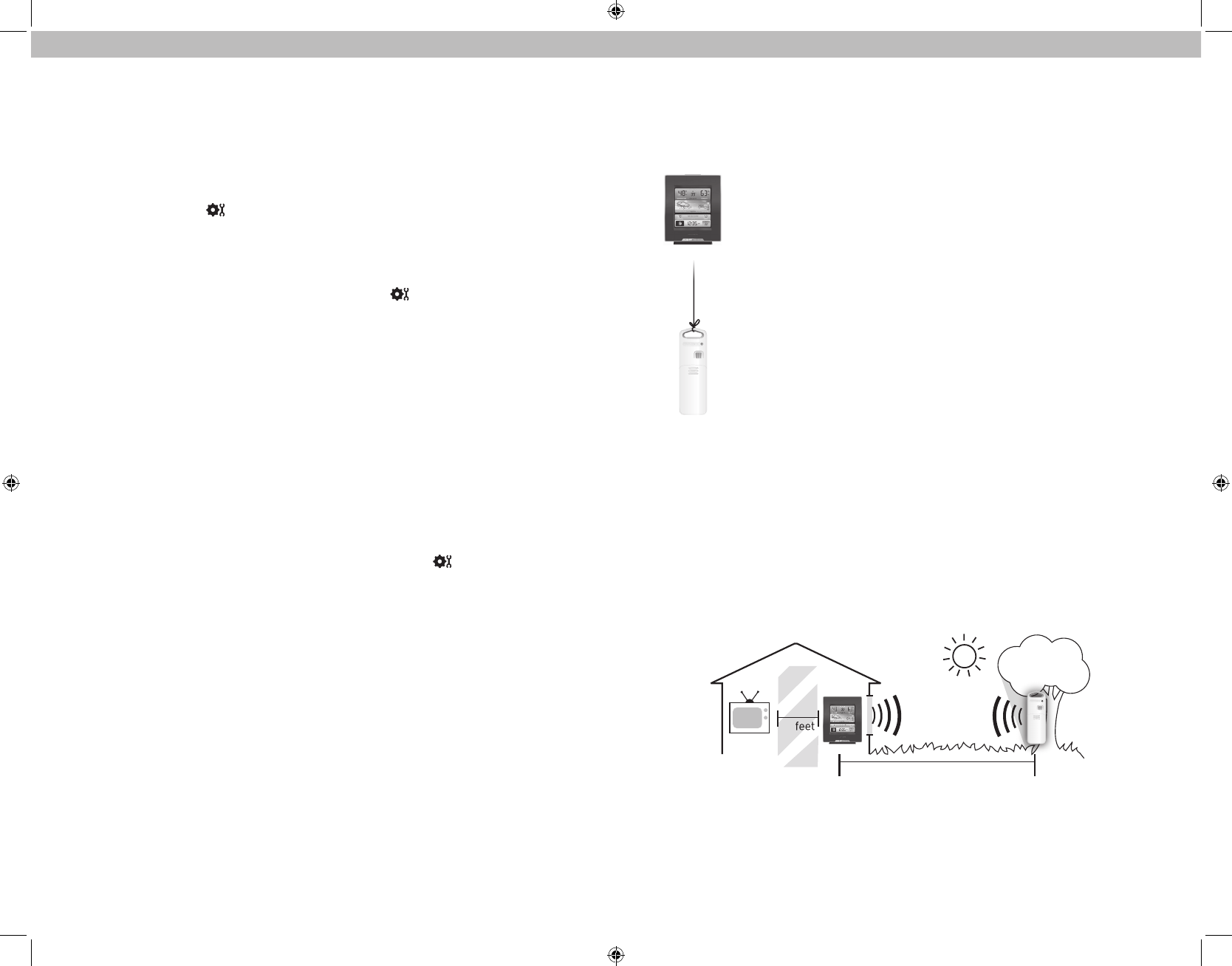

Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of both the display unit and outdoor sensor are critical to the
accuracy and performance of this product.
Display Unit Placement
Place the display unit in a dry area free of dirt and dust.
Display unit stands upright for tabletop use or is wall-mountable.
Outdoor Sensor Placement
Sensor must be placed outside to observe outdoor conditions.
Sensor is water resistant and is designed for general outdoor
use, however, to extend its life place the sensor in an area
protected from direct weather elements.
Hang the sensor using the integrated hang holes or hanger, or
by using string (not included) to hang it from a suitable location,
like a well covered tree branch. The best location is 4 to 8 feet
above the ground with permanent shade and plenty of fresh air
to circulate around the sensor.
Important Placement Guidelines
• To ensure accurate temperature measurement, place units out of direct
sunlight and away from any heat sources or vents.
• Display unit and outdoor sensor must be within 330 ft (100 m) of each other.
• To maximize wireless range, place units away from large metallic items, thick
walls, metal surfaces, or other objects that may limit wireless communication.
• To prevent wireless interference, place both units at least 3 ft (.9 m) away
from electronic devices (TV, computer, microwave, radio, etc.).
Setup is Complete
The sensor will now synchronize with the display unit. It may take a few
minutes for synchronization to complete. Please refer to the troubleshooting
section of this manual if anything appears to be functioning improperly.
TV 3
(100 meters)
(330 feet maximum)
(.9 m)
AT
LEAST
APART
Intelli-Time® Clock
Intelli-Time products are pre-programmed with the correct time and date. All
you need to do is select your Time Zone and Daylight Saving Time preferences.
The clock will then automatically update for Daylight Saving Time.
Set the Time, Date & Units
Press and HOLD the “ ” button to enter SETUP MODE. Once in setup mode,
the preference you are currently setting will blink on the display.
To adjust the currently selected (ashing) item, press and release the “T” or
“
V
“ buttons (press and HOLD to fast adjust).
To save your adjustments, press and release the “ ” button again to adjust
the next preference. The preference set order is as follows:
TIME ZONE ( PST MST CST EST AST HAST AKST)
DST* (Daylight Saving Time ON or OFF)
CLOCK HOUR
CLOCK MINUTE
CALENDAR DATE
CALENDAR MONTH
CALENDAR YEAR
TEMPERATURE SCALE (ºF or ºC)
BAROMETRIC PRESSURE SCALE (inHg or hPa)
*If you live in an area that observes daylight saving time, DST should be set to
ON, even if it is not currently Daylight Savings Time.
You will automatically exit SETUP MODE if no buttons are pressed for 20
seconds. Enter setup mode at any time by pressing the “ ” button.
Backlight Settings
This weather station’s color display features a backlight with brightness levels
including High, Medium and Low brightness settings.
Using battery power alone, the backlight is available momentarily for 7
seconds by pressing the “BACKLIGHT” button, located on top of the display.
When display is powered with the power adapter, the display’s brightness can
be adjusted using the “LIGHT” switch, located on the back of the display inside
the battery compartment. The switch offers four different backlight settings:
High (100%) brightness, Medium (60%) brightness, Low (30%) brightness and
Off (0%), or no backlight.
10 11

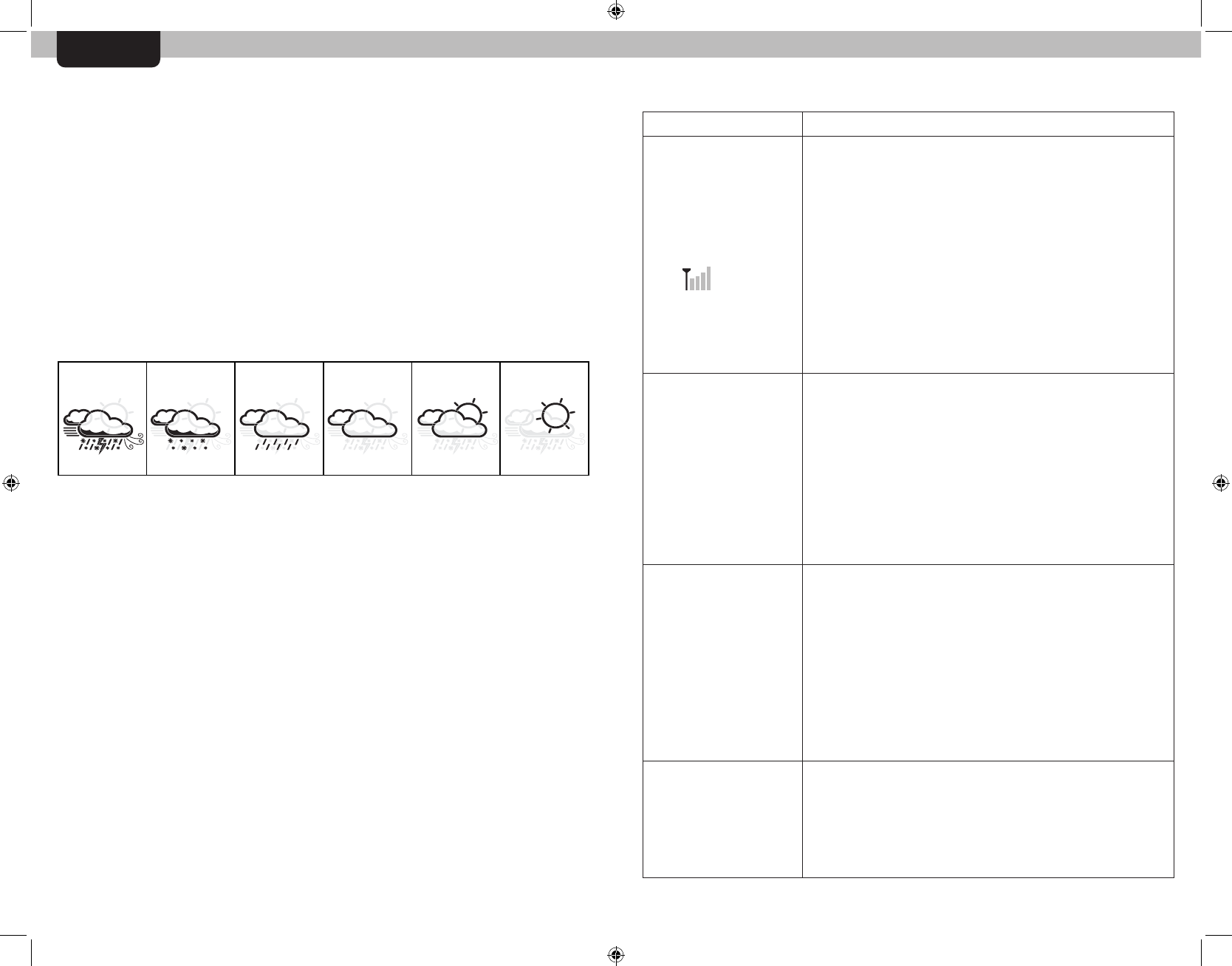

Troubleshooting
Problem Possible Solution
No outdoor sensor
reception
no bars
If the wireless signal indicator shows no bars:
• Relocate the display unit and/or the outdoor sensor. The
units must be within 330 ft (100 m) of each other.
• Make sure both units are placed at least 3 feet
(.9 m) away from electronics that may interfere with
the wireless communication (such as TVs, microwaves,
computers, etc).
• Use standard alkaline batteries (or lithium batteries in
sensor when temperature is below -4ºF/-20ºC). Do not
use heavy duty or rechargeable batteries. NOTE: It
may take up to 20 minutes for display unit and sensor to
synchronize after batteries are replaced.
Outdoor
temperature
is ashing or
showing dashes
Flashing of the outdoor temperature is generally an
indication of wireless interference.
1. Bring both the sensor and display unit indoors and
remove batteries from each.
2. Make sure the A-B-C switch on both units match.
3. Reinstall batteries in the outdoor sensor.
4. Reinstall batteries in the display unit.
5. Let the units sit within a couple feet of each other
for about 20 minutes to gain a strong connection.
Sometimes changing to a different channel can help.
Inaccurate forecast
• Weather Forecast icon predicts conditions for the next 12
to 24 hours, not current conditions.
• Has Learning Mode icon disappeared from the display
unit? Learning Mode must complete before forecast and
pressure will be accurate.
• Allow unit to run continuously for 33 days. Battery
removal or resetting the display unit will restart Learning
Mode. After 14 days, forecast should be fairly accurate,
however Learning Mode calibrates for a total of 33
days.
Inaccurate
temperature
or humidity
• Make sure both the display unit and sensor are placed
out of direct sunlight and away from any heat sources or
vents (see page 9).
• Make sure both units are positioned away from moisture
sources (see page 9).
Using the Weather Station
Learning Mode
Self-Calibrating Forecasting uses a unique algorithm to analyze changes in
pressure over a time period (called Learning Mode) to determine your altitude.
After 14 days, the Learning Mode icon disappears from the display screen. At
this point, the self-calibrated pressure is tuned in to your location and the unit is
ready for superior weather prediction.
Weather Forecast
AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast
of weather conditions for the next 12 to 24 hours by collecting data from
the sensor in your backyard. It generates a forecast with pinpoint accuracy -
personalized for your exact location.
Barometric Pressure
Subtle variations in barometric pressure greatly impact the weather. This
weather center displays the current pressure and indicates the direction the
pressure is trending (FALLING, STEADY, or RISING).
Humidity Level Indicator
The Humidity Level Indicator easily conveys a low or high indoor humidity level
for your home and health:
Learn more at http://www.acurite.com/humidity-health
OPERATION
View the complete list of icons at www.AcuRite.com/acurite-icons
RAIN/SNOW
MIX LIKELY
(Lightning=Stormy)
(windy)
SNOW
LIKELY
LIGHT RAIN
LIKELY
PARTLY
CLOUDY SUNNY
CLOUDY
12 13
Care & Maintenance
Display Unit Care
Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep
away from dust, dirt and moisture. Clean ventilation ports regularly with a
gentle puff of air.
Outdoor Sensor Care
Clean with a soft damp cloth. Do not use caustic cleaners or abrasives.
Replace Intelli-Time Clock Battery
Intelli-Time technology is
powered by a pre-installed
coin-cell battery that stores
the time and date settings.
The battery has a shelf life of
several years. To replace the
Intelli-Time battery:
1. Locate the coin cell battery
compartment door on the
back of the display unit.
Unscrew and remove the
compartment cover.
2. Insert 1 x CR2032 coin cell battery into the battery compartment, as shown.
Install battery with “+” positive terminal facing OUT.
3. Screw in the battery cover.
If your AcuRite product does not operate properly after trying
the troubleshooting steps, visit www.AcuRite.com or call
(877) 221-1252 for assistance.
Troubleshooting - Continued
Problem Possible Solution
Display screen
not working
• Check that the batteries are installed correctly. Batteries
may need to be replaced.
• Reset the display by pressing the reset button, located on
the back of the display unit. Date and time will need to
be entered after a reset.
The unit lost power
or batteries were
changed and the
time is not correct
• The Intelli-Time battery needs to be replaced (see page
13). Once the new battery is installed, time and date
will need to be set manually.
14 15
At AcuRite, we proudly uphold our commitment
to quality technology. Chaney Instrument Co.
warrants that all products it manufactures to
be of good material and workmanship, and to
be free of defects when properly installed and
operated for a period of one year from the date
of purchase.
We recommend that you visit us at
www.AcuRite.com for the fastest way to register
your product. However, product registration
does not eliminate the need to retain your
original proof of purchase in order to obtain
warranty benets.
Chaney Instrument Co. warrants that all products it manufactures
to be of good material and workmanship, and to be free of
defects when properly installed and operated for a period of
one year from the date of purchase. Remedy for breach of this
warranty is limited to repair or replacement of the defective
item(s). Any product which, under normal use and service, is
proven to breach the warranty contained herein within ONE
YEAR from date of sale will, upon examination by Chaney,
and at its sole option, be repaired or replaced by Chaney.
Transportation costs and charges for returned goods shall
be paid for by the purchaser. Chaney hereby disclaims all
responsibility for such transportation costs and charges. This
warranty will not be breached, and Chaney will give no credit
for products it manufactures which have received normal wear
and tear, been damaged (including by acts of nature), tampered,
abused, improperly installed, damaged in shipping, or repaired
or altered by others than authorized representatives of Chaney.
The above-described warranty is expressly in lieu of all other
warranties, express or implied, and all other warranties are
hereby expressly disclaimed, including without limitation the
implied warranty of merchantability and the implied warranty
of tness for a particular purpose. Chaney expressly disclaims
all liability for special, consequential or incidental damages,
whether arising in tort or by contract from any breach of this
warranty. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. Chaney further disclaims all
liability from personal injury relating to its products to the extent
permitted by law. By acceptance of any of Chaney’s products,
the purchaser assumes all liability for the consequences arising
from their use or misuse. No person, rm or corporation is
authorized to assume for Chaney any other liability in connection
with the sale of its products. Furthermore, no person, rm or
corporation is authorized to modify or waive the terms of this
paragraph, and the preceding paragraph, unless done in writing
and signed by a duly authorized agent of Chaney. This warranty
gives you specic legal rights, and you may also have other
rights which vary from state to state.
For in-warranty claims: Chaney Instrument Co.
965 Wells St., Lake Geneva, WI 53147
Limited One Year Warranty
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
IMPORTANT PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
►
Register a Product
Customer Support
AcuRite customer support is committed to providing you with best-in-
class service. For assistance, please have the model number of this
product available and contact us in any of the following ways:
(877) 221-1252 info@chaney-inst.com
24/7 support at www.AcuRite.com
►Installation Videos ►Register your Product
►Instruction Manuals ►Support User Forum
►Replacement Parts ►Submit Feedback & Ideas
TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC
Indoor: 32ºF to 122ºF; 0ºC to 50ºC
HUMIDITY RANGE Outdoor: 1% to 99% RH
Indoor: 1% to 99% RH
WIRELESS RANGE 330 ft / 100 m depending on home construction materials
OPERATING FREQUENCY 433.92 MHz
POWER Display: 5vdc power adapter
3 x AA alkaline batteries (optional)
Sensor: 2 AA alkaline or lithium batteries
DATA REPORTING Outdoor: 16 second updates
Indoor: 60 second updates
FCC Information
TThis device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment.
Such modifications could void the user authority to operate the equipment.
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two contions:
(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.
Specications
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of
the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy-
rights are the property of their respective owners. AcuRite uses patented technology.
Visit www.AcuRite.com/patents for details.
Printed in China
02048 INST 092214
It’s more than accurate, it’s
AcuRite offers an extensive assortment of precision instruments,
designed to provide you with information you can depend on to
Plan your day with condence™.
www.AcuRite.com
Weather
Stations
Temperature
& Humidity
Weather
Alert Radio
Kitchen
Thermometers
& Timers
Clocks

Navigation menu
