Checkpoint Systems NGL Electronic Article Surveillance Detection System User Manual
Checkpoint Systems Inc Electronic Article Surveillance Detection System
User manual
Classic Style
Installation Manual
Version *60
P/N
10
094144
Classic Style Installation Manual Rev. *60
2 of 27
Classic Style Installation Manual
Copyright © 2011 by Checkpoint Systems Inc.
Released XX/XX/2013.
Published by:
Checkpoint Systems Inc.
101 Wolf Drive
Thorofare, NJ 08086
Document revision information
Classic Style Installation Manual, version *60
Rev Description Date Author
*60 CR2637C 1/9/2013 Ander Jiang, Chris Zheng
Trademarks
Checkpoint is a registered trademark of Checkpoint Systems, Inc.
Checkpoint, Liberty, Evolve, and VisiPlus are registered trademarks of Checkpoint Systems, Inc. All rights reserved.
Information in this document is subject to change without notice.
Other products © or ® their respective manufacturers or copyright holders.
Companies, names and data used in examples herein are fictitious unless otherwise noted. No part of the contents of
this book may be reproduced or transmitted in any form or by any means without the written permission of the
publisher.
Copyright and Warranty Information
The information in this document is subject to change without notice.
Because of the changing nature of this product information presented in the Classic Style Installation Manual,
Checkpoint Systems, Inc. is not liable for any omissions, misstatements, or other errors of information.
The information presented in this document may not be copied, used or disclosed to others for the purpose of
procurement or manufacturing without the written permission of Checkpoint Systems, Inc. This guide and the
products discussed in this guide are the exclusive property of Checkpoint Systems Inc. Copyright laws of the United
States protect all information and products.
Copyright© 2011 Checkpoint Systems, Inc. All rights reserved.
Classic Style Installation Manual Rev. *60
3 of 27
Important Information to our Users in North America
FCC Regulatory Compliance Statement
Checkpoint Systems, Inc., offers Electronic Article Surveillance (EAS) or Radio Frequency
Identification Products that have been FCC certified or verified to 47 CFR Part 15 Subparts B/C
and/or 47 CFR Part 18. Appropriately, one of the following labels will apply to the approval:
NOTE: This equipment has been tested and found to comply with the limits for a class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
- OR -
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) including this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation, which may include intermittent decreases in detection and/or
intermittent increases in alarm activity.
- OR –
NOTE: This equipment has been tested and found to comply with the limits for a
miscellaneous type ISM device, pursuant to Part 18 of the FCC Rules. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio
communications reception, which can be determined by turning the equipment off and on,
please contact Checkpoint Systems, Inc., at 1 (800) 257-5540 for further assistance.
Classic Style Installation Manual Rev. *60
4 of 27
Industry Canada
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
This radio transmitter (identify the device by certification number, or model number if Category
II) has been approved by Industry Canada to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device.
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired
operation of the device
.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that permitted for successful communication.
Industrie Canada
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son
numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal et l'impédance requise pour chaque type d'antenne. Les types
d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur
Le fonctionnement de l’ appareil est soumis aux deux conditions suivantes:
1. Cet appareil ne doit pas perturber les communications radio, et
Classic Style Installation Manual Rev. *60
5 of 27
2. cet appareil doit supporter toute perturbation, y compris les perturbations qui
pourraient provoquer son dysfonctionnement.
Pour réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain
doivent être choisis de façon que la puissance isotrope rayonnée équivalente (PIRE) ne
dépasse pas celle nécessaire pour une communication réussie.
Equipment Safety Compliance Statement
Checkpoint Systems’ EAS or Radio Frequency Identification products have been designed to be
safe during normal use and, where applicable, certain components of the system or accessory
sub-assemblies have been certified, listed or recognized in accordance with one or more of the
following Safety standards: UL 1012, UL 1037, UL 1310, UL 60950-1, CSA C22.2 No. 205,
CSA C22.2 No. 220, CSA C22.2 No. 223, CSA C22.2 No. 60950-1. Additional approvals may
be pending.
WARNING: Changes or modifications to Checkpoint’s EAS or Radio Frequency Identification
(RFID) equipment not expressly approved by the party responsible for assuring compliance
could void the user’s authority to operate the equipment in a safe or otherwise regulatory
compliant manner.
Classic Style Installation Manual Rev. *60
6 of 27
Important Information to our Users in Europe
CE Regulatory Compliance Statement
Where applicable, Checkpoint Systems, Inc., offers certain Electronic Article Surveillance (EAS)
products that have CE Declarations of Conformity according to R&TTE Directive 99/5/EC.
System Electromagnetic Compatibility (EMC), has been tested and notified through Spectrum
Management Authorities if necessary, using accredited laboratories, whereby, conformity is
declared by voluntarily accepted European Telecommunications Standards Institute (ETSI)
standards EN 301489-3 and EN 300330-2.
NOTE: Certain Electronic Article Surveillance (EAS) equipment have been tested and found to
conform with the CE emission and immunity requirement in Europe. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Under unusual
circumstances, interference from external sources may degrade the system performance, which
may include intermittent decreases in detection and/or intermittent increases in alarm activity.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment experiences frequent interference from external sources or does cause harmful
interference to radio communications reception, which can be determined by turning the
equipment off and on, please contact a Checkpoint Systems representative for further assistance.
Equipment Safety Compliance Statement
Checkpoint Systems Electronic Article Surveillance products have been designed to be safe
during normal use and, where applicable, certain components of the system or accessory sub-
assemblies have been declared safe according to the European Low Voltage Directive (LVD) by
being certified, listed, or recognized in accordance with one or more of the following European
safety standards; EN 60950, EN 50364, EN 60742.
WARNING: Changes or modifications to Electronic Article Surveillance equipment not
expressly approved by the party responsible for assuring compliance could void the user’s
authority to operate the equipment in a safe or otherwise regulatory compliant manner additional
approvals may be pending
Classic Style Installation Manual Rev. *60
7 of 27
Table of Contents
T
ABLE OF
C
ONTENTS
................................................................................................................... 7
INSTALLATION OVERVIEW .................................................................................................. 9
O
VERVIEW
................................................................................................................................... 9
R
EQUIREMENTS
............................................................................................................................ 9
Tools........................................................................................................................................ 9
Parts...................................................................................................................................... 10
I
NSTALLATION
O
UTLINE
............................................................................................................ 10
PHYSICAL INSTALLATION .................................................................................................. 11
O
VERVIEW
................................................................................................................................. 11
Aisle Width............................................................................................................................ 11
P
OWER
S
UPPLY
.......................................................................................................................... 11
Placement.............................................................................................................................. 11
A
NTENNA
M
OUNTING
................................................................................................................ 12

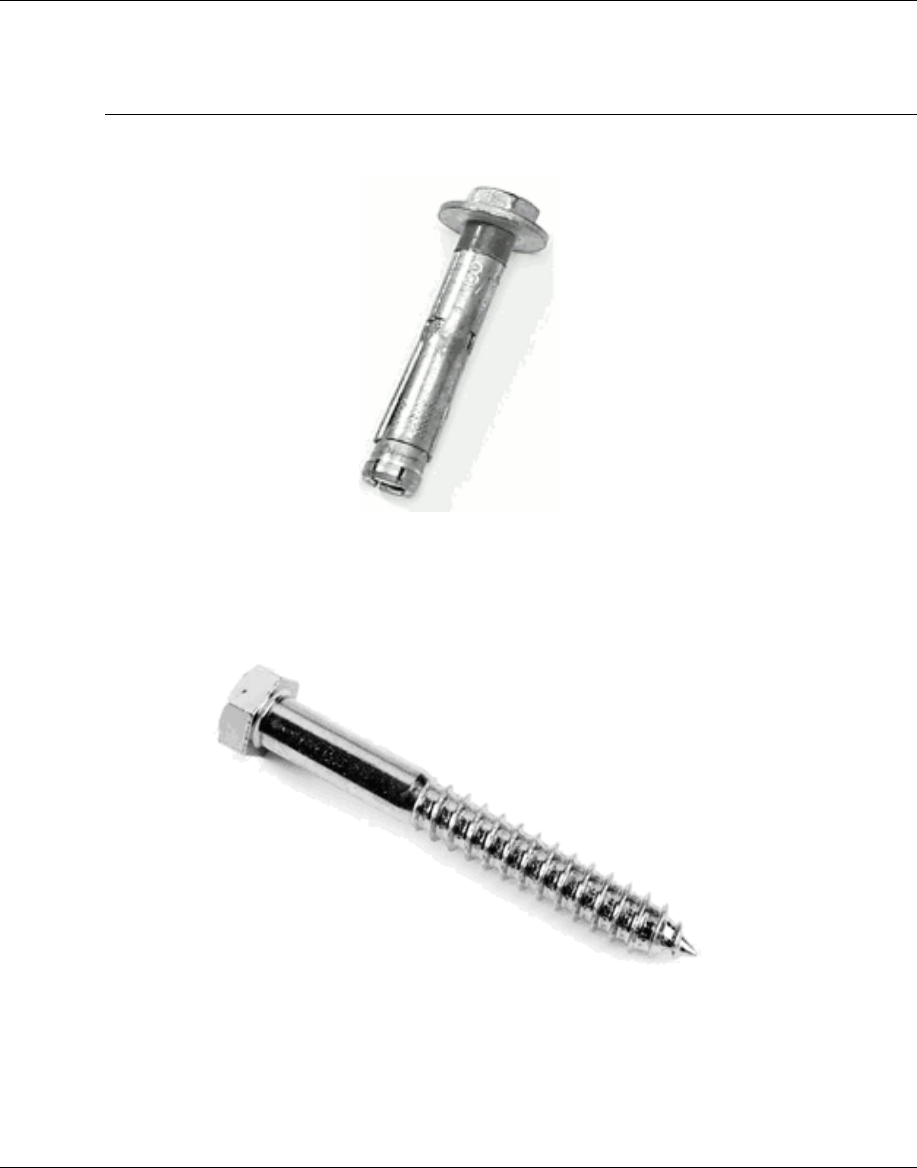

Mounting Hardware.............................................................................................................. 12

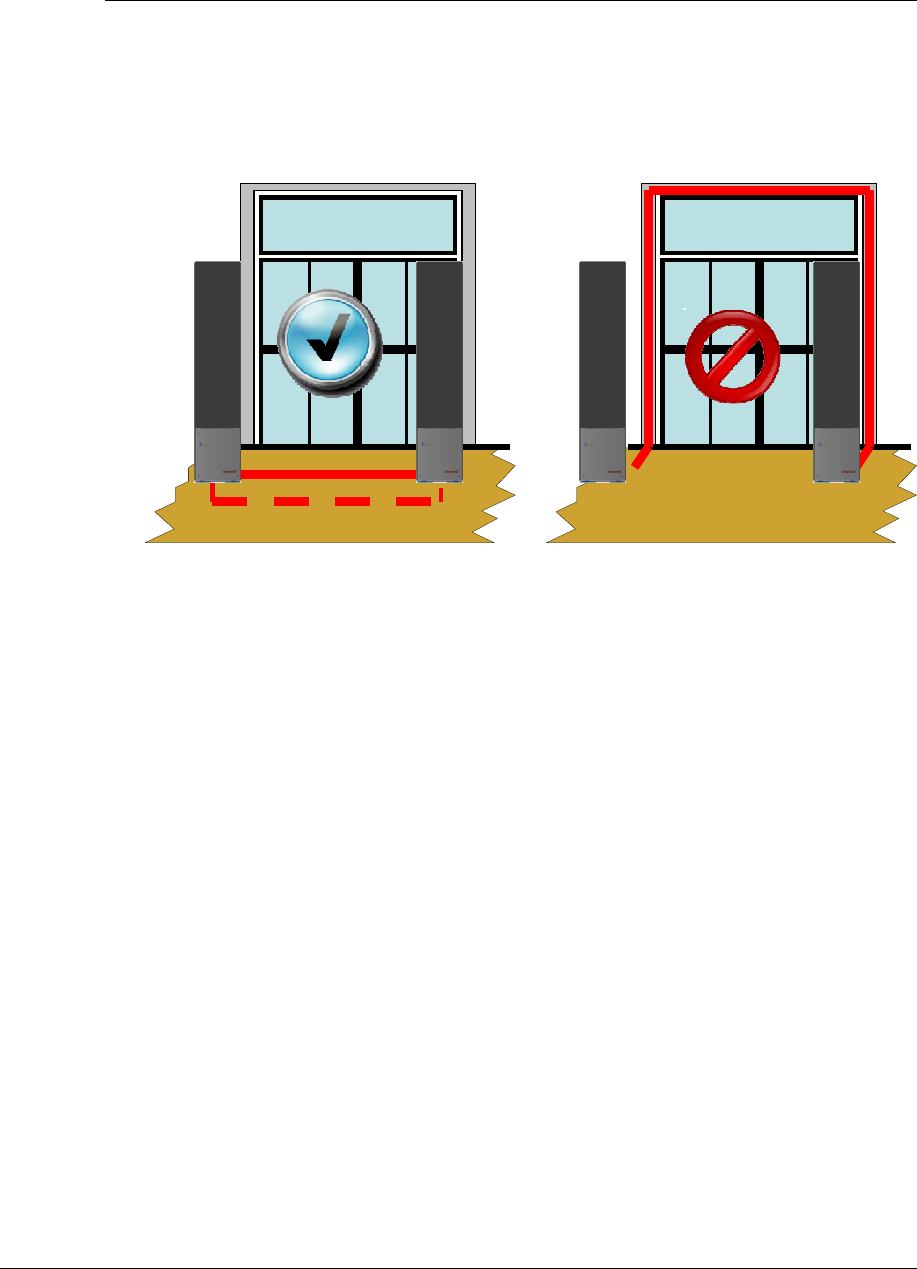

Wire Routing ......................................................................................................................... 13
ANTENNA WIRING.................................................................................................................. 14
O
VERVIEW
................................................................................................................................. 14
G
ENERAL
W
IRING
I
NSTRUCTION
................................................................................................ 14

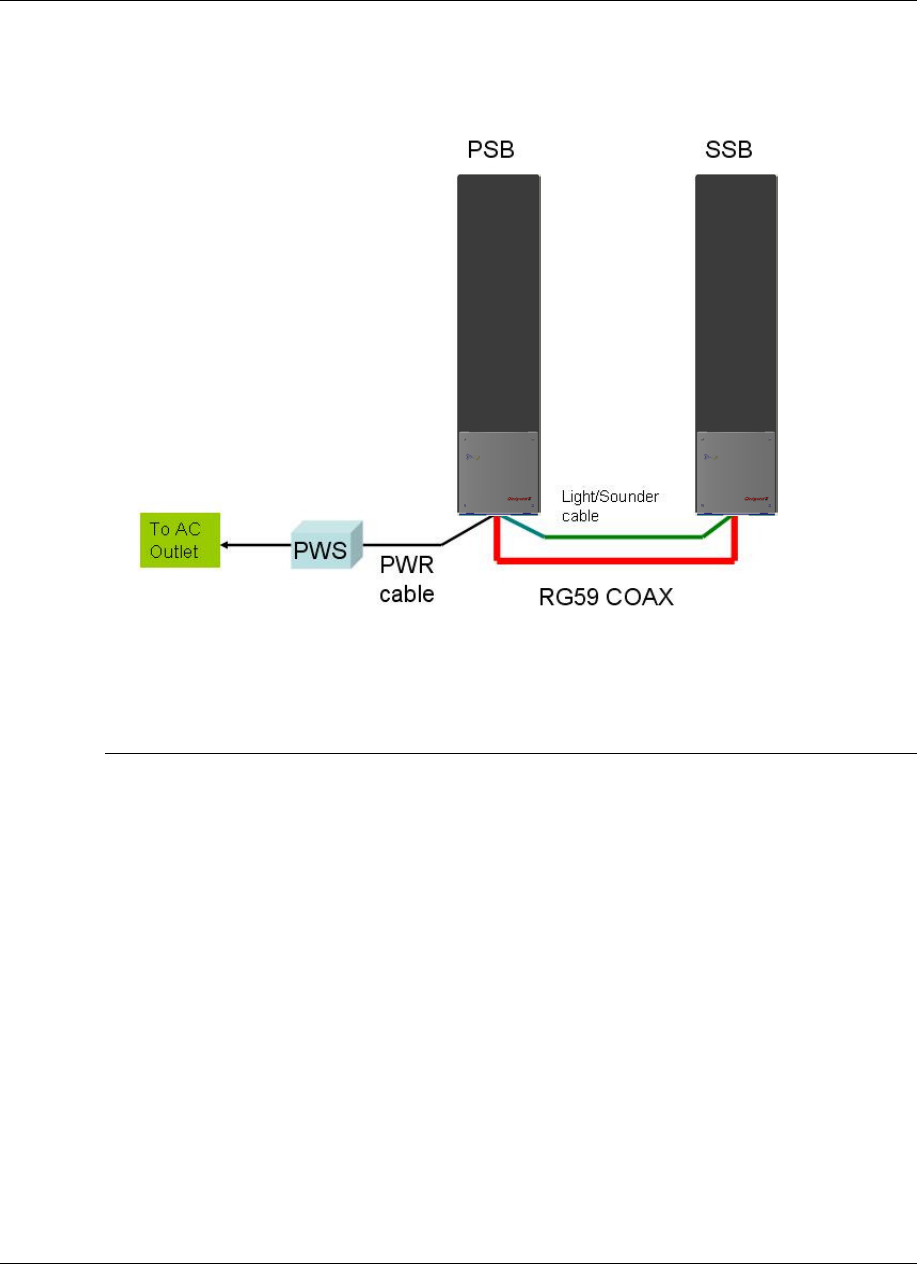

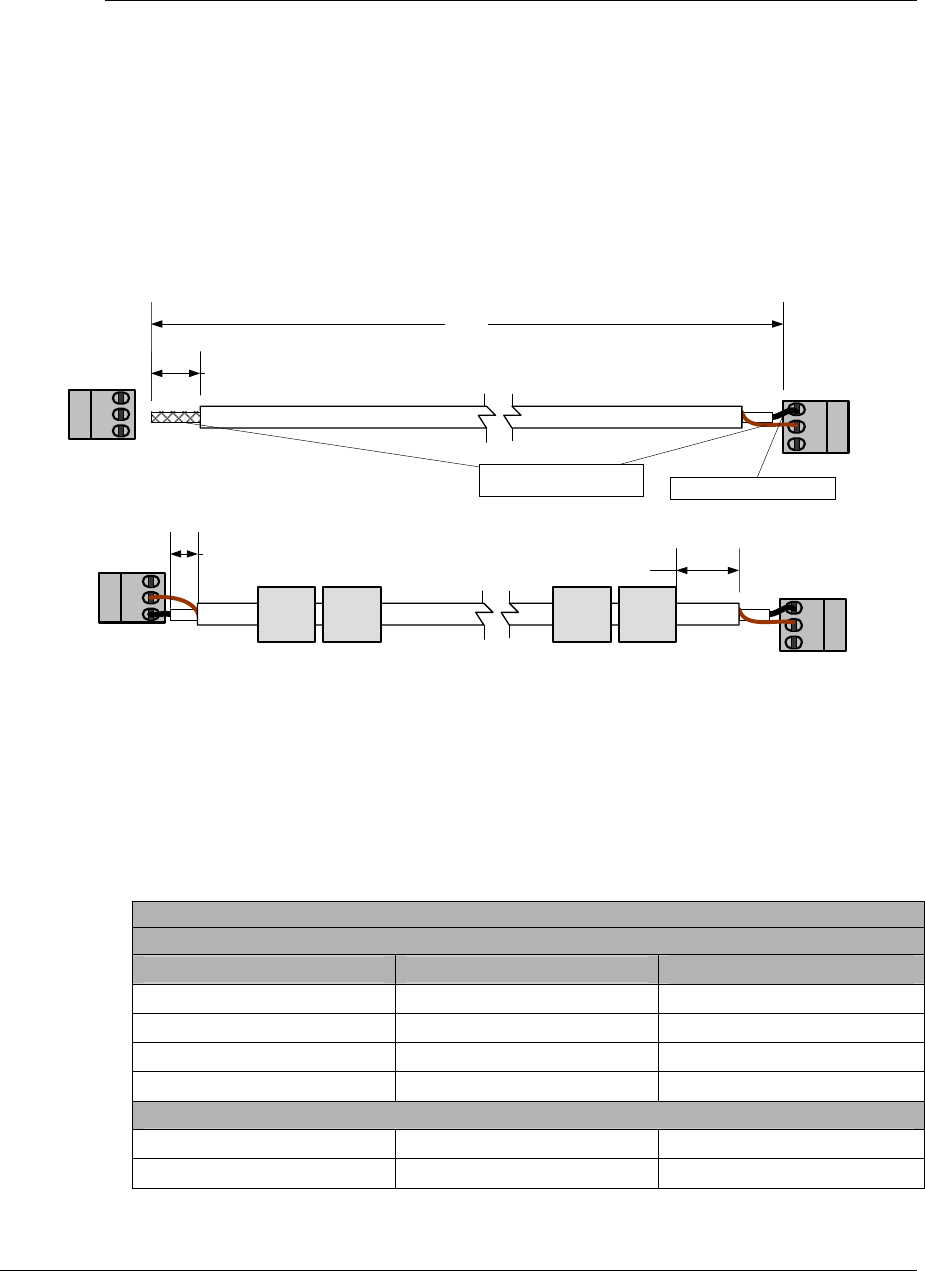

Wiring between PSB/SSB...................................................................................................... 16
Wiring 24VDC power supply................................................................................................ 17
S
INGLE
A
ISLE
W
IRING
............................................................................................................... 18

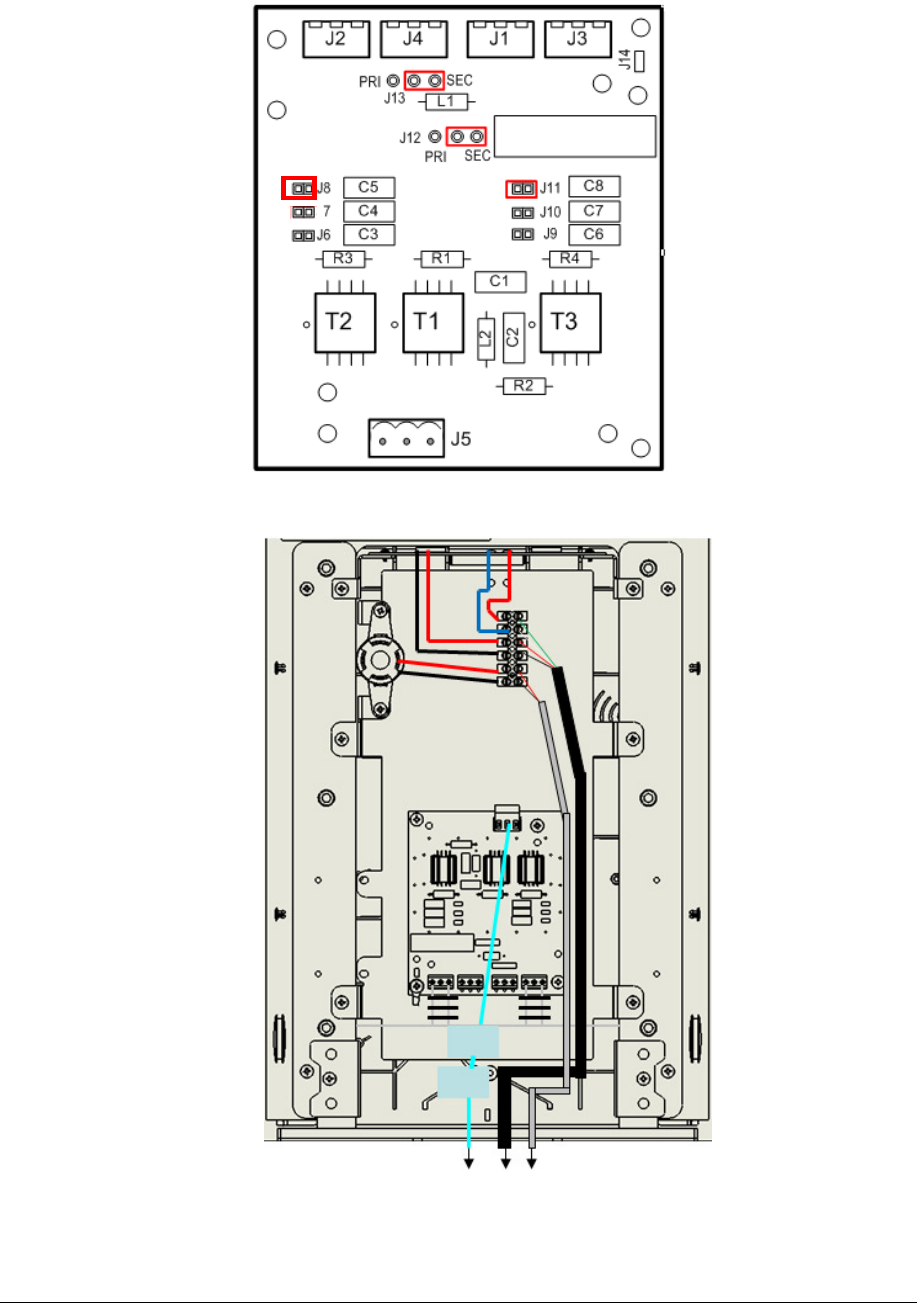

Secondary antenna (SSB) wiring .......................................................................................... 18

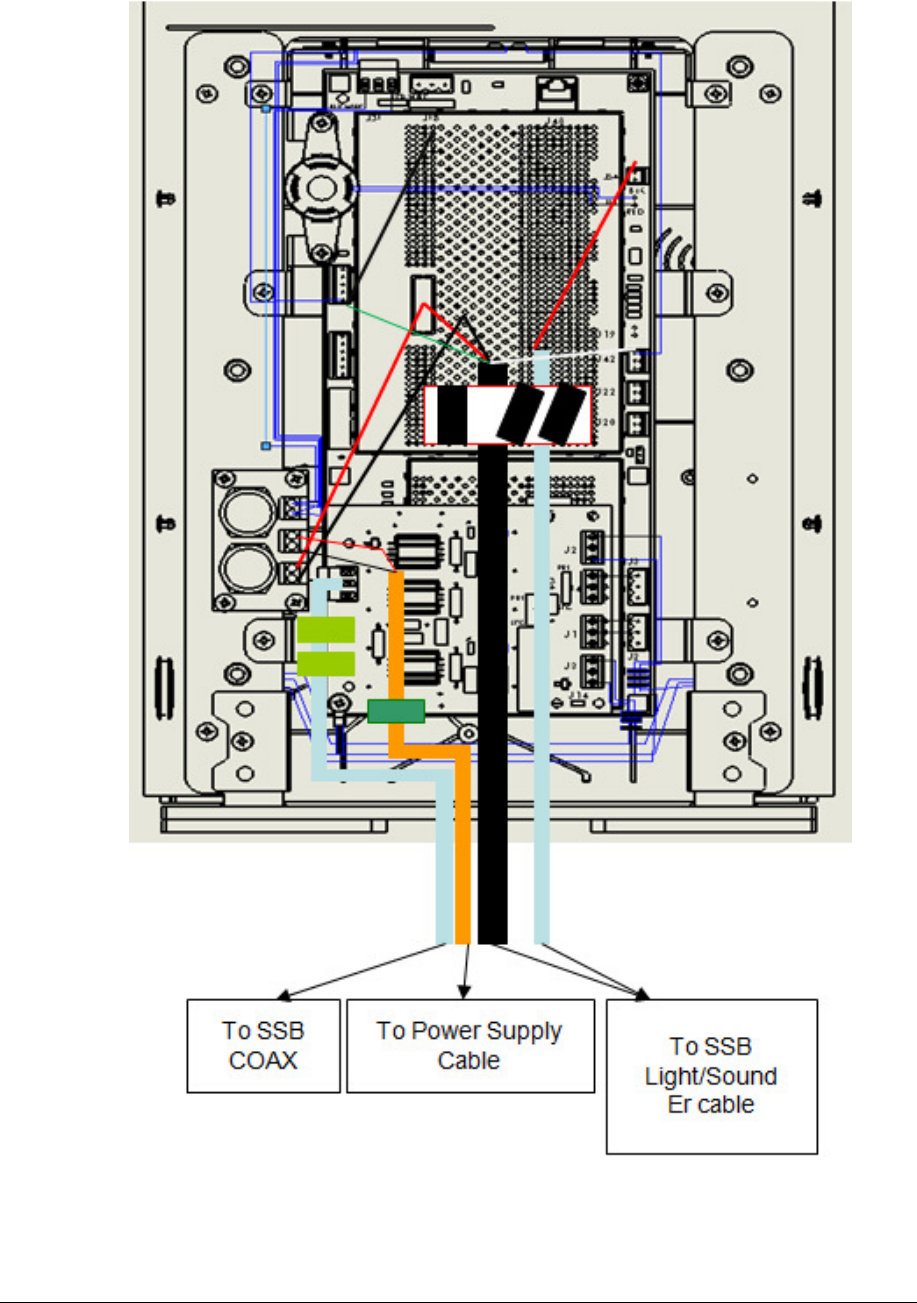

Primary antenna (PSB) wiring ............................................................................................. 20
ELECTRONICS SETTING....................................................................................................... 22
O
VERVIEW
................................................................................................................................. 22

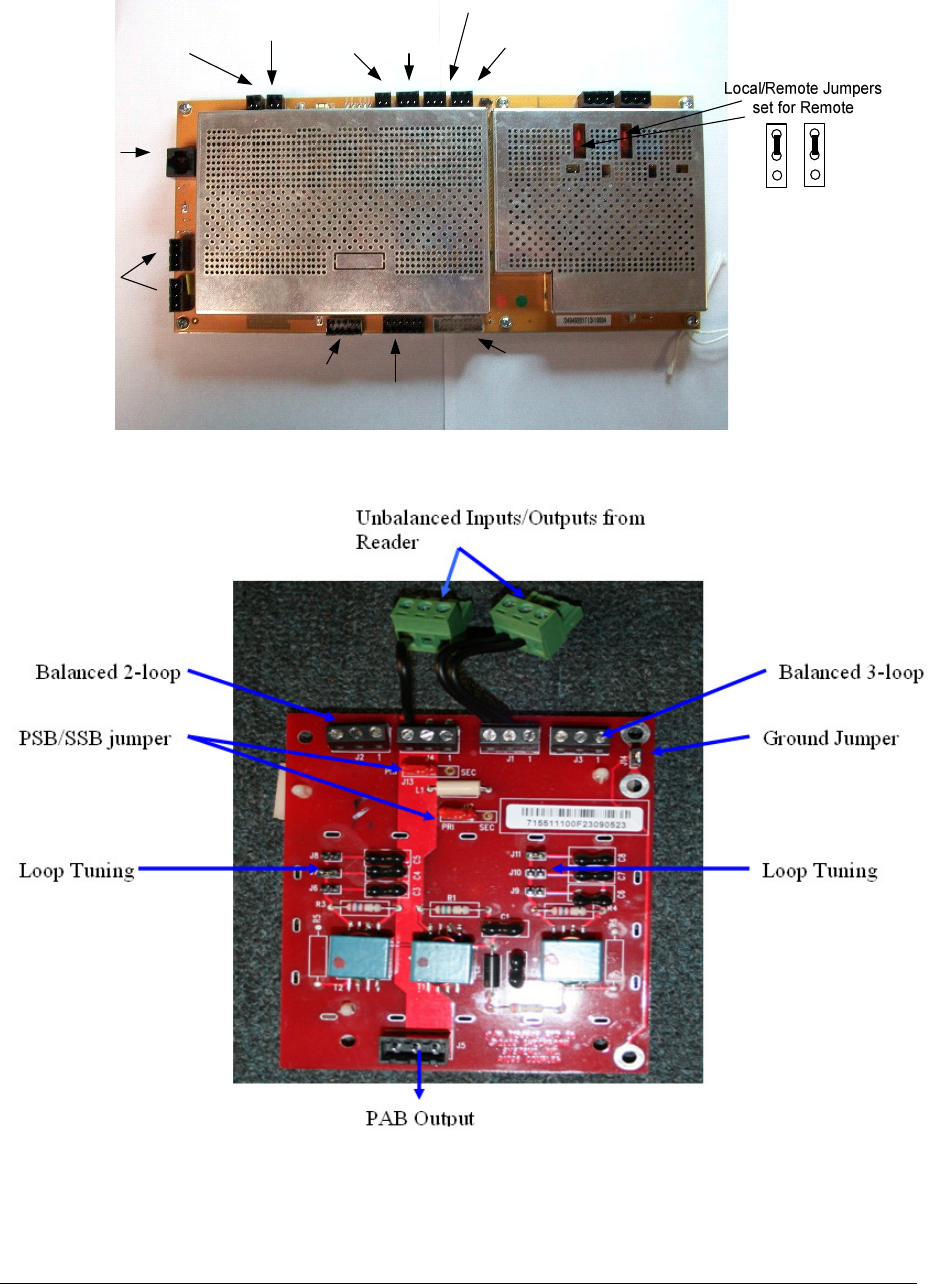

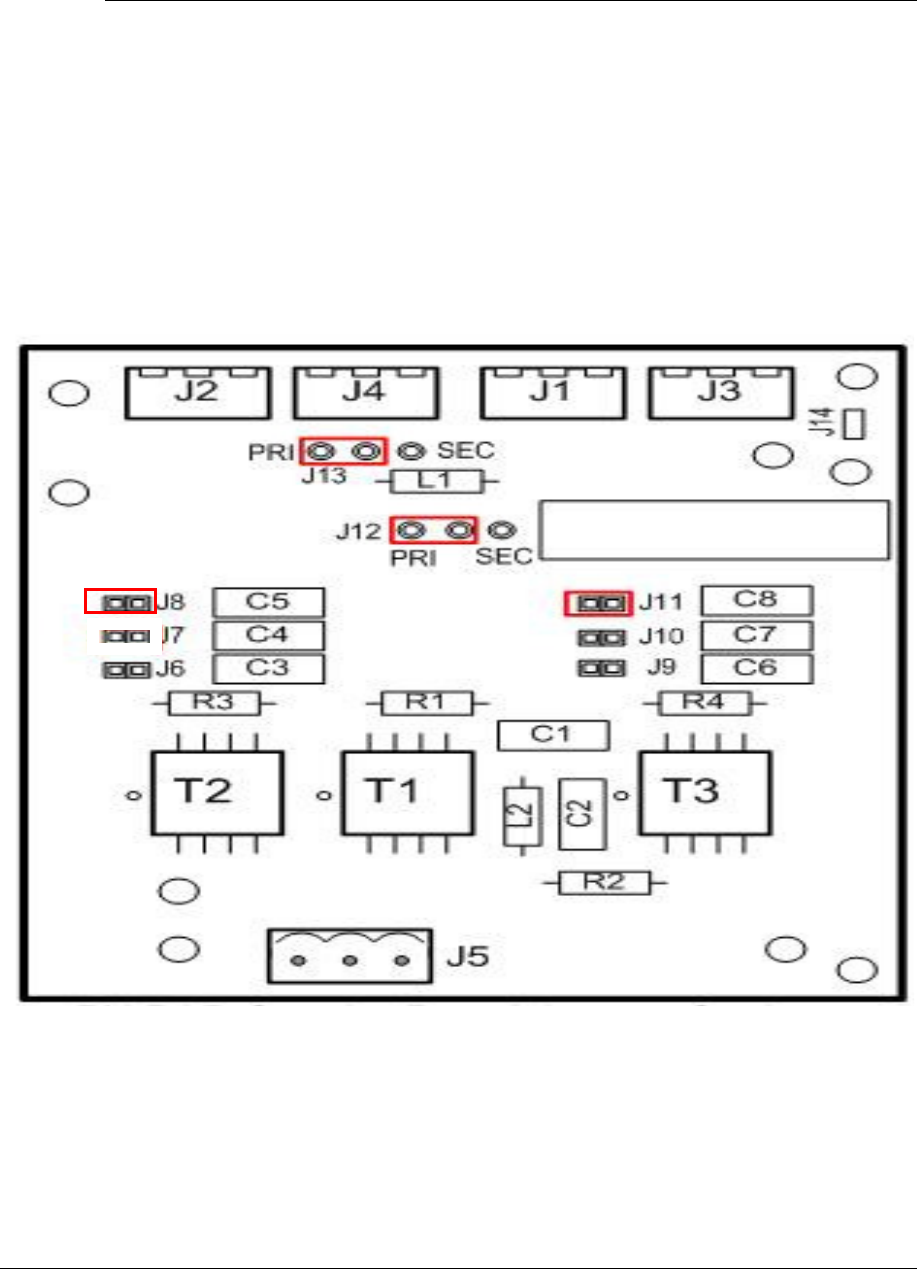

The Jumper setting for coupler aiming to antenna tuning.................................................... 22
The maximum TX settings allowable for compliance to the FCC/CE .................................. 22

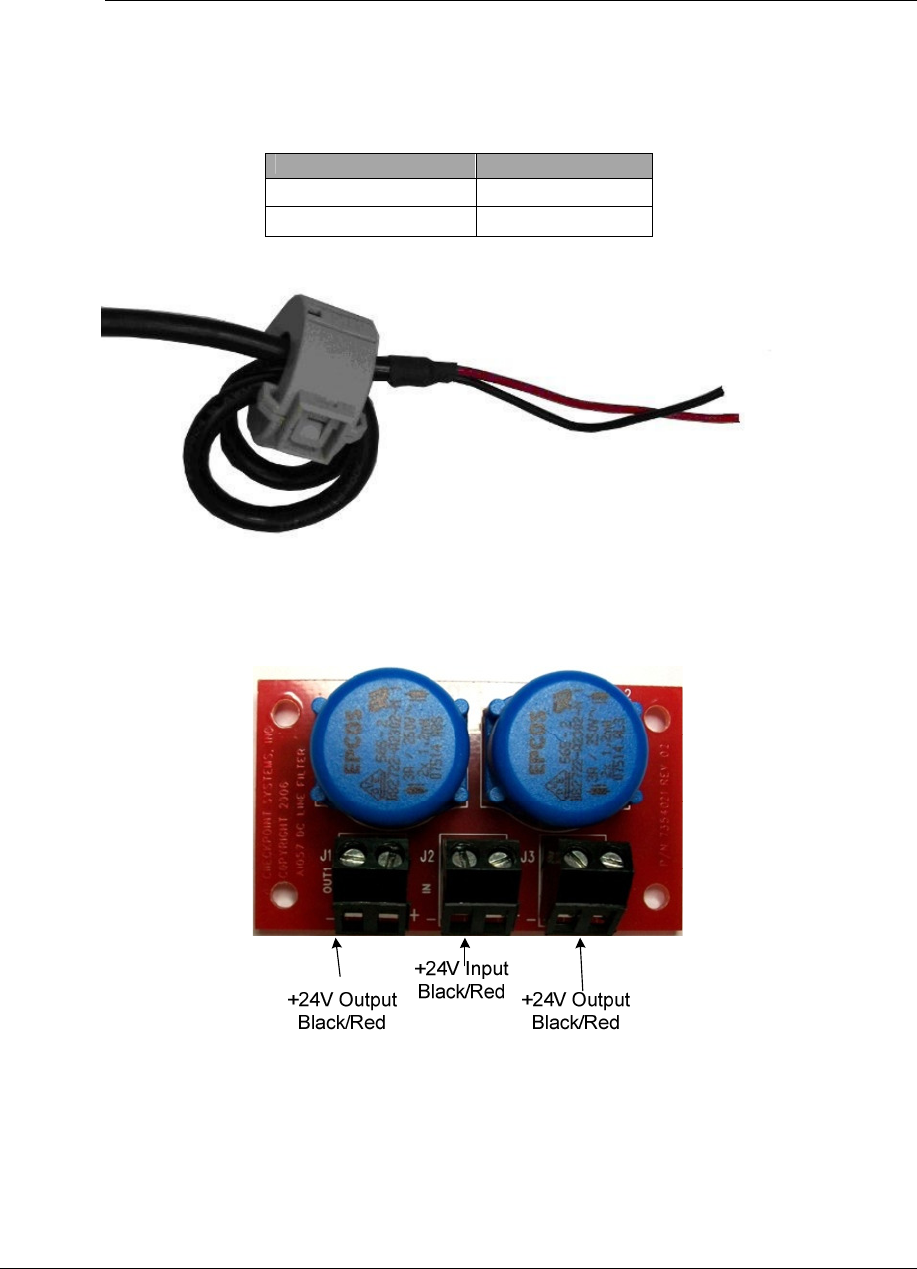

List of Ferrites for Classic Style ........................................................................................... 23

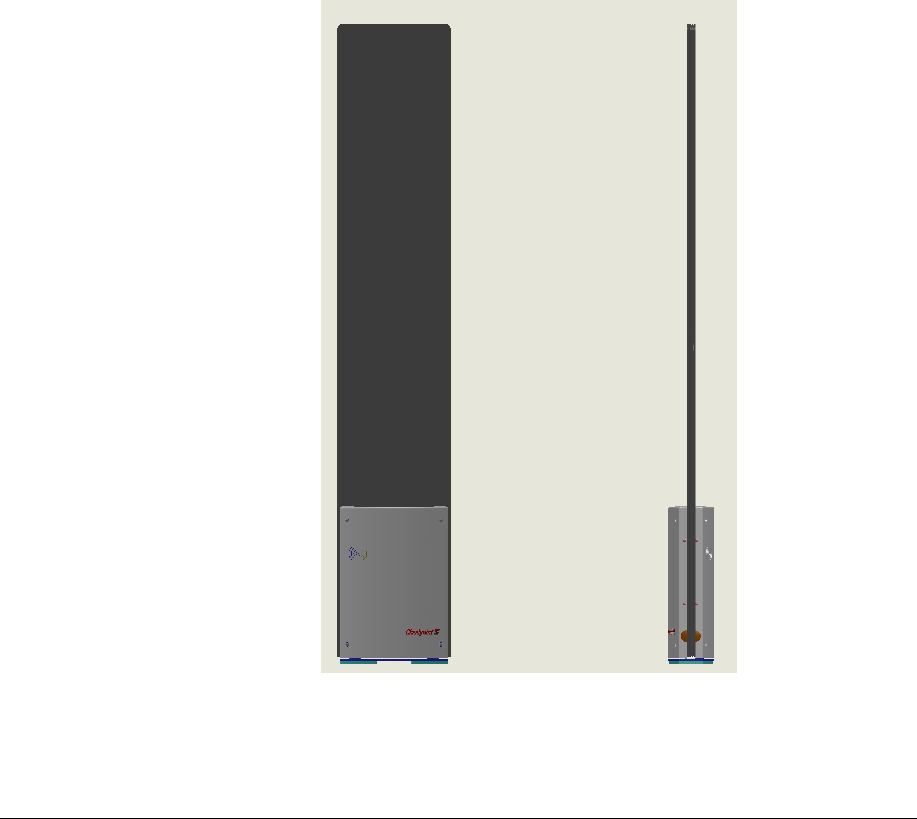

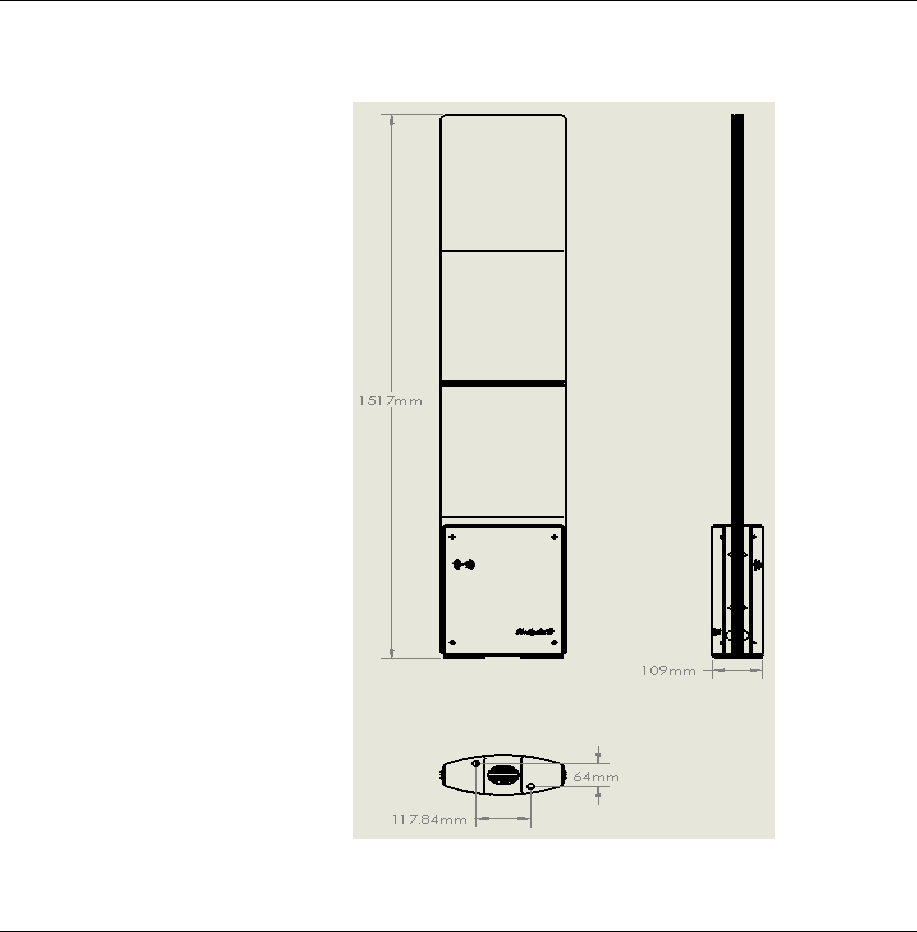

ANTENNA DIMENSIONS ........................................................................................................ 24
C
LASSIC
S
TYLE
PSB/SSB.......................................................................................................... 24

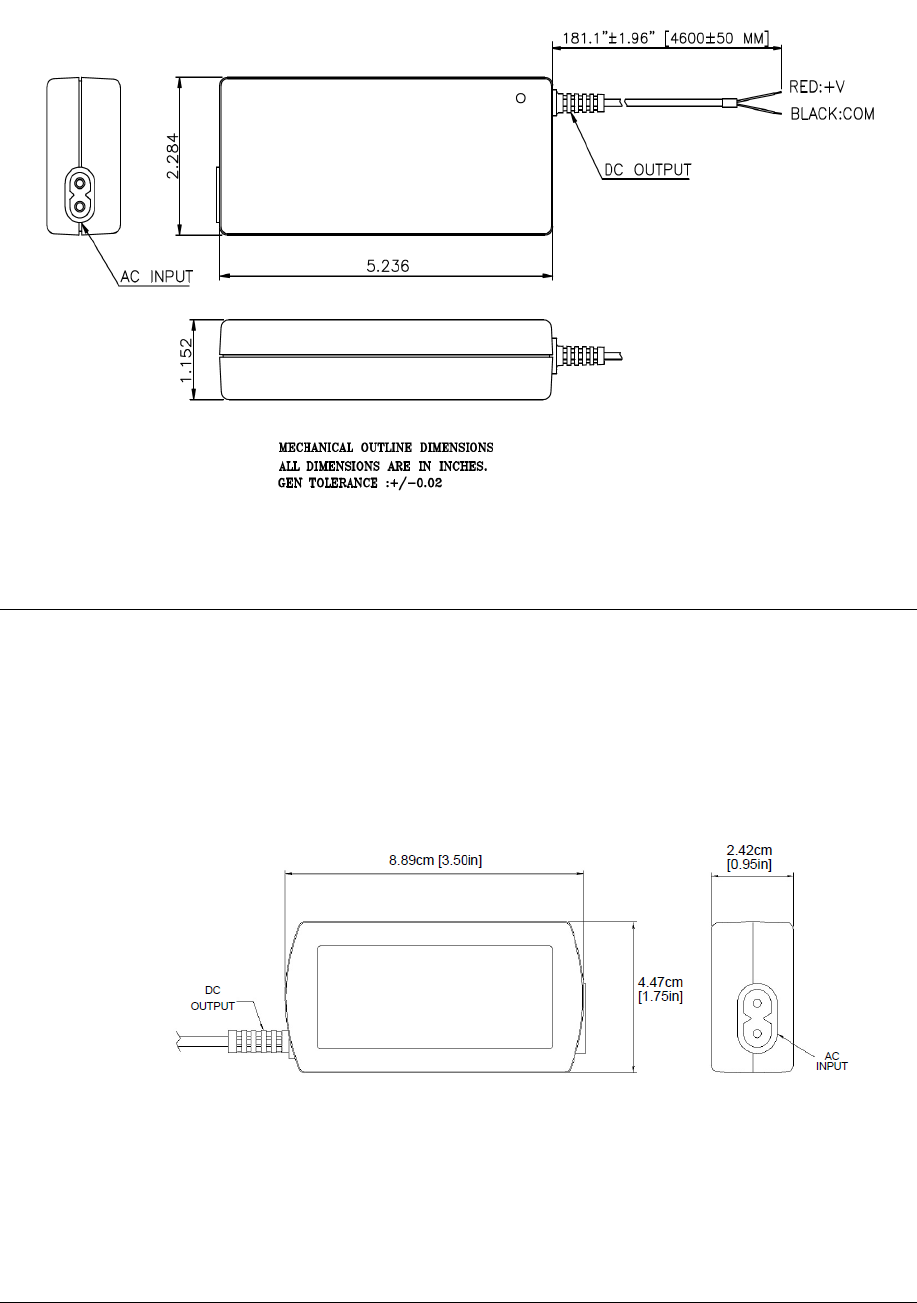

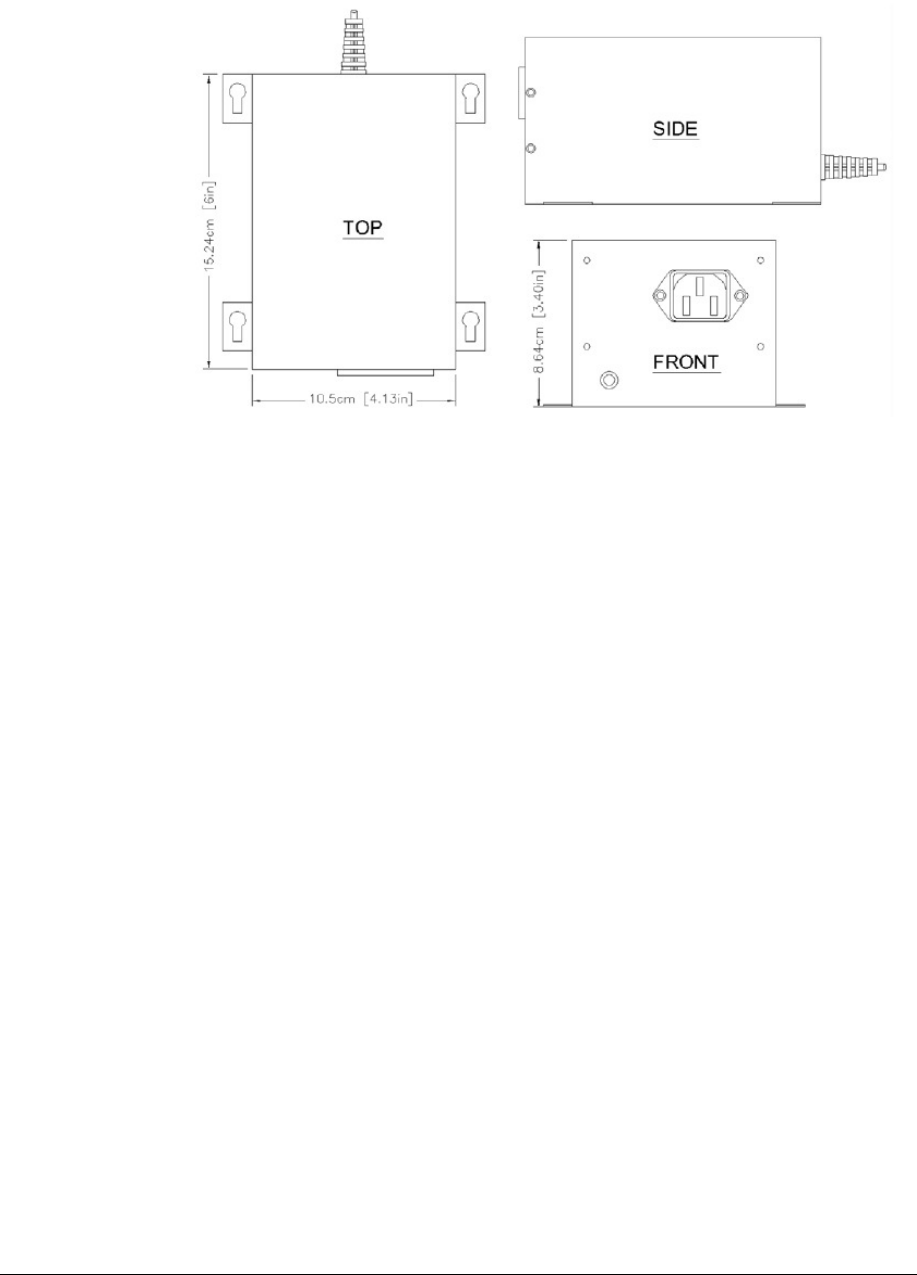

POWER SUPPLIES ................................................................................................................... 25
O
VERVIEW
................................................................................................................................. 25
P
OWER
S
UPPLY
U
SED IN
U
NITED
S
TATES
.................................................................................. 25
P
OWER
S
UPPLY
U
SED
I
N
E
UROPE
.............................................................................................. 27
Classic Style Installation Manual Rev. *60
8 of 27
C H A P T E R
1
INTRO DUCTION
This Installation Manual details the steps necessary for the proper installation and configuration of
the Classic Style systems.
In this manual, most illustrations and pictures will show the Classic Style as a place of reference,
but it is to be understood that each antenna would be installed in the same manner (unless
otherwise noted).
Classic Style front view Classic Style Side view
Figure 1 Classic Style antenna front and side view
Classic Style Installation Manual Rev. *60
9 of 27
C H A P T E R
2
INSTALLATION OVERVIEW
Overview
This chapter is an overview of the installation process:
1. Requirements: Tool and part requirements for a typical installation.
2. Installation Outline: Lists the basic installation steps in sequence.
Requirements
Tools
The following tools are required for Classic Style Antenna installations:
Arrow T-25 Staple Gun
Diagonal wire cutter
Hammer drill with 3/16” and 1/2” bits
Extension cord
Tape Measure
Hammer
Marker, Black Felt
Ratchet driver with 9/16” socket
Screwdrivers, mini, regular and #2 Phillips
Hacksaw
Utility knife
Wire Snake
Wire Strippers
Wrench, combination end 9/16”
Classic Style Installation Manual (This manual)
Tuning Procedure, TR4215 Checkpoint PN 7128336
Checkpoint Systems Field Service Diagnostic Management Software (DMS version
1.8.31 or later version) installed on a laptop with the appropriate cables. DMS is an
Classic Style Installation Manual Rev. *60
10 of 27
application developed to install and configure TR4215 boards via serial connections.
DMS provides for firmware updates without replacement of microchips.
Parts
Quantity will vary according to site.
18 AWG 2-conductor (STP)
CAT5e cable
22 AWG 4-conductor (STP) (5594)
1/2” Anchor Bolts
*DekDuct (wire chase)
*Wiremold (1500 or 2600 series)
*Wiremold anchor bolts Note:
*Wire routing methods will vary by installation.
Installation Outline
Follow this sequence to successfully install the components:
1. Determine optimal antenna placement based upon antenna type, tag type, and door
opening width. (Refer to the TR4215 Product Reference Guide)
2. Determine power supply requirements and the ideal power supply location. (See
“Appendix 2 Power Supplies”)
3. Physically mount the antennas.
4. Connect the antenna wiring.
5. Install peripherals.
6. Configure the system using DMS.
The information covered in steps 1 and 2 is generally used during the survey and planning stage,
but it is important for the installer to keep these specifications in mind to ensure that the systems
are installed to specification.
Classic Style Installation Manual Rev. *60
11 of 27
C H A P T E R
3
PHYSICAL INSTALLATION
Overview
This chapter covers the physical placement and installation of the TR4215 antennas and power
supply in the following sections:
1. Placement: How to determine the proper placement of the antennas.
2. Power Supply: Information on typical power supply placement.
3. Wire Routing: Information on typical wire routing methods.
4. Antenna Mounting: Antenna mounting information.
Note: For details of placement, refer to NGL installation manual, CKP P/N 7360602.
Aisle Width
The maximum aisle width for the Classic Style antennas (with 410EP tag) is:
Classic Style antennas (PSB/SSB) – 1.8 m [6 ft]
Classic Style antennas are composed of:
Pedestal Classic Style NGL PSB (call it PSB for short, CKP P/N 10104118)
Pedestal Classic Style NGL SSB (call it SSB for short, CKP P/N 10104133)
System performance is affected by aisle width and tag type. For aisle width details please refer to
the TR4215 Product Reference Guide.
Power Supply
Classic Style with coupler antennas utilizes a +24 VDC power supply.
Placement
The power supply can be placed near the system, under a cashwrap counter, under shelving, above
the drop ceiling (if using plenum-rated cabling), or in a nearby utility closet.
Placement Requirements:
The power supply must be within 18m [60ft] of the furthest antenna.
The power supply must be placed no higher than what is accessible from a store ladder.
Classic Style Installation Manual Rev. *60
12 of 27
If mounted in a plenum space, proper plenum rated wiring and plenum rated enclosures
are required.
Note: For more information about power supplies, please see “Power Supplies” on Appendix 2.
Antenna Mounting
Antennas are typically not mounted until after the finished flooring is in place.
Mounting Hardware
For mounting on Concrete Floor
Utilize two (2) 1.3cm [.5in.] anchor bolts per antenna.
Figure 2 Anchor Bolt (Concrete Mounting)
Wood Floor
Utilize two (2) 1.3cm [.5in] lag bolts per antenna.
Figure 3 Lag Bolt (Wood Mounting)
Classic Style Installation Manual Rev. *60
13 of 27
Wire Routing
Methods of Wire Routing
The cabling between PSB and SSB has to be routed either under floor or through floor wiremold.
“Up & Over” routing method is not permitted for cabling between PSB and SSB.
Figure 4 Methods of Wire Routing
Floor Trench: Typically 1.3cm [.5in.] wide by 3.8cm [1.5in.], but an increase in
dimensions is recommended for more than two antennas.
Wiremold: 1500 or 2600 series wire mold can be utilized. Typically wire mold is not
used within customer traffic areas, so a typical placement is from the outside of the
antennas to the doorframe.
Conduit: 2.5cm [1in.] diameter conduit can be utilized in new construction situations. It is
recommended that swept 90 degree angles are used, and that pull-strings are provided by
the conduit installer.
Wall / Mullion: Wires can be contained within mullions, and hollow walls for vertical
wire runs.
Dek-Duct / Panduit: Wires can be contained within surface mount Dek-Duct or Panduit
for vertical wire runs.
W
ARNING
: Any wiring in plenum areas must be plenum rated. Additionally, ensure that the
wire is installed in accordance with applicable (local/national) electrical codes.
Correct Wire
(A
Incorrect Wire
(B
OR
Classic Style Installation Manual Rev. *60
14 of 27
C H A P T E R
4
ANTENNA WIRING
Overview
This chapter describes the Classic Style with Coupler primary (PSB) and secondary (SSB)
antennas wiring and cabling.
W
ARNING
:
This system runs on TR4215
†
electronics with firmware version 4.00 or higher. It is
critical to note that ONLY TR4215 electronics can be used in conjunction with this system. It is
also critical that DMS version 1.8.31 or later be used to configure the system.
Information is covered in the following sections:
1. General wiring instruction
2. Aisle wiring
General Wiring Instruction
This section describes how to prepare and wire all cables and wires involved in the antenna
installation. Wires can be cut to required length. Below is a picture of a TR4215 board with all
interfaces labeled.
Classic Style Installation Manual Rev. *60
15 of 27
TX1TX2
Sync In
Sync Out
PAB
Lights
Metal
Point
SAB
Lights
PAB
Sounder
SAB
Sounder
Badge
Board
Input
Power
Alarm
Relay
Optional 3
rd
TX Interface
Figure 5 TR4215 Reader Board
Figure 6 Passive Coupler Board
Classic Style Installation Manual Rev. *60
16 of 27
Wiring between PSB/SSB
There are only three wires connected between PSB and SSB. They are 1) RG59 coax cable and 2)
SSB Dual color LED cable (22 AWG 4-conductors P/N 7102900 (STP) (5594)) 3) SSB Sounder
cable 2-condutior wire(7045353)
RG59 Coax Cable:
A 13ft long, Two end pre-terminated RG59 coaxial cable is packed with SSB antenna. It connects
the coupler boards (J5) in the primary antenna (PSB) and in the secondary antenna (SSB).
1. Figure 7 RG 59 Coax cable wiring diagram (B) shows the RG59 cable assembly been
completely terminated with ferrite cores clamped on both ends.
1
2
3
1
2
3
3
2
1
13 ft
19mm[3/4in]
25mm[1 in]
12mm[1/2in]
(A)
(B)
Center Conductor
Shield Conductor
3
2
1
Figure 7 RG 59 Coax cable wiring diagram
SSB Light/Sounder Cable
It is recommended to use CKP standard field service truck stock 4-conductor wire P/N 7102900
(AWG22). For the lights the white wire connects LT+ terminal and green wire connects LT-
terminal. For the sounder the red wire connects to SD+ terminal and the black wire connects to the
SD- terminal. The SSB light/sounder cable must mount a cylindrical ferrite at each end in PSB and
SSB. A ferrite core with three turns is attached to each end.
Secondary SSB Light/Sounder Cable Wiring Table
4 conductor wire
Wire Color TR4215
Classic Style SSB
WHITE J42-LTS+ LT Blue
GREEN J41-LTS+ LT Red
RED Filter output+ LT Power +
BLACK Filter output- LT Power -
2 conductor wire
RED J54 SND 2+ SD +
BLACK J54 SND 2- SD -
Table 1 PSB/SSB Light/Sounder Cable Wiring Table
Classic Style Installation Manual Rev. *60
17 of 27
Wiring 24VDC power supply
A Checkpoint certified 24VDC power supply can power up to two (2) PSBs. It is recommended to
wire the 24VDC power suppler to the nearer PSB filter board input, then, connect wire from this
PSB’s filter board to J18 connector on the reader. The other output from the filter board could be
wired to other PSB filter board input. (See Figure 10 24 VDC power filter). 24VDC power cable
uses AWG18 two (2) conductor cable.
Wire Color Description
Black GND
Red +24 V
Table 2 Power Cable Wiring Table
Figure 9 24 VDC Power Supply Cable
Figure 10 24 VDC power filter
Classic Style Installation Manual Rev. *60
18 of 27
Single Aisle Wiring
The single aisle installation is the most common Classic Style application which best utilizes the
PSB-SSB configuration (see Figure 11 Single Aisle). A typical single aisle installation consists of
a Style primary antenna (PSB), a secondary antenna (SSB), a power supply and a cable kit
(packaged with secondary antenna). It is recommended to start SSB wiring first, then wire the PSB.
Connect the power cable last.
Figure 11 Single Aisle
Secondary antenna (SSB) wiring
Step 1: Open the base cover.
Step 2: Plug the pre-terminated RG59 coax cable onto coupler board J5, then mount two (2)
ferrite clippers close to the connector (see Figure 7 RG 59 Coax cable wiring diagram).
Step 3: Connect the SSB 4 conduct Lights cable to the wire terminal LT+ (White) / LT- (Green)
and LT power+ (Red)/LT power- (Black) resp. Connect 2 conduct sounder cable to the
wire terminal SD+(Red)/SD-(Black)
Step 4: Inspect wiring and connections, confirm coupler board jumper settings (see Figure 12
SSB Coupler Board Jumper Settings).
Step 5: Put the base cover back and secure.
Classic Style Installation Manual Rev. *60
19 of 27
Figure 12 SSB Coupler Board Jumper Settings
Figure 13 Classic Style SSB Antenna Wiring
Classic Style Installation Manual Rev. *60
20 of 27
Primary antenna (PSB) wiring
Step 1: Open the base cover(s).
Step 2: Connect the RG59 coax cable to J5 of coupler board,. Check the coupler board jumper
settings (see igure 14 PSB Coupler Board Jumper Settings).
Step 3: Connect the SSB dual color LED Cable wires for the Red/Blue lights to the J41/J42 on
the electronic reader board (TR4215), connect dual color LED cable wire for power
supply to filter board output.
Step 4: Connect the SSB Sounder Cable wires to J54 on the electronic reader board (TR4215).
Step 5: Connect 24v DC power cable to the VDC power filter and then the output of the filter
board to J18 on the electronic reader board (TR4215)
Step 6: Inspect wiring and connections, confirm coupler board jumper settings (see igure 14 PSB
Coupler Board Jumper Settings).
Step 7: Put the base cover(s) back and secure.
Figure 14 PSB Coupler Board Jumper Settings
Classic Style Installation Manual Rev. *60
21 of 27
Figure 15 Classic Style PSB Antenna Wiring
Classic Style Installation Manual Rev. *60
22 of 27
C H A P T E R
5
ELECTRONICS SETTING
Overview
All electronics setting here aimed for on site configurations based on compliance and performance
test result, If it sill can not illuminate fundamental noise, please refer to tuning procedure of
TR4215 .
The Jumper setting for coupler aiming to antenna tuning
Antenna Type Jumper Settings
Classic Style J8, J11
Table 3: Coupler Board Jumper Settings
The maximum TX settings allowable for compliance to the
FCC/CE
Table 4: TX setting for compliance
Region FCC/IC CE
TX Band
8.2 (8.2 MHZ only) 8.2 (8.2
MHZ only)
Antenna Configuration 2.84 fw 2.84 fw
Classic
Style
Dual (master +
sub)
27 31
Classic Style Installation Manual Rev. *60
23 of 27
List of Ferrites for Classic Style
Classic Style
PSB
CKP P/N MFR MFR &
MFR P/N
#
Turns
Cable
installed on
install
location Qty
7784420 Wurth WURTH
74271111 1
RG-59 COAX
cable (both
ends)
Liberty
Coupler
A1096
2
7284760 Fair Rite FAIR RITE
0443806406
4 Pwr supply - dc
cable
next to dc
line filter
pcb
1
7284760 Fair Rite FAIR RITE
0443806406
4 LED+sounder
cable
Next to
terminal port
of sounder
and LED
1
617944 Fair-Rite FAIR RITE
2843006802
1 LED cable to
port J42
next to
TR4215 /
port J42
2
221412 Fair Rite FAIR RITE
2861000202
1 Antenna Loop
(2-Loop) A1096 (J2) 2
221412 Fair Rite FAIR RITE
2861000202
1 Antenna Loop
(3-Loop) A1096 (J3) 2
Classic Style
SSB
CKP P/N MFR MFR &
MFR P/N
#
Turns
Cable
installed on
install
location Qty
7784420 Wurth WURTH
74271111 1
RG-59 COAX
cable (both
ends)
next to
Liberty
coupler
2
221412 Fair Rite FAIR RITE
2861000202
1 Antenna Loop
(2-Loop) A1096 (J2) 2
221412 Fair Rite FAIR RITE
2861000202
1 Antenna Loop
(3-Loop) A1096 (J3) 2
7284760 Fair Rite FAIR RITE
0443806406
4 LED+sounder
cable
close to 6-
pin
connector
1
Table 5: Ferrites list for Classic Style
Classic Style Installation Manual Rev. *60
24 of 27
A P P E N D I X
1
ANTENNA DIME NSIONS
Classic Style PSB/SSB
Classic Style Installation Manual Rev. *60
25 of 27
A P P E N D I X
2
POWER SUPPLIES
Overview
This appendix covers all available (US and EU) TR4215 Style compatible power supplies.
Details
Power supplies have an output of +24 VDC.
Requirements
In the US, if the power supply is to be installed in a plenum (HVAC ventilation) area, the Globtek
GS-599ES(R) and the Globtek GS-599MC-KIT(R) must be installed.
Capacity
The following power supplies can provide power for up to two aisle systems:
Globtek GS-599 UF
Globtek GS-599ES(R)
EOS LFZVC65SG24E
EOS- LFEVC65NS24PL (PN: 10102495)
The following power supply can provide power for one aisle systems:
EOS LFZVC36FS24S91
Power Supply Used in United States
Model
The US market uses the following power supply types:
1. Globtek GS-599ES(R) (PN: 7116509)
Standard power supply rated for use in plenum areas.
Note: For use in plenum areas, the Globtek GS-599MC-KIT(R) must be used in
conjunction with the Globtek GS-599ES(R).
Dimensions
Width: 10.50cm [4.13in]
Length: 15.24cm [6.00in]
Height: 8.64cm [3.40in]
Classic Style Installation Manual Rev. *60
26 of 27
2. EOS- LFEVC65NS24PL (PN: 10102495)
Note:
Dimensions
Width: 5.8 cm [2.284in]
Length: 13.3 cm [5.236in]
Height: 2.9 cm [1.152in]
Weight
350 grams (12.35 ounces)
Classic Style Installation Manual Rev. *60
27 of 27
Power Supply Used In Europe
Model
The EU market uses one power supply types:
EOS LFZVC36FS24S91 (PN: 7683707)
Dimensions
Length: 8.89cm [3.50in]
Width: 2.42cm [0.95in]
Height: 4.47cm [1.75in]
