Versatile Terminal for E-money systems
VRW-05A VRW-05B
User’s Manual
Thank you for purchasing "Versatile Terminal for E-money systems VRW-05A VRW-05B"
Read this manual carefully before using to confirm correct performance.
2
Table of contents
Table of contents ................................................................................................................ 2
Introduction ........................................................................................................................ 3
Read This First ................................................................................................................... 6
For Your Safety .................................................................................................................. 7
1. Before Use .................................................................................................................... 11
Accompanying Items ................................................................................................. 11
Parts and Functions Overview ................................................................................. 12
2. How to use .................................................................................................................... 13
Connect to the Host Terminal via USB. ................................................................... 13
Using Contactless IC Card Reader. .......................................................................... 14
How to Use the Magnetic Stripe Card Reader ........................................................ 15
3．Cleaning ....................................................................................................................... 16
Cleaning the Product ................................................................................................ 16
4．How to insert/remove the SAM card ........................................................................... 17
5．Troubleshooting ........................................................................................................... 19
6．Specification and Regulation ....................................................................................... 20
3
Introduction
This manual explains basic functions and operations of Versatile Terminal for E-money systems
VRW-05A VRW-05B. Store this manual in a place where it can be referenced to whenever needed.
Copyright and Publishing Statements
- This manual must not be reprinted in part or whole without permission.
- The contents of this manual are subject to change without notice.
Trademarks
- Company names and product names other than NEC, written in this manual, are registered
trademarks of each company.
Important Notes
- The purpose of this manual is to cover all functions of this equipment; however, if there are any
unclear points, misprints or incomplete descriptions etc., please contact your retailer.
- Our company will not be responsible for any financial losses due to any external factors, such as
breakdown, malfunction, natural disaster, or power failure etc.
4
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device does not cause harmful interference,
(2) However, it may receive interference received from outside. Outside interference may cause
undesirable operation.
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy. If not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. Which can be determined by turning the equipment off and
on, if this equipment causes harmful interference to radio or television reception. the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
5
Wireless Planning Coordination
1970/2012/WRLO
1982/2012/WRLO
6
Read This First
[About the Symbols]
The symbols and the equipment illustrations in this manual are for the safe usage of this equipment.
To prevent any harm to the customers, please note the symbols carefully. The symbols and their
meanings are described below. Please make sure you are aware of the meanings of the symbols when
reading this manual.
Prohibition
Indicates prohibition
Do not Bring Close to Flames
Indicates that the machine is too close to
flames and it will catch fire.
Caution
Indicates danger
Electric Shock Risk
Indicates the possibility of electric shock
when it is misused.
Smoke and Fire Risk
Indicates the probability of smoke or fire
when mishandling.
Overheating Risk
Indicates the possibility of failure caused
by heat inside the equipment when
mishandling.
Compulsory Action
Indicates that action must be taken
Ignoring this symbol or the mishandling of this equipment may cause
malfunction or disable the equipment entirely.
Symbols in This Manual
Ignoring this symbol or mishandling this equipment may cause death or
serious injury.
Ignoring this symbol or mishandling this equipment may cause injury or damage to the
equipment.
7
For Your Safety
A
way from Pacemaker
Persons with implanted cardiac pacemakers should be at least 22cm away from this equipment.
Do Not Use in Prohibited Areas
Do not use this product near persons with medical devices such as cardiac pacemakers or hearing aids.
Electrical waves from this equipment are much lower than that of mobile phones. Effects on medical electric
equipments are extremely low, but please follow the instructions of each medical institution when using this
product. Do not use this product when it is forbidden by medical institutions. Even where it is allowed by
medical institutions turn the power off if there is any medical electric equipment in use nearby. For more
details, please contact medical institutions.
Do Not Use in Airplane
A
ccording to flight conditions, each airline companies prohibit the use of radio and electric equipment. This
product belongs to a list of products that are restricted. For more details, please contact airline companies.
Do Not Disassemble, Repair or Modify
Do not disassemble or modify the equipment. It may cause fire or electric shock. Ask your nearest
retailer or maintenance service for internal inspection or repair.
Do Not Use When There is Smoke,
Unusual Smell or Unusual Sound
When using the equipment, if you see smoke or smell unusual odor, turn the power off immediately. These
are signs of potential fire or electrical shock. To avoid danger, ask your nearest retailer or maintenance
service for help. DO NOT repair the equipment by yourself
Do Not Insert Wire or Metal
Do not insert foreign objects such as wire or metal into opening, such as the connector pins of the
equipment. It may cause electric shock.
8
For Your Safety
Keep Away from Fire
Do not use this equipment near gas or other flammable materials. It may cause fire or explosion.
Do Not Touch with Wet Hands
Do not unplug the cable with wet hands. It may cause electric shock.
Regarding Disposal
When disposing of this product, do not incinerate it or throw it into the fire. This may cause intense
burning. Please contact your retailer when disposing of this product as it must be disposed of in a
regulated manner.
9
For Your Safety
Do Not Put any Liquid or Foreign Objects into the Equipment
Do not put any type of liquid or foreign objects, such as pins or paper clips, into the equipment. This
may cause fire, electric shock or breakdown. If this occurs, you must turn the machine off and
contact your retailer immediately. Do not disassemble the equipment yourself.
Do Not Place the Equipment in Dusty/Humid Area
Do not use the equipment in dusty or highly humid places. It may cause fire.
Do Not Bend or Twist the Cables
Do not bend or twist the cables. A broken cable can cause fire or electric shock. Do not try to repair
the cable even if it is damaged.
Do Not Expose to Direct Sunlight
Do not leave the equipment or the power cable under direct sunlight or near appliances that
generate heat. When the internal temperature of the equipment rises, it may not work correctly,
and may cause fire.
Do Not Place Near Appliances that Generate Radio Waves
Do not place the equipment near appliances that generate radio waves, such as security equipment. It may
cause malfunction.
A
void Strong shock
A
void banging or dropping items, such as canned goods and bottles on the reading surface of Contactless IC
card reader. This action may cause damage to the equipment.
Do not pour any type of liquid.
Do not pour any type of liquid such as water on the equipment. This action may cause electric shock
or breakdown.
Using Contactless IC Card Reader
10
Notes for Disposal
For Your Safety
- Do not use the equipment in a place where the temperature change is extreme
Temperature range of this product is 0-35 ℃ with a humidity level of 20-80% RH, non-bedewing condition. Do
not place this equipment where temperatures or humidity exceed these levels.
- Do not drop or apply shock
This equipment can endure normal vibration and movements, however please do not subject it to banging,
dropping or violent vibrations.
- Never disassemble or modify
This equipment has high precision components that have been carefully adjusted, therefore, please avoid opening
the main unit yourself.
- Cleaning
Lightly wipe parts with a dry, lint-free cloth. Unplug the USB cable from the host machine. Unplug the AC
Adapter from the main unit when in use. Malfunction or breakdown may occur if cleaned with the power on.
When disposing of this equipment, please follow your local regulations. For details, ask your retailer or contact
your local government.
Reminde
r
Safety Precautions
11
1. Before Use

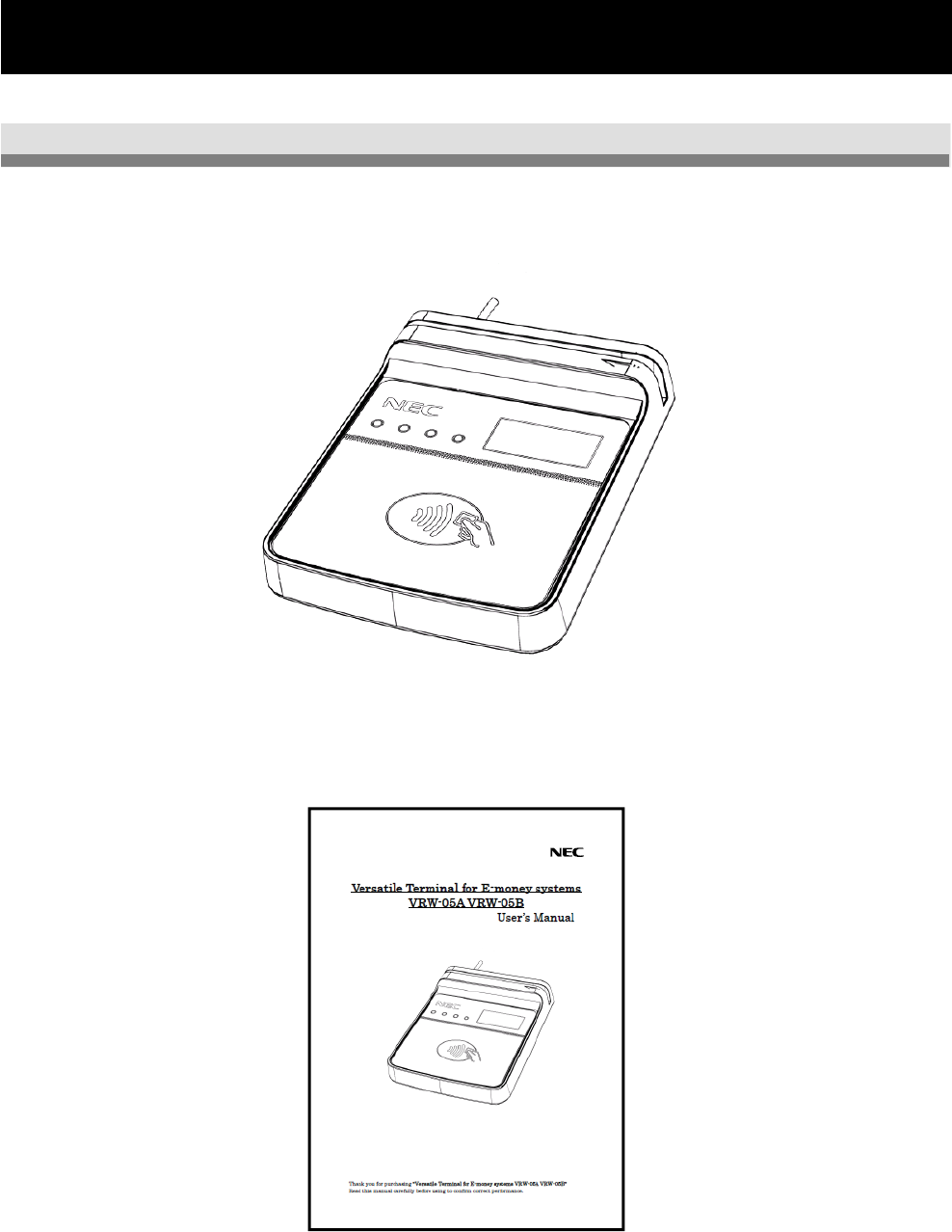

Accompanying Items
The following items are included with your Versatile Terminal for E-money systems kit. Please
confirm all the items are in the package.
Please contact your retailer if there are any items missing or damaged.
□ User’s Manual (This book)
□ Main Unit
12
Parts and Functions Overview

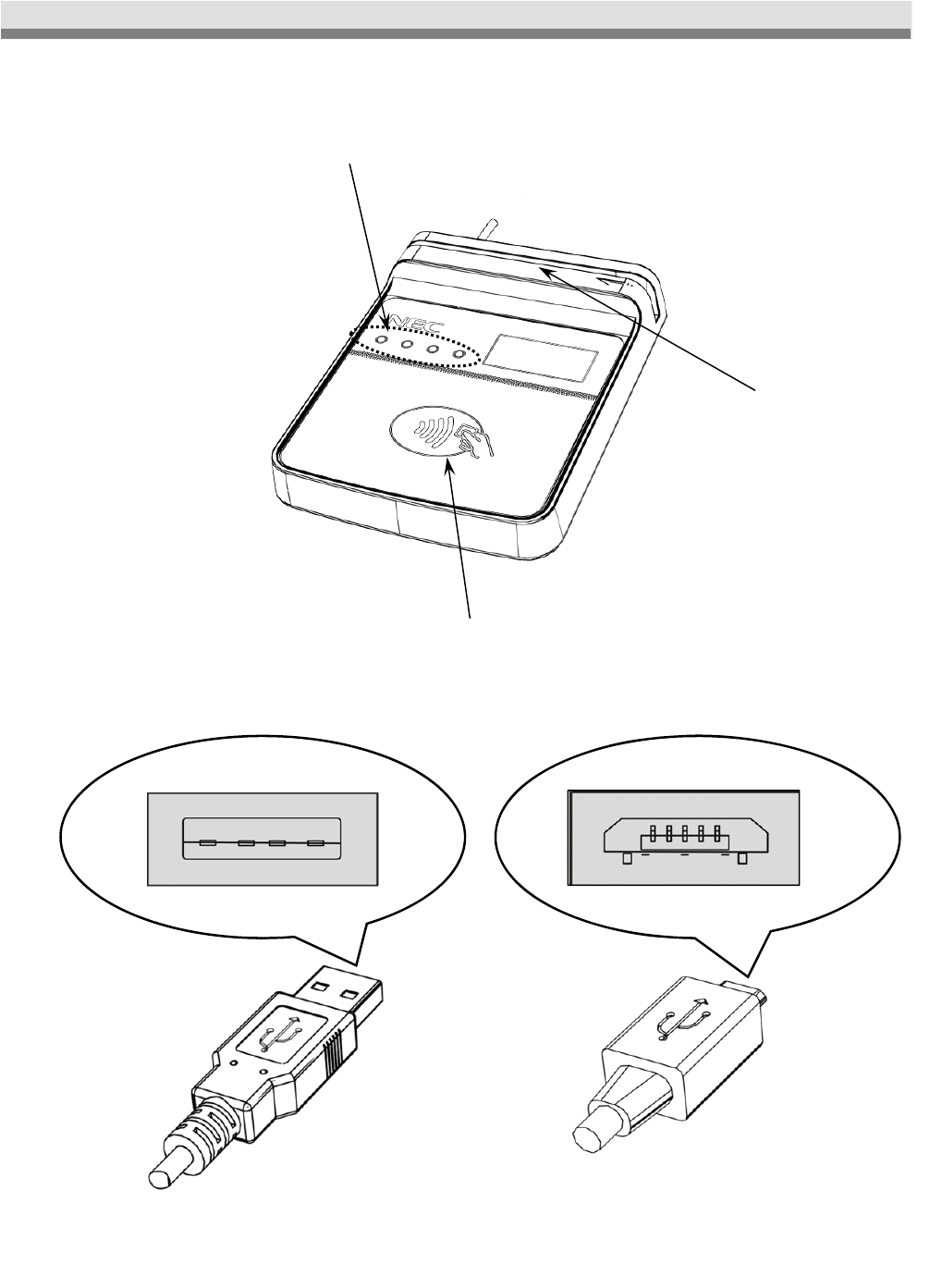

This terminal has two types of ports as shown below.
The four LED lights indicate the R/W conditions.
Reads contactless IC card and mobile phones with the
contactless IC card function by placing the card above it.
USB2.0 Micro B plug USB2.0 Standard A plug
Magnetic Stripe Card Reader
Reads Magnetic Stripe Card by swiping
the card.
13
2. How to use

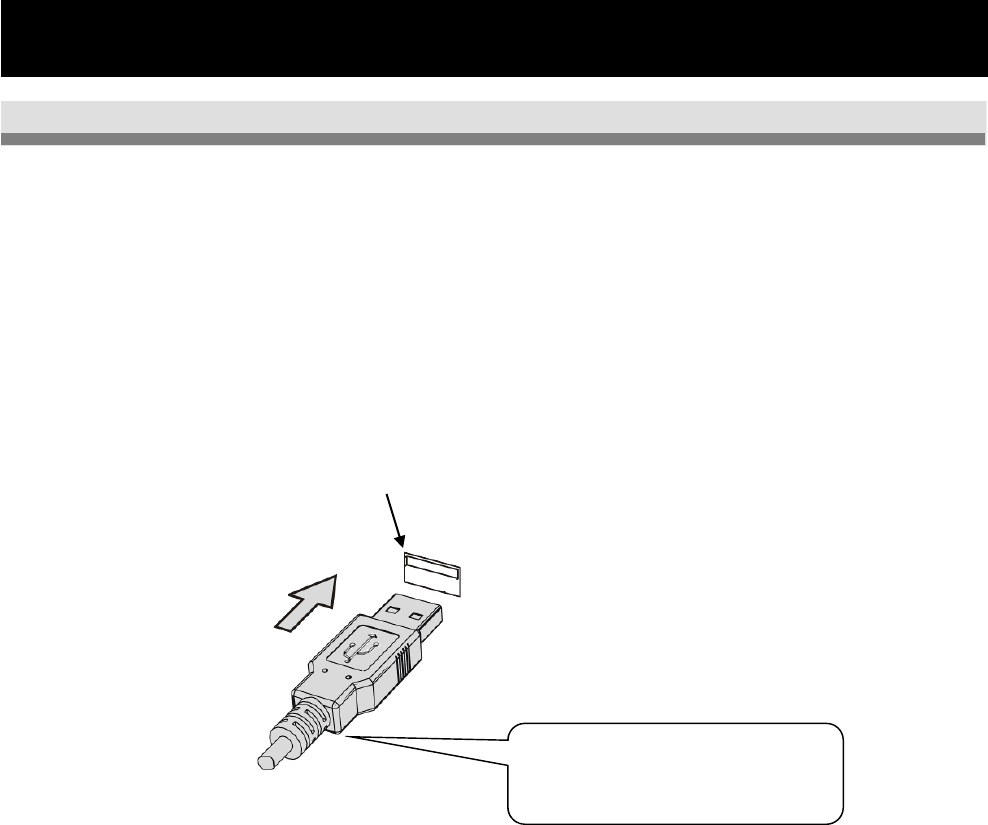

How to connect with a Host Terminal via USB
*Please install and set up the driver on a host terminal before connecting.
Please contact your retailer for more details.
Confirm the directions of the USB cable and connect it to the USB port of the host terminal.
It is recommended to close all other applications when connecting to the host terminal.
Please confirm the direction of the
USB port as the connector has the
upper side and lower.
USB port of the host terminal
e.g. Standard A USB port
14

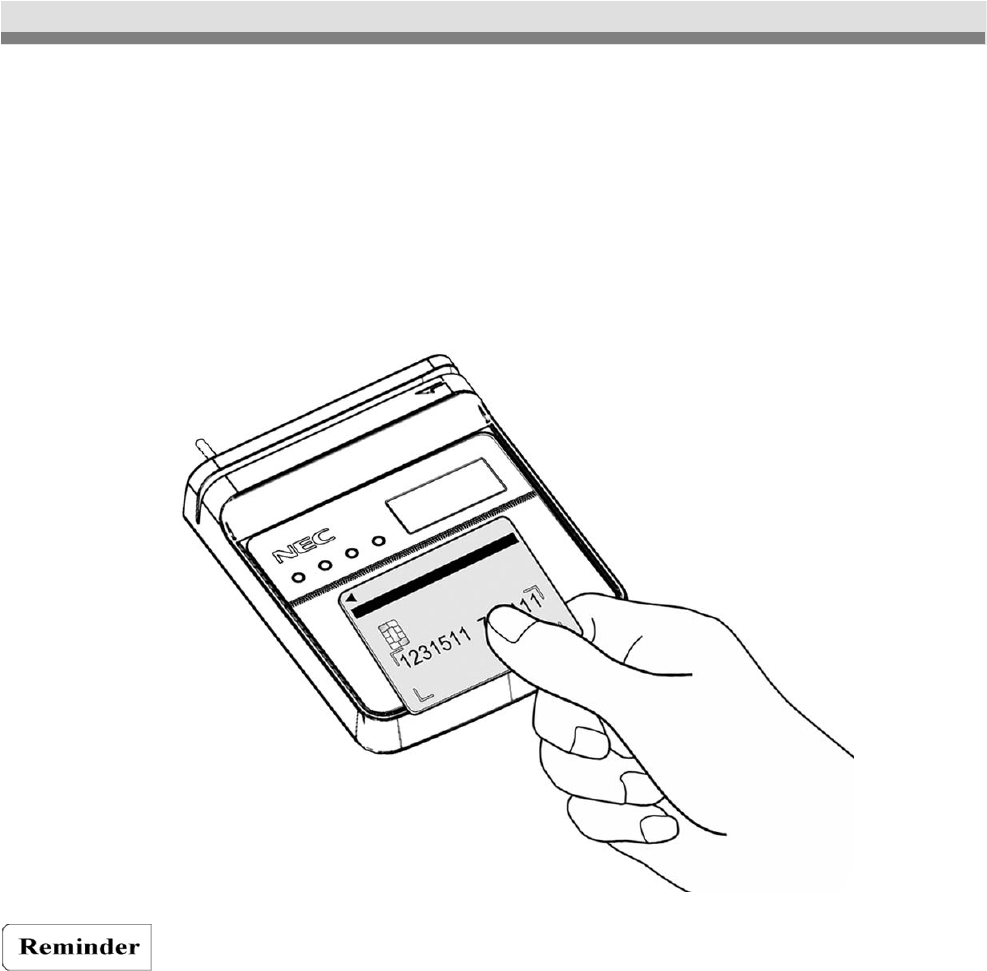

Using Contactless IC Card Reader.
You may use either Contactless IC Cards or mobile phones equipped with the Contactless IC Function
on this terminal.
- How to read the Contactless IC Card
Cover and tap the Contactless IC symbol in the center of the card reader with the IC card.
- How to read a mobile phone equipped with the Contactless IC Function
Cover and tap the Contactless IC symbol in the center of the card reader with the mobile phone.
- If Contactless IC Card is in a wallet, take it out when in use.
- The Contactless IC Card cannot be read when placed upright.
- Do not put the IC Card on the top of another IC Card when using.
- Keep the card on the equipment until the transaction is completed.
- Do not press the Contactless IC Card down hard on the equipment.
15

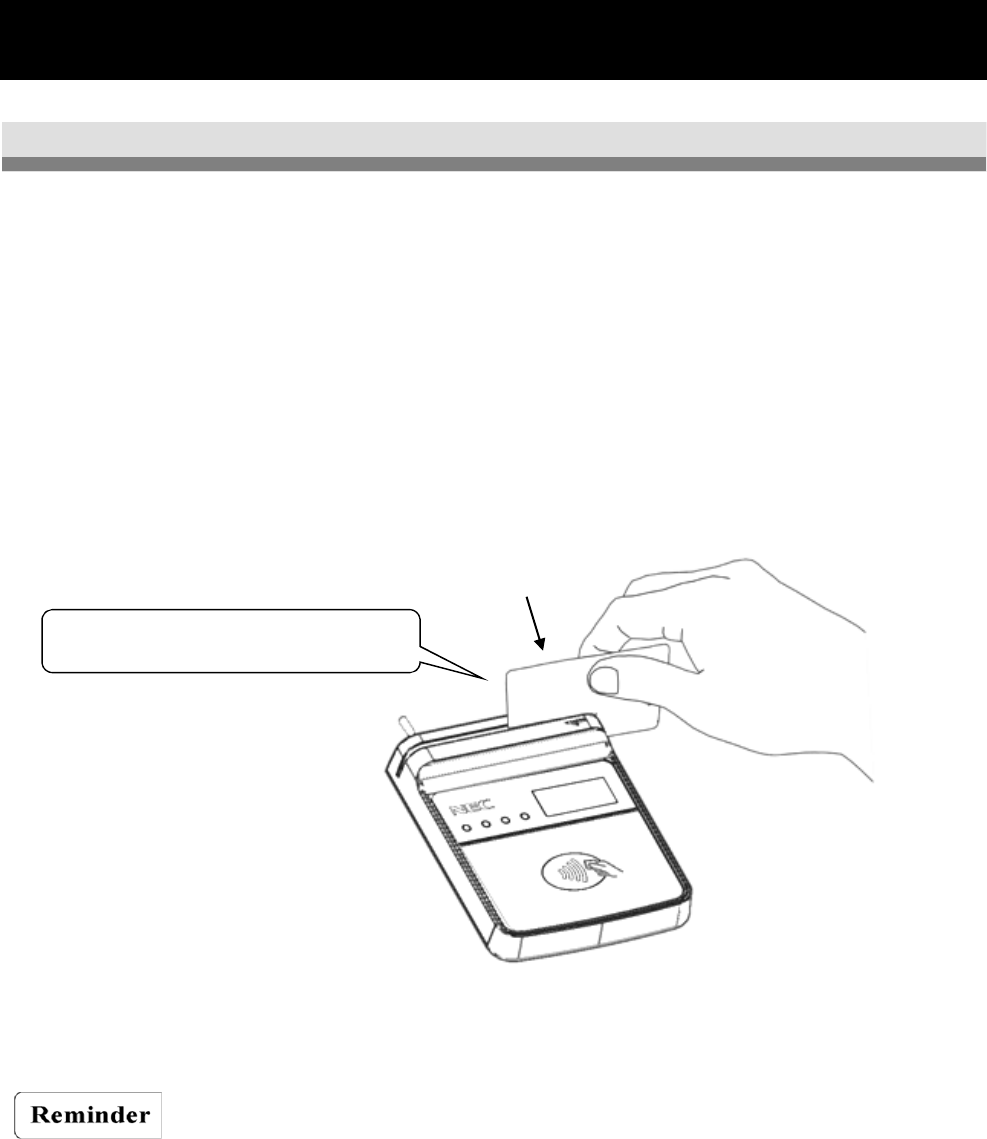

How to Use the Magnetic Stripe Card Reader
You may use your magnetic stripe card with this equipment.

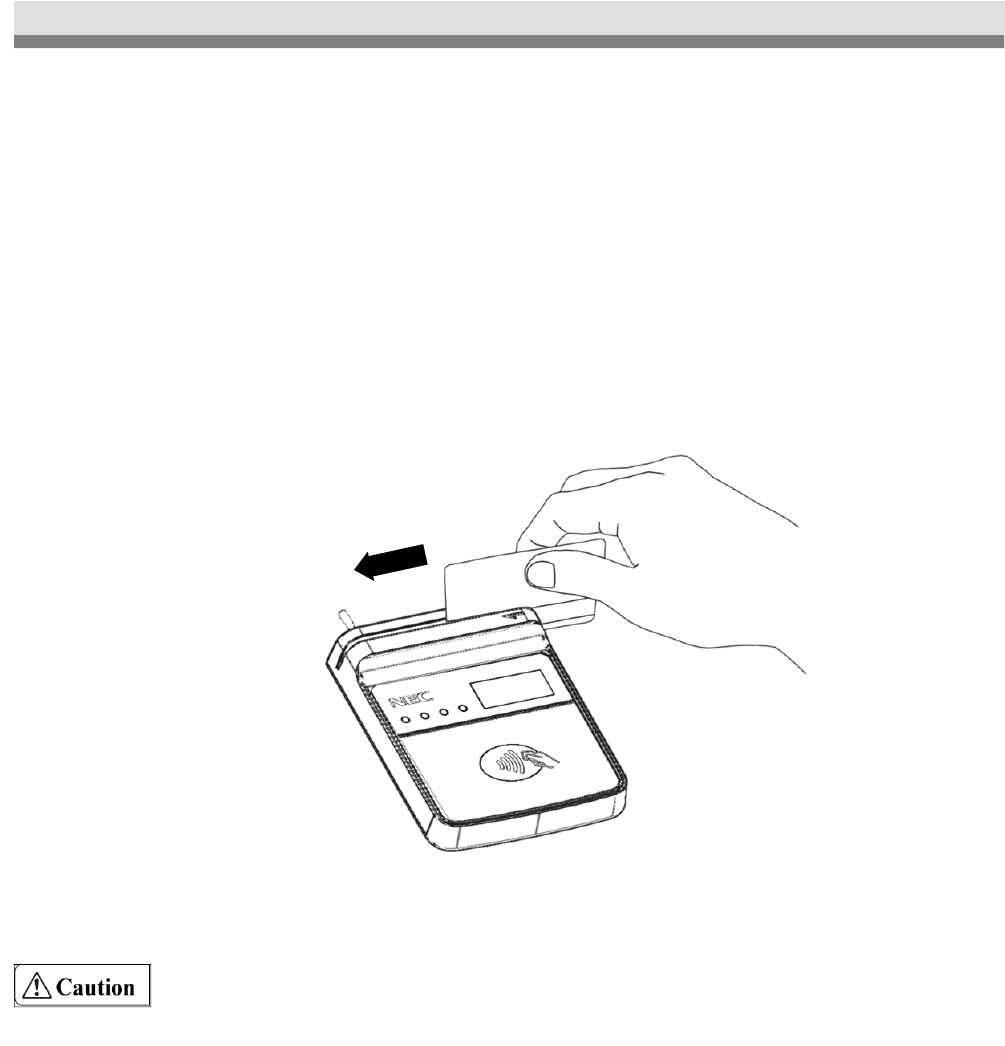

Position the magnetic stripe card down and facing inward（Note１) and insert it into the end of the
card reader slot then swipe it to the left. Make sure to keep the swipe speed constant. Do not stop
in the middle of the card or insert the Magnetic Strip Card in the middle of the slot. The card
scanning standard speed range is 15-150cm/s.
Note 1) How to identify front side and back side of the Magnetic Stripe Card
The front surface of the card has embossed characters (stand out characters) and the characters can
be read correctly from the front side.
If there are no embossed characters on the card, the front side has an arrow pointing left on the top
left of the card.
- If the card is not inserted fully when swiping, the reading will fail.
- If the card is swiped too fast or too slow, the reading will fail
- Swipe the card thoroughly and do not stop in the middle.
- Customer information is registered on the Magnetic Stripe Card by magnetic recording process.
The information may be lost if a magnetic gets near the card.
16
3．Cleaning
Cleaning the Product
Cleaning methods of the main unit and important notes.
- Main Unit
For daily cleaning, use a soft, dry and clean cloth to wipe stains off.
For stubborn stains, use a soft, well squeezed wet cloth to wipe stains off.
- Magnetic Stripe Card Reader
Periodically, clean the magnetic contact reader writer using the specified cleaning card.
At the shop where you purchase this equipment you should be able to obtain a specified cleaning card.
- When cleaning, do not use volatile organic cleaners such as benzene, thinners etc. These
products may cause deformation, discoloration or even breakdown of equipment.
- For safety, always remember to turn off the host machine and unplug the USB cable, before
cleaning.
Cleaning Card
Swipe the cleaning card a few times.
17
4． How to insert/remove the SAM card
How to insert/remove the SAM card
1. Turn your terminal over and take out the four screws found in the corners by using a screwdriver.
You need a special screwdriver so please refer to the retailer with whom you purchased your
terminal.
2. Remove the back panel.

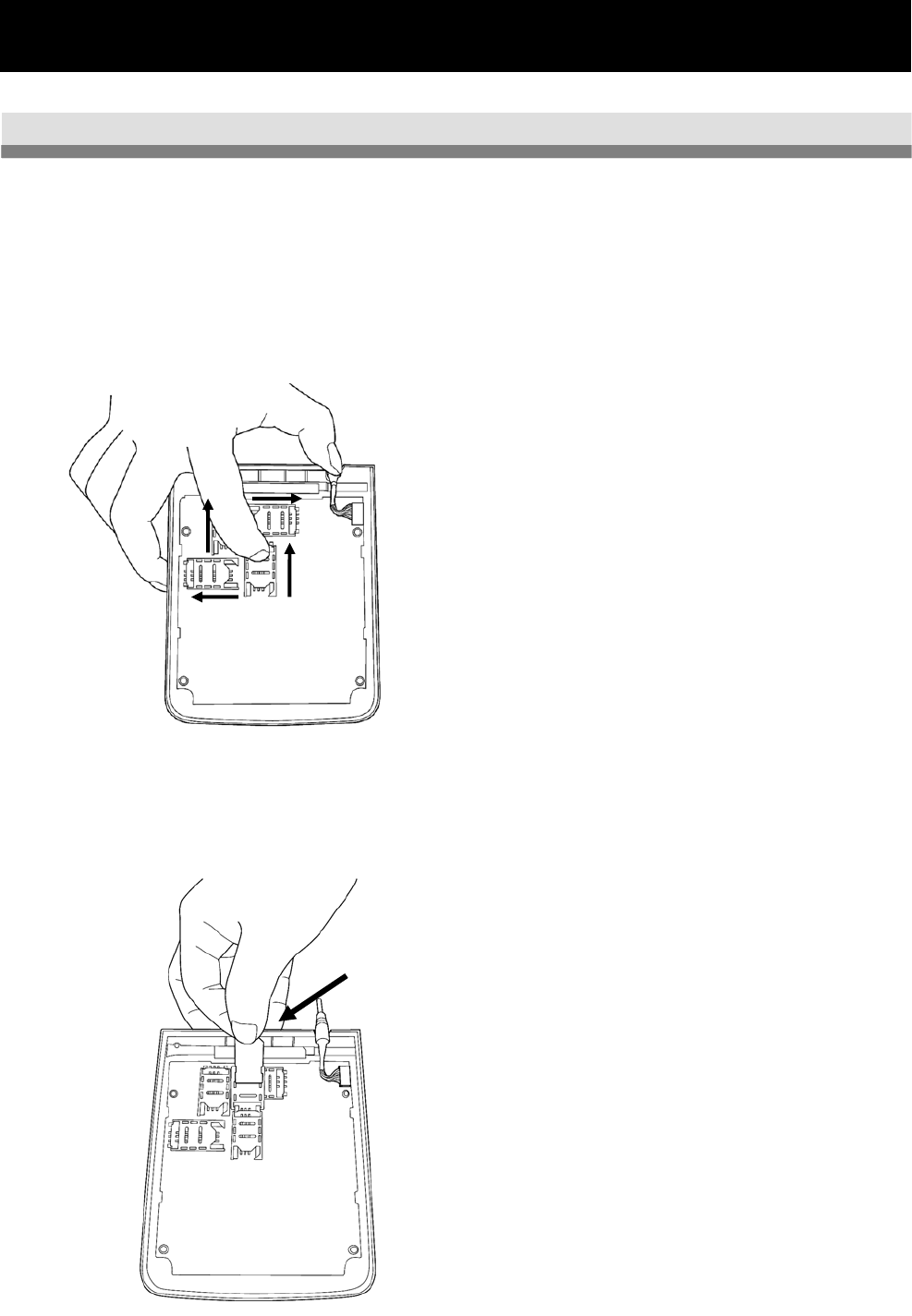

3. Slide the SAM slot in the direction shown below and open it up.
4. Insert the SAM card as shown below.
(Position the notch and indentations in the correct direction.)
18

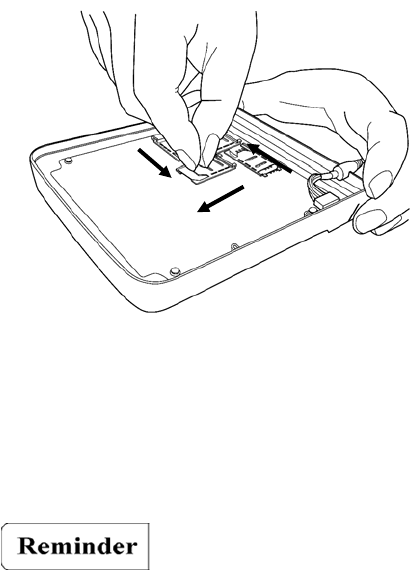

5. Slid the SAM card into place as shown below.
6. Return the back panel with the 4 screws.
That is all there is to inserting the SAM card.
※ When removing a SAM card, always follow this procedure.
- Be careful not to pull the USB cable when inserting a SAM card.
- Do not open the back panel unless it is necessary.
19
5．Troubleshooting
If you have any trouble, refer to the solutions below.
Troubles Check point Page
The power does not turn on. Check the USB cable connection. 13
Contactless IC Cards or mobile
phones equipped with the
Contactless IC Function cannot
be read.
Please make sure you are placing the card in the
right spot. 14
The Magnetic Stripe Card cannot
be read.
Please make sure the direction of the Magnetic
Stripe Card is correct. 15
20
6．Specification and Regulation
Item Spec Remarks
Product code VRW-05A VRW-05B
Host Interface USB2.0(Standard
A)
USB2.0(Micro B) Full speed
Contactless IC Card R/W
module
ISO14443 Type A/Type B conformity
Magnetic Stripe
Card Reader
MSR (Magnetic Stripe Card Reader)
ISO 1&2, JIS conformity
Indicator 4 green LED
Power Supply Host Terminal via USB
Dimensions 112.0(W) x 139.0(D) x 28.0(H) mm
Weight About 175.0 g
Operation
Environment
Temperature From 0 to 35 [℃]
Humidity From 20 to 80 [%]
Storage
Environment
Temperature From -20 to 40 [℃]
Humidity From 10 to 90 [%]
21
NN-UBQ-QMSR12-0007
Versatile Terminal for E-money systems VR
W
-05A VR
W
-05B
User’s Manual
2nd edition, published in March, 2013
NEC Corporation
(81)3-3454-1111 (Representative)
5-7-1, Shiba, Minato-Ku, Tokyo, Japan
Zip code: 108-0014
