User Manual
Audex™
Jacket Series
User’s Guide
DRAFT 16
10/6/2005
1
Audex™Jacket Series
The Audex Jacket is the first to combine coveted Burton
®
apparel with leading
Bluetooth
®
wireless technology from Motorola. This cutting edge technology
provides music and wireless communications on or off the mountain. Answer
calls from friends and control your favorite tunes using the integrated control
panel on your sleeve. Free yourself to enjoy other activities while your
compatible mobile phone and iPod
®
stay in your pockets and out of your way.
The Audex Jacket features integrated stereo speakers in the hood, a microphone
and chest/battery module embedded within the inside pocket of the jacket, as
well as a control panel on the sleeve that allows remote operation of your phone
and iPod. When you prefer a more secluded experience, enjoy instant privacy by
listening to music or conducting calls with a wired headset plugged into the
3.5mm headset jack on the chest module. When it is time to wind down, the
removable electronics make it easy to clean your jacket.
Package Contents
•
Control Module
•
Chest Module
•
Speakers (1 left, 1 right)
•
Microphone
•
Battery
•
Wall Charger (with adapters)
•
User’s Guide (this booklet)
•
Quick Start Guide
•
Warranty Leaflet (Europe)
2
I
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-877-MOTOBLU
1-888-390-6456 (TTY/TDD United States for hearing impaired)
Certain mobile phone features are dependent on the capabilities and settings of your service
provider’s network. Additionally, certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s functionality. Always contact your
service provider about feature availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this user's guide are based upon the
latest available information and are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or specifications without notice or
obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The
Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. iPod
is a registered trademark of Apple Computer, Inc., registered in the U.S. and other countries. All
other product or service names are the property of their respective owners.
© Motorola, Inc., 2005.
Caution:
Changes or modifications made in the phone or Bluetooth module, not expressly approved
by Motorola, will void the user’s authority to operate the equipment.
Manual Number: 6809497A44-O
Burton
Global Product Services
USA 800 881 3183 JAPAN 03 5738 2555
EUROPE 00800 287 866 13 / +43(0) 512 230 230
www.burton.com
Audex is a trademark of Burton Snowboards. Burton is a registered trademark of Burton
Snowboards.
3
Contents
Audex Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing Your Audex Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing Your Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Audex Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control Module Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control Module Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control Module Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your Audex Jacket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning Your Audex Jacket On & Off . . . . . . . . . . . . . . . . . . . . . . . . 11
Idle Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pairing Your Audex Jacket and Phone . . . . . . . . . . . . . . . . . . . . . . . . 12
Playing Music. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Making and Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Locking/Unlocking Control Module Keys . . . . . . . . . . . . . . . . . . . . . . 15
Using Privacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Customizing Your Audex Jacket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting Ring Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting Ring Tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Turning Bluetooth® Indicator Light On and Off. . . . . . . . . . . . . . . . . 16
Saving Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Washing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
European Union Directives Conformance Statement . . . . . . . . . . . 18
Caring for the Environment by Recycling . . . . . . . . . . . . . . . . . . . . . 18
Recycling Mobile Phones and Accessories . . . . . . . . . . . . . . . . . . . . 18
Safety and General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Consumer Warranty Coverage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Audex Components by Motorola Limited Warranty –
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Industry Canada Notice to Users . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
FCC Notice to Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Export Law Assurances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4
Audex Components
Take a moment before you get started to familiarize yourself with the
components of your new Audex Jacket. The following components are provided
in the box included with your jacket:
•
Control Module
•
Chest Module
•
Speakers (2)
•
Microphone
•
Battery
Installing Your Audex Components
For instructions on installing the components on your jacket, see the Audex
Jacket Series Quick Start Guide (included in your box of components).
Once installed and connected, the components are located on the jacket as
shown below:
The following items must be purchased separately:
•
Bluetooth Phone
•
iPod (requires iPod with Dock Connector)
Control Module Speakers (1 Left, 1 Right)
Microphone
Battery
Chest Module
Left
Right
Left Speaker
Phone Microphone
Chest Module
iPod
Control Module
Right Speaker
5
Charging the Battery
Your Audex system utilizes a rechargeable battery that is installed in the Chest
Module. The battery powers all electronic components that come with your
jacket.

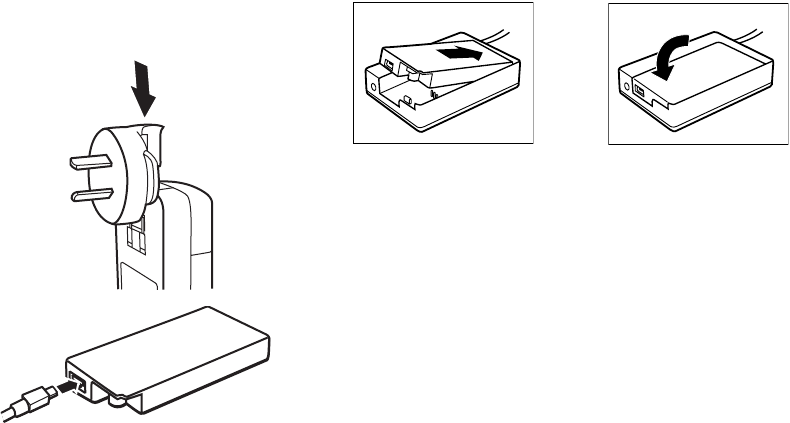

Follow these steps to charge the battery:
1
If necessary, install the proper
country power adapter on the
wall charger connector as
shown in the example.
The following power adapters
are provided with your jacket:
•
UK (SYN7455A)
•
Europe (SYN7456A)
•
Australia / New Zealand
(SYN8127B)
2
Plug the charger into the
battery’s charging port as
shown.
Be sure to align the plug
correctly. If the plug does not
connect to the unit easily, try
flipping it over and re-inserting.
3
Plug the charger into an electrical wall outlet.
The red indicator light turns on when the battery is charging. When the
battery is fully charged (about 2 hours), an additional green indicator light
turns on.
Installing Your Battery
Follow the steps shown in the diagram to install the battery into the Chest
Module.
Battery Tips
Battery performance depends on network configuration, signal strength,
operating temperature, features selected, and voice, data, and other application
usage patterns.
•
Always use Motorola Original batteries and chargers. The warranty does
not cover damage caused by non-Motorola batteries and/or chargers.
•
New batteries or batteries stored for a long time may take more time to
charge.
•
When charging your battery, keep it near room temperature.
•
When storing your battery, keep it partially charged in a cool, dark, dry
place.
•
Never expose batteries to temperatures below -10
°
C (14
°
F) or above
60
°
C (140
°
F).
•
It is normal for batteries to gradually wear down and require longer
charging times. If you notice a change in your battery life, it is probably
time to purchase a new battery.
Warning:
Never dispose of batteries in a fire because they may explode.
Before using your Audex system, read the battery safety information in “Safety
and General Information” on page 18.
2
1
6
Basic Audex Operation
The Audex system is operated using the Control Module. The Control Module
furnishes a combination of buttons and a display screen to operate your phone
and iPod with your jacket. Here’s a quick anatomy lesson of the Control Module.
Control Module Keys
Several push button keys and a multi-position navigation key allow you to
perform tasks with your phone and iPod using the Control Module on your jacket.
Push Button Keys
Push button keys are used to operate the Control Module. Each key provides
multiple functions when used within the jacket
6:16 AM
a å
Power/End Key E
Turn Audex system
on/off,
end calls,
exit menus
Voice Dial Key D
Place voice dial
calls
Send/Answer Key
Place and answer
calls
Multi-function (MF) Key A
Select menu items, mute/unmute,
play/pause music
Navigation Key B
Volume control, scroll menus,
previous/next music track
Display Screen
Text and icons
Release Key
Used to remove
Control Module
from jacket
C
Key Function
C
Send / Answer
•
answer an incoming call
•
place call (using a recent received or dialed
phone number)
•
access dialed call list
D
Voice Dial
•
place call (your phone must support voice dial
features)
E
End / Power
•
power on/off Audex system
•
end a call (connected or on hold)
•
ignore an incoming call
•
return to Idle screen (from iPod or Menu
screen)
A
Multi-function
•
play / pause song
•
select menu items
•
hold / lock Control Module keys
•
mute / unmute call
7
Navigation Key
The navigation key is a multi-position controller that provides easy scrolling
capabilities on the Control Module.
Each position on the navigation key provides multiple functions:
Control Module Display
A display panel on the Control Module provides text and indicators for status,
navigation, and current activity when using your Audex jacket.
There are three main areas on your display panel:
•
Status
•
Navigation
•
Current Activity
Key Function
I
Up
•
increase volume
•
adjust time value in time setting
J
Down
•
decrease volume
•
adjust time value in time setting
Up Key I
Increase volume,
adjust time set
Down Key J
Decrease volume,
adjust time set
6
:
16
AM
a
å
Left Key G
scroll backwards through
menu items, rewind song,
select previous track
Right Key H
scroll forwards through
menu items,
fast-forward song,
select next track
G
Left
•
access main menu (from Idle screen)
•
scroll backward through menu items
•
start song over
•
play previous song (press twice)
•
rewind song (press and hold)
H
Right
•
access main menu (from Idle screen)
•
scroll forward through menu items
•
skip to next song
•
fast-forward song (press and hold)
Key Function (Continued)
8
Status
The status area provides jacket operational and configuration status, and is
highlighted in the figure below:
The following indicators are displayed in the status area:
Navigation
The navigation area provides iPod operation status and menu item index, and is
highlighted in the figure below:
The following indicators are displayed in the navigation area:
Indicator(s) Indicates
c
Battery charge level
a
Bluetooth feature is operating in jacket:
•
Flashing indicates jacket in pairing mode
•
Steadily lit indicates Bluetooth connection with
phone
#
Loud phone ring style
z
Soft phone ring style
!
Silent phone ring style
P
la
y
lis
t
s
å
a
r
6:16 AM
s7
Indicator(s) Indicates
1/3
Menu/iPod list index (icon shown is example)
s
Menu/iPod selection list
0
Menu selection
o
iPod song selected
n
iPod song playing
r
iPod song paused
l
Starting song over / Play previous song
m
Skipping to next song
(
Rewinding song
)
Fast-forwarding song
&
Dialed calls list
%
Received calls list
P
la
y
lis
t
s
å
a
r
6:16 AM
s7
9
Current Activity
The current activity area displays iPod and phone operational status and text for
menus, and is highlighted in the figure below:
The following indicators are displayed in the current activity area:
Control Module Menus
A menu interface is provided that allows you to perform certain operating and
customizing tasks when using your jacket.
There are two different sets of menus on the Control Module:
•
main menu
•
calling menu
Main Menu
The following selections are provided in the main menu:
Indicator(s) Indicates
Z
Call dialing
e
Call connected
x
Call ended
w
Call failed
Y
Incoming call
@
Missed call
f
Call on hold
<
Say name (voice dial)
?
Phone connected (to jacket)
=
iPod connected (to jacket)
*
iPod or phone disconnected
Q
Volume level
p
Selected item (in menus)
t
Unselected item (in menus)
y
Back (in menus)
b
Hold / lock mode
Playlists
å
a
r
6:16 AM
s7
Menu Selection(s) Description See:
1) iPod Back to iPod returns to previous
played song
Note:
Only provided
when iPod song is
paused
Playlists provides list of playlists
on the iPod
“Selecting a Song
to Play” on
page 12
Artists provides list of artists on
the iPod
Albums provides list of albums
on the iPod
Songs provides list of songs on
the iPod
Back returns to previous menu
10
Use the following tips for navigating the main menu:
•
The main menu is accessed by first pressing the
E
key, then pressing
the
G
and
H
keys to navigate through the initial menu selections.
•
Use the
A
key to make menu selections.
•
Use the
Back
selection in each menu to step backwards.
•
iPod menu is only accessible when the iPod is connected in the jacket.
Calling Menu
The following selections are provided in the calling menu:
Note:
The calling menu is only accessible during a call.
Use the following tips for navigating the main menu:
•
While in a call, press the
G
and
H
keys to navigate through the menu
selections.
•
Use the
A
key to make menu selections.
•
Use the
Back
selection in each menu to move backwards.
2) Recent
Calls
Received
Calls
access calls received on
the phone
“Making a Call
Using a Recent
Call Phone
Number” on
page 14
Dialed Calls access calls dialed on the
phone
Back returns to previous menu
3) Ring
Styles
Style provides list of ring styles
for jacket
“Setting Ring
Style” on page 16
Ring Tones provides list of ring tones
for jacket
“Setting Ring
Tones” on
page 16
Back returns to previous menu
4) Bluetooth Find Me places jacket into
Bluetooth pairing mode
(for 3 minutes)
“Pairing Your
Audex Jacket and
Phone” on
page 12
Bluetooth
Light
enables/disables
Bluetooth indicator light
on Control Module
“Turning
Bluetooth®
Indicator Light On
and Off” on
page 16
Back returns to previous menu
5) Battery
Save
On enables battery save
mode
“Saving Battery
Power” on
page 16
Off disables battery save
mode
Back returns to previous menu
Menu Selection(s) Description See:
6) Set Time <Time> enables to set time “Setting Time” on
page 17
Back returns to previous menu
7) Back N/A exits main menu and
returns you to Idle Mode
Menu Description
1) Mute/Unmute mutes/unmutes microphone during a call
2) Hold/Resume places on hold/resumes connected call
3) Call Time displays connected call duration
4) Back exits calling menu
Menu Selection(s) Description See:
11
Using Your Audex Jacket
This section provides instructions on performing operating tasks with Audex.
Turning Your Audex Jacket On & Off
To turn on or off Audex, press and hold
E
key on the Control Module for at
least 5 seconds until the Motorola logo is displayed.
When turned on, the Audex system establishes a connection with your phone
and iPod (however, the connection assumes an established Bluetooth link exists
with your phone).
Note:
Ensure your phone’s Bluetooth feature is turned on and is paired with the
jacket. To pair your phone and jacket, see “Pairing Your Audex Jacket and
Phone” on page 12.
•
When
connecting to
the iPod, the
iPod Connected
icon is displayed for a few seconds.
•
When
connecting to
the phone, the
Phone
Connected icon is displayed for a few seconds.
•
Once the Audex
jacket is
connected to
the phone and
iPod, the iPod menu is displayed.
•
If the phone is
already on a call
when connecting to
the Audex jacket,
the Call Connected
icon is displayed for
a few seconds.
•
If only the phone is connected to the jacket (and the phone is not
currently on a call), the Idle Mode screen is displayed.
•
While connected to the phone, the Control Module light indicator around
the navigation key flashes quickly every 3 seconds
•
When
disconnecting
your phone or
iPod, the
Disconnected
icon is displayed
for a few
seconds.
Idle Mode
When not operating the phone or iPod, the Audex system is placed in Idle mode.
When in Idle mode, the following screen is displayed:
Upon operating the phone or iPod, the clock is minimized and displayed in the
upper left of the display screen. If a song is paused, the Pause (
r
) is also
displayed.
iPod
å
a
6:16 AM
Phone
å
a
6:16 AM
Playlists
å
a
6:16 AM
s7
Connected
å
a
6:16 AM
Phone
å
6:16 AM
iPod
å
6:16 AM
a
å
a
6:16 AM
12
Pairing Your Audex Jacket and Phone
1
Press
E
key to return to Idle Mode screen. If a song is playing, it is
paused.
2
Select
Bluetooth
in
main menu and
press
A
key.
3
Select
Find Me
and
press
A
key.
The Audex jacket is placed in Bluetooth pairing mode for 3 minutes (the
Bluetooth icon (
a
) remains flashing during pairing mode).
4
Using your phone, perform a Bluetooth device discovery (refer to your phone
manual for detailed instructions on accessing Bluetooth and putting it in
device discovery mode). For most Motorola phones, you can find the
Bluetooth option under the Main Menu or Connections menu:
After accessing Bluetooth:
a
Select
Look for Devices
.
The phone lists Bluetooth devices it finds.
b
Select
Audex
.
c
Select
OK
or
Yes
to pair your jacket with your phone.
d
Enter the passkey:
0000
e
Select
OK
.
When your Audex jacket successfully pairs with your phone, the light
indicator around the navigation key flashes rapidly 5 times and the Bluetooth
icon (
a
) changes from flashing to steadily lit. Each time you power the
Control Module on/off, the jacket tries to establish a Bluetooth connection
with the same phone. If after 30 seconds, that phone is not found, the jacket
automatically goes into Bluetooth pairing mode (Bluetooth icon flashes).
Note:
Step 4 is for most Motorola phones. For other phones, see your phone’s
user’s guide for instructions on performing a Bluetooth device discovery.
Playing Music
Selecting a Song to Play
To listen to a song, you must first select from your iPod.
1
Press
E
key to
return the Idle
Mode screen, then
select
iPod
in main
menu and press
A
key.
2
Select song
selection category
and press
A
key.
3
Select
playlist/album/artist
and press
A
key.
4
Select song and
press
A
key. The
iPod Song icon is
displayed.
Bluetooth
å
a
4/7
6:16 AM
s
Find Me
å
a
6:16 AM
1/3
iPod
å
a
6:16 AM
1/7
Playlists
å
a
6:16 AM
s7
My Top Rated
å
a
6:16 AM
s7
Greensleeves
å
a
6:16 AM
1/27
13
Playing a Song
Once you select a song, you can play it by pressing the
A
key.
Note:
When a song is selected, the Song (
o
) icon is displayed. To select a song,
see “Selecting a Song to Play”.
The iPod Play (
n
) icon is displayed and the song is played on your jacket.
The song title and artist are displayed scrolling across the screen.
Music Features
When playing, the song is automatically paused when you make or receive a call,
or press the
E
key.
To continue to play the song (once phone call is ended), do one of the following:
•
Quick press (tap) the
A
key.
•
First select
Back To iPod
in the iPod menu, then press
A
key.
Making and Receiving Calls
Making a Voice Dial Call
Note:
To make a voice dial call, your phone must support voice dial features.
1
Press
D
key. If a
song is playing, it is
paused.
2
Speak name of
person to call.
Name is repeated
over jacket speaker
and the Call Dialing icon is displayed.
Once connected,
the Call Connected
icon is displayed.
Making a Handset Dial Call
1
Dial the phone number using the phone handset. You will hear dialing over
the jacket speakers. (If a song is playing, it is paused.)
2
Press Send key on the phone.
Once connected,
the Call Connected
icon is displayed.
To do this... Do this
Pause a song Press
A
key.
Change the song volume Press the
I
and
J
keys.
Fast-forward a song Press and hold
H
key.
Rewind a song Press and hold
G
key.
Skip to next song Press
H
key.
(If playing last song on song list. song
is paused).
Start song over Press
G
key.
(If playing first song on song list. song
is paused).
Play the previous song Press
G
key twice.
Greensleeves
å
a
6:16 AM
1/27
Say Name
å
a
6:16 AM
Calling
å
a
6:16 AM
Connected
å
a
6:16 AM
Connected
å
a
6:16 AM
14
Making a Call Using a Recent Call Phone Number
1
Press
E
key to return to Idle Mode screen. If a song is playing, it is
paused.
Shortcut:
Press
C
key from the Idle Mode screen to directly access the
Dialed Calls menu (skipping steps 2 and 3).
2
Select
Recent
Calls
in main menu
and press
A
or
key.
3
Select
Dialed Calls
or
Received Calls
and press
A
key.
4
Select phone
number and press
A
or
C
key. The
Call Dialing icon is
displayed.
Once connected,
the Call Connected
icon is displayed for
a few seconds.
Then the caller ID
dialed is displayed
during the call.
Receiving a Call
When an incoming call is active, the Call Dialing icon and caller ID is displayed.
• To answer an incoming call
, press the
C
key. If a song is playing, it is
paused.
Once connected, the Call Connected icon is displayed for a few seconds.
If available, the phone number dialed is displayed during the call.
• To ignore an incoming call
, press the
E
key.
• For calls that are missed
, the Missed Call (
@
) icon is displayed until
any button is pressed on the Control Module. If the
A
key is pressed,
the Received Calls menu is displayed.
For all instances of receiving an incoming call, the iPod will be paused if playing
music. To continue playing music, press the
A
key.
Recent Calls
å
a
6:16 AM
2/7
s
Dialed Calls
å
a
6:16 AM
2/3
Calling
å
a
6:16 AM
Connected
å
a
6:16 AM
8005551212
å
a
6:16 AM
18005551212
å
a
6:16 AM
Incoming call
å
a
6:16 AM
Connected
å
a
6:16 AM
8005551212
å
a
6:16 AM
15
Ending a Call
To end a call, press
E
key. The Call Ended icon is displayed.
When the call ends, if a song is paused, do one of the following to continue to
play the song:
•
Quick press (tap) the
A
key.
•
First select
Back To iPod
in the iPod menu, then press
A
key.
Calling Features
Locking/Unlocking Control Module Keys
To lock keys on the Control Module, press and hold
A
key for 5 seconds.
The Hold/Lock Mode (
b
) icon is displayed and the Control Module keys are
disabled (locked).
To unlock keys on the Control Module, press and hold
A
key for 5 seconds until
the Hold/Lock Mode (
b
) icon is no longer displayed.
Using Privacy Mode
Your Audex system allows you to listen to audio in privacy using headphones. In
privacy mode, all audio from your phone or iPod is output to your headphones
(while the speakers in the jacket hood are silent).
To use privacy mode, connect your headphones into the headphone jack on the
Chest Module.
Note:
Chest Module holder design may vary among jackets.
To do this... Do this
Mute / unmute a call Press
A
key when on a call,
OR
Select
Mute/Unmute
in calling
menu and press
A
key.
While call is muted,
Muted
is
displayed next to the Call Connected
icon. When call is unmuted,
Connected
text is redisplayed.
Change the call volume Press the
I
and
J
keys.
Hold / resume a call Select
Hold/Resume
in calling menu
and press
A
key. Call On Hold icon
is displayed.
View call time Select
Call Time
in calling menu and
press
A
key.
End a call on hold Press
E
key.
Call Ended
å
a
6:16 AM
å
a
6:16 AM
Headphone Jack
(for Privacy Mode)
16
Customizing Your Audex Jacket
Setting Ring Style
1
Press
E
key to return to Idle Mode screen. If a song is playing, it is
paused.
2
Select
Ring Styles
in main menu and
press
A
key.
3
Select
Styles
and
press
A
key.
4
Select ring style
and press
A
key.
A Checkmark icon
is displayed.
Setting Ring Tones
Note:
Audex ringtones are used only when the phone is in silent or vibrate mode.
Otherwise, the phone’s ringtones are used.
1
Press
E
key to return to Idle Mode screen. If a song is playing, it is
paused.
2
Select
Ring Styles
in main menu and
press
A
key.
3
Select
Ring Tones
and press
A
key.
4
Select a ringer and
press
A
key. A
Checkmark icon is
displayed.
Turning Bluetooth® Indicator Light On and
Off
Note:
This procedure turns the Bluetooth indicator light on/off on the Control
Module, but does not turn off the Audex Bluetooth connection or link features.
1
Press
E
key to return to Idle Mode screen. If a song is playing, it is
paused.
2
Select
Bluetooth
in
main menu and
press
A
key.
3
Select
Bluetooth
Light
and press
A
key.
4
Select
On
or
Off
and press
A
key.
A Checkmark icon
is displayed.
Saving Battery Power
This procedure allows you to shorten the length of time that buttons and
indicators remain lit on the Control Module (thereby extending battery life).
1
Press
E
key to return to Idle Mode screen. If a song is playing, it is
paused.
2
Select
Battery
Save
in main menu
and press
A
key.
Ring Styles
å
a
6:16 AM
3/7
s
Style
å
a
6:16 AM
1/3
s
Loud
å
a
6:16 AM
1/4
Ring Styles
å
a
6:16 AM
3/7
s
Ring Tones
å
a
6:16 AM
2/3
s
Ringer 1
å
a
6:16 AM
1/4
Bluetooth
å
a
4/7
6:16 AM
s
Light
å
a
6:16 AM
1/3
s
On
å
a
6:16 AM
1/4
Battery Save
å
a
6:16 AM
5/7
s
17
3
Select
On
or
Off
and press
A
key.
A Checkmark icon
is displayed.
Setting Time
1
Press
E
key to return to Idle Mode screen. If a song is playing, it is
paused.
2
Select
Set Time
in
main menu and
press
A
key.
3
Adjust time as
follows:
•
Press
G
and
H
keys to
move between
values (currently
selected value flashes).
•
Press
I
and
J
keys to change value.
4
Press
A
key to commit changes.
Maintenance and Care
Please use the following guidelines for proper maintenance and care of your
Audex Jacket:
Care
•
Allow jacket to completely dry after riding or exposure to moisture. Do
not expose the Audex components to moisture.
•
This jacket is a high-tech piece of apparel. Do not expose the Audex
components to excessive force or impact. Be careful not to drop the
Audex Jacket.
Washing Instructions
• Excessive washing is not recommended.
•
Before washing the jacket, you must remove your iPod, phone, and all
Audex Jacket components. See “Contents” on page 3 for a listing of all
components. Warranty will no longer be valid if components are not
removed prior to washing.
•
Tuck in all cords, close pockets, and zip the jacket closed.
•
Follow washing instructions on the inside of the jacket. These are as
follows:
•
Machine Wash Warm (Below 30c) using powdered detergent. Rinse thoroughly.
•
DO NOT Bleach.
•
Tumble dry low heat, or hang dry in shade.
•
DO NOT iron.
•
DO NOT dry clean.
•
DO NOT use fabric softener.
•
Periodically replenish water repellent finish – spray on only.
•
Allow your jacket to completely dry before reinstalling the Audex
electronic components.
On
å
a
6:16 AM
1/4
Set Time
å
a
6:16 AM
4/7
s
å
a
6:16 AM
18
European Union Directives
Conformance Statement
Hereby, Motorola declares that this product is in compliance with
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE
Directive) at www.motorola.com/rtte
Caring for the Environment by Recycling
When you see this symbol on a Motorola product, do not dispose the product with
household waste.
Recycling Mobile Phones and
Accessories
The rechargeable batteries that power this product must be disposed of properly and
may need to be recycled.
In some countries or regions, collection systems are set up to handle electrical and
electronic waste items. Contact your regional authorities for more details. If collection
systems aren’t available, return unwanted mobile phones or electrical accessories to
any Motorola Approved Service Centre in your region.
Warning:
Never dispose of batteries in a fire because they may explode.
Safety and General Information
Safety and General Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS
INFORMATION BEFORE USING YOUR DEVICE.
Safety Information: Wireless Devices
Electromagnetic Interference
Note:
Nearly every electronic device is susceptible to electromagnetic interference (EMI) if
inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your device in any
facility where posted notices instruct you to do so. Hospitals or health care facilities may be using
equipment that is sensitive to external radio frequency (RF) energy emitted by your device.
Aircraft
While aboard aircraft, turn off your device when instructed to do so. Any use of the device must be
in accordance with applicable regulations per airline crew instructions.
Medical Devices
Hearing Aids:
Some devices may interfere with some hearing aids. In the event of such
interference, you may want to consult with your hearing aid manufacturer to discuss alternatives.
Other Medical Devices:
If you use any other personal medical device, consult the manufacturer
of your device to determine if it is adequately shielded from RF energy. Your physician may be able
to assist you in obtaining this information.
Safety Information: General Use
USE AT YOUR OWN RISK
Do not use your headphones and cellular phone while riding or moving. Only use them while waiting
for the lift, on the lift, waiting to ride, or in the lodge. Listening to tunes or talking on a phone while
riding may prevent you from hearing others around you, distract you from riding safely, and limit
your ability to hear what your edges are doing on the snow. All of these can cause loss of control
and an accident possibly resulting in injury or death to you or others.
032375o
19
Avoid Distraction
Using headsets while operating a motor vehicle, motorcycle or bicycle is dangerous, and is illegal in
some states. Check your local laws. Use caution while using your Audex Jacket Series when
engaging in ANY activity that requires your full attention. Avoid placing or receiving calls while
driving an automobile, motorcycle, equipment or any other motorized mode of transportation to
reduce the risk of accident or injury.
Avoid Hearing Damage
Using the headset at high volume may result in permanent hearing loss. If you experience ringing in
your ear, reduce the volume or discontinue using Audex Jacket Series. With continued use at high
volume, your ear may become accustomed to the sound level, which may result in permanent
damage to your hearing. Keep Audex Jacket Series volume at a safe level.
Avoid Moisture
It is important to properly dry jacket after every use by hanging in a warm, dry location. Do not
expose the Audex components to moisture.
Location of Use
Audex Jacket Series is NOT to be used in the vicinity of any explosive or hazardous substances, as
it may become volatile and cause serious injury or death.
See "Electromagnetic Interference" above for restrictions on using Audex Jacket Series in medical
facilities and aboard aircraft.
Proper Care of your Audex Jacket
Do Not Modify or Dismantle
Do not attempt to open Audex Jacket system components. Doing so may expose you to electric
shock and serious injury. There are no user-serviceable parts inside. Any attempt to alter or repair
the module will void the limited warranty. Users are not permitted to make changes or modify the
device in any way. Changes and modifications void the user's authority to operate the device. See
47 CFR Sec. 15.21.
Battery
Do not attempt to remove the internal rechargeable battery. Disposal of devices that contain
internal rechargeable batteries must be in accordance with local environmental regulations.
For additional information on purchasing replacement batteries, please visit www.hellomoto.com.
Temperature
•
Do not use your Audex Jacket in temperatures lower than -10°C / 14°F or higher
than 60°C / 140°F.
Battery life may temporarily shorten in low-temperature
conditions.
•
Do not recharge your Audex Jacket in temperatures lower than 0°C / 32°F or higher
than 40°C / 104°F.
•
Conditions inside a parked car can exceed this temperature range. Do not store your
Audex Jacket in a parked car.
•
Do not store your Audex Jacket in direct sunlight.
•
Storing your Audex Jacket fully charged in high temperature conditions may permanently
reduce the life of the battery.
Shock
Do not expose your Audex Jacket to excessive force or impact. Be careful not to drop your Audex
Jacket.
Charger
Do not force the charging cable connector into the battery charging port. If the connector won't go
into the port, try flipping the connector 180 degrees. Do not attempt to charge your Audex Jacket
with any charger other than the one designed by Motorola specifically to be used with this product.
Cleaning
To clean components in your Audex Jacket System, use a soft cotton cloth to gently brush all
surfaces to remove any grit or particles that might scratch the surfaces. Please note the following:
• The Audex Jacket components are not waterproof
, and excessive moisture will
damage the electronic circuitry. Do not rinse or immerse any modules.
•
Before cleaning, make sure the Audex Jacket System is unplugged from the wall charger.
•
Do not clean the modules with soaps, detergents, ammonia, alkaline cleaners, abrasive
cleaning compounds or solvents. These substances may leak into the module and damage
the electronic circuitry.
20
Support
If your Audex Jacket does not function, please make sure that the battery is properly installed and
charged, all electronics are properly secure with wiring connectors, and you have followed the
instructions to install your system. For additional assistance, contact Motorola Product Support:
Consumer Warranty Coverage
Thank you for purchasing your Audex jacket. The Audex jacket is covered by two different
warranties: one that covers the Jacket and all sewn in components, and which is administered by
Burton, and one that covers the Audex components, and which is administered by Motorola, Inc.
Audex Jacket Series Warranty Policy – Jacket
and Sewn In Components Coverage
Burton warrants all products sold by Burton to be free of defects in material or
workmanship for a period of one year from the date of purchase.
If a product is found to be defective by Burton, in its sole discretion, Burton's only responsibility
shall be limited to repair or replacement of the defective product. Burton will not be responsible for
any costs, losses, or damages incurred as a result of loss of use of product. This warranty is subject
to the following limitations, in addition to any imposed by virtue of applicable law.
•
The warranty applies only to Burton products purchased from a Burton Authorized Dealer
and is valid for the original purchaser only.
•
All products returned to Burton for warranty inspection must receive prior return
authorization which can be given over the phone. Ship products freight prepaid and
insured. Burton assumes no responsibility for products during shipment from the customer
to our Warranty Department. Shipping charges are not refundable.
•
Excluded from coverage under this warranty are the following:
•
Damage caused by misuse, abuse or neglect.
•
Normal wear and tear.
•
Damage caused by anything other than defects in materials or workmanship.
•
Any and all claims for consequential and incidental damages are excluded from
coverage under this warranty although, some States do not allow the exclusion or
limitation of incidental or consequential damages, and so the above limitation or
exclusion may not apply to you.
ROCK OR RAIL DAMAGE AND ANY OTHER IMPACT RELATED DAMAGE IS NOT COVERED UNDER
THIS WARRANTY.
•
All coverage under this warranty is void if any modification, change or alteration has been
made to the product that is not specifically authorized in writing by Burton.
•
Repaired or replaced products are covered for the remainder of the original warranty only.
North America
www.hellomoto.com or 1.877.MOTOBLU
Australia
1300 138823
New Zealand
0508 6686 7652
Austria
0800 297 246
Belgium
027 001 660
Czech Republic
844 111 145
Denmark
43 48 8005
Eire
1850 909 555
Finland
0800 117 036
France
0803 303 302
Germany
18 035 050
Greece
210 6800 009
Hungary
40 200 800
Italy
199 501 160
Luxembourg
03420 808 296
Netherlands
020 201 5034
Norway
22 551 004
Poland
801 620 620
Portugal
214 101 001
Romania
(021) 3057999
Russia
(095) 785 0180
Slovakia
850 111 011
Spain
902 100 077
Sweden
08 445 1210
Switzerland
0800 553 109
Turkey
212 317 45 95
United Kingdom
0870 9010 555
21
•
All warranty claims must be accompanied by the original purchase receipt from an Burton
Authorized Dealer. Invoice or charge receipt must clearly identify the dealer.
•
Burton products are not covered by any verbal warranties.
Audex Jacket Series Product Coverage – Jacket
and Sewn In Components Coverage
Covered:
•
Defective sewing.
•
Defective zippers and attachment hardware.
•
Velcro patches and/or snaps.
•
Missing or broken drawstrings, cords and leashes.
•
Internal wiring and electrical harnesses
Not Covered:
•
Rips and tears.
•
Fading (this includes UV damage).
•
Pilling.
•
Shrinking.
•
Damage (including color bleeding and loss of waterproof qualities) resulting from
improper washing or the use of improper detergents).
Audex Jacket Series Claims Procedure – Jacket
and Sewn In Components Coverage
STEP ONE
Evaluate the Validity of the Claim
•
Was the product purchased in the last 12 months?
•
Does the damage appear to be attributable to defective materials or workmanship?
•
Does the damage appear to be due to impact, abuse, negligence, or reactions to heat,
solvents, or harsh detergents?
For specific instructions regarding different products, please consult the Warranty Guidelines.
If it appears to meet the "Covered" Guidelines in this manual, continue…
STEP TWO
CALL FOR A RETURN AUTHORIZATION (RA) NUMBER
•
Dealers call 1-800-367-2951.
•
Consumers call 1-800-881-3138.
•
Tell us WHAT you are sending back - describe the product.
•
Tell us WHY you are sending it back - describe the problem.
•
Record the RA# and details in a log.
STEP THREE
PACK AND SHIP THE PRODUCT IMMEDIATELY!
•
Include the original proof of purchase (receipt).
•
Include a brief description of the problem and the RA#
•
Mark the defect with masking tape if possible.
•
Print the RA# clearly on the outside of the box.
•
Ship the claim to:
Burton
Attn: Product Service RA#____________________
30 Community Drive Suite #3
South Burlington, VT 05403
Customers are responsible for shipping charges to Burton.
Overnight and 2-Day shipments to Burton will be returned in the same manner at our expense.
***W48 GOES INTO EFFECT WHEN WE RECEIVE THE PRODUCT.***
(What is W48? This means the product will be on it's way back to you in 2 business days.)
Within 48 hours of receipt of product, the claim will be handled in one of the following ways:
•
If the returned product is within the valid warranty period of one year and judged by
Burton to be defective, we will repair or replace the product.
The warranty remains
valid on repaired and replaced items for the remainder of the warranty coverage
period.
•
If the problem is determined to be not covered under warranty but can be repaired, we
will call with a quote, and to get authorization to proceed with the repair.
•
If the problem is not covered under warranty, nor repairable, the product will be returned
as is.
22
Audex Components by Motorola Limited
Warranty – North America
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its wireless telephones, pagers
and consumer two-way radios that operate via Family Radio Service or General Mobile Radio
Service ("Products"), Motorola-branded or certified accessories sold for use with these Products
("Accessories"), including the Audex components manufactured by Motorola and Motorola software
contained on CD-ROMs or other tangible media and sold for use with these Products ("Software") to
be free from defects in materials and workmanship under normal consumer usage for the period(s)
outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to
new Motorola Products, Accessories and Software purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
Products Covered Length of Coverage Exclusions
A Products and
Accessories
as
defined above, unless
otherwise provided
for below.
A One (1) year
from
the date of purchase
by the first consumer
purchaser of the
product unless
otherwise provided
for below.
Normal Wear and Tear.
Periodic
maintenance, repair and replacement
of parts due to normal wear and tear
are excluded from coverage.
Batteries.
Only batteries whose fully
charged capacity falls below 80% of
their rated capacity and batteries that
leak are covered by this limited
warranty.
Wiring and other electrical
harnesses.
Wiring and other
electrical harnesses integrated into
clothing or wearable items and which
connect Products or Accessories are
excluded from coverage.
1 Decorative
Accessories and
Cases.
Decorative
covers, bezels,
PhoneWrap™ covers
and cases.
1 Limited lifetime
warranty
for the
lifetime of
ownership by the
first consumer
purchaser of the
product.
Abuse & Misuse.
Defects or
damage that result from: (a) improper
operation, storage, misuse or abuse,
accident or neglect, such as physical
damage (cracks, scratches, etc.) to
the surface of the product resulting
from misuse; (b) impact, collision or
other contact with solid objects;
(c) contact with liquid, water, rain,
extreme humidity or heavy
perspiration, sand, dirt or the like,
extreme heat, or food; (d) contact
with solvents, adhesives, or other
chemicals; (e) use of the Products or
Accessories for commercial purposes
or subjecting the Product or
Accessory to abnormal usage or
conditions; or (f) other acts which are
not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products
and Accessories.
Defects or
damage that result from the use of
Non-Motorola branded or certified
Products, Accessories, Software or
other peripheral equipment are
excluded from coverage.
Unauthorized Service or
Modification.
Defects or damages
resulting from service, testing,
adjustment, installation,
maintenance, alteration, or
modification in any way by someone
other than Motorola, or its authorized
service centers, are excluded from
coverage.
Products Covered Length of Coverage Exclusions
23
Who Is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price of any
Products, Accessories or Software that does not conform to this warranty. We may use functionally
equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data,
software or applications added to your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To avoid losing such data, software
and applications please create a back up prior to requesting service.
How to Obtain Warranty Service or Other Information
You will receive instructions on how to ship the Products, Accessories or Software, at your expense,
to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your
receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem;
(c) the name of your service provider, if applicable; (d) the name and location of the installation
facility (if applicable) and, most importantly; (e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND
AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN
NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY
OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF
2 Monaural
Headsets.
Ear buds
and boom headsets
that transmit mono
sound through a
wired connection.
2 Limited lifetime
warranty
for the
lifetime of
ownership by the
first consumer
purchaser of the
product.
Altered Products.
Products or
Accessories with (a) serial numbers
or date tags that have been removed,
altered or obliterated; (b) broken
seals or that show evidence of
tampering; (c) mismatched board
serial numbers; or (d) nonconforming
or non-Motorola housings, or parts,
are excluded from coverage.
Communication Services.
Defects,
damages, or the failure of Products,
Accessories or Software due to any
communication service or signal you
may subscribe to or use with the
Products Accessories or Software is
excluded from coverage.
3 Consumer and
Professional
Two-Way Radio
Accessories.
3 Ninety (90) days
from the date of
purchase by the first
consumer purchaser
of the product.
4 Products and
Accessories that
are Repaired or
Replaced.
4 The balance of
the original
warranty or for
ninety (90) days
from the date
returned to the
consumer,
whichever is longer.
BSoftware.
Applies
only to physical
defects in the media
that embodies the
copy of the software
(e.g. CD-ROM, or
floppy disk)
B Ninety (90) days
from the date of
purchase.
Software Embodied in Physical
Media.
No warranty is made that the
software will meet your requirements
or will work in combination with any
hardware or software applications
provided by third parties, that the
operation of the software products
will be uninterrupted or error free, or
that all defects in the software
products will be corrected.
Software NOT Embodied in
Physical Media.
Software that is
not embodied in physical media (e.g.
software that is downloaded from the
internet), is provided “as is” and
without warranty.
Products Covered Length of Coverage Exclusions
USA Phones:
1-800-331-6456
Pagers:
1-800-548-9954
Two-Way Radios and Messaging Devices:
1-800-353-2729
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number designated above for the
product with which they are used.
24
ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR
DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR
SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of incidental or
consequential damages, or limitation on the length of an implied warranty, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights that vary from state to state or from one
jurisdiction to another.
Wireless Phone Safety Tips
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of wireless phones and their accessories in
the areas where you drive. Always obey them. The use of these devices may be
prohibited or restricted in certain areas. Contact www.motorola.com/callsmart for more
information.
Your wireless phone lets you communicate by voice and data—almost anywhere, anytime,
wherever wireless service is available and safe conditions allow. When driving a car, driving is your
first responsibility. If you choose to use your wireless phone while driving, remember the
following tips:
Get to know your Motorola wireless phone and its features such as speed dial and redial.
If available, these features help you to place your call without taking your attention off the road.
When available, use a handsfree device.
If possible, add an additional layer of convenience to
your wireless phone with one of the many Motorola Original
™
handsfree accessories available
today.
Position your wireless phone within easy reach.
Be able to access your wireless phone
without removing your eyes from the road. If you receive an incoming call at an inconvenient time, if
possible, let your voice mail answer it for you.
Let the person you are speaking with know you are driving; if necessary, suspend the
call in heavy traffic or hazardous weather conditions.
Rain, sleet, snow, ice, and even heavy
traffic can be hazardous.
Do not take notes or look up phone numbers while driving.
Jotting down a “to do” list or
going through your address book takes attention away from your primary responsibility—driving
safely.
Dial sensibly and assess the traffic; if possible, place calls when your car is not moving
or before pulling into traffic.
If you must make a call while moving, dial only a few numbers,
check the road and your mirrors, then continue.
Do not engage in stressful or emotional conversations that may be distracting.
Make
people you are talking with aware you are driving and suspend conversations that can divert your
attention away from the road.
Use your wireless phone to call for help.
Dial 9-1-1 or other local emergency number in the
case of fire, traffic accident, or medical emergencies.
1
25
Use your wireless phone to help others in emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in danger, call 9-1-1 or other local emergency
number, as you would want others to do for you.
1
Call roadside assistance or a special non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a
minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call
roadside assistance or other special non-emergency wireless number.
1
1.Wherever wireless phone service is available. (ITC00-011)
Industry Canada Notice to Users
Industry Canada Notice to Users
Operation is subject to the following two conditions: (1) This device may not cause interference and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device Ref IC RSS 210 Sec. 5.11. The term “IC:” before the certification/registration
number only signifies that registration was performed based on a Declaration of Conformity
indicating that Industry Canada technical specifications were met. It does not imply that Industry
Canada approved the equipment. See Ref IC Self-Marking 6(f) and RSP-100 Sec. 4.
FCC Notice to Users
FCC Notice to Users
Users are not permitted to make changes or modify the device in any way. Changes or modifications
not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. See 47 CFR
Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
26
Export Law Assurances
Export Law Assurances
This product is controlled under the export regulations of the United States of America and Canada.
The Governments of the United States of America and Canada may restrict the exportation or
re-exportation of this product to certain destinations. For further information contact the U.S.
Department of Commerce or the Canadian Department of Foreign Affairs and International Trade.
(ITC00-007)
