1. Introduction
1.1 Feature
E70(915T30S) is wireless UART transceiver module based on the original CC1310 of TI, operating at
907~922.5MHz (Default: 915MHz), TTL level and 3.3V IO port.
The module has the function of data encryption & compression. The data of the module transmitted over
the features randomness. With the rigorous encryption & decryption, data interception becomes pointless.
The function of data compression decreases the transmission time & probability of being interfered, while
improving the reliability & transmission efficiency.
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 3 of 11 Technical Support : support@cdebyte.com
No.
Usage
Description
1
Continuous transmission
In this mode, the data transmitting length is unlimited:
Perfectly realize continuous transmission for the highest baud rate
of 115200bps.
2
Fixed-length transmission
Air data rate, FEC and Encryption are configurable by users;
Transmitting data to the receiver in present air data rate with a most
effective way to realize low delay and high respond.
3
Consumption advantage
The receiving current is 14mA, and the stand by current is 4uA.
Battery-powered application is available.
4
WOR
Ultra-low power consumption, suitable for the battery-powered
application. When the module is on the power-saving mode, the
receiving response delay time of module can adjust the power
consumption.
5
Fixed transmission
Module can communicate with other modules which are work in
different channels and addresses, it is easy for networking and
repeater.
For example: module A transmits AA BB CC to module B (address:
0x00 01, channel: 0x80), HEX format is 00 01 80 AA BB CC (00 01
refers to the address of module B, 80 refers to the channel of
module B), then module B receives AA BB CC (only module B).
6
Broadcast transmission
Set the module address as 0xFFFF, then the module can
communicate with other modules in same channel.
7
FEC
It has the feature of FEC (Forward Error Correction）algorithm,with
high coding efficiency & good correction performance. In a sudden
interference, it can correct the interfered data packets proactively, so
that the reliability & transmission range are improved proactively.
Without FEC, those data packets can only be dropped.
8
Parameter saving
The parameter will be saved after users set the parameters and it
won’t be lost if powered-off. After module powered-on again, the
module will work as previous settings.
9
Ultra-small size
24 * 38.5mm, suitable for some application which has strict
limitation for the size.
10
Secondary development
All IO port lead out already for secondary development.
11
Customized Service
If the existing UART module cannot meet customers’
requirements, Ebyte accept customization of appropriate firmware.
Ebyte has provided customized wireless modules to tens of
well-known enterprises. Please contact us for more details.
12
Complete series
CC1310 has different size and packing, in which main difference is
the number of GPIO. Ebyte has completely developed CC1310,
including different size, frequency, power etc.
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 4 of 11 Technical Support : support@cdebyte.com
1.2. Electrical Parameter
No.
Parameter item
Description
1
Size
-
2
Weight
Average weight
3
Frequency Band
Frequency range: 907~922.5MHz, channel: 32
4
PCB
Impedance-matching, lead-free and SMT
5
Connector
SMD
6
Supply voltage
5V is recommended
(Note: the voltage higher than 5.5V is forbidden)
7
Communication
level
3.3V is recommended
8
Operation Range
Test condition: clear and open area& 30dBm, antenna
gain: 2dBi，height: 2m，air data rate: 2.5kbps
9
Transmitting
power
Four optional level: 30, 27, 24, 17dBm
10
Air data rate
Six optional level: 2.5, 5, 12, 28, 64, 168kbps
11
Standby current
Mode 3 (M0=1, M1=1, M2=1)
12
Transmitting
current
≥1A (recommended)
(the voltage supply is 5V)
13
Receiving current
Mode 0, Mode 1, Mode 2 （5v power supply）
14
Communication
interface
8N, 8E1, 8O1, eight kinds of UART baud rate, from
1200 to 115200 bps (default: 9600)
15
Driving mode
Can be configured to push-pull/high pull, open-drain.
16
Transmitting
length
Please refer to the transmission mode
17
Receiving length
Please refer to the transmission mode
18
Address
Easy for networking, broadcast and fixed transmission
19
WOR
The minimum average power consumption is about
30uA (it fits for battery-powered applications)
20
RSSI
It supports RSSI, refer to contents as follow
21
Antenna type
50Ω characteristic impedance
22
Operating
temperature
-
23
Operating
humidity
Relative humidity, no condensation
24
Storage
temperature
-
25
Sensitivity
Sensitivity has nothing to do with baud rate or timing
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 5 of 11 Technical Support : support@cdebyte.com
2. UART functional description (default)
2.1 Fixed transmission
Hex
Description
The format: :Hexadecimal, such as：00 03 04 AA BB CC
00 03 is the address of receiving module；04 is the channel ；AA BB CC is the transmission data。
Transmitting module A
Hexadecimal
Address：00 01；Channel :02
Receiving module B
Hexadecimal
Address：00 03；Channel :04
Receiving module C
Hexadecimal
Address：00 05；Channel :04
Receiving module D
Hexadecimal
Address：00 07；Channel :06
Module A must be in fixed mode.
Module A Transmitting data
Hexadecimal
00 03 04 AA BB CC
Module B receiving data
Hexadecimal
AA BB CC
Module C receiving data
Hexadecimal
No
Module D receiving data
Hexadecimal
No
Only the modules with matched address and channel can receive the data.
In fixed transmission, modules only support 1 packet length (pls refer to electrical parameters). If the data
packets exceed, then it needs to be subcontracted automatically.
2.2 Broadcast transmission
Hex
Description
The format: Hexadecimal, such as：FF FF 04 AA BB CC
FF FF is the address；04 is the channel of receiving module；AA BB CC is the transmission data。
Transmitting module A
Hexadecimal
Address：00 01；Channel :02
Receiving module B
Hexadecimal
Address：00 03；Channel :04
Receiving module C
Hexadecimal
Address：00 05；Channel :04
Receiving module D
Hexadecimal
Address：00 07；Channel :06
Module A must be in fixed mode.
Module A Transmitting data
Hexadecimal
FF FF 04 AA BB CC
Module B receiving data
Hexadecimal
AA BB CC
Module C receiving data
Hexadecimal
AA BB CC
Module D receiving data
Hexadecimal
No
All the module with this channel can receive the data.
In fixed transmission, modules only support 1 packet length (pls refer to electrical parameters). If the data
packets exceed, then it need to be subcontracted automatically.
2.3 Broadcast address
1. For example, set the address of module A as 0xFF FF, and the channel as 0x04.
2. When module A works as the transmitter (transparent transmission), all the receiving module with the
channel 0x04 can receive the data, so as to realize the broadcast.
2.4 Monitoring address
1. For example, set the address of module A as 0xFF FF, and the channel as 0x04.
2.When module A works as the receiver, all the receiving module with the channel 0x04 can receive the
data, so as to realize the monitoring.
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 6 of 11 Technical Support : support@cdebyte.com
3. Functional description
3.1 Pin Definition
No.
Pin item
Pin direction
Application
1
GND
Ground
Ground electrode
2
GND
Ground
Ground electrode
3
GND
Ground
Ground electrode
4
NC
Reserved pin
Reserved, to be floated
5
NC
Reserved pin
Reserved, to be floated
6
NC
Reserved pin
Reserved, to be floated
7
NC
Reserved pin
Reserved, to be floated
8
NC
Reserved pin
Reserved, to be floated
9
NC
Reserved pin
Reserved, to be floated
10
NC
Reserved pin
Reserved, to be floated
11
LNA_EN
Output
Internal MCU controlled LNA pin, valid in high level,
connect to pin 44
12
PA_EN
Output
Internal MCU controlled PA pin, valid in high level, connect
to pin 45
13
NC
Reserved pin
Reserved, to be floated
14
NC
Reserved pin
Reserved, to be floated
15
NC
Reserved pin
Reserved, to be floated
16
M2
Input
M2, M1, M0 jointly decide the 8 working modes; an
external 1k protective resistor shall be connected in series
when in use.
17
GND
Ground
Ground electrode
18
M0
Input
M2, M1, M0 jointly decide the 8 working modes;
An external 1k protective resistor shall be connected in
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 7 of 11 Technical Support : support@cdebyte.com
series and a 1M pull-up resistor shall be added when in use.
(Cannot be floated, it can be grounded when not used)
19
M1
Input
M2, M1, M0 jointly decide the 8 working modes;
An external 1k protective resistor shall be connected in
series and a 1M pull-up resistor shall be added when in use.
(Cannot be floated, it can be grounded when not used)
20
RXD
Input
TTL serial port input connects to external TXD pin. It can be
configured as open-drain or high pull input, please refer to
Parameter setting. An external 1k protective resistor shall
be connected in series when using.
21
TXD
Output
TTL serial port output connects to external RXD input pin. It
can be configured as open-drain or push-pull input, please
refer to Parameter setting. An external 1k protective
resistor shall be connected in series when using.
22
TCKC
Input
JTAG TCKC
23
TMSC
Input
JTAG TMSC
24
RESET
Input
Reset pin, valid in low level
25
NC
Reserved pin
Reserved, to be floated
26
NC
Reserved pin
Reserved, to be floated
27
AUX
Output
It is used to indicate the operation status of module, for
user to wake up the external MCU, the module outputs low
level during self-checking and initialization at power on, it
can be configured as open-drain output or pull-up output,
please refer to parameter setting part, An external 1k
protective resistor shall be connected in series when using.
(can be floated)
28
VCC
-
Power positive reference,
Power supply 2.6V ~ 5.5V DC
29
VCC
-
Power positive reference,
Power supply 2.6V ~ 5.5V DC
30
GND
Ground
Ground electrode
31
GND
Ground
Ground electrode
32
NC
Reserved pin
Reserved, to be floated
33
NC
Reserved pin
Reserved, to be floated
34
NC
Reserved pin
Reserved, to be floated
35
NC
Reserved pin
Reserved, to be floated
36
NC
Reserved pin
Reserved, to be floated
37
NC
Reserved pin
Reserved, to be floated
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 8 of 11 Technical Support : support@cdebyte.com
38
NC
Reserved pin
Reserved, to be floated
39
NC
Reserved pin
Reserved, to be floated
40
NC
Reserved pin
Reserved, to be floated
41
NC
Reserved pin
Reserved, to be floated
42
NC
Reserved pin
Reserved, to be floated
43
NC
Reserved pin
Reserved, to be floated
44
LNA_EN
Input
Internal LNA pin, valid in high level, connect to pin 11
45
PA_EN
Input
Internal PA pin, valid in high level, connect to pin 12
46
GND
Ground
Ground electrode
47
GND
Ground
Ground electrode
48
ANT
-
Antenna (50Ω characteristic impedance)
Real values of MCU controlled PA and LNA are as follows:
No.
PA_EN
LNA_EN
Notes
1
1
0
In transmitting
2
0
1
In receiving
3
0
0
In sleeping mode

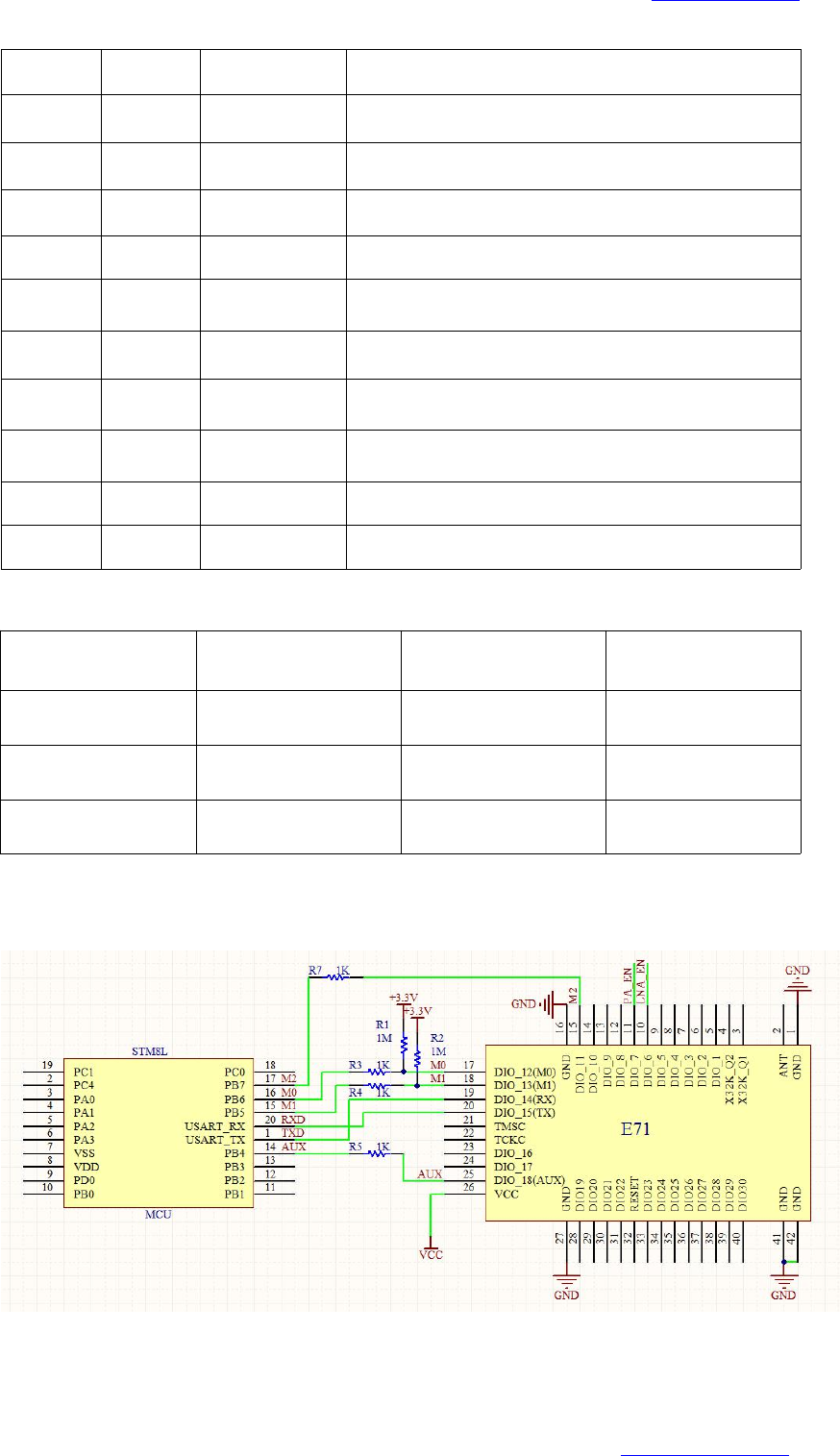

3.2 Connect to MCU
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 9 of 11 Technical Support : support@cdebyte.com
No.
Description (STM8L MCU)
1
The UART module is TTL level., please connect to the MCU of TTL level.
2
For some MCU works at 5V DC, it may need to add 4 ~ 10K pull-up resistor for the TXD & AUX
pins.
3.3 Reset
No.
Description
1
When the module is powered on, AUX outputs low level immediately, conducting hardware
self-check and setting the operating mode on the basis of the user parameters. During the
process, the AUX keeps low level. After this process, the AUX outputs high level and starts to work
as per the operation mode combined by M2, M1, M0. Therefore, the user needs to wait the AUX
rising edge as the starting point of module’s normal work.
3.4 AUX description

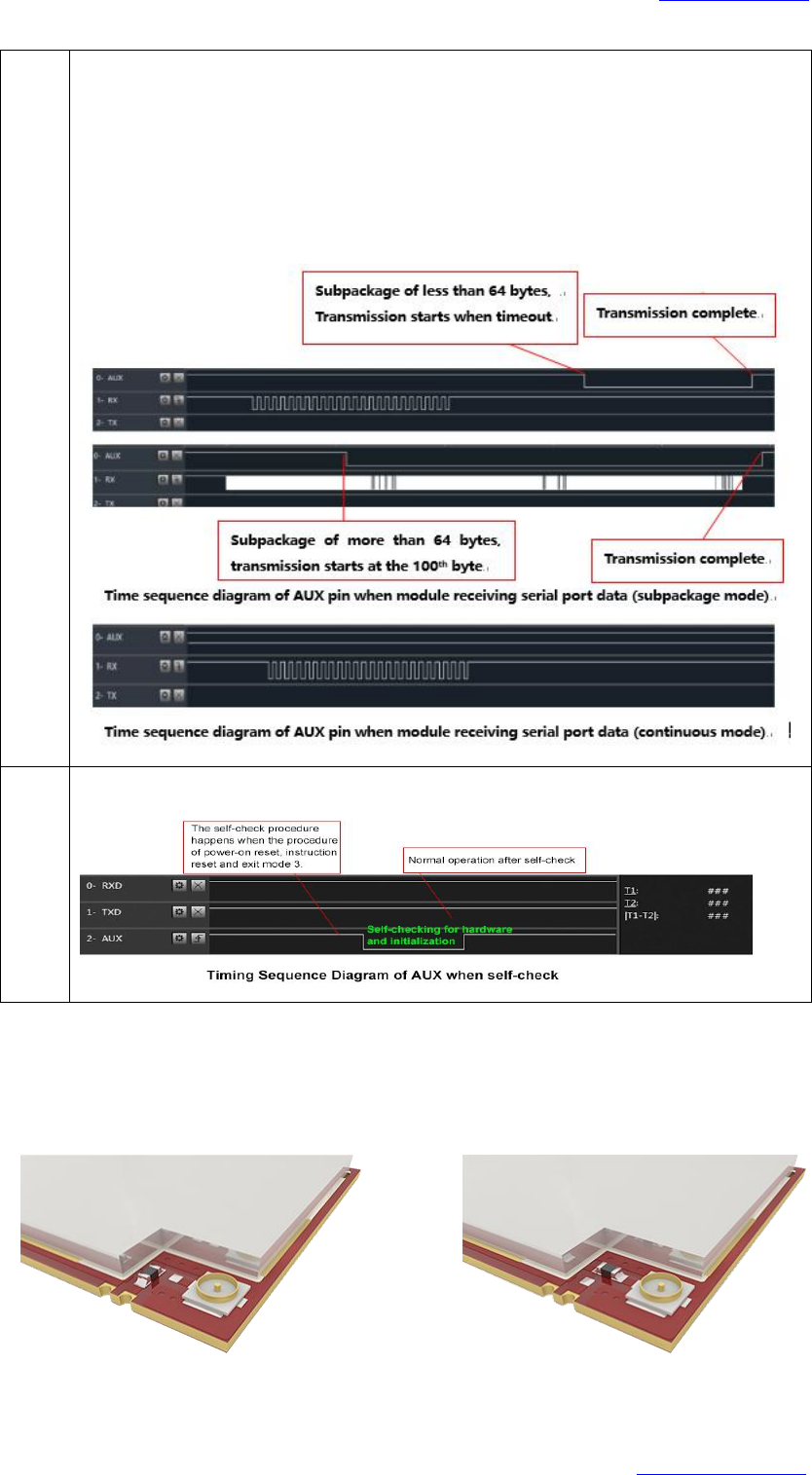

It can indicate whether there are data that has been sent through wireless, or whether all wireless data have
been sent through UART, or whether the module is still in the process of self-check initialization.
No.
Description
1
【Indication of UART output】
It can be used to wake up external MCU（In continuous mode, the AUX indication isn't delayed.）
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 10 of 11 Technical Support : support@cdebyte.com
2
【Indication of wireless transmitting】
1. Under subpackage transmission mode, the internal buffer size depends on the subpackage
size, if the data packet length is 1024 bytes, the corresponding buffer is 1024 bytes, when the
AUX=1, user could transmit data continuously ，no more than 1024 bytes .
2. Under continuous transmission mode, AUX=1, there is no limitation on user data input
length.
3. Under WOR transmission mode, AUX=1, user could continuously input less than 84 bytes.
4. AUX=1 means the serial port data has been transmitted completely.
3
【Configuration procedure of module】only when resetting and exiting sleep mode
4. Choose antenna
The 0R resistance welding before factory is as below(left), the antenna type is stamp hole;
If users need to change the antenna type to IPEX, pls change the 0R resistance as below(right).
Choose stamp hole choose IPEX
E70(915T30S)-User Manual-V1.0 Website: www.cdebyte.com/en
Page 11 of 11 Technical Support : support@cdebyte.com
5. About us
Chengdu Ebyte Electronic Technology Co., Ltd. (Ebyte) is specialized in wireless solutions and products.
◆We research and develop various products with diversified firmware;
◆Our catalogue covers WiFi, Bluetooth, Zigbee, PKE, wireless data transceivers & etc.;
◆With about one hundred staffs, we have won tens of thousands customers and sold millions of products;
◆Our products are being applied in over 30 countries and regions globally;
◆We have obtained ISO9001 QMS and ISO14001 EMS certifications;
◆We have obtained various of patents and software copyrights, and have acquired FCC, CE, RoHs & etc.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
The modular can be installed or integrated in mobile or fix devices only. This modular cannot be
installed in any portable device .
FCC Radiation Exposure Statement
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This modular must be installed and operated with a minimum distance of 20 cm between
the radiator and user body.
If the FCC identification number is not visible when the module is installed inside another device, then
the outside of the device into which the module is installed must also display a label referring to the
enclosed module. This exterior label can use wording such as the following: “Contains Transmitter
Module FCC ID: 2ALPH-E70 Or Contains FCC ID: 2ALPH-E70”
When the module is installed inside another device, the user manual of the host must contain below
warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
The devices must be installed and used in strict accordance with the manufacturer's instructions as
described in the user documentation that comes with the product.

Navigation menu
