Chengdu Vantron Technology TAB5071-TM Tablet Computer User Manual 0823x

Chengdu Vantron Technology, Ltd. Tablet Computer 0823x

Contents

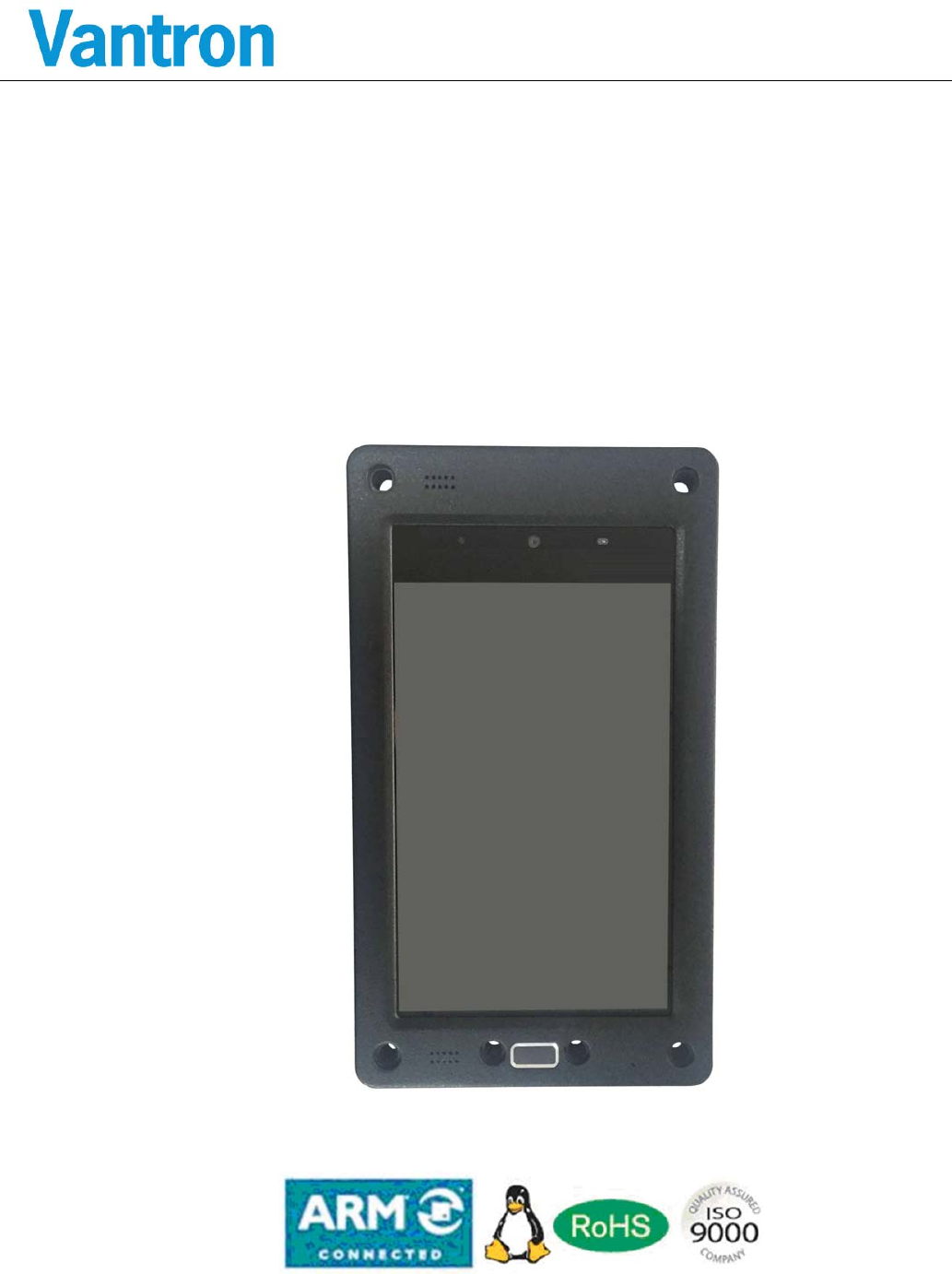

Users Manual

VT-TABLET-5071-TM-FP
All Rights Reserved
VT-TABLET-5071-TM-FP User’s Manual
Chengdu Vantron Technology, Ltd.
VT-TABLET-5071-TM-FP
Contents
CONTENTS...................................................................................................................................................................2
REVISIONHISTORY......................................................................................................................................................2
1FOREWORD.........................................................................................................................................................3
1.1COPYRIGHTNOTICE..............................................................................................................................................................3
1.2NOTES...............................................................................................................................................................................3
1.3STATEMENT........................................................................................................................................................................4
1.4DISCLAIMER.......................................................................................................................................................................4
1.5LIMITATIONOFLIABILITY/NON‐WARRANTY...............................................................................................................................4
1.6SAFETYINSTRUCTIONS..........................................................................................................................................................4
1.7PRECAUTIONS.....................................................................................................................................................................5
1.8SAFETYINSTRUCTIONSFORPOWERCABLESANDACCESSORIES.....................................................................................................6
2OVERVIEW..........................................................................................................................................................7
2.1INTRODUCTION...................................................................................................................................................................7
2.2ORDERINGINFORMATION......................................................................................................................................................8
3VT‐TABLET‐5071‐TM‐FPHARDWAREINSTRUCTIONS............................................................................................9
3.1PRODUCTAPPEARANCE........................................................................................................................................................9
3.2SPECIFICATIONS.................................................................................................................................................................10
3.3INTERFACEINSTRUCTIONS...................................................................................................................................................11
3.3.1FrontView...............................................................................................................................................................11
3.3.2SideView.................................................................................................................................................................11
3.4DIMENSION......................................................................................................................................................................11
3.5BUTTONS.........................................................................................................................................................................11
3.6LED................................................................................................................................................................................12
3.7INTERFACEDESCRIPTION.....................................................................................................................................................12
3.7.1InternalMICinInterface.........................................................................................................................................12
3.7.2USBOTG(microUSBtype)......................................................................................................................................12
3.7.33.5mmHeadphoneJackwithexternalMICin.........................................................................................................13
3.7.4WPC.........................................................................................................................................................................13
3.8PACKINGLIST....................................................................................................................................................................13
4SOFTWAREINSTRUCTIONS................................................................................................................................14
4.1BRIEFINTRODUCTION.........................................................................................................................................................14
5TIPS...................................................................................................................................................................15
VT-TABLET-5071-TM-FP
1/ 17
VT-TABLET-5071-TM-FP
2/ 17
RevisionHistory
No. Version Description Date
1 V1.0 First release 2017/05/08
2 V1.1 Change description 2017/06/27
3 V1.2 ADD WPC 2017/06/28
VT-TABLET-5071-TM-FP
3/ 17
1 Foreword
1.1 Copyright Notice
While all information contained herein have been carefully checked to
assure its accuracy in technical details and printing, Vantron assumes no
responsibility resulting from any error or features of this manual, or from
improper uses of this manual or the software. Please contact our technical
department for relevant operation solutions if there is any problem that cannot
be solved according to this manual.
Vantron reserves all rights of this manual, including the right to change the
content, form, product features, and specifications contained herein at any time
without prior notice. The latest version of this manual is at
www.vantrontech.com.cn. Please contact Vantron for further information:
Vantron Technology（Vantron）
E-mail: sales@vantrontech.com
The trademarks and registered trademarks in this manual are properties of
their respective owners. No part of this manual may be copied, reproduced,
translated or sold. No changes or other purposes are permitted without the prior
written consent of Vantron.
Vantron reserves the right of all publicly-released copies of this manual.
1.2 Notes
Applicable notes are listed in the following table:
Sign Notice Type Description
Notice Important information and regulations
Caution Caution for latent damage to system or harm to
personnel
VT-TABLET-5071-TM-FP
4/ 17
1.3 Statement
It is recommended to read and comply with this manual before operating
VT-Tablet which provides important guidance and helps decreasing the danger
of injury, electric shock, fire, or any damage to the device.
1.4 Disclaimer
Vantron assumes no legal liability of accidents resulting from failure of
conforming to the safety instructions.
1.5 Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of Vantron
caused by failure of conforming to this manual or the safety instructions on
device label, Vantron assumes neither warranty nor legal liability even if the
device is still under warranty.
1.6 Safety Instructions
Keep and comply with all operation instructions, warnings, and
information.
Pay attention to warnings on this device.
Read the following precautions so as to decrease the danger of injury,
electric shock, fire, or any damage to the device.
VT-TABLET-5071-TM-FP
5/ 17
1.7 Precautions
Pay attention to the product labels/safety instructions printed on silk
screens.
Do not try repairing this product unless declared in this manual.
Keep away from heat source, such as heater, heat dissipater, or engine
casing.
Do not insert other items into the slot (if any) of this device.
Keep the ventilation slot ventilated for cooling.
System fault may arise if other items are inserted into this device.
Installation: ensure correct installation according to instructions from the
manufacturer with recommended installation tools.
Ensure ventilation and smoothness according to relevant ventilation
standard.
VT-TABLET-5071-TM-FP
6/ 17
1.8 Safety Instructions for Power Cables and Accessories
Proper power source only
Start only with power source that satisfies voltage label and the voltage
necessary according to this manual. Please contact technical support personnel
of Vantron for any uncertainty about the requirements of necessary power
source.
Use tested power source
This product still contains a button lithium battery as a real-time clock
after its external power source is removed and therefore should not be
short-circuited during transportation or placed under high temperature.
Place cables properly:
Do not place cables at any place with extrusion danger.
Cleaning Instructions
Please power off before cleaning the device.
Do not use spray detergent.
Clean with a damp cloth.
Do not try cleaning exposed electronic components unless with a dust
collector.
Support for special fault: Power off and contact technical support
personnel of Vantron in case of the following faults:
The device is damaged.
The temperature is excessively high.
Fault is still not solved after the operation according to the manual.
VT-TABLET-5071-TM-FP
7/ 17
2 Overview
2.1 Introduction
Thank you for choosing Vantron. It is our commitment to provide our
valued customers with the embedded devices equipped with the state-of-the-art
technology and the best product services.
Tablet enables the interaction between operators/users and applications,
connects industrial control products such as wireless, transducer, battery inside,
storage, etc. Tablet adopts a display for displaying and input units such as touch
screen, keyboard, audio, kind of sensors etc. for writing working parameters or
inputting operation commands. As a digital device for realizing information
interaction between human and machine, Tablet is composed of hardware and
software. Based on its ample function interfaces and powerful user operational
interface, it is very suitable for control units such as medical device, intelligent
transportation, industrial field, etc..
Vantron’s VT-Tablet products are based on the most advanced ARM and
NXP processors and have low-power consumption and high integration. The
products are designed for applications such as industrials, medicals, and
transportations etc.
VT-TABLET-5071-TM-FP
8/ 17
2.2 Ordering Information
VT-TABLET-5071-TM-FP 7” TFT LCD, 1920x1200 16:10 Wide Screen, RK-3288, Quad core
1.8GHz, USB2.0 OTG, 6200mAh battery inside, WIFI/BT4.0/GPS.
3
3
VT-
T
Instr
u

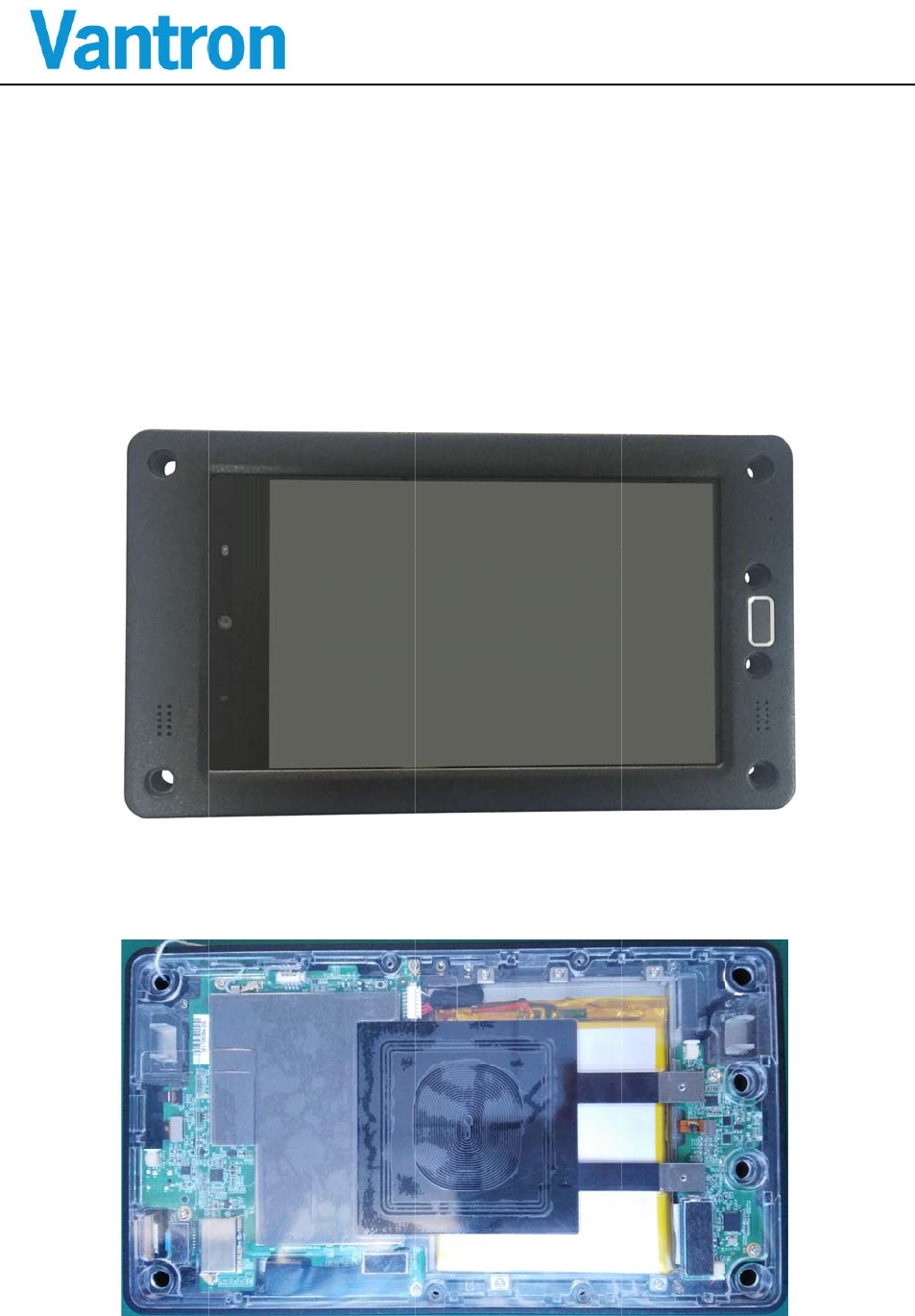

3.1 Pr
o
AB
ction
duct A
L
E
T
-5
0
s
peara
0
71-T
M
n
ce
F
r
B
a
9/ 17
M
-FP
r
ont View
a
ck View
V
Hard
w
V
T-TAB
L
w
are
L
ET-5071
-
-
TM-FP
VT-TABLET-5071-TM-FP
10/ 17
3.2 Specifications
CPU Processor RK-3288 , ARM Cortex-A17, Quad Core CPU,1.6GHz
Memory RAM 2GB DDR3
Flash 32GB EMMC Flash
Display LCD 7" TFT LCD
Resolution 1920x1200 24bit Color
Contrast 1000:1
Brightness 450 cd/m2(Auto brightness by Light sensor)
View Angle 85U/85D, 85L/85R
Touch Screen Cap-touch, multi-point
Supported Audio MP3, 3GPP, WAV
format Video MP4, 3GPP
Picture BMP, GIF, JPEG, PNG
Interfaces USB 1X USB2.0 OTG
Headphone 1X 3.5mm Headphone
Wireless 1xwifi 802.11 a/b/g/n/ac, 1xBluetooth4.0, 1xGPS
Sensor Light sensor, 3-axis Accelerometer, Gyroscope, Ecompass, Hall sensor
RTC Supported
NFC Supported
WPC Supported QI WPC1.1
Camera 1x5M Front Camera(Auto Focus)
Software OS Android 5.1.1
Applications Provide SDK, support google tool
Power Input 5V DC power supply (5V±0.25V Micro USB DC input)
Battery 3.8V, 6200mAh
Consumption 3.6W
Mechanical Dimensions 226x127x18mm
Weight 0.5Kg(Panel)
Environmen
t Condition
Temperature Operating: 0℃ ~ +40℃
Storage: -30℃ ~ +70℃
Humidity 10-85%RH (Non-Condensation), operating and storage
Vibration 2G, 9-26Hz (10 times in X,Y,Z directions)
VT-TABLET-5071-TM-FP
11/ 17

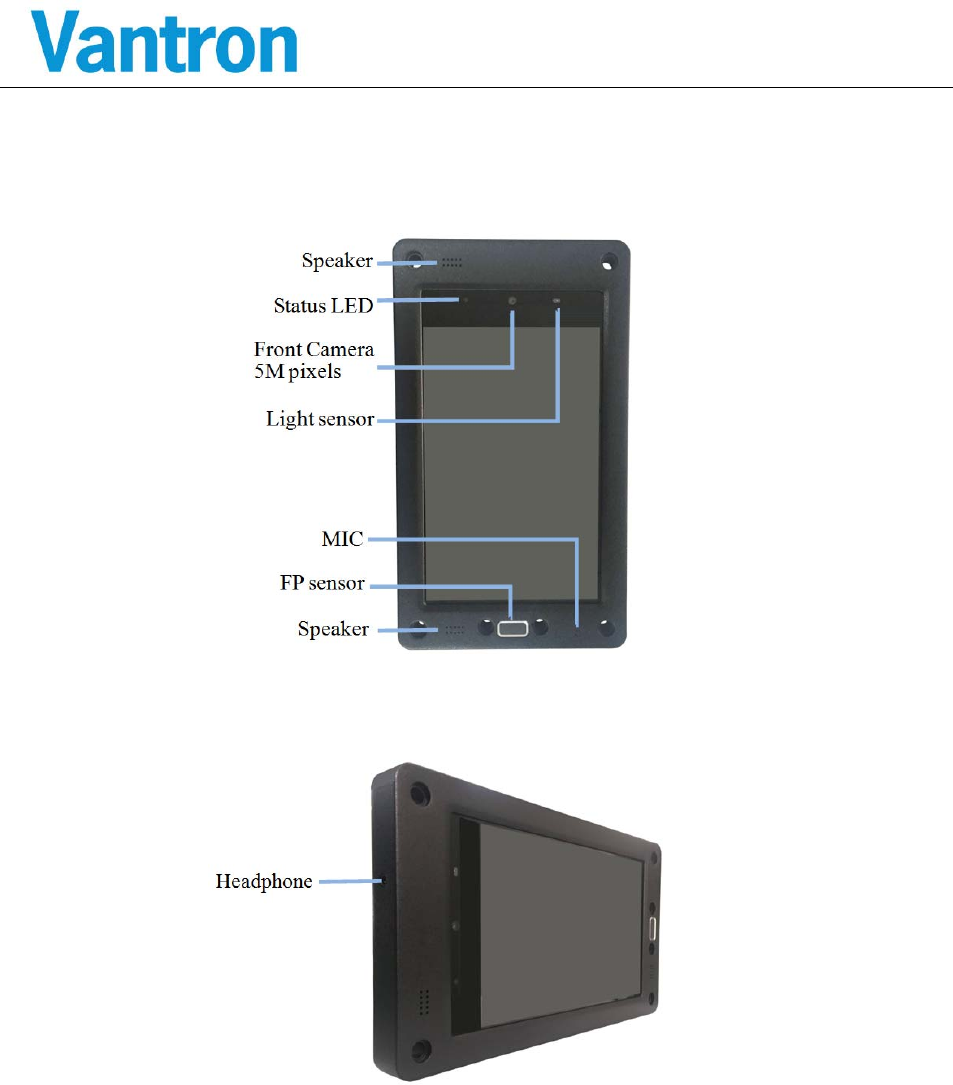

3.3 Interface Instructions
3.3.1 FrontView
3.3.2 SideView
3.4 Dimension
Whole device Size: 226x127x18mm
3.5 Buttons
Power/Sleep/Wake button
When you are not using Tablet, you can lock it to turn off the display and
VT-TABLET-5071-TM-FP
12/ 17
save the battery.
Lock tablet: Press the Power/Sleep/Wake button.
Unlock tablet: Press the Power/Sleep/Wake button, then drag the slider.
Turn tablet off: Press and hold the Power/Sleep/Wake button greater than
6 seconds.
Turn tablet on: Press and hold the Power/Sleep/Wake button until logo
appears.
Volume buttons
You can use volume up or volume down to adjust the audio volume.
Never apply excessive pressure to a button, because this may
cause damage that is not covered under the warranty.
3.6 LED
Status LED
Green: solid green indicated the adapter is present and the battery
charging termination.
Yellow: solid yellow indicated the battery is charging.
Red: solid red indicated the battery capacity less than 10%.
3.7 Interface Description
3.7.1 InternalMICinInterface
This hole is used to the onboard MIC in.
3.7.2 USBOTG(microUSBtype)
It is a standard micro USB port, you can connect to PC as USB client to
manage the android device and connect a USB device using USB OTG to
HOST adapter cable. It also can connect to USB adapter charge the table.
VT-TABLET-5071-TM-FP
13/ 17
3.7.3 3.5mmHeadphoneJackwithexternalMICin
It is a standard 4-pole 3.5mm Headphone Jack with external MIC in ,
every pole signal is defined as below.
3.7.4 WPC
The tablet with a standard WPC1.1 passivity receiving terminal. We can
charge the table with WPC ant.
3.8 Packing List
No Part Description Quantity Type
1 VT-TABLET-5071-TM-FP 1 PCS
VT-TABLET-5071-TM-FP
14/ 17
4 Software Instructions
4.1 Brief Introduction
VT-TABLET-5071-TM-FP has been pre-loaded with Android OS, and the
system can run program tools to update the system OS, please refer to its
software user manual.
VT-TABLET-5071-TM-FP
15/ 17
5 Tips
Waste Disposal
It is recommended to disassemble the device before abandoning it in conformity with local regulations.
Please ensure that the abandoned batteries are disposed according to local regulations on waste disposal. Do not
throw batteries into fire (explosive) or put in common waste canister. Products or product packages with the sign
of “explosive” should not be disposed like household waste but delivered to specialized electrical＆electronic
waste recycling/disposal center. Proper disposal of this sort of waste helps avoiding harm and adverse effect
upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more
recycling/disposal methods of related products.
Comply with the following safety tips:
Do not use in combustible and explosive environment
Keep away from combustible and explosive environment for fear of danger.
Keep away from all energized circuits.
Operators should not remove enclosure from the device. Only the group or person with factory certification
is permitted to open the enclosure to adjust and replace the structure and components of the device. Do not
change components unless the power cord is removed. In some cases, the device may still have residual voltage
even if the power cord is removed. Therefore, it is a must to remove and fully discharge the device before contact
so as to avoid injury.
Unauthorized changes to this product or its components are prohibited.
In the aim of avoiding accidents as far as possible, it is not allowed to replace the system or change
components unless with permission and certification. Please contact the technical department of Vantron or local
branches for help.
Pay attention to caution signs.
Caution signs in this manual remind of possible danger. Please comply with relevant safety tips below each
sign. Meanwhile, you should strictly conform to all safety tips for operation environment.
Notice
Considering that reasonable efforts have been made to assure accuracy of this manual, Vantron assumes no
VT-TABLET-5071-TM-FP
16/ 17
responsibility of possible missing contents and information, errors in contents, citations, examples, and source
programs.
Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this
manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any modification to the product is not permitted unless authorized by Vantron. It’s not allowed to
disassemble the product, it is not allowed to replace the system or change components unless with permission
and certification. Please contact the technical support department of Vantron or local branches for help.
Exposure to Radio Frequency Energy
This product has been tested and meets the SAR (Specific Absorption Rate) exposure requirements. The product is
designed and manufactured to comply with the limits for exposure to RF energy set by the Federal Communications
Commission (FCC) of the United States. The exposure standard employs a unit of measurement known as the specific
absorption, or SAR. Tests for SAR are conducted using standard operating positions specified by these agencies, with
this product transmitting at its highest certified power level in all tested frequency bands.
This product has been tested, and meets the FCC RF exposure guidelines.
VT-TABLET-5071-TM-FP
17/ 17
ISED Warning:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement
non contrôlé.
US Office: Vantron Technology, Inc.
Address: 1292 Kifer Road #807,
Sunnyvale, CA 94086
Tel: 510-304-7666
Email: sales@vantrontech.com
China Office: Chengdu Vantron Technology, Ltd.
Address: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, SiChuan, P.R. China 610045
Tel: 86-28-8512-3930/3931, 8515-7572/6320
Email: sales@vantrontech.com.cn

Navigation menu
