Beiblatt Engineering Sample
Energieautarker Funklichtschalter AFIS-2004

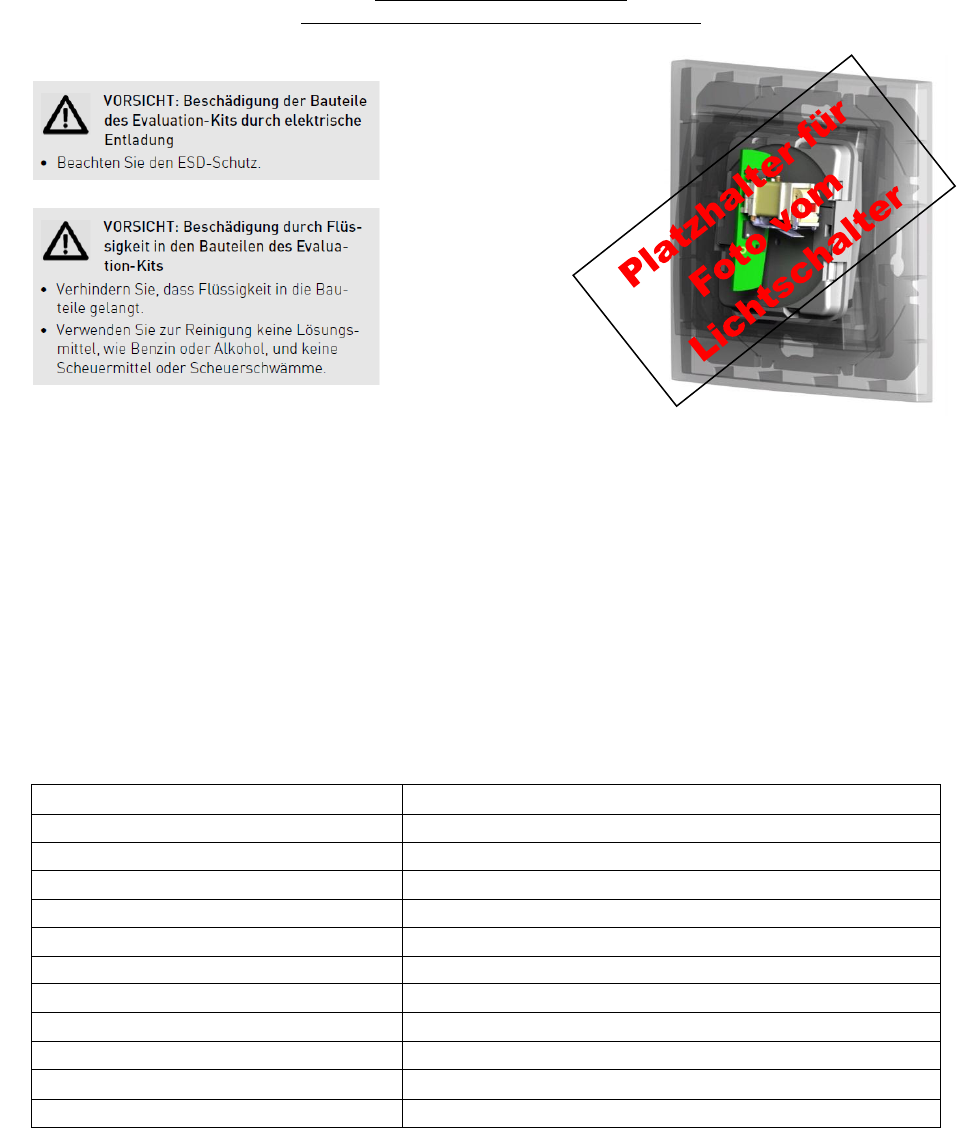

Sicherheitshinweise
1. Anwendungsbereich
Batterie- und kabelloser Funk-Lichtschalter zur direkten Kommunikation mit einer LED-Lampe.
2. Produktbeschreibung
2.1 Der Lichtschalter
Der Lichtschalter enthält einen Generator, der die mechanische Energie des Tasters in elektrische Energie
umwandelt. Die Energie versorgt die Funk-Elektronik und die Daten werden mit 2,4 GHz kabel- und batterielos an
den Empfänger in der LED-Lampe übertragen.
2.2 Der Empfänger
Der Empfängerchip NXP JN51xx ist in die LED-Lampe integriert. Dieser empfängt das Funksignal des Lichtschalters
und gibt die Information zum Ein- bzw. Ausschalten der Lampe weiter.
3. Inbetriebnahme
Zur Inbetriebnahme wird eine Fassung des Typs E27 benötigt, die mit 230V/AC betrieben wird.
Funktionen: Ein/Aus/Dimmen
4. Technische Daten
Bezeichnung:
Wert:
Lager- und Betriebstemperatur
0°C … +50°C
Zulässige relative Luftfeuchtigkeit
10 … 90%, nicht kondensierend
Versorgungsspannung Empfänger
230V/AC
Stromaufnahme Empfänger inkl. Leuchmittel
3,5mA ausgeschaltet, 47mA eingeschaltet
Lampensockel
E27-Sockel
Frequenz
2,4GHz
Modulation
FM
Funkreichweite
Auf freiem Feld: typ. 30m, in Gebäuden: typ 10m
Leistungspegel Sender
Am Antennenanschluss: max. 2,5 dBm, abgestrahlt: max. 1 dBm
Dämpfung Empfänger
typ. 6dB
Signal-Rausch-Verhältnis Empfänger
min. 6 dB
5. Konformität
Die Bauteile sind CE-konform und entsprechen den Vorschriften nach EN 300 440, EN 301 489-1 und 301 489-3, EN
60950-1:2006/A11:2009/A1:2010/A12:2011. Sie wurden für den Einsatz in Europa und den USA getestet und
entsprechen der FCC Part 15.247. Beachten Sie vor dem Einsatz in anderen Ländern die lokalen Vorschriften.
6. Entsorgung
Entsorgen Sie die Bauteile dieses Engineering Samples über eine Sammelstelle für elektronischen Abfall oder über
Ihren Händler.
7. Kontakt ZF Friedrichshafen AG
Cherrystraße
91275 Auerbach
Supplementary sheet to Engineering Sample
Energy harvesting wireless light switch AFIS-2004

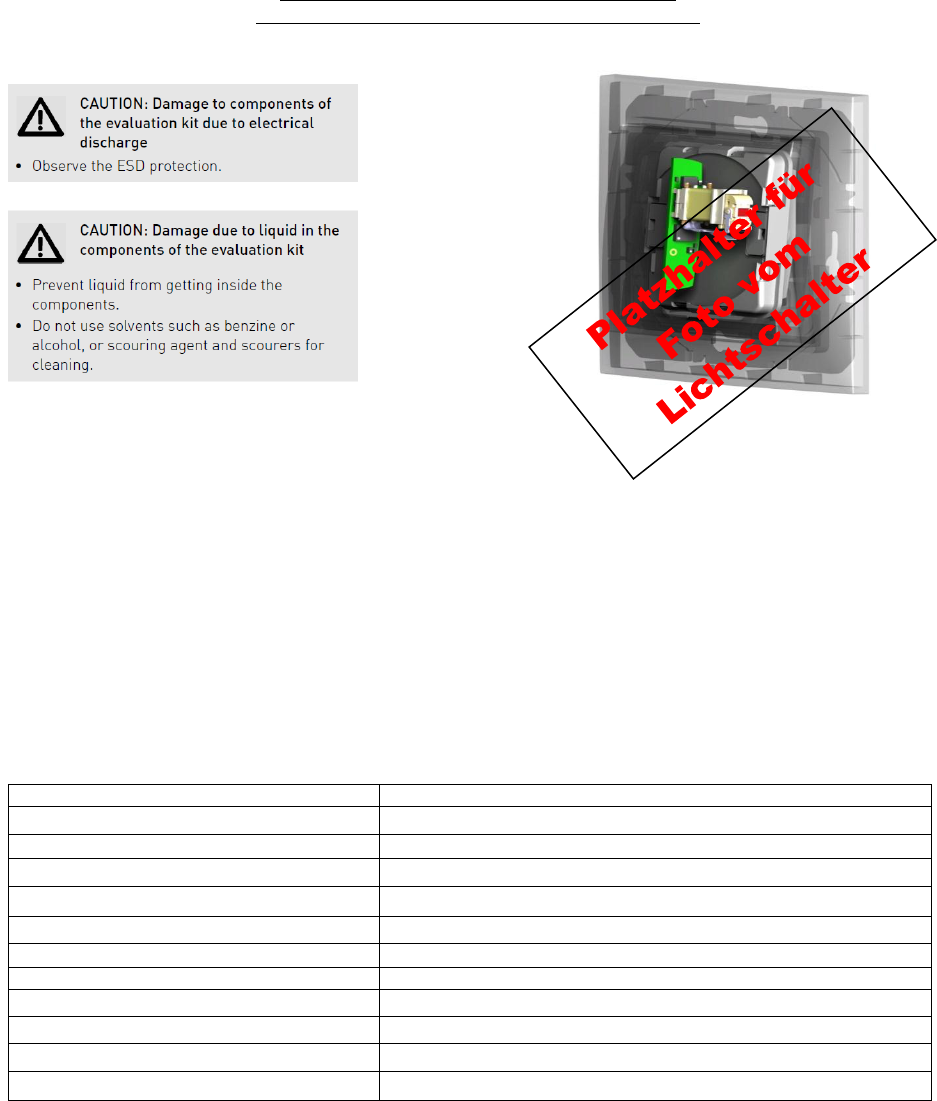

Safety instructions
1. Application field
Batteryless and wireless RF light switch for the direct communication with a LED bulb.
2. Product description
2.1 Light Switch
The light switch includes a generator which converts the mechanical energy of the switch into electrical energy. The
energy is used for the RF electronics and the data is transmitted without batteries and wires via 2.4 GHz to a receiver
integrated into the LED bulb.
2.2 Receiver
The receiver chip NXP JN51xx is integrated into the LED bulb. The chip receives the RF signal from the light switch
and forwards the information for switching the bulbs on and off.
3 Implementation
For the implementation, a E27 socket powered with 230V/AC is necesseary. Functions: On / Off / Dimming
4. Technical Data
Description
Value
Storage and operating temperature
0°C … +50°C
Permissible relative humidity
10 … 90%, non-condensing
Supply voltage receiver
230V/AC
Power consumption receiver incl. bulb
3,5mA switched off, 47mA switched on
Socket
E27
Frequency
2,4GHz
Modulation
FM
Range
Free field: typ. 30m, in buildings: typ 10m
Power level transmitter
On the antenna connection: max. 2.5 dBm, radiated: max. 1 dBm
Attenuation
typ. 6dB
Signal-to-noise ratio receiver
min. 6 dB
5. Declaration of Conformity
Radiofrequency radiation exposure Information:
The radiated output power of the device is far below the FCC radio frequency exposure limits. Nevertheless, the
device shall be used in such a manner that the potential for human contact during normal operation is minimized.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt RSS standard(s)].
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
NOTICE:
Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC
authorization to operate this equipment.
These components are CE certified and comply with the EN 300 440, EN 301 489-1 and 301 489-3, EN 60950-
1:2006/A11:2009/A1:2010/A12:2011 guidelines. They were made and tested for use in Europe and USA in
accordance with the FCC Part 15.247. Observe the local regulations before using in other countries.
6. Disposal
Dispose of the used components of the evaluation kit at an official collection point for electronic waste or at your local
dealer.
7. Contact ZF Friedrichshafen AG
Cherrystraße
91275 Auerbach
Model: AFIS2004 FCC ID: GDDAFIS2004 IC ID:11057A_AFIS2004
CAN RSS_Gen/CNR_Gen
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
