2006
2006 SILVERADO
SILVERADO
63418_FCa_2.qxd 8/12/05 5:16 AM Page 1
Silverado 1500 LT Crew Cab, shown in Sandstone Metallic with the VortecMAX Performance Package.
2006 SILVERADO
63418_2b_3.qxd 8/21/05 7:53 AM Page 2
BUILT TO AN EVEN HIGHER STANDARD.
The challenge: How to improve upon the most dependable,
longest-lasting full-size pickups on the road?* The answer:
Add a 6.0L 345 horsepower VortecMAX V8 engine that
produces 380 lb.-ft. of torque. Build the first full-size hybird
pickup. With another first in its class – the enhanced
available Allison 1000 series six-speed automatic transmission
that’s mated with either the upgraded-for-2006 Duramax
6600 Diesel V8, now boasting up to 650 lb.-ft. of torque, or
Vortec 8100 V8 engines. With a new, boldly styled power
dome hood line on the 1500 Series. In short – the 2006
family of Chevy Silverado pickups are built on a rock-solid
foundation, which was used to set an even higher standard
for full-size pickups today – and down the road. Chevrolet.
For All Life’s Roads.
*Dependability based on longevity; 1981-July 2004 full-size light-duty pickup registrations,
including chassis cabs. Excludes other GM divisions.
03
For more information about Silverado
visit our Web site at silverado.gmcanada.com
SILVERADO
2006
63418_3b_3.qxd 8/22/05 9:23 AM Page 1

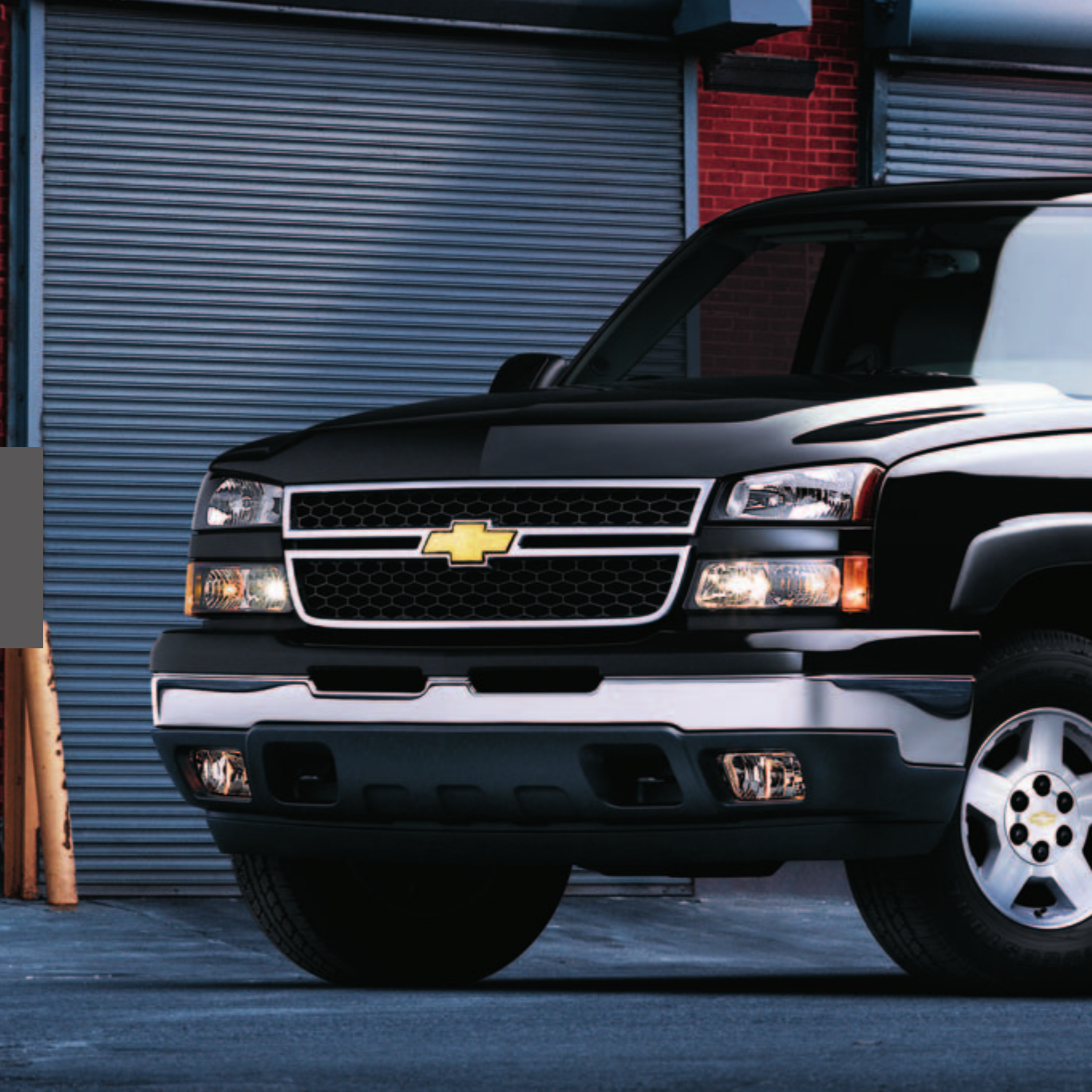

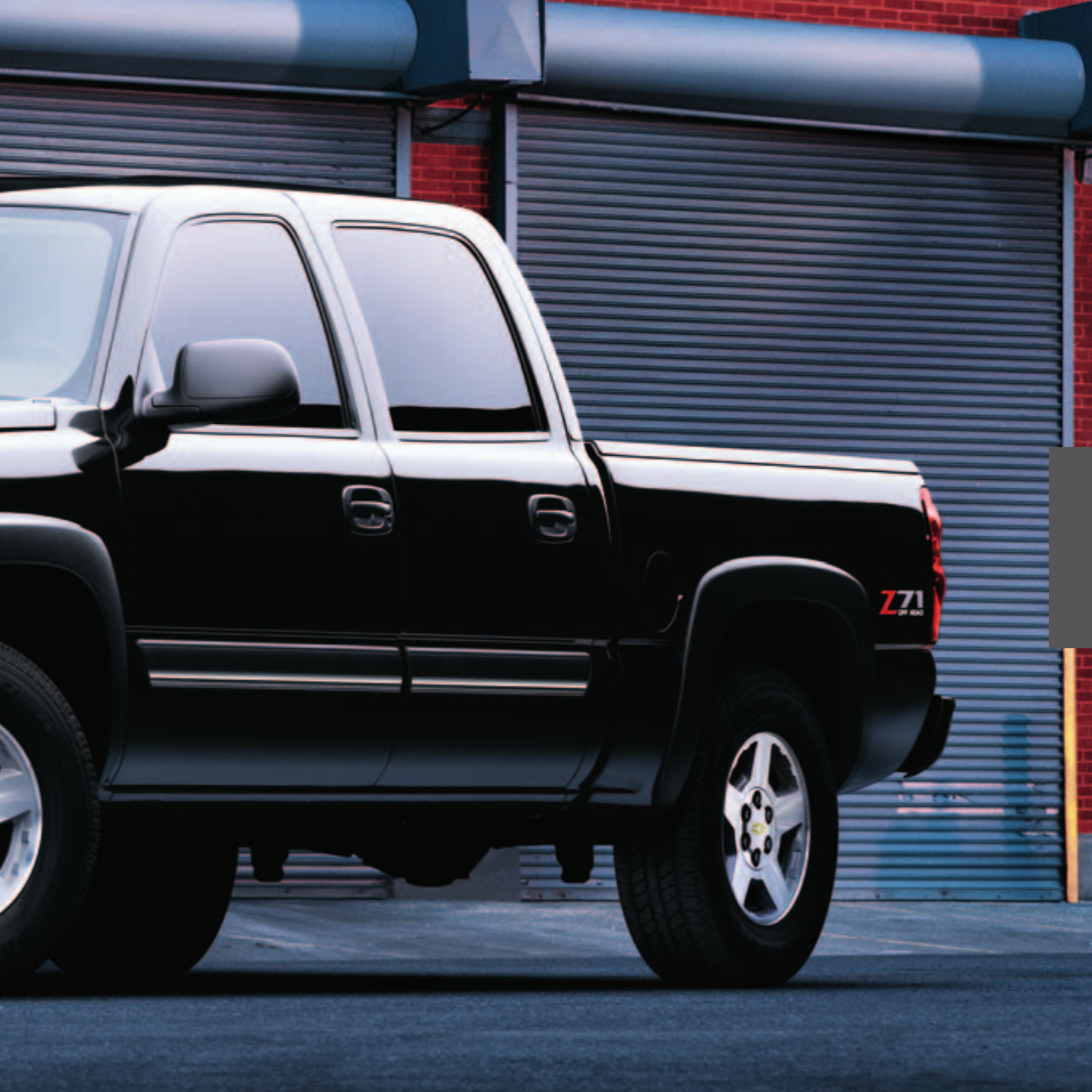

Silverado 1500 LT Crew Cab, shown in Black with a 5 ft. 8 in. short box and Z71 Off-Road Suspension Package.
1500 CREW CAB
SILVERADO
1500 CREW CAB
63418_4c_2.qxd 8/12/05 6:08 AM Page 1
WE TURNED YOUR REQUIREMENTS
INTO OUR SPECIFICATIONS.
It’s a whole new ball game. No longer is a Crew Cab exclusively
a utilitarian work truck. The Silverado 1500 Crew Cab changed
all that. It’s the truck with a spacious and comfortable six-
passenger cab. And easy access through four wide-opening,
front-hinged full-size doors. And the driveability of a half-ton
pickup. And for 2006, the new Cheyenne Edition makes the
comfort of a Silverado Crew Cab even more affordable and still
extremely powerful, with its standard 285 hp Vortec 4800 V8.
No question: it’s a different brand of Crew Cab altogether: the
Silverado 1500 Crew Cab.
05
63418_5c_2.qxd 8/12/05 6:11 AM Page 1
SILVERADO
1500 CREW CAB
INTERIOR
1500 CREW CAB
INTERIOR
BETTER KNOWN AS THE FAMILY CAB.
The most rugged family-oriented vehicles on the road today just
happen to be pickups: the Silverado 1500 Crew Cab and its
heavy-duty sibling, the 1500HD with the 6 ft. 6 in. box and the
300 horsepower Vortec 6000 V8. These are two trucks with
serious hauling capabilities on top of six-passenger seating.
And the ability to be so much more, thanks to the added luxury
of the available heated front bucket seats with leather inserts.
Add the enjoyment provided by the available rear DVD
entertainment system and you have fun for the whole family.
The 1500 and 1500 HD Crew Cabs.
KEY FEATURES:
40/20/40 front split-bench seat with Custom cloth, standard
on LS
Front bucket seats with centre floor console, storage
compartment, cupholders and armrests, available on LS
Power 8-way heated front bucket seats plus power lumbar
and leather inserts, standard on LT
60/40 split fold-down rear seat
Dual-zone climate controls
Available rear-seat DVD entertainment system
Available power sliding sunroof.
63418_6d_2.qxd 8/12/05 7:22 PM Page 1

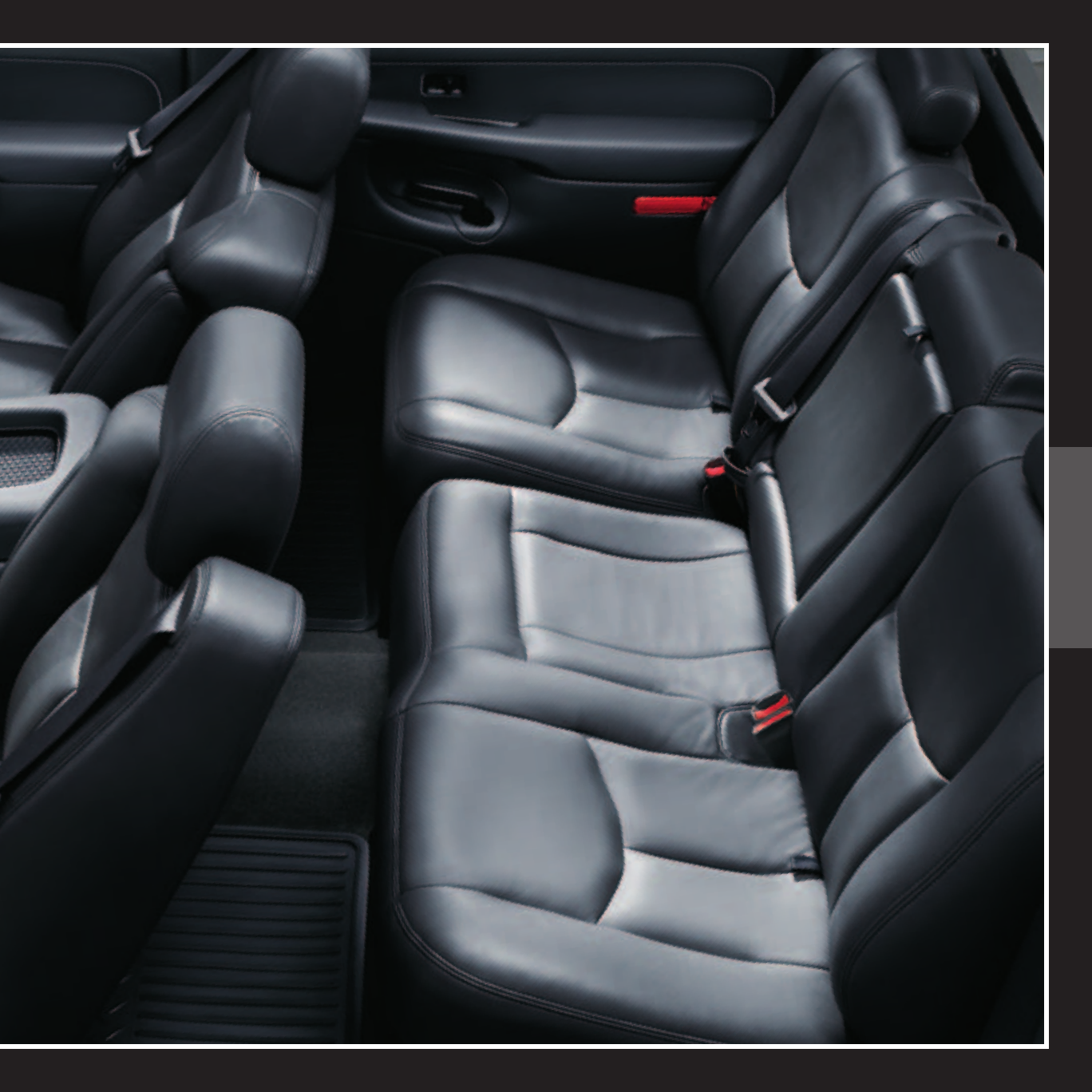

Silverado 1500 LT Crew Cab interior, shown in Dark Charcoal
with 8-way power heated front bucket seats and leather seat inserts.
07
63418_7d_2.qxd 8/12/05 6:34 AM Page 1

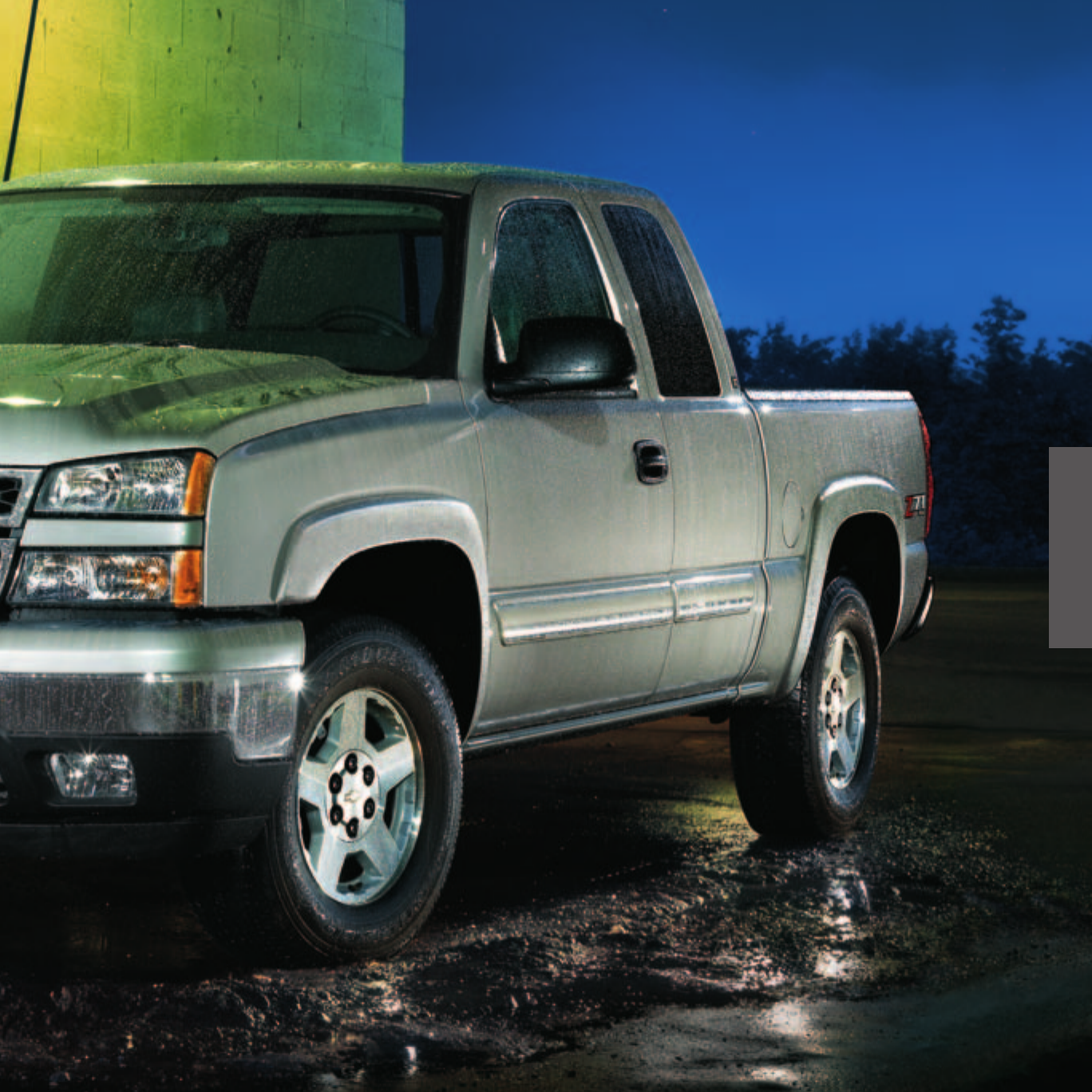

Silverado 1500 LT Extended Cab 5 ft. 8 in. short box, shown in Silver Birch Metallic with available Z71 Off-Road Package.
1500 EXTENDED CAB
SILVERADO
1500 EXTENDED CAB
NO MATTER WHICH PACKAGE YOU CHOOSE,
IT ONLY COMES IN EXTRA STRENGTH.
Strength – it defines Silverado. At the foundation of every
Silverado is a three-piece modular frame that delivers an
outstanding strength-to-weight ratio, thanks to its use of
a hydroformed-steel front section. But with Silverado
Extended Cab, that’s only the starting point. Then choose the
configuration, model, powertrain and trim level that best fits
your priorities. For 2006, you get even more choice, with
a new available 5 ft. 8 in. short box and a new, available
Performance Edition that features the 345 horsepower 6.0L
VortecMAX V8 engine and beefy 20-in. wheels. All built with
the strength and dependability that Chevy’s famous for.
63418_8e_3.qxd 8/19/05 11:10 PM Page 1
09
63418_9e_2.qxd 8/12/05 6:34 AM Page 1
1500 EXTENDED CAB
INTERIOR
The available power sliding sunroof
adds to the Extended Cab’s feeling of
openness. It can be fully opened or set
to the vent position. A retractable shade
is also included.
1500 EXTENDED CAB
INTERIOR
The driver and front passenger in
Extended and Crew Cab models can
choose their own preferred temperature
settings, thanks to the standard dual-
zone climate control system. Available
on Regular Cab models.
A WARM WELCOME AWAITS YOU.
Step inside the Silverado 1500 Extended Cab and you’ll immediately
notice that this supremely capable pickup is also tremendously
well appointed. That point is really driven home by the advanced
comfort of the LT’s standard heated front bucket seats with
8-way power adjusters. But no matter which model you choose,
dual-zone climate controls are standard. As is the fold-down
storage armrest on LS models, in addition to the mini overhead
console that’s standard on LS and LT. Getting warmer in your
search for a new pickup?
KEY FEATURES:
40/20/40 front split-bench seat with Custom cloth on LS
Full-feature heated front bucket seats with leather inserts
and power 8-way seat adjusters on LT
Front centre floor console with storage compartment,
cupholders and armrest with front bucket seats standard
on LT, available on LS
Fold-up rear seat provides additional storage
Dual-zone climate controls
Comprehensive Driver Information Centre.
SILVERADO
63418_10f_3.qxd 8/21/05 8:04 AM Page 1
11

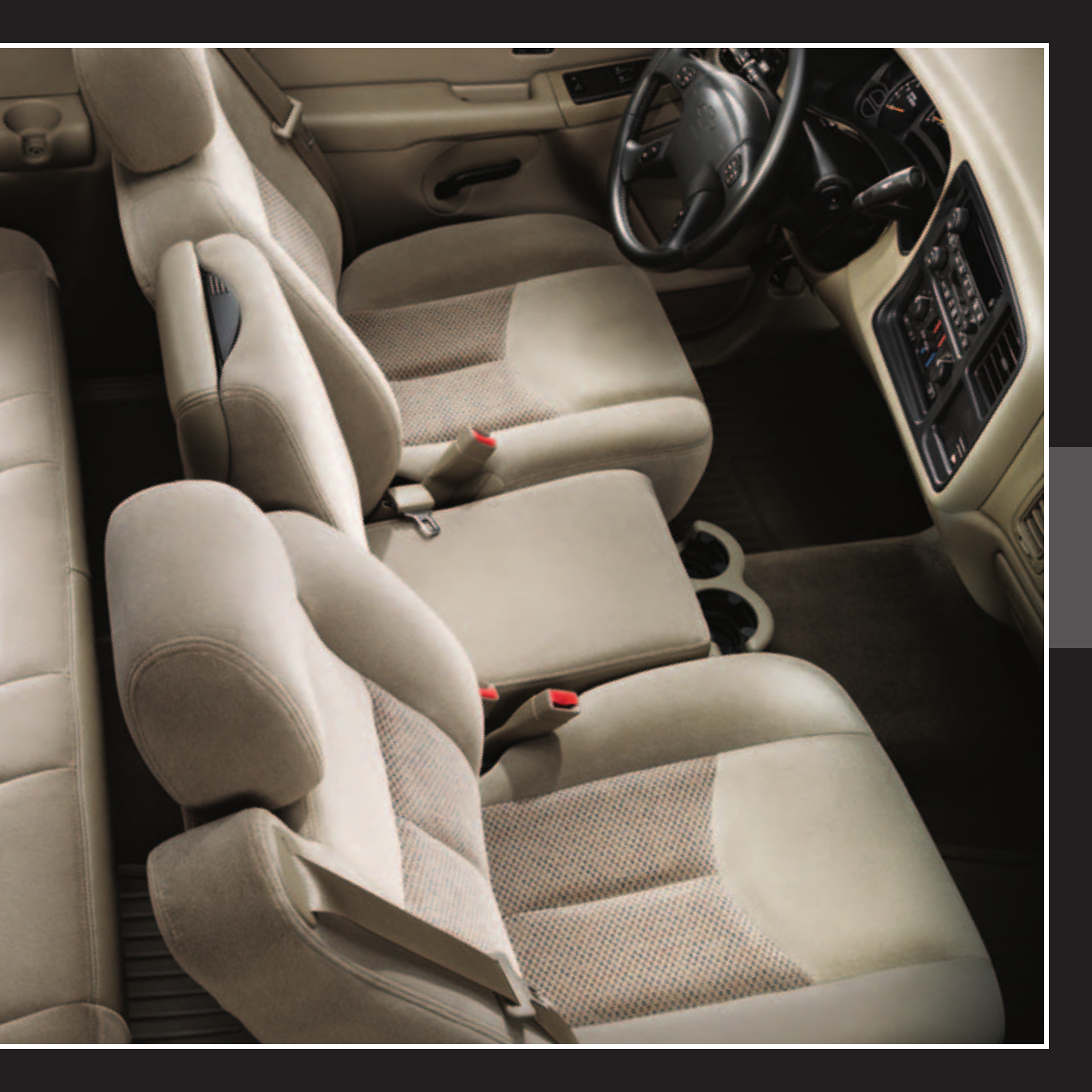

Silverado 1500 LS Extended Cab Custom cloth interior, shown in Tan with available features.
63418_11f_3.qxd 8/21/05 8:05 AM Page 1
1500 CONTROLS
SILVERADO
1500 CONTROLS
The standard Driver Information Centre monitors numerous vehicle operating
systems – everything from low fluid levels to the status of the engine, transmission
and brakes. It warns you of possible transmission overheating problems, and even
tells you when it’s time to change the engine’s oil.
IS YOUR TRUCK TRYING TO
TELL YOU SOMETHING?
That old adage that an ounce of prevention is worth a pound
of cure applies to Silverado’s comprehensive, standard Driver
Information Centre. This multi-language display on the instrument
panel keeps you up to date on the status of numerous important
vehicle functions, including when an oil change is required. Also
included is an engine hour meter. Together, these indicators help
you assess the state of your Silverado to make sure all is
operating as it should.
KEY FEATURES:
Full analogue instrumentation including tachometer
Coolant temperature and oil pressure gauges
Engine hour meter
CD player on LS, LT and SS models
Personalization of comfort, convenience and safety features
on LT and SS models using the steering wheel controls
Steering wheel audio controls on LS and LT models
OnStar with one-year of the Safe & Sound Plan is standard
on LT models, available on LS, SS and Hybrid models.
63418_12g_4.qxd 8/22/05 1:54 PM Page 1

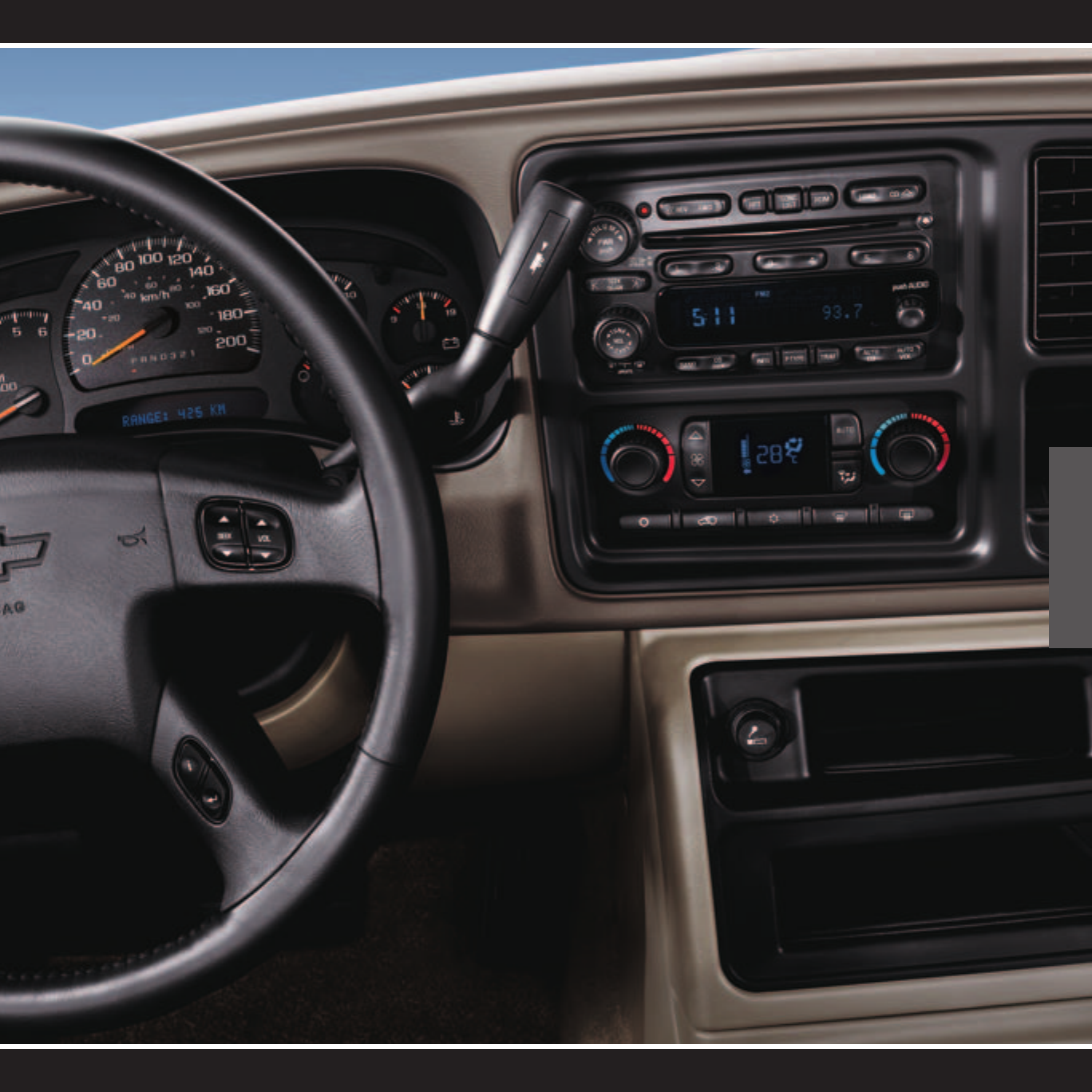

The Silverado instrument panel relays the status of everything from the coolant
temperature to engine rpm via its analogue gauge cluster. LT instrument panel shown.
13
63418_13g_3.qxd 8/21/05 8:52 AM Page 1

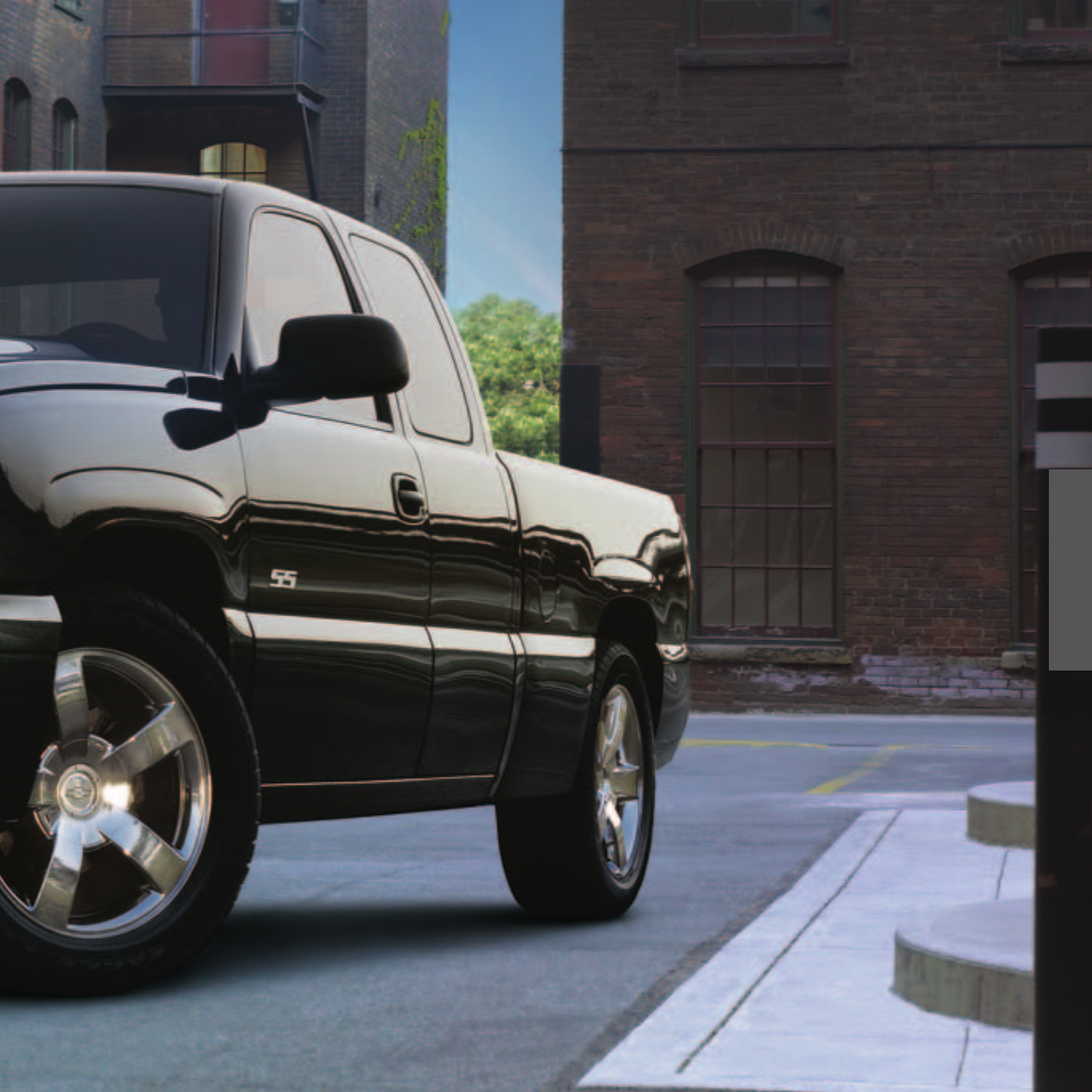

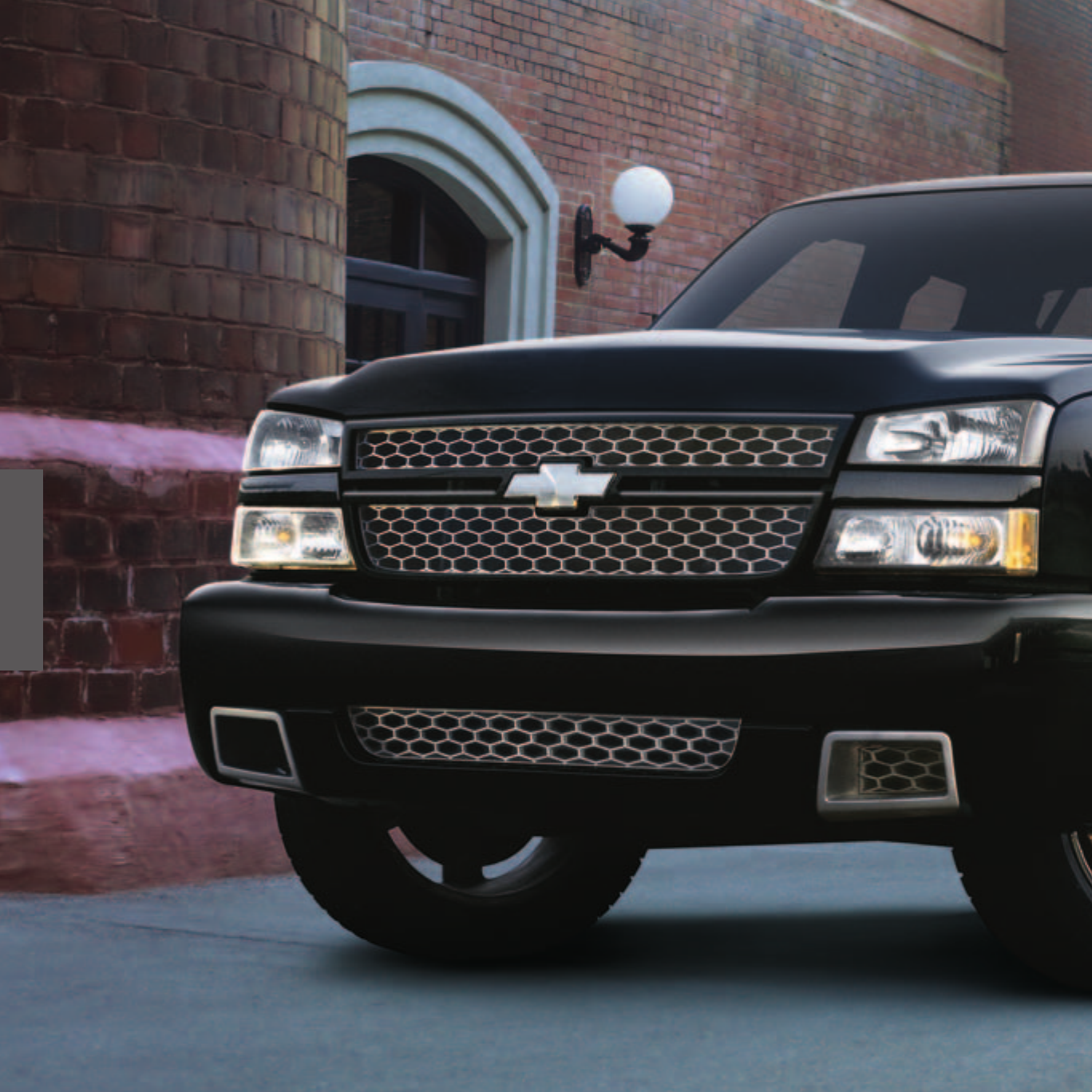

Silverado SS, shown in Black with available 20-in. chromed-finish aluminum wheels.
SILVERADO SS
SILVERADO
SS
63418_14h_3.qxd 8/21/05 8:42 AM Page 1
15
ONE MEAN MACHINE.
The Silverado SS sure looks mean, with its lowered chassis,
monochromatic colour scheme and 20-in. aluminum sport wheels.
The performance is no less aggressive – the new 345 hp 6.0L
VortecMAX V8 works in combination with a heavy-duty four-speed
automatic transmission, four-wheel disc brakes with ABS and
the high-performance suspension package to deliver a truly
responsive drive. The Silverado SS – it doesn’t just look mean.
KEY FEATURES:
345 hp 6.0L VortecMAX V8
Z60 High-Performance Chassis Package
Full-feature power 8-way heated front bucket seats
Personalization of comfort, convenience and safety features
Dual-zone automatic climate control
SS instrument panel features distinctive backlit analogue
gauges with contrasting orange needles.
63418_15h_2.qxd 8/21/05 8:43 AM Page 1

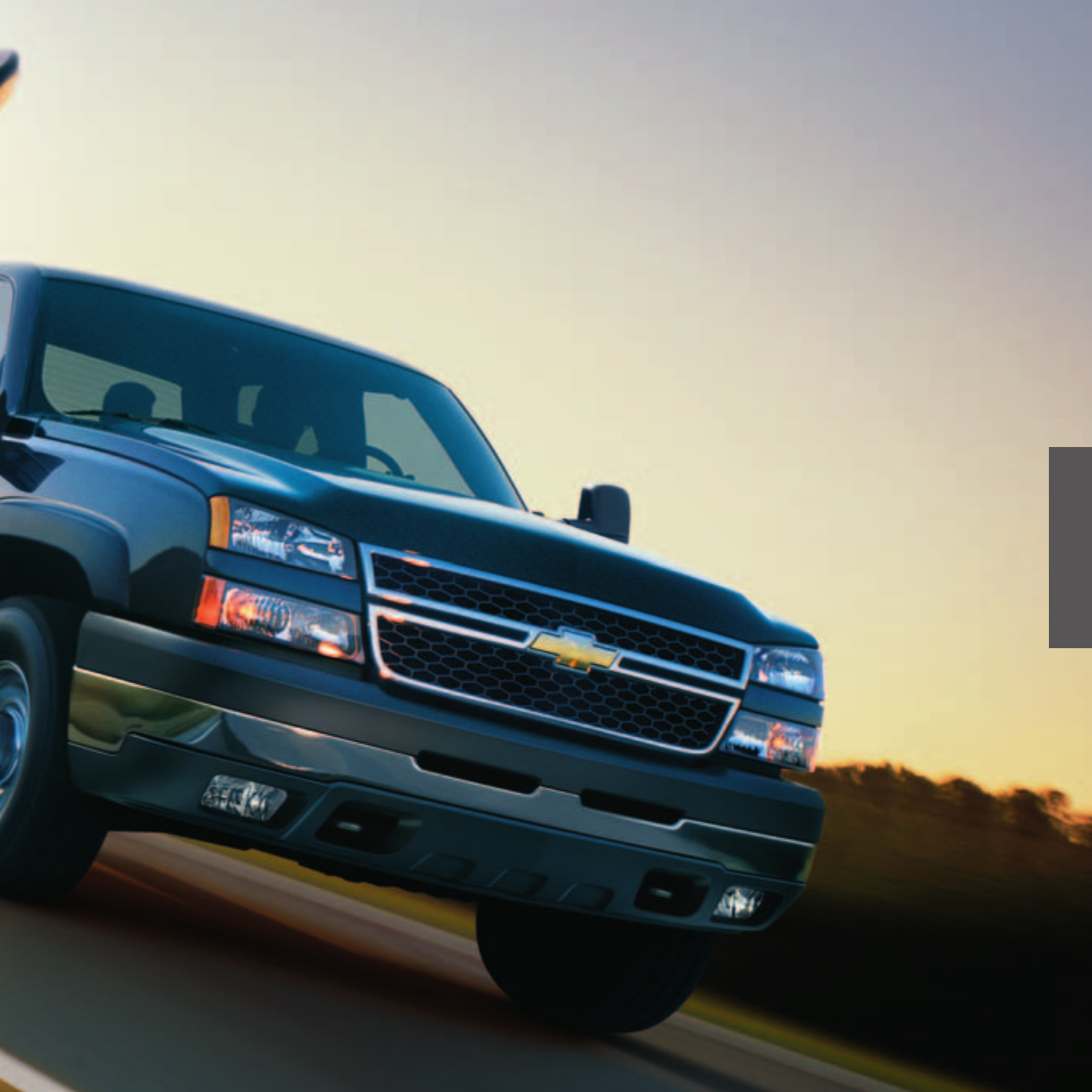

Silverado 2500HD LT Crew Cab 4x4, shown in Dark Blue Metallic with new available deluxe wide-load mirrors.
2500HD/3500
SILVERADO
2500HD/3500
63418_16i_3.qxd 8/21/05 9:03 AM Page 1
17
IN THIS CASE, THE SEQUEL IS EVEN BETTER THAN THE ORIGINAL.
When the combination of the Duramax 6600 Diesel V8 and the Allison 1000 Series
automatic transmission was introduced, it revolutionized diesel power for heavy-duty full-
size pickups. For 2006, that powertrain combination is even better, thanks to the addition of
an extra transmission gear, 50 more horsepower and 45 lb.-ft. more torque. The upgraded
2006 Duramax 6600 Diesel V8 has been significantly revised to deliver lower emissions,
improved quietness, more power and a class-leading 650 lb.-ft. of torque.* The new
transmission is the first six-speed automatic in its class, and it incorporates such leading-
edge features as tap-up/tap-down controls. What is unchanged in the 2500HD and 3500
is their awesome hauling capabilities, with GVWRs that go up to 5171 kg (11,400 lb.)
and GCWRs up to 10,660 kg (23,500 lb.). The most capable pickups in Chevy’s history.
And that’s saying a lot.
*Requires available Allison 6-speed automatic transmission. Based on 2005 Model Year data for GM Large Pickup segment and latest
published competitive information available at time of printing. Excludes other GM vehicles.
63418_17i_3.qxd 8/21/05 9:04 AM Page 1

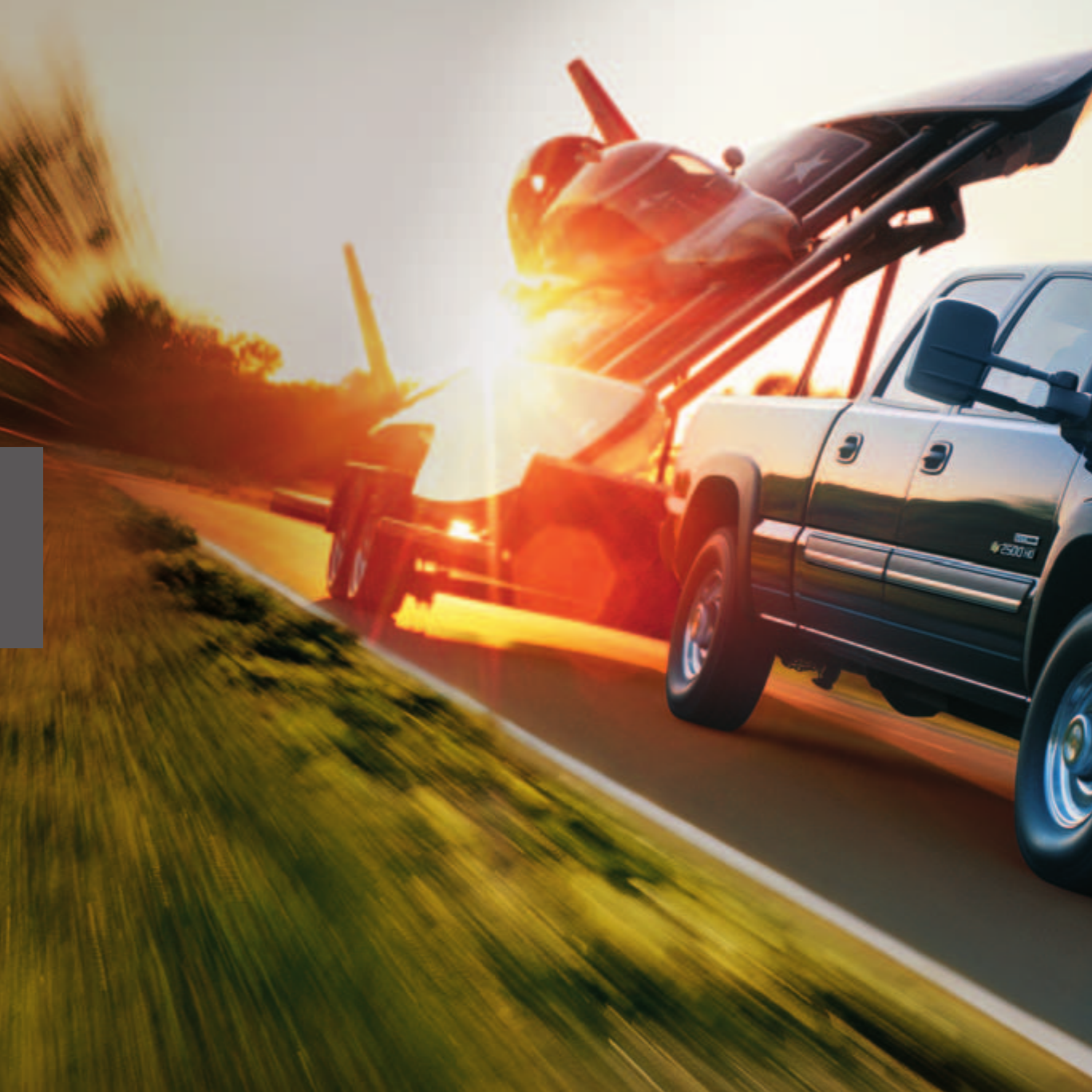

THE POWER OF CHOICE.
There’s lots of news under the hood of
Silverado for 2006. The new 345 hp
VortecMAX V8, the 360 hp Duramax
6600 Diesel V8 and the 310 hp High
Output Vortec 5300 V8 lead the way. But
what really separates Silverado’s engine
lineup isn’t only the incredible output of
these engines, it’s also the range. Ten
different engines. Built for a wide range
of different applications, including towing,
with capacities ranging up to 7575 kg
(16,700 lb.).* Power alone is not the goal
it’s finding the right characteristics to
meet the specific demands of a given
truck and the way you use it. Fortunately,
with Silverado, that choice is left up to you.
*For 3500 4x4 Regular Cab dual rear-wheel models
equipped with a fifth wheel hitch. Refer to the Trailering
with Chevy Trucks brochure for more information.
KEY FEATURES OF THE
VORTEC V8 ENGINES:
Electronic Throttle Control (ETC)
Low oil level sensor
GM Oil Life System
“Limphome” mode prevents
engine from overheating after a
complete coolant loss
Deep-skirt block with six-bolt main
bearing caps add strength and
durability, while reducing vibration
(except Vortec 8100 V8)
Easy-to-service design with pushrod
valve actuation
Long-life spark plugs
Long-life DEX-COOL engine coolant.
SILVERADO
POWER/TOWING
FEATURES OF THE VortecMAX
6.0L V8 ENGINE:
1High-flow ports and combustion
chambers in the cast aluminum
cylinder heads help the
VortecMAX generate 345 hp.
A low-friction roller-rocker
valvetrain is also included.
2 The lightweight thermoplastic
intake manifold helps keep the
air intake cool. The runners use
smooth interior passages to direct
high-speed airflow to each cylinder.
3Quiet operation and reduced
maintenance are the result of the
internally balanced high-strength,
cast iron crankshaft, which
employs undercut and rolled fillets
to reduce stress loads.
4An ignition coil is provided for each
of the eight cylinders. Its precise,
high-energy spark helps increase
efficiency and reduce emissions.
5 Driver input is relayed through the
drive-by-wire Electronic Throttle
Control (ETC) that’s continuously
monitored by the PCM to match
power delivery with the transmission
shift schedule. As a result, the
transmission never has to search
for the correct gear, translating into
better performance and efficiency.
VortecMAX 6.0L V8 engine.
Silverado’s Tow/Haul mode isn’t
the overdrive lock-out function
you’ll find on some pickups.
With the touch of a button, the
Tow/Haul mode greatly enhances
Silverado’s hauling and trailering
capabilities, by producing a
more aggressive automatic
transmission shift pattern.
POWER/TOWING
1
2
3
4
5
63418_18j_3.qxd 8/19/05 11:18 PM Page 1
Bellus concubine praemuniet syrtes.
19
For 2006, the enhanced Duramax/Allison duo
feature a reduction in operational noise, tap-up/
tap-down shift feature, adaptive grade braking
cruise control, an added second overdrive gear
and a low-traction mode.
Duramax 6600 Diesel V8 engine.
1
2
3
4
6
7
5
FEATURES OF THE DURAMAX 6600 DIESEL V8:
1 A revised and more aerodynamically efficient variable nozzle
turbocharger with an air-to-air intercooler help deliver smooth,
immediate response and lower emissions.
2 The Bosch direct-injection system maximizes power and
efficiency for each pulse of fuel used. The common-rail fuel
injection system uses an advanced electronic controller and
pilot injection for quieter, smoother operation and reduced
emissions. The fuel injectors spray directly onto glow plugs,
providing faster starts and more complete cold-start
performance with reduced emissions.
3 The four-valve-per-cylinder design improves airflow, resulting
in impressive horsepower output and reduced emissions.
4 Oil-spray cooling, cools the bottom of the piston bowl – the
area that produces the most heat.
5 An integral oil cooler provides increased oil cooling and
extended engine life.
6 The forged-steel crankshaft is nitride surface-hardened for
long-term durability. Hot-forged alloy connecting rods are
fracture-split, locking the two pieces together during assembly
for strength and reduced weight.
7 The induction-hardened, deep-skirt block uses cross-bolted
main bearing caps for superior durability.
63418_19j_4.qxd 8/19/05 11:21 PM Page 1
SILVERADO
HYBRID
Silverado Hybrid 1500 Extended Cab standard box, shown in Silver Birch Metallic.
HYBRID/ENGINE,
SUSPENSION AVAILABILITY
THE END OF IDLING.
Stop idling – the future is here right now. Introducing the first full-
size hybrid pickup in production: the Silverado 1500 Extended
Cab Hybrid. Instead of a conventional starter and alternator,
the parallel hybrid technology integrates a compact electric
motor/generator between the Vortec 5300 V8 gasoline-powered
engine and the automatic transmission. At low speeds while
braking, and when the truck is stopped, the gasoline engine stops
running. When the driver steps on the accelerator or releases the
brake pedal, the 42-volt battery pack provides power to instantly
and seamlessly restart the engine. And there’s no need to plug
in this truck. In fact, the only plugging in you’ll be doing is into
the truck’s 120-volt auxiliary power outlets that provide up to
2400 watts of AC current. Start thinking about the possibilities.
63418_20k_3.qxd 8/19/05 11:24 PM Page 1
21
SILVERADO
ENGINE/SUSPENSION AVAILABILITY
Autotrac 4x4 System
The available Autotrac 4-wheel-drive system on 1500 and 1500HD models allows you to
choose an automatically controlled 4-wheel-drive mode, or traditional 2HI, 4HI, Neutral and
4LO
functions – all at the touch of a button. This is the only automatic 4-wheel-drive system
available
in full-size pickups today.*
AUTOTRAC 4X4 SYSTEM OPERATION
• AUTO 4WD detects rear-wheel slippage
and automatically engages 4WD as road
conditions dictate.
• 2HI is the 2WD setting for most driving conditions and optimal fuel economy.
• 4HI is a full-time 4WD mode for snow, ice, rain and most off-road conditions.
• 4LO is the low-speed 4WD setting for extreme conditions, such as steep hills,
deep sand, mud or snow.
• NEUTRAL is also provided with the Autotrac system, permitting flat towing.
*Based on 2005 Model Year data for GM Large Pickup segment and latest available competitive information
at time of printing. Excludes other GM vehicles.
Suspension Packages
A variety of suspension packages are available on Silverados, providing ride characteristics tailored to your
particular needs.
1500 MODELS
• Standard Suspension (Z83) – 35 mm Twintube shock absorbers on 2WD models except LT Extended Cabs.
• Heavy-Duty Suspension (Z85) – Standard on all 4x4s and LT Extended Cabs with Monotube
36 mm shocks for increased damping to improve handling and trailering.
• Ride Control (ZX3) – Optional on LS and LT 2WD and 4x4s. Manually adjusts the amount
of shock absorber
damping using a two-position
switch for smooth road or increased control and
trailering.
• Off-Road (Z71) – Includes 46 mm shock
absorbers, special jounce bumpers and stabilizer bars, skid plates,
high-capacity air cleaner and
Z71 decals. Available on LS and LT 4x4s only.
1500HD, 2500HD AND 3500 MODELS
• Heavy-Duty Suspension (Z85) – Provides good carrying and trailering capabilities. Standard on these models.
STANDARD & OPTIONAL ENGINES
Series Cab Type Model Vortec 4300 V61Vortec 4800 V82Vortec 5300 V83Vortec 6000 V84VortecMAX V84Vortec 8100 V85Duramax 6600 V85
Number 195 hp @ 4600 rpm 285 hp @ 5200 rpm 295 hp @ 5200 rpm 300 hp @ 4400 rpm 345 hp @ 5200 rpm 330 hp @ 4200 rpm Turbo Diesel
260 lb.-ft. torque 295 lb.-ft. torque 335 lb.-ft. torque 360 lb.-ft. torque 380 lb.-ft. torque 450 lb.-ft. torque 360 hp @ 3200 rpm
@ 2800 rpm @ 4000 rpm @ 4000 rpm @ 4000 rpm @4000 rpm @ 3200 rpm 650 lb.-ft. torque
@ 1600 rpm
1500 Regular Cab C15703 S O O
C15903 S O O
K15703 S O O
K15903 S O O
Extended Cab C15553 S
C15753 S O O O6––
C15953 – S O
C15753/SS – – – _ S
K15553 – S
K15753 – S O O6––
K15953 – S
Crew Cab C15543 S O6––
C15543/Cheyenne – S
K15543 – S O6––
K15543/Cheyenne – S
1500HD Crew Cab C15743 S
K15743 – S
2500HD Regular Cab C25903 S O O
K25903 – S O O
Extended Cab C25753 S O O
C25953 – S O O
K25753 – S O O
K25953 – S O O
Crew Cab C25743 S O O
C25943 – S O O
K25743 – S O O
K25943 – S O O
3500 Regular Cab K35903 S O O
Extended Cab C35953 S O O
K35953 – S O O
Crew Cab C35943 S O O
K35943 – S O O
1 – A 5-speed manual transmission is standard in Regular Cabs. A 4-speed automatic transmission is optional. 2 – A 5-speed manual transmission is standard. A 4-speed automatic transmission is optional in most models, standard
in models indicated with (S).
3 – A 4-speed automatic transmission is required and is standard in 1500 Crew Cabs.
Aluminum block 5300 V8, available on 1500 Extended Cab 4x4s, produces 310 hp @ 5200 rpm.
4 – In models equipped with a Vortec 6000 V8, a heavy-duty 5-speed manual
transmission is
standard. A heavy-duty 4-speed automatic transmission is optional. 5 – A 6-speed ZF manual transmission is standard. A 6-speed Allison 1000 automatic transmission is optional. Duramax 6600 V8 Turbo Diesel with 6-speed manual transmission
produces 300 hp @ 3000 rpm and 520 lb.-ft. of torque @ 1600 rpm.
6 – Available with VortecMAX Performance Package or Silverado Performance Edition (on Ext. Cab 2WD model only). NOTE: Some models
with up-level trims and the 1500 and 1500HD
Crew Cabs include a 4-speed automatic transmission. Some up-level series include a larger engine than those indicated on this chart. Ask your Sales Consultant for details.
63418_21k_2.qxd 8/12/05 1:05 AM Page 1
gmcanada.com
TECHNOLOGY/
ONSTAR
SILVERADO
TECHNOLOGY
10 HYDROFORMED FRAME COMPONENTS
The front section of Silverado’s frame is strong, due to its use
of hydroformed steel – a first in full-size pickups. Hydroforming
reduces any stretching and subsequent weakening of the steel.
The result is a frame that is strong, yet lighter than the welded
boxed steel used in conventional frames. The added strength up
front helps the frame to better carry the weight of the powertrain
and suspension components.
1 BRAKING SYSTEM
Silverado 1500 Series features standard
17-in. wheels,* permitting the use of large
rear drum brakes. They also improve brake
pedal feel and are easier to service than the
previous disc with drum-in-hat design.
*Except Hybrid and 1500HD models.
DYNAMIC REAR PROPORTIONING (DRP)
DRP allows for better use of the rear brakes
and for reduced front brake wear. It uses a
small computer chip that recognizes minute
changes in wheel speed and modulates
pressure applied to the rear brakes.
2 MODULAR FRAME DESIGN
Silverado frames feature a modular,
three-section design using materials
and processes that ensure each
component exceeds its specific
requirements. The mid-frame section
is rolled into a lipped C-section
providing more strength than a
traditional design without the weight
of a fully boxed frame. The stamped
C-section used in the rear of the
frame provides a combination of
strength and light weight.
DRIVER INFORMATION CENTRE
This exclusive feature helps keep
you informed about numerous key
operating systems. It even lets
you know when your engine oil
needs changing.
3 AUTOMATIC
LOCKING REAR
DIFFERENTIAL
The available automatic
locking rear differential
provides added traction
at low speeds on snow,
mud and ice.
ENGINE HOUR METER
The standard engine hour meter is
another industry exclusive. It logs the
number of hours your engine has been
in use, allowing you to monitor its
maintenance requirements accurately.
2
4
5
6
3
1
THE GUIDING PRINCIPLE:
CONTINUOUS IMPROVEMENT.
You can refer to Chevy Silverado as an
ongoing process of evolution. Every year,
new engineering efforts and technical
advancements go into making the latest
edition of this revered truck the best
ever. And for 2006, the results are clear.
One new engine, a new transmission,
the world’s first production hybrid full-
size pickup – the list goes on. That’s
on top of innovations that the
competition has already imitated,
such as the use of strong, yet
lightweight hydroformed steel in
the frame. Chevy Silverado,
proving itself, year after year.
63418_22l_2.qxd 8/12/05 10:34 PM Page 1
Bellus concubine praemuniet syrtes.Bellus concubine praemuniet syrtes.
23
8 POWERFUL ENGINE CHOICES
Silverado offers eight powerful,
yet efficient Vortec gasoline
engines, plus two versions of
the turbocharged Duramax 6600
Diesel V8 that’s available on
2500HD and 3500 models.
9 FRONT SUSPENSION
DESIGN
Silverado 2500HD and 3500
models have an independent
front suspension design,
incorporating durable torsion
bars and super strong control
arms. This design provides
substantial payload capacities
with excellent ride and handling
characteristics – making this
design yet another target for
imitation by the competition.
5 HEAVY-DUTY
TRANSMISSIONS
The three heavy-duty engines
available on Silverado 2500HD
and 3500 models are matched
to heavy-duty manual or
automatic transmissions
designed for even the most
demanding applications.
TOW/HAUL MODE
Activating the Tow/Haul mode
selects a more aggressive
automatic transmission shift
pattern, to help compensate
for heavier loads. This system
is included with every
Silverado equipped with an
automatic transmission.
7 CORROSION RESISTANCE
Two-sided galvanized steel
construction is used in all of
Silverado’s exterior body panels
(except the roof) to provide
extra corrosion resistance. Hot
wax is applied to the frame for
additional corrosion resistance.
4 AUTOTRAC 4X4 SYSTEM
The available Autotrac 4x4 system is so advanced, it controls
itself. In addition to the traditional 2HI, 4HI, Neutral and 4LO modes,
the Auto 4x4 setting, when engaged, senses wheelspin and
automatically transfers power between the front and rear wheels.
This full-size pickup truck exclusive system is available on Silverados
with GVWRs up to 3900 kg (8600 lb.).
6 PASSENGER SENSING
SYSTEM
In addition to the safety of the
dual-stage frontal air bags, a
Passenger Sensing System is
included on 1500 models.** It
automatically deactivates the
passenger-side frontal air bag
when a small child occupies
the seat.
**A NOTE ON CHILD SAFETY: Always
use safety belts and proper child
restraints, even in vehicles equipped
with air bags. Even with the Passenger
Sensing System, children are safer
when properly secured in a rear seat.
Never place a rear-facing infant
restraint in the front seat of any
vehicle equipped with an active
frontal air bag. Refer to the vehicle
Owner’s Manual and child safety seat
instructions for more information.
Chevrolet is known for building vehicles that deliver excellent
value and dependability. One important aspect of Chevrolet
value is represented by the advanced safety, security and
convenience of OnStar.* OnStar uses advanced
communications technology to enhance your peace of mind
whenever you’re in your Chevrolet. All it takes is a single
push of the blue OnStar button usually located on the interior
rear-view mirror, in the overhead console, or near the radio
display – the button connects you with one of our specially
trained OnStar Advisors. They are standing by, ready to
provide support 24 hours a day, 365 days a year.
What can OnStar Advisors do for you? They can provide a
wealth of information and perform a variety of services,
including a remote diagnostic check of your vehicle’s engine
and electrical components. In an emergency, an Advisor will
attempt to locate your vehicle, find out what assistance you
need, and notify nearby emergency service providers. And if
air bags are deployed in your vehicle, an Advisor will contact
you to determine if you are in need of assistance.
Another convenient feature is OnStar Hands-Free Calling, a
hands-free, voice-activated wireless technology integrated
into your vehicle. It’s there in case your hand-held phone is
lost, forgotten or has a low battery. Even better, there are
no additional monthly fees, or additional long distance and
roaming charges. And as a new customer, you will receive 30
complimentary minutes good for two months after activation.
Now you can enjoy the peace of mind that comes with
knowing you’re doing all you can to help keep you, your
family, and your vehicle safe. Just ask the almost 150,000
people who have become OnStar subscribers in Canada.
How hard does OnStar work for you? The facts speak for
themselves: every month in Canada OnStar Advisors handle
an average of 9100 routing calls, 2500 emergency calls,
2600 door unlocks, and 625 Roadside Assistance dispatches.
OnStar offers two different service plans, allowing you to
select the services that are most convenient for you.The
Safe & Sound Plan is standard for the first year on Silverado
LT and available on LS, SS and Hybrid models. The available
Directions & Connections Plan offers all of the safety and
security services included in the Safe & Sound Plan, plus
you’ll have access to driving directions and information and
convenience services and RideAssist. See your dealer for
more information on plans and services.
*OnStar services require vehicle electrical system (including battery), wireless
service, and GPS satellite signals to be available and operating for features
to function properly. Not all OnStar features are available on all vehicles.
OnStar Hands-Free Calling requires a Hands-Free Calling enabled vehicle,
existing OnStar service contract, and prepaid calling minutes, and is not
available in Alaska and some other markets. Calls may be made to the
U.S. and Canada only. OnStar voice recognition system may not work with
some voices. OnStar acts as a link to existing emergency service providers.
Subscription Service Agreement required. Due to the transition of the
wireless industry from analogue to digital technology, as of January 1, 2008,
OnStar plans to offer service only through equipment that operates on
the digital network, which may require the purchase of a system upgrade
for eligible vehicles. Call 1.888.4.ONSTAR (1.888.466.7827),
TTY 1.877.248.2080 or visit onstar.ca for OnStar’s Terms & Conditions,
Privacy Policy, and system limitations and details.
8
9
7
10
63418_23l_3.qxd 8/19/05 11:31 PM Page 1
ACCESSORIES
SILVERADO
ACCESSORIES
IT’S NOT JUST A SILVERADO. IT’S YOUR SILVERADO.
Silverado is built to reflect who you are. But don’t stop there. You can transform your Silverado into a
personalized expression of your style and priorities – with GM Accessories. They are the only accessories
that are integrated into the process of designing your vehicle, ensuring excellent fit, finish and functionality.
And only GM Accessories are backed by GM’s 3-year/60,000 km New Vehicle Limited Warranty.* They
can also be included in your new-vehicle lease or finance agreement through GMAC. Ask your dealer
for a complete list of the GM Accessories available for Silverado, or visit gmcanada.com
*Whichever comes first, when permanently installed by the dealer at the time you purchase or lease your new vehicle.
GM ACCESSORIES AVAILABLE FOR SILVERADO INCLUDE:
20-inch aluminum wheels
Under-seat storage compartment
Ventvisors
Hard folding tonneau cover
Camping Package
Chrome tie-down hooks
Interior dash trim kit
Custom carpet floor mats
Moulded running boards
Fender flares.
63418_24m_3.qxd 8/19/05 11:42 PM Page 1
25
63418_25m_3.qxd 8/19/05 11:44 PM Page 1
EXTERIOR (continued) BASE LS LT
Mirrors – deluxe wide-load, vertical glass with lower convex spotter glass, heated with
integrated turn signals, manual extending O O
Mirrors – camper-style, manual extending O
Mouldings – bodyside, black O
Mouldings – bodyside, colour-keyed S S
Pickup box tonneau cover – soft or hard cover design** O O O
Running boards – black, contoured (except Crew Cab)** O O O
Side steps – tubular design, chrome or black finish** O O O
Skid plates – off-road, standard with Z71 suspension (4x4 only) O O O
Sunroof – power, with express-open and wind deflector (Ext. and Crew Cabs) O O
Tow hooks – two front S S S
Wheel trim – see page 29 for details S S S
**Dealer installed accessory.
INTERIOR
Air conditioning – dual-zone, manual climate control (standard on Base Ext. Cab) O S
Air conditioning – dual-zone, automatic climate control O S
Console – mini overhead S S
Cruise control – electronic with resume, coast and decelerate/accelerate features O S S
Cupholders – dual S S S
Defogger – electric, rear-window O S S
Door locks – power, with lock-out protection O S S
Driver Information Centre – includes multi-language with trip functions, displays
numerous vehicle functions with both visual and audible reminders/warnings S S S
Floor covering – black vinyl (except Crew Cab) S O
Floor covering – colour-keyed carpet and removable vinyl floor mats
(includes rear in Ext. and Crew Cabs) O S S
Instrumentation – analogue, including speedometer, tachometer, voltmeter,
coolant temperature, oil pressure, fuel gauge, odometer, trip odometer and
engine hour meter S S S
Mirror – rear-view, auto-dimming with compass and exterior temperature
readouts (except Cheyenne) S S
Personalization features – programs many comfort and convenience features using
the steering wheel controls, including automatic locking/unlocking, seat position
recall, perimeter lighting, exit lighting, remote lock/unlock feedback and reverse
down of exterior mirrors S
Power outlet – one auxiliary, 12-volt, in addition to cigarette lighter receptacle S S S
Smoker’s Package – includes lighter and ashtray (standard with bench seating) S O O
Steering column – tilt adjustable S S S
Steering wheel – leather-wrapped, (except Cheyenne) S S
Stowage box – under rear seat (Ext. Cab only) O O O
Sunshades – LH and RH padded colour-keyed cloth with extenders; LH with pocket,
RH with visor mirror S S S
Windows – rear, manual sliding O O O
Windows – power, driver’s side express-down and lock-out feature S S
SEATS
Front, 40/20/40 split-bench with manual driver’s side recliner – vinyl or cloth trim S
Front, Custom cloth, 40/20/40 split-bench with manual recliners and centre
armrest/storage. Extended and Crew Cab also include seatback storage pockets O S
Custom cloth front bucket seats with 6-way power driver seat adjuster, manual
recliners, driver and front passenger-side inboard armrests. Includes seatback
storage pockets and centre floor console in Extended and Crew Cab
(NA on Reg. Cab) O
Full-feature front bucket seats with heated leather seat inserts, driver’s side two-position
memory controls and driver and front passenger-side 8-way power seat adjusters
plus power lumbar supports. Includes driver and front passenger-side inboard
armrests, seatback storage pockets and floor console S
Driver’s 6-way power seat adjuster on 40/20/40 split-bench seat O
Front, leather seat inserts (Extended and Crew Cab) O S
Head restraints, adjustable on all outboard seats S S S
Rear, fold-up seat in Extended CabSSS
Rear, 60/40 split fold-down seat in Crew Cab–SS
Rear seats are vinyl on LS and LT models when leather seat inserts are specified.
SAFETY AND SECURITY BASE LS LT
Air bags – dual-stage, driver and front passenger-side, frontal. Includes Passenger
Sensing System with automatic air bag suppression (1500 models only) S S S
Air bags – single-stage, driver and front-passenger, frontal (1500HD models only) S S
Brake/transmission shift interlock (automatic transmission only) S S S
Headlights – with automatic light control S S S
Keyless entry system – remote, programmable with Panic alarm feature S S
OnStar In-Vehicle Communications and Assistance Service
includes one-year Safe & Sound Plan O S
Safety restraints – LATCH (Lower Anchors and top Tethers for Children) –
Ext. and Crew Cab only S S S
Theft-deterrent system – PASSLock S S S
Traction assist – electronic, 2WD models (standard on SS) O O O
MECHANICAL
Brakes – power, front disc/rear drum with 4-wheel anti-lock braking system (ABS) S S S
Brakes – power, 4-wheel disc with anti-lock braking system (ABS) on
1500HD and Hybrid models S S
Engines – refer to page 21 for complete availability S S S
Engine block heater SSS
Exhaust system – aluminized stainless steel muffler and tailpipe S S S
Locking differential – rear (standard SS and all 4x4 models except Cheyenne) O O O
Spare tire carrier – rear underbody, winch-mounted with lock S S S
Steering – power, rack-and-pinion on 1500 series 2WD models S S S
Steering – power, recirculating ball on all other models S S S
Suspensions – refer to page 21 for complete availability S S S
Tires – 17" wheels with size ranges from P245/70R17 up to P265/70R17
all-season (except SS, 1500HD and Hybrid models) S S S
Tires – 16" wheels with LT245/75R16 all-season on 1500HD models S
Tires – 16" wheels with P235/75R16(2WD), P245/75R16 (4x4) on Hybrid models S S
Tires – 20" aluminum wheel package with 275/55R20 ALS (2WD 1500 Extended Cab
models only (standard on SS) O O
Trailering Special Equipment Package – heavy-duty, includes weight-distributing
platform trailer hitch receiver, 8-lead wiring harness with a 7-pin sealed connector
(includes trailer brake control harness), heavy-duty transmission oil cooler and
high-capacity air cleaner O O O
Transfer case (4x4 models) – lever-operated 2-speed manual S S
Transfer case (4x4 models) – Autotrac with electronic push-button controls
(standard on LS Crew Cab) O S
Transmission – 5-speed manual with overdrive (Base Reg. Cab only) S
Transmission – 4-speed automatic with overdrive and Tow/Haul mode S* S S
*Optional on Base Regular Cab.
EXTERIOR
Box extender** O O O
Box side rail protector** O O O
Box – Fleetside Short (5 ft. 8 in.) – 1500 Extended and Crew Cab only S S S
Box – Fleetside Standard (6 ft. 6 in.) – 1500HD Crew Cab S S
Box – Fleetside Standard (6 ft. 6 in.) or Long (8 ft.) – Reg. and Ext. Cab S S S
Bumpers – front, chrome with spectra gray cover and air dam, rear,
chrome with step pad S S
Bumpers – front, integrated with colour-keyed fascia, rear, colour-keyed S
Fender flares – wheel opening on 4x4s (standard on 1500HD models) O O O
Fog lights –OS
Glass – Solar-Ray tinted, all windows S S S
Glass – deep-tinted on all windows behind front doors O O S
Grille – gray surround and horizontal bar S
Grille – colour-keyed surround with chrome horizontal bar O S
Grille – colour-keyed S
Mirrors – below eye-line foldaway, black S S S
Mirrors – power remote control, heated S
Mirrors – power remote control, heated, power folding with reverse down,
auto-dimming driver’s side and integral turn signals O S
SILVERADO 1500 STANDARD & OPTIONAL FEATURES
STANDARD &
OPTIONAL FEATURES
PMS 123
63418_26n_2.qxd 8/13/05 9:13 AM Page 1
ENTERTAINMENT SYSTEMS BASE LS LT
AM/FM stereo with seek/scan, digital clock and 4 speakers S
AM/FM stereo with seek/scan, CD player, Radio Data System (RDS), auto tone control,
digital clock and 6 speakers (4 speakers on Regular Cab) O S
Same as above except both cassette tape and CD players (Bose premium speakers
included with bucket seats) O O
AM/FM stereo with seek/scan, 6-disc CD changer, Radio Data System (RDS),
auto tone control, digital clock and 6 Bose premium speakers O S
Steering wheel audio controls O S
Rear-seat audio controls (Crew Cab) O S
Entertainment Package – includes rear-seat overhead fold-down 178 mm (7 in.)
LCD colour monitor, DVD player, video game input (RCA) jacks, rear-seat audio
controls and 2 wireless headphones (Crew Cab) O O
S Standard. O Optional individually or in combination with other optional equipment.
NOTE: The trim features indicated reflect only a portion of the content of Silverado 1500 series trim level. For a complete list, details
and information on other Silverado series, see your Sales Consultant for complete listings, current availability and compatibility.
SILVERADO 1500 PREFERRED EQUIPMENT GROUPS (PEGs)
The first upgrade (1SB) adds the following features to the Base models: Air conditioning is added to Regular
Cab models – Carpeted floor covering and floor mats – Bodyside mouldings – Rear locking differential (4x4
models) – Chrome appearance steel wheels with chrome centre caps – Colour-keyed grille surround with
chrome bar
You can further upgrade the Base model by adding these convenience features (1SC) to above: Cruise control
– Power programmable door locks – CD player
You can also upgrade the LS model to include these features (1SE): Fog lights – Deep-tinted glass on all
windows behind front doors – Autotrac 4x4 system (on 4x4 models, standard on Crew Cab, except Cheyenne)
– 17" 5-spoke aluminum wheels
SILVERADO SS
Below are some of the standard features that make Silverado SS such an outstanding vehicle.
Mechanical – Engine: 345 hp 6.0L VortecMAX V8 – Transmission: Heavy-duty 4-speed automatic –
Drivetrain: Rear-wheel drive – 4-wheel disc brakes with ABS – Locking rear differential –
Rear axle ratio: 3.73:1 – Z60 High-Performance Chassis Package
Exterior – Monochromatic colour scheme, including bumpers and grille – 20" x 8.5" Sport aluminum wheels –
16" steel spare – P275/55R20 all-season performance tires (4) – Deep-tinted windows behind front doors
Interior – Dual-zone automatic climate control – Full-feature high-back front bucket seats with heated leather seat
inserts, driver’s side memory, 8-way power driver and front-passenger seat adjusters plus power lumbar and
seatback bolsters – Personalization features – White backlit gauge faces with orange needles – OnStar In-Vehicle
Communications and Assistance Service, including one-year Safe & Sound Plan
SILVERADO CHEYENNE
LS Crew Cab 1500 2WD and 4x4 models – Vortec 4800 V8 – 4-speed automatic transmission – Heavy-duty suspension
– Tires: P245/70R17 all-season on 2WD models, P265/70R17 all-season on 4x4 models – Dual-zone manual control
air conditioning – AM/FM stereo with CD player – A value-based Crew Cab with limited option availability
VORTEC 5300 V8 HAULER PACKAGES
LS Regular and LS/LT Extended Cab 2WD models with Fleetside standard or long box – Vortec 5300 V8 with
295 hp – Trailering Special Equipment Package – Locking rear differential – Adjustable Ride Control Suspension
LS/LT Crew Cab 2WD models with Fleetside Short Box – Trailering Special Equipment Package –
Locking rear differential
VORTEC 5300 V8 OFF-ROAD PACKAGES
LS Regular and LS/LT Extended Cab 4x4 models with Fleetside standard or long box – Vortec 5300 V8 with
295 hp* – Trailering Special Equipment Package – Z71 Off-Road Suspension Package (see suspension
information on page 21 for details) – Autotrac 4x4 transfer case (standard in LT and up-level LS Extended Cab
models)
LS/LT Crew Cab 4x4 models with Fleetside Short Box – Trailering Special Equipment Package – Z71 Off-Road
Suspension Package (see suspension information on page 21 for details)
*Standard on LS Extended Cab long box and LT models. Extended Cab models feature the aluminum-block Vortec 5300 V8 with 310 hp.
FAMILY CAB PACKAGE
LS, LT Crew Cab 1500 models – Entertainment Package includes DVD player and wireless headphones – Sunroof.
SILVERADO SPECIAL EDITION PACKAGES
Base Regular or Extended Cabs 1500 2WD and 4x4 models – Custom cloth up-level seat trim – Heavy-duty
suspension which is standard on 4x4s – 17" aluminum wheels – Deep-tinted glass on all windows behind front
doors – Locking rear differential which is standard on 4x4s – Chromed stainless steel tubular side steps –
Silverado Special Edition decals
LS Regular, Extended and Crew Cab 1500 2WD and 4x4 models – Heavy-duty suspension which is standard on
4x4 and Crew Cab models – 17" aluminum wheels – Deep-tinted glass on all windows behind front doors –
Fog lights – Locking rear differential which is standard on 4x4s – Chromed stainless steel tubular side steps –
Silverado Special Edition decals
DIMENSIONS
27
A
B
CC
D
VORTECMAX PERFORMANCE PACKAGE
LS, LT Extended with standard box and Crew Cab 1500 2WD and 4x4 models – Heavy-duty rear axle with a
9.5 in. diameter ring gear – Engine oil cooler – P265/70R17 On/Off Road tires – 6.0L 345 hp VortecMAX V8
engine – 4-speed Super-Duty automatic transmission (4L70E) – Adjustable Ride Control Suspension –
Autotrac transfer case which is standard on Crew Cabs 4x4 models – Trailering Special Equipment Package –
“VortecMAX” door badge and engine cover decal
20" WHEEL PACKAGE
LS, LT Extended Cab short and standard box 2WD models – 20" x 8.5" 5-spoke, chromed aluminum wheels (4) –
High-performance suspension on standard box models – P275/55R20 all-season performance tires (4)
SILVERADO PERFORMANCE EDITION
LS, LT Extended Cab 1500 with standard box, 2WD models – 6.0L 345 hp VortecMAX V8 engine – 4-speed
Heavy-duty automatic transmission (4L65E) – Auxiliary transmission oil cooler – High-performance
suspension – 20" x 8.5" 5-spoke, chromed-finish aluminum wheels (4) – P275/55R20 all-season performance
tires (4) – “VortecMAX” door badge and engine cover decal
MODEL A. WHEELBASE mm (in.) B. OVERALL LENGTH mm (in.)
Regular Cab standard box 3023 (119.0) 5225 (205.7)
Regular Cab long box 3378 (133.0) 5702 (224.5)
Extended Cab short box 3404 (134.0) 5593 (220.2)
Extended Cab standard box 3645 (143.5) 5847 (230.2)
Extended Cab long box 4001 (157.5) 6325 (249.0)
Crew Cab short box (1500) 3645 (143.5) 5847 (230.2)
Crew Cab standard box (1500HD) 3886 (153.0) 6027 (237.3)
Crew Cab long box (2500HD and 3500) 4242 (167.0) 6507 (256.2)
C. WIDTH mm (in.) D. HEIGHT mm (in.)
Single Rear Wheels 2024 (79.7) (max.)1798 (70.8) (min.)*
Dual Rear Wheels 441 (96.1) (max.)1963 (77.3) (max.)*
Excluding mirrors. *Depending on model selected.
PMS 123
63418_27n_3.qxd 8/21/05 8:29 AM Page 1
SILVERADO MODEL SELECTOR
TRADEMARKS
The marks appearing in this Chevrolet Silverado brochure including, but not limited to: General Motors, GM, the GM
Canada emblem, the GM Canada Web site address, the GM Accessories logo, Chevrolet, Chevy, the Chevrolet emblem,
Avalanche, Cheyenne, Colorado, Equinox, Express, Silverado, SSR, Suburban, Tahoe, TrailBlazer and their respective logos,
emblems, slogans and vehicle model names and body designs; and other marks such as Autotrac, DEX-COOL, Duramax,
PASSLock, SMARTLEASE, Solar-Ray, Z71, Vortec, VortecMAX and TOTAL Warranty are trademarks of General Motors
Corporation and/or General Motors of Canada Limited, its subsidiaries, affiliates or licensors.
GMAC is a registered trademark of the General Motors Acceptance Corporation.
OnStar, the OnStar logo and the OnStar button are registered trademarks of the OnStar Corporation.
Bose is a registered trademark of the Bose Corporation.
Radio Data System (RDS) is a registered trademark of the U.S. National Association of Broadcasters.
COPYRIGHT
©Copyright 2005 General Motors of Canada Limited. All Rights Reserved. All text, images, graphics, and other materials in
this Chevrolet Silverado brochure are subject to the copyright and other intellectual property rights of General Motors
Corporation and/or General Motors of Canada Limited. These materials may not be reproduced, distributed or modified
without the express written permission of General Motors Corporation and/or General Motors of Canada Limited.
Printed in Canada, August 2005.
A WORD ABOUT THIS BROCHURE
Some of the equipment shown or described throughout this brochure may be available at extra cost. We have tried to make
this brochure comprehensive and factual. We reserve the right, however, to make changes at any time, without notice, in
prices, colours, materials, equipment, specifications, models and availability. Specifications, dimensions, measurements,
ratings and other numbers in this brochure and other printed materials provided at the dealership or affixed to vehicles are
approximates based upon design and engineering drawings and prototypes and laboratory tests. Your vehicle may differ
due to variations in manufacture and equipment. Since some information may have been adapted since the time of the
printing, please check with your Chevrolet dealer for complete details. General Motors of Canada Limited reserves the right
to lengthen or shorten the model year for any product, for any reason, or to start and end model years at different times.
PRIVACY STATEMENT
At General Motors of Canada Limited (“GM Canada”) we respect your privacy and value our relationship with you. Your
personal information will be protected, will never be sold, and will be used only by GM Canada, our affiliates, dealers/retailers,
and service suppliers (only to provide services). If you wish to be removed from GM Canada marketing communications;
would like to limit only certain marketing communications from us; would like a listing of our specific uses or further
information about those with whom your information is shared; or for further information about our Privacy Policy and
practices, please contact us at 1-800-GM-DRIVE (1-800-463-7483) or through our Web site at gmcanada.com
A WORD ABOUT ASSEMBLY
Chevrolet Trucks are equipped with engines and components produced and assembled by different operating units of
General Motors, its subsidiaries and suppliers and these engines and components may change or be obtained from
different sources from time to time. All such engines and components are approved for use in Chevrolet Trucks. Certain
equipment ordered may be unavailable at the time of assembly and we suggest that you verify that your vehicle includes
the equipment you ordered, or if there are changes, that they are acceptable to you.
Series Cab Type Model Number Wheelbase Drivetrain Gross Vehicle Weight Maximum Payload* Pickup Box Length Max. Gross Trailer Seating
mm (in.) Rating Max. – kg (lb.) kg (lb.) ft./in. Weight** – kg (lb.) Std./Opt.
1500 Regular Cab C15703 3023 (119.0) 2WD 2767 (6100) 857 (1889) 6'6" 3810 (8400) 3/2
C15903 3378 (133.0) 2WD 2903 (6400) 931 (2052) 8' 3720 (8200) 3/2
K15703 3023 (119.0) 4x4 2903 (6400) 858 (1892) 6'6" 4128 (9100) 3/2
K15903 3378 (133.0) 4x4 2903 (6400) 801 (1766) 8' 4037 (8900) 3/2
Extended Cab C15553 3404 (134.0) 2WD 2812 (6200) 653 (1440) 5'8" 3629 (8000) 6/5
C15753 3645 (143.5) 2WD 2948 (6500) 714 (1575) 6'6" 4717 (10,400)6/5
C15753/SS 3645 (143.5) 2WD 2812 (6200) 568 (1253) 6'6" 3538 (7800) 6/5
C15953 4001 (157.5) 2WD 3039 (6700) 683 (1506) 8' 3538 (7800) 6/5
K15553 3404 (134.0) 4X4 2903 (6400) 612 (1350) 5'8" 3946 (8700) 6/5
K15753 3645 (143.5) 4x4 3039 (6700) 612 (1350) 6'6" 4536 (10,000)6/5
K15953 4001 (157.5) 4x4 3130 (6900) 530 (1168) 8' 3856 (8500) 6/5
Crew Cab C15543 3645 (143.5) 2WD 3130 (6900) 822 (1813) 5'8" 4581 (10,100)6/5
K15543 3645 (143.5) 4x4 3175 (7000) 778 (1716) 5'8" 4491 (9900)6/5
1500HD Crew Cab C15743 3886 (153.0) 2WD 3900 (8600) 1419 (3129) 6'6" 4672 (10,300) 6/5
K15743 3886 (153.0) 4x4 3900 (8600) 1287 (2838) 6'6" 4491 (9900) 6/5
2500HD Regular Cab C25903 3378 (133.0) 2WD 4173 (9200) 1841 (4058) 8' 7303 (16,100) 3/2
K25903 3378 (133.0) 4x4 4173 (9200) 1725 (3802) 8' 7167 (15,800) 3/2
Extended Cab C25753 3645 (143.5) 2WD 4173 (9200) 1725 (3802) 6'6" 7212 (15,900) 6/5
C25953 4001 (157.5) 2WD 4173 (9200) 1651 (3639) 8' 7122 (15,700) 6/5
K25753 3645 (143.5) 4x4 4173 (9200) 1606 (3541) 6'6" 7076 (15,600) 6/5
K25953 4001 (157.5) 4x4 4173 (9200) 1520 (3352) 8' 6985 (15,400) 6/5
Crew Cab C25743 3886 (153.0) 2WD 4173 (9200) 1636 (3606) 6'6" 7076 (15,600) 6/5
C25943 4242 (167.0) 2WD 4173 (9200) 1567 (3455) 8' 7031 (15,500) 6/5
K25743 3886 (153.0) 4x4 4173 (9200) 1505 (3317) 6'6" 6940 (15,300) 6/5
K25943 4242 (167.0) 4x4 4173 (9200) 1435 (3163) 8' 6623 (14,600) 6/5
3500 Regular Cab K35903 DRW†† 3378 (133.0) 4x4 5171 (11,400) 2500 (5511) 8' 7575 (16,700) 3/2
K35903 SRW†† 3378 (133.0) 4x4 4491 (9900) 1911 (4213) 8' 7076 (15,600) 3/2
Extended Cab C35953 DRW†† 4001 (157.5) 2WD 5171 (11,400) 2425 (5347) 8' 7530 (16,600) 6/5
C35953 SRW†† 4001 (157.5) 2WD 4491 (9900) 1848 (4074) 8' 7031 (15,500) 6/5
K35953 DRW†† 4001 (157.5) 4x4 5171 (11,400) 2290 (5409) 8' 7394 (16,300) 6/5
K35953 SRW†† 4001 (157.5) 4x4 4491 (9900) 1680 (3703) 8' 6895 (15,200) 6/5
Crew Cab C35943 DRW†† 4242 (167.0) 2WD 5171 (11,400) 2345 (5169) 8' 7439 (16,400) 6/5
C35943 SRW†† 4242 (167.0) 2WD 4491 (9900) 1669 (3680) 8' 6940 (15,300) 6/5
K35943 DRW†† 4242 (167.0) 4x4 5171 (11,400) 2199 (4848) 8' 7258 (16,000) 6/5
K35943 SRW†† 4242 (167.0) 4x4 4491 (9900) 1623 (3578) 8' 6804 (15,000) 6/5
*Payload includes passengers, equipment and cargo. Higher payloads may require optional equipment. Payloads are approximate and will change with the addition of optional or aftermarket equipment. Consult your dealer or equipment supplier for details.
**Trailer ratings are calculated using an automatic transmission and assuming only the driver is in the tow vehicle. Trailer Weight (also called Trailer Towing Capacity) is the weight of a trailer, its load or contents plus any other weight added to the tow vehicle. Ball-hitch ratings are
shown for
1500 and 1500HD models. Fifth-wheel ratings are shown for 2500HD and 3500 models; ball-hitch ratings are 5443 kg (12,000 lb.). For details, ask your Sales Consultant for a copy of the Trailering with Chevy Trucks brochure. Many trailer towing applications require
additional optional equipment.
DRW Dual Rear Wheel.
When equipped with the VortecMAX Perfomance Package (see page 27).
††DRW: Dual Rear Wheel. SRW: Single Rear Wheel.
MODEL SELECTOR/
WHEELS. FABRICS.
PMS 123
63418_28o_4.qxd 8/22/05 9:14 PM Page 1
WHEELS. FABRICS.
29
Wheels
1. 17-in. Styled Steel
Wheels. Standard on
1500 Base models.
Includes a painted
centre cap.
2. 17-in. Bright-Chrome
Styled Steel Wheels.
Standard on 1500 LS
models. Optional on Base.
Includes a chrome centre cap.
3. 16-in. Cast Aluminum
Wheels. Standard on
Silverado Hybrid.
4. 20-in. Cast Aluminum
Wheels. Standard on
Silverado SS. Optional
chromed-finish shown.
5. 20-in. Chromed-
Finish Cast Aluminum
Wheels. Available on
Silverado Performance
Edition and 20-in.
Chrome Wheel Package.
6. 17-in. Polished Cast
Aluminum Wheels. Standard
on 1500 Crew Cab and
Extended Cab LT models.
Available on Extended Cab LS.
10. 16-in. Bright
Chrome Styled Steel
Wheels. Standard on
1500HD LS and
2500HD LS and LT
models. Includes a
chrome centre cap.
7. 16-in. Painted Steel
Wheels. Standard on
2500HD models. Includes
a painted centre cap on
Base models, a chrome
centre cap on LS.
11. 16-in. Polished
Forged Aluminum Wheels.
Standard on 1500HD
and 2500HD LT models.
Available on 1500HD
and 2500HD LS models.
8. 16-in. Painted Steel
Wheels. Standard on
3500 Single-Rear Wheel
LS and LT models.
Includes a chrome centre
cap on LS and LT models.
Interior Fabrics
Base cloth 40/20/40
split-bench seat,
shown in 69C – Dark
Charcoal (vinyl is
standard). Also
available in 52C – Tan (1).
2. 69D – Dark Charcoal
Custom Cloth
LS Custom cloth bucket
seat, shown in 52D –
Tan. Also available in
69D – Dark Charcoal (2)
or with optional leather
seat inserts in
922 – Medium Gray (3),
692 – Dark Charcoal (4)
or 522 – Tan (5).
LT full-feature bucket
seat with leather seat
inserts, shown in
922 – Medium Gray.
Also available in
692 – Dark Charcoal (4)
and 522 – Tan (5).
1. 52C – Tan Cloth 3. 922 – Medium
Gray Leather
4. 692 – Dark
Charcoal Leather
5. 52D – Tan Leather
12 789
12
3
4 5 10 116
12. 16-in. Chrome-Clad
Steel Wheels. Available
on 3500 Single-Rear
Wheel models.
9. 16-in. Styled Steel
Wheels. Standard on
Silverado 3500 Dual-Rear
Wheel LS and LT models.
Base models feature painted
centre cap. LS and LT
models feature chrome trim
ring and centre cap.
63418_29o_3.qxd 8/19/05 11:54 PM Page 1
50 Summit White
41 Black*
16 Graystone Metallic
EXTERIOR COLOURS
COMMITMENT:
Rock solid trucks. Backed by a rock-solid commitment. There is nothing halfway about Chevrolet’s approach to building strong
and durable trucks. That can also be said of the way Chevrolet backs each and every truck that bears its name. A comprehensive
series of support programs makes it easier to purchase or lease a Chevy Truck and help protect you and your vehicle down the
road. A powerful example of the level of protection you can expect is the GM TOTAL™ Warranty. It is so thorough. It covers
everything from the roof right down to the tires. So when you drive off the lot of your Chevrolet dealership, you can do so with total
confidence. Peace of mind is knowing that your vehicle is built for the long haul, and is backed by a comprehensive warranty.
THE GM TOTAL™ WARRANTY:
The GM TOTAL™ Warranty is your promise of total warranty protection. It covers every new Chevy Truck for 3 years or
60,000 km*. Complete vehicle repairs are covered,** including parts and labour, with no deductible. The warranty includes:
• 3-year/60,000 km* complete vehicle repair coverage
• 6-year/160,000 km* corrosion perforation coverage
• 8-year/130,000 km* coverage on catalytic converters and powertrain control modules (PCMs).
*Whichever comes first. **To correct any defects in material or workmanship occurring during the warranty period. Regular maintenance is not included, nor is
excessive wear and tear caused by reckless or negligent driving. Conditions and limitations apply.
OTHER OWNERSHIP PRIVILEGES AND PROGRAMS:
• Roadside Assistance – 24/7 service via toll-free number during your warranty period, anywhere in Canada or the United States
• Courtesy Transportation – may be offered during the warranty period
• GM Protection Plan (GMPP) – the only extended services contract backed by the resources and commitment of General Motors,
GMPP may be purchased at the time of your sale or lease, or subsequently
• GM Mobility Program – you may be eligible for reimbursement of up to $1000 (taxes included) for adaptive equipment for your
GM vehicle
• GM Accessories – personalize your vehicle with GM Accessories, specifically engineered for your new GM vehicle
• GM Goodwrench Service – with GM-certified technicians and GM-approved parts, nobody knows your GM vehicle better.
Conditions and limitations apply. ††Subject to eligibility.
74 Victory
Red*
EXTERIOR COLOURS
15 Sandstone
Metallic
Exterior/Interior
Colour Compatibility
Exterior Interior
52 – Tan 69 – Dark
Charcoal
15 – Sandstone Metallic
16 – Graystone Metallic
25 – Dark Blue Metallic
41 – Black*
46 – Blue Granite Metallic
47 – Dark Green Metallic
50 – Summit White
59 – Silver Birch Metallic*
63 – Sport Red Metallic**
74 – Victory Red*
*Available on SS models.
**Not available on Base models.
Please see your Sales Consultant for specific two-tone colour
and model availability.
63418_30p_5.qxd 8/21/05 10:43 AM Page 1
47 Dark Green
Metallic
25 Dark Blue Metallic
63 Sport Red Metallic**
31
Colours may not be exactly as illustrated
due to restrictions of the printing process.
Please see your Sales Consultant
for specific colour and model availability
and compatibility.
46 Blue Granite
Metallic
ility
Interior
52 – Tan 69 – Dark 92 – Medium
Charcoal Gray
••
•• •
•• •
•• •
•• •
••
•• •
••
•• •
•• •
olour
59 Silver Birch
Metallic*
TO HELP YOU PURCHASE OR LEASE A NEW VEHICLE:
• GMAC Financing – on the spot financing at your GM dealership††
• GMAC SMARTLEASE – a smart alternative to traditional financing††
• GM Student Bonus Program – GM will cover the first two purchase finance or lease payments and the lease security deposit on
eligible new GM vehicles for students and recent graduates of high school, college or university
• The GM Card – eligible cardholders may be able to redeem up to $3500 on GM Card®Earnings toward the total purchase price or
lease down payment on selected vehicles. For more information on The GM Card please call 1-800-461-3279
Conditions and limitations apply. ††Subject to eligibility.
INFORMATION RESOURCES:
You can find more information about these programs from your GM dealer, or at these information centres:
• The GM Web site at gmcanada.com
• The GM Customer Communication Marketing Centre at 1-800-GM-DRIVE (1-800-463-7483 or
1-800-263-3830 for TDD users) – for information about any GM product or service, including The GM Card and
the GM Mobility Program
• For information about GMAC visit gmcanada.com or call 1-800-616-4622.
63418_31p_5.qxd 8/21/05 10:44 AM Page 1
SSR
COLORADO
SILVERADO
AVALANCHE
EQUINOX
TRAILBLAZER
TAHOE
SUBURBAN
EXPRESS
122-06-B-006E
A STORY ONLY GENERAL MOTORS CAN TELL.
General Motors’ commitment to setting the highest standards in quality, safety, innovation,
and fuel efficiency are matched by an equally strong commitment to the community.
DID YOU KNOW?
QUALITY: GM plants swept the J.D. Power Initial Quality StudySM*
rankings for North and South America: Gold and Silver Plant Quality
Awards for the Canadian Oshawa #2 and #1 car plants, in addition to
the Bronze Plant Quality Award for the Hamtramck, Michigan plant.
SAFETY: General Motors is the only automotive manufacturer
committed to offering a full range of cars, trucks, and SUVs that provide
safety protection before, during and after a collision. GM vehicles are
equipped with a range of features and technologies that help drivers
avoid collisions, reduce the risk of injury should a collision prove
unavoidable, and help you get the assistance you need after a collision.
INNOVATION: GM is at the forefront of automotive technology
with breakthrough features such as OnStar and XM Satellite Radio.
FUEL EFFICIENCY: GM offers more cars than any other automaker
in Canada that get better than 7.0 L/100 km in highway driving. GM has
also won more EnerGuide fuel-efficiency awards than any other car company.
GM IS COMMITTED TO CANADA.
INVESTMENT: GM invests more in Canada than any other car company: The $2.5 billion
Beacon Project represents the largest automotive investment in Canadian history.
EMPLOYMENT: GM directly employs over 20,000 people in Canada – more than any
other car company.
DESIGN: GM is the only car company that designs, engineers and builds cars in Canada.
GM IS BEHIND YOU AND YOUR VEHICLE.
GM is equally comprehensive in the way it backs its Chevrolet vehicles. All Chevrolet Truck models include:
• 3-year/60,000 km** complete vehicle repair coverage
• 6-year/160,000 km** corrosion perforation coverage
• 8-year/130,000 km** coverage on catalytic converters and
powertrain control modules (PCMs)
• 3-year/60,000 km** 24-hour Roadside Assistance.
*General Motors Corporation – Oshawa #2 (Ontario – Car) was the highest ranked plant, Oshawa #1 (Ontario) was the second ranked plant and
Hamtramck, MI was the third ranked plant in North/South America among plants producing vehicles for the U.S. market in J.D Power and Associates
2005 U.S. Initial Quality StudySM. Study based on a total of 62,251 U.S. consumer responses indicating owner reported problems during the first
90 days of ownership. www.jdpower.com
**Whichever comes first.
gmcanada.com
CHEVROLET PONTIAC BUICK GMC CADILLAC SATURN SAAB HUMMER
63418_BCa_2.qxd 8/12/05 4:45 AM Page 1

Navigation menu
