170 & 190 Chevrolet Models Owner’s Manual

Including

Limited Warranty Information

WARNINGS & CAUTIONS

WARNINGS AND CAUTIONS

This manual contains WARNINGS against operating

procedures which could result in an accident or bodily injury.

The manual also contains CAUTIONS against procedures

which could result in damage to your vehicle.

If you do not read the entire manual you may miss important

information.Observe all Warnings & Cautions.

WARNINGS & CAUTIONS

DDoocc NNoo:: 21906503 RReevv::02 CCooppyyrriigghhtt©© HHaannmmaarr MMoottoorr CCoorrppoorraattiioonn 22000055

WARNINGS:

SEAT BELTS:

Only forward facing seats equipped with factory installed seat belts are to be occupied while the vehicle is in

motion.All passengers must be seated in these seats only,with the seat belts fastened while the vehicle is in

motion.

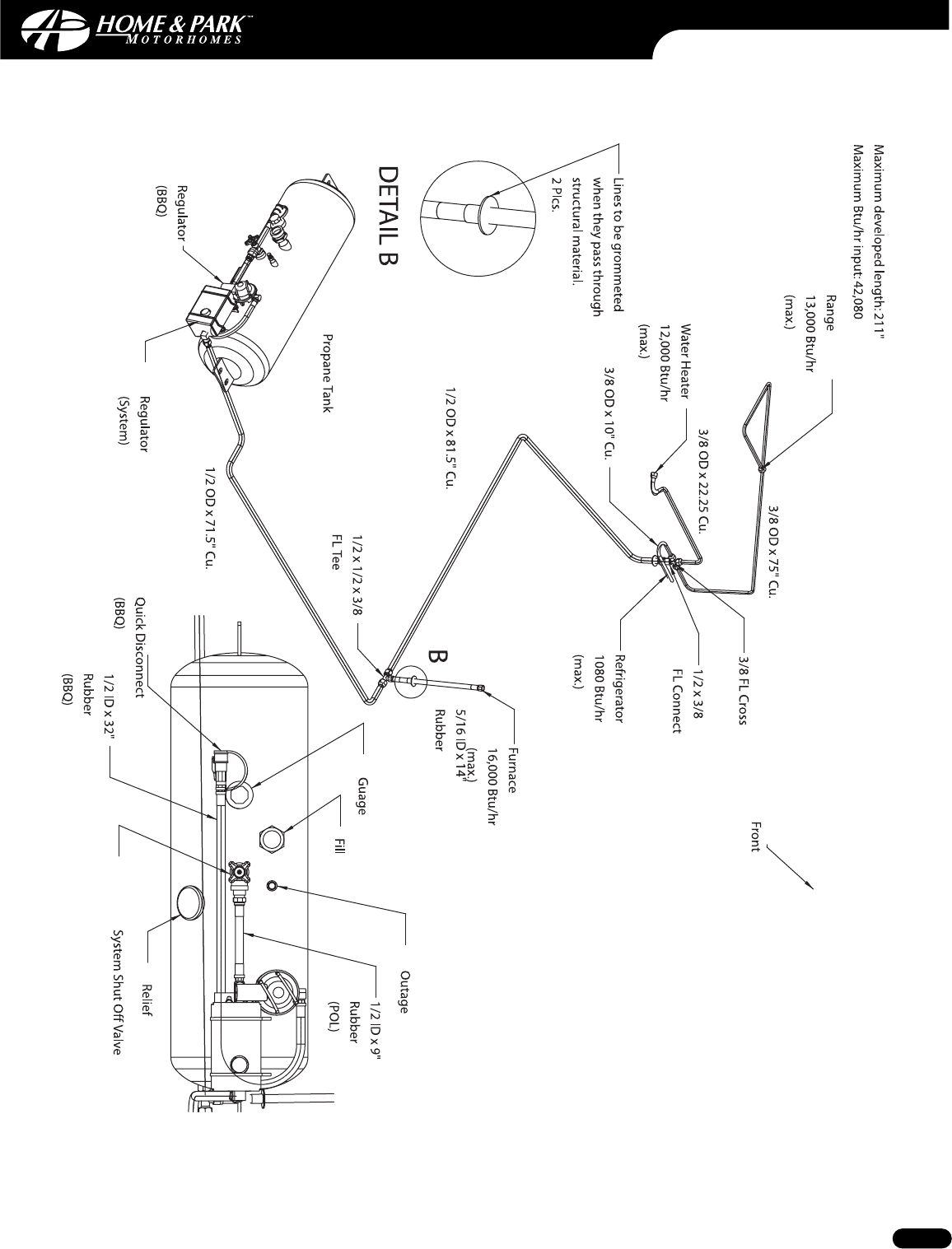

Propane:

Propane tanks shall not be placed or stored inside your vehicle.Propane tanks are equipped with safety

devices which relieve excessive pressure by discharging gas to the atmosphere.

To reduce the danger of fire or explosion do not store gasoline or other flammable liquids inside your vehicle.

Ensure you purchase propane from a reputable propane facility.Contaminated propane is common cause of

system failure.

Do not refuel the propane tank to more than 80% of its capacity.

The propane tank valve must be closed and ALL PILOT LIGHTS,APPLIANCES,AND THEIR IGNITERS (see

Operating Instructions) SHALL BE TURNED OFF during refueling of motor fuel tank and/or the propane tank.

Only qualified personnel should refuel your propane tank.

APPLIANCES:

It is not safe to use cooking appliances for space heating purposes due to the danger of asphyxiation.

The propane stove needs fresh air for its safe operation.

Portable fuel burning equipment,including wood or charcoal grills and stoves,should not be used inside

your vehicle.Use of this type of equipment inside your vehicle may cause fire or asphyxiation.

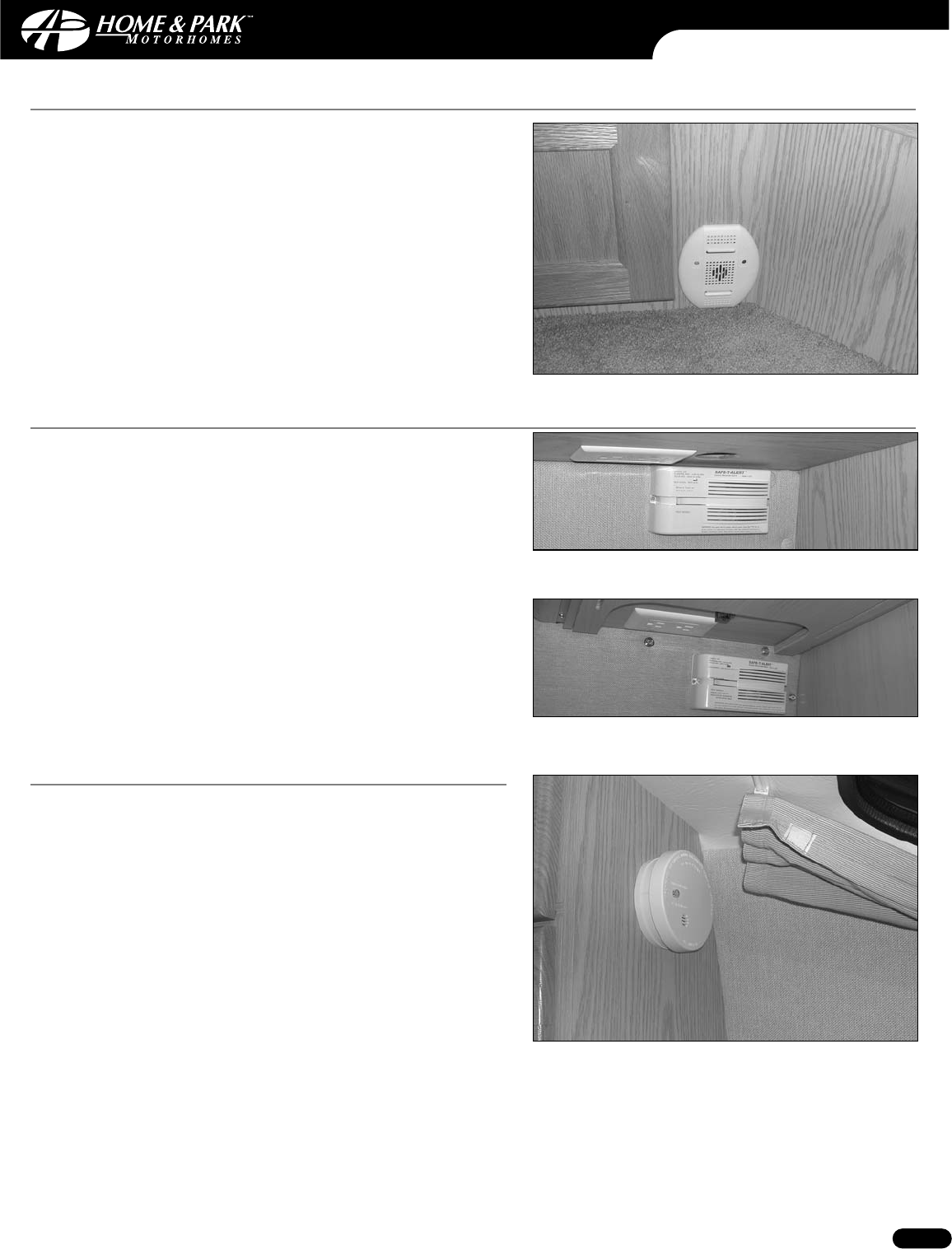

PROPANE LEAK DETECTOR:

Do not block air circulation in the area where the Propane Leak Detector is located.

Battery disconnect switch must be in the “ON”position for the propane detector to function.

CARBON MONOXIDE LEAK DETECTOR:

Do not block air circulation in the area where the carbon monoxide leak detector is located.

Battery disconnect switch must be in the “ON”position for the Carbon Monoxide Leak Detector to function.

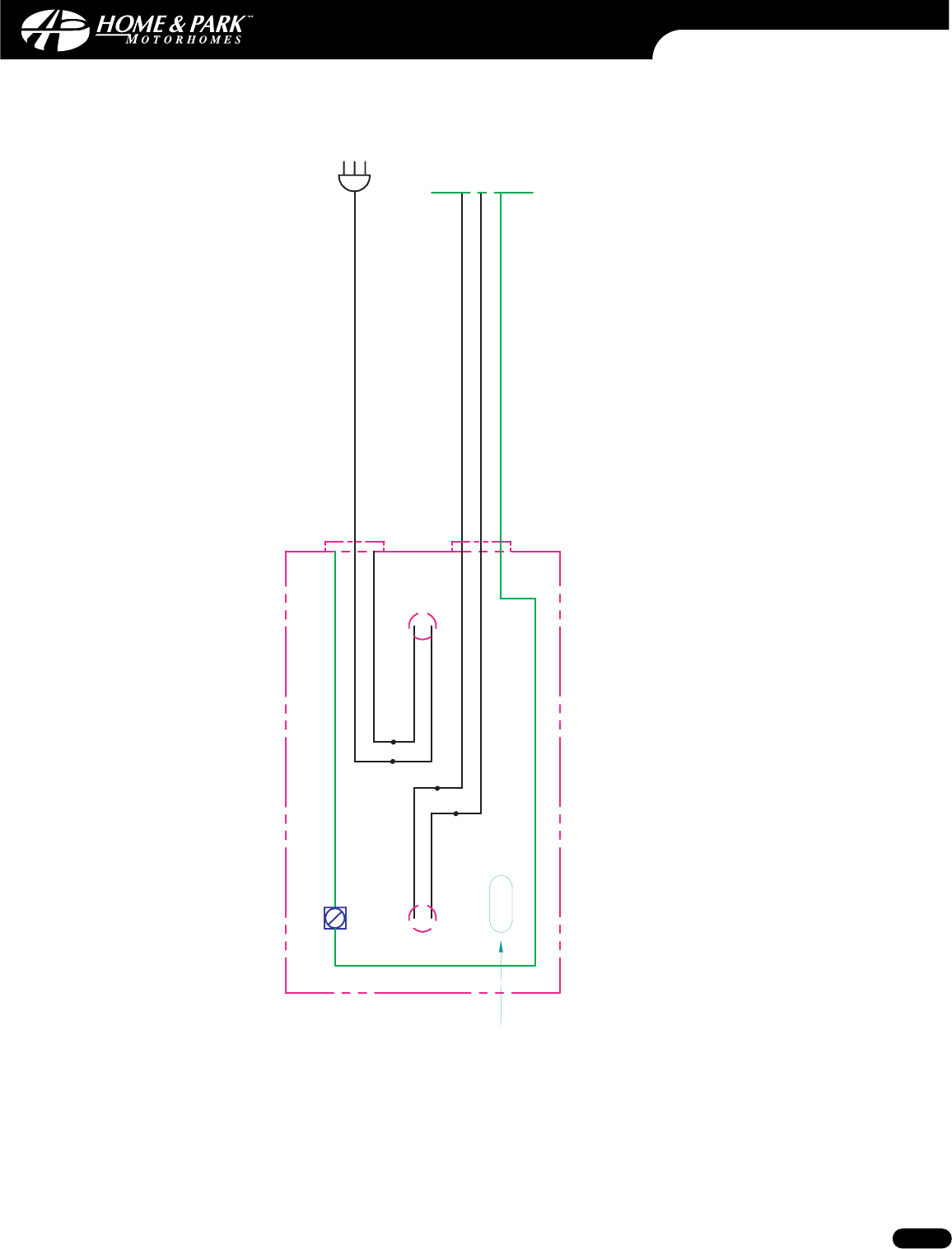

110 VOLT ELECTRICAL SERVICING:

Prior to servicing the 110 volt Galley GFCI & Audio/Video cabinet interior receptacles,unplug the output lead

from the power inverter.

WARNINGS & CAUTIONS

DDoocc NNoo:: 21906503 RReevv::02 CCooppyyrriigghhtt©© HHaannmmaarr MMoottoorr CCoorrppoorraattiioonn 22000055

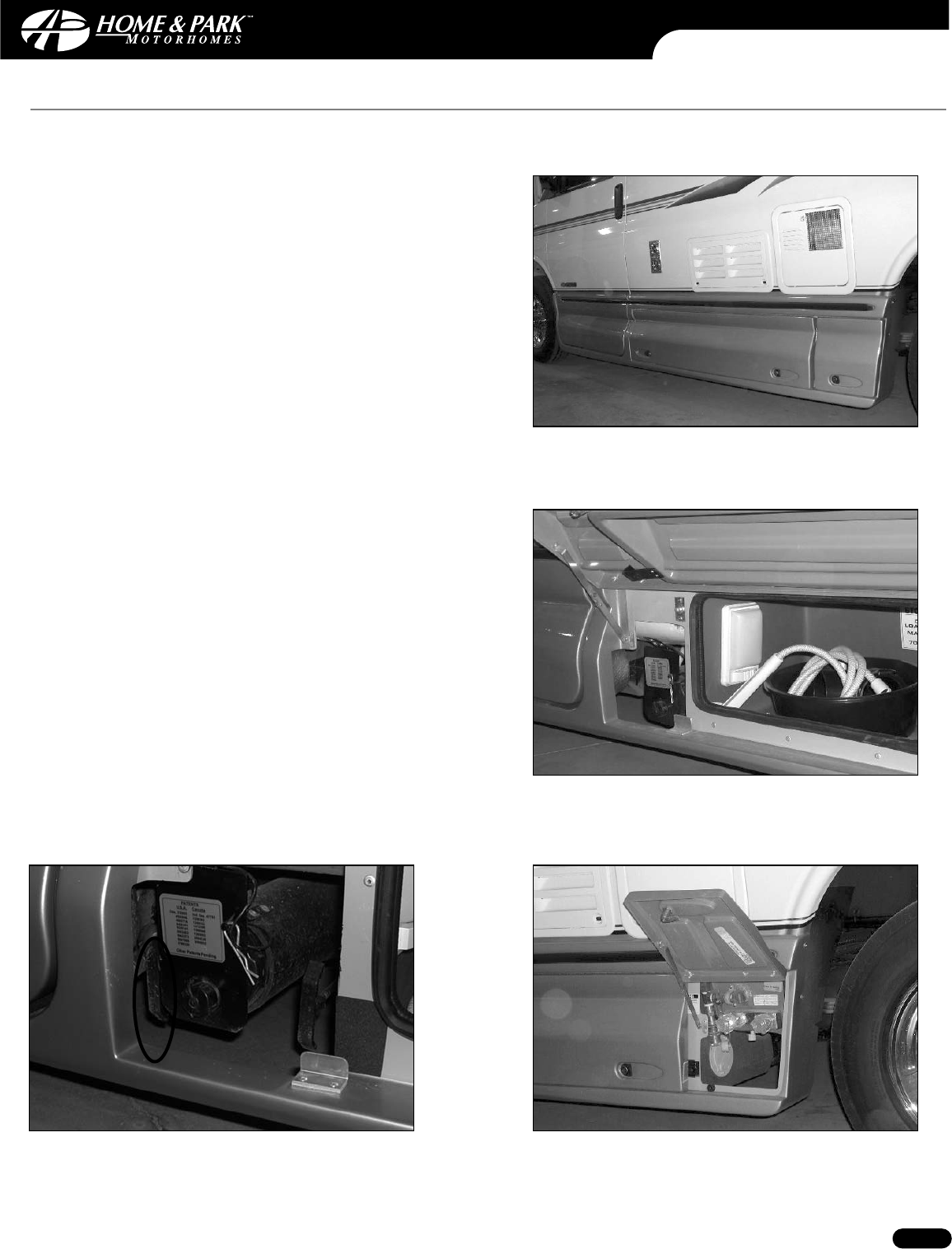

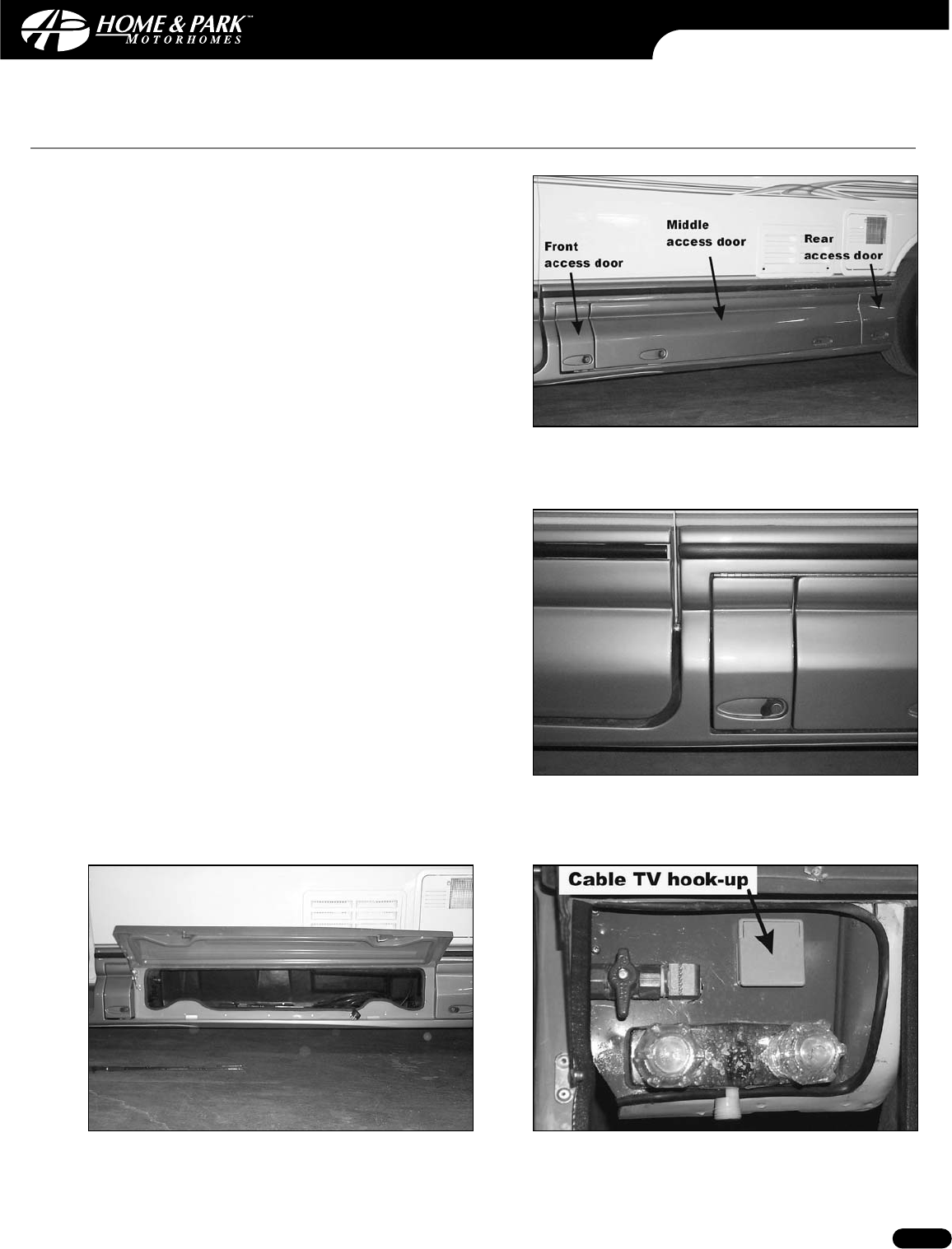

EXTERIOR ACCESS DOORS:

Ensure power cord and city water line are disconnected and in their stored positions before vehicle is put in

motion.

CAUTIONS:

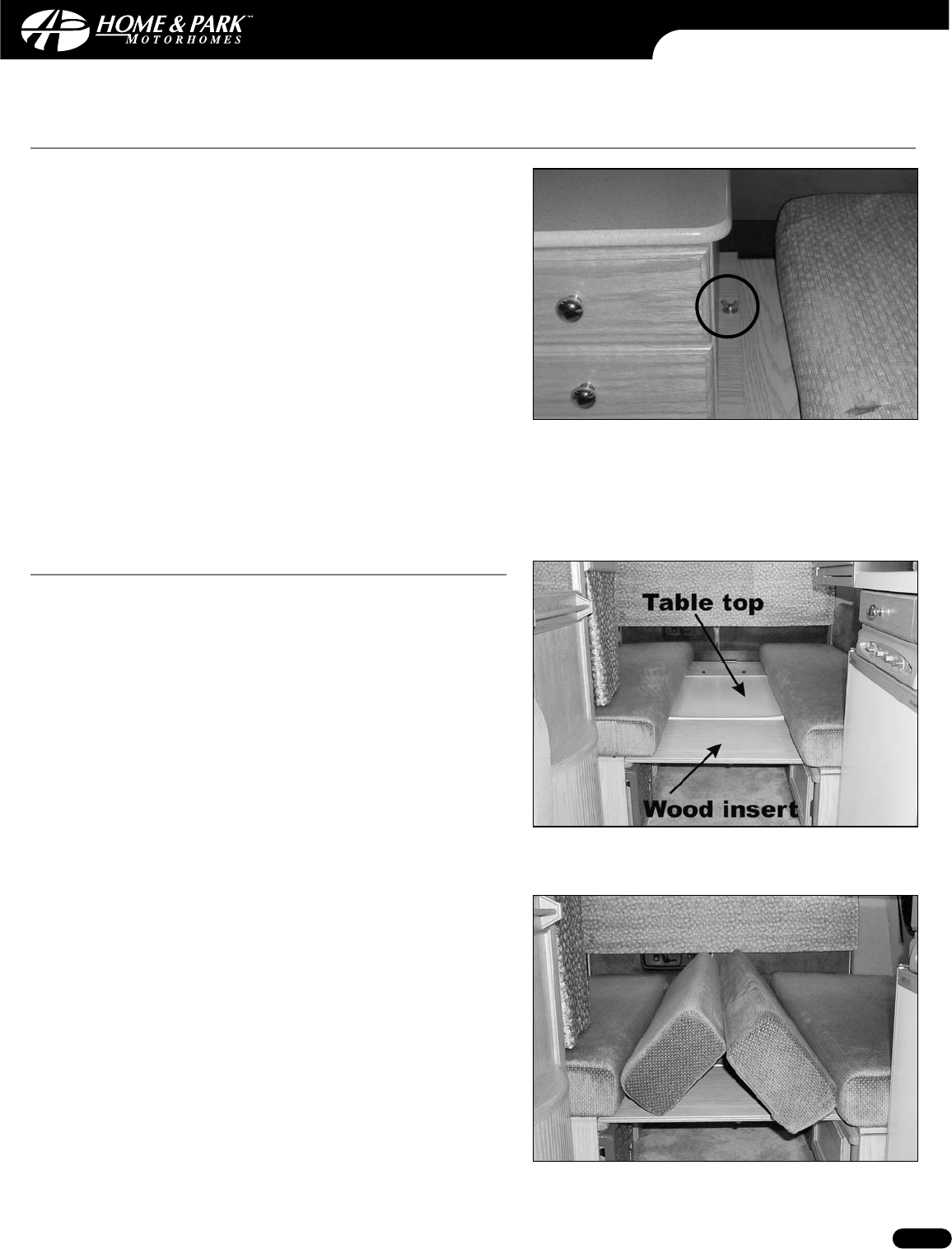

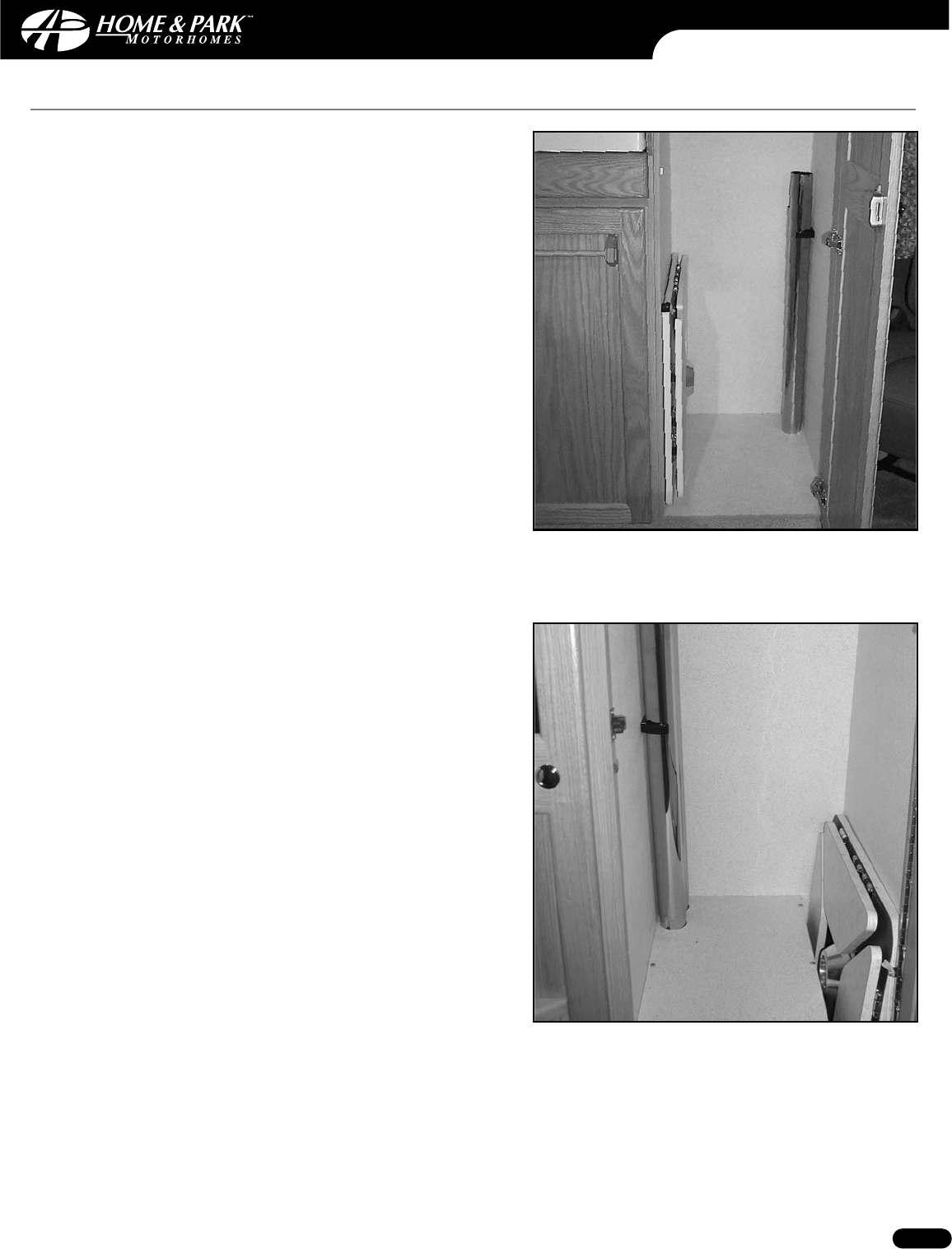

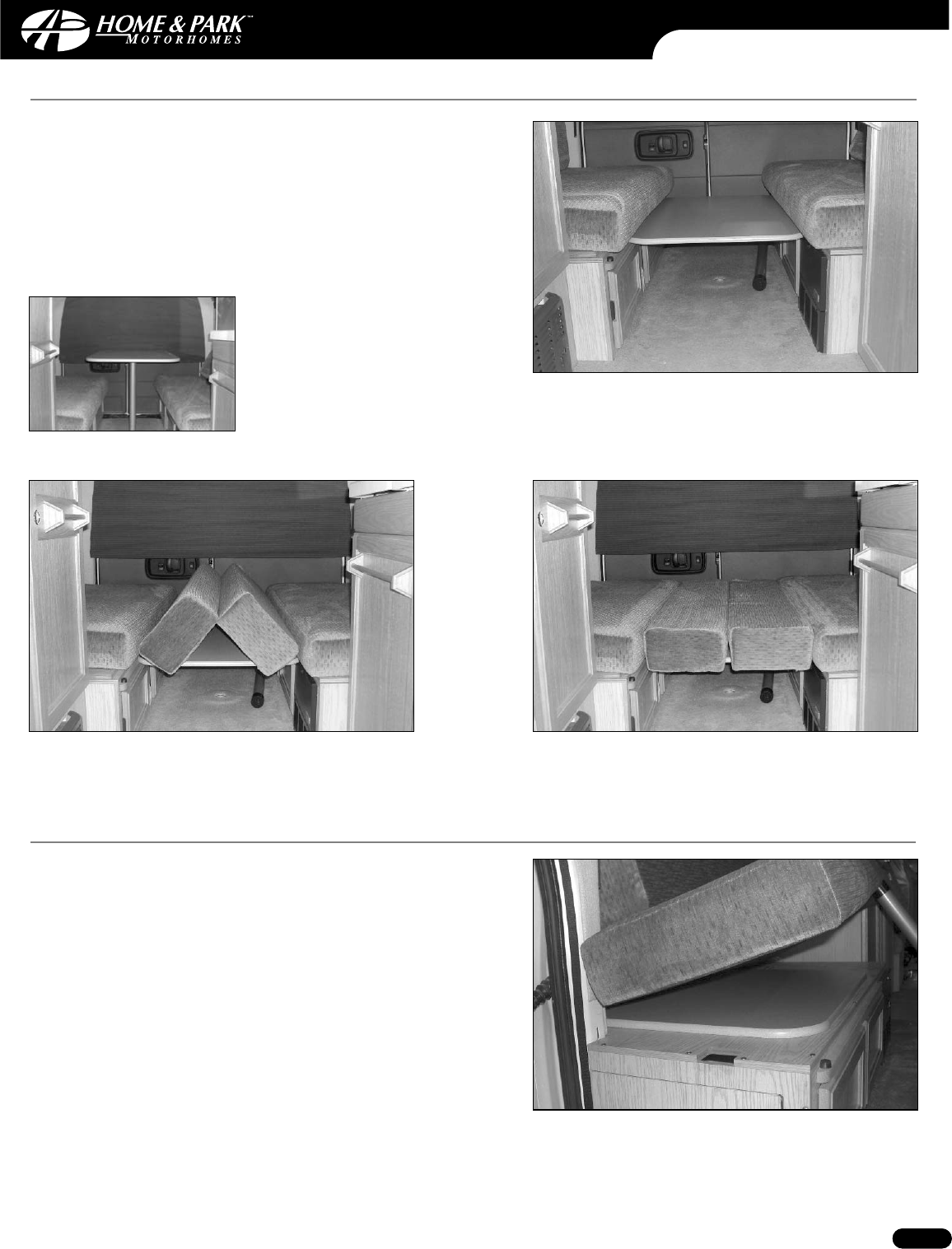

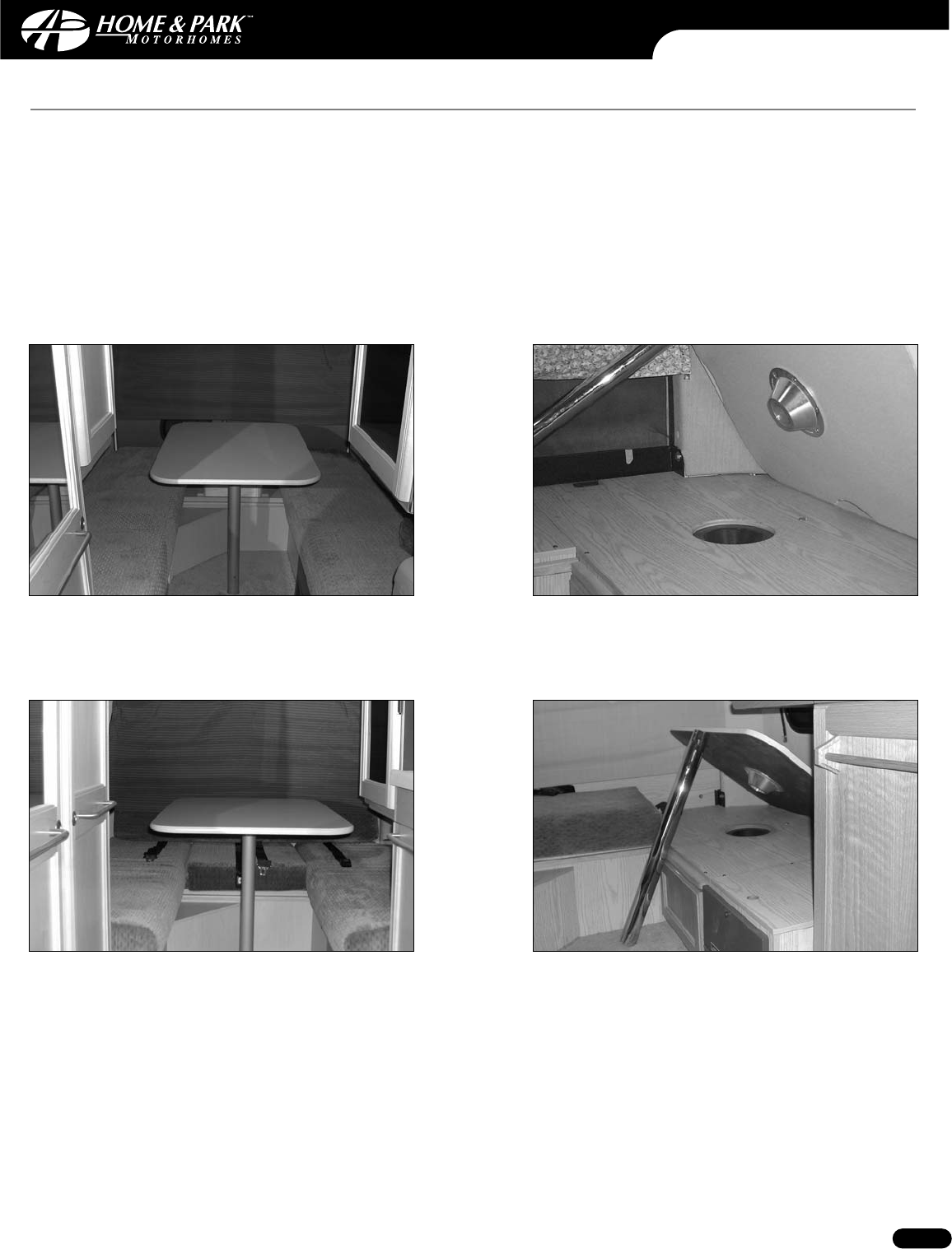

CLOVERLEAF DINING TABLE:

Cloverleaf dining table is heavy,lift while bending knees.

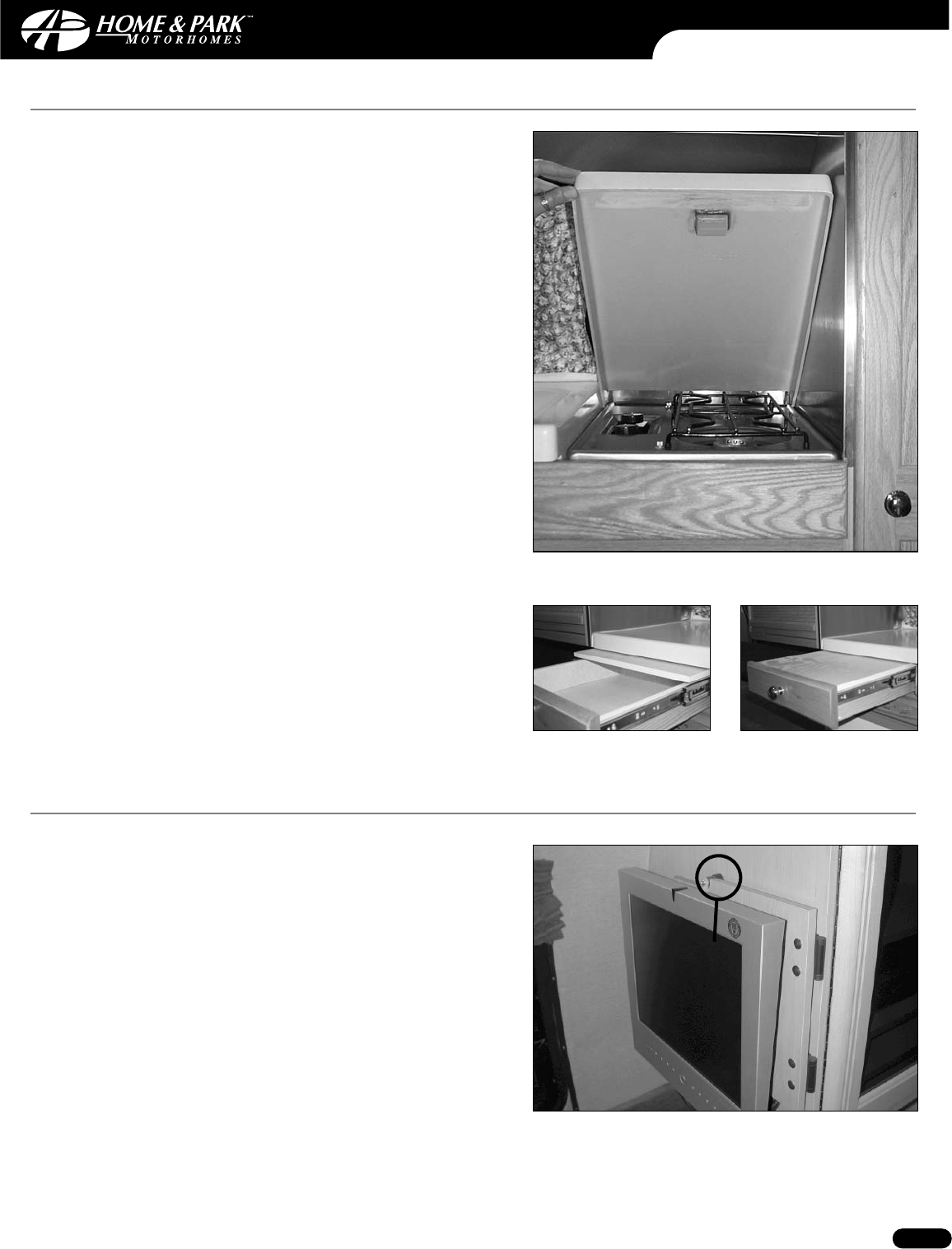

EXTRA COUNTER SPACE:

Make sure the stove is off and has cooled prior to lowering the stove cover.

TV:

When the vehicle is in motion it is recommended that the TV be “OFF”and in the stored position.The thumb

tab should be in place to secure the TV in the stored position.

The flat screen TV (option TF) should not be stored inside the Roadtrek in temperatures below -4°F (-20°C).

The operating temperature of the monitor is recommended between 50°F & 104°F (10°C – 40°C) with a

humidity range of 10%-80%,non condensing.

To remove the T/V,remove the four mounting bolts on the back of the T/V mounting bracket and remove the

RCA cables,power supply cable and antenna cable.

AUXILIARY BATTERY:

Battery acid can burn skin and clothing.Protective eye wear and gloves should be worn when handling

batteries.

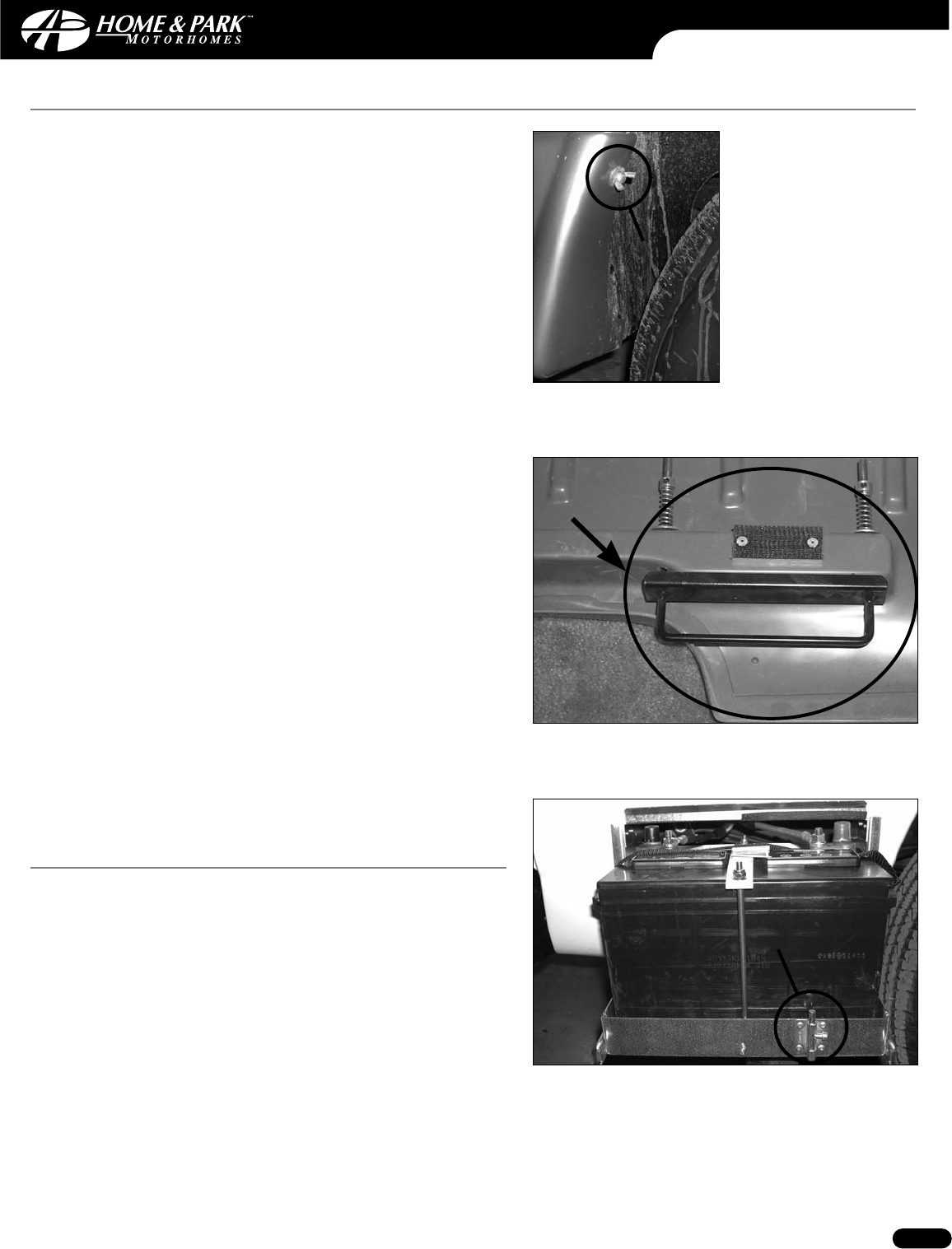

REPLACING THE AUXILIARY BATTERY:

Ensure that the inverter is disconnected prior to disconnecting the auxiliary battery.

GENERATOR:

When launching a boat,using your Roadtrek,it is important to know that the generator must not be

submerged in water.

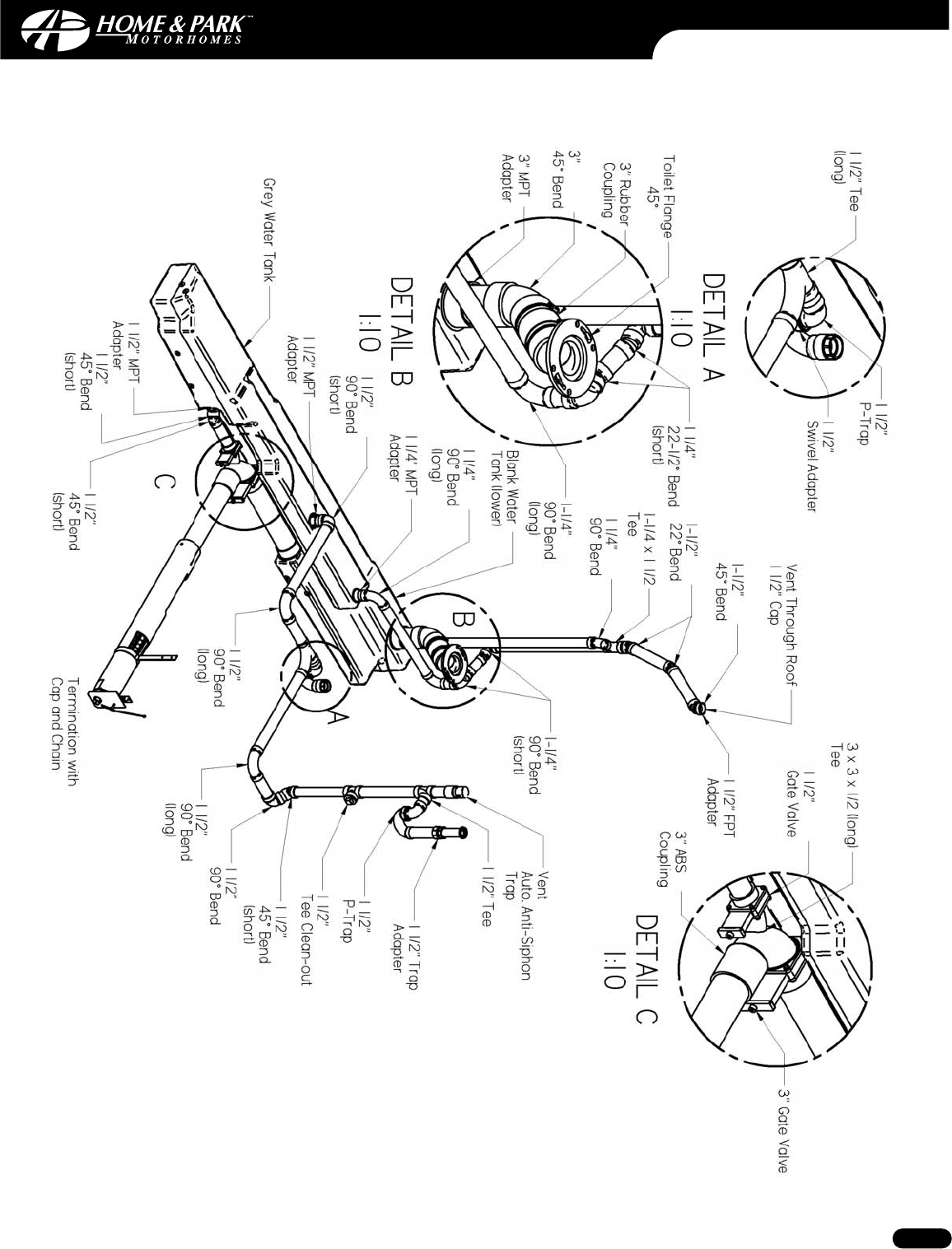

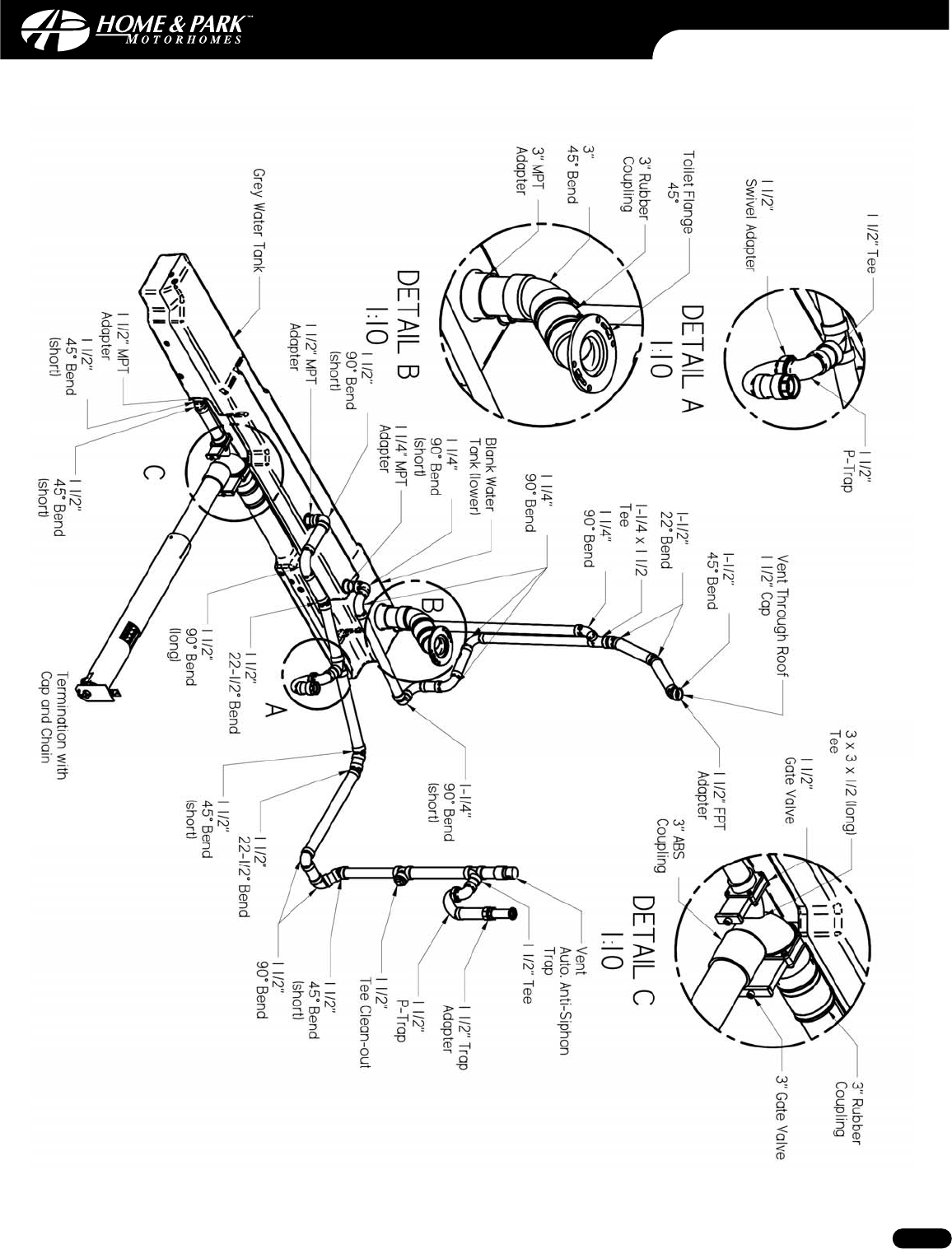

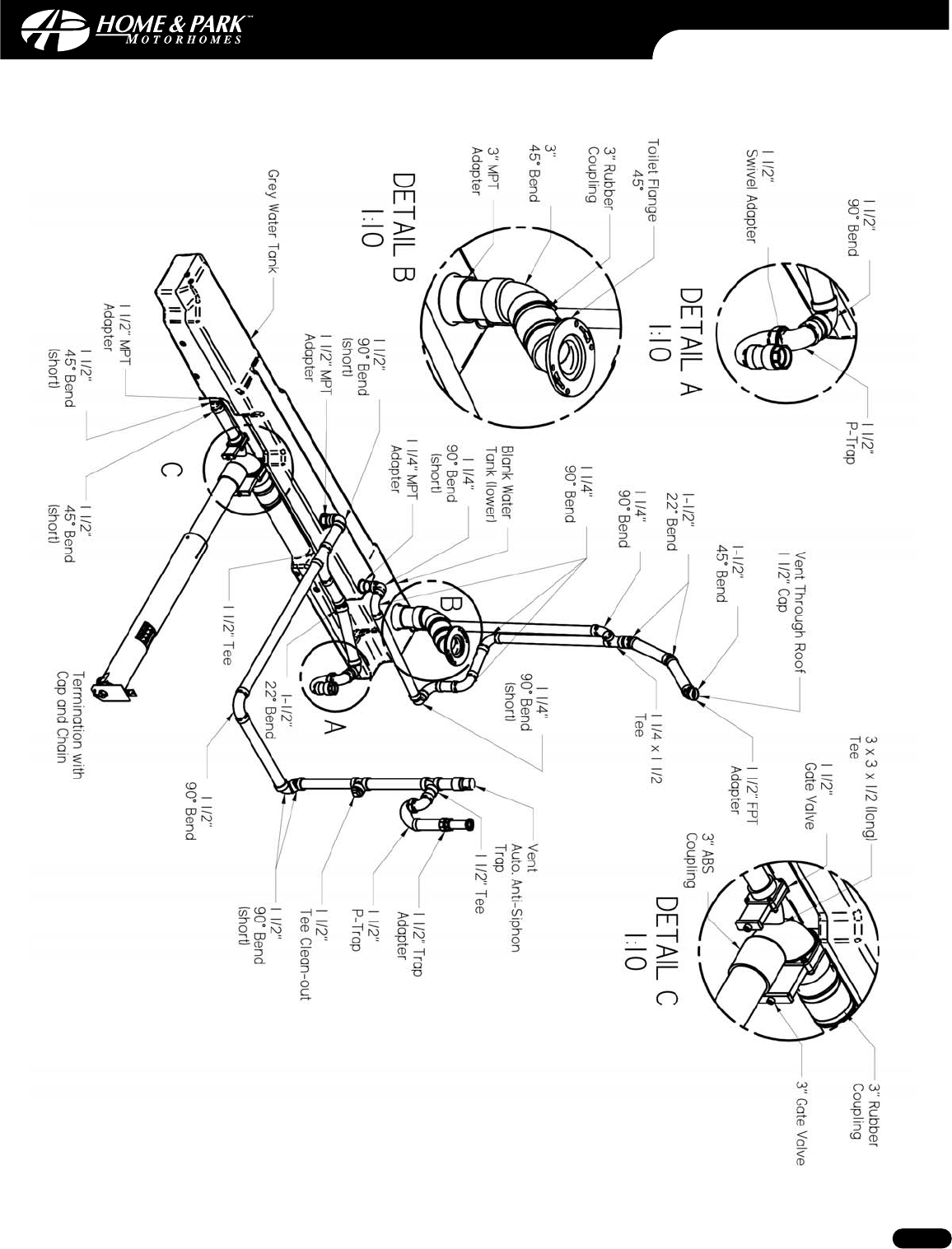

WASTE WATER STORAGE AND DUMPING SYSTEM:

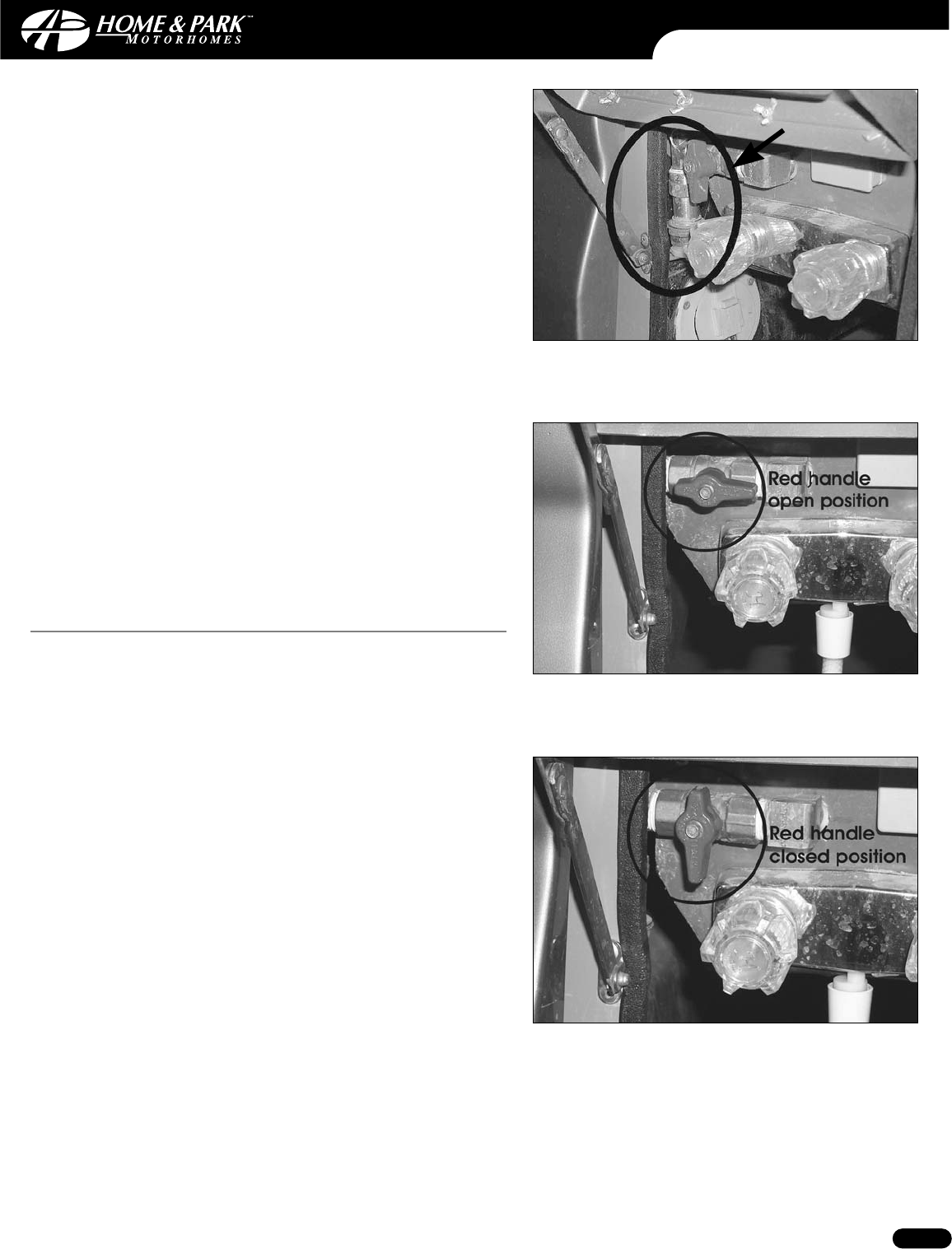

Ensure that both the black and gray water gate valves are closed (inward position) before using the waste

water system.

Under moderate subfreezing conditions,antifreeze is required in the exterior fresh water tank,black and gray

waste water tanks.Antifreeze should be used at a 50% water and 50% antifreeze ratio.

THE WARNINGS AND CAUTIONS IN THE QUICK REFERENCE ARE AN OVERVIEW AND

THERE ARE MORE NOTES AND INSTRUCTIONS WITHIN THIS MANUAL.

2005 Standard and Optional Roadtrek 170 models on Roadtrek 190 models on Road

Automotive Features Chevrolet 2500 Regular Van Chevrolet 3500 Extended Van Chev

Air bag - driver & passenger standard with passenger on/off switch standard with passenger on/off switch standa

Alternator 145 amp. 145 amp. 145 am

Axle - rear - standard 3.73 ratio 4.10 ratio 4.10 ra

Axle - rear - optional not available 4.10 ratio (w/locking diff.,trans.cooler) 4.10 ra

Battery 600 amp. 600 amp. 600 am

Brakes - anti lock four wheel disc four wheel disc four w

Bumper covers incl.with ground effects package incl.with ground effects package option

Cooling - transmission oil standard - internal standard - internal standa

Defroster - rear window standard standard standa

Door locks - with remote power - all doors,single key power - all doors,single key power

Doors & exits double 40/60 side & 50/50 rear double 40/60 side & 50/50 rear wide s

Engine - standard 6.0 L SFI gas V8 6.0 L SFI gas V8 6.0 L S

Fuel capacity 117 L/31 US gal. 117 L/31 US gal. 117 L/

Ground effects package optional optional not ap

Mirror - interior compass & exterior temperature compass & exterior temperature compa

Mirrors - exterior power - 7 1/2" x 8" power - 7 1/2" x 8" power

Power - standard 223 kW/300 HP 223 kW/300 HP 223 kW

Receiver - class IV frame mounted standard standard standa

Running boards aerodynamic with storage aerodynamic with storage aerody

Rust protection optional optional not ap

Seats - Captain’s swiveling,reclining,power lumbar swiveling,reclining,power lumbar swivel

supports & dual armrests supports & dual armrests suppo

Seats - leather optional - Captain’s & lounge seats optional - Captain’s & lounge seats option

Sound system premium AM/FM & CD premium AM/FM & CD premiu

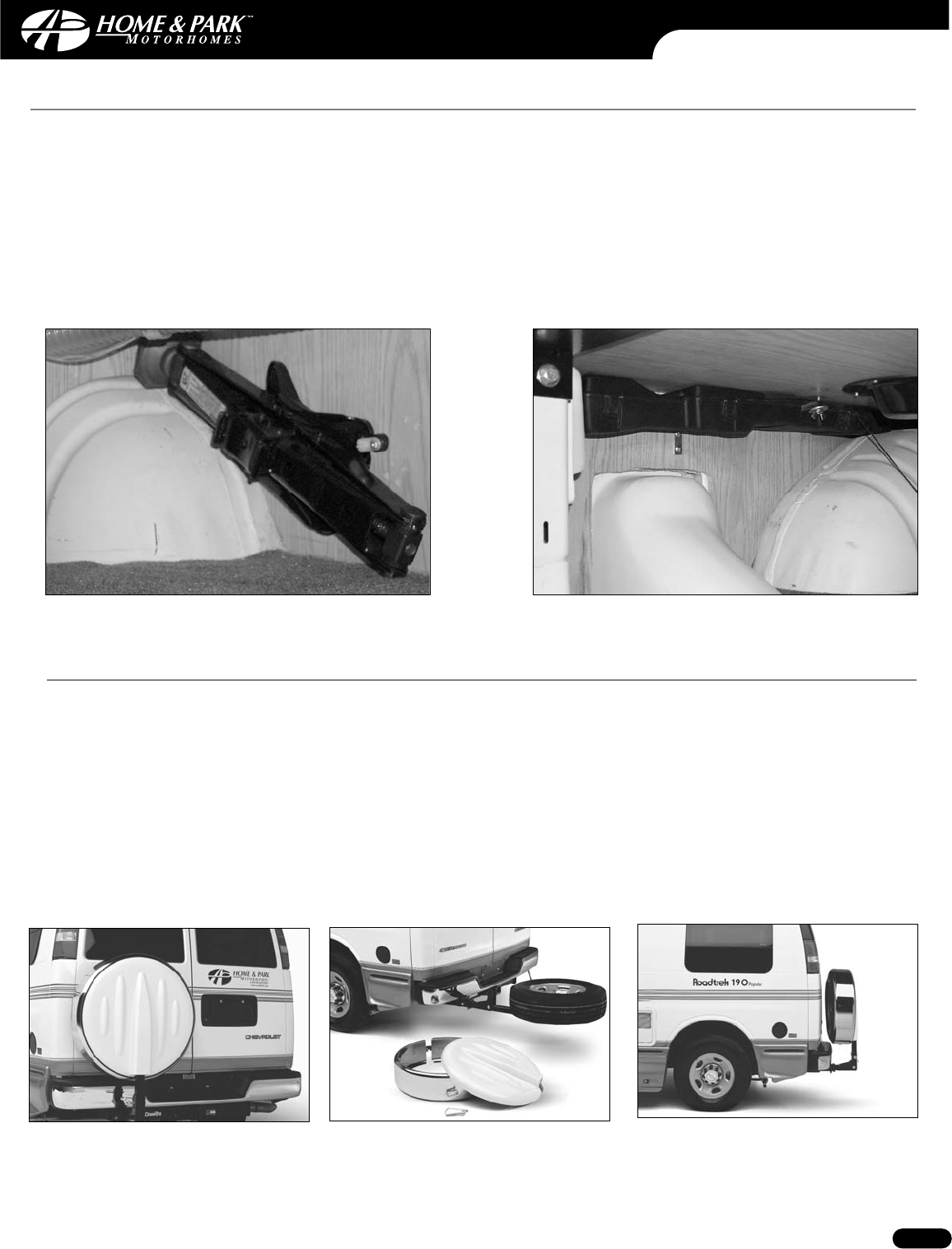

Tire storage - spare rear storage area or optional rear storage area or optional rear sto

Continental kit Continental kit Contin

Tires LT245/75R16E black wall LT245/75R16E black wall LT245/

Torque - standard engine 490 N-m/360 ft.lbs. 490 N-m/360 ft.lbs. 490 N-

Towing - GCWR * - standard 6350 Kg/14000 lbs.* 6350 Kg/14000 lbs.* 7258 K

Towing - GCWR * - optional not applicable 7258 Kg/16000 lbs.* not ap

Towing - tow weight ** - standard 3000 Kg/6600 lbs.** 2750 Kg/6100 lbs.** 3400 K

Towing - tow weight ** - optional not applicable 3700 Kg/8100 lbs.** not ap

Towing - tongue weight *** 454 Kg/1000 lbs.*** 454 Kg/1000 lbs.*** 454 Kg

Wheel liners (covers) - chrome look optional optional option

Wheels - standard - steel 16" - with trim 16" - with trim 16" - w

Wheels - optional - aluminum 16" - with steel spare 16" - with steel spare 16" - w

Wheels - optional - polished chrome 16" - with steel spare 16" - with steel spare 16" - w

Window operation power - front doors only power - front doors only power

Window tint deep tinted - all deep tinted - all deep t

Wiring harness for towing - 4 way standard standard standa

Wiring harness for towing - 7 way optional (in addition to 4 way) optional (in addition to 4 way) option

* Gross Combination Weight Rating (GCWR) includes total weight of vehicle,equipment,fuel,water,propane,cargo,driver and passengers.

** Maximum towable weight with driver only.This weight reduced by weight of optional equipment,fuel,water,propane,cargo and/or passengers.

*** A weight distributing hitch is required for tongue weights over 200 Kg/400 lbs.

VEHICLE SPECIFICATIONS

2005 Standard Roadtrek 170 models on Roadtrek 190 models on Road

Motorhome Features Chevrolet 2500 Regular Van Chevrolet 3500 Extended Van Chev

Air conditioner 110V recessed,12000 BTU 110V recessed,12000 BTU 110V r

Aisle 30"/760 mm wide 30"/760 mm wide 32"/81

Battery - auxiliary - 12V lead acid deep cycle,95 amp-hrs. lead acid deep cycle,95 amp-hrs. lead ac

Battery storage - auxiliary slide-out tray below floor slide-out tray below floor slide-o

Beds - dual density foam 130 mm/5" 130 mm/5" 130 m

Cabinet - audio/video & storage standard standard standa

Carpet 40 oz.100% Dupont nylon 40 oz.100% Dupont nylon 40 oz.

Connection - auxiliary Propane for BBQ w/quick disconnect Propane for BBQ w/quick disconnect L.P.G.fo

Connection - external - 110V standard standard standa

Connection - external - TV cable standard standard standa

Connection - external - water standard with quick disconnect standard with quick disconnect standa

Counter top molded fiberglass w/solid surface molded fiberglass w/solid surface solid s

Cupboard - galley slide-out not available not available jar & sp

Detectors smoke,propane & CO smoke,propane & CO smoke

Faucet - galley single lever single lever single

Floor - lowered 1620 mm x 890 mm x 50 mm 1730 mm x 890 mm x 50 mm 2025 m

64" x 35" x 2",no step over frame 68" x 35" x 2",no step over frame 80" x 3

Furnace - ‘Suburban’ Propane automatic,16000 BTU Propane automatic,16000 BTU LP gas

Generator ready package for ‘Onan’ for ‘Onan’ for ‘On

Heat pump (A/C & heater) ‘Dometic’with ducts to rear bed ‘Dometic’with ducts to rear bed ‘Dome

Microwave oven - 110V 20 L/0.7 cu.ft.,700 W 20 L/0.7 cu.ft.,700 W toast &

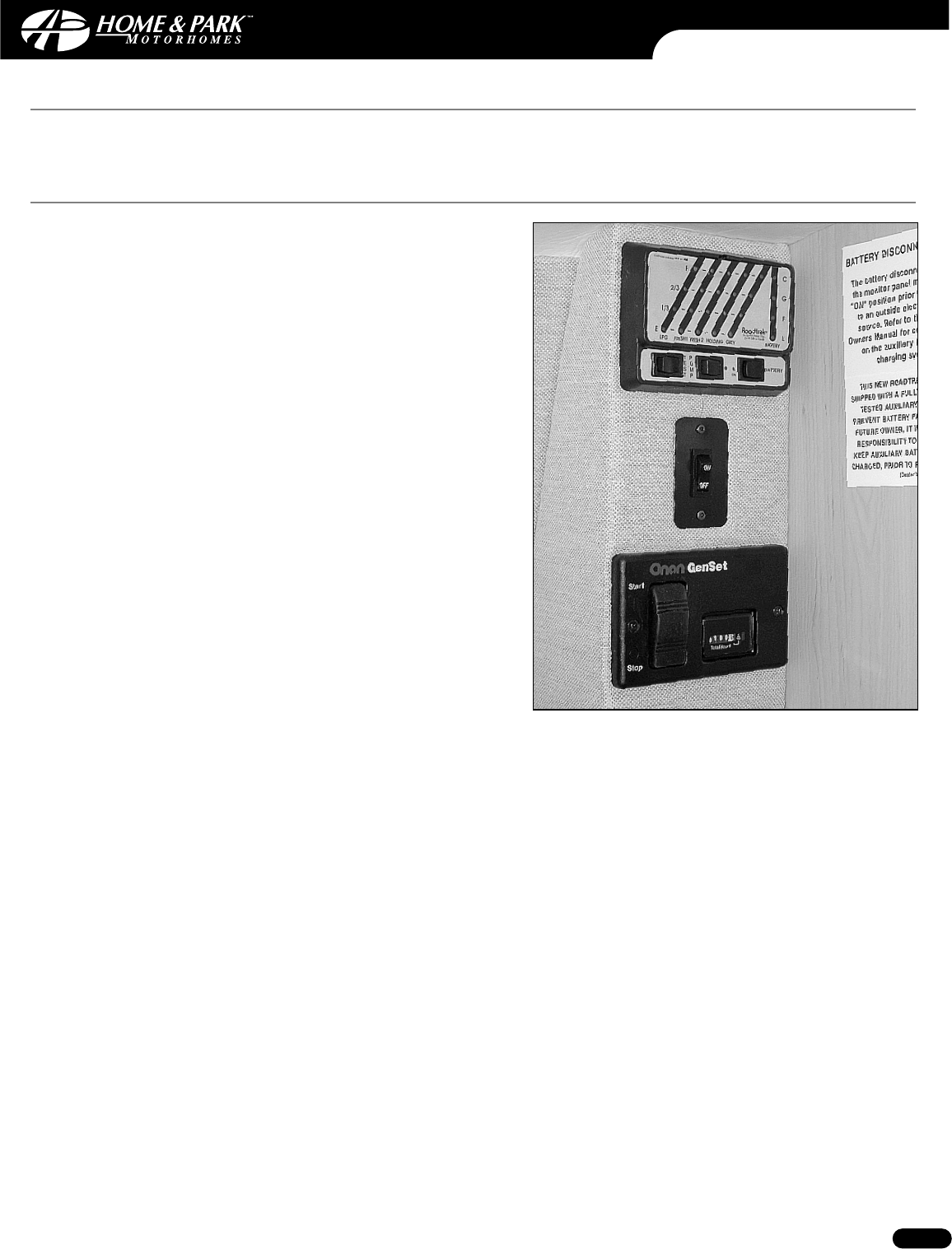

Monitor panel water & propane levels,battery water & propane levels,battery water

charge & battery disconnect charge & battery disconnect charge

Power inverter with charger 12/110V,600W,w/3 step 45 amp charger. 12/110V,600W,w/3 step 45 amp.charger 12/110

Privacy area with bi-fold doors,patented with bi-fold doors,patented with tr

Range hood - 12V with exhaust fan & light with exhaust fan & light with e

Refrigerator - ‘Dometic’ 12V/110V/propane,3.0 cu.ft. 12V/110V/propane,3.0 cu.ft. 12V/11

Refrigerator venting patented integrated patented integrated not ap

Roof vent - ‘FanTastic’- 12V low profile power w/thermostat low profile power w/thermostat low pr

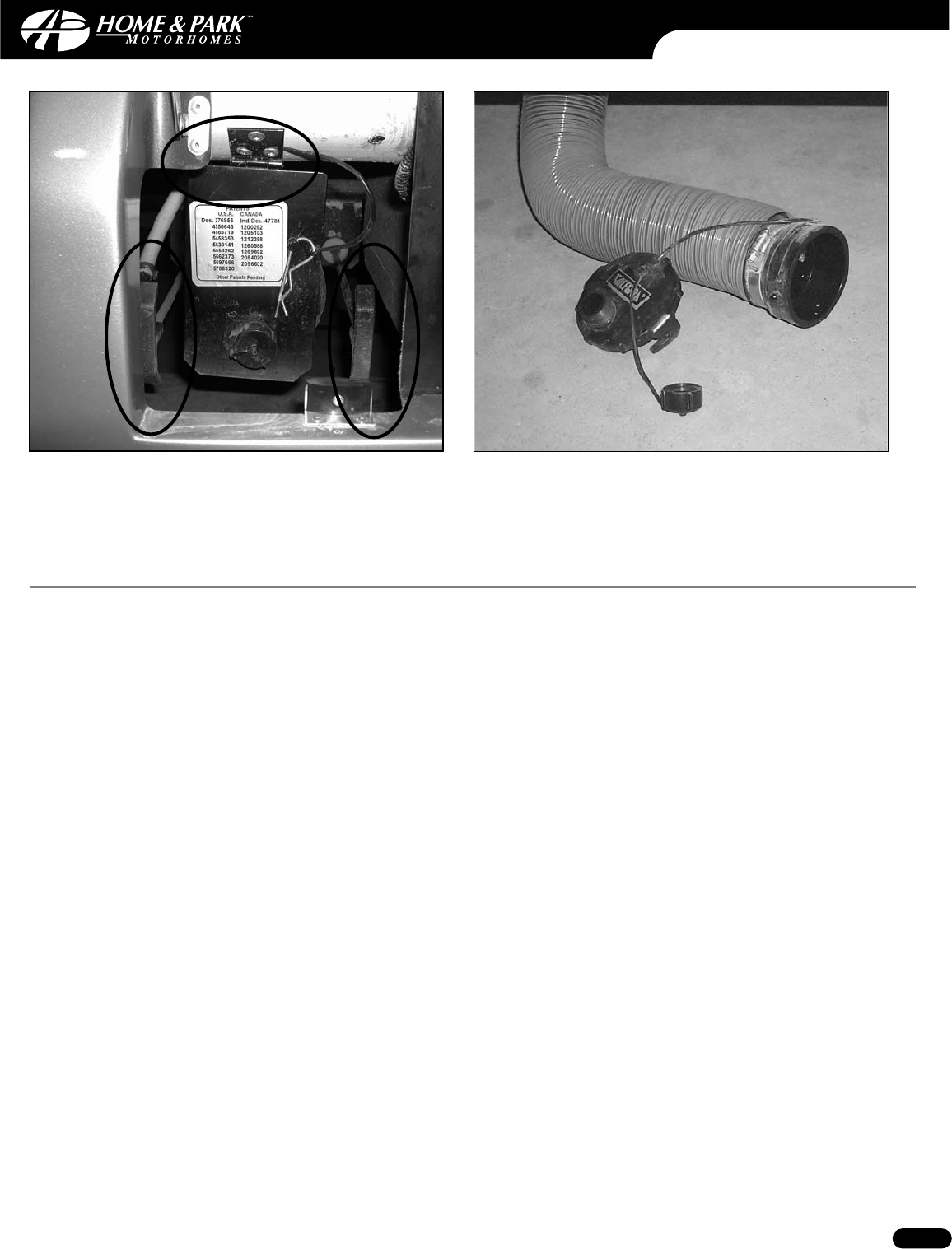

Sewage disposal system built-in sewage hose built-in sewage hose 12V m

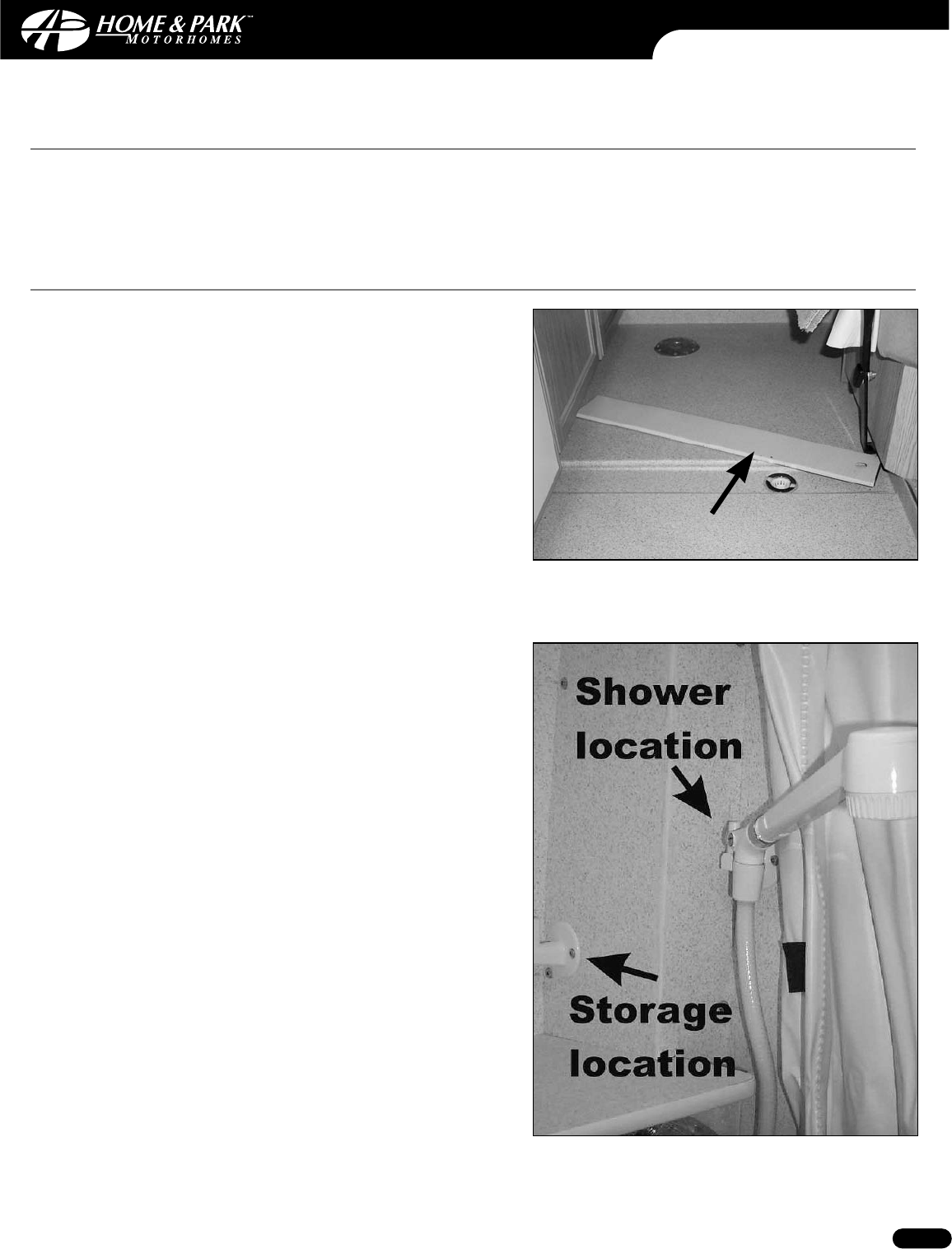

Shower stand-up in aisle stand-up in aisle stand-

Sink molded in counter w/flush cover molded in counter w/flush cover stainle

Storage area across the rear across the rear across

Storage capacity - standard 49 cu.ft.,62 w/options 62 cu.ft.,80 w/options 74 cu.f

Storage compartments - exterior 1 below floor 2 below floor 3 draw

Stove - two burner Propane recessed w/flush cover Propane recessed w/flush cover LP gas

Table - dining - cloverleaf 32" x 32" open,20" x 20" closed 32" x 32" open,20" x 20" closed 32" x 3

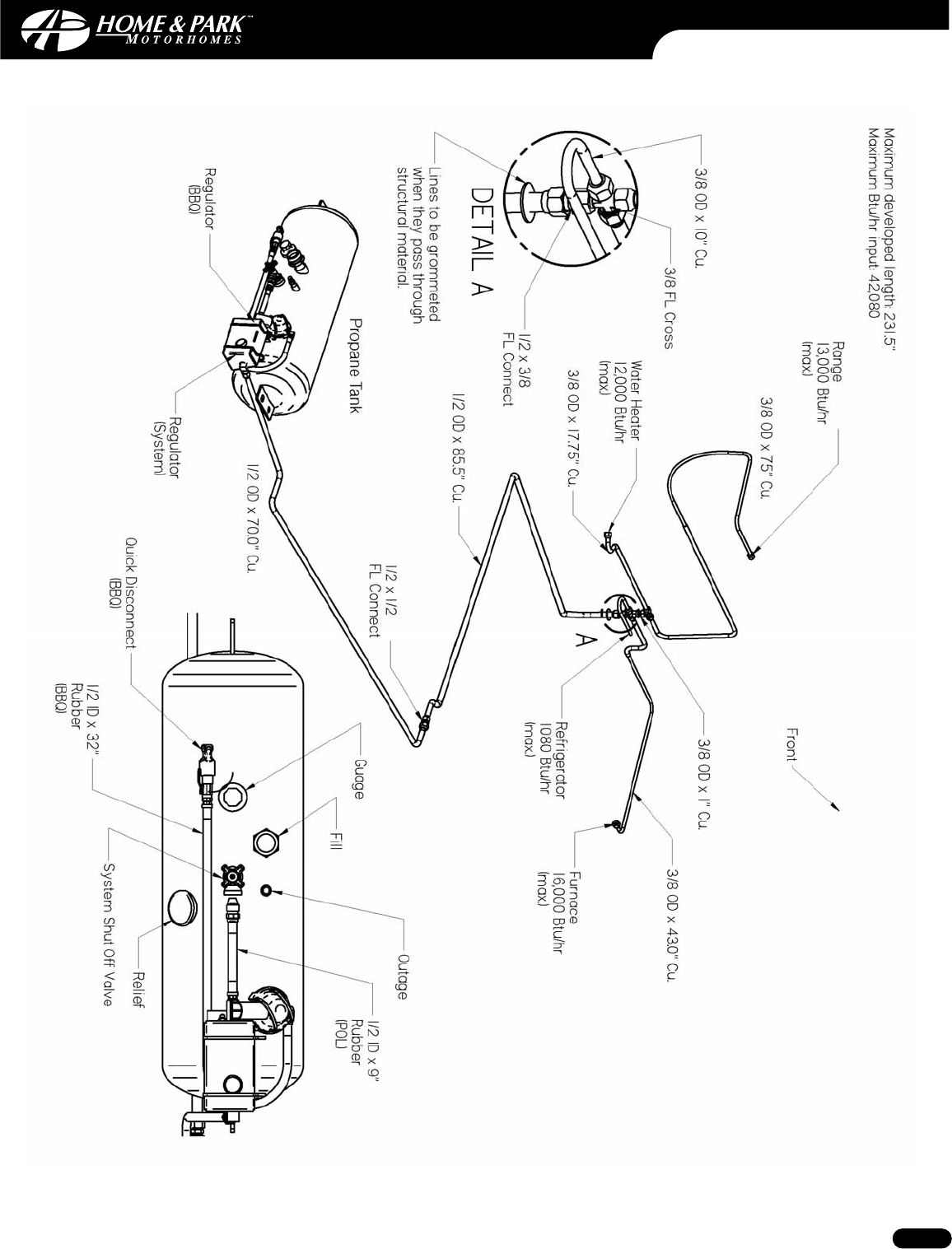

Tank - Propane 38 L/10 US gal./45 lbs. 38 L/10 US gal./45 lbs. 38 L/1

Toilet - ‘Thetford’ marine with foot pedal flush marine with foot pedal flush marine

TV antenna - ‘Hide-A-Tenna’ built-in built-in built-in

Water fill - fresh - location front door post to reduce clutter front & rear door posts to reduce front &

& prevent tampering w/supply clutter & prevent tampering w/supply clutter

Water heater - ‘Suburban’ 110V/propane with bypass, 110V/propane with bypass, 110V/L

23L/6 US gal.,12000 BTU 23L/6 US gal.,12000 BTU 23L/6

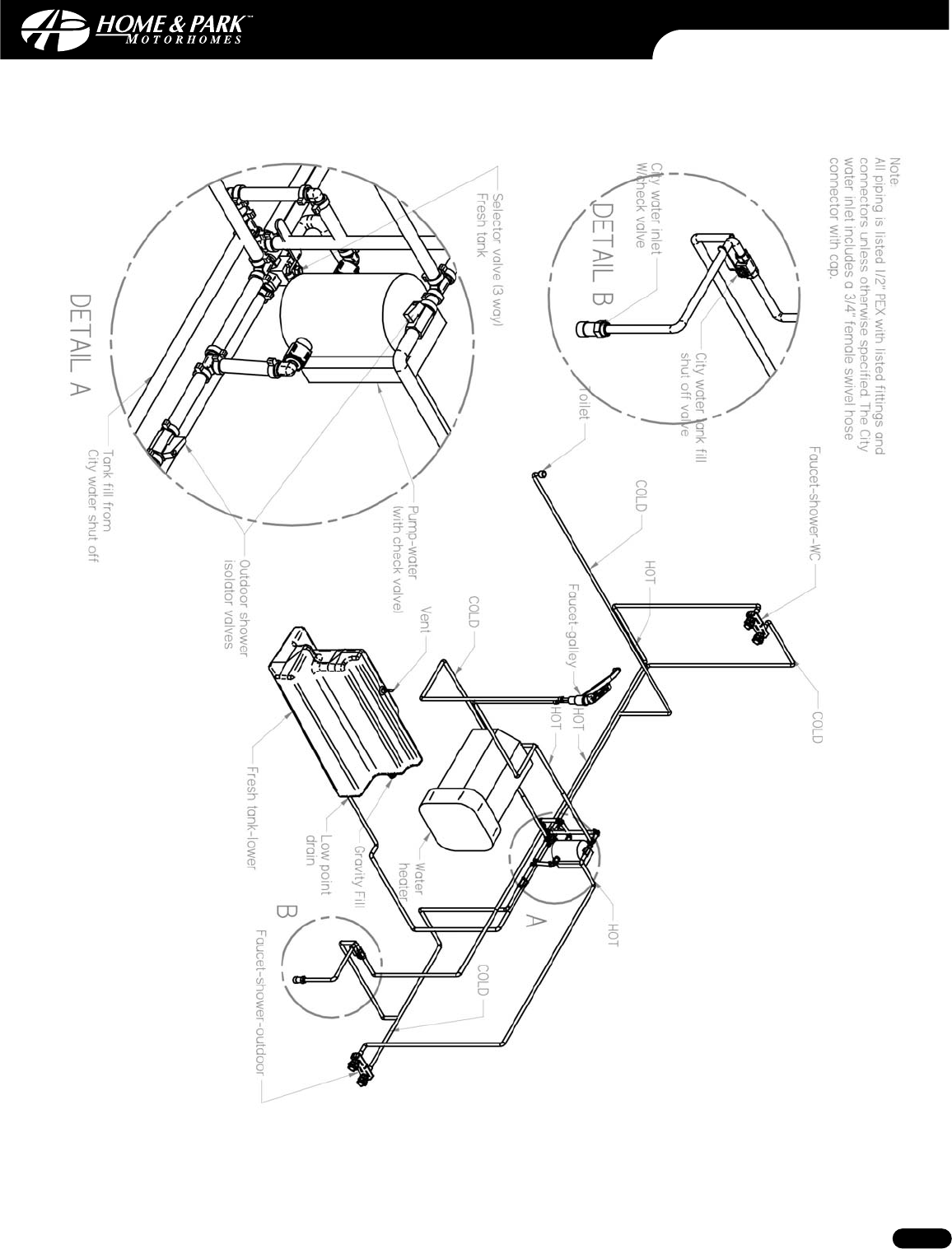

Water system - on demand 12V with ‘Shurflo’water pump 12V with ‘Shurflo’water pump 12V w

Water tank capacities (see Interior Dimensions) (see Interior Dimensions) (see In

Windows frameless awning type frameless awning type framel

Windows - roof 3 frameless with curtains 3 frameless with curtains 3 fram

VEHICLE SPECIFICATIONS

2005 Exterior Dimensions 170 Models 190 Models 210 M

Length 5720 mm/18' 9" * 6220 mm/20' 5" * 6680 m

Height - overall 2540 mm/8' 4" 2540 mm/8' 4" 2590 m

Width - overall (w/o mirrors) 2010 mm/6' 7" 2010 mm/6' 7" 2240 m

Wheel base 3430 mm/135" 3940 mm/155" 3940 m

Unloaded vehicle weight ** (no opt.) 3250 Kg/7200 lbs. 3500 Kg/7700 lbs. 3750 K

Gross vehicle weight rating 3900 Kg/8600 lbs. 4355 Kg/9600 lbs. 4355 K

* Add 250 mm/10"if equipped with optional Continental spare tire kit.

** Includes weight of base vehicle and fuel only.Does not include weight of optional equipment,water,propane,cargo and/or passengers.

2005 Interior Dimensions 170 Models 190 Models 210 M

Standing height 1855 mm/73" 1855 mm/73" 1880 m

King bed length not applicable 1930 mm/76" left,1830 mm/72" right 1930 m

King bed width not applicable 1855 mm/73" 2030 m

Queen bed length not applicable not applicable 2030m

Queen bed width not applicable not applicable 1520m

Double bed length 1880 mm/74" 1880 mm/74" not ap

Double bed width 1260 mm/50" 1320 mm/52" not ap

Twin bed length - rear not applicable 1930 mm/76" left,1830 mm/72" right 1930 m

Twin bed width - rear not applicable 690 mm/27" 760 m

Single bed length - front 1660 mm/65" 1540 mm/61" left,1660 mm/65" right 1575m

Single bed width - front 560 mm/22" (maximum) 560 mm/22" (maximum) 560 m

Water tank - fresh 55 L/14 US gal. Interior 10 USgal./Exterior 15 US gal. 115 L/

Water tank - grey 85 L/23 US gal. 85 L/23 US gal. 85 L/2

Water tank - black 30 L/ 8 US gal. 40 L/10 US gal. 40 L/1

2005 Motorhome Options 170 Models 190 Models 210 M

Armoire - with removable & optional,replaces right lounge seat optional,replaces right lounge seat option

adjustable shelves & drawers

Awning - box optional,3000 mm/9'8" optional,3500 mm/11'6" option

Battery - second auxiliary not available optional,lead acid deep cycle, option

12V,190 total amp-hrs. 6V,220

Coffee maker not available not available option

DVD player optional,with remote optional,with remote option

‘Florida’room optional,3 screened sides & door optional,3 screened sides & door not av

with privacy panels & skirting with privacy panels & skirting

Generator - ‘Onan MicroLite’ optional,remote-start,2.8 kW optional,remote-start,2.8 kW option

Satellite receiver not available optional,w/auto search & lock option

Screen package optional for side van door windows optional for side van door windows option

and side & rear door openings and side & rear door openings and sid

Seat belts for 2 in rear standard standard on 190-Versatile, standa

optional on 190-Popular option

Table - dining - extendable not available optional,behind driver,replaces option

cloverleaf,36"/51" x 19"/32" cloverl

TV - flat screen optional,15" optional,15" option

Video cassette recorder optional optional option

Wardrobe - removable not available optional,interchangeable with left lounge seat not av

TABLE OF CONTENTS

Introduction ______________________________________________________________________________________ A-0

Gross Combination Weight Rating (GCWR) ______________________________________________________________ A-1

Daily Living ________________________________________________________________________________________ B-0

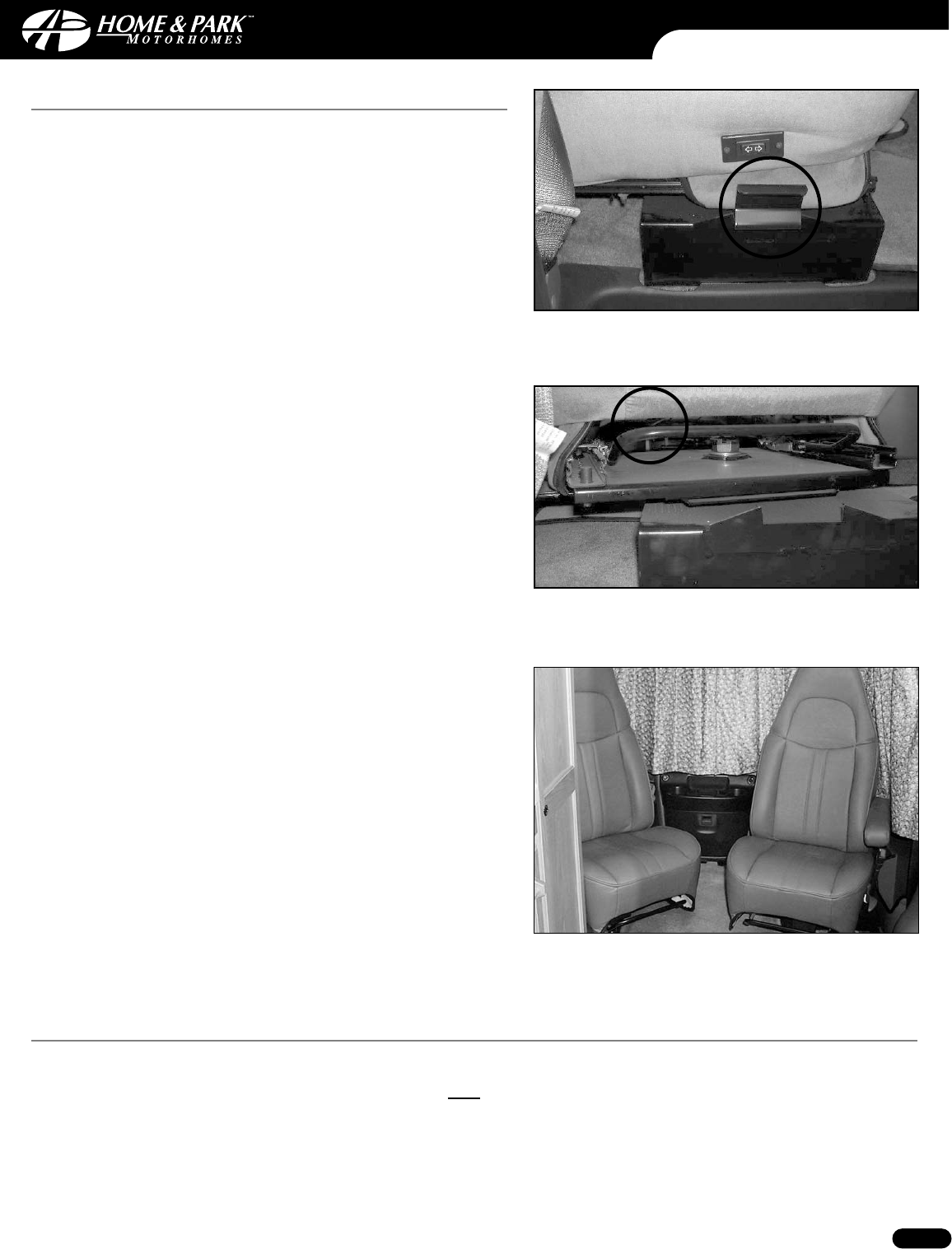

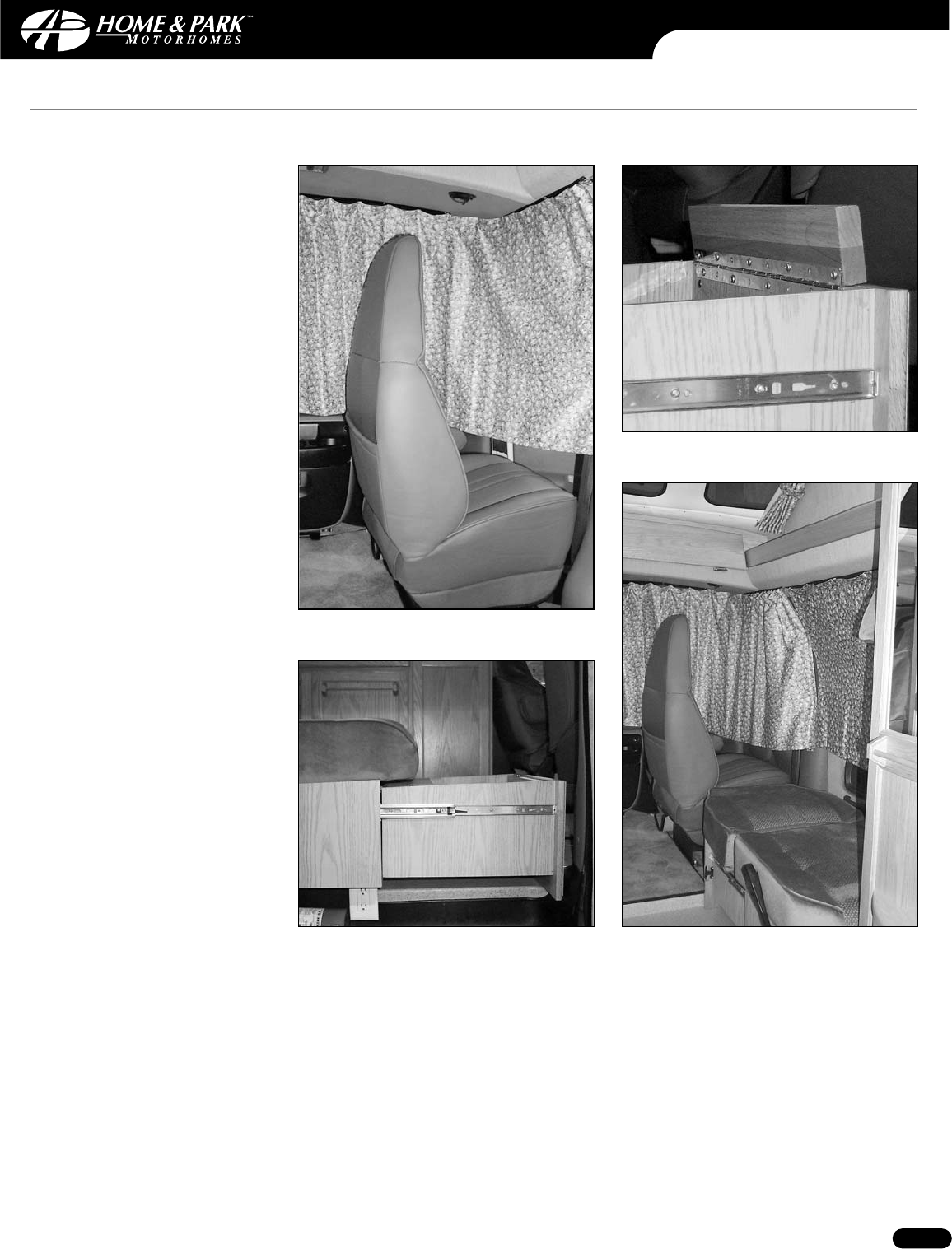

Captain’s Seats ______________________________________________________________________________________ B-1

Seat Belt Usage______________________________________________________________________________________ B-1

Cloverleaf Dining Table ______________________________________________________________________________ B-2

Dinette Table (Popular Models) ________________________________________________________________________ B-3

SSlleeeeppiinngg FFaacciilliittiieess____________________________________________________________________________________ B-4

Rear Twin Beds (190-Popular Model)______________________________________________________________ B-4

Rear King-size Bed (190-Popular Model) ______________________________________________________ B-4 - B-5

Rear L-Shaped Lounge to Double Bed (190-Versatile & 170-Popular Models) ____________________________ B-5

Rear Dinette to Double Bed (190-Versatile Model) __________________________________________________B-6

Dinette Table Storage __________________________________________________________________________B-6

Front Lounge Seats____________________________________________________________________________ B-7

WWaasshhrroooomm aanndd PPrriivvaaccyy AArreeaa__________________________________________________________________________ B-8

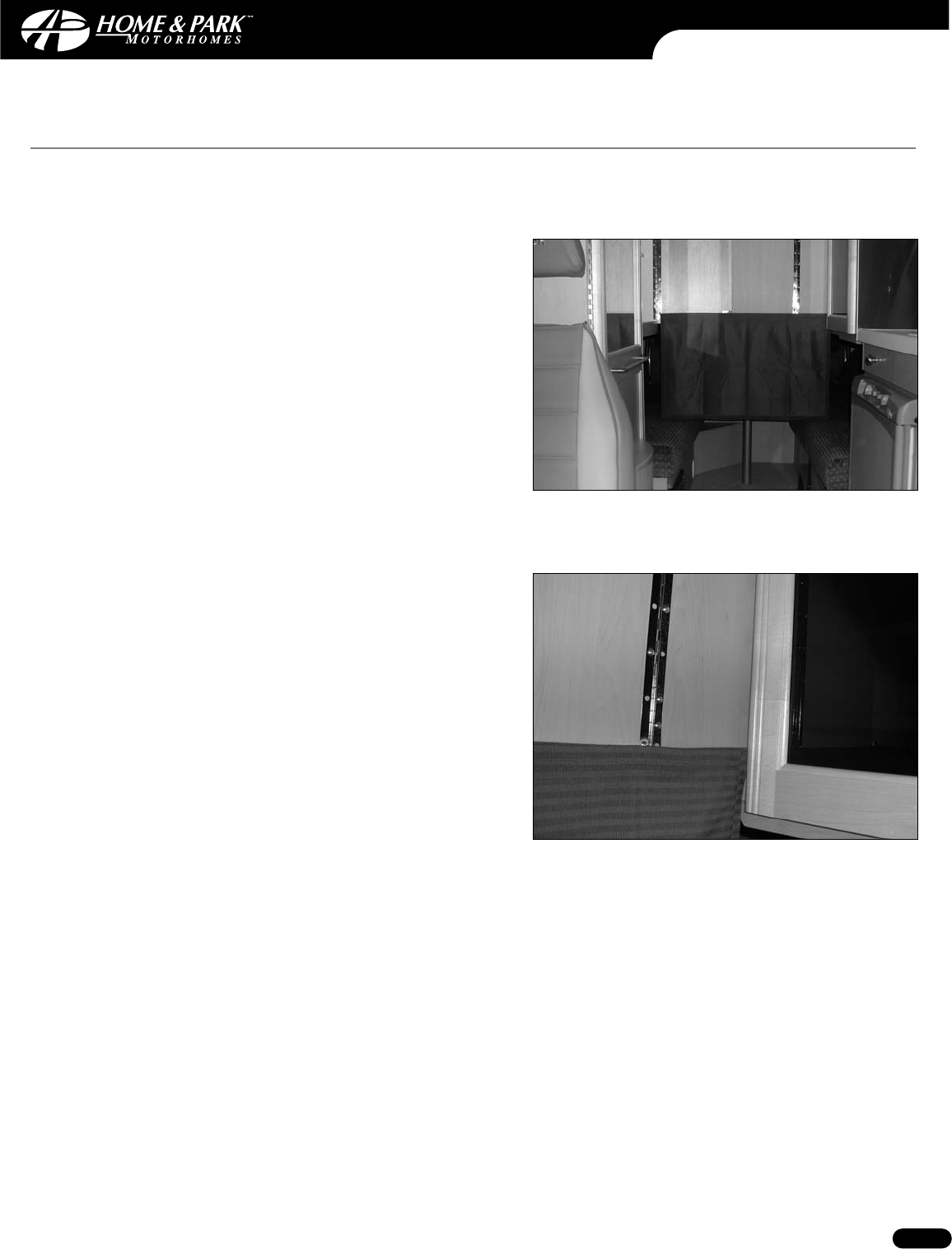

Rear Privacy Doors (190-Popular Model) __________________________________________________________ B-8

Rear Privacy Doors (190-Versatile Model) __________________________________________________________ B-9

Front Privacy Doors (Popular Models) ____________________________________________________________ B-9

Front Privacy Doors (190-Versatile Model) ________________________________________________________ B-9

WWaasshhrroooomm FFaacciilliittiieess________________________________________________________________________________ B-10

Toilet ______________________________________________________________________________________ B-10

Stand-up Aisle Shower________________________________________________________________________ B-10

Extra Counter Space ________________________________________________________________________________ B-11

TV ______________________________________________________________________________________________ B-11

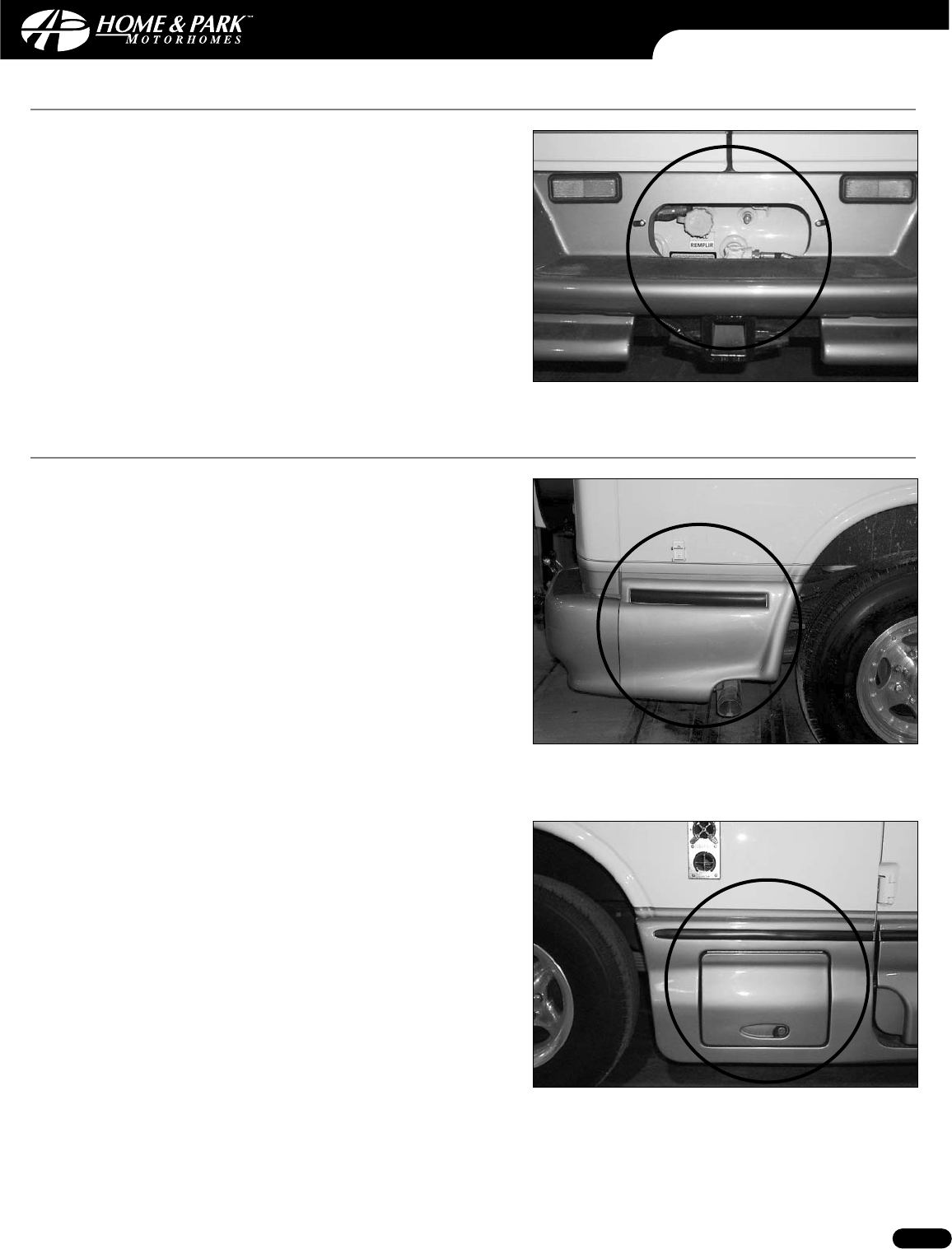

EExxtteerriioorr AAcccceessss DDoooorrss________________________________________________________________________________ B-12

Driver Side Access Doors (190 Models) __________________________________________________________ B-12

Driver Side Access Doors (170 Model)____________________________________________________________ B-13

Propane Access Door ________________________________________________________________________ B-14

Passenger Side Access Doors __________________________________________________________________ B-14

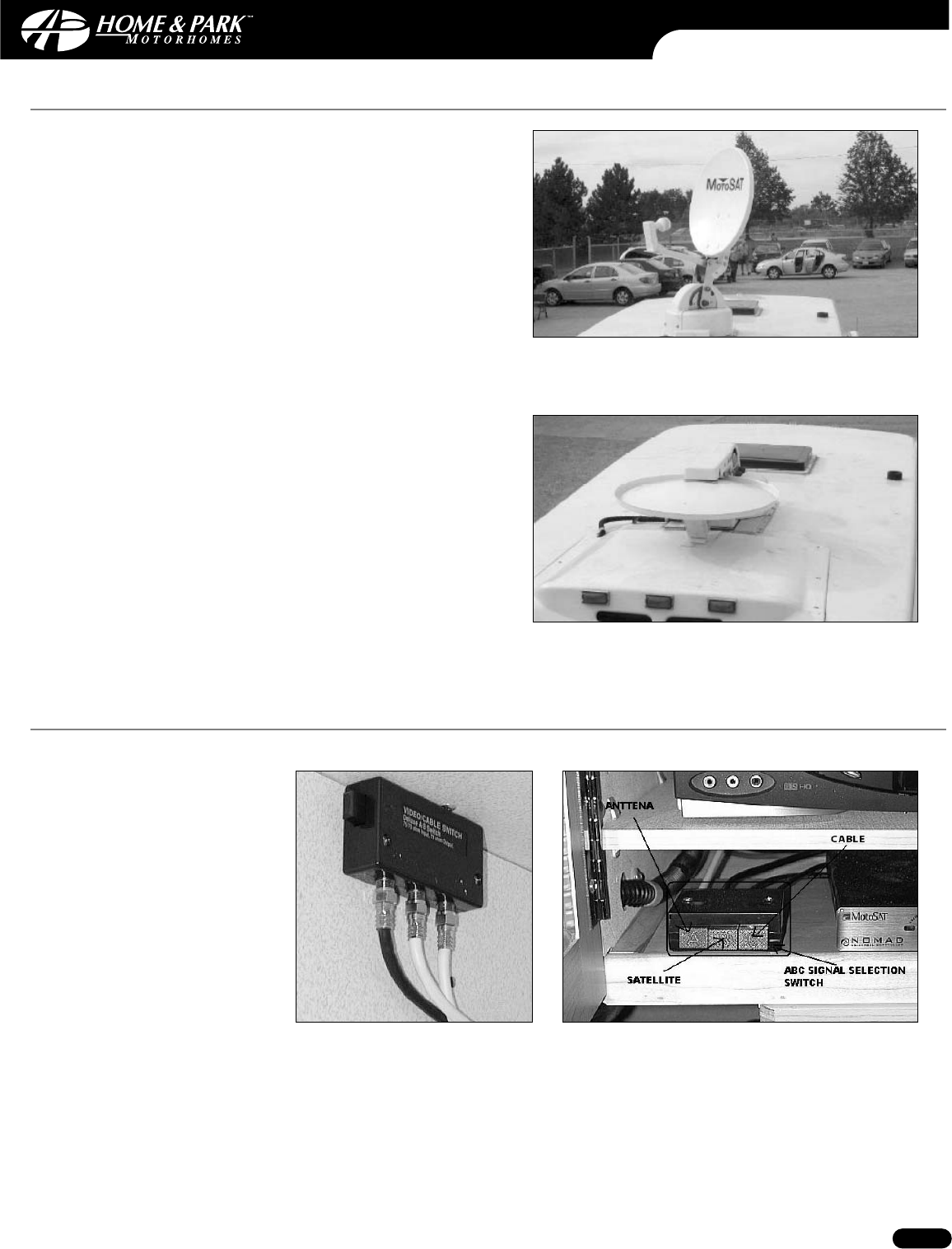

Moto-Sat Satellite Antenna System (Optional) ____________________________________________________________B-15

Auxiliary Battery ____________________________________________________________________________________ B-16

Replacing the Auxiliary Battery ________________________________________________________________________B-16

Spare Tire Storage __________________________________________________________________________________ B-17

Continental Spare Tire Kit ____________________________________________________________________________B-17

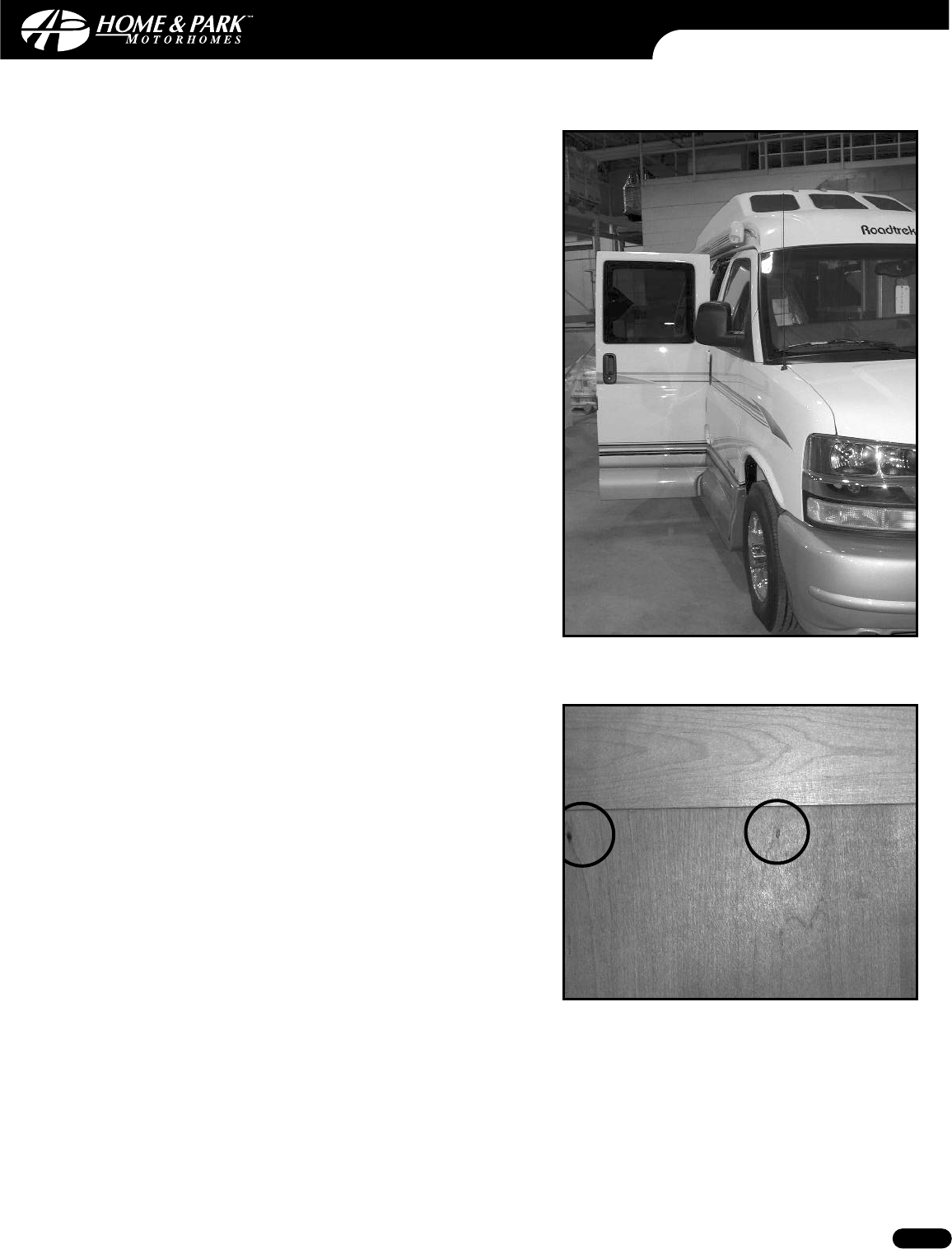

Caution Note (Opening front side cargo door) ____________________________________________________________B-18

Floor Plan & Appliance Location ______________________________________________________________________ C-0

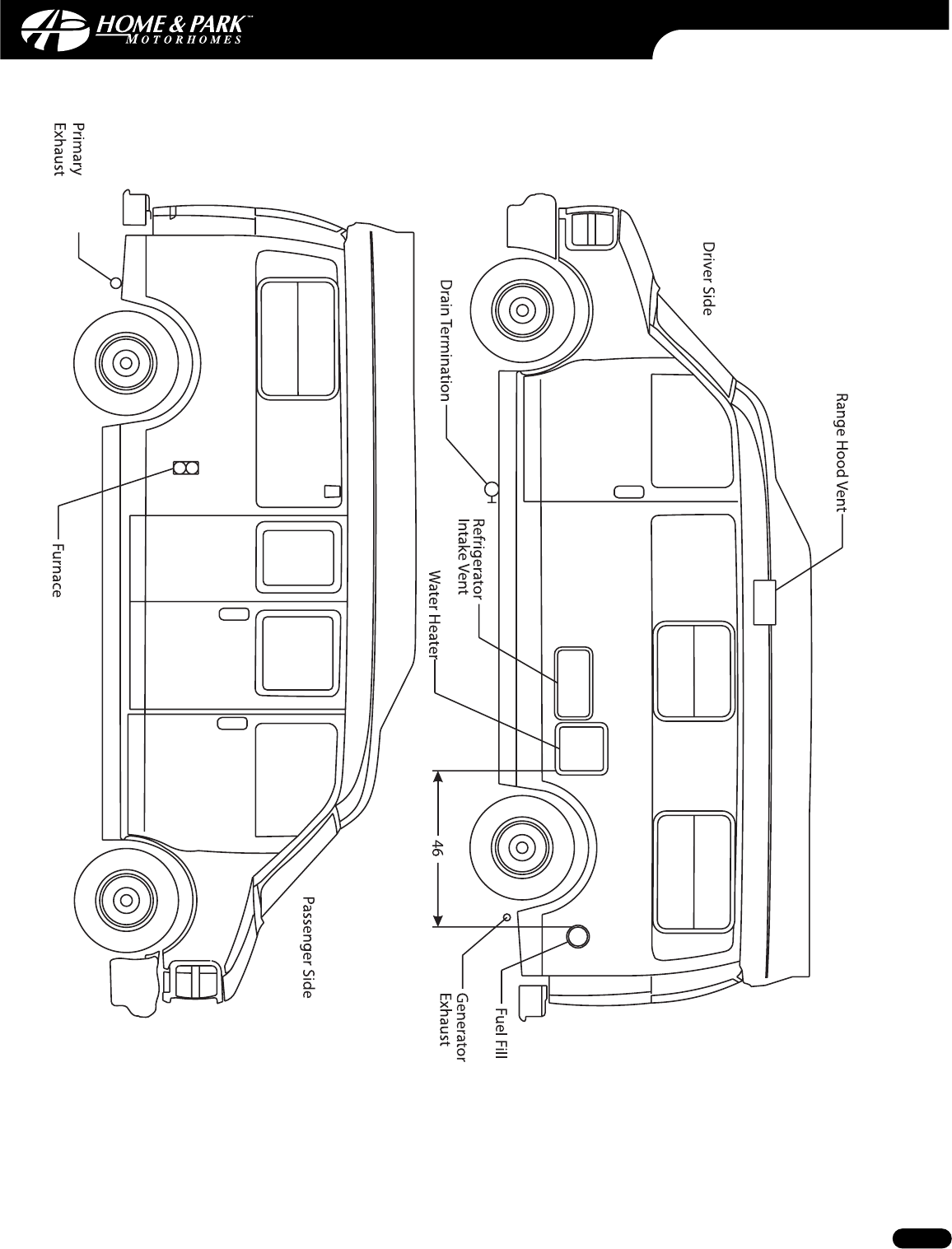

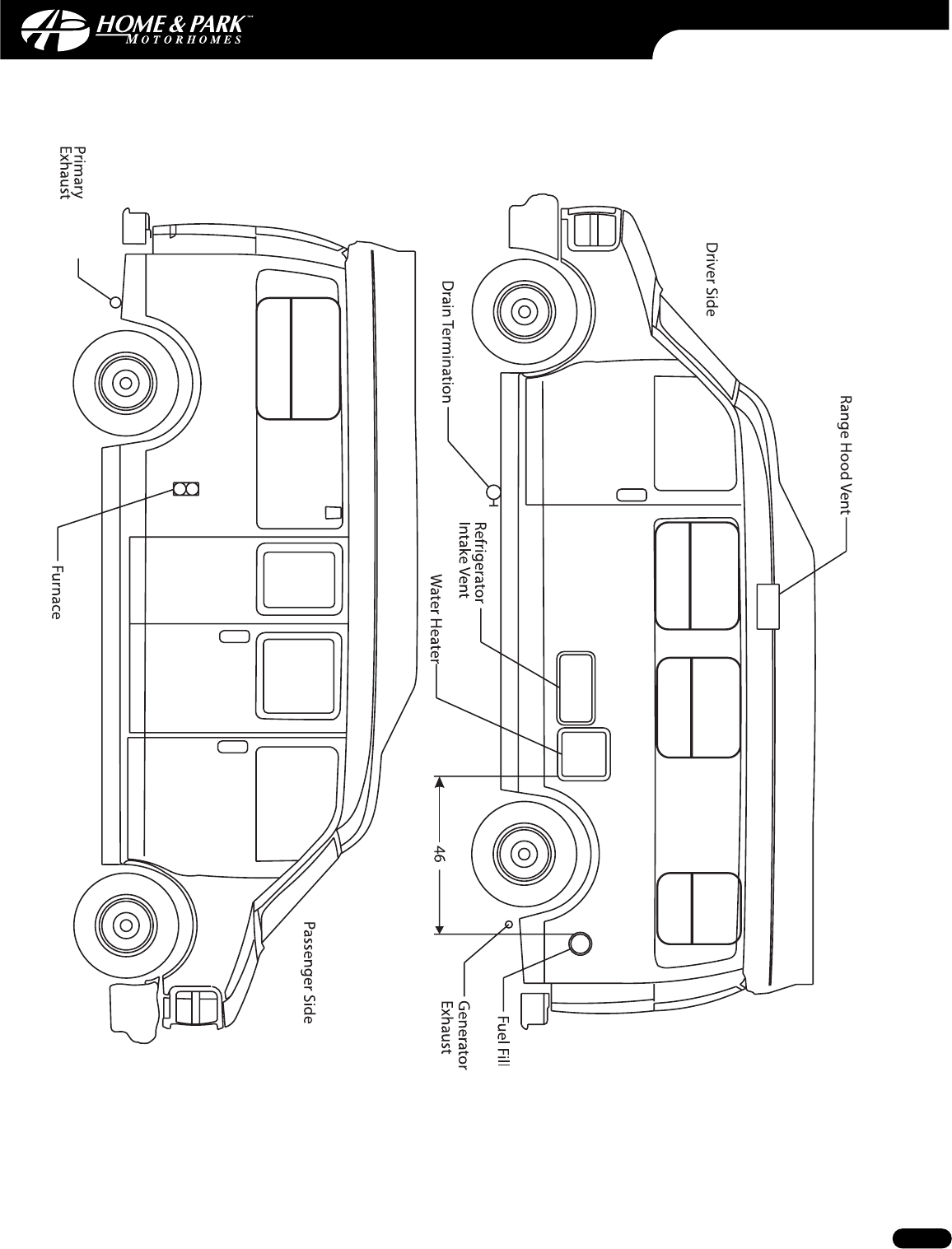

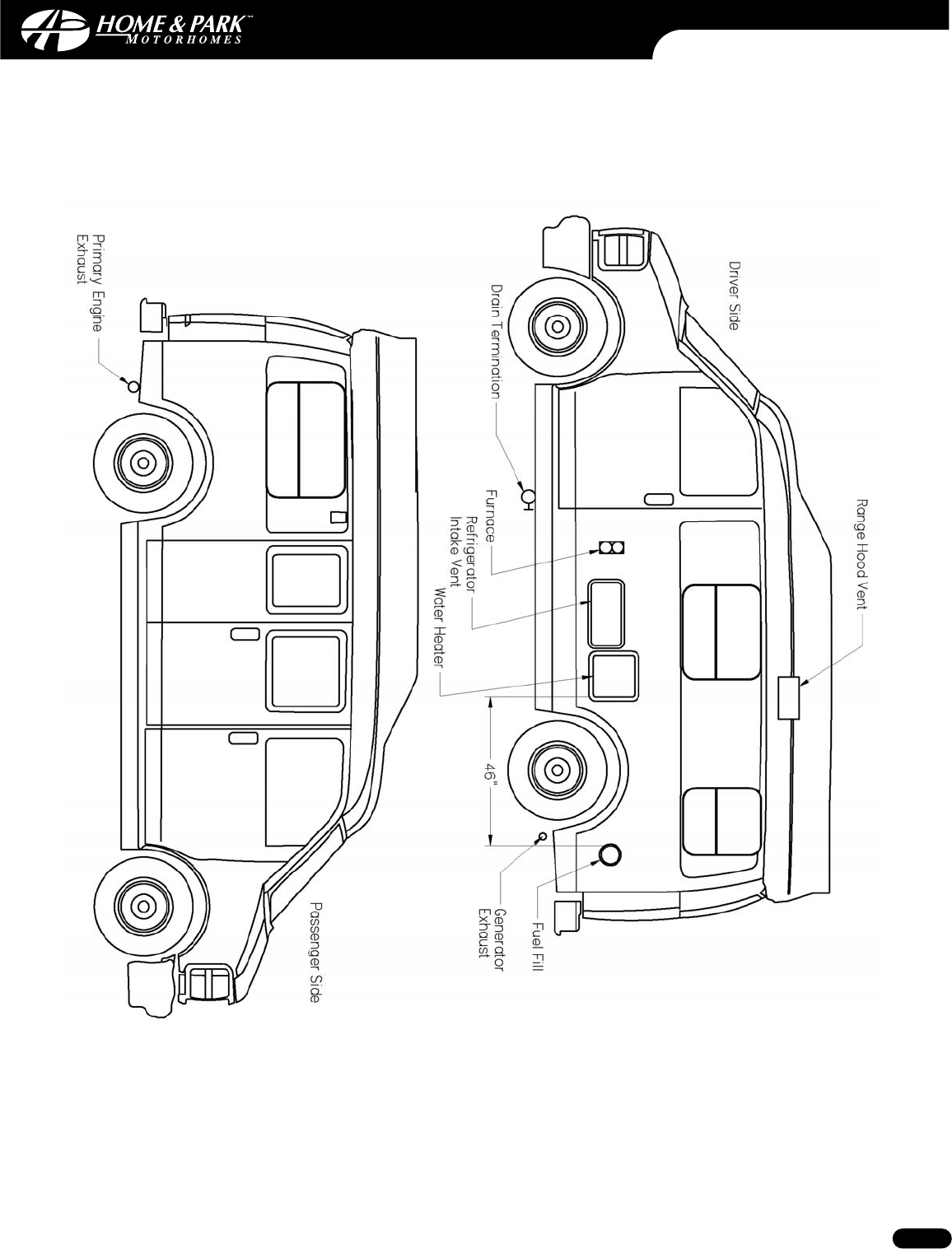

Elevation (170-Popular Chevrolet) ______________________________________________________________________ C-1

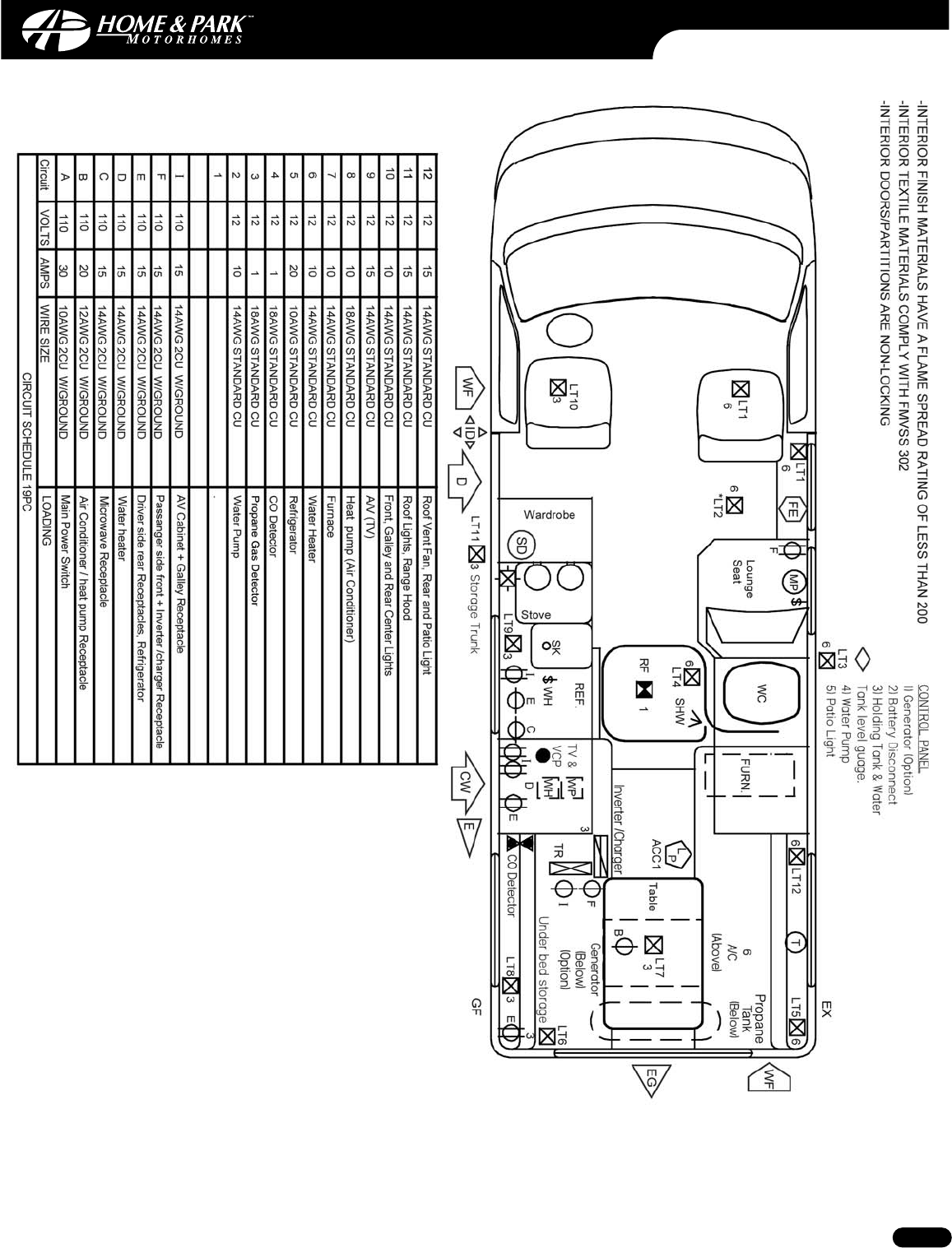

Floor Plan with Appliance Location (170-Popular Chevrolet) ________________________________________________ C-2

Elevation (190-Popular Chevrolet) ______________________________________________________________________ C-3

Floor Plan with Appliance Location (190-Popular Chevrolet) ________________________________________________ C-4

Elevation (190-Versatile Chevrolet) ______________________________________________________________________ C-5

Floor Plan with Appliance Location (190-Versatile Chevrolet) ________________________________________________ C-6

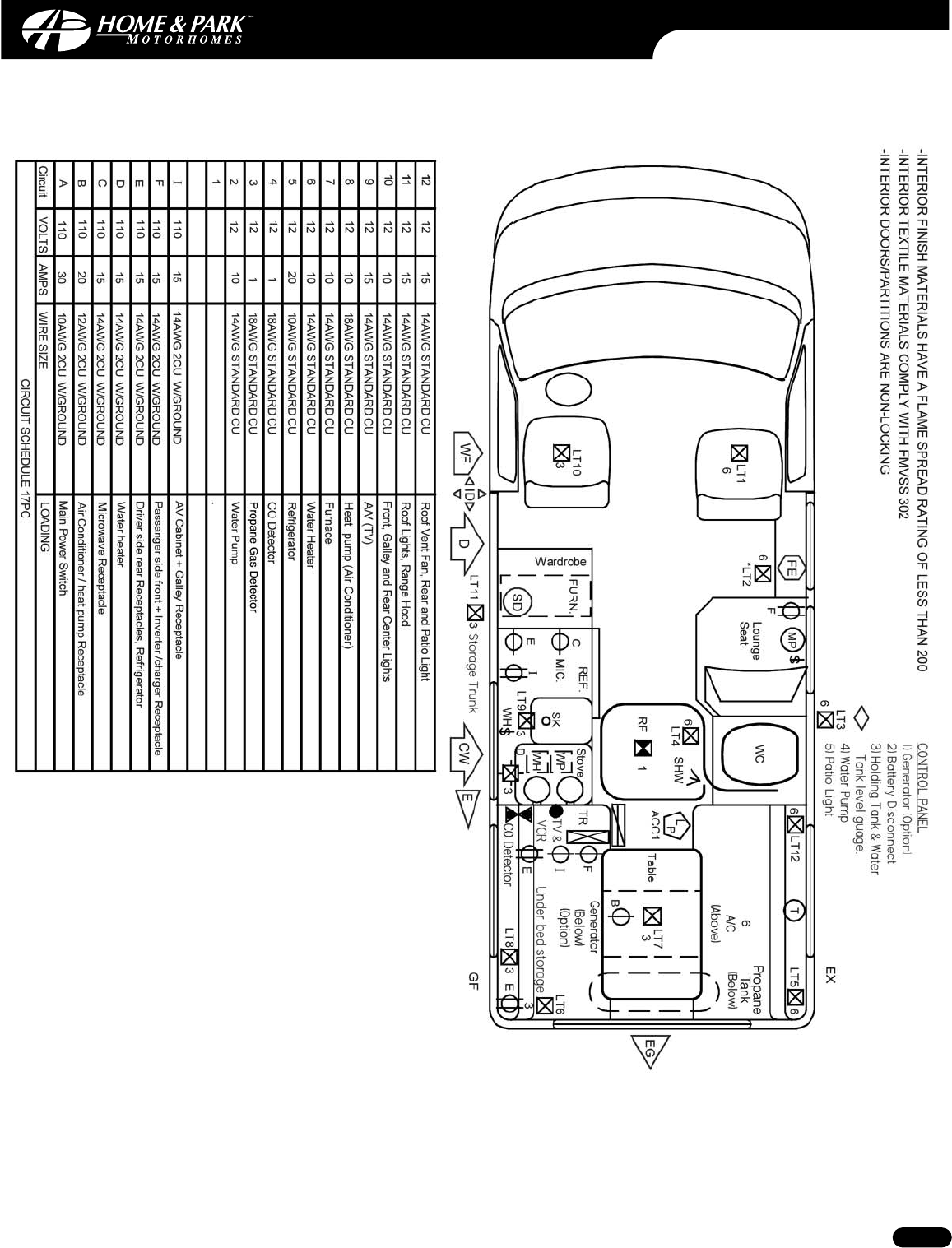

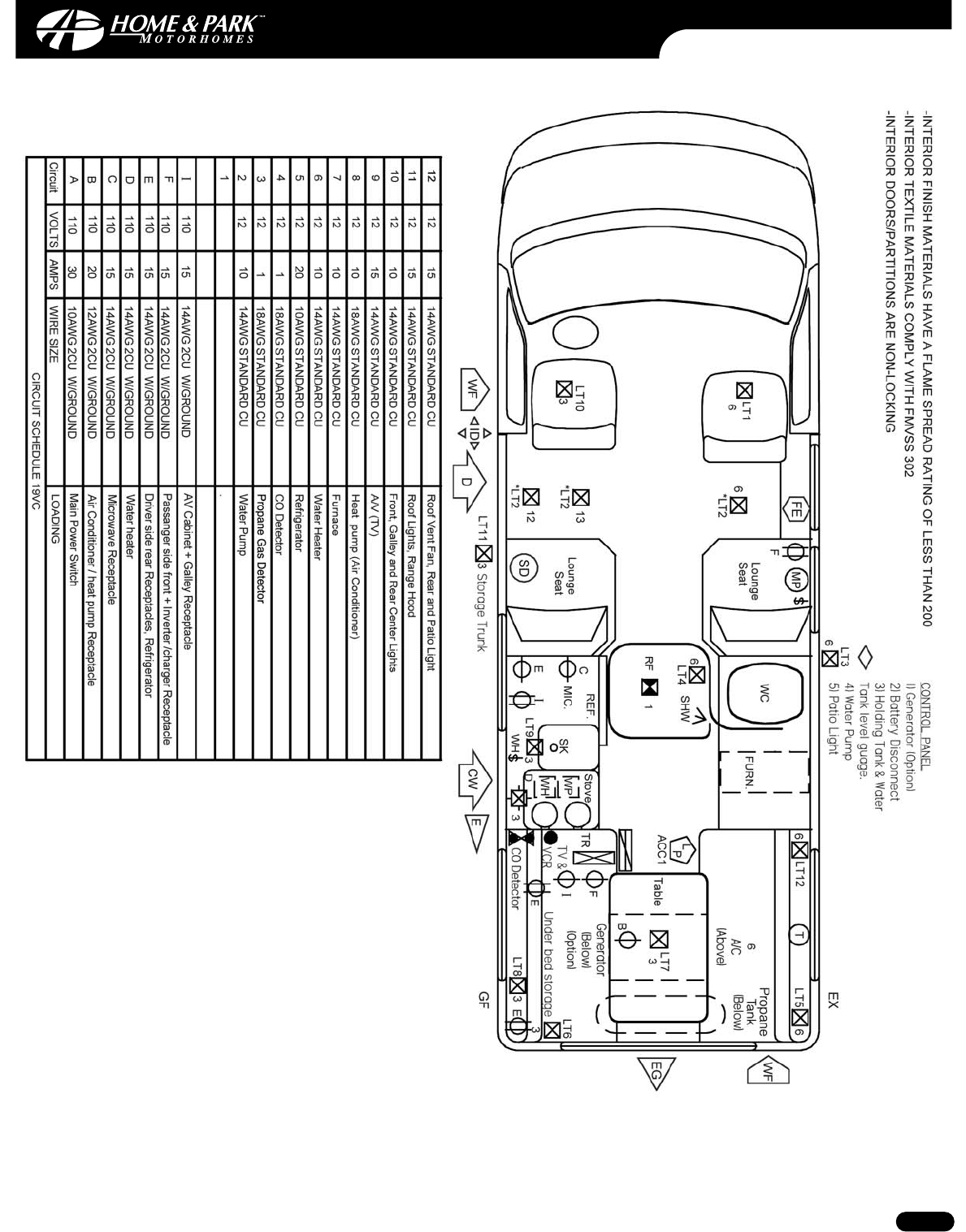

Electrical System Legend______________________________________________________________________________ C-7

Appliance Log______________________________________________________________________________________ D-0

170 and 190 Chevrolet Roadtrek Appliance & Accessory Manufacturer’s Log____________________________________ D-1

TABLE OF CONTENTS

Electrical System____________________________________________________________________________________ E-0

Electrical System____________________________________________________________________________________ E-1

Inverter ____________________________________________________________________________________________E-1

10V Inverter/Charger Shut Down ________________________________________________________________________E-1

Inverter/Charger Start up After Automatic Safety Shut Down ________________________________________________E-1

Dry Camping Battery Conservation ______________________________________________________________________E-1

Receptacle Functionality ______________________________________________________________________________E-1

120 / 12V Inverter / Charger / Distribution Panel __________________________________________________________ E-2

External Electrical Source Connection____________________________________________________________________ E-2

Generator __________________________________________________________________________________________ E-2

Built-in 110 V Heat Pump - Air Conditioner________________________________________________________________ E-2

TV ________________________________________________________________________________________________ E-3

Monitor Panel ______________________________________________________________________________________ E-3

Auxiliary Battery and Isolator __________________________________________________________________________ E-4

Automotive Battery __________________________________________________________________________________ E-4

Interior Cab Light ____________________________________________________________________________________ E-4

Range Hood Exhaust Fan ______________________________________________________________________________ E-4

Water Heater ________________________________________________________________________________________E-4

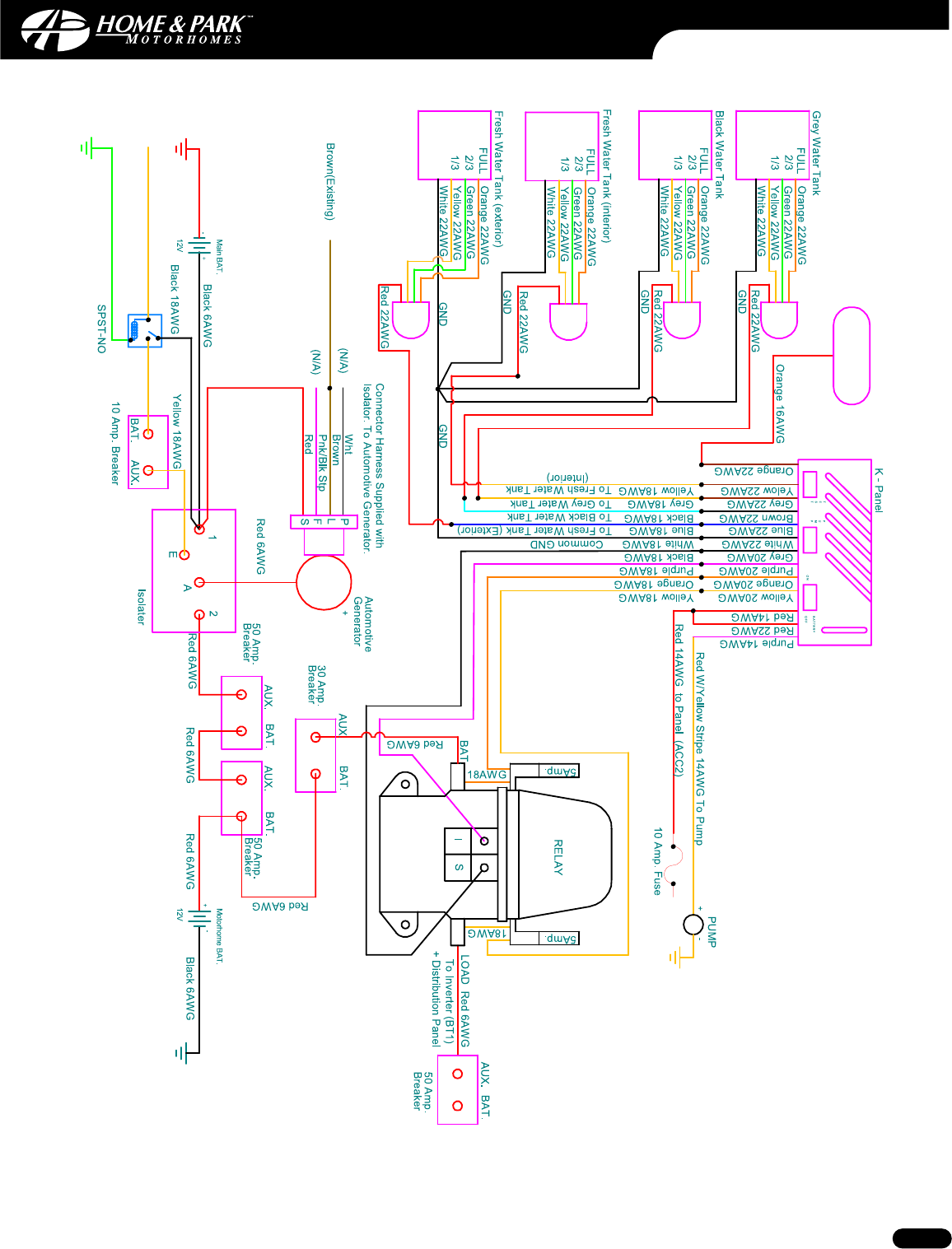

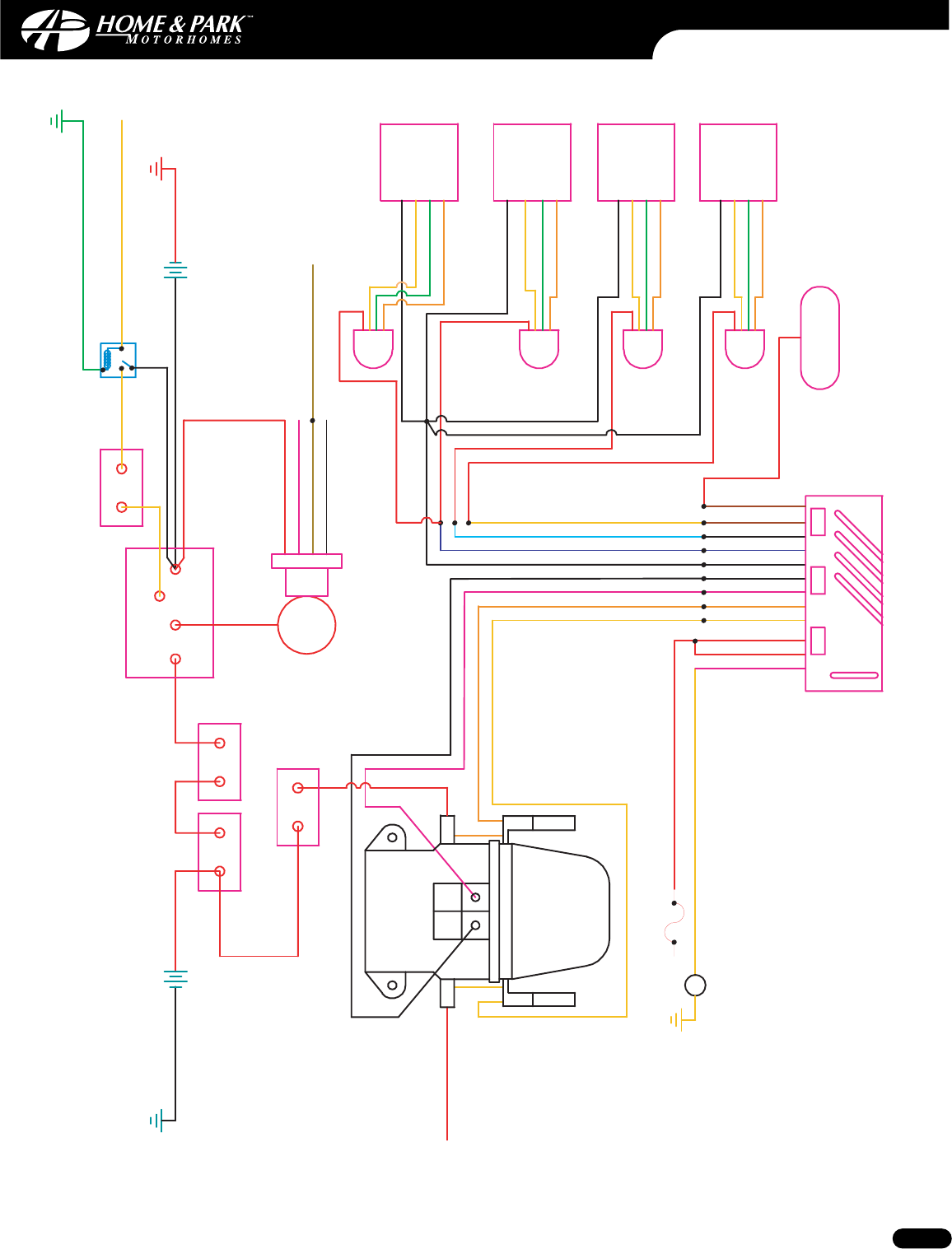

Electrical System Schematics ______________________________________________________________ E-5 - E-6 - E-7 - E-8

Propane & Safety System ____________________________________________________________________________ F-1

Propane Tank________________________________________________________________________________________ F-2

Appliances__________________________________________________________________________________________ F-2

Refueling Procedures ________________________________________________________________________________ F-2

Regulator __________________________________________________________________________________________ F-2

Propane Leak Detector________________________________________________________________________________ F-3

Carbon Monoxide Leak Detector________________________________________________________________________ F-3

Smoke Detector ____________________________________________________________________________________ F-3

Propane System Schematic (170-Popular Chevrolet) ______________________________________________________ F-4

Propane System Schematic (190-Popular Chevrolet) ______________________________________________________ F-5

Propane System Schematic (190-Versatile Chevrolet) ______________________________________________________ F-6

Water Systems ____________________________________________________________________________________ G-0

Filling the Interior Fresh Water Tank (190 Models only)______________________________________________________ G-1

Filling the Exterior Fresh Water Tank (All Models) __________________________________________________________G-1

City Water Connection________________________________________________________________________________ G-2

Waste Water Storage and Dumping System ______________________________________________________________ G-3

Waste Water Tank Preparation __________________________________________________________________ G-3

Waste Water Tank Dumping ____________________________________________________________________ G-4

Waste Water Tank Flushing ____________________________________________________________________ G-5

Outside Shower ____________________________________________________________________________________ G-5

Potable Water System Draining ________________________________________________________________________G-5

Potable Water System Sanitizing________________________________________________________________________ G-6

Potable Water System Winterizing ______________________________________________________________________ G-6

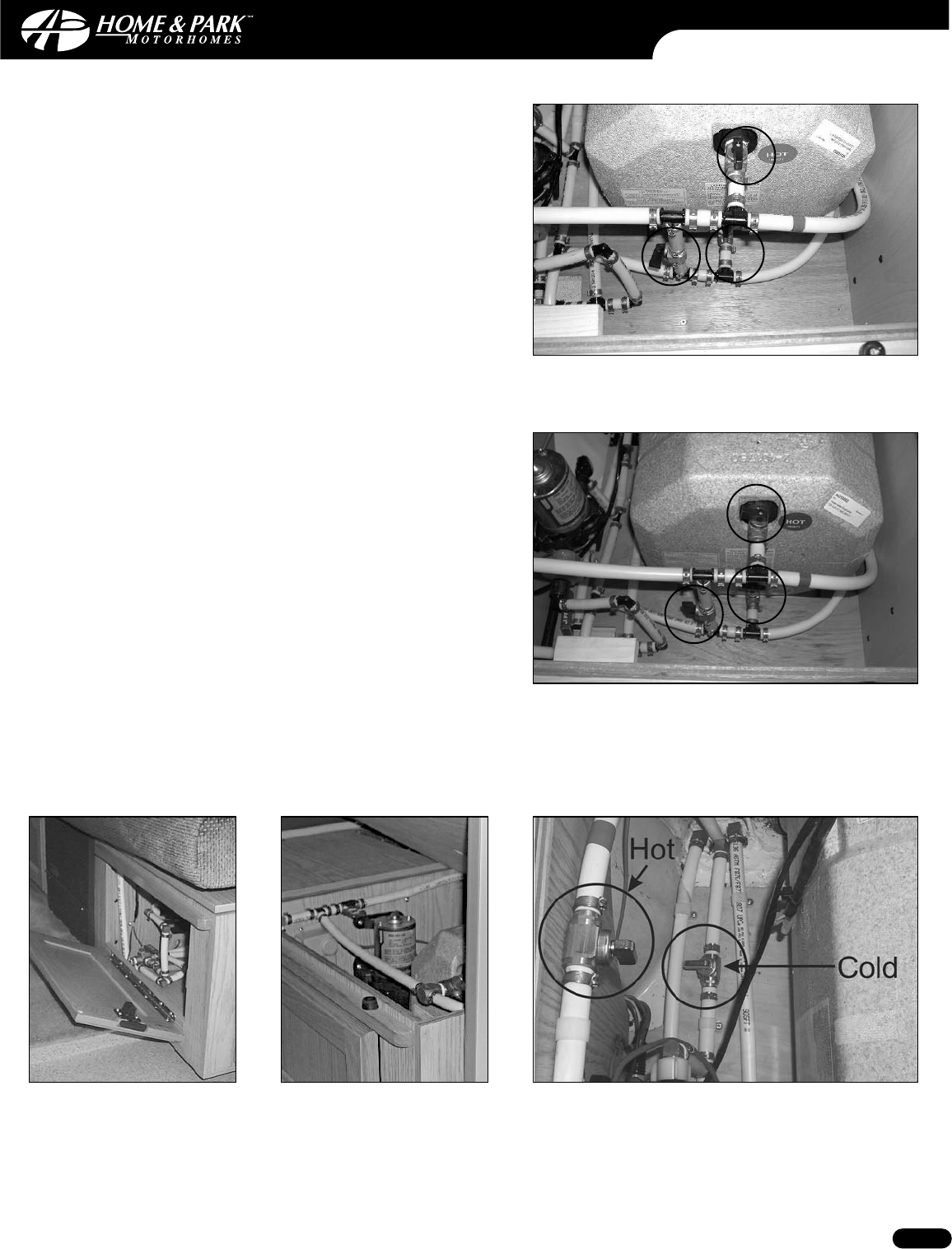

Winter Mode Valve Positions (190 Models only) __________________________________________________________ G-7

Summer Mode Valve Positions ________________________________________________________________________ G-7

Winter Use (Moderate Subfreezing Conditions) (190 Models only) ____________________________________________ G-7

To De-Winterize ____________________________________________________________________________________ G-9

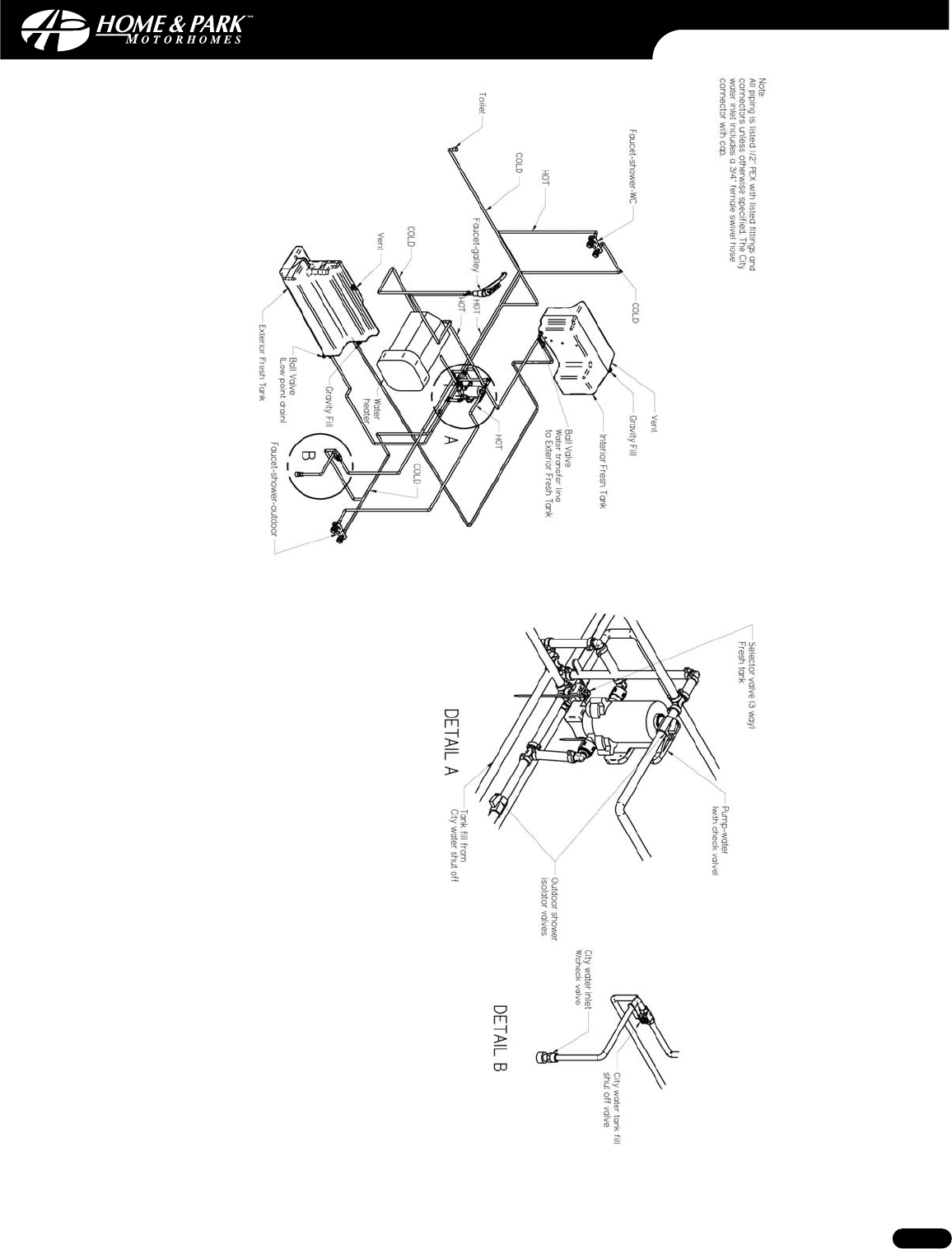

Water Systems Schematic (190 Chevrolet) ______________________________________________________________ G-10

Water Systems Schematic (170-Popular Chevrolet) ________________________________________________________G-11

TABLE OF CONTENTS

Water Systems Schematic (170-Popular Chevrolet) ________________________________________________________G-12

Water Systems Schematic (190-Popular Chevrolet) ________________________________________________________G-13

Water Systems Schematic (190-Versatile Chevrolet)________________________________________________________G-14

Owner Maintenance ________________________________________________________________________________ H-0

Exterior Maintenance ________________________________________________________________________________ H-1

Exterior Washing ____________________________________________________________________________________ H-1

Other Maintenance __________________________________________________________________________________ H-1

Winter Storage ______________________________________________________________________________________ H-1

Inside Your Vehicle ____________________________________________________________________________ H-1

Outside Your Vehicle __________________________________________________________________________ H-1

Spring Start-Up ____________________________________________________________________________________ H-2

Tires ______________________________________________________________________________________________ H-2

Cargo Carrying Capacity ______________________________________________________________________________ H-2

Owner Maintenance Checks __________________________________________________________________________ H-2

When You Stop for Fuel ________________________________________________________________________ H-2

At Least Monthly ____________________________________________________________________________ H-2

At Least Once Every Three Months ______________________________________________________________ H-2

At Least Twice A Year __________________________________________________________________________ H-3

At Least Once A Year __________________________________________________________________________ H-3

Auxiliary Battery ____________________________________________________________________________________ H-3

Aluminum Wheel Maintenance ________________________________________________________________________ H-4

Limited Warranty Information ________________________________________________________________________ I-0

Limited Warranty Definitions __________________________________________________________________________ I-1

Home & Park Limited Warranty Registration Card __________________________________________________________ I-1

Automotive Warranty - General Motors (Chevrolet Chassis) ______________________________________________ I-1 - I-2

Limited Warranty Information __________________________________________________________________________ I-2

Automotive Customer Service & Roadside Assistance Numbers ______________________________________________ I-2

Appliance Warranty __________________________________________________________________________________ I-2

Manufacturer Contact Information ______________________________________________________________________ I-3

Home & Park Limited Motorhome Warranty____________________________________________________________ I-4 - I-5

Customer Assistance ________________________________________________________________________________ J-0

Reporting Safety Defects (U.S.Only) ____________________________________________________________________ J-1

Roadtrek Ambassador Potential Customer Referral Program for Roadtrek Owners ________________________________ J-1

Roadtrek Club International ____________________________________________________________________________ J-2

Address,Phone & Facsimile Numbers,and E-mail __________________________________________________________ J-2

WebsiteJ-2

Obtaining Motorhome Service________________________________________________________________________ K-1

Roadtrek International Chapter FMCA / A Roadtrek Owners’Club Membership Forms________________________ L-1

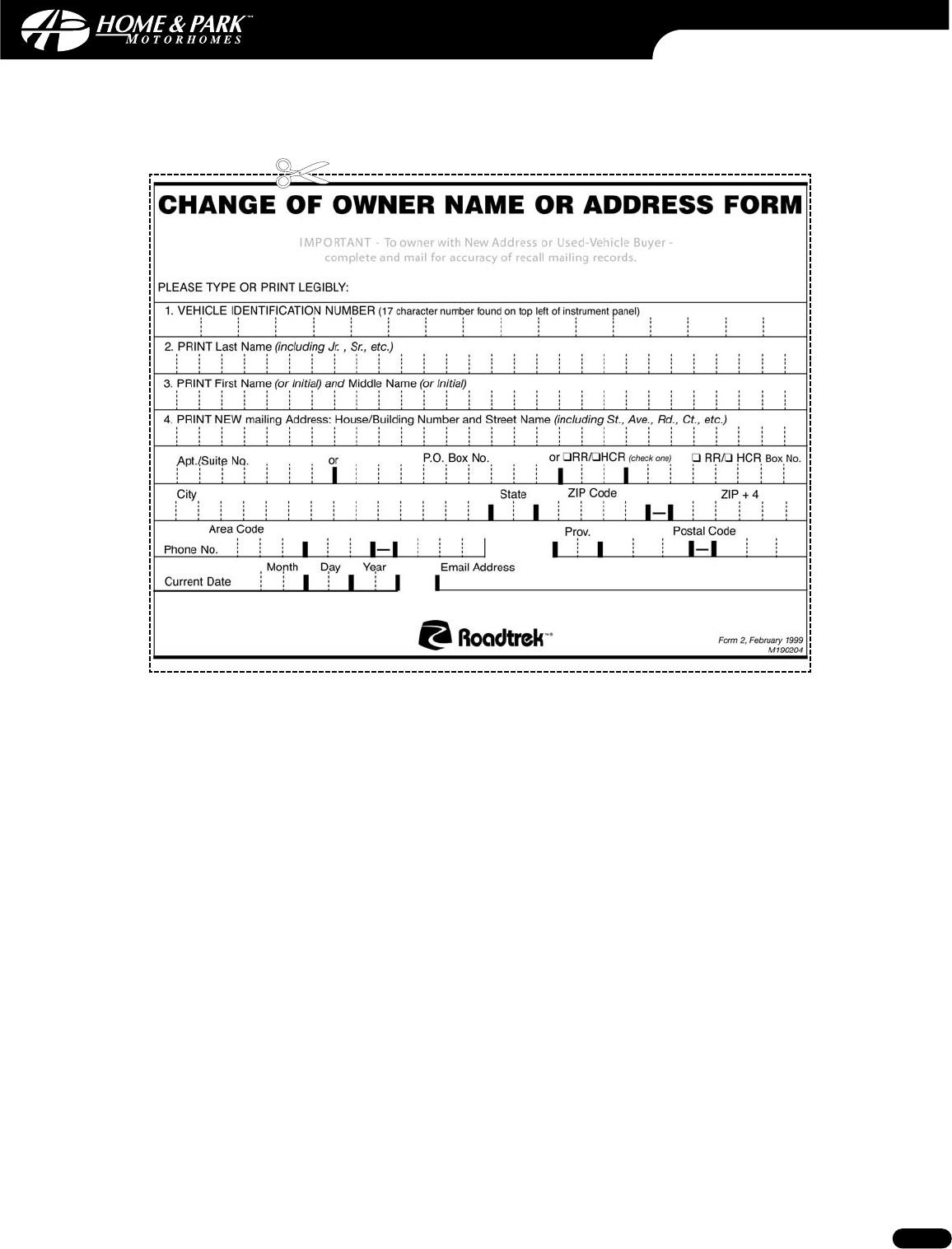

CChhaannggee ooff OOwwnneerr NNaammee oorr AAddddrreessss Form ________________________________________________________________ L-2

Potential Customer Referral Card______________________________________________________________________ L-4

INTRODUCTION

A WORD TO ROADTREK OWNERS...

This manual has been prepared to acquaint you with the operation,maintenance and warranties of your new

Roadtrek Motorhome Van.Your vehicle has been designed,engineered and manufactured to provide you with

the utmost in pleasure,dependability and quality.It is important that you read the contents of this manual,that of

the Chevrolet chassis and those of other components,and follow the instructions and recommendations contained

in each to help assure the most enjoyable and trouble free operation of your vehicle.

We would like to take this opportunity to thank you for selecting a Home & Park product and assure you of our

continuing commitment to your recreational vehicle pleasure,safety and satisfaction.

INTRODUCTION

This manual has been written to provide you with the information required to properly operate and maintain your

new Roadtrek.After reading this manual,be sure to keep it in your vehicle as a reference.Your Home & Park dealer

will be glad to answer any further questions about the operation of your vehicle.

IMPORTANT

Every reasonable precaution has been undertaken in the preparation of this manual resulting in the utmost

accuracy possible at the time of publication.However,due to the continuing improvement and refinement of our

products and normal changes in information and procedures,Home & Park shall assume no responsibility

whatsoever for errors or omissions in the manual’s contents.

Further,Home & Park shall not be held liable or assume any obligations or responsibilities whatsoever for any loss,

damage or injury directly or indirectly caused by,arising or resulting from,or as a consequence of the use or

nonuse of the information contained herein or the operation or non-operation of any items mentioned herein.And

finally,Home & Park shall be indemnified and saved harmless from all losses,expenses,claims and demands

whatsoever.

INTRODUCTION

Gross Combination Weight Rating (GCWR)

The Chevrolet 3500 extended van has a GCWR of 6350

Kg/14000 lbs for the standard engine (6.0 L) and 7258

Kg/16000 lbs for the optional 4.10 rear axle ratio.

Gross Vehicle Weight Rating (GVWR): is the maximum

permissible weight of this vehicle when fully loaded.It

includes all weight at the vehicle axle(s).

Unloaded Vehicle Weight (UVW): is the weight of this

motorhome as manufactured at the factory.It includes all

weight at the vehicle axle(s).If applicable,it also includes full

generator fluids,including fuel,engine oil and coolants.

Cargo Carrying Capacity (CCC): is equal to GVWR minus

each of the following:UVW,full fresh (potable) water weight

(including water heater),and full propane weight and SCWR.

Gross Combination Weight Rating (GCWR):(motorhomes

only):means the maximum allowable loaded weight of this

motorhome and any towed trailer or towed vehicle.

Sleeping Capacity Weight Rating (SCWR):(motorhomes

only):is the manufacturer’s designated number of sleeping

positions multiplied by 154 pounds (70 kilograms).

Gross Axle Weight Rating (GAWR):is the value specified as

the load carrying capacity of a single axle system,as

measured at the tire-ground interfaces.

Towing Guidelines:Consult Chevrolet Owners Manual(s) for specific weighing instructions and towing guidelines

including auxiliary brake requirements for any towed trailer or towed vehicle.

Weighing Procedure:Prior to weighing each unit,the fuel tank must be full,as well as the fresh water tank.All tires

must be of equal pressure,and any snow must be removed.

Note the weighing must be done on level ground!

Equipment:2 Portable Scales (including electrical power source),2 wooden ramps,lift and pressure gauge.

Alternate: D.O.T.approved customer scales

Note:Wooden ramps must be equal to or less than 1/8" of the height of the scales being used.

Procedure:

1) Fill Fuel Tank

2) Fill Fresh Water Tank

3) Measure all tire pressures and equalize if necessary

4) Place wooden ramps below rear wheels (using lift or driving onto ramps for levelling vehicle;N/A if

commercial scales used)

5) Place scales under front wheels

6) Record scale readings

7) Repeat for rear wheels

8) Fill Propane Tank

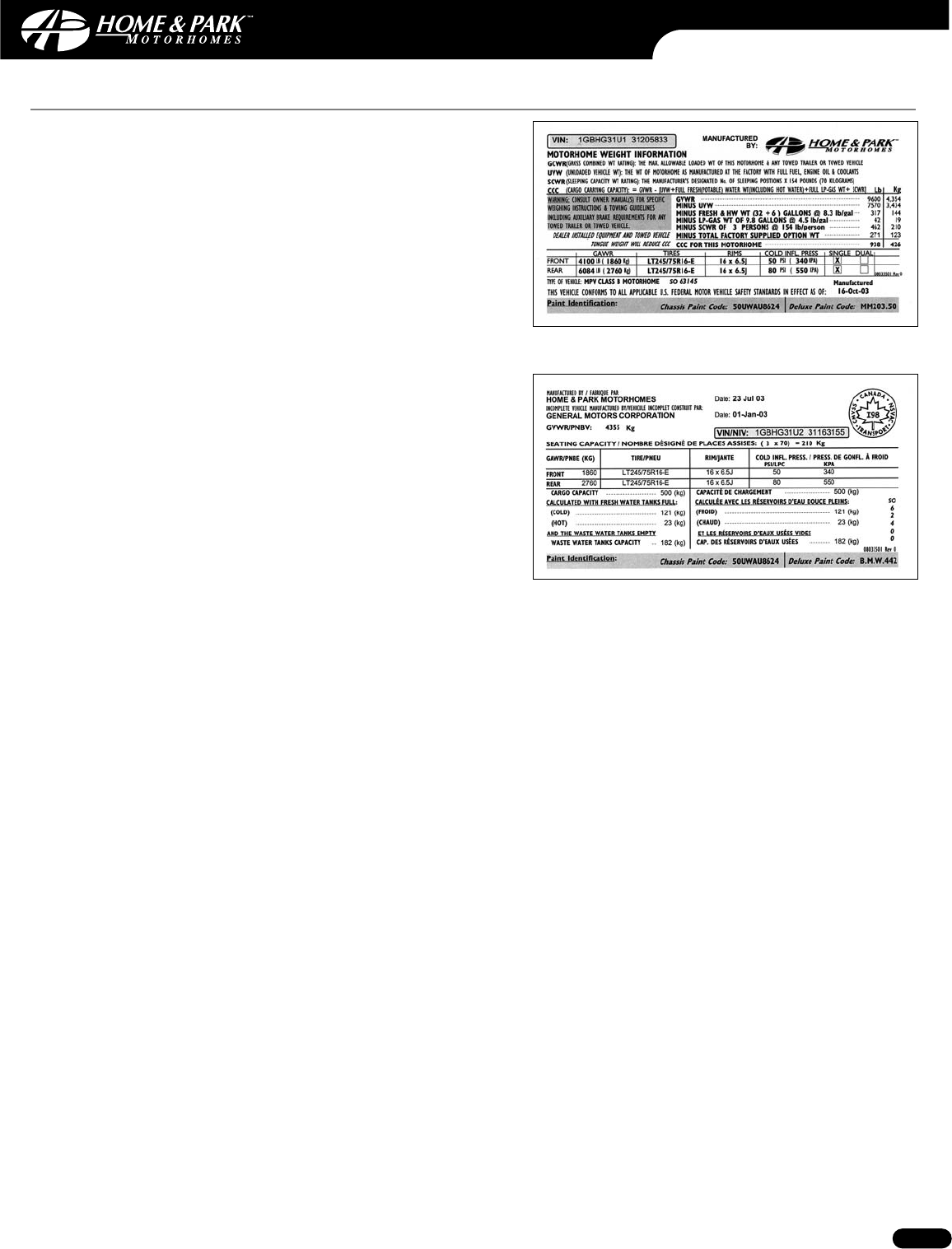

Sample of Canadian Weight label:

Sample of US Weight label:

CAPTAIN’S SEATS:

To recline,pull up the recline control lever below the inboard

armrest and lean back.

To slide,pull up on the slide bar located on the front of the

seat and slide the seat either forward or back,

(see Picture B-P1B).

To swivel the seats from a forward facing position to a

rearward facing position pull the swivel lever up,

(see Picture B-P1A).

Important Note:Before swiveling the seat you must be

aware of the following:

1. Ensure that the back of the seat is reclined forward,

as far as the recline control allows.

2. Slide the seat forward but not so far as to lose

clearance of the engine cover.Pull up on slide bar,

(see Picture B-P1B).

3. Put the tilt steering wheel in the downward

position.

4. The swivel lever is located on the door side of the

seat and locks the seat in a forward facing position.

To release pull the swivel lever up and the seat

freely swivels,(see Picture B-P1A).

5. Swivel the seat to the desired position,

(see Picture B-P2).

DAILY LIVING

Picture B-P1B: View of the front of the Captain’s seat,

showing the location of the slide bar.

Picture B-P1A: View of the side of the Captain’s seat,

showing the location of the swivel lever.

Picture B-P2: Captain seats swiveled towards the

rear of the Motorhome.

SEAT BELT USAGE:

Only forward facing seats equipped with factory installed seat belts are to be occupied while the vehicle is in

motion.All passengers must be seated in these seats only with the seat belts fastened while the vehicle is in

motion.

Swivel Lever

Slide Bar

DAILY LIVING

CLOVERLEAF DINING TABLE:

The cloverleaf dining table is stored in the front wardrobe

closet,(see Picture B-P3 for Popular models and see

Picture B-P4 for Versatile models).Remove table leg and

place it in the floor base receptacle located in front of the

wardrobe.Place table top on top of table leg.

To use the “leaves”:

1. Pivot the table into the desired position.

2. In a seated position,with one hand on the top of

the table,use the other hand to unfold the desired

leaf to the upright position.

To return the “leaf”to its original position,follow these steps:

1. Hold the leaf with one hand.

2. With the other hand reach under the table and

carefully press on the center of the downward

facing part of the spring hinge.

3. Fold the leaf back into the stored position.

Caution:Cloverleaf dining table is heavy,lift bending knees.

Picture B-P3: Wardrobe closet showing location of

the table and table support pole,(Popular models).

Picture B-P4:Storage location of cloverleaf table,

(Versatile models).

DAILY LIVING

DINETTE TABLE:

The table leg is stored in the front wardrobe closet,(see Picture B-P3).Remove the table leg and place in the floor

base receptacle located at the rear next to the night table.

The table top is stored under the driver side rear bed cushion,(see Picture B-P6 and B-P8).Place table top on table leg,

(see Picture B-P5 and B-P7).

When returning table top to the storage position ensure the table base is placed correctly in the table base

receptacle located on top of the rear driver side bench,(see Picture B-P6 and B-P8).Return table leg to front

wardrobe closet and clip into place for proper storage,(see Picture B-P3 for Popular models and see Picture B-P2

for Versatile models).

Picture B-P6: Storage location of dinette table,

showing placement of the table base receptacle,

(Popular models).

Picture B-P5:Location of assembled dinette table,

(Popular models).

Picture B-P7:Location of assembled dinette table,

(Versatile models). Picture B-P8:Storage location of dinette table,

showing placement of the table base receptacle,

(Versatile models).

DAILY LIVING

SLEEPING FACILITIES:

REAR TWIN BEDS (190-Popular Model):

To convert the dinette into twin beds:

1. Remove the table and leg from its receptacle and

place the table under the driver side seat cushion,

(see Picture B-P6 on page B-3).

2. Place both back rest cushions on the floor

vertically up against the seat base boxes or store if

desired.

Warning:Do not allow cushions to block furnace vents.

3. Pull each seat cushion 3" (8 cm) from the wall to

provide additional elbow room while sleeping.

4. Night table can be removed and stored if desired,

(see Picture B-P9).

To convert back to a dinette,perform these steps in reverse order.

REAR KING-SIZE BED (190-Popular Model):

To convert the dinette into a king-size bed:

1. Remove the privacy curtain from its Velcro support

on the lower edge of the suspended cupboard door.

2. Remove the table and leg from its receptacle.

3. Remove night table and store.In order to remove,

unscrew the wing bolt found on each side of the

night table,(see Picture B-P9).Store wing nut in

the night tables drawer when not in use.

4. Place table top in center and wood insert as

shown,(see Picture B-P10).

5. Place both bolster cushions,(back rests) in centre

in a tepee position,(see Picture B-P11).

NOTE:The longer bolster cushion must be placed

on the driver side,so as to provide clearance for

the bathroom door.

6. Push down the bolster cushions so they lay flat to

create the king size bed.

To convert back to a dinette,perform these steps in

reverse order.

Picture B-P10:Placement of support pieces for the

king size bed,(Popular model).

Picture B-P11:Placement of back rest cushions,

(Popular model).

Picture B-P9:Wing nuts attaching the night table,

are accessed from the sides of the night table as

pictured above,(Popular model).

DAILY LIVING

REAR KING BED

If desired,place the small cushion insert at the rear of the

bed to create additional bed length,(see Picture B-P12 and

Picture B-P14).

REAR L-SHAPED LOUNGE TO DOUBLE BED

(190-Versatile & 170-Popular Models):

1.Remove the table and leg from their base and place

the table on the lateral support located on the upper

edge to seat base boxes,(see Picture B-P13).

2.Remove center dinette cushion,(see Picture B-P15).

Center dinette cushion is extra.

3.Unfold back rest cushions and place on top of table,

(see Picture B-P16).

Note:The shorter passenger side seat rest cushion

goes on the bottom,rear back rest cushion on top.

Picture B-P15:Centre dinette cushion,(Versatile

model).

Picture B-P13: Placement of support pieces for the

double bed,(Versatile model).

Picture B-P16:Placement of back rest cushions,

(Versatile model).

Picture B-P12: Small cushion insert - before

insertion,(190 Popular model).

Picture B-P14: Small cushion insert in place creates

more sleeping surface,(190 Popular model).

DAILY LIVING

DINETTE TABLE STORAGE

Remove the table leg and store.

Note:The dinette table leg is stored behind the rear closet

door,(see Picture B-P4 on page B-2).

1. The dining table is stored under the driver’s side

rear cushion,(see Picture B-P21).

REAR DINETTE TO DOUBLE BED (190-Versatile Model):

To convert the dinette into a double bed.

1.Remove table leg and store,(see Picture B-P4).

2.Place the table in centre,(see Picture B-P18).

3.Place both back rests in the centre in a tepee

position,(see Picture B-P19).

4.Push down on the top of the cushion “tepee”

until they lay flat,(see Picture B-P20).

Picture B-P21:Dining table storage.

Picture B-P19:Arrange cushions like a tepee

Picture B-P18: Placement of table top for bed.

Picture B-P20:Lay cushions flat.

Picture B-P17:Rear dinette

living setup.

FRONT LOUNGE SEATS:

To convert the lounge seat into a single bed:

1. Be sure all armrests

are in an upright

position.Swivel the

passenger captain’s

seat 270 degrees

counter clockwise

so that the backrest

is toward the center

aisle,(see Picture

B-P22).

2. Slide out the

drawer under the

passenger seat and

fully extend the

drawer forward

until it touches the

raised platform,(see

Picture B-P23).Raise

the support block

located at the front

of the drawer,(see

Picture B-P24).

3. Lift the back rest

cushion upward,

(on the lounge seat)

remove it from its

metal support and

place it flat on top

of the drawer,with

the tapered end

forward,(see Picture

B-P25).

To convert back to a

lounge seat,perform

these steps in reverse

order.

The lounge seat is designed to carry a passenger while your vehicle is in motion and is equipped with seat belts

installed for their protection.All passengers must be seated in the front captain’s seats facing forward or the

passenger lounge seat with seat belts fastened while vehicle is in motion.All other seats are not to be occupied

while vehicle is in motion.The lap belts must be worn across the hips and not across the abdomen.Passengers

must sit well back in the seat and in an upright position.

DAILY LIVING

Picture B-P24:Raised support.

Picture B-P23:Extended drawer.

Picture B-P22:Swiveled front captain seat.

Picture B-P25:Front lounge bed.

DAILY LIVING

WASHROOM AND PRIVACY AREA:

REAR PRIVACY DOORS (190-Popular Model):

When privacy is required:

1. Open the door on the suspended cupboard on the

passenger side of your vehicle,by pressing the side

latch.

2. Release the plastic turn tab,(found near the top of

the inside door) that secures the inner door,extend

this door until privacy is achieved,

(see Picture B-P26).

3. Ensure the privacy door is secured behind the A/V

door,(see Picture B-P27).

4. If desired,hang the curtains from the Velcro

located on the lower edges of these doors to

maintain complete privacy.

To close the rear privacy doors perform these steps in

a reverse order.

Picture B-P27:Position of rear privacy door when

secured behind A/V door,(190 Popular model).

Picture B-P26:Rear privacy door in place,(190

Popular model).

DAILY LIVING

REAR PRIVACY DOORS (190-Versatile Model):

Open wardrobe door.

1. To open bi-fold door turn button 180 degrees and

extend bi-fold door until privacy is reached,

(see Picture B-P28).

FRONT PRIVACY DOORS (Popular Models):

When privacy is required:

1. To open the front privacy door,(toilet door) press

the round latch located to the right of the towel

bar until it pops out and pull on latch to open

door.

2. Release the plastic turn tabs that secure the inner

door and extend this door until privacy is achieved,

(see Picture B-P29).

3. Complete privacy in this area can now be achieved

by closing the curtain at the galley window.

FRONT PRIVACY DOORS (190-Versatile Model):

1. Open bathroom door and turn button 180

degrees.Extend bi-fold door until privacy is

obtained,(see Picture B-P30).

NOTE:Bi-fold will secure on microwave edge.

When the privacy doors are returned to a closed position,

ensure one that the inner doors are secured with the plastic

tabs and secondly that the doors themselves are closed

properly to prevent the doors from opening while traveling.

Picture B-28: Opened bi-fold

door,(Versatile model).

Picture B-P29:Front privacy door

opened,(190 Popular model).

Picture B-P30: Extended bi-fold

door,(Versatile model).

DAILY LIVING

WASHROOM FACILITIES:

TOILET:

1. Ensure that you achieve privacy by extending all privacy doors and closing the gallery curtain.

2. See appropriate component Manufacturer’s Owner’s Manuals for operating instructions.

STAND-UP AISLE SHOWER:

To set up the stand-up aisle shower:

1. Remove floor drain cover and drain plug from floor,

(see Picture P-B31).

2. Ensure that you achieve privacy by extending all

privacy doors and closing the gallery curtain.

3. Release the Velcro retention straps and move the

hand held shower from its storage position on the

shelf to its shower position,(see Picture B-P32).

4. Draw the shower curtain until you are completely

surrounded.

5. Using the Velcro connectors,secure the edges of

the curtain together allowing the shower hose to

hang within the shower area to retain any dripping

water inside the curtains.

6. When adjusting the water temperature,be sure to

allow enough time for the temperature adjusted

water to exit the shower head before making

further adjustments.

Note:To conserve water, discontinue the water flow at

the shower head between wetting and rinsing.

To put away the stand-up shower:

1. Rinse and dry the shower curtain thoroughly,(this

function is most easily performed before leaving

the shower area after use).

2. Allow the curtain to air dry completely,(this function

can be expedited using the power roof vent).

3. Replace drain plug in floor when finished.

To prevent grey water tank contents from spilling onto the

floor while driving,keep the drain plug secured when not in

use. Picture B-P32:Hand held shower head in its shower

position.

Picture B-P31:Floor drain,remove floor drain cover

using the access holes provided in the cover.

Floor drain cover

DAILY LIVING

EXTRA COUNTER SPACE:

In order to provide additional counter space,your

motorhome has the following three features:

1. stove counter top.

2. slide out shelf above the cutlery drawer.

3. slide out shelf below the TV.

To provide additional counter space the stove has a

removable cover,to remove the cover do the following:

1. The stove cover is friction fit so you just need to lift

and remove,(see Picture B-P33).

2. Store cover while cooking,when finished replace

stove counter top.

CAUTION:Make sure the stove is off and has cooled prior to

replacing stove counter top.

Additional counter space is provided above the cutlery

drawer,to access do the following:

1. Open cutlery drawer.

2. Reach under and slide the shelf forward,

(see Pictures B-P34 and B-P35).When shelf is no

longer in use wipe down and close cutlery drawer.

TV:

To view the flat screen display,loosen the thumb tab

and swing the screen to the position you desire,

(see Picture B-P36).

CAUTION:When vehicle is in motion it is recommended that

the TV be “OFF”and in the stored position.The thumb tab

should be secured once the TV is in the stored position.

Picture B-P34:Counter

top drawer partially open. Picture B-P35:Counter

top drawer fully open.

Picture B-P33:Lifting stove counter top.

Picture B-P36: Flat screen thumb tab.

Thumb tab

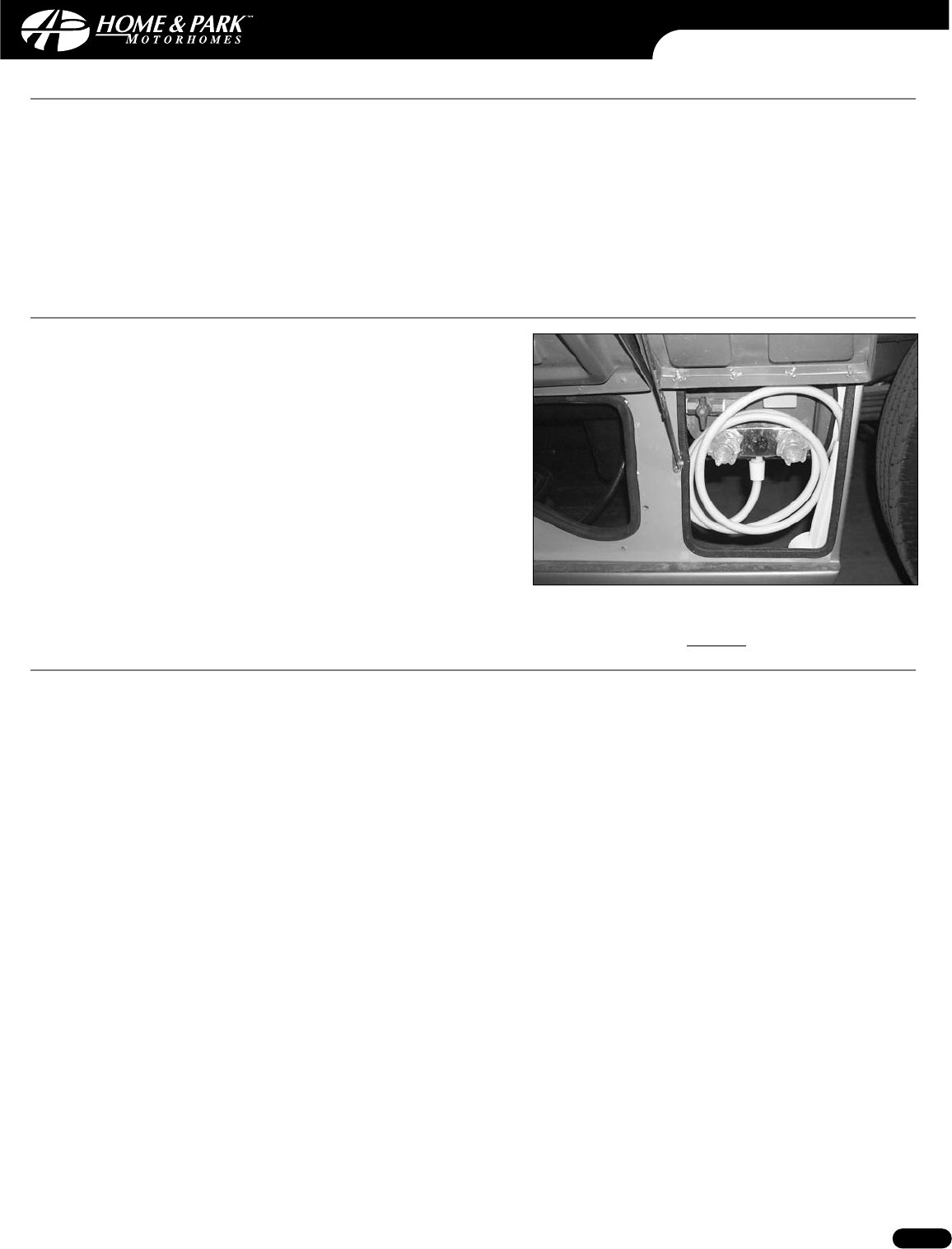

Picture B-P39:Middle access door,(190 models).

DAILY LIVING

EXTERIOR ACCESS DOORS:

DRIVER SIDE ACCESS DOORS (190 Models):

Behind the lockable front access door,(see Picture B-P38),

the following are found:

1. Sewage carrier and hose.

2. Grey water gate valve handle.

3. Black water gate valve handle.

4. Exterior fresh water drain valve.

Behind the lockable middle access door,(see Picture B-P39),

the following are found:

1. The power cord.

2. Storage for exterior shower hose.

3. Large storage area.

Behind the lockable rear access door,(see Picture B-P40),

the following are found:

1. The city water connection,(integrated at the side

behind the rear access door).

2. The city water by-pass valve.

3. The exterior shower taps.

4. The cable TV connection.

Picture B-P38:Front access door,(190 models).

Picture B-P40:Rear access door.

Picture B-P37:Driver side access doors,(190

models).

DRIVER SIDE ACCESS DOORS (170 Model):

Behind the lockable front access door,(see Picture B-P42),

the following are found:

1. Sewage carrier and hose.

2. Grey water gate valve handle.

3. Black water gate valve handle.

4. Fresh water drain valves,(see Picture B-P43).

Behind the lockable front access door,(see Picture B-P42),

the following are found:

1. The power cord.

2. Storage for exterior shower hose.

3. Large storage area.

Behind the lockable rear access door,(see Picture B-P44),

the following are found:

1. The city water connection,(integrated at the side

behind the rear access door).

2. The city water by-pass valve.

3. The exterior shower taps.

4. The cable TV connection.

DAILY LIVING

Picture B-P42:Front access door,(170 model).

Picture B-P44:Rear access door,(170 model).

Picture B-P41:Driver side access doors,(170 model).

Picture B-P43:Exterior fresh water drain valve,

(170 model).

DAILY LIVING

PROPANE ACCESS DOOR:

Behind the propane access door,(integrated into the rear

bumper,covered with a black plate),(see Picture B-P45),

the following are found:

1. Propane fill valve.

2. Propane tank shut off valve.

3. Portable barbecue connection.

PASSENGER SIDE ACCESS DOORS:

Behind the access door behind the rear wheel,

(see Picture B-P46),the following is found:

1. Slide out tray with auxiliary battery.

Behind the lockable access door in front of the rear wheel,

(see Picture B-P47),the following is found:

1. Storage area or second auxiliary battery,(when

installed),190 models only.

Picture B-P46:Access door behind rear wheel.

Picture B-P47:Dual battery access door in front of

the rear wheel.

Picture B-P45:Propane access.

MOTO-SAT SATELLITE ANTENNA SYSTEM (Optional):

Satellite service is not provided.This must be arranged by

the customer with service being offered by a choice of

companies including DirecTV,Dish Network and Bell Express

Vu.

The satellite signal strength can be compromised if the path

to the satellite is obstructed by buildings and/or trees,which

can cause poor or no reception.The satellite system must

not be used while the vehicle is in motion.

The satellite provides instant TV reception in the most remote of

locations,(see Picture B-P48).The satellite system is completely

automatic,one selects “Find Satellite”and the dish will do the

rest.There are on screen menus for ease of operation.

When in the stowed position,the dish is 9 ½ inches high,

(see Picture B-P49).The dish has auto stow within one (1)

minute if the vehicle is moved.

Moto-Sat warrants equipment to be free from defects in

material and workmanship under conditions of normal use

for a period of two (2) years from date of purchase.

Moto-Sat Customer Service Department is available toll free

at 800-247-7486.

SIGNAL SELECTION SWITCH:

Optional Satellite:

A: Antenna.

B: Satellite.

C: Cable.

Standard:

A: Antenna.

B: Cable.

DAILY LIVING

Picture B-P49:Satellite in “stowed”or travel position.

Picture B-P48:Satellite in “up”or ready for use

position.

Picture B-P49:Signal selection

switch,(standard). Picture B-P49A:Signal selection switch,

(optional satellite).

DAILY LIVING

AUXILIARY BATTERY:

The auxiliary battery is located behind the passenger access

door behind the rear wheel,(see Picture B-P46).Under heavy

use it is recommended to check once a month,see

maintenance section.

In order to access the auxiliary battery one must do the

following:

1. Unscrew wing bolt,(see Picture B-P50).

2. Pull down on release handle above the exhaust

pipe,(see Picture B-P51).

3. Lift barrel bolt.

4. Slide out battery tray.

CAUTION:DO NOT ATTEMPT TO REMOVE BATTERY

COVER WHILE ENGINE IS RUNNING / EXHAUST IS HOT.

HOT EXHAUST CAN BURN.

To reinstall reverse steps above.

CAUTION:BATTERY ACID CAN BURN SKIN AND

CLOTHING.PROTECTIVE EYE WEAR AND GLOVES

SHOULD BE WORN WHEN HANDLING.

Observe all battery warnings and caution labels.

NOTE:Your vehicle is equipped with a group 27 lead acid

auxiliary battery.It is recommended that acid levels be

checked at least once every 3 months.See battery

manufacturers maintenance recommendations.

REPLACING THE AUXILIARY BATTERY:

Ensure that you maintain a minimum of a 3/8 inch clearance

between the battery posts and the top edge of the

compartment.Replacement battery is a group 27 deep cycle

lead acid or equivalent.

Ensure that the battery cable hex nuts are tightened to 10 ft-

lbs,(see Picture B-P52).

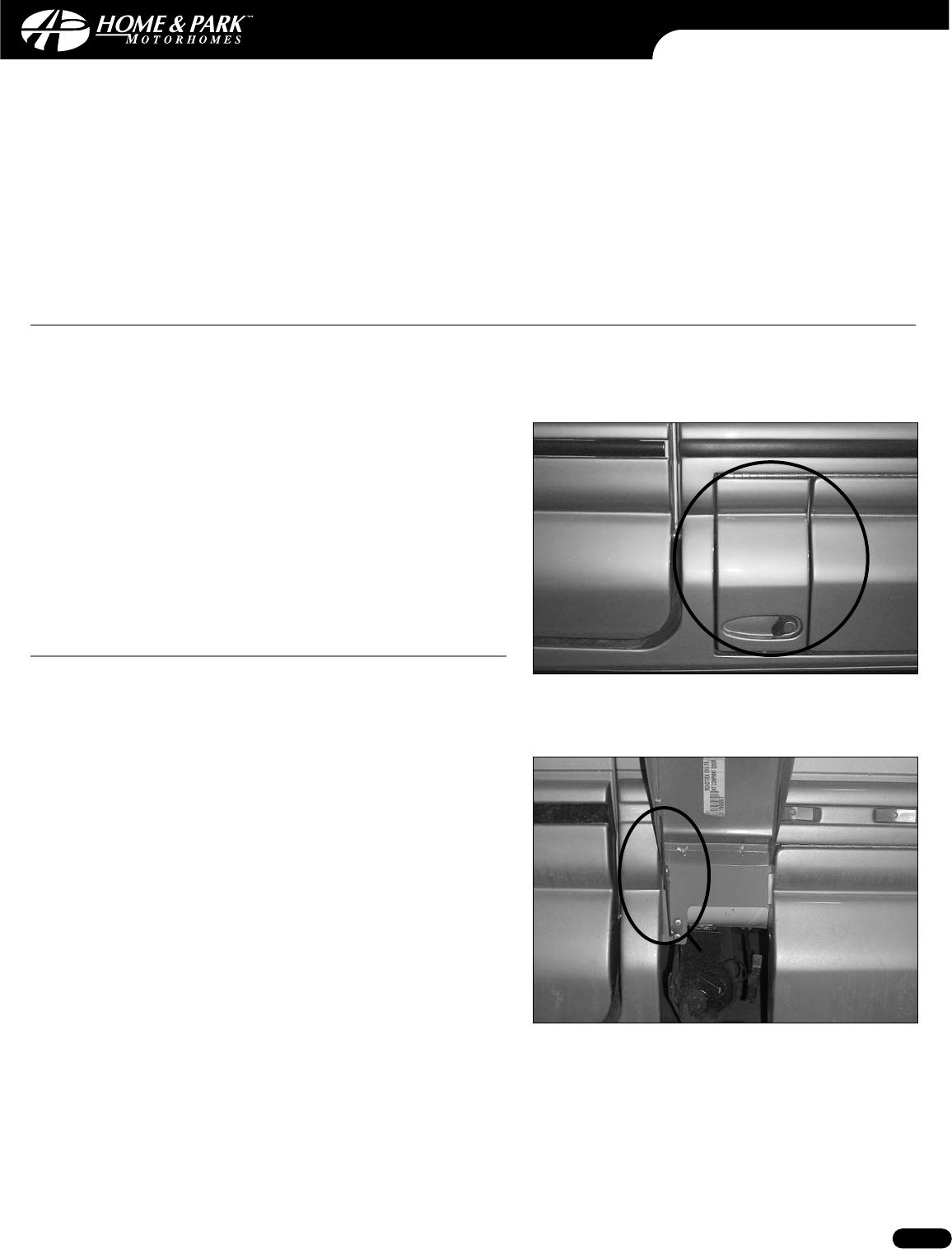

Picture B-P51:Location of battery cover release

handle.

Picture B-P52:Auxiliary Battery.

Picture B-P50:Wing bolt.

Wing bolt

Barrel bolt

Release

handle

DAILY LIVING

SPARE TIRE STORAGE:

The spare tire is located in the storage area found under the passenger side rear bed.

Brace yourself for the weight of the tire,(40 kg / 80 lbs).

The jack is located in the storage area found under the passenger side rear bed mounted on the outside wall,

(see Picture B-P53).

The jack handle is located in the storage area found under the driver side rear bed mounted on the outside wall,

(see Picture B-P54).

Picture B-P53:Location of jack. Picture B-P54:Location of jack handle.

Picture B-P57:Tire storage.Picture B-P56:Remove from carrier.Picture B-P55:Spare tire kit.

CONTINENTAL SPARE TIRE KIT:

To access full size spare tire:

1. Remove chrome ring and fiberglass disc.

2. While holding the spare tire,in the upright position,remove catch pin on the elbow of the receiver.

3. Slowly lower the spare tire to the flat position,(see Picture B-P56).Brace yourself for the weight of

the tire,(40 kg / 80 lbs).

4. Remove lug nuts on spare tire to remove from carrier.

To store tire,repeat these steps in reverse.

DAILY LIVING

Picture B-P58:Front side door open.

Picture B-P59:Mineraling in maple wood.

CAUTION:WHEN THE FRONT,(60%) SIDE DOOR

IS OPEN,(see Picture B-P58),THE FRONT

PASSENGER CAB DOOR SHOULD NOT BE

OPENED.OPENING THE CAB DOOR while the

front side door is open MAY DAMAGE THE

GROUND EFFECTS KIT.

Home & Park Motorhomes makes no warranty

whatsoever for damage caused to ground

effects or doors as a result of this.

Due to the properties of natural Maple wood,

Home & Park makes no warranty against the

mineraling of wood components,

(see Picture B-P59).
