Chi Mei Communication Systems 0212BAC01 PCS 1900 Mobile Handset User Manual Bach

Chi Mei Communication Systems, Inc. PCS 1900 Mobile Handset Bach

Contents

users manual 1 of 2 revised

GSM/GPRS PhoneUser Guide

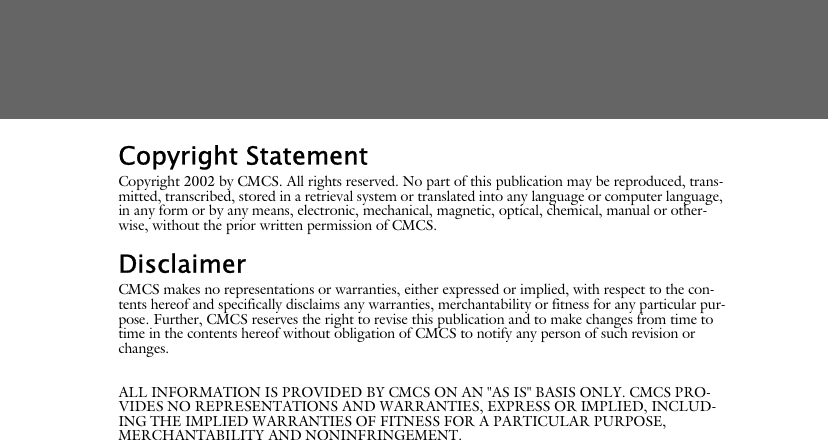

Copyright StatementCopyright 2002 by CMCS. All rights reserved. No part of this publication may be reproduced, trans-mitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or other-wise, without the prior written permission of CMCS.DisclaimerCMCS makes no representations or warranties, either expressed or implied, with respect to the con-tents hereof and specifically disclaims any warranties, merchantability or fitness for any particular pur-pose. Further, CMCS reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of CMCS to notify any person of such revision or changes.ALL INFORMATION IS PROVIDED BY CMCS ON AN "AS IS" BASIS ONLY. CMCS PRO-VIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, INCLUD-ING THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY AND NONINFRINGEMENT.

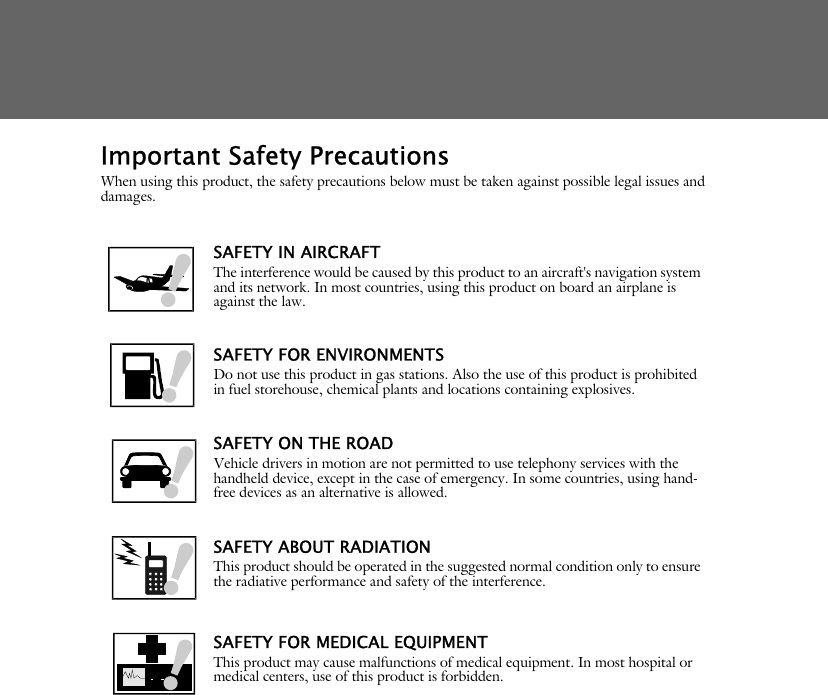

Important Safety PrecautionsWhen using this product, the safety precautions below must be taken against possible legal issues and damages.SAFETY IN AIRCRAFTThe interference would be caused by this product to an aircraft's navigation system and its network. In most countries, using this product on board an airplane is against the law.SAFETY FOR ENVIRONMENTSDo not use this product in gas stations. Also the use of this product is prohibited in fuel storehouse, chemical plants and locations containing explosives.SAFETY ON THE ROADVehicle drivers in motion are not permitted to use telephony services with the handheld device, except in the case of emergency. In some countries, using hand-free devices as an alternative is allowed.SAFETY ABOUT RADIATIONThis product should be operated in the suggested normal condition only to ensure the radiative performance and safety of the interference.SAFETY FOR MEDICAL EQUIPMENTThis product may cause malfunctions of medical equipment. In most hospital or medical centers, use of this product is forbidden.

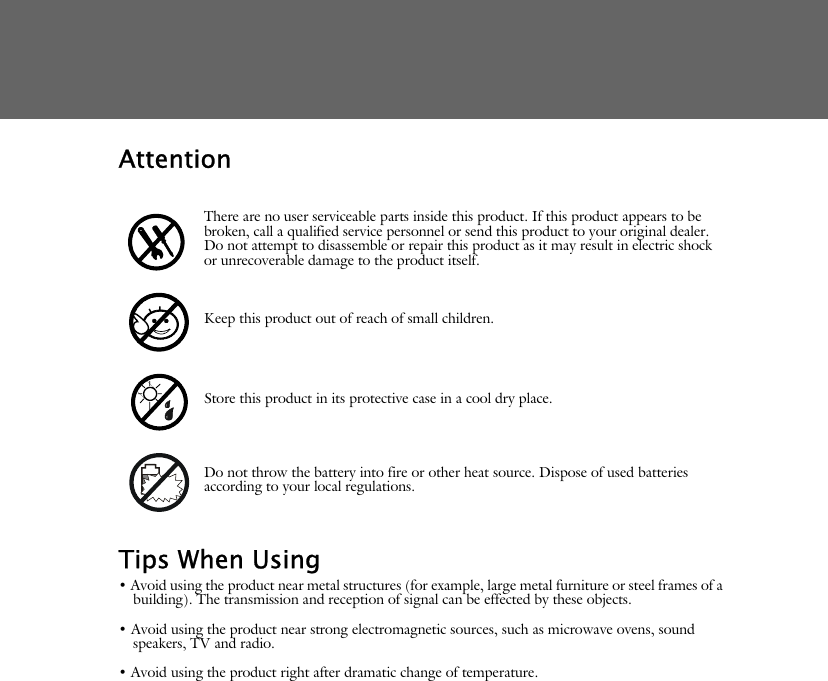

AttentionTips When Using• Avoid using the product near metal structures (for example, large metal furniture or steel frames of a building). The transmission and reception of signal can be effected by these objects.• Avoid using the product near strong electromagnetic sources, such as microwave ovens, sound speakers, TV and radio.• Avoid using the product right after dramatic change of temperature.There are no user serviceable parts inside this product. If this product appears to be broken, call a qualified service personnel or send this product to your original dealer. Do not attempt to disassemble or repair this product as it may result in electric shock or unrecoverable damage to the product itself.Keep this product out of reach of small children.Store this product in its protective case in a cool dry place.Do not throw the battery into fire or other heat source. Dispose of used batteries according to your local regulations.

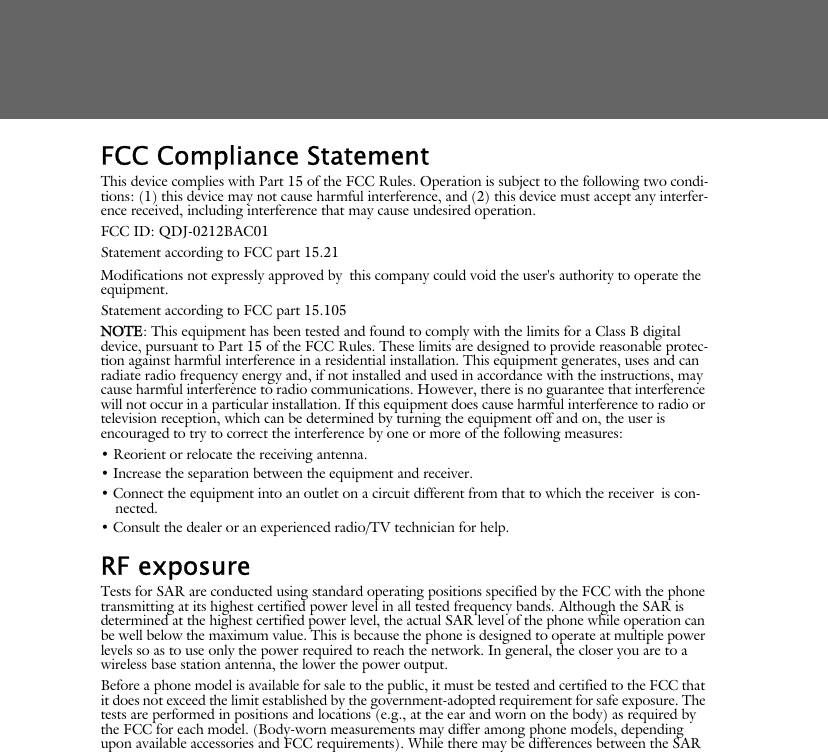

FCC Compliance StatementThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-tions: (1) this device may not cause harmful interference, and (2) this device must accept any interfer-ence received, including interference that may cause undesired operation.FCC ID: QDJ-0212BAC01Statement according to FCC part 15.21Modifications not expressly approved by this company could void the user's authority to operate the equipment.Statement according to FCC part 15.105NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.• Consult the dealer or an experienced radio/TV technician for help.RF exposure Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operation can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. (Body-worn measurements may differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR

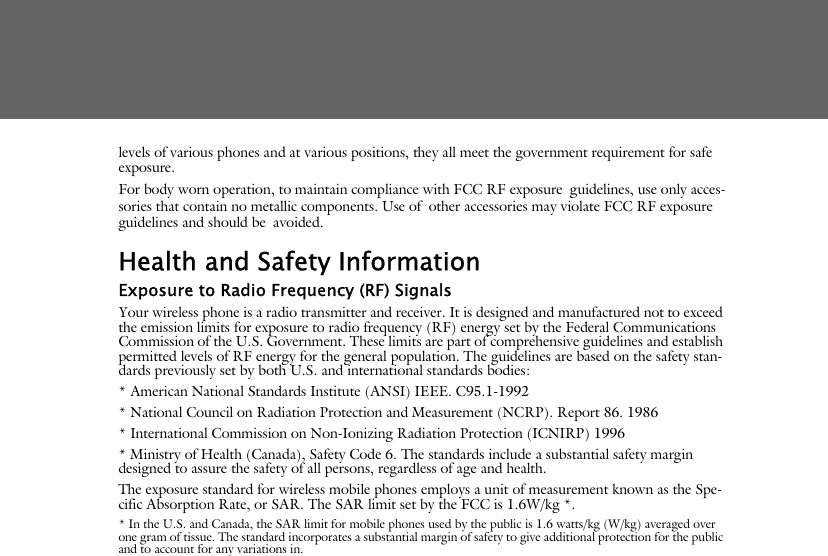

levels of various phones and at various positions, they all meet the government requirement for safe exposure. For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only acces-sories that contain no metallic components. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.Health and Safety InformationExposure to Radio Frequency (RF) SignalsYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety stan-dards previously set by both U.S. and international standards bodies: * American National Standards Institute (ANSI) IEEE. C95.1-1992* National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986* International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996* Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Spe-cific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.

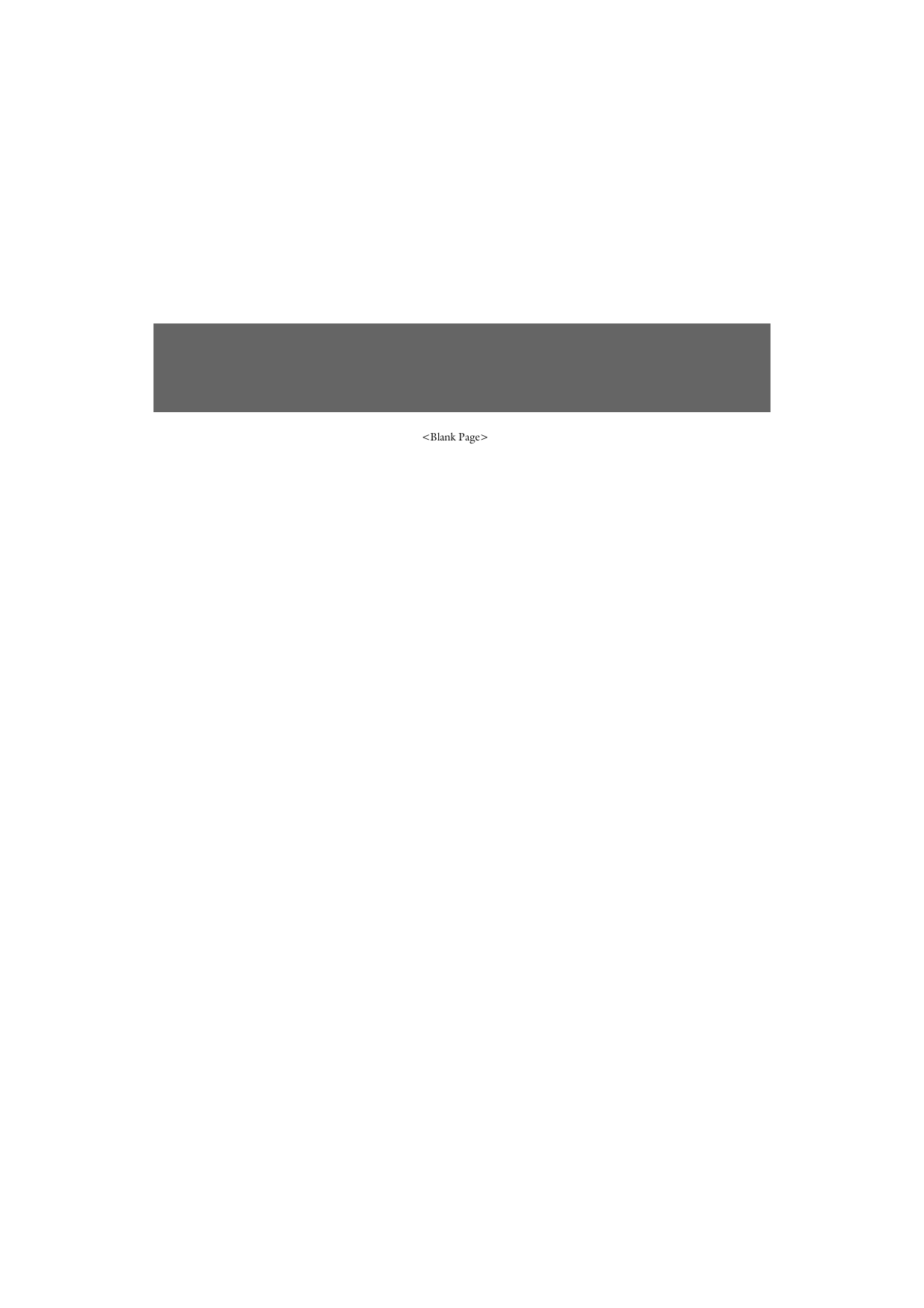

<Blank Page>

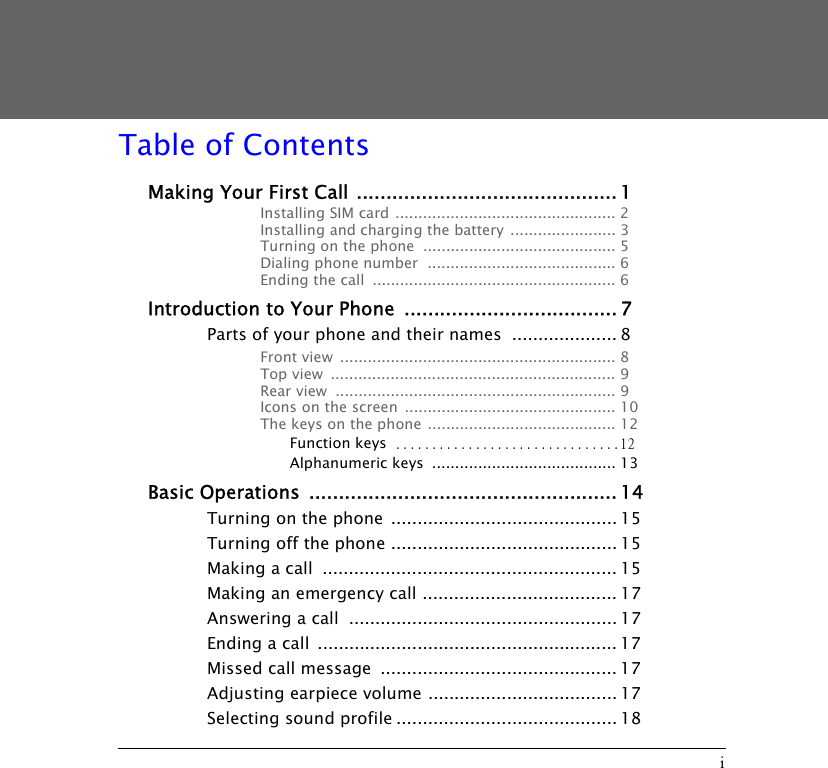

iTable of ContentsMaking Your First Call ............................................ 1Installing SIM card ................................................ 2Installing and charging the battery ....................... 3Turning on the phone .......................................... 5Dialing phone number ......................................... 6Ending the call ..................................................... 6Introduction to Your Phone .................................... 7Parts of your phone and their names .................... 8Front view ............................................................ 8Top view .............................................................. 9Rear view ............................................................. 9Icons on the screen .............................................. 10The keys on the phone ......................................... 12Function keys ...............................12Alphanumeric keys ........................................ 13Basic Operations .................................................... 14Turning on the phone ........................................... 15Turning off the phone ........................................... 15Making a call ........................................................ 15Making an emergency call ..................................... 17Answering a call ................................................... 17Ending a call ......................................................... 17Missed call message ............................................. 17Adjusting earpiece volume .................................... 17Selecting sound profile .......................................... 18

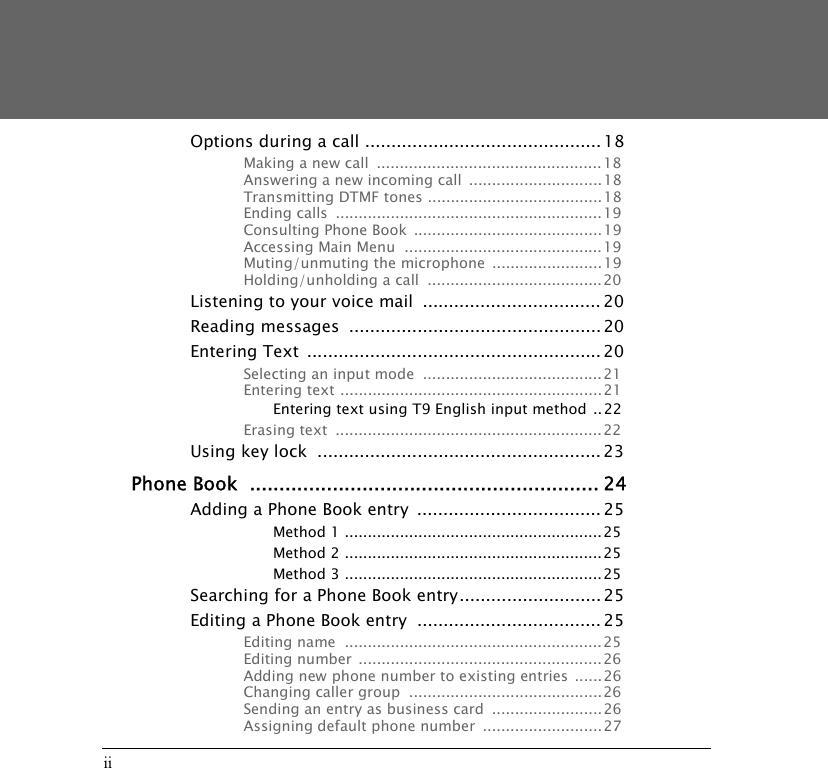

iiOptions during a call ............................................. 18Making a new call .................................................18Answering a new incoming call ............................. 18Transmitting DTMF tones ...................................... 18Ending calls .......................................................... 19Consulting Phone Book .........................................19Accessing Main Menu ...........................................19Muting/unmuting the microphone ........................19Holding/unholding a call ......................................20Listening to your voice mail .................................. 20Reading messages ................................................ 20Entering Text ........................................................ 20Selecting an input mode .......................................21Entering text .........................................................21Entering text using T9 English input method ..22Erasing text .......................................................... 22Using key lock ...................................................... 23Phone Book ........................................................... 24Adding a Phone Book entry ................................... 25Method 1 ........................................................25Method 2 ........................................................25Method 3 ........................................................25Searching for a Phone Book entry........................... 25Editing a Phone Book entry ................................... 25Editing name ........................................................ 25Editing number .....................................................26Adding new phone number to existing entries ......26Changing caller group .......................................... 26Sending an entry as business card ........................ 26Assigning default phone number ..........................27

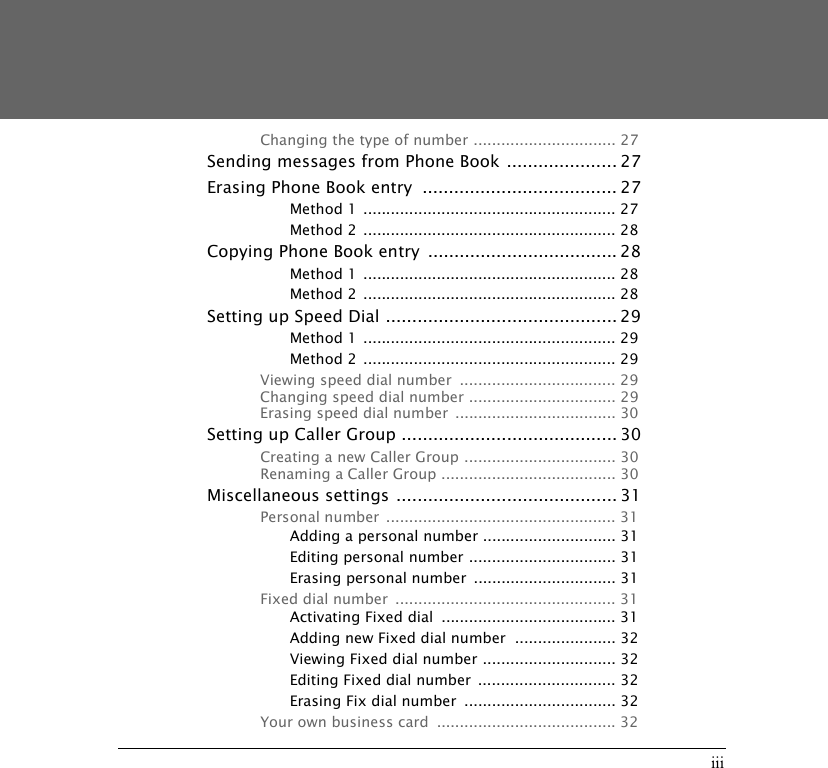

iiiChanging the type of number ............................... 27Sending messages from Phone Book ..................... 27Erasing Phone Book entry ..................................... 27Method 1 ....................................................... 27Method 2 ....................................................... 28Copying Phone Book entry .................................... 28Method 1 ....................................................... 28Method 2 ....................................................... 28Setting up Speed Dial ............................................ 29Method 1 ....................................................... 29Method 2 ....................................................... 29Viewing speed dial number .................................. 29Changing speed dial number ................................ 29Erasing speed dial number ................................... 30Setting up Caller Group ......................................... 30Creating a new Caller Group ................................. 30Renaming a Caller Group ...................................... 30Miscellaneous settings .......................................... 31Personal number .................................................. 31Adding a personal number ............................. 31Editing personal number ................................ 31Erasing personal number ............................... 31Fixed dial number ................................................ 31Activating Fixed dial ...................................... 31Adding new Fixed dial number ...................... 32Viewing Fixed dial number ............................. 32Editing Fixed dial number .............................. 32Erasing Fix dial number ................................. 32Your own business card ....................................... 32

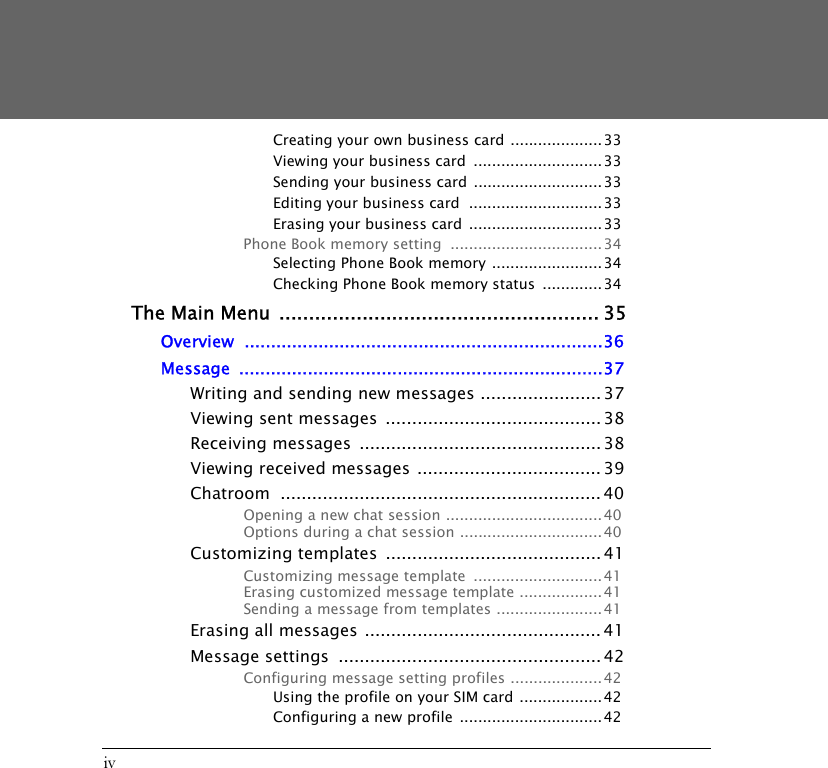

ivCreating your own business card ....................33Viewing your business card ............................ 33Sending your business card ............................ 33Editing your business card ............................. 33Erasing your business card .............................33Phone Book memory setting ................................. 34Selecting Phone Book memory ........................34Checking Phone Book memory status .............34The Main Menu ...................................................... 35Overview ....................................................................36Message .....................................................................37Writing and sending new messages ....................... 37Viewing sent messages ......................................... 38Receiving messages .............................................. 38Viewing received messages ................................... 39Chatroom ............................................................. 40Opening a new chat session .................................. 40Options during a chat session ...............................40Customizing templates ......................................... 41Customizing message template ............................41Erasing customized message template ..................41Sending a message from templates ....................... 41Erasing all messages ............................................. 41Message settings .................................................. 42Configuring message setting profiles ....................42Using the profile on your SIM card .................. 42Configuring a new profile ...............................42

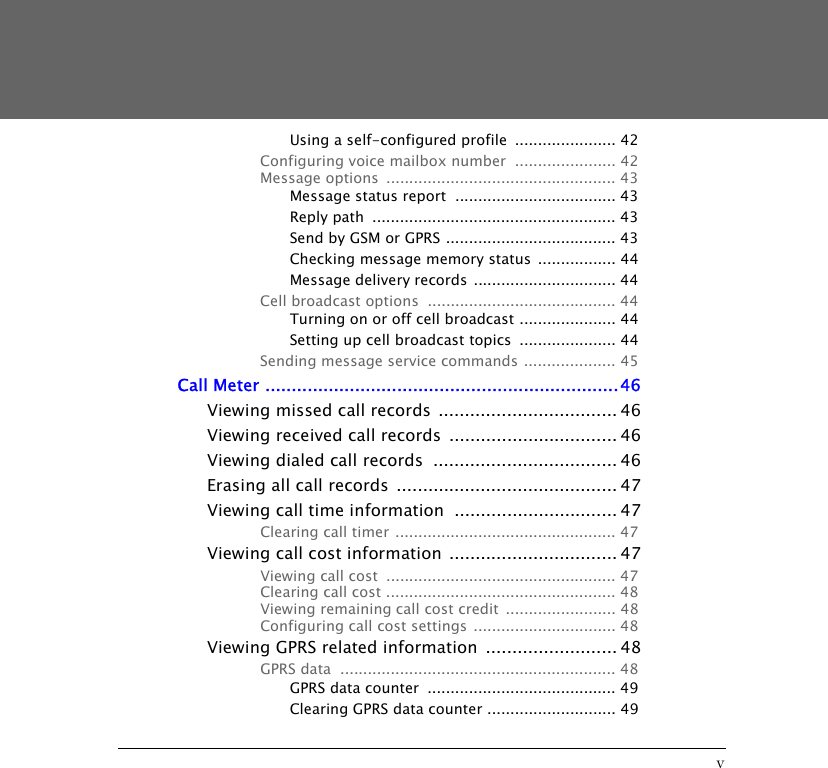

vUsing a self-configured profile ...................... 42Configuring voice mailbox number ...................... 42Message options .................................................. 43Message status report ................................... 43Reply path ..................................................... 43Send by GSM or GPRS ..................................... 43Checking message memory status ................. 44Message delivery records ............................... 44Cell broadcast options ......................................... 44Turning on or off cell broadcast ..................... 44Setting up cell broadcast topics ..................... 44Sending message service commands .................... 45Call Meter ...................................................................46Viewing missed call records .................................. 46Viewing received call records ................................ 46Viewing dialed call records ................................... 46Erasing all call records .......................................... 47Viewing call time information ............................... 47Clearing call timer ................................................ 47Viewing call cost information ................................ 47Viewing call cost .................................................. 47Clearing call cost .................................................. 48Viewing remaining call cost credit ........................ 48Configuring call cost settings ............................... 48Viewing GPRS related information ......................... 48GPRS data ............................................................ 48GPRS data counter ......................................... 49Clearing GPRS data counter ............................ 49

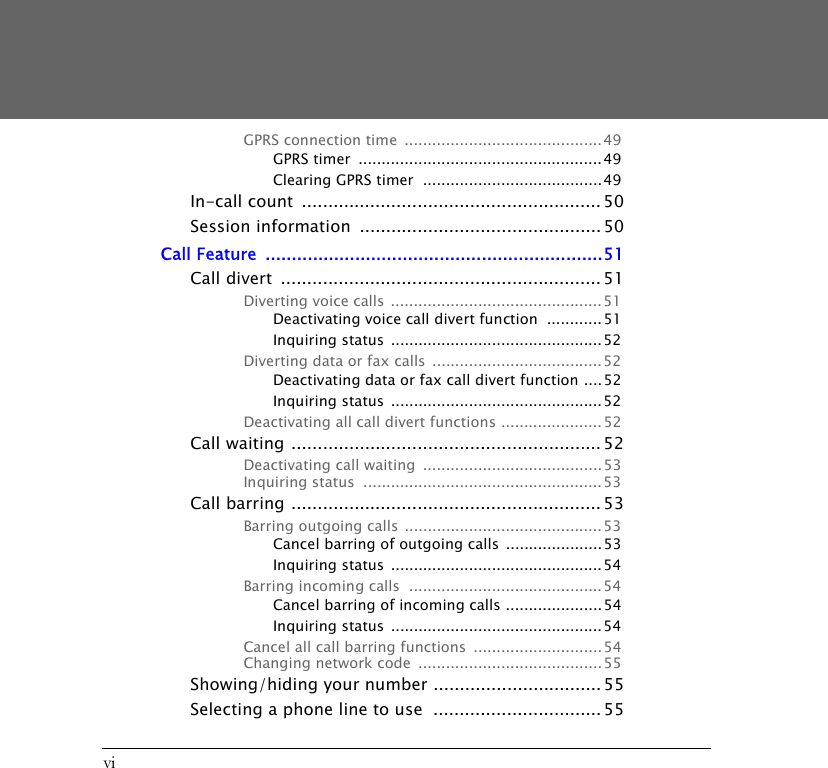

viGPRS connection time ........................................... 49GPRS timer .....................................................49Clearing GPRS timer .......................................49In-call count ......................................................... 50Session information .............................................. 50Call Feature ................................................................51Call divert ............................................................. 51Diverting voice calls .............................................. 51Deactivating voice call divert function ............ 51Inquiring status .............................................. 52Diverting data or fax calls ..................................... 52Deactivating data or fax call divert function ....52Inquiring status .............................................. 52Deactivating all call divert functions ...................... 52Call waiting ........................................................... 52Deactivating call waiting .......................................53Inquiring status .................................................... 53Call barring ........................................................... 53Barring outgoing calls ...........................................53Cancel barring of outgoing calls .....................53Inquiring status .............................................. 54Barring incoming calls ..........................................54Cancel barring of incoming calls .....................54Inquiring status .............................................. 54Cancel all call barring functions ............................54Changing network code ........................................55Showing/hiding your number ................................ 55Selecting a phone line to use ................................ 55

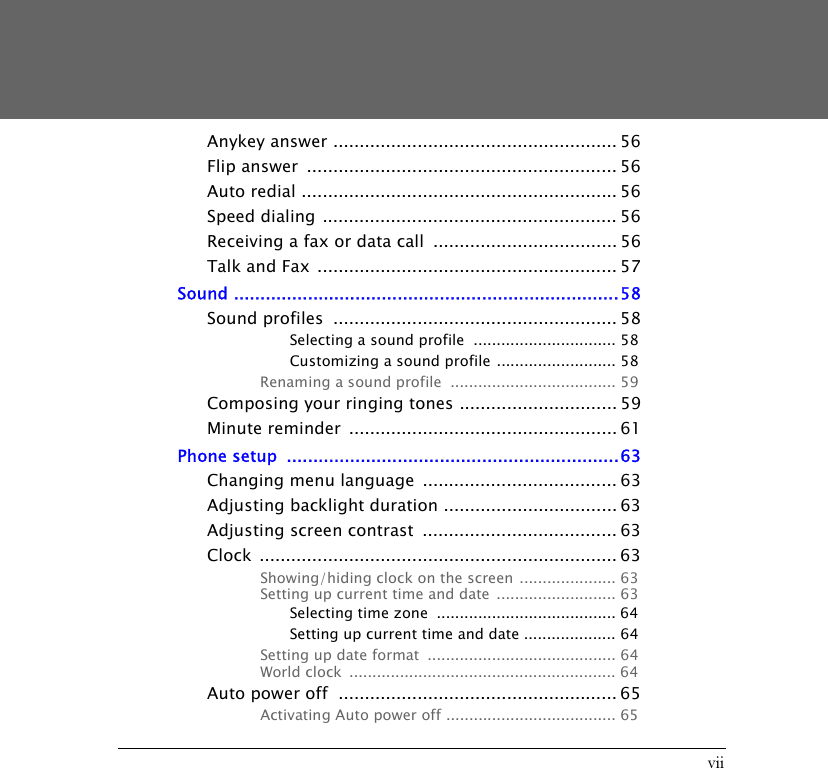

viiAnykey answer ...................................................... 56Flip answer ........................................................... 56Auto redial ............................................................ 56Speed dialing ........................................................ 56Receiving a fax or data call ................................... 56Talk and Fax ......................................................... 57Sound .........................................................................58Sound profiles ...................................................... 58Selecting a sound profile ............................... 58Customizing a sound profile .......................... 58Renaming a sound profile .................................... 59Composing your ringing tones .............................. 59Minute reminder ................................................... 61Phone setup ...............................................................63Changing menu language ..................................... 63Adjusting backlight duration ................................. 63Adjusting screen contrast ..................................... 63Clock .................................................................... 63Showing/hiding clock on the screen ..................... 63Setting up current time and date .......................... 63Selecting time zone ....................................... 64Setting up current time and date .................... 64Setting up date format ......................................... 64World clock .......................................................... 64Auto power off ..................................................... 65Activating Auto power off ..................................... 65

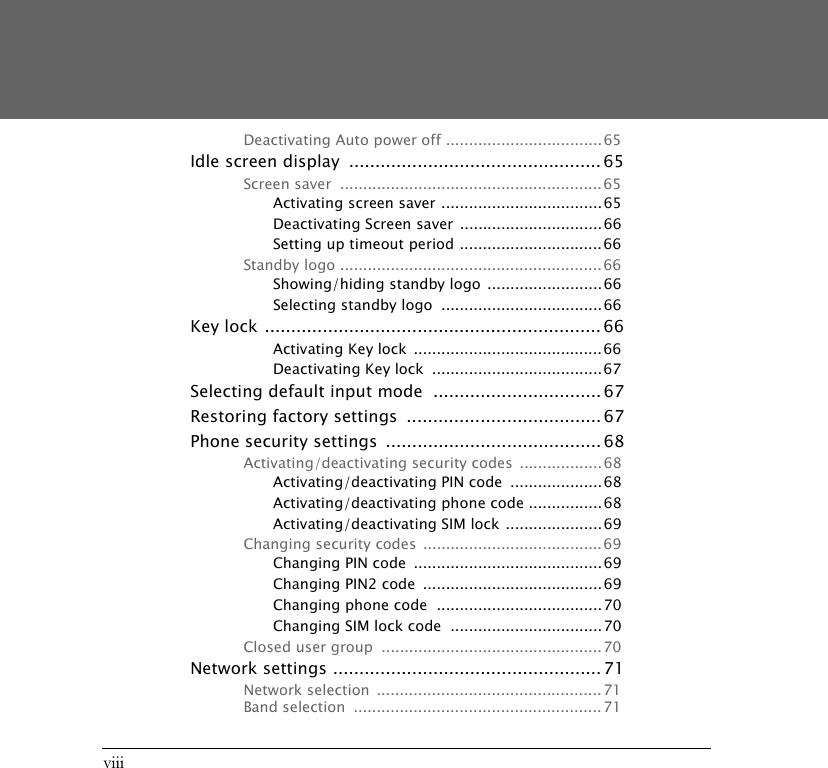

viiiDeactivating Auto power off ..................................65Idle screen display ................................................ 65Screen saver .........................................................65Activating screen saver ...................................65Deactivating Screen saver ...............................66Setting up timeout period ............................... 66Standby logo ......................................................... 66Showing/hiding standby logo ......................... 66Selecting standby logo ...................................66Key lock ................................................................ 66Activating Key lock ......................................... 66Deactivating Key lock .....................................67Selecting default input mode ................................ 67Restoring factory settings ..................................... 67Phone security settings ......................................... 68Activating/deactivating security codes .................. 68Activating/deactivating PIN code .................... 68Activating/deactivating phone code ................68Activating/deactivating SIM lock .....................69Changing security codes ....................................... 69Changing PIN code ......................................... 69Changing PIN2 code ....................................... 69Changing phone code ....................................70Changing SIM lock code .................................70Closed user group ................................................70Network settings ................................................... 71Network selection ................................................. 71Band selection ...................................................... 71

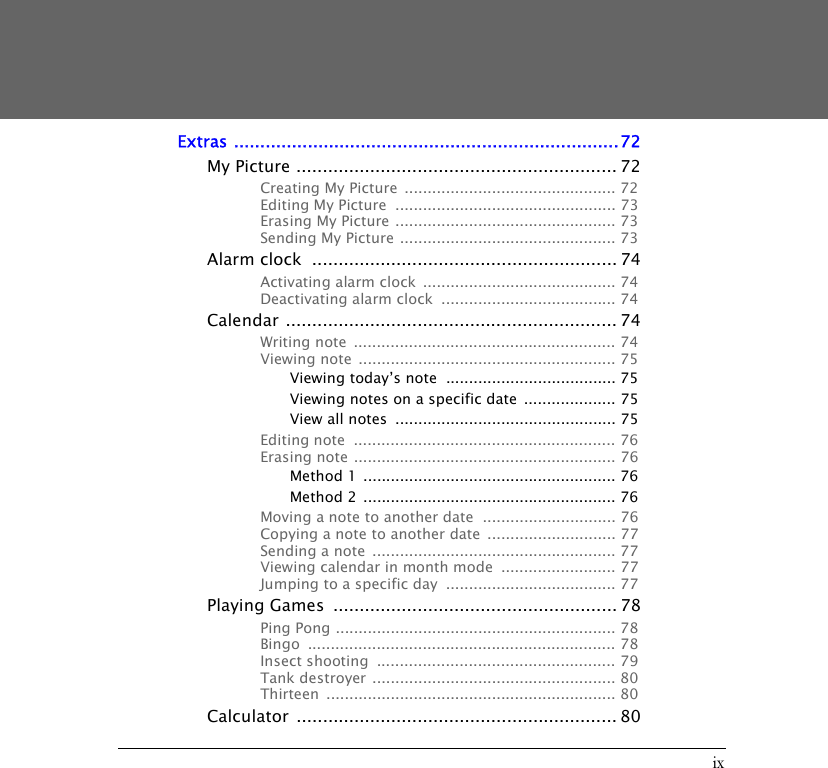

ixExtras .........................................................................72My Picture ............................................................. 72Creating My Picture .............................................. 72Editing My Picture ................................................ 73Erasing My Picture ................................................ 73Sending My Picture ............................................... 73Alarm clock .......................................................... 74Activating alarm clock .......................................... 74Deactivating alarm clock ...................................... 74Calendar ............................................................... 74Writing note ......................................................... 74Viewing note ........................................................ 75Viewing today’s note ..................................... 75Viewing notes on a specific date .................... 75View all notes ................................................ 75Editing note ......................................................... 76Erasing note ......................................................... 76Method 1 ....................................................... 76Method 2 ....................................................... 76Moving a note to another date ............................. 76Copying a note to another date ............................ 77Sending a note ..................................................... 77Viewing calendar in month mode ......................... 77Jumping to a specific day ..................................... 77Playing Games ...................................................... 78Ping Pong ............................................................. 78Bingo ................................................................... 78Insect shooting .................................................... 79Tank destroyer ..................................................... 80Thirteen ............................................................... 80Calculator ............................................................. 80

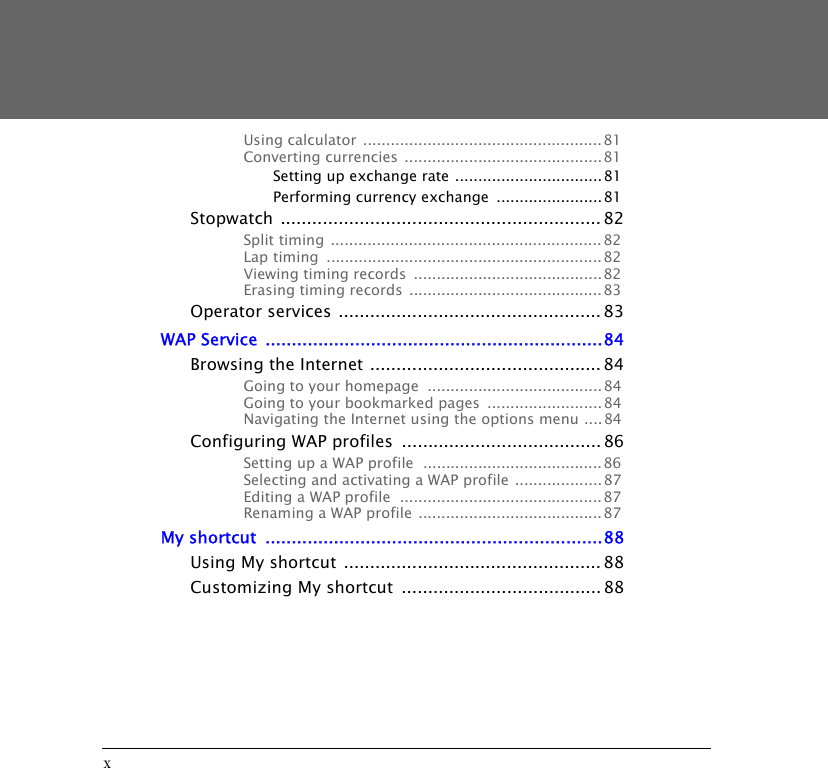

xUsing calculator ....................................................81Converting currencies ........................................... 81Setting up exchange rate ................................ 81Performing currency exchange .......................81Stopwatch ............................................................. 82Split timing ........................................................... 82Lap timing ............................................................ 82Viewing timing records ......................................... 82Erasing timing records .......................................... 83Operator services .................................................. 83WAP Service ................................................................84Browsing the Internet ............................................ 84Going to your homepage ...................................... 84Going to your bookmarked pages .........................84Navigating the Internet using the options menu ....84Configuring WAP profiles ...................................... 86Setting up a WAP profile ....................................... 86Selecting and activating a WAP profile ...................87Editing a WAP profile ............................................ 87Renaming a WAP profile ........................................ 87My shortcut ................................................................88Using My shortcut ................................................. 88Customizing My shortcut ...................................... 88
1Making Your First Call

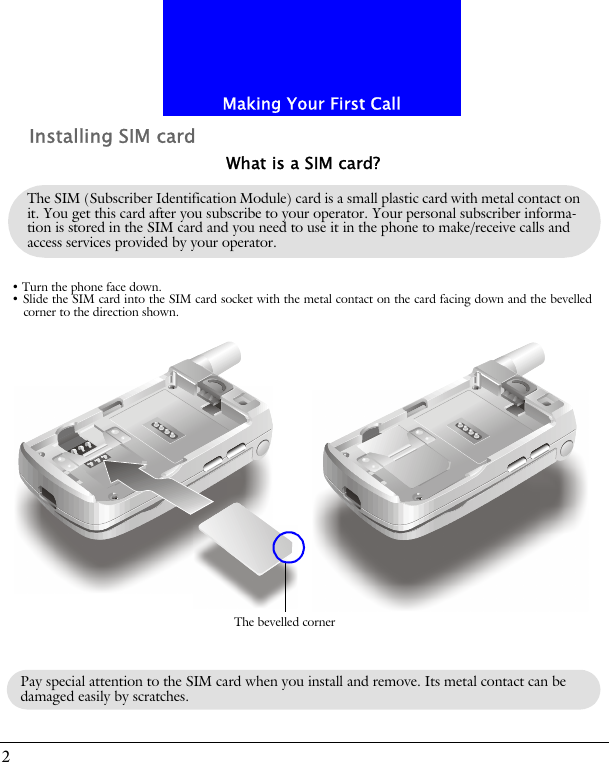

Making Your First Call2Installing SIM cardThe SIM (Subscriber Identification Module) card is a small plastic card with metal contact on it. You get this card after you subscribe to your operator. Your personal subscriber informa-tion is stored in the SIM card and you need to use it in the phone to make/receive calls and access services provided by your operator.What is a SIM card?• Turn the phone face down.• Slide the SIM card into the SIM card socket with the metal contact on the card facing down and the bevelledcorner to the direction shown.The bevelled cornerPay special attention to the SIM card when you install and remove. Its metal contact can be damaged easily by scratches.

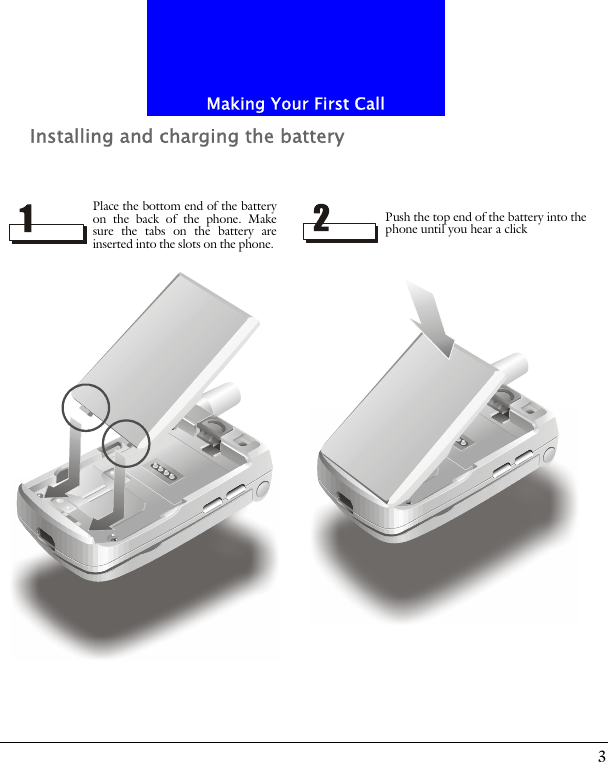

3Making Your First CallInstalling and charging the batteryPlace the bottom end of the batteryon the back of the phone. Makesure the tabs on the battery areinserted into the slots on the phone. Push the top end of the battery into the phone until you hear a click

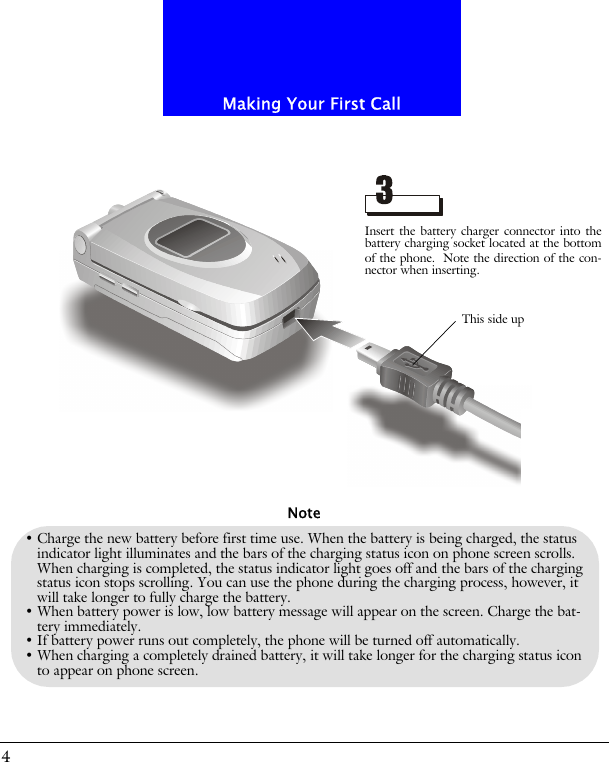

Making Your First Call4• Charge the new battery before first time use. When the battery is being charged, the status indicator light illuminates and the bars of the charging status icon on phone screen scrolls. When charging is completed, the status indicator light goes off and the bars of the charging status icon stops scrolling. You can use the phone during the charging process, however, it will take longer to fully charge the battery.• When battery power is low, low battery message will appear on the screen. Charge the bat-tery immediately. • If battery power runs out completely, the phone will be turned off automatically.• When charging a completely drained battery, it will take longer for the charging status icon to appear on phone screen.NoteInsert the battery charger connector into thebattery charging socket located at the bottomof the phone. Note the direction of the con-nector when inserting.This side up

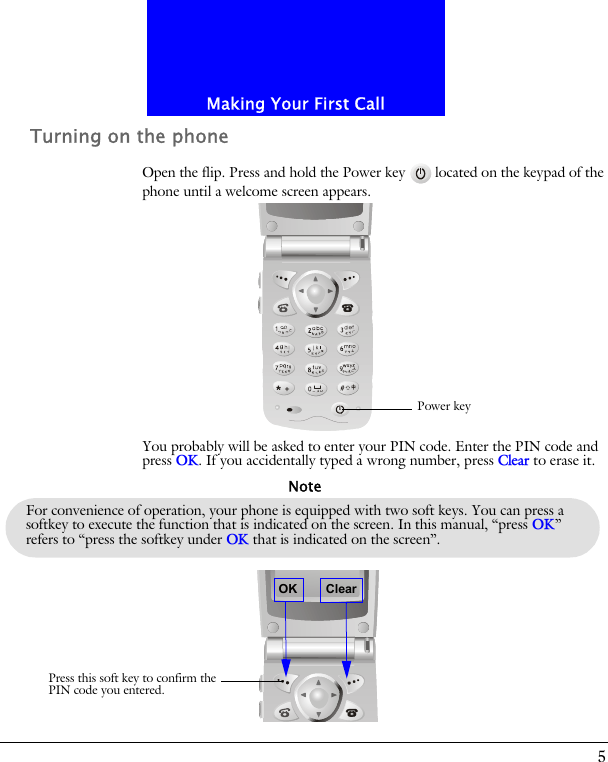

5Making Your First CallTurning on the phoneOpen the flip. Press and hold the Power key located on the keypad of the phone until a welcome screen appears.You probably will be asked to enter your PIN code. Enter the PIN code and press OK. If you accidentally typed a wrong number, press Clear to erase it.Power keyFor convenience of operation, your phone is equipped with two soft keys. You can press a softkey to execute the function that is indicated on the screen. In this manual, “press OK” refers to “press the softkey under OK that is indicated on the screen”.NoteOKPress this soft key to confirm thePIN code you entered.Clear

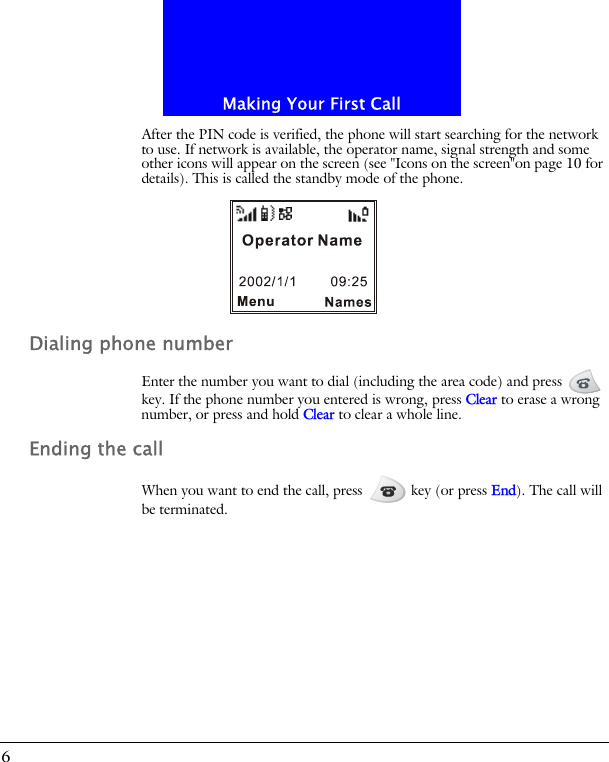

Making Your First Call6After the PIN code is verified, the phone will start searching for the network to use. If network is available, the operator name, signal strength and some other icons will appear on the screen (see "Icons on the screen"on page 10 for details). This is called the standby mode of the phone.Dialing phone numberEnter the number you want to dial (including the area code) and press key. If the phone number you entered is wrong, press Clear to erase a wrong number, or press and hold Clear to clear a whole line.Ending the callWhen you want to end the call, press key (or press End). The call will be terminated.
7Introduction to Your Phone

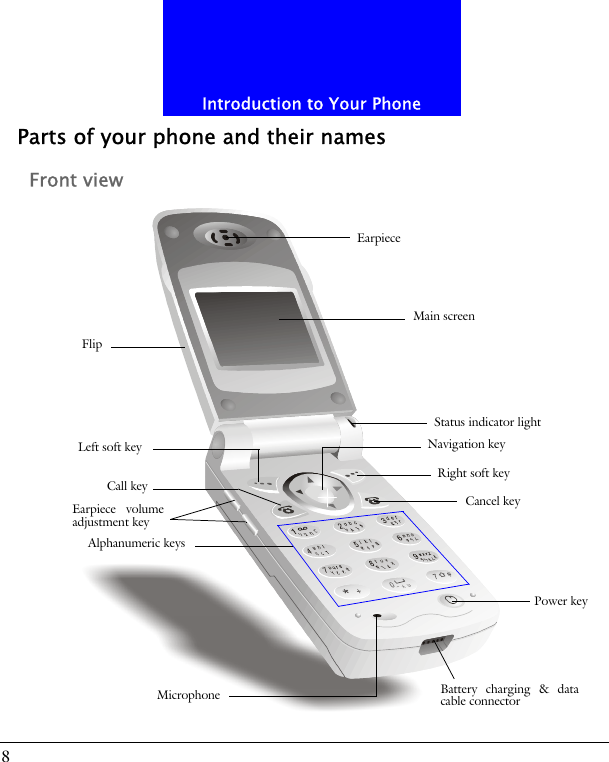

Introduction to Your Phone8Parts of your phone and their namesFront viewMain screenRight soft keyEarpiece volumeadjustment keyPower keyCall keyNavigation keyMicrophoneEarpieceBattery charging & datacable connectorLeft soft keyCancel keyAlphanumeric keysStatus indicator lightFlip

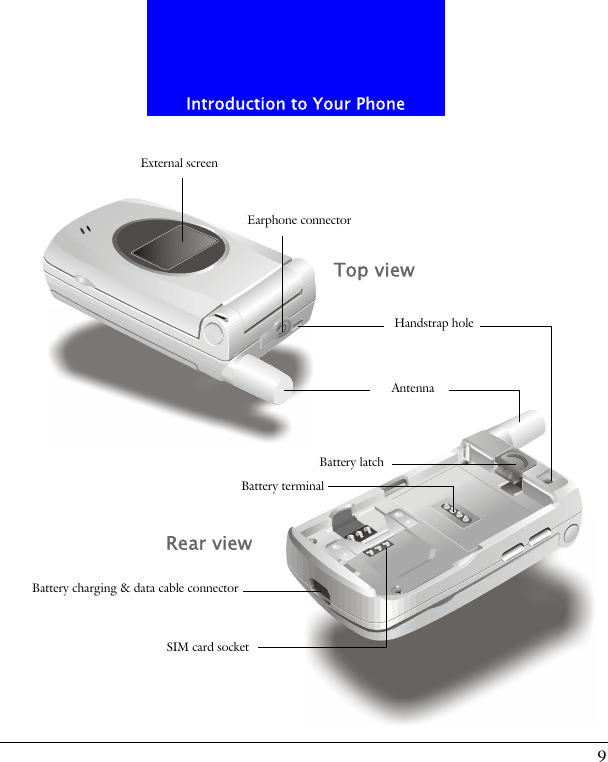

9Introduction to Your PhoneTop viewSIM card socketRear viewExternal screenEarphone connectorAntennaBattery charging & data cable connectorBattery latchBattery terminalHandstrap hole

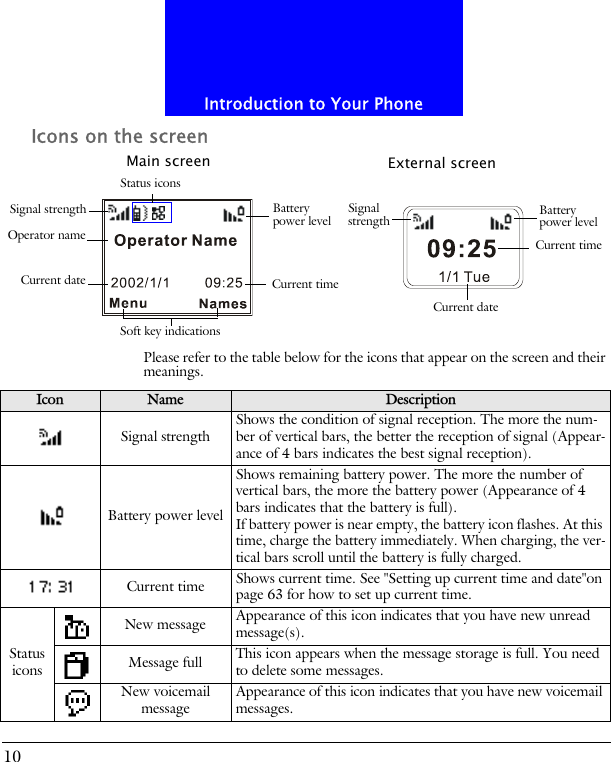

Introduction to Your Phone10Icons on the screen Please refer to the table below for the icons that appear on the screen and their meanings.Status iconsSignal strength Batterypower levelCurrent timeOperator nameSoft key indicationsMain screen External screenCurrent dateBatterypower levelSignalstrengthCurrent timeCurrent dateIcon Name DescriptionSignal strength Shows the condition of signal reception. The more the num-ber of vertical bars, the better the reception of signal (Appear-ance of 4 bars indicates the best signal reception).Battery power levelShows remaining battery power. The more the number of vertical bars, the more the battery power (Appearance of 4 bars indicates that the battery is full).If battery power is near empty, the battery icon flashes. At this time, charge the battery immediately. When charging, the ver-tical bars scroll until the battery is fully charged.Current time Shows current time. See "Setting up current time and date"on page 63 for how to set up current time.Status iconsNew message Appearance of this icon indicates that you have new unread message(s).Message full This icon appears when the message storage is full. You need to delete some messages.New voicemail message Appearance of this icon indicates that you have new voicemail messages.

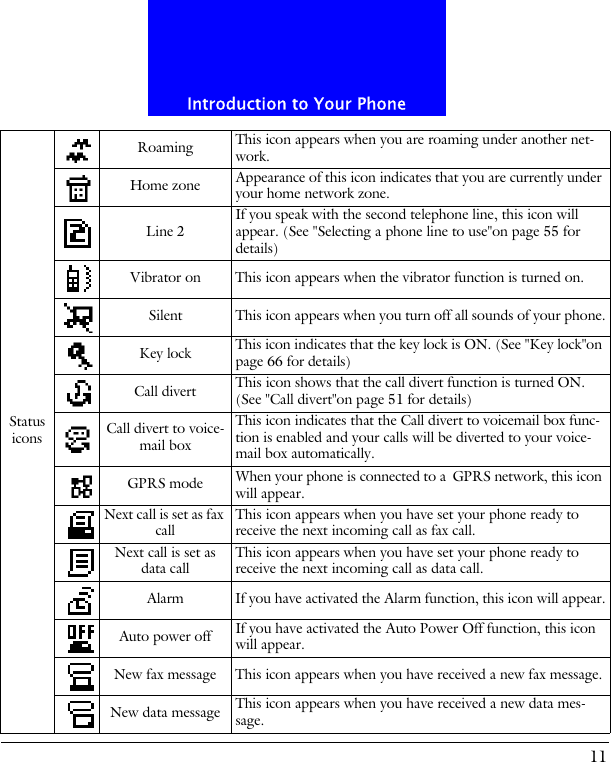

11Introduction to Your PhoneStatus iconsRoaming This icon appears when you are roaming under another net-work.Home zone Appearance of this icon indicates that you are currently under your home network zone.Line 2 If you speak with the second telephone line, this icon will appear. (See "Selecting a phone line to use"on page 55 for details)Vibrator on This icon appears when the vibrator function is turned on.Silent This icon appears when you turn off all sounds of your phone.Key lock This icon indicates that the key lock is ON. (See "Key lock"on page 66 for details)Call divert This icon shows that the call divert function is turned ON. (See "Call divert"on page 51 for details)Call divert to voice-mail boxThis icon indicates that the Call divert to voicemail box func-tion is enabled and your calls will be diverted to your voice-mail box automatically.GPRS mode When your phone is connected to a GPRS network, this icon will appear.Next call is set as fax call This icon appears when you have set your phone ready to receive the next incoming call as fax call.Next call is set as data call This icon appears when you have set your phone ready to receive the next incoming call as data call.Alarm If you have activated the Alarm function, this icon will appear.Auto power off If you have activated the Auto Power Off function, this icon will appear.New fax message This icon appears when you have received a new fax message.New data message This icon appears when you have received a new data mes-sage.

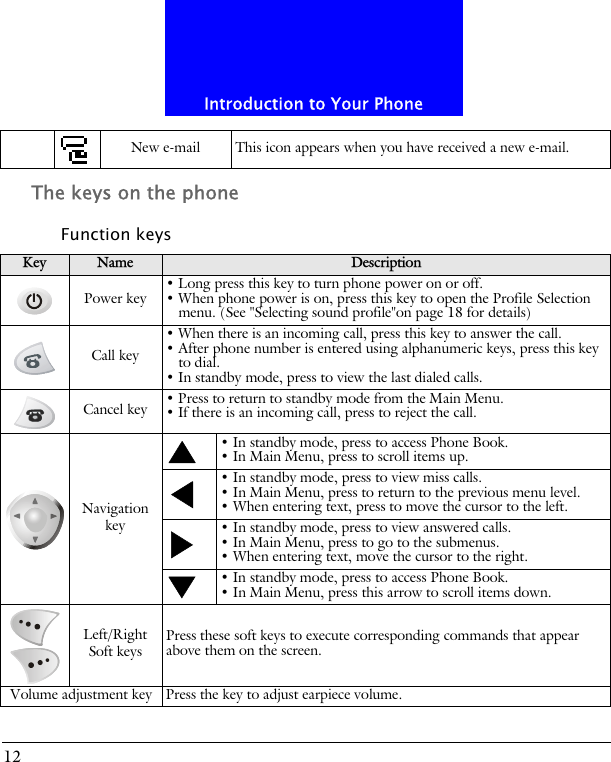

Introduction to Your Phone12The keys on the phoneFunction keysNew e-mail This icon appears when you have received a new e-mail.Key Name DescriptionPower key • Long press this key to turn phone power on or off.• When phone power is on, press this key to open the Profile Selection menu. (See "Selecting sound profile"on page 18 for details)Call key• When there is an incoming call, press this key to answer the call.• After phone number is entered using alphanumeric keys, press this key to dial.• In standby mode, press to view the last dialed calls.Cancel key • Press to return to standby mode from the Main Menu.• If there is an incoming call, press to reject the call.Navigation key• In standby mode, press to access Phone Book.• In Main Menu, press to scroll items up.• In standby mode, press to view miss calls.• In Main Menu, press to return to the previous menu level.• When entering text, press to move the cursor to the left.• In standby mode, press to view answered calls.• In Main Menu, press to go to the submenus.• When entering text, move the cursor to the right.• In standby mode, press to access Phone Book.• In Main Menu, press this arrow to scroll items down.Left/Right Soft keys Press these soft keys to execute corresponding commands that appear above them on the screen.Volume adjustment key Press the key to adjust earpiece volume.

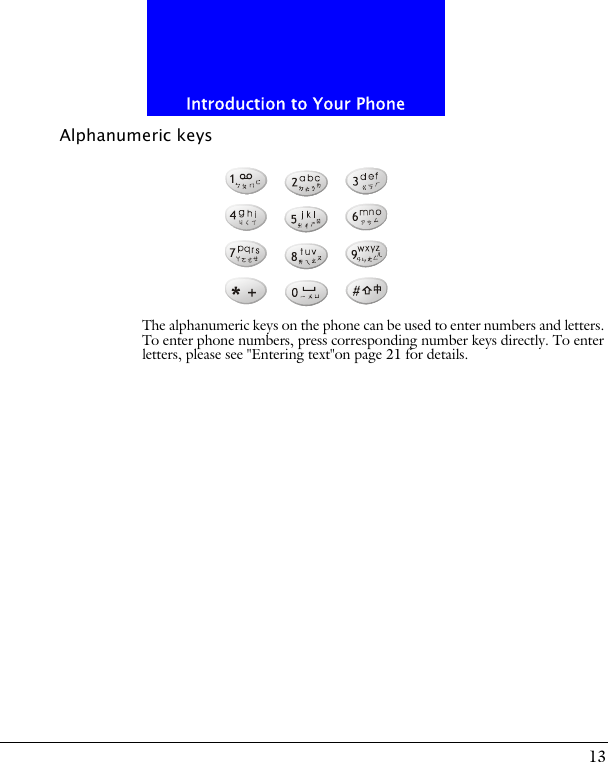

13Introduction to Your PhoneAlphanumeric keysThe alphanumeric keys on the phone can be used to enter numbers and letters. To enter phone numbers, press corresponding number keys directly. To enter letters, please see "Entering text"on page 21 for details.
14Basic Operations

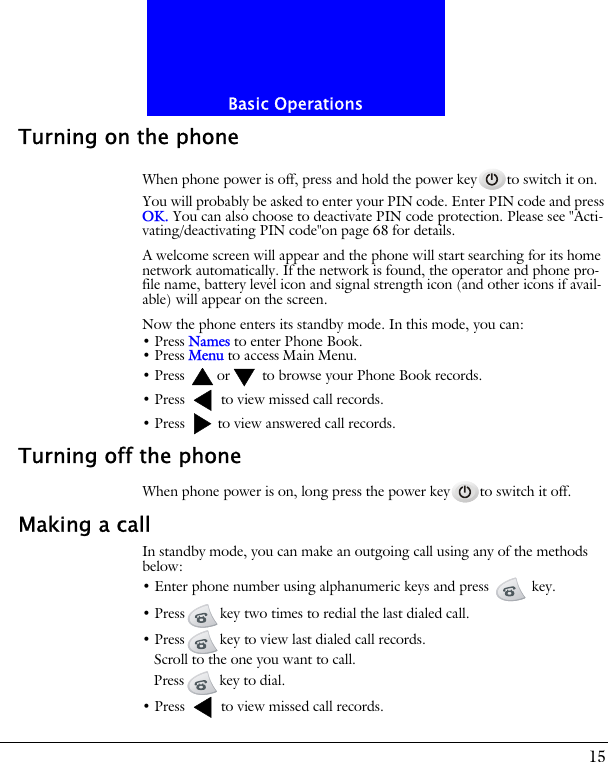

15Basic OperationsTurning on the phoneWhen phone power is off, press and hold the power key to switch it on.You will probably be asked to enter your PIN code. Enter PIN code and press OK. You can also choose to deactivate PIN code protection. Please see "Acti-vating/deactivating PIN code"on page 68 for details.A welcome screen will appear and the phone will start searching for its home network automatically. If the network is found, the operator and phone pro-file name, battery level icon and signal strength icon (and other icons if avail-able) will appear on the screen.Now the phone enters its standby mode. In this mode, you can:• Press Names to enter Phone Book.• Press Menu to access Main Menu.• Press or to browse your Phone Book records.• Press to view missed call records.• Press to view answered call records.Turning off the phoneWhen phone power is on, long press the power key to switch it off.Making a callIn standby mode, you can make an outgoing call using any of the methods below:• Enter phone number using alphanumeric keys and press key.• Press key two times to redial the last dialed call.• Press key to view last dialed call records.Scroll to the one you want to call.Press key to dial.• Press to view missed call records.

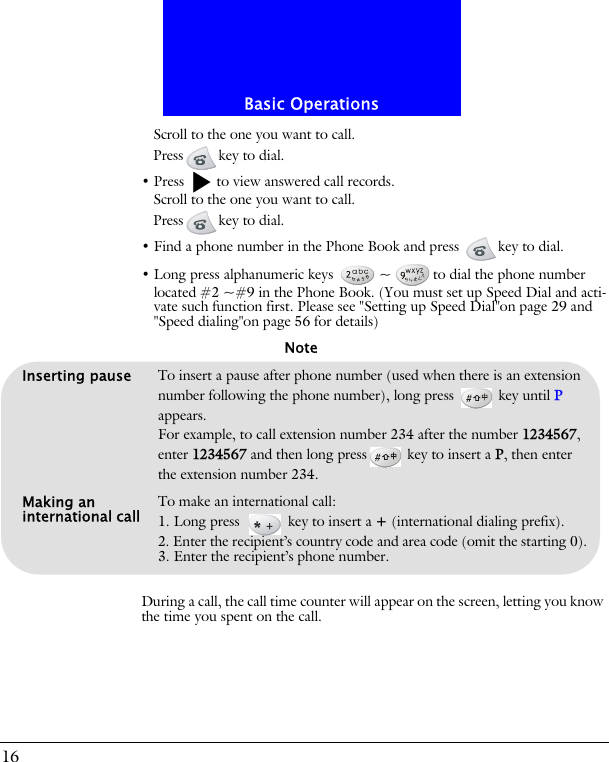

Basic Operations16Scroll to the one you want to call.Press key to dial.• Press to view answered call records.Scroll to the one you want to call.Press key to dial.• Find a phone number in the Phone Book and press key to dial.• Long press alphanumeric keys ~ to dial the phone number located #2 ~#9 in the Phone Book. (You must set up Speed Dial and acti-vate such function first. Please see "Setting up Speed Dial"on page 29 and "Speed dialing"on page 56 for details)During a call, the call time counter will appear on the screen, letting you know the time you spent on the call.Inserting pause To insert a pause after phone number (used when there is an extension number following the phone number), long press key until P appears. For example, to call extension number 234 after the number 1234567, enter 1234567 and then long press key to insert a P, then enter the extension number 234.Making an international call To make an international call:1. Long press key to insert a + (international dialing prefix).2. Enter the recipient’s country code and area code (omit the starting 0).3. Enter the recipient’s phone number.Note

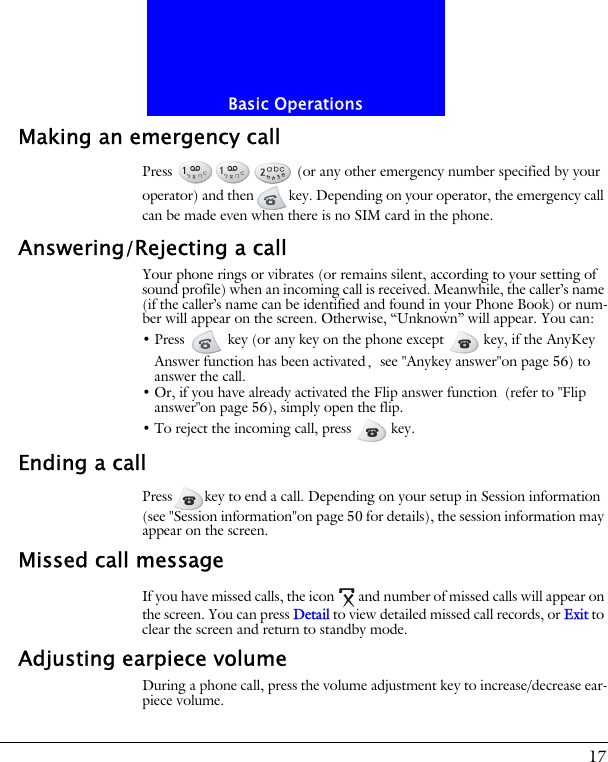

17Basic OperationsMaking an emergency callPress (or any other emergency number specified by your operator) and then key. Depending on your operator, the emergency call can be made even when there is no SIM card in the phone.Answering/Rejecting a callYour phone rings or vibrates (or remains silent, according to your setting of sound profile) when an incoming call is received. Meanwhile, the caller’s name (if the caller’s name can be identified and found in your Phone Book) or num-ber will appear on the screen. Otherwise, “Unknown” will appear. You can:• Press key (or any key on the phone except key, if the AnyKey Answer function has been activated, see "Anykey answer"on page 56) to answer the call.• Or, if you have already activated the Flip answer function (refer to "Flip answer"on page 56), simply open the flip.• To reject the incoming call, press key.Ending a callPress key to end a call. Depending on your setup in Session information (see "Session information"on page 50 for details), the session information may appear on the screen.Missed call messageIf you have missed calls, the icon and number of missed calls will appear on the screen. You can press Detail to view detailed missed call records, or Exit to clear the screen and return to standby mode.Adjusting earpiece volumeDuring a phone call, press the volume adjustment key to increase/decrease ear-piece volume.

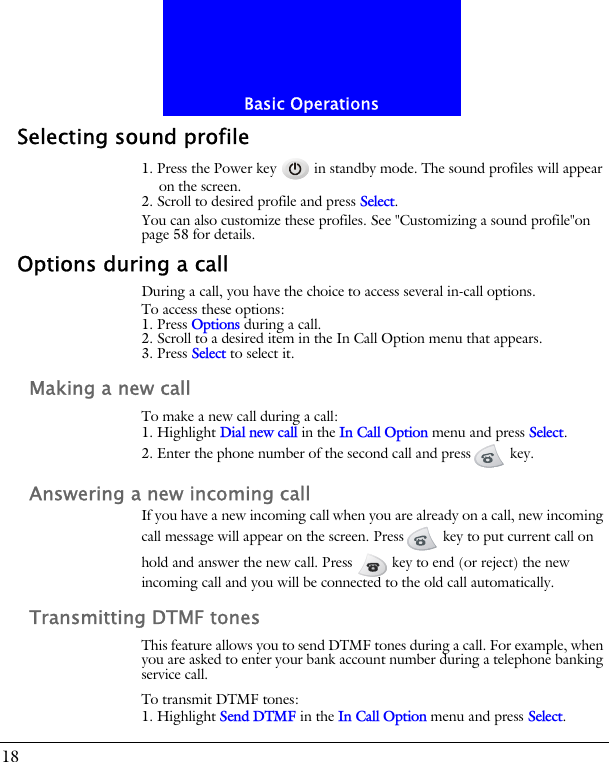

Basic Operations18Selecting sound profile1. Press the Power key in standby mode. The sound profiles will appear on the screen.2. Scroll to desired profile and press Select.You can also customize these profiles. See "Customizing a sound profile"on page 58 for details.Options during a callDuring a call, you have the choice to access several in-call options.To access these options:1. Press Options during a call. 2. Scroll to a desired item in the In Call Option menu that appears.3. Press Select to select it.Making a new callTo make a new call during a call:1. Highlight Dial new call in the In Call Option menu and press Select.2. Enter the phone number of the second call and press key.Answering a new incoming callIf you have a new incoming call when you are already on a call, new incoming call message will appear on the screen. Press key to put current call on hold and answer the new call. Press key to end (or reject) the new incoming call and you will be connected to the old call automatically.Transmitting DTMF tonesThis feature allows you to send DTMF tones during a call. For example, when you are asked to enter your bank account number during a telephone banking service call.To transmit DTMF tones:1. Highlight Send DTMF in the In Call Option menu and press Select.

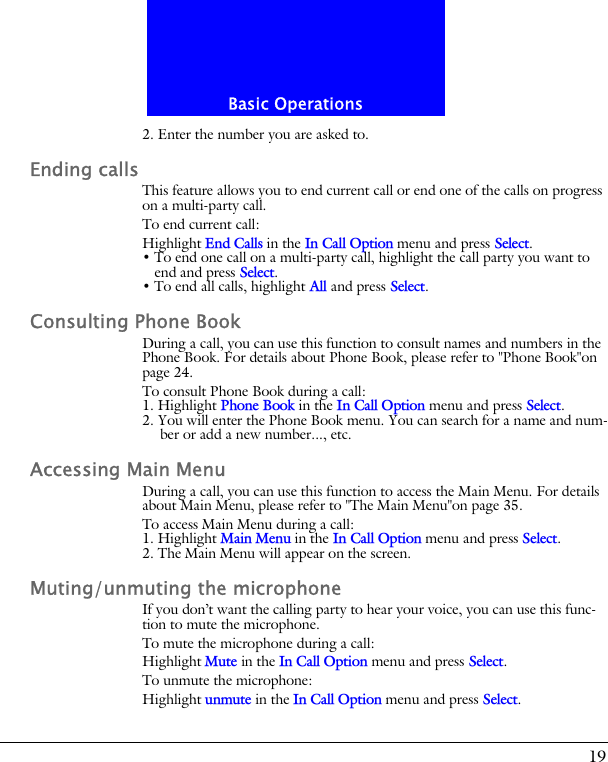

19Basic Operations2. Enter the number you are asked to.Ending callsThis feature allows you to end current call or end one of the calls on progress on a multi-party call.To end current call:Highlight End Calls in the In Call Option menu and press Select.• To end one call on a multi-party call, highlight the call party you want to end and press Select.• To end all calls, highlight All and press Select.Consulting Phone BookDuring a call, you can use this function to consult names and numbers in the Phone Book. For details about Phone Book, please refer to "Phone Book"on page 24.To consult Phone Book during a call:1. Highlight Phone Book in the In Call Option menu and press Select.2. You will enter the Phone Book menu. You can search for a name and num-ber or add a new number..., etc.Accessing Main MenuDuring a call, you can use this function to access the Main Menu. For details about Main Menu, please refer to "The Main Menu"on page 35.To access Main Menu during a call:1. Highlight Main Menu in the In Call Option menu and press Select.2. The Main Menu will appear on the screen.Muting/unmuting the microphoneIf you don’t want the calling party to hear your voice, you can use this func-tion to mute the microphone.To mute the microphone during a call:Highlight Mute in the In Call Option menu and press Select.To unmute the microphone:Highlight unmute in the In Call Option menu and press Select.

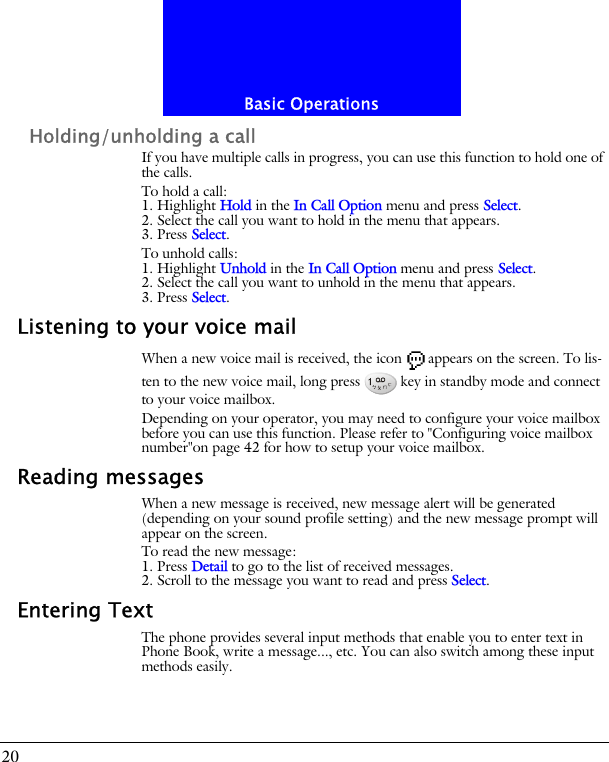

Basic Operations20Holding/unholding a callIf you have multiple calls in progress, you can use this function to hold one of the calls.To hold a call:1. Highlight Hold in the In Call Option menu and press Select.2. Select the call you want to hold in the menu that appears.3. Press Select.To unhold calls:1. Highlight Unhold in the In Call Option menu and press Select.2. Select the call you want to unhold in the menu that appears.3. Press Select.Listening to your voice mailWhen a new voice mail is received, the icon appears on the screen. To lis-ten to the new voice mail, long press key in standby mode and connect to your voice mailbox.Depending on your operator, you may need to configure your voice mailbox before you can use this function. Please refer to "Configuring voice mailbox number"on page 42 for how to setup your voice mailbox.Reading messagesWhen a new message is received, new message alert will be generated (depending on your sound profile setting) and the new message prompt will appear on the screen.To read the new message:1. Press Detail to go to the list of received messages.2. Scroll to the message you want to read and press Select.Entering TextThe phone provides several input methods that enable you to enter text in Phone Book, write a message..., etc. You can also switch among these input methods easily.

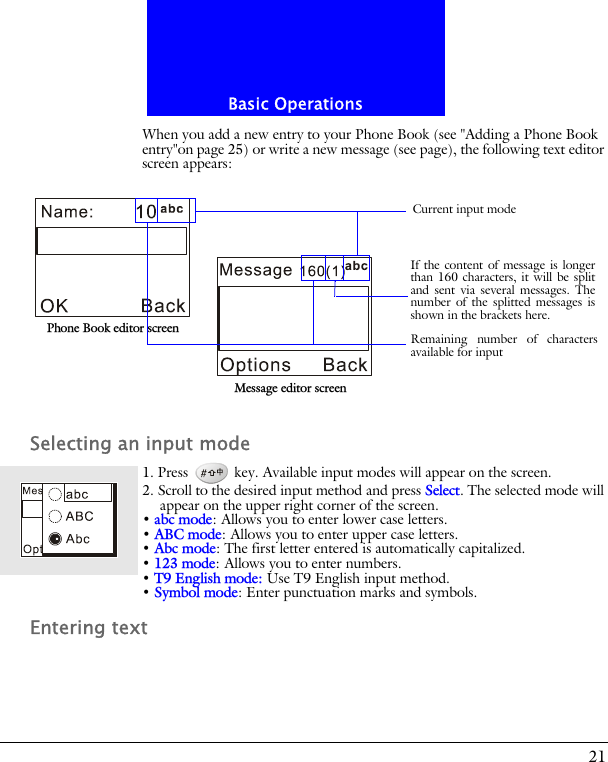

21Basic OperationsWhen you add a new entry to your Phone Book (see "Adding a Phone Book entry"on page 25) or write a new message (see page), the following text editor screen appears:Selecting an input mode1. Press key. Available input modes will appear on the screen.2. Scroll to the desired input method and press Select. The selected mode will appear on the upper right corner of the screen.• abc mode: Allows you to enter lower case letters.• ABC mode: Allows you to enter upper case letters.• Abc mode: The first letter entered is automatically capitalized.• 123 mode: Allows you to enter numbers.• T9 English mode: Use T9 English input method.• Symbol mode: Enter punctuation marks and symbols.Entering textPhone Book editor screenMessage editor screenRemaining number of charactersavailable for inputCurrent input modeIf the content of message is longerthan 160 characters, it will be splitand sent via several messages. Thenumber of the splitted messages isshown in the brackets here.

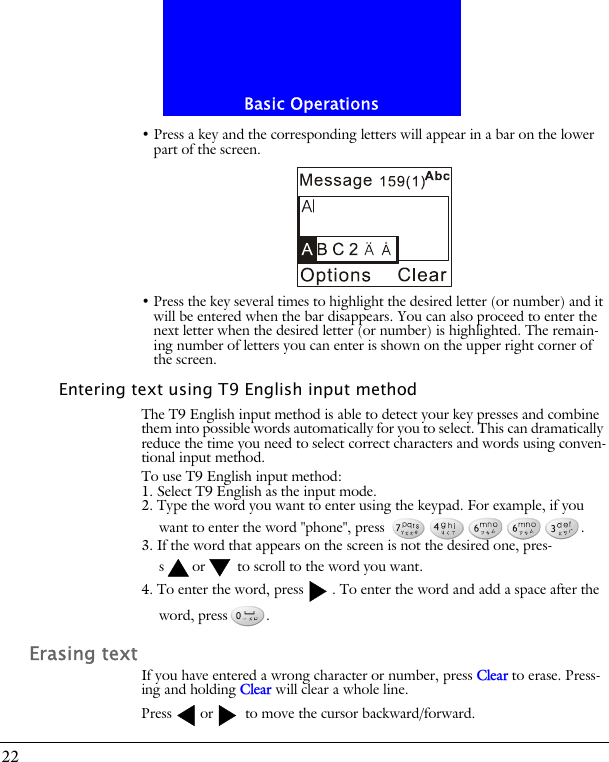

Basic Operations22• Press a key and the corresponding letters will appear in a bar on the lower part of the screen.• Press the key several times to highlight the desired letter (or number) and it will be entered when the bar disappears. You can also proceed to enter the next letter when the desired letter (or number) is highlighted. The remain-ing number of letters you can enter is shown on the upper right corner of the screen.Entering text using T9 English input methodThe T9 English input method is able to detect your key presses and combine them into possible words automatically for you to select. This can dramatically reduce the time you need to select correct characters and words using conven-tional input method.To use T9 English input method:1. Select T9 English as the input mode.2. Type the word you want to enter using the keypad. For example, if you want to enter the word "phone", press .3. If the word that appears on the screen is not the desired one, pres-s or to scroll to the word you want.4. To enter the word, press . To enter the word and add a space after the word, press .Erasing textIf you have entered a wrong character or number, press Clear to erase. Press-ing and holding Clear will clear a whole line.Press or to move the cursor backward/forward.

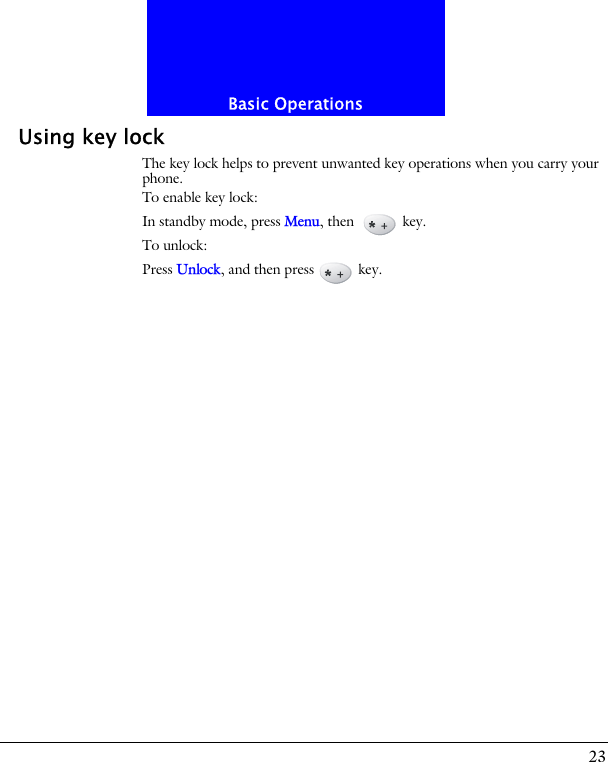

23Basic OperationsUsing key lockThe key lock helps to prevent unwanted key operations when you carry your phone. To enable key lock:In standby mode, press Menu, then key.To unlock:Press Unlock, and then press key.
24Phone Book

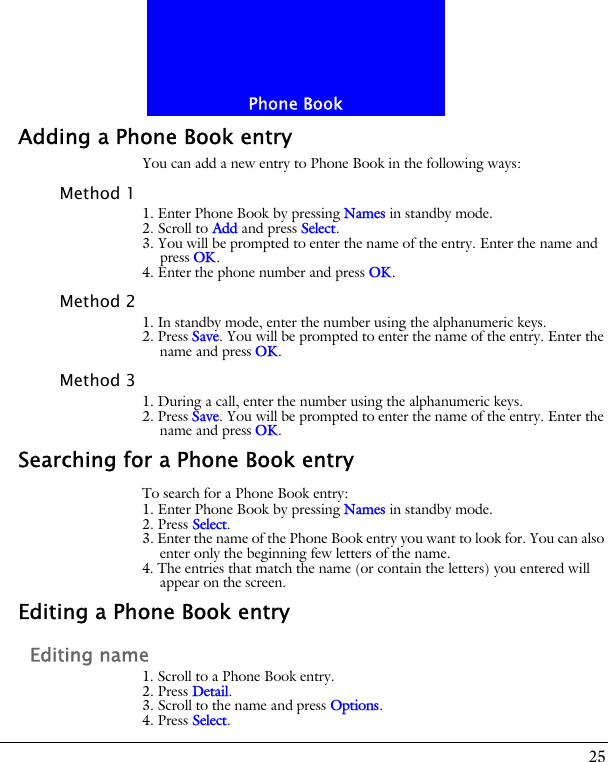

25Phone BookAdding a Phone Book entryYou can add a new entry to Phone Book in the following ways:Method 11. Enter Phone Book by pressing Names in standby mode.2. Scroll to Add and press Select.3. You will be prompted to enter the name of the entry. Enter the name and press OK.4. Enter the phone number and press OK.Method 21. In standby mode, enter the number using the alphanumeric keys.2. Press Save. You will be prompted to enter the name of the entry. Enter the name and press OK.Method 31. During a call, enter the number using the alphanumeric keys.2. Press Save. You will be prompted to enter the name of the entry. Enter the name and press OK.Searching for a Phone Book entryTo search for a Phone Book entry:1. Enter Phone Book by pressing Names in standby mode.2. Press Select.3. Enter the name of the Phone Book entry you want to look for. You can also enter only the beginning few letters of the name.4. The entries that match the name (or contain the letters) you entered will appear on the screen.Editing a Phone Book entryEditing name1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name and press Options.4. Press Select.

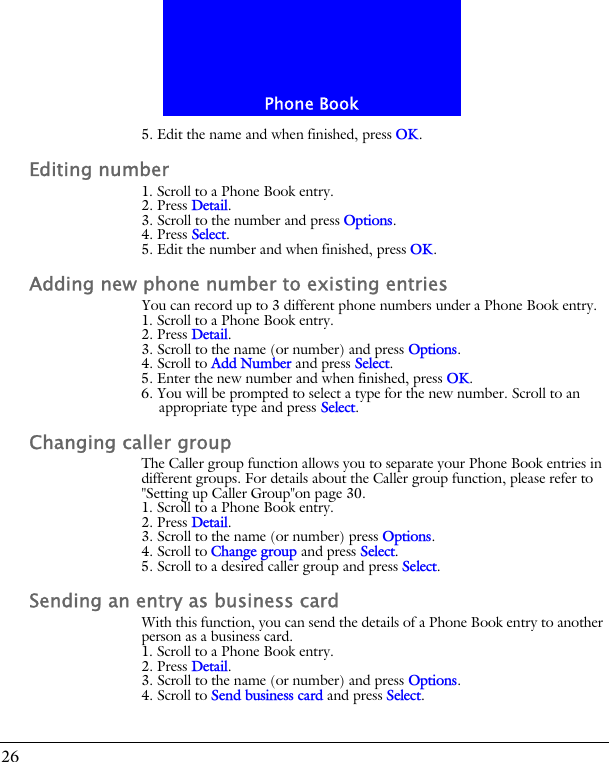

Phone Book265. Edit the name and when finished, press OK.Editing number1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number and press Options.4. Press Select.5. Edit the number and when finished, press OK.Adding new phone number to existing entriesYou can record up to 3 different phone numbers under a Phone Book entry.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name (or number) and press Options.4. Scroll to Add Number and press Select.5. Enter the new number and when finished, press OK.6. You will be prompted to select a type for the new number. Scroll to an appropriate type and press Select.Changing caller groupThe Caller group function allows you to separate your Phone Book entries in different groups. For details about the Caller group function, please refer to "Setting up Caller Group"on page 30.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name (or number) press Options.4. Scroll to Change group and press Select.5. Scroll to a desired caller group and press Select.Sending an entry as business cardWith this function, you can send the details of a Phone Book entry to another person as a business card.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name (or number) and press Options.4. Scroll to Send business card and press Select.

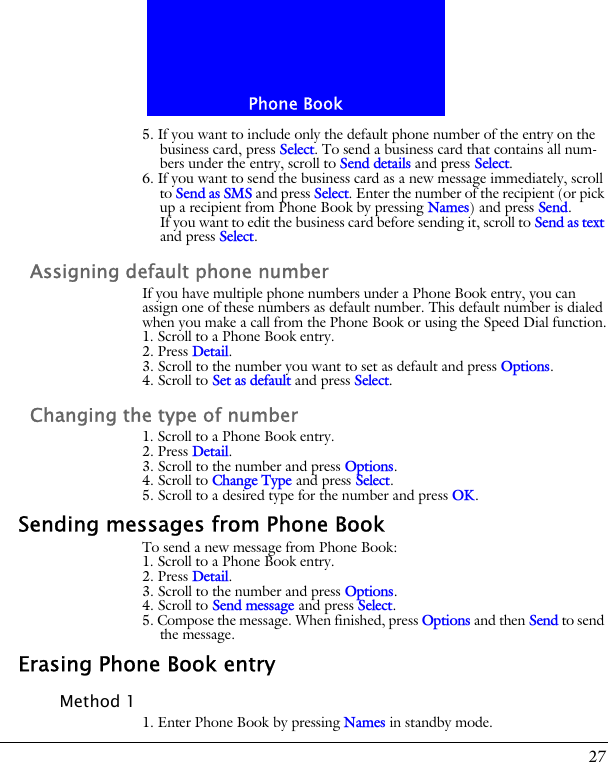

27Phone Book5. If you want to include only the default phone number of the entry on the business card, press Select. To send a business card that contains all num-bers under the entry, scroll to Send details and press Select.6. If you want to send the business card as a new message immediately, scroll to Send as SMS and press Select. Enter the number of the recipient (or pick up a recipient from Phone Book by pressing Names) and press Send.If you want to edit the business card before sending it, scroll to Send as text and press Select.Assigning default phone numberIf you have multiple phone numbers under a Phone Book entry, you can assign one of these numbers as default number. This default number is dialed when you make a call from the Phone Book or using the Speed Dial function.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number you want to set as default and press Options.4. Scroll to Set as default and press Select.Changing the type of number1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number and press Options.4. Scroll to Change Type and press Select.5. Scroll to a desired type for the number and press OK.Sending messages from Phone BookTo send a new message from Phone Book:1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number and press Options.4. Scroll to Send message and press Select.5. Compose the message. When finished, press Options and then Send to send the message.Erasing Phone Book entryMethod 11. Enter Phone Book by pressing Names in standby mode.

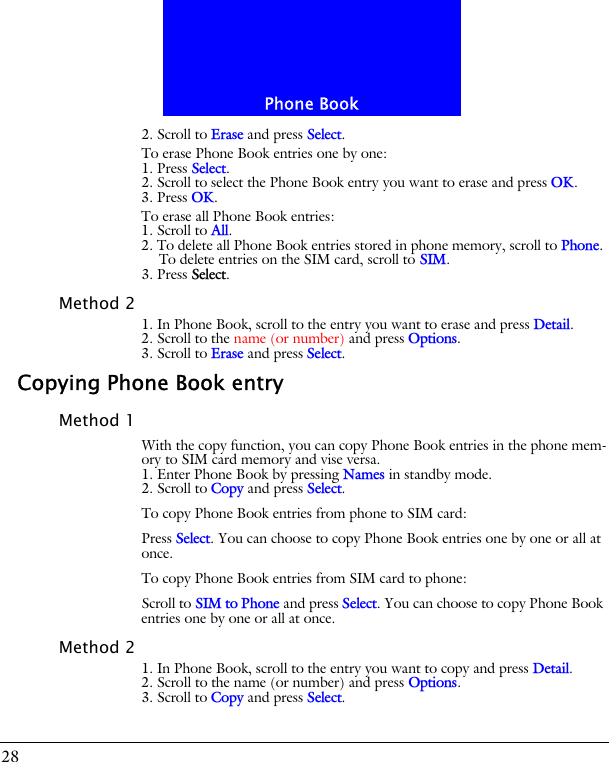

Phone Book282. Scroll to Erase and press Select.To erase Phone Book entries one by one:1. Press Select.2. Scroll to select the Phone Book entry you want to erase and press OK.3. Press OK.To erase all Phone Book entries:1. Scroll to All.2. To delete all Phone Book entries stored in phone memory, scroll to Phone. To delete entries on the SIM card, scroll to SIM.3. Press Select.Method 21. In Phone Book, scroll to the entry you want to erase and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Erase and press Select.Copying Phone Book entryMethod 1With the copy function, you can copy Phone Book entries in the phone mem-ory to SIM card memory and vise versa.1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Copy and press Select.To copy Phone Book entries from phone to SIM card:Press Select. You can choose to copy Phone Book entries one by one or all at once.To copy Phone Book entries from SIM card to phone:Scroll to SIM to Phone and press Select. You can choose to copy Phone Book entries one by one or all at once.Method 21. In Phone Book, scroll to the entry you want to copy and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Copy and press Select.

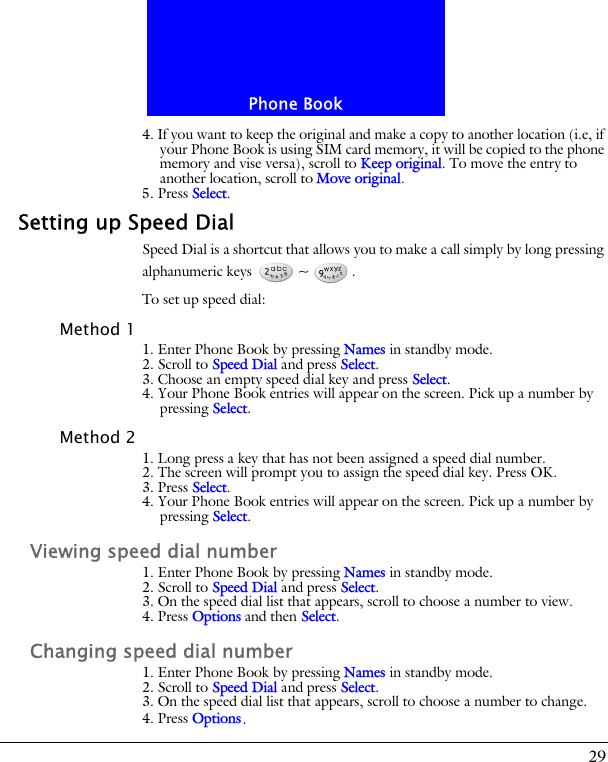

29Phone Book4. If you want to keep the original and make a copy to another location (i.e, if your Phone Book is using SIM card memory, it will be copied to the phone memory and vise versa), scroll to Keep original. To move the entry to another location, scroll to Move original.5. Press Select.Setting up Speed DialSpeed Dial is a shortcut that allows you to make a call simply by long pressing alphanumeric keys ~ .To set up speed dial:Method 11. Enter Phone Book by pressing Names in standby mode.2. Scroll to Speed Dial and press Select.3. Choose an empty speed dial key and press Select.4. Your Phone Book entries will appear on the screen. Pick up a number by pressing Select.Method 21. Long press a key that has not been assigned a speed dial number.2. The screen will prompt you to assign the speed dial key. Press OK.3. Press Select.4. Your Phone Book entries will appear on the screen. Pick up a number by pressing Select.Viewing speed dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Speed Dial and press Select.3. On the speed dial list that appears, scroll to choose a number to view.4. Press Options and then Select.Changing speed dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Speed Dial and press Select.3. On the speed dial list that appears, scroll to choose a number to change.4. Press Options.

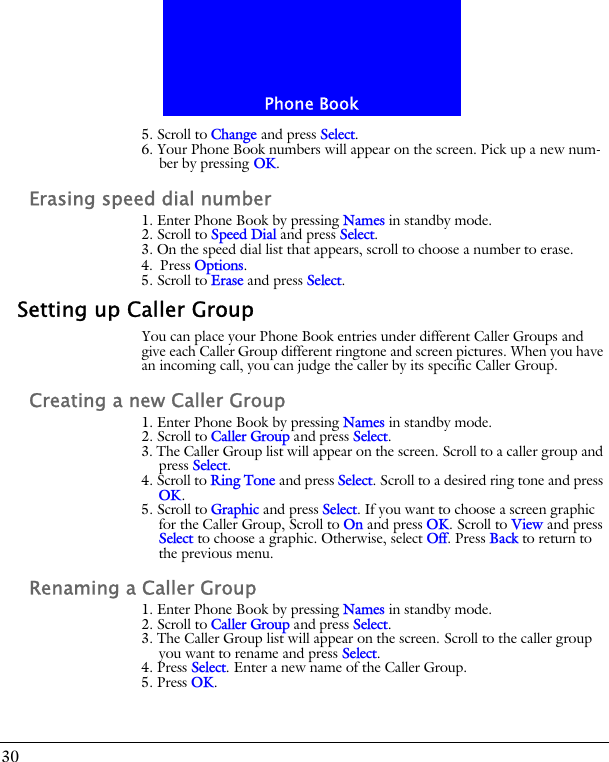

Phone Book305. Scroll to Change and press Select.6. Your Phone Book numbers will appear on the screen. Pick up a new num-ber by pressing OK. Erasing speed dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Speed Dial and press Select.3. On the speed dial list that appears, scroll to choose a number to erase.4. Press Options.5. Scroll to Erase and press Select.Setting up Caller GroupYou can place your Phone Book entries under different Caller Groups and give each Caller Group different ringtone and screen pictures. When you have an incoming call, you can judge the caller by its specific Caller Group.Creating a new Caller Group1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Caller Group and press Select.3. The Caller Group list will appear on the screen. Scroll to a caller group and press Select.4. Scroll to Ring Tone and press Select. Scroll to a desired ring tone and press OK.5. Scroll to Graphic and press Select. If you want to choose a screen graphic for the Caller Group, Scroll to On and press OK. Scroll to View and press Select to choose a graphic. Otherwise, select Off. Press Back to return to the previous menu.Renaming a Caller Group1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Caller Group and press Select.3. The Caller Group list will appear on the screen. Scroll to the caller group you want to rename and press Select.4. Press Select. Enter a new name of the Caller Group. 5. Press OK.

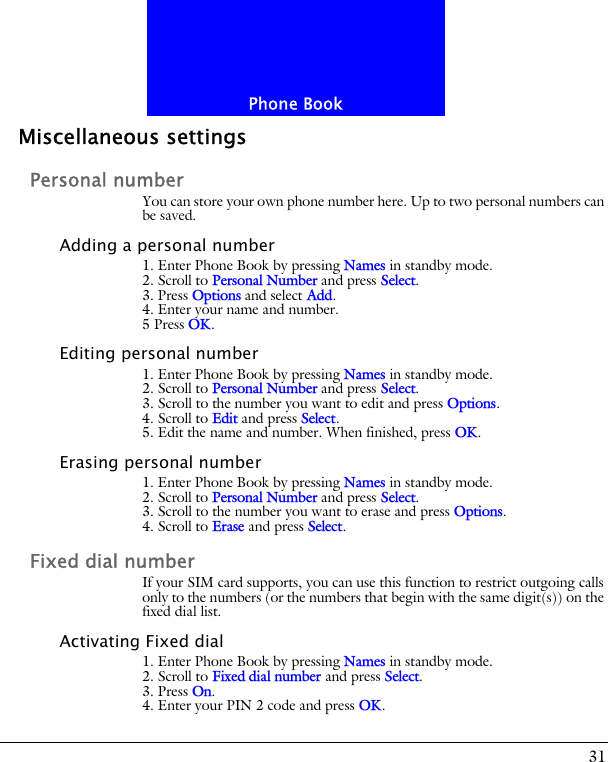

31Phone BookMiscellaneous settingsPersonal numberYou can store your own phone number here. Up to two personal numbers can be saved.Adding a personal number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Personal Number and press Select.3. Press Options and select Add.4. Enter your name and number.5 Press OK.Editing personal number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Personal Number and press Select.3. Scroll to the number you want to edit and press Options.4. Scroll to Edit and press Select. 5. Edit the name and number. When finished, press OK.Erasing personal number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Personal Number and press Select.3. Scroll to the number you want to erase and press Options.4. Scroll to Erase and press Select.Fixed dial numberIf your SIM card supports, you can use this function to restrict outgoing calls only to the numbers (or the numbers that begin with the same digit(s)) on the fixed dial list.Activating Fixed dial1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Press On. 4. Enter your PIN 2 code and press OK.

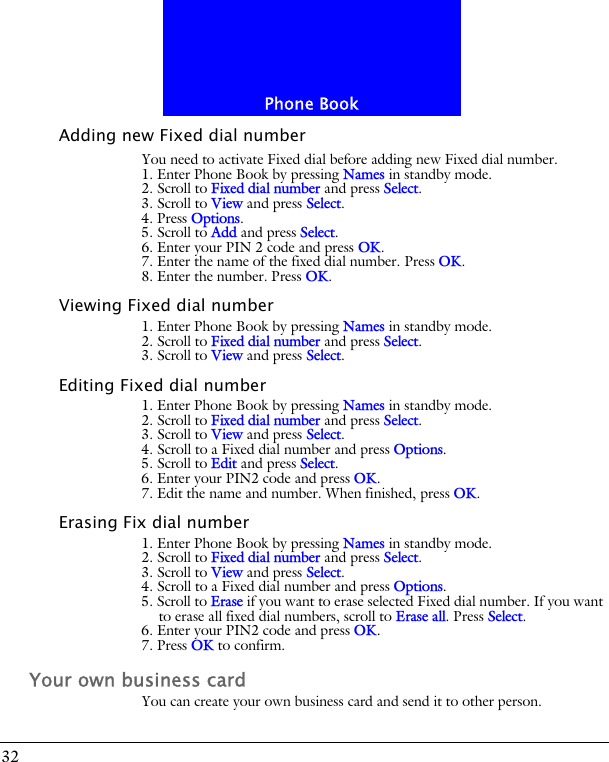

Phone Book32Adding new Fixed dial numberYou need to activate Fixed dial before adding new Fixed dial number.1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select. 4. Press Options.5. Scroll to Add and press Select.6. Enter your PIN 2 code and press OK.7. Enter the name of the fixed dial number. Press OK.8. Enter the number. Press OK.Viewing Fixed dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select.Editing Fixed dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select. 4. Scroll to a Fixed dial number and press Options.5. Scroll to Edit and press Select.6. Enter your PIN2 code and press OK.7. Edit the name and number. When finished, press OK.Erasing Fix dial number1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to View and press Select. 4. Scroll to a Fixed dial number and press Options.5. Scroll to Erase if you want to erase selected Fixed dial number. If you want to erase all fixed dial numbers, scroll to Erase all. Press Select.6. Enter your PIN2 code and press OK.7. Press OK to confirm.Your own business cardYou can create your own business card and send it to other person.

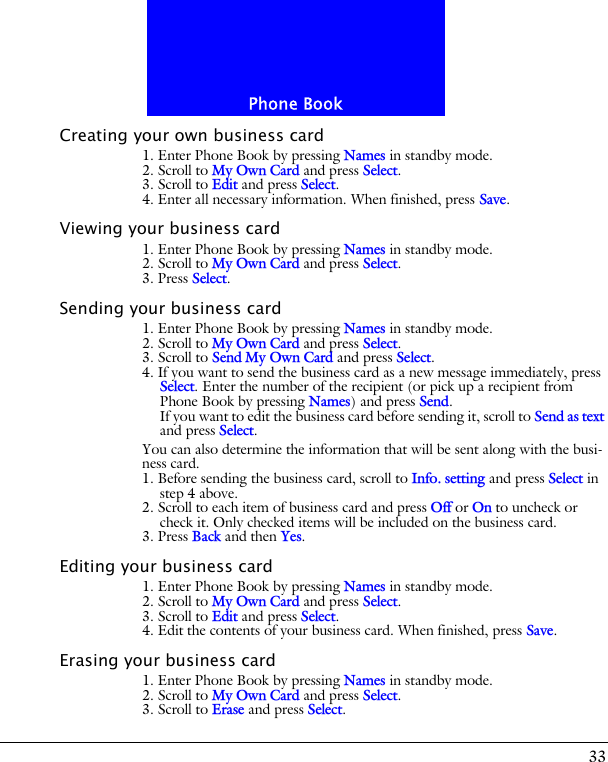

33Phone BookCreating your own business card1. Enter Phone Book by pressing Names in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Edit and press Select.4. Enter all necessary information. When finished, press Save.Viewing your business card1. Enter Phone Book by pressing Names in standby mode.2. Scroll to My Own Card and press Select.3. Press Select.Sending your business card1. Enter Phone Book by pressing Names in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Send My Own Card and press Select.4. If you want to send the business card as a new message immediately, press Select. Enter the number of the recipient (or pick up a recipient from Phone Book by pressing Names) and press Send.If you want to edit the business card before sending it, scroll to Send as text and press Select.You can also determine the information that will be sent along with the busi-ness card.1. Before sending the business card, scroll to Info. setting and press Select in step 4 above.2. Scroll to each item of business card and press Off or On to uncheck or check it. Only checked items will be included on the business card.3. Press Back and then Yes.Editing your business card1. Enter Phone Book by pressing Names in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Edit and press Select.4. Edit the contents of your business card. When finished, press Save.Erasing your business card1. Enter Phone Book by pressing Names in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Erase and press Select.

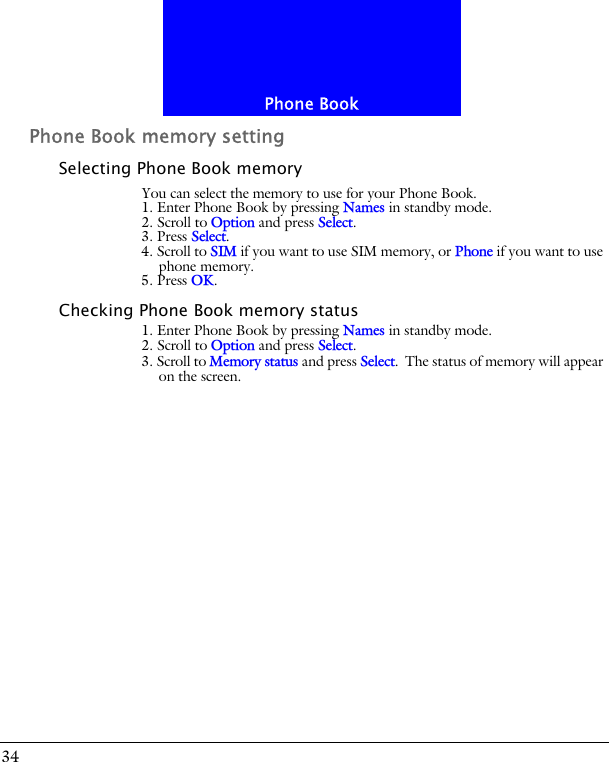

Phone Book34Phone Book memory settingSelecting Phone Book memoryYou can select the memory to use for your Phone Book.1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Option and press Select.3. Press Select. 4. Scroll to SIM if you want to use SIM memory, or Phone if you want to use phone memory.5. Press OK.Checking Phone Book memory status1. Enter Phone Book by pressing Names in standby mode.2. Scroll to Option and press Select.3. Scroll to Memory status and press Select. The status of memory will appear on the screen.
35The Main Menu

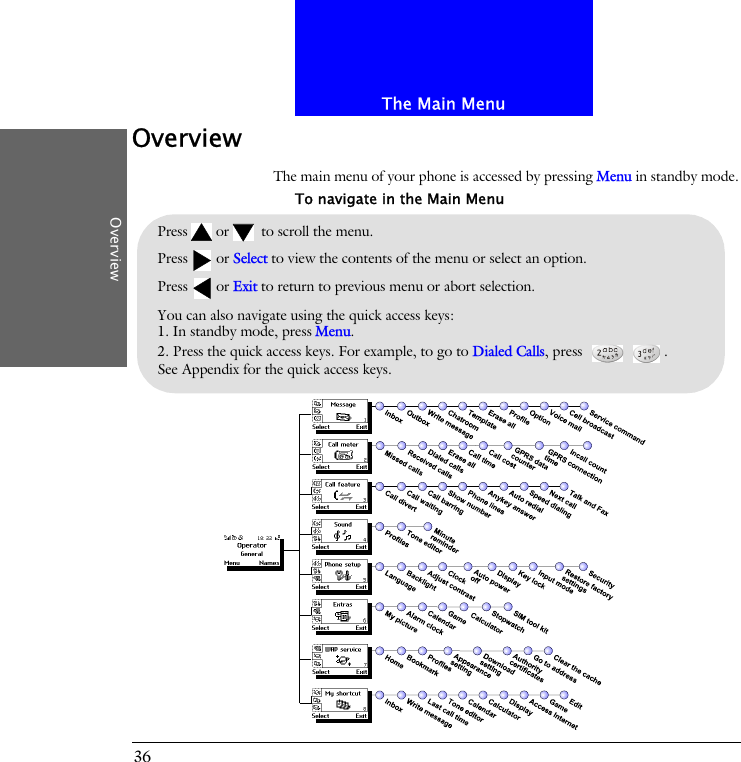

The Main MenuOverview36OverviewThe main menu of your phone is accessed by pressing Menu in standby mode.Pressor to scroll the menu.Press or Select to view the contents of the menu or select an option.Press or Exit to return to previous menu or abort selection.You can also navigate using the quick access keys:1. In standby mode, press Menu.2. Press the quick access keys. For example, to go to Dialed Calls, press .See Appendix for the quick access keys.To navigate in the Main Menu

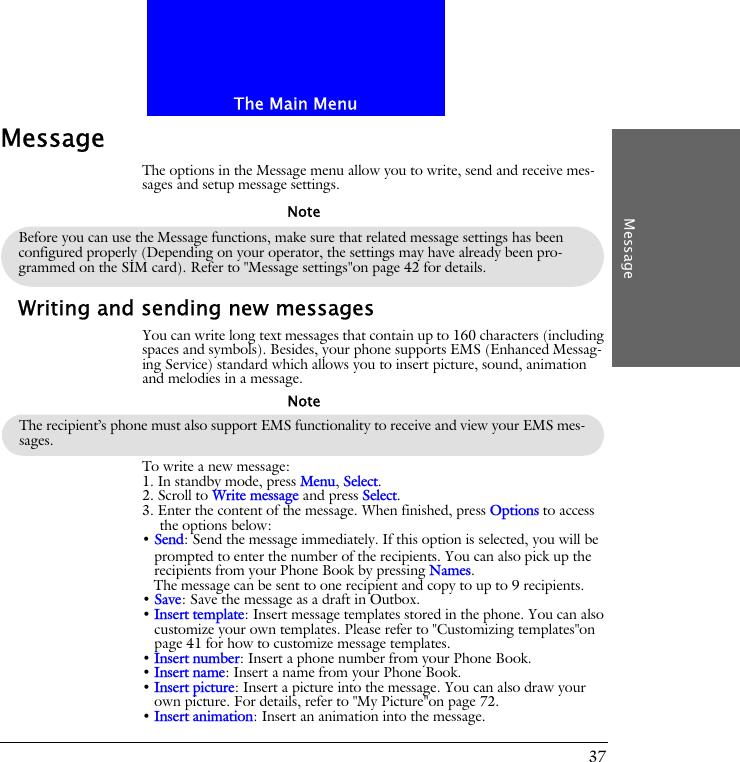

The Main MenuMessage37MessageThe options in the Message menu allow you to write, send and receive mes-sages and setup message settings.Writing and sending new messagesYou can write long text messages that contain up to 160 characters (including spaces and symbols). Besides, your phone supports EMS (Enhanced Messag-ing Service) standard which allows you to insert picture, sound, animation and melodies in a message.To write a new message:1. In standby mode, press Menu, Select.2. Scroll to Write message and press Select. 3. Enter the content of the message. When finished, press Options to access the options below:• Send: Send the message immediately. If this option is selected, you will be prompted to enter the number of the recipients. You can also pick up the recipients from your Phone Book by pressing Names. The message can be sent to one recipient and copy to up to 9 recipients.• Save: Save the message as a draft in Outbox.• Insert template: Insert message templates stored in the phone. You can also customize your own templates. Please refer to "Customizing templates"on page 41 for how to customize message templates.• Insert number: Insert a phone number from your Phone Book.• Insert name: Insert a name from your Phone Book.• Insert picture: Insert a picture into the message. You can also draw your own picture. For details, refer to "My Picture"on page 72.• Insert animation: Insert an animation into the message.Before you can use the Message functions, make sure that related message settings has been configured properly (Depending on your operator, the settings may have already been pro-grammed on the SIM card). Refer to "Message settings"on page 42 for details.NoteThe recipient’s phone must also support EMS functionality to receive and view your EMS mes-sages.Note
