Chi Mei Communication Systems 0306CPN01 GSM1900/GPRS Class 12 Cellular Phone User Manual Revised

Chi Mei Communication Systems, Inc. GSM1900/GPRS Class 12 Cellular Phone Revised

Revised user manual

1Making Your First Call

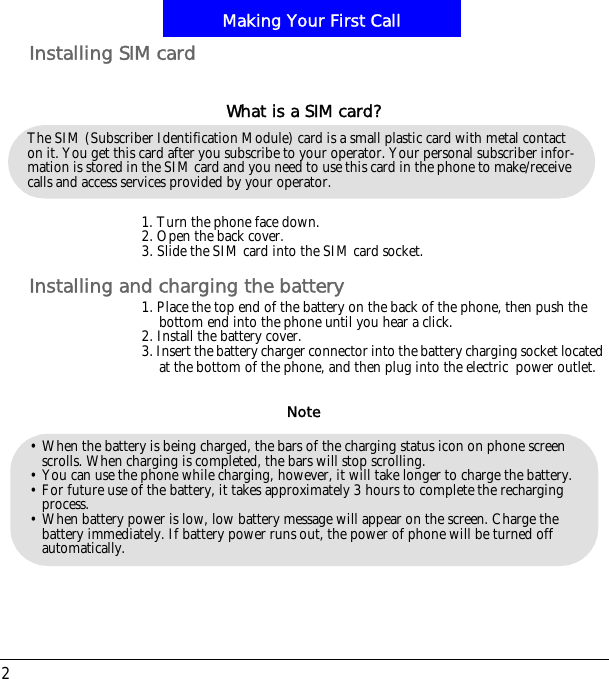

Making Your First Call2Installing SIM card1. Turn the phone face down.2. Open the back cover.3. Slide the SIM card into the SIM card socket.Installing and charging the battery1. Place the top end of the battery on the back of the phone, then push the bottom end into the phone until you hear a click.2. Install the battery cover.3. Insert the battery charger connector into the battery charging socket located at the bottom of the phone, and then plug into the electric!power outlet.The SIM (Subscriber Identification Module) card is a small plastic card with metal contact on it. You get this card after you subscribe to your operator. Your personal subscriber infor-mation is stored in the SIM card and you need to use this card in the phone to make/receive calls and access services provided by your operator.What is a SIM card?• When the battery is being charged, the bars of the charging status icon on phone screen scrolls. When charging is completed, the bars will stop scrolling. • You can use the phone while charging, however, it will take longer to charge the battery.• For future use of the battery, it takes approximately 3 hours to complete the recharging process.• When battery power is low, low battery message will appear on the screen. Charge the battery immediately. If battery power runs out, the power of phone will be turned off automatically.Note

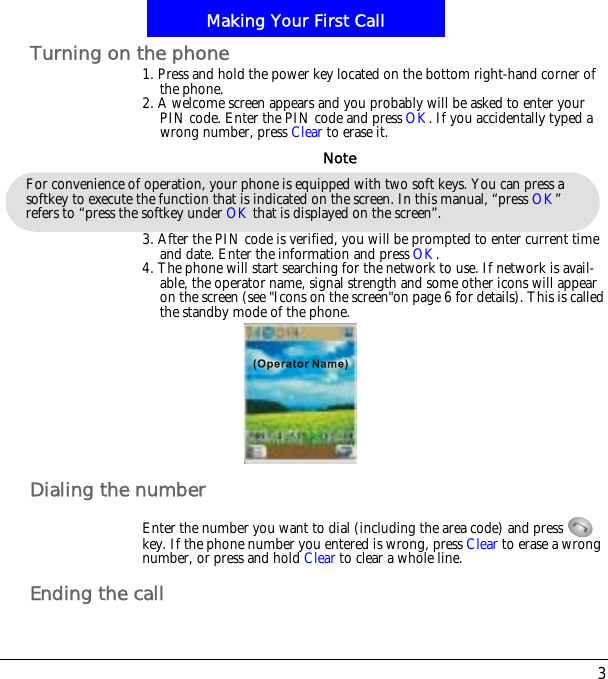

3Making Your First CallTurning on the phone1. Press and hold the power key located on the bottom right-hand corner of the phone.2. A welcome screen appears and you probably will be asked to enter your PIN code. Enter the PIN code and press OK. If you accidentally typed a wrong number, press Clear to erase it.3. After the PIN code is verified, you will be prompted to enter current time and date. Enter the information and press OK.4. The phone will start searching for the network to use. If network is avail-able, the operator name, signal strength and some other icons will appear on the screen (see "Icons on the screen"on page 6 for details). This is called the standby mode of the phone.Dialing the numberEnter the number you want to dial (including the area code) and press   key. If the phone number you entered is wrong, press Clear to erase a wrong number, or press and hold Clear to clear a whole line.Ending the callFor convenience of operation, your phone is equipped with two soft keys. You can press a softkey to execute the function that is indicated on the screen. In this manual, “press OK”refers to “press the softkey under OK that is displayed on the screen”.Note

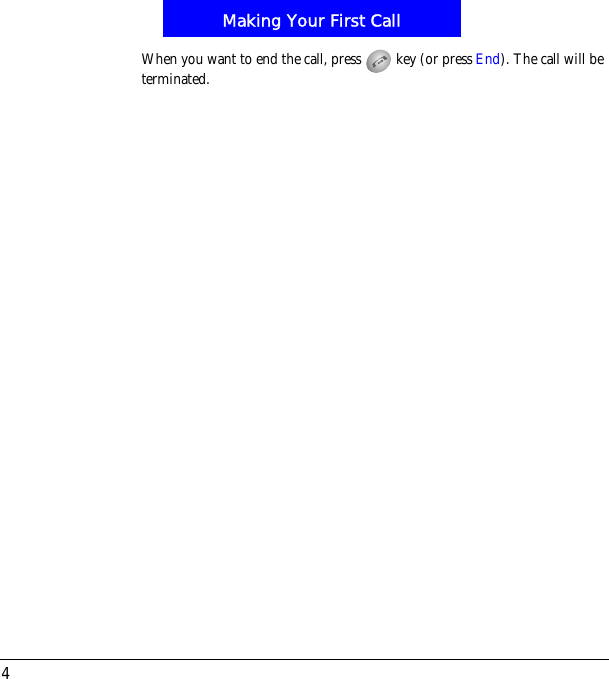

Making Your First Call4When you want to end the call, press   key (or press End). The call will be terminated.

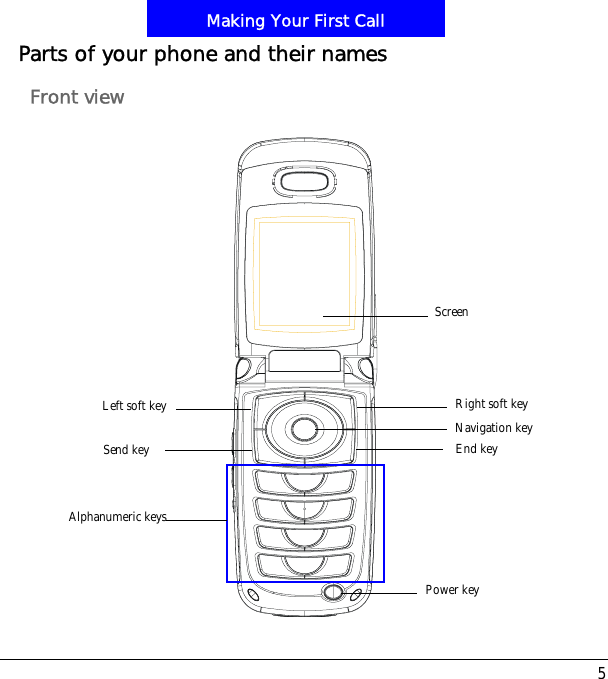

5Making Your First CallParts of your phone and their namesFront viewScreenRight soft keyLeft soft keyPower keySend keyNavigation keyAlphanumeric keysEnd key

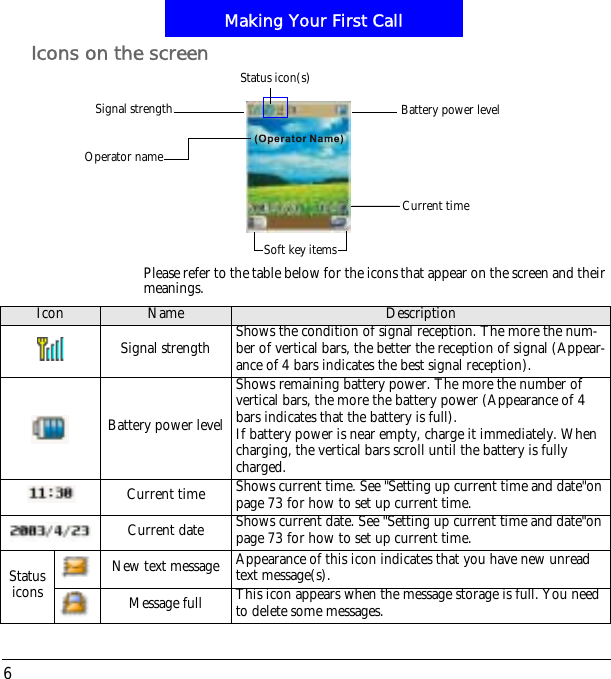

Making Your First Call6Icons on the screen Please refer to the table below for the icons that appear on the screen and their meanings.Signal strength Battery power levelCurrent timeOperator nameSoft key itemsStatus icon(s)Icon Name DescriptionSignal strength Shows the condition of signal reception. The more the num-ber of vertical bars, the better the reception of signal (Appear-ance of 4 bars indicates the best signal reception).Battery power levelShows remaining battery power. The more the number of vertical bars, the more the battery power (Appearance of 4 bars indicates that the battery is full).If battery power is near empty, charge it immediately. When charging, the vertical bars scroll until the battery is fully charged.Current time Shows current time. See "Setting up current time and date"on page 73 for how to set up current time.Current date Shows current date. See "Setting up current time and date"on page 73 for how to set up current time.Status iconsNew text message Appearance of this icon indicates that you have new unread!text message(s).Message full This icon appears when the message storage is full. You need to delete some messages.
7Introduction to Your Phone

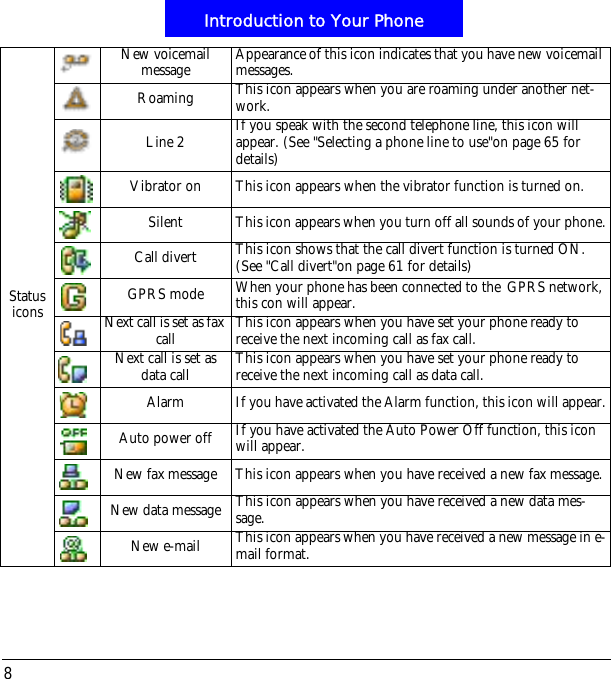

Introduction to Your Phone8Status iconsNew voicemail message Appearance of this icon indicates that you have new voicemail messages.Roaming This icon appears when you are roaming under another net-work.Line 2 If you speak with the second telephone line, this icon will appear. (See "Selecting a phone line to use"on page 65 for details)Vibrator on This icon appears when the vibrator function is turned on.Silent This icon appears when you turn off all sounds of your phone.Call divert This icon shows that the call divert function is turned ON. (See "Call divert"on page 61 for details)GPRS mode When your phone has been connected to the!GPRS network, this con will appear.Next call is set as fax call This icon appears when you have set your phone ready to receive the next incoming call as fax call.Next call is set as data call This icon appears when you have set your phone ready to receive the next incoming call as data call.Alarm If you have activated the Alarm function, this icon will appear.Auto power off If you have activated the Auto Power Off function, this icon will appear.New fax message This icon appears when you have received a new fax message.New data message This icon appears when you have received a new data mes-sage.New e-mail This icon appears when you have received a new message in e-mail format.

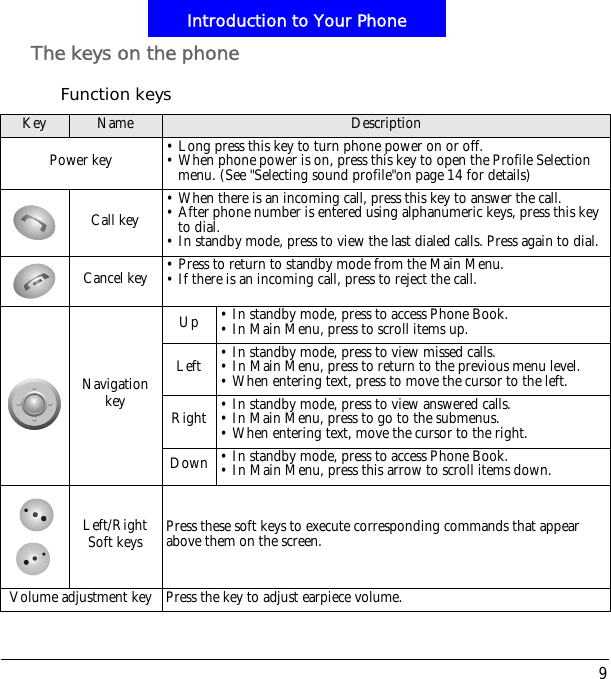

9Introduction to Your PhoneThe keys on the phoneFunction keysKey Name DescriptionPower key • Long press this key to turn phone power on or off.• When phone power is on, press this key to open the Profile Selection menu. (See "Selecting sound profile"on page 14 for details)Call key • When there is an incoming call, press this key to answer the call.• After phone number is entered using alphanumeric keys, press this key to dial.• In standby mode, press to view the last dialed calls. Press again to dial.Cancel key • Press to return to standby mode from the Main Menu.• If there is an incoming call, press to reject the call.Navigation keyUp • In standby mode, press to access Phone Book.• In Main Menu, press to scroll items up.Left • In standby mode, press to view missed calls.• In Main Menu, press to return to the previous menu level.• When entering text, press to move the cursor to the left.Right • In standby mode, press to view answered calls.• In Main Menu, press to go to the submenus.• When entering text, move the cursor to the right.Down • In standby mode, press to access Phone Book.• In Main Menu, press this arrow to scroll items down.Left/Right Soft keys Press these soft keys to execute corresponding commands that appear above them on the screen.Volume adjustment key Press the key to adjust earpiece volume.

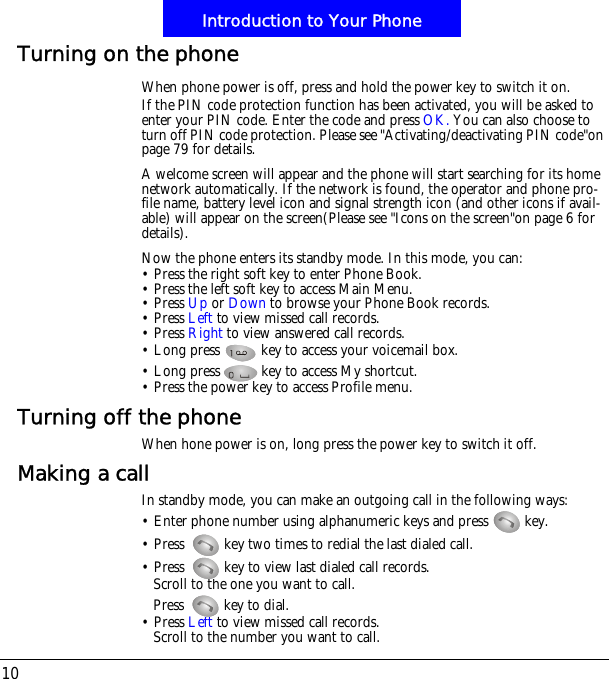

Introduction to Your Phone10Turning on the phoneWhen phone power is off, press and hold the power key to switch it on.If the PIN code protection function has been activated, you will be asked to enter your PIN code. Enter the code and press OK. You can also choose to turn off PIN code protection. Please see "Activating/deactivating PIN code"on page 79 for details.A welcome screen will appear and the phone will start searching for its home network automatically. If the network is found, the operator and phone pro-file name, battery level icon and signal strength icon (and other icons if avail-able) will appear on the screen(Please see "Icons on the screen"on page 6 for details).Now the phone enters its standby mode. In this mode, you can:• Press the right soft key to enter Phone Book.• Press the left soft key to access Main Menu.• Press Up or Down to browse your Phone Book records.• Press Left to view missed call records.• Press Right to view answered call records.• Long press   key to access your voicemail box.• Long press   key to access My shortcut.• Press the power key to access Profile menu.Turning off the phoneWhen hone power is on, long press the power key to switch it off.Making a callIn standby mode, you can make an outgoing call in the following ways:• Enter phone number using alphanumeric keys and press   key.• Press! key two times to redial the last dialed call.• Press! key to view last dialed call records.Scroll to the one you want to call.Press! key to dial.• Press Left to view missed call records.Scroll to the number you want to call.

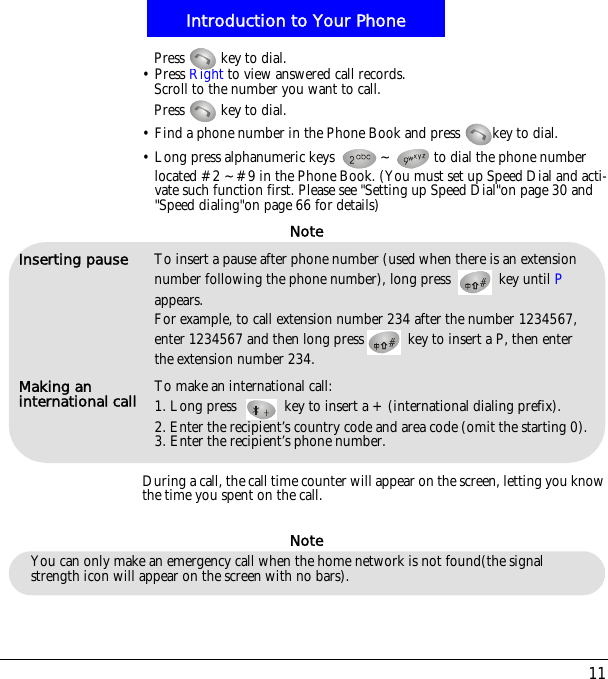

11Introduction to Your PhonePress   key to dial.• Press Right to view answered call records.Scroll to the number you want to call.Press   key to dial.• Find a phone number in the Phone Book and press  key to dial.• Long press alphanumeric keys  ~ to dial the phone number located #2 ~#9 in the Phone Book. (You must set up Speed Dial and acti-vate such function first. Please see "Setting up Speed Dial"on page 30 and "Speed dialing"on page 66 for details)During a call, the call time counter will appear on the screen, letting you know the time you spent on the call.Inserting pause To insert a pause after phone number (used when there is an extension number following the phone number), long press   key until Pappears. For example, to call extension number 234 after the number 1234567,enter 1234567 and then long press  key to insert a P, then enter the extension number 234.Making an international call To make an international call:1. Long press  key to insert a +(international dialing prefix).2. Enter the recipient’s country code and area code (omit the starting 0).3. Enter the recipient’s phone number.NoteNoteYou can only make an emergency call when the home network is not found(the signal strength icon will appear on the screen with no bars).

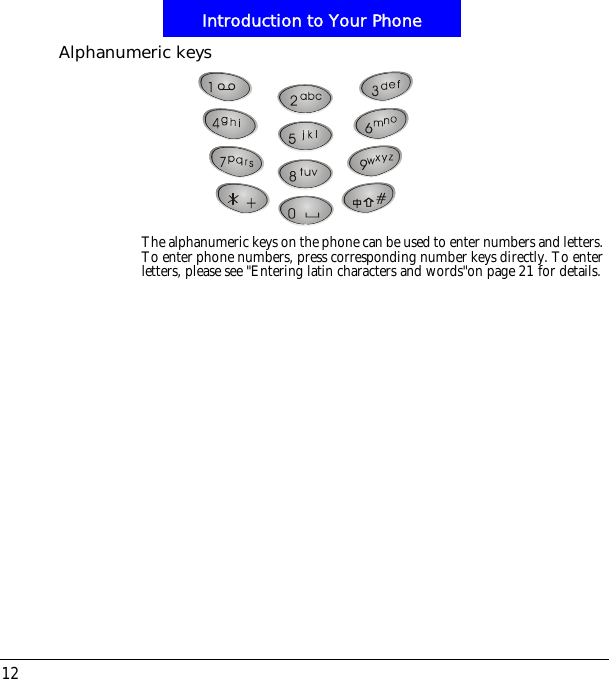

Introduction to Your Phone12Alphanumeric keysThe alphanumeric keys on the phone can be used to enter numbers and letters. To enter phone numbers, press corresponding number keys directly. To enter letters, please see "Entering latin characters and words"on page 21 for details.
13Basic Operations

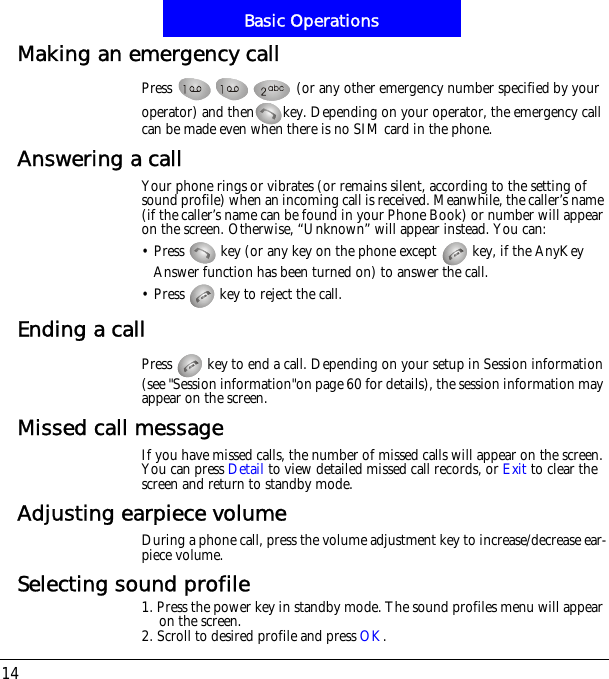

Basic Operations14Making an emergency callPress   (or any other emergency number specified by your operator) and then key. Depending on your operator, the emergency call can be made even when there is no SIM card in the phone.Answering a callYour phone rings or vibrates (or remains silent, according to the setting of sound profile) when an incoming call is received. Meanwhile, the caller’s name (if the caller’s name can be found in your Phone Book) or number will appear on the screen. Otherwise, “Unknown” will appear instead. You can:• Press   key (or any key on the phone except   key, if the AnyKey Answer function has been turned on) to answer the call.• Press   key to reject the call.Ending a callPress   key to end a call. Depending on your setup in Session information (see "Session information"on page 60 for details), the session information may appear on the screen.Missed call messageIf you have missed calls, the number of missed calls will appear on the screen. You can press Detail to view detailed missed call records, or Exit to clear the screen and return to standby mode.Adjusting earpiece volumeDuring a phone call, press the volume adjustment key to increase/decrease ear-piece volume.Selecting sound profile1. Press the power key in standby mode. The sound profiles menu will appear on the screen.2. Scroll to desired profile and press OK.

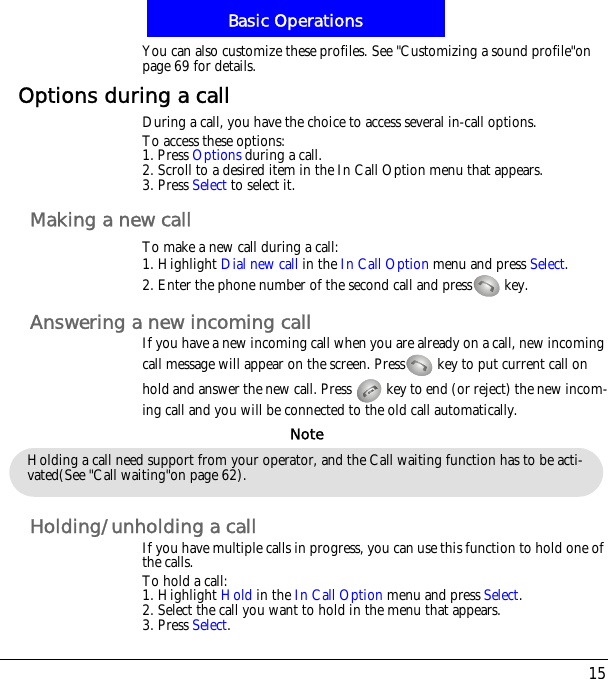

15Basic OperationsYou can also customize these profiles. See "Customizing a sound profile"on page 69 for details.Options during a callDuring a call, you have the choice to access several in-call options.To access these options:1. Press Options during a call. 2. Scroll to a desired item in the In Call Option menu that appears.3. Press Select to select it.Making a new callTo make a new call during a call:1. Highlight Dial new call in the In Call Option menu and press Select.2. Enter the phone number of the second call and press  key.Answering a new incoming callIf you have a new incoming call when you are already on a call, new incoming call message will appear on the screen. Press  key to put current call on hold and answer the new call. Press   key to end (or reject) the new incom-ing call and you will be connected to the old call automatically.Holding/unholding a callIf you have multiple calls in progress, you can use this function to hold one of the calls.To hold a call:1. Highlight Hold in the In Call Option menu and press Select.2. Select the call you want to hold in the menu that appears.3. Press Select.Holding a call need support from your operator, and the Call waiting function has to be acti-vated(See "Call waiting"on page 62).Note

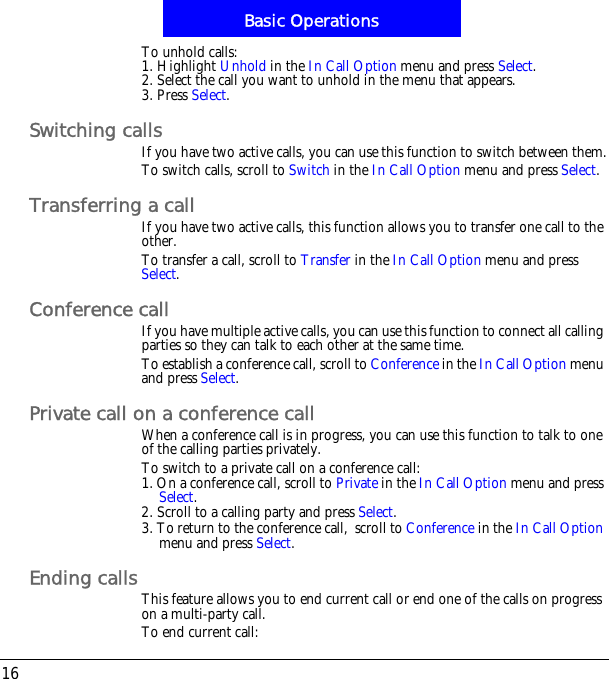

Basic Operations16To unhold calls:1. Highlight Unhold in the In Call Option menu and press Select.2. Select the call you want to unhold in the menu that appears.3. Press Select.Switching callsIf you have two active calls, you can use this function to switch between them.To switch calls, scroll to Switch in the In Call Option menu and press Select.Transferring a callIf you have two active calls, this function allows you to transfer one call to the other.To transfer a call, scroll to Transfer in the In Call Option menu and press Select.Conference callIf you have multiple active calls, you can use this function to connect all calling parties so they can talk to each other at the same time.To establish a conference call, scroll to Conference in the In Call Option menu and press Select.Private call on a conference callWhen a conference call is in progress, you can use this function to talk to one of the calling parties privately.To switch to a private call on a conference call:1. On a conference call, scroll to Private in the In Call Option menu and press Select.2. Scroll to a calling party and press Select.3. To return to the conference call,!scroll to Conference in the In Call Optionmenu and press Select.Ending callsThis feature allows you to end current call or end one of the calls on progress on a multi-party call.To end current call:

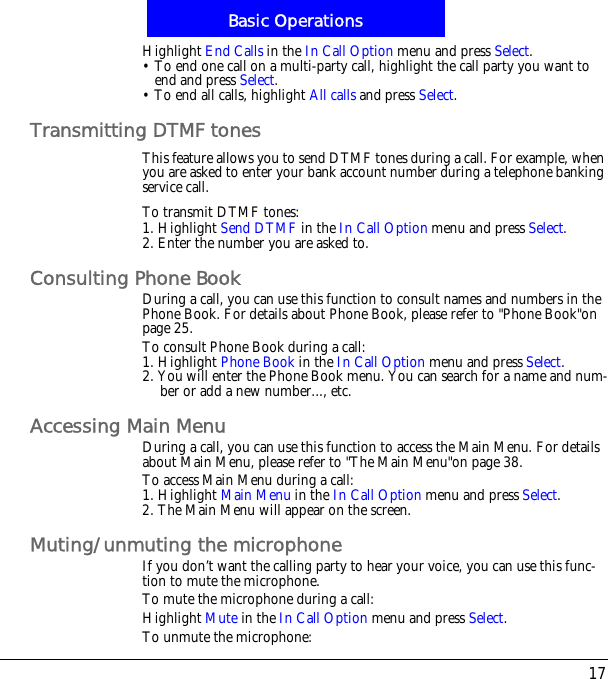

17Basic OperationsHighlight End Calls in the In Call Option menu and press Select.• To end one call on a multi-party call, highlight the call party you want to end and press Select.• To end all calls, highlight All calls and press Select.Transmitting DTMF tonesThis feature allows you to send DTMF tones during a call. For example, when you are asked to enter your bank account number during a telephone banking service call.To transmit DTMF tones:1. Highlight Send DTMF in the In Call Option menu and press Select.2. Enter the number you are asked to.Consulting Phone BookDuring a call, you can use this function to consult names and numbers in the Phone Book. For details about Phone Book, please refer to "Phone Book"on page 25.To consult Phone Book during a call:1. Highlight Phone Book in the In Call Option menu and press Select.2. You will enter the Phone Book menu. You can search for a name and num-ber or add a new number..., etc.Accessing Main MenuDuring a call, you can use this function to access the Main Menu. For details about Main Menu, please refer to "The Main Menu"on page 38.To access Main Menu during a call:1. Highlight Main Menu in the In Call Option menu and press Select.2. The Main Menu will appear on the screen.Muting/unmuting the microphoneIf you don’t want the calling party to hear your voice, you can use this func-tion to mute the microphone.To mute the microphone during a call:Highlight Mute in the In Call Option menu and press Select.To unmute the microphone:

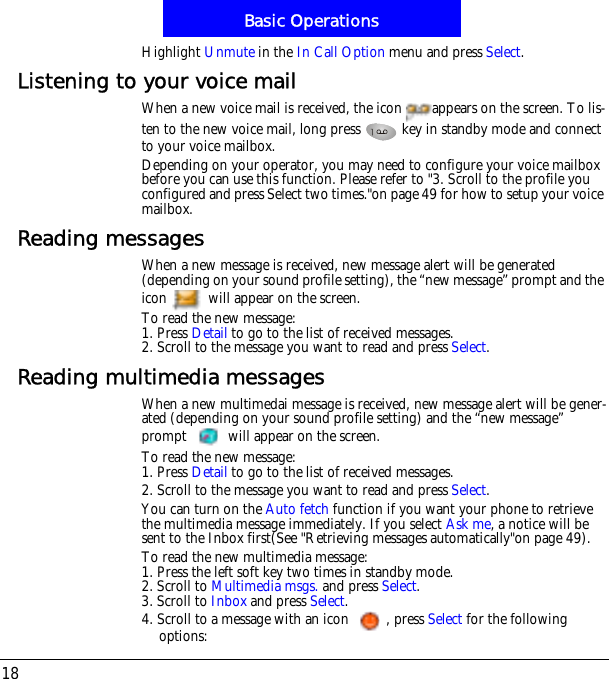

Basic Operations18Highlight Unmute in the In Call Option menu and press Select.Listening to your voice mailWhen a new voice mail is received, the icon  appears on the screen. To lis-ten to the new voice mail, long press   key in standby mode and connect to your voice mailbox.Depending on your operator, you may need to configure your voice mailbox before you can use this function. Please refer to "3. Scroll to the profile you configured and press Select two times."on page 49 for how to setup your voice mailbox.Reading messagesWhen a new message is received, new message alert will be generated (depending on your sound profile setting), the “new message” prompt and the icon   will appear on the screen.To read the new message:1. Press Detail to go to the list of received messages.2. Scroll to the message you want to read and press Select.Reading multimedia messagesWhen a new multimedai message is received, new message alert will be gener-ated (depending on your sound profile setting) and the “new message” prompt   will appear on the screen.To read the new message:1. Press Detail to go to the list of received messages.2. Scroll to the message you want to read and press Select.You can turn on the Auto fetch function if you want your phone to retrieve the multimedia message immediately. If you select Ask me, a notice will be sent to the Inbox first(See "Retrieving messages automatically"on page 49).To read the new multimedia message:1. Press the left soft key two times in standby mode.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Inbox and press Select.4. Scroll to a message with an icon  , press Select for the following options:

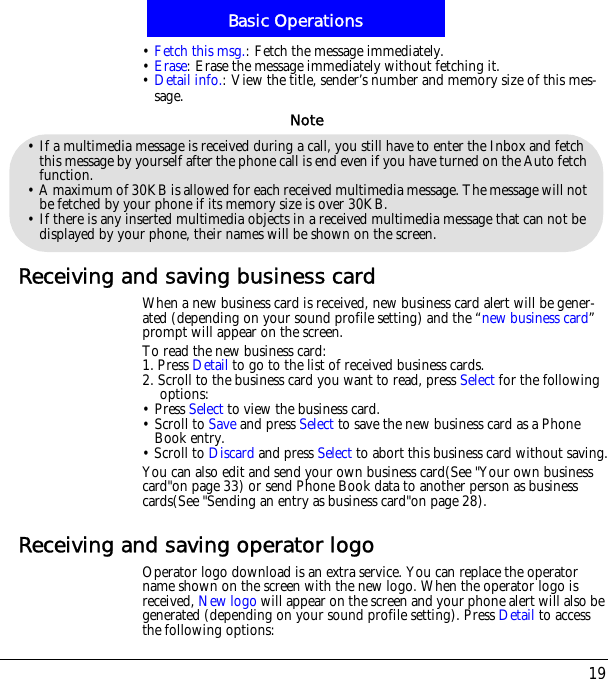

19Basic Operations•Fetch this msg.: Fetch the message immediately.•Erase: Erase the message immediately without fetching it.•Detail info.: View the title, sender’s number and memory size of this mes-sage.Receiving and saving business cardWhen a new business card is received, new business card alert will be gener-ated (depending on your sound profile setting) and the “new business card”prompt will appear on the screen.To read the new business card:1. Press Detail to go to the list of received business cards.2. Scroll to the business card you want to read, press Select for the following options:• Press Select to view the business card.• Scroll to Save and press Select to save the new business card as a Phone Book entry.  • Scroll to Discard and press Select to abort this business card without saving.You can also edit and send your own business card(See "Your own business card"on page 33) or send Phone Book data to another person as business cards(See "Sending an entry as business card"on page 28).Receiving and saving operator logoOperator logo download is an extra service. You can replace the operator name shown on the screen with the new logo. When the operator logo is received, New logo will appear on the screen and your phone alert will also be generated (depending on your sound profile setting). Press Detail to access the following options:• If a multimedia message is received during a call, you still have to enter the Inbox and fetch this message by yourself after the phone call is end even if you have turned on the Auto fetch function.• A maximum of 30KB is allowed for each received multimedia message. The message will not be fetched by your phone if its memory size is over 30KB.• If there is any inserted multimedia objects in a received multimedia message that can not be displayed by your phone, their names will be shown on the screen.Note

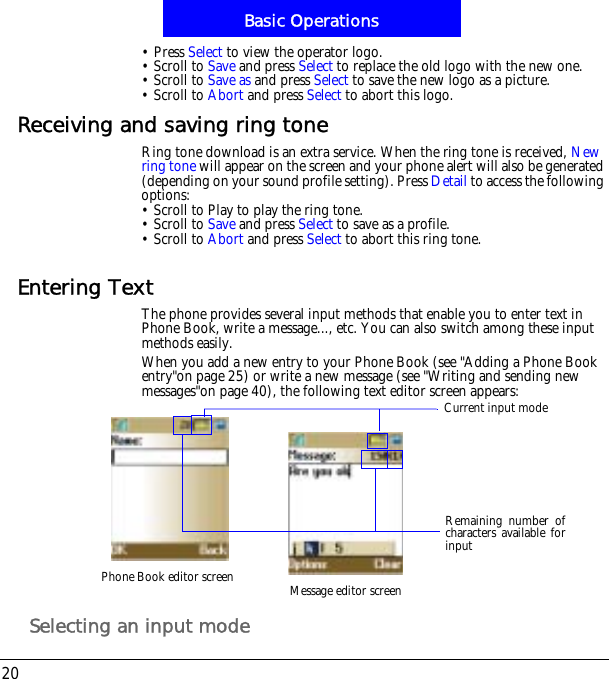

Basic Operations20• Press Select to view the operator logo.• Scroll to Save and press Select to replace the old logo with the new one.  • Scroll to Save as and press Select to save the new logo as a picture.• Scroll to Abort and press Select to abort this logo. Receiving and saving ring toneRing tone download is an extra service. When the ring tone is received, New ring tone will appear on the screen and your phone alert will also be generated (depending on your sound profile setting). Press Detail to access the following options:• Scroll to Play to play the ring tone.• Scroll to Save and press Select to save as a profile.• Scroll to Abort and press Select to abort this ring tone. Entering TextThe phone provides several input methods that enable you to enter text in Phone Book, write a message..., etc. You can also switch among these input methods easily.When you add a new entry to your Phone Book (see "Adding a Phone Book entry"on page 25) or write a new message (see "Writing and sending new messages"on page 40), the following text editor screen appears:Selecting an input modePhone Book editor screen Message editor screenRemaining number ofcharacters available forinputCurrent input mode

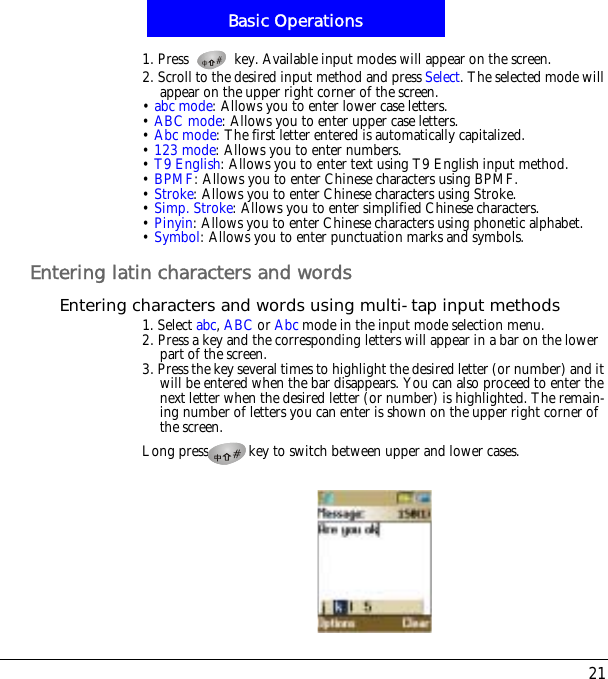

21Basic Operations1. Press   key. Available input modes will appear on the screen.2. Scroll to the desired input method and press Select. The selected mode will appear on the upper right corner of the screen.•abc mode: Allows you to enter lower case letters.•ABC mode: Allows you to enter upper case letters.•Abc mode: The first letter entered is automatically capitalized.•123 mode: Allows you to enter numbers.•T9 English: Allows you to enter text using T9 English input method.•BPMF: Allows you to enter Chinese characters using BPMF.•Stroke: Allows you to enter Chinese characters using Stroke.•Simp. Stroke: Allows you to enter simplified Chinese characters.•Pinyin: Allows you to enter Chinese characters using phonetic alphabet.•Symbol: Allows you to enter punctuation marks and symbols.Entering latin characters and wordsEntering characters and words using multi-tap input methods1. Select abc,ABC or Abc mode in the input mode selection menu.2. Press a key and the corresponding letters will appear in a bar on the lower part of the screen.3. Press the key several times to highlight the desired letter (or number) and it will be entered when the bar disappears. You can also proceed to enter the next letter when the desired letter (or number) is highlighted. The remain-ing number of letters you can enter is shown on the upper right corner of the screen.Long press key to switch between upper and lower cases.

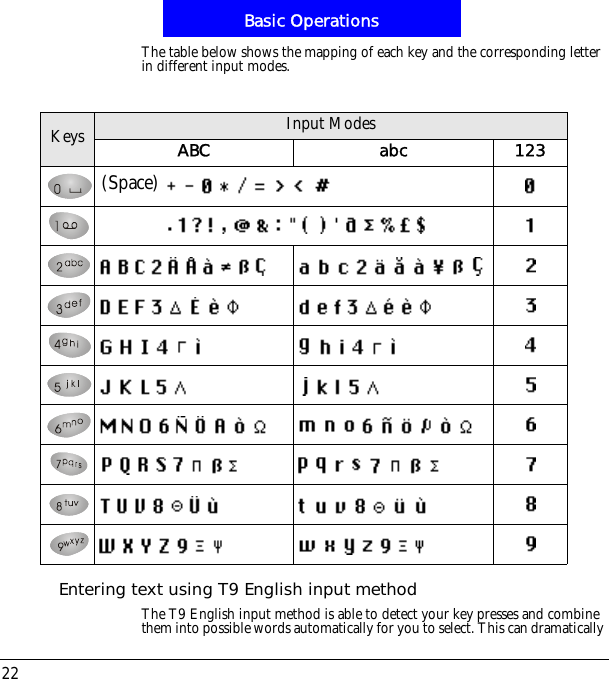

Basic Operations22The table below shows the mapping of each key and the corresponding letter in different input modes.Entering text using T9 English input methodThe T9 English input method is able to detect your key presses and combine them into possible words automatically for you to select. This can dramatically Keys Input ModesABC abc 123(Space)

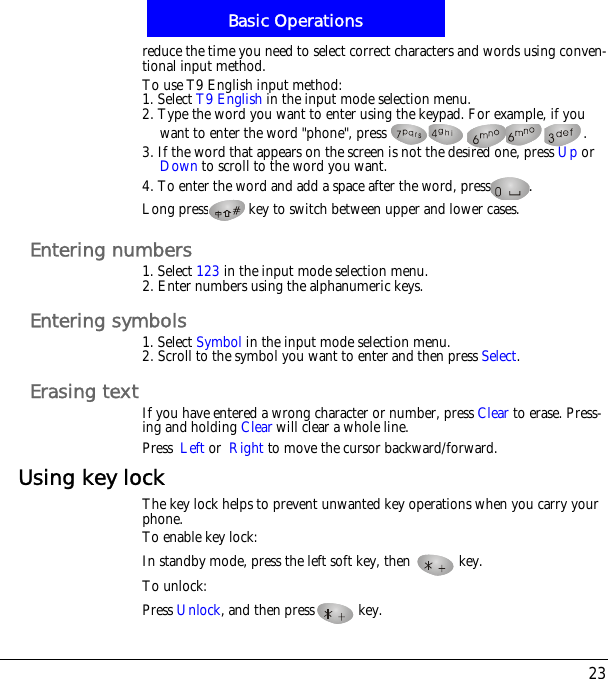

23Basic Operationsreduce the time you need to select correct characters and words using conven-tional input method.To use T9 English input method:1. Select T9 English in the input mode selection menu.2. Type the word you want to enter using the keypad. For example, if you want to enter the word "phone", press  .3. If the word that appears on the screen is not the desired one, press Up or Down to scroll to the word you want.4. To enter the word and add a space after the word, press .Long press key to switch between upper and lower cases.Entering numbers1. Select 123 in the input mode selection menu.2. Enter numbers using the alphanumeric keys.Entering symbols1. Select Symbol in the input mode selection menu.2. Scroll to the symbol you want to enter and then press Select.Erasing textIf you have entered a wrong character or number, press Clear to erase. Press-ing and holding Clear will clear a whole line.Press!Left or!Right to move the cursor backward/forward.Using key lockThe key lock helps to prevent unwanted key operations when you carry your phone. To enable key lock:In standby mode, press the left soft key, then   key.To unlock:Press Unlock, and then press  key.
24Phone Book

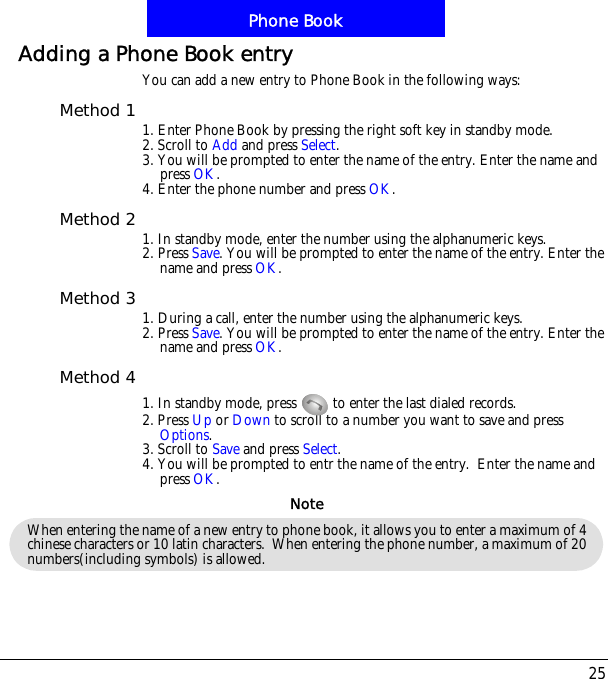

25Phone BookAdding a Phone Book entryYou can add a new entry to Phone Book in the following ways:Method 1 1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Add and press Select.3. You will be prompted to enter the name of the entry. Enter the name and press OK.4. Enter the phone number and press OK.Method 2 1. In standby mode, enter the number using the alphanumeric keys.2. Press Save. You will be prompted to enter the name of the entry. Enter the name and press OK.Method 3 1. During a call, enter the number using the alphanumeric keys.2. Press Save. You will be prompted to enter the name of the entry. Enter the name and press OK.Method 41. In standby mode, press   to enter the last dialed records.2. Press Up or Down to scroll to a number you want to save and press Options.3. Scroll to Save and press Select.4. You will be prompted to entr the name of the entry.  Enter the name and press OK.When entering the name of a new entry to phone book, it allows you to enter a maximum of 4 chinese characters or 10 latin characters.  When entering the phone number, a maximum of 20 numbers(including symbols) is allowed.Note

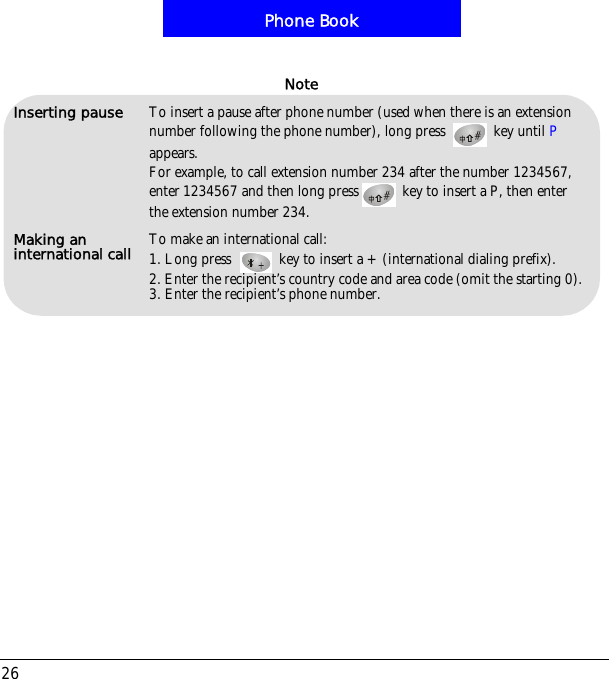

Phone Book26Inserting pause To insert a pause after phone number (used when there is an extension number following the phone number), long press   key until Pappears. For example, to call extension number 234 after the number 1234567,enter 1234567 and then long press  key to insert a P, then enter the extension number 234.Making an international call To make an international call:1. Long press  key to insert a +(international dialing prefix).2. Enter the recipient’s country code and area code (omit the starting 0).3. Enter the recipient’s phone number.Note

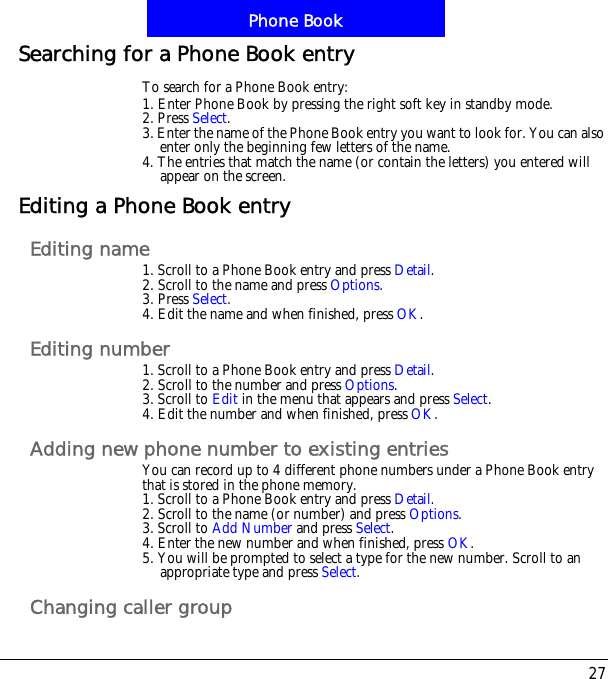

27Phone BookSearching for a Phone Book entryTo search for a Phone Book entry:1. Enter Phone Book by pressing the right soft key in standby mode.2. Press Select.3. Enter the name of the Phone Book entry you want to look for. You can also enter only the beginning few letters of the name.4. The entries that match the name (or contain the letters) you entered will appear on the screen.Editing a Phone Book entryEditing name1. Scroll to a Phone Book entry and press Detail.2. Scroll to the name and press Options.3. Press Select.4. Edit the name and when finished, press OK.Editing number1. Scroll to a Phone Book entry and press Detail.2. Scroll to the number and press Options.3. Scroll to Edit in the menu that appears and press Select.4. Edit the number and when finished, press OK.Adding new phone number to existing entriesYou can record up to 4 different phone numbers under a Phone Book entry that is stored in the phone memory.1. Scroll to a Phone Book entry and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Add Number and press Select.4. Enter the new number and when finished, press OK.5. You will be prompted to select a type for the new number. Scroll to an appropriate type and press Select.Changing caller group

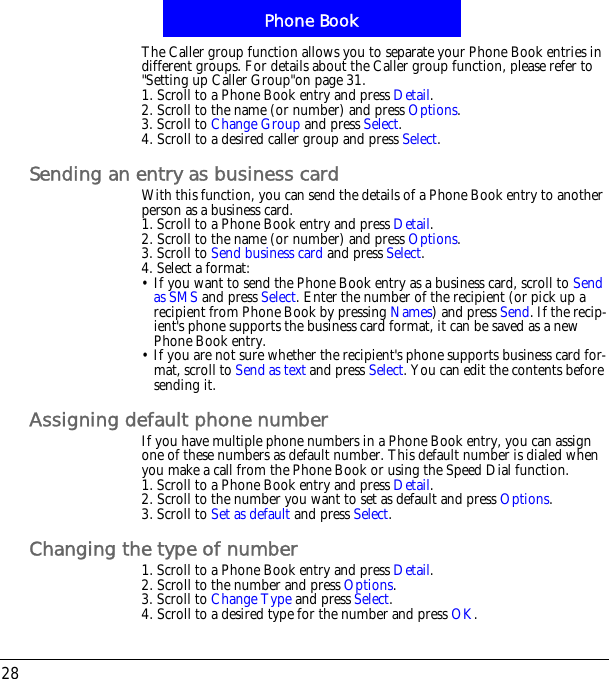

Phone Book28The Caller group function allows you to separate your Phone Book entries in different groups. For details about the Caller group function, please refer to "Setting up Caller Group"on page 31.1. Scroll to a Phone Book entry and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Change Group and press Select.4. Scroll to a desired caller group and press Select.Sending an entry as business cardWith this function, you can send the details of a Phone Book entry to another person as a business card.1. Scroll to a Phone Book entry and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Send business card and press Select.4. Select a format:• If you want to send the Phone Book entry as a business card, scroll to Send as SMS and press Select. Enter the number of the recipient (or pick up a recipient from Phone Book by pressing Names) and press Send. If the recip-ient's phone supports the business card format, it can be saved as a new Phone Book entry. • If you are not sure whether the recipient's phone supports business card for-mat, scroll to Send as text and press Select. You can edit the contents before sending it.Assigning default phone numberIf you have multiple phone numbers in a Phone Book entry, you can assign one of these numbers as default number. This default number is dialed when you make a call from the Phone Book or using the Speed Dial function.1. Scroll to a Phone Book entry and press Detail.2. Scroll to the number you want to set as default and press Options.3. Scroll to Set as default and press Select.Changing the type of number1. Scroll to a Phone Book entry and press Detail.2. Scroll to the number and press Options.3. Scroll to Change Type and press Select.4. Scroll to a desired type for the number and press OK.

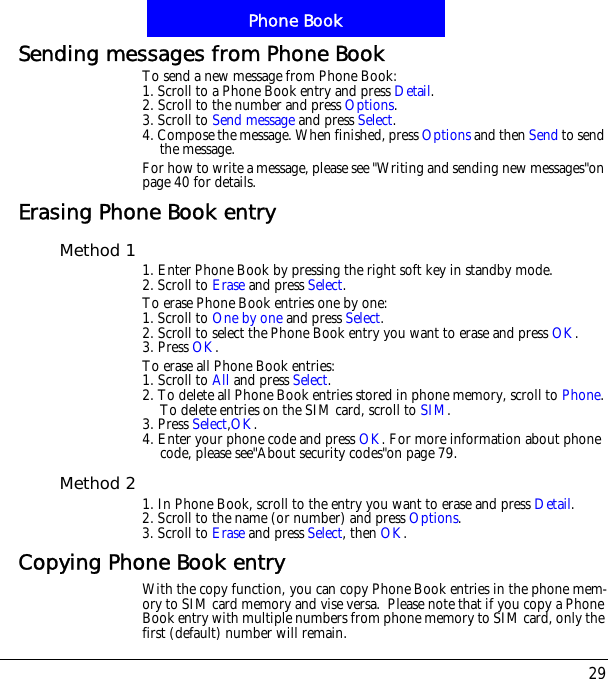

29Phone BookSending messages from Phone BookTo send a new message from Phone Book:1. Scroll to a Phone Book entry and press Detail.2. Scroll to the number and press Options.3. Scroll to Send message and press Select.4. Compose the message. When finished, press Options and then Send to send the message.For how to write a message, please see "Writing and sending new messages"on page 40 for details.Erasing Phone Book entryMethod 1 1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Erase and press Select.To erase Phone Book entries one by one:1. Scroll to One by one and press Select.2. Scroll to select the Phone Book entry you want to erase and press OK.3. Press OK.To erase all Phone Book entries:1. Scroll to All and press Select.2. To delete all Phone Book entries stored in phone memory, scroll to Phone.To delete entries on the SIM card, scroll to SIM.3. Press Select,OK.4. Enter your phone code and press OK. For more information about phone code, please see"About security codes"on page 79.Method 2 1. In Phone Book, scroll to the entry you want to erase and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Erase and press Select, then OK.Copying Phone Book entryWith the copy function, you can copy Phone Book entries in the phone mem-ory to SIM card memory and vise versa.  Please note that if you copy a Phone Book entry with multiple numbers from phone memory to SIM card, only the first (default) number will remain.

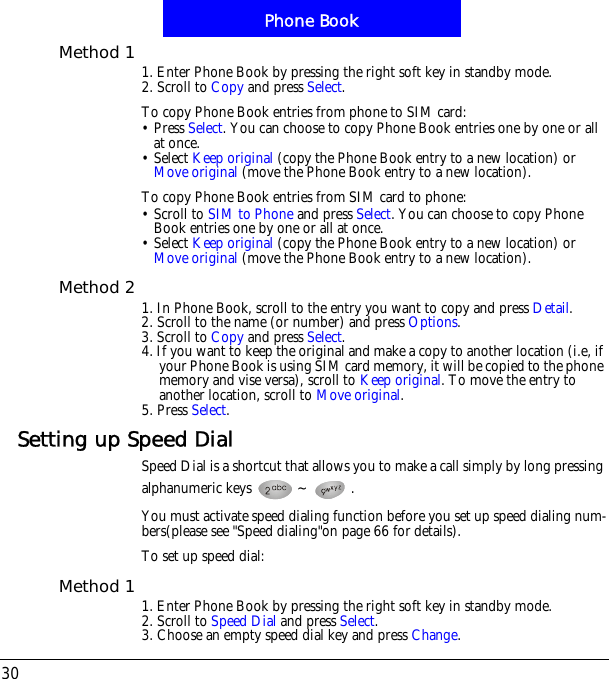

Phone Book30Method 1 1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Copy and press Select.To copy Phone Book entries from phone to SIM card:• Press Select. You can choose to copy Phone Book entries one by one or all at once.• Select Keep original (copy the Phone Book entry to a new location) or Move original (move the Phone Book entry to a new location).To copy Phone Book entries from SIM card to phone:• Scroll to SIM to Phone and press Select. You can choose to copy Phone Book entries one by one or all at once.• Select Keep original (copy the Phone Book entry to a new location) or Move original (move the Phone Book entry to a new location).Method 2 1. In Phone Book, scroll to the entry you want to copy and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Copy and press Select.4. If you want to keep the original and make a copy to another location (i.e, if your Phone Book is using SIM card memory, it will be copied to the phone memory and vise versa), scroll to Keep original. To move the entry to another location, scroll to Move original.5. Press Select.Setting up Speed DialSpeed Dial is a shortcut that allows you to make a call simply by long pressing alphanumeric keys  ~ .You must activate speed dialing function before you set up speed dialing num-bers(please see "Speed dialing"on page 66 for details).To set up speed dial:Method 1 1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed Dial and press Select.3. Choose an empty speed dial key and press Change.

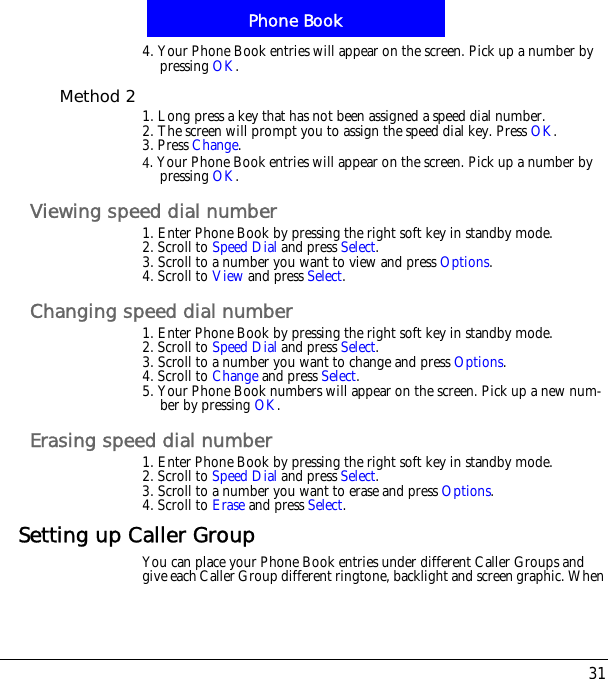

31Phone Book4. Your Phone Book entries will appear on the screen. Pick up a number by pressing OK.Method 2 1. Long press a key that has not been assigned a speed dial number.2. The screen will prompt you to assign the speed dial key. Press OK.3. Press Change.5. Your Phone Book entries will appear on the screen. Pick up a number by pressing OK.Viewing speed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed Dial and press Select.3. Scroll to a number you want to view and press Options.4. Scroll to View and press Select.Changing speed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed Dial and press Select.3. Scroll to a number you want to change and press Options.4. Scroll to Change and press Select.5. Your Phone Book numbers will appear on the screen. Pick up a new num-ber by pressing OK.Erasing speed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed Dial and press Select.3. Scroll to a number you want to erase and press Options.4. Scroll to Erase and press Select.Setting up Caller GroupYou can place your Phone Book entries under different Caller Groups and give each Caller Group different ringtone, backlight and screen graphic. When

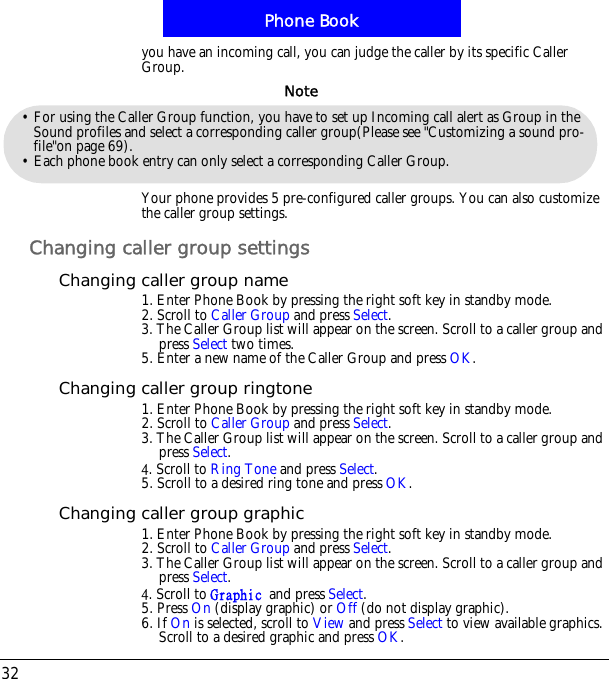

Phone Book32you have an incoming call, you can judge the caller by its specific Caller Group.Your phone provides 5 pre-configured caller groups. You can also customize the caller group settings.Changing caller group settingsChanging caller group name1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Caller Group and press Select.3. The Caller Group list will appear on the screen. Scroll to a caller group and press Select two times. 5. Enter a new name of the Caller Group and press OK.Changing caller group ringtone1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Caller Group and press Select.3. The Caller Group list will appear on the screen. Scroll to a caller group and press Select.5. Scroll to Ring Tone and press Select.5. Scroll to a desired ring tone and press OK.Changing caller group graphic1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Caller Group and press Select.3. The Caller Group list will appear on the screen. Scroll to a caller group and press Select.5. Scroll to Hsbqijd!and press Select.5. Press On (display graphic) or Off (do not display graphic).6. If On is selected, scroll to View and press Select to view available graphics. Scroll to a desired graphic and press OK.• For using the Caller Group function, you have to set up Incoming call alert as Group in the Sound profiles and select a corresponding caller group(Please see "Customizing a sound pro-file"on page 69).• Each phone book entry can only select a corresponding Caller Group.Note

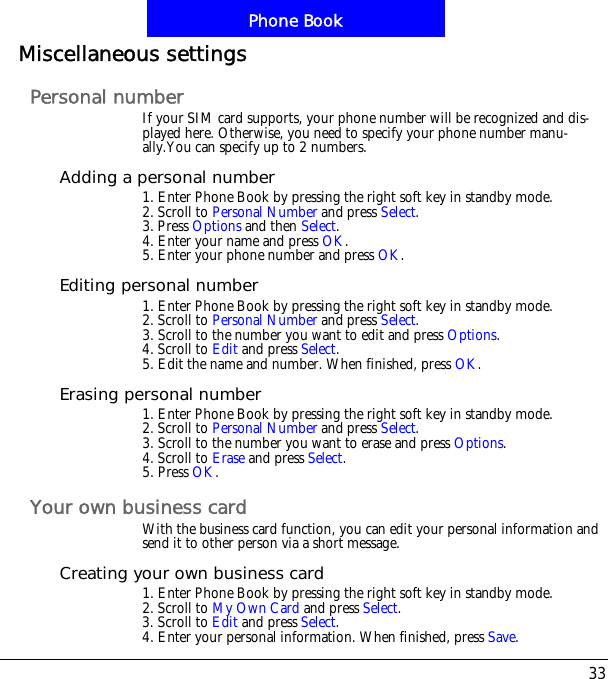

33Phone BookMiscellaneous settingsPersonal numberIf your SIM card supports, your phone number will be recognized and dis-played here. Otherwise, you need to specify your phone number manu-ally.You can specify up to 2 numbers.Adding a personal number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Personal Number and press Select.3. Press Options and then Select.4. Enter your name and press OK.5. Enter your phone number and press OK.Editing personal number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Personal Number and press Select.3. Scroll to the number you want to edit and press Options.4. Scroll to Edit and press Select.5. Edit the name and number. When finished, press OK.Erasing personal number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Personal Number and press Select.3. Scroll to the number you want to erase and press Options.4. Scroll to Erase and press Select.5. Press OK.Your own business cardWith the business card function, you can edit your personal information and send it to other person via a short message.Creating your own business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Edit and press Select.4. Enter your personal information. When finished, press Save.

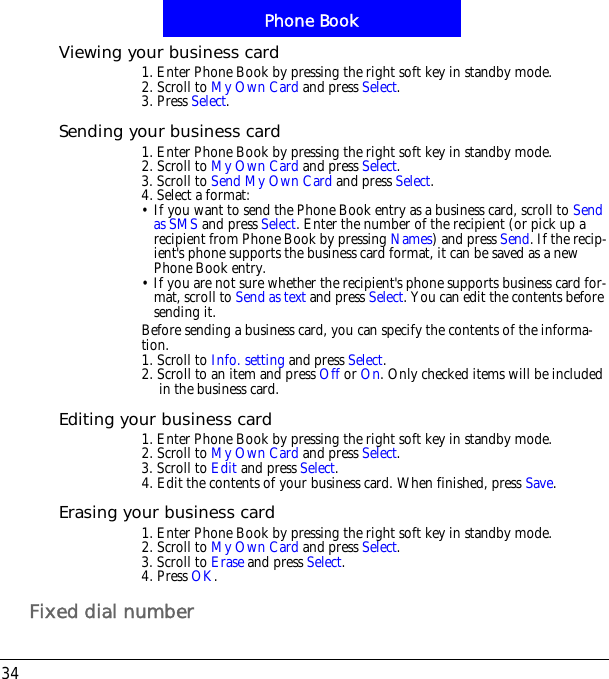

Phone Book34Viewing your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My Own Card and press Select.3. Press Select.Sending your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Send My Own Card and press Select.4. Select a format:• If you want to send the Phone Book entry as a business card, scroll to Send as SMS and press Select. Enter the number of the recipient (or pick up a recipient from Phone Book by pressing Names) and press Send. If the recip-ient's phone supports the business card format, it can be saved as a new Phone Book entry. • If you are not sure whether the recipient's phone supports business card for-mat, scroll to Send as text and press Select. You can edit the contents before sending it.Before sending a business card, you can specify the contents of the informa-tion. 1. Scroll to Info. setting and press Select.2. Scroll to an item and press Off or On. Only checked items will be included in the business card.Editing your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Edit and press Select.4. Edit the contents of your business card. When finished, press Save.Erasing your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My Own Card and press Select.3. Scroll to Erase and press Select.4. Press OK.Fixed dial number

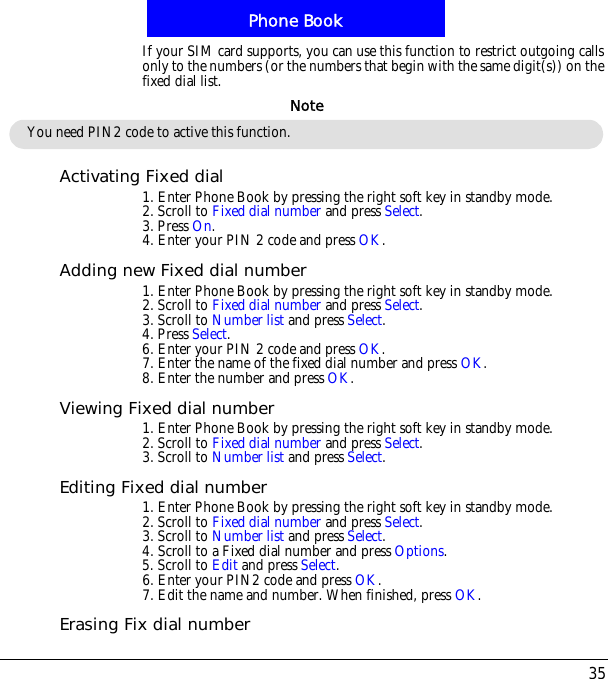

35Phone BookIf your SIM card supports, you can use this function to restrict outgoing calls only to the numbers (or the numbers that begin with the same digit(s)) on the fixed dial list.Activating Fixed dial1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Press On.4. Enter your PIN 2 code and press OK.Adding new Fixed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select.4. Press Select.6. Enter your PIN 2 code and press OK.7. Enter the name of the fixed dial number and press OK.8. Enter the number and press OK.Viewing Fixed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select.Editing Fixed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select.4. Scroll to a Fixed dial number and press Options.5. Scroll to Edit and press Select.6. Enter your PIN2 code and press OK.7. Edit the name and number. When finished, press OK.Erasing Fix dial numberYou need PIN2 code to active this function.Note

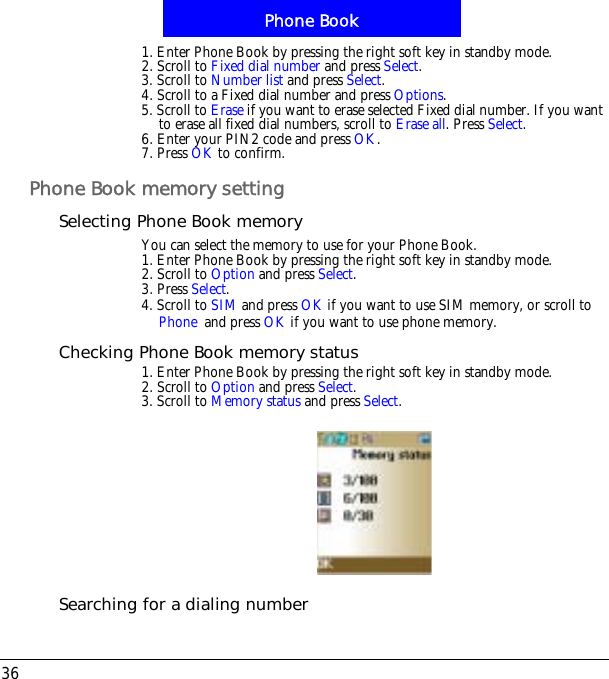

Phone Book361. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select.4. Scroll to a Fixed dial number and press Options.5. Scroll to Erase if you want to erase selected Fixed dial number. If you want to erase all fixed dial numbers, scroll to Erase all. Press Select.6. Enter your PIN2 code and press OK.7. Press OK to confirm.Phone Book memory settingSelecting Phone Book memoryYou can select the memory to use for your Phone Book.1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Option and press Select.3. Press Select.4. Scroll to SIM and press OK if you want to use SIM memory, or scroll to!Phone!and press OK if you want to use phone memory.Checking Phone Book memory status1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Option and press Select.3. Scroll to Memory status and press Select.Searching for a dialing number

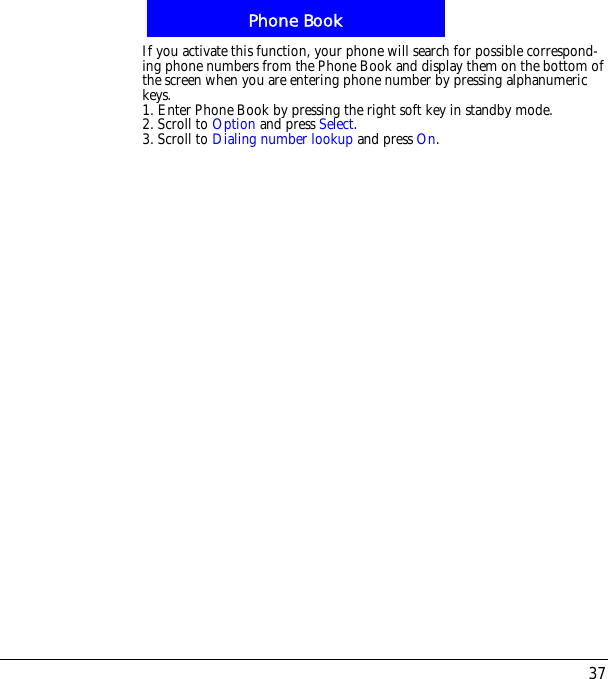

37Phone BookIf you activate this function, your phone will search for possible correspond-ing phone numbers from the Phone Book and display them on the bottom of the screen when you are entering phone number by pressing alphanumeric keys.1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Option and press Select.3. Scroll to Dialing number lookup and press On.
38The Main Menu

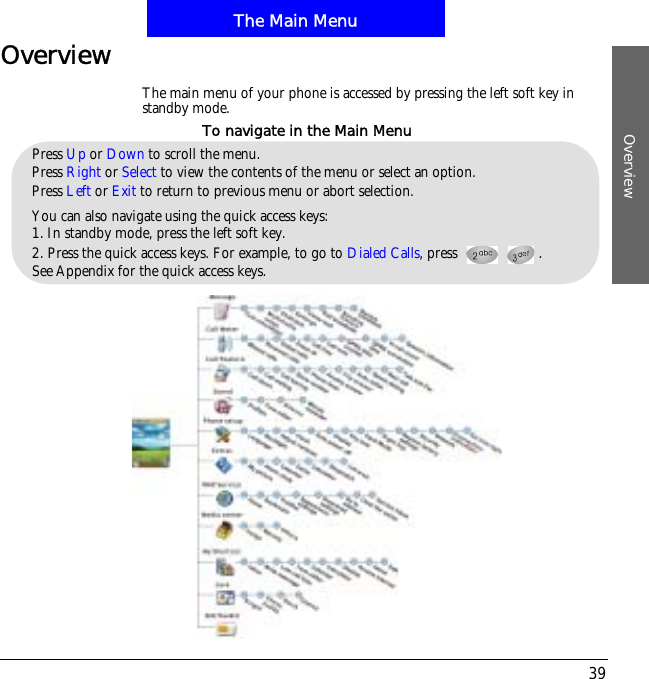

The Main MenuOverview39OverviewThe main menu of your phone is accessed by pressing the left soft key in standby mode.Press Up or Down to scroll the menu.Press Right or Select to view the contents of the menu or select an option.Press Left or Exit to return to previous menu or abort selection.You can also navigate using the quick access keys:1. In standby mode, press the left soft key.2. Press the quick access keys. For example, to go to Dialed Calls, press  .See Appendix for the quick access keys.To navigate in the Main Menu

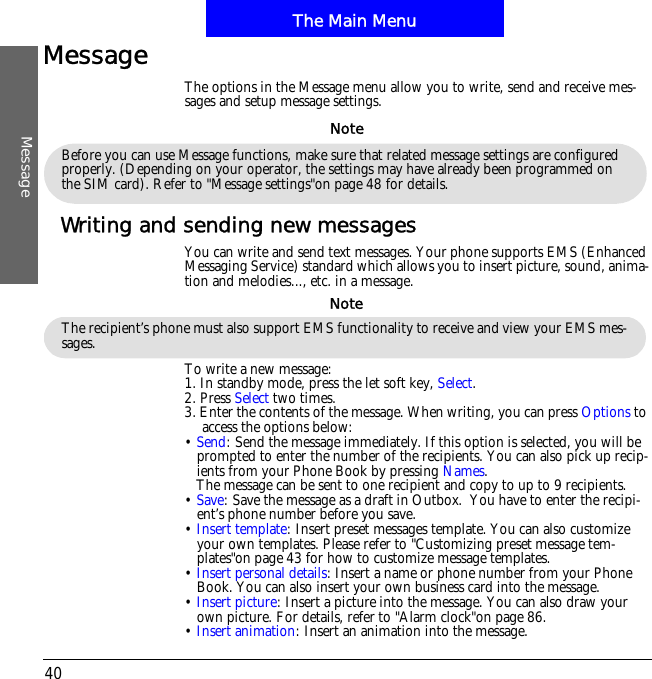

The Main MenuMessage40Message The options in the Message menu allow you to write, send and receive mes-sages and setup message settings.Writing and sending new messagesYou can write and send text messages. Your phone supports EMS (Enhanced Messaging Service) standard which allows you to insert picture, sound, anima-tion and melodies..., etc. in a message.To write a new message:1. In standby mode, press the let soft key, Select.2. Press Select two times. 3. Enter the contents of the message. When writing, you can press Options to access the options below:•Send: Send the message immediately. If this option is selected, you will be prompted to enter the number of the recipients. You can also pick up recip-ients from your Phone Book by pressing Names.The message can be sent to one recipient and copy to up to 9 recipients.•Save: Save the message as a draft in Outbox.  You have to enter the recipi-ent’s phone number before you save.•Insert template: Insert preset messages template. You can also customize your own templates. Please refer to "Customizing preset message tem-plates"on page 43 for how to customize message templates.•Insert personal details: Insert a name or phone number from your Phone Book. You can also insert your own business card into the message.•Insert picture: Insert a picture into the message. You can also draw your own picture. For details, refer to "Alarm clock"on page 86.•Insert animation: Insert an animation into the message.Before you can use Message functions, make sure that related message settings are configured properly. (Depending on your operator, the settings may have already been programmed on the SIM card). Refer to "Message settings"on page 48 for details.NoteThe recipient’s phone must also support EMS functionality to receive and view your EMS mes-sages.Note

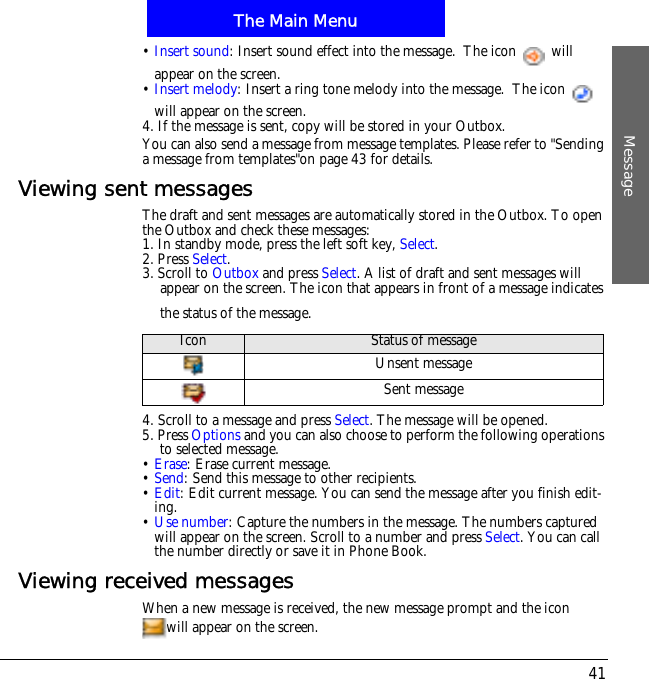

The Main MenuMessage41•Insert sound: Insert sound effect into the message.  The icon   will appear on the screen.•Insert melody: Insert a ring tone melody into the message.  The icon   will appear on the screen.4. If the message is sent, copy will be stored in your Outbox. You can also send a message from message templates. Please refer to "Sending a message from templates"on page 43 for details.Viewing sent messagesThe draft and sent messages are automatically stored in the Outbox. To open the Outbox and check these messages:1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Outbox and press Select. A list of draft and sent messages will appear on the screen. The icon that appears in front of a message indicates the status of the message.4. Scroll to a message and press Select. The message will be opened.5. Press Options and you can also choose to perform the following operations to selected message.•Erase: Erase current message.•Send: Send this message to other recipients.•Edit: Edit current message. You can send the message after you finish edit-ing.•Use number: Capture the numbers in the message. The numbers captured will appear on the screen. Scroll to a number and press Select. You can call the number directly or save it in Phone Book.Viewing received messagesWhen a new message is received, the new message prompt and the icon will appear on the screen.Icon Status of messageUnsent messageSent message

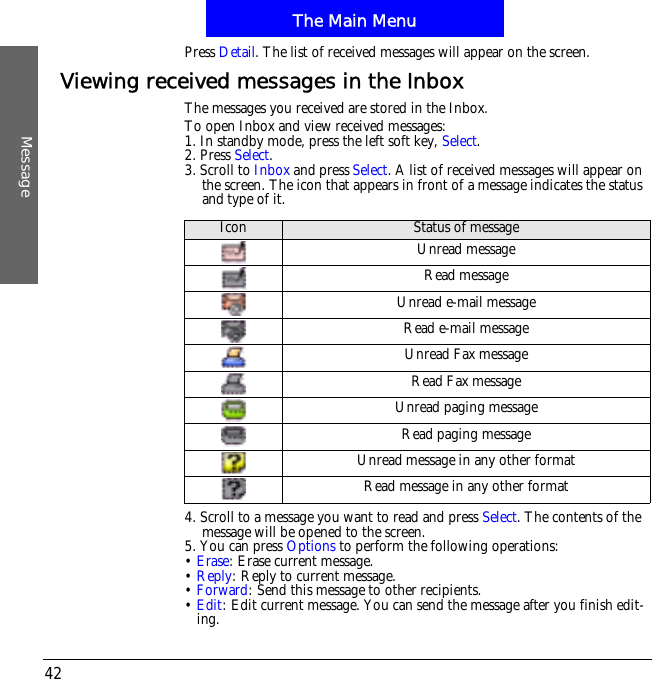

The Main MenuMessage42Press Detail. The list of received messages will appear on the screen.Viewing received messages in the InboxThe messages you received are stored in the Inbox.To open Inbox and view received messages:1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Inbox and press Select. A list of received messages will appear on the screen. The icon that appears in front of a message indicates the status and type of it.4. Scroll to a message you want to read and press Select. The contents of the message will be opened to the screen. 5. You can press Options to perform the following operations:•Erase: Erase current message.•Reply: Reply to current message.•Forward: Send this message to other recipients.•Edit: Edit current message. You can send the message after you finish edit-ing.Icon Status of messageUnread messageRead messageUnread e-mail messageRead e-mail messageUnread Fax messageRead Fax messageUnread paging messageRead paging messageUnread message in any other formatRead message in any other format

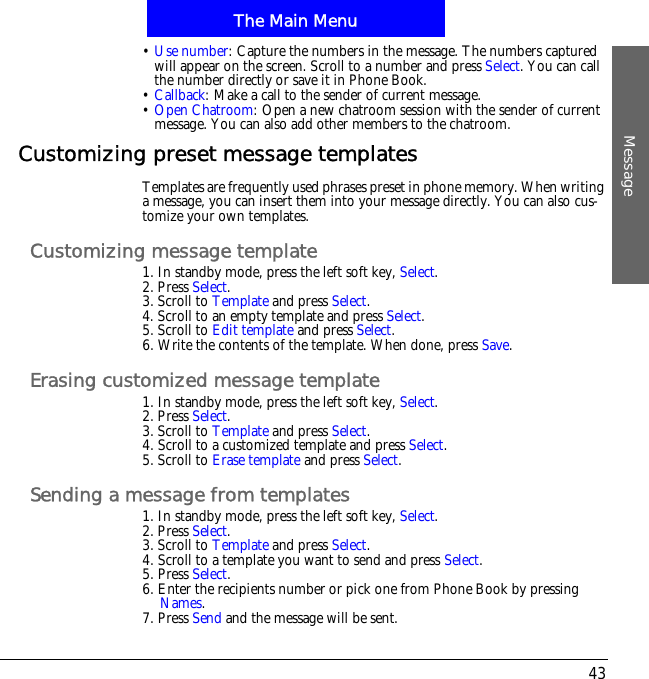

The Main MenuMessage43•Use number: Capture the numbers in the message. The numbers captured will appear on the screen. Scroll to a number and press Select. You can call the number directly or save it in Phone Book.•Callback: Make a call to the sender of current message.•Open Chatroom: Open a new chatroom session with the sender of current message. You can also add other members to the chatroom.Customizing preset message templatesTemplates are frequently used phrases preset in phone memory. When writing a message, you can insert them into your message directly. You can also cus-tomize your own templates.Customizing message template1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Template and press Select.4. Scroll to an empty template and press Select.5. Scroll to Edit template and press Select.6. Write the contents of the template. When done, press Save.Erasing customized message template1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Template and press Select.4. Scroll to a customized template and press Select.5. Scroll to Erase template and press Select.Sending a message from templates1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Template and press Select.4. Scroll to a template you want to send and press Select.5. Press Select.6. Enter the recipients number or pick one from Phone Book by pressing Names.7. Press Send and the message will be sent.

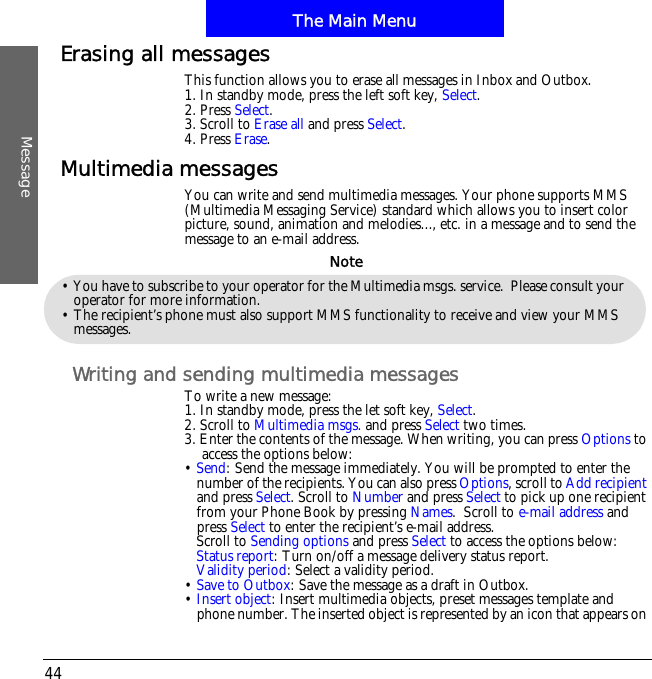

The Main MenuMessage44Erasing all messagesThis function allows you to erase all messages in Inbox and Outbox.1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Erase all and press Select.4. Press Erase.Multimedia messagesYou can write and send multimedia messages. Your phone supports MMS (Multimedia Messaging Service) standard which allows you to insert color picture, sound, animation and melodies..., etc. in a message and to send the message to an e-mail address.Writing and sending multimedia messagesTo write a new message:1. In standby mode, press the let soft key, Select.2. Scroll to Multimedia msgs. and press Select two times. 3. Enter the contents of the message. When writing, you can press Options to access the options below:•Send: Send the message immediately. You will be prompted to enter the number of the recipients. You can also press Options, scroll to Add recipientand press Select. Scroll to Number and press Select to pick up one recipient from your Phone Book by pressing Names.  Scroll to e-mail address and press Select to enter the recipient’s e-mail address.Scroll to Sending options and press Select to access the options below:Status report: Turn on/off a message delivery status report.Validity period: Select a validity period.•Save to Outbox: Save the message as a draft in Outbox.  •Insert object: Insert multimedia objects, preset messages template and phone number. The inserted object is represented by an icon that appears on • You have to subscribe to your operator for the Multimedia msgs. service.  Please consult your operator for more information.• The recipient’s phone must also support MMS functionality to receive and view your MMS messages.Note

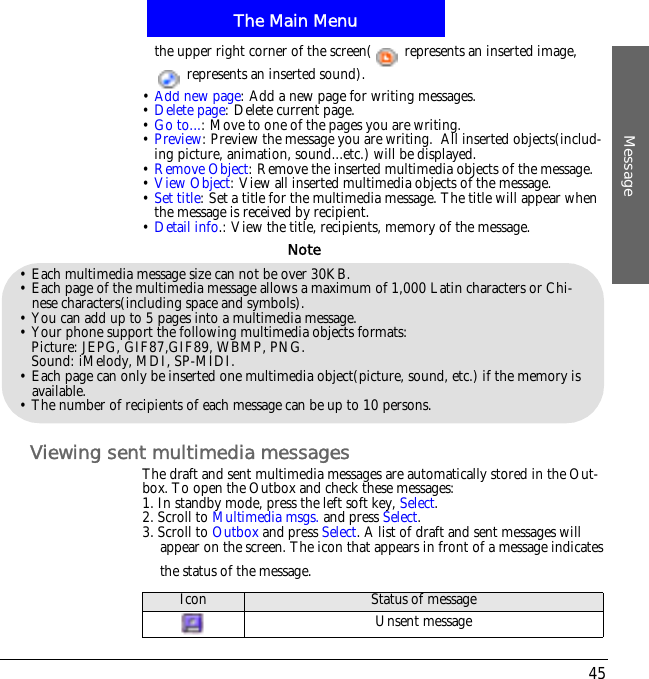

The Main MenuMessage45the upper right corner of the screen(  represents an inserted image,   represents an inserted sound).•Add new page: Add a new page for writing messages.•Delete page: Delete current page.•Go to...: Move to one of the pages you are writing.•Preview: Preview the message you are writing.  All inserted objects(includ-ing picture, animation, sound...etc.) will be displayed.•Remove Object: Remove the inserted multimedia objects of the message.•View Object: View all inserted multimedia objects of the message.•Set title: Set a title for the multimedia message. The title will appear when the message is received by recipient.•Detail info.: View the title, recipients, memory of the message.Viewing sent multimedia messagesThe draft and sent multimedia messages are automatically stored in the Out-box. To open the Outbox and check these messages:1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Outbox and press Select. A list of draft and sent messages will appear on the screen. The icon that appears in front of a message indicates the status of the message.• Each multimedia message size can not be over 30KB.• Each page of the multimedia message allows a maximum of 1,000 Latin characters or Chi-nese characters(including space and symbols).• You can add up to 5 pages into a multimedia message.• Your phone support the following multimedia objects formats:Picture: JEPG, GIF87,GIF89, WBMP, PNG.Sound: iMelody, MDI, SP-MIDI.• Each page can only be inserted one multimedia object(picture, sound, etc.) if the memory is available.• The number of recipients of each message can be up to 10 persons.NoteIcon Status of messageUnsent message

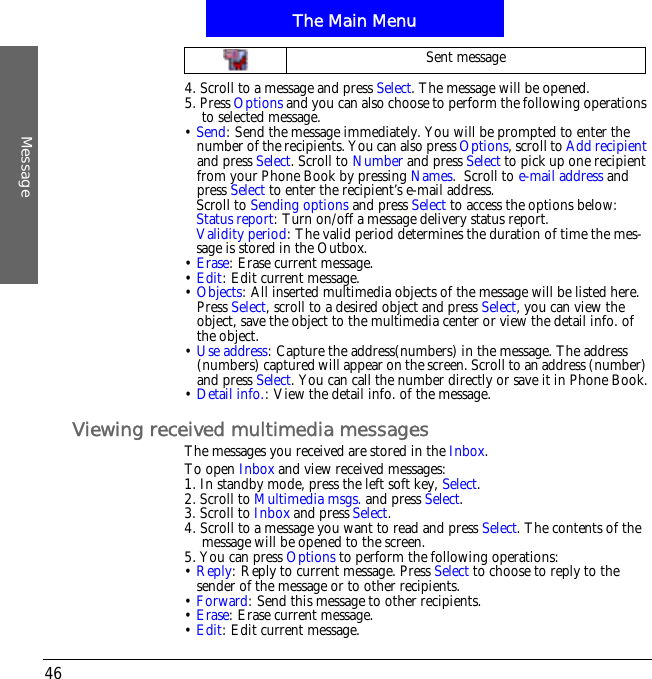

The Main MenuMessage464. Scroll to a message and press Select. The message will be opened.5. Press Options and you can also choose to perform the following operations to selected message.•Send: Send the message immediately. You will be prompted to enter the number of the recipients. You can also press Options, scroll to Add recipientand press Select. Scroll to Number and press Select to pick up one recipient from your Phone Book by pressing Names.  Scroll to e-mail address and press Select to enter the recipient’s e-mail address.Scroll to Sending options and press Select to access the options below:Status report: Turn on/off a message delivery status report.Validity period: The valid period determines the duration of time the mes-sage is stored in the Outbox.•Erase: Erase current message.•Edit: Edit current message.•Objects: All inserted multimedia objects of the message will be listed here. Press Select, scroll to a desired object and press Select, you can view the object, save the object to the multimedia center or view the detail info. of the object.•Use address: Capture the address(numbers) in the message. The address (numbers) captured will appear on the screen. Scroll to an address (number) and press Select. You can call the number directly or save it in Phone Book.•Detail info.: View the detail info. of the message.Viewing received multimedia messagesThe messages you received are stored in the Inbox.To open Inbox and view received messages:1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Inbox and press Select.4. Scroll to a message you want to read and press Select. The contents of the message will be opened to the screen. 5. You can press Options to perform the following operations:•Reply: Reply to current message. Press Select to choose to reply to the sender of the message or to other recipients.•Forward: Send this message to other recipients.•Erase: Erase current message.•Edit: Edit current message.Sent message

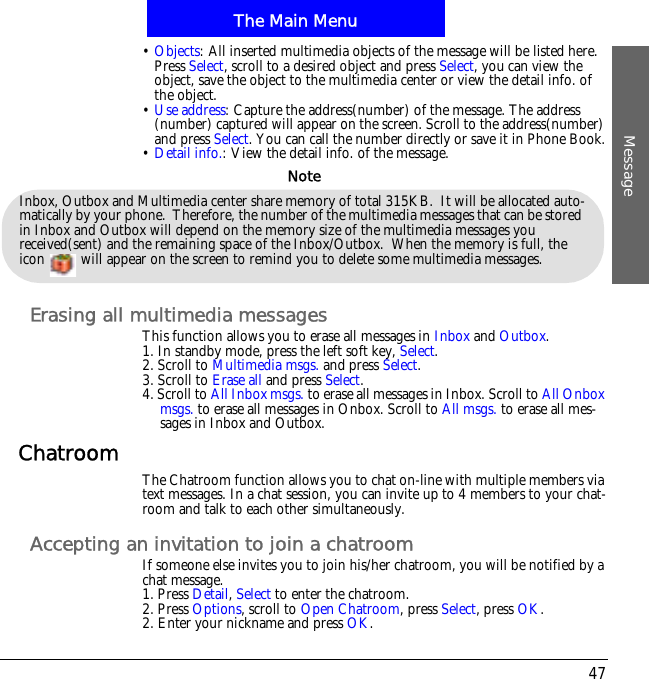

The Main MenuMessage47•Objects: All inserted multimedia objects of the message will be listed here. Press Select, scroll to a desired object and press Select, you can view the object, save the object to the multimedia center or view the detail info. of the object.•Use address: Capture the address(number) of the message. The address (number) captured will appear on the screen. Scroll to the address(number) and press Select. You can call the number directly or save it in Phone Book.•Detail info.: View the detail info. of the message.Erasing all multimedia messagesThis function allows you to erase all messages in Inbox and Outbox.1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Erase all and press Select.4. Scroll to All Inbox msgs. to erase all messages in Inbox. Scroll to All Onbox msgs. to erase all messages in Onbox. Scroll to All msgs. to erase all mes-sages in Inbox and Outbox.Chatroom The Chatroom function allows you to chat on-line with multiple members via text messages. In a chat session, you can invite up to 4 members to your chat-room and talk to each other simultaneously.Accepting an invitation to join a chatroomIf someone else invites you to join his/her chatroom, you will be notified by a chat message.1. Press Detail, Select to enter the chatroom.2. Press Options, scroll to Open Chatroom, press Select, press OK.2. Enter your nickname and press OK.Inbox, Outbox and Multimedia center share memory of total 315KB.  It will be allocated auto-matically by your phone.  Therefore, the number of the multimedia messages that can be stored in Inbox and Outbox will depend on the memory size of the multimedia messages you received(sent) and the remaining space of the Inbox/Outbox.  When the memory is full, the icon   will appear on the screen to remind you to delete some multimedia messages. Note

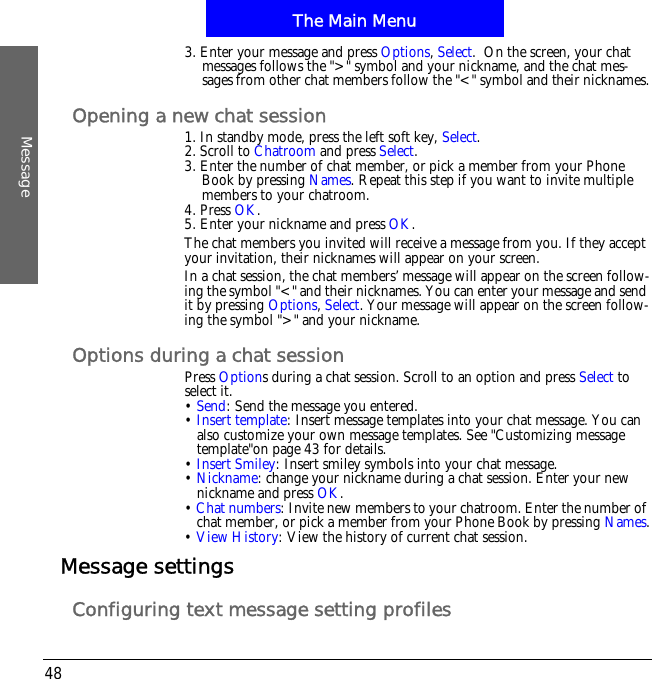

The Main MenuMessage483. Enter your message and press Options,Select.  On the screen, your chat messages follows the ">" symbol and your nickname, and the chat mes-sages from other chat members follow the "<" symbol and their nicknames.Opening a new chat session1. In standby mode, press the left soft key, Select.2. Scroll to Chatroom and press Select.3. Enter the number of chat member, or pick a member from your Phone Book by pressing Names. Repeat this step if you want to invite multiple members to your chatroom.4. Press OK.5. Enter your nickname and press OK.The chat members you invited will receive a message from you. If they accept your invitation, their nicknames will appear on your screen. In a chat session, the chat members’ message will appear on the screen follow-ing the symbol "<" and their nicknames. You can enter your message and send it by pressing Options,Select. Your message will appear on the screen follow-ing the symbol ">" and your nickname.Options during a chat sessionPress Options during a chat session. Scroll to an option and press Select to select it.•Send: Send the message you entered.•Insert template: Insert message templates into your chat message. You can also customize your own message templates. See "Customizing message template"on page 43 for details.•Insert Smiley: Insert smiley symbols into your chat message.•Nickname: change your nickname during a chat session. Enter your new nickname and press OK.•Chat numbers: Invite new members to your chatroom. Enter the number of chat member, or pick a member from your Phone Book by pressing Names.•View History: View the history of current chat session.Message settingsConfiguring text message setting profiles

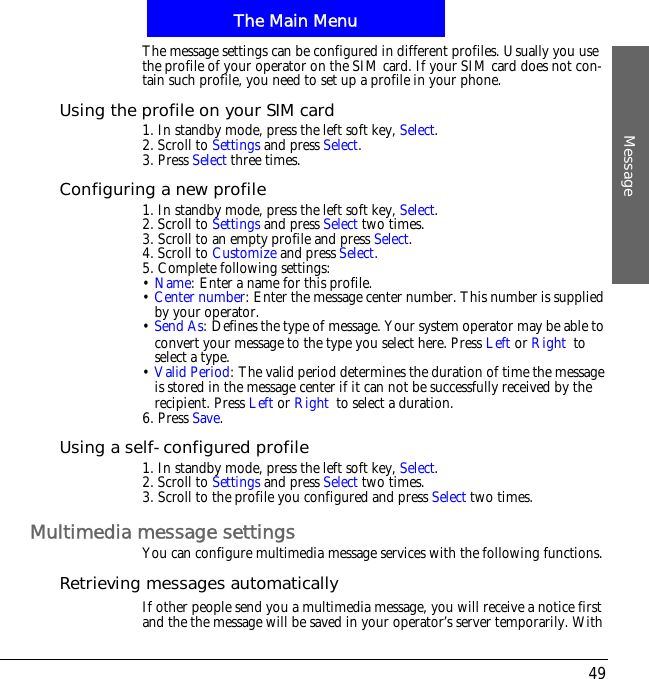

The Main MenuMessage49The message settings can be configured in different profiles. Usually you use the profile of your operator on the SIM card. If your SIM card does not con-tain such profile, you need to set up a profile in your phone.Using the profile on your SIM card1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Press Select three times.Configuring a new profile1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select two times.3. Scroll to an empty profile and press Select.4. Scroll to Customize and press Select.5. Complete following settings:•Name: Enter a name for this profile.•Center number: Enter the message center number. This number is supplied by your operator.•Send As: Defines the type of message. Your system operator may be able to convert your message to the type you select here. Press Left or Right!to select a type.•Valid Period: The valid period determines the duration of time the message is stored in the message center if it can not be successfully received by the recipient. Press Left or Right!to select a duration.6. Press Save.Using a self-configured profile1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select two times.3. Scroll to the profile you configured and press Select two times.Multimedia message settingsYou can configure multimedia message services with the following functions.Retrieving messages automaticallyIf other people send you a multimedia message, you will receive a notice first and the the message will be saved in your operator’s server temporarily. With

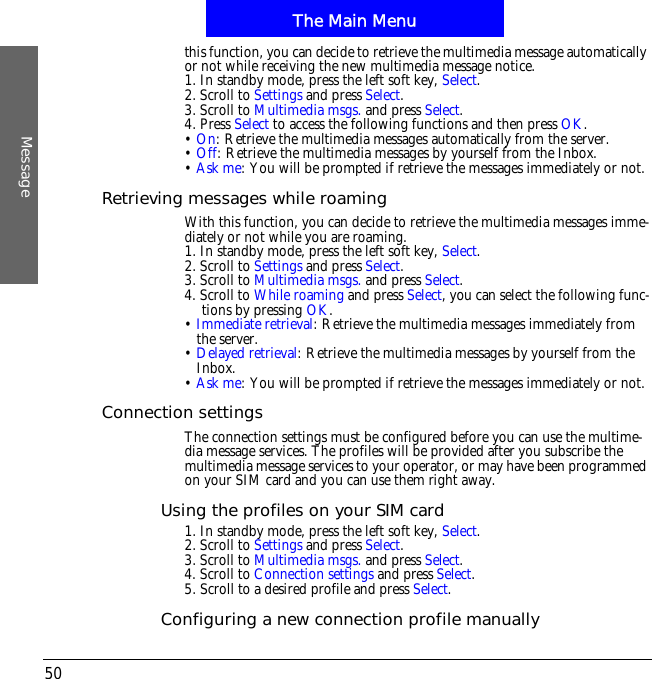

The Main MenuMessage50this function, you can decide to retrieve the multimedia message automatically or not while receiving the new multimedia message notice.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Press Select to access the following functions and then press OK.•On: Retrieve the multimedia messages automatically from the server.•Off: Retrieve the multimedia messages by yourself from the Inbox.•Ask me: You will be prompted if retrieve the messages immediately or not.Retrieving messages while roamingWith this function, you can decide to retrieve the multimedia messages imme-diately or not while you are roaming.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to While roaming and press Select, you can select the following func-tions by pressing OK.•Immediate retrieval: Retrieve the multimedia messages immediately from the server.•Delayed retrieval: Retrieve the multimedia messages by yourself from the Inbox.•Ask me: You will be prompted if retrieve the messages immediately or not.Connection settingsThe connection settings must be configured before you can use the multime-dia message services. The profiles will be provided after you subscribe the multimedia message services to your operator, or may have been programmed on your SIM card and you can use them right away.Using the profiles on your SIM card1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to a desired profile and press Select.Configuring a new connection profile manually

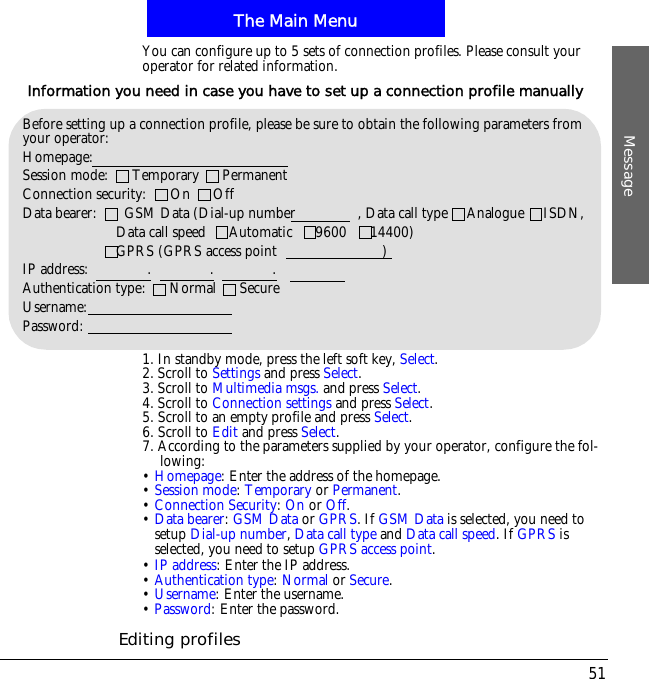

The Main MenuMessage51You can configure up to 5 sets of connection profiles. Please consult your operator for related information.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to an empty profile and press Select.6. Scroll to Edit and press Select.7. According to the parameters supplied by your operator, configure the fol-lowing:•Homepage: Enter the address of the homepage.•Session mode:Temporary or Permanent.•Connection Security:On or Off.•Data bearer:GSM Data or GPRS. If GSM Data is selected, you need to setup Dial-up number,Data call type and Data call speed. If GPRS is selected, you need to setup GPRS access point.•IP address: Enter the IP address.!•Authentication type:Normal or Secure.•Username: Enter the username.•Password: Enter the password.Editing profilesBefore setting up a connection profile, please be sure to obtain the following parameters from your operator:Homepage:Session mode:      Temporary      PermanentConnection security:      On      OffData bearer:       GSM Data (Dial-up number                , Data call type     Analogue     ISDN,                        Data call speed      Automatic      9600      14400)                        GPRS (GPRS access point                           )IP address:               .               .               .Authentication type:      Normal      SecureUsername:Password:Information you need in case you have to set up a connection profile manually

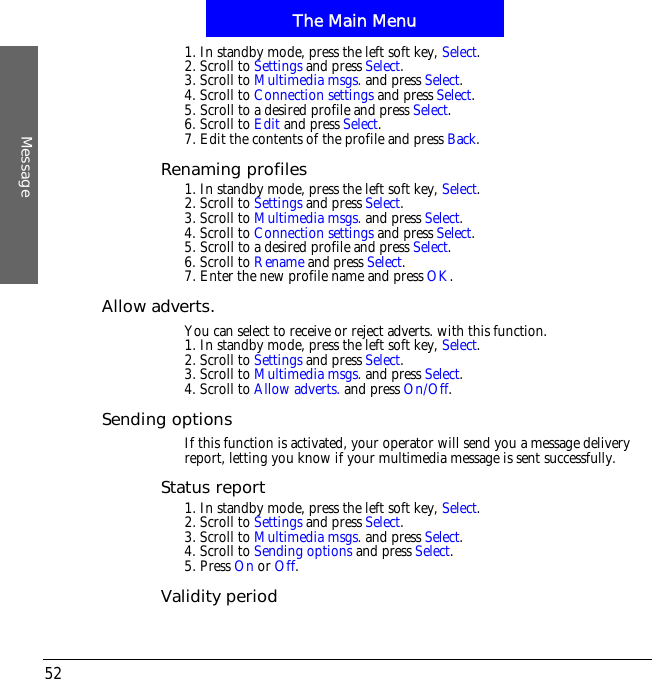

The Main MenuMessage521. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to a desired profile and press Select.6. Scroll to Edit and press Select.7. Edit the contents of the profile and press Back.Renaming profiles1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to a desired profile and press Select.6. Scroll to Rename and press Select.7. Enter the new profile name and press OK.Allow adverts.You can select to receive or reject adverts. with this function.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Allow adverts. and press On/Off.Sending optionsIf this function is activated, your operator will send you a message delivery report, letting you know if your multimedia message is sent successfully.Status report1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Sending options and press Select.5. Press On or Off.Validity period

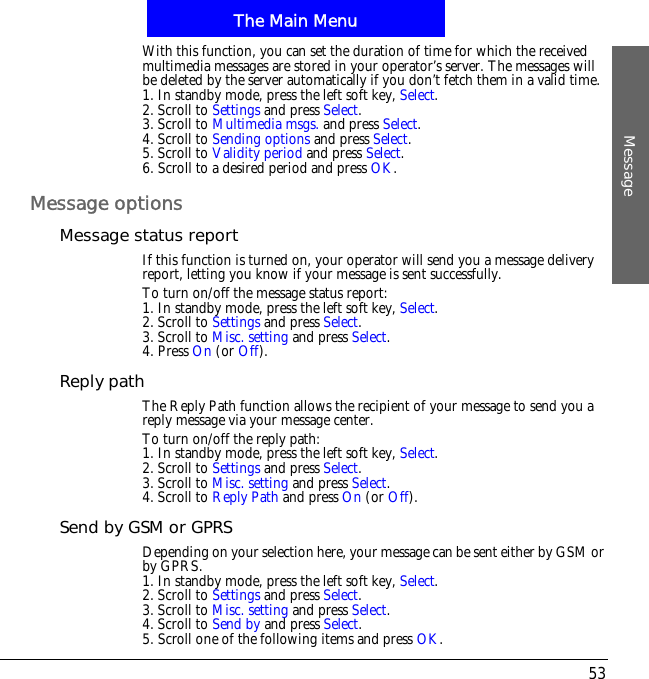

The Main MenuMessage53With this function, you can set the duration of time for which the received multimedia messages are stored in your operator’s server. The messages will be deleted by the server automatically if you don’t fetch them in a valid time.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Sending options and press Select.5. Scroll to Validity period and press Select.6. Scroll to a desired period and press OK.Message optionsMessage status reportIf this function is turned on, your operator will send you a message delivery report, letting you know if your message is sent successfully.To turn on/off the message status report:1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Press On (or Off).Reply pathThe Reply Path function allows the recipient of your message to send you a reply message via your message center.To turn on/off the reply path:1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Scroll to Reply Path and press On (or Off).Send by GSM or GPRSDepending on your selection here, your message can be sent either by GSM or by GPRS.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Scroll to Send by and press Select.5. Scroll one of the following items and press OK.

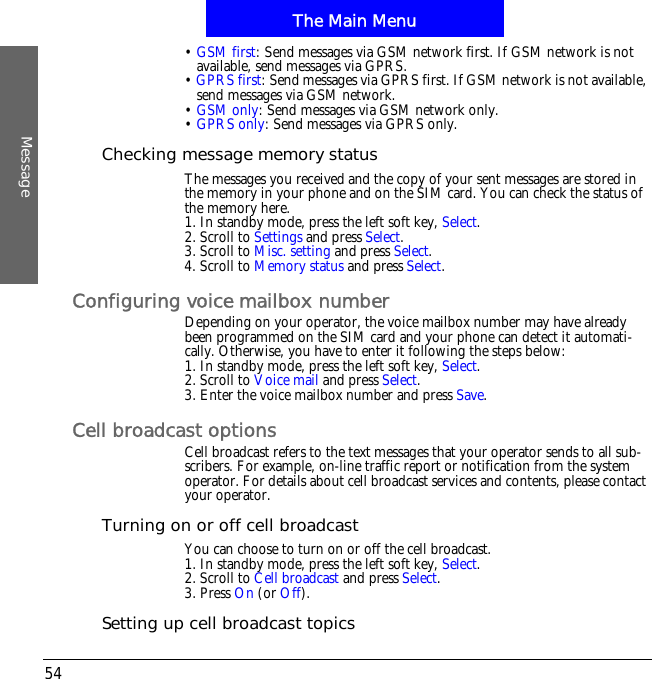

The Main MenuMessage54•GSM first: Send messages via GSM network first. If GSM network is not available, send messages via GPRS.•GPRS first: Send messages via GPRS first. If GSM network is not available, send messages via GSM network.•GSM only: Send messages via GSM network only.•GPRS only: Send messages via GPRS only.Checking message memory statusThe messages you received and the copy of your sent messages are stored in the memory in your phone and on the SIM card. You can check the status of the memory here.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Scroll to Memory status and press Select.Configuring voice mailbox numberDepending on your operator, the voice mailbox number may have already been programmed on the SIM card and your phone can detect it automati-cally. Otherwise, you have to enter it following the steps below:1. In standby mode, press the left soft key, Select.2. Scroll to Voice mail and press Select.3. Enter the voice mailbox number and press Save.Cell broadcast optionsCell broadcast refers to the text messages that your operator sends to all sub-scribers. For example, on-line traffic report or notification from the system operator. For details about cell broadcast services and contents, please contact your operator. Turning on or off cell broadcastYou can choose to turn on or off the cell broadcast.1. In standby mode, press the left soft key, Select.2. Scroll to Cell broadcast and press Select.3. Press On (or Off).Setting up cell broadcast topics

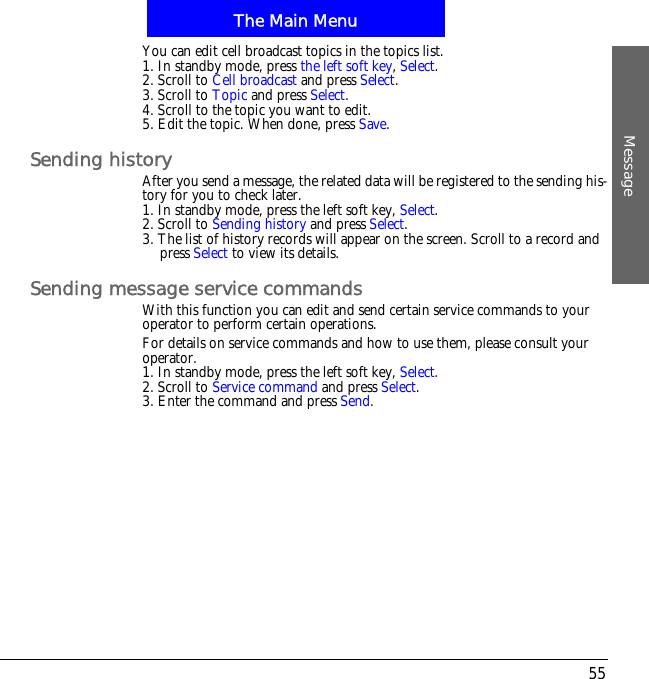

The Main MenuMessage55You can edit cell broadcast topics in the topics list.1. In standby mode, press the left soft key,Select.2. Scroll to Cell broadcast and press Select.3. Scroll to Topic and press Select.4. Scroll to the topic you want to edit.5. Edit the topic. When done, press Save.Sending historyAfter you send a message, the related data will be registered to the sending his-tory for you to check later.1. In standby mode, press the left soft key, Select.2. Scroll to Sending history and press Select.3. The list of history records will appear on the screen. Scroll to a record and press Select to view its details.Sending message service commandsWith this function you can edit and send certain service commands to your operator to perform certain operations.For details on service commands and how to use them, please consult your operator.1. In standby mode, press the left soft key, Select.2. Scroll to Service command and press Select.3. Enter the command and press Send.

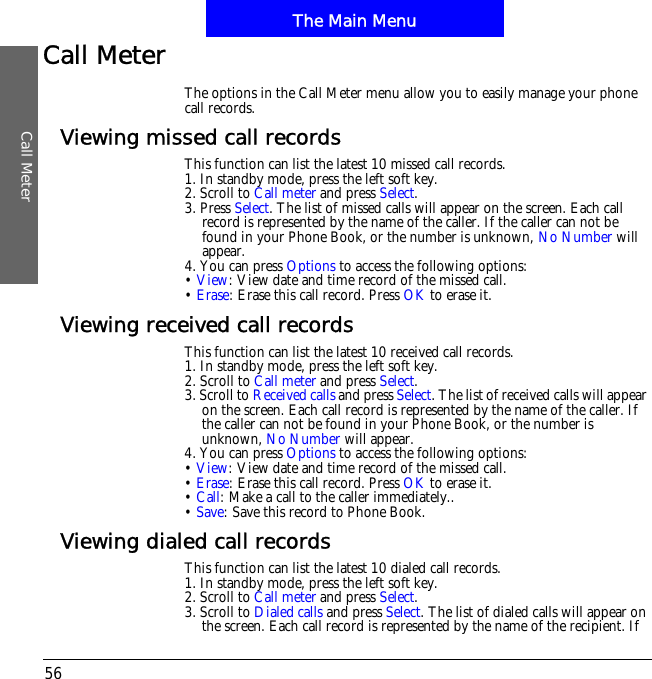

The Main MenuCall Meter56Call MeterThe options in the Call Meter menu allow you to easily manage your phone call records.Viewing missed call recordsThis function can list the latest 10 missed call records.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Press Select. The list of missed calls will appear on the screen. Each call record is represented by the name of the caller. If the caller can not be found in your Phone Book, or the number is unknown, No Number will appear.4. You can press Options to access the following options:•View: View date and time record of the missed call.•Erase: Erase this call record. Press OK to erase it.Viewing received call recordsThis function can list the latest 10 received call records.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Received calls and press Select. The list of received calls will appear on the screen. Each call record is represented by the name of the caller. If the caller can not be found in your Phone Book, or the number is unknown, No Number will appear.4. You can press Options to access the following options:•View: View date and time record of the missed call.•Erase: Erase this call record. Press OK to erase it.•Call: Make a call to the caller immediately..•Save: Save this record to Phone Book.Viewing dialed call recordsThis function can list the latest 10 dialed call records.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Dialed calls and press Select. The list of dialed calls will appear on the screen. Each call record is represented by the name of the recipient. If

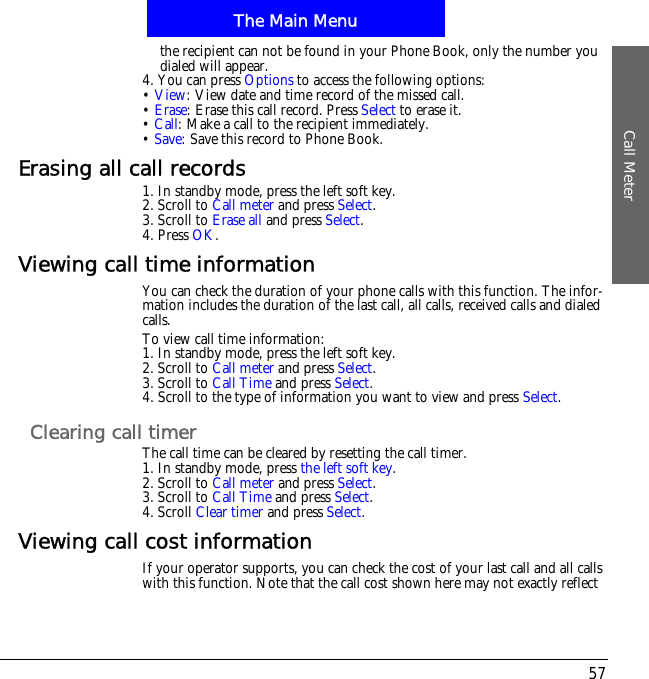

The Main MenuCall Meter57the recipient can not be found in your Phone Book, only the number you dialed will appear.4. You can press Options to access the following options:•View: View date and time record of the missed call.•Erase: Erase this call record. Press Select to erase it.•Call: Make a call to the recipient immediately.•Save: Save this record to Phone Book.Erasing all call records1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Erase all and press Select.4. Press OK.Viewing call time informationYou can check the duration of your phone calls with this function. The infor-mation includes the duration of the last call, all calls, received calls and dialed calls.To view call time information:1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call Time and press Select.4. Scroll to the type of information you want to view and press Select.Clearing call timerThe call time can be cleared by resetting the call timer.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call Time and press Select.4. Scroll Clear timer and press Select.Viewing call cost informationIf your operator supports, you can check the cost of your last call and all calls with this function. Note that the call cost shown here may not exactly reflect

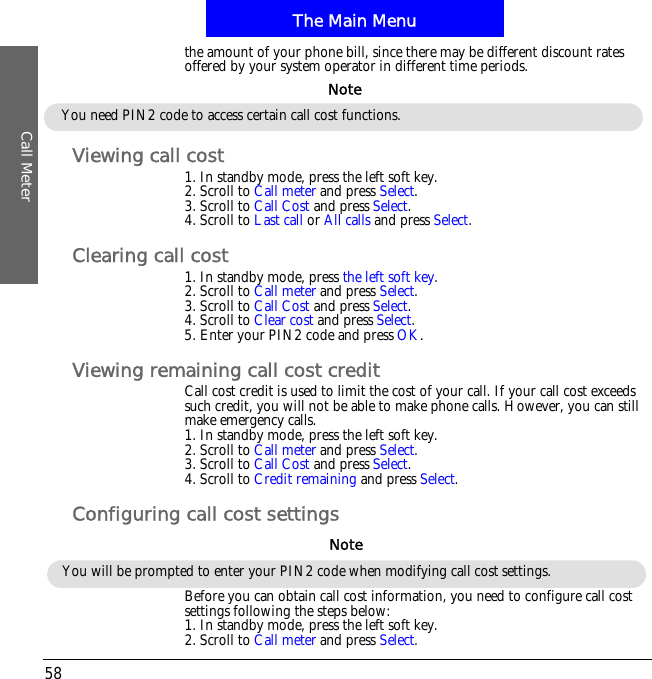

The Main MenuCall Meter58the amount of your phone bill, since there may be different discount rates offered by your system operator in different time periods.Viewing call cost1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call Cost and press Select.4. Scroll to Last call or All calls and press Select.Clearing call cost1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call Cost and press Select.4. Scroll to Clear cost and press Select.5. Enter your PIN2 code and press OK.Viewing remaining call cost creditCall cost credit is used to limit the cost of your call. If your call cost exceeds such credit, you will not be able to make phone calls. However, you can still make emergency calls.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call Cost and press Select.4. Scroll to Credit remaining and press Select.Configuring call cost settingsBefore you can obtain call cost information, you need to configure call cost settings following the steps below:1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.You need PIN2 code to access certain call cost functions.NoteYou will be prompted to enter your PIN2 code when modifying call cost settings.Note

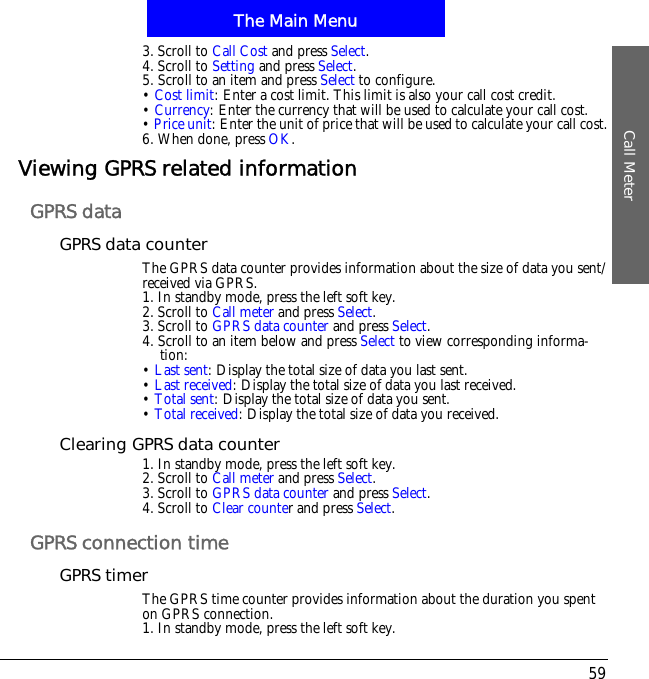

The Main MenuCall Meter593. Scroll to Call Cost and press Select.4. Scroll to Setting and press Select.5. Scroll to an item and press Select to configure.•Cost limit: Enter a cost limit. This limit is also your call cost credit.•Currency: Enter the currency that will be used to calculate your call cost.•Price unit: Enter the unit of price that will be used to calculate your call cost.6. When done, press OK.Viewing GPRS related informationGPRS dataGPRS data counterThe GPRS data counter provides information about the size of data you sent/received via GPRS.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to GPRS data counter and press Select.4. Scroll to an item below and press Select to view corresponding informa-tion:•Last sent: Display the total size of data you last sent.•Last received: Display the total size of data you last received.•Total sent: Display the total size of data you sent.•Total received: Display the total size of data you received.Clearing GPRS data counter1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to GPRS data counter and press Select.4. Scroll to Clear counter and press Select.GPRS connection timeGPRS timerThe GPRS time counter provides information about the duration you spent on GPRS connection.1. In standby mode, press the left soft key.

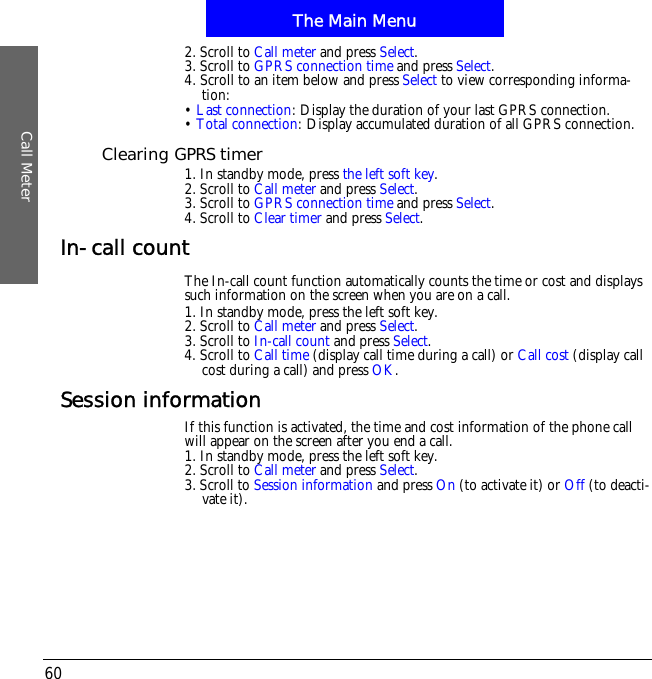

The Main MenuCall Meter602. Scroll to Call meter and press Select.3. Scroll to GPRS connection time and press Select.4. Scroll to an item below and press Select to view corresponding informa-tion:•Last connection: Display the duration of your last GPRS connection.•Total connection: Display accumulated duration of all GPRS connection.Clearing GPRS timer1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to GPRS connection time and press Select.4. Scroll to Clear timer and press Select.In-call countThe In-call count function automatically counts the time or cost and displays such information on the screen when you are on a call.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to In-call count and press Select.4. Scroll to Call time (display call time during a call) or Call cost (display call cost during a call) and press OK.Session informationIf this function is activated, the time and cost information of the phone call will appear on the screen after you end a call.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Session information and press On (to activate it) or Off (to deacti-vate it).

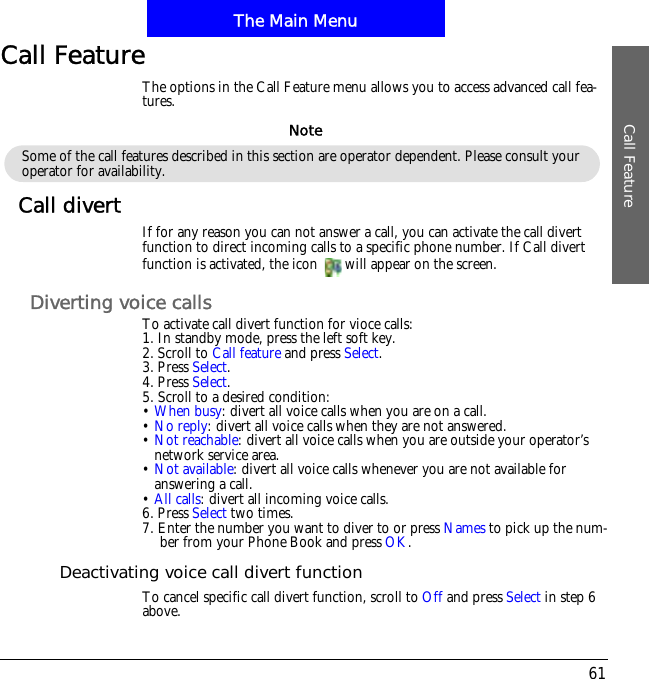

The Main MenuCall Feature61Call FeatureThe options in the Call Feature menu allows you to access advanced call fea-tures.Call divert If for any reason you can not answer a call, you can activate the call divert function to direct incoming calls to a specific phone number. If Call divert function is activated, the icon  will appear on the screen.Diverting voice callsTo activate call divert function for vioce calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Press Select.4. Press Select.5. Scroll to a desired condition:•When busy: divert all voice calls when you are on a call.•No reply: divert all voice calls when they are not answered.•Not reachable: divert all voice calls when you are outside your operator’s network service area.•Not available: divert all voice calls whenever you are not available for answering a call.•All calls: divert all incoming voice calls.6. Press Select two times.7. Enter the number you want to diver to or press Names to pick up the num-ber from your Phone Book and press OK.Deactivating voice call divert functionTo cancel specific call divert function, scroll to Off and press Select in step 6 above.Some of the call features described in this section are operator dependent. Please consult your operator for availability.Note

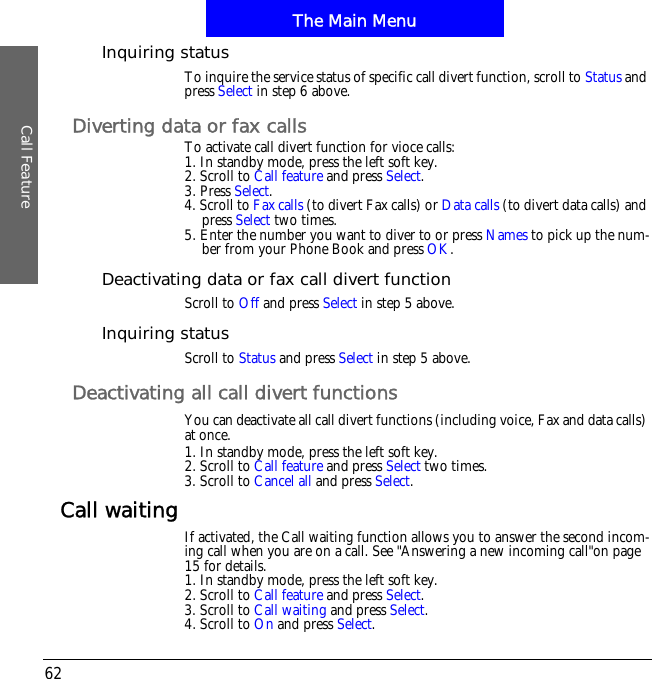

The Main MenuCall Feature62Inquiring statusTo inquire the service status of specific call divert function, scroll to Status and press Select in step 6 above.Diverting data or fax callsTo activate call divert function for vioce calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Press Select.4. Scroll to Fax calls (to divert Fax calls) or Data calls (to divert data calls) and press Select two times.5. Enter the number you want to diver to or press Names to pick up the num-ber from your Phone Book and press OK.Deactivating data or fax call divert functionScroll to Off and press Select in step 5 above.Inquiring statusScroll to Status and press Select in step 5 above.Deactivating all call divert functionsYou can deactivate all call divert functions (including voice, Fax and data calls) at once.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select two times.3. Scroll to Cancel all and press Select.Call waiting If activated, the Call waiting function allows you to answer the second incom-ing call when you are on a call. See "Answering a new incoming call"on page 15 for details.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call waiting and press Select.4. Scroll to On and press Select.

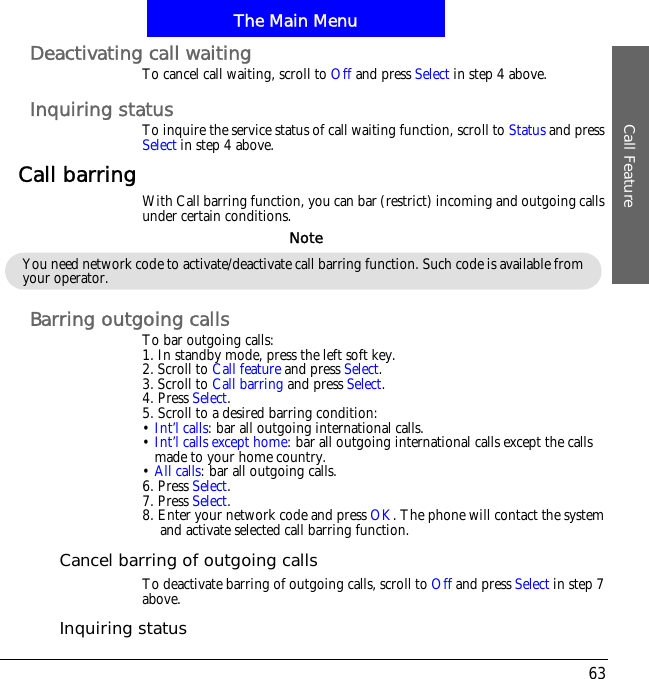

The Main MenuCall Feature63Deactivating call waitingTo cancel call waiting, scroll to Off and press Select in step 4 above.Inquiring statusTo inquire the service status of call waiting function, scroll to Status and pressSelect in step 4 above.Call barring With Call barring function, you can bar (restrict) incoming and outgoing calls under certain conditions.Barring outgoing callsTo bar outgoing calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Press Select.5. Scroll to a desired barring condition:•Int’l calls: bar all outgoing international calls.•Int’l calls except home: bar all outgoing international calls except the calls made to your home country.•All calls: bar all outgoing calls.6. Press Select.7. Press Select.8. Enter your network code and press OK. The phone will contact the system and activate selected call barring function.Cancel barring of outgoing callsTo deactivate barring of outgoing calls, scroll to Off and press Select in step 7 above.Inquiring statusYou need network code to activate/deactivate call barring function. Such code is available from your operator.Note

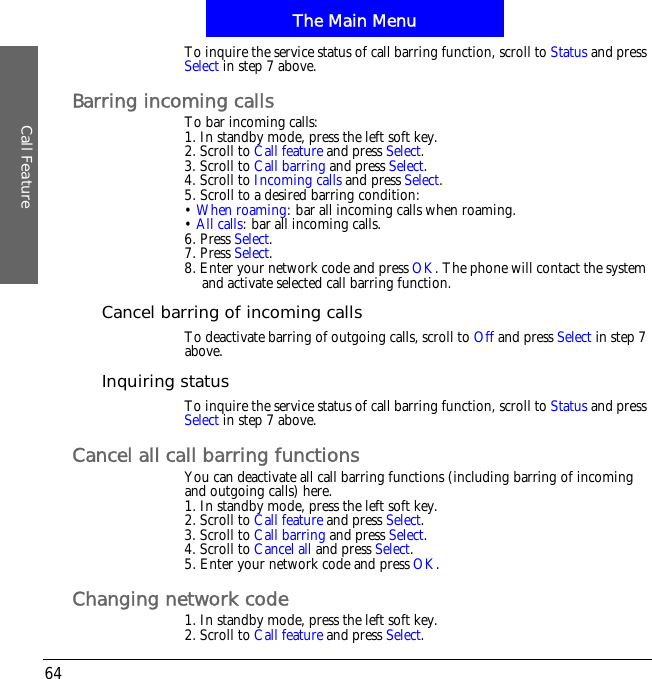

The Main MenuCall Feature64To inquire the service status of call barring function, scroll to Status and press Select in step 7 above.Barring incoming callsTo bar incoming calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Incoming calls and press Select.5. Scroll to a desired barring condition:•When roaming: bar all incoming calls when roaming.•All calls: bar all incoming calls.6. Press Select.7. Press Select.8. Enter your network code and press OK. The phone will contact the system and activate selected call barring function.Cancel barring of incoming callsTo deactivate barring of outgoing calls, scroll to Off and press Select in step 7 above.Inquiring statusTo inquire the service status of call barring function, scroll to Status and press Select in step 7 above.Cancel all call barring functionsYou can deactivate all call barring functions (including barring of incoming and outgoing calls) here.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Cancel all and press Select.5. Enter your network code and press OK.Changing network code1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.

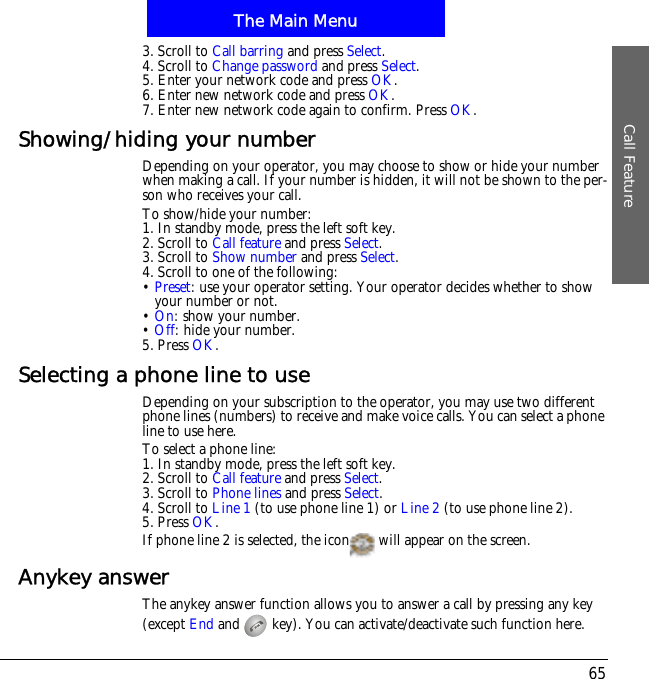

The Main MenuCall Feature653. Scroll to Call barring and press Select.4. Scroll to Change password and press Select.5. Enter your network code and press OK.6. Enter new network code and press OK.7. Enter new network code again to confirm. Press OK.Showing/hiding your numberDepending on your operator, you may choose to show or hide your number when making a call. If your number is hidden, it will not be shown to the per-son who receives your call.To show/hide your number:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Show number and press Select.4. Scroll to one of the following:•Preset: use your operator setting. Your operator decides whether to show your number or not.•On: show your number.•Off: hide your number.5. Press OK.Selecting a phone line to useDepending on your subscription to the operator, you may use two different phone lines (numbers) to receive and make voice calls. You can select a phone line to use here. To select a phone line:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Phone lines and press Select.4. Scroll to Line 1 (to use phone line 1) or Line 2 (to use phone line 2).5. Press OK.If phone line 2 is selected, the icon  will appear on the screen.Anykey answerThe anykey answer function allows you to answer a call by pressing any key (except End and   key). You can activate/deactivate such function here.

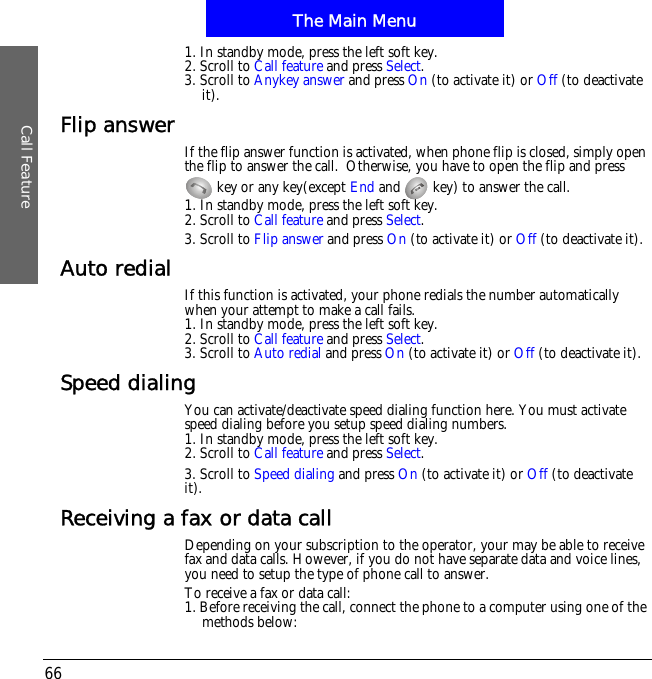

The Main MenuCall Feature661. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Anykey answer and press On (to activate it) or Off (to deactivate it).Flip answer If the flip answer function is activated, when phone flip is closed, simply open the flip to answer the call.  Otherwise, you have to open the flip and press   key or any key(except End and   key) to answer the call. 1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Flip answer and press On (to activate it) or Off (to deactivate it).Auto redial If this function is activated, your phone redials the number automatically when your attempt to make a call fails.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Auto redial and press On (to activate it) or Off (to deactivate it).Speed dialingYou can activate/deactivate speed dialing function here. You must activate speed dialing before you setup speed dialing numbers.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Speed dialing and press On (to activate it) or Off (to deactivate!it).Receiving a fax or data callDepending on your subscription to the operator, your may be able to receive fax and data calls. However, if you do not have separate data and voice lines, you need to setup the type of phone call to answer.To receive a fax or data call:1. Before receiving the call, connect the phone to a computer using one of the methods below:

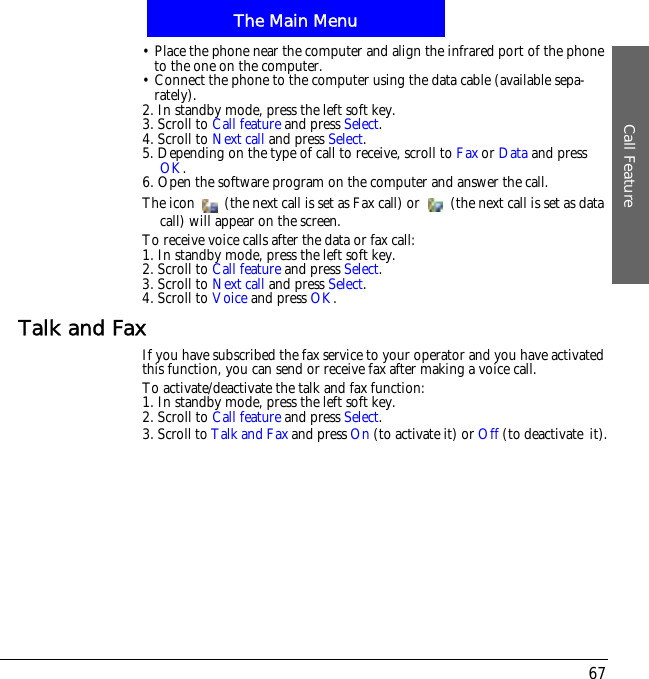

The Main MenuCall Feature67• Place the phone near the computer and align the infrared port of the phone to the one on the computer.• Connect the phone to the computer using the data cable (available sepa-rately).2. In standby mode, press the left soft key.3. Scroll to Call feature and press Select.4. Scroll to Next call and press Select.5. Depending on the type of call to receive, scroll to Fax or Data and press OK.6. Open the software program on the computer and answer the call.The icon   (the next call is set as Fax call) or   (the next call is set as data call) will appear on the screen.To receive voice calls after the data or fax call:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Next call and press Select.4. Scroll to Voice and press OK.Talk and FaxIf you have subscribed the fax service to your operator and you have activated this function, you can send or receive fax after making a voice call.To activate/deactivate the talk and fax function:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Talk and Fax and press On (to activate it) or Off (to deactivate!it).

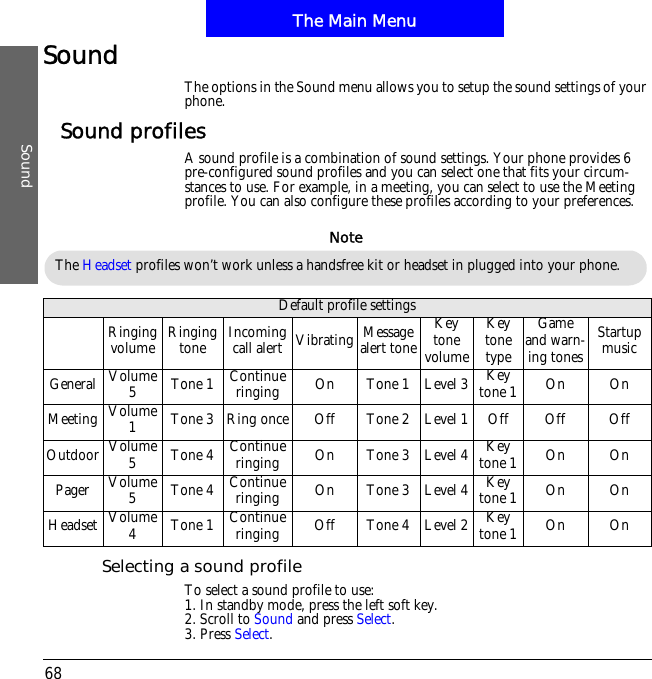

The Main MenuSound68Sound The options in the Sound menu allows you to setup the sound settings of your phone.Sound profilesA sound profile is a combination of sound settings. Your phone provides 6 pre-configured sound profiles and you can select one that fits your circum-stances to use. For example, in a meeting, you can select to use the Meeting profile. You can also configure these profiles according to your preferences.Selecting a sound profileTo select a sound profile to use:1. In standby mode, press the left soft key.2. Scroll to Sound and press Select.3. Press Select.Default profile settingsRinging volume Ringing tone Incoming call alert Vibrating Messagealert toneKey tone volumeKey tone typeGame and warn-ing tonesStartup musicGeneral Volume 5Tone 1 Continue ringing On Tone 1 Level 3 Key tone 1 On OnMeeting Volume 1Tone 3 Ring once Off Tone 2 Level 1 Off Off OffOutdoor Volume 5Tone 4 Continue ringing On Tone 3 Level 4 Key tone 1 On OnPager Volume 5Tone 4 Continue ringing On Tone 3 Level 4 Key tone 1 On OnHeadset Volume 4Tone 1 Continue ringing Off Tone 4 Level 2 Key tone 1 On OnThe Headset profiles won’t work unless a handsfree kit or headset in plugged into your phone.Note

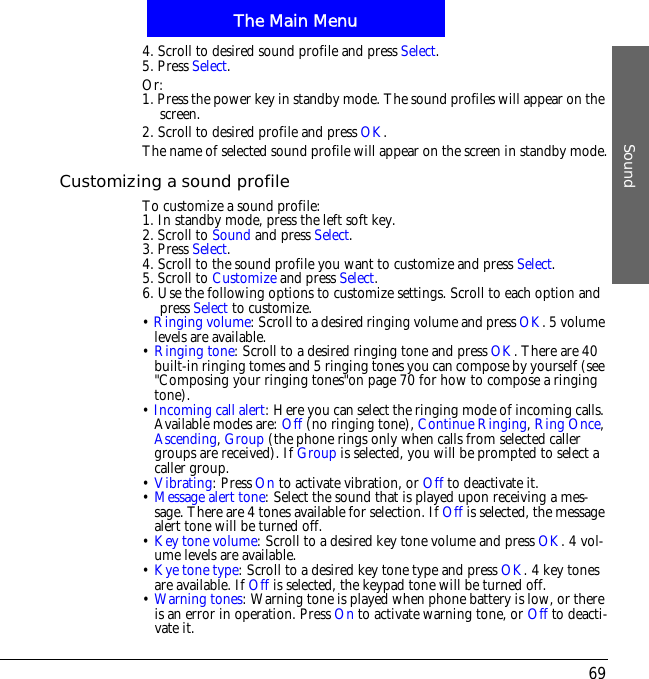

The Main MenuSound694. Scroll to desired sound profile and press Select.5. Press Select.Or:1. Press the power key in standby mode. The sound profiles will appear on the screen.2. Scroll to desired profile and press OK.The name of selected sound profile will appear on the screen in standby mode.Customizing a sound profileTo customize a sound profile:1. In standby mode, press the left soft key.2. Scroll to Sound and press Select.3. Press Select.4. Scroll to the sound profile you want to customize and press Select.5. Scroll to Customize and press Select.6. Use the following options to customize settings. Scroll to each option and press Select to customize.•Ringing volume: Scroll to a desired ringing volume and press OK. 5 volume levels are available.•Ringing tone: Scroll to a desired ringing tone and press OK. There are 40 built-in ringing tomes and 5 ringing tones you can compose by yourself (see "Composing your ringing tones"on page 70 for how to compose a ringing tone).•Incoming call alert: Here you can select the ringing mode of incoming calls. Available modes are: Off (no ringing tone), Continue Ringing,Ring Once,Ascending,Group (the phone rings only when calls from selected caller groups are received). If Group is selected, you will be prompted to select a caller group.•Vibrating: Press On to activate vibration, or Off to deactivate it.•Message alert tone: Select the sound that is played upon receiving a mes-sage. There are 4 tones available for selection. If Off is selected, the message alert tone will be turned off.•Key tone volume: Scroll to a desired key tone volume and press OK. 4 vol-ume levels are available. •Kye tone type: Scroll to a desired key tone type and press OK. 4 key tones are available. If Off is selected, the keypad tone will be turned off.•Warning tones: Warning tone is played when phone battery is low, or there is an error in operation. Press On to activate warning tone, or Off to deacti-vate it.

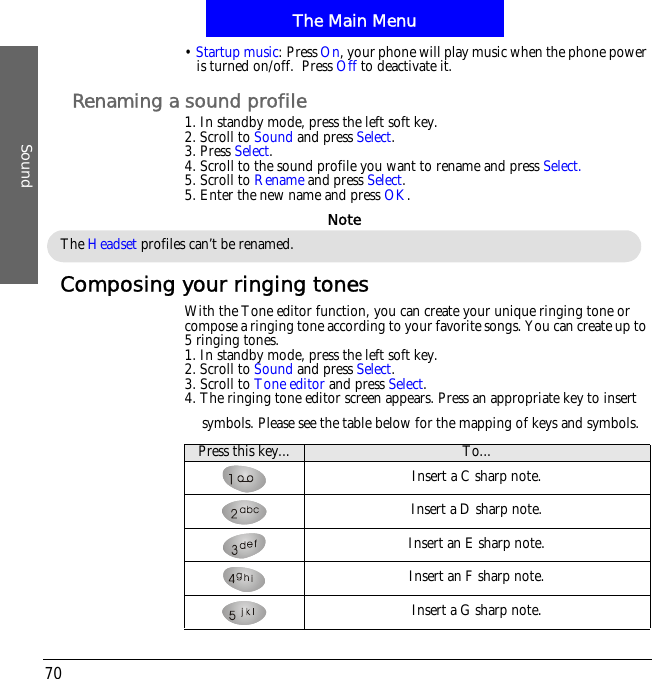

The Main MenuSound70•Startup music: Press On, your phone will play music when the phone power is turned on/off.  Press Off to deactivate it.Renaming a sound profile1. In standby mode, press the left soft key.2. Scroll to Sound and press Select.3. Press Select.4. Scroll to the sound profile you want to rename and press Select.5. Scroll to Rename and press Select.5. Enter the new name and press OK.Composing your ringing tonesWith the Tone editor function, you can create your unique ringing tone or compose a ringing tone according to your favorite songs. You can create up to 5 ringing tones.1. In standby mode, press the left soft key.2. Scroll to Sound and press Select.3. Scroll to Tone editor and press Select.4. The ringing tone editor screen appears. Press an appropriate key to insert symbols. Please see the table below for the mapping of keys and symbols.The Headset profiles can’t be renamed.NotePress this key... To...Insert a C sharp note.Insert a D sharp note.Insert an E sharp note.Insert an F sharp note.Insert a G sharp note.

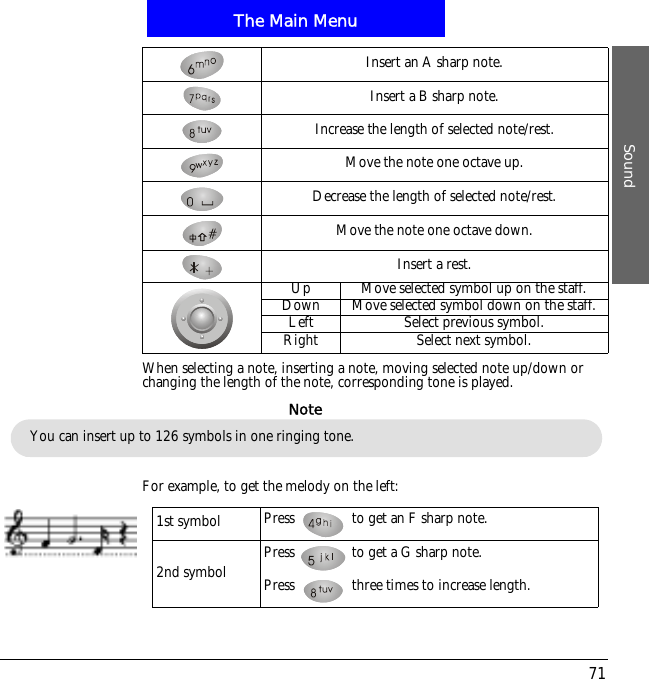

The Main MenuSound71When selecting a note, inserting a note, moving selected note up/down or changing the length of the note, corresponding tone is played.For example, to get the melody on the left:Insert an A sharp note.Insert a B sharp note.Increase the length of selected note/rest.Move the note one octave up.Decrease the length of selected note/rest.Move the note one octave down.Insert a rest.Up Move selected symbol up on the staff.Down Move selected symbol down on the staff.Left Select previous symbol.Right Select next symbol.You can insert up to 126 symbols in one ringing tone.Note1st symbol Press   to get an F sharp note.2nd symbol Press   to get a G sharp note.Press   three times to increase length.

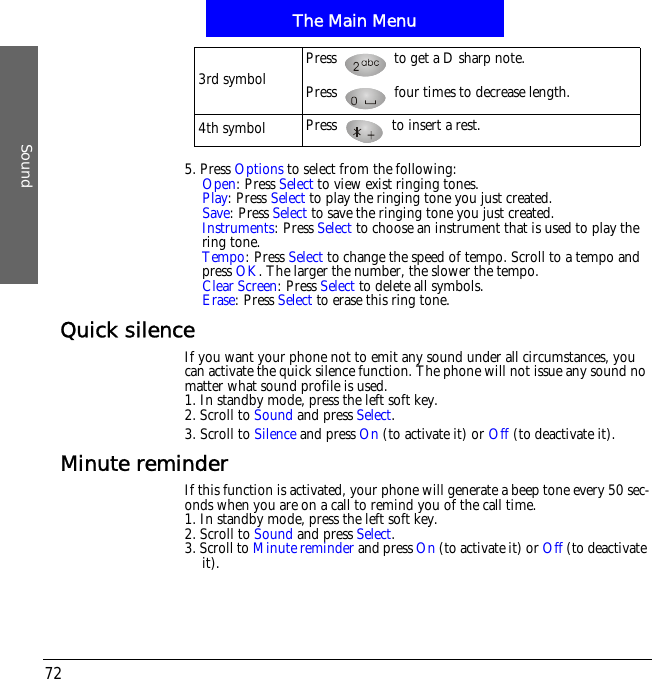

The Main MenuSound725. Press Options to select from the following:Open: Press Select to view exist ringing tones. Play: Press Select to play the ringing tone you just created.Save: Press Select to save the ringing tone you just created.Instruments: Press Select to choose an instrument that is used to play the ring tone.Tempo: Press Select to change the speed of tempo. Scroll to a tempo and press OK. The larger the number, the slower the tempo.Clear Screen: Press Select to delete all symbols.Erase: Press Select to erase this ring tone.Quick silenceIf you want your phone not to emit any sound under all circumstances, you can activate the quick silence function. The phone will not issue any sound no matter what sound profile is used.1. In standby mode, press the left soft key.2. Scroll to Sound and press Select.3. Scroll to Silence and press On (to activate it) or Off (to deactivate it).Minute reminderIf this function is activated, your phone will generate a beep tone every 50 sec-onds when you are on a call to remind you of the call time.1. In standby mode, press the left soft key.2. Scroll to Sound and press Select.3. Scroll to Minute reminder and press On (to activate it) or Off (to deactivate it).3rd symbol Press   to get a D sharp note.Press   four times to decrease length.4th symbol Press   to insert a rest.

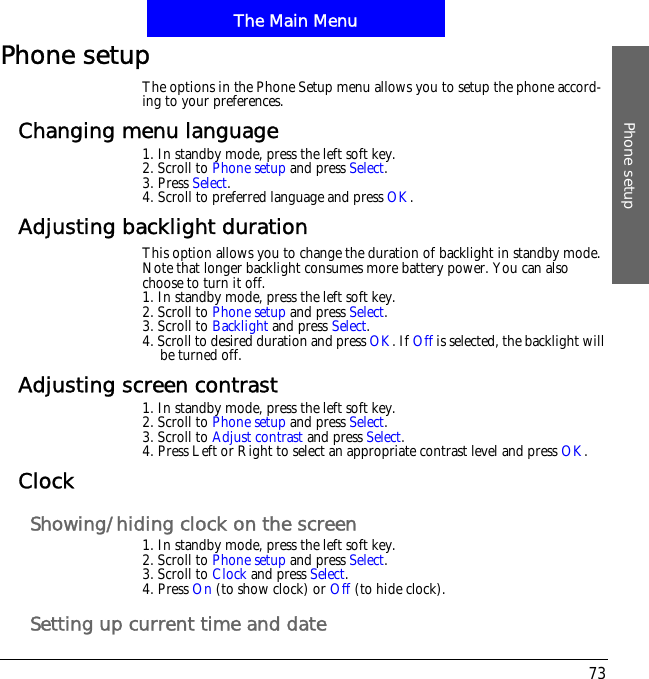

The Main MenuPhone setup73Phone setupThe options in the Phone Setup menu allows you to setup the phone accord-ing to your preferences.Changing menu language1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Press Select.4. Scroll to preferred language and press OK.Adjusting backlight durationThis option allows you to change the duration of backlight in standby mode. Note that longer backlight consumes more battery power. You can also choose to turn it off.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Backlight and press Select.4. Scroll to desired duration and press OK. If Off is selected, the backlight will be turned off.Adjusting screen contrast1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Adjust contrast and press Select.4. Press Left or Right to select an appropriate contrast level and press OK.ClockShowing/hiding clock on the screen1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Press On (to show clock) or Off (to hide clock).Setting up current time and date

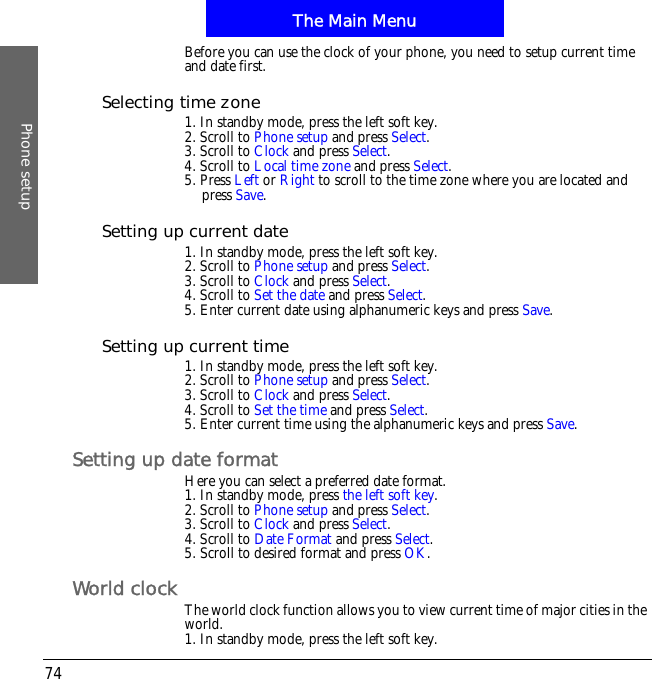

The Main MenuPhone setup74Before you can use the clock of your phone, you need to setup current time and date first.Selecting time zone1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Local time zone and press Select.5. Press Left or Right to scroll to the time zone where you are located and press Save.Setting up current date1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Set the date and press Select.5. Enter current date using alphanumeric keys and press Save.Setting up current time1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Set the time and press Select.5. Enter current time using the alphanumeric keys and press Save.Setting up date formatHere you can select a preferred date format.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Date Format and press Select.5. Scroll to desired format and press OK.World clock The world clock function allows you to view current time of major cities in the world.1. In standby mode, press the left soft key.

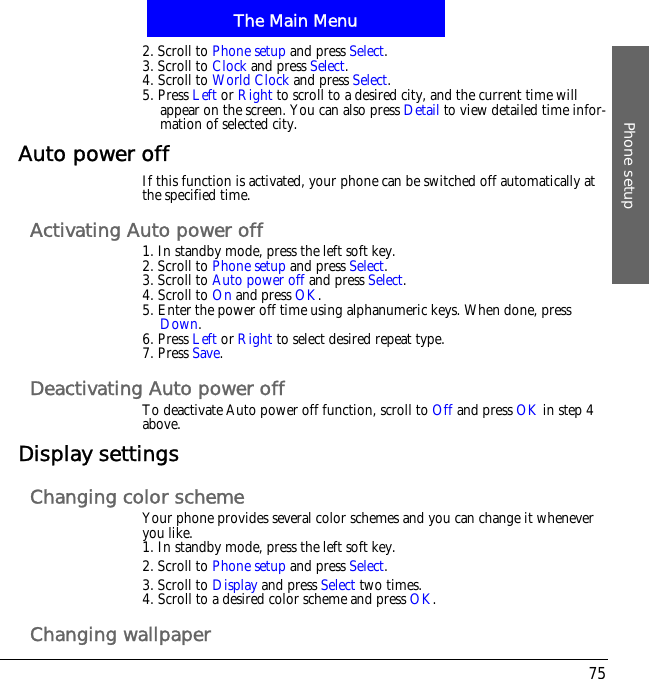

The Main MenuPhone setup752. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to World Clock and press Select.5. Press Left or Right to scroll to a desired city, and the current time will appear on the screen. You can also press Detail to view detailed time infor-mation of selected city.Auto power offIf this function is activated, your phone can be switched off automatically at the specified time.Activating Auto power off1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Auto power off and press Select.4. Scroll to On and press OK.5. Enter the power off time using alphanumeric keys. When done, press Down.6. Press Left or Right to select desired repeat type.7. Press Save.Deactivating Auto power offTo deactivate Auto power off function, scroll to Off and press OK in step 4 above.Display settingsChanging color schemeYour phone provides several color schemes and you can change it whenever you like.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Display and press Select two times.4. Scroll to a desired color scheme and press OK.Changing wallpaper

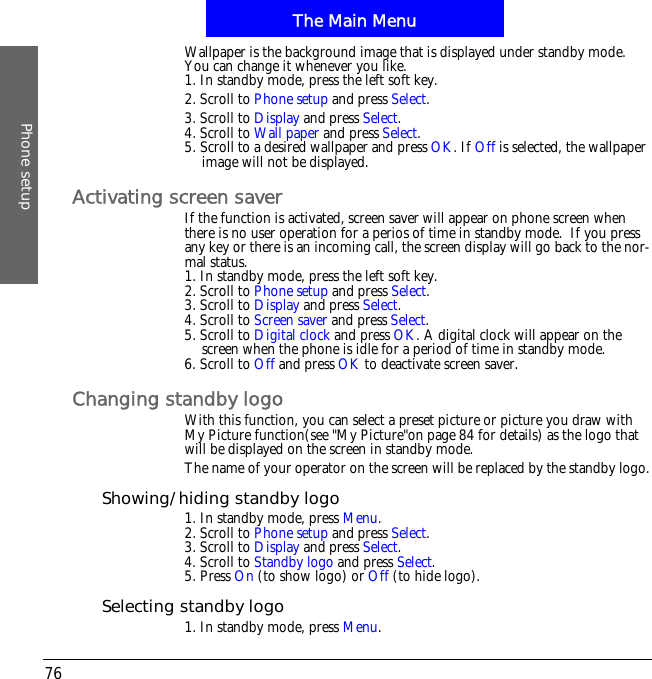

The Main MenuPhone setup76Wallpaper is the background image that is displayed under standby mode. You can change it whenever you like.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Display and press Select.4. Scroll to Wall paper and press Select.5. Scroll to a desired wallpaper and press OK. If Off is selected, the wallpaper image will not be displayed.Activating screen saverIf the function is activated, screen saver will appear on phone screen when there is no user operation for a perios of time in standby mode.  If you press any key or there is an incoming call, the screen display will go back to the nor-mal status.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Display and press Select.4. Scroll to Screen saver and press Select.5. Scroll to Digital clock and press OK. A digital clock will appear on the screen when the phone is idle for a period of time in standby mode.6. Scroll to Off and press OK to deactivate screen saver.Changing standby logoWith this function, you can select a preset picture or picture you draw with My Picture function(see "My Picture"on page 84 for details) as the logo that  will be displayed on the screen in standby mode.The name of your operator on the screen will be replaced by the standby logo.Showing/hiding standby logo1. In standby mode, press Menu.2. Scroll to Phone setup and press Select.3. Scroll to Display and press Select.4. Scroll to Standby logo and press Select.5. Press On (to show logo) or Off (to hide logo).Selecting standby logo1. In standby mode, press Menu.

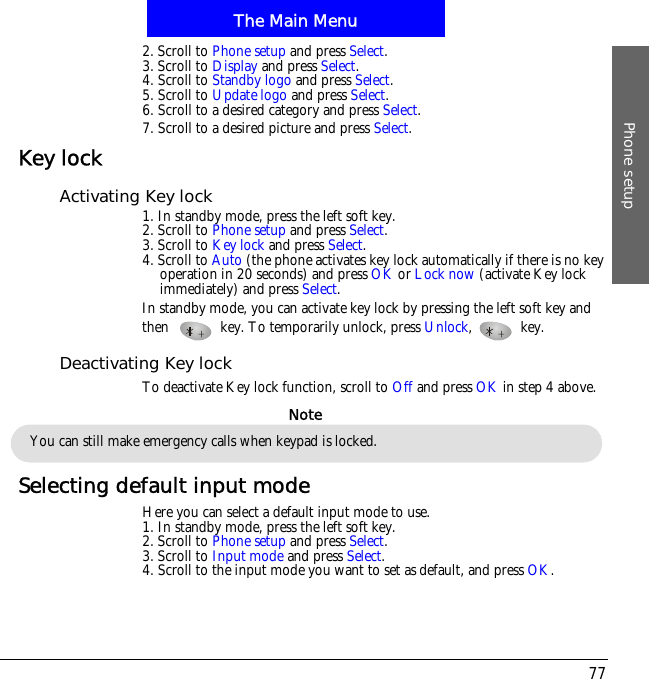

The Main MenuPhone setup772. Scroll to Phone setup and press Select.3. Scroll to Display and press Select.4. Scroll to Standby logo and press Select.5. Scroll to Update logo and press Select.6. Scroll to a desired category and press Select.7. Scroll to a desired picture and press Select.Key lockActivating Key lock1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Key lock and press Select.4. Scroll to Auto (the phone activates key lock automatically if there is no key operation in 20 seconds) and press OK or Lock now (activate Key lock immediately) and press Select.In standby mode, you can activate key lock by pressing the left soft key and then! key. To temporarily unlock, press Unlock,  key.Deactivating Key lockTo deactivate Key lock function, scroll to Off and press OK in step 4 above.Selecting default input modeHere you can select a default input mode to use.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Input mode and press Select.4. Scroll to the input mode you want to set as default, and press OK.You can still make emergency calls when keypad is locked.Note

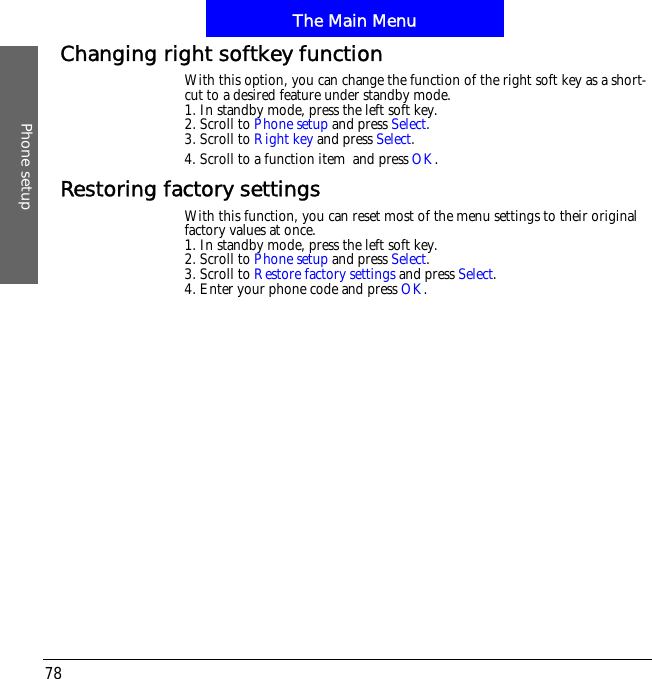

The Main MenuPhone setup78Changing right softkey functionWith this option, you can change the function of the right soft key as a short-cut to a desired feature under standby mode.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Right key and press Select.4. Scroll to a function item!and press OK.Restoring factory settingsWith this function, you can reset most of the menu settings to their original factory values at once.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Restore factory settings and press Select.4. Enter your phone code and press OK.

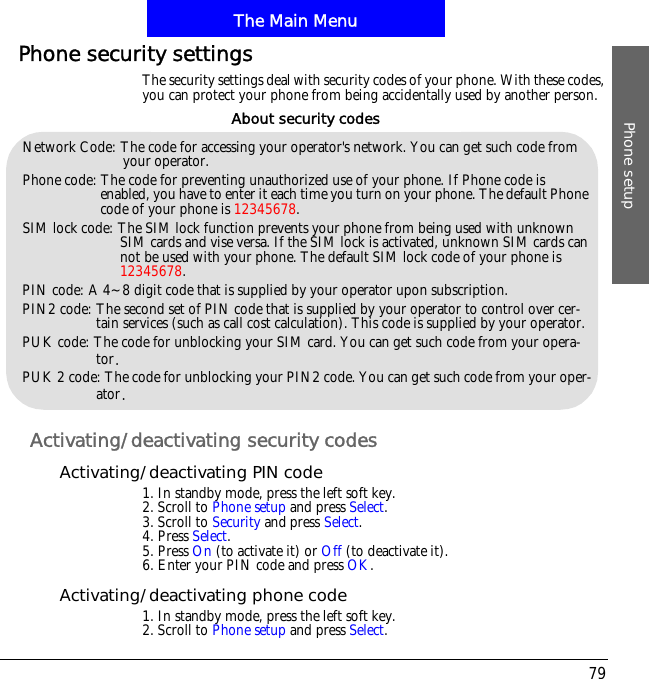

The Main MenuPhone setup79Phone security settingsThe security settings deal with security codes of your phone. With these codes, you can protect your phone from being accidentally used by another person.Activating/deactivating security codesActivating/deactivating PIN code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Press On (to activate it) or Off (to deactivate it).6. Enter your PIN code and press OK.Activating/deactivating phone code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.Network Code: The code for accessing your operator's network. You can get such code from your operator.Phone code: The code for preventing unauthorized use of your phone. If Phone code is enabled, you have to enter it each time you turn on your phone. The default Phone code of your phone is 12345678.SIM lock code: The SIM lock function prevents your phone from being used with unknown SIM cards and vise versa. If the SIM lock is activated, unknown SIM cards can not be used with your phone. The default SIM lock code of your phone is 12345678.PIN code: A 4~8 digit code that is supplied by your operator upon subscription.PIN2 code: The second set of PIN code that is supplied by your operator to control over cer-tain services (such as call cost calculation). This code is supplied by your operator.PUK code: The code for unblocking your SIM card. You can get such code from your opera-tor/PUK 2 code: The code for unblocking your PIN2 code. You can get such code from your oper-ator/About security codes
The Main MenuPhone setup803. Scroll to Security and press Select.4. Press Select.5. Scroll to Phone code and press On (to activate it) or Off (to deactivate it).6. Enter your phone code (the default phone code is 12345678) and pressOK.Activating/deactivating SIM lock1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Scroll to SIM lock and press On (to activate it) or Off (to deactivate it).6. Enter your SIM lock code (the default SIM lock code is 12345678) and press OK.Changing security codesChanging PIN code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Press Select.6. Enter the old PIN code and press OK.7. Enter the new PIN code and press OK.8. Enter the new PIN code again and press OK.Changing PIN2 code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to PIN2 and press Select.6. Enter the old PIN2 code and press OK.7. Enter the new PIN2 code and press OK.Before changing these codes, you must activate them first.Note

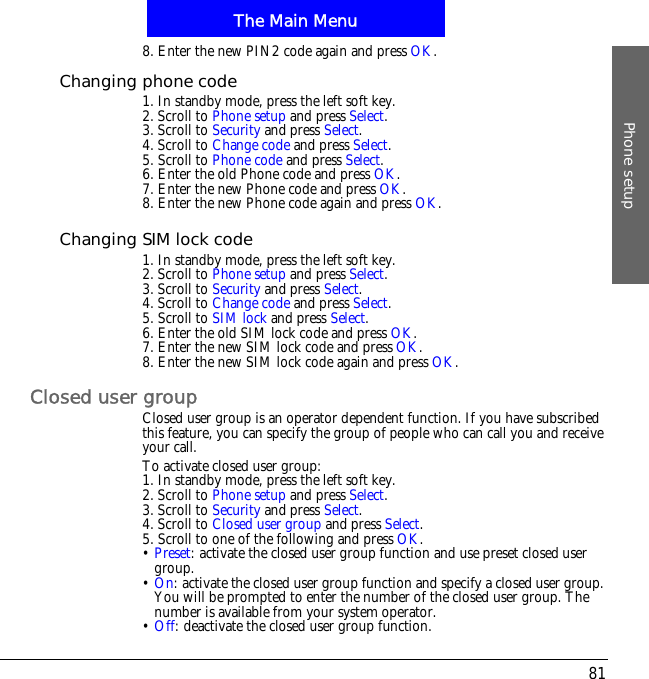

The Main MenuPhone setup818. Enter the new PIN2 code again and press OK.Changing phone code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to Phone code and press Select.6. Enter the old Phone code and press OK.7. Enter the new Phone code and press OK.8. Enter the new Phone code again and press OK.Changing SIM lock code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to SIM lock and press Select.6. Enter the old SIM lock code and press OK.7. Enter the new SIM lock code and press OK.8. Enter the new SIM lock code again and press OK.Closed user groupClosed user group is an operator dependent function. If you have subscribed this feature, you can specify the group of people who can call you and receive your call.To activate closed user group:1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Closed user group and press Select.5. Scroll to one of the following and press OK.•Preset: activate the closed user group function and use preset closed user group.•On: activate the closed user group function and specify a closed user group. You will be prompted to enter the number of the closed user group. The number is available from your system operator.•Off: deactivate the closed user group function.

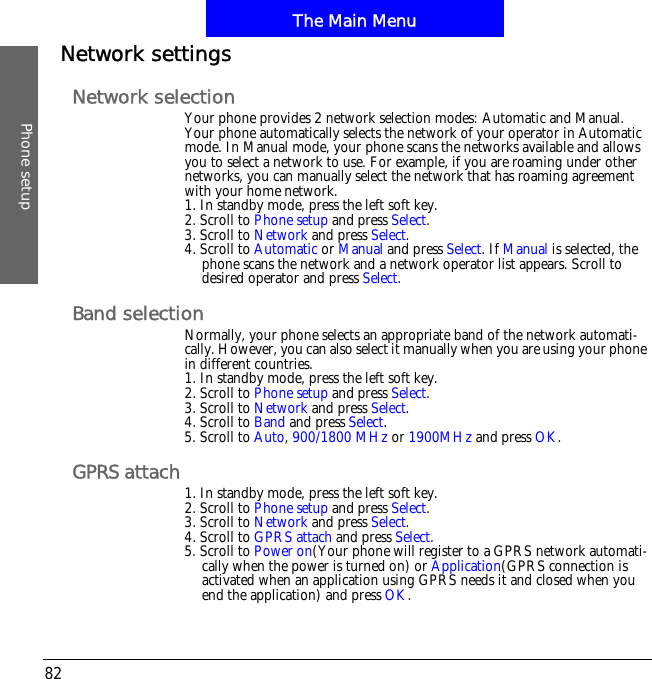

The Main MenuPhone setup82Network settingsNetwork selectionYour phone provides 2 network selection modes: Automatic and Manual. Your phone automatically selects the network of your operator in Automatic mode. In Manual mode, your phone scans the networks available and allows you to select a network to use. For example, if you are roaming under other networks, you can manually select the network that has roaming agreement with your home network.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to Automatic or Manual and press Select. If Manual is selected, the phone scans the network and a network operator list appears. Scroll to desired operator and press Select.Band selectionNormally, your phone selects an appropriate band of the network automati-cally. However, you can also select it manually when you are using your phone in different countries.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to Band and press Select.5. Scroll to Auto,900/1800 MHz or 1900MHz and press OK.GPRS attach 1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to GPRS attach and press Select.5. Scroll to Power on(Your phone will register to a GPRS network automati-cally when the power is turned on) or Application(GPRS connection is activated when an application using GPRS needs it and closed when you end the application) and press OK.

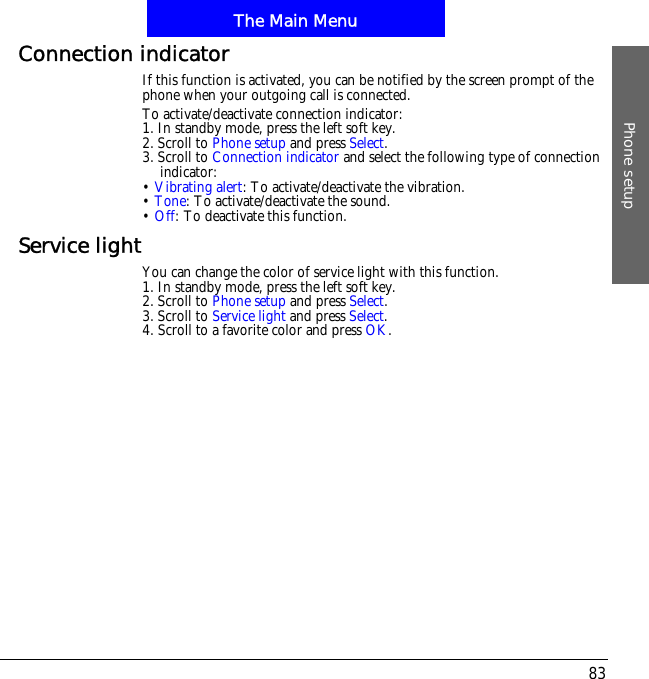

The Main MenuPhone setup83Connection indicatorIf this function is activated, you can be notified by the screen prompt of the phone when your outgoing call is connected.To activate/deactivate connection indicator:1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Connection indicator and select the following type of connection indicator:•Vibrating alert: To activate/deactivate the vibration.•Tone: To activate/deactivate the sound.•Off: To deactivate this function.Service lightYou can change the color of service light with this function.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Service light and press Select.4. Scroll to a favorite color and press OK.

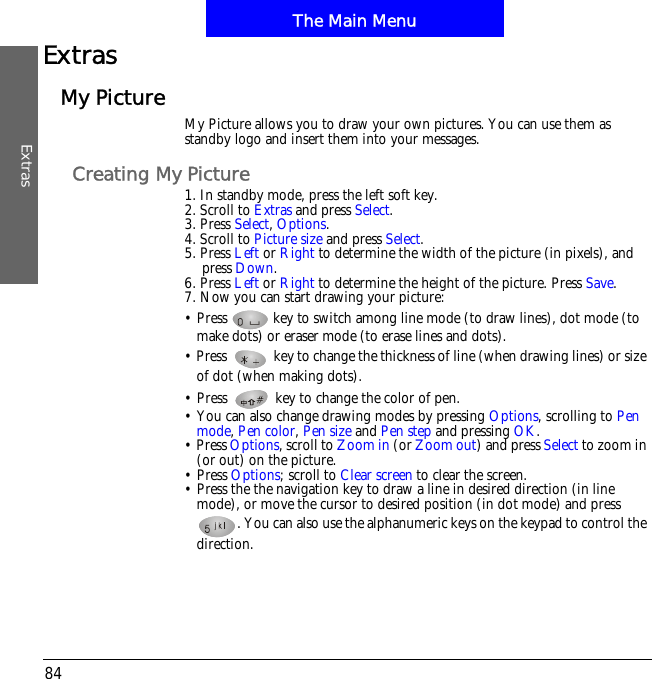

The Main MenuExtras84ExtrasMy Picture My Picture allows you to draw your own pictures. You can use them as standby logo and insert them into your messages. Creating My Picture1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Press Select,Options.4. Scroll to Picture size and press Select.5. Press Left or Right to determine the width of the picture (in pixels), and press Down.6. Press Left or Right to determine the height of the picture. Press Save.7. Now you can start drawing your picture:• Press   key to switch among line mode (to draw lines), dot mode (to make dots) or eraser mode (to erase lines and dots). • Press   key to change the thickness of line (when drawing lines) or size of dot (when making dots).• Press   key to change the color of pen. • You can also change drawing modes by pressing Options, scrolling to Penmode,Pen color,Pen size and Pen step and pressing OK.• Press Options, scroll to Zoom in (or Zoom out) and press Select to zoom in (or out) on the picture.• Press Options; scroll to Clear screen to clear the screen.• Press the the navigation key to draw a line in desired direction (in line mode), or move the cursor to desired position (in dot mode) and press . You can also use the alphanumeric keys on the keypad to control the direction.

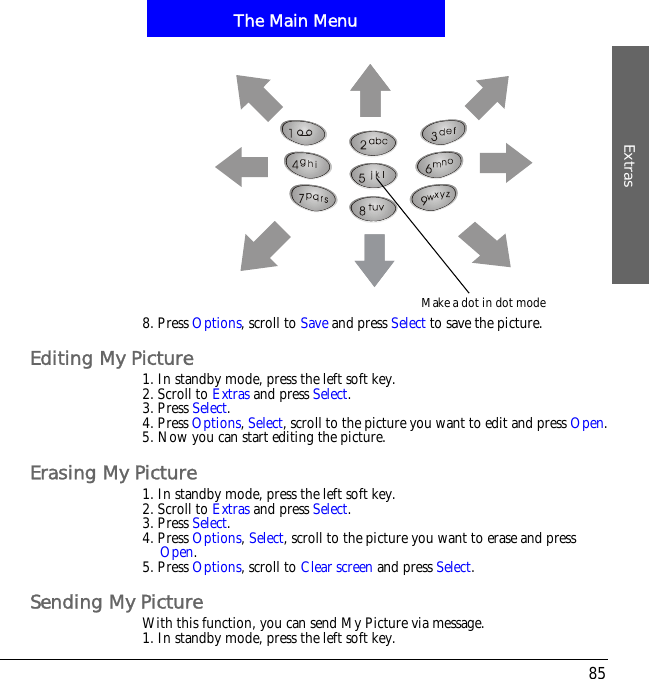

The Main MenuExtras858. Press Options, scroll to Save and press Select to save the picture.Editing My Picture1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Press Select.4. Press Options,Select, scroll to the picture you want to edit and press Open.5. Now you can start editing the picture.Erasing My Picture1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Press Select.4. Press Options,Select, scroll to the picture you want to erase and press Open.5. Press Options, scroll to Clear screen and press Select.Sending My PictureWith this function, you can send My Picture via message.1. In standby mode, press the left soft key.Make a dot in dot mode

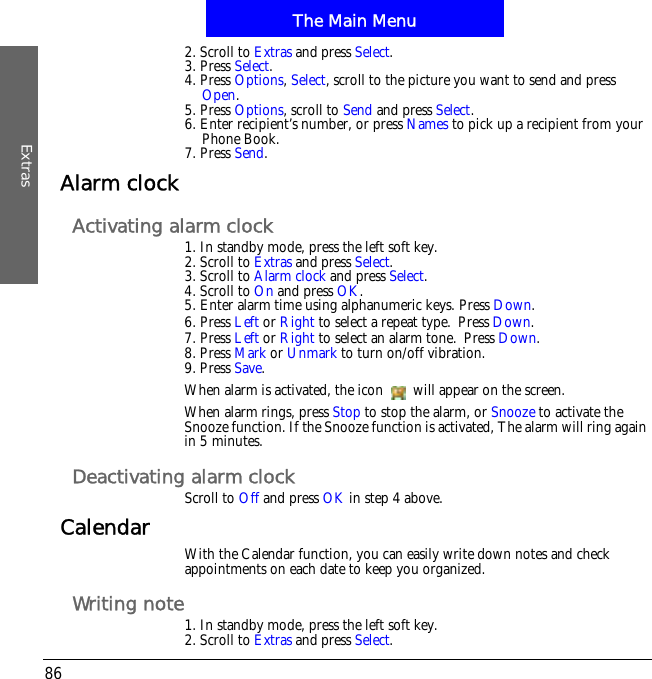

The Main MenuExtras862. Scroll to Extras and press Select.3. Press Select.4. Press Options,Select, scroll to the picture you want to send and press Open.5. Press Options, scroll to Send and press Select.6. Enter recipient’s number, or press Names to pick up a recipient from your Phone Book.7. Press Send.Alarm clockActivating alarm clock1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Alarm clock and press Select.4. Scroll to On and press OK.5. Enter alarm time using alphanumeric keys. Press Down.6. Press Left or Right to select a repeat type.!Press Down.7. Press Left or Right to select an alarm tone.!Press Down.8. Press Mark or Unmark to turn on/off vibration.9. Press Save.When alarm is activated, the icon   will appear on the screen.When alarm rings, press Stop to stop the alarm, or Snooze to activate the Snooze function. If the Snooze function is activated, The alarm will ring again in 5 minutes.Deactivating alarm clockScroll to Off and press OK in step 4 above.Calendar With the Calendar function, you can easily write down notes and check appointments on each date to keep you organized.Writing note1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.

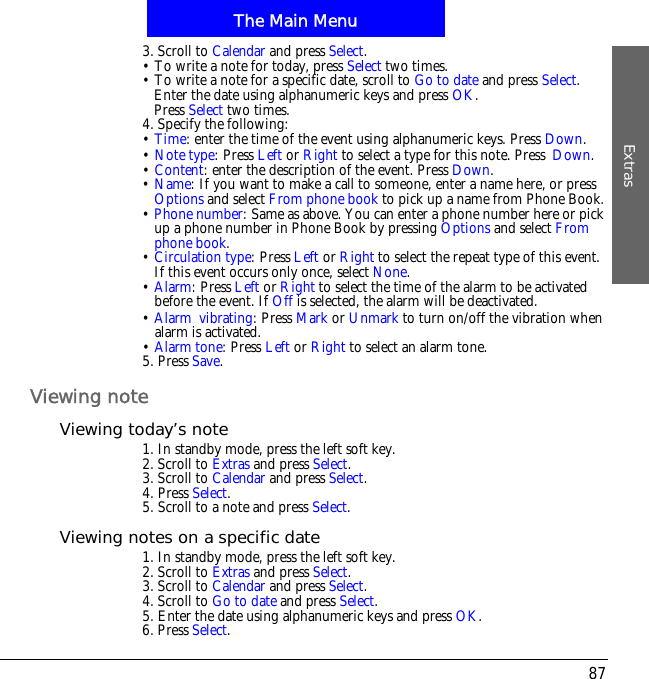

The Main MenuExtras873. Scroll to Calendar and press Select.• To write a note for today, press Select two times.• To write a note for a specific date, scroll to Go to date and press Select.Enter the date using alphanumeric keys and press OK.Press Select two times.4. Specify the following:•Time: enter the time of the event using alphanumeric keys. Press Down.•Note type: Press Left or Right to select a type for this note. Press!Down.•Content: enter the description of the event. Press Down.•Name: If you want to make a call to someone, enter a name here, or press Options and select From phone book to pick up a name from Phone Book.•Phone number: Same as above. You can enter a phone number here or pick up a phone number in Phone Book by pressing Options and select Fromphone book.•Circulation type: Press Left or Right to select the repeat type of this event. If this event occurs only once, select None.•Alarm: Press Left or Right to select the time of the alarm to be activated before the event. If Off is selected, the alarm will be deactivated.•Alarm!vibrating: Press Mark or Unmark to turn on/off the vibration when alarm is activated.•Alarm tone: Press Left or Right to select an alarm tone.5. Press Save.Viewing noteViewing today’s note1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Press Select.5. Scroll to a note and press Select.Viewing notes on a specific date1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Go to date and press Select.5. Enter the date using alphanumeric keys and press OK.6. Press Select.

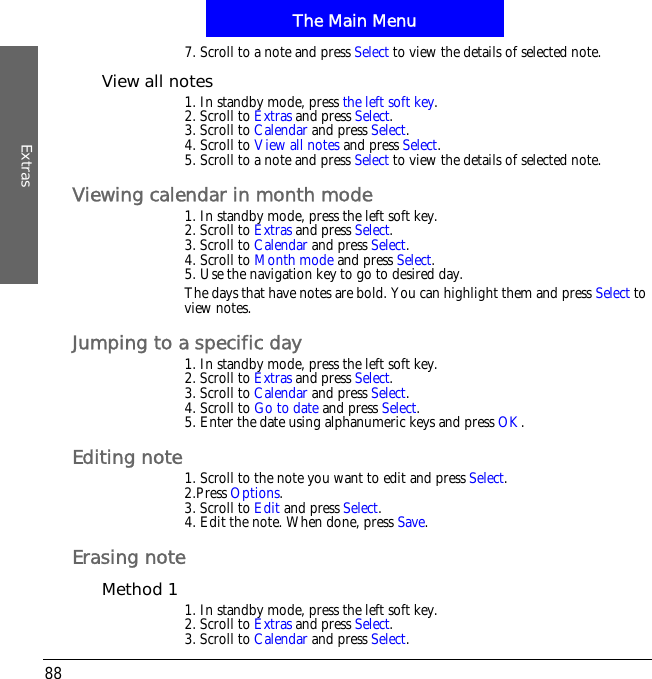

The Main MenuExtras887. Scroll to a note and press Select to view the details of selected note.View all notes1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to View all notes and press Select.5. Scroll to a note and press Select to view the details of selected note.Viewing calendar in month mode1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Month mode and press Select.5. Use the navigation key to go to desired day.The days that have notes are bold. You can highlight them and press Select to view notes.Jumping to a specific day1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Go to date and press Select.5. Enter the date using alphanumeric keys and press OK.Editing note1. Scroll to the note you want to edit and press Select.2.Press Options.3. Scroll to Edit and press Select.4. Edit the note. When done, press Save.Erasing noteMethod 1 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.

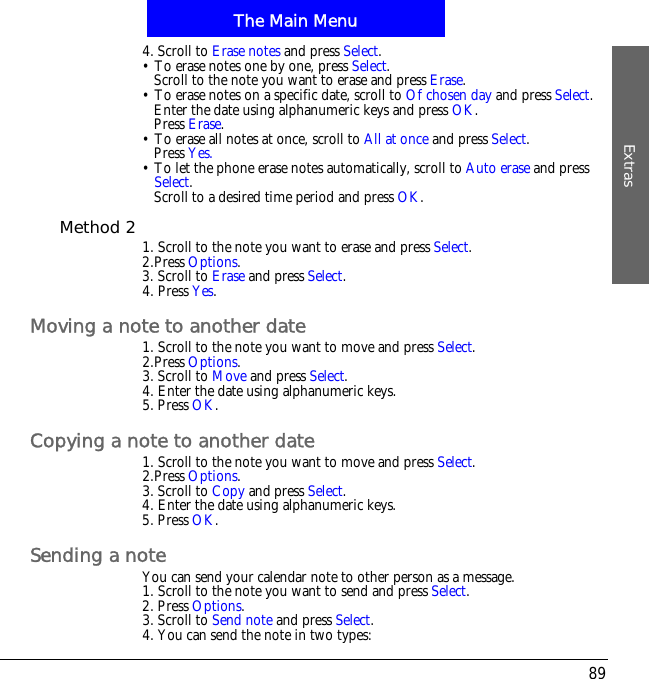

The Main MenuExtras894. Scroll to Erase notes and press Select.• To erase notes one by one, press Select.Scroll to the note you want to erase and press Erase.• To erase notes on a specific date, scroll to Of chosen day and press Select.Enter the date using alphanumeric keys and press OK.Press Erase.• To erase all notes at once, scroll to All at once and press Select.Press Yes.• To let the phone erase notes automatically, scroll to Auto erase and press Select.Scroll to a desired time period and press OK.Method 2 1. Scroll to the note you want to erase and press Select.2.Press Options.3. Scroll to Erase and press Select.4. Press Yes.Moving a note to another date1. Scroll to the note you want to move and press Select.2.Press Options.3. Scroll to Move and press Select.4. Enter the date using alphanumeric keys.5. Press OK.Copying a note to another date1. Scroll to the note you want to move and press Select.2.Press Options.3. Scroll to Copy and press Select.4. Enter the date using alphanumeric keys.5. Press OK.Sending a noteYou can send your calendar note to other person as a message.1. Scroll to the note you want to send and press Select.2. Press Options.3. Scroll to Send note and press Select.4. You can send the note in two types:

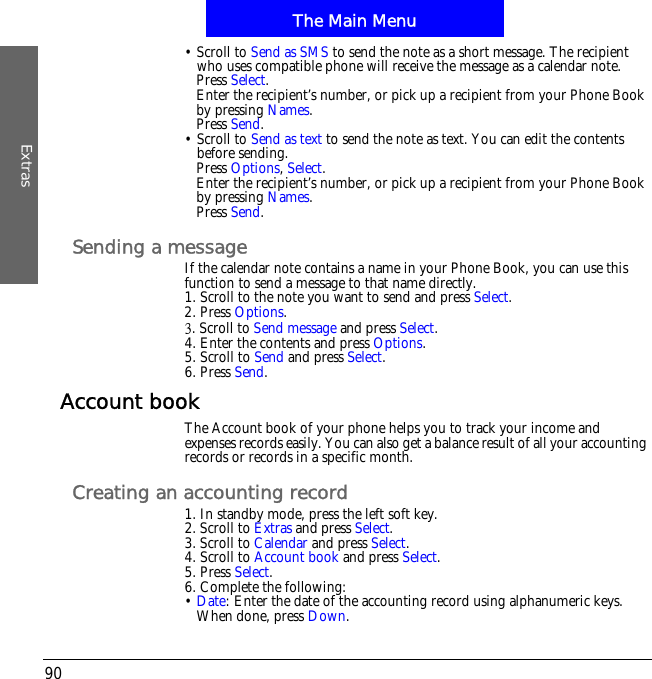

The Main MenuExtras90• Scroll to Send as SMS to send the note as a short message. The recipient who uses compatible phone will receive the message as a calendar note.Press Select.Enter the recipient’s number, or pick up a recipient from your Phone Book by pressing Names.Press Send.• Scroll to Send as text to send the note as text. You can edit the contents before sending.Press Options,Select.Enter the recipient’s number, or pick up a recipient from your Phone Book by pressing Names.Press Send.Sending a messageIf the calendar note contains a name in your Phone Book, you can use this function to send a message to that name directly.1. Scroll to the note you want to send and press Select.2. Press Options.4. Scroll to Send message and press Select.4. Enter the contents and press Options.5. Scroll to Send and press Select.6. Press Send.Account bookThe Account book of your phone helps you to track your income and expenses records easily. You can also get a balance result of all your accounting records or records in a specific month.Creating an accounting record1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Press Select.6. Complete the following:•Date: Enter the date of the accounting record using alphanumeric keys. When done, press Down.

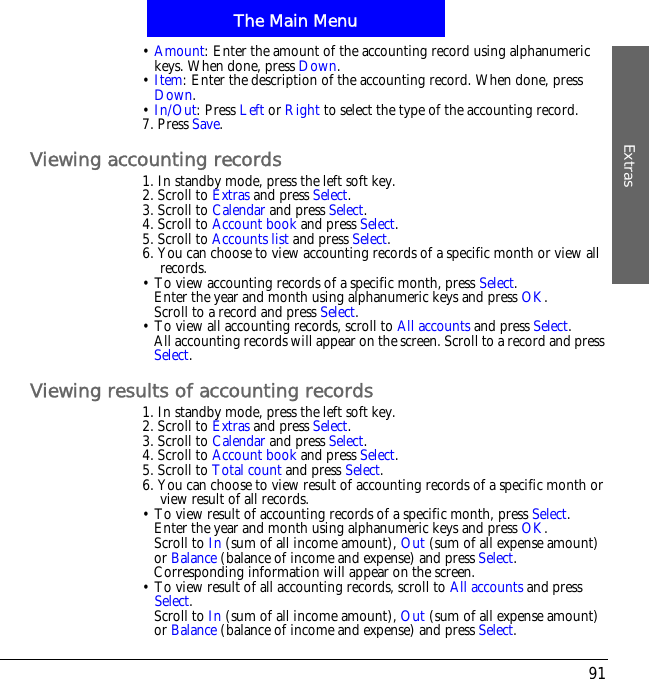

The Main MenuExtras91•Amount: Enter the amount of the accounting record using alphanumeric keys. When done, press Down.•Item: Enter the description of the accounting record. When done, press Down.•In/Out: Press Left or Right to select the type of the accounting record.7. Press Save.Viewing accounting records1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Accounts list and press Select.6. You can choose to view accounting records of a specific month or view all records.• To view accounting records of a specific month, press Select.Enter the year and month using alphanumeric keys and press OK.Scroll to a record and press Select.• To view all accounting records, scroll to All accounts and press Select.All accounting records will appear on the screen. Scroll to a record and pressSelect.Viewing results of accounting records1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Total count and press Select.6. You can choose to view result of accounting records of a specific month or view result of all records.• To view result of accounting records of a specific month, press Select.Enter the year and month using alphanumeric keys and press OK.Scroll to In (sum of all income amount), Out (sum of all expense amount) or Balance (balance of income and expense) and press Select.Corresponding information will appear on the screen.• To view result of all accounting records, scroll to All accounts and press Select.Scroll to In (sum of all income amount), Out (sum of all expense amount) or Balance (balance of income and expense) and press Select.

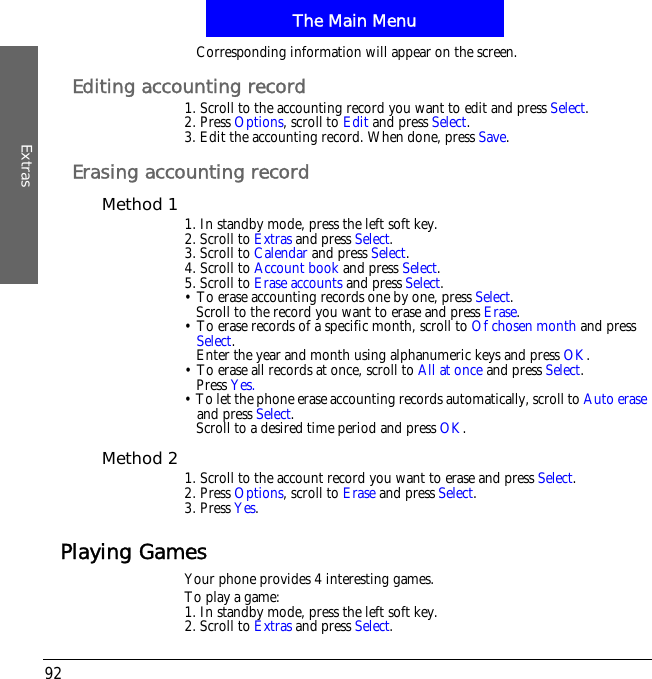

The Main MenuExtras92Corresponding information will appear on the screen.Editing accounting record1. Scroll to the accounting record you want to edit and press Select.2. Press Options, scroll to Edit and press Select.3. Edit the accounting record. When done, press Save.Erasing accounting recordMethod 1 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Erase accounts and press Select.• To erase accounting records one by one, press Select.Scroll to the record you want to erase and press Erase.• To erase records of a specific month, scroll to Of chosen month and press Select.Enter the year and month using alphanumeric keys and press OK.• To erase all records at once, scroll to All at once and press Select.Press Yes.• To let the phone erase accounting records automatically, scroll to Auto eraseand press Select.Scroll to a desired time period and press OK.Method 2 1. Scroll to the account record you want to erase and press Select.2. Press Options, scroll to Erase and press Select.3. Press Yes.Playing GamesYour phone provides 4 interesting games.To play a game:1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.

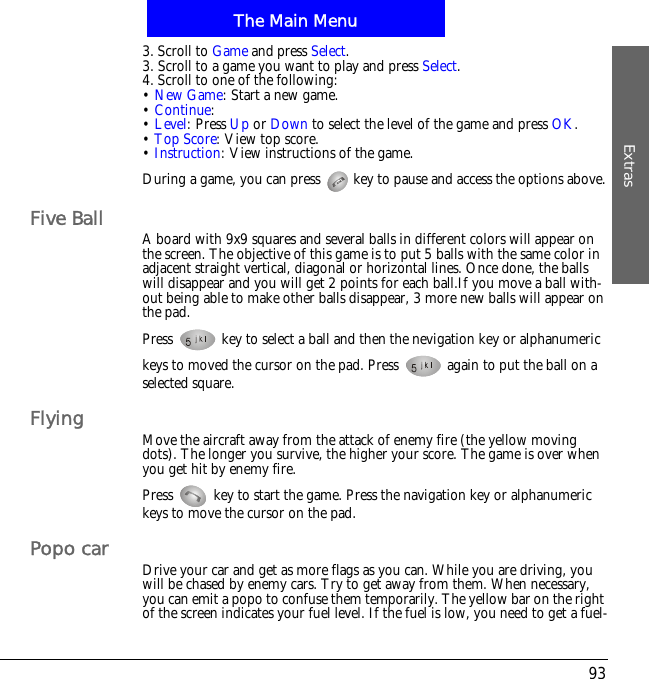

The Main MenuExtras933. Scroll to Game and press Select.3. Scroll to a game you want to play and press Select.4. Scroll to one of the following:•New Game: Start a new game.•Continue:•Level: Press Up or Down to select the level of the game and press OK.•Top Score: View top score.•Instruction: View instructions of the game.During a game, you can press   key to pause and access the options above.Five Ball A board with 9x9 squares and several balls in different colors will appear on the screen. The objective of this game is to put 5 balls with the same color in adjacent straight vertical, diagonal or horizontal lines. Once done, the balls will disappear and you will get 2 points for each ball.If you move a ball with-out being able to make other balls disappear, 3 more new balls will appear on the pad.Press   key to select a ball and then the nevigation key or alphanumeric keys to moved the cursor on the pad. Press   again to put the ball on a selected square.Flying Move the aircraft away from the attack of enemy fire (the yellow moving dots). The longer you survive, the higher your score. The game is over when you get hit by enemy fire.Press   key to start the game. Press the navigation key or alphanumeric keys to move the cursor on the pad. Popo car Drive your car and get as more flags as you can. While you are driving, you will be chased by enemy cars. Try to get away from them. When necessary, you can emit a popo to confuse them temporarily. The yellow bar on the right of the screen indicates your fuel level. If the fuel is low, you need to get a fuel-
The Main MenuExtras94box to refuel. The game is over when you run out of your fuel or when the enemy car gets you. Press   key to start the game. Drive your car using the navigation key or alphanumeric keys. Press key to emit a popo to confuse enemy cars. The more flags you get, the higher your score.Genie Guide the genie to eat the white dots on the path and keep it away from the enemies. If the genie eats the pink dots located at the corners, the enemies will become weak temporarily!and you can guide the genie to eat them. The more dots and enemies the genie eats, the higher your score.Press   key to start the game. Guide the genie using the navigation key or alphanumeric keys. The game is over once the enemy gets the genie.Calculator You can use this function to perform simple calculations and covert curren-cies.Using calculator1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Enter numbers using alphanumeric keys.5. Press the navigation key to perform operations.Navigation key OperationUp +Down -Left *Right /

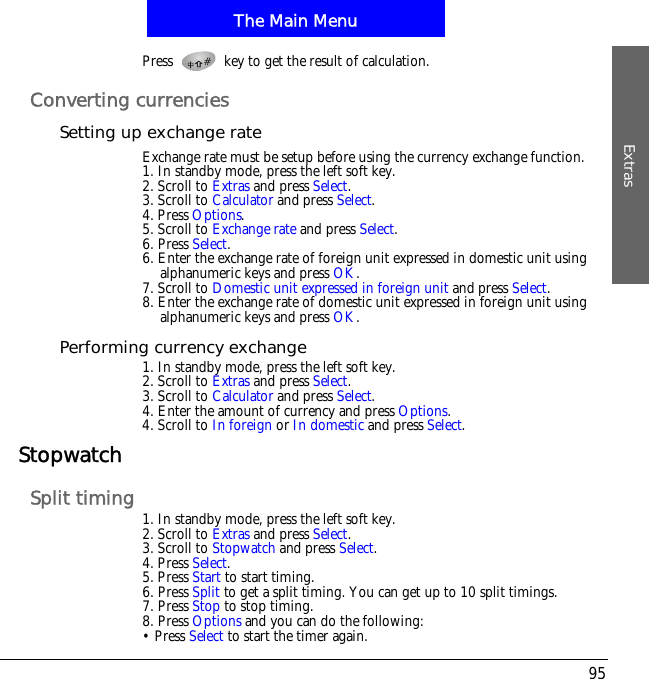

The Main MenuExtras95Press   key to get the result of calculation.Converting currenciesSetting up exchange rateExchange rate must be setup before using the currency exchange function.1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Press Options.5. Scroll to Exchange rate and press Select.6. Press Select.6. Enter the exchange rate of foreign unit expressed in domestic unit using alphanumeric keys and press OK.7. Scroll to Domestic unit expressed in foreign unit and press Select.8. Enter the exchange rate of domestic unit expressed in foreign unit using alphanumeric keys and press OK.Performing currency exchange1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Enter the amount of currency and press Options.4. Scroll to In foreign or In domestic and press Select.StopwatchSplit timing 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Press Select.5. Press Start to start timing.6. Press Split to get a split timing. You can get up to 10 split timings.7. Press Stop to stop timing.8. Press Options and you can do the following:• Press Select to start the timer again.

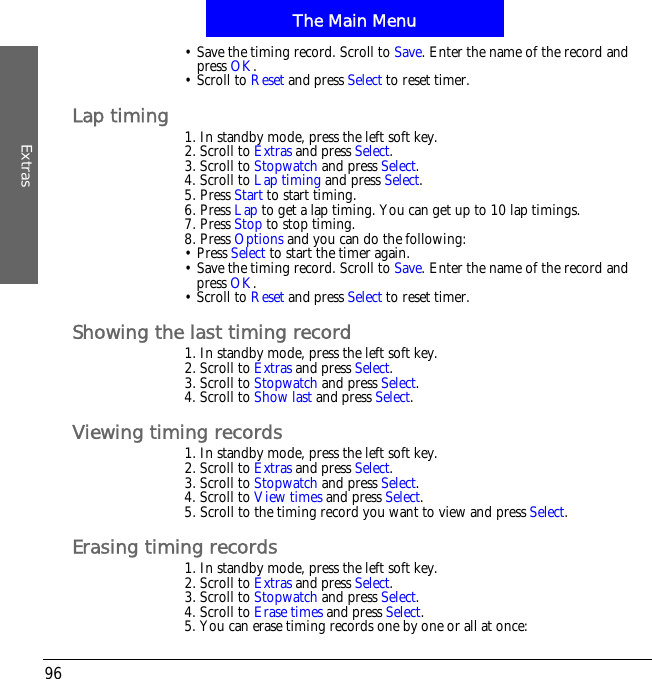

The Main MenuExtras96• Save the timing record. Scroll to Save. Enter the name of the record and press OK.• Scroll to Reset and press Select to reset timer.Lap timing 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to Lap timing and press Select.5. Press Start to start timing.6. Press Lap to get a lap timing. You can get up to 10 lap timings.7. Press Stop to stop timing.8. Press Options and you can do the following:• Press Select to start the timer again.• Save the timing record. Scroll to Save. Enter the name of the record and press OK.• Scroll to Reset and press Select to reset timer.Showing the last timing record1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to Show last and press Select.Viewing timing records1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to View times and press Select.5. Scroll to the timing record you want to view and press Select.Erasing timing records1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to Erase times and press Select.5. You can erase timing records one by one or all at once:

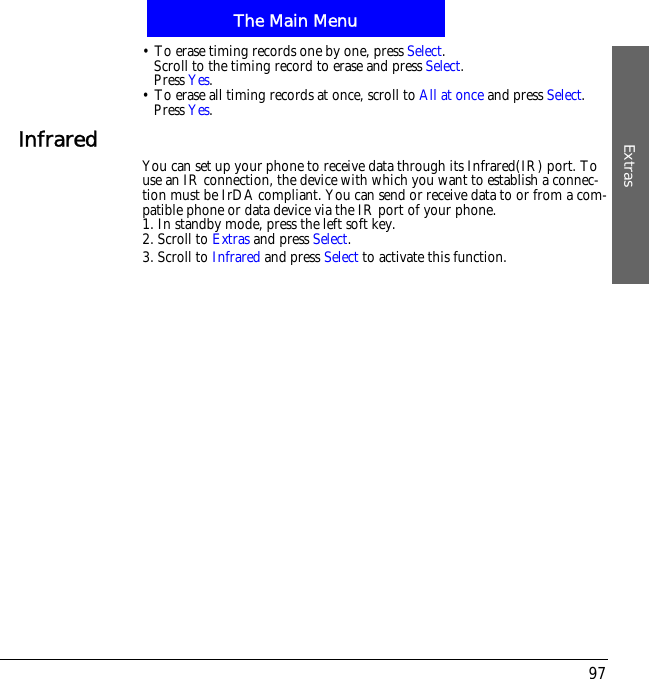

The Main MenuExtras97• To erase timing records one by one, press Select.Scroll to the timing record to erase and press Select.Press Yes.• To erase all timing records at once, scroll to All at once and press Select.Press Yes.Infrared You can set up your phone to receive data through its Infrared(IR) port. To use an IR connection, the device with which you want to establish a connec-tion must be IrDA compliant. You can send or receive data to or from a com-patible phone or data device via the IR port of your phone.1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Infrared and press Select to activate this function.

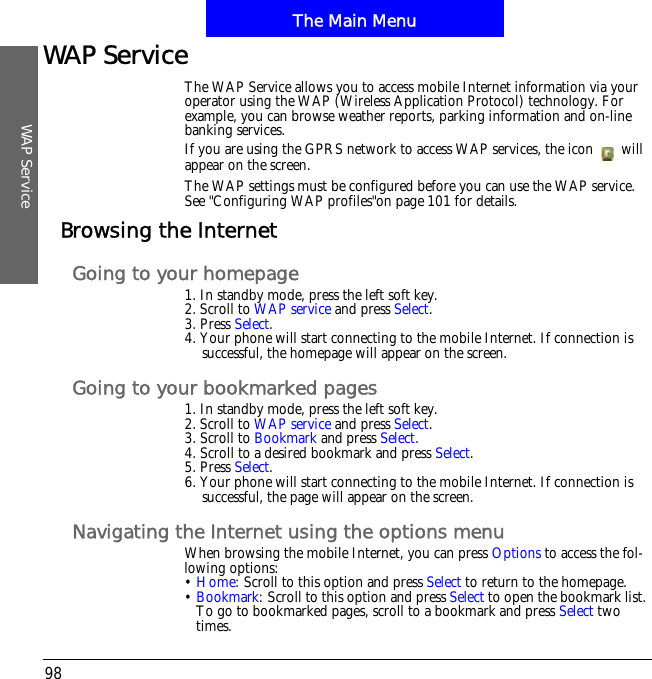

The Main MenuWAP Service98WAP ServiceThe WAP Service allows you to access mobile Internet information via your operator using the WAP (Wireless Application Protocol) technology. For example, you can browse weather reports, parking information and on-line banking services.If you are using the GPRS network to access WAP services, the icon   will appear on the screen.The WAP settings must be configured before you can use the WAP service.!See "Configuring WAP profiles"on page 101 for details.Browsing the InternetGoing to your homepage1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Press Select.4. Your phone will start connecting to the mobile Internet. If connection is successful, the homepage will appear on the screen.Going to your bookmarked pages1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Scroll to Bookmark and press Select.4. Scroll to a desired bookmark and press Select.5. Press Select.6. Your phone will start connecting to the mobile Internet. If connection is successful, the page will appear on the screen.Navigating the Internet using the options menuWhen browsing the mobile Internet, you can press Options to access the fol-lowing options:•Home: Scroll to this option and press Select to return to the homepage.•Bookmark: Scroll to this option and press Select to open the bookmark list. To go to bookmarked pages, scroll to a bookmark and press Select two times.

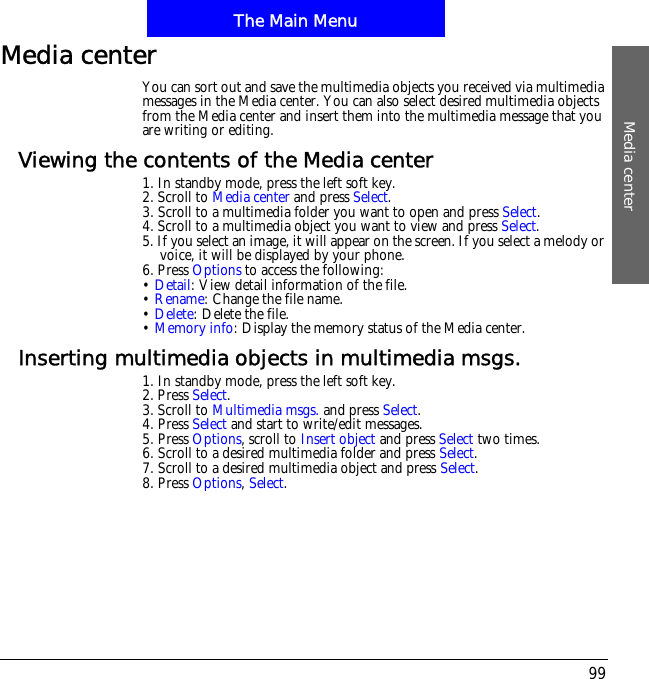

The Main MenuMedia center99Media centerYou can sort out and save the multimedia objects you received via multimedia messages in the Media center. You can also select desired multimedia objects from the Media center and insert them into the multimedia message that you are writing or editing.Viewing the contents of the Media center1. In standby mode, press the left soft key.2. Scroll to Media center and press Select.3. Scroll to a multimedia folder you want to open and press Select.4. Scroll to a multimedia object you want to view and press Select.5. If you select an image, it will appear on the screen. If you select a melody or voice, it will be displayed by your phone.6. Press Options to access the following:•Detail: View detail information of the file. •Rename: Change the file name.•Delete: Delete the file.•Memory info: Display the memory status of the Media center.Inserting multimedia objects in multimedia msgs.1. In standby mode, press the left soft key.2. Press Select.3. Scroll to Multimedia msgs. and press Select.4. Press Select and start to write/edit messages.5. Press Options, scroll to Insert object and press Select two times.6. Scroll to a desired multimedia folder and press Select.7. Scroll to a desired multimedia object and press Select.8. Press Options,Select.

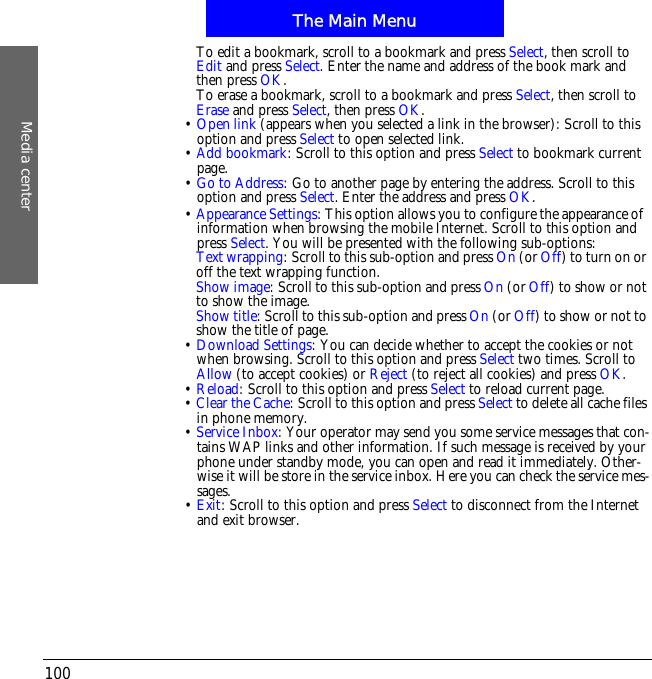

The Main MenuMedia center100To edit a bookmark, scroll to a bookmark and press Select, then scroll toEdit and press Select. Enter the name and address of the book mark and then press OK.To erase a bookmark, scroll to a bookmark and press Select, then scroll toErase and press Select, then press OK.•Open link (appears when you selected a link in the browser): Scroll to this option and press Select to open selected link.•Add bookmark: Scroll to this option and press Select to bookmark current page.•Go to Address: Go to another page by entering the address. Scroll to this option and press Select. Enter the address and press OK.•Appearance Settings: This option allows you to configure the appearance of!information when browsing the mobile Internet. Scroll to this option and press Select. You will be presented with the following sub-options:Text wrapping: Scroll to this sub-option and press On (or Off) to turn on or off the text wrapping function.Show image: Scroll to this sub-option and press On (or Off) to show or not to show the image.Show title: Scroll to this sub-option and press On (or Off) to show or not to show the title of page.•Download Settings: You can decide whether to accept the cookies or not when browsing. Scroll to this option and press Select two times. Scroll to Allow (to accept cookies) or Reject (to reject all cookies) and press OK.•Reload: Scroll to this option and press Select to reload current page.•Clear the Cache: Scroll to this option and press Select to delete all cache files in phone memory.•Service Inbox: Your operator may send you some service messages that con-tains WAP links and other information. If such message is received by your phone under standby mode, you can open and read it immediately. Other-wise it will be store in the service inbox. Here you can check the service mes-sages.•Exit: Scroll to this option and press Select to disconnect from the Internet and exit browser.

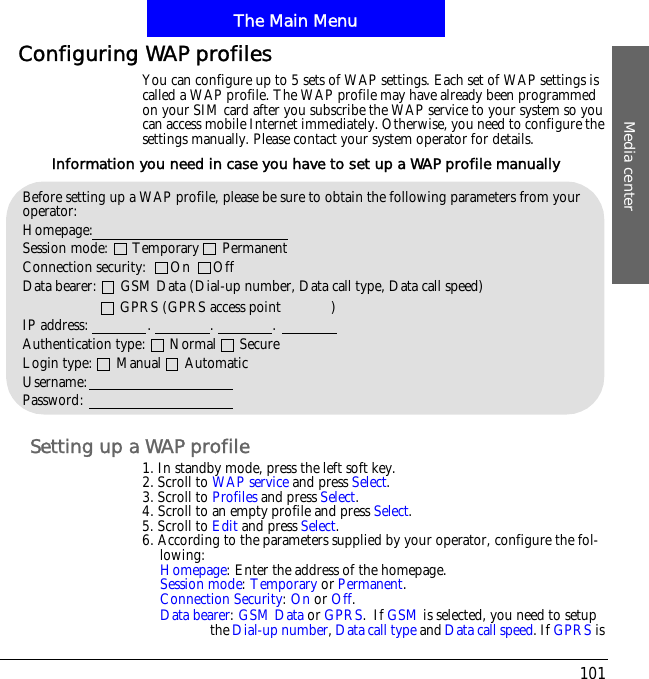

The Main MenuMedia center101Configuring WAP profilesYou can configure up to 5 sets of WAP settings. Each set of WAP settings is called a WAP profile. The WAP profile may have already been programmed on your SIM card after you subscribe the WAP service to your system so you can access mobile Internet immediately. Otherwise, you need to configure the settings manually. Please contact your system operator for details.Setting up a WAP profile1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Scroll to Profiles and press Select.4. Scroll to an empty profile and press Select.5. Scroll to Edit and press Select.6. According to the parameters supplied by your operator, configure the fol-lowing:Homepage: Enter the address of the homepage.Session mode:Temporary or Permanent.Connection Security:On or Off.Data bearer:GSM Data or GPRS.!If GSM is selected, you need to setup the Dial-up number,Data call type and Data call speed. If GPRS is Before setting up a WAP profile, please be sure to obtain the following parameters from your operator:Homepage:Session mode:      Temporary      PermanentConnection security:      On      OffData bearer:      GSM Data (Dial-up number, Data call type, Data call speed)                !!!!!!!     GPRS (GPRS access point         !!)IP address:               .               .               .Authentication type:      Normal      SecureLogin type:      Manual      AutomaticUsername:Password:Information you need in case you have to set up a WAP profile manually

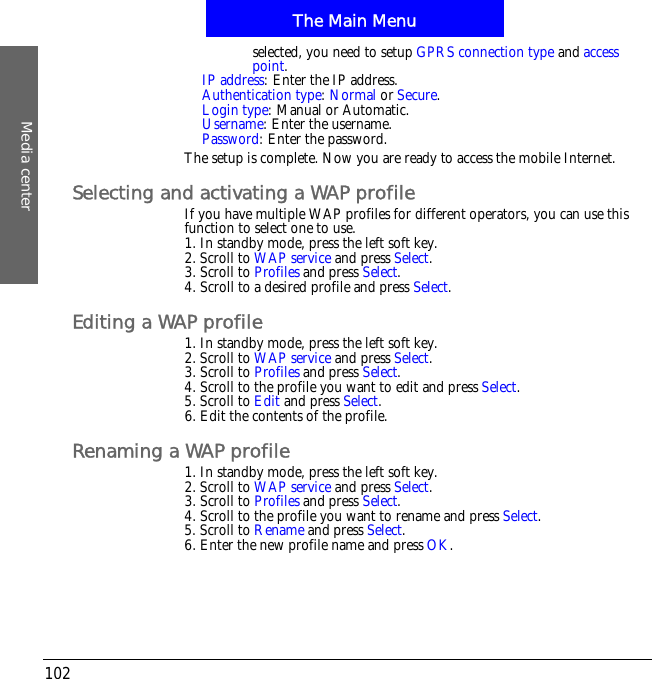

The Main MenuMedia center102selected, you need to setup GPRS connection type and accesspoint.IP address: Enter the IP address.Authentication type:Normal or Secure.Login type: Manual or Automatic.Username: Enter the username.Password: Enter the password.The setup is complete. Now you are ready to access the mobile Internet.Selecting and activating a WAP profileIf you have multiple WAP profiles for different operators, you can use this function to select one to use.1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Scroll to Profiles and press Select.4. Scroll to a desired profile and press Select.Editing a WAP profile1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Scroll to Profiles and press Select.4. Scroll to the profile you want to edit and press Select.5. Scroll to Edit and press Select.6. Edit the contents of the profile.Renaming a WAP profile1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Scroll to Profiles and press Select.4. Scroll to the profile you want to rename and press Select.5. Scroll to Rename and press Select.6. Enter the new profile name and press OK.

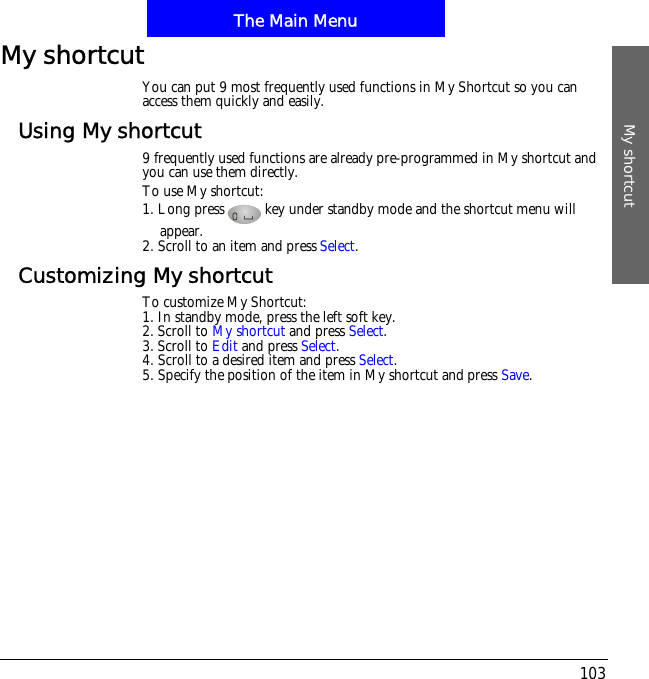

The Main MenuMy shortcut103My shortcutYou can put 9 most frequently used functions in My Shortcut so you can access them quickly and easily.Using My shortcut9 frequently used functions are already pre-programmed in My shortcut and you can use them directly. To use My shortcut:1. Long press key under standby mode and the shortcut menu will appear. 2. Scroll to an item and press Select.Customizing My shortcutTo customize My Shortcut:1. In standby mode, press the left soft key.2. Scroll to My shortcut and press Select.3. Scroll to Edit and press Select.4. Scroll to a desired item and press Select.5. Specify the position of the item in My shortcut and press Save.

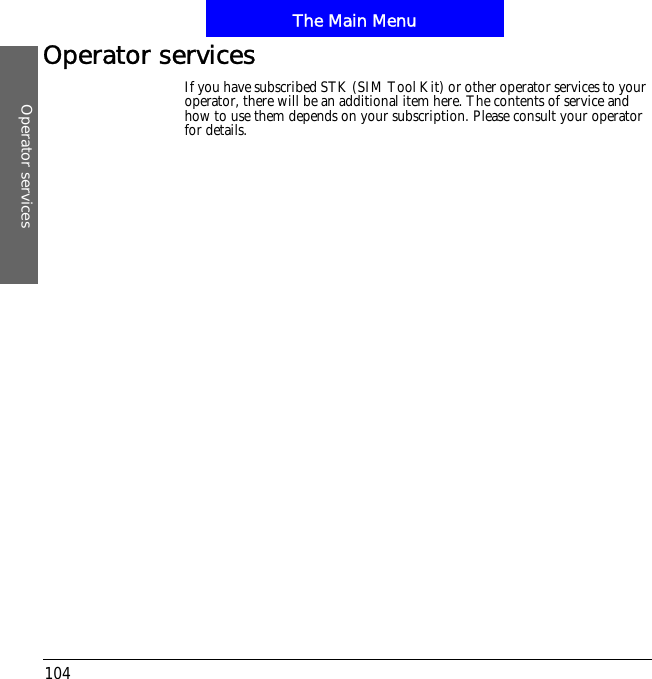

The Main MenuOperator services104Operator servicesIf you have subscribed STK (SIM Tool Kit) or other operator services to your operator, there will be an additional item here. The contents of service and how to use them depends on your subscription. Please consult your operator for details.
105Troubleshooting & FAQ

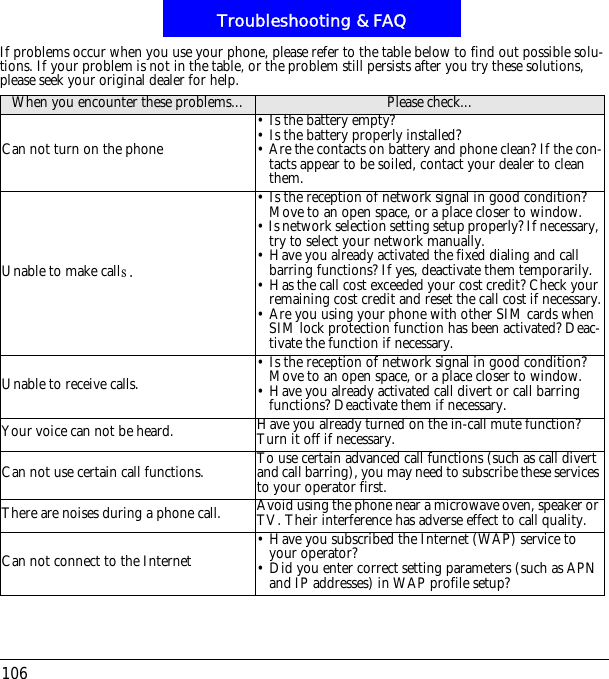

Troubleshooting & FAQ106If problems occur when you use your phone, please refer to the table below to find out possible solu-tions. If your problem is not in the table, or the problem still persists after you try these solutions, please seek your original dealer for help.When you encounter these problems... Please check...Can not turn on the phone• Is the battery empty?• Is the battery properly installed?• Are the contacts on battery and phone clean? If the con-tacts appear to be soiled, contact your dealer to clean them.Unable to make callt/• Is the reception of network signal in good condition? Move to an open space, or a place closer to window.• Is network selection setting setup properly? If necessary, try to select your network manually.• Have you already activated the fixed dialing and call barring functions? If yes, deactivate them temporarily.• Has the call cost exceeded your cost credit? Check your remaining cost credit and reset the call cost if necessary.• Are you using your phone with other SIM cards when SIM lock protection function has been activated? Deac-tivate the function if necessary.Unable to receive calls. • Is the reception of network signal in good condition? Move to an open space, or a place closer to window.• Have you already activated call divert or call barring functions? Deactivate them if necessary.Your voice can not be heard. Have you already turned on the in-call mute function? Turn it off if necessary.Can not use certain call functions. To use certain advanced call functions (such as call divert and call barring), you may need to subscribe these services to your operator first.There are noises during a phone call. Avoid using the phone near a microwave oven, speaker or TV. Their interference has adverse effect to call quality. Can not connect to the Internet • Have you subscribed the Internet (WAP) service to your operator?• Did you enter correct setting parameters (such as APN and IP addresses) in WAP profile setup?

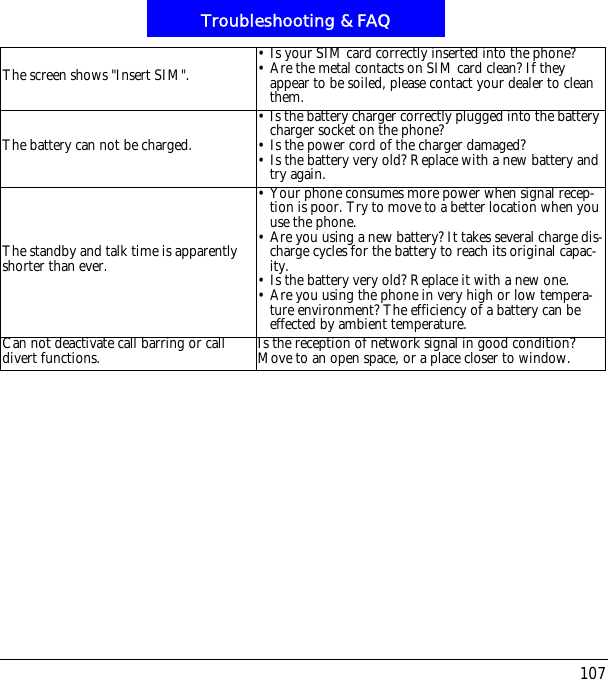

107Troubleshooting & FAQThe screen shows "Insert SIM". • Is your SIM card correctly inserted into the phone?• Are the metal contacts on SIM card clean? If they appear to be soiled, please contact your dealer to clean them.The battery can not be charged.• Is the battery charger correctly plugged into the battery charger socket on the phone?• Is the power cord of the charger damaged?• Is the battery very old? Replace with a new battery and try again.The standby and talk time is apparently shorter than ever.• Your phone consumes more power when signal recep-tion is poor. Try to move to a better location when you use the phone.• Are you using a new battery? It takes several charge dis-charge cycles for the battery to reach its original capac-ity. • Is the battery very old? Replace it with a new one.• Are you using the phone in very high or low tempera-ture environment? The efficiency of a battery can be effected by ambient temperature. Can not deactivate call barring or call divert functions. Is the reception of network signal in good condition? Move to an open space, or a place closer to window.
108Care and Maintenance

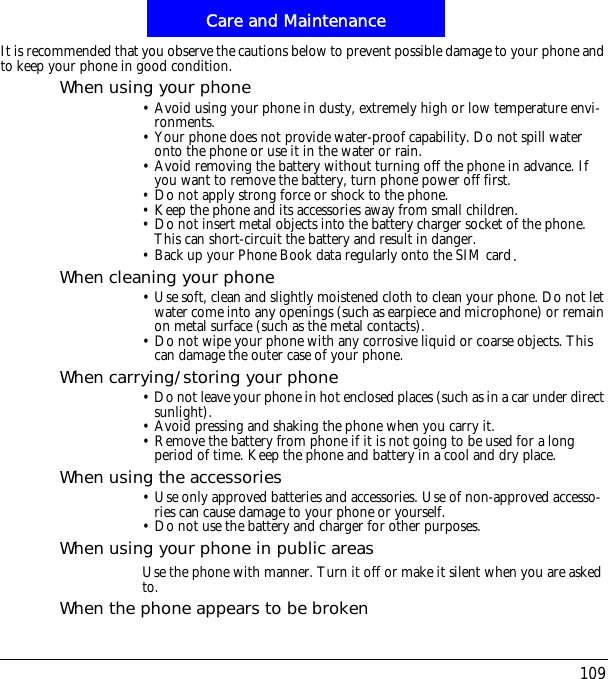

109Care and MaintenanceIt is recommended that you observe the cautions below to prevent possible damage to your phone and to keep your phone in good condition.When using your phone• Avoid using your phone in dusty, extremely high or low temperature envi-ronments.• Your phone does not provide water-proof capability. Do not spill water onto the phone or use it in the water or rain.• Avoid removing the battery without turning off the phone in advance. If you want to remove the battery, turn phone power off first.• Do not apply strong force or shock to the phone.• Keep the phone and its accessories away from small children.• Do not insert metal objects into the battery charger socket of the phone. This can short-circuit the battery and result in danger.• Back up your Phone Book data regularly onto the SIM card/When cleaning your phone• Use soft, clean and slightly moistened cloth to clean your phone. Do not let water come into any openings (such as earpiece and microphone) or remain on metal surface (such as the metal contacts).• Do not wipe your phone with any corrosive liquid or coarse objects. This can damage the outer case of your phone.When carrying/storing your phone• Do not leave your phone in hot enclosed places (such as in a car under direct sunlight).• Avoid pressing and shaking the phone when you carry it.• Remove the battery from phone if it is not going to be used for a long period of time. Keep the phone and battery in a cool and dry place.When using the accessories• Use only approved batteries and accessories. Use of non-approved accesso-ries can cause damage to your phone or yourself.• Do not use the battery and charger for other purposes.When using your phone in public areasUse the phone with manner. Turn it off or make it silent when you are asked to.When the phone appears to be broken

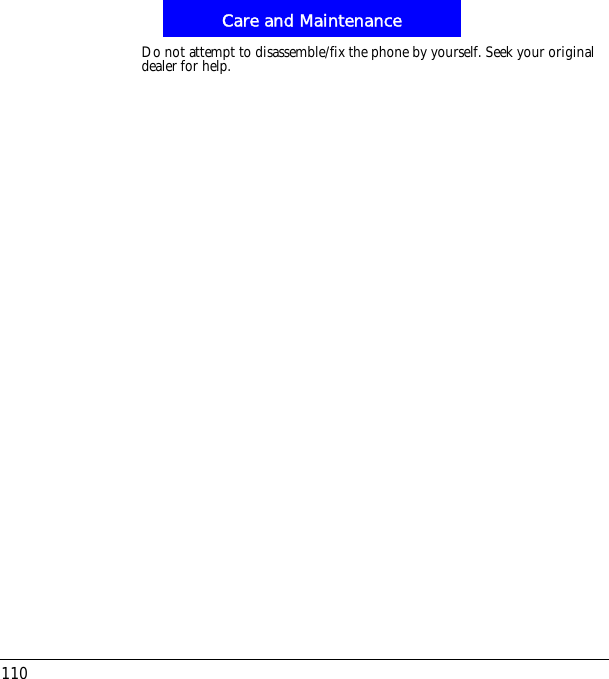

Care and Maintenance110Do not attempt to disassemble/fix the phone by yourself. Seek your original dealer for help.

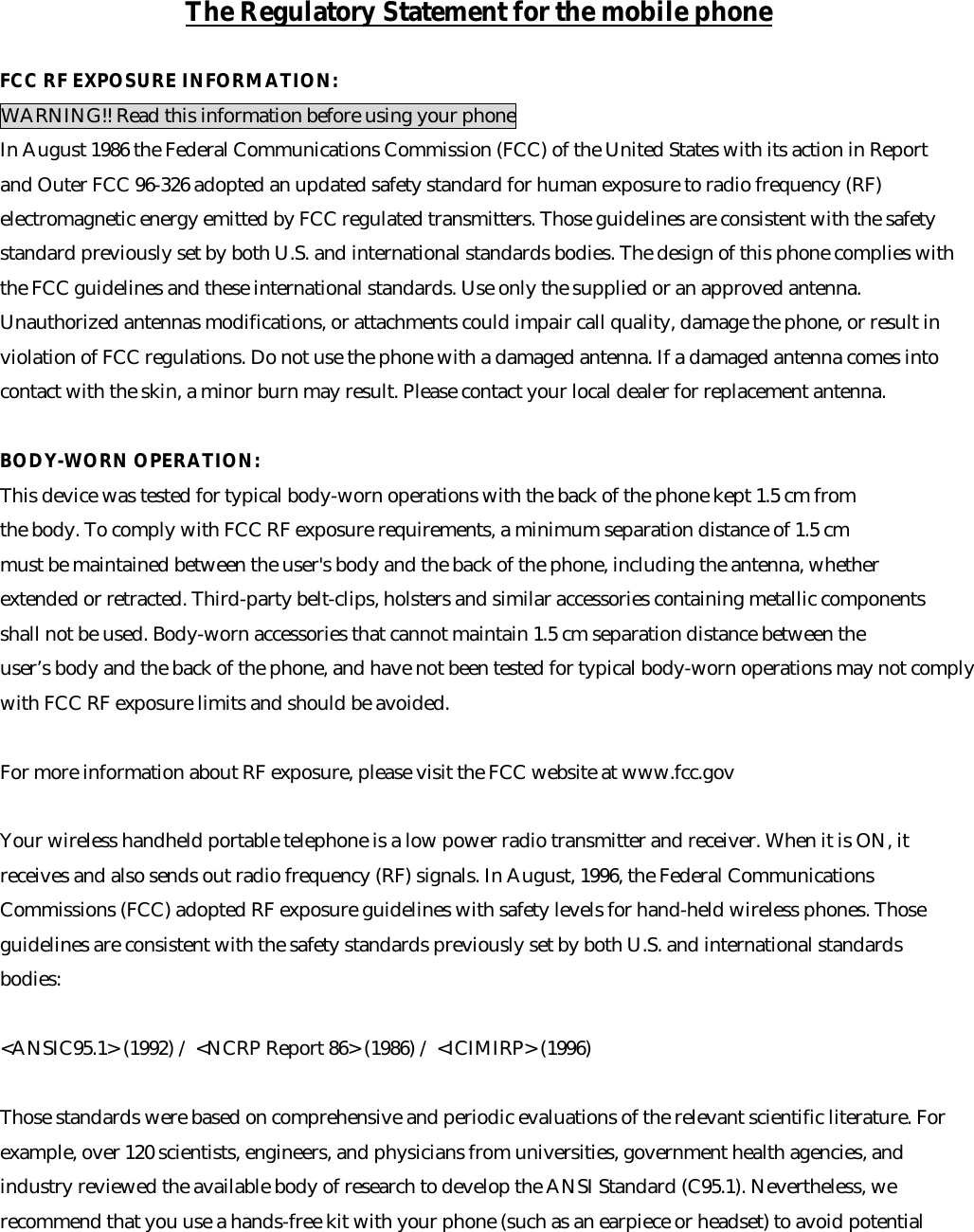

The Regulatory Statement for the mobile phoneFCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your phone In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. BODY-WORN OPERATION: This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 1.5 cm must be maintained between the user's body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components shall not be used. Body-worn accessories that cannot maintain 1.5 cm separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply  with FCC RF exposure limits and should be avoided.  For more information about RF exposure, please visit the FCC website at www.fcc.gov Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies:<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICIMIRP> (1996) Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with your phone (such as an earpiece or headset) to avoid potential
exposure to RF energy. The design of your phone complies with the FCC guidelines (and those standards). Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone and may violate FCC regulations.   NORMAL POSITION:   Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder. TIPS ON EFFICIENT OPERATION:For your phone to operate most efficiently: • Extend your antenna fully. • Do not touch the antenna unnecessarily when the phone is in use.Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.
