Chi Mei Communication Systems 0306JHN01 GSM1900/GPRS Class 10 Cellular Phone User Manual Amadeus

Chi Mei Communication Systems, Inc. GSM1900/GPRS Class 10 Cellular Phone Amadeus

Contents

User Manual 1 of 2

JohannUser’s GuideCMCS GSM/GPRS Phone

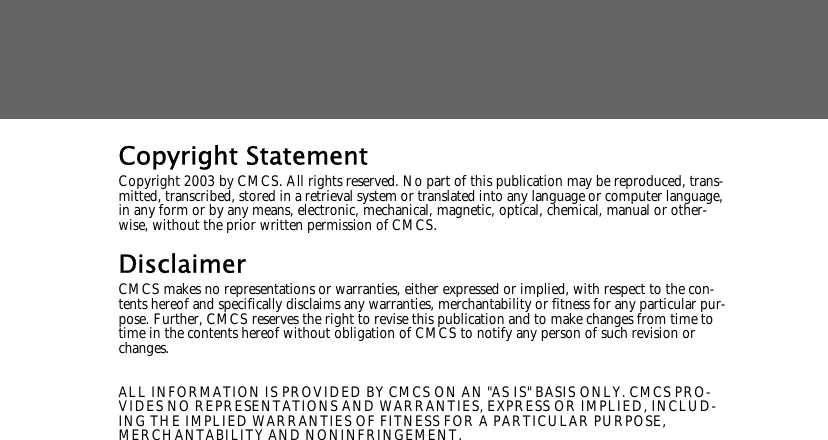

Copyright StatementCopyright 2003 by CMCS. All rights reserved. No part of this publication may be reproduced, trans-mitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or other-wise, without the prior written permission of CMCS.DisclaimerCMCS makes no representations or warranties, either expressed or implied, with respect to the con-tents hereof and specifically disclaims any warranties, merchantability or fitness for any particular pur-pose. Further, CMCS reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of CMCS to notify any person of such revision or changes.ALL INFORMATION IS PROVIDED BY CMCS ON AN "AS IS" BASIS ONLY. CMCS PRO-VIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, INCLUD-ING THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY AND NONINFRINGEMENT.

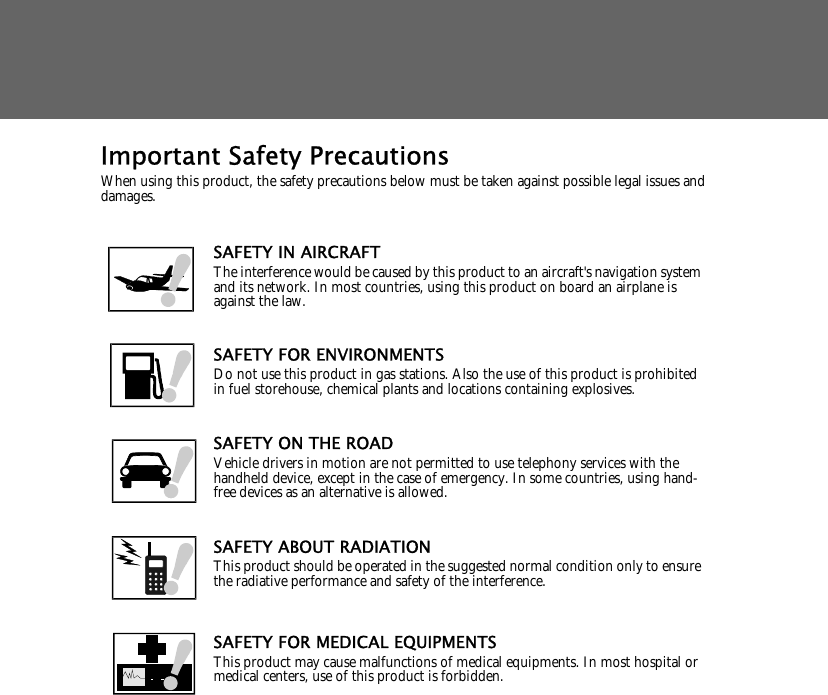

Important Safety PrecautionsWhen using this product, the safety precautions below must be taken against possible legal issues and damages.SAFETY IN AIRCRAFTThe interference would be caused by this product to an aircraft's navigation system and its network. In most countries, using this product on board an airplane is against the law.SAFETY FOR ENVIRONMENTSDo not use this product in gas stations. Also the use of this product is prohibited in fuel storehouse, chemical plants and locations containing explosives.SAFETY ON THE ROADVehicle drivers in motion are not permitted to use telephony services with the handheld device, except in the case of emergency. In some countries, using hand-free devices as an alternative is allowed.SAFETY ABOUT RADIATIONThis product should be operated in the suggested normal condition only to ensure the radiative performance and safety of the interference.SAFETY FOR MEDICAL EQUIPMENTSThis product may cause malfunctions of medical equipments. In most hospital or medical centers, use of this product is forbidden.

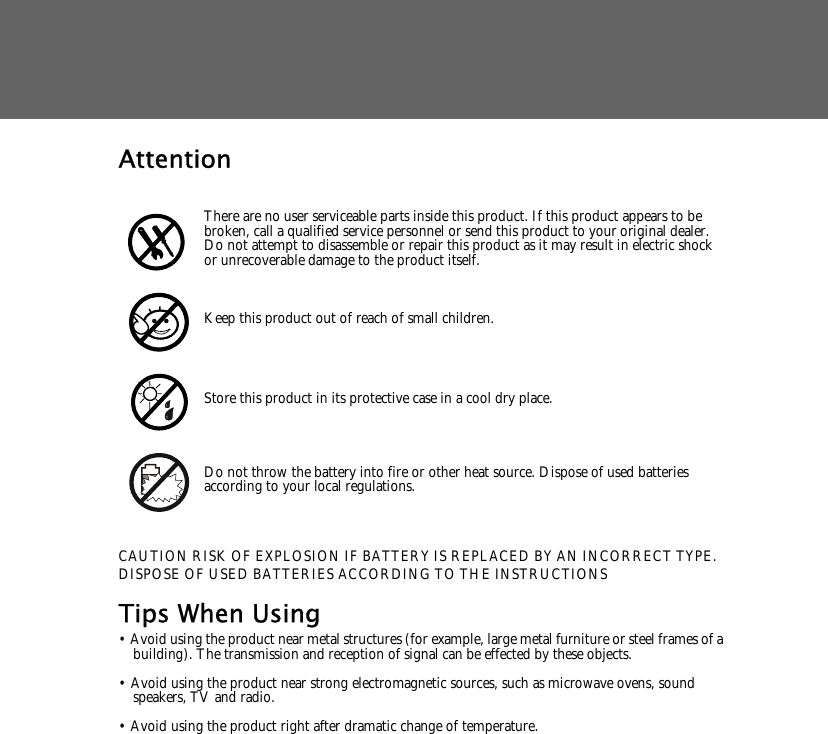

AttentionCAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONSTips When Using• Avoid using the product near metal structures (for example, large metal furniture or steel frames of a building). The transmission and reception of signal can be effected by these objects.• Avoid using the product near strong electromagnetic sources, such as microwave ovens, sound speakers, TV and radio.• Avoid using the product right after dramatic change of temperature.There are no user serviceable parts inside this product. If this product appears to be broken, call a qualified service personnel or send this product to your original dealer. Do not attempt to disassemble or repair this product as it may result in electric shock or unrecoverable damage to the product itself.Keep this product out of reach of small children.Store this product in its protective case in a cool dry place.Do not throw the battery into fire or other heat source. Dispose of used batteries according to your local regulations.

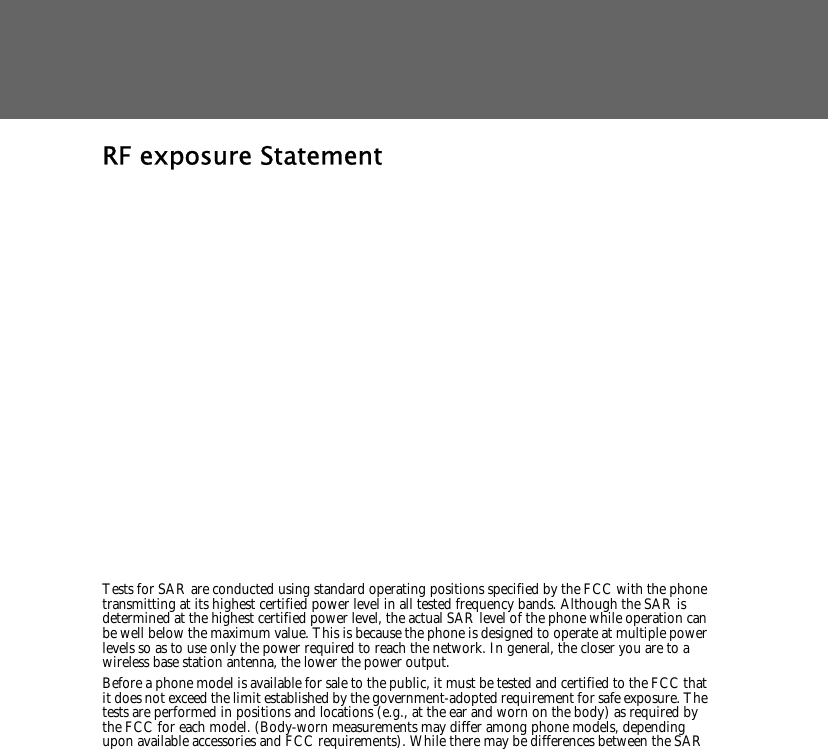

RF exposure Statement Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operation can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. (Body-worn measurements may differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR

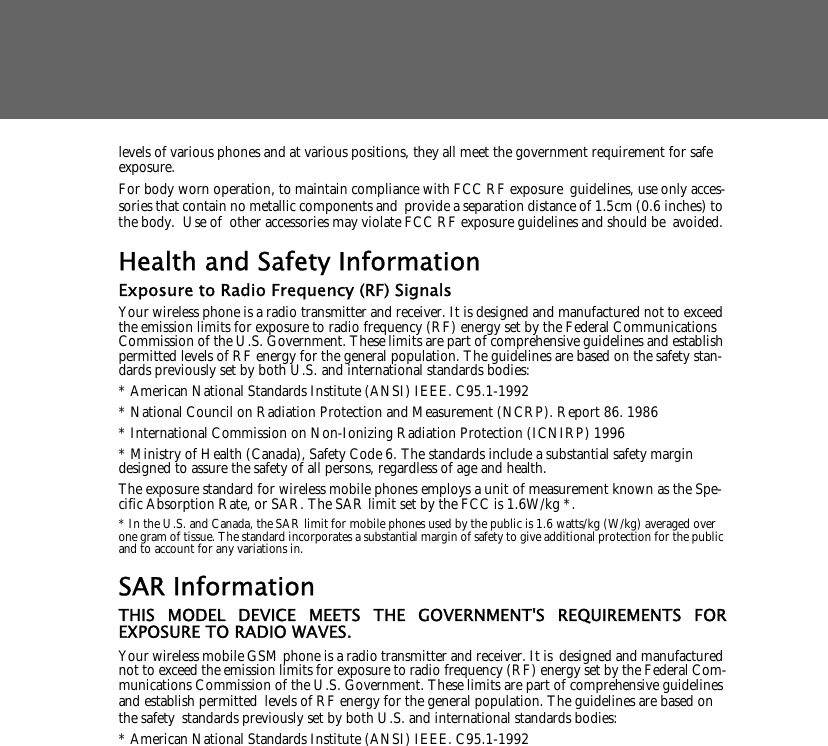

levels of various phones and at various positions, they all meet the government requirement for safe exposure. For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only acces-sories that contain no metallic components and provide a separation distance of 1.5cm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.Health and Safety InformationExposure to Radio Frequency (RF) SignalsYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety stan-dards previously set by both U.S. and international standards bodies: * American National Standards Institute (ANSI) IEEE. C95.1-1992* National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986* International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996* Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Spe-cific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.* In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.SAR InformationTHIS MODEL DEVICE MEETS THE GOVERNMENT'S REQUIREMENTS FOREXPOSURE TO RADIO WAVES.Your wireless mobile GSM phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Com-munications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies: * American National Standards Institute (ANSI) IEEE. C95.1-1992

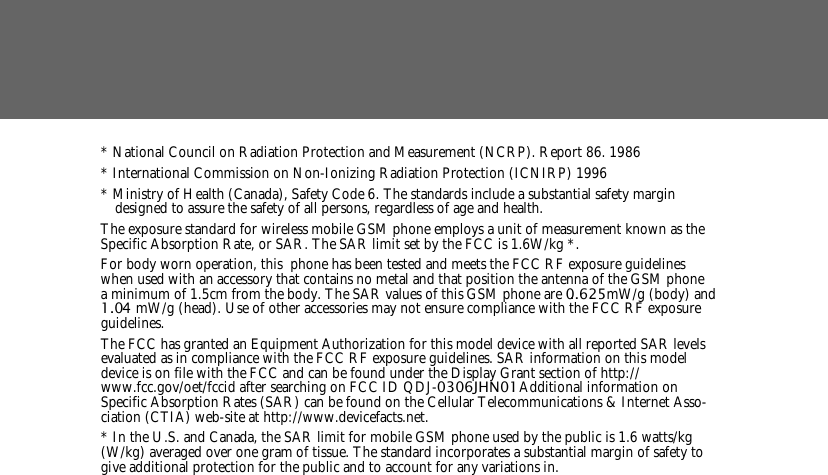

* National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986* International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996* Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.The exposure standard for wireless mobile GSM phone employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *.For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory that contains no metal and that position the antenna of the GSM phone a minimum of 1.5cm from the body. The SAR values of this GSM phone are 0..625mW/g (body) and 1.0 4 mW/g (head). Use of other accessories may not ensure compliance with the FCC RF exposure guidelines.The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID QDJ-0306JHN01. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Asso-ciation (CTIA) web-site at http://www.devicefacts.net.* In the U.S. and Canada, the SAR limit for mobile GSM phone used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in.

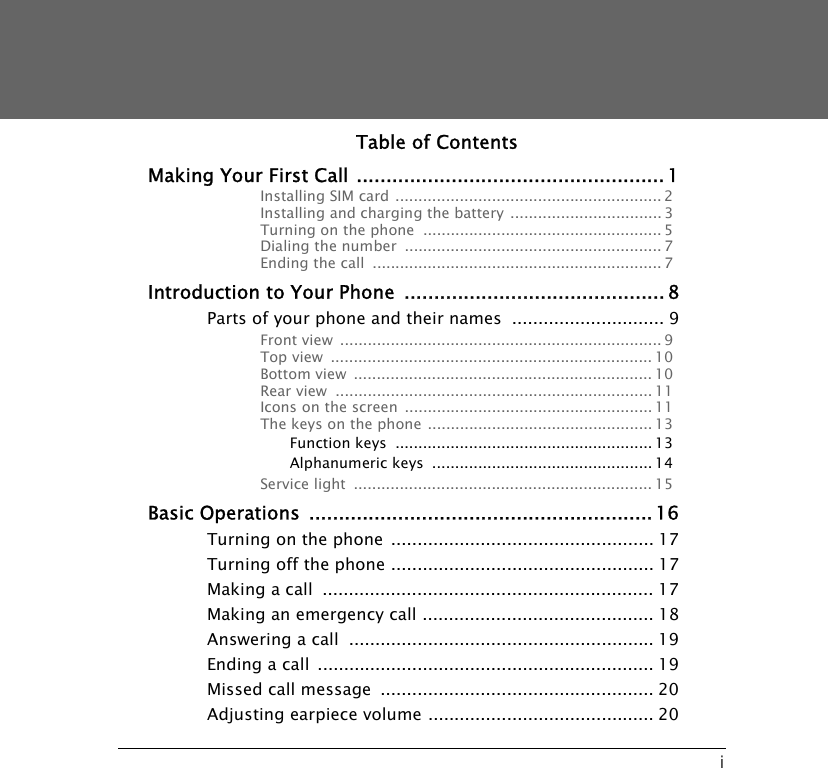

iTable of ContentsMaking Your First Call ....................................................1Installing SIM card .......................................................... 2Installing and charging the battery ................................. 3Turning on the phone .................................................... 5Dialing the number ........................................................ 7Ending the call ............................................................... 7Introduction to Your Phone ............................................8Parts of your phone and their names ............................. 9Front view ...................................................................... 9Top view ...................................................................... 10Bottom view ................................................................. 10Rear view ..................................................................... 11Icons on the screen ...................................................... 11The keys on the phone ................................................. 13Function keys ........................................................ 13Alphanumeric keys ................................................ 14Service light ................................................................. 15Basic Operations ..........................................................16Turning on the phone .................................................. 17Turning off the phone .................................................. 17Making a call ............................................................... 17Making an emergency call ............................................ 18Answering a call .......................................................... 19Ending a call ................................................................ 19Missed call message .................................................... 20Adjusting earpiece volume ........................................... 20

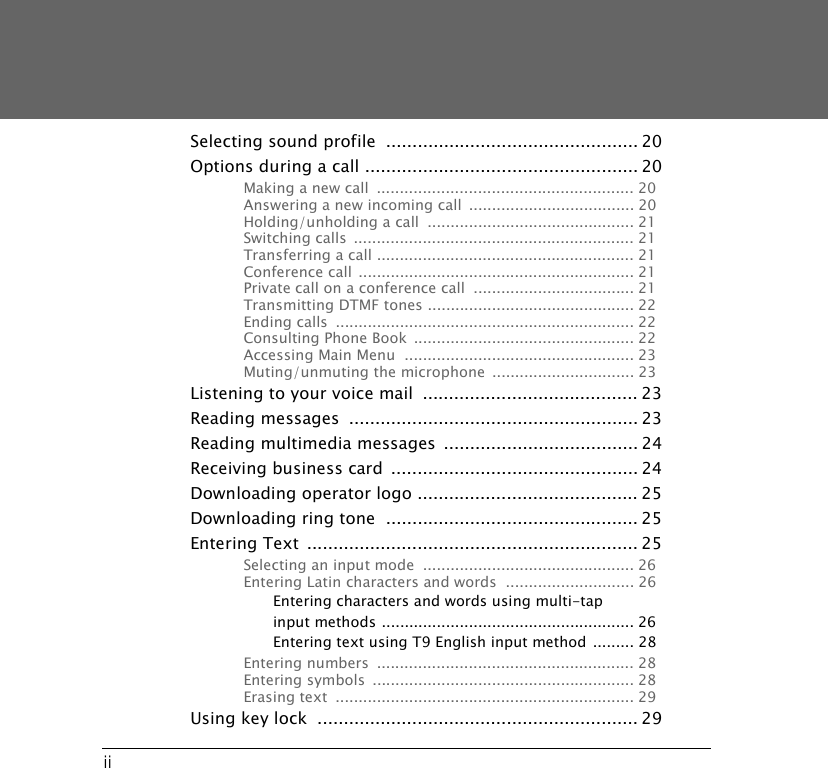

iiSelecting sound profile ................................................ 20Options during a call .................................................... 20Making a new call ........................................................ 20Answering a new incoming call .................................... 20Holding/unholding a call ............................................. 21Switching calls ............................................................. 21Transferring a call ........................................................ 21Conference call ............................................................ 21Private call on a conference call ................................... 21Transmitting DTMF tones ............................................. 22Ending calls ................................................................. 22Consulting Phone Book ................................................ 22Accessing Main Menu .................................................. 23Muting/unmuting the microphone ............................... 23Listening to your voice mail ......................................... 23Reading messages ....................................................... 23Reading multimedia messages ..................................... 24Receiving business card ............................................... 24Downloading operator logo .......................................... 25Downloading ring tone ................................................ 25Entering Text ............................................................... 25Selecting an input mode .............................................. 26Entering Latin characters and words ............................ 26Entering characters and words using multi-tap input methods ....................................................... 26Entering text using T9 English input method ......... 28Entering numbers ........................................................ 28Entering symbols ......................................................... 28Erasing text ................................................................. 29Using key lock ............................................................. 29

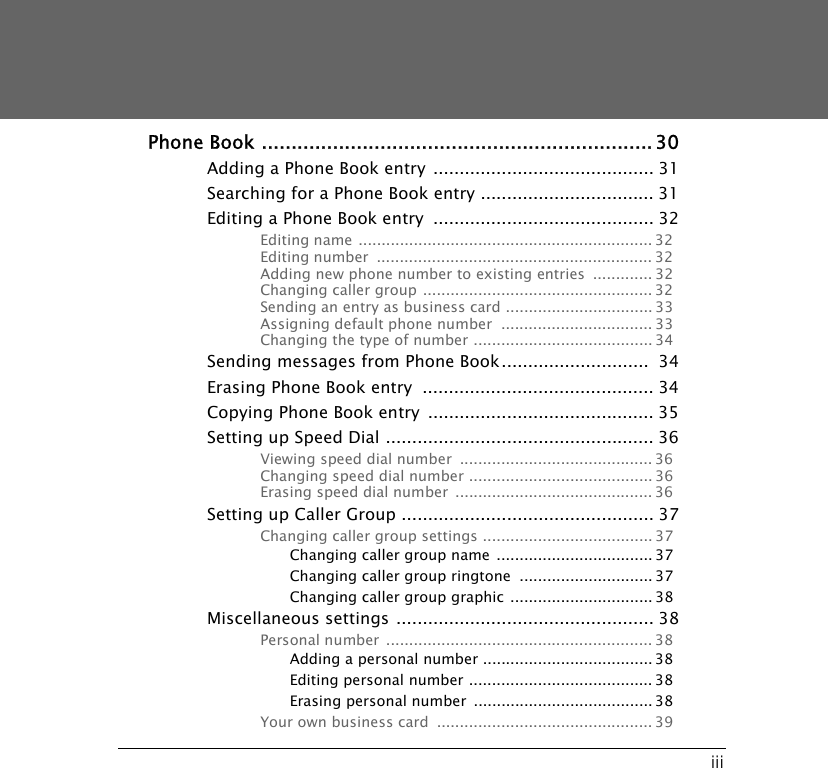

iiiPhone Book ..................................................................30Adding a Phone Book entry .......................................... 31Searching for a Phone Book entry ................................. 31Editing a Phone Book entry .......................................... 32Editing name ................................................................ 32Editing number ............................................................ 32Adding new phone number to existing entries ............. 32Changing caller group .................................................. 32Sending an entry as business card ................................ 33Assigning default phone number ................................. 33Changing the type of number ....................................... 34Sending messages from Phone Book............................ 34Erasing Phone Book entry ............................................ 34Copying Phone Book entry ........................................... 35Setting up Speed Dial ................................................... 36Viewing speed dial number .......................................... 36Changing speed dial number ........................................ 36Erasing speed dial number ........................................... 36Setting up Caller Group ................................................ 37Changing caller group settings ..................................... 37Changing caller group name .................................. 37Changing caller group ringtone ............................. 37Changing caller group graphic ............................... 38Miscellaneous settings ................................................. 38Personal number .......................................................... 38Adding a personal number ..................................... 38Editing personal number ........................................ 38Erasing personal number ....................................... 38Your own business card ............................................... 39

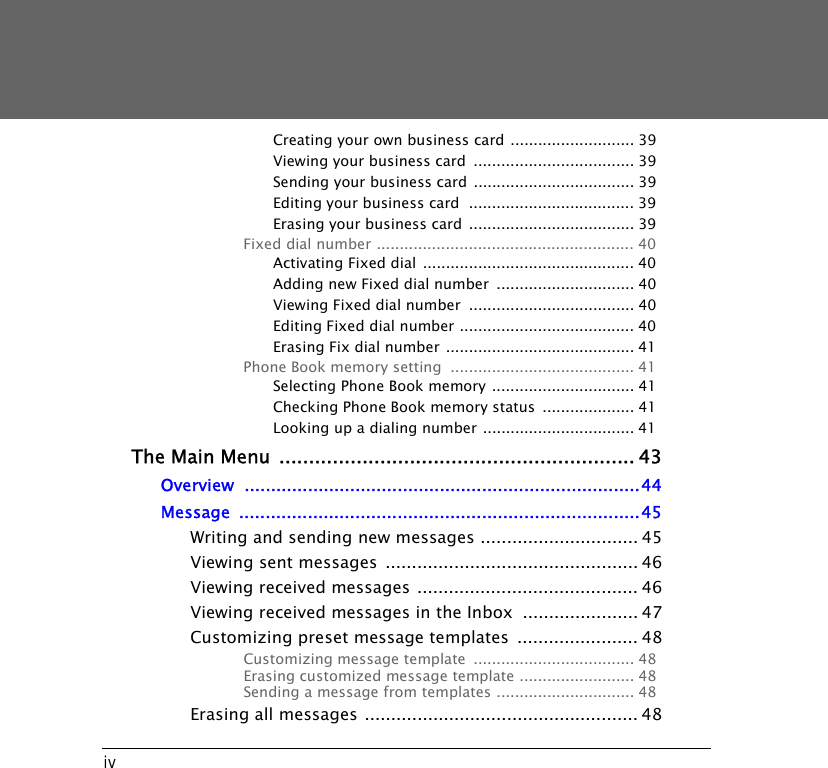

ivCreating your own business card ........................... 39Viewing your business card ................................... 39Sending your business card ................................... 39Editing your business card .................................... 39Erasing your business card .................................... 39Fixed dial number ........................................................ 40Activating Fixed dial .............................................. 40Adding new Fixed dial number .............................. 40Viewing Fixed dial number .................................... 40Editing Fixed dial number ...................................... 40Erasing Fix dial number ......................................... 41Phone Book memory setting ........................................ 41Selecting Phone Book memory ............................... 41Checking Phone Book memory status .................... 41Looking up a dialing number ................................. 41The Main Menu ............................................................ 43Overview ...........................................................................44Message ............................................................................45Writing and sending new messages .............................. 45Viewing sent messages ................................................ 46Viewing received messages .......................................... 46Viewing received messages in the Inbox ...................... 47Customizing preset message templates ....................... 48Customizing message template ................................... 48Erasing customized message template ......................... 48Sending a message from templates .............................. 48Erasing all messages .................................................... 48

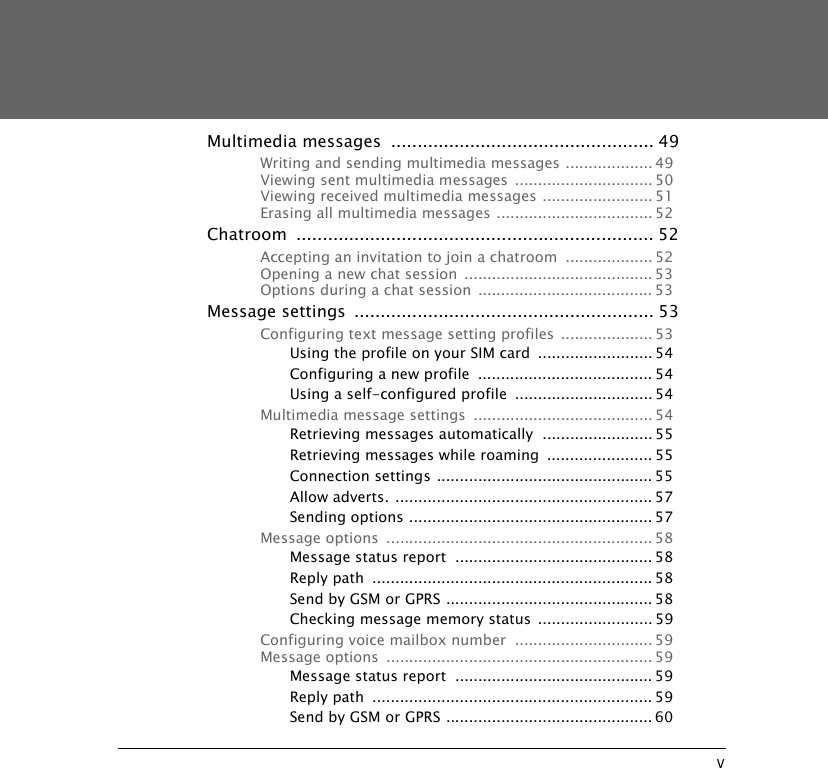

vMultimedia messages .................................................. 49Writing and sending multimedia messages ................... 49Viewing sent multimedia messages .............................. 50Viewing received multimedia messages ........................ 51Erasing all multimedia messages .................................. 52Chatroom .................................................................... 52Accepting an invitation to join a chatroom ................... 52Opening a new chat session ......................................... 53Options during a chat session ...................................... 53Message settings ......................................................... 53Configuring text message setting profiles .................... 53Using the profile on your SIM card ......................... 54Configuring a new profile ...................................... 54Using a self-configured profile .............................. 54Multimedia message settings ....................................... 54Retrieving messages automatically ........................ 55Retrieving messages while roaming ....................... 55Connection settings ............................................... 55Allow adverts. ........................................................ 57Sending options ..................................................... 57Message options .......................................................... 58Message status report ........................................... 58Reply path ............................................................. 58Send by GSM or GPRS ............................................. 58Checking message memory status ......................... 59Configuring voice mailbox number .............................. 59Message options .......................................................... 59Message status report ........................................... 59Reply path ............................................................. 59Send by GSM or GPRS ............................................. 60

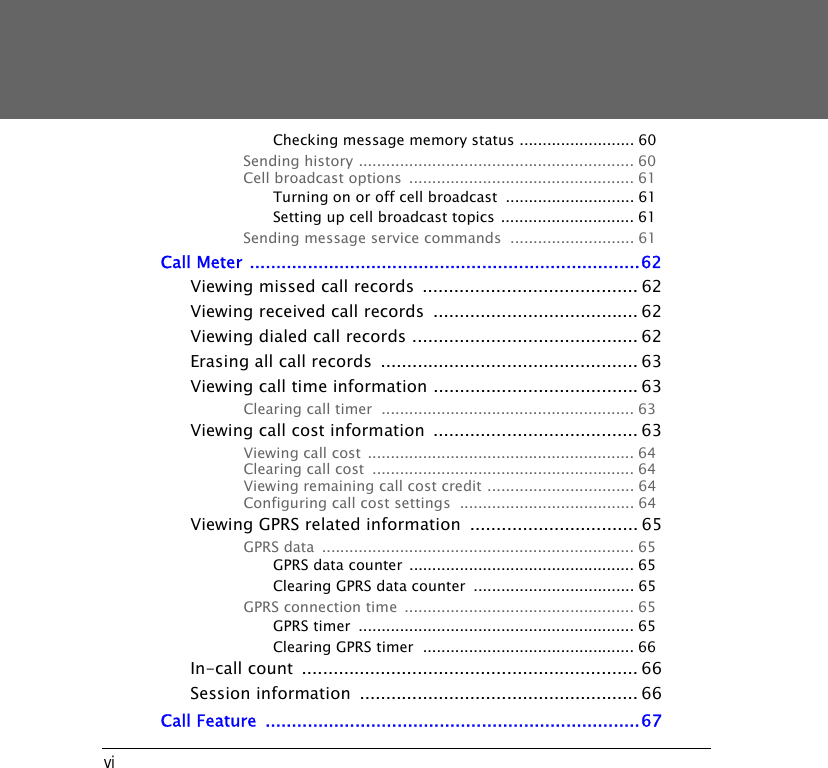

viChecking message memory status ......................... 60Sending history ............................................................ 60Cell broadcast options ................................................. 61Turning on or off cell broadcast ............................ 61Setting up cell broadcast topics ............................. 61Sending message service commands ........................... 61Call Meter ..........................................................................62Viewing missed call records ......................................... 62Viewing received call records ....................................... 62Viewing dialed call records ........................................... 62Erasing all call records ................................................. 63Viewing call time information ....................................... 63Clearing call timer ....................................................... 63Viewing call cost information ....................................... 63Viewing call cost .......................................................... 64Clearing call cost ......................................................... 64Viewing remaining call cost credit ................................ 64Configuring call cost settings ...................................... 64Viewing GPRS related information ................................ 65GPRS data .................................................................... 65GPRS data counter ................................................. 65Clearing GPRS data counter ................................... 65GPRS connection time .................................................. 65GPRS timer ............................................................ 65Clearing GPRS timer .............................................. 66In-call count ................................................................ 66Session information ..................................................... 66Call Feature .......................................................................67

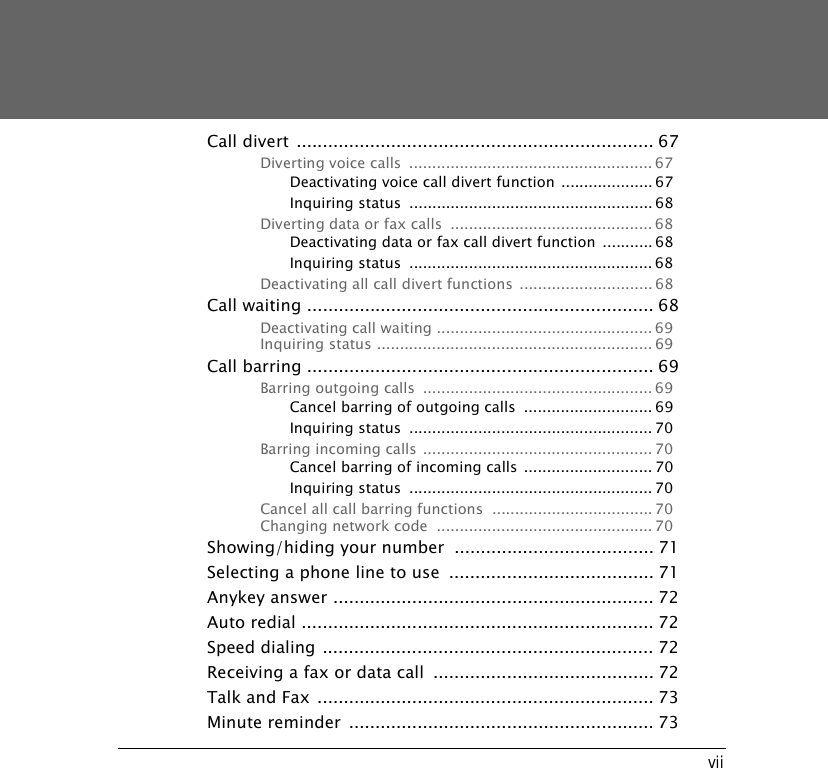

viiCall divert .................................................................... 67Diverting voice calls ..................................................... 67Deactivating voice call divert function .................... 67Inquiring status ..................................................... 68Diverting data or fax calls ............................................ 68Deactivating data or fax call divert function ........... 68Inquiring status ..................................................... 68Deactivating all call divert functions ............................. 68Call waiting .................................................................. 68Deactivating call waiting ............................................... 69Inquiring status ............................................................ 69Call barring .................................................................. 69Barring outgoing calls .................................................. 69Cancel barring of outgoing calls ............................ 69Inquiring status ..................................................... 70Barring incoming calls .................................................. 70Cancel barring of incoming calls ............................ 70Inquiring status ..................................................... 70Cancel all call barring functions ................................... 70Changing network code ............................................... 70Showing/hiding your number ...................................... 71Selecting a phone line to use ....................................... 71Anykey answer ............................................................. 72Auto redial ................................................................... 72Speed dialing ............................................................... 72Receiving a fax or data call .......................................... 72Talk and Fax ................................................................ 73Minute reminder .......................................................... 73

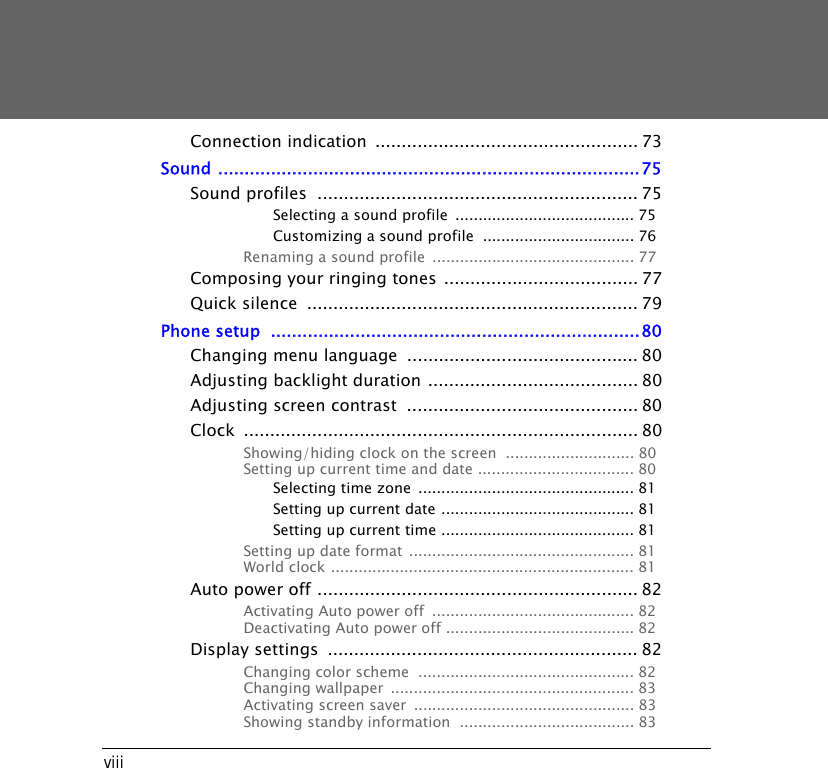

viiiConnection indication .................................................. 73Sound ................................................................................75Sound profiles ............................................................. 75Selecting a sound profile ....................................... 75Customizing a sound profile ................................. 76Renaming a sound profile ............................................ 77Composing your ringing tones ..................................... 77Quick silence ............................................................... 79Phone setup ......................................................................80Changing menu language ............................................ 80Adjusting backlight duration ........................................ 80Adjusting screen contrast ............................................ 80Clock ........................................................................... 80Showing/hiding clock on the screen ............................ 80Setting up current time and date .................................. 80Selecting time zone ............................................... 81Setting up current date .......................................... 81Setting up current time .......................................... 81Setting up date format ................................................. 81World clock .................................................................. 81Auto power off ............................................................. 82Activating Auto power off ............................................ 82Deactivating Auto power off ......................................... 82Display settings ........................................................... 82Changing color scheme ............................................... 82Changing wallpaper ..................................................... 83Activating screen saver ................................................ 83Showing standby information ...................................... 83

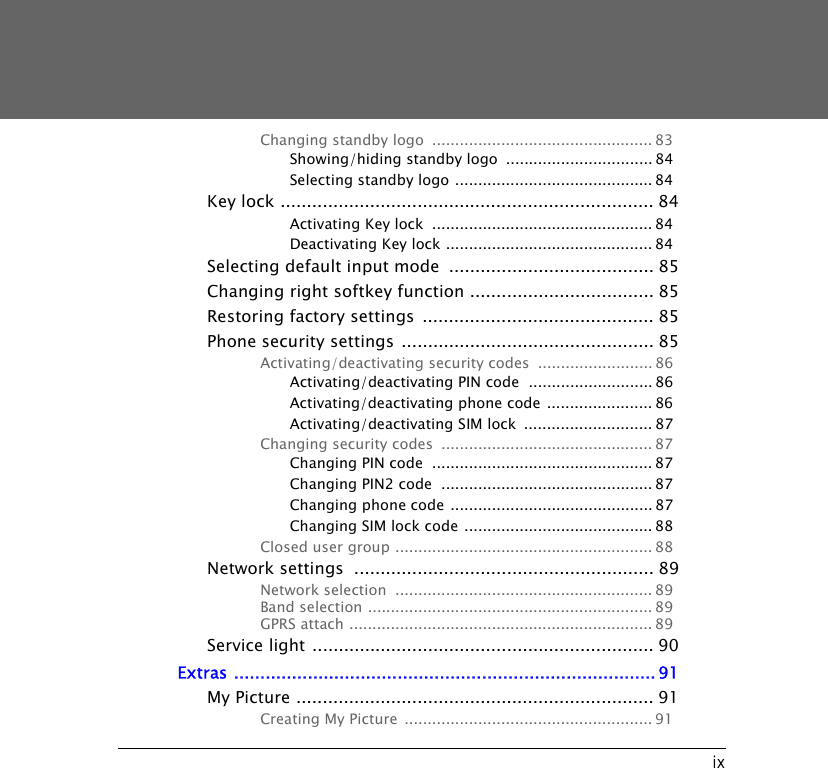

ixChanging standby logo ................................................ 83Showing/hiding standby logo ................................ 84Selecting standby logo ........................................... 84Key lock ....................................................................... 84Activating Key lock ................................................ 84Deactivating Key lock ............................................. 84Selecting default input mode ....................................... 85Changing right softkey function ................................... 85Restoring factory settings ............................................ 85Phone security settings ................................................ 85Activating/deactivating security codes ......................... 86Activating/deactivating PIN code ........................... 86Activating/deactivating phone code ....................... 86Activating/deactivating SIM lock ............................ 87Changing security codes .............................................. 87Changing PIN code ................................................ 87Changing PIN2 code .............................................. 87Changing phone code ............................................ 87Changing SIM lock code ......................................... 88Closed user group ........................................................ 88Network settings ......................................................... 89Network selection ........................................................ 89Band selection .............................................................. 89GPRS attach .................................................................. 89Service light ................................................................. 90Extras ................................................................................ 91My Picture .................................................................... 91Creating My Picture ...................................................... 91

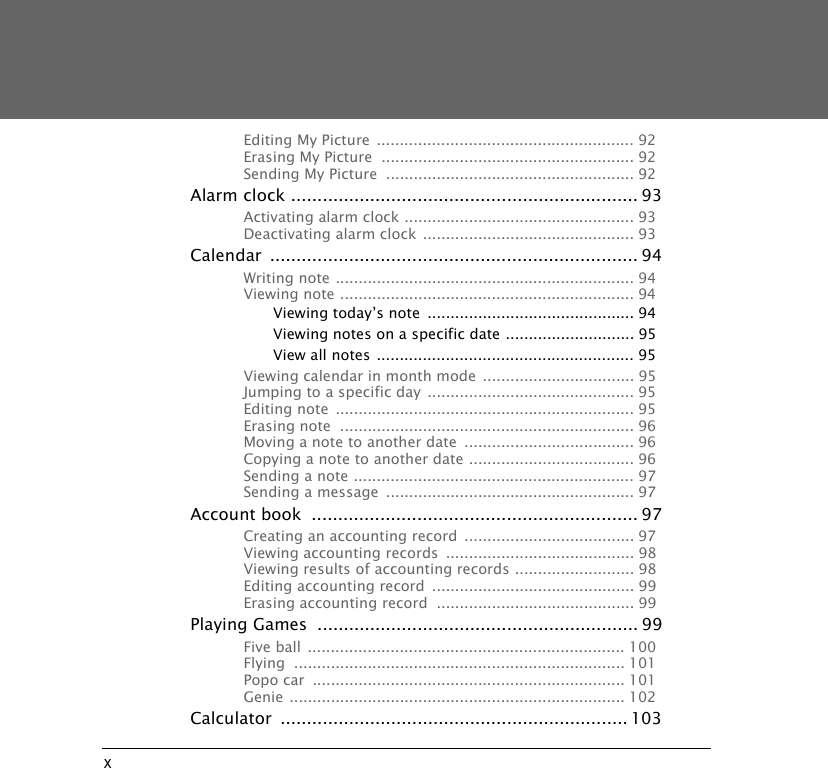

xEditing My Picture ........................................................ 92Erasing My Picture ....................................................... 92Sending My Picture ...................................................... 92Alarm clock .................................................................. 93Activating alarm clock .................................................. 93Deactivating alarm clock .............................................. 93Calendar ...................................................................... 94Writing note ................................................................. 94Viewing note ................................................................ 94Viewing today’s note ............................................. 94Viewing notes on a specific date ............................ 95View all notes ........................................................ 95Viewing calendar in month mode ................................. 95Jumping to a specific day ............................................. 95Editing note ................................................................. 95Erasing note ................................................................ 96Moving a note to another date ..................................... 96Copying a note to another date .................................... 96Sending a note ............................................................. 97Sending a message ...................................................... 97Account book .............................................................. 97Creating an accounting record ..................................... 97Viewing accounting records ......................................... 98Viewing results of accounting records .......................... 98Editing accounting record ............................................ 99Erasing accounting record ........................................... 99Playing Games ............................................................. 99Five ball ..................................................................... 100Flying ........................................................................ 101Popo car .................................................................... 101Genie ......................................................................... 102Calculator .................................................................. 103

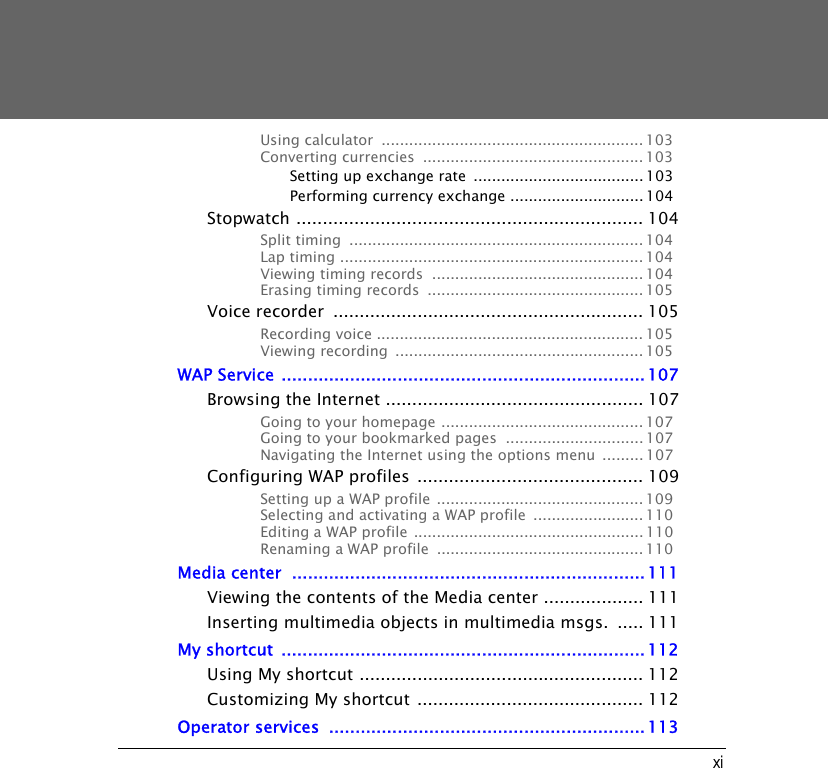

xiUsing calculator ......................................................... 103Converting currencies ................................................ 103Setting up exchange rate ..................................... 103Performing currency exchange ............................. 104Stopwatch .................................................................. 104Split timing ................................................................104Lap timing .................................................................. 104Viewing timing records .............................................. 104Erasing timing records ............................................... 105Voice recorder ........................................................... 105Recording voice .......................................................... 105Viewing recording ...................................................... 105WAP Service .....................................................................107Browsing the Internet ................................................. 107Going to your homepage ............................................ 107Going to your bookmarked pages .............................. 107Navigating the Internet using the options menu ......... 107Configuring WAP profiles ........................................... 109Setting up a WAP profile .............................................109Selecting and activating a WAP profile ........................ 110Editing a WAP profile .................................................. 110Renaming a WAP profile .............................................110Media center ...................................................................111Viewing the contents of the Media center ................... 111Inserting multimedia objects in multimedia msgs. ..... 111My shortcut .....................................................................112Using My shortcut ...................................................... 112Customizing My shortcut ........................................... 112Operator services ............................................................113

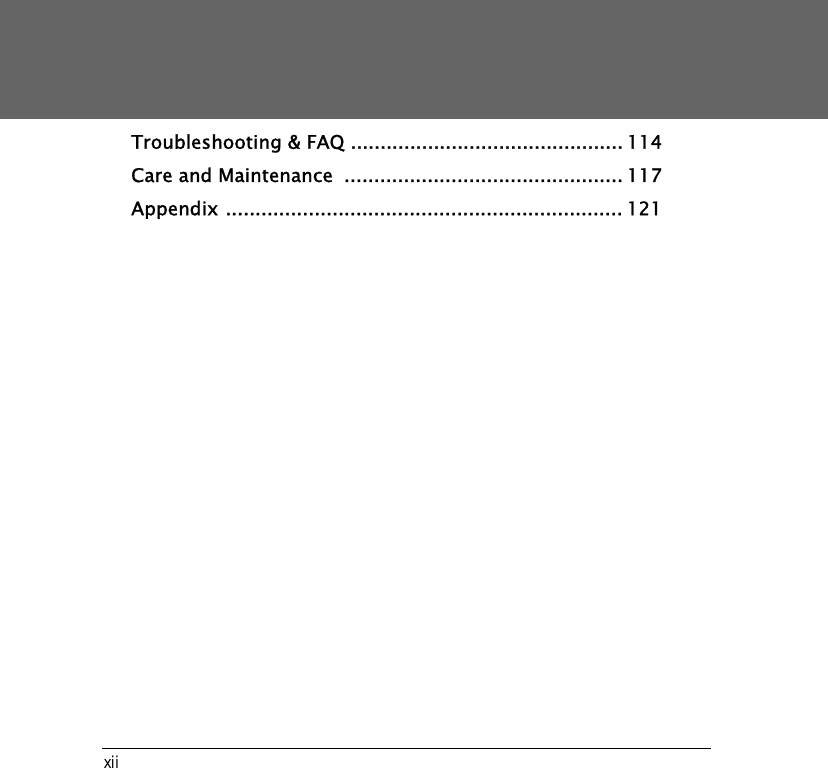

xiiTroubleshooting & FAQ .............................................. 114Care and Maintenance ............................................... 117Appendix ................................................................... 121
1Making Your First Call

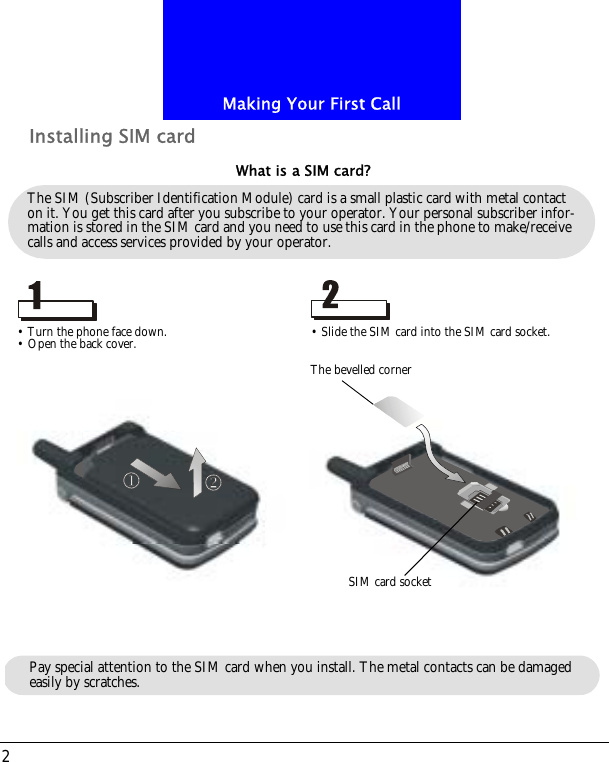

Making Your First Call2Installing SIM cardThe SIM (Subscriber Identification Module) card is a small plastic card with metal contact on it. You get this card after you subscribe to your operator. Your personal subscriber infor-mation is stored in the SIM card and you need to use this card in the phone to make/receive calls and access services provided by your operator.What is a SIM card?• Turn the phone face down.• Open the back cover. • Slide the SIM card into the SIM card socket.The bevelled cornerSIM card socketPay special attention to the SIM card when you install. The metal contacts can be damaged easily by scratches.

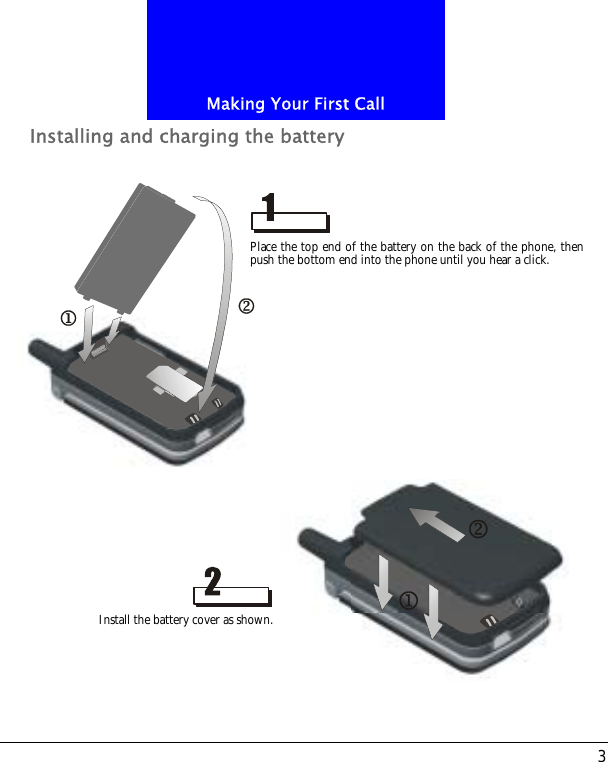

3Making Your First CallInstalling and charging the batteryPlace the top end of the battery on the back of the phone, thenpush the bottom end into the phone until you hear a click.Install the battery cover as shown.

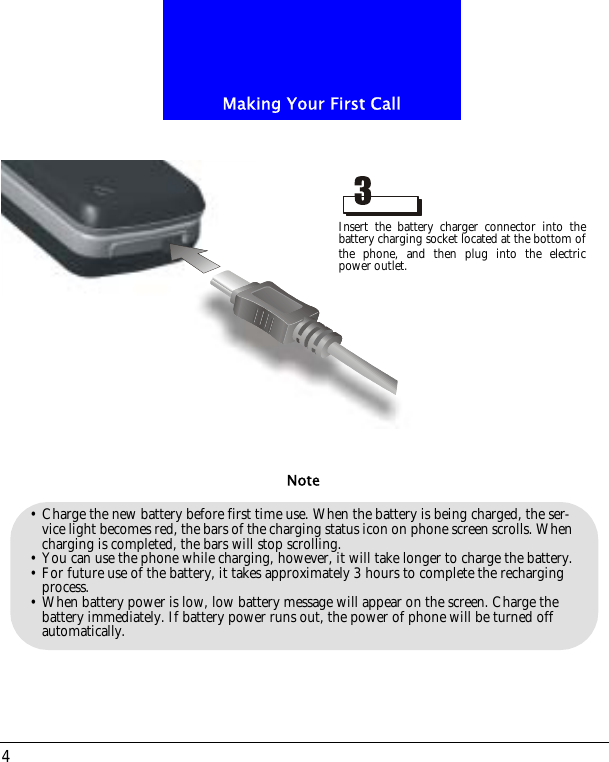

Making Your First Call4• Charge the new battery before first time use. When the battery is being charged, the ser-vice light becomes red, the bars of the charging status icon on phone screen scrolls. When charging is completed, the bars will stop scrolling. • You can use the phone while charging, however, it will take longer to charge the battery.• For future use of the battery, it takes approximately 3 hours to complete the recharging process.• When battery power is low, low battery message will appear on the screen. Charge the battery immediately. If battery power runs out, the power of phone will be turned off automatically.NoteInsert the battery charger connector into thebattery charging socket located at the bottom ofthe phone, and then plug into the electricpower outlet.

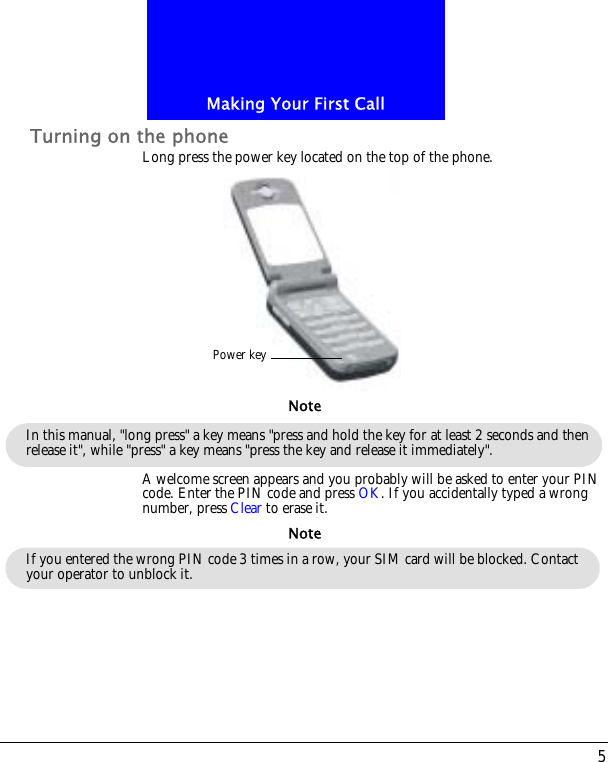

5Making Your First CallTurning on the phoneLong press the power key located on the top of the phone.A welcome screen appears and you probably will be asked to enter your PIN code. Enter the PIN code and press OK. If you accidentally typed a wrong number, press Clear to erase it.Power keyIn this manual, "long press" a key means "press and hold the key for at least 2 seconds and then release it", while "press" a key means "press the key and release it immediately". NoteIf you entered the wrong PIN code 3 times in a row, your SIM card will be blocked. Contact your operator to unblock it.Note

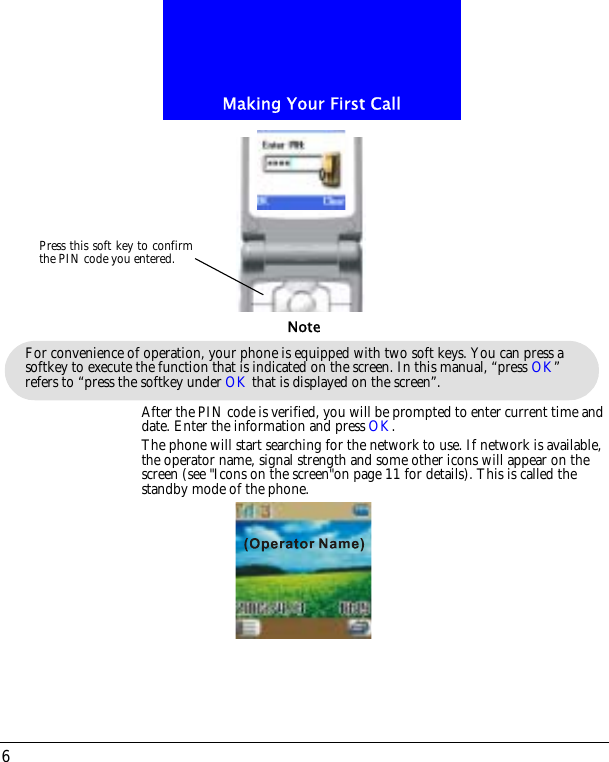

Making Your First Call6After the PIN code is verified, you will be prompted to enter current time and date. Enter the information and press OK.The phone will start searching for the network to use. If network is available, the operator name, signal strength and some other icons will appear on the screen (see "Icons on the screen"on page 11 for details). This is called the standby mode of the phone.Press this soft key to confirmthe PIN code you entered.For convenience of operation, your phone is equipped with two soft keys. You can press a softkey to execute the function that is indicated on the screen. In this manual, “press OK” refers to “press the softkey under OK that is displayed on the screen”.Note

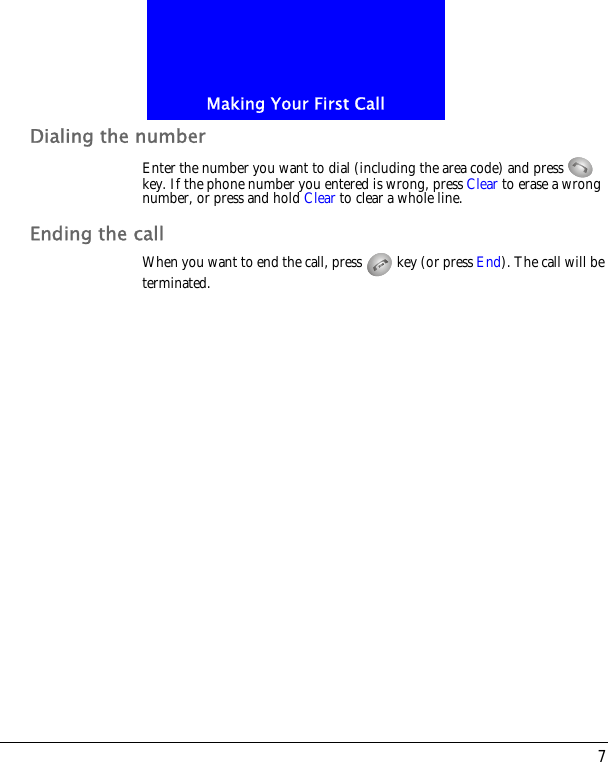

7Making Your First CallDialing the numberEnter the number you want to dial (including the area code) and press key. If the phone number you entered is wrong, press Clear to erase a wrong number, or press and hold Clear to clear a whole line.Ending the callWhen you want to end the call, press key (or press End). The call will be terminated.
8Introduction to Your Phone

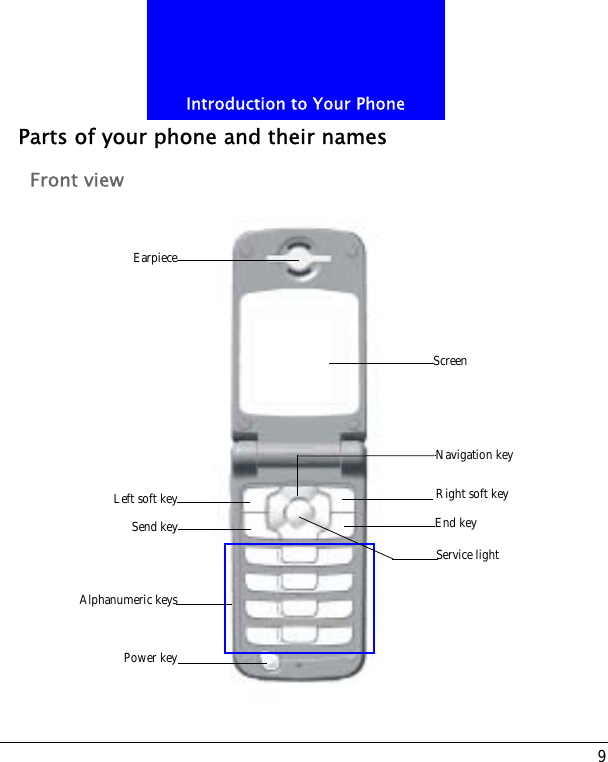

9Introduction to Your PhoneParts of your phone and their namesFront viewScreenRight soft keyLeft soft keyEnd keySend keyNavigation keyEarpieceAlphanumeric keysService lightPower key

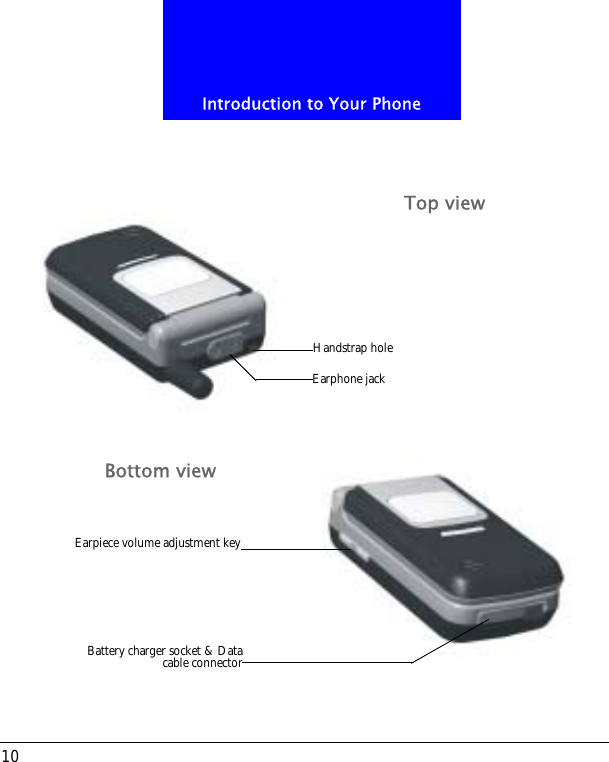

Introduction to Your Phone10Earpiece volume adjustment keyTop viewBattery charger socket & Datacable connectorBottom viewEarphone jackHandstrap hole

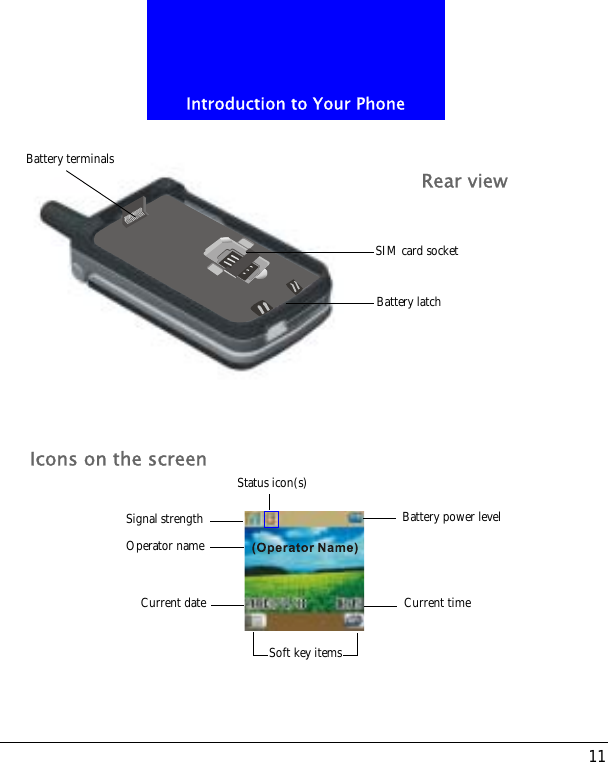

11Introduction to Your PhoneIcons on the screen SIM card socketBattery terminals Rear viewBattery latchStatus icon(s)Signal strength Battery power levelCurrent timeOperator nameSoft key itemsCurrent date

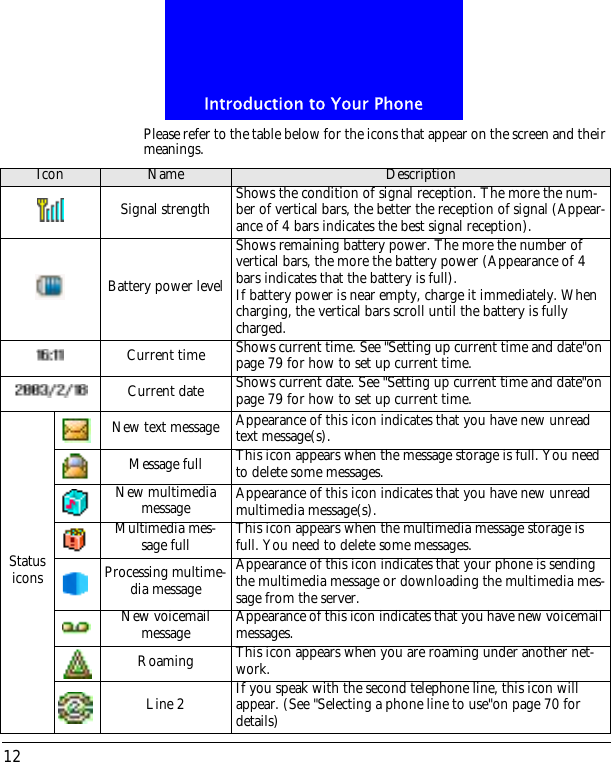

Introduction to Your Phone12Please refer to the table below for the icons that appear on the screen and their meanings.Icon Name DescriptionSignal strength Shows the condition of signal reception. The more the num-ber of vertical bars, the better the reception of signal (Appear-ance of 4 bars indicates the best signal reception).Battery power levelShows remaining battery power. The more the number of vertical bars, the more the battery power (Appearance of 4 bars indicates that the battery is full).If battery power is near empty, charge it immediately. When charging, the vertical bars scroll until the battery is fully charged.Current time Shows current time. See "Setting up current time and date"on page 79 for how to set up current time.Current date Shows current date. See "Setting up current time and date"on page 79 for how to set up current time.Status iconsNew text message Appearance of this icon indicates that you have new unread text message(s).Message full This icon appears when the message storage is full. You need to delete some messages.New multimedia message Appearance of this icon indicates that you have new unread multimedia message(s).Multimedia mes-sage full This icon appears when the multimedia message storage is full. You need to delete some messages.Processing multime-dia messageAppearance of this icon indicates that your phone is sending the multimedia message or downloading the multimedia mes-sage from the server.New voicemail message Appearance of this icon indicates that you have new voicemail messages.Roaming This icon appears when you are roaming under another net-work.Line 2 If you speak with the second telephone line, this icon will appear. (See "Selecting a phone line to use"on page 70 for details)

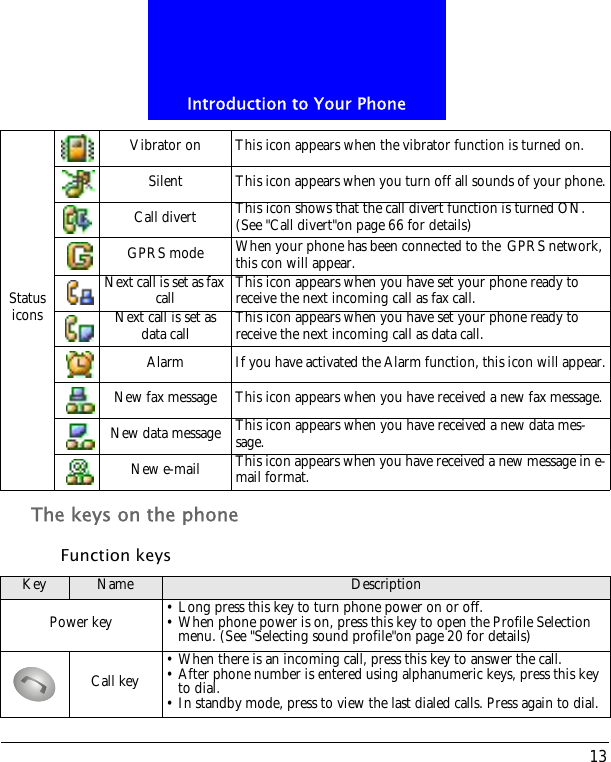

13Introduction to Your PhoneThe keys on the phoneFunction keysStatus iconsVibrator on This icon appears when the vibrator function is turned on.Silent This icon appears when you turn off all sounds of your phone.Call divert This icon shows that the call divert function is turned ON. (See "Call divert"on page 66 for details)GPRS mode When your phone has been connected to the GPRS network, this con will appear.Next call is set as fax call This icon appears when you have set your phone ready to receive the next incoming call as fax call.Next call is set as data call This icon appears when you have set your phone ready to receive the next incoming call as data call.Alarm If you have activated the Alarm function, this icon will appear.New fax message This icon appears when you have received a new fax message.New data message This icon appears when you have received a new data mes-sage.New e-mail This icon appears when you have received a new message in e-mail format.Key Name DescriptionPower key • Long press this key to turn phone power on or off.• When phone power is on, press this key to open the Profile Selection menu. (See "Selecting sound profile"on page 20 for details)Call key • When there is an incoming call, press this key to answer the call.• After phone number is entered using alphanumeric keys, press this key to dial.• In standby mode, press to view the last dialed calls. Press again to dial.

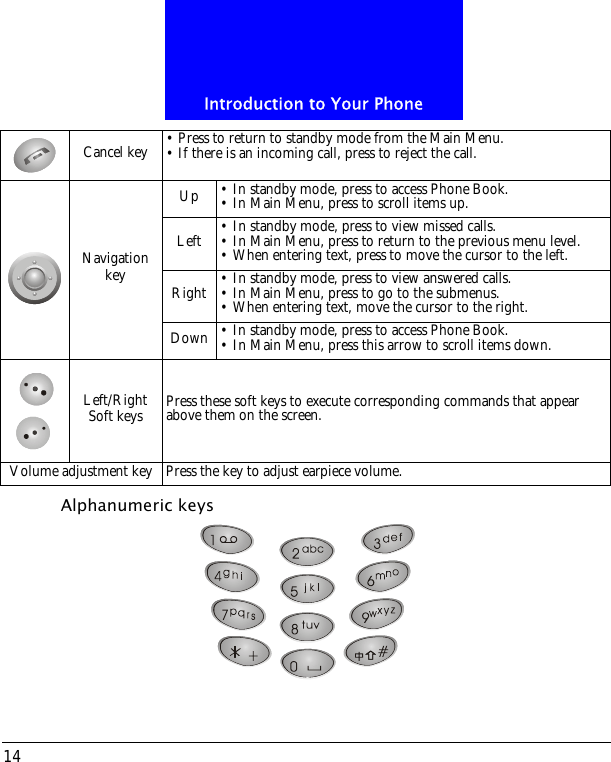

Introduction to Your Phone14Alphanumeric keysCancel key • Press to return to standby mode from the Main Menu.• If there is an incoming call, press to reject the call.Navigation keyUp • In standby mode, press to access Phone Book.• In Main Menu, press to scroll items up.Left • In standby mode, press to view missed calls.• In Main Menu, press to return to the previous menu level.• When entering text, press to move the cursor to the left.Right • In standby mode, press to view answered calls.• In Main Menu, press to go to the submenus.• When entering text, move the cursor to the right.Down • In standby mode, press to access Phone Book.• In Main Menu, press this arrow to scroll items down.Left/Right Soft keys Press these soft keys to execute corresponding commands that appear above them on the screen.Volume adjustment key Press the key to adjust earpiece volume.

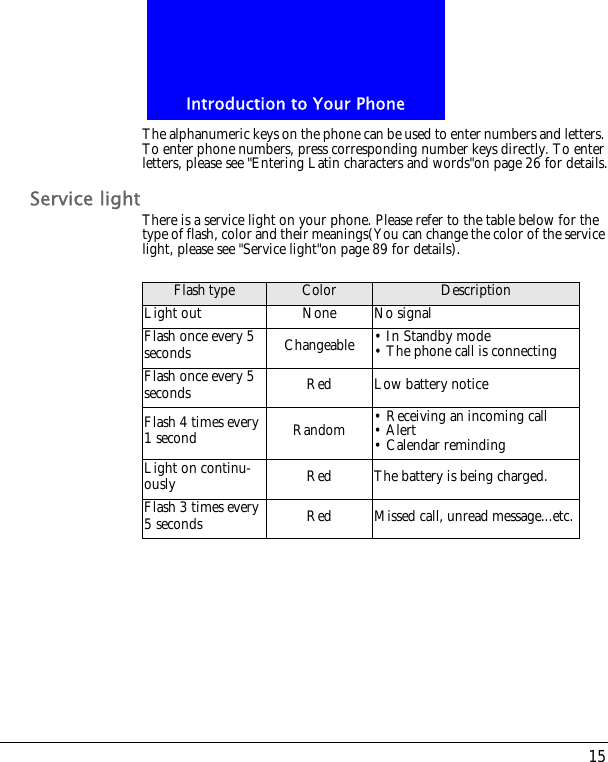

15Introduction to Your PhoneThe alphanumeric keys on the phone can be used to enter numbers and letters. To enter phone numbers, press corresponding number keys directly. To enter letters, please see "Entering Latin characters and words"on page 26 for details.Service lightThere is a service light on your phone. Please refer to the table below for the type of flash, color and their meanings(You can change the color of the service light, please see "Service light"on page 89 for details).Flash type Color DescriptionLight out None No signalFlash once every 5 seconds Changeable • In Standby mode• The phone call is connectingFlash once every 5 seconds Red Low battery noticeFlash 4 times every 1 second Random • Receiving an incoming call• Alert• Calendar remindingLight on continu-ously Red The battery is being charged.Flash 3 times every 5 seconds Red Missed call, unread message...etc.
16Basic Operations

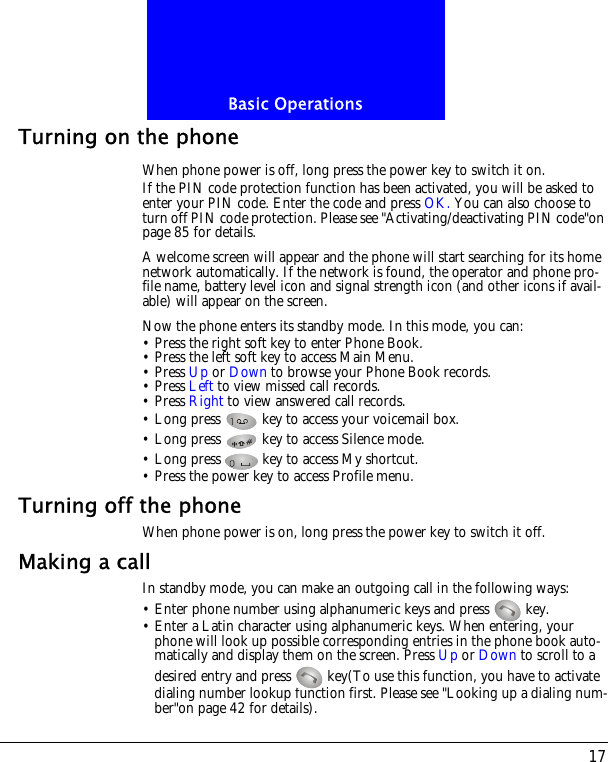

17Basic OperationsTurning on the phoneWhen phone power is off, long press the power key to switch it on.If the PIN code protection function has been activated, you will be asked to enter your PIN code. Enter the code and press OK. You can also choose to turn off PIN code protection. Please see "Activating/deactivating PIN code"on page 85 for details.A welcome screen will appear and the phone will start searching for its home network automatically. If the network is found, the operator and phone pro-file name, battery level icon and signal strength icon (and other icons if avail-able) will appear on the screen.Now the phone enters its standby mode. In this mode, you can:• Press the right soft key to enter Phone Book.• Press the left soft key to access Main Menu.• Press Up or Down to browse your Phone Book records.• Press Left to view missed call records.• Press Right to view answered call records.• Long press key to access your voicemail box.• Long press key to access Silence mode.• Long press key to access My shortcut.• Press the power key to access Profile menu.Turning off the phoneWhen phone power is on, long press the power key to switch it off.Making a callIn standby mode, you can make an outgoing call in the following ways:• Enter phone number using alphanumeric keys and press key.• Enter a Latin character using alphanumeric keys. When entering, your phone will look up possible corresponding entries in the phone book auto-matically and display them on the screen. Press Up or Down to scroll to a desired entry and press key(To use this function, you have to activate dialing number lookup function first. Please see "Looking up a dialing num-ber"on page 42 for details).

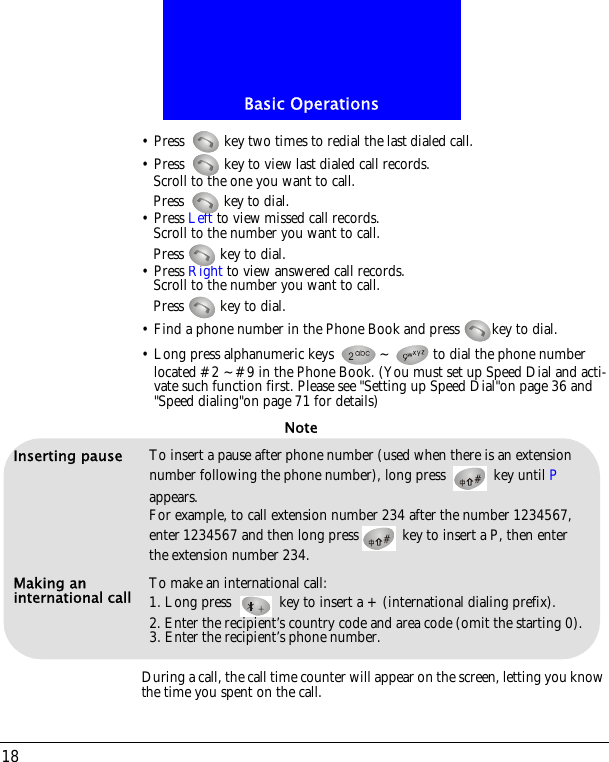

Basic Operations18• Press key two times to redial the last dialed call.• Press key to view last dialed call records.Scroll to the one you want to call.Press key to dial.• Press Left to view missed call records.Scroll to the number you want to call.Press key to dial.• Press Right to view answered call records.Scroll to the number you want to call.Press key to dial.• Find a phone number in the Phone Book and press key to dial.• Long press alphanumeric keys ~ to dial the phone number located #2 ~#9 in the Phone Book. (You must set up Speed Dial and acti-vate such function first. Please see "Setting up Speed Dial"on page 36 and "Speed dialing"on page 71 for details)During a call, the call time counter will appear on the screen, letting you know the time you spent on the call.Inserting pause To insert a pause after phone number (used when there is an extension number following the phone number), long press key until P appears. For example, to call extension number 234 after the number 1234567, enter 1234567 and then long press key to insert a P, then enter the extension number 234.Making an international call To make an international call:1. Long press key to insert a + (international dialing prefix).2. Enter the recipient’s country code and area code (omit the starting 0).3. Enter the recipient’s phone number.Note

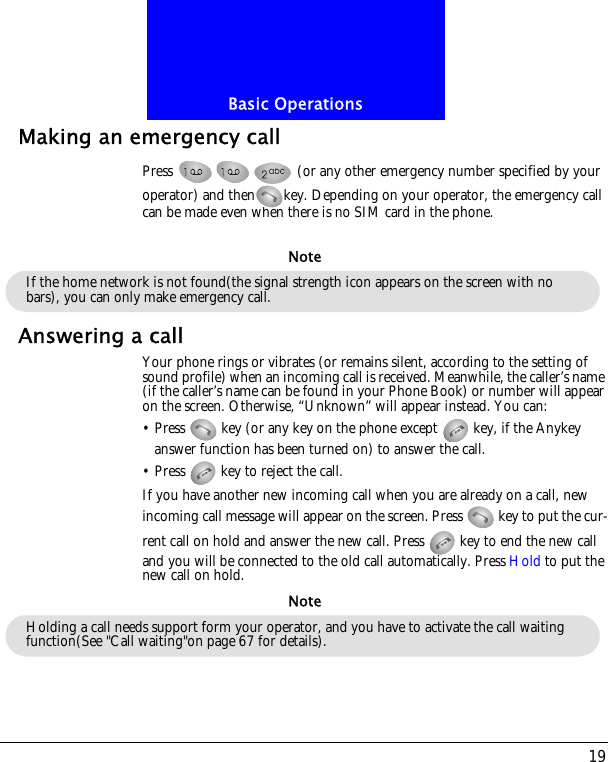

19Basic OperationsMaking an emergency callPress (or any other emergency number specified by your operator) and then key. Depending on your operator, the emergency call can be made even when there is no SIM card in the phone.Answering a callYour phone rings or vibrates (or remains silent, according to the setting of sound profile) when an incoming call is received. Meanwhile, the caller’s name (if the caller’s name can be found in your Phone Book) or number will appear on the screen. Otherwise, “Unknown” will appear instead. You can:• Press key (or any key on the phone except key, if the Anykey answer function has been turned on) to answer the call.• Press key to reject the call.If you have another new incoming call when you are already on a call, new incoming call message will appear on the screen. Press key to put the cur-rent call on hold and answer the new call. Press key to end the new call and you will be connected to the old call automatically. Press Hold to put the new call on hold.If the home network is not found(the signal strength icon appears on the screen with no bars), you can only make emergency call.NoteHolding a call needs support form your operator, and you have to activate the call waiting function(See "Call waiting"on page 67 for details).Note

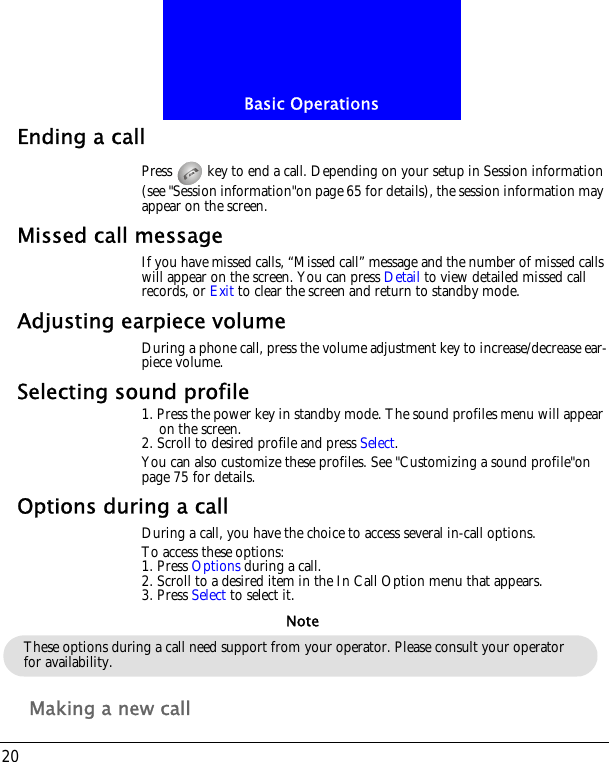

Basic Operations20Ending a callPress key to end a call. Depending on your setup in Session information (see "Session information"on page 65 for details), the session information may appear on the screen.Missed call messageIf you have missed calls, “Missed call” message and the number of missed calls will appear on the screen. You can press Detail to view detailed missed call records, or Exit to clear the screen and return to standby mode.Adjusting earpiece volumeDuring a phone call, press the volume adjustment key to increase/decrease ear-piece volume.Selecting sound profile1. Press the power key in standby mode. The sound profiles menu will appear on the screen.2. Scroll to desired profile and press Select.You can also customize these profiles. See "Customizing a sound profile"on page 75 for details.Options during a callDuring a call, you have the choice to access several in-call options.To access these options:1. Press Options during a call. 2. Scroll to a desired item in the In Call Option menu that appears.3. Press Select to select it.Making a new callThese options during a call need support from your operator. Please consult your operator for availability.Note

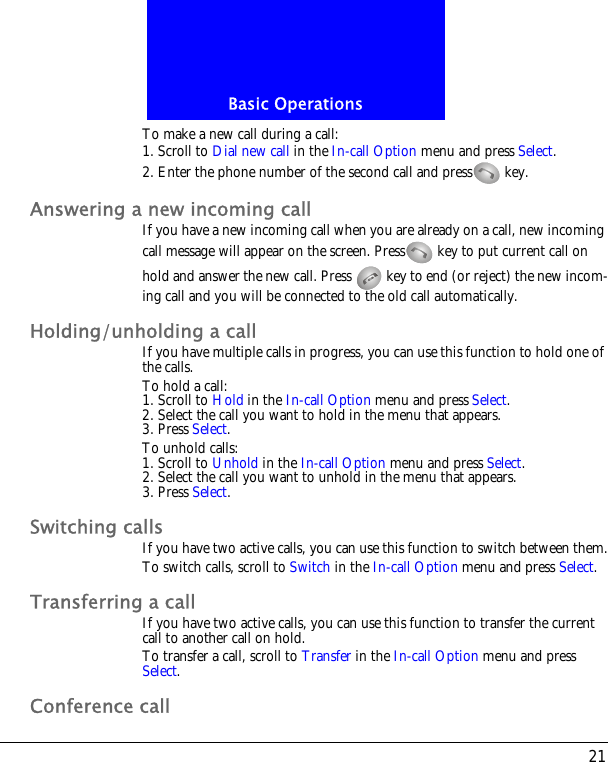

21Basic OperationsTo make a new call during a call:1. Scroll to Dial new call in the In-call Option menu and press Select.2. Enter the phone number of the second call and press key.Answering a new incoming callIf you have a new incoming call when you are already on a call, new incoming call message will appear on the screen. Press key to put current call on hold and answer the new call. Press key to end (or reject) the new incom-ing call and you will be connected to the old call automatically.Holding/unholding a callIf you have multiple calls in progress, you can use this function to hold one of the calls.To hold a call:1. Scroll to Hold in the In-call Option menu and press Select.2. Select the call you want to hold in the menu that appears.3. Press Select.To unhold calls:1. Scroll to Unhold in the In-call Option menu and press Select.2. Select the call you want to unhold in the menu that appears.3. Press Select.Switching callsIf you have two active calls, you can use this function to switch between them.To switch calls, scroll to Switch in the In-call Option menu and press Select.Transferring a callIf you have two active calls, you can use this function to transfer the current call to another call on hold.To transfer a call, scroll to Transfer in the In-call Option menu and press Select.Conference call

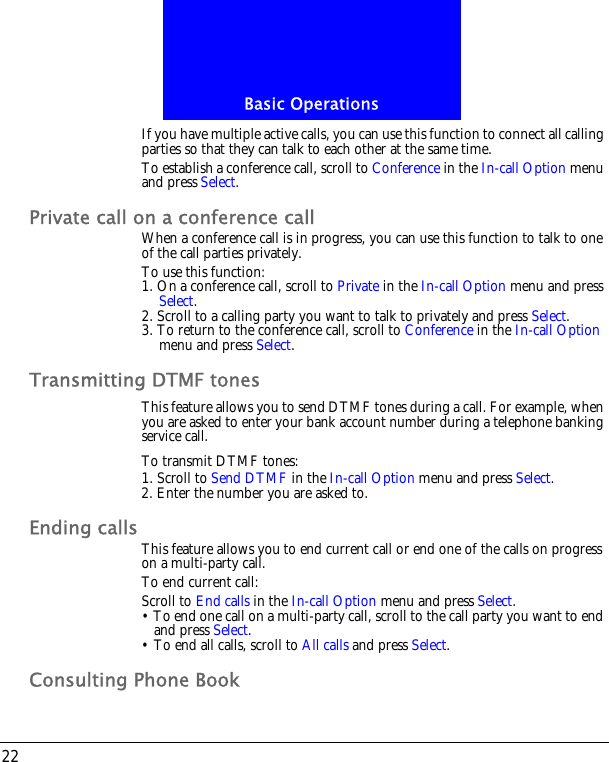

Basic Operations22If you have multiple active calls, you can use this function to connect all calling parties so that they can talk to each other at the same time.To establish a conference call, scroll to Conference in the In-call Option menu and press Select.Private call on a conference callWhen a conference call is in progress, you can use this function to talk to one of the call parties privately.To use this function:1. On a conference call, scroll to Private in the In-call Option menu and press Select.2. Scroll to a calling party you want to talk to privately and press Select.3. To return to the conference call, scroll to Conference in the In-call Option menu and press Select.Transmitting DTMF tonesThis feature allows you to send DTMF tones during a call. For example, when you are asked to enter your bank account number during a telephone banking service call.To transmit DTMF tones:1. Scroll to Send DTMF in the In-call Option menu and press Select.2. Enter the number you are asked to.Ending calls This feature allows you to end current call or end one of the calls on progress on a multi-party call.To end current call:Scroll to End calls in the In-call Option menu and press Select.• To end one call on a multi-party call, scroll to the call party you want to end and press Select.• To end all calls, scroll to All calls and press Select.Consulting Phone Book

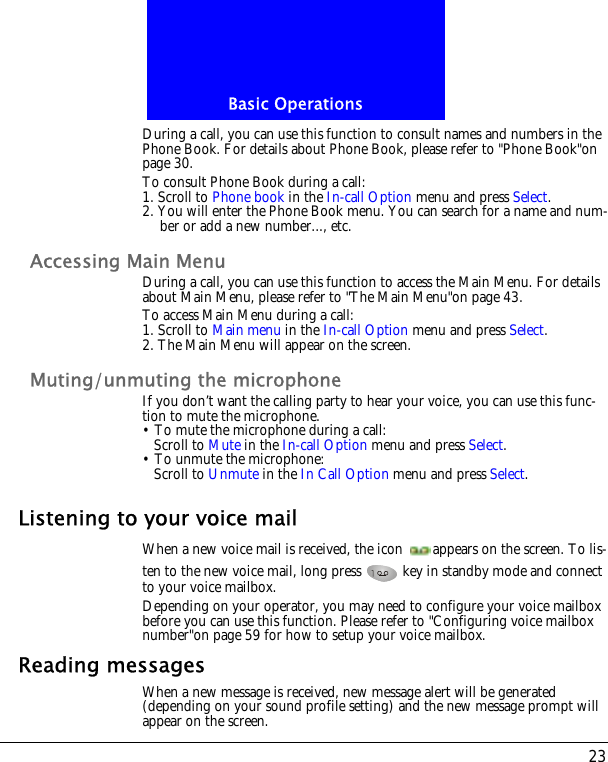

23Basic OperationsDuring a call, you can use this function to consult names and numbers in the Phone Book. For details about Phone Book, please refer to "Phone Book"on page 30.To consult Phone Book during a call:1. Scroll to Phone book in the In-call Option menu and press Select.2. You will enter the Phone Book menu. You can search for a name and num-ber or add a new number..., etc.Accessing Main MenuDuring a call, you can use this function to access the Main Menu. For details about Main Menu, please refer to "The Main Menu"on page 43.To access Main Menu during a call:1. Scroll to Main menu in the In-call Option menu and press Select.2. The Main Menu will appear on the screen.Muting/unmuting the microphoneIf you don’t want the calling party to hear your voice, you can use this func-tion to mute the microphone.• To mute the microphone during a call:Scroll to Mute in the In-call Option menu and press Select.• To unmute the microphone:Scroll to Unmute in the In Call Option menu and press Select.Listening to your voice mailWhen a new voice mail is received, the icon appears on the screen. To lis-ten to the new voice mail, long press key in standby mode and connect to your voice mailbox.Depending on your operator, you may need to configure your voice mailbox before you can use this function. Please refer to "Configuring voice mailbox number"on page 59 for how to setup your voice mailbox.Reading messagesWhen a new message is received, new message alert will be generated (depending on your sound profile setting) and the new message prompt will appear on the screen.

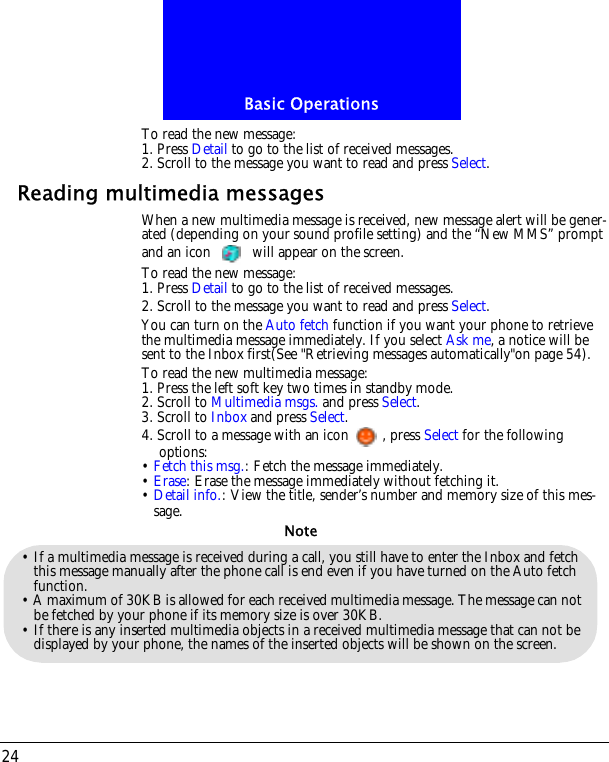

Basic Operations24To read the new message:1. Press Detail to go to the list of received messages.2. Scroll to the message you want to read and press Select.Reading multimedia messagesWhen a new multimedia message is received, new message alert will be gener-ated (depending on your sound profile setting) and the “New MMS” prompt and an icon will appear on the screen.To read the new message:1. Press Detail to go to the list of received messages.2. Scroll to the message you want to read and press Select.You can turn on the Auto fetch function if you want your phone to retrieve the multimedia message immediately. If you select Ask me, a notice will be sent to the Inbox first(See "Retrieving messages automatically"on page 54).To read the new multimedia message:1. Press the left soft key two times in standby mode.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Inbox and press Select.4. Scroll to a message with an icon , press Select for the following options:• Fetch this msg.: Fetch the message immediately.• Erase: Erase the message immediately without fetching it.• Detail info.: View the title, sender’s number and memory size of this mes-sage.• If a multimedia message is received during a call, you still have to enter the Inbox and fetch this message manually after the phone call is end even if you have turned on the Auto fetch function.• A maximum of 30KB is allowed for each received multimedia message. The message can not be fetched by your phone if its memory size is over 30KB.• If there is any inserted multimedia objects in a received multimedia message that can not be displayed by your phone, the names of the inserted objects will be shown on the screen.Note

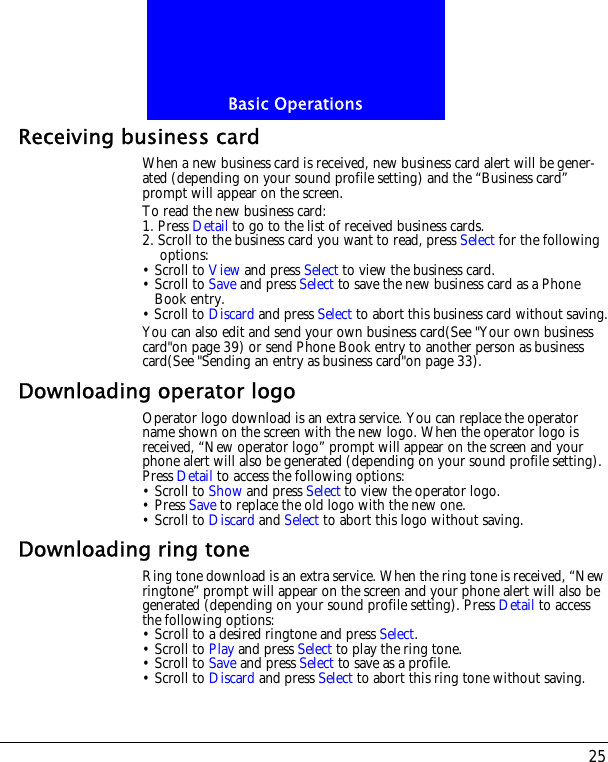

25Basic OperationsReceiving business cardWhen a new business card is received, new business card alert will be gener-ated (depending on your sound profile setting) and the “Business card” prompt will appear on the screen.To read the new business card:1. Press Detail to go to the list of received business cards.2. Scroll to the business card you want to read, press Select for the following options:• Scroll to View and press Select to view the business card.• Scroll to Save and press Select to save the new business card as a Phone Book entry.• Scroll to Discard and press Select to abort this business card without saving.You can also edit and send your own business card(See "Your own business card"on page 39) or send Phone Book entry to another person as business card(See "Sending an entry as business card"on page 33).Downloading operator logoOperator logo download is an extra service. You can replace the operator name shown on the screen with the new logo. When the operator logo is received, “New operator logo” prompt will appear on the screen and your phone alert will also be generated (depending on your sound profile setting). Press Detail to access the following options:• Scroll to Show and press Select to view the operator logo.• Press Save to replace the old logo with the new one.• Scroll to Discard and Select to abort this logo without saving. Downloading ring toneRing tone download is an extra service. When the ring tone is received, “New ringtone” prompt will appear on the screen and your phone alert will also be generated (depending on your sound profile setting). Press Detail to access the following options:• Scroll to a desired ringtone and press Select.• Scroll to Play and press Select to play the ring tone.• Scroll to Save and press Select to save as a profile.• Scroll to Discard and press Select to abort this ring tone without saving.

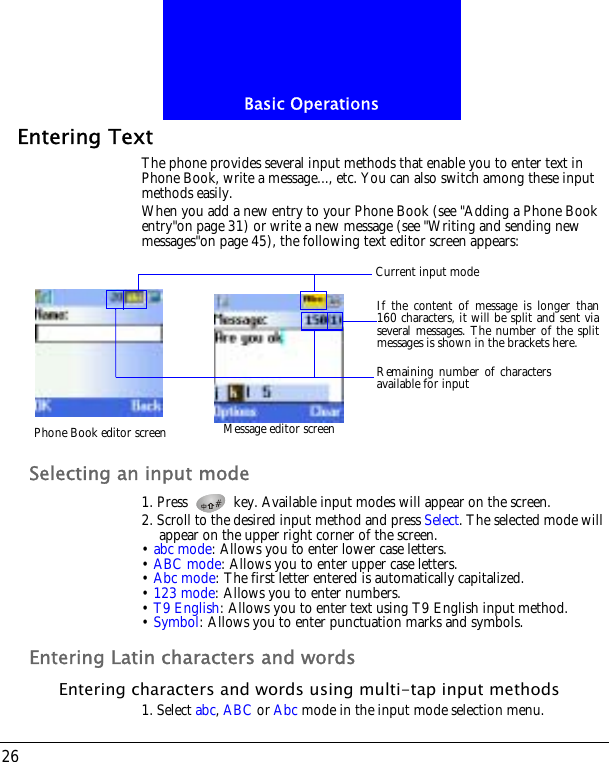

Basic Operations26Entering TextThe phone provides several input methods that enable you to enter text in Phone Book, write a message..., etc. You can also switch among these input methods easily.When you add a new entry to your Phone Book (see "Adding a Phone Book entry"on page 31) or write a new message (see "Writing and sending new messages"on page 45), the following text editor screen appears:Selecting an input mode1. Press key. Available input modes will appear on the screen.2. Scroll to the desired input method and press Select. The selected mode will appear on the upper right corner of the screen.• abc mode: Allows you to enter lower case letters.• ABC mode: Allows you to enter upper case letters.• Abc mode: The first letter entered is automatically capitalized.• 123 mode: Allows you to enter numbers.• T9 English: Allows you to enter text using T9 English input method.• Symbol: Allows you to enter punctuation marks and symbols.Entering Latin characters and wordsEntering characters and words using multi-tap input methods1. Select abc, ABC or Abc mode in the input mode selection menu.Phone Book editor screen Message editor screenRemaining number of charactersavailable for inputCurrent input modeIf the content of message is longer than160 characters, it will be split and sent viaseveral messages. The number of the splitmessages is shown in the brackets here.

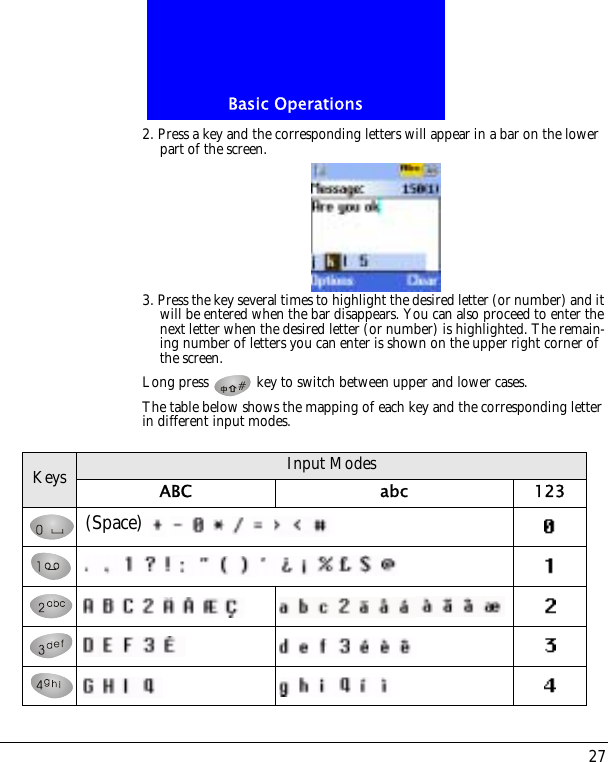

27Basic Operations2. Press a key and the corresponding letters will appear in a bar on the lower part of the screen.3. Press the key several times to highlight the desired letter (or number) and it will be entered when the bar disappears. You can also proceed to enter the next letter when the desired letter (or number) is highlighted. The remain-ing number of letters you can enter is shown on the upper right corner of the screen.Long press key to switch between upper and lower cases.The table below shows the mapping of each key and the corresponding letter in different input modes.Keys Input ModesABC abc 123(Space)

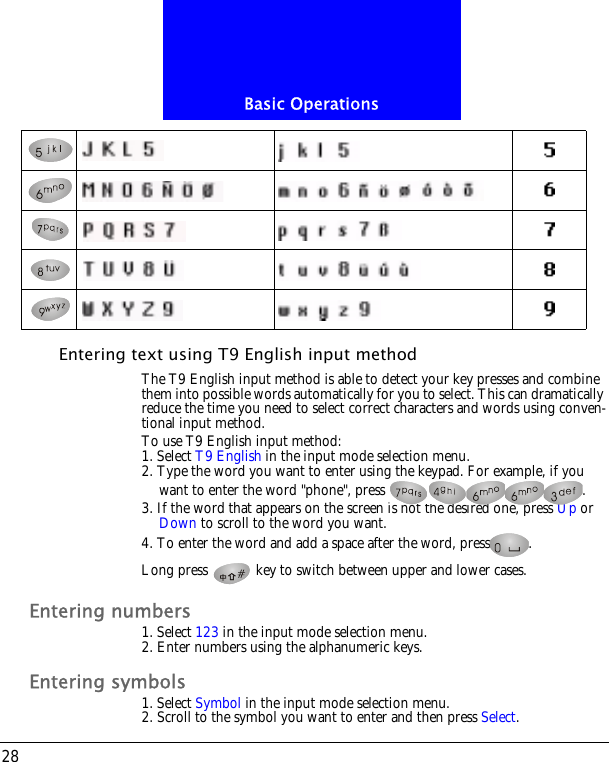

Basic Operations28Entering text using T9 English input methodThe T9 English input method is able to detect your key presses and combine them into possible words automatically for you to select. This can dramatically reduce the time you need to select correct characters and words using conven-tional input method.To use T9 English input method:1. Select T9 English in the input mode selection menu.2. Type the word you want to enter using the keypad. For example, if you want to enter the word "phone", press .3. If the word that appears on the screen is not the desired one, press Up or Down to scroll to the word you want.4. To enter the word and add a space after the word, press .Long press key to switch between upper and lower cases.Entering numbers1. Select 123 in the input mode selection menu.2. Enter numbers using the alphanumeric keys.Entering symbols1. Select Symbol in the input mode selection menu.2. Scroll to the symbol you want to enter and then press Select.

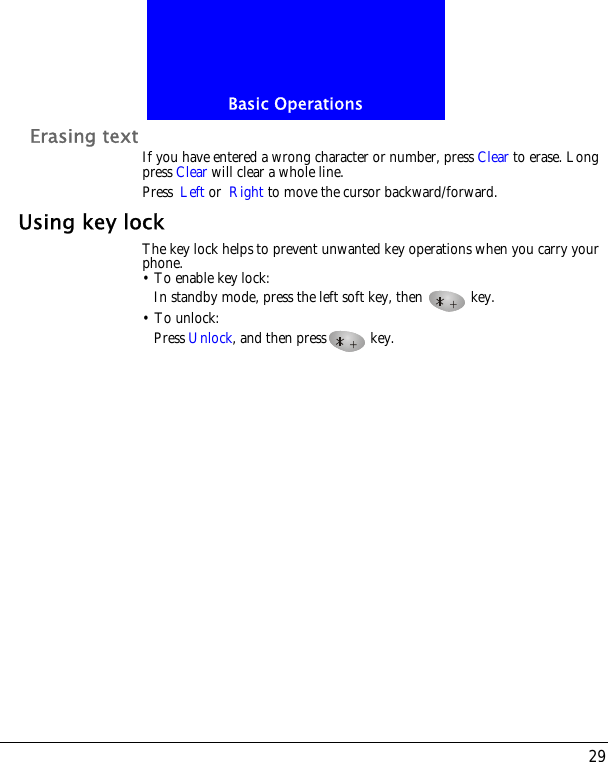

29Basic OperationsErasing text If you have entered a wrong character or number, press Clear to erase. Long press Clear will clear a whole line.Press Left or Right to move the cursor backward/forward.Using key lockThe key lock helps to prevent unwanted key operations when you carry your phone. • To enable key lock:In standby mode, press the left soft key, then key.• To unlock:Press Unlock, and then press key.
30Phone Book

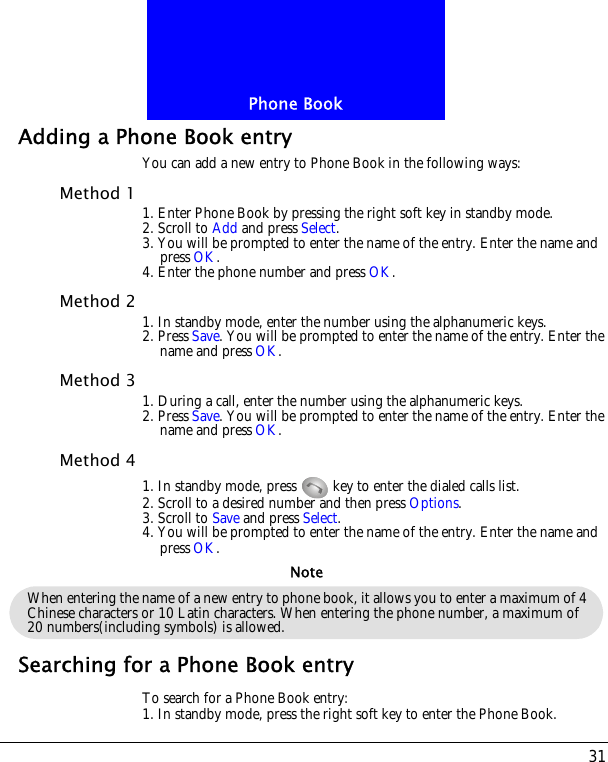

31Phone BookAdding a Phone Book entryYou can add a new entry to Phone Book in the following ways:Method 1 1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Add and press Select.3. You will be prompted to enter the name of the entry. Enter the name and press OK.4. Enter the phone number and press OK.Method 2 1. In standby mode, enter the number using the alphanumeric keys.2. Press Save. You will be prompted to enter the name of the entry. Enter the name and press OK.Method 3 1. During a call, enter the number using the alphanumeric keys.2. Press Save. You will be prompted to enter the name of the entry. Enter the name and press OK.Method 41. In standby mode, press key to enter the dialed calls list.2. Scroll to a desired number and then press Options.3. Scroll to Save and press Select.4. You will be prompted to enter the name of the entry. Enter the name and press OK.Searching for a Phone Book entryTo search for a Phone Book entry:1. In standby mode, press the right soft key to enter the Phone Book.When entering the name of a new entry to phone book, it allows you to enter a maximum of 4 Chinese characters or 10 Latin characters. When entering the phone number, a maximum of 20 numbers(including symbols) is allowed.Note

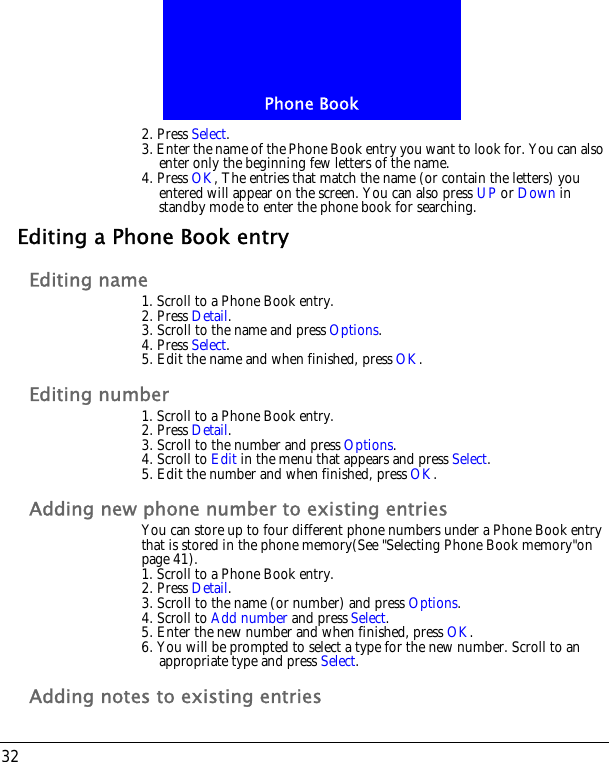

Phone Book322. Press Select.3. Enter the name of the Phone Book entry you want to look for. You can also enter only the beginning few letters of the name.4. Press OK, The entries that match the name (or contain the letters) you entered will appear on the screen. You can also press UP or Down in standby mode to enter the phone book for searching.Editing a Phone Book entryEditing name1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name and press Options.4. Press Select.5. Edit the name and when finished, press OK.Editing number1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number and press Options.4. Scroll to Edit in the menu that appears and press Select.5. Edit the number and when finished, press OK.Adding new phone number to existing entriesYou can store up to four different phone numbers under a Phone Book entry that is stored in the phone memory(See "Selecting Phone Book memory"on page 41).1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name (or number) and press Options.4. Scroll to Add number and press Select.5. Enter the new number and when finished, press OK.6. You will be prompted to select a type for the new number. Scroll to an appropriate type and press Select.Adding notes to existing entries

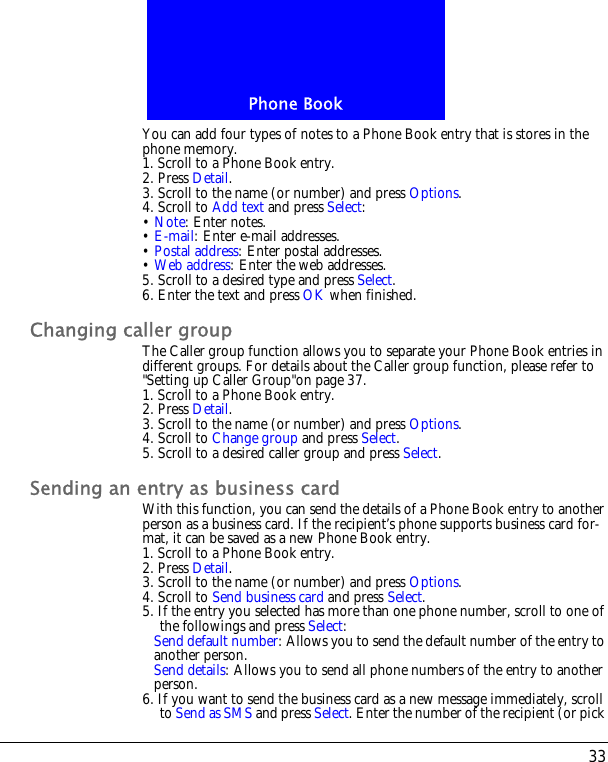

33Phone BookYou can add four types of notes to a Phone Book entry that is stores in the phone memory.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name (or number) and press Options.4. Scroll to Add text and press Select:• Note: Enter notes.• E-mail: Enter e-mail addresses.• Postal address: Enter postal addresses.• Web address: Enter the web addresses.5. Scroll to a desired type and press Select.6. Enter the text and press OK when finished.Changing caller groupThe Caller group function allows you to separate your Phone Book entries in different groups. For details about the Caller group function, please refer to "Setting up Caller Group"on page 37.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name (or number) and press Options.4. Scroll to Change group and press Select.5. Scroll to a desired caller group and press Select.Sending an entry as business cardWith this function, you can send the details of a Phone Book entry to another person as a business card. If the recipient’s phone supports business card for-mat, it can be saved as a new Phone Book entry.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the name (or number) and press Options.4. Scroll to Send business card and press Select.5. If the entry you selected has more than one phone number, scroll to one of the followings and press Select: Send default number: Allows you to send the default number of the entry to another person.Send details: Allows you to send all phone numbers of the entry to another person.6. If you want to send the business card as a new message immediately, scroll to Send as SMS and press Select. Enter the number of the recipient (or pick

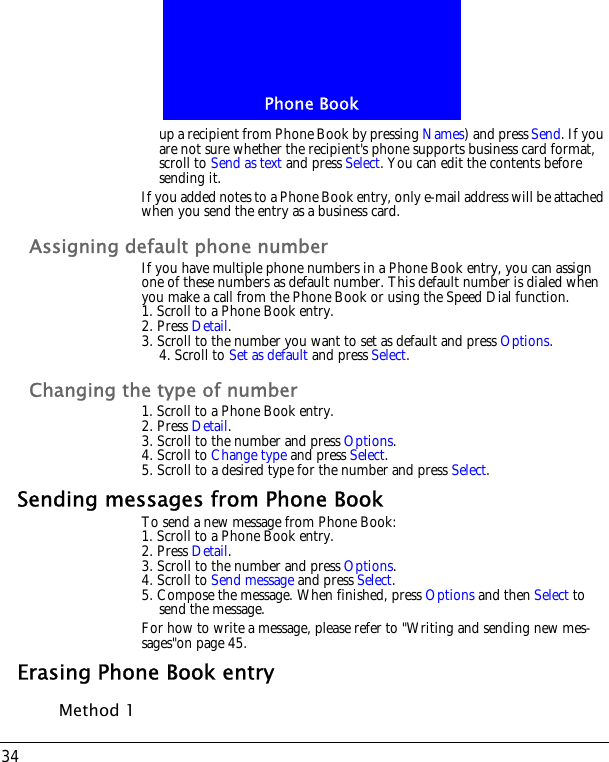

Phone Book34up a recipient from Phone Book by pressing Names) and press Send. If you are not sure whether the recipient's phone supports business card format, scroll to Send as text and press Select. You can edit the contents before sending it.If you added notes to a Phone Book entry, only e-mail address will be attached when you send the entry as a business card.Assigning default phone numberIf you have multiple phone numbers in a Phone Book entry, you can assign one of these numbers as default number. This default number is dialed when you make a call from the Phone Book or using the Speed Dial function.1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number you want to set as default and press Options.4. Scroll to Set as default and press Select.Changing the type of number1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number and press Options.4. Scroll to Change type and press Select.5. Scroll to a desired type for the number and press Select.Sending messages from Phone BookTo send a new message from Phone Book:1. Scroll to a Phone Book entry.2. Press Detail.3. Scroll to the number and press Options.4. Scroll to Send message and press Select.5. Compose the message. When finished, press Options and then Select to send the message.For how to write a message, please refer to "Writing and sending new mes-sages"on page 45.Erasing Phone Book entryMethod 1

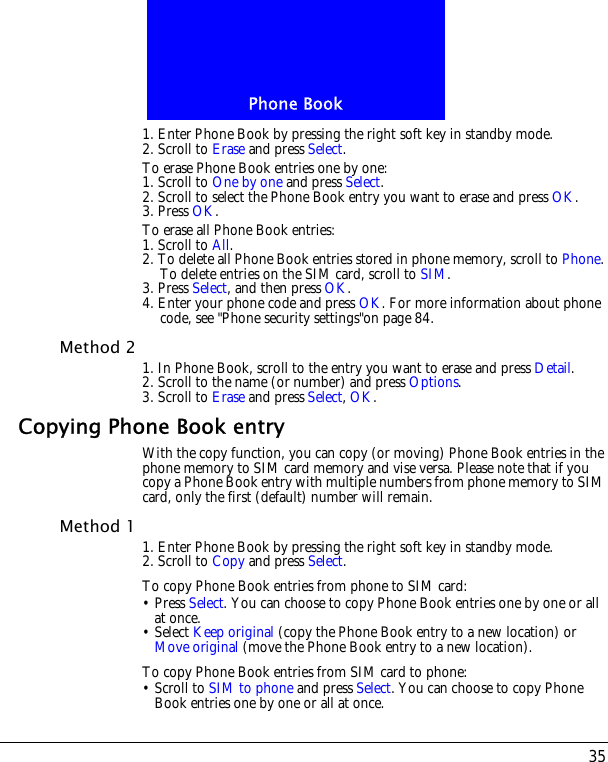

35Phone Book1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Erase and press Select.To erase Phone Book entries one by one:1. Scroll to One by one and press Select.2. Scroll to select the Phone Book entry you want to erase and press OK.3. Press OK.To erase all Phone Book entries:1. Scroll to All.2. To delete all Phone Book entries stored in phone memory, scroll to Phone. To delete entries on the SIM card, scroll to SIM.3. Press Select, and then press OK.4. Enter your phone code and press OK. For more information about phone code, see "Phone security settings"on page 84.Method 2 1. In Phone Book, scroll to the entry you want to erase and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Erase and press Select, OK.Copying Phone Book entryWith the copy function, you can copy (or moving) Phone Book entries in the phone memory to SIM card memory and vise versa. Please note that if you copy a Phone Book entry with multiple numbers from phone memory to SIM card, only the first (default) number will remain.Method 1 1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Copy and press Select.To copy Phone Book entries from phone to SIM card:• Press Select. You can choose to copy Phone Book entries one by one or all at once.• Select Keep original (copy the Phone Book entry to a new location) or Move original (move the Phone Book entry to a new location).To copy Phone Book entries from SIM card to phone:• Scroll to SIM to phone and press Select. You can choose to copy Phone Book entries one by one or all at once.

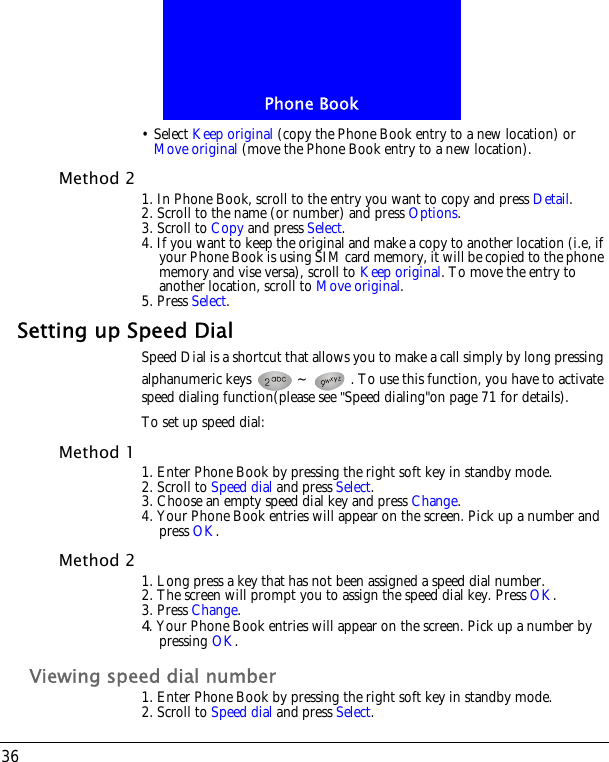

Phone Book36• Select Keep original (copy the Phone Book entry to a new location) or Move original (move the Phone Book entry to a new location).Method 2 1. In Phone Book, scroll to the entry you want to copy and press Detail.2. Scroll to the name (or number) and press Options.3. Scroll to Copy and press Select.4. If you want to keep the original and make a copy to another location (i.e, if your Phone Book is using SIM card memory, it will be copied to the phone memory and vise versa), scroll to Keep original. To move the entry to another location, scroll to Move original.5. Press Select.Setting up Speed DialSpeed Dial is a shortcut that allows you to make a call simply by long pressing alphanumeric keys ~ . To use this function, you have to activate speed dialing function(please see "Speed dialing"on page 71 for details).To set up speed dial:Method 1 1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed dial and press Select.3. Choose an empty speed dial key and press Change.4. Your Phone Book entries will appear on the screen. Pick up a number and press OK.Method 2 1. Long press a key that has not been assigned a speed dial number.2. The screen will prompt you to assign the speed dial key. Press OK.3. Press Change.4. Your Phone Book entries will appear on the screen. Pick up a number by pressing OK.Viewing speed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed dial and press Select.

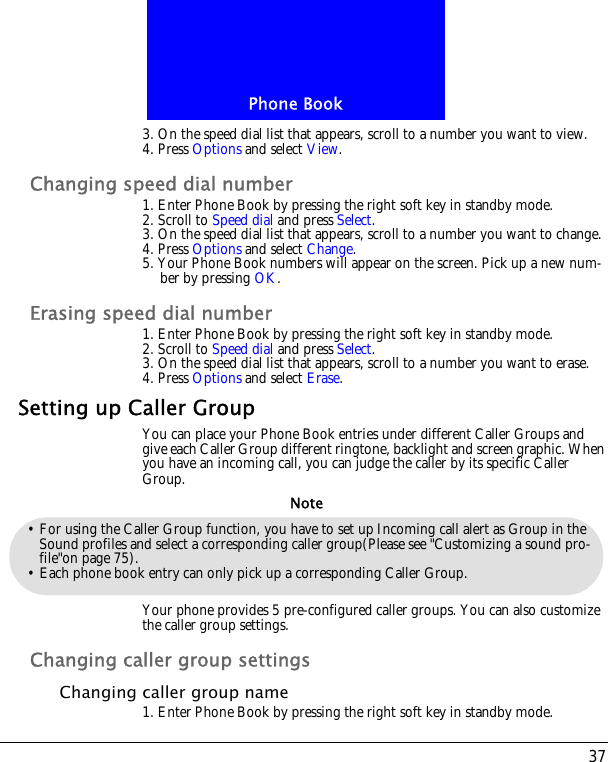

37Phone Book3. On the speed dial list that appears, scroll to a number you want to view.4. Press Options and select View.Changing speed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed dial and press Select.3. On the speed dial list that appears, scroll to a number you want to change.4. Press Options and select Change.5. Your Phone Book numbers will appear on the screen. Pick up a new num-ber by pressing OK. Erasing speed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Speed dial and press Select.3. On the speed dial list that appears, scroll to a number you want to erase.4. Press Options and select Erase.Setting up Caller GroupYou can place your Phone Book entries under different Caller Groups and give each Caller Group different ringtone, backlight and screen graphic. When you have an incoming call, you can judge the caller by its specific Caller Group.Your phone provides 5 pre-configured caller groups. You can also customize the caller group settings.Changing caller group settingsChanging caller group name1. Enter Phone Book by pressing the right soft key in standby mode.• For using the Caller Group function, you have to set up Incoming call alert as Group in the Sound profiles and select a corresponding caller group(Please see "Customizing a sound pro-file"on page 75).• Each phone book entry can only pick up a corresponding Caller Group.Note

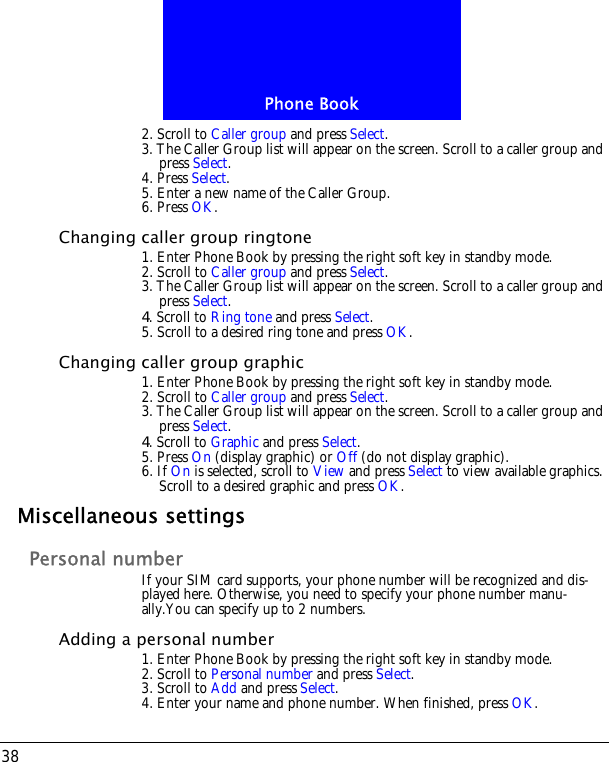

Phone Book382. Scroll to Caller group and press Select.3. The Caller Group list will appear on the screen. Scroll to a caller group and press Select.4. Press Select. 5. Enter a new name of the Caller Group. 6. Press OK.Changing caller group ringtone1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Caller group and press Select.3. The Caller Group list will appear on the screen. Scroll to a caller group and press Select.4. Scroll to Ring tone and press Select. 5. Scroll to a desired ring tone and press OK.Changing caller group graphic1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Caller group and press Select.3. The Caller Group list will appear on the screen. Scroll to a caller group and press Select.4. Scroll to Graphic and press Select. 5. Press On (display graphic) or Off (do not display graphic).6. If On is selected, scroll to View and press Select to view available graphics. Scroll to a desired graphic and press OK.Miscellaneous settingsPersonal numberIf your SIM card supports, your phone number will be recognized and dis-played here. Otherwise, you need to specify your phone number manu-ally.You can specify up to 2 numbers.Adding a personal number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Personal number and press Select.3. Scroll to Add and press Select. 4. Enter your name and phone number. When finished, press OK.

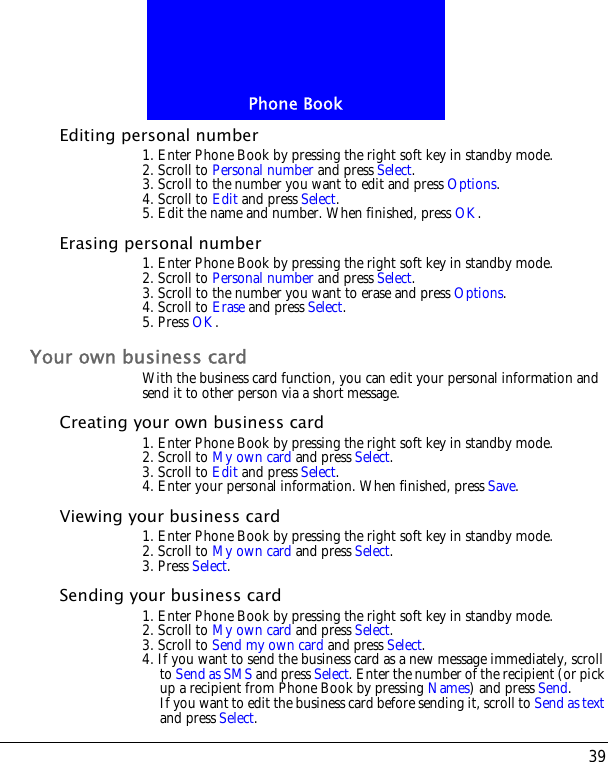

39Phone BookEditing personal number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Personal number and press Select.3. Scroll to the number you want to edit and press Options.4. Scroll to Edit and press Select. 5. Edit the name and number. When finished, press OK.Erasing personal number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Personal number and press Select.3. Scroll to the number you want to erase and press Options.4. Scroll to Erase and press Select.5. Press OK.Your own business cardWith the business card function, you can edit your personal information and send it to other person via a short message.Creating your own business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My own card and press Select.3. Scroll to Edit and press Select.4. Enter your personal information. When finished, press Save.Viewing your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My own card and press Select.3. Press Select.Sending your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My own card and press Select.3. Scroll to Send my own card and press Select.4. If you want to send the business card as a new message immediately, scroll to Send as SMS and press Select. Enter the number of the recipient (or pick up a recipient from Phone Book by pressing Names) and press Send.If you want to edit the business card before sending it, scroll to Send as text and press Select.

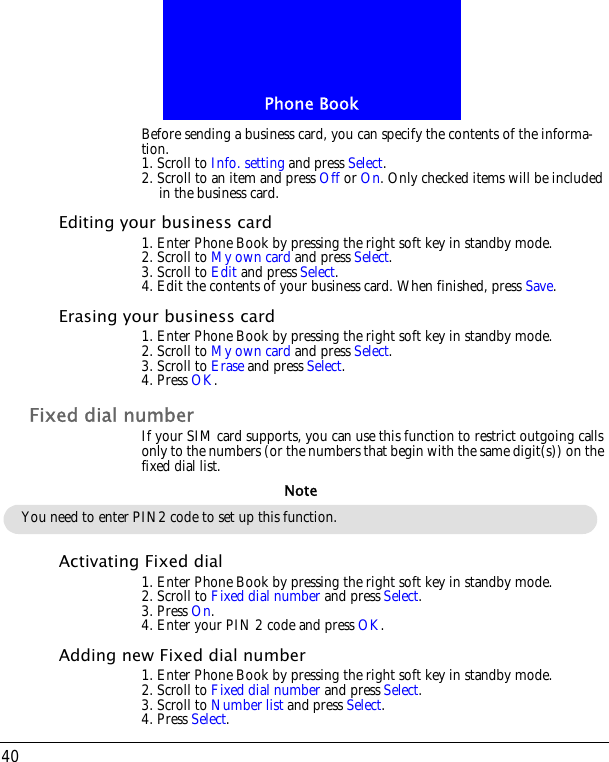

Phone Book40Before sending a business card, you can specify the contents of the informa-tion. 1. Scroll to Info. setting and press Select. 2. Scroll to an item and press Off or On. Only checked items will be included in the business card.Editing your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My own card and press Select.3. Scroll to Edit and press Select. 4. Edit the contents of your business card. When finished, press Save.Erasing your business card1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to My own card and press Select.3. Scroll to Erase and press Select.4. Press OK.Fixed dial numberIf your SIM card supports, you can use this function to restrict outgoing calls only to the numbers (or the numbers that begin with the same digit(s)) on the fixed dial list.Activating Fixed dial1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Press On. 4. Enter your PIN 2 code and press OK.Adding new Fixed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select. 4. Press Select.You need to enter PIN2 code to set up this function.Note

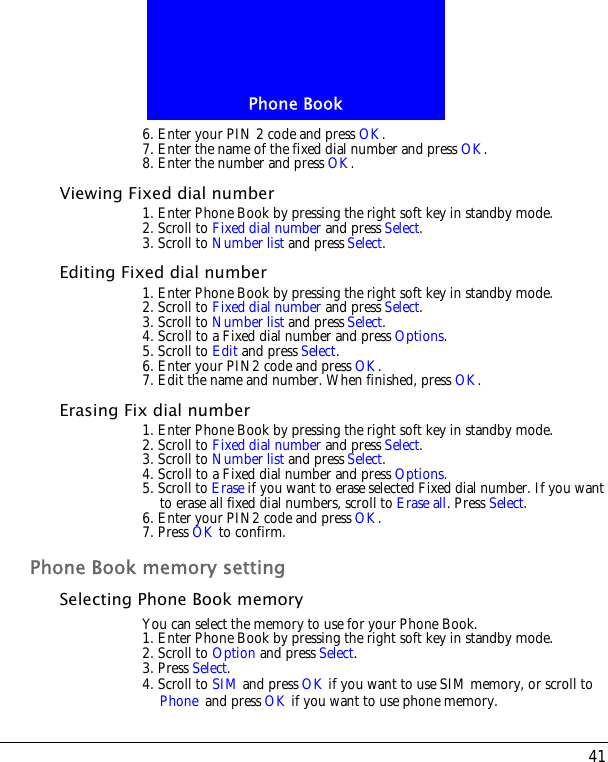

41Phone Book6. Enter your PIN 2 code and press OK.7. Enter the name of the fixed dial number and press OK.8. Enter the number and press OK.Viewing Fixed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select. Editing Fixed dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select. 4. Scroll to a Fixed dial number and press Options.5. Scroll to Edit and press Select.6. Enter your PIN2 code and press OK.7. Edit the name and number. When finished, press OK.Erasing Fix dial number1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Fixed dial number and press Select.3. Scroll to Number list and press Select. 4. Scroll to a Fixed dial number and press Options.5. Scroll to Erase if you want to erase selected Fixed dial number. If you want to erase all fixed dial numbers, scroll to Erase all. Press Select.6. Enter your PIN2 code and press OK.7. Press OK to confirm.Phone Book memory settingSelecting Phone Book memoryYou can select the memory to use for your Phone Book.1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Option and press Select.3. Press Select. 4. Scroll to SIM and press OK if you want to use SIM memory, or scroll to Phone and press OK if you want to use phone memory.

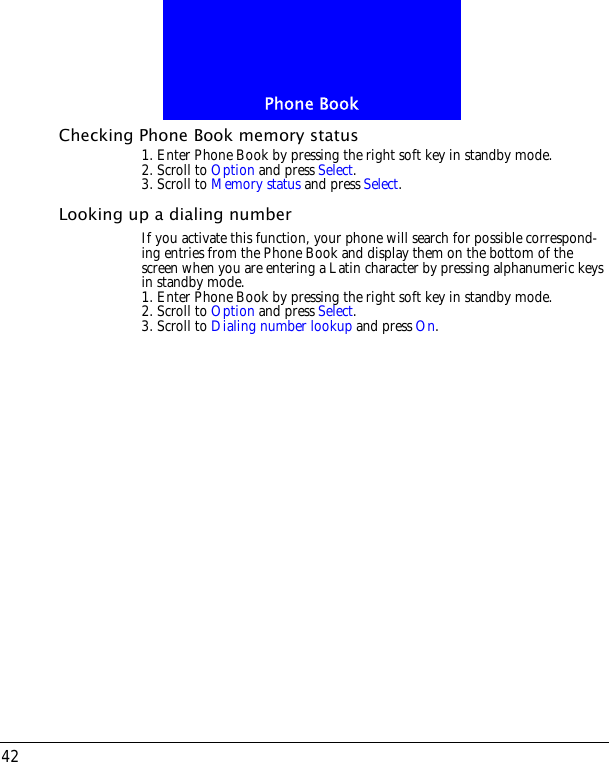

Phone Book42Checking Phone Book memory status1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Option and press Select.3. Scroll to Memory status and press Select. Looking up a dialing numberIf you activate this function, your phone will search for possible correspond-ing entries from the Phone Book and display them on the bottom of the screen when you are entering a Latin character by pressing alphanumeric keys in standby mode.1. Enter Phone Book by pressing the right soft key in standby mode.2. Scroll to Option and press Select.3. Scroll to Dialing number lookup and press On.
43The Main Menu

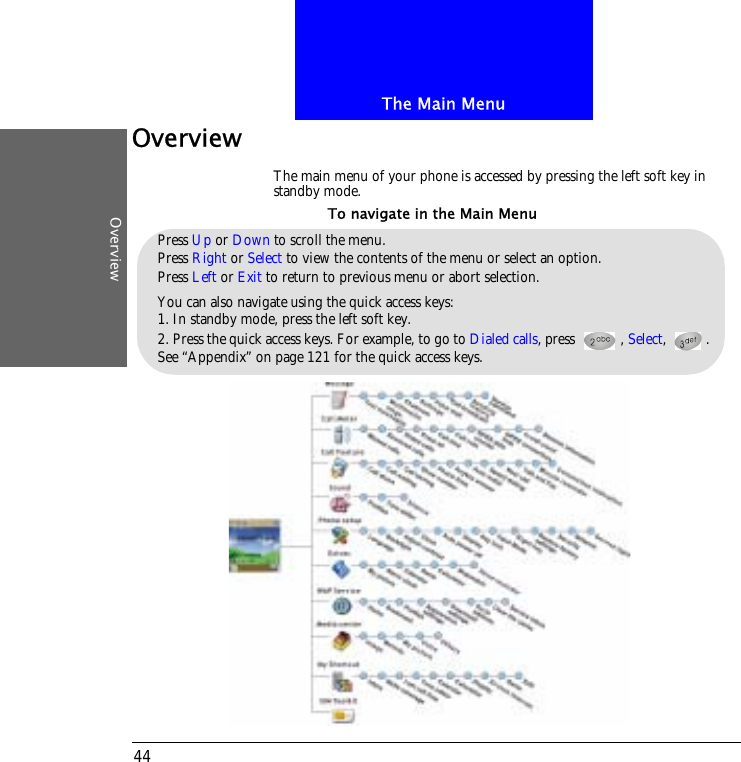

The Main MenuOverview44OverviewThe main menu of your phone is accessed by pressing the left soft key in standby mode.Press Up or Down to scroll the menu.Press Right or Select to view the contents of the menu or select an option.Press Left or Exit to return to previous menu or abort selection.You can also navigate using the quick access keys:1. In standby mode, press the left soft key.2. Press the quick access keys. For example, to go to Dialed calls, press , Select, .See “Appendix” on page 121 for the quick access keys.To navigate in the Main Menu
The Main MenuMessage45MessageThe options in the Message menu allow you to write, send and receive mes-sages and setup message settings.Writing and sending new messagesYou can write and send text messages. Your phone supports EMS (Enhanced Messaging Service) standard which allows you to insert picture, sound, anima-tion and melodies..., etc. in a message.To write a new message:1. In standby mode, press the left soft key, Select.2. Press Select two times. 3. Enter the contents of the message. When writing, you can press Options to access the options below:• Send: Send the message immediately. If this option is selected, you will be prompted to enter the number of the recipients. You can also pick up recip-ients from your Phone Book by pressing Names. The message can be sent to one recipient and copy to up to 9 recipients.• Save: Save the message as a draft in Outbox. You have to enter the recipi-ent’s phone number before you save.• Insert template: Insert preset messages template. You can also customize your own templates. Please refer to "Customizing preset message tem-plates"on page 48 for how to customize message templates.• Insert picture: Insert a picture into the message. You can also draw your own picture. For details, refer to "My Picture"on page 90.• Insert animation: Insert an animation into the message.• Insert sound: Insert sound effect into the message. The icon will appear on the screen.Before you can use Message functions, make sure that related message settings are configured properly. (Depending on your operator, the settings may have already been programmed on the SIM card). Refer to "Message settings"on page 53 for details.NoteThe recipient’s phone must also support EMS functionality to receive and view your EMS mes-sages.Note

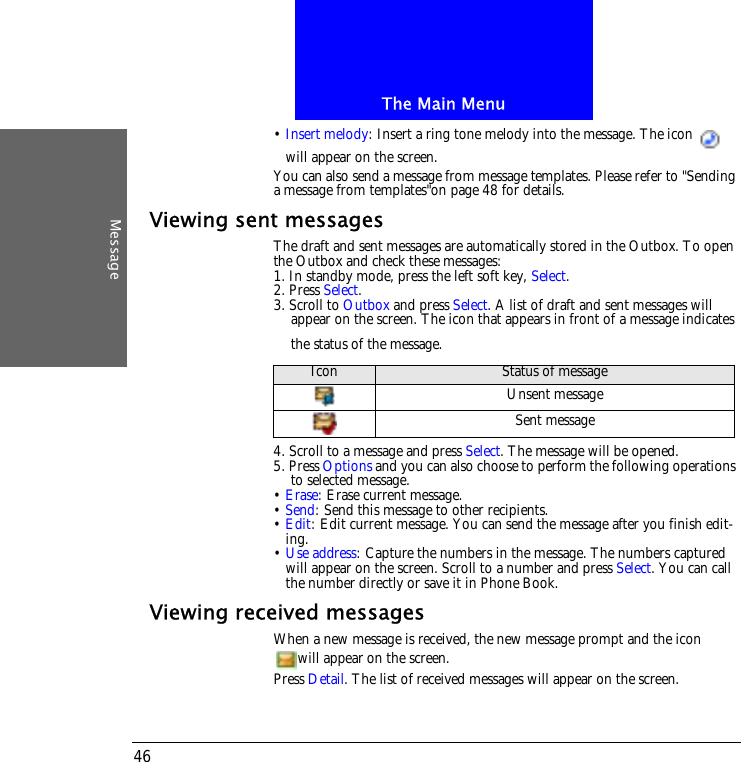

The Main MenuMessage46• Insert melody: Insert a ring tone melody into the message. The icon will appear on the screen.You can also send a message from message templates. Please refer to "Sending a message from templates"on page 48 for details.Viewing sent messagesThe draft and sent messages are automatically stored in the Outbox. To open the Outbox and check these messages:1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Outbox and press Select. A list of draft and sent messages will appear on the screen. The icon that appears in front of a message indicates the status of the message.4. Scroll to a message and press Select. The message will be opened.5. Press Options and you can also choose to perform the following operations to selected message.• Erase: Erase current message.• Send: Send this message to other recipients.• Edit: Edit current message. You can send the message after you finish edit-ing.• Use address: Capture the numbers in the message. The numbers captured will appear on the screen. Scroll to a number and press Select. You can call the number directly or save it in Phone Book.Viewing received messagesWhen a new message is received, the new message prompt and the icon will appear on the screen.Press Detail. The list of received messages will appear on the screen.Icon Status of messageUnsent messageSent message

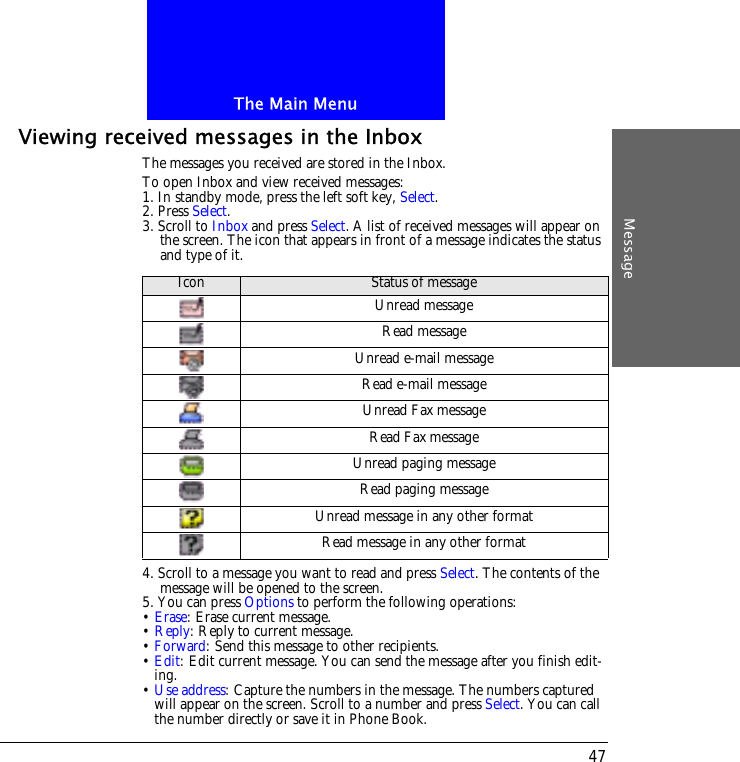

The Main MenuMessage47Viewing received messages in the InboxThe messages you received are stored in the Inbox.To open Inbox and view received messages:1. In standby mode, press the left soft key, Select.2. Press Select. 3. Scroll to Inbox and press Select. A list of received messages will appear on the screen. The icon that appears in front of a message indicates the status and type of it.4. Scroll to a message you want to read and press Select. The contents of the message will be opened to the screen. 5. You can press Options to perform the following operations:• Erase: Erase current message.• Reply: Reply to current message.• Forward: Send this message to other recipients.• Edit: Edit current message. You can send the message after you finish edit-ing.• Use address: Capture the numbers in the message. The numbers captured will appear on the screen. Scroll to a number and press Select. You can call the number directly or save it in Phone Book.Icon Status of messageUnread messageRead messageUnread e-mail messageRead e-mail messageUnread Fax messageRead Fax messageUnread paging messageRead paging messageUnread message in any other formatRead message in any other format

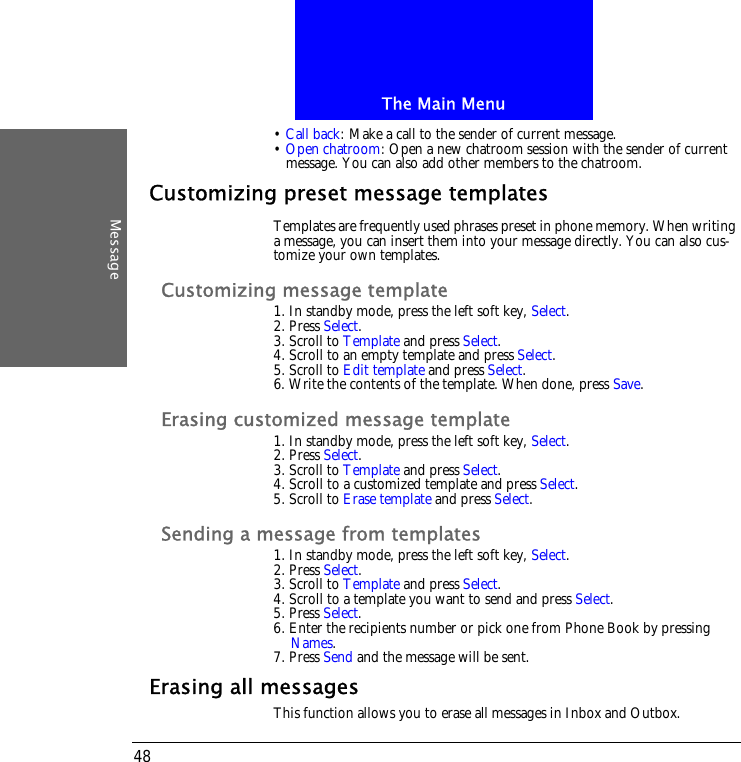

The Main MenuMessage48• Call back: Make a call to the sender of current message.• Open chatroom: Open a new chatroom session with the sender of current message. You can also add other members to the chatroom.Customizing preset message templatesTemplates are frequently used phrases preset in phone memory. When writing a message, you can insert them into your message directly. You can also cus-tomize your own templates.Customizing message template1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Template and press Select.4. Scroll to an empty template and press Select.5. Scroll to Edit template and press Select.6. Write the contents of the template. When done, press Save.Erasing customized message template1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Template and press Select.4. Scroll to a customized template and press Select.5. Scroll to Erase template and press Select.Sending a message from templates1. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Template and press Select.4. Scroll to a template you want to send and press Select.5. Press Select.6. Enter the recipients number or pick one from Phone Book by pressing Names.7. Press Send and the message will be sent.Erasing all messagesThis function allows you to erase all messages in Inbox and Outbox.

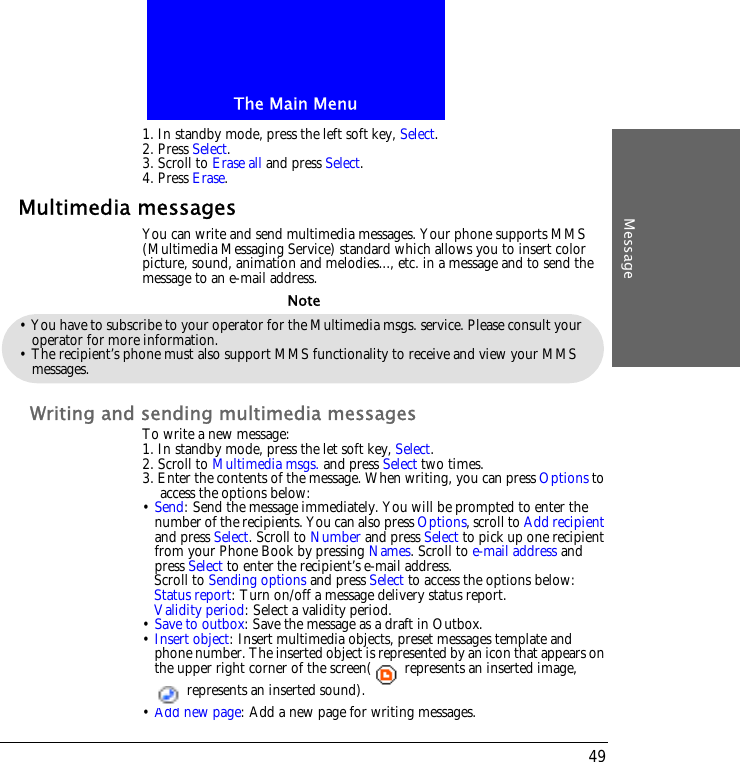

The Main MenuMessage491. In standby mode, press the left soft key, Select.2. Press Select.3. Scroll to Erase all and press Select.4. Press Erase.Multimedia messagesYou can write and send multimedia messages. Your phone supports MMS (Multimedia Messaging Service) standard which allows you to insert color picture, sound, animation and melodies..., etc. in a message and to send the message to an e-mail address.Writing and sending multimedia messagesTo write a new message:1. In standby mode, press the let soft key, Select.2. Scroll to Multimedia msgs. and press Select two times. 3. Enter the contents of the message. When writing, you can press Options to access the options below:• Send: Send the message immediately. You will be prompted to enter the number of the recipients. You can also press Options, scroll to Add recipient and press Select. Scroll to Number and press Select to pick up one recipient from your Phone Book by pressing Names. Scroll to e-mail address and press Select to enter the recipient’s e-mail address.Scroll to Sending options and press Select to access the options below:Status report: Turn on/off a message delivery status report.Validity period: Select a validity period.• Save to outbox: Save the message as a draft in Outbox. • Insert object: Insert multimedia objects, preset messages template and phone number. The inserted object is represented by an icon that appears on the upper right corner of the screen( represents an inserted image, represents an inserted sound).• Add new page: Add a new page for writing messages.• You have to subscribe to your operator for the Multimedia msgs. service. Please consult your operator for more information.• The recipient’s phone must also support MMS functionality to receive and view your MMS messages.Note

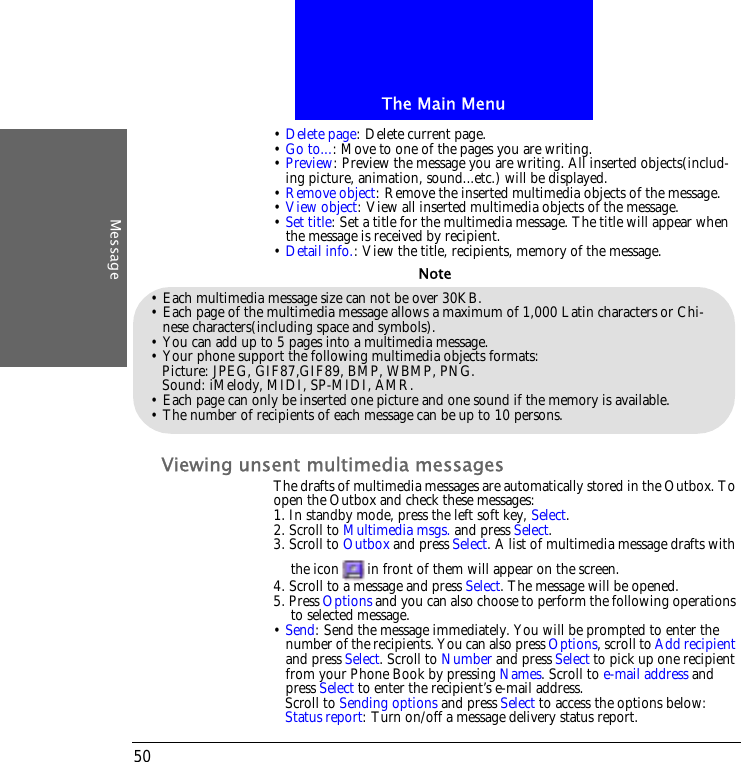

The Main MenuMessage50• Delete page: Delete current page.• Go to...: Move to one of the pages you are writing.• Preview: Preview the message you are writing. All inserted objects(includ-ing picture, animation, sound...etc.) will be displayed.• Remove object: Remove the inserted multimedia objects of the message.• View object: View all inserted multimedia objects of the message.• Set title: Set a title for the multimedia message. The title will appear when the message is received by recipient.• Detail info.: View the title, recipients, memory of the message.Viewing unsent multimedia messagesThe drafts of multimedia messages are automatically stored in the Outbox. To open the Outbox and check these messages:1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Outbox and press Select. A list of multimedia message drafts with the icon in front of them will appear on the screen.4. Scroll to a message and press Select. The message will be opened.5. Press Options and you can also choose to perform the following operations to selected message.• Send: Send the message immediately. You will be prompted to enter the number of the recipients. You can also press Options, scroll to Add recipient and press Select. Scroll to Number and press Select to pick up one recipient from your Phone Book by pressing Names. Scroll to e-mail address and press Select to enter the recipient’s e-mail address.Scroll to Sending options and press Select to access the options below:Status report: Turn on/off a message delivery status report.• Each multimedia message size can not be over 30KB.• Each page of the multimedia message allows a maximum of 1,000 Latin characters or Chi-nese characters(including space and symbols).• You can add up to 5 pages into a multimedia message.• Your phone support the following multimedia objects formats:Picture: JPEG, GIF87,GIF89, BMP, WBMP, PNG.Sound: iMelody, MIDI, SP-MIDI, AMR.• Each page can only be inserted one picture and one sound if the memory is available.• The number of recipients of each message can be up to 10 persons.Note

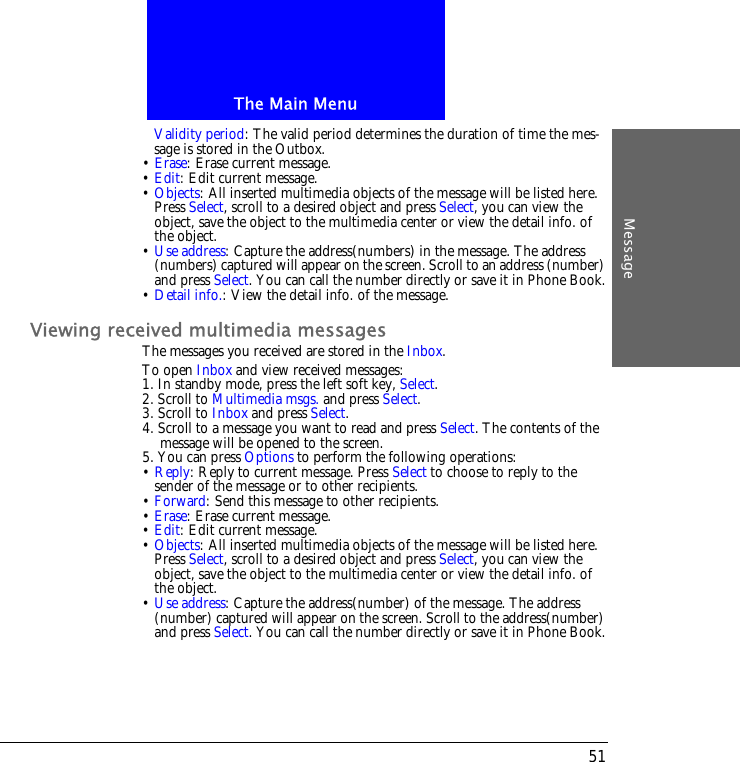

The Main MenuMessage51Validity period: The valid period determines the duration of time the mes-sage is stored in the Outbox.• Erase: Erase current message.• Edit: Edit current message.• Objects: All inserted multimedia objects of the message will be listed here. Press Select, scroll to a desired object and press Select, you can view the object, save the object to the multimedia center or view the detail info. of the object.• Use address: Capture the address(numbers) in the message. The address (numbers) captured will appear on the screen. Scroll to an address (number) and press Select. You can call the number directly or save it in Phone Book.• Detail info.: View the detail info. of the message.Viewing received multimedia messagesThe messages you received are stored in the Inbox.To open Inbox and view received messages:1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select. 3. Scroll to Inbox and press Select. 4. Scroll to a message you want to read and press Select. The contents of the message will be opened to the screen. 5. You can press Options to perform the following operations:• Reply: Reply to current message. Press Select to choose to reply to the sender of the message or to other recipients.• Forward: Send this message to other recipients.• Erase: Erase current message.• Edit: Edit current message.• Objects: All inserted multimedia objects of the message will be listed here. Press Select, scroll to a desired object and press Select, you can view the object, save the object to the multimedia center or view the detail info. of the object.• Use address: Capture the address(number) of the message. The address (number) captured will appear on the screen. Scroll to the address(number) and press Select. You can call the number directly or save it in Phone Book.

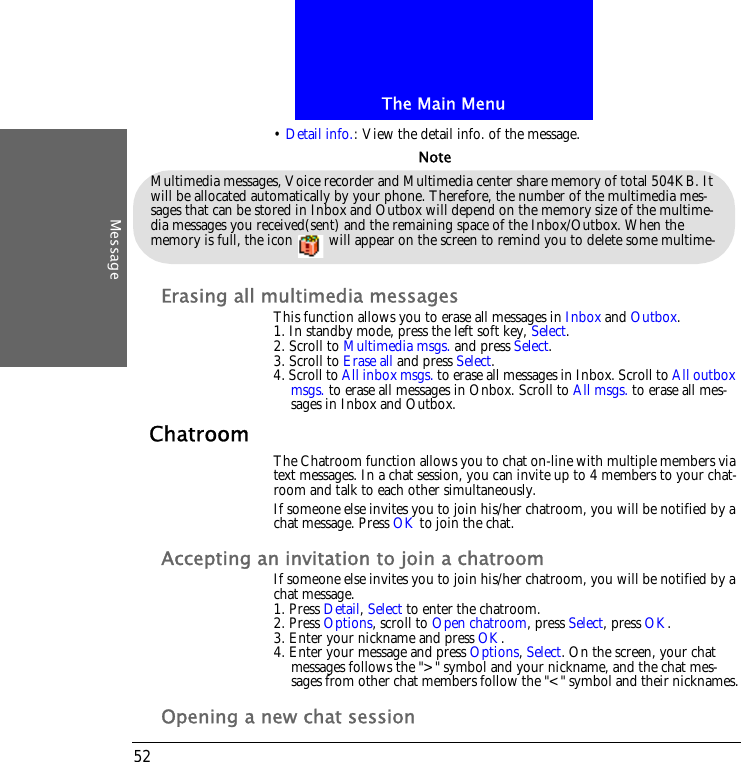

The Main MenuMessage52• Detail info.: View the detail info. of the message.Erasing all multimedia messagesThis function allows you to erase all messages in Inbox and Outbox.1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Erase all and press Select.4. Scroll to All inbox msgs. to erase all messages in Inbox. Scroll to All outbox msgs. to erase all messages in Onbox. Scroll to All msgs. to erase all mes-sages in Inbox and Outbox.ChatroomThe Chatroom function allows you to chat on-line with multiple members via text messages. In a chat session, you can invite up to 4 members to your chat-room and talk to each other simultaneously.If someone else invites you to join his/her chatroom, you will be notified by a chat message. Press OK to join the chat.Accepting an invitation to join a chatroomIf someone else invites you to join his/her chatroom, you will be notified by a chat message.1. Press Detail, Select to enter the chatroom.2. Press Options, scroll to Open chatroom, press Select, press OK.3. Enter your nickname and press OK.4. Enter your message and press Options, Select. On the screen, your chat messages follows the ">" symbol and your nickname, and the chat mes-sages from other chat members follow the "<" symbol and their nicknames.Opening a new chat sessionMultimedia messages, Voice recorder and Multimedia center share memory of total 504KB. It will be allocated automatically by your phone. Therefore, the number of the multimedia mes-sages that can be stored in Inbox and Outbox will depend on the memory size of the multime-dia messages you received(sent) and the remaining space of the Inbox/Outbox. When the memory is full, the icon will appear on the screen to remind you to delete some multime-Note

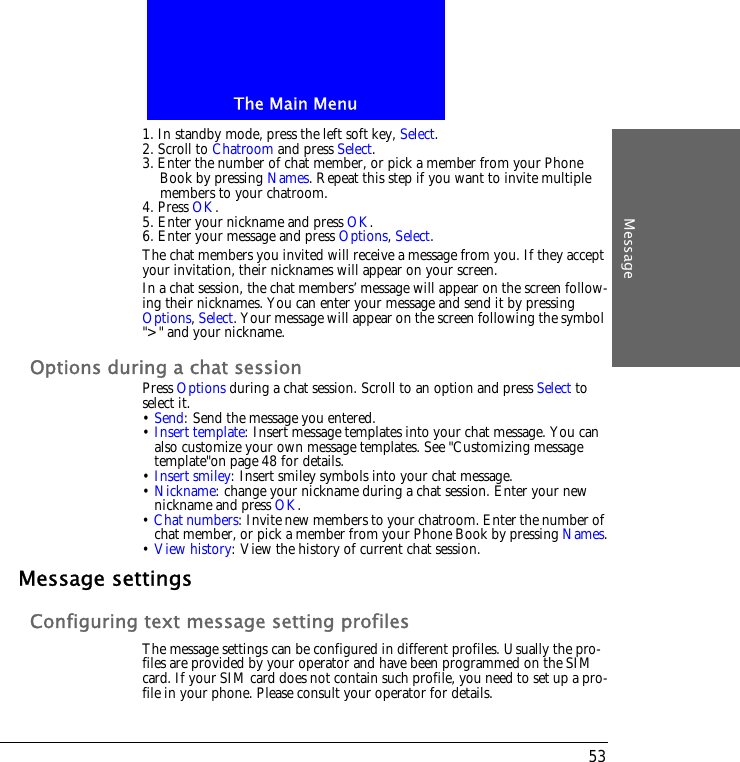

The Main MenuMessage531. In standby mode, press the left soft key, Select.2. Scroll to Chatroom and press Select.3. Enter the number of chat member, or pick a member from your Phone Book by pressing Names. Repeat this step if you want to invite multiple members to your chatroom.4. Press OK. 5. Enter your nickname and press OK.6. Enter your message and press Options, Select.The chat members you invited will receive a message from you. If they accept your invitation, their nicknames will appear on your screen. In a chat session, the chat members’ message will appear on the screen follow-ing their nicknames. You can enter your message and send it by pressing Options, Select. Your message will appear on the screen following the symbol ">" and your nickname.Options during a chat sessionPress Options during a chat session. Scroll to an option and press Select to select it.• Send: Send the message you entered.• Insert template: Insert message templates into your chat message. You can also customize your own message templates. See "Customizing message template"on page 48 for details.• Insert smiley: Insert smiley symbols into your chat message.• Nickname: change your nickname during a chat session. Enter your new nickname and press OK.• Chat numbers: Invite new members to your chatroom. Enter the number of chat member, or pick a member from your Phone Book by pressing Names.• View history: View the history of current chat session.Message settingsConfiguring text message setting profilesThe message settings can be configured in different profiles. Usually the pro-files are provided by your operator and have been programmed on the SIM card. If your SIM card does not contain such profile, you need to set up a pro-file in your phone. Please consult your operator for details.

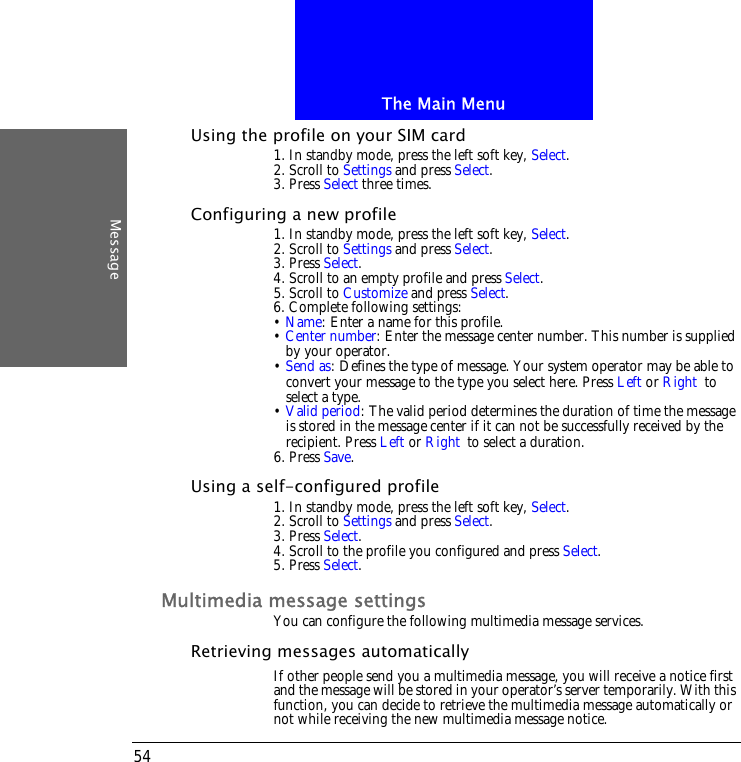

The Main MenuMessage54Using the profile on your SIM card1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Press Select three times.Configuring a new profile1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Press Select.4. Scroll to an empty profile and press Select.5. Scroll to Customize and press Select.6. Complete following settings:• Name: Enter a name for this profile.• Center number: Enter the message center number. This number is supplied by your operator.• Send as: Defines the type of message. Your system operator may be able to convert your message to the type you select here. Press Left or Right to select a type.• Valid period: The valid period determines the duration of time the message is stored in the message center if it can not be successfully received by the recipient. Press Left or Right to select a duration.6. Press Save.Using a self-configured profile1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Press Select.4. Scroll to the profile you configured and press Select.5. Press Select.Multimedia message settingsYou can configure the following multimedia message services.Retrieving messages automaticallyIf other people send you a multimedia message, you will receive a notice first and the message will be stored in your operator’s server temporarily. With this function, you can decide to retrieve the multimedia message automatically or not while receiving the new multimedia message notice.

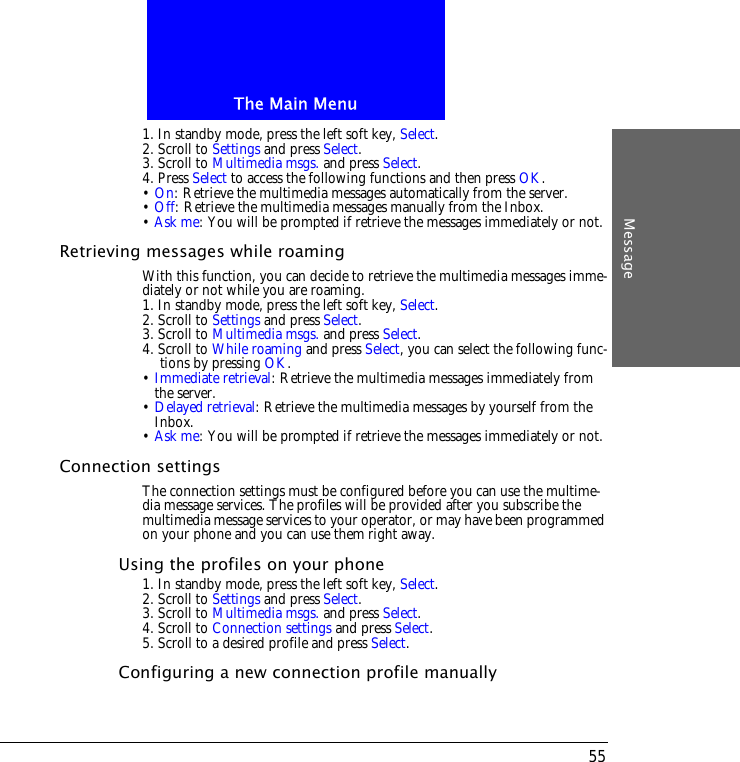

The Main MenuMessage551. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Press Select to access the following functions and then press OK.• On: Retrieve the multimedia messages automatically from the server.• Off: Retrieve the multimedia messages manually from the Inbox.• Ask me: You will be prompted if retrieve the messages immediately or not.Retrieving messages while roamingWith this function, you can decide to retrieve the multimedia messages imme-diately or not while you are roaming.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to While roaming and press Select, you can select the following func-tions by pressing OK.• Immediate retrieval: Retrieve the multimedia messages immediately from the server.• Delayed retrieval: Retrieve the multimedia messages by yourself from the Inbox.• Ask me: You will be prompted if retrieve the messages immediately or not.Connection settingsThe connection settings must be configured before you can use the multime-dia message services. The profiles will be provided after you subscribe the multimedia message services to your operator, or may have been programmed on your phone and you can use them right away.Using the profiles on your phone1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to a desired profile and press Select.Configuring a new connection profile manually

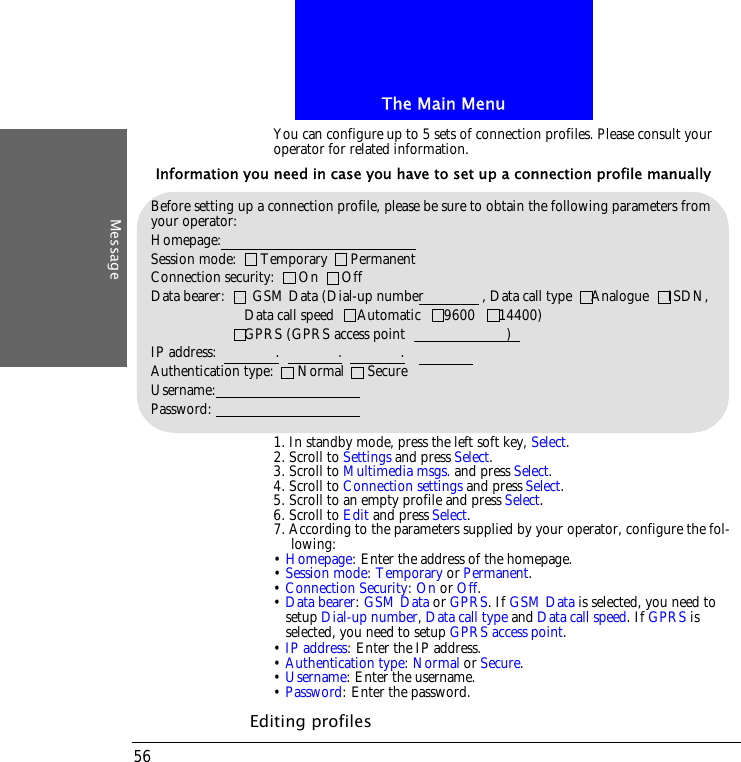

The Main MenuMessage56You can configure up to 5 sets of connection profiles. Please consult your operator for related information.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to an empty profile and press Select.6. Scroll to Edit and press Select.7. According to the parameters supplied by your operator, configure the fol-lowing:• Homepage: Enter the address of the homepage.• Session mode: Temporary or Permanent.• Connection Security: On or Off.• Data bearer: GSM Data or GPRS. If GSM Data is selected, you need to setup Dial-up number, Data call type and Data call speed. If GPRS is selected, you need to setup GPRS access point.• IP address: Enter the IP address. • Authentication type: Normal or Secure.• Username: Enter the username.• Password: Enter the password.Editing profilesBefore setting up a connection profile, please be sure to obtain the following parameters from your operator:Homepage: Session mode: Temporary PermanentConnection security: On OffData bearer: GSM Data (Dial-up number , Data call type Analogue ISDN, Data call speed Automatic 9600 14400) GPRS (GPRS access point )IP address: . . .Authentication type: Normal SecureUsername:Password:Information you need in case you have to set up a connection profile manually

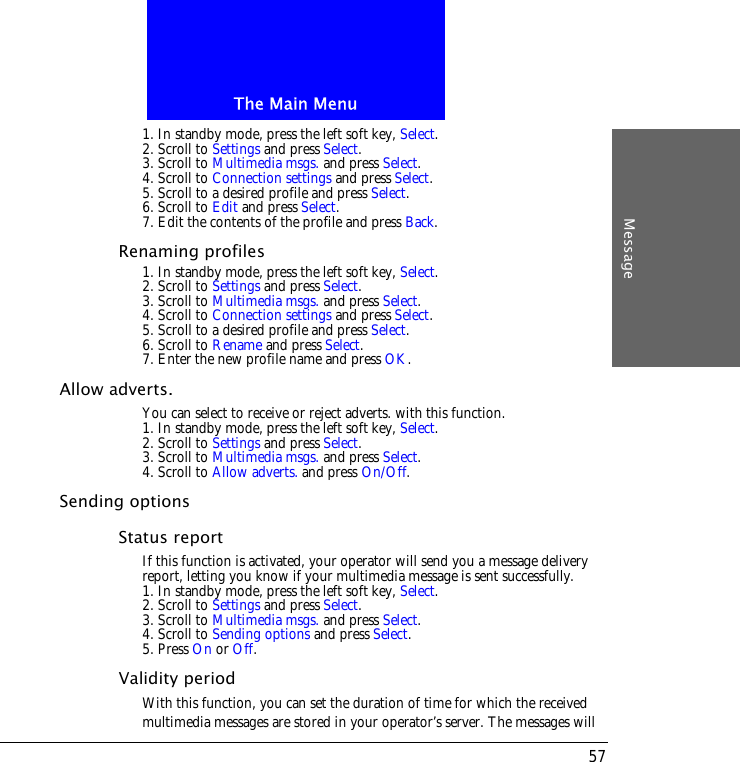

The Main MenuMessage571. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to a desired profile and press Select.6. Scroll to Edit and press Select.7. Edit the contents of the profile and press Back.Renaming profiles1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Connection settings and press Select.5. Scroll to a desired profile and press Select.6. Scroll to Rename and press Select.7. Enter the new profile name and press OK.Allow adverts.You can select to receive or reject adverts. with this function.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Allow adverts. and press On/Off.Sending optionsStatus reportIf this function is activated, your operator will send you a message delivery report, letting you know if your multimedia message is sent successfully.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Sending options and press Select.5. Press On or Off.Validity periodWith this function, you can set the duration of time for which the receivedmultimedia messages are stored in your operator’s server. The messages will
