Chia Wei Electric Co FAN51T REMOTE CONTROL User Manual EN18r 51T 2012 9 17

Chia Wei Electric Co Ltd REMOTE CONTROL EN18r 51T 2012 9 17

Users Manual

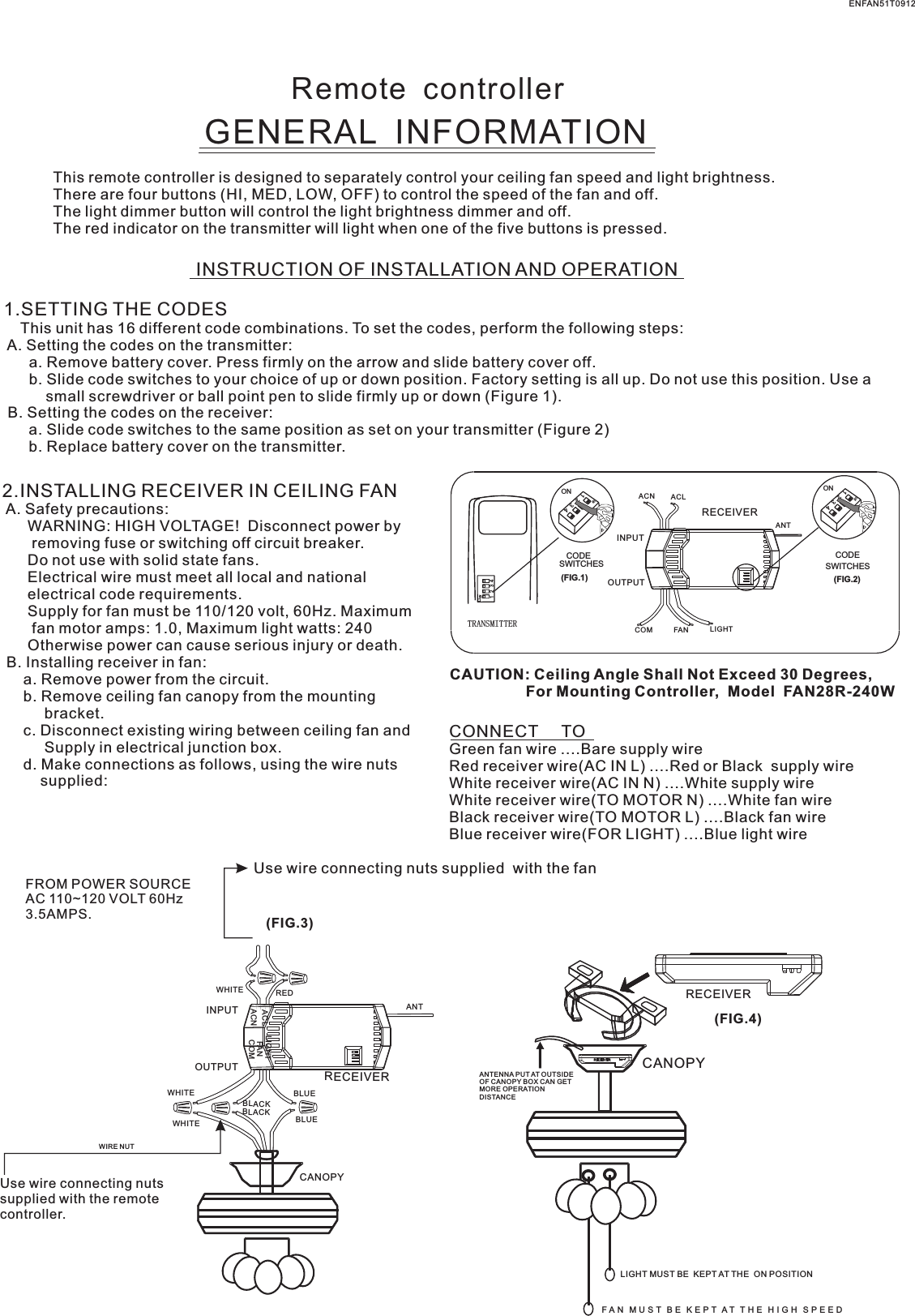

Remote controllerGENERAL INFORMATIONThis remote controller is designed to separately control your ceiling fan speed and light brightness.There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off.The light dimmer button will control the light brightness dimmer and off.The red indicator on the transmitter will light when one of the five buttons is pressed.INSTRUCTION OF INSTALLATION AND OPERATION1.SETTING THE CODES This unit has 16 different code combinations. To set the codes, perform the following steps: A. Setting the codes on the transmitter: a. Remove battery cover. Press firmly on the arrow and slide battery cover off. b. Slide code switches to your choice of up or down position. Factory setting is all up. Do not use this position. Use a small screwdriver or ball point pen to slide firmly up or down (Figure 1). B. Setting the codes on the receiver: a. Slide code switches to the same position as set on your transmitter (Figure 2) b. Replace battery cover on the transmitter.2.INSTALLING RECEIVER IN CEILING FAN A. Safety precautions: WARNING: HIGH VOLTAGE! Disconnect power by removing fuse or switching off circuit breaker. Do not use with solid state fans. Electrical wire must meet all local and national electrical code requirements. Supply for fan must be 110/120 volt, 60Hz. Maximum fan motor amps: 1.0, Maximum light watts: 240 Otherwise power can cause serious injury or death. B. Installing receiver in fan: a. Remove power from the circuit. b. Remove ceiling fan canopy from the mounting bracket. c. Disconnect existing wiring between ceiling fan and Supply in electrical junction box. d. Make connections as follows, using the wire nuts supplied: Use wire connecting nuts supplied with the fan(FIG.3)FROM POWER SOURCE AC 110~120 VOLT 60Hz 3.5AMPS.CONNECT TOGreen fan wire ....Bare supply wireRed receiver wire(AC IN L) ....Red or Black supply wireWhite receiver wire(AC IN N) ....White supply wireWhite receiver wire(TO MOTOR N) ....White fan wireBlack receiver wire(TO MOTOR L) ....Black fan wireBlue receiver wire(FOR LIGHT) ....Blue light wireCAUTION: Ceiling Angle Shall Not Exceed 30 Degrees, For Mounting Controller, Model FAN28R-240WACN ACLANTCOM FAN LIGHTTRANSMITTERCODESWITCHES(FIG.1) (FIG.2)SWITCHESCODEON1 2 3 4ON2341ONON2341ONINPUTOUTPUTENFAN51T0912RECEIVERWHITEACLACNINPUTOUTPUTREDFANLIGHTBLUEANTCANOPYBLUECOMBLACKWHITEWHITEBLACKUse wire connecting nuts supplied with the remote controller.WIRE NUTRECEIVERRECEIVERCANOPY(FIG.4)ANTENNA PUT AT OUTSIDE OF CANOPY BOX CAN GET MORE OPERATION DISTANCELIGHT MUST BE KEPT AT THE ON POSITIONF A N M U S T B E K E P T A T T H E H I G H S P E E D

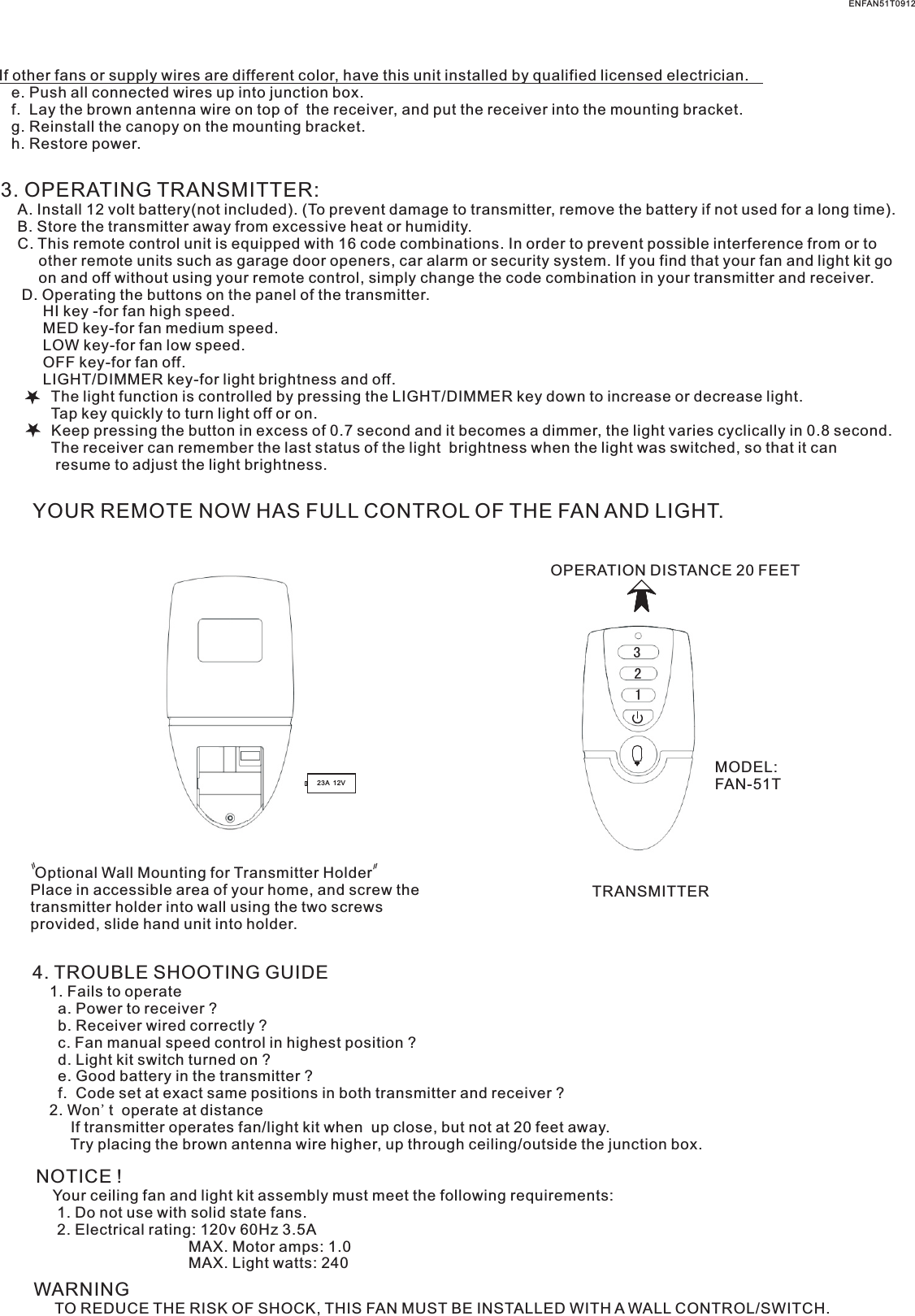

If other fans or supply wires are different color, have this unit installed by qualified licensed electrician. e. Push all connected wires up into junction box. f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket. g. Reinstall the canopy on the mounting bracket. h. Restore power.3. OPERATING TRANSMITTER: A. Install 12 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time). B. Store the transmitter away from excessive heat or humidity. C. This remote control unit is equipped with 16 code combinations. In order to prevent possible interference from or to other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go on and off without using your remote control, simply change the code combination in your transmitter and receiver. D. Operating the buttons on the panel of the transmitter. HI key -for fan high speed. MED key-for fan medium speed. LOW key-for fan low speed. OFF key-for fan off. LIGHT/DIMMER key-for light brightness and off. The light function is controlled by pressing the LIGHT/DIMMER key down to increase or decrease light. Tap key quickly to turn light off or on. Keep pressing the button in excess of 0.7 second and it becomes a dimmer, the light varies cyclically in 0.8 second. The receiver can remember the last status of the light brightness when the light was switched, so that it can resume to adjust the light brightness.YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT.OPERATION DISTANCE 20 FEETTRANSMITTERMODEL:FAN-51T Optional Wall Mounting for Transmitter HolderPlace in accessible area of your home, and screw the transmitter holder into wall using the two screws provided, slide hand unit into holder.4. TROUBLE SHOOTING GUIDE 1. Fails to operate a. Power to receiver ? b. Receiver wired correctly ? c. Fan manual speed control in highest position ? d. Light kit switch turned on ? e. Good battery in the transmitter ? f. Code set at exact same positions in both transmitter and receiver ? 2. Won't operate at distance If transmitter operates fan/light kit when up close, but not at 20 feet away. Try placing the brown antenna wire higher, up through ceiling/outside the junction box.NOTICE ! Your ceiling fan and light kit assembly must meet the following requirements: 1. Do not use with solid state fans. 2. Electrical rating: 120v 60Hz 3.5A MAX. Motor amps: 1.0 MAX. Light watts: 240WARNING TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH. ENFAN51T091232123A 12V
3
