Chiayo Electronics Co DH-2400 2.4G Digital Wireless Handheld Microphone User Manual dh2400x
Chiayo Electronics Co Ltd 2.4G Digital Wireless Handheld Microphone dh2400x
Users Manual
06 99
IR RF AF SYNCCHANNEL 1
MIN MAX MIN MAXIR RF AF SYNCCHANNEL 2
NDR-3120
DIVERSITY RECEIVER

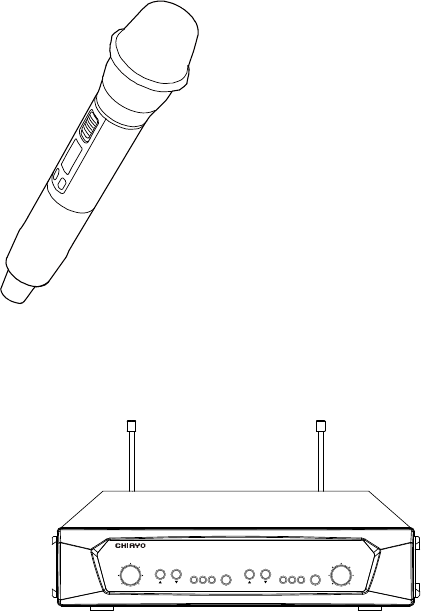

DH-2400
Digital Handheld Microphone

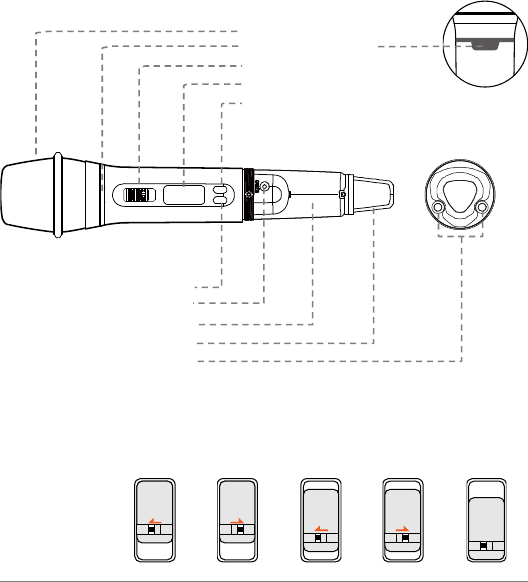

Parts and functions
3-STEP power switch
To prevent other user from turning off the power, you may slide this switch
to the right to lock the microphone on stand-by or mute status. Slide to the
left to unlock.
Power status ON ON MUTE MUTE OFF
Lock status unlocked locked unlocked locked can’t be
locked
Cartridge
Battery power LED
Power switch
LCD
Setting button
Menu button
Channel synchronizing button
Battery compartmen
t
Color cap
Charging port

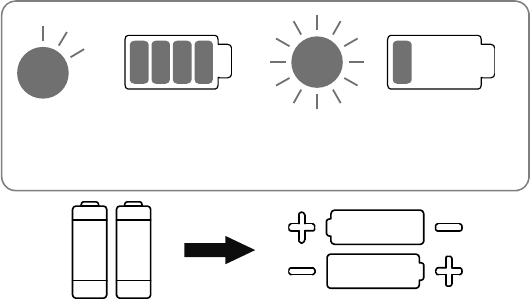

Battery installation & indicator
When the transmitter is switched
ON, a blue LED will blink once to
denote the batteries installed are
in good condition.
If the LED remains illuminated, it
means the batteries are weak and
require replacement.
This transmitter requires 2 x AA
batteries to operate.
To install, remove the battery cover
and slide the batteries into the
battery compartment & replace the
battery cover.
Note: Batteries contain a corrosive acid that may leak and damage the
transmitter when stored for a long period. Batteries should be removed
from the transmitter before storing without use for more than 4 weeks.

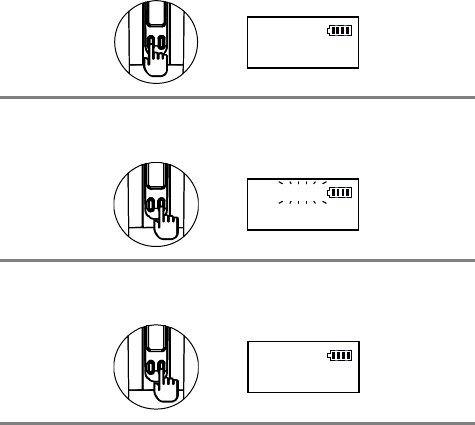

Changing CHANNEL / FREQUENCY
1Press-release MENU button until the CHANNEL-FREQUENCY
page appears.
2Press and hold SET button until the channel number flashes to
denote readiness for setting.
3Press-release SET (UP) or MENU (DOWN) button to select a
new channel.
4After a channel is chosen, wait about 3 seconds to store the
setting.
MHz
CH:079
2480
MHz
CH:079
2480
MHz
CH:076
2477

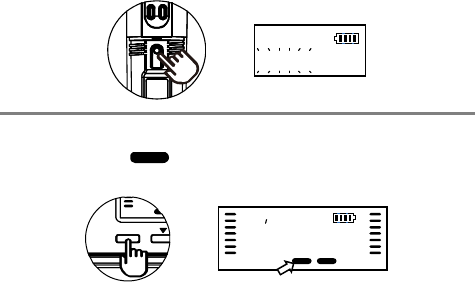

Channel synchronizing of the receiver and transmitter
1Unscrew the microphone’s lower housing and then press and
hold the synchronizing button until LINK flashes on the LCD.
2Press and press and hold the receiver’s SYNC button until the
frequency icon appears. After successful channel
synchronizing, this icon will disappear automatically.
CH:000
LINK
FREQ
SYNC
CH
FREQ CH.
RF AF
MHz
079
2480

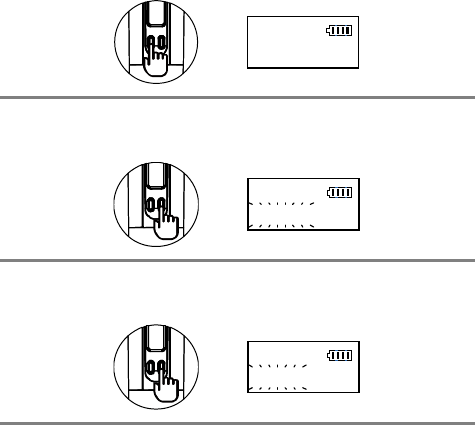

Battery type setting
1Press-release MENU button until the CHANNEL-BATTERY
TYPE page appears.
2Press and hold SET button until NIMH or AKLN flashes to
denote readiness for setting.
3Press-release SET or MENU button to select either NiMH
(rechargeable battery) or AKLN (alkaline battery).
4After a battery type is chosen, wait about 3 seconds to store the
setting.
CH:076
AKLN
CH:076
AKLN
CH:076
NI MH

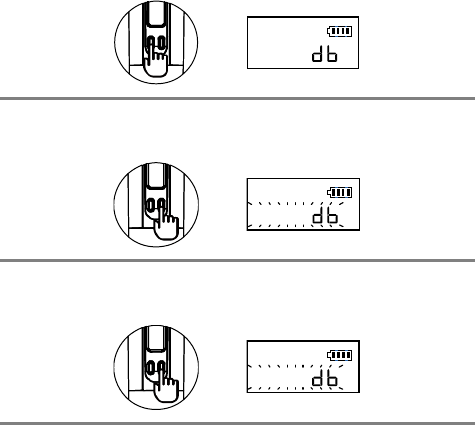

RF power setting
IMPORTANT: Lower output power will reduce the RF transmission
distance and higher output power will extend the possible RF transmission
distance. However, higher output power places slightly more load on the
battery and will reduce operating duration faster than lower output power.
1Press-release MENU button until the CHANNEL-RF POWER
page appears.
2Press and hold SET button until the RF power figure flashes to
denote readiness for setting.
3Press-release SET (UP) or MENU (DOWN) button to choose an
output level from 0db to 20db.
4After an output level is chosen, wait about 3 seconds to store
the setting.
CH:076
RF0 8
CH:076
RF0 8
CH:076
RF 12
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
0.5 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The antennas used for this transmitter must be installed to provide a separation distance of at
least 0.5 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Frequency: 2400~2483.5MHz Maximal power: 9.14mW
CE declaration info: www.chiayo.com.tw/declaration.html
