Chiayo Electronics Co Ltd Wireless Beltpack Transmitter Users Manual
Users Manual
SDR-6200 IrDA
SDR-6100 IrDA
UHF 2-Way Synchronizing True Diversity / Diversity Wireless Microphone System
ISO 9001
ISO 14001
OHSAS 18001
GREEN PRODUCT
Operation manual
IS O
140 01
RE GIS TER ED
O H S A S
180 01
RE GIS TER ED
-1-
Thank you for choosing this wireless microphone system!
Our products are designed to last and for user friendly operation. Each system consists of:
1. a receiver
2. a handheld or belt-pack transmitter
3. a pair of antennas
4. a switching adaptor
5. an operation manual
For more details, please take a few moments to read this operating manual to have a thorough
understanding of the function and operation of both transmitter and receiver.

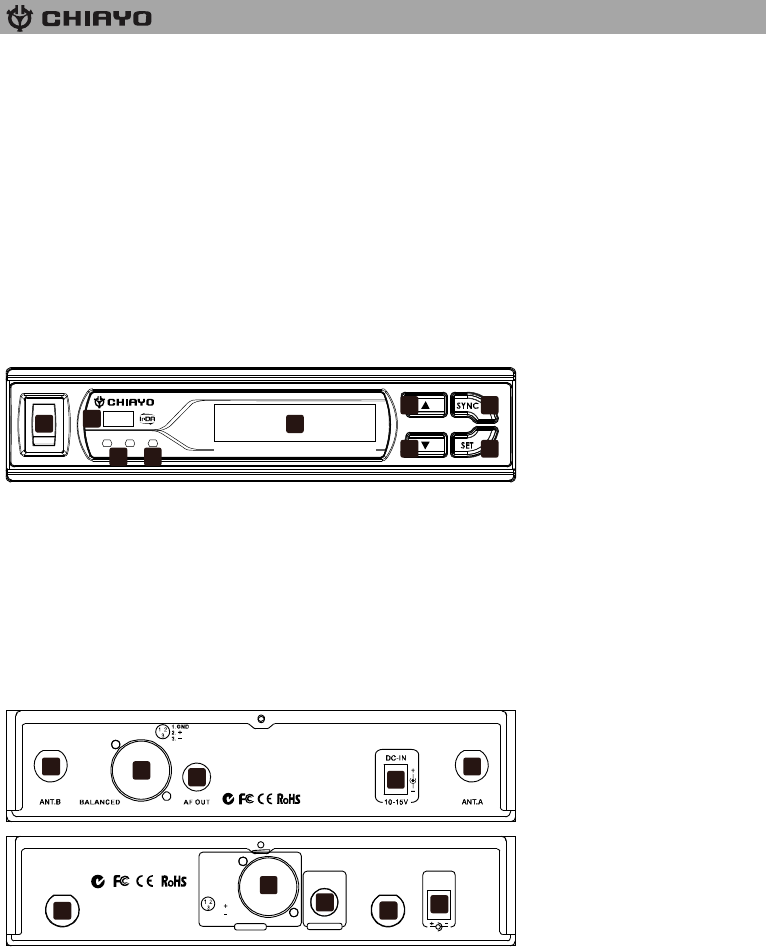

Parts and functions of SDR-6200 IrDA/SDR-6100 IrDA receiver
Front panel
1. Power switch
2. IR sensor area
3. Diversity indicator
4. Audio signal indicator
5. LCD display
6. UP button
7. DOWN button
8. IrDA synchronization button
9. SET button
Rear panel
SDR-6200 IrDA
SDR-6100 IrDA
10. Antenna B socket (TNC)
11. Balanced audio output
12. Unbalanced audio output
13. Antenna A socket (TNC)
14. DC in
POWER
D IV E R S IT Y
A B
A U D IO SDR-6100 IrDA UHF 2-WAY SYNC. DIVERSITYRECEIVER
12
3 4
56
7
8
9
10 11 12 13
14
LINE OUT
UNBALANCEDBALANCED
DC IN
DC IN
12V
12V
ANT.AANT.B
1.GND
2.
3.
MIC O U T
10
11
12 13 14
ISO 9001｜ISO 14001｜OHSAS 18001
-2-

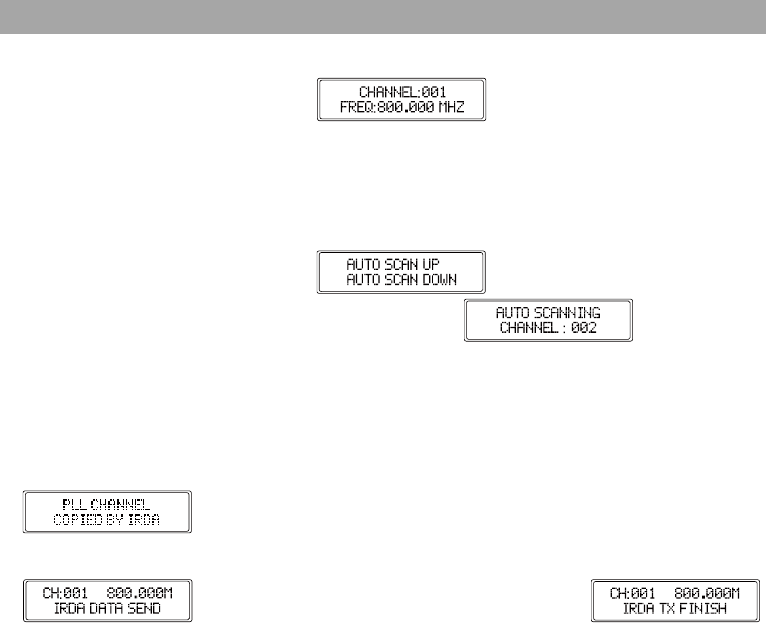

Changing CHANNEL / FREQUENCY
First, press "SET" till the display shows .
Then press UP or DOWN to select a new channel. As the channel changes, the frequency
changes accordingly, too. After the setting is made, the data will be automatically saved.
CHANNEL scanning
For an interference- free operation, a cleaner channel might be necessary if the current one
receives too much interference. Before scanning, the transmitter must be switched off.
First, press "SET" till the display shows .
Then press UP or DOWN to go to the next clean channel.
After the setting is made, the data will be automatically saved.
CHANNEL SYNCHRONIZING of the receiver and transmitter
a. Limit the distance between the receiver and transmitter within 30cm.
b. Align both infrared areas
c. To change the receiver’s channel, please press the synchronizing button of the transmitter.
The transmitter's LED will grow to imply synchronizing signal transmitted and
will appear on the receiver's LCD, which means the receiver has been
successfully synchronized.
d. To change the transmitters channel, please press the SYNC button of the receiver and
will appear on the receiver’s display, followed by
indicating data transferred.
-3-

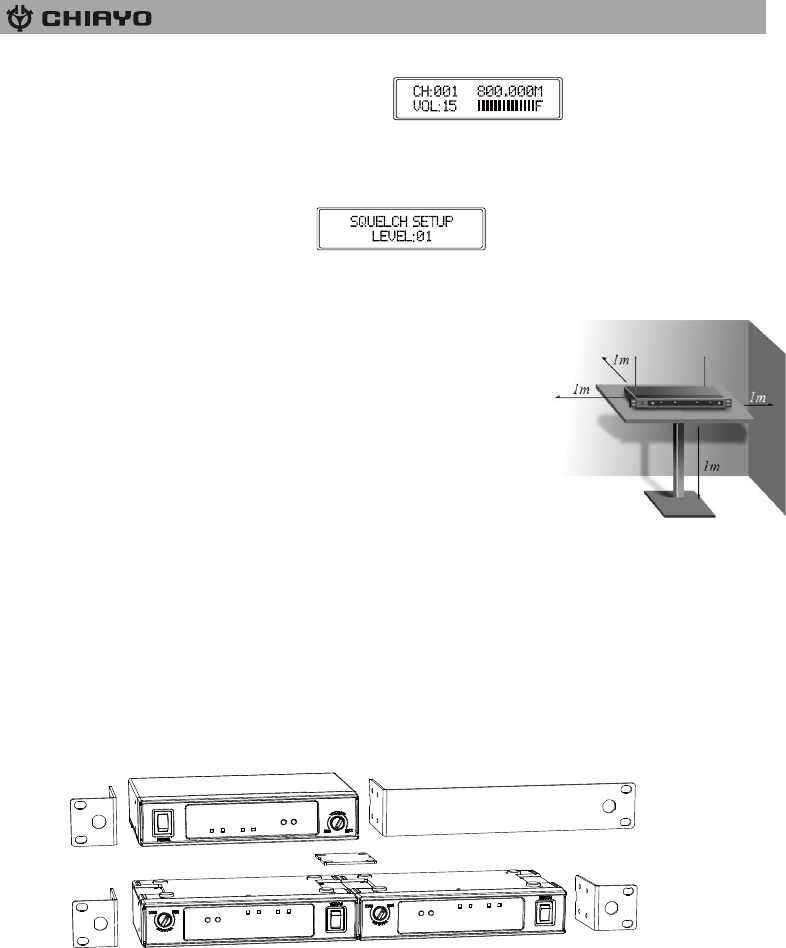

Adjusting VOLUME level
The setting can be made right on the main menu .
Press UP or DOWN to choose a new level. After the setting is made, the data will be
automatically saved.
Adjusting SQUELCH level
First, press "SET" till the display shows .
Then press UP or DOWN to choose a new level. After the setting is made, the data will be
automatically saved.
Receiver installation
For best operation, the receiver should be at least 1m above the
ground and 1m away from a wall or metal surface to minimize
reflections. The transmitter should also be at least 1m away from
a wall or metal surface to minimize reflections. The transmitter
should also be at least 1m away from the receiver. Keep
antennas away from noise source such as motors, automobiles,
neon light as well as large metal objects.
Audio output connection
There are two audio outputs on the back of the receiver, Mic-level balanced and Line-level
unbalanced. Use shielded audio cable for the connection between the receiver and the
amplifier/mixer. If the amplifier/mixer has a 1/4"(6.3mm) phone jack, connect a cable from the
1/4"(6.3mm) unbalanced audio output from the receiver to the amplifier/mixer. If the
amplifier/mixer has an XLR input, connect a cable from the balanced XLR audio output from
the receiver to the amplifier/mixer input.
Rack mounting
The receiver can be cabinet-mounted by either one or two units. If only one receiver is to be
mounted, an optional kit is available and it's installed as shown in Fig 1. If two receivers are to
be mounted, they can be assembled by another kit and installed as shown in Fig 2.
(Fig 1)
(Fig 2)
ISO 9001｜ISO 14001｜OHSAS 18001
-4-
UHF handheld transmitters（SQ-6100 IrDA(R)｜SQ-6100 IrDA｜SQ-2100 IrDA｜SQ-1100 IrDA）
→SQ-6100 IrDA(R)｜SQ-6100 IrDA
→SQ-2100 IrDA
→SQ-1100 IrDA

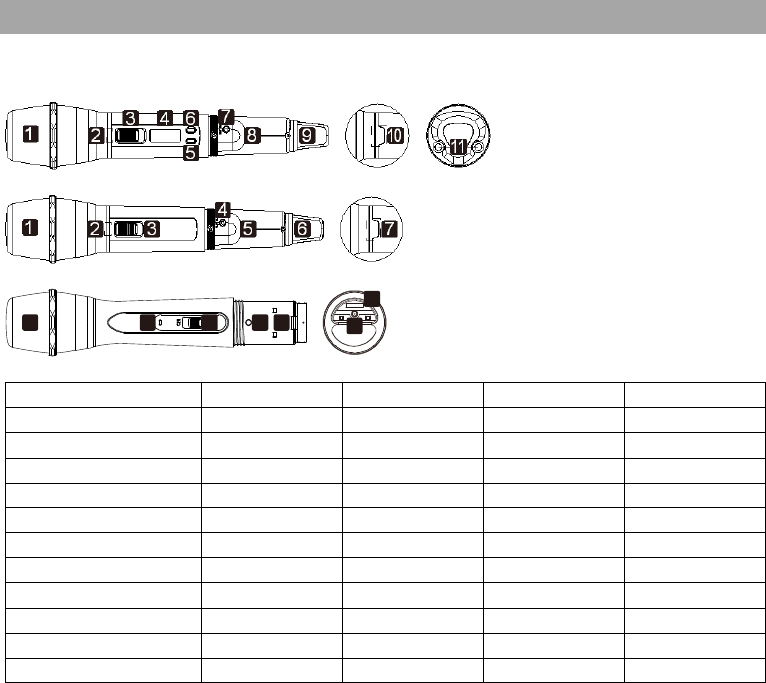

Parts and functions
SQ-6100 IrDA(R)
SQ-6100 IrDA
SQ-2100 IrDA
SQ-1100 IrDA
Cartridge
1
1
1
1
Battery power LED
2
2
2
2
Power switch
3
3
3
3
LCD
4
4
-
-
Menu button
5
5
-
-
Setting button
6
6
-
-
IrDA synchronizing button
7
7
4
4
Battery compartment
8
8
5
5
Color cap
9
9
6
-
IrDA sensor area
10
10
7
6
Charging port
11
-
-
7
Battery installation & indicator
This transmitter requires 2 x AA batteries to operate.
To install, remove the battery cover and slide the batteries into the battery compartment &
replace the battery cover.
Note: Batteries contain a corrosive acid that may leak and damage the transmitter when stored
for a long period. Batteries should be removed from the transmitter before storing without use
for more than 4 weeks.
When the transmitter is switched ON, a red LED will blink once to indicate the batteries
installed are in good condition. If the LED remains illuminated, it means the batteries are
weak and require replacement.
1 2 3 7
4 5
6
-5-
Channel synchronizing of the receiver and transmitter
1. To achieve a trouble-free synchronization, please limit the distance between the receiver and
transmitter to within 30cm.
2. Align both sensor areas
3. To change the receiver’s channel, please press the synchronizing button of the transmitter.
The transmitter will transmit synchronizing signal to the receiver and change its channel.
4. To change the transmitter’s channel, please press the synchronizing button of the receiver.
The receiver will transmit synchronizing signal to the transmitter and change its channel.
Other settings（SQ-6100 IrDA(R)｜SQ-6100 IrDA）

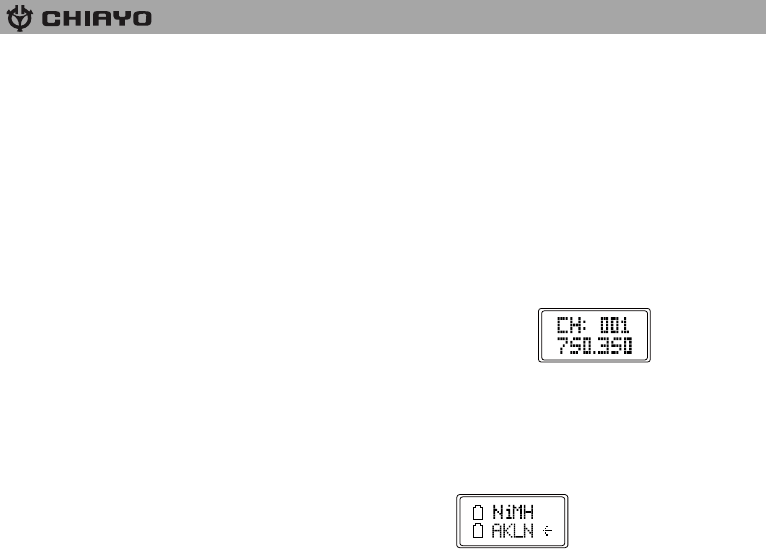

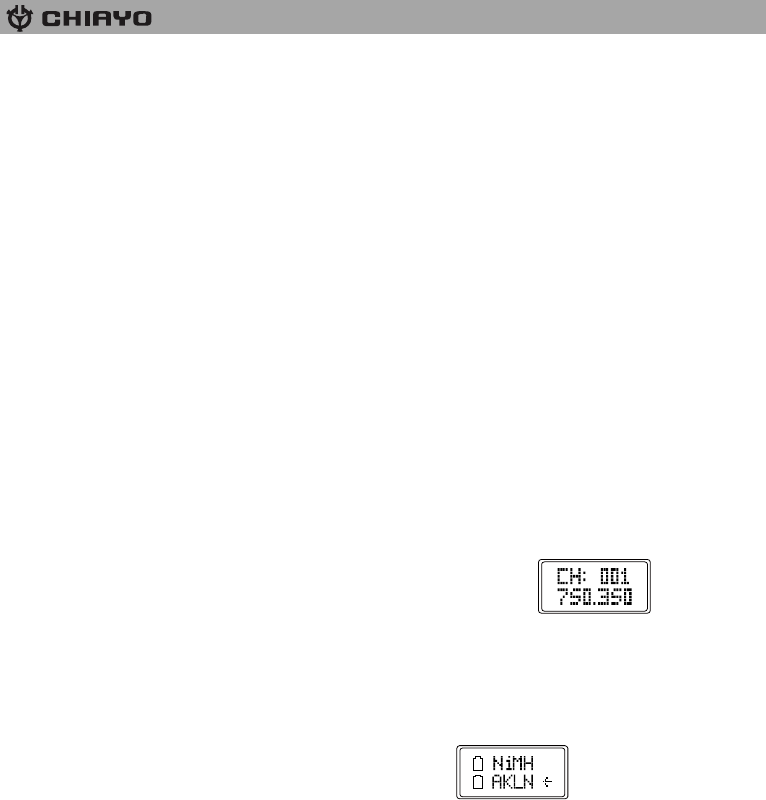

1. Channel setting
Use MENU button to go to the CHANNEL｜FREQUENCY page.︰
After pressing the SET button for 3 seconds, the cursor will flash to allow changes to be made.
Pressing SET / MENU buttons will increase / decrease the channel number. The corresponding
frequency will change accordingly. 3 seconds after selecting a channel, it will be automatically
saved.
2. Battery type setting
Use MENU button to go to the BATTERY TYPE page.︰
After pressing the SET button for 3 seconds, the cursor will flash to allow changes to be made.
Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery). 3
seconds after selecting a battery type, it will be automatically saved.
Remark: NiMH battery must be selected when rechargeable battery is being used. Never
select AKLN (alkaline) when transmitter is intended for charging as alkaline battery isn’t
rechargeable. Wrong battery selection will result in battery sensing electronics to display wrong
and misleading status information.
ISO 9001｜ISO 14001｜OHSAS 18001
-6-
UHF belt-pack transmitters（SM-7100 IrDA｜SM-6100 IrDA｜SM-2100 IrDA｜SM-1100 IrDA）
SM-7100 IrDA｜SM-6100 IrDA｜SM-2100 IrDA
SM-1100 IrDA

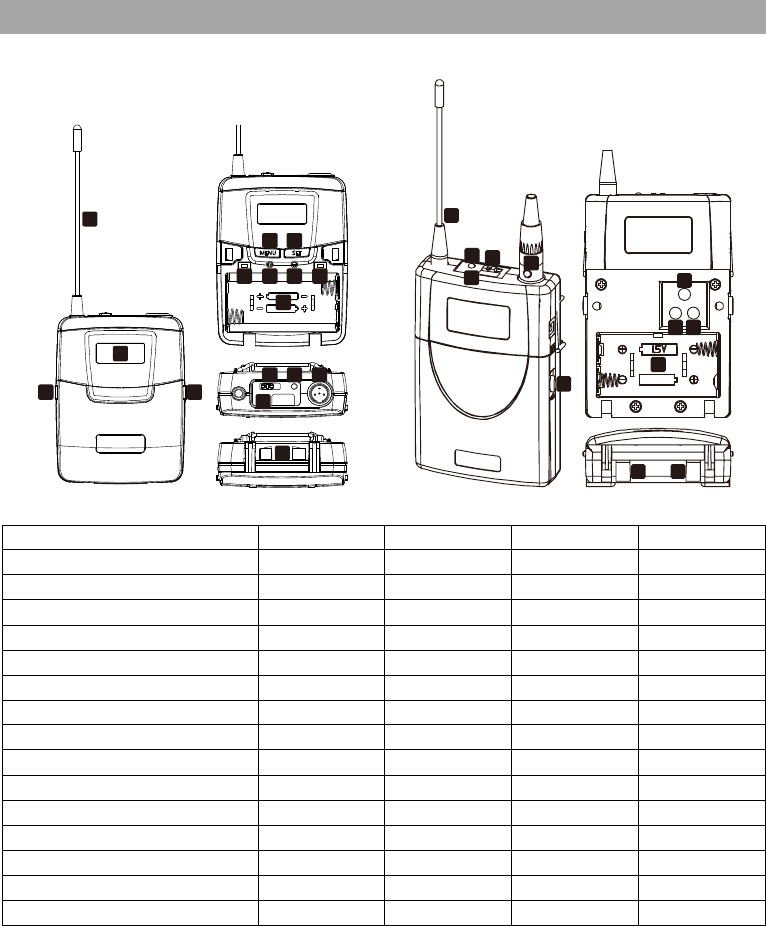

Parts and functions
SM-7100 IrDA
SM-6100 IrDA
SM-2100 IrDA
SM-1100 IrDA
Antenna
1
1
1
1
LCD
2
2
-
-
Cover release button
3
3
3
6
Power switch
4
11
11
3
IrDA synchronizing button
5
5
5
7
Menu button
6
6
6
-
Setting button
7
7
7
-
High-impedance gain control (GT)
8
8
8
8
Low-impedance gain control (MT)
9
9
9
9
Battery compartment
10
10
10
10
Audio mute switch
11
-
-
-
Battery power LED
12
12
12
2
IrDA sensor area
13
13
13
4
Mini XLR connector
14
14
14
5
Charging contacts
15
15
15
11
Battery installation & indicator
This belt-pack requires 2 x AA batteries to operate.
To install, open the battery cover using the cover release buttons and insert the batteries into
the battery compartment.
1
2
3 3
9
7
84 5
6
10
11 12
13
14
15
1
23
45
6
7
8
10
11 11
9
-7-
Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored
for a long period. Batteries should be removed from the belt-pack before storing without use for
more than 4 weeks.
When the transmitter is switched ON, the battery power LED (red) will blink once to indicate the
batteries installed are in good condition. If the LED remains illuminated the batteries have
expired and require replacement.
Channel synchronizing of the receiver and transmitter
1. To achieve a trouble-free synchronization, please limit the distance between the receiver and
transmitter to within 30cm.
2. Align both sensor areas
3. To change the receiver’s channel, please press the synchronizing button of the transmitter.
The transmitter will transmit synchronizing signal to the receiver and change its channel.
4. To change the transmitter’s channel, please press the synchronizing button of the receiver.
The receiver will transmit synchronizing signal to the transmitter and change its channel.
GAIN setting (GT｜MT)
Gain control enables the user to set different output levels. GT is for the use of instrument with
high impedance, such as guitar while MT is for the use of low impedance such as lapel or
headset microphones.
Other settings（SM-7100 IrDA｜SM-6100 IrDA）
1. Channel setting
Use MENU button to go to the CHANNEL｜FREQUENCY page.︰
After pressing the SET button for 3 seconds, the cursor will flash to allow changes to be made.
Pressing SET / MENU buttons will increase / decrease the channel number. The corresponding
frequency will change accordingly. 3 seconds after selecting a channel, it will be automatically
saved.
2. Battery type setting
Use MENU button to go to the BATTERY TYPE page.︰
After pressing the SET button for 3 seconds, the cursor will flash to allow changes to be made.
Press SET button to select either NiMH (rechargeable battery) or AKLN (alkaline battery). 3
seconds after selecting a battery type, it will be automatically saved.
Remark: NiMH battery must be selected when rechargeable battery is being used. Never
select AKLN (alkaline) when transmitter is intended for charging as alkaline battery isn’t
rechargeable. Wrong battery selection will result in battery sensing electronics to display wrong
and misleading status information.
ISO 9001｜ISO 14001｜OHSAS 18001
-8-
-9-
ISO 9001｜ISO 14001｜OHSAS 18001
-10-
FCC Caution
To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
FCC Radiation Exposure Statement
This device complies with Part 74 & 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
