Chic Technology R029XXX Wireless Keyboard User Manual PMU CKM00061
Chic Technology Corporation Wireless Keyboard PMU CKM00061
MANUAL
14 Function Keys
(Directly provided the assigned or usual applications.)
LED Indicator
(Specially designed for low-battery notice.)
Other Notice
% This equipment is intended for use in the following countries.
18 European Countries: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland,
Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and
United Kingdom.
% The LED indicator or the scroll wheel on the mouse will light while the mouse is low battery.
Please change or recharge the batteries immediately.
% Press any key to wake up the keyboard while it is in the sleeping mode.
% Press any key to wake up the mouse while it is in the sleeping mode.
% If the keyboard or the mouse does not work properly, please make sure the PS/2 port of the
computer is valid. Besides, check the connecter or the cable of the receiver if there is broken or
tangled.
Office Wireless Keyboard Combo
with Wireless Optical Mouse
User's Quick Guide
a 2003 All Rights Reserved. The copyright is the property of its respective owners.
Notice:
Federal Communications Commission (FCC) requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the users authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Congratulations on your purchase of the Office Wireless Keyboard Combo. Please
carefully read the User's Quick Guide to learn about the installation and the
powerful functions of your new Office Wireless Keyboard and Wireless Optical
Mouse.
Contents of Package
4 Office Wireless Keyboard
4 Wireless Optical Mouse
4 Keyboard Battery: AA * 2
4 Mouse Battery: AAA * 2 or AA * 2
4 Receiver (PS/2)
4 Driver CD-ROM
4 User's Quick Guide
Install Hardware
Notice:
- The locations of the channel switch and the link button may be different due to various keyboard
shapes.
- Some models may be designed as one-channel version, which will not have a channel switch,
please skip the channel-setting step.
% Install the Receiver with PS/2 Connectors
1. Please turn off your PC.
2. Plug the mouse PS/2 connector on the receiver into the PS/2 mouse port of the PC.
3. Plug the keyboard PS/2 connector on the receiver into the PS/2 keyboard port of the PC.
PMU-CKM00061 / Made in China
Open the Help file (if available) for the active window.
Create a new document in programs that support the command
* Notice for the keyboard versions of Brazil, Portugal and
Spain: The function key "New" is defined as "Bold".
Reply to the e-mail in the active window.
Reply to all the e-mails in the active window.
Directly access to the Euro sign.
Forward the e-mail in the active window.
Send the e-mail in the active window.
Print the document in the active window.
F1
F2
F9
F10
F11
F12
Print Screen
Num Key
Help
New
Reply
Reply All
Forward
Send
Print
Euro Sign
Open a document in programs that support this command.
Save the file in the active window.
Search for and replace the specified text and formatting.
Star the spell-checking program in the active document if the
document's program provides this feature.
Cancel the previous action.
Cancel the previous undo.
* The function key "Redo" applied under Excel: "Redo" can be enabled after
you highlight and copy the content of a cell.
F3
F4
F5
F6
F7
F8
Open
Save
Replace
Spell
Undo
Redo
Function Key Descriptions
% The optical technology can precisely detect the mouse motion on most surfaces. Please avoid
using the optical mouse on any reflective, transparent, metallic or complex-pattern surface.
% If the product is malfunction, please change or recharge the batteries, or move the receiver away
from the computer and the monitor.
% Please avoid using the keyboard and the mouse under direct sunlight, extreme hot, cold or dusty
environment.
% Please view the file "Readme.doc" in the driver CD-ROM for more detailed introduction of hot
keys and keyboard operation.
Trouble Shooting for Office Keyboard
Notice:
- Please refer to the Driver CD-ROM for detailed answers of the keyboard questions as below.
- Please contact your local distributor or dealer for any keyboard questions that do not mention
below.
% The Office Keyboard Software cannot work properly.
% Add, Remove or Re-install the Office Keyboard Software.
% Other application software cannot be installed properly.
% The commands of Onscreen Display response too slow.
% "Pre-track" and "Next-track" do not stop.
% VCD, DVD, MP3 or Video Player cannot be started.
% VCD tracks or MPEG files cannot be played.
% The default shortcut keys by Microsoft Windows cannot be assigned.
% "Word", "Excel", "PowerPoint" or "Calendar" hot key cannot work.
% "Log Off " key cannot work.
% The embedded Office keys do not work.
% The embedded "Send" key does not work.
% How to disable embedded Office key functions?
% The "Task Pane" key can not work.
% The target items cannot be unmarked.
% " " Euro Sign key cannot work.
% The "Num Lock" key cannot wor
% The keyboard cannot work properly.
Office Keyboard Patents
- Internal Hot Keys: China ZL97243196.9, Germany 29706281.6, USA and Taiwan Patent Pending
- Auxiliary device for editing document: China ZL01219701.7, USA 09/838223 Pending, Thailand 0203000218 Pending, Germany
20106926.1, Taiwan, UK and Japan Patent Pending
- Edit & Clipboard Document Auxiliary Device for Software: China 02116144.5 Pending, 02231501.2 Pending, Taiwan Patent Pending
- Office Purpose Keyboard: Germany 20113043.2, USA 09/917690 Pending, UK 0127691.4 Pending, China ZL01227259.0, Taiwan
9020598 Pending, Japan Pending
- Multimedia Pointing Device: Germany 20119955.5 Pending, USA 90/860862 Pending, Thailand 0203000217 Pending, China
ZL01207586.8, Taiwan and Japan Pending
- Euro Sign: Germany 20202657.4 Pending, China 01279547.X Pending, USA, Taiwan and Japan Pending
1876
% Select the Keyboard Channel
Notice:
- Please skip this section if the
keyboard is the one-channel version.
1. The two-channel switch is located on
the back of the keyboard. Select
Channel "1" or "2".
2. Put the batteries into the battery case.
% Select the Mouse Channel
Notice:
- Please skip this section if the mouse is the one-channel version.
1. The two-channel switch is located at the back of the mouse. Select
Channel "1" or "2".
2. Put the batteries into the battery
case.
% Link the Wireless Keyboard and the
Wireless Mouse with the Receiver
Notice:
- Please link the keyboard and the
mouse within the effective distance.
1. Please turn on your PC. The LED indicator on the receiver will light.
2. Press the ID Link Button on the receiver and the LED indicator will blink. The receiver is ready to
automatically link with the keyboard and the mouse.
3. Press the ID Link Buttons of the keyboard and the mouse.
4. The LED indicator on the receiver is light while you successfully finish the keyboard and the mouse
linkage.
5. The LED indicator of the receiver will blink while you use the keyboard or the mouse.
6. If you need to re-link the mouse, the keyboard or after changing the batteries, please repeat the steps
2~4.
7. If the selected channel is interfered by other wireless-mouse or keyboard users nearby, please
change the Link ID by re-linkage or select the other channel immediately.
8. There are 256 changeable IDs for each channel.
Install Mouse Driver
Notice:
- The driver supports Windows 95/ 98/ NT/ 2000/ ME and XP.
- The driver may be automatically installed.
- The CD-ROM contents the drivers of the keyboard and the
mouse. Please select to install the mouse driver at the pop-
up window.
1. Remove any existing mouse drivers completely.
2. Insert the driver CD-ROM to your PC If the
driver CD-ROM does not be automatically
installed, please double click "Setup.exe" to install the
mouse driver.
3. Restart the PC The Mouse Setting icon will appear on the task bar of Windows Double click
the icon to set the mouse programmable button functions.
Install keyboard Driver
Notice:
- The driver supports Windows 95/ 98/ NT/ 2000/ ME and XP.
- The driver may be automatically installed.
- The CD-ROM contents the drivers of the keyboard and the mouse. Please select to install the
keyboard driver at the pop-up window.
1. Remove any existing keyboard drivers
completely.
2. Insert the driver CD-ROM to your PC.
3. If the driver does not be automatically
installed, please open the folder "Keyboard",
double click the file "Setup.exe" and then follow
the setup instructions to complete the driver
installation.
4. Restart the PC A Keyboard Setting
icon will appear on the task bar of
Windows Double click the icon to set
the programmable hot keys.
5. The application software "Office Keyboard" is executed and you can use the keyboard to its full
extent.
6. There are 3 icons shown on the taskbar while "Scroll Lock", "Caps Lock" and "Num Lock" are
enabled.
Introduction of Hot Keys & Scroll Wheel
31 useful hot keys, one scroll wheel and 14 function keys provide a time saving way to access Office
applications, Web/ Internet shortcuts and PC/ multimedia control.
Office Hot Keys
(One-touch access to launch Word, Excel, PowerPoint and Calendar)
Notice:
- The keys of Word, Excel, PowerPoint and Calendar require a driver support under any Windows
operation system.
PC Hot Keys
(Function Lock, Calculator, My Computer, Log Off, Power Off and PC Sleep)
- Press Function Lock to use the standard F functional keys.
- Press Log Off to close all the programs, to disconnect the computer from network and to prepare the
computer for the next user.
Notice:
- The key of Calculator requires a driver support under any Windows operation system. "Sleep" hot
key function is available if your system supports power management (ACPI) and all the
peripherals (e.g. VGA, Sound card ) are compatible with the power management.
Open Microsoft Word
This hot key can be configured to another application for user's need.
Word
Excel
Power Point
Calendar Open the Calendar of Microsoft Outlook
This hot key can be configured to another application for user's need.
Open Microsoft Excel
This hot key can be configured to another application for user's need.
Open Microsoft PowerPoint
This hot key can be configured to another application for user's need.
Web & Internet Hot Keys
(Web Page Backward, Web Page Forward, Web Stop, Web Refresh, Web Search, E-mail, Web Home and
My Favorites)
Web Backward
Web Forward
Web Stop
Home
Email
My Favorite
Web Refresh
Web Search
Go back to the previously viewed item in programs that support the
"Back" command, such as a Web browser.
Open the Internet Explorer Search pane.
Go to the next item - if it was previously viewed in the same session -
in programs that support the "Forward" command, such as a Web
browser.
Stop loading or refreshing a Web page or the contents of a particular
window.
Start the default Web browser or go to the Home Web page. If the
Web browser is already activated it opens the Home Web page. You
can reassign the Home key to start another Web browser, another
Home Web page or another application.
Start the default e-mail program. If you are not sure what the default
e-mail program is, press this key to find out. You can reassign the
Email key to start another e-mail program or another application.
Open the Internet Explorer Favorites pane. This is where you can
store shortcuts to frequently used files, websites or other items for
easy access.
Update the information on an active Web page or the contents of a
particular window.
Put the system into power-off mode if the PC supports power
management and has it enabled. The user can switch off the
computer directly by pressing this key. If power management is not
enabled, this key will not work. Power-on function availability
depends on the motherboard setup function. For more information
on such functions, read the computer manual or contact the
computer manufacturer.
Put the system into sleep mode if the PC supports power
management and has it enabled. The user can put the computer to
sleep at the press of any button, protecting data and saving energy.
If power management is not enabled, this key will not work.
Open the Log Off Windows dialog box. Logging off closes all of
programs, disconnects the computer from the network and prepares
the computer to be used by someone else.
Open My Computer. My computer shows the contents of your
floppy disk, hard disk, CD-ROM drive and network drives.
You can also search for and open files and folders, and gain access to
options in Control Panel to modify the computer's settings.
Start Microsoft Calculator.
Power Off
PC Sleep
Log Off
My computer
Calculator
Office Lock Key
Switch the function from the normal function keys (LED off) to the
enhanced function keys (LED on).
* The LED indicator is located on the receiver for the wireless Office keyboard version.
Function Lock
Multimedia Hot Keys
(Totally control Play/Pause, Volume Up, Volume Down, Pre Track, Mute and Stop)
Clipboard and Other Application
(Copy, Cut, Paste, Mark, Application and Close)
Scroll Wheel
(Located at the left-hand side to offer one more option to navigate through either hand)
Notice:
- The scroll wheel requires a driver support under any Windows operation system.
Cut
Close
Paste
Copy
Mark
Application
Cut out the selected item.
Paste the previously cut out or copied item at the cursor position.
Copy the selected item.
Mark the selected item, and use "s" or "a" to mark the text. If
"Mark" is located at "Shift" keycap, press "Mark" and arrow key
together to mark.
Switch the focus to a previously opened window. Press the key and
select the window to be activated.
Close the active Windows application when the key is pressed.
Move around in a scrollable document as if you were
using the scroll arrows or a mouse wheel, but without taking your
hand off the keyboard.
Scroll Wheel
Link Button Battery Case
Keyboard
Keyboard Driver
Receiver
Link Button
LED Indicator
Link Button
Mouse
12
CH
Mouse Driver
Mouse Driver
% Select the Keyboard Channel
Notice:
- Please skip this section if the
keyboard is the one-channel version.
1. The two-channel switch is located on
the back of the keyboard. Select
Channel "1" or "2".
2. Put the batteries into the battery case.
% Select the Mouse Channel
Notice:
- Please skip this section if the mouse is the one-channel version.
1. The two-channel switch is located at the back of the mouse. Select
Channel "1" or "2".
2. Put the batteries into the battery
case.
% Link the Wireless Keyboard and the
Wireless Mouse with the Receiver
Notice:
- Please link the keyboard and the
mouse within the effective distance.
1. Please turn on your PC. The LED indicator on the receiver will light.
2. Press the ID Link Button on the receiver and the LED indicator will blink. The receiver is ready to
automatically link with the keyboard and the mouse.
3. Press the ID Link Buttons of the keyboard and the mouse.
4. The LED indicator on the receiver is light while you successfully finish the keyboard and the mouse
linkage.
5. The LED indicator of the receiver will blink while you use the keyboard or the mouse.
6. If you need to re-link the mouse, the keyboard or after changing the batteries, please repeat the steps
2~4.
7. If the selected channel is interfered by other wireless-mouse or keyboard users nearby, please
change the Link ID by re-linkage or select the other channel immediately.
8. There are 256 changeable IDs for each channel.
Install Mouse Driver
Notice:
- The driver supports Windows 95/ 98/ NT/ 2000/ ME and XP.
- The driver may be automatically installed.
- The CD-ROM contents the drivers of the keyboard and the
mouse. Please select to install the mouse driver at the pop-
up window.
1. Remove any existing mouse drivers completely.
2. Insert the driver CD-ROM to your PC If the
driver CD-ROM does not be automatically
installed, please double click "Setup.exe" to install the
mouse driver.
3. Restart the PC The Mouse Setting icon will appear on the task bar of Windows Double click
the icon to set the mouse programmable button functions.
Install keyboard Driver
Notice:
- The driver supports Windows 95/ 98/ NT/ 2000/ ME and XP.
- The driver may be automatically installed.
- The CD-ROM contents the drivers of the keyboard and the mouse. Please select to install the
keyboard driver at the pop-up window.
1. Remove any existing keyboard drivers
completely.
2. Insert the driver CD-ROM to your PC.
3. If the driver does not be automatically
installed, please open the folder "Keyboard",
double click the file "Setup.exe" and then follow
the setup instructions to complete the driver
installation.
4. Restart the PC A Keyboard Setting
icon will appear on the task bar of
Windows Double click the icon to set
the programmable hot keys.
5. The application software "Office Keyboard" is executed and you can use the keyboard to its full
extent.
6. There are 3 icons shown on the taskbar while "Scroll Lock", "Caps Lock" and "Num Lock" are
enabled.
Introduction of Hot Keys & Scroll Wheel
31 useful hot keys, one scroll wheel and 14 function keys provide a time saving way to access Office
applications, Web/ Internet shortcuts and PC/ multimedia control.
Office Hot Keys
(One-touch access to launch Word, Excel, PowerPoint and Calendar)
Notice:
- The keys of Word, Excel, PowerPoint and Calendar require a driver support under any Windows
operation system.
PC Hot Keys
(Function Lock, Calculator, My Computer, Log Off, Power Off and PC Sleep)
- Press Function Lock to use the standard F functional keys.
- Press Log Off to close all the programs, to disconnect the computer from network and to prepare the
computer for the next user.
Notice:
- The key of Calculator requires a driver support under any Windows operation system. "Sleep" hot
key function is available if your system supports power management (ACPI) and all the
peripherals (e.g. VGA, Sound card ) are compatible with the power management.
Open Microsoft Word
This hot key can be configured to another application for user's need.
Word
Excel
Power Point
Calendar Open the Calendar of Microsoft Outlook
This hot key can be configured to another application for user's need.
Open Microsoft Excel
This hot key can be configured to another application for user's need.
Open Microsoft PowerPoint
This hot key can be configured to another application for user's need.
Web & Internet Hot Keys
(Web Page Backward, Web Page Forward, Web Stop, Web Refresh, Web Search, E-mail, Web Home and
My Favorites)
Web Backward
Web Forward
Web Stop
Home
Email
My Favorite
Web Refresh
Web Search
Go back to the previously viewed item in programs that support the
"Back" command, such as a Web browser.
Open the Internet Explorer Search pane.
Go to the next item - if it was previously viewed in the same session -
in programs that support the "Forward" command, such as a Web
browser.
Stop loading or refreshing a Web page or the contents of a particular
window.
Start the default Web browser or go to the Home Web page. If the
Web browser is already activated it opens the Home Web page. You
can reassign the Home key to start another Web browser, another
Home Web page or another application.
Start the default e-mail program. If you are not sure what the default
e-mail program is, press this key to find out. You can reassign the
Email key to start another e-mail program or another application.
Open the Internet Explorer Favorites pane. This is where you can
store shortcuts to frequently used files, websites or other items for
easy access.
Update the information on an active Web page or the contents of a
particular window.
Put the system into power-off mode if the PC supports power
management and has it enabled. The user can switch off the
computer directly by pressing this key. If power management is not
enabled, this key will not work. Power-on function availability
depends on the motherboard setup function. For more information
on such functions, read the computer manual or contact the
computer manufacturer.
Put the system into sleep mode if the PC supports power
management and has it enabled. The user can put the computer to
sleep at the press of any button, protecting data and saving energy.
If power management is not enabled, this key will not work.
Open the Log Off Windows dialog box. Logging off closes all of
programs, disconnects the computer from the network and prepares
the computer to be used by someone else.
Open My Computer. My computer shows the contents of your
floppy disk, hard disk, CD-ROM drive and network drives.
You can also search for and open files and folders, and gain access to
options in Control Panel to modify the computer's settings.
Start Microsoft Calculator.
Power Off
PC Sleep
Log Off
My computer
Calculator
Office Lock Key
Switch the function from the normal function keys (LED off) to the
enhanced function keys (LED on).
* The LED indicator is located on the receiver for the wireless Office keyboard version.
Function Lock
Multimedia Hot Keys
(Totally control Play/Pause, Volume Up, Volume Down, Pre Track, Mute and Stop)
Clipboard and Other Application
(Copy, Cut, Paste, Mark, Application and Close)
Scroll Wheel
(Located at the left-hand side to offer one more option to navigate through either hand)
Notice:
- The scroll wheel requires a driver support under any Windows operation system.
Cut
Close
Paste
Copy
Mark
Application
Cut out the selected item.
Paste the previously cut out or copied item at the cursor position.
Copy the selected item.
Mark the selected item, and use "s" or "a" to mark the text. If
"Mark" is located at "Shift" keycap, press "Mark" and arrow key
together to mark.
Switch the focus to a previously opened window. Press the key and
select the window to be activated.
Close the active Windows application when the key is pressed.
Move around in a scrollable document as if you were
using the scroll arrows or a mouse wheel, but without taking your
hand off the keyboard.
Scroll Wheel
Link Button Battery Case
Keyboard
Keyboard Driver
Receiver
Link Button
LED Indicator
Link Button
Mouse
12
CH
Mouse Driver
Mouse Driver
Space
Start Menu
System Help
System Property
Tab
Undo
Undo Minimize
All Windows
Universal Scroll
Universal Zoom
Up
F1~F10
Auto Scroll
Backspace
Close Application
Connect to Internet
Control Lock
Control Panel
Copy
Cut
Delete
Double Click
Down
Drag Lock
End
Enter
Esc
Explorer
Find Computer
Find File
Home
Horizontal
Wheel
Interent Explorer
Backward
Interent Explorer
Forward
Lanuch Default
Browser
Lanuch Default
E-mail
Left
Maximize Windows
Middle Button
Minimize All
Windows
Minimize
Windows
Page Down
Page Up
Paste
Redo
Right
Run...
Shift Lock

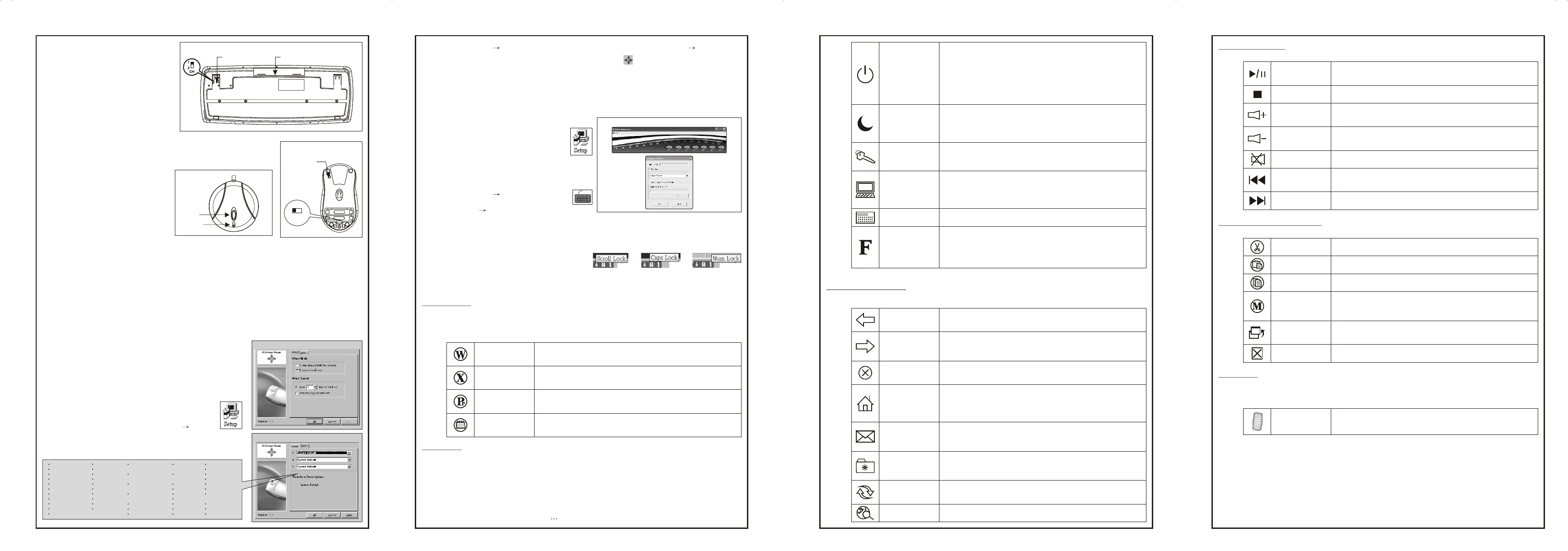

Play or Pause media. Once paused, press this key again to resume
playing.
Stop playing media.
Increase the volume. Hold down to increase the volume more
quickly.
Decrease the volume. Hold down to decrease the volume more
quickly.
Turn off the sound. Press again to turn the sound back on.
Switch to the next media track. Press once for each subsequent track.
Switch to the previous media track. Press once for each preceding
track.
Play/Pause
Stop
Volume down
Volume up
Next Track
Mute
Pre Track
5432
