Convertible Car Seat

User Guide

For future use, STORE USER GUIDE

in compartment at rear of base.

TABLE OF CONTENTS

Registration and Recall 2

Child Guidelines 4

Safe Use Checklist 6

Important Warnings 8

Best Practices 14

Need Help? 15

Child Restraint Components 16

LATCH and Tether Components 18

LATCH and Tether Storage 20

Selecting Rear/Forward Facing Position 22

Adjusting Crotch Strap 26

Newborn Insert 28

Vehicle Seating Positions 30

Vehicle Seat Belts 32

What is LATCH? 34

What is a Tether? 36

Rear-Facing Setup 38

Install Using LATCH 42

Install Using LAP-SHOULDER BELT 46

Install Using LAP BELT ONLY 52

Forward-Facing Setup 56

Install Using LATCH 60

Install Using LAP-SHOULDER BELT 66

Install Using LAP BELT ONLY 72

Securing Child with Harness 76

Secure Child Checklist 88

Installation on an Aircraft 90

Cup Holder 92

Cleaning and Maintenance 94

VEHICLE INFORMATION

CHILD RESTRAINT OVERVIEW

REAR-FACING INSTALLATION

FORWARD-FACING INSTALLATION

SECURING YOUR CHILD

ADDITIONAL INFORMATION

If you have any problems with your Chicco Child Restraint,

or any questions regarding installation or use, please call:

Chicco Customer Service

1-877-424-4226

Please have Model and Serial Number available when you call.

These are located on a label on the bottom of the Child Restraint.

For future reference, ﬁll in the information below. The information can be found on the label

on the bottom of the Child Restraint.

Model Number:

Serial Number:

Manufactured In:

REGISTRATION AND RECALL REGISTRATION AND RECALL

Please complete the Registration Card that came with

your Child Restraint and mail it promptly.

Child Restraints could be recalled for safety reasons. You must register this restraint to be reached in

a recall. Send your name, address, e-mail address if available, and the restraint’s model number and

manufacturing date to:

Artsana USA, Inc.

1826 William Penn Way

Lancaster, PA 17601

or call 1-877-424-4226

or register online at http://www.chiccousa.com/carseatregistration.aspx

For recall information, call the U.S. Government’s Vehicle Safety Hotline at

1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.

PAGE INTENTIONALLY LEFT BLANK

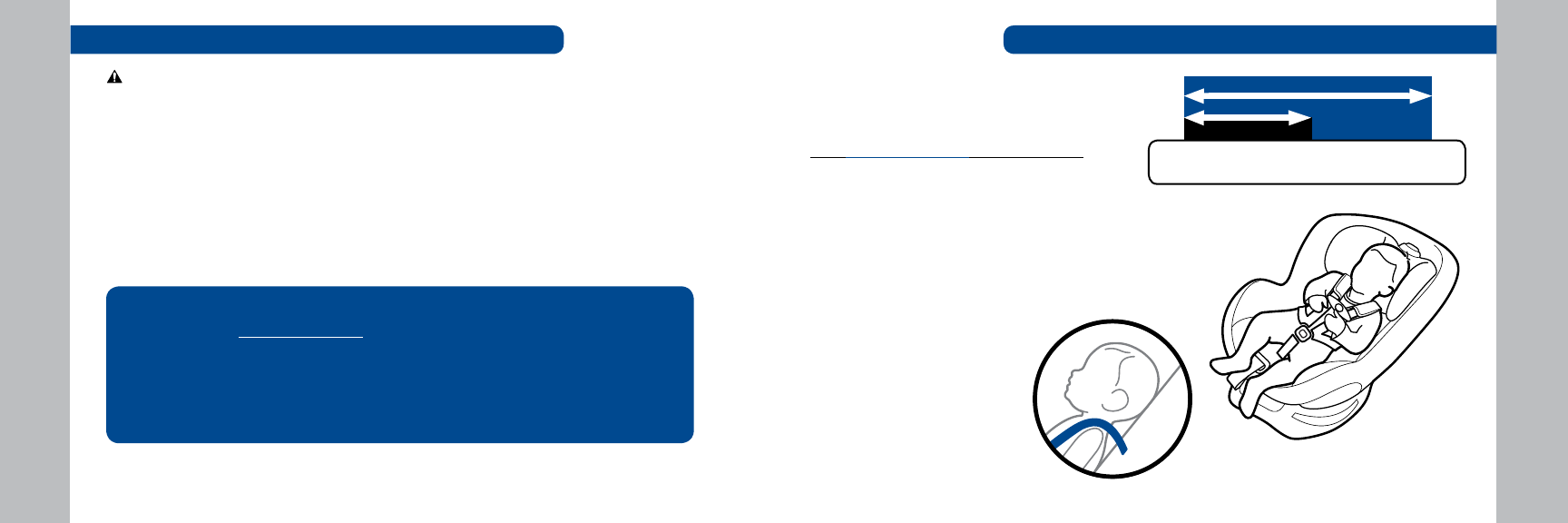

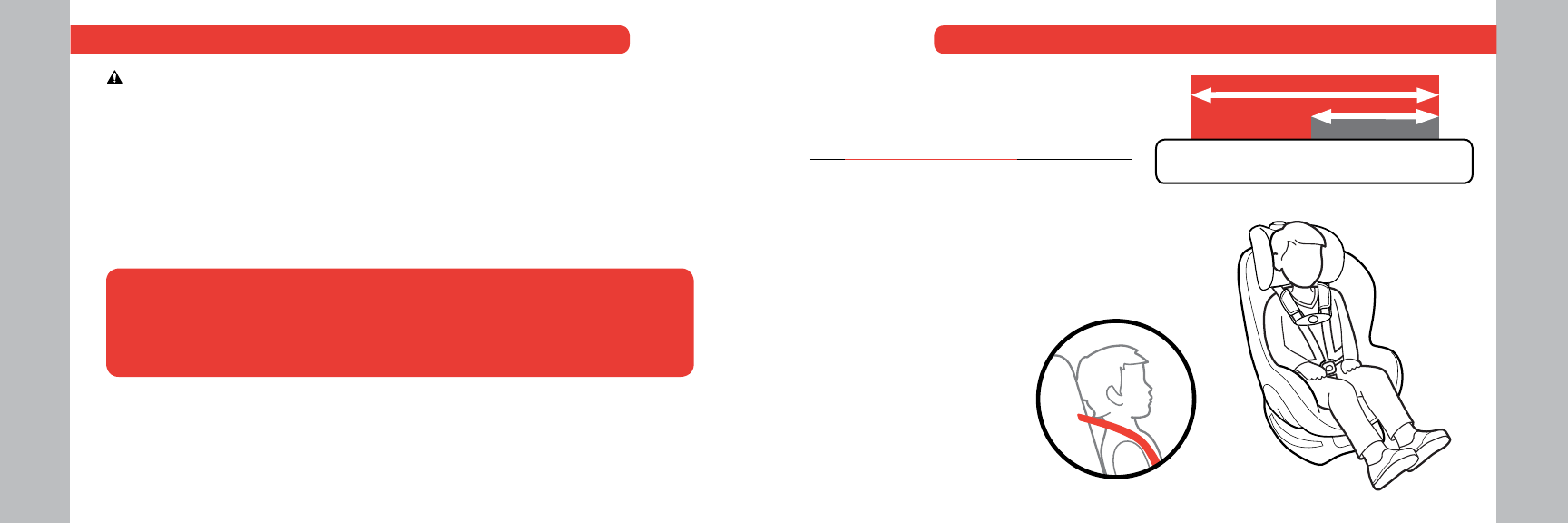

ONLY use this Child Restraint if the child meets BOTH of the following

Weight and Height requirements:

• Weight is between 5 and 65 pounds (2.2 and 29.4 kg).

• Height is 50 inches (127 cm) or less.

The Newborn Insert is only for infants who weigh between 5 and 11 pounds

(2.2 and 5 kg). See Newborn Insert on page 28.

FORWARD - FACING

CHILD GUIDELINES CHILD GUIDELINES

REAR - FACING

NO LATCH

NEWBORN INSERT

For premature infants, you must consult the infant's

doctor before using this Child Restraint. A premature

infant may have difﬁculty breathing or have other medical

problems when placed in a seated position.

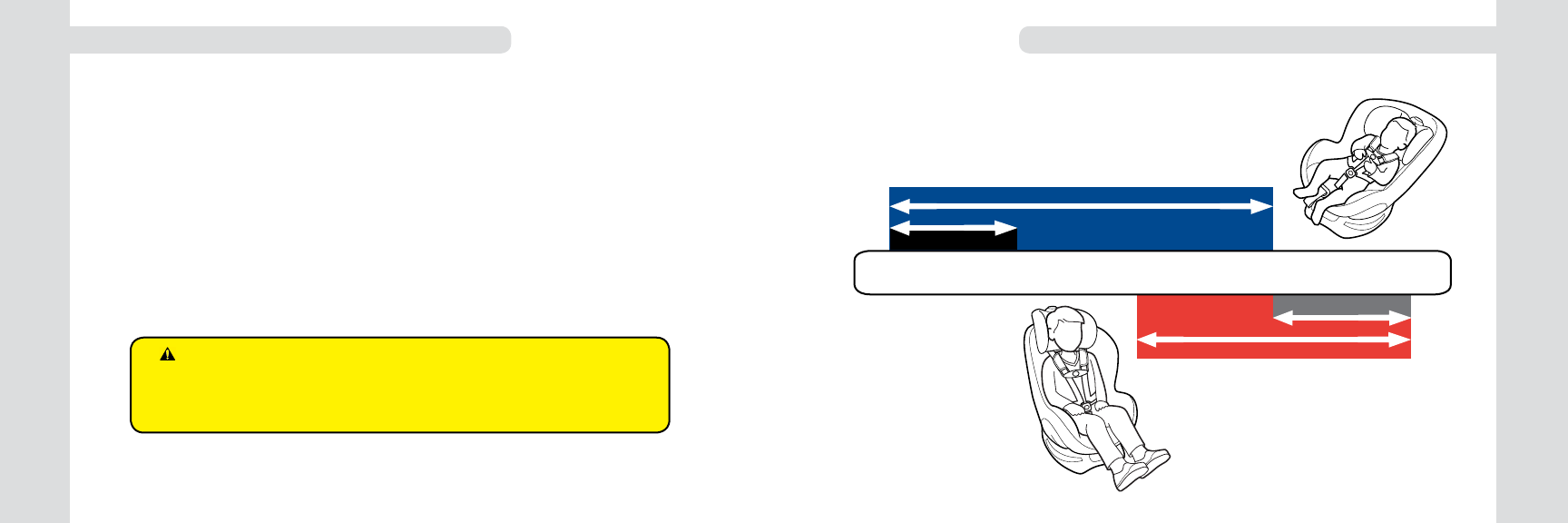

5 lbs. 11 lbs. 22 lbs. 40 lbs. 65 lbs.

(2.2 kg) (5 kg) (10 kg) (18 kg) (29.4 kg)

See Select

Rear-Facing

on page 22.

See Select

Forward-Facing

on page 24.

Make sure your child meets the age, weight, and height requirements:

Refer to the “Child Guidelines” section on page 4.

Choose the proper Child Restraint conﬁguration:

Select a safe seating location in your car:

Refer to the “Vehicle Seating Positions” section on page 30 and 31.

SAFE USE CHECKLIST

YOUR CHILD’S SAFETY DEPENDS ON YOU! You MUST follow the

detailed instructions in this User Guide to ensure the steps below are

performed correctly!

Ensure that the Child Restraint is properly leveled when installed:

Check Child Restraint for a snug ﬁt in your car:

While holding Child Restraint near belt path used, pull side to side and forward.

Belt should remain tight and Child Restraint should not move more than

1”

(25 mm) from vehicle seat back or side-to-side

Secure your child:

Refer to the “Securing Your Child” section on page 76.

SAFE USE CHECKLIST

REAR-FACING requirements on page 22

FORWARD-FACING requirements on page 24

REAR-FACING requirements on page 40

FORWARD-FACING requirements on page 58

IMPORTANT WARNINGS

FAILURE TO FOLLOW THESE INSTRUCTIONS AND THE PRODUCT

LABELS CAN RESULT IN SERIOUS INJURY OR DEATH TO YOUR CHILD.

Take Time to Read This User Guide

• Carefully read and understand all instructions and warnings in this User Guide. Your child’s safety depends

on you knowing how to setup, install and use this Child Restraint properly.

• Before installing this Child Restraint in a vehicle, be sure to also check the vehicle owner’s manual for

information on proper installation.

• NEVER allow others to use this Child Restraint until they have read and understood all instructions in this

User Guide.

• This Child Restraint is not intended for use outside of the vehicle.

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR

IMPORTANT WARNINGS

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR

Make Sure Child Fits This Child Restraint

• Use only with children who weigh between 5 lbs (2.2 kg) and 65 lbs (29.4 kg) and whose height is 50 inches (127

cm) or less. Determine the right installation setup for your child’s age, weight and height.

• ONLY USE the Newborn Insert in REAR-FACING and only if the child weighs between 5 and 11 lbs (2.2 and 5 kg).

• ALWAYS check to make sure buckle is securely latched. If buckle separates, child could be killed or seriously injured.

• Make sure the Shoulder Pads are positioned over the child’s shoulders. NEVER use the Child Restraint

without the shoulder pads.

• NEVER leave child unattended. Do not allow children to play in or around the Child Restraint.

Secure Child Properly

• Snugly adjust the harness around your child. A loose harness could cause the child to be ejected in a sudden

stop or crash, resulting in serious injury or death.

• NEVER use clothing or blankets that interfere with fastening or tightening the harness. An unsecured child

could be ejected in a sudden stop or crash!

A snug strap should not allow any slack. It lies in a relatively straight line without sagging.

It does not press on the child’s ﬂesh or push the child’s body into an unnatural position.

To keep child warm, place a blanket over child and restraint AFTER you have properly secured

child in harness.

10 11

IMPORTANT WARNINGS

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR

Install Child Restraint Correctly

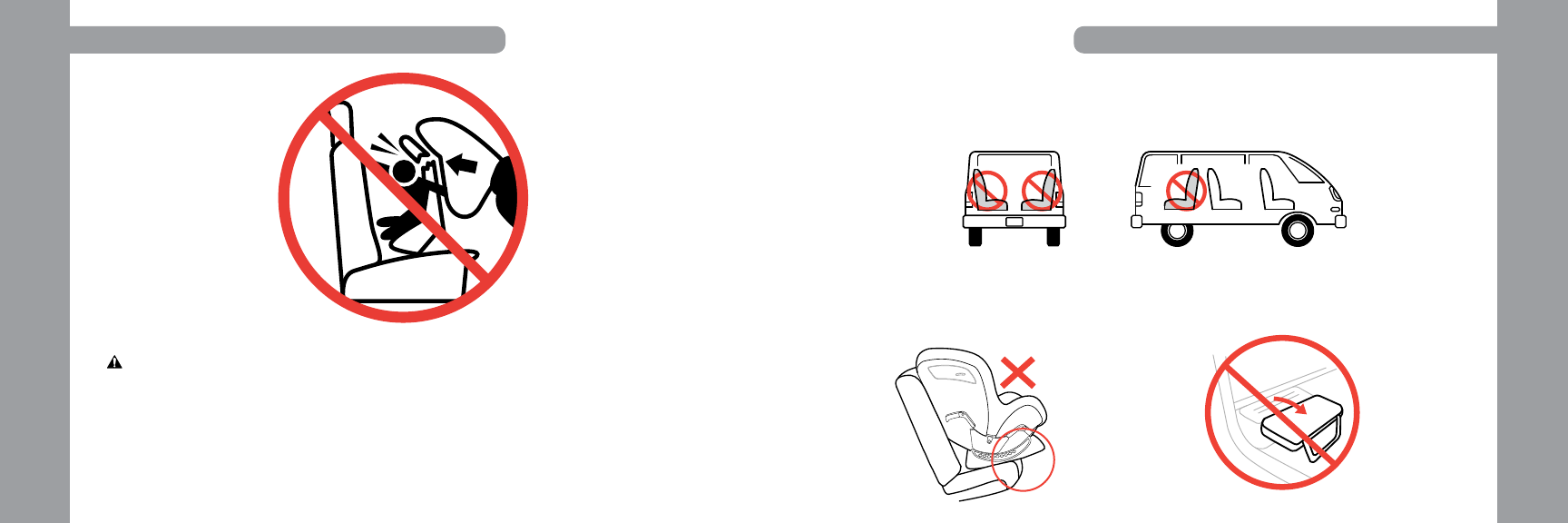

• WHEN USING THIS CHILD RESTRAINT REAR-FACING, DO NOT PLACE THIS CHILD RESTRAINT IN

VEHICLE SEATING LOCATION WITH A FRONTAL AIR BAG, UNLESS THE AIR BAG CAN BE TURNED

OFF. If the airbag inﬂates, it can cause serious injury or death to your child. For vehicles with side air bags,

refer to you vehicle owners manual for information on your vehicle seat installation.

• ALWAYS install this Child Restraint in a back seat if possible.

IMPORTANT WARNINGS

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR

• NEVER install in rear facing, side facing or on the back of a folded down vehicle seat.

• ALWAYS secure this Child Restraint with the vehicle’s child restraint anchorage system (LATCH) if available

OR the vehicle seat belt. If the child weighs over 40lbs (18.1kg) ONLY use the vehicle seat belt. DO NOT

Use LATCH.

• DO NOT use the lower anchors of the child restraint anchorage system (LATCH) to secure this Child

Restraint with a child weighing more than 40 lbs (18 kg).

Install Child Restraint Correctly

• When using FORWARD-FACING, ALWAYS use the top Tether Strap provided with this Child Restraint.

• NEVER use Child Restraint in a vehicle seating position where it cannot be secured tightly. A loosely

installed child restraint will not protect your child in a crash.

• Never leave Child Restraint unsecured in your vehicle even when it is unoccupied. It could injure other

occupants in a sudden stop or crash.

Ensure Child’s Safety When Using Child Restraint

• NEVER leave your child unattended in the vehicle.

• STRANGULATION HAZARD: Your child can strangle in a loose Restraint Harness. Never leave a child in

the Child Restraint with straps loose or undone.

• To prevent ejection or breathing difﬁculties, proper recline is required. When installing the Child

Restraint, check the bubble level on the side of the child restraint.

According to accident statistics, children are safer when properly restrained in the rear seating

positions rather than in the front seat.

12 13

IMPORTANT WARNINGS

WARNING

DEATH OR SERIOUS INJURY CAN OCCUR

Check Condition of Restraint

• DO NOT use if the Harness or LATCH straps are cut, frayed or damaged.

• DO NOT use this Child Restraint if it is more than 8 years old. Check manufacturer’s label on underside

of Child Restraint for the “Do Not Use After” date.

• DO NOT use any accessories, pads or products not included with this Child Restraint, unless

approved by Chicco USA. Doing so will void the warranty of this Child Restraint.

• You MUST replace this Child Restraint if it has been involved in a crash, even if you cannot see visible

damage. A damaged Child Restraint may not protect your child in a future crash.

• Do not modify your Child Restraint.

• NEVER remove harness or shoulder pads from Child Restraint.

• Do not use Child Restraint if any component is damaged, broken, or missing parts.

Call 1-877-424-4226 to ﬁnd out if the damaged part or parts can be replaced.

IMPORTANT WARNINGS

PAGE INTENTIONALLY LEFT BLANK

14 15

BEST PRACTICES

• Ensure all vehicle occupants are properly restrained before traveling.

Unrestrained occupants can be thrown around and may be seriously injured or

seriously injure other occupants in a sharp turn, sudden stop or crash.

• Do not leave loose objects, such as books, bags, etc., in the back of the vehicle.

In the event of a sharp turn, sudden stop, or crash, loose objects can be thrown

around and possibly cause serious injury to vehicle occupants.

• Cover the Child Restraint when the vehicle is parked in direct sunlight. Parts of a

Child Restraint can become very hot if left in the sun. Contact with these parts

can burn a child’s skin. Always check the surface of any metal or plastic parts

before putting your child in the Child Restraint.

• To avoid strangulation, Do not allow children to play with vehicle seat belts. If

possible, move unused belts out of reach.

• Do not use anything to raise the Child Restraint off the vehicle seat. In a sharp

turn, sudden stop, or crash, the Child Restraint could slide and potentially cause

serious injury.

• Never use a second-hand Child Restraint with an unknown history.

NEED HELP?

Need Help Securing Your Child Restraint?

The following sources are available to help ensure your Child Restraint is

properly installed:

• Contact Chicco, USA by visiting our website at www.chiccousa.com or

calling our Customer Service 1-877-424-4226. Please have Model and

Serial Number available when you call. These are located on a label on

the bottom of the Child Restraint.

• Refer to your vehicle manual for Child Restraint installation tips.

• Contact a certiﬁed Child Passenger Safety Technician in your area by

visiting safercar.gov and select “Find Local Child Seat Help” or call

1-866-SEAT CHECK (1-866-732-8243).

16 17

CHILD RESTRAINT OVERVIEW

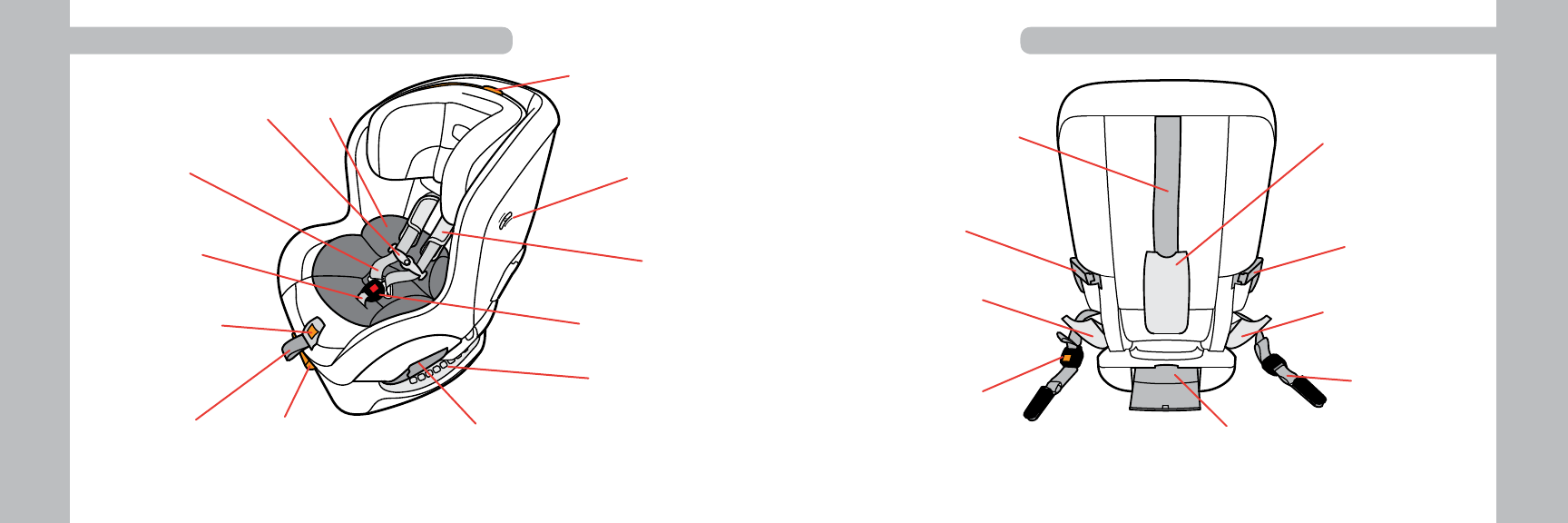

CHILD RESTRAINT COMPONENTS CHILD RESTRAINT COMPONENTS

SuperCinch™

LATCH Tightener

(PULL 2nd)

Tether

Storage

Instruction Manual

Storage

Tether

Strap

Forward

Facing

Lock-Off

LATCH Adjuster

(PULL 1st)

Forward

Facing

Lock-Off

Harness

Buckle

Harness

Strap

Crotch

Strap

Harness

Adjustment

Strap

Harness

Release Button

Chest

Clip

Rear Facing

Lock-Off

(Each Side)

Recline

Adjustment

Handle

Adjustment Handle

(Head Rest)

Newborn

Insert

Shoulder

Pads

LATCH Connector

Storage LATCH Connector

Storage

Recline Position

Indicator

Bubble Level

Indicator

18 19

CHILD RESTRAINT OVERVIEW

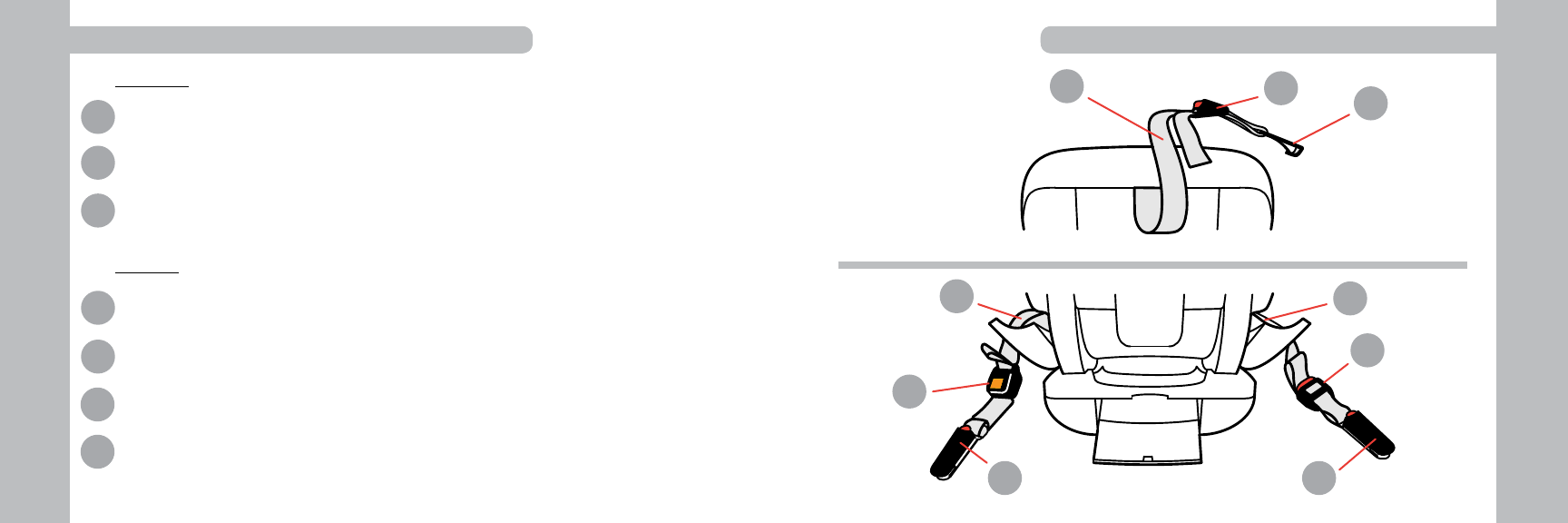

LATCH AND TETHER COMPONENTS LATCH AND TETHER COMPONENTS

Tether Strap

Tether Strap Adjuster

Tether Hook

LATCH Adjuster (PULL 1st)

SuperCinch LATCH Tightener (PULL 2nd)

LATCH Strap

LATCH Connectors

PULL

2nd

PULL

1st

2nd

PULL D

ABC

Tether

LATCH

TETHER:

LATCH:

20 21

CHILD RESTRAINT OVERVIEW

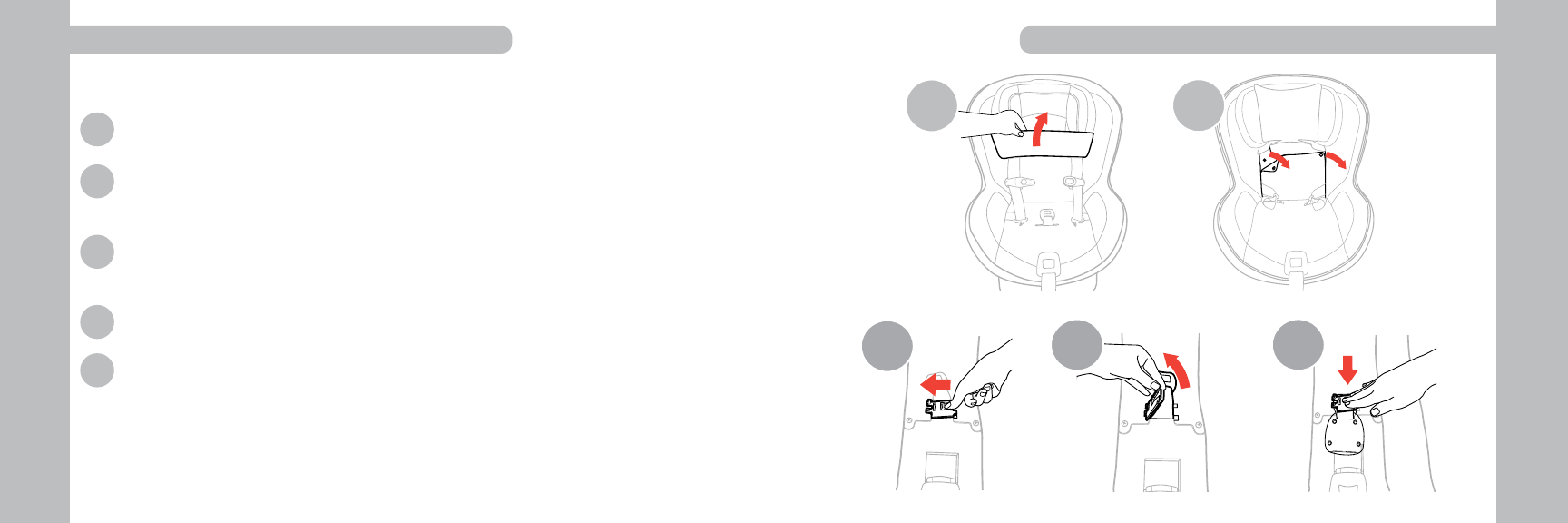

LATCH AND TETHER STORAGE LATCH AND TETHER STORAGE

LATCH STORAGE:

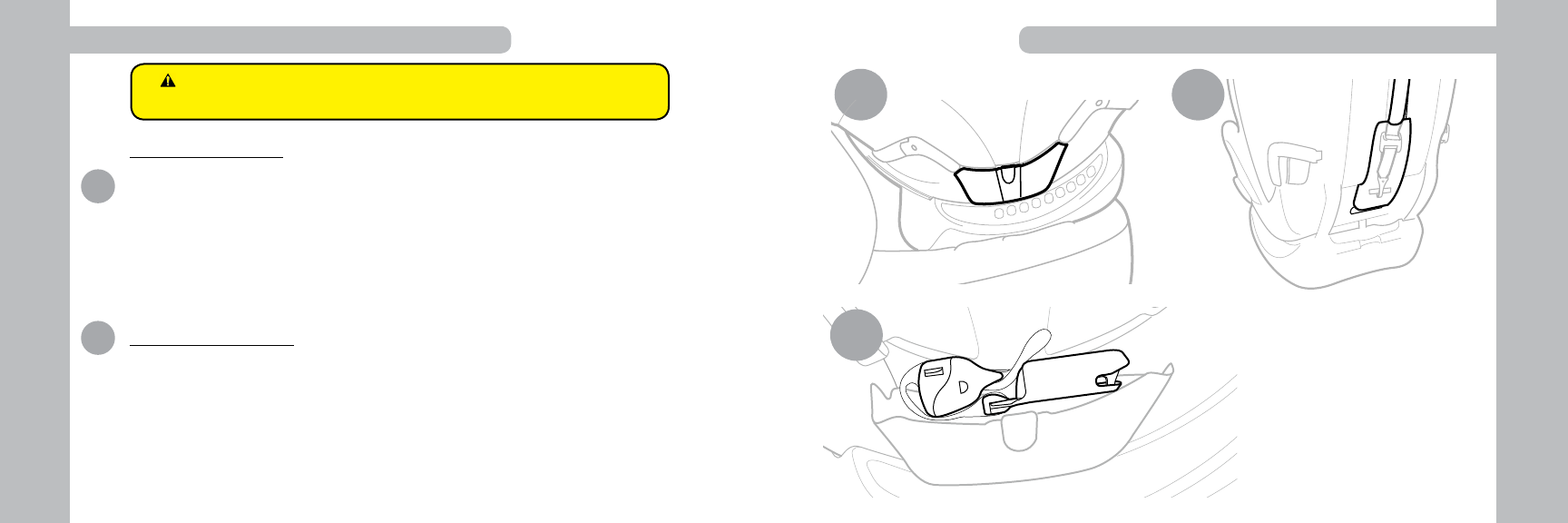

1Store each LATCH strap in the compartments located on either side of

the Child Restraint base when not in use. Make sure LATCH Connector

Storage compartments are properly closed.

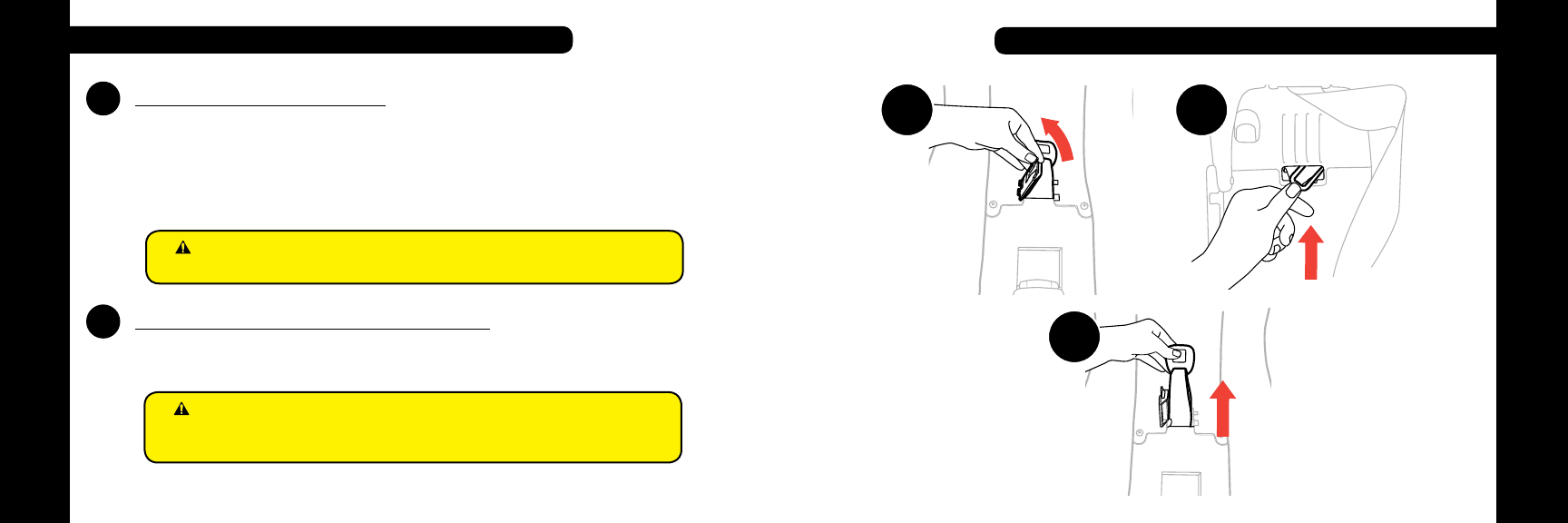

Fold SuperCinch™ LATCH Tightener (Pull 2nd) strap as shown (1a).

Always make sure LATCH Components are properly

stored in the compartments when not in use.

TETHER STORAGE:

Store Tether in the compartment in the back of Child Restraint when

not in use. Hook on bar and pull strap tight. Make sure

compartment door is properly closed.

1 2

22 23

CHILD RESTRAINT OVERVIEW

SELECT REAR FACING POSITION

WARNING! REAR-FACING use of this Child Restraint is ONLY for

children who meet ALL of the requirements shown here. If the child is not

within these requirements because they are too small, select a different

child seat (such as an infant car seat). If the child is not within these

requirements because the child is too large, review the FORWARD-FACING

guidelines on page 24.

REAR-FACING:

5 – 40 lbs (2.2 – 18 kg)

Use REAR-FACING with children:

•Who weigh between 5 and 40 lbs

(2.2 –18 kg).

•When Harness Straps can be positioned

at or below the child’s shoulders*.

See Harness Height

Adjustment on page 80.

SELECT REAR FACING POSITION

REAR - FACING

NEWBORN INSERT

5 lbs. 11 lbs. 40 lbs.

(2.2 kg) (5 kg) (18 kg)

• Chicco and the American Academy of Pediatrics recommend all

children ride REAR-FACING until age 2 or they reach the weight/

height limits of this seat.

• NEVER turn this Child Restraint FORWARD-FACING with an infant

less than one year of age.

24 25

CHILD RESTRAINT OVERVIEW

WARNING! FORWARD-FACING use of this Child Restraint is ONLY for

children who meet ALL of the requirements shown here. If the child is not

within these requirements because they are too large, select a different child

seat. If the child is not within these requirements because the child is too

small, review the REAR-FACING guidelines on page 22.

SELECT FORWARD FACING POSITION SELECT FORWARD FACING POSITION

FORWARD-FACING:

22 – 65 lbs (10 – 29.4 kg)

Use FORWARD-FACING with children:

•Who are at least one year old.

•Who weigh between 22 and 65 lbs

(10 –29.4 kg).

•Who are 50” (127 cm) tall or less OR when the

top of the ears are below the top of the Head Rest.

•When Harness Straps can be positioned at or

above the child’s shoulders*.

See Harness Height

Adjustment on page 80.

FORWARD - FACING

NO LATCH

22 lbs. 40 lbs. 65 lbs.

(10 kg) (18 kg) (29.4 kg)

• Chicco and the American Academy of Pediatrics recommend that

children ride REAR FACING for as long as possible. For the best

protection, keep the child rear-facing until the child no longer

meets the requirements for REAR-FACING.

26 27

CHILD RESTRAINT OVERVIEW

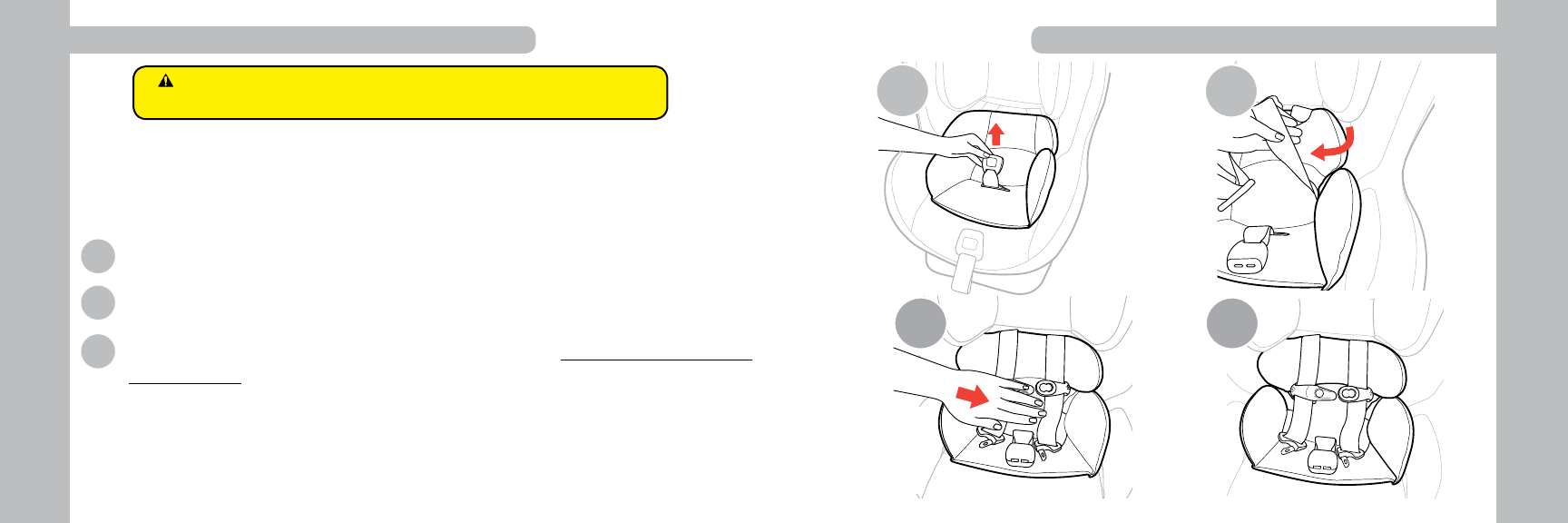

ADJUSTING CROTCH STRAP ADJUSTING CROTCH STRAP

3b 5

Adjust Crotch Strap if strap is underneath child.

Lift up on the back padding.

Unsnap each side of the back padding and pull forward on the seat

padding.

Slide the button on the Crotch Strap lock while pulling up on the Crotch

Strap to open the compartment (a,b).

Pull the Crotch Strap forward or backward into desired position.

Close the compartment by pushing down on the door until it locks back

into place. Check to make sure compartment is locked by pulling up on

the Crotch Strap. Re-attach the padding.

28 29

CHILD RESTRAINT OVERVIEW

NEWBORN INSERT

To ensure a better ﬁt for smaller infants the Newborn Insert may be needed.

Do NOT use any other infant insert or pillows. Only use the one provided by Chicco

for this Child Restraint.

Pull Harness Buckle through slot in the bottom of Newborn Insert.

Pull both Harness Straps over the side panels of Newborn Insert.

Push Newborn Insert ﬁrmly into Child Restraint(a) to make sure it is properly

positioned (b).

NEWBORN INSERT

WARNING

- ONLY use the insert if the child’s weighs

between 5 and 11 lbs (2.2 and 5 kg). 12

3a 3b

VEHICLE INFORMATION

VEHICLE SEATING POSITIONS VEHICLE SEATING POSITIONS

Some vehicles have no seating positions which are compatible with this Child

Restraint. If in doubt, contact the vehicle manufacturer for assistance. Only

forward-facing vehicle seats can be used with this Child Restraint.

WARNING! WHEN USING THIS CHILD RESTRAINT REAR-FACING, DO

NOT PLACE THIS CHILD RESTRAINT IN A VEHICLE SEATING LOCATION

WITH A FRONTAL AIR BAG, UNLESS THE AIR BAG CAN BE TURNED OFF.

The back seat is the safest place for children 12 and under. See your

vehicle owner’s manual for Child Restraint installation and instructions.

Make sure no more than 3 inches of the

Child Restraint base is past the edge of

the vehicle seat.

Do not use on a folded down

vehicle seat back.

VEHICLE INFORMATION

For simplest installation use LATCH - Refer to page 34 for details.

Vehicle seat belts differ from vehicle to vehicle. Refer to your vehicle owner’s

manual for speciﬁc information about seat belts and their use with Child Restraints.

Shoulder belt with switchable retractor:

Putting the shoulder belt in the locked/switched mode as the last step is

optional. The shoulder belt Lock-Off replaces the need for the locked/switched

mode. When the Child Restraint is rear-facing using the locked/switched mode may

cause Child Restraint to tilt.

Inﬂatable seat belts:

Move to LATCH seating position, if available. Follow the vehicle manufacturer’s

instructions for use with child restraints. Do NOT use the shoulder belt Lock-Off on

this Child Restraint with inﬂatable belt systems.

VEHICLE SEAT BELTS VEHICLE SEAT BELTS

The information in this section only applies to installation with vehicle seat belts.

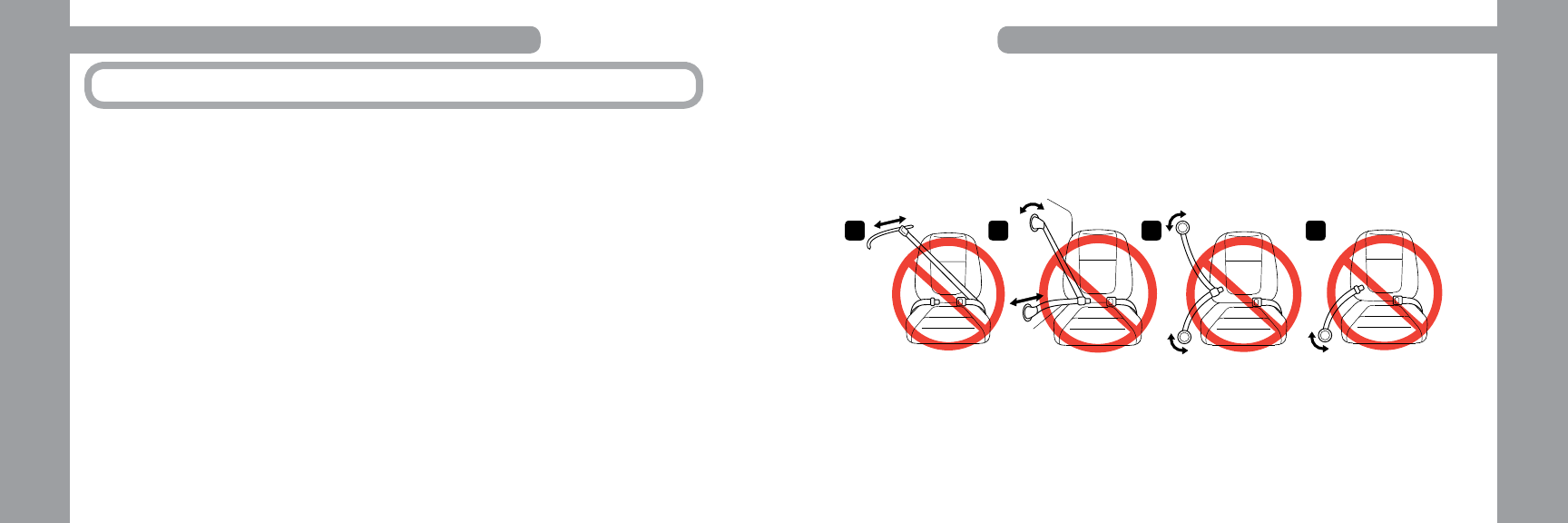

The following types of vehicle belts MUST NOT be used to install this Child

Restraint.

If any of the belt types listed below are in the chosen seating position, choose

another vehicle seating position or use LATCH if available.

1 2 3 4

1. Motorized (automatic) vehicle belts.

2. Door mounted vehicle belts. 4. Non-Locking (ELR) Lap Belts.

3. Lap-shoulder Belts with 2 retractors,

(unless Lap Belt has a “Lock Mode”).

VEHICLE INFORMATION

WHAT IS LATCH? WHAT IS LATCH?

LATCH = Lower Anchors and Tethers for CHildren

United States Motor Vehicle Safety Standards have deﬁned a system for installing

Child Restraints in vehicles called LATCH. LATCH may ONLY be used IN PLACE

OF vehicle belt if the vehicle is equipped with LATCH anchor points. DO NOT

use both the seat belt and LATCH at the same time. Please refer to the vehicle

owner’s manual for designated LATCH locations in vehicles.

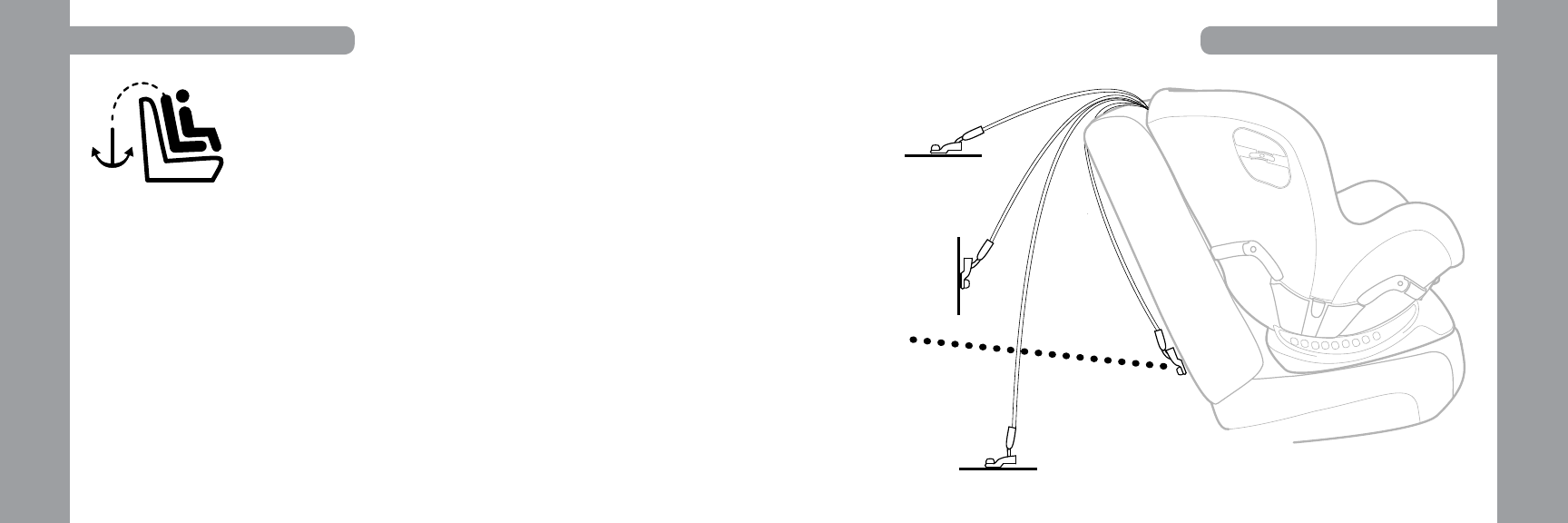

LATCH in the vehicle consists of a top tether anchor point and two lower anchor

points. Some vehicles owner’s manual use the term “ISOFIX”. LATCH can also be

used in vehicle seating positions equipped with ISOFIX.

If the vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at

the seat crease. If not visible, the seating position may be marked with a symbol (fig. a) or

a colored dot. Check the vehicle owner’s manual for vehicle top tether anchor locations.

They may be identified using one of the anchor symbols (fig. b or fig. c).

WARNING: This Child Restraint is designed to be used with

lower LATCH anchors at the standard spacing (11 inches) ONLY!

Refer to vehicle owner’s manual for information about LATCH and

Child Restraint installation positions.

Vehicle

Top Tether Anchor

Points

Vehicle

Lower Anchor

Points

Vehicle

Seat Crease

(Fig. a) (Fig. b) (Fig. c)

VEHICLE INFORMATION

Rear Shelf

Back Wall

Back of Seat

Vehicle Floor

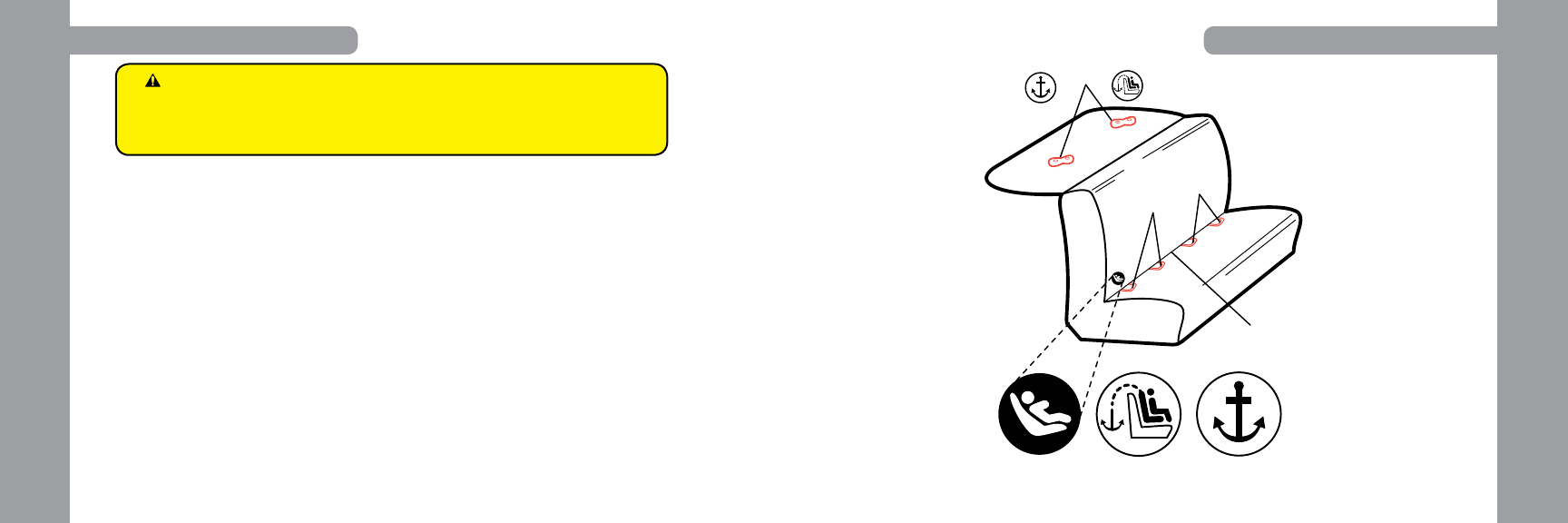

WHAT IS A TETHER? WHAT IS A TETHER?

Tether anchor locations vary from vehicle to vehicle. Check

your vehicle owner’s manual and look for the tether anchor

symbol as shown. A tether reduces movement of a forward

facing child restraint in a crash and helps to achieve a tight

installation.

Vehicle tether anchors can be found in many different locations. Some of

the typical locations are shown here. Refer to your vehicle owner’s manual

for exact locations, anchor identiﬁcation, and requirements.

38 39

REAR-FACING INSTALLATION

REAR-FACING SETUP REAR-FACING SETUP

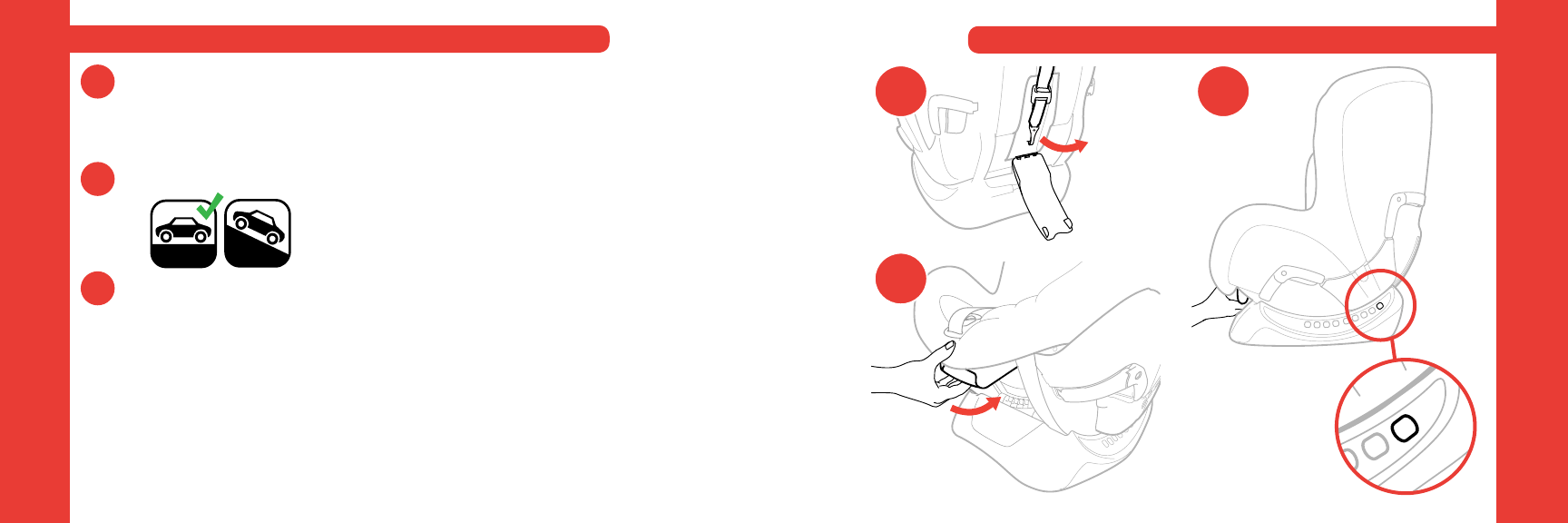

Make sure the vehicle is on a level surface, if possible.

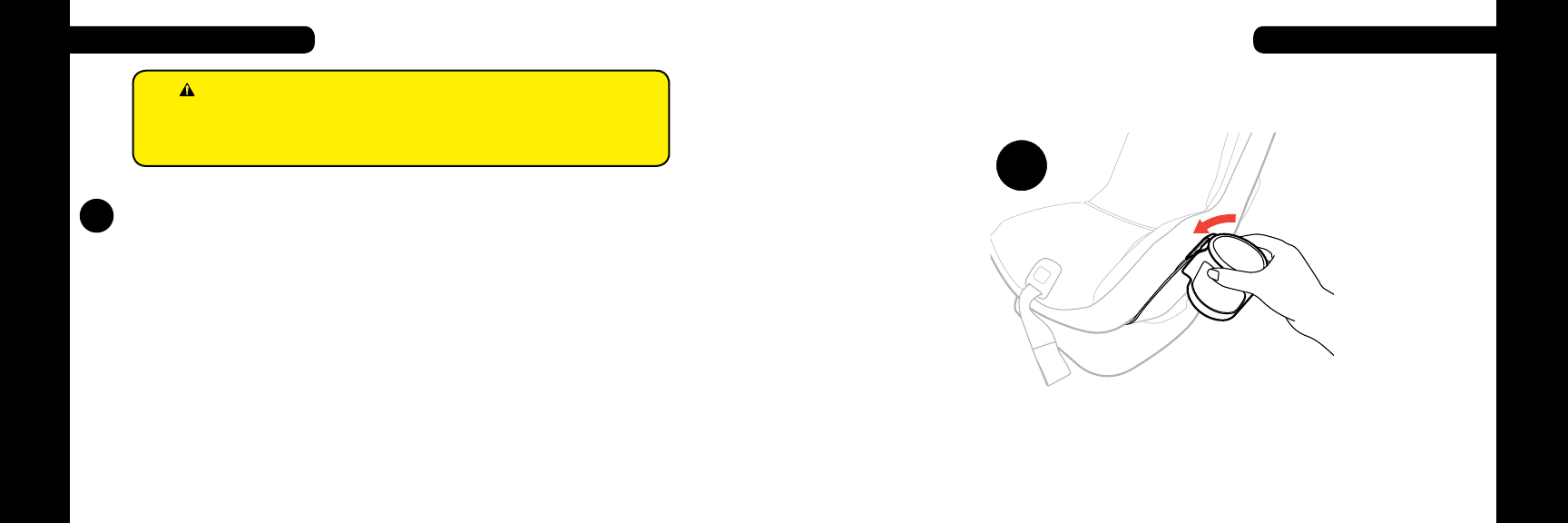

Squeeze the Recline Adjustment Handle on front of Child Restraint and

pull forward to adjust to the most reclined position (Position 1) as

shown (a).

Infants may have difﬁculty breathing when in a sitting

position. Make sure the seat is reclined properly so that

your child’s head does not fall forward. Failure to properly

recline the Child Restraint could increase the child’s risk

of serious injury or death.

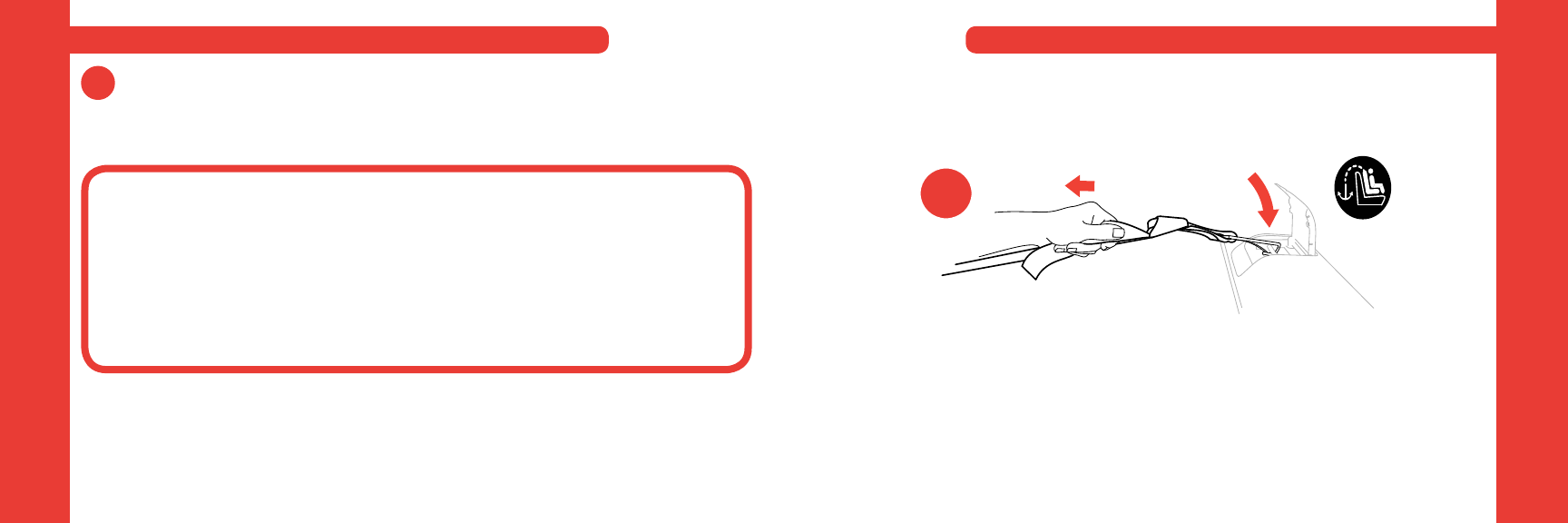

Do not use Tether in REAR-FACING mode. Tether must be properly stored - See “ Tether Storage” page 20.

LEVEL

SLOPE

40 41

REAR-FACING INSTALLATION

Place Child Restraint rear-facing on selected vehicle seat. Make sure it

is not blocking the vehicle belt buckle.

REAR-FACING SETUP REAR-FACING SETUP

•LATCH installation continued on page 42.

•Lap-ShoulderBelt installation continued on page 46.

•LapBeltOnlyinstallation continued on page 52.

Installation Options:

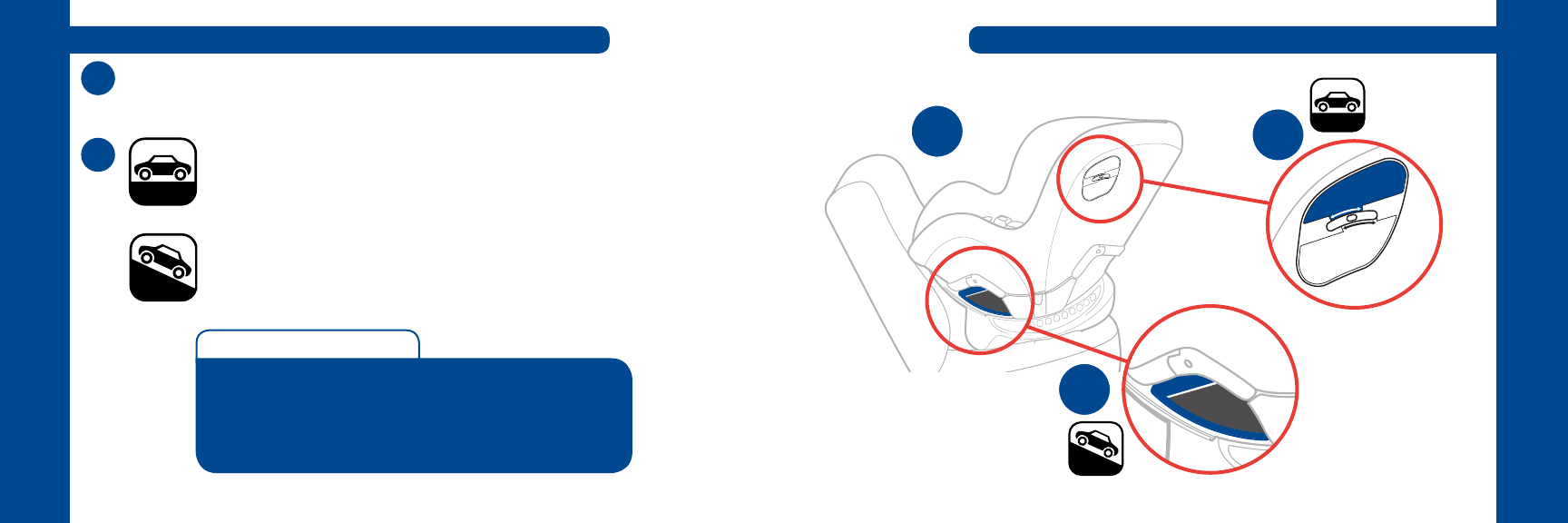

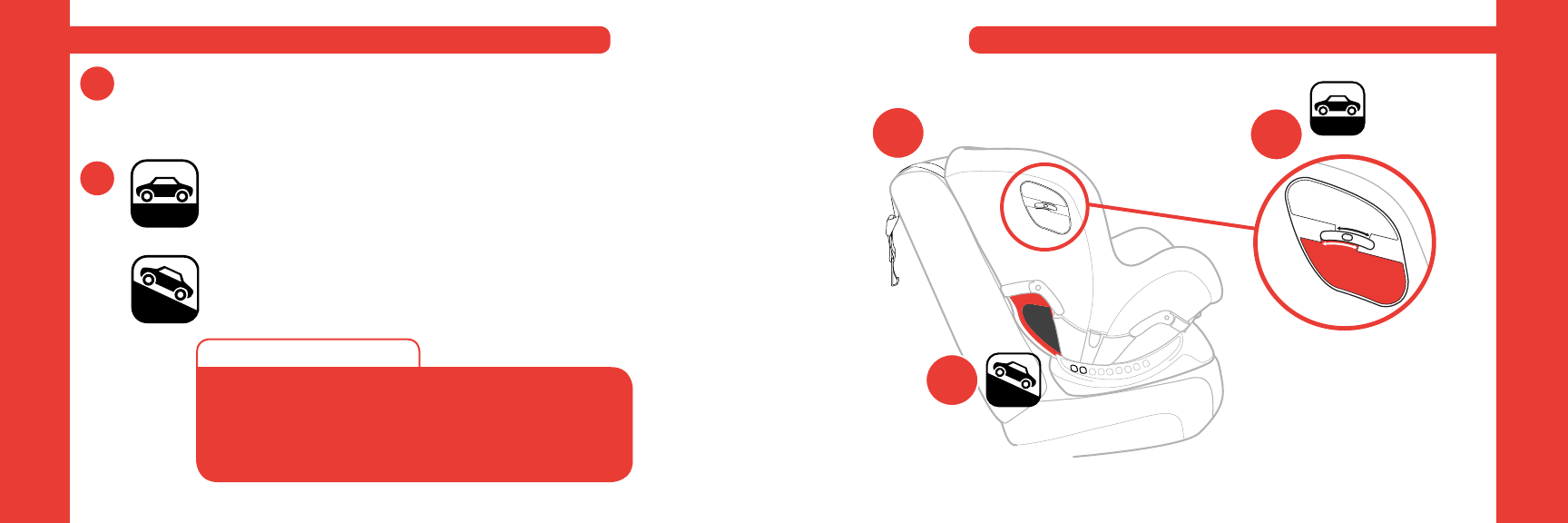

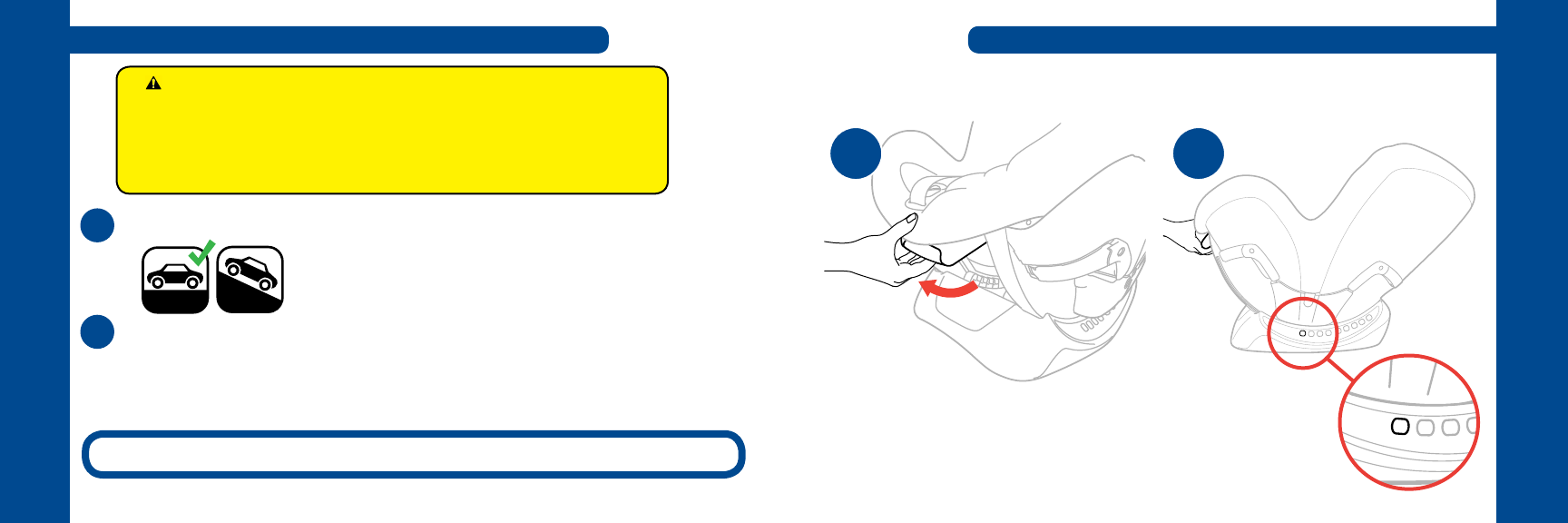

Installation on a Level Surface: Locate the Bubble Level

Indicator label and position the seat to make sure the Bubble

falls between the lines for REAR-FACING installation.

Installation on a Slope: Locate the level line on the blue label

near the rear-facing belt path. Position the seat so that the

level line is level with the ground.

L E V E L

SLO PE

L E V E L

SLO PE

L E V E L

SLOPE

L E V E L

SLOPE

42 43

REAR-FACING INSTALLATION

INSTALL USING LATCH INSTALL USING LATCH

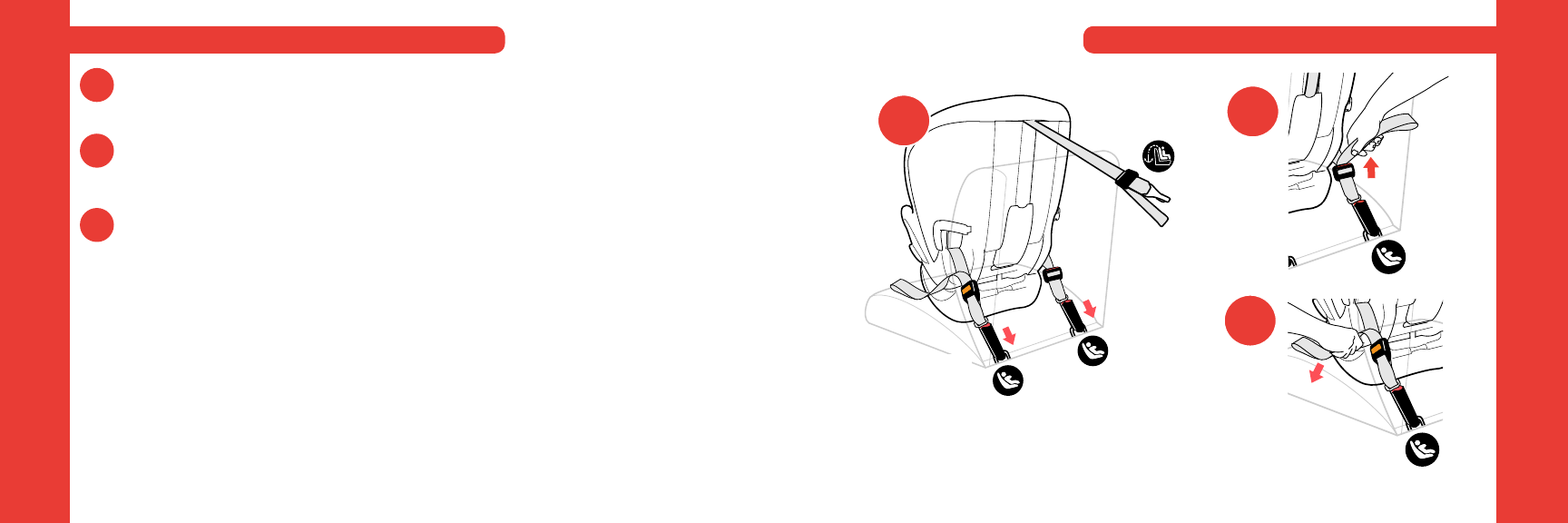

Locate the LATCH Connector Storage compartments. Remove LATCH

straps. Make sure SuperCinch™ LATCH Tightener strap (Pull 2nd)

and LATCH Adjuster strap (Pull 1st) are loosened to their full length.

Grab both ends of LATCH straps. Slide LATCH strap to blue

REAR-FACING opening on both sides. Note: Both LATCH Connector

Storage compartments must be open and both LATCH straps must be

loosened to their full length in order to slide LATCH straps into

position.

Close both LATCH Connector Storage compartments.

When not accessing the LATCH or changing the

belt path ALWAYS keep LATCH Connector Storage

compartments closed.

PULL

Make sure SuperCinch™

LATCH Tightener strap

(Pull 2nd) is loosened to

the full length.

Make sure LATCH

Adjuster strap (Pull 1st)

is loosened to the full

length.

44 45

REAR-FACING INSTALLATION

“CLICK”

PULL

2nd

PULL

1st 2

PULL

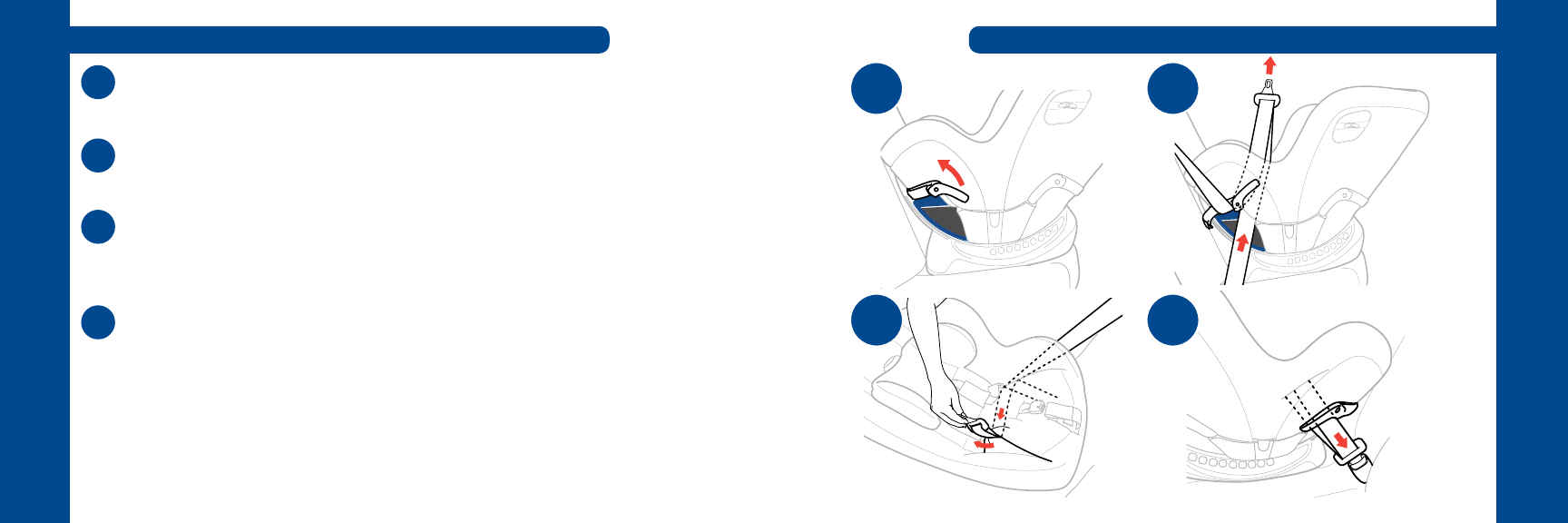

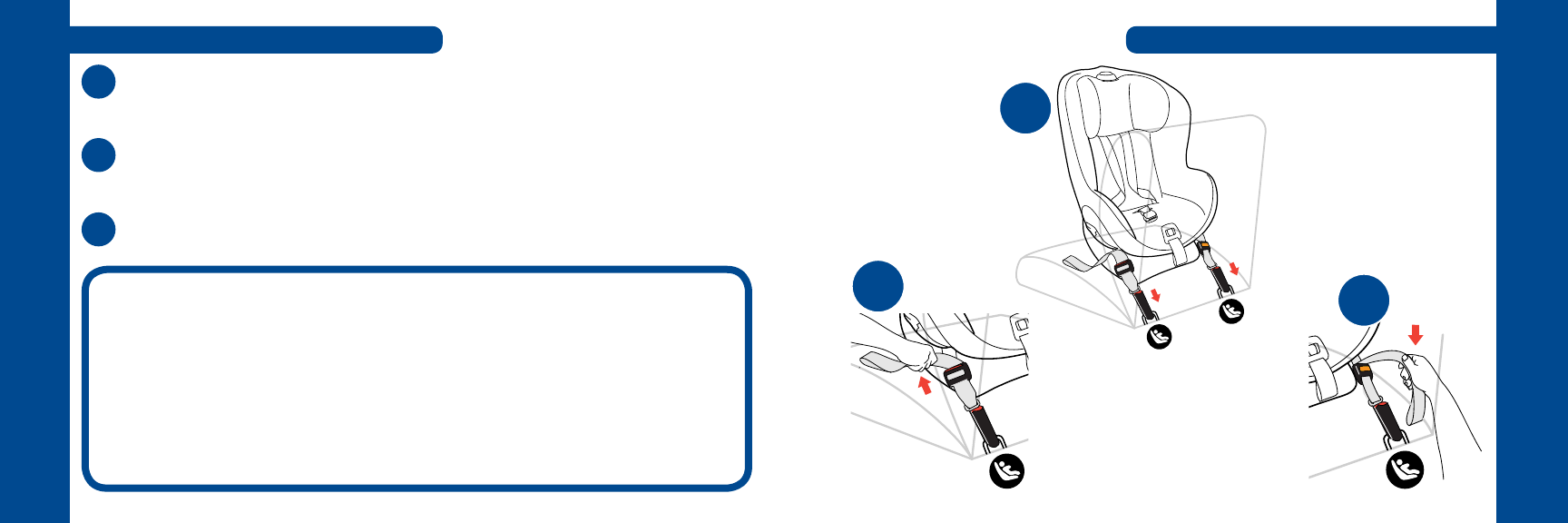

Locate the LATCH anchor bars in your vehicle. Attach both LATCH

Connectors to the vehicle LATCH anchor bars.

Pull up on the end of the LATCH Adjuster strap (Pull 1st) until

strap is tight.

Pull on the SuperCinch™ LATCH Tightener strap (Pull 2nd) to secure the

Child Restraint.

INSTALL USING LATCH INSTALL USING LATCH



CHECK YOUR WORK

Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side

to side and forward. Child Restraint should not move more than 1” (25 mm) from

vehicle seat back or side-to-side.

Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head

does not fall forward. If necessary, loosen the Latch Strap, re-adjust recline and

repeat installation steps to make sure Child Restraint is installed properly.

Check installation before every use!



PULL

46 47

REAR-FACING INSTALLATION

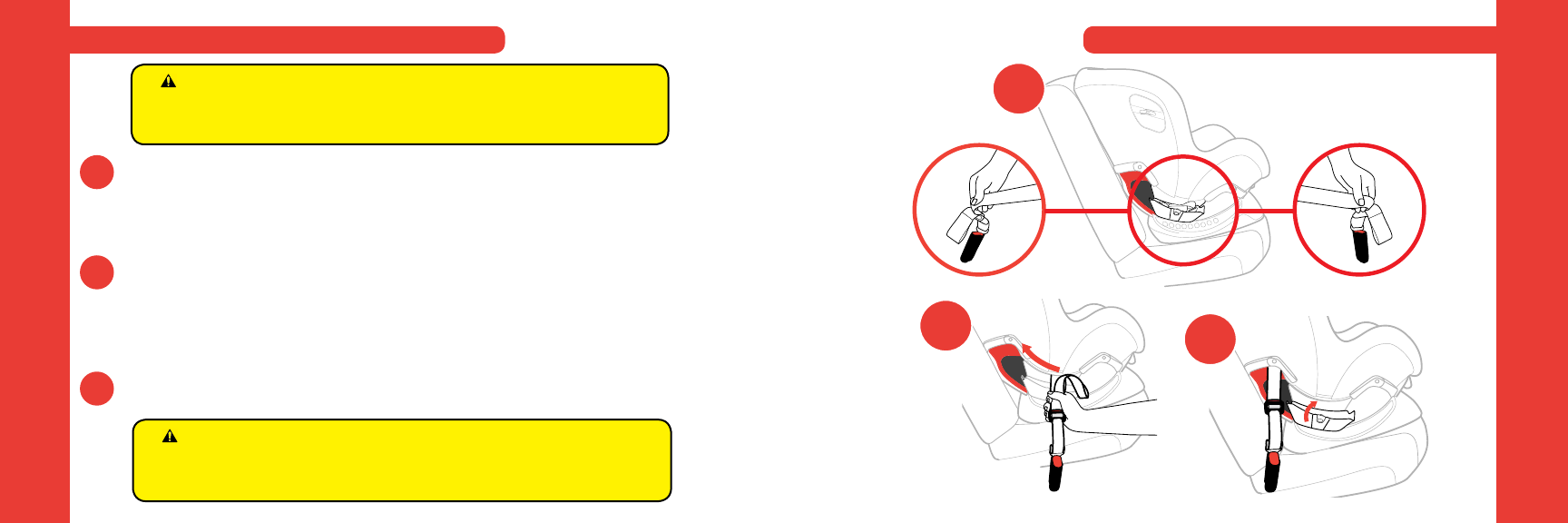

Always use the Lock-Off on the opposite side of the vehicle belt buckle.

Lift up on Lock-Off Lever to open it.

Route vehicle lap-shoulder belt through the blue REAR-FACING seat

belt path on the side of Child Restraint.

Pull vehicle belt up through the opening in Child Restraint base. Route

the vehicle belt UNDER the seat padding and behind the Crotch Strap,

when Crotch Strap is located in forward position.

Pull vehicle belt down through the blue REAR-FACING seat belt

path on opposite side of Child Restraint. Buckle the vehicle belt.

INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT

3 4

48 49

REAR-FACING INSTALLATION

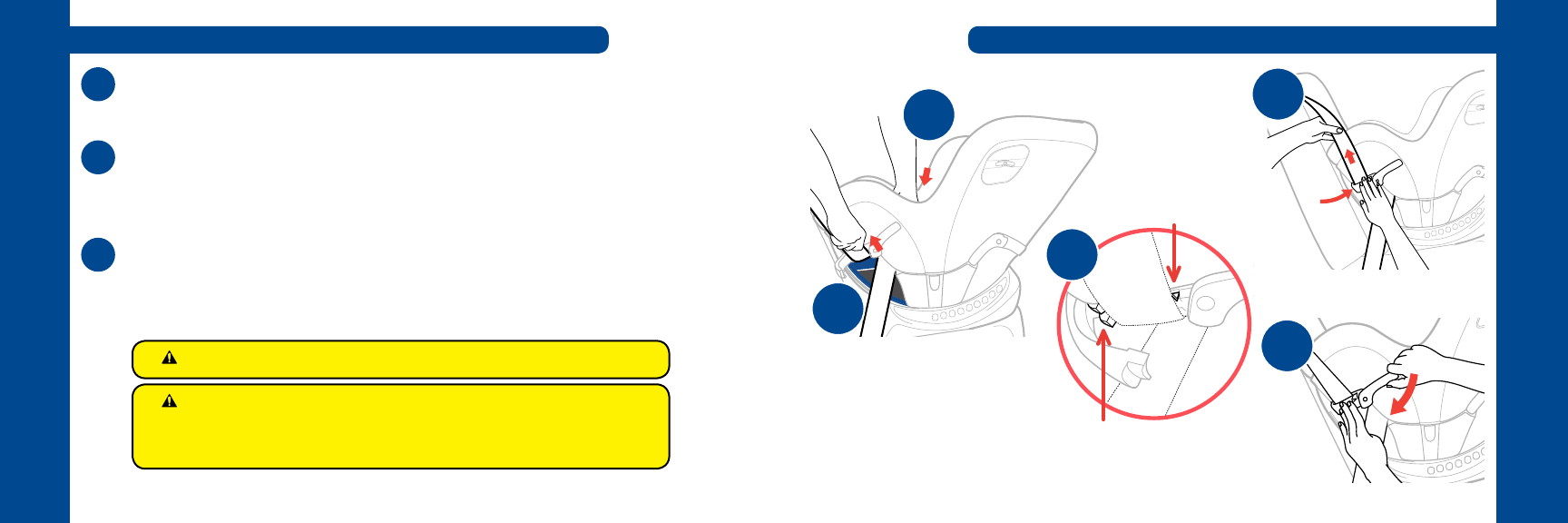

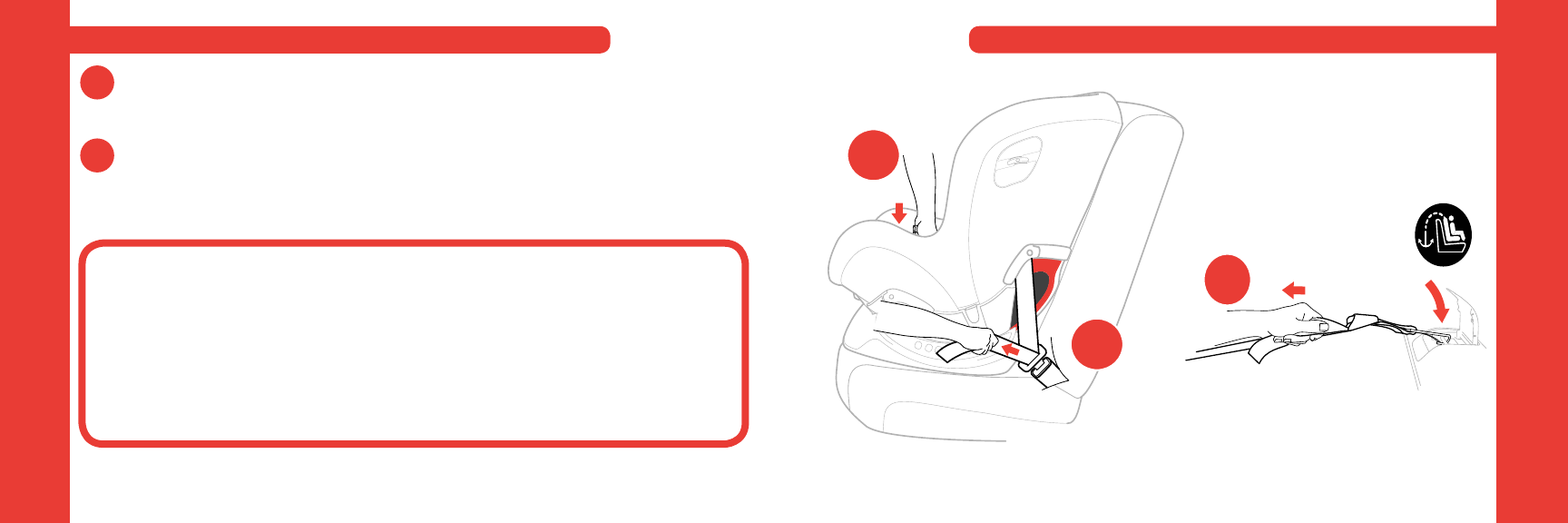

While pushing down on the Child Restraint (a) pull the vehicle shoulder

belt (b) to tighten vehicle lap belt.

Continue to pull on the vehicle shoulder belt and position the shoulder

belt in the middle of the Lock-Off area between the tabs. Lock-Off will

not close and lock in place if the vehicle belt is not positioned correctly.

While still pulling the shoulder belt tight, close the Lock-Off Door (a)

and push down on the lever to lock the Lock-Off and belt (b).

INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT

Keep Lock-Off closed at all times.

Do NOT pull on shoulder belt after the Lock-Off is

closed. This could damage the Lock-Off and/or the vehicle

belt.

TAB

50 51

REAR-FACING INSTALLATION

INSTALL USING LAP-SHOULDER BELT INSTALL USING LAP-SHOULDER BELT



CHECK YOUR WORK

Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side

to side and forward. Vehicle belt should remain tight and Child Restraint should

not move more than 1” (25 mm) from vehicle seat back or side-to-side.

Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head

does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and

repeat installation steps to make sure Child Restraint is installed properly.

Check installation before every use!



PAGE INTENTIONALLY LEFT BLANK

52 53

REAR-FACING INSTALLATION

Route vehicle lap belt through the blue REAR-FACING seat belt

path on the side of Child Restraint.

Pull vehicle belt up through the opening in Child Restraint base. Route

the vehicle belt UNDER the seat padding and behind the Crotch Strap

when Crotch Strap is located in forward position.

Pull vehicle belt down through the blue REAR-FACING seat belt path on

opposite side of Child Restraint. Buckle the vehicle belt.

INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY

54 55

REAR-FACING INSTALLATION

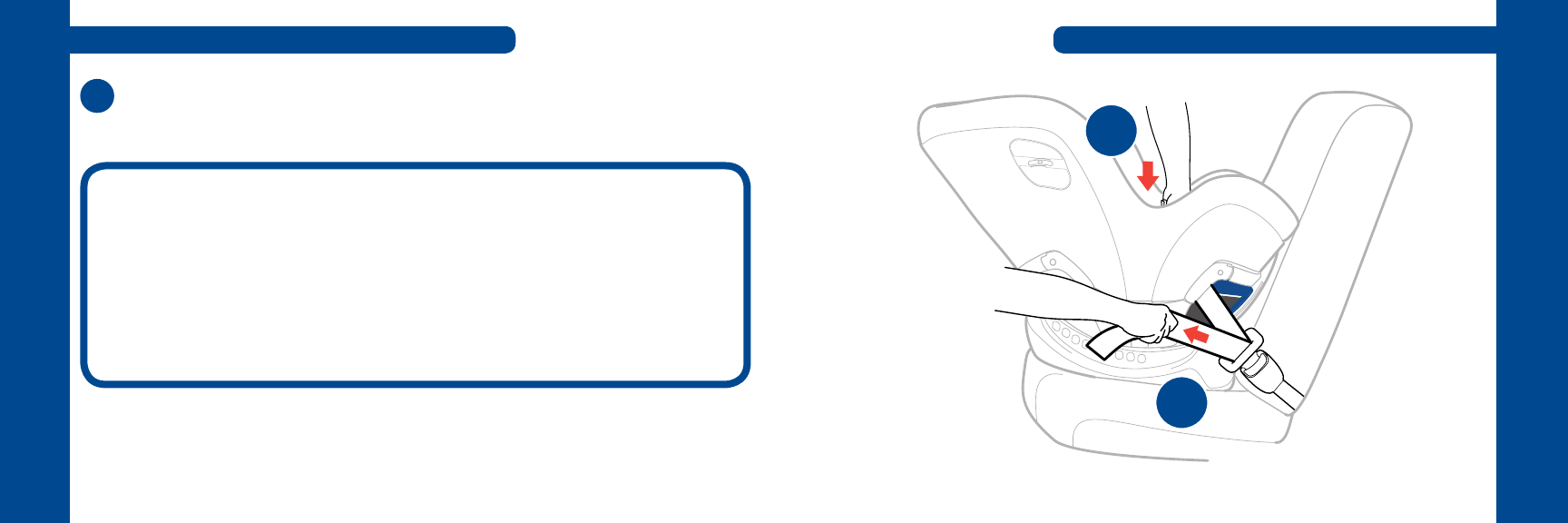

While pushing down on the Child Restraint (a) pull the loose end of

the vehicle lap belt (b) to tighten belt.

INSTALL USING LAP BELT ONLY INSTALL USING LAP BELT ONLY



CHECK YOUR WORK

Hold Child Restraint at each side near REAR-FACING vehicle belt paths. Pull side

to side and forward. Vehicle belt should remain tight and Child Restraint should

not move more than 1” (25 mm) from vehicle seat back or side-to-side.

Make sure Child Restraint is level for REAR-FACING use. Make sure infant’s head

does not fall forward. If necessary, loosen the vehicle belt, re-adjust recline and

repeat installation steps to make sure Child Restraint is installed properly.

Check installation before every use!



56 57

FORWARD-FACING INSTALLATION

FORWARD-FACING SETUP

IF TETHER ANCHOR IS AVAILABLE IN YOUR VEHICLE - Before placing

the Child Restraint in the vehicle, remove Tether from the

tether compartment.

Make sure the vehicle is on a level surface, if possible.

Squeeze the Recline Adjustment Handle on front of Child Restraint and

push back to adjust to the most upright position (Position 9) as

shown (a).

LEVEL

SLOPE

FORWARD-FACING SETUP

1 3a

58 59

FORWARD-FACING INSTALLATION

FORWARD-FACING SETUP

Place Child Restraint facing forward on selected vehicle seat. Make

sure it is not blocking the vehicle belt buckle. Lay Tether Strap over the

back of the vehicle seat.

•LATCH installation continued on page 60.

•Lap-ShoulderBelt installation continued on page 66.

•LapBeltOnlyinstallation continued on page 72.

Installation Options:

L E V E L

SLOPE

L E V E L

SLOPE

Installation on a Level Surface: Locate the Bubble Level

Indicator label and position the seat to make sure the Bubble

falls between the lines for FORWARD-FACING installation.

Installation on a Slope: If vehicle is on a slope adjust the seat

recline to position 8 or 9 ONLY.

L E V E L

SLO PE

L E V E L

SLO PE

60 61

FORWARD-FACING INSTALLATION

INSTALL USING LATCH

Locate LATCH Connector Storage compartments. Remove LATCH straps.

Make sure SuperCinch™ LATCH Tightener strap (Pull 2nd) and LATCH

Adjuster strap (Pull 1st) are loosened to their full length.

Grab both ends of LATCH straps. Slide LATCH strap to red

FORWARD-FACING opening on both sides. Note: Both LATCH Connector

Storage compartments must be open and both LATCH straps must be

loosened to their full length in order to slide LATCH straps into position.

Close both LATCH Connector Storage compartments.

Do not use the lower anchors of the child restraint

anchorage system (LATCH) to secure this Child Restraint

with a child weighing more than 40 lbs (18 kg).

PULL

Make sure SuperCinch™

LATCH Tightener strap

(Pull 2nd) is loosened to

the full length.

When not accessing the LATCH or changing the

belt path ALWAYS keep LATCH Connector Storage

compartments closed.

Make sure LATCH

Adjuster strap (Pull 1st)

is loosened to the full

length.

62 63

FORWARD-FACING INSTALLATION

INSTALL USING LATCH

Locate the LATCH anchor bars in your vehicle. Attach both LATCH

Connectors to the vehicle LATCH anchor bars.

Pull up on the end of the LATCH Adjuster strap (Pull 1st) until strap is

tight.

Pull on the SuperCinch™ LATCH Tightener strap (Pull 2nd) to

secure Child Restraint.

PULL

1st 2

PULL

2nd

PULL

“CLICK”

PULL

st 2nd

PULL

st 2nd

PULL

64 65

FORWARD-FACING INSTALLATION



CHECK YOUR WORK

Hold Child Restraint at each side near forward-facing vehicle belt path. Pull side

to side and forward. Child Restraint should not move more than 1” (25 mm) from

vehicle seat back or side-to-side.

Make sure Bubble is between lines on label for FORWARD-FACING use. If

necessary, loosen the LATCH and Tether Straps, re-adjust recline and repeat

installation steps to make sure Child Restraint is installed properly.

Check installation before every use!



INSTALL USING LATCH

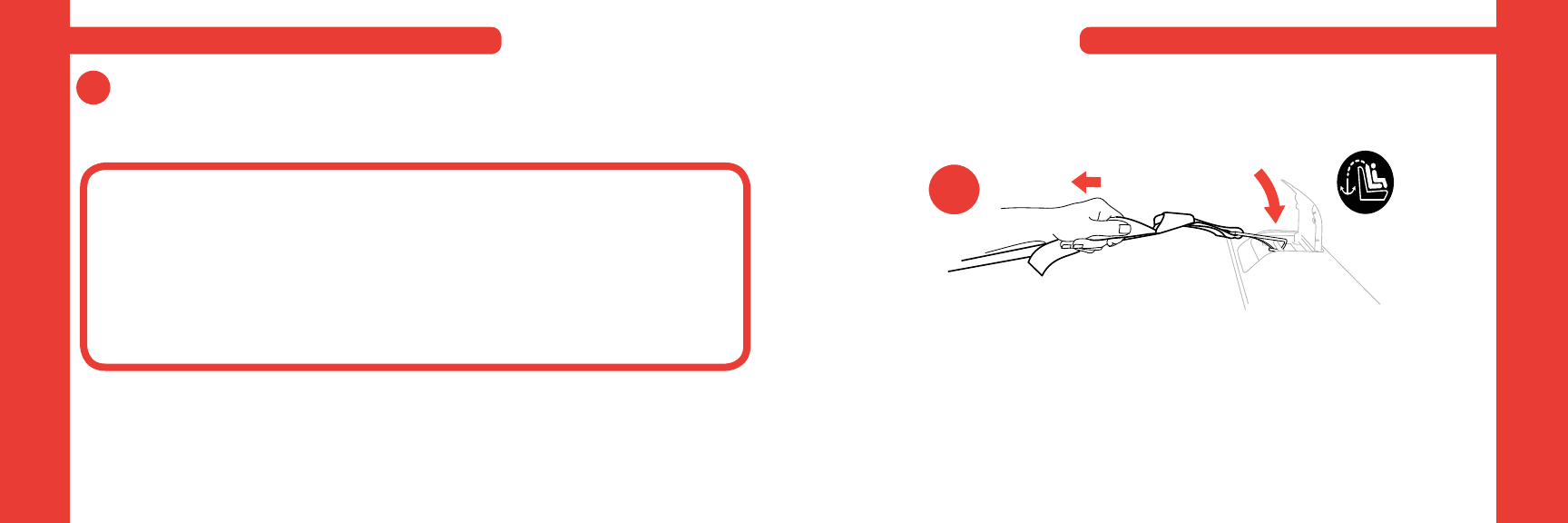

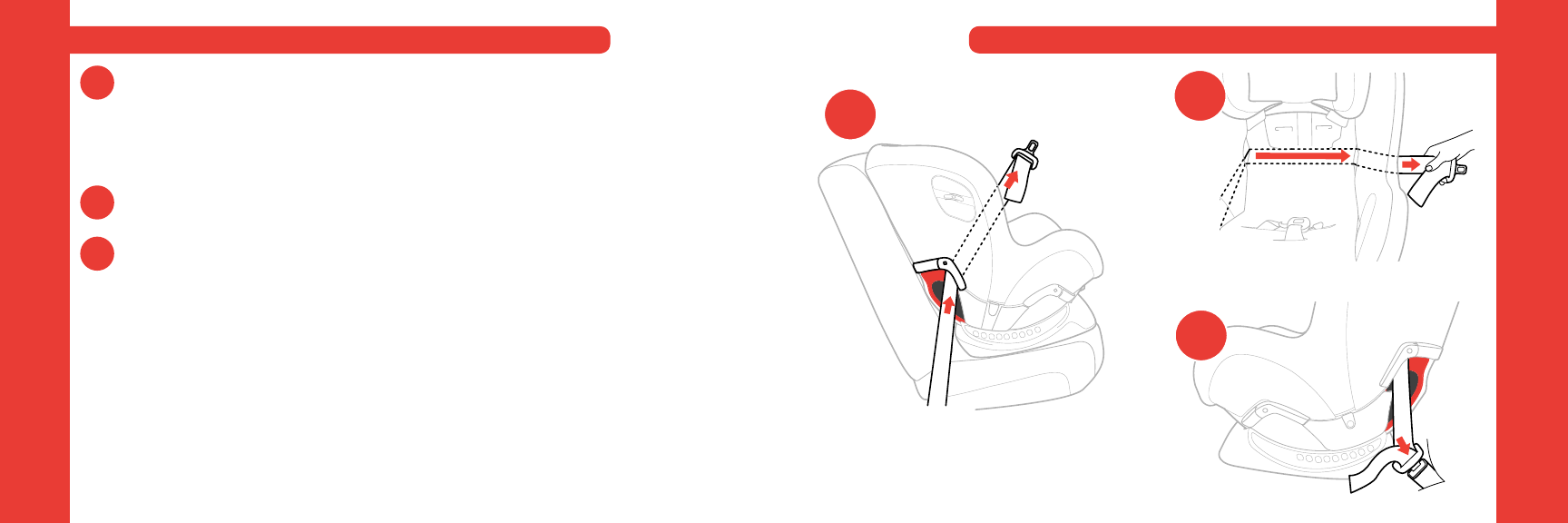

Locate Tether anchor in your vehicle. Attach Tether Hook.

Pull Tether Adjuster strap to tighten.

66 67

FORWARD-FACING INSTALLATION

INSTALL USING LAP-SHOULDER BELT

Always use the Lock-Off on the opposite side of the vehicle belt buckle.

Lift-Up on Lock-Off Lever to open it.

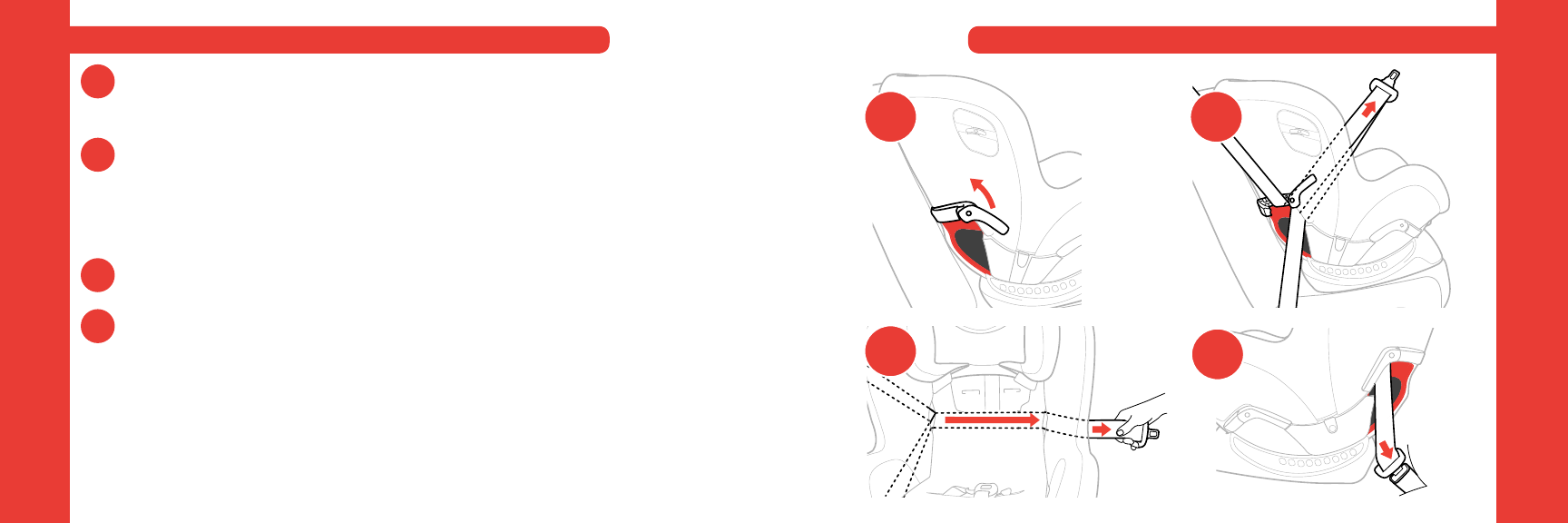

Route vehicle lap-shoulder belt through the red FORWARD-FACING

seat belt path on the side of Child Restraint. Lift the padding on the

back of the seat and pull the vehicle belt through the opening on the

side of Child Restraint.

Pass the vehicle belt along the back of the Child Restraint as shown.

Pull the vehicle belt down through the red FORWARD-FACING seat

belt path on the opposite side of Child Restraint. Buckle the vehicle

belt. Replace the seat back padding.

68 69

FORWARD-FACING INSTALLATION

INSTALL USING LAP-SHOULDER BELT

While pushing down on the Child Restraint (a) pull the vehicle shoulder

belt (b) to tighten vehicle lap belt.

Continue to pull on the vehicle shoulder belt and position the

shoulder belt in the middle of Lock-Off area between tabs. Lock-Off

will not close and lock in place if the vehicle belt is not positioned

correctly.

While still pulling the shoulder belt tight, close Lock-Off Door (a) and

push down on the lever to lock the Lock-Off and belt (b).

Keep Lock-Off closed at all times.

Do NOT pull on shoulder belt after the Lock-Off is closed.

This could damage the Lock-Off and/or the vehicle belt.

TAB

70 71

FORWARD-FACING INSTALLATION

Locate Tether anchor in your vehicle. Attach Tether Hook.

Pull Tether Adjuster strap to tighten.

INSTALL USING LAP-SHOULDER BELT



CHECK YOUR WORK

Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull

side to side and forward. Vehicle belt should remain tight and Child Restraint

should not move more than 1” (25 mm) from vehicle seat back or side-to-side.

Make sure Bubble is between lines on label for FORWARD-FACING use. If

necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat

installation steps to make sure Child Restraint is installed properly.

Check installation before every use!



72 73

FORWARD-FACING INSTALLATION

Route vehicle lap belt through the red FORWARD-FACING seat belt

path on the side of Child Restraint. Lift the padding on the back of the

seat and pull the vehicle belt through the opening on the side of the

Child Restraint.

Pass the vehicle belt along the back of the Child Restraint as shown.

Pull the vehicle belt down through the red FORWARD-FACING seat

belt path on the opposite side of Child Restraint. Buckle the

vehicle belt. Replace the seat back padding.

INSTALL USING LAP BELT ONLY

74 75

FORWARD-FACING INSTALLATION

While pushing down on the Child Restraint (a) pull the loose end of the

vehicle lap belt (b) to tighten.

Locate Tether anchor in your vehicle. Attach Tether Hook.

Pull Tether Adjuster strap to tighten.

INSTALL USING LAP BELT ONLY



CHECK YOUR WORK

Hold Child Restraint at each side near FORWARD-FACING vehicle belt path. Pull

side to side and forward. Vehicle belt should remain tight and Child Restraint

should not move more than 1” (25 mm) from vehicle seat back or side-to-side.

Make sure Bubble is between lines on label for FORWARD-FACING use. If

necessary, loosen the vehicle belt and Tether, re-adjust recline and repeat

installation steps to make sure Child Restraint is installed properly.

Check installation before every use!



76 77

SECURING YOUR CHILD

SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

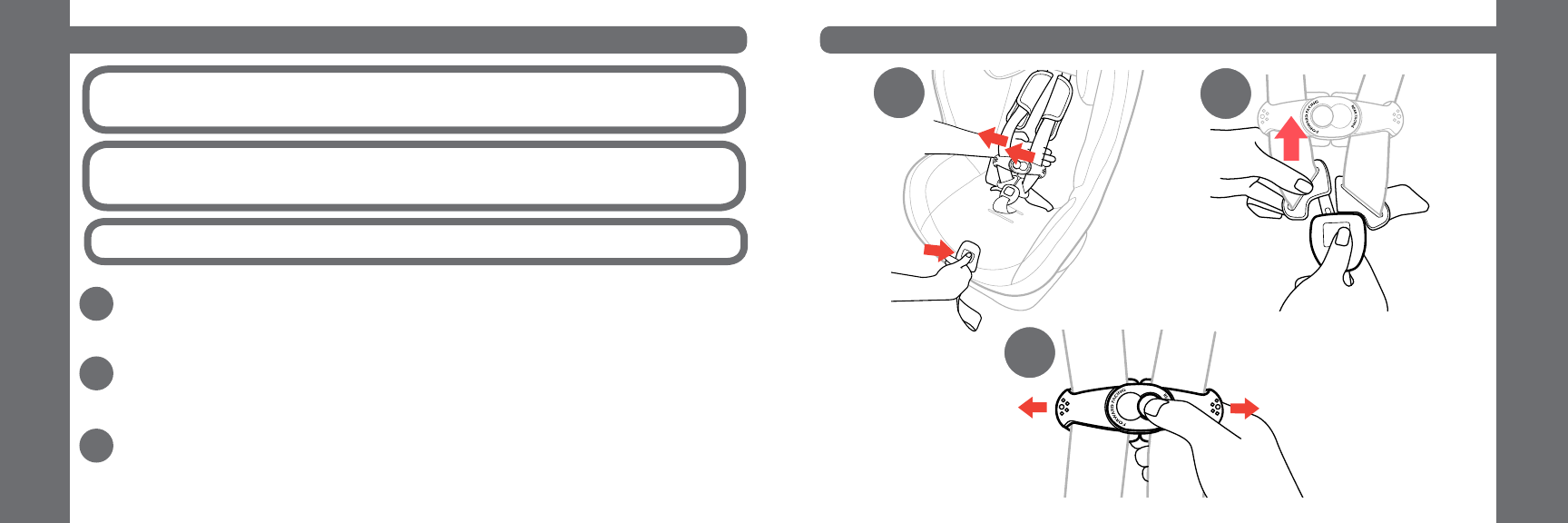

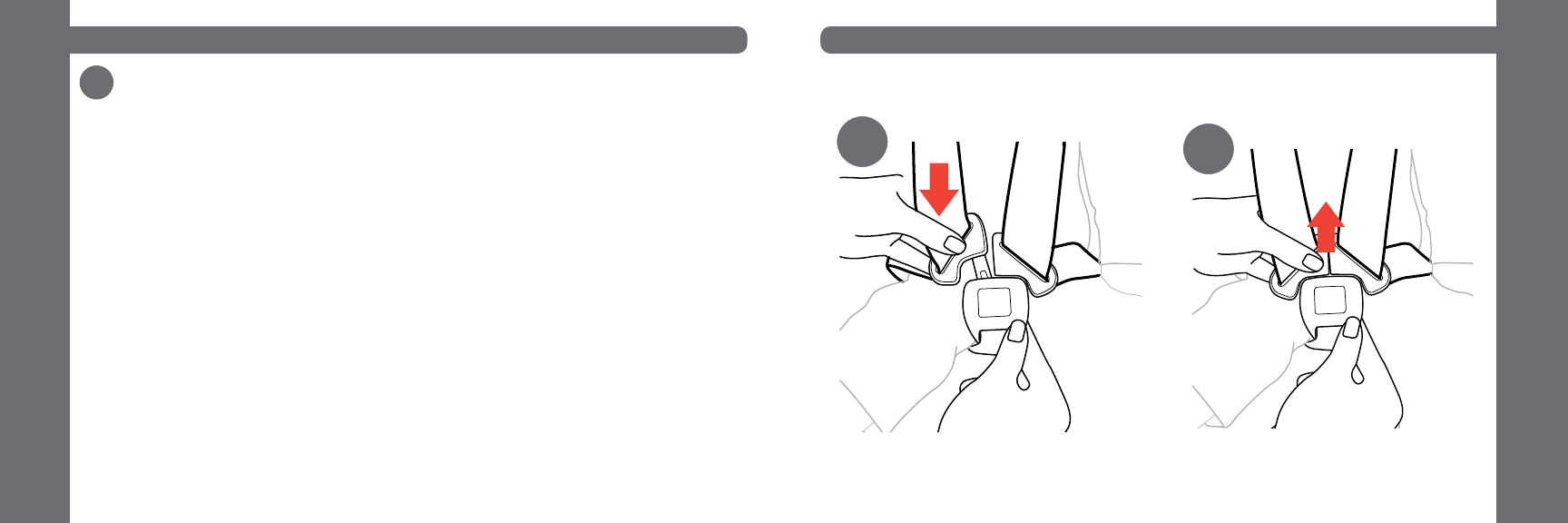

Loosen Harness by pressing Harness Release Button on the front of the

Child Restraint and pulling forward on both of the Harness Straps.

Unbuckle Harness by pressing the button on Harness Buckle and pulling

out both Buckle Tongues.

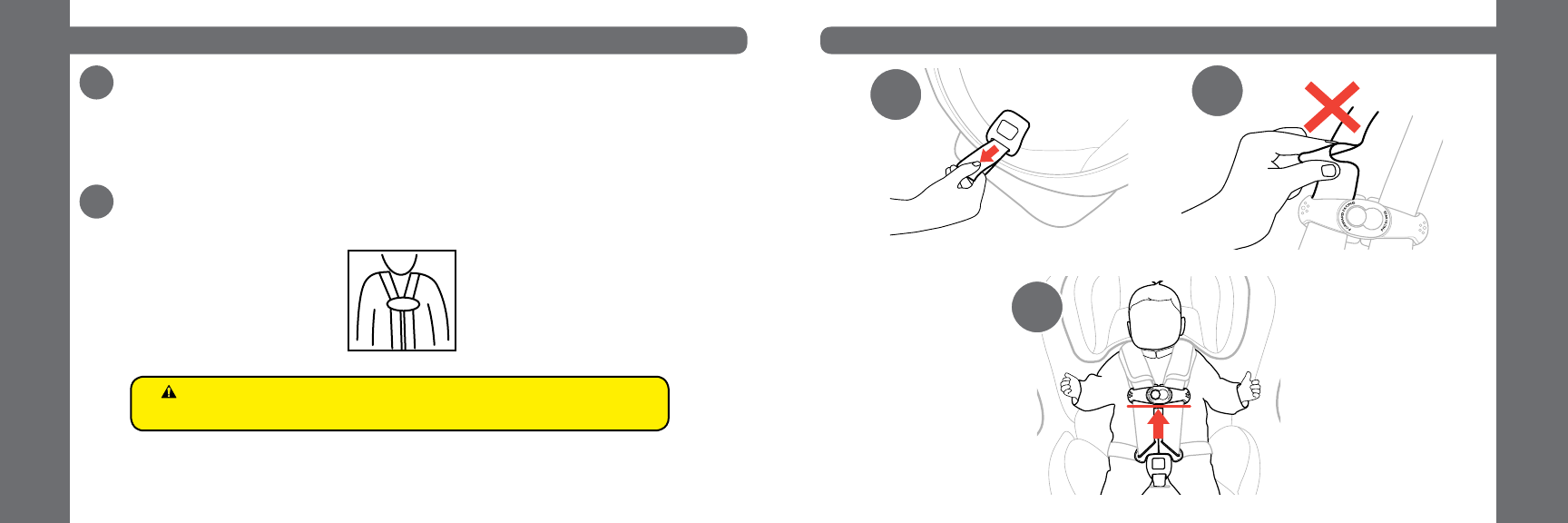

Open Chest Clip by pressing the button in the middle of the clip and

pulling apart.

For a better ﬁt in the Child Restraint with smaller infants, the Newborn Insert

provided may be needed. See page 28 for more details.

If Crotch Strap is under child, the crotch strap will need to be re-positioned, refer to

page 26 “Adjusting Crotch Strap”.

NEVER use Child Restraint without Shoulder Pads.

78 79

SECURING YOUR CHILD

SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

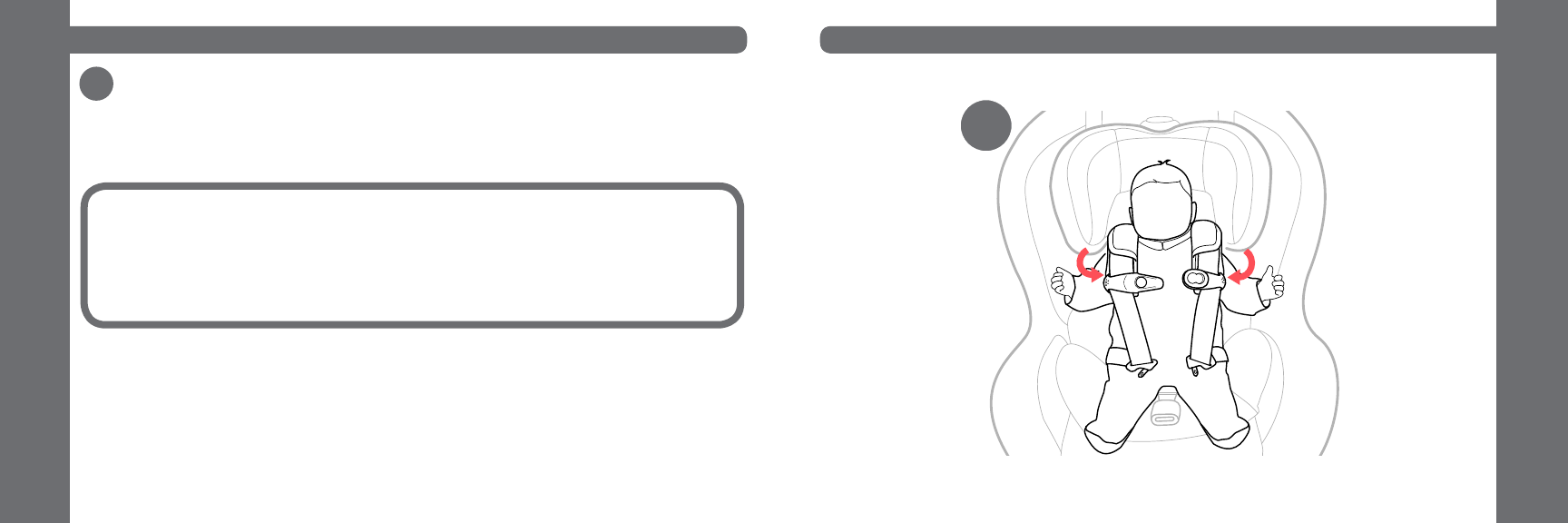

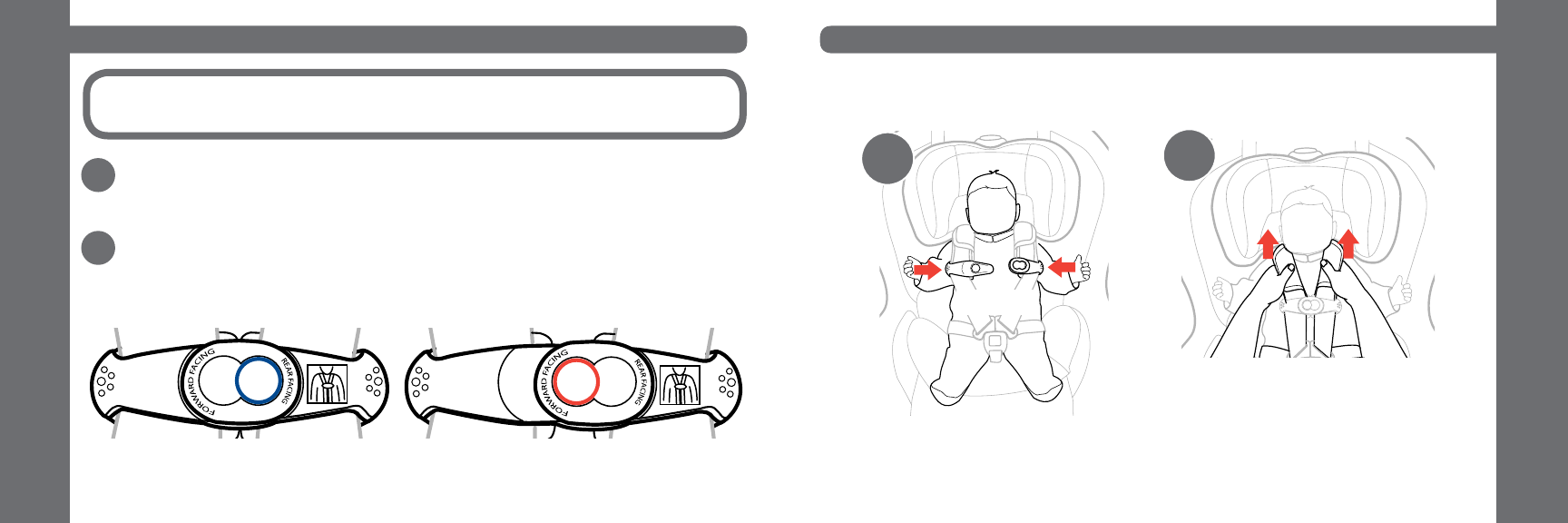

Place child in Child Restraint with child’s back ﬂat against the back of the

seat. Pull Harness Straps over the child’s shoulders and around the child’s

waist. Make sure there are no twists in Harness Strap.

If the child is wearing cold weather clothing, give extra attention to adjusting the Harness

- make sure the Harness Straps lie ﬂat on the child’s shoulders, are adjusted snugly so

that the clothing is compressed and the child cannot lean forward, and the Chest Clip is

at armpit level. Clothing that interferes with the proper placement or adjustment of the

Harness system should never be used.

80 81

SECURING YOUR CHILD

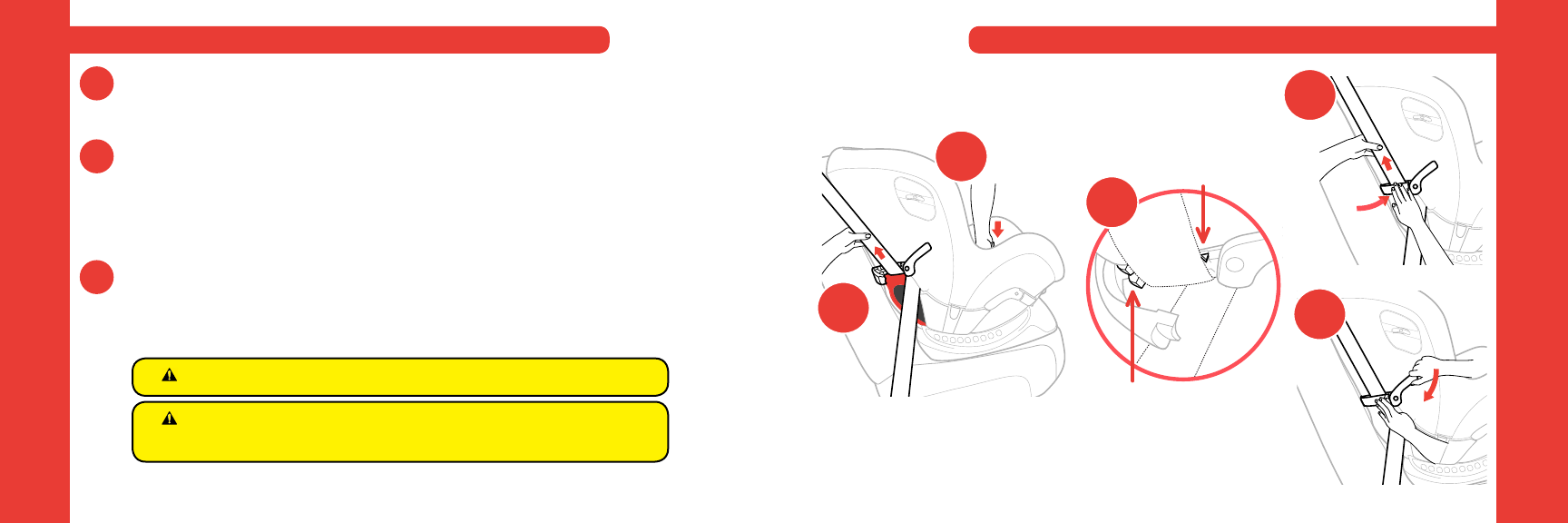

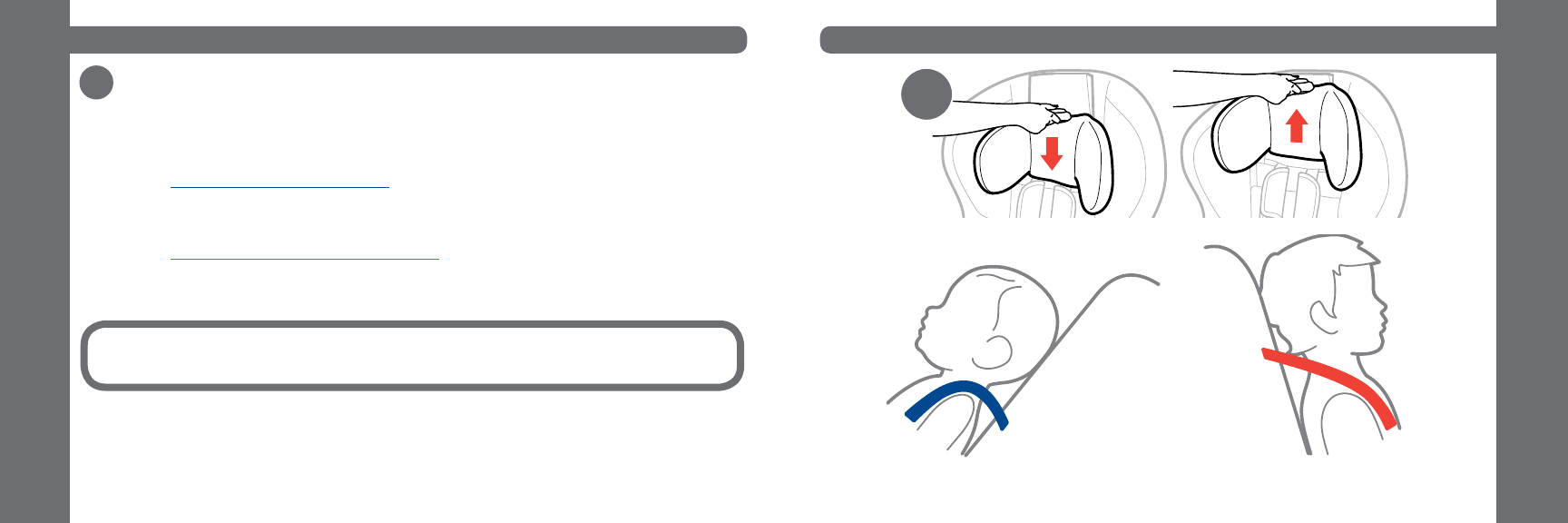

Adjust Harness Strap height position up or down by squeezing

Adjustment Handle on top of Head Rest. Make sure Head Rest

locks into position before tightening Harness.

REAR-FACING POSITION - Position the Harness Straps

at or below the child’s shoulders.

FORWARD-FACING POSITION - Position the Harness Straps

at or above the child’s shoulders.

SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

REAR-FACING

AT OR BELOW

FORWARD-FACING

AT OR ABOVE

If using lowest Head Rest/Harness Position, make sure the seat back padding panel is

folded under.

82 83

SECURING YOUR CHILD

Insert each Buckle Tongue into Harness Buckle; listen for a click

(a). Pull up ﬁrmly on both Buckle Tongues to make sure that they

are securely latched (b).

SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

“CLICK”

84 85

SECURING YOUR CHILD

Fasten Chest Clip by snapping both sides together; listen for a click.

Press the button on the Chest Clip and slide into correct mode.

Pull on both shoulder straps to remove all slack from lower straps.

Push Chest Clip down away from the child’s neck and towards the

Harness Buckle.

SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

REAR-FACING FORWARD-FACING

“CLICK”

When fastening Chest Clip make sure to select the correct mode on the Chest Clip -

Either “FORWARD-FACING” or “REAR-FACING”.

86 87

SECURING YOUR CHILD

Tighten the harness by pulling slowly on Harness Adjustment Strap until

the harness is snug around child (a). If you can pinch a fold in the strap,

harness is too loose (b). If the harness is too loose pull the Harness

Adjuster strap more.

Slide Chest Clip up to center of child’s chest, level with the armpits.

SECURING CHILD WITH HARNESS SECURING CHILD WITH HARNESS

WARNING - If harness is not snug around your child, child could be

ejected in a sudden stop or crash resulting in serious injury or death.

88 89

SECURING YOUR CHILD

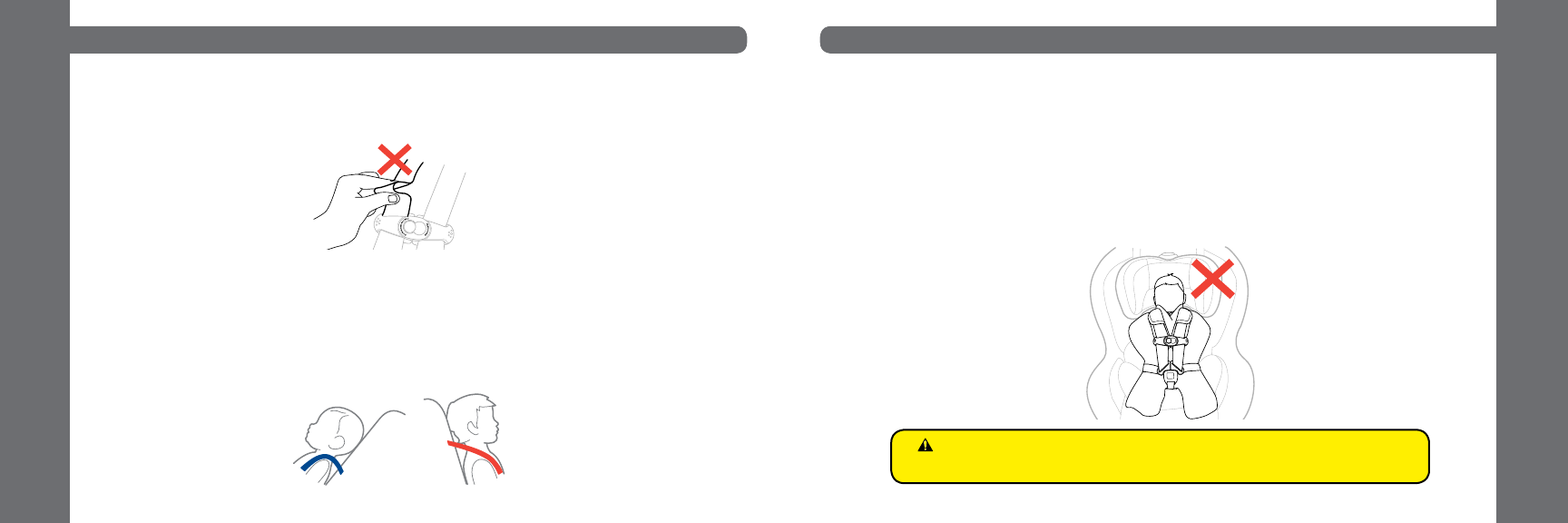

Check the position of Chest Clip: Chest Clip should be centered on the child’s chest, level

with the armpits. When fastening Chest Clip make sure to select the correct position on the

Chest Clip - Either “FORWARD-FACING” or “REAR-FACING”.

Never secure child in Child Restraint with child dressed in bulky garments or heavy clothing.

Heavy clothing can prevent harness from being properly tightened around child.

Never secure child in Child Restraint with child wrapped in a blanket. To keep child warm,

place a blanket over child AFTER you have properly secured and tightened harness around child.

Harness Straps must be snug. If you can pinch a fold in the strap, the harness is too loose. A

snug strap should not allow any slack. It lies in a relatively straight line without sagging. It

does not press on the child’s ﬂesh or push the child’s body into an unnatural position.

To ensure a better ﬁt for smaller infants, the Newborn Insert may be needed. Never place

extra padding under or behind the child. Only use the Newborn Insert.

Straps must lay ﬂat, free of twists and on top of the child’s shoulders.

Check the height of the Harness Straps: Position the Harness Straps at or below the child’s

shoulders for REAR-FACING and at or above the child’s shoulders for FORWARD-FACING.



SECURING CHILD CHECKLIST SECURING CHILD CHECKLIST

WARNING - If harness is not snug around your child, child could be

ejected in a sudden stop or crash resulting in serious injury or death.



REAR-FACING FORWARD-FACING



ADDITIONAL INFORMATION

90 91

ADDITIONAL INFORMATION

INSTALLATION ON AN AIRCRAFT

• This Child Restraint is certiﬁed for use on aircraft. Contact airline about

their policy.

• Use this Child Restraint only on FORWARD-FACING aircraft seats.

• Install Child Restraint on an aircraft the same way it is installed in a

vehicle when using a vehicle lap belt. Reference Rear-Facing on page 38

or Forward-Facing on page 56.

When traveling by airplane with your child, Chicco recommends taking the Child Restraint on the

airplane with you so that you can use it with your child. Not only will it protect your child during take-off,

landing, and turbulence, but also it will give your child a more comfortable place to sit.

PAGE INTENTIONALLY LEFT BLANK

ADDITIONAL INFORMATION

92 93

ADDITIONAL INFORMATION

CUP HOLDER CUP HOLDER

WARNING - PLASTIC CONTAINERS ONLY - No glass or metal

containers. Only use cups with less than 12 oz. capacity. Never place sharp

or pointed objects in Cup Holder. In a crash these objects could hit you or

your child and cause serious injuries.

Slide Cup Holder into either side of Child Restraint where indicated

by the Cup Holder icon.

ADDITIONAL INFORMATION

94 95

ADDITIONAL INFORMATION

CLEANING AND MAINTENANCE

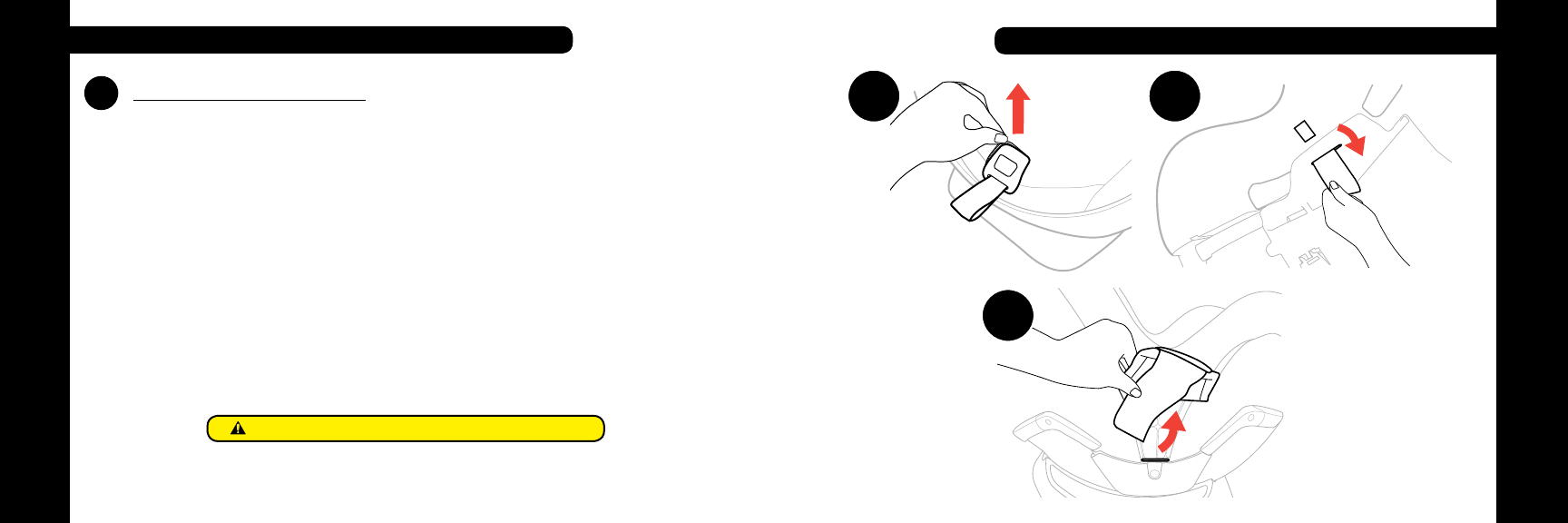

REMOVING SOFT GOODS:

Unsnap headrest and pull up on the fabric to reveal two hooked elastic

strings. Unhook both elastic strings and pull forward to remove.

Pull seat padding away from the Harness Release button (a). Unsnap

each side of the back padding and pull forward to reveal seat bottom.

Unhook the Velcro straps from both sides of Child Restraint on the inside

of seat shell (b). Pull padding and Velcro straps out from both sides of

Child Restraint (c).

Carefully pull seat padding away from Child Restraint.

CLEANING AND MAINTENANCE

1a 1b

NEVER use Child Restraint without the Seat Pad.

ADDITIONAL INFORMATION

96 97

ADDITIONAL INFORMATION

CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE

REMOVING CROTCH STRAP:

Fully recline the seat (position 1). Slide the button on the Crotch Strap

lock while pulling up on the Crotch Strap to open the compartment (a).

Turn metal bar slightly on underside of seat and get corner to go through

slot (b). Push metal bar through slot while pulling crotch belt out (c).

INSTALL SOFTGOODS / CROTCH STRAP:

Reverse the removing instructions above to reinstall.

2a 2b

NEVER remove Harness or harness components from

Child Restraint. DO NOT USE Child Restraint if any part of

the harness is damaged.

NEVER use Child Restraint without the Crotch Strap

installed.

ADDITIONAL INFORMATION

98 99

ADDITIONAL INFORMATION

CLEANING AND MAINTENANCE

DO NOT USE BLEACH, solvents or household cleaners as they may

weaken plastics and straps.

DO NOT USE SOAPS OR LUBRICANTS on Buckle or LATCH hardware.

It may cause them to malfunction.

• Fabrics may be spot-cleaned:

Using mild soap and water, or machine washed in cold water on delicate

cycle using mild detergent. Hang to dry.

• Cleaning Plastics:

Sponge clean using warm water and mild soap. Towel dry.

• Cleaning Harness and LATCH Straps:

Harness and LATCH Straps cannot be replaced. Sponge clean using

warm water and mild soap. Air dry.

Do NOT remove Harness or Adjuster straps. They cannot be replaced.

• Cleaning Shoulder Pads:

Sponge clean using warm water and mild soap.

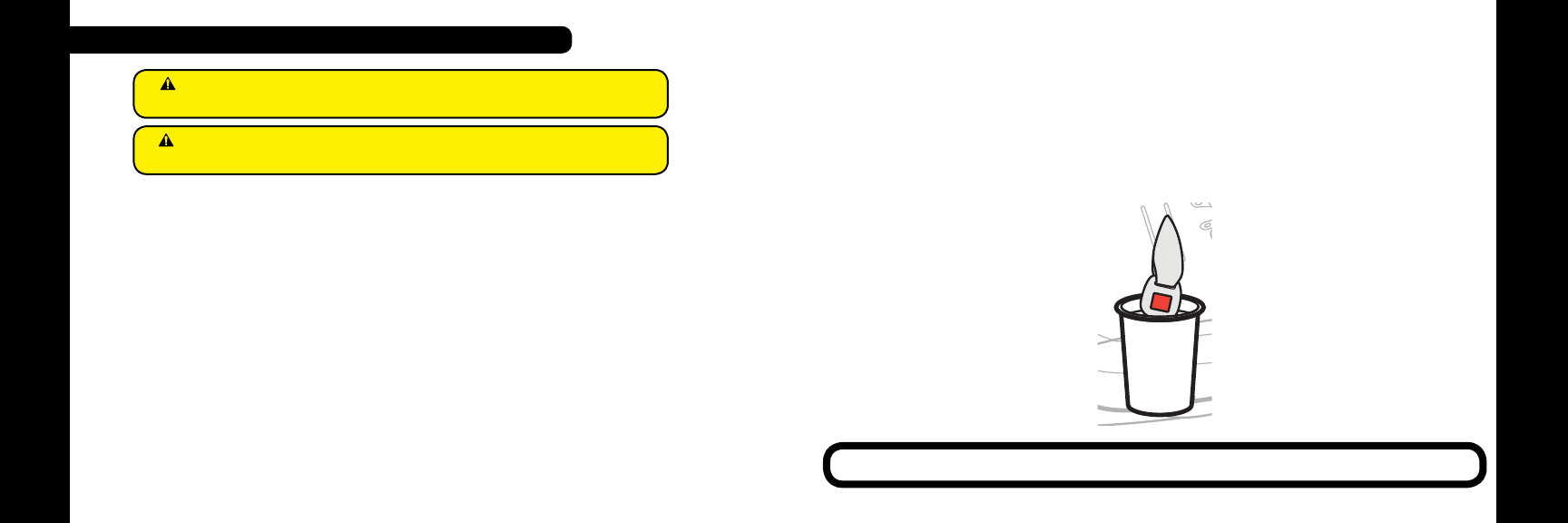

• Cleaning Buckle and LATCH Hardware:

Sponge clean, using warm water and mild soap. If debris in buckle,

remove and rinse in warm cup of water. Air dry.

Chicco Nextfit Owners Manual

Chicco-Nextfit-Convertible-Car-Seat-Owner-S-Manual chicco-nextfit-convertible-car-seat-owner-s-manual

Navigation menu

Versions of this User Manual:

Views

Navigation
