Chicony Electronics Co DCD230U40 WIRELESS CAMCORDER User Manual
Chicony Electronics Co Ltd WIRELESS CAMCORDER
User Manual
Wireless Camcorder
User Manual
| 1
English
Names of Parts

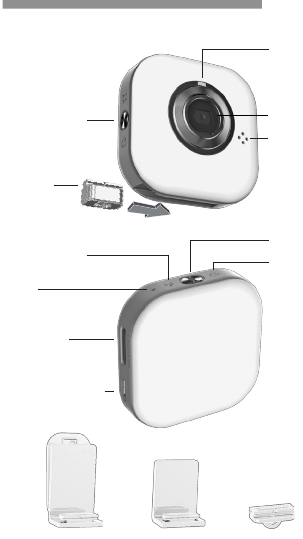

Clip Mount Magnet Mount
Tripod
Mount
Strap Mount
Record Button
Status
Indicator
Mic
Micro SD
Card Slot
Micro USB Port
Speaker
Direct Mode
Indicator Cloud Mode
Indicator
Power/Mode
Button
Lens
English
Getting Started
Charging the Unit
• Before initial use, fully charge the camera via power adapter or
USB to computer system.
• During charging, the status indicator ashes in red. When the
camera is fully charged, the indicator turns off.
Modes Navigation
• Press Power/Mode button for 2 seconds then release it to turn
ON or OFF the camera.
• Tap Power/Mode button 1 time to switch between Direct
Mode and Cloud Mode.
Video Mode
Insert micro SD card (sold separately).
• Press Record button to shoot and press again to stop.
Wireless Modes
Before using wireless modes, install
below applications
:
•
Mobile app: Download [Unieye] from Google Play or Apple Store.
• PC software: Install [PC APP] from camera (Windows)(page 6).
Direct Mode
Connecting camera to mobile or PC directly for remote
controlling, live viewing, album managing, and camera setup.
Cloud Mode
Connecting camera to cloud server via access point (AP) or
mobile hotspot for internet video or live monitoring.
Power/Mode Function Pressing Duration
Turn ON or OFF
2 secs.
Forced Default Settings
5 secs. (Power/Mode + Record button)
Forced Shutdown Approx. 12 secs.
| 2
| 3
English
Getting Started
Direct Mode (Local)
For initial use, install [Unieye] app
on mobile. Each camera has a unique
Camera ID. ( U2-xxxxxxxx)
Password is not required for the initial use, however, it is advised
to go to [Setup] in app to setup password after connected.
Android:
iOS:
• Set camera to Direct Mode
and wait until indicator turns
steady green.
• On mobile, activate WiFi.
• Run [Unieye].

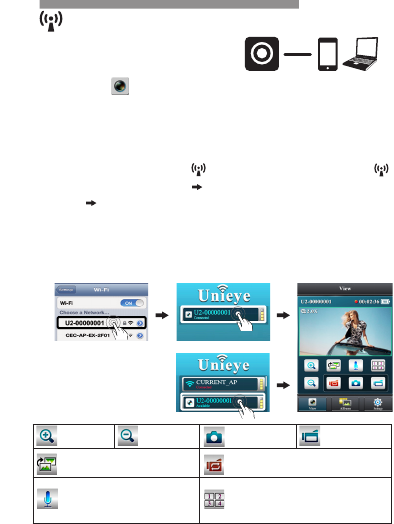

• Press camera bar to start.
Connect to Camera
• Set camera to Direct Mode .
• On mobile, go to [Settings]
[WiFi] Choose a camera.
The 3G connection will switch
to WiFi within 1 min.
• Run [Unieye].
• Press camera bar to start.
For iOS user: For Android user:
Direct Mode (Intranet)
Mobile / PC
Note:1. Move the camera further away from mobile when echo occurs.
2. Mobiles with low CPU clock speed may not have audio during streaming.
Take Photo
(SD card required)
Loop Recording
• Record and archive in 3 min interval
Quad View
Zoom In Zoom out Shoot Video
(SD card required)
Invert Image
Two Way Voice
• Tap to enable Quad View (up to 4 cameras).
• Tap a live view window to return to single view.
• Tap to talk to the camera from mobile;
tap again to allow the camera to talk back
to mobile.
Cloud Mode (Internet)

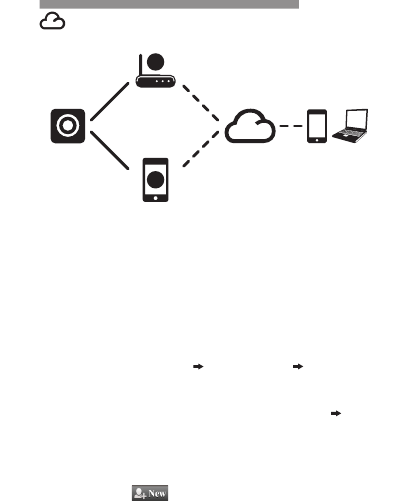

AP
Cloud Server
Cloud AP
AP
Mobile Hotspot
Mobile / PC
USTREAM
3G/4G
A live broadcasting social media.
USTREAM
Recommended Cloud Server for Access:
Cloud Mode (Internet)
Cloud Mode (Internet)
Before using Cloud Mode, setting up cloud AP and cloud server
on camera are required.
Step 1: Setup Cloud AP in Direct Mode
On mobile, go to app [Setup] [Cloud Settings] [Cloud AP].
Select a WiFi network from [AP list]; enter network password
when prompted.
If no preferred AP is found, press [Other...] from [AP list] Enter
network name and password.
Note: Mobile hotspot can be set as cloud AP.
Step 2: Setup Cloud Server in Direct Mode
• New user, press then enter email/username/password/
conrm for auto-registration. Returning user, enter username/
password only.
• Press [Save to Camera].
| 4
English
| 5
English
Cloud Mode (Internet)
Cloud Mode (Internet)
Step 3: Connect Camera to Cloud Server
Options to connect to cloud server:
1. On mobile, press [Camera to Cloud] in [Setup] page.
2. On camera, set to Cloud Mode .
While connecting, the status indicator ashes rapidly in orange.
Once connected, the status indicator ashes in green. If connection
fails, the status indicator ashes in red and alerts in different
beeping frequencies.
Or go into [Unieye] to view the error message.
Step 4: View Live Videos on Cloud Server
Options to view live videos:
1. Use mobile app: USTREAM
is available in Google Play or
Apple Store.
2. Visit website: http://www.ustream.tv
Then search for username and select "username's show" to watch
live video through camera.
Note: 1. Cloud service may change depending on their policy.
2. In some areas, mobile may not activate hotspot where there is no 3G/4G.
3. Experiencing delays while viewing live video may be due to high
internet trafc.
Alert Cause/Solution
One time
Cannot connect to cloud AP or invalid network password.
Camera not inside WiFi area or weak signal.
Check AP settings or move camera closer to cloud AP.
Two times
No internet or the cloud server is not accessible.
Cannot log in cloud server via internet.
Cloud service may be blocked by rewall.
Three times
Cloud server username or password is incorrect. Refer
to in [Setup] for instructions.
Username already taken. Create new account in [Unieye].
PC Applications
To use [Unieye] features on PC, install [PC APP] rst. The [PC
APP] has similar features and interface to [Unieye] for easy user
experience.
Installing [PC APP] from Camera
• Connect the camera to PC via a USB cable.
• [PC APP] AutoRun/AutoPlay activates.
• If AutoRun/AutoPlay is not starting:
Go to [My computer] and search [PC APP] for installation.
• Once installed, unplug the camera from PC then run [PC APP].
[PC APP] Features
• Press [View HD] or double-click the viewing window to
maximize it into full screen. Double-click again to return to
the [PC APP] interface.

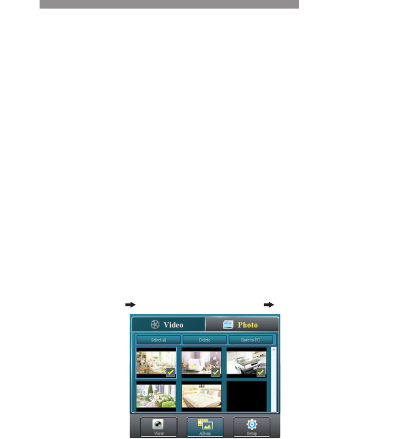

• To save videos or photos to PC:
Go to [Album] Select videos or photos Press [Save to PC].
Mass Storage and Webcam Modes
While the camera is plugged into PC, tap the Power/Mode button
one time to switch between Mass Storage Mode (default) and
Webcam Mode. The status indicator shows steady red in Mass
Storage Mode and steady green in Webcam Mode (
In Skype or
QQ, select "UVC_WEBCAM")
.
| 6
English
| 7
English
Camera Indication
Condition Status Indicator Alert
Recording Flashing green One time
Loop Recording Flashing orange One time
Charging Flashing red None
Fully Charged No indication Two times
Low Battery Flashing red every 5 secs.
(Warning)
Five times
(Shutdown)
Power Off No indication Two times
Auto Power Off
(5 mins idle) Flashing red Two times
Memory Full
SD Card Error Flashing red Three times
| 6
Camera Hotkey
Forced Shutdown
Press and hold Power/Mode button for
approx. 12 secs. to turn off camera.
Forced
Default
Settings
Press and hold both Power/Mode and
Record buttons for 5 secs. to restore
default settings.
Car Camcorder
Press and hold Record button for 3 secs. to
start
loop recording
and
invert image.
Troubleshooting
Situation Cause/Solution
Camera cannot turn on Battery power is low. Recharge the battery.
Camera is frozen Press Power/Mode button for 5 secs. to turn
off; press the button twice to turn on.
Camera cannot record
No SD card or SD card is full.
SD card cannot be recognized. Format SD
card in [Unieye] or replace SD card.
Camera not found Turn on camera, switch to Direct Mode. Press
"Refresh" on mobile or PC to scan again.
Cannot watch live view Move camera closer to mobile.
Flickering segments on
live view TV system setting (50Hz/60Hz) is incorrect.
| 8
English
| 9
English
| 8
