User Manual
Chicony Standard Bluetooth Keyboard
Users Manual
Model No.: KT-1263
Issue: May. 28, 2012
Scope
Getting Start
Thank you for choosing this ultrathin keyboard with Bluetooth technology to ensure no hinder communication between the
keyboard and your computer without connecting cable. The transmission and receiving of keyboard are free from angle
restriction. It can be used with IBM PC compatible computers pre-installed with the Windows 7, Windows Vista or Windows
XP operating system.

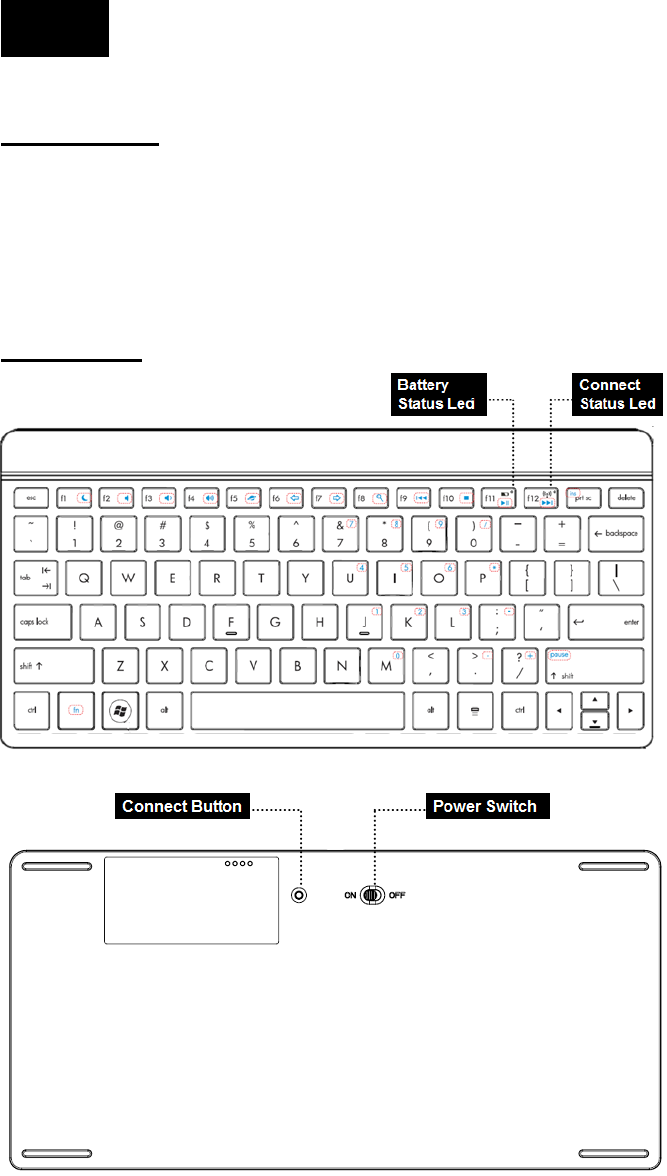

Part Names

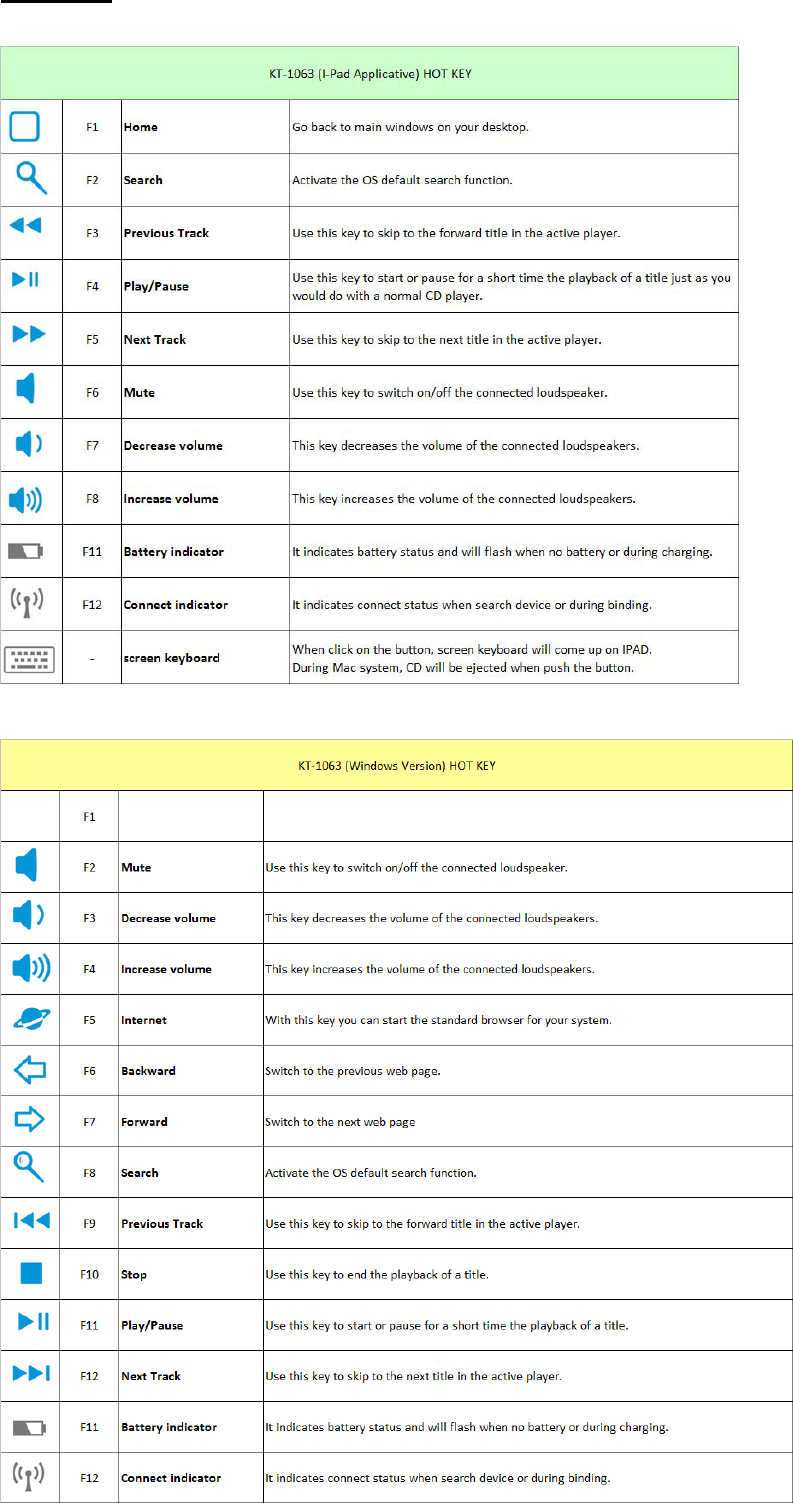

Hot Keys
Status light indicator
¾ Battery Status Led
Battery low : Red LED will be lighted for 0.5seconds and will be lighted again after 5 seconds. This will be
repeating until no power or start recharging.
¾ Connect Status Led
Power ON : Blue LED brighten 5sec
Pairing ： Blue LED flash 0.5s/0.5s (3min)
Searching: Blue LED brighten 5sec continued to success
Charging: Red LED flash 0.5s/0.5s
Charging full: Red LED turn off
Before Use
¾ Recharging the battery
Plug USB recharge cable from keyboard to PC USB hub or USB adaptor at least 10 minutes. Ensure battery power is
above low level.
¾ Set power switch is On
Configuring the Keyboard
Configuring Steps
Operation of the Bluetooth software may vary depending on your personal computer/device. For details, refer to the manuals
provided with your personal computer. The setup instructions are based on your operating system.
Case A: Click (Start), then “Control Panel.”
Case B: Click the “Hardware and Sound” icon.
Case C: If the “Bluetooth Devices” icon is in the “Hardware and Sound” window: Then go to following D, if the
“Bluetooth Devices” icon is not visible in the “Hardware and Sound” window: Close the “Control Panel” and go to
pre-install XP section.
Case D: Click the “Bluetooth Devices” icon, and verify the contents of the window displayed. If you switch to Classic
View, double-click the “Bluetooth Devices” icon.
Case E: Review the Bluetooth Devices windows shown here. If you see window 1, go to the instructions in Step (A). If
you see window 2, go to the instructions in Step (B).
Window 1 Window 2
Steps (A)
1. Turn on the keyboard.
2. Press the CONNECT button on the bottom of the keyboard. The status light flashes blue.
3. On the “Bluetooth Devices” window, click the “Add Wireless Device” icon.
4. In the device list, select “Bluetooth Keyboard” and click “Next.”
5. When “This device has been successfully added to this computer” window displayed, you can start use this Bluetooth
Keyboard.
Steps (B)
1. Turn on the keyboard.
2. On the “Bluetooth Devices” window, select the “Devices” tab and click “Add.”
The “Add Bluetooth Device Wizard” appears.
3. Press the CONNECT button on the bottom of the keyboard. The status light flashes blue.
4. Select the “My device is set up and ready to be found” check box and click “Next.”
5. In the device list, select “Bluetooth Keyboard” and click “Next.”
6. When “This device has been successfully added to this computer” window displayed, you can start use this Bluetooth
Keyboard.
Here is an example for Bluetooth keyboard configuration to Windows Vista and Windows 7.
Step 1: Click the “Bluetooth Devices” icon Æ choose “Add a Device”.

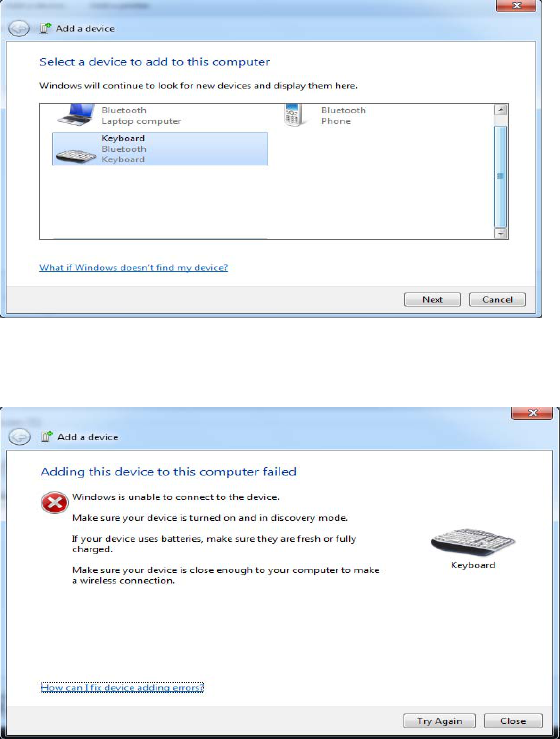

Step 2: In “Select a device to add to this computer” window Æ choose “Bluetooth Keyboard” Æ “Next”
Note: If this step failed, please click “Try Again” and press any key on the Bluetooth Keyboard to reconnect again.

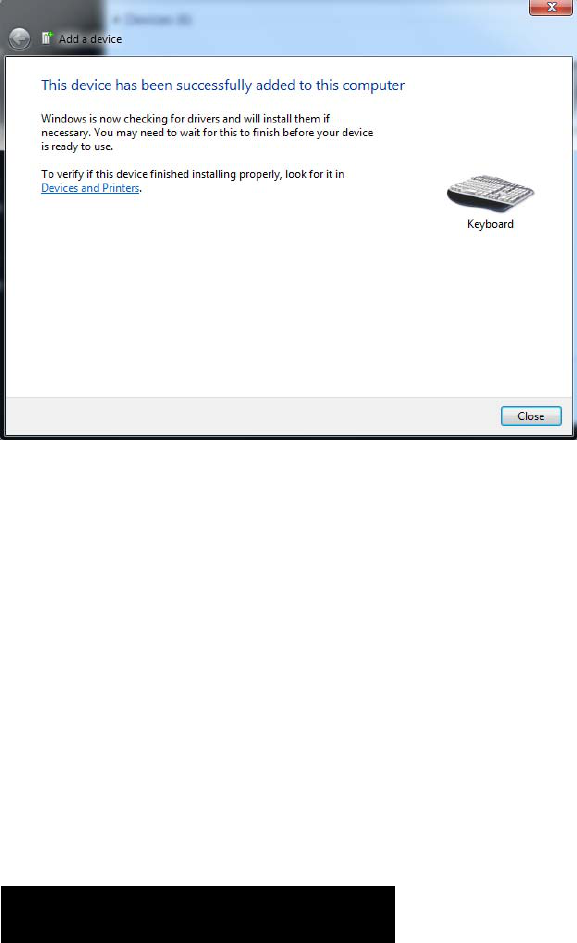

Step 4: When “This device has been successfully added to this computer” window displayed, you can start use this Bluetooth
Keyboard.
Disconnecting
Turn off the Keyboard.
Reconnection
Turn on the Keyboard, and then reconnect.
Note
It may take time to reconnect after turning off the Keyboard.
Troubleshooting and Tips
The keyboard does not operate following installation or is not recognized.
• Make sure the batteries are not too weak.
• To determine whether the keyboard, mouse or computer causes the problem test the keyboard and mouse on a
second computer if possible; or test another keyboard and mouse on your current computer.
If you are still unable to solve the problem, please contact your point of sale or your dealer.
If you need to exchange the keyboard, please note that you must return it to your dealer in its original packaging and
also a produce proof of purchase (receipt). Keep your receipt in a safe place after purchase.
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference wil
not occur in a particular installation. If this equipment does cause harmful interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful Interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING:
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void your authority to operate the equipment.
CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS.
Take regular breaks and keep a good posture. Consult your physician promptly if you notice any lost of motion or pain in
your wrist when using the keyboard.
