Chicony Electronics Co MUR0208 Wireless Mouse User Manual Manual
Chicony Electronics Co Ltd Wireless Mouse Manual
Manual
1
User’s Guide for Wireless Input Device
A. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, Pursuant to Part 15 the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
?? Reorient or relocate the receiving antenna
?? Increase the separation between the equipment and receiver
?? Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
?? Consult the dealer or an experienced radio/TV technician for help
WARNING:
A shieled-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is
essential that only the supplied power cord be used. Use only shielded cables
to connect I/O devices to this equipment. You are cautioned that changes or
modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT
BREAKS. Take regular breaks and keep a good posture. Consult your physician
promptly if you notice any lost of motion or pain in your wrist when using the
keyboard.

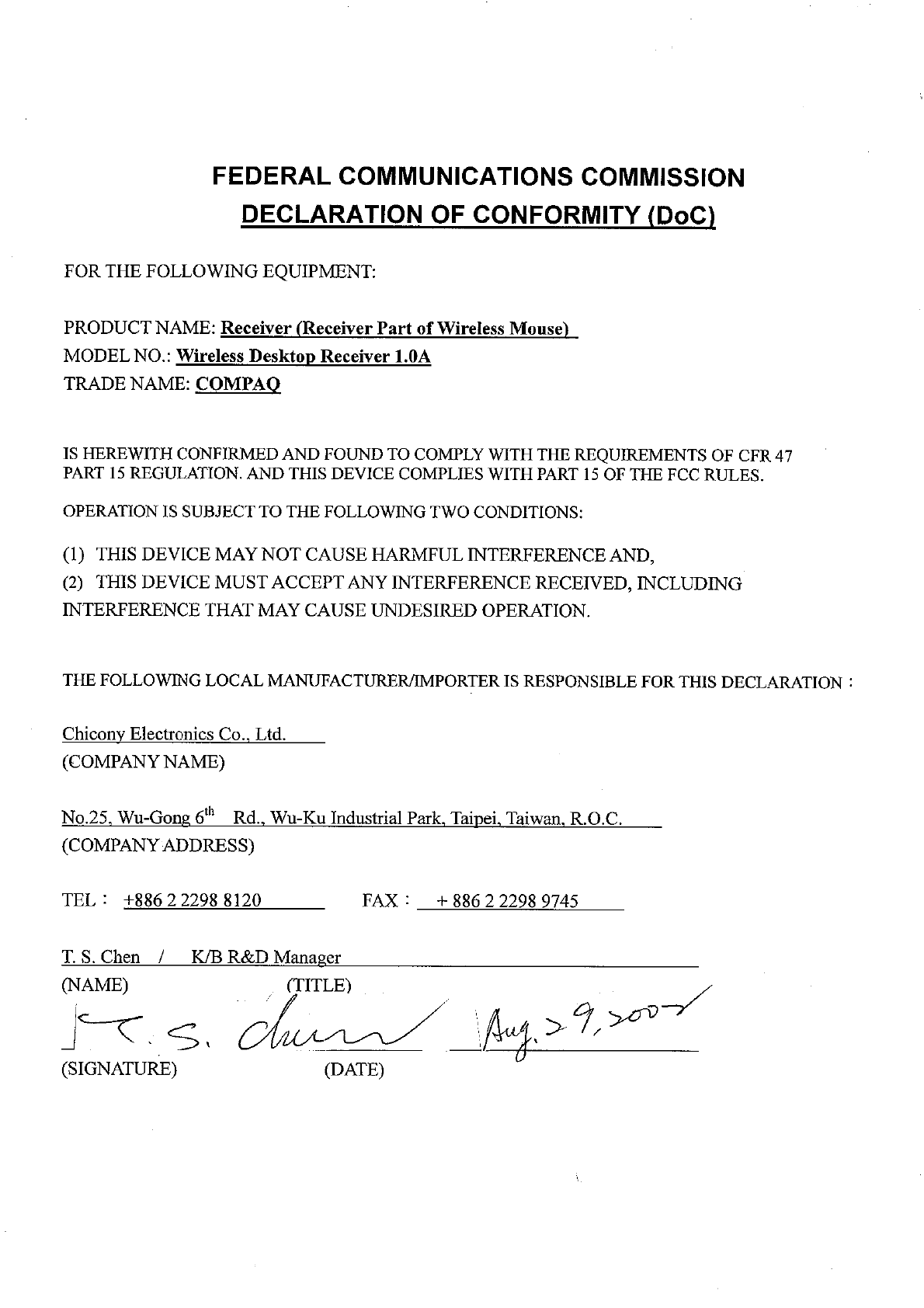

This device has been confirmed to be in compliance with the requirements of
ANSI C63.4 & FCC part 15 regulations. And this compliance is subject to the
following two conditions:
1. This device may not cause harmful interference and,
2. This device must accept any interference received, including interference that
may cause undesired operation.
2
B. PRODUCT SPECIFICATION
1. Frequency Band:
Keyboard 27.145 27.195
Mouse 27.045 27.095
2. Channel: 2 channels for keyboard & 2 channels for mouse
3. Frequency Modulation: FSK mode
4. Power Ratting:
Keyboard 3V, 30mA (max)
Mouse 3V, 50mA (max)
Receiver 5V, 100mA (max)
5. RF Power: <10mW
6. Battery Life Time:
Keyboard: 500 working hours with continuous operation
Mouse: 50 working hours with continuous operation
7. Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -10℃ ~ 60℃
C. HARDWARE INSTALLATION
1. Plug the receiver connector into USB port on your computer
2. Load two AA batteries into battery chamber on the back of keyboard
and two AA batteries to battery chamber of mouse
D. CHANNEL SETTING WHEN INTERFERENCE OCCURS
1. The first binding by user
Step 1 – Push the button on receiver
Step 2 – Push the button on back of keyboard
Step 3 – Push the button on receiver
Step 4 - Push the button on back of mouse
2. Change Channel
Push the button on the back of keyboard or mouse
Alternate:
Step 1 – Press receiver button, LED green light is blinking
Step 2 – Push keyboard or mouse button on back of device and then
LED light stops blinking on receiver to confirm channel is changed.
3
3. Change ID
Step 1 – Press receiver button, LED green light is blinking.
Step 2 – Push the button on the back of keyboard or mouse more than
two seconds and release, LED green light becomes blinking faster in 3
seconds and then light is off.
Note: To have maximum performance, avoid placing receiver, keyboard and
mouse on metallic surface. Operating distance between keyboard, mouse
and receiver will depend on the environment around. User can try various
locations for the receiver in order to find best operating performance.
