A. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to Part 15 the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: AVOID PROLONGED USE OF THE KEYBOARD WITHOUT BREAKS.
Take regular breaks and keep a good posture. Consult your physician promptly if you notice any lost of motion or pain in
your wrist when using the keyboard.
INFORMATION FOR OPTICAL POINTING DEVICES ONLY:
This product has been tested to comply with International Standard IEC 60825-1: (1993), incld. Amd. 2(2001).
This product users LEDs that are inherently Class 1.
IMPORTANT BATTERY INFORMATION
• Keep batteries out of reach of children.
• Insert the batteries in the proper direction as indicated by the positive (+) and negative (-) markings in the battery chamber.
• Do not mix old and new batteries or batteries of different types (for example, carbon and alkaline batteries).
• Always remove old, weak, or worn-out batteries propmptly and recycle or proper disposal of them in accordance with Local and
National Disposal Regulations.
• If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the battery manufacture's instructions and
Local and National Disposal Regulations. Before inserting new batteries, thoroughly clean the compartment with a damp paper towel,
or follow the battery manufacture's recommendations for cleanup. If fluid from the battery comes into contact with skin or clothes,
flush skin with water immediately.
• Remove the batteries if your device is to be stored for an extended period of time without being used.
PRODUCT DISPOSAL INFORMATION
Dispose of this product in accordance with Local and National Disposal Regulations.
B. PRODUCT SPECIFICATION
1. Frequency Deviation: ± 320 KHz
2. ModulationTypp: GFSK Mode
3. Transmitter Power: 0dBm Max
4. Power requirement: 1.9V~3.6V
5. Battery: Keyboard : 2 pieces of AA Batteries
Mouse : 2 pieces of AA Batteries
6. Battery life time : Keyboard : 800 hours reference (operating mode)
Mouse : 80 hours reference (operating mode)
7. Operation distance : Keyboard : 10 M without signal disturbance and no direction limit.
Mouse: 10 M without signal disturbance and no direction limit.
8. Mouse resolution : 1000 DPI
9. Operating temperature : -10º C ~ +40º C
10. Storage temperature : -40º C ~ +85º C.
English
Class 1 LED Product
CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the user's authority to operate
the equipment.
Contents
Getting Started
..................................................................................................................
1
Features
.............................................................................................................................
1
Preparing Keyboard, Mouse and Receiver
..........................................................................
1
Hardware Installation
......................................................................................................... 1
Connect the Dongle
....................................................................................................... 1
Remove battery tabs
.......................................................................................................
1
Remove battery tabs from mouse
...............................................................................
1
Remove battery tabs from keyboard
...........................................................................
1
Connection
......................................................................................................................
1
Working with Keyboard and Mouse
.....................................................................................
2
Using mouse wheel
.........................................................................................................
2
Keyboard
............................................................................................................................
2
Multimedia-keys
...........................................................................................................
2
Special Features of Multimedia Keys
...........................................................................
3
System Board (motherboard) and BIOS
.....................................................................
3
How to use the keyboard properly
.......................................................................................
3
Cleaning the keyboard and the mouse
..........................................................................
3
Troubleshooting and Tips
English
...................................................................................................
3
Getting Started
Thank you for choosing this 2.4G Wireless keyboard and Mouse Kits. It operates with digital radio technology to ensure no
hinder communication between the keyboard, the mouse and your computer without connecting cable.
The transmission and receiving of keyboard and mouse are free from angle restriction.
Features
•
Complies with Directive 1995/5/EC of the European Parliament and Commission.
•
Complies with the mutual recognition of conformity 1999 for radio and telecommunications Equipment.
•
Manufactured with environmental friendly recycled materials.
•
Fully compliant with original USB version 1.0 and 1.1.
Preparing Keyboard, mouse and receiver
Before working with your new keyboard and mouse, look at the "Hardware Installation" , and take a few one-time
preparations.
Hardware Installation
• Do not move optical mouse on following surface - Glass or any transparent materials
Dark surface
Mirror or reflecting surface
Mouse pad with too many colors
Rough surface.
Step 1: Connect the dongle
1. Plug the dongle connector into an USB port.
2. SYSTEM will take around 10 sec to find your keyboard and mouse automatically.
(PS : If your OS is Windows® 98, please follow the screen instruction to complete your keyboard and mouse installation)

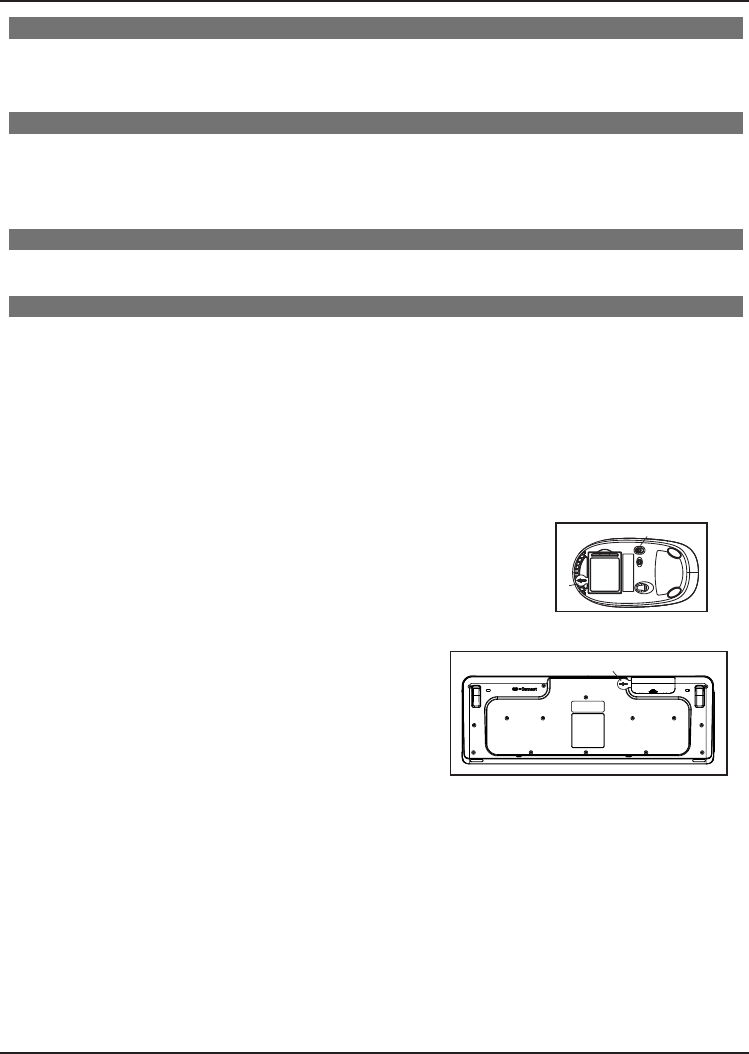

Step 2: Remove battery tab
The mouse requires two Alkaline AA batteries.
(1) Pull out the battery tab from battery chamfer.
(2) Power on the mouse.
English - 1
User's ManualWireless Keyboard + Mouse Kits
1= Battery tab
2= Power button
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to instructions. Refer to
"Important Battery Information" for disposal instructions.
Step 3: Remove battery tab
The mouse requires two Alkaline AA batteries.
(1) Pull out the keyboard tab from battery chamfer.
1
2
1
1= Battery tab
Note: Please do not push the channel setting button (3) at one side of the battery compartment cover. It may cause the channel
or ID change. It is the same to mouse and keyboard.
Step 4: Connection
Dongle LED will be blinking to show the connection successfully.
Working with keyboard and mouse
The following sections contain information on using the keyboard and the mouse.
English - 2
User's ManualWireless Keyboard + Mouse Kits
Using mouse wheel
In addition to two buttons, the mouse also has a wheel that can be used as follows:
•
As a 3rd button: press on the wheel.
Internet
With this key you can start the standard browser for your system.
•
For scrolling, e.g. in documents or on Internet pages: turn the wheel forward or back.
E-mail
Use this key to start the standard e-mail program for your system.
Keyboard
Search
Activate the OS default search function.
The keyboard has several additional function keys and a battery status indicator.
Use this key to get help from HP.
a. Multimedia-keys
Use this key to eject CD tray 1.
The following description of keys applies for the operating systems that support these functions (e.g. Windows ME, Windows 2000
and Windows XP).
Play/Pause
Use this key to start or pause for a short time the playback of a title just as you would do with a normal CD player.
Previous Track
Use this key to skip to the forward title in the active player.
Standby mode
Depending on the settings in the BIOS Setup or operating system the computer switches to a standby mode (not under
Windows NT).
Next Track
Use this key to skip to the next title in the active player.
HP Club
Use this key to enter HP Club center.
Use this key to record the sound or movie.
Increasing the volume
This key increases the volume of the connected loudspeakers.
Decreasing the volume
This key decreases the volume of the connected loudspeakers.
Mute
Use this key to switch on/off the connected loudspeaker.
Use this key to eject CD tray 1.
Stop
Use this key to end the playback of a title.
b. Special features of multimedia keys
The proper function of the multimedia keys is dependent on your system.
c. System board (motherboard) and BIOS
English - 3
The "Standby mode" key only functions correctly when the system board, BIOS and operating system of your
computer fully support the ACPI function
User's Manual
Cleaning the keyboard and the mouse
Advice of using the keyboard
Wireless Keyboard + Mouse Kits
• Use disinfectant wipes to clean the keyboard and the mouse.
The keyboard is ergonomically designed to ensure ease-of-use.
• Do not use any dissolvent, which may damage the surface of your keyboard and mouse.
Inconvenient arrangement of the input and output devices, awkward arm movements or posture, or working with the
keyboard or mouse for lengthy periods without a break can lead to tenseness, fatigue, and damage to the locomotors
system (nerves, muscles, tendons, and joints).
Troubleshooting and tips
You can considerably reduce the risk of this happening if you follow the advice given below.
The keyboard or mouse does not operate following installation or is not recognized.
• Arrange your workplace in accordance with the recommendations for an ergonomic workstation provided in the PC
Operating Manual.
• Make sure that the batteries have been inserted correctly according to the polarity and the receiver is well
connected.
• Position the keyboard so that you can use it without any noticeable strain. The keyboard should be level with the
upper part of you body. This prevents any tension in the shoulders and arms.
• Check that your USB port is configured properly.
• When typing, hold your hands and forearms so that they form as natural a line as possible. Do not turn your hands
too far to the left or right.
• Make the connection between the Dongle and the keyboard and mouse. Press a mouse button and then the
connection button on the Dongle.
• Keep your wrists straight while typing. Do not angle your hands upwards or downwards.
• Make sure the batteries are not too weak.
• Do not rest your hands on the balls of your thumbs while typing, and do not strike the keys too hard.
• Remove the batteries from the device. Please press any button on the device several times to prevent any
unexpected failure after batteries being put in.
• Relax your hands by occasionally taking a break from typing. During these breaks you should rest your hands on the
balls of your thumbs or place your arms on the armrests of your chair.
• To determine whether the keyboard, mouse or computer causes the problem test the keyboard and mouse on a
second computer if possible; or test another keyboard and mouse on your current computer.
If you are still unable to solve the problem, please contact your point of sale or your dealer.
If you need to exchange the keyboard, please note that you must return it to your dealer in its original packaging and
also a produce proof of purchase (receipt). Keep your receipt in a safe place after purchase.
