User Manual
User Manual
Wireless Touchpad
Setup: Wireless Touchpad
System Requirements
The following is a list of system requirements:
z One USB port (for the USB Receiver)
z Microsoft Windows 8.
Contents of the Box
Note: NOTE:TheUSBreceivermaybepre‐installedonyourcomputer.
Note: Insert documents vary according to shipping country’s requirements.
Setting Up

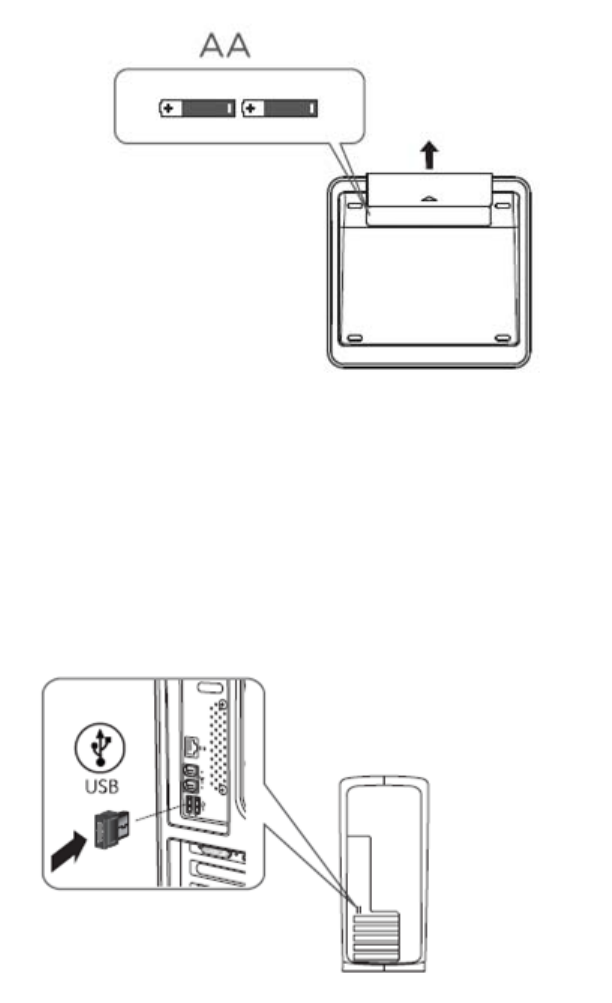

Step 1: Setting up the Wireless Touchpad
Step 2: Connect the USB Receiver to Computer
If your keyboard and mouse are NOT working, please refer to Troubleshooting page
Features: Wireless Touchpad
Front View
1 LED Indicator Indicates the status of Power on and when battery is low.
White (solid) – Fade on = 1 sec.
On = 10 sec.
Fade off = 1 sec.
Amber (flashing) – Battery charge is < 15% power.
2 Right Click
3 Left Click
1
3 2

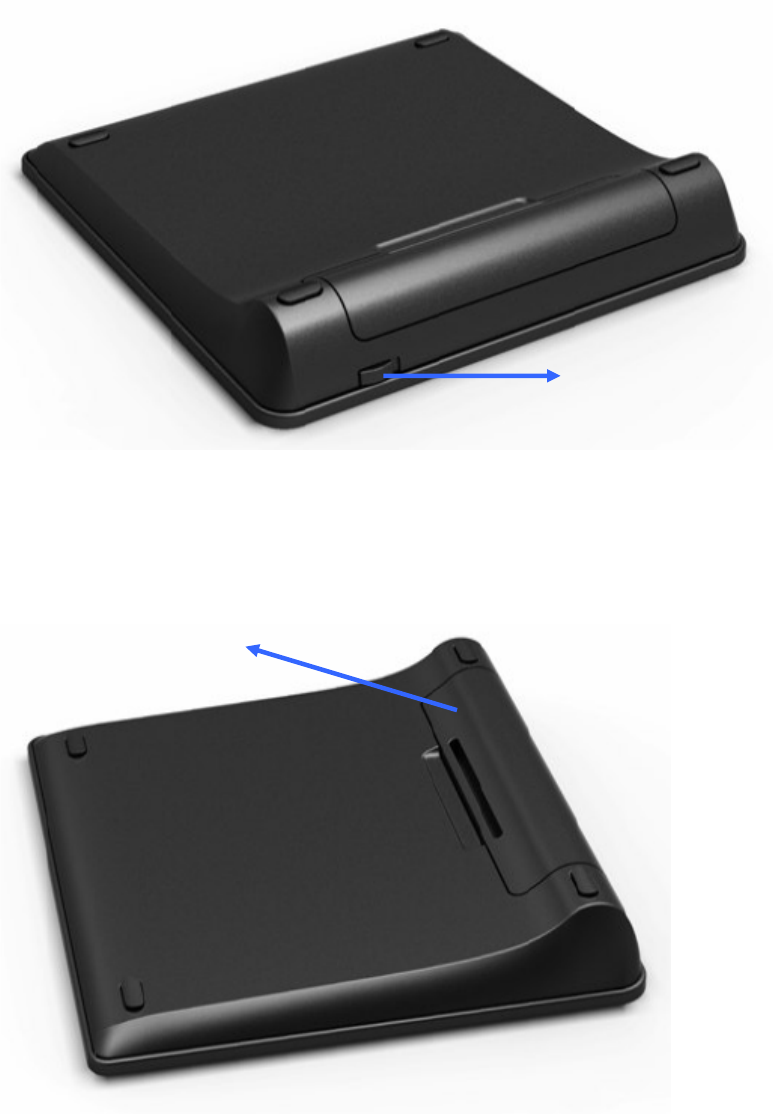

Back View
1. Power switch
2. Battery compartment
2
1
Gesture Functions
Cursor Moving, Left/Right/Up/Down
Tap, Open the App, the function as the mouse
left button. Support single and double click.
Left Edge swipe, Reveal all the open App, left
edge to right side.
Right Edge swipe, Reveal start charm
Top Edge swipe, Close open App, from top
edge to down side
Top Edge swipe, Reveal App Menu
Slide, left/right, App move as same as the finger
move.
Zoom in, Zoom out picture/Metro surface/Page
and so on.
Zoom out, Zoom out picture/Metro
surface/Page and so on.
Rotate, All the supported rotated App, support
90°rotate.
2-finger tap, reveal App menu
Page Forward
Page Backward
Page Down
Page Up
Display Desktop
Display Metro surface
Lock the screen
Volume Down
Volume Up
Mute On/Off
Specifications: Wireless Touchpad
Electrical
Operating Voltage 2.0 V to 3.2 V
Battery life 3 months and above
Battery require 2*AA Alkaline
Physical Characteristics
Height 23(±0.4) mm
Length 130(±0.5)mm
Width 128(±0.5).mm
Weight 205gw with batteries
Environmental
Operating temperature 0 °C to 40 °C
Storage temperature -40 °C to 65 °C
Operating humidity 90% maximum Relative Humidity, non condensing
Storage humidity 95% maximum Relative Humidity, non condensing
2.4 GHz Wireless
Radio transmission Bi-directional, Enhanced Shock Burst™
Range 10M without signal disturbance and no direction
limit
Troubleshooting: Wireless Touchpad
If you have problems with your Touchpad:
z Check if the batteries are inserted in the correct orientation.
z Check if the Touchpad's power switch is set to on.
z Remove and reinstall the batteries. The power status light fades on (solid white) for
about 1 second and on 10 seconds and then fades off 1 second.
z Remove and insert the USB receiver again.
z Restart your computer.
Insert the USB receiver into another USB port on your computer.
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
Pursuant to Part 15 the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
CAUTION:
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
IMPORTANT BATTERY INFORMATION
● Keep batteries out of reach of children.
● Insert the batteries in the proper direction as indicated by the positive (+) and negative (-)
markings in the battery chamber.
● Do not mix old and new batteries or batteries of different types (for example, carbon and
alkaline batteries).
● Always remove old, weak, or worn-out batteries propmptly and recycle or proper disposal of
them in accordance with Local and National Disposal Regulations.
● If a battery leaks, remove all batteries and recycle or dispose of them in accordance with the
battery manufacture's instructions and Local and National Disposal Regulations. Before
inserting new batteries, thoroughly clean the compartment with a damp paper towel, or follow
the battery manufacture's recommendations for cleanup. If fluid from the battery comes into
contact with skin or clothes, flush skin with water immediately.
● Remove the batteries if your device is to be stored for an extended period of time without
being used.
PRODUCT DISPOSAL INFORMATION
Dispose of this product in accordance with Local and National Disposal Regulations.
