Chigo Air Conditioning CBD-WF-DL-01 Dehumidifier User Manual
Guangdong Chigo Air Conditioning Co.,Ltd Dehumidifier
User manual
V.180403
Model Number:
Dehumidifier must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.
CBD-70P1A-H13A,CBD-30H1A-G13A,
CBD-45H1A-G13A,CBD-70H1A-H13A,
CBD-95P1A-J14A, CBD-110P1A-J14A
Manufacture:Guangdong Chigo Air Conditioning Co.,Ltd
Thank you for choosing a Soleus Air Portable Dehumidifier. This Owner’s Manual will provide
you with valuable information necessary for the proper care and maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize yourself with all the
operational aspects of your new Soleus Air Portable Dehumidifier.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the
store name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: _____________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
Before installing and using your dehumidifier, please read this owner’s manual carefully. Store this manual in
a safe place for future reference.
1) Always place the unit on a level surface.
2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this manual.
3) Maintain a 12-18 inch clearance space around this unit. Do not block or cover air inlet or outlet grilles.
4) The unit must be connected to a correctly grounded power supply.
5) Do not start or stop the unit by inserting or pulling out the power plug.
6) Do not use an adapter plug or extension cord.
7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this
manual.
9) Do not let children play near this unit.
10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced by
the manufacturer or a qualified service technician.
11) When cleaning the unit, always turn the unit off and unplug the power cord.
IMPORTANT INSTRUCTIONS
PURCHASE INFORMATION
RECOMMENDED HUMIDITY LEVELS
• Spring/Summer: 35% - 50%
• Fall/Winter: 35% - 40%
WARM AIR EXHAUST IS NORMAL
During operation your dehumidifier will exhaust warm air from the side of the unit. This is normal operation.
EMPTYING THE BUCKET
The more moisture your dehumidifier removes from the air, the more often you may have to empty the bucket
(unless you are using the continuous drainage option). The number of times the bucket will be emptied de-
pends on the dehumidifier model.
LESS MOISTURE BEING REMOVED OVER TIME IS A GOOD THING!
Using a dehumidifier will cause your area to maintain a more comfortable humidity level. Over time, this
humidity level will become more and more stable. Due to the stable humidity level in the area, the
dehumidifier will need to remove less and less moisture over time.
Please do not be concerned if the dehumidifier is removing less moisture from the air or the bucket is taking
longer to fill up. This is a direct result of your dehumidifier creating a more stable humidity level in your area.
WATER IN THE BUCKET!
There might be a small amount of water present in the bucket before using the dehumidifier for the first time,
which is normal. This is caused by the preliminary testing done by the factory.
Model Number
Pints of moisture removed per every
24 hour period
Maximum number of times to empty
the bucket when operating at full
capacity during a 24 hour period
70 Pints 6 Times
DEHUMIDIFIER INFORMATION
CBD-70P1A-H13A
• Noise level is measured at a distance of 3.28 ft away from the front of the unit.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENTATION OF THE
MANUFACTURER. SOLEUS N.A. HAS NOT CONDUCTED INDEPENDENT TEST TO THE INFORMATION AND THE SPECIFICATIONS PRE-
SENTED HEREWITHIN.
(1) Portable Dehumidifier
(1) Operating Instructions
(1) Pump Drain Hose Kit—Hose, Adapter, and Gasket (Adapter included on top of bucket lid)
Model Number DSX-70EIPMW-01
Dehumidifying Capacity 70 Pints per day
Power Consumption (Watts) 690 Watts
Air Flow Volume (High/Med/Low) 205 / 188 / 164 CFM
Power Source 115 V / 60 Hz
Rated Current (Amps) 7.0 A
Sound Pressure Level (High/Med/Low) 53/51/49 dB(A)
Weight 44.09 lbs
Dimensions (W x D x H) 15.25” W x 11.25” D x 24.875” H
Energy Star Yes
Bucket Capacity 12.68 Pints
PACKAGE CONTENTS
SPECIFICATIONS

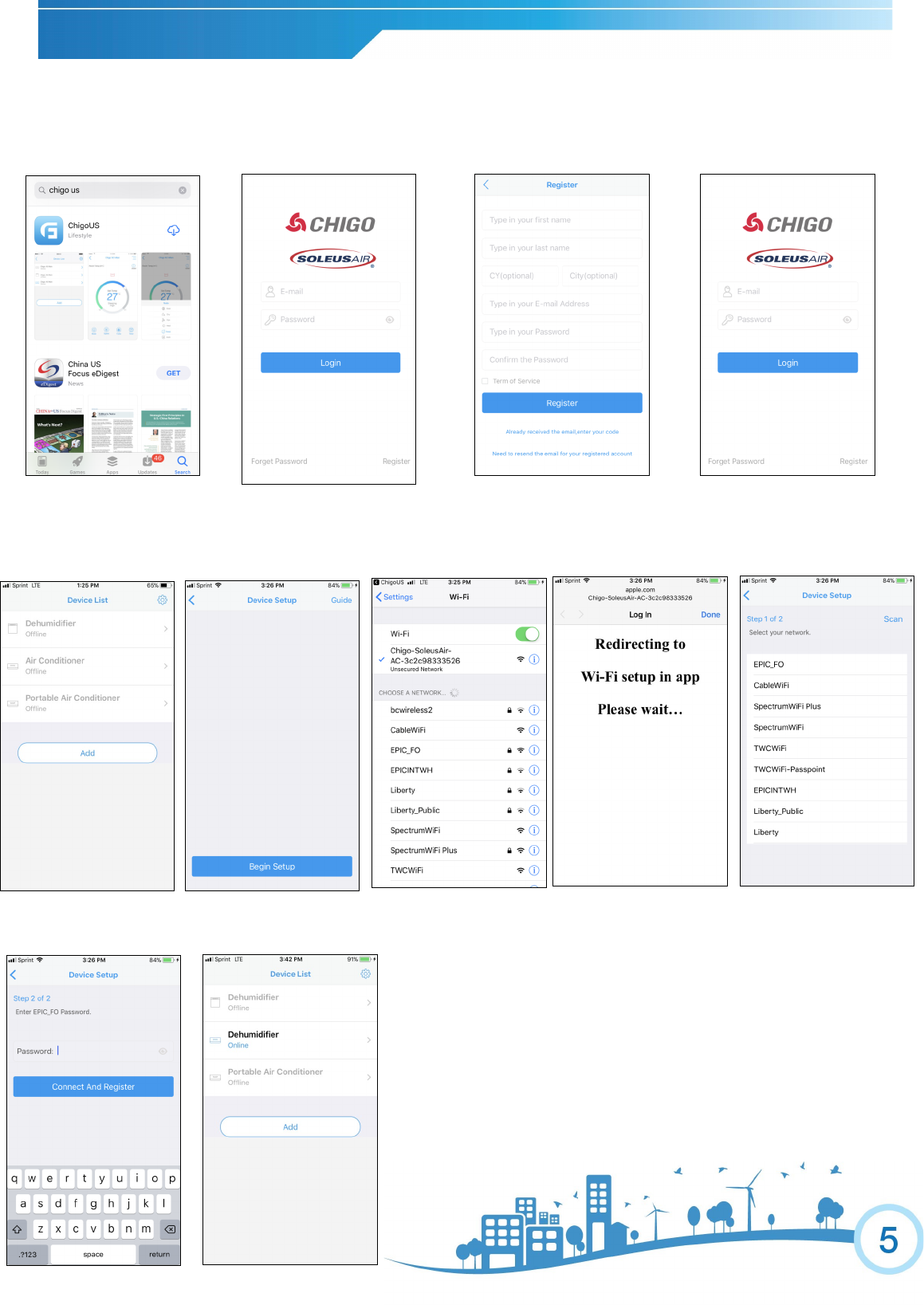

WIFI APP SETUP
Step 1
Search and download
CHIGO US from the App
Store or Android Store
Step 2
Open CHIGO US and
register for a new account
Step 3
Fill out form and click the Regis-
ter button. (Email will be sent
with confirmation instructions)
Step 4
Login with username
and password
Step 5
Click Add
Step 6
Begin Setup
(Automatically routes to
WiFi networks)
Step 7
Choose Chigo-SoleusAir
device from list of
available networks
Step 8
Select WiFi Network
you would like to use to
control device
(Automatically routes
back to the Chigo US
App)
Step 9
Select new device for full control
(Enter WIFI Network
Password) Note: If the device name is unable to be found from the net-
work list or the device is un-registered from the APP, the
Wi-Fi module needs to be reset.
To reset the Wi-Fi module, hold down both Mode and
Timer buttons for over 5 seconds until the beeping sound is
heard.
Removes up to 70 pints of moisture from the air every 24
hours. This is not the bucket size.
Digital and adjustable humidistat displays set humidity level
and current ambient humidity level for precise humidity control.
Mirage Display shows the ambient humidity level on the front
of the dehumidifier to be seen from across the room.
Operates at temperatures down to 41°F. Perfect for basement
use in the winter.
Automatic defrost function melts away ice from frozen coils for
continuous, worry-free operation.
3-Speed fan allows you to choose between maximum dehu-
midifying power or quiet operation.
Bucket full indicator and audible alarm signals as soon as the
bucket is full and ready to be emptied.
Ultra quiet operation allows for use almost anywhere. Perfect
for heavy traffic areas like a family room or bedroom.
Loss of power protection remembers all settings even when
power is interrupted.
Auto-restart automatically continues operation when power is
restored. No need to manually restart the dehumidifier.
24-Hour Timer automatically turns on and off the unit after the
preset time of 0.5 up to 24 hours.
MyHome modes allow you to choose the location in which you
are using your dehumidifier (Sleeping Space—55%, Living
Space—50% or Basement—45%) for preset comfort and bal-
anced operation.
Internal Pump lets you run the unit in continuous mode and
never empty the bucket. Use near a drain, sink or window for
continuous operation.
PRODUCT FEATURES

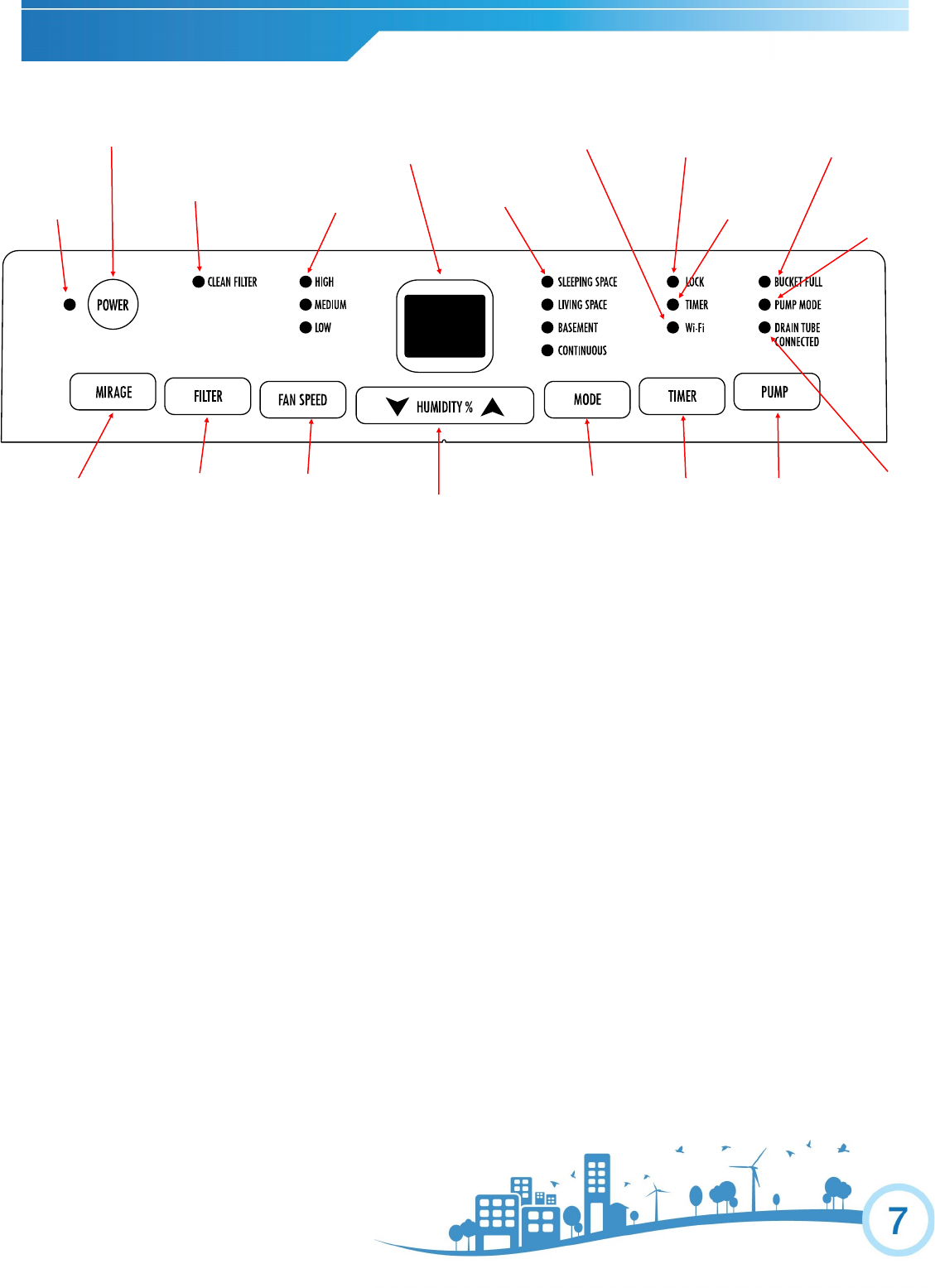

CONTROL PANEL
POWER
BUTTON
TIMER
BUTTON
FILTER
BUTTON FAN
SPEED
BUTTON
PRESET
MODE
BUTTON
Clean Filter
LED Indicator Timer
LED Indicator
Fan Speed
LED Indicators
MyHome Mode
LED Indicators
Power On
LED Indicator
Child-Lock
LED Indicator Bucket Full
LED Indicator
PUMP
BUTTON
INCREASE/DECREASE
ROOM
HUMIDITY LEVEL
PUMP Status
LED Indicator
Pump Drain
Tube Connec-
tion Status
LED Indicator
*Drain Tube must
be connected in
order for Pump
Mode to work.
MIRAGE
DISPLAY
BUTTON
Wi-Fi
Status LED
Indicator
Digital Humidistat
Display
OPERATING INSTRUCTIONS
CONTROL PANEL OPERATING INSTRUCTIONS
1) When first operating the dehumidifier, run it in Continuous mode for 24 hours.
2) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER but-
ton once more to turn the unit off.
3) Humidity Selection - Press the or buttons to choose the desired relative humidity in the room. Each
press of the button will change the desired room humidity by 5%. The room humidity is selectable from
35%-80% or continuous. The unit will cycle on and off to maintain the humidity level chosen on the digital
display. If you want the dehumidifier to operate continuously regardless of the room humidity, press the
MODE button until you see “CO” on the digital display. This will enable continuous operation and the
“Continuous” indicator will light up on the control panel.
4) Fan Speed Control - Press the FAN SPEED Button to cycle through the different fan speeds: High, Me-
dium, and Low. The fan speed can be visually distinguished by the fan speed indicators on the control
panel. For fast dehumidification, choose High. For moderate dehumidification, choose Medium. For quiet
operation, choose Low.
5) Timer Auto On- To program the unit to automatically turn on, press the TIMER button when the unit is
off. Press or to increase or decrease the timer in 30 min increments (.5 hours) up to 10 hours. After
10 hours, each press of the button will increase the timer in 1 hour increments up to 24 hours. Once the
desired time is reached, the unit will automatically turn on.
Timer Auto Shut-Off- To program the unit to automatically turn off, press the TIMER button when the
unit is on. Each press of the or buttons will change the timer setting in 30 min increments ( .5 hours)
up to 10 hours. After 10 hours, each press of the or buttons will increase or decrease the timer in 1
hour increments up to 24 hours. Once the desired time is over, the unit will automatically power off.
6) MyHome Modes - Preset humidity level settings allow the user to easily move the dehumidifier room-to-
room and select the corresponding mode for the location in which the dehumidifier is operating for opti-
mum performance. Press the MODE button to choose from Sleeping Space (55%), Living Space (50%) or
Basement (45%).
7) Child-Lock Mode- To lock the control panel, press and hold the TIMER button for 3 seconds. Locking
the control panel prevents someone from accidentally changing the settings. When locked, the LOCK In-
dicator will light up. Press and hold the TIMER button for 3 seconds to unlock the control panel.
8) Mirage Display – Backlit display on the front of the dehumidifier that shows the actual humidity level in
the room to be easily seen from across the room. Press the MIRAGE button to turn the Mirage Display on
and once again to turn the Mirage Display off.
NOTE: Fan will continue to run even when the compressor is off. This is normal and allows the unit to
circulate air and operate more efficiently
Dehumidifier must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.

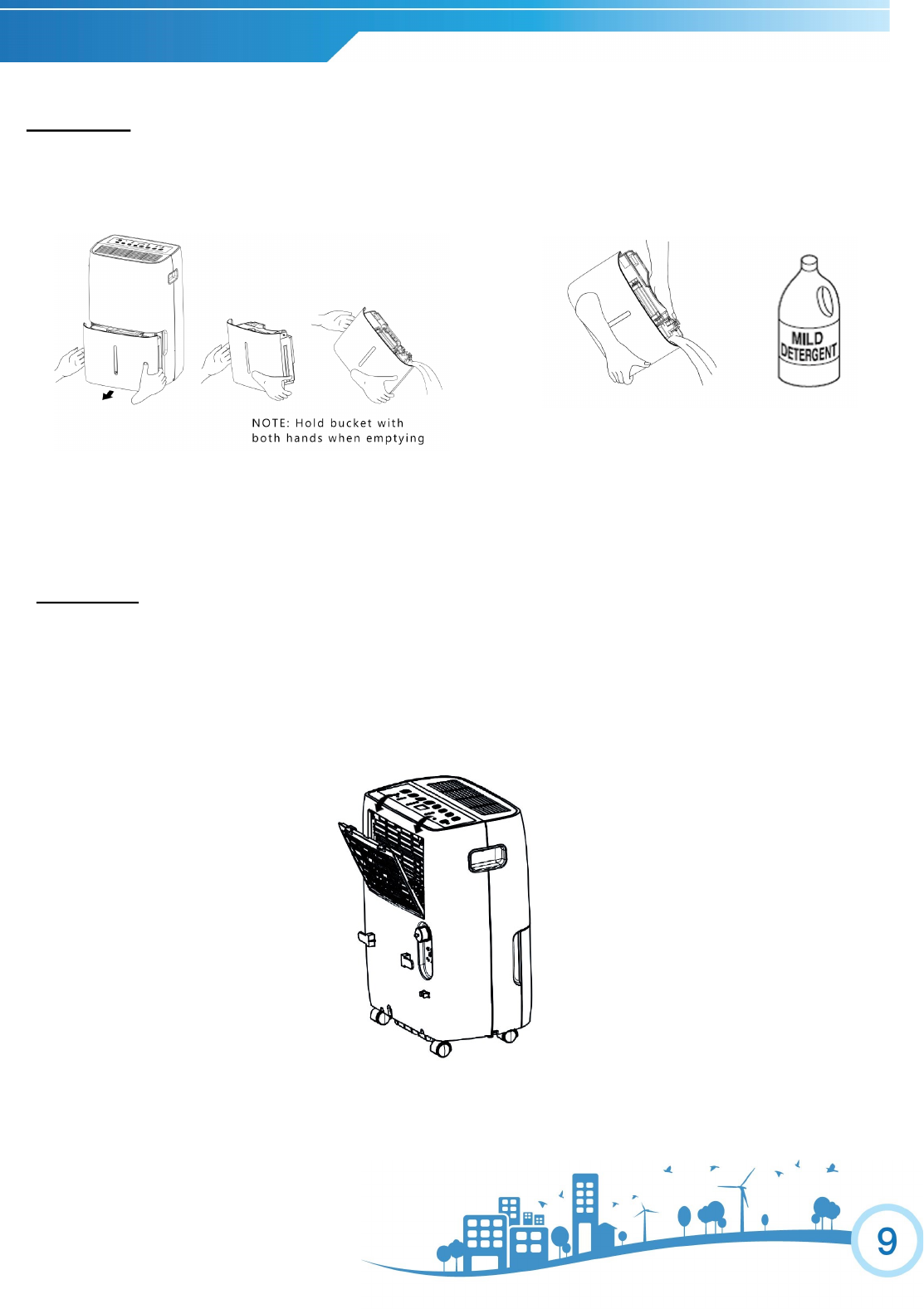

9) Bucket Full - When the water bucket is full of water, the unit will automatically shut off , make a beeping
noise, and the Bucket Full Indicator will light up. The dehumidifier will not function until the water bucket
is emptied and placed back inside the unit. The bucket should be cleaned every few weeks to prevent the
growth of mold, mildew and bacteria. Use a mild detergent to clean the bucket. Once clean, completely dry
the bucket and place it back inside the dehumidifier.
NOTES: When the bucket is full or removed from the machine, the compressor will turn off, but the fan will
continue to run for a few minutes. This is completely normal. The dehumidifier will not be removing moisture
from the air at this time. When removing moisture from the air, the dehumidifier will exhaust warm air from
the side exhaust vent. Do not place a full bucket on the floor, because the bottom is uneven.
10) Clean Filter - When the filter needs to be cleaned, the filter indicator will light up (after 250 hours of use).
Remove the filter from the back of the unit by using your thumbs to press down on the filter tabs directly
above the filter. Clean the filter with warm, soapy water. Dry thoroughly before replacing the filter. Once the
filter is completely dry, place the filter back in the unit and press the FILTER button to reset the filter indica-
tor.
CAUTION: DO NOT OPERATE THE DEHUMIDIFIER WITHOUT THE INCLUDED FILTER
OPERATING INSTRUCTIONS
NOTE: Do not clean filter in dishwasher
11）Internal Pump Mode- The internal pump allows the unit to operate without having to empty the
bucket. To install the Pump Drain Hose Kit, remove the drain cap on the back of the unit. Insert the included
Gasket into the Drain Adapter, then force the Drain Hose onto the Drain Adapter and turn clockwise onto the

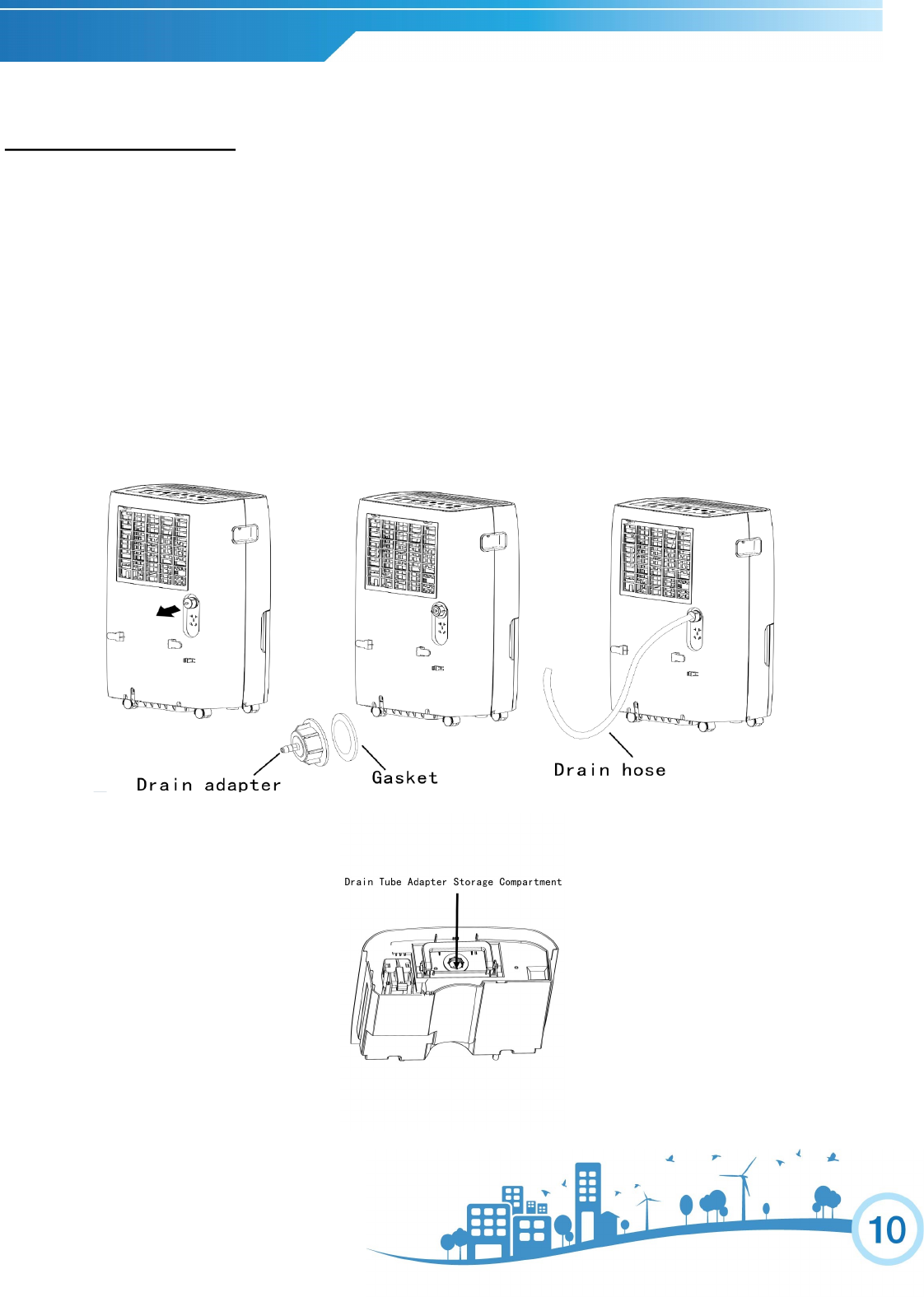

garden hose nozzle on the back of the unit as pictured below. (Drain adapter is included in storage compart-
ment on top of water bucket.) Once securely installed, lead the Drain Hose to a nearby drain, sink or out of a

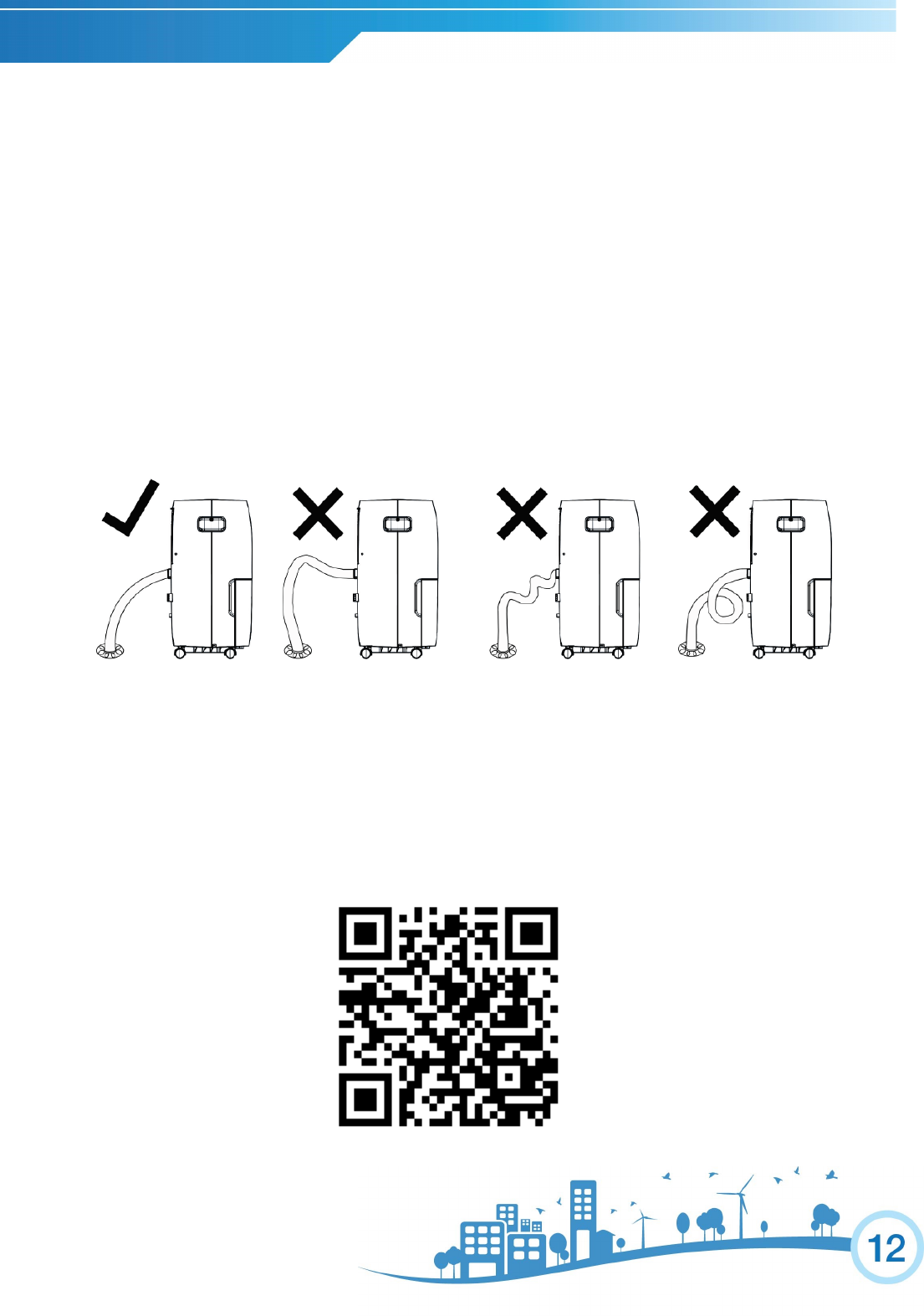

window up to 16’ in height from the base of the unit. Turn on the unit and press the PUMP button to activate
the internal pump.
CAUTION: PUMP MODE WILL ONLY OPERATE WITH A SOLEUS DRAIN HOSE AND DRAIN
ADAPTER; DO NOT USE A GARDEN HOSE IN PUMP MODE OR ANY OTHER TUBING.
OPERATING INSTRUCTIONS
A Dehumidifier operating in a basement will have little or no effect in drying out
an adjacent enclosed storage area, such as a closet, unless there is adequate cir-

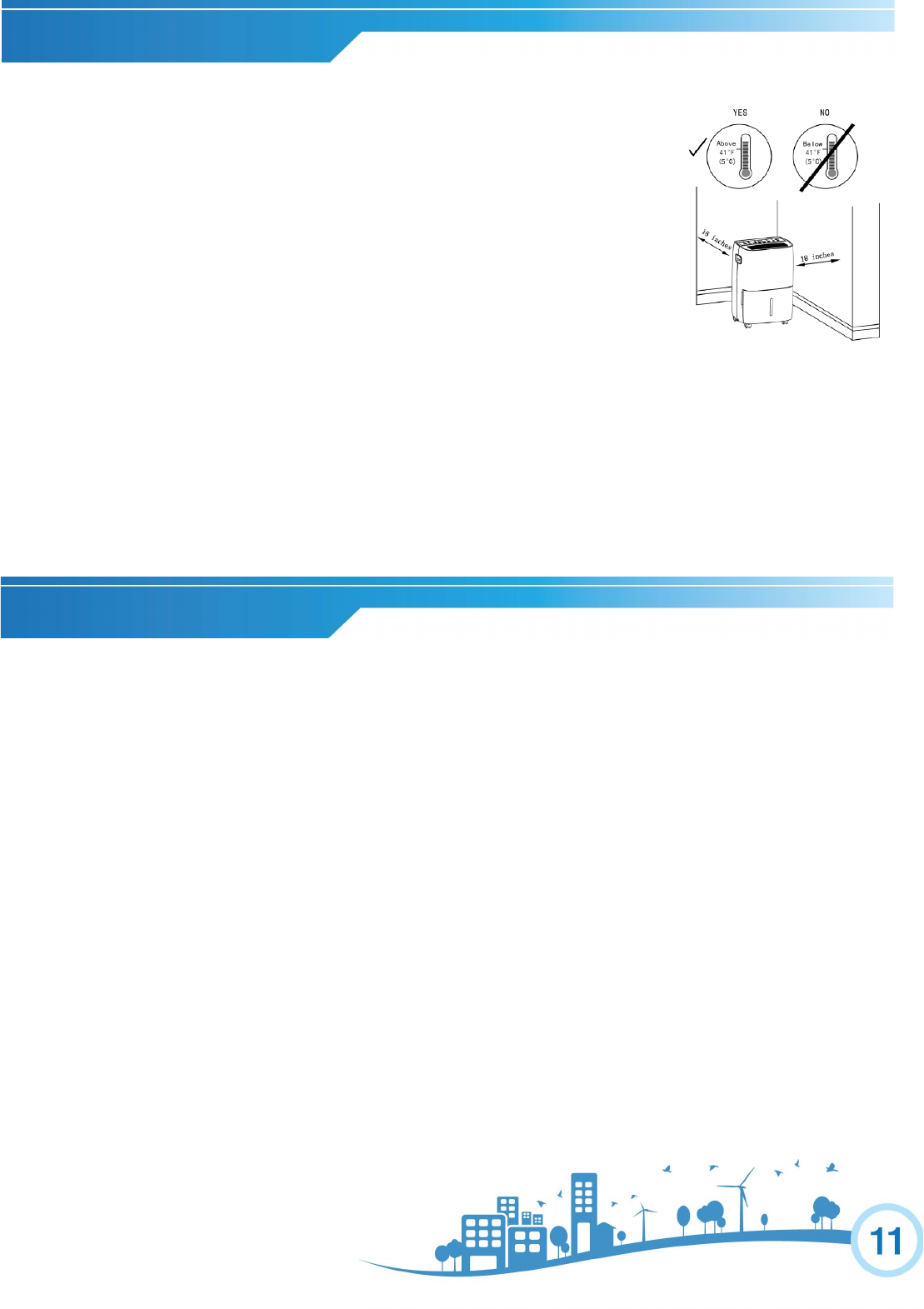

culation of air in and out of the area.
• Do not use outdoors.
• This dehumidifier is intended for indoor use only. Place the dehumidifier on
a smooth, level floor surface that is strong enough to support the unit with a
full bucket of water.
• Allow at least 18’’ of air flow on all sides.
• Place the dehumidifier in an area where the temperature will not fall below
41°F. The coils can become covered with frost at temperatures below 41°F,
which may reduce performance.
• Use the dehumidifier in cooking, laundry, bathing and dishwashing areas that have excessive moisture.
NOTE: Place the dehumidifier away from a clothes dryer.
• Use the dehumidifier to prevent moisture damage anywhere books or valuables are stored.
• Use the dehumidifier in a basement to help prevent moisture damage.
• The dehumidifier must be operated in an enclosed area to be most effective.
• Close all doors, windows and other outside openings to the room.
When frost builds up on the evaporator coils, the compressor will cycle off and the fan will continue to run un-
til the frost disappears. When the coils are completely defrosted, the compressor or fan (depending on the mod-
el) will automatically restart and dehumidification will resume.
CHOOSING A LOCATION
AUTOMATIC DEFROST

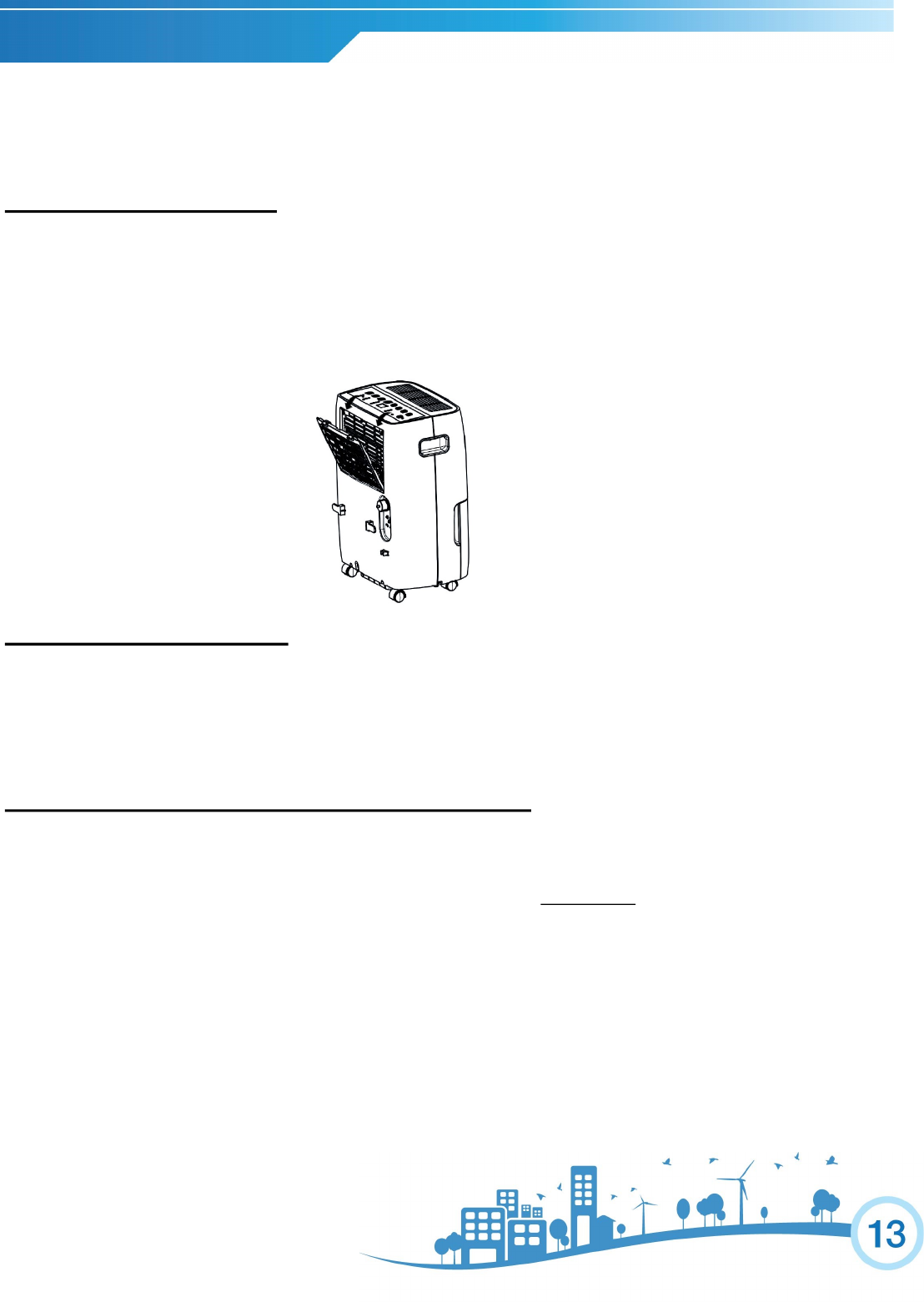

Garden Hose Installation Setup
Water can be automatically emptied by attaching a hose to the continuous drainage port on the back of the de-
humidifier. This will allow the unit to run continuously (depending on the selected humidity level) without
having to empty the water bucket. To drain, simply attach a standard garden hose (not included). The thread
standard for garden hoses in the US and its territories is known as GHT or "garden hose thread" which has an
outer diameter of 1 1/16 inches (1.0625 inches or 27.0 mm) and a pitch of 11.5 TPI.
• Place dehumidifier on a level surface.
• Unscrew the cap on the back of the unit to access the garden hose nozzle
• Thread a garden hose (not supplied) onto the accessible nozzle, lead to a floor drain and cut to length.
Make sure that there are no kinks or knots in the garden hose. (See Picture Below)
• Turn on the unit and press the MODE button until set to CONTINUOUS.
Garden Hose Installation Reference Guide
IMPORTANT NOTES:
Placing the dehumidifier on an uneven surface or improper hose installation may result in water filling up the bucket and cause the
unit to shut off. Empty bucket if shut-off occurs, then check dehumidifier location and hose for proper setup. The bucket must be in
place and securely seated for the dehumidifier to operate.
For more details, please scan below QR code for operation instruction video :
CONTINUOUS DRAINAGE
Note: Make sure power is off and the power cord is not plugged into an elec-
trical outlet prior to performing any maintenance on the unit.
Clean or Replace Filter - The Clean Filter indicator will illuminate every 250 hours of operation as a
reminder to clean the filter. (A clean filter will keep the unit operating at optimum performance.) Remove the
filter from the back of the unit by using your thumbs to press down on the filter tabs directly above the filter.
Clean the filter with warm, soapy water. Dry thoroughly before replacing the filter. Once the filter is complete-
ly dry, place the filter back in the unit and press the FILTER button to reset the filter indicator.
CAUTION: DO NOT OPERATE THE DEHUMIDIFIER WITHOUT THE INCLUDED FILTER
Clean the Unit Housing -
1) Keep the unit from being exposed directly to the sun to prevent color
fading.
2) Clean the surface with a damp cloth and dry it with a soft towel.
End of Season Storage / Transporting the Unit
1) Turn off the dehumidifier.
2) Unplug the unit and secure the power cord to the back of the unit
3) Clean or replace filter - Refer to Operating Instructions Clean Filter section
4) Empty any water remaining in the bucket and rinse bucket with a mild detergent
5) Insert the empty water bucket back into the dehumidifier
6) Your dehumidifier is now ready for storage or transportation
7) The unit should be stored in a cool dry place
MAINTENANCE
Problem Possible Causes Solutions
Dehumidifier does not start The dehumidifier is unplugged. Make sure the dehumidifier’s plug is pushed completely into
the outlet.
The fuse is blown / circuit break-
er is tripped.
Check the house fuse / circuit breaker box and replace fuse or
reset breaker.
Dehumidifier has reached its
present level or the bucket is full.
The dehumidifier automatically turns off when either condi-
tion occurs. Change to a lower setting or empty the water
bucket and replace properly.
Bucket is not in the proper
position.
The bucket must be in place and securely seated for the dehu-
midifier to operate.
Power Failure. There is a protective time delay (up to 3 min.) to prevent trip-
ping of the compressor overload. For this reason, the unit may
not start normal dehumidification for 3 min. after it is pow-
ered back on.
Dehumidifier does not dry the
air as it should
Not enough time allowed for unit
to remove moisture.
When first installed, allow at least 24 hours to maintain the
desired dryness.
Airflow is restricted. Make sure there are no curtains, blinds, or furniture blocking
the front or back of the dehumidifier. See the CHOOSING A
LOCATION section on Page 11.
Dirty filter. See the CLEAN FILTER section on Page 9.
The Humidity Control may not
be set low enough.
For drier air, press the button to lower the percent humidi-
ty desired in the room, or set the dehumidifier to CO for max-
imum dehumidification.
Doors and windows may not be
closed tightly.
Check that all doors, windows, and other openings are secure-
ly closed.
Clothes dryer may be blowing
moist air into the room.
Install the dehumidifier away from the dryer. The dryer
should be vented outside.
Room temperature is too low. Moisture removal is best at higher room temperatures. Lower
room temperatures will reduce the moisture removal rate.
This model is designed to operate at temperatures above 41°F.
Dehumidifier runs too much The area to be dehumidified is
too large.
The capacity of your dehumidifier may not be adequate for
the room size.
Doors and windows are open. Close all doors and windows to the outside.
Frost appears on the coils The dehumidifier has recently
been turned on or the room
temperature is below 41°F.
This is normal. Frost will usually disappear within 60
minutes.
Controls cannot be set The compressor will turn off and
the fan will automatically
continue to run for approximately
3 minutes at a fixed setting.
This is normal. Wait approximately 3 minutes and set the fan
speed at the desired level.
Fan Noise Air is moving through the unit. This is normal.
TROUBLESHOOTING
Problem Possible Causes Solutions
Water on the floor Hose connection may be loose. Check the hose connection. See the CONTINUOUS MODE-
GARDEN HOSE INSTALLATION AND SET UP
Section on Page 12.
Hose is attached but not draining
into a drain
Disconnect the hose if using the bucket or place the hose near
a drain.
Unit will not turn on The fuse is blown / circuit break-
er is tripped.
Check the house fuse / circuit breaker box and replace fuse or
reset breaker.
Unit is on but fan is not
running
Dehumidifier has reached its
present level or the bucket is full.
The dehumidifier automatically turns off when either condi-
tion occurs. Change to a lower setting or empty the water
bucket and replace properly.
Bucket is not in the proper
position.
The bucket must be in place and securely seated for the dehu-
midifier to operate.
Power Failure. There is a protective time delay (up to 3 min.) to prevent trip-
ping of the compressor overload. For this reason, the unit may
not start normal dehumidification for 3 min. after it is pow-
ered back on.
Pump Mode is on, but water is
draining in bucket
Incorrect drain hose is installed Make sure that the included plastic drain tube and nozzle
adapter are tightly installed.
Continuous Mode is on, but
water is draining in bucket
Incorrect drain hose is installed Garden hose must be used while operating Continuous Mode.
Dehumidifier on uneven surface Make sure that the unit is placed on a flat, level surface.
TROUBLESHOOTING
For any questions or Technical Support, please call
customer service 877-665-9765
Self-
Diagnosing
Code
Description Resolution

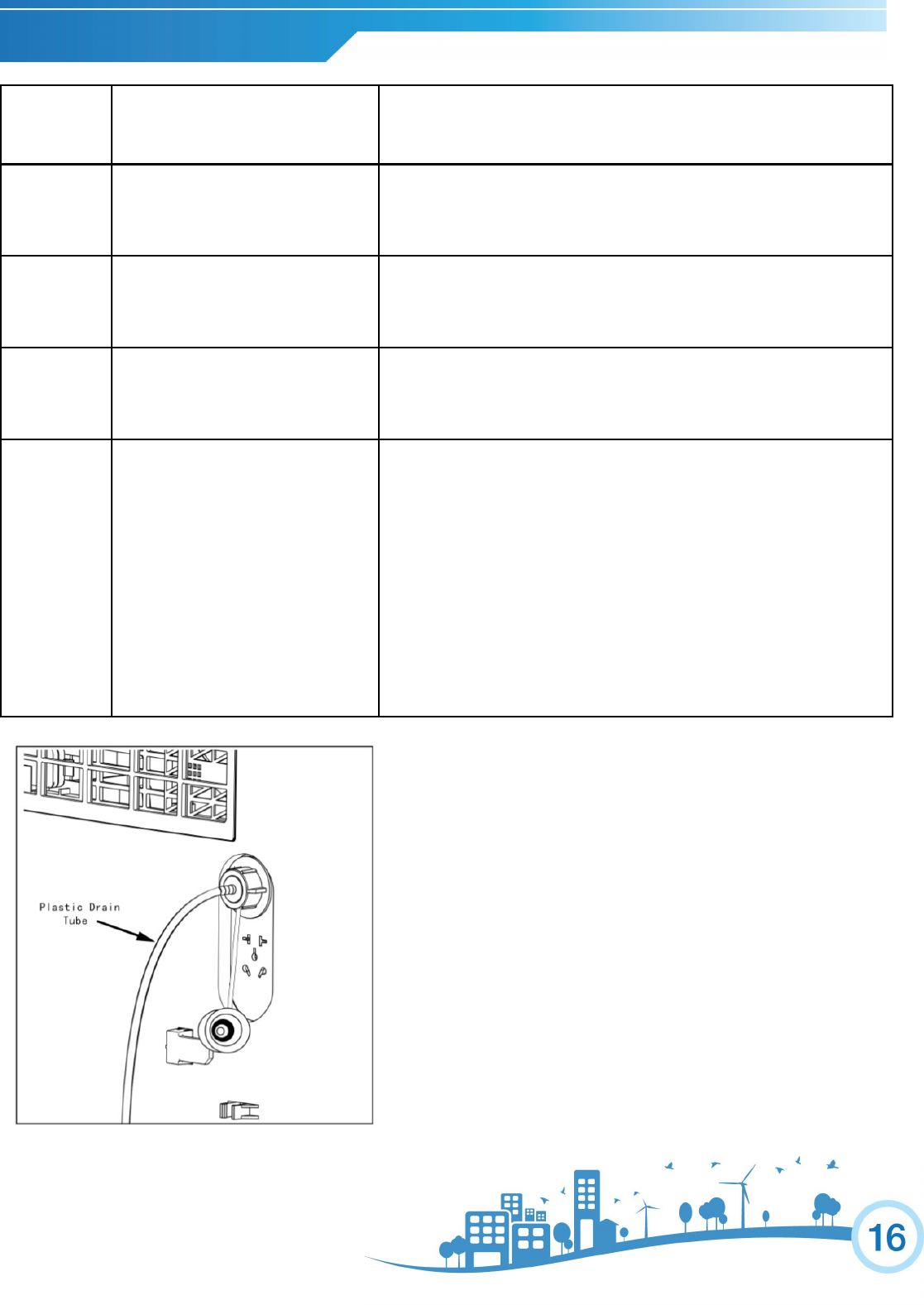

E1 Compressor Overheat Protec-
tion Please call Soleus Customer Service at 877-665-9765
E2 Condenser Overheat Protection Please call Soleus Customer Service at 877-665-9765
EH Humidity Sensor Malfunction Please call Soleus Customer Service at 877-665-9765
E5 Internal Pump Malfunction
NOTE: The internal pump is designed to be used with the
included plastic drain tube with drain adapter and will not
operate with a garden hose or any other tubing. (Figure 2)
If you do not have a plastic drain tube and drain adapt-
er, please call Customer service for a replacement.
First, be sure that the plastic drain tube and drain adapter are
tightly and securely installed. Once installed, turn the unit off
and unplug it to reset the E5 code. Wait 30 seconds and then
plug in the unit and turn it on. The error code should be reset.
If the error code reappears after this process, please call So-
leus Customer Service at 877-665-9765
SELF-DIAGNOSING CODES
Figure 2
LIMITED WARRANTY
Three Year Components Limited Warranty
Five Year Compressor Limited Warranty
Soleus N.A. warrants the accompanying Soleus Air Dehumidifier to be free of defects in material and workmanship for
the applications specified in its operation instruction for a period of THREE (3) years for components and FIVE (5)
years for the compressor from the date of original retail purchase in the United States.
If the unit exhibits a defect in normal use, Soleus N.A. will, at its option, either repair or replace it, free of charge within
a reasonable time after the unit is returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a
copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
• Damage, accidental or otherwise, to the unit while in the possession of a consumer not caused by a defect in
material or workmanship.
• Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions
in the instructions.
• Damage to the finish of the case, or other appearance parts caused by wear.
• Damage caused by repairs or alterations of the unit by anyone other than those authorized by Soleus N.A.
• Freight and Insurance cost for the warranty service.
• Filter and Accessories
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE LIMITED TO
ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS N.A. DISCLAIMS ANY LIABIL-
ITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO EVENT SHALL SOLEUS N.A.’S LIA-
BILITY EXCEED THE RETAIL VALUE OF THE UNIT FOR BREACH OF ANY WRITTEN OR IMPLIED WAR-
RANTY WITH RESPECT TO THIS UNIT.
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, sal-
vaged, or refurbished products.
As some states do not allow the limitation or exclusion of incidental or consequential damages, or do not allow
limitation on implied warranties, the above limitations and exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state.
For Technical Support and Warranty Service
Please Call (877) 665-9765
www.soleusna.com
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
