OPERATION INSTRUCTION
①
②
③④
⑤
Transmitter
Screw
1
2
3
Front
Back

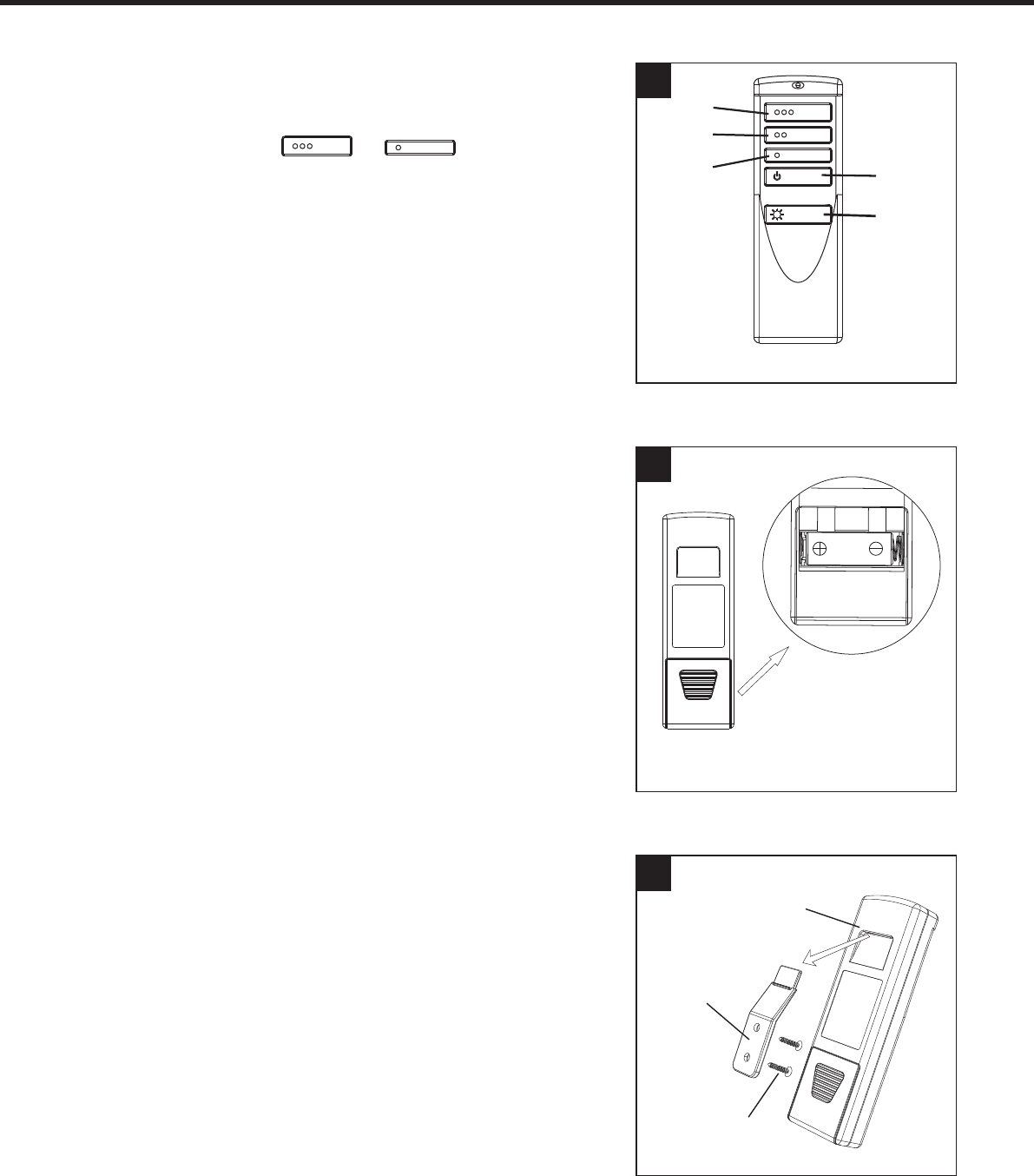

4.Light on/off:
Tap light key (See Fig.1-⑤) to control lignt on/off .
Install the transmitter wall bracket in wall by
two screws and hang transmitter in it carefully.
(See fig.3)
Wall Bracket
Open the battery housing
cover and install a 12V
battery (included)inside.
1. Pairing:
2.Fan 3 speeds：
Tap key ①/②/③（See Fig.1) to control fan
high/medium/low speed.
3.Fan on/off ：
Tap Fan on/off key(See Fig.1-④) to control fan on/off.
6 Off Memory :
When power is off and back again, resume the status of
both light and fan before switch off.
.Power
5.Light Delay Off Feature:
Press and hold fan off key(See Fig.1-④) for 5 seconds
to enter Light Delay Off mode. The light will be shut off
after 1 min.
To exit the Light Delay Off Mode, just tap the light key.
Within 30 seconds after power on,
press and hold Button & at the
same time for 5 seconds. LED indicator will flash .
When the pairing is done, it is shown that fan in LOW
and light is OFF.
12V
VIEW AF TER INSTALLA TI ON
ANTENNA:
DO NOT CUT
OR SPLICE
HANGER
BALL
RECEIVER
HANGER
BRACKET
a
b
c
d
e
ANTENNA
(LEAVE UNCONNECTED AND
DO NOT CUT)

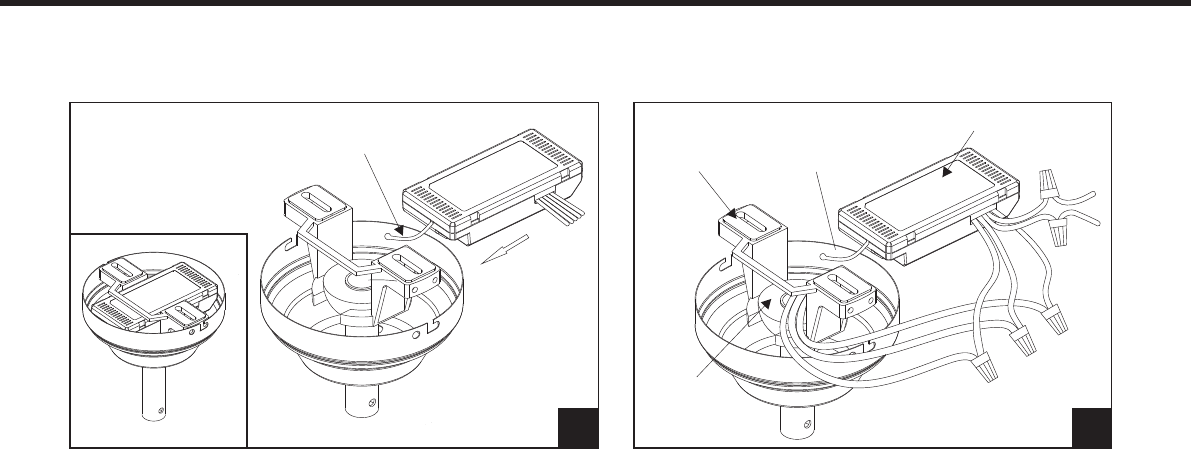

INSTALL AND MAKE WIRE CONNECTION
1.) Make sure the electric power was turned off and then install the system.
2.) Ceiling fan must be set at HIGH speed and light kit (if any) at ON position by
pulling the“Pull Switch”after installation. Once the connection has been
made, the receiver inserts into the drop rod hanging bracket. The canopy
comes up to cover the receiver and bracket.(See Fig.1)
3.) Make Wire Connection.(See Fig.2)
a.The Motor white wire to the white “TO COM”wire from Receiver with a wire nut.
b.The Motor black wire to the black “TO MOTO R L”wire from Receiver with a wire nut.
c.The Motor blue wire to the blue “TO LIGHT” wire from Receiver with a wire nut.
d.The white wire from Outlet Box to the white “AC IN N”wire from Receiver with a wire nut.
e.The black wire from Outlet Box to the red “AC IN L” wire from Receiver with a wire nut.
●The ground wire from Outlet Box to the green ground wire from the Hanger Ball and the
green ground wire from the Hanger Bracket with a wire nut.
Make sure all of wire nuts are connected firmly. Tuck all wire nuts and wires carefully up
into the Outlet Box, EXCEPT antenna , which should remain outside Outlet Box.
1 2
