China GreatWall Technology Group W1333A G Book Air User Manual W1333A UM 20180502 V1 1

China GreatWall Technology Group Co., Ltd G Book Air W1333A UM 20180502 V1 1

Users Manual

Specifications
Model W1333A
Processor Intel®Celeron®Processor N3350,up to 2.4G
Operating System Windows 10 Home
RAM 4GB DDR3
In-built storage 64 GB
HDD/SSD Option Slot to connect SSD
Micro SD Slot Support
Screen Size 13.3"
Resolution 1920*1080
Screen Type IPS
Touch Pad Touch Pad with Multi-Touch functionality
Battery 2898141P-5000mAh 7.4V
Adapter DC 12V,2.0A
Camera 0.3 MP
Speaker Four Speakers
Headphone/Mic Single 3.5mm Combo Jack for Headphone & Mic
Wi-Fi RTL8723BU
Bluetooth Bluetooth® Ver.4.0
HDMI MICRO HDMI
LAN /
USB USB3.0*1+USB2.0*1
Dimensions 318*210*13.5mm
Weight 1200g
Know Your GBook Air
Front View
1. Camera:Built-in webcam that allow you to capture video,
chat Online, and more.
2. LED Indicators: Power on, Caps Lock and Num Lock
indicator
3. Microphone: Built-in microphone that help you for
Online Audio / Video calling, and more.
4. Keypad: 86 keys keypad including Internet and MM
short keys
5. Touch Pad : Touch Pad with multi touch functionality
6. Display: High quality FHD IPS screen allows you to
watch movies, Play Games and more
7. Power ON/OFF: Long press to Power ON / OFF.
Keypad
Power ON/OFF
Display
Microphone
Camera
Microphone
LED Indicator
Touch Pad
Left Side View
1. LED Indication: Red LED indication for charging.
2. USB 3.0 Port: you can connect any devices (like Mouse,
Keyboard Extn. HDD/ SSD etc.)
3. Micro HDMI port: it allow you to connect any external
display device, LikeProjector, LCD Monitor, etc.
(Cable not included)
USB 3.0 Port
Micro HDMI Port
Indicator LED
1. USB Port: You can connect any devices (like Mouse,
Keyboard, Extn. HDD / SSD, etc.)
2. Headphone out Jack: Single/Combo jack for Headset
& MIC
3. Micro-SD slot: expandable up to 128GB
Right Side View
Earphone
Charging Port
USB 2.0 Port Micro-SD Slot
Charging port: 3.5mm power connector to charge
your GBook Air. Use only Adapter that is provided along
with the box.
4.
1. Slot to connect SSD: Expand your storage capacity up to
1TB.
Bottom Side View
SSD Slot
A)

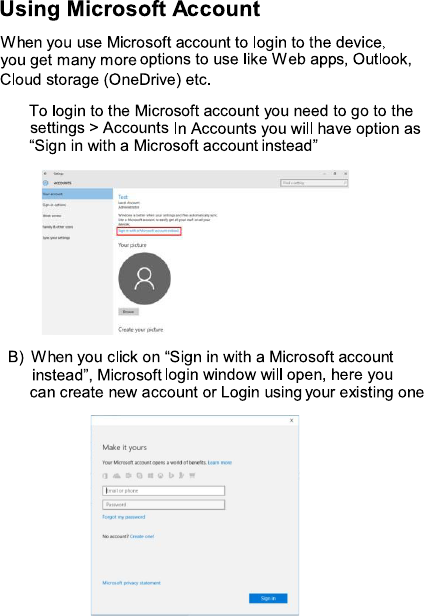

Once you login to Microsoft account, it will ask your current
device password, if you have assigned password/pin to your
device then enter and click next, If not just click next. You can
either use your password or you can also use a PIN as a
password.

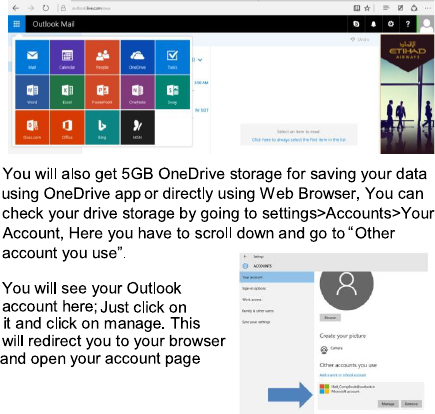

Once everything is done you can use the default mail app to
check your mails or else you just have to start “Microsoft edge
browser and enter “Outlook.live.com”, it will directly log you into
your account of Microsoft.
You can also use all the web apps provided by the Microsoft in
your account
.

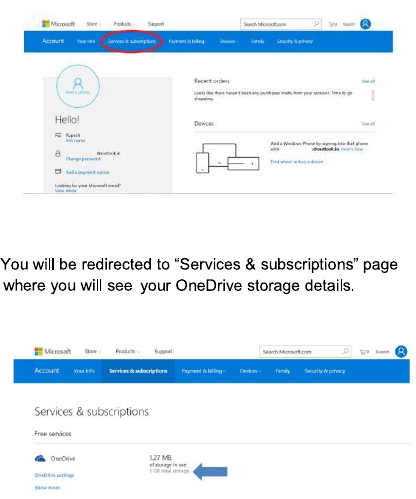

Here you need to go to “Services & subscriptions” tab.
Product and safety
information
Warning
Use only chargers, and accessories approved for use with
this particular model. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
For availability of approved accessories, please check
with your dealer.
Battery and charger information
Your device is powered by a rechargeable Li- Polymer battery.
The battery can be charged and discharged many times, but it
will eventually wear out. When the working and standby times
are noticeably shorter than normal, replace battery. Use only
Greatwall approved batteries, and recharge your battery only
with Greatwall approved chargers designated for this device.
the battery is being used for the first time or if the battery has
not been used for a prolonged period, it may be necessary to
connect the charger, then disconnect and reconnect it to begin
charging the battery. If the battery is completely discharged,it
may take several minutes before the charging indicator appears
on the display
Safety information
1. Please take care not to drop your GBook Air and to
protect it against sudden impacts.
2. You should avoid using your GBook Air in any
environment where the air is excessively cold,
excessively hot (-10~ 40), too humid or too dusty.
Avoid prolong ed exposure to direct sunlight.
3. Take care not to use your GBook Air in areas with
strong magnetic fields or around a build - up of static
electricity.
4.
Do not splash or immerse your GBook Air with liquid.
If your GBook Air becomes wet shut it down immediately
and do not use it.
5. If you need to clean your GBook Air you should use a
clean lint - free soft cloth. Do not use liquids or cleaning
agents.
6. No warranty is offered or implied in respect of your
data in the event of damage or a fault relating to the
use of your GBook Air. We recommend you keep a
duplicate back-up copy of any important data of
your GBook Air.
7. Your GBook Air contains no user - serviceable parts.
Please do not attempt to open the case of your
GBook Air as doing so could be dangerous and will
invalidate your warranty.
8. Your GBook Air supports a wide variety of third-party
peripherals including mobile data dongles but you
should check compatibility and service provision to
make sure they suit your requirements.
9. The battery in GBook Air is not user replaceable.
Please do not attempt to use any power source apart
from the original charger supplied With your GBook Air.
Protect environment
Save energy
You do not need to charge your GBook Air battery so often
if you do the following:
- Close applications and data connections, for example, your
Bluetooth connection, Wi-Fi when not in use.
- Deactivate unnecessary sounds, such as App Indication and
key tones if any.
FCC Statement
15.19
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
15.21
Note: The grantee is not responsible for any changes or modifications not expressly approved by
the party responsible for compliance. Such modifications could void the users authority to
operate the equipment.
15.105(b)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
RF Exposure Statement
The SAR limit of USA (FCC) is 1.6W/kg averaged over one gram of tissue. Device types W1410A
(FCC ID:P3S-W1333A) has also been tested against this SAR limit. The highest SAR value reported
under this standard during product certification when properly worn on the body is 0.381W/kg.
This device was tested for typical body-worn operations with the back of the handset kept 0mm
from the body. To maintain compliance with FCC RF exposure requirements, use accessories that
maintain a 0mm separation distance between the user's body and the back of the handset. The
use of belt clips, holsters and similar accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy these requirements may not comply with FCC
RF exposure requirements, and should be avoided.
Operating temperature: -20-45°C
Operating frequency range: 2400-2483.5MHz
2.4G Tx Frequency Range: 2412MHz~2472MHz
Outputpower:
Bluetooth for classic:5.6dBm
BLE:6.2dBm
Wifi:15.0dBm
Declaration of Conformity
Hereby, China Greatwall Technology Group Co., Ltd declares that the radio equipment type
W1333A of G Book Air is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.greatwall.cn/
This device may be used in each EU member state.
The product SAR limit in europe is 2.0W/kg for body.
The highest SAR value for this product when tested was 0.172W/kg for body(0mm).
