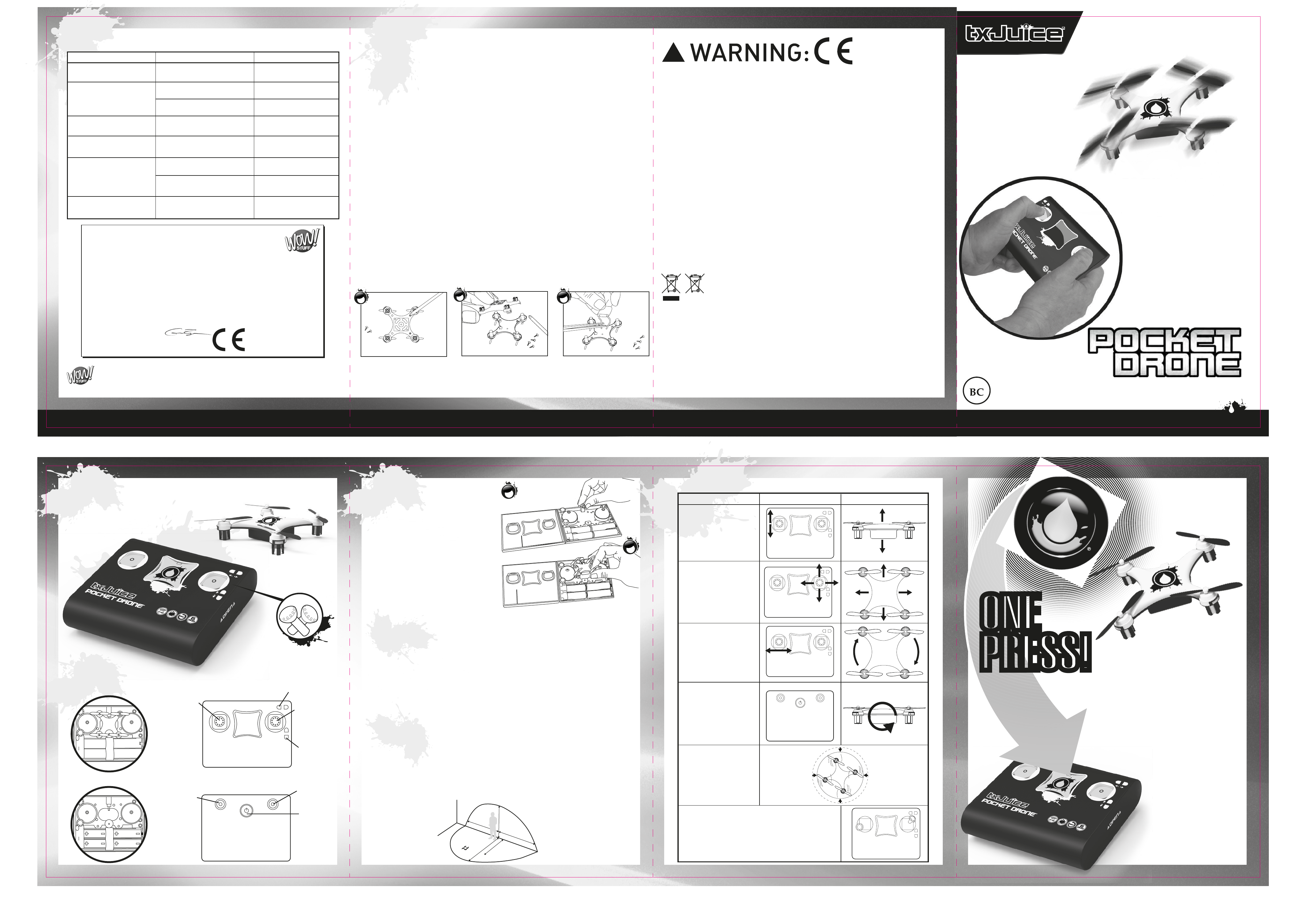

China T A Wow Stuff TX-1022H Pocket Drone User Manual TX 1022 POCKET DRONE IM NOT FINAL
China Industries Ltd T/A Wow! Stuff Pocket Drone TX 1022 POCKET DRONE IM NOT FINAL
Manual
Your RC drone is fitted with a power-on failsafe. This is designed to ensure that the drone motor will not start unless it
detects a suitable radio- control signal.
1. For transport reasons the control sticks are unplugged and plugged in the handset casing. Before flying, remove the
control sticks from the handset casing. The handset casing can be opened to the left on the right side of the transmitter.
Only plug-in the control sticks after closing the transmitter casing. For storage or transport the control sticks can be
placed back inside the transmitter casing.
2. Before first flight, reset the calibration of the drone in order to ensure it is accurately balanced.
3. Switch on the drone and place this on a spacious flat ground. At this time avoid moving the drone so the radio and gyro
system can initialize. The LED on the drone will blink.
4. Make sure that the throttle sticks are positioned downwards (no throttle is given) and turn on the handset.
5. Place the drone with the back facing to you (the black blades) on a flat surface. Practice only to hover with the throttle
control. Then, you try to change the position of the drone using the right stick (forward, backward, sideways) and possibly
correct the flight. At last, you should practice turning the drone around its own axis with the left stick. If you are into the
basic functions of the drone you can perform your first controlled flight.
Trimming the Drone
Trimming the drone allows the drone to hover steadily in one place. If the drone drifts off to one direction, press the
opposite direction trim button until drifting has stopped.
Choosing the Right Venue and Weather
1. Choose a spacious, obstacle-free area when operating indoors, ensure that the device is operating away from
electronic fans and air conditioners as these may affect air flow.
2. Choose a fine, calm day. It is not recommended to fly the drone in winds over 5mph.
3. Power consumption will increase when operating in strong winds, which can also affect proper control of the
drone and may result in damage.
4. Operation away from crowds, ponds, residential buildings and trees is recommended.
5. Do not operate in the strong wind, rain, thunderstroms or snow or near to any high voltage cables.
2 x Joysticks
Contents Charging
Problem Reason Solution
The LED receiver is blinking The receiver does not receive a signal Check the binding of the drone and
make sure the handset is turned on.
The drone is not recognised
The rotor is making strange noises
You are out of reach
The handset batteries are too low
Decrease the distance to the drone
Put new batteries into the handset
The rotor blade is damaged Replace the rotor
The battery is empty Recharge the battery
After changing the blades,
the drone does not fly properly
The drone does not rise up after
charging
The LED’s are blinking and the drone
does not have fully power
The blades are not installed properly
Battery or charger damaged
The battery was not charged enough
Replace the battery or charger
Always charge the battery until it is
fully charged
Install the blades properly
Troubleshooting
Flying the Pocket Drone
Operating Safety Instructions
1
China Industries Ltd. T/A Wow! Stu
Property: TX Juice
Product: Pocket Drone
Product No: TX-1022
Date: 30/03/15
Printed: Black
Distributed by: China Industries Ltd. T/A Wow! Stuff,
Creative Industries Centre, Wolverhampton Science Park,
Wolverhampton, WV10 9TG.
www.wowstuff.com
Designed by TX Juice in the UK, California and Asia.
Manufactured and assembled in China.
INSTRUCTION
MANUAL
I
T
’
S
A
L
L
A
B
O
U
T
T
H
E
B
U
T
T
O
N
!
ONE
PRESS!
ONE
PRESS! Press the Juice Button™
for a full 360° Flip! !
Fast charge while in your
pocket! Juice button activates
mid-air flips. 3 speeds to suit
beginners or experts.
TM
Battery requirement for Handset
Rating: 4 x 1.5V AA batteries (not included)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Not suitable for children under 3 years old due to small parts which may present a choking hazard.
Not recommended for use by children under 8 years old.
Please retain this information for future reference.
Adult supervision required. Operates on 2.4 GHz frequency.
!
Battery Information
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are only to be charged under adult supervision.
• Rechargeable batteries are to be removed from the toy before being charged.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (Ni-Cd) batteries.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.
• Contains Li-poly battery, battery must be recycled or disposed of properly.
Always :
• Make sure battery compartments are secure.
• Use batteries of the correct size and type.
• Fit batteries correctly observing the plus and minus marks on the battery and compartment.
• Replace a whole set of batteries at one time.
• Remove dead batteries from equipment.
• Remove batteries from appliance that will not be used again for a long time.
• Please remember that all S batteries should be kept away from young children as they could be easily swallowed. Seek medical advice
if you believe a cell has been swallowed.
• Please ensure that batteries are installed by an adult prior to use.
Never
• Never dispose of batteries in a fire.
Consumers have a significant role to play in reducing the impact of waste electrical and electronic equipment on the environment, you can
help by re-using or recycling such equipment.
The crossed out wheelie-bin symbol indicates that the product & batteries must not be disposed of in domestic waste as they
contain substances which can be damaging to the environment and human health. If you cannot re-use or recycle the product or
batteries, please use designated collection points, or civic recycling facilities to dispose of them.
•Before first use : read the user’s information carefully together with your child. Keep the instructions and packaging after reading it. •Check if the
toy is assembled as instructed. •Do not change or modify anything on the drone. •Warning! Do not touch the rotating propeller. •Keep face, eyes,
fingers, hair, body parts etc away from the propeller and other moving parts. •Always fly in an open space. •Do not expose to rain or moisture.
•Do not fly in a crowded environment. •Do not fly in a dusty area. •Do not fly in complete darkness. •Ensure people know that you are flying
the drone. •Never fly near pylons, substations, cables, roads, railways, trees, buildings, people, animals or any other object that could represent
a hazard to yourself or others! •Never fly in a thunder storm. •Use only the handset included in this package. •Always turn “OFF” when not in
use. •Contains battery. Battery must be recycled or disposed of properly. •Do not start the drone when persons, animals or any objects are
within flying range of the drone. •Do not throw or hold any objects near the rotor. Caution! Risk of eye injuries! Keep a safe distance of at least
1m. •Do not fly near your face to avoid injuries. •Flying the aeroplane requires skill and children must be trained under the direct supervision of
an adult. •Children should be supervised when playing with the product.
Manufacturer’s Name: China Industries Ltd. T/A Wow! Stuff
Manufacturer’s Address: Creative Industries Centre, Wolverhampton Science Park,
Wolverhampton, WV10 9TG, UK
Type of Equipment: Pocket Drone
Model Number: TX-1022
Year of Manufacture: 2015
Application of Council Directive(s): 1999/5/EC The Radio Equipment and Telecommunications
Terminal Equipment Regulations 2000 (and its amending directives)
Standard(s) to which Conformity is Declared: EN62479, EN62115, EN301 489-1/3, EN300 440-1/-2
Place: Wolverhampton, UK Dr.Graeme Taylor
Date: April 2014 Director
DECLARATION OF CONFORMITY
0678
“Hereby,
China Industries Ltd. T/A Wow! Stuff
, declares that this
Stunt Plane Extreme
is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.”
• 2.4Ghz Pocket Drone handset. Uses 4 x AA 1.5V batteries (not included)
• 2.4Ghz Drone
• 2 x joysticks
• 4 x spare propellers
• Full istructions for use
1. Once batteries are installed in the handset, make sure
that the drone is switched off
2. Lift the charging station on the remote control lightly
upwards
3. Plug-in the drone onto the loading station of the remote
control. The drone can be easily connected to the charging
station
4. The charging L ED will light up during charge. When the LED
will turn off once the charging process is completed.
5. Remove the drone from the handset. The charging process
should take approx. 40 - 60 min. and should give you
approx. 5 - 10 min. flying time.
Note:
In case the charging LED does not light up, then the drone is
either fully charged or the contact to the charging station is
interrupted. In case of an interruption, move the drone once
attached to the charging station for the LED to light up.
MANUAL CONTROL TRIGGER REMOTE CONTROL MOVEMENTS
Use the right hand throttle stick
to control the direction of the
drone by moving the throttle
forwards, backwards, left and
right.
Move the throttle left and right
to rotate the drone on its own
axis.
A combination of all controls
allows further stunts to be
practised.
Button A: JUICE BUTTON!
Press the button once to execute
a 360˚ flip.
Button B: Turbo button
Pressing the button allows you to
change between the 3 speeds;
slow, medium and fast
Push the throttle forward to fly
up and increase altitude
(Take off / fly upward).
Alternatively, decrease height
by pushing downwards.
RESETTING THE CALABORATION.
If the drone becomes unbalanced following a crash; please
proceed as follows: Hold the left stick to the bottom left and the
right stick to the upper right simultaneously for about 4 seconds.
This should now be calibrated.
Performance
Handset
1. Open the handset cover.
2. Insert 4 x 1.5V AA alkaline batteries,
following polarities as shown.
Throttle Stick Direction Control
Stick
JUICE BUTTON!
(360˚ flip)
On/off switch
Turbo: Slow/
moderate/fast
Left/right trim
Forward/
backward trim
FRONT
BACK
A B
1. Choose a spacious, obstacle-free area when operating indoors, ensure that the device is operating away from
electronic fans and air conditioners as these may affect air flow.
2. Choose a fine, calm day. It is not recommended to fly the plane in winds over 5mph.
3. Power consumption will increase when operating in strong winds, which can also affect proper control of the
aeroplane and may result in damage.
4. Operation away from crowds, ponds, residential buildings and trees is recommended.
5. Do not operate in the rain or snow or near to any high voltage cables.
6. This product is not intended for use by individuals (including children) with reduced physical, sensory or mental capabilities
or lack of experience and / or knowledge, unless they are supervised by a person responsible for their safety and is able to give
instructions about how the product should be used.
7. Children should be supervised to ensure that they do not play with the porduct.
8. Keep the model away from children in case it is not appropriate to be used by a child (see note of age).
9. Warning: Risk of eye injury! Keep a safe distance of at least 1 m.
10. Keep hands, hair and loose clothing away from the rotor, not reach into the rotors.
11. Never allow anything to come into contact with the rotors.
12. After you have flown, always allow the motor, electronics and battery to cool down especially before charging.
Safe Usage and Maintenance
1. If not in use for a long time, remove batteries from the controller.
2. Ensure that the device is placed away from heat sources.
3. Do not place in water as this may cause short circuit of the circuit board.
4. Do not expose the plane to extreme temperatures.
5. Always keep the plane clean, use a damp cloth to clean, followed by a dry cloth to wipe water away. Never use
chemicals to clean the product.
6. Long operation time may generate high heat levels causing wear and tear. To extend product life, operators
are recommended to allow a 10-15 minute cool down period before recharging batteries.
7. Keep this instruction manual for future use.
Attention!
Before operating: Switch the handset on first, then the drone.
When finisished: First switch off the drone, then the handset.
3m
2.5m
2.5m
2.5m
2.5m
2
WARNING: CUTTING BOTH WIRES AT THE SAME TIME MAY CAUSE A SHORT CIRCUIT & POTENTIALLY
DANGEROUS RISK OF THE BATTERY OVERHEATING
Disposal of Drone
Disposal of Li-poly battery instructions
(Only follow these instructions when you wish to dispose of your Pocket Drone).
Warning: Batteries should only be removed by an adult. Children should not be allowed to carry out the following
procedure.
1. Using a Phillips screwdriver, unscrew the four
screws on the base of the Pocket Drone 2. Remove the casing and carefully remove the
battery.
3. Carefully cut the wires connecting the Li-Poly
battery to the Pocket Drone. Use tape to cover the
end of each wire from the battery to prevent short
circuit.
1
2
3
