User Manual
Your Ai Pocket Drone is fitted with a power-on failsafe. This is designed to ensure that the Ai Pocket Drone motor will not
start unless it detects a suitable radio-control signal.
1. For transport reasons the Joysticks (1 and 2) are plugged in the Joystick Holders (10) inside the handset. Before flying,
remove the Joysticks (1 and 2) and only plug-in the joysticks after closing the handset casing.
2. Make sure that the Throttle Joystick (1) is positioned downwards (no throttle is given) and turn on the handset. The
handset will bleep once and the Handset Power LED (12) will light up.
3. Switch on the Ai Pocket Drone and place this on a spacious flat ground (red Ai Pocket Drone LED (16) closest). At this
time avoid moving the Ai Pocket Drone so the radio and gyro system can initialize. The Ai Pocket Drone LED (16) will blink.
4. Move the Throttle Joystick (1) up and then back down again until the Ai Pocket Drone LED (16) stops flashing and 2
bleeps are heard. The handset is now paired with the Ai Pocket Drone.
5. Before first flight, reset the calibration of the Ai Pocket Drone in order to ensure it is accurately balanced. See Auto Trim
Feature below.
6. Begin flights with the Ai Pocket Drone facing away from you (red Ai Pocket Drone LED (16) closest). Push the Throttle
Joystick (1) forwards until the Ai Pocket Drone takes off and hovers. Then, use Directional Joystick (2) to move the Ai Pocket
Drone in any direction.
7. When ready to land, slowly reduce the power by moving the Throttle Joystick (3) downwards until it is at its lowest
position as it touches the ground. Practice makes perfect - how smooth a landing can you get?!
Where to Fly the Ai Pocket Drone
The Ai Pocket Drone is best flown indoors, though in calm weather conditions it can also be flown outside.
When flying indoors choose a spacious, flat, obstacle free area, away from strong drafts, fans or air conditioners, as these
can affect airflow and make controlling flights very difficult.
Only attempt to fly outdoors on a very calm day (wind less than 5mph) with no rain, snow or water on the ground. Never fly
near crowds of people, pets or other animals, near ponds, or any other water, and keep well away from any high voltage
power lines.
4 x Joysticks
included
Contents Charging
Problem Reason Solution
The Drone LED (16) is blinking The Drone does not receive a signal Turn the Drone and handset off and
then turn the handset and Drone back
on again.
The Drone is not recognised
The propeller is making strange noises
You are out of reach
The handset batteries are too low
Decrease the distance to the Drone
Put new batteries into the handset
The propeller is damaged Replace the propeller
The battery is empty
The Drone has become unbalanced following
a crash
Recharge the battery
After changing the propellers,
the Drone does not fly properly
The Drone does not rise up after
charging
The Drone LED (16) are blinking and the
Drone does not have full power
The four trim buttons (3, 4, 5, and 6) are
not balancing the Drone
Drone does not flip You have the drone in Juice mode Switch to Pro mode
The propellers are not installed properly
Battery or charger damaged
The battery was not charged enough
Replace the battery or charger
Always charge the battery until it is
fully charged
Hold the Throttle Joystick (1) to the
bottom left and the Directional Joystick
(2) to the upper right simultaneously
for about 4 seconds. This should now
be calibrated. See page 4.
Install the propellers properly
Troubleshooting
Flying the Ai Pocket Drone & using
the stunts feature (7)
Operating Safety Instructions
China Industries Ltd. T/A Wow! Stu
Property: TX Juice
Product: Ai Pocket Drone
Product No: TX-1025
Date: 26/05/16
Printed: Black
Distributed by: China Industries Ltd. T/A Wow! Stuff,
Creative Industries Centre, Wolverhampton Science Park,
Wolverhampton, WV10 9TG. © Copyright. All rights reserved.
www.wowstuff.com
Designed by TX Juice in the UK, California and Asia.
Manufactured and assembled in China.
Battery requirement for Handset
Rating: 4 x 1.5V AA batteries (not included)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
CHOKING HAZARD – Small Parts
Not suitable for children under 3 years
Please retain this information for future reference.
Adult supervision required. Operates on 2.4 GHz frequency.
!
Battery Information
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are only to be charged under adult supervision.
• Rechargeable batteries are to be removed from the toy before being charged.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (Ni-Cd) batteries.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.
• Contains Li-poly battery. Battery must be recycled or disposed of properly.
Always :
• Make sure battery compartments are secure.
• Use batteries of the correct size and type.
• Fit batteries correctly observing the plus and minus marks on the battery and compartment.
• Replace a whole set of batteries at one time.
• Remove exhausted batteries from equipment.
• Remove batteries from appliance that will not be used again for a long time.
• Please remember that all batteries should be kept away from young children as they could be easily swallowed. Seek medical advice
if you believe a cell has been swallowed.
• Please ensure that batteries are installed by an adult prior to use.
Never
• Never dispose of batteries in a fire.
Consumers have a significant role to play in reducing the impact of waste, electrical and electronic equipment on the environment, you
can help by re-using or recycling such equipment.
The crossed out wheelie-bin symbol indicates that the product & batteries must not be disposed of in domestic waste as they
contain substances which can be damaging to the environment and human health. If you cannot re-use or recycle the product or
batteries, please use designated collection points, or civic recycling facilities to dispose of them.
Before first use : read the user’s information carefully together with your child. Keep the instructions and packaging after reading it. •Check if
the product is assembled as instructed. •Do not change or modify anything on the product. •Warning! Do not touch the rotating propeller.
•Keep face, eyes, fingers, hair, body parts etc away from moving parts. •Always fly in an open space. •Do not expose to rain or moisture. •Do
not fly in a crowded environment. •Do not fly in a dusty area. •Do not fly in complete darkness. •Ensure people know that you are flying the
product. •Use only the handset included in this package. •Always turn “OFF” when not in use. •Contains battery. Battery must be recycled or
disposed of properly. •Do not start the product when persons, animals or any objects are within flying range of the product. •Children should be
supervised when playing with the product. •Do not fly near your face to avoid injuries.
Caution! Risk of eye injuries! Keep a safe distance of at least 2.5m.
• Ai Pocket Drone with in-built Li-poly re-chargeable battery
• 2.4GHz Pocket Drone handset. Uses 4 x AA 1.5V batteries (not included)
• 2 x joysticks (plus 2 x spare joysticks)
• 8 x spare propellers (2 x sets)
• Full instructions for Use
AUTO TRIM FEATURE
1. Open the handset cover and remove
the central plastic cover.
2. Insert 4 x 1.5V AA alkaline batteries,
following polarities as shown and
replace the plastic cover.
NOTE: Ensure that when
replacing the plastic cover
into the handset, that arch
A is closest to the Charging
Port (11)
1. Throttle
Joystick
2. Directional
Joystick/
Stunt Button
5. Forward
Trim
6. Backward
Trim
7. Juice
Button
8. ON/OFF
Switch
9. Drone Speed
Button: (Slow/
Medium/Turbo)
4. Right Trim
3. Left Trim
15. Drone ON/OFF
Switch
14. Drone Charging
Port
16. Drone LED
• When using indoors, choose a spacious, obstacle-free area and ensure that the device is operated away from fans and air
conditioners as these may affect air flow.
• When using outdoors, choose a fine, calm day. It is not recommended to fly the product in winds over 5mph. Power
consumption will increase when operating in strong winds, which can also affect proper control of the product and may result
in damage. Operation away from crowds, ponds, residential buildings and trees is recommended. Do not operate in the rain or
snow or near to any high voltage cables.
• This product is not intended for use by individuals (including children) with reduced physical, sensory or mental capabilities or
lack of experience and / or knowledge, unless they are supervised by a person responsible for their safety and is able to give
instructions about how the product should be used.
• After you have used the product, always allow the motor, electronics and battery to cool down especially before recharging.
Safe Usage and Maintenance
• If not in use for a long time, remove batteries from the controller.
• Ensure that the device is placed away from heat sources.
• Do not place in water as this may cause a short circuit of the circuit board.
• Do not expose the product to extreme temperatures.
• Always keep the product clean, use a damp cloth to clean, followed by a dry cloth to wipe water away. Never use chemicals to
clean the product.
• Long operation time may generate high heat levels causing wear and tear. To extend product life, operators are recommended
to allow a 10-15 minute cool down period before recharging batteries.
• Keep this instruction manual for future use.
Attention!
Before operating: Switch the handset on first, then the Ai Pocket Drone.
When finished: First switch off the Ai Pocket Drone, then the handset.
WARNING: CUTTING BOTH WIRES AT THE SAME TIME MAY CAUSE A SHORT CIRCUIT & POTENTIALLY DANGEROUS RISK OF THE
BATTERY OVERHEATING
Disposal of AI Pocket Drone
Disposal of Li-poly battery instructions
(Only follow these instructions when you wish to dispose of your Ai Pocket Drone).
Warning: Batteries should only be removed by an adult. Children should not be allowed to carry out the following procedure.
Replacing the Propellers
It is recommended to use tweezers in order to replace the propellers. Use the tweezers to remove the propellers from the centre axle by
pulling it upwards. Then use a new propeller and insert this by pushing in onto the axis.
Each propeller is engraved with a code to identify its location on the Ai Pocket Drone.
The propellers are either marked A or B, and the same lettered spares must be used on each, for example if an A is damaged it must be
replaced by another A propeller. There are 8 spare propellers included. Note that although its best to have yellow at front and black
propellers at the rear, mixed colours at front and rear can be used with no impact on flights. The direction of flight can still be seen by
the green (front) and red (rear) LED's on the Ai Pocket Drone.
1. Using a Phillips screwdriver, unscrew the four
screws on the base of the Ai Pocket Drone
2. Remove the casing and carefully remove the
battery.
3. Carefully cut the wires connecting the Li-poly
battery to the Ai Pocket Drone. Use tape to
cover the end of each wire from the battery to
prevent a short circuit.
11. Handset
Charging Port
12. Handset
Power LED
13. Charging LED
10. Joystick
Holders
NOTE: Your Drone is shipped with protection covers over the plastic parts which can be removed. See the three
highlighted areas above. DO NOT remove the adhesive strip on the left side of the handset as this is its hinge.
The Ai Pocket Drone charges directly from its handset, which is also its controller. It can even charge while in your pocket!
1. Turn the Drone ON/ OFF Switch (15) to OFF position and press the Handset ON/OFF Switch (8) to ON. A single Beep will be
heard, and red LED inside the casing will go on.
2. Tilt the Handset Charging Port (11) slightly upwards, and insert into the Drones Charging Port (14), so the Drone sits flat in
the handset.
3. The Charging LED (13) on the handset lights up during charging, and goes off when charging is completed.
4. Charging takes approximately 40 minutes, for 5-6 minutes of flying time
Note: In case the Charging LED (13) does not light up, then the Drone is either fully charged or the contact to the Handset
Charging Port (11) is interrupted. If this happens, reinsert Drone to Charging Port (11) to resume charging.
5. Choose speed of the Drones flight by pressing down the Drone Speed Button (9). Beeps can be heard, 1 for Slow, 2 for
Medium and 3 for Fast speed flights. It is recommended you fly at the slowest speed setting when learning to fly the Drone.
6. Trimming the Drone. To have fully controlled, balanced flights, it’s important the Drone is trimmed properly. To do this, place
the Drone on the floor in plenty of open space with front (green lights) pointing away from you. Gently push forward the
Throttle Joystick until the Drone just lifts off the ground. When perfectly trimmed the Drone flies straight up. Adjust Trim
Buttons (3,4,5,6) by pressing the direction opposite to the Drones movement, until it’s close to moving straight upwards.
Also see our Auto Trim feature on page 4.
You are now ready to fly your Ai Pocket Drone. There are 2 flight modes to choose between - Juice Mode and Pro Mode.
Flying the Ai Pocket Drone in Juice Mode
'Note: Juice Mode makes the Drone easier to fly, however you cannot do 360 degree flips in this mode.
To do this switch to Pro Mode (see below)
1. Carry out all the steps 1-6 above, then Press the Juice Button (7). The Drone will now fly upwards and remain hovering at
approximately 1m from the ground. When in this mode the Drone's proximity sensors are active. This means it will fly up 1m
above any object underneath. It also means the Drone can be flown just by using the Directional Joystick/ Stunt Button (2),
making it much easier to fly!
2. Fly the Drone left, right, forward and back using the Directional Joystick/ Stunt Button (2).
3. When you wish to stop the flight, press Juice Button (7) and the Drone will land and propellers will stop.
Note. The Juice mode will not work effectively outdoors and in bright sunshine due to the infra-red proximity sensors. In these
conditions Pro Mode (see on page 4) is recommended. Also you cannot perform flips in Juice Mode, to do so you need to be in
Pro Mode.
1
2
Resetting the Calibration
After every crash or bad landing it is recommended to reset the trimming and
calibration: Hold the Throttle Joystick (1) to the bottom left
and the Directional Joystick (2) to the upper right simultaneously for
about 4 seconds. The LED will flash fast. This should now be
calibrated.
3
2
1
Tricks &
Tips
for
Great
Flights!
B
B
A
A
Visit Ai Pocket Drone at
www.txjuice.com
For the most updated instructions as well as Tips & Tricks go to: www.txjuice.comFor the most updated instructions as well as Tips & Tricks go to: www.txjuice.comFor the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com
6
For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com
23 4 5
7 8
TM
ARTIFICIAL INTELLIGENCE
Flying the Ai Pocket Drone in Pro Mode
1. Carry out all the steps 1-6 (on page 3), then move the Throttle Joystick (1) forward, and the Ai Pocket Drone will take to the air.
2. Control flight height with the Throttle Joystick (1) and direction with the Directional Joystick/ Stunt Button (2).
3. 360 degree flips can be performed only once the Ai Pocket Drone is stable in its flight (Pro Mode). Press down on the
Directional Joystick, and flick this joystick in one direction (Left, right, forward, back). The Ai Pocket Drone will then perform a
360 degree flip in this direction.
4. Land the Ai Pocket Drone at any time by moving the Throttle Joystick (1) completely back. For a smooth landing, do this slowly
and steadily.
8 x Spare
Propellers
THE JUICE BUTTON
ACTIVATES AUTO TAKE-OFF,
AUTO-HOVER & AUTO-LAND
14+

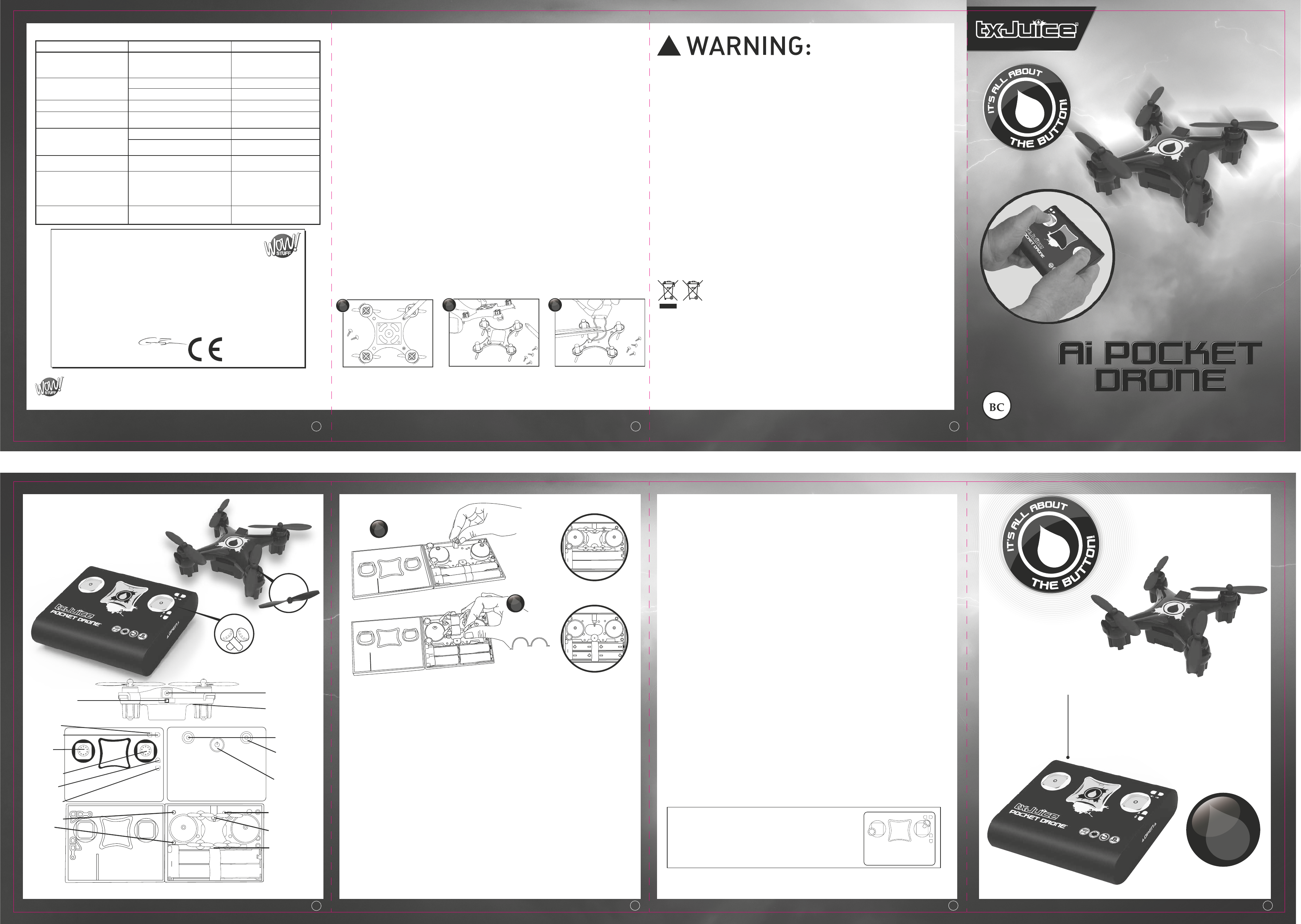

INSTRUCTION MANUAL
Manufacturer’s Name: China Industries Ltd. T/A Wow! Stuff
Manufacturer’s Address: Creative Industries Centre, Wolverhampton Science Park,
Wolverhampton, WV10 9TG, UK
Type of Equipment: Ai Pocket Drone
Model Number: TX-1025
Year of Manufacture: 2016
Receiver Category 3
Application of Council Directive(s): 2014/53/EU The Radio Equipment Directive
Standard(s) to which Conformity is Declared: EN62479, EN62115, EN301 489-1/3, EN300 440-1/2
Place: Wolverhampton, UK Dr. Graeme Taylor
Date: May 2016 Director
DECLARATION OF CONFORMITY
We declare on our sole responsibility that his equipment complies with the essential requirements of the Radio
Equipment Directive, 2014/53/EU, and that any applicable Essential Test Suite measurements have been performed.
CE versions of the Ai Pocket Drone (M/N: TX-1025) which display the CE symbol on the product label, comply with
the essential requirements of the Radio Equipment Directive 2014/53/EU.
