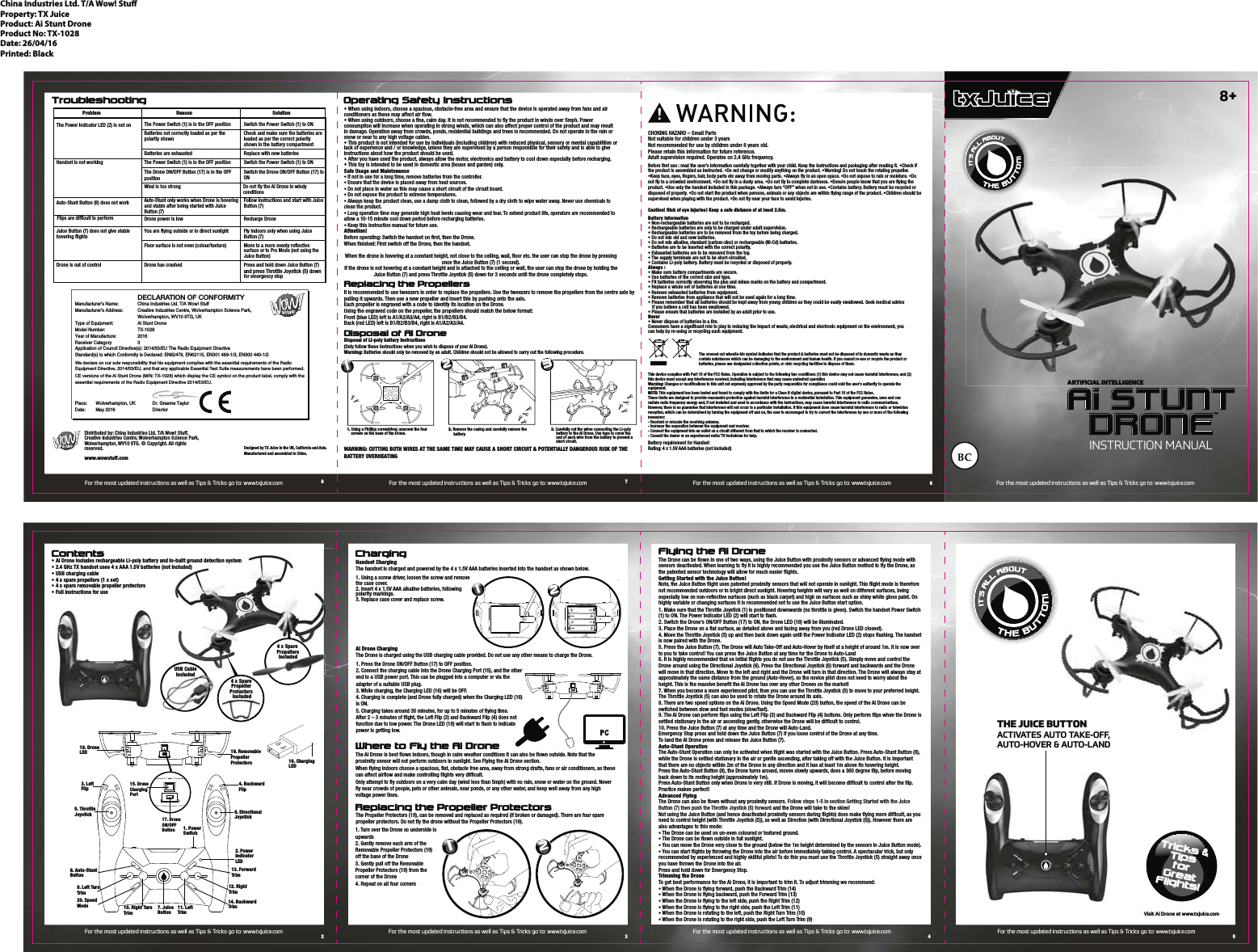

China T A Wow Stuff TX-1028H Ai Stunt Drone User Manual TX 1028 Ai STUNT DRONE IM

China Industries Ltd T/A Wow! Stuff Ai Stunt Drone TX 1028 Ai STUNT DRONE IM

User Manual

Tricks &TipsforGreatFlights!Flying the Ai DroneThe Drone can be flown in one of two ways, using the Juice Button with proximity sensors or advanced flying mode with sensors deactivated. When learning to fly it is highly recommended you use the Juice Button method to fly the Drone, as the patented sensor technology will allow for much easier flights.Getting Started with the Juice Button!Note, the Juice Button flight uses patented proximity sensors that will not operate in sunlight. This flight mode is therefore not recommended outdoors or in bright direct sunlight. Hovering heights will vary as well on different surfaces, being especially low on non-reflective surfaces (such as black carpet) and high on surfaces such as shiny white gloss paint. On highly variable or changing surfaces it is recommended not to use the Juice Button start option.1. Make sure that the Throttle Joystick (1) is positioned downwards (no throttle is given). Switch the handset Power Switch (1) to ON. The Power Indicator LED (2) will start to flash.2. Switch the Drone's ON/OFF Button (17) to ON, the Drone LED (18) will be illuminated.3. Place the Drone on a flat surface, as detailed above and facing away from you (red Drone LED closest). 4. Move the Throttle Joystick (5) up and then back down again until the Power Indicator LED (2) stops flashing. The handset is now paired with the Drone. 5. Press the Juice Button (7). The Drone will Auto Take-Off and Auto-Hover by itself at a height of around 1m. It is now over to you to take control! You can press the Juice Button at any time for the Drone to Auto-Land6. It is highly recommended that on initial flights you do not use the Throttle Joystick (5). Simply move and control the Drone around using the Directional Joystick (6). Press the Directional Joystick (6) forward and backwards and the Drone will move in that direction. Move to the left and right and the Drone will turn in that direction. The Drone will always stay at approximately the same distance from the ground (Auto-Hover), so the novice pilot does not need to worry about the height. This is the massive benefit the Ai Drone has over any other Drones on the market!7. When you become a more experienced pilot, then you can use the Throttle Joystick (5) to move to your preferred height. The Throttle Joystick (5) can also be used to rotate the Drone around its axis.8. There are two speed options on the Ai Drone. Using the Speed Mode (20) button, the speed of the Ai Drone can be switched between slow and fast modes (slow/fast).9. The Ai Drone can perform flips using the Left Flip (3) and Backward Flip (4) buttons. Only perform flips when the Drone is settled stationary in the air or ascending gently, otherwise the Drone will be difficult to control. 10. Press the Juice Button (7) at any time and the Drone will Auto-Land.Emergency Stop press and hold down the Juice Button (7) if you loose control of the Drone at any time.To land the Ai Drone press and release the Juice Button (7).Auto-Stunt OperationThe Auto-Stunt Operation can only be activated when flight was started with the Juice Button. Press Auto-Stunt Button (8), while the Drone is settled stationary in the air or gentle ascending, after taking off with the Juice Button. It is important that there are no objects within 2m of the Drone in any direction and it has at least 1m above its hovering height. Press the Auto-Stunt Button (8), the Drone turns around, moves slowly upwards, does a 360 degree flip, before moving back down to its resting height (approximately 1m). Press Auto-Stunt Button only when Drone is very still. If Drone is moving, it will become difficult to control after the flip. Practice makes perfect!Advanced FlyingThe Drone can also be flown without any proximity sensors. Follow steps 1-5 in section Getting Started with the Juice Button (7) then push the Throttle Joystick (5) forward and the Drone will take to the skies!Not using the Juice Button (and hence deactivated proximity sensors during flights) does make flying more difficult, as you need to control height (with Throttle Joystick (5)), as well as Direction (with Directional Joystick (6)). However there are also advantages to this mode:• The Drone can be used on un-even coloured or textured ground. • The Drone can be flown outside in full sunlight. • You can move the Drone very close to the ground (below the 1m height determined by the sensors in Juice Button mode).• You can start flights by throwing the Drone into the air before immediately taking control. A spectacular trick, but only recommended by experienced and highly skillful pilots! To do this you must use the Throttle Joystick (5) straight away once you have thrown the Drone into the air.Press and hold down for Emergency Stop. Trimming the DroneTo get best performance for the Ai Drone, it is important to trim it. To adjust trimming we recommend: • When the Drone is flying forward, push the Backward Trim (14)• When the Drone is flying backward, push the Forward Trim (13)• When the Drone is flying to the left side, push the Right Trim (12)• When the Drone is flying to the right side, push the Left Trim (11)• When the Drone is rotating to the left, push the Right Turn Trim (10)• When the Drone is rotating to the right side, push the Left Turn Trim (9)Contents ChargingReplacing the Propeller ProtectorsProblem Reason SolutionThe Power Indicator LED (2) is not on The Power Switch (1) is in the OFF position Switch the Power Switch (1) to ON Replace with new batteriesHandset is not workingAuto-Stunt Button (8) does not work Flips are difficult to performBatteries not correctly loaded as per the polarity shownCheck and make sure the batteries areloaded as per the correct polarity shown in the battery compartmentThe Power Switch (1) is in the OFF position Switch the Power Switch (1) to ONAuto-Stunt only works when Drone is hovering and stable after being started with Juice Button (7)Follow instructions and start with Juice Button (7)Drone power is low Recharge DroneYou are flying outside or in direct sunlight Fly indoors only when using Juice Button (7)Floor surface is not even (colour/texture) Move to a more evenly reflective surface or to Pro Mode (not using the Juice Button) Juice Button (7) does not give stable hovering flightsDrone is out of control Drone has crashed Press and hold down Juice Button (7) and press Throttle Joystick (5) down for emergency stopThe Drone ON/OFF Button (17) is in the OFF positionWind is too strong Do not fly the Ai Drone in windy conditions Switch the Drone ON/OFF Button (17) toONTroubleshootingWhere to Fly the Ai DroneOperating Safety InstructionsChina Industries Ltd. T/A Wow! StuProperty: TX JuiceProduct: Ai Stunt DroneProduct No: TX-1028Date: 26/04/16Printed: BlackDistributed by: China Industries Ltd. T/A Wow! Stuff,Creative Industries Centre, Wolverhampton Science Park,Wolverhampton, WV10 9TG. © Copyright. All rights reserved. www.wowstuff.comDesigned by TX Juice in the UK, California and Asia.Manufactured and assembled in China.Battery requirement for HandsetRating: 4 x 1.5V AAA batteries (not included) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operationWarning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/ TV technician for help.CHOKING HAZARD – Small PartsNot suitable for children under 3 yearsNot recommended for use by children under 8 years old.Please retain this information for future reference.Adult supervision required. Operates on 2.4 GHz frequency. !Battery Information• Non-rechargeable batteries are not to be recharged.• Rechargeable batteries are only to be charged under adult supervision.• Rechargeable batteries are to be removed from the toy before being charged.• Do not mix old and new batteries.• Do not mix alkaline, standard (carbon-zinc) or rechargeable (Ni-Cd) batteries.• Batteries are to be inserted with the correct polarity.• Exhausted batteries are to be removed from the toy.• The supply terminals are not to be short-circuited.• Contains Li-poly battery. Battery must be recycled or disposed of properly.Always :• Make sure battery compartments are secure.• Use batteries of the correct size and type.• Fit batteries correctly observing the plus and minus marks on the battery and compartment. • Replace a whole set of batteries at one time. • Remove exhausted batteries from equipment.• Remove batteries from appliance that will not be used again for a long time.• Please remember that all batteries should be kept away from young children as they could be easily swallowed. Seek medical advice if you believe a cell has been swallowed.• Please ensure that batteries are installed by an adult prior to use.Never• Never dispose of batteries in a fire. Consumers have a significant role to play in reducing the impact of waste, electrical and electronic equipment on the environment, you can help by re-using or recycling such equipment.The crossed out wheelie-bin symbol indicates that the product & batteries must not be disposed of in domestic waste as they contain substances which can be damaging to the environment and human health. If you cannot re-use or recycle the product or batteries, please use designated collection points, or civic recycling facilities to dispose of them.Before first use : read the user’s information carefully together with your child. Keep the instructions and packaging after reading it. •Check if the product is assembled as instructed. •Do not change or modify anything on the product. •Warning! Do not touch the rotating propeller. •Keep face, eyes, fingers, hair, body parts etc away from moving parts. •Always fly in an open space. •Do not expose to rain or moisture. •Do not fly in a crowded environment. •Do not fly in a dusty area. •Do not fly in complete darkness. •Ensure people know that you are flying the product. •Use only the handset included in this package. •Always turn “OFF” when not in use. •Contains battery. Battery must be recycled or disposed of properly. •Do not start the product when persons, animals or any objects are within flying range of the product. •Children should be supervised when playing with the product. •Do not fly near your face to avoid injuries.Caution! Risk of eye injuries! Keep a safe distance of at least 2.5m. • Ai Drone includes rechargeable Li-poly battery and in-built ground detection system• 2.4 GHz TX handset uses 4 x AAA 1.5V batteries (not included)• USB charging cable• 4 x spare propellers (1 x set)• 4 x spare removable propeller protectors• Full instructions for use1. Using a screw driver, loosen the screw and remove the case cover.2. Insert 4 x 1.5V AAA alkaline batteries, following polarity markings.3. Replace case cover and replace screw. 1. Turn over the Drone so underside is upwards 2. Gently remove each arm of the Removable Propeller Protectors (19)off the base of the Drone3. Gently pull off the Removable Propeller Protectors (19) from the corner of the Drone4. Repeat on all four corners • When using indoors, choose a spacious, obstacle-free area and ensure that the device is operated away from fans and air conditioners as these may affect air flow. • When using outdoors, choose a fine, calm day. It is not recommended to fly the product in winds over 5mph. Power consumption will increase when operating in strong winds, which can also affect proper control of the product and may result in damage. Operation away from crowds, ponds, residential buildings and trees is recommended. Do not operate in the rain or snow or near to any high voltage cables. • This product is not intended for use by individuals (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge, unless they are supervised by a person responsible for their safety and is able to give instructions about how the product should be used.• After you have used the product, always allow the motor, electronics and battery to cool down especially before recharging.• This toy is intended to be used in domestic area (house and garden) only. Safe Usage and Maintenance• If not in use for a long time, remove batteries from the controller.• Ensure that the device is placed away from heat sources.• Do not place in water as this may cause a short circuit of the circuit board.• Do not expose the product to extreme temperatures.• Always keep the product clean, use a damp cloth to clean, followed by a dry cloth to wipe water away. Never use chemicals to clean the product.• Long operation time may generate high heat levels causing wear and tear. To extend product life, operators are recommended to allow a 10-15 minute cool down period before recharging batteries.• Keep this instruction manual for future use.Attention!Before operating: Switch the handset on first, then the Drone. When finished: First switch off the Drone, then the handset.When the drone is hovering at a constant height, not close to the ceiling, wall, floor etc. the user can stop the drone by pressing once the Juice Button (7) (1 second).If the drone is not hovering at a constant height and is attached to the ceiling or wall, the user can stop the drone by holding the Juice Button (7) and press Throttle Joystick (5) down for 3 seconds until the drone completely stops.WARNING: CUTTING BOTH WIRES AT THE SAME TIME MAY CAUSE A SHORT CIRCUIT & POTENTIALLY DANGEROUS RISK OF THE BATTERY OVERHEATINGDisposal of Ai DroneDisposal of Li-poly battery instructions(Only follow these instructions when you wish to dispose of your Ai Drone).Warning: Batteries should only be removed by an adult. Children should not be allowed to carry out the following procedure.Replacing the PropellersIt is recommended to use tweezers in order to replace the propellers. Use the tweezers to remove the propellers from the centre axle by pulling it upwards. Then use a new propeller and insert this by pushing onto the axis.Each propeller is engraved with a code to identify its location on the Drone. Using the engraved code on the propeller, the propellers should match the below format: Front (blue LED) left is A1/A2/A3/A4, right is B1/B2/B3/B4. Back (red LED) left is B1/B2/B3/B4, right is A1/A2/A3/A4. Batteries are exhausted1. Using a Phillips screwdriver, unscrew the four screws on the base of the Drone. 2. Remove the casing and carefully remove the battery.3. Carefully cut the wires connecting the Li-poly battery to the Ai Drone. Use tape to cover the end of each wire from the battery to prevent a short circuit.123in-built ground detection systemt included)18. Drone LED 19. RemovablePropeller Protectors6. DirectionalJoystick2. Power IndicatorLED13. ForwardTrim12. RightTrim14. Backward Trim11. LeftTrim7. JuiceButton10. Right TurnTrim8. Auto-StuntButton9. Left TurnTrim20. SpeedMode1. Power Switch3. LeftFlip5. ThrottleJoystick12 The Ai Drone is best flown indoors, though in calm weather conditions it can also be flown outside. Note that the proximity sensor will not perform outdoors in sunlight. See Flying the Ai Drone section. When flying indoors choose a spacious, flat, obstacle free area, away from strong drafts, fans or air conditioners, as these can affect airflow and make controlling flights very difficult. Only attempt to fly outdoors on a very calm day (wind less than 5mph) with no rain, snow or water on the ground. Never fly near crowds of people, pets or other animals, near ponds, or any other water, and keep well away from any high voltage power lines. The Propeller Protectors (19), can be removed and replaced as required (if broken or damaged). There are four spare propeller protectors. Do not fly the drone without the Propeller Protectors (19).Handset ChargingThe handset is charged and powered by the 4 x 1.5V AAA batteries inserted into the handset as shown below.Ai Drone ChargingThe Drone is charged using the USB charging cable provided. Do not use any other means to charge the Drone. 15. DroneChargingPort17. DroneON/OFFButton1. Press the Drone ON/OFF Button (17) to OFF position.2. Connect the charging cable into the Drone Charging Port (15), and the other end to a USB power port. This can be plugged into a computer or via the adapter of a suitable USB plug. 3. While charging, the Charging LED (16) will be OFF. 4. Charging is complete (and Drone fully charged) when the Charging LED (16) is ON.5. Charging takes around 30 minutes, for up to 5 minutes of flying time.After 2 – 3 minutes of flight, the Left Flip (3) and Backward Flip (4) does not function due to low power. The Drone LED (18) will start to flash to indicate power is getting low.124. BackwardFlip16. ChargingLED4 x Spare Propellersincludedope e sincluded8+USB Cableincluded2 3 4 56784 x Spare Propeller Protectors includedINSTRUCTION MANUALARTIFICIAL INTELLIGENCETMAUTO-STUNTSPEEDAUTO-STUNTSPEEDTHE JUICE BUTTONACTIVATES AUTO TAKE-OFF,AUTO-HOVER & AUTO-LANDFor the most updated instructions as well as Tips & Tricks go to: www.txjuice.comFor the most updated instructions as well as Tips & Tricks go to: www.txjuice.comVisit Ai Drone at www.txjuice.comFor the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.comFor the most updated instructions as well as Tips & Tricks go to: www.txjuice.com For the most updated instructions as well as Tips & Tricks go to: www.txjuice.com0DQXIDFWXUHU·V1DPH &KLQD,QGXVWULHV/WG7$:RZ6WXII0DQXIDFWXUHU·V$GGUHVV &UHDWLYH,QGXVWULHV&HQWUH:ROYHUKDPSWRQ6FLHQFH3DUN   :ROYHUKDPSWRQ:97*8.7\SHRI(TXLSPHQW  $L6WXQW'URQH0RGHO1XPEHU  7;<HDURI0DQXIDFWXUH 5HFHLYHU&DWHJRU\  $SSOLFDWLRQRI&RXQFLO'LUHFWLYHV(87KH5DGLR(TXLSPHQW'LUHFWLYH6WDQGDUGVWRZKLFK&RQIRUPLW\LV'HFODUHG(1(1(1(13ODFH :ROYHUKDPSWRQ8. 'U*UDHPH7D\ORU'DWH 0D\ 'LUHFWRU     DECLARATION OF CONFORMITY:HGHFODUHRQRXUVROHUHVSRQVLELOLW\WKDWKLVHTXLSPHQWFRPSOLHVZLWKWKHHVVHQWLDOUHTXLUHPHQWVRIWKH5DGLR(TXLSPHQW'LUHFWLYH(8DQGWKDWDQ\DSSOLFDEOH(VVHQWLDO7HVW6XLWHPHDVXUHPHQWVKDYHEHHQSHUIRUPHG&(YHUVLRQVRIWKH$L6WXQW'URQH017;ZKLFKGLVSOD\WKH&(V\PERORQWKHSURGXFWODEHOFRPSO\ZLWKWKHHVVHQWLDOUHTXLUHPHQWVRIWKH5DGLR(TXLSPHQW'LUHFWLYH(8
