Chongqing Jinou Science and Technology Development JO-BLE468-7 JO Bluetooth Low Energy Beacon User Manual
Chongqing JINOU Science and Technology Development Co., Ltd. JO Bluetooth Low Energy Beacon
User Manual
1. Install iBeaconParameterSet.apk in a Android phone.The phone must be Android 4.3 and above
version. I use a phone with Andorid V4.4.
2. Power a beacon with battery. Click the app to search beacon.
3. After searched a beacon, click any place of the shown information
4. After enter into the beacon information, it only shows RSSI rate. Then you should click
openconnect, then battery power and other information will show out.

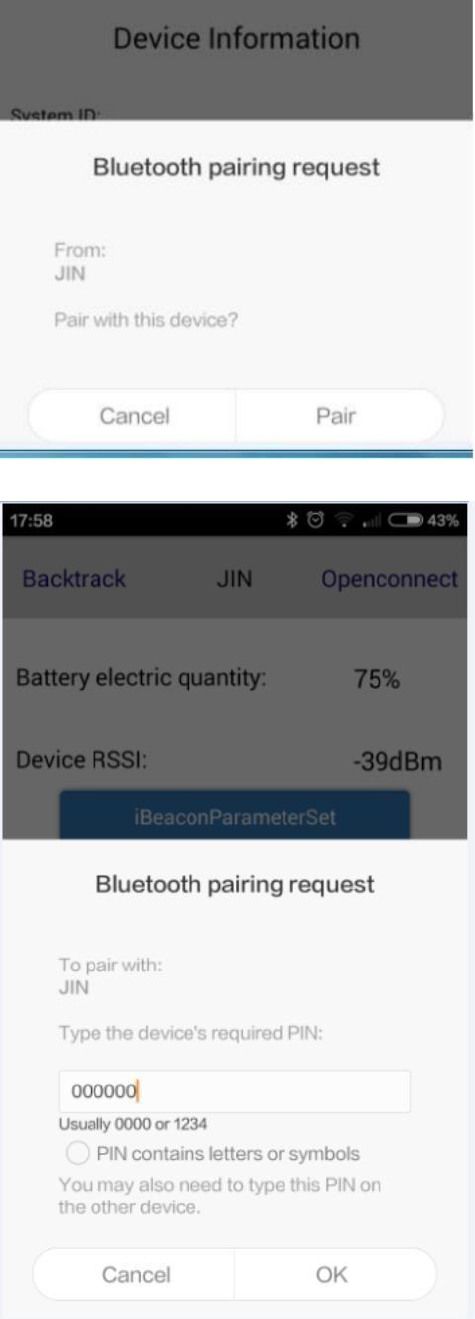

5. Meanwhile, there will be a notification ask you if you plan to connect with the beacon. Click
pair.
6. There will another notification ask you to enter passcode. Enter 000000 to pair with beacon.

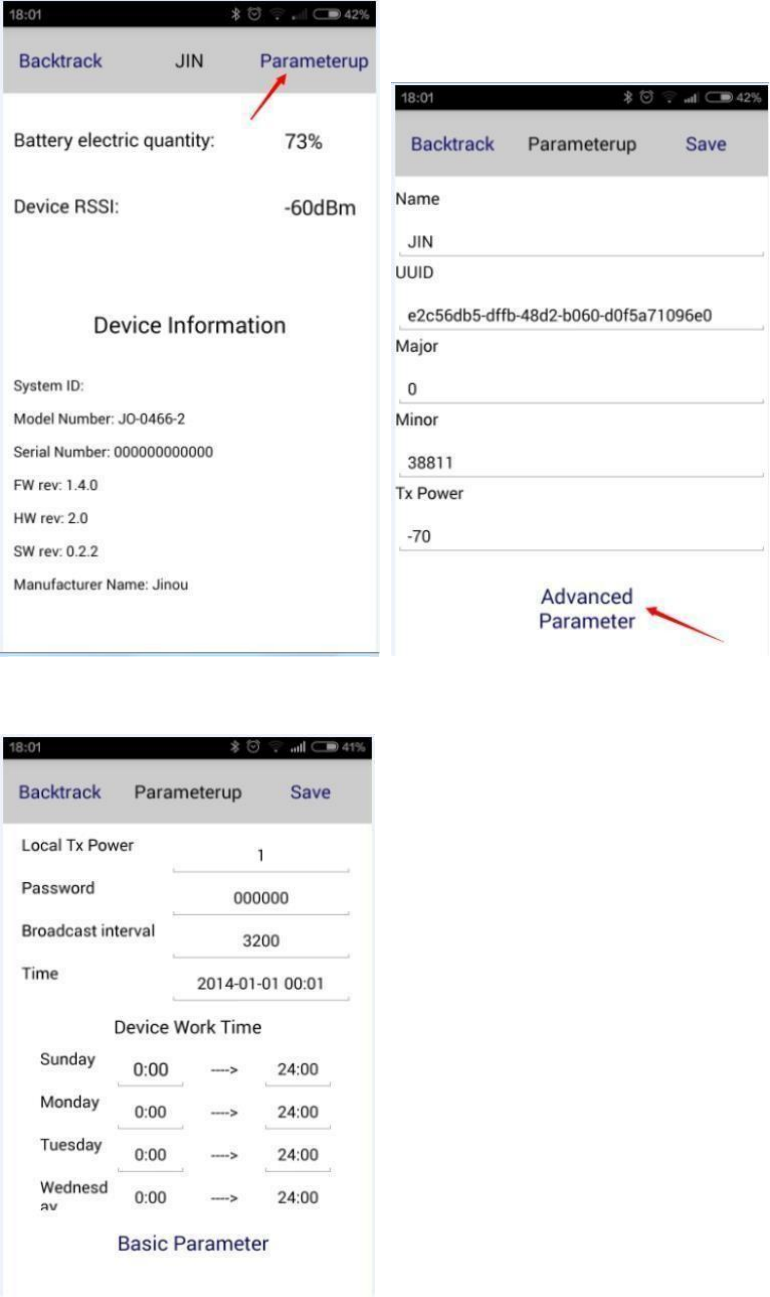

7. Enter this interface, click parameterup, enter into parameter setting interface. Now you can
change Name, UUID, Major, Minor.
8. Click Advance parameter, into another setting interface.
Interval range: 160-10000. Unit: 0.625ms. 160=0.1s, 1600=1s, 3200=2s.

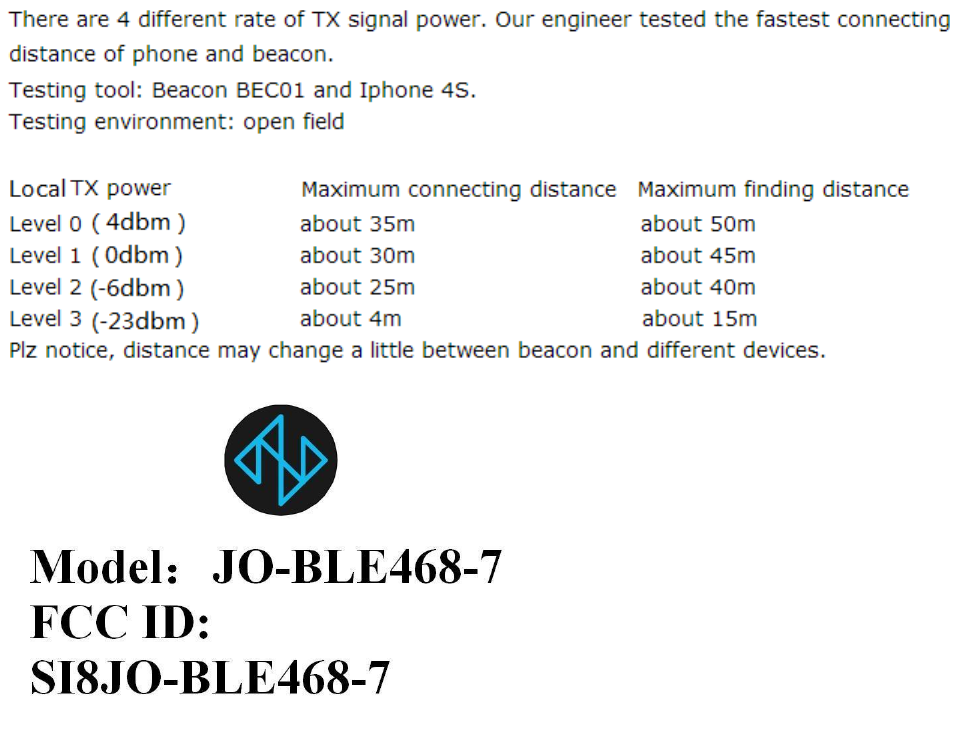

For local Tx power, there are 4 classes. See below pic. After changed parameter, click save.
Modular Approal:
The JO-BLE468-7 module is designed to comply with the FCC statement. FCC ID is SI8JO-
BLE468-7. The host system using JO-BLE468-7, should have label indicated it contain
modular’s FCC ID SI8JO-BLE468-7.
*RF warning for Mobile device:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
