Boardrooms
Houses of worship
Large conference rooms
Rental/Staging
Small auditoriums
Lens sold separately
LW600
Widen your presentation experience
The Christie LW600 offers the best of both worlds, ideally suited for
data and video presentation. The 17:10 aspect ratio, which can also
be set to 16:9, or 4:3 for PC and 16:9 for Video, meets today’s wide
screen presentation needs. In a boardroom, classroom, rental or staging
setting, the Christie LW600 provides the flexibility in data resolution
to meet your presentation needs.
The new inorganic LCD light engine, provides more robust LCD panels
and produces greater contrast levels for truer, richer blacks. The 10-bit
processing power of the Christie LW600 produces natural, color tone
reproduction, picture stability without image noise and virtually flawless
video presentation.
With a suite of 12 optional high performance lenses and a range of input
modules, the LW600 can match your installation and input signal sources.
The Christie LW600 provides flexibility for virtually any installation.
This digital projector provides high brightness at 6000 ANSI lumens
and a 2000:1 contrast ratio from a dual lamp, optical engine. The Christie
LW600 boasts high performance, low maintenance and an overall low
cost of ownership.
A unique dual lamp system delivers incredible brightness and color
uniformity
in a two or one lamp mode. Auto-switching lamp feature
makes the LW600 the perfect option for installations where lamp
redundancy is crucial.
Utilizing a new cooling design and AutoFilter system, service intervals
are extended. This easy-to-use cartridge system automatically rotates
a new sheet of filter every 1000 hours of use for up to 10,000 hours
before having to replace the cartridge.
AutoFilter system provides
10,000 hours of hassle-free
operation (typical use), before
having to replace the cartridge,
reducing the total cost of
ownership of the projector.
The LW600 new dual lamp
design provides high brightness
and increased uniformity even in
a single lamp mode.
The LW600 offers input
flexibility by providing two
option board slots to allow for
additional signal connectivity
from a variety of option cards.
brightness
6000 ANSI lumens•
contrast
2000:1 (full on/off)•
uniformity
90% brightness uniformity (corner to center)•
Display
type
3 x 1.22" inorganic LCDs•
native resolution
True WXGA (1366 x 800) PC (17:10) and 16:9 aspect ratio video•
Lamp
type
Dual 330W NSHA•
life
Normal mode: 2000 hours, Eco mode: 3000 hours•
Input
signals
VGA through to UXGA (1600 x 1200)•
NTSC, NTSC 4.43, PAL, PAL M, SECAM, PAL-N, PAL 60•
Accepts current HDTV formats, 480i through 1080i •
(1080p via Digital connection only)
10-bit digital processing (1.07 billion color reproduction capability)•
pixel clock
230 MHz (analog), 122.85 MHz (digital)•
scan rates
Horizontal: 15 to 120 kHz, Vertical: 48 to 120 Hz•
Inputs, control
and networking
Input 1: DVI-D x 1, HD15 x 1•
Input 2: BNC x 5 (R,G,B,H,V & Y,Pb/Cb, Pr/Cr & Composite), Mini DIN 4-pin (S-video) •
Serial input: Dsub-9 x 1, Serial output: Dsub-9 x 1•
R/C jack - mini jack x 1•
Service port: USB B-Type x 1•
Optical system
Motorized zoom, focus and lens shift•
Lens shift: horizontal left/right 13%; vertical up/down ±50% (calculations based •
on center lens center image using Standard Zoom Lens, not included)
Mechanical light shutter
•
Standard accessories
Wireless/wired remote unit (two "AA" type batteries and wired cable included)•
User manual (CD-ROM and quick manual)•
Computer cable (Dsub15-Dsub15)•
AC cord UL type (NEMA 6-20P plug type)•
European 2P plug type•
Optional accessories
lenses
Short Fixed: 1.1:1 •
Short Fixed: 1.65:1 •
Short Zoom: 1.9–2.5:1 •
Short Zoom: 2.1–2.8:1 •
Wide Zoom: 1.3–1.8:1 •
Short Zoom: 1.6–2.1:1 •
Wide Fixed: 0.8:1 •
Standard Zoom: 2.8–3.6:1 •
Standard Zoom: 3.6–4.8:1 •
Semi Long Zoom: 4.8–6.2:1 •
Long Zoom: 6.1–8.5:1 •
Long Zoom: 8.7 to 12.4:1•
part numbers
38-809043-52•
38-809036-52•
38-809037-52•
38-809094-51•
38-809045-52•
103-103101-01•
103-101001•
38-809039-52•
38-809044-52•
38-809040-52•
38-809042-52•
38-809070-51•
input modules
DVI/Dsub15 module •
5-BNC/Video module •
DVI module •
5-BNC module •
Dsub-15 module •
SDI-Dual module •
103-113106-01
•
103-114107-01 •
103-104101-01•
38-804716-54•
38-804718-52•
38-804790-51•
replacement parts
Lamp 330W NSHA •
AutoFilter cartridge•
003-120394-01•
003-002003-01•
Enhanced feature sets
Customizable start-up logo•
Auto-switching lamp feature (single lamp mode)•
Digital keystone feature: ± 40º vertical (max); ± 20º horizontal (max)•
Intuitive graphical user interface•
Built-in keypad•
Front and rear infrared sensors•
Built-in RS-232c port•
Carrying handle – security bar•
Auto Discoloration Prevention with 3D-AUCC technology•
AutoFilter technology – up to 10,000 hours cartridge life (typical environment)•
Top loading lamp access•
Aspect ratio selection; 4:3, 16:9, real, custom modes•
Power requirements
operating voltage 100–120V and 200–240V ± 10%•
operating current 11.2A max @ 100V/5.1A max @ 200V•
power 950W•
dissipation 3230 BTU/hr•
Dimensions
size (LxWxH) 29.8 x 20.9 x 10.3" (757 x 530 x 267 mm) - includes feet protrusion•
shipping dimensions (LxWxH) 37.4 x 33.3 x 21.3" (951 x 846 x 542 mm)•
weight 60.85 lb (27.6 kg)•
shipping weight 83.7 lb (38.0 kg)•
Noise Normal mode: 50 dBA, Eco mode: 47 dBA•
Operating environment
Temperature: 41 to 104º F (5 to 40º C)•
Storage temperature: 14 to 140º F (-10 to 60º C)•
Humidity: 20–80% non-condensing•
Altitude: 0–8858ft (0–2700m)•
Regulatory approvals This product conforms to the following regulations related to product safety,
environmental requirements and electromagnetic compatibility (EMC):
FCC Part 15, Subpart B Class A
•
CISPR22/EN55022•
CISPR24/EN55024 •
UL 60950-1 first edition•
CAN/CSA-C22.2 No 60950-1-03 first edition •
IEC60950-1:2001 •
2002/95/EC RoHS •
Limited warranty Projector: 3 years parts and labor•
Lamp: 120 days or 500 hours, whichever comes first •
Contact an authorized Christie representative for full details of our limited warranty•
LW600

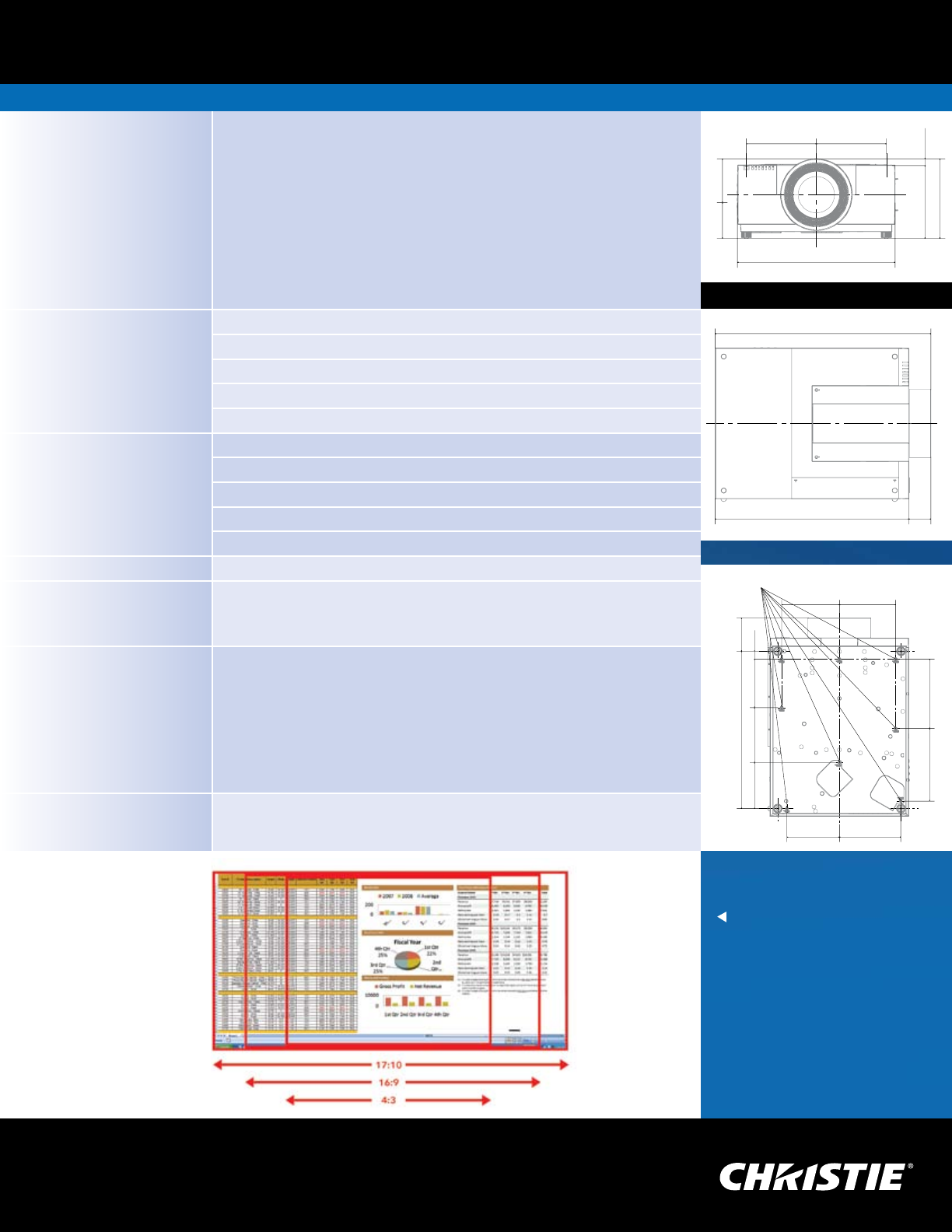

TECHNICAL SPECIFICATIONS
235.0 mm/9.25" 235.0 mm/9.25"
530.0 mm/20.87"
120.5 mm/
4.74" 147.5 mm/5.81"
245.0 mm/9.65" 0.91"
268.0 mm/10.55"
757.0 mm/29.80"
680.0 mm/26.77"
276.5 mm/10.89" 265.0 mm/10.43"
220.0 mm/8.66"
8–M8mm DIAMETER
DEPTH MAX 10mm
5.00"
127.0 mm/
600.0 mm/23.62"
175.0 mm/6.89" 210.0 mm/8.27" 185.0 mm/7.28" 30.0 mm/1.18"
215.0 mm/8.46"
200.0 mm/7.87" 234.0 mm/9.21"
3.03"
77.0 mm/
23.0 mm/
235.0 mm/9.25" 235.0 mm/9.25"
530.0 mm/20.87"
120.5 mm/
4.74" 147.5 mm/5.81"
245.0 mm/9.65" 0.91"
268.0 mm/10.55"
757.0 mm/29.80"
680.0 mm/26.77"
276.5 mm/10.89" 265.0 mm/10.43"
220.0 mm/8.66"
8–M8mm DIAMETER
DEPTH MAX 10mm
5.00"
127.0 mm/
600.0 mm/23.62"
175.0 mm/6.89" 210.0 mm/8.27" 185.0 mm/7.28" 30.0 mm/1.18"
215.0 mm/8.46"
200.0 mm/7.87" 234.0 mm/9.21"
3.03"
77.0 mm/
23.0 mm/
235.0 mm/9.25" 235.0 mm/9.25"
530.0 mm/20.87"
120.5 mm/
4.74" 147.5 mm/5.81"
245.0 mm/9.65" 0.91"
268.0 mm/10.55"
757.0 mm/29.80"
680.0 mm/26.77"
276.5 mm/10.89" 265.0 mm/10.43"
220.0 mm/8.66"
8–M8mm DIAMETER
DEPTH MAX 10mm
5.00"
127.0 mm/
600.0 mm/23.62"
175.0 mm/6.89" 210.0 mm/8.27" 185.0 mm/7.28" 30.0 mm/1.18"
215.0 mm/8.46"
200.0 mm/7.87" 234.0 mm/9.21"
3.03"
77.0 mm/
23.0 mm/
The Christie LW600 is ideal for
data presentations. The 17:10
aspect ratio, which can also be
set to 16:9, or 4:3 for PC and
16:9 for Video, meets today’s
wide screen presentation needs.
(Image is not to scale.)
