Chuango Security Technology R80 Remote Control User Manual RC 80 EN 1108 1 0

Chuango Security Technology Corporation Remote Control RC 80 EN 1108 1 0

User Manual

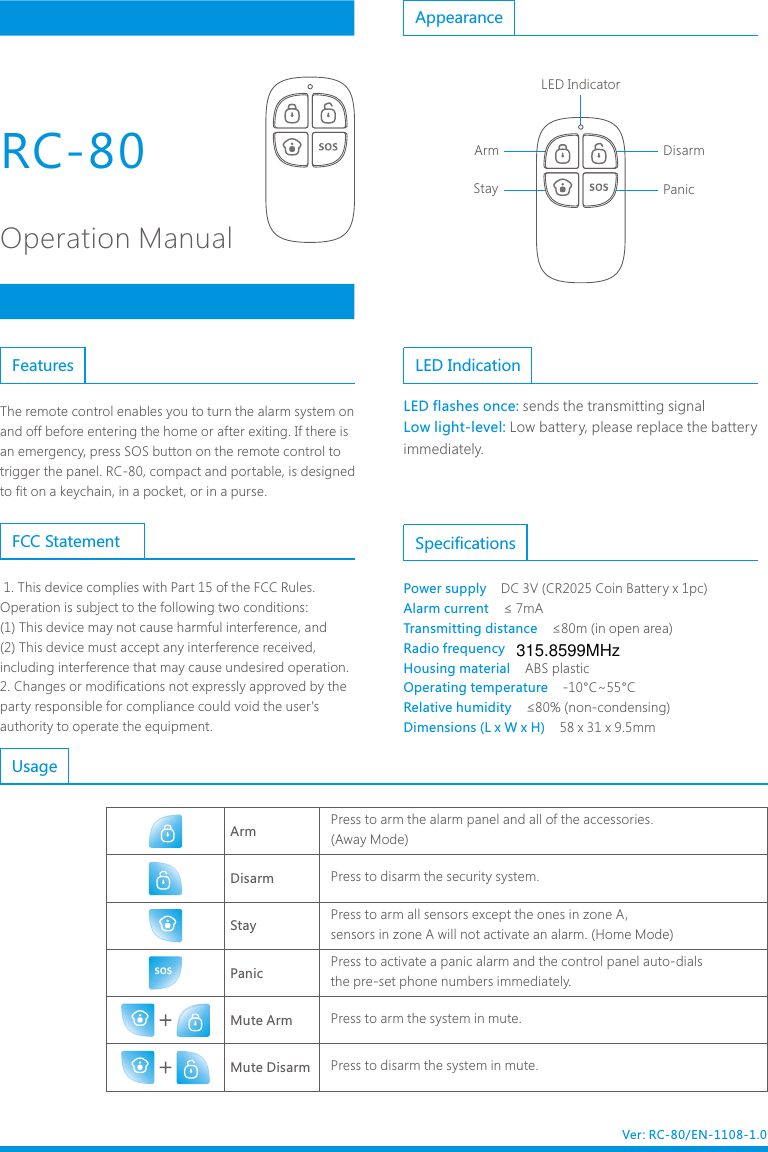

RC-80Operation ManualThe remote control enables you to turn the alarm system on and off before entering the home or after exiting. If there is an emergency, press SOS button on the remote control to trigger the panel. RC-80, compact and portable, is designed to fit on a keychain, in a pocket, or in a purse.Features LED IndicationLED flashes once: Low light-level:sends the transmitting signal Low battery, please replace the battery immediately.Appearance DisarmPanicStayArmLED IndicatorSpecificationsPower supply Alarm current Transmitting distance Radio frequency Housing material Operating temperature Relative humidity Dimensions (L x W x H) DC 3V (CR2025 Coin Battery x 1pc)≤ 7mA≤80m (in open area)ABS plastic-10°C~55°C≤80% (non-condensing)58 x 31 x 9.5mm ArmStayPanic Mute ArmMute DisarmDisarmPress to arm the alarm panel and all of the accessories.(Away Mode)Press to disarm the security system.Press to arm all sensors except the ones in zone A, sensors in zone A will not activate an alarm. (Home Mode)Press to activate a panic alarm and the control panel auto-dials the pre-set phone numbers immediately.Press to arm the system in mute. Press to disarm the system in mute. UsageVer: RC-80/EN-1108-1.0 1. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC Statement315.8599MHz
