Chung-Hsin Electric & Machinery Mfg. corp. Webpad Webpad Users Manual 070710
Users manual

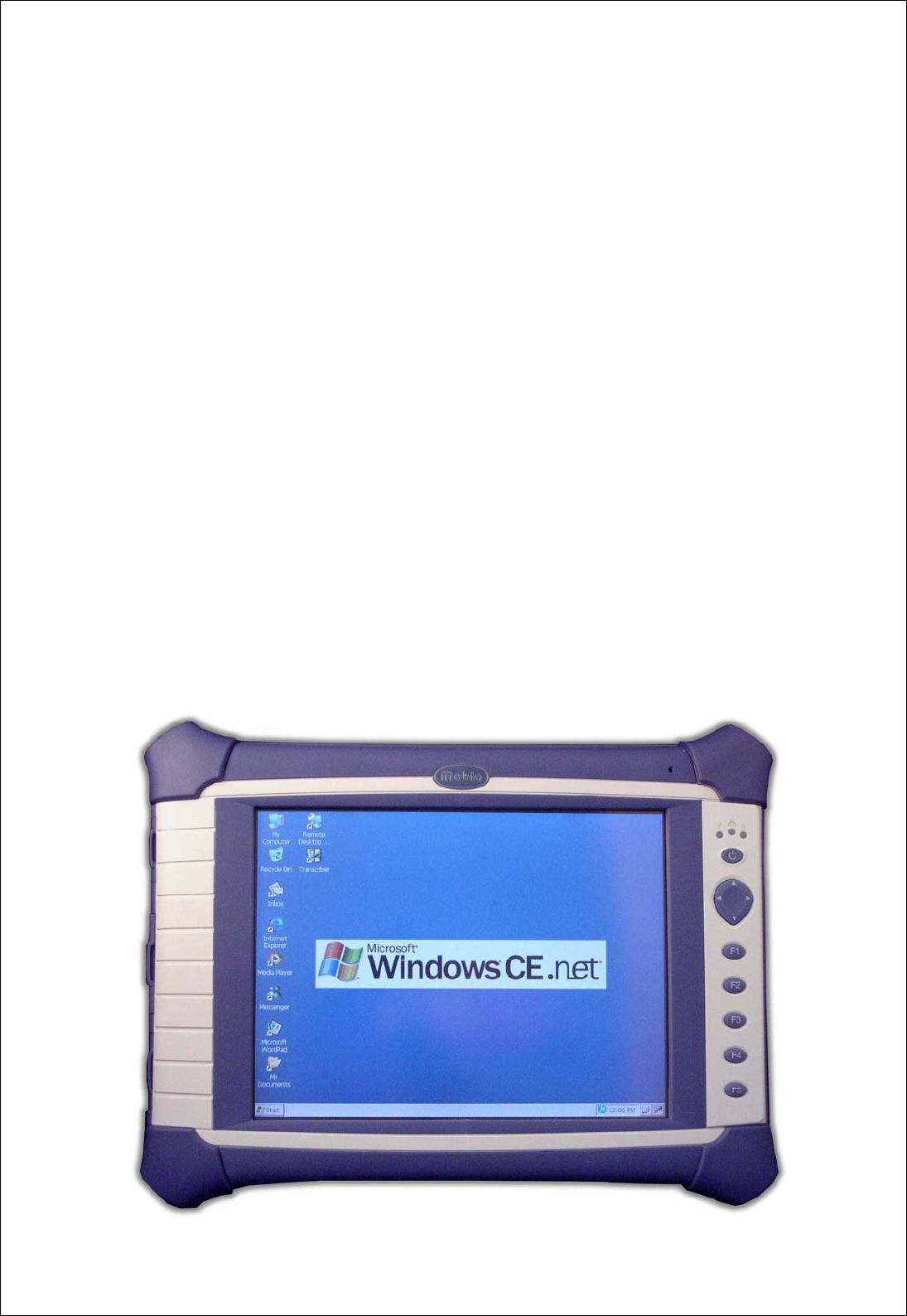

Mobile Computer
User Manual
This equipment has been tested and found to comply with the limits
for a Class B Digital Device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause
harmful interference to radio communication. However, there is no
grantee that interference will not occur in a particular installation. If
this equipment dose cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on , the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
The changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
To comply with the FCC RF exposure compliance requirements,
this device and its antenna must not be co-located or operating to
conjunction with any other antenna or transmitter.
- 2 -
- Contents -
1. Safety precautions........................................................ 1
2. Specifications ............................................................... 1
3. List of included items.................................................... 2
4. Exterior ......................................................................... 3
5. Operation...................................................................... 6
5.1 Main battery and charging....................................... 6
5.2 System reset............................................................ 7
5.3 Use and care of the touch panel.............................. 7
5.4 Change the Backlight Setting .................................. 7
5.5 Using the Transcriber (Hand writing recognizer) ..... 8
5.6 Data Backup............................................................ 8
5.7 Right click Function ................................................. 7
6. ActiveSync.................................................................... 9
7. Using the (optional) Bluetooth wireless network ........ 12
070710
1. Safety precautions
For your safety, please read the following:
(1) Please use only the accessories from the original
manufacturer. Use of any accessories not provided by the
manufacturer may damage the device and invalidate the
product warranty.
(2) Do not place the device in environments that exceed the
specified temperature or humidity limits. Doing so may result
in damage to the device.
(3) Please keep all I/O ports covered when not in use to prevent
water, dirt, metal or other objects from entering the device
and causing damage.
(4) Do not disassemble or modify the device, in order to prevent
damage to the unit or electrical shock. Any disassembly or
modification of the device automatically invalidates the
product warranty.
2. Specifications
OS Windows CE.NET 4.2
CPU Intel PXA255 400MHz
Power (Adapter) AC In: 100~240V, 50~60Hz
DC Output: 12V, 2.5A
Power (Battery) Lithium Ion, 7.4V, 4400 mAH
Dimensions 267 x 203 x 40 mm
Weight 1.55 kg
Operating
temperature 0 ~ + 50 ℃℃
Storage
temperature -20 ~ + 70 ℃℃
Relative humidity 0 % ~ 80 % (without condensation)
Ingress protection IP54
Drop specification 1.2m
- 2 -

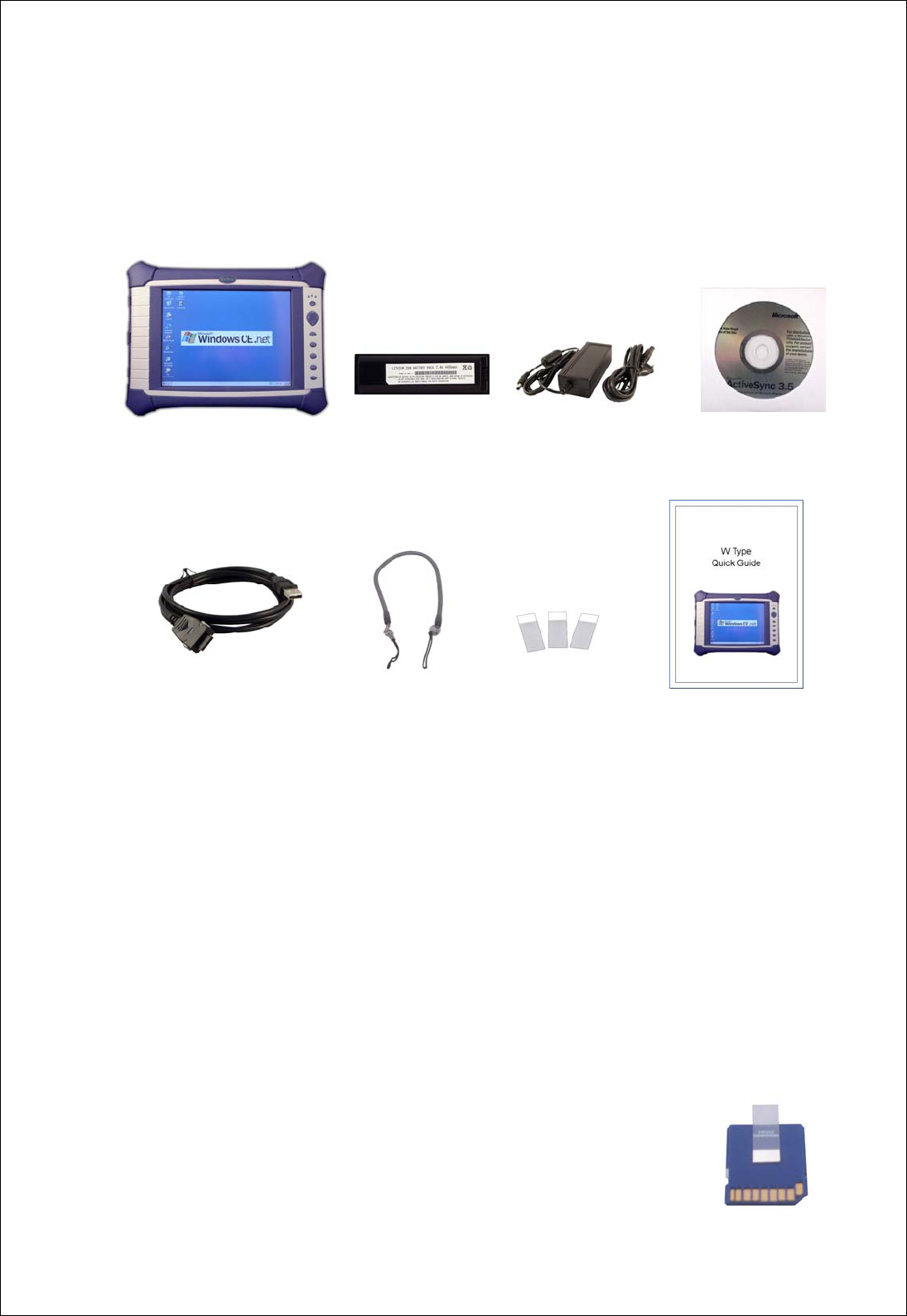

3. List of included items
Upon opening the packaging, please check that the following
items are included:
(1) CMC-3000 mobile computer
(2) Battery
(3) Charging cable and adaptor
(4) Microsoft ActiveSync installation CD
(5) USB cable
(6) Stylus strap
(7) Pulling pad (Help to dismount memory cards from device)
(8) Quick guide
(1) (2) (3) (4)
(5) (6) (7) (8)
Adhere the pad the to the SD card on
the same side with the connector
- 3 -

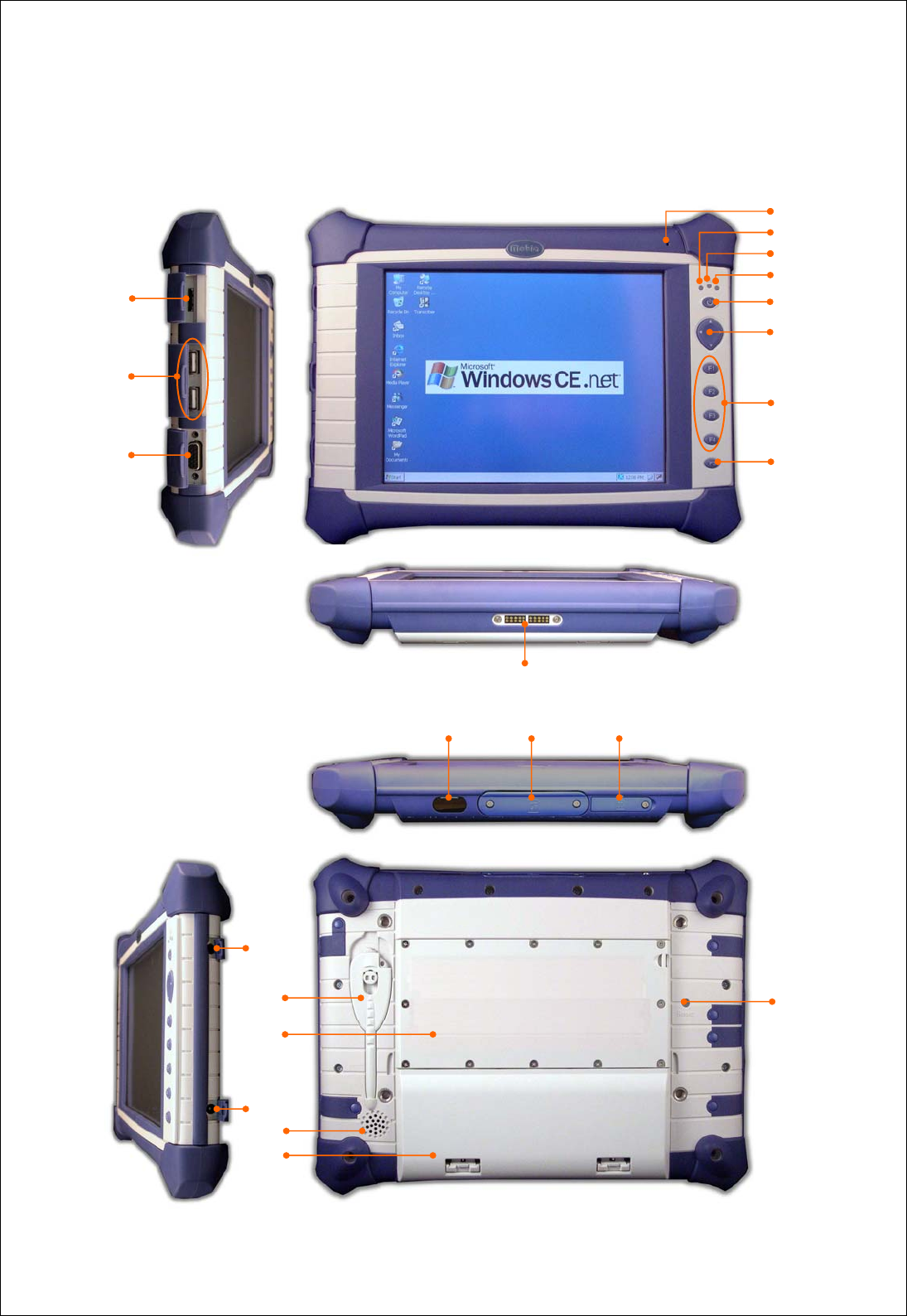

4. Exterior
7
6
5
8
9
10
11
12
1
2
3
13 14 15
16
19
17
18
21
4
20
22
- 4 -
1. Multipurpose communications port for:
(1) USB client – use the USB cable included to link the device
to a PC for data synchronization, software installation, etc.
(2) RS-232 – supports standard RS-232 port functions
2. USB host port: the device features two USB host ports, for
use with:
(1) USB memory drive
(2) Keyboard
(3) Mouse
3. VGA port: for standard VGA signal output
4. Built-in microphone
5. Alarm LED: programmable flashing indicator for use with
system or application
6. Wireless connection LED: flashes when Bluetooth connection
is in use
7. Charging status LED operates as follows:
(1) Unlit: currently not charging
(2) Red, constant: charging battery
(3) Green, constant: battery fully charged
8. On/Off button
9. Directional arrow keys for moving the cursor
- 5 -

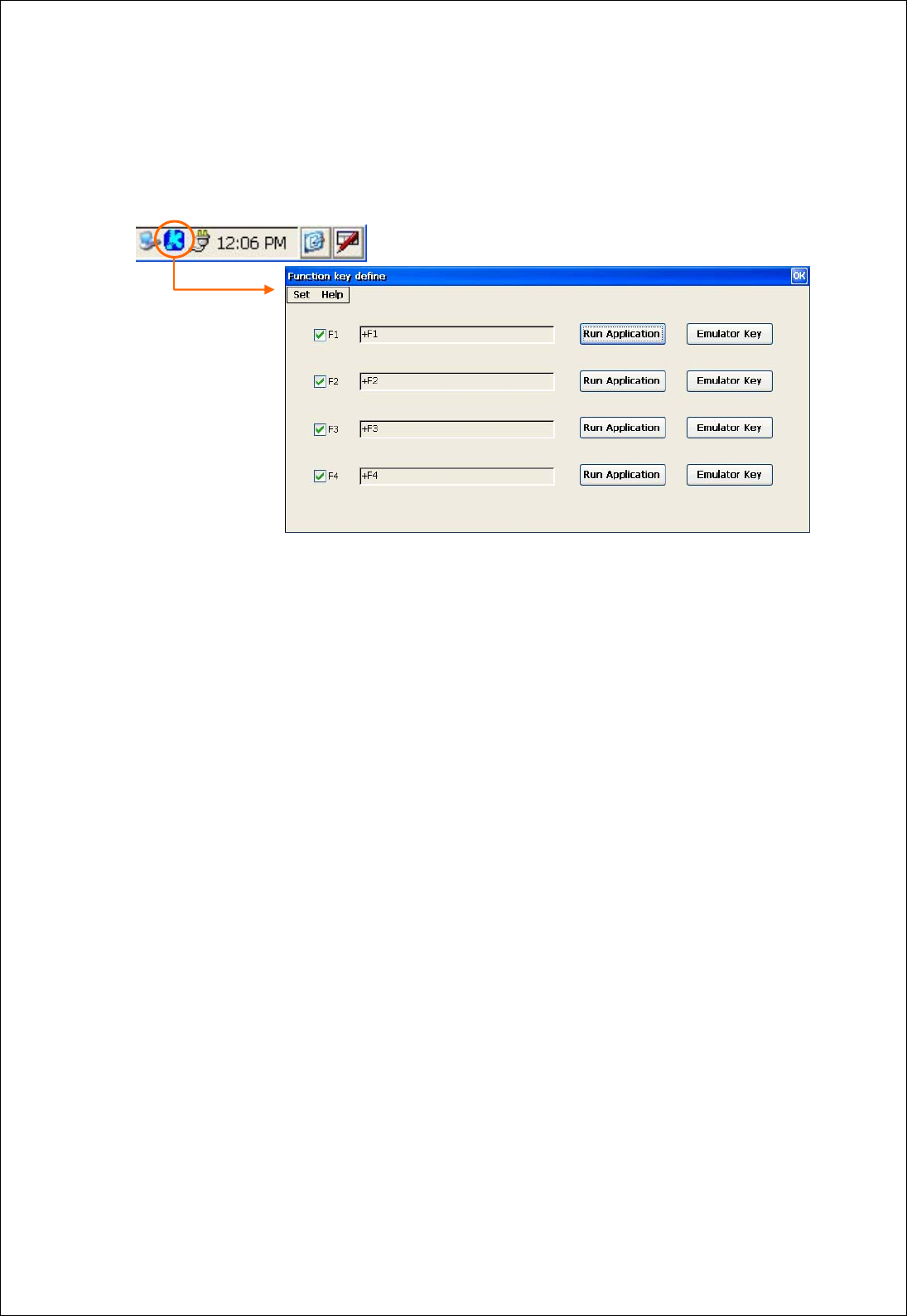

10. Hot keys: four programmable hot keys; click icon in lower
right corner of the display to define key functions (shown
below)
11. Keyboard function key: click this key to open/close the
onscreen keyboard
12. Cradle connector pins: connection between cradle and device
for battery charging and transferring data
13. IrDA data transfer interface
14. CompactFlash slot: supports both CF memory and I/O cards
15. SD slot: supports SD/MMC memory cards
16. Earphone jack: for 3.5mm stereo earphone
17. Stylus
18. Integrated wireless module and backup battery
19. Power adaptor jack
20. Speaker
21. Main battery
22. System reset button
- 6 -
5. Operation
5.1 Main battery and charging
(1) When shipped from the factory, the main battery is minimally
charged. To prolong battery life, fully charge the battery
before first use.
(2) When battery power is nearly depleted, a popup window will
warn user to recharge the main battery. Failure to recharge
the battery before power is completely deleted may result in
loss of data saved on the device.
(3) Before changing the main battery, turn off the power in order
to activate the device’s backup battery. Data on the device
will be saved, provided the user installs a fully charged
battery or connects to an AC power source within 15 minutes.
If battery is changed while power is on, data will be lost.

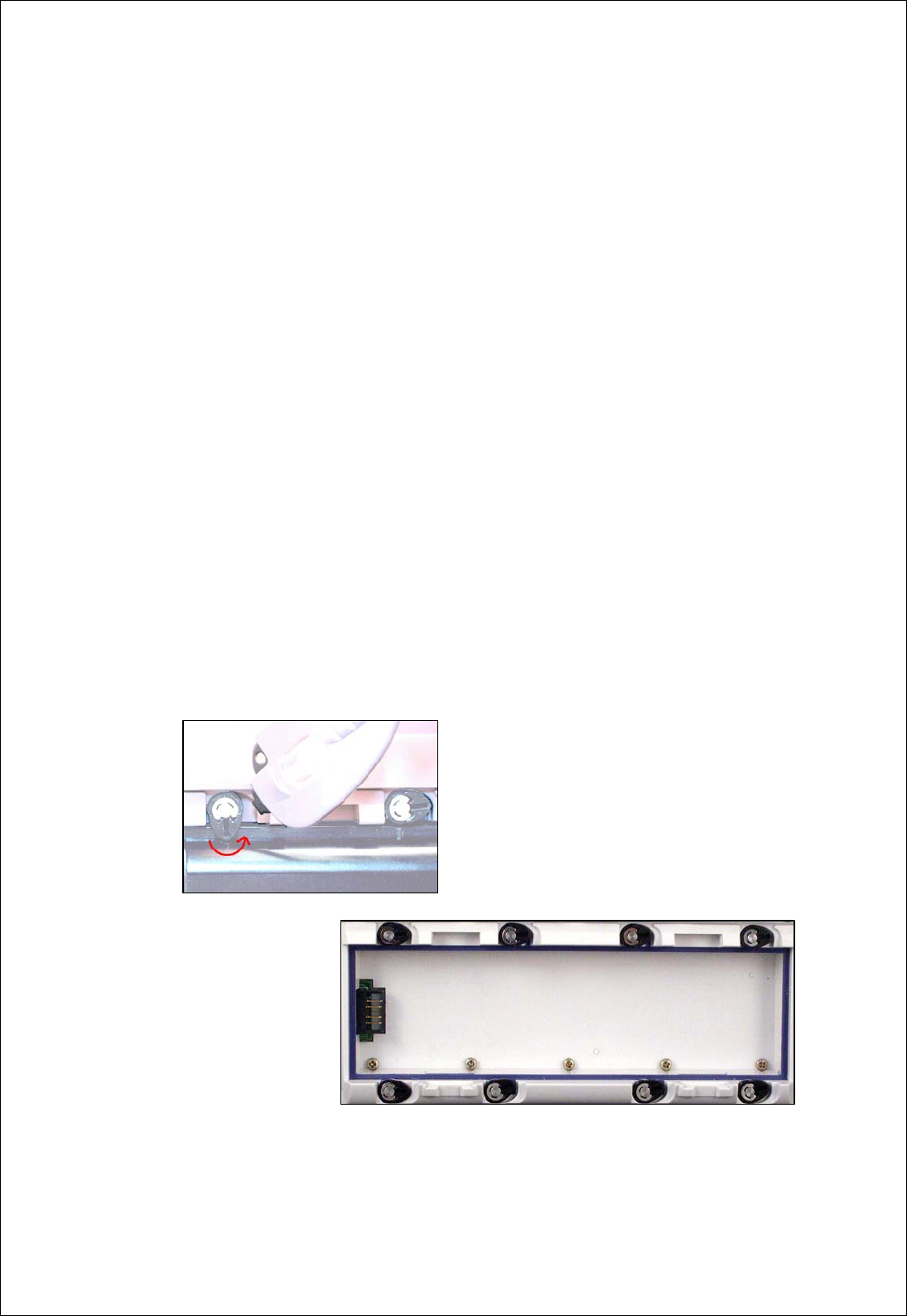

(4) To remove the battery, use the back of stylus to turn the
stoppers to unlock and release the battery.
(5) If the device will not be used for extended periods, please
remove the battery.
- 7 -
5.2 System reset
If an application causes the device to hang, the system can be
reset to operate normally as follows:
Warm reset
Use the stylus to lightly press the reset button on the back of
the device. Warm reset will not delete data saved on the
device.
5.3 Use and care of the touch panel
(1) Do not place any objects on the panel.
(2) Use only the provided stylus on the touch panel. Do not use
your finger or any other pointed objects, to avoid damaging
the panel.
(3) Wipe the touch panel with a smooth, clean, anti-static cloth.
Mild household cleaner or water can also be used if needed.
Do not use alcohol or other industrial strength cleaning
fluids.
(4) Do not pour water directly onto the panel. Cleaning should
be done only with a damp cloth, in order to avoid damaging
the device.
5.4 Right click Function
Use your stylus to click on the screen and hold it still for two
seconds to activate the right click function.
5.5 Backup Battery
When changing the battery, be sure to enter suspend mode
(turn off the device) before taking out the main battery to void
the loss of any unsaved data.
- 8 -

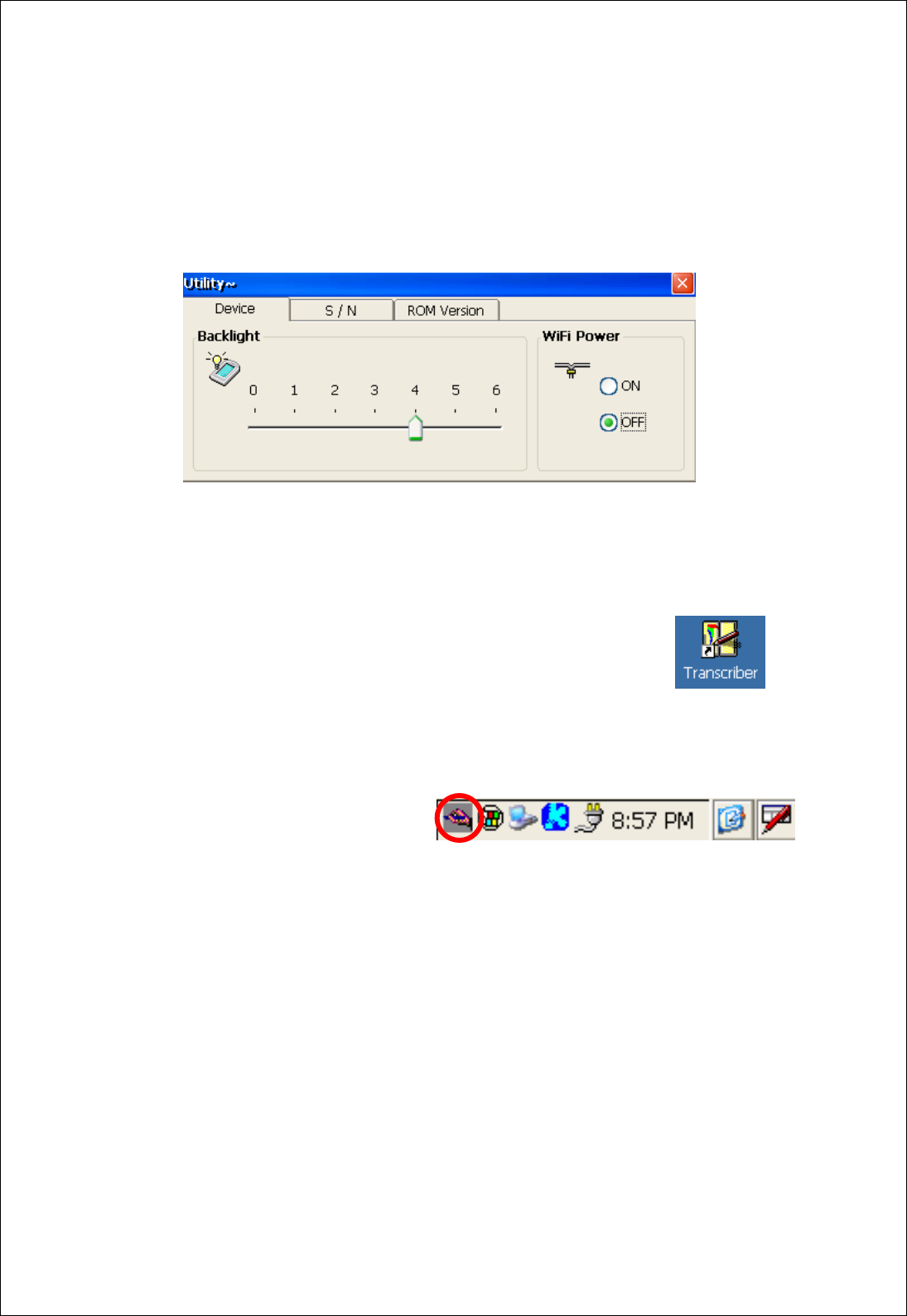

5.6 Change the Backlight Setting
(1) Go to Control Panel and then select Utilities
(2) Move the cursor to desired Backlight state.
5.7 Using the Transcriber (Hand writing recognizer)
(1) Double click the Transcriber icon on the
desktop to turn on.
Or select Start > Programs > Transcriber.
(2) When Transcriber is turned on, click the icon in lower right
corner on the screen to activate/deactivate this function.
5.8 Data Storage
A limited storage space for user to save data can be found in
My Computer > IPSM. Data saved in the folder remains after a
cold reset or power outage.
When data exceeds the storage space, it can be saved in CF
or SD cards. subject
- 9 -
6. ActiveSync
Use ActiveSync to synchronize data between CMC-3000 and
PC.
6.1 ActiveSync using a Cable
(1) Run “MSASYNC.exe” to install Microsoft ActiveSync on PC.
(2) Connect the cable to PC after ActiveSync is installed.
(3) When cable is connected, click Next to start ActiveSync.
(4) Select Yes and then click Next to set up a partnership.

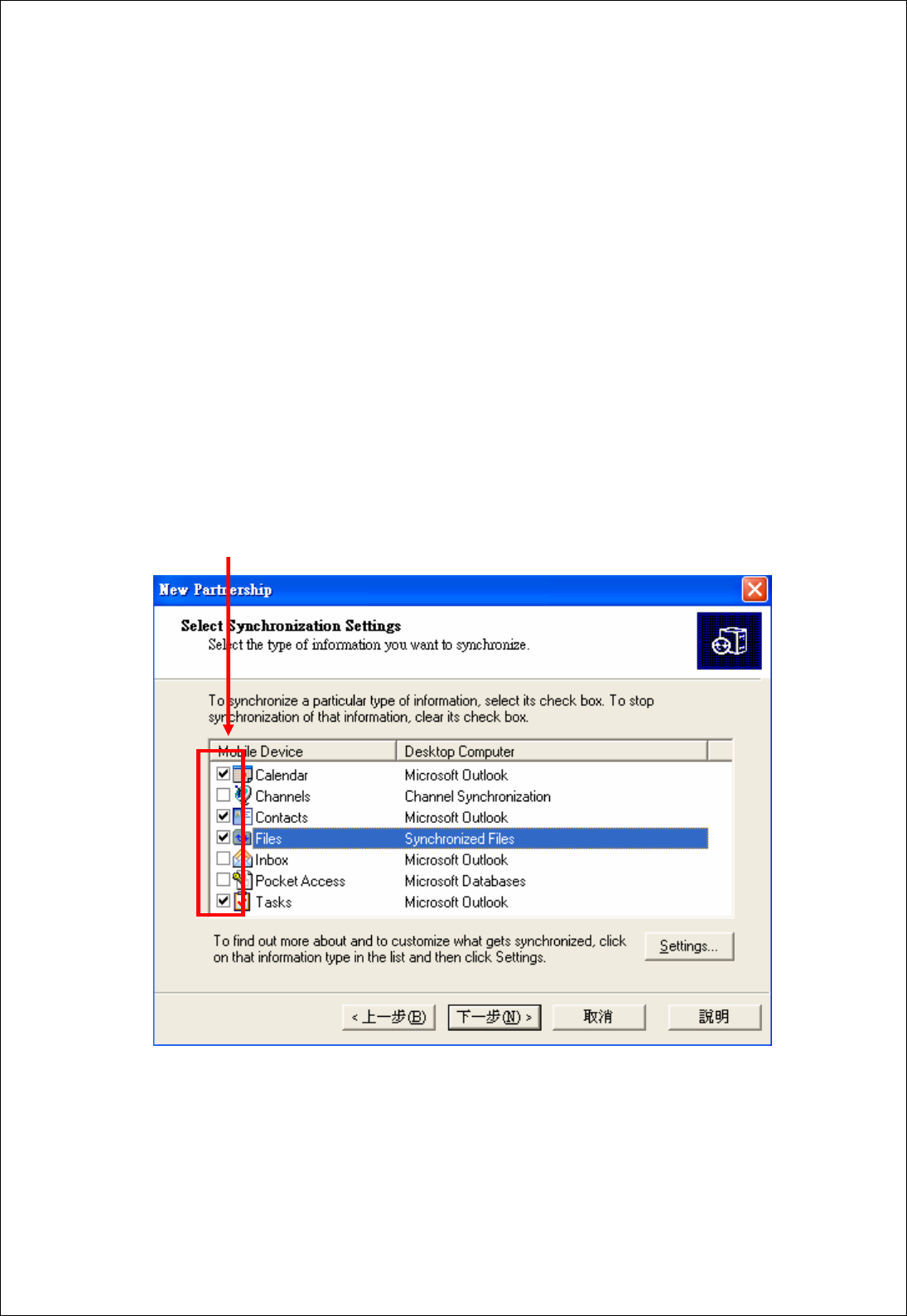

(5) Select particular types of information to be synchronized,
and then click Next.
(6) Click Finish to complete the setup.
- 10 -
6.2 ActiveSync using IrDA
Operations on PC:

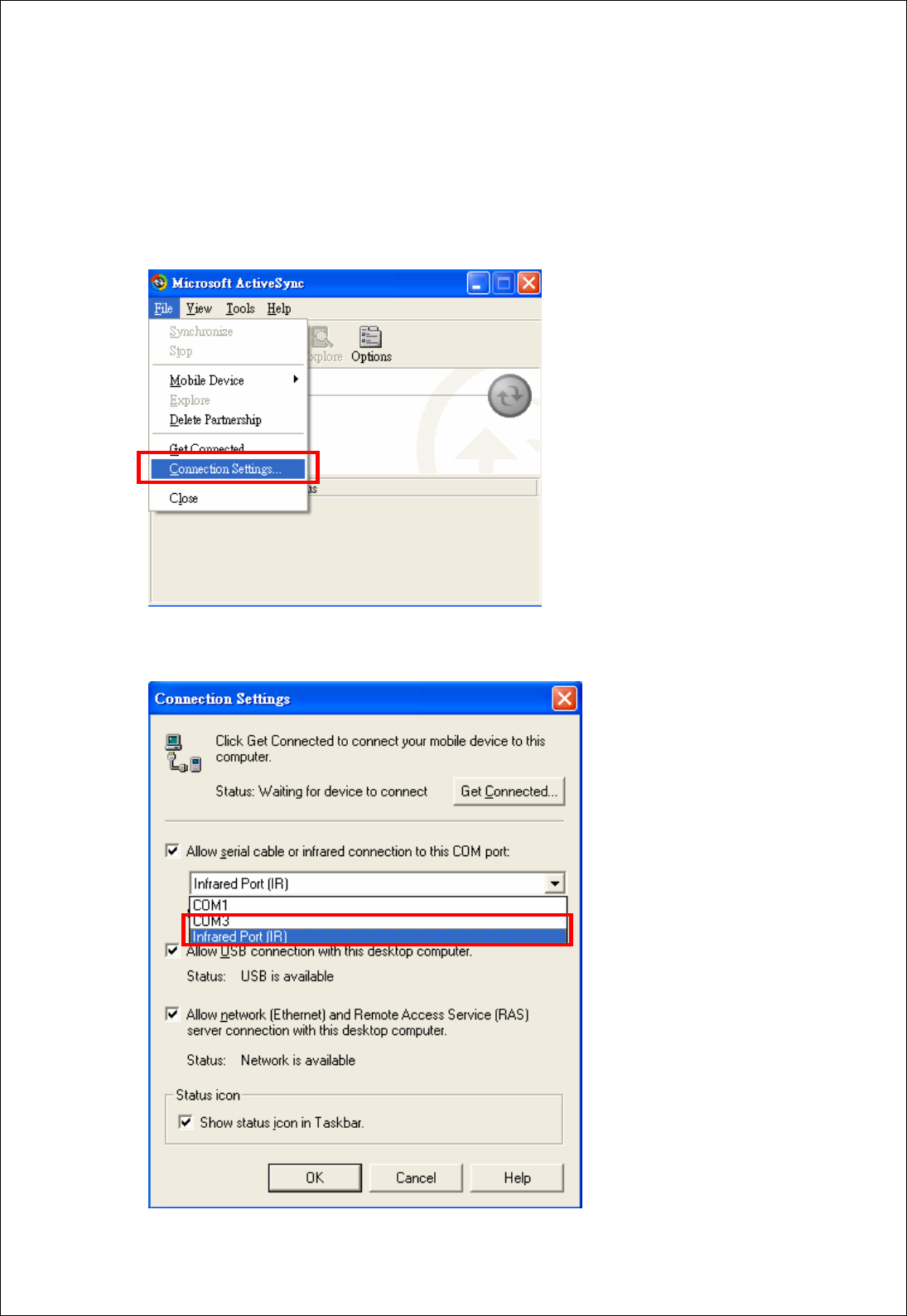

(1) Run Microsoft ActiveSync.
(2) Under File, select Connection Settings.
(3) Under Allow serial cable or infrared connection to…
select Infrared Port (IR) and click OK.
- 11 -
Operations on CMC-3000:

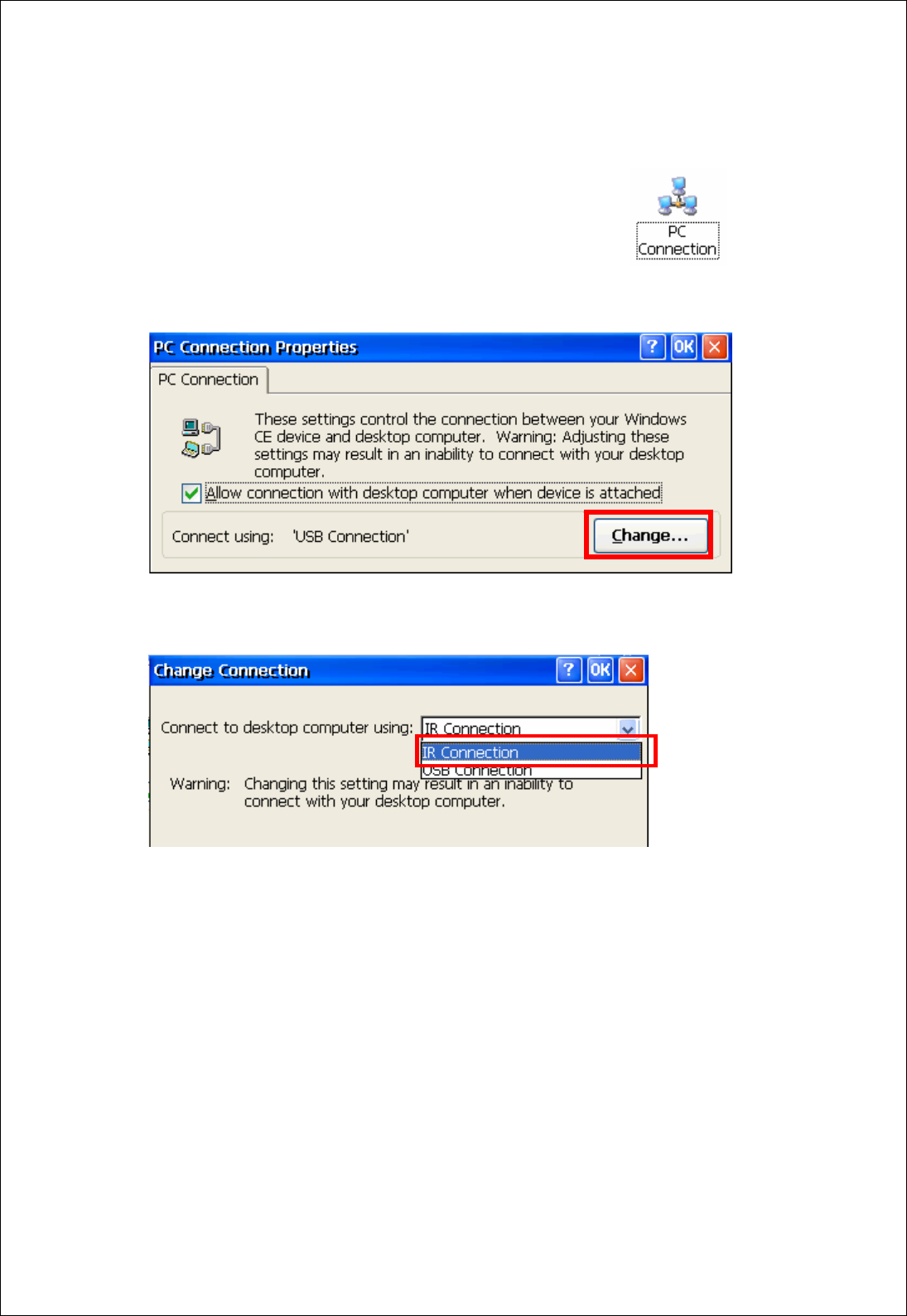

(4) Select Start > Setting > Control Panel.
(5) Double click PC Connection.
(6) Click Change to choose connecting methods.
(7) Select IR Connection then click OK.
(8) Select Start > Programs > ActiveSync, and the system
will start the synchronal procedure.
- 12 -
7. Using the (optional) Bluetooth wireless network

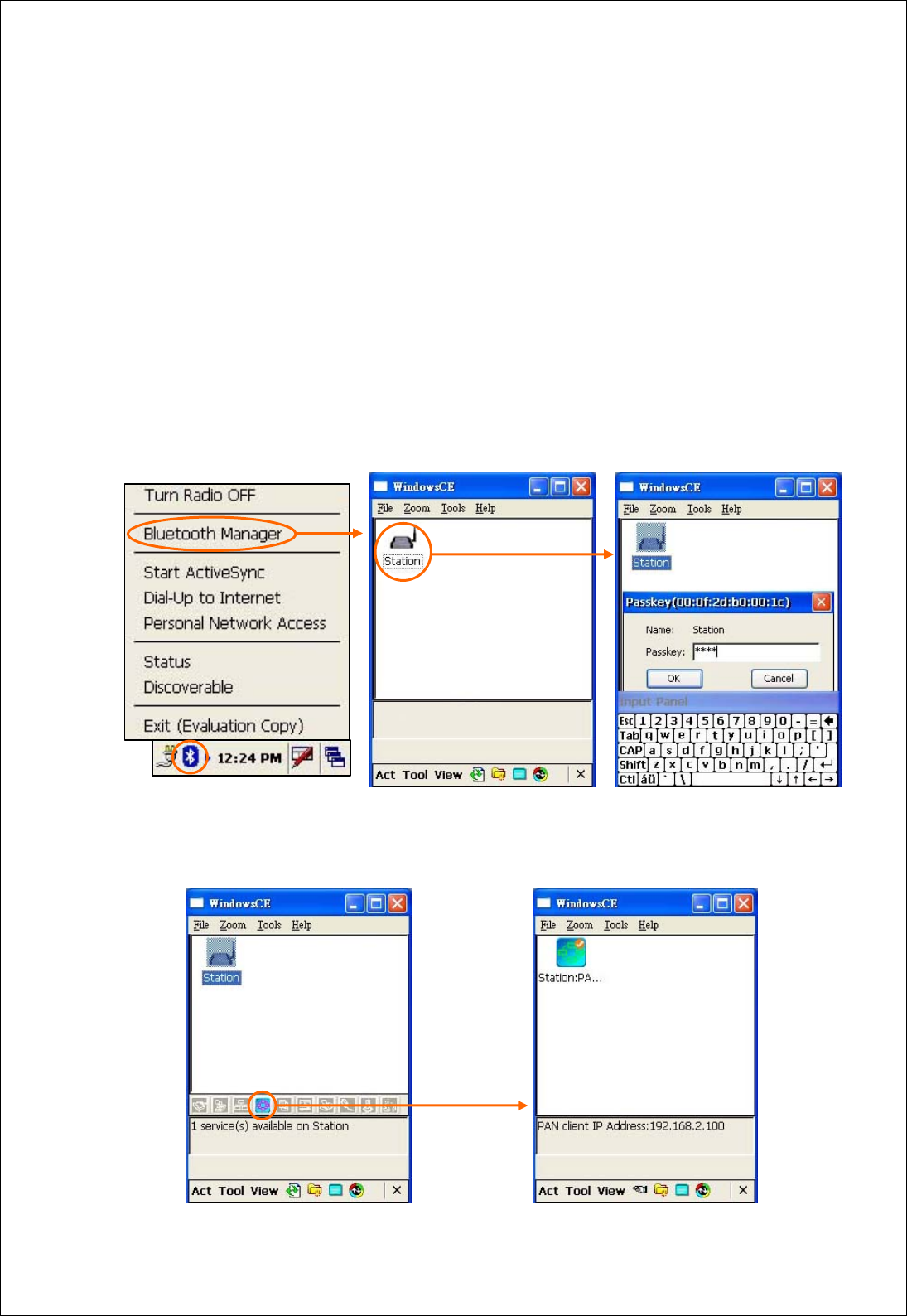

(1) Click the Bluetooth icon at the lower right corner of the display
to open the functions list. Select “Bluetooth Manager”.
(2) The Bluetooth Manager will search for any available
Bluetooth device within range of the mobile computer. Double
click the desired device to find available service. If necessary,
the system will request certain connection parameters
needed for pairing to the network (refer to your network
management tool). Enter information as prompted, then click
“OK”.
(3) After finding the available Bluetooth service, double click the
desired icon to make the connection.
- 13 -

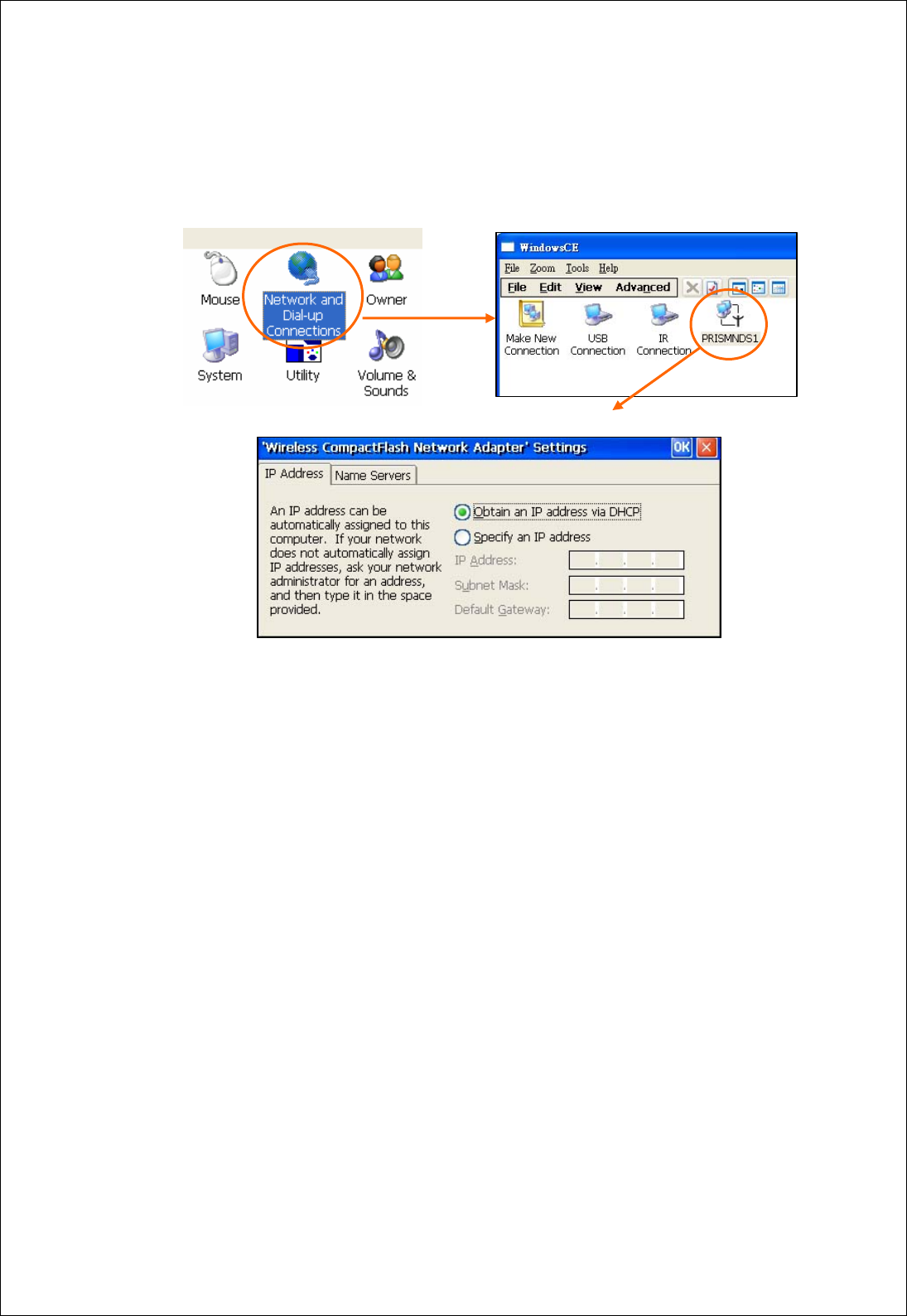

(4) As required by the network environment, define settings for
TCP/IP, DNS and other parameters (refer to the network
management tool in Control Panel).
Note: All specifications are subject to change without notice.
- 14 -
Warranty
Chung-Hsin Electric & Machinery Mfg. Corp. (CHEM) guarantees the original
purchaser of CHEM products a twelve-month warranty from the shipping date
on / / (mm/dd/yyyy) against manufacturer
defects in materials, workmanship and finish under normal use excluding
damage resulting from road hazards such as product misuse, improper
installation, extreme environments, impairments from accidents, product
modifications or product neglect. This twelve-month warranty applies only to
new products and is limited to the repair or replacement of CHEM products.
Warranty does not include electrical components replacement or costs of
removal, installation, labor, freight, inconvenience or consequential damages.
Original purchaser must return defective merchandise, along with the
purchase receipt, to the original place of purchase.
All defective parts must be received before the warranty expired. All physically
damaged products will VOID the product's warranty and will be returned.
