CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1.Read and save these instructions.
2.Please note that all fixed wiring appliances should be installed by a qualified electrician.
3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall
switch.
4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only.
7.Do not install in lamp locations or immerse into water. (For indoor use only.)
8.Do not pull on or cut leads shorter.
9.Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place
as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of
children.
INSTALLATION INSTRUCTIONS
1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the “Pull Switch”
after installation.

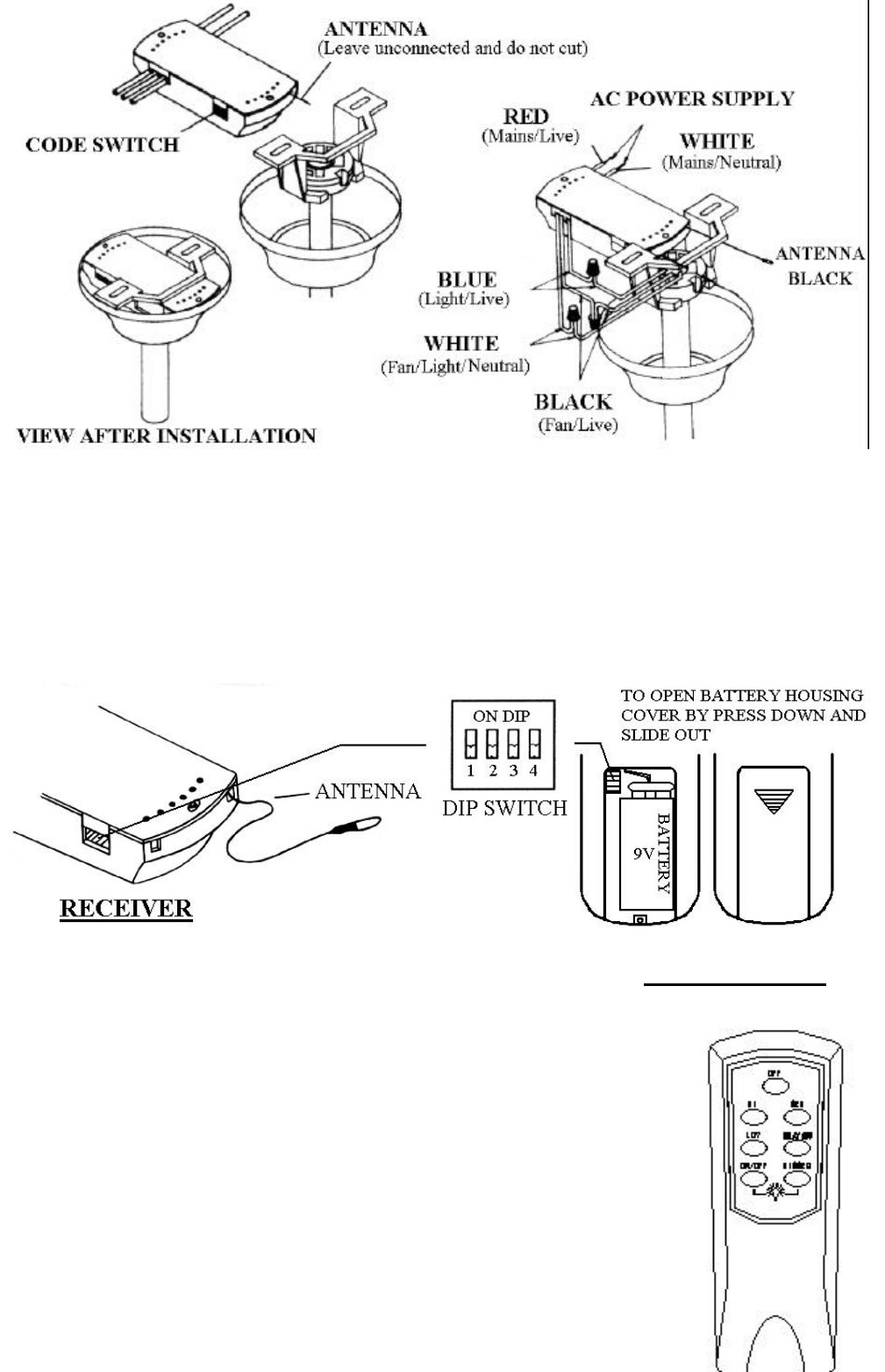

2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy
comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED
AND LIGHT KIT (IF ANY) TO BE ON POSITION BEFORE OPERATING
REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
FCC ID. KUJ9301
CODE SWITCH
1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used
for both transmitter and receiver is exactly the same; otherwise remote controller will not work. Please
note the code switch will enable you to operate a second remote controller independently. For example, if
you have two ceiling fans with 2 remote control units, set 2 different codes for each set of
transmitter/receivers. This means you can operate each ceiling fan independently.
2.Your remote control is ready for use after battery installation.
FUNCTIONS OF TRANSMITTER
LIGHT ON/OFF: Press and release immediately to turn on or off the light
DIMMER :Press and hold to dim or brighten lights to the desired level
and release. (Only for the tungsten bulb.)
DELAY OFF: Press immediately, then fan will automatically turn off after 3,
minute.
OFF : Turn off the ceiling fan.
HI : Turn on the fan at high speed
MED : Turn on the fan at medium speed
LOW : Turn on the fan at low speed
TRANSMITTER
FCC ID. KUJ9301
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user’s
authority to operate the equipment.
Ceiling Fan Remote Control

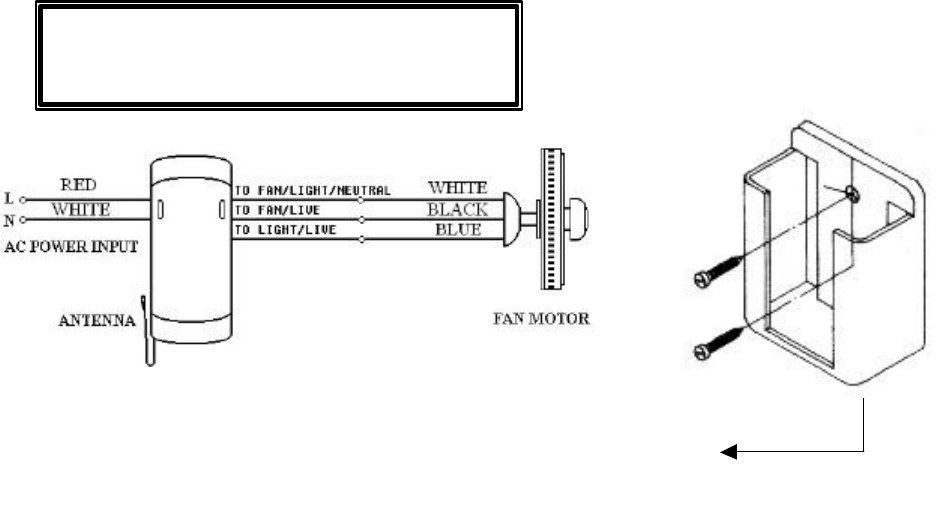

Wiring Connection
Installation of Transmitter W
all
Mount Holder with two screws.
