CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1.Read and save these instructions.
2.Please note that all fixed wiring appliances should be installed by a qualified electrician.
3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall
switch.
4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6.This unit is to be used for the control of ceiling fan and in a AC120V 60Hz power supply only.
7.Do not install in lamp locations or immerse into water. (For indoor use only.)
8.Do not pull on or cut leads shorter.
9.Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place
as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of
children.
INSTALLATION INSTRUCTIONS
1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the “Pull Switch”
after installation.
2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy
comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED
AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING
REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
FCC ID. KUJ9305

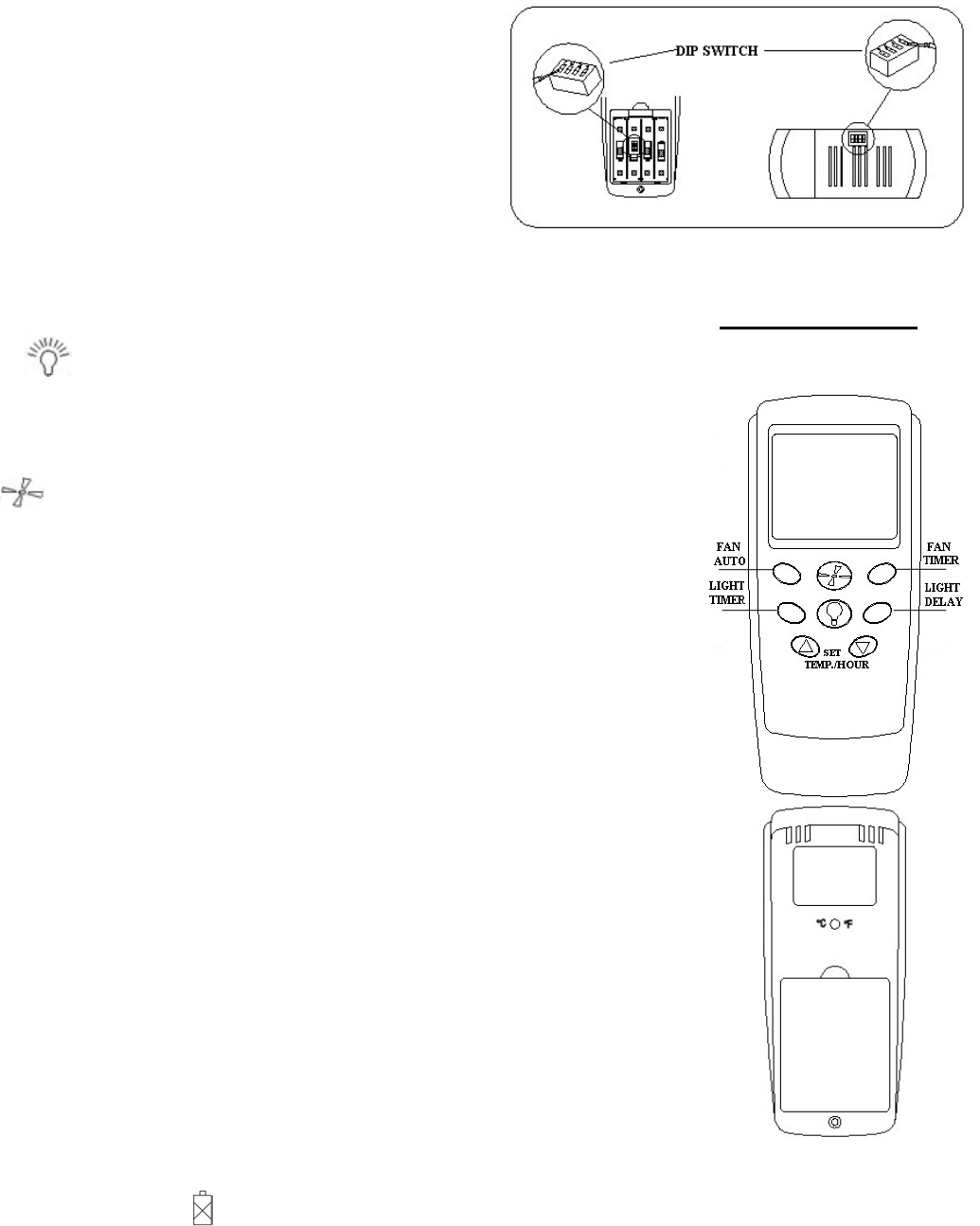

CODE SWITCH
1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used
for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please
note the code switch will enable you to operate a
second remote controller independently. For example, if
you have two ceiling fans with 2 remote control units,
set 2 different codes for each set of
transmitter/receivers. This means you can operate each
ceiling fan independently.
2.Your remote control is ready for use after battery
installation.
FUNCTIONS OF TRANSMITTER
LIGHT : ON/OFF- Press and release immediately to turn on or off the light.
DIMMER-Press and hold to dim or brighten lights to the desired
level and release. (Only for the tungsten bulb.)
FAN :Press immediately, turn on the fan at high, medium or low speed,
or turn off the fan.
DELAY OFF: Press immediately, then light will automatically turn off after 3
minutes when the light is on. But when light is off, press the
“delay”, the light will turn on and then turn off after 3 minutes.
LIGHT TIMER: Press this key, then use △ or ▽ key to select the desired
time from 0.5 ~ 24 hours, then light will turn off automatically
after that time.
FAN TIMER : Press this key, then use △ or ▽ key to select the desired
time from 0.5 ~ 24 hours, then fan will turn off automatically after
that time.
FAN AUTO : Setting the fan control at manual or automatic mode. The initial
setting is manual mode.
TEMP. : When FAN AUTO is auto mode, use △ or ▽ key to select the
desired room temperature., then there is balance between the desired
temperature and the actual room temperature.
-Balance ≧1℃, fan will turn on at low speed automatically.
-Balance ≧3℃, fan will turn on at medium speed automatically.
-Balance ≧4℃, fan will turn on at high speed automatically.
℃/℉ : Set the temperature unit at ℃ or ℉.
Note : when is shown on the LCD, you must change new batteries because
the power is shortage.
TRANSMITTER
FCC ID. KUJ9305
