User manual
WHITE(FOR LIGHT)
BLUE(FOR LIGHT)
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5. Install receiver into the Switch cup of the ceiling fan to ensure proper protection
6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7. Do not install in damp locations or immerse in water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will
damage the transmitter. Dispose of used battery properly, and keep the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat)
wall control.
INSTALLATION INSTRUCTIONS
Note: If using a light kit, the light switch located on the light kit should be at "ON" position before operating the
remote control.
1. Once the connection has been made, the receiver (model number MR77A) inserts into motor
control case.
LEARNING PROCESS
1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user need to redo
learning process before using this unit.
2. Open battery cover (with battery, DC12V 1pcs, installed) and use a ball pen to set Code switch up or down. Then
turn ceiling fan power on, press transmitter “FAN OFF” key over 5 seconds, down light will be flash twice, which
indicate that learning process finished. Learning effect distance is same with remote range 8m. Please note that
must press the “FAN OFF” key within 30 seconds after power on. If just replace batteries, no need to re-learn.
3. Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure not
learn in other receiver. Suggest to separate power switches of fans in 2 meter range.
LIGHT FUNCTION SELECT SWITCH
If installed energy light onto ceiling fan down light, please slide the “down light function select switch” to “ON”
position. If installed tungsten light onto ceiling fan, please slide the “down light function select switch” to “DIM”
position.

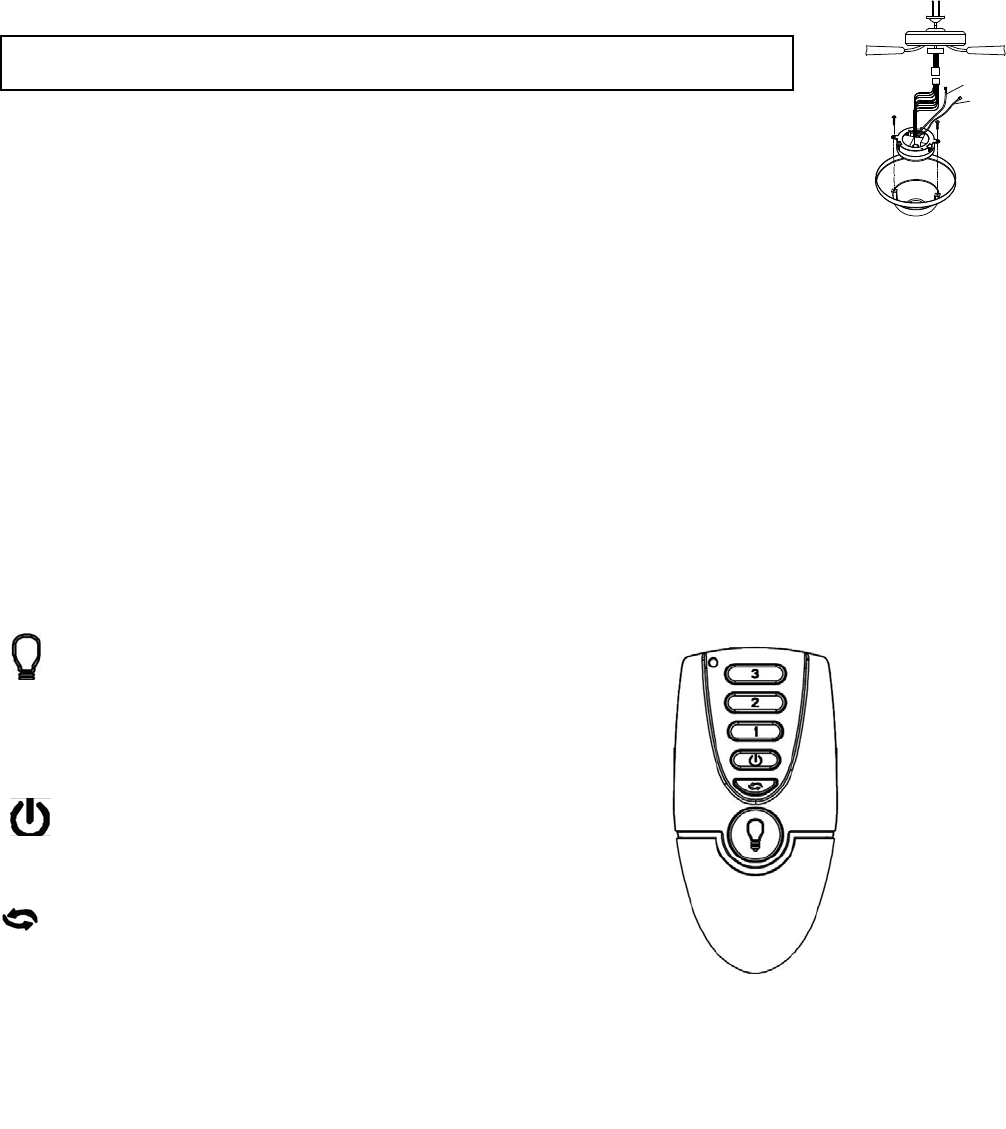

FUNCTIONS OF TRANSMITTER
: ON/OFF- Press and release immediately to
turn on or off the light.
DIMMER-Press and hold to dim or brighten light
to the desired level and release.
(Tungsten only and down light function select
switch” to “DIM” position.)
: Turn off the ceiling fan.
3 :Turn on the fan at high speed
2 :Turn on the fan at medium speed
1 : Turn on the fan at low speed
: Press and release immediately to set
fan wind direction up or down.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
Installation of Transmitter Wall Mount Holder with two screws. TR171B
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority
to operate the equipment.
FCC ID:KUJCE10205
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
