Chungear Industrial Co Ltd Ceiling Fan Remote Controller (Transmitter) Users Manual
Users Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110/120V 60Hz power supply
only.
7. Do not install in damp locations or immerse in water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10.PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes
place as this will damage the transmitter. Dispose of used battery properly, keep the battery out
of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.

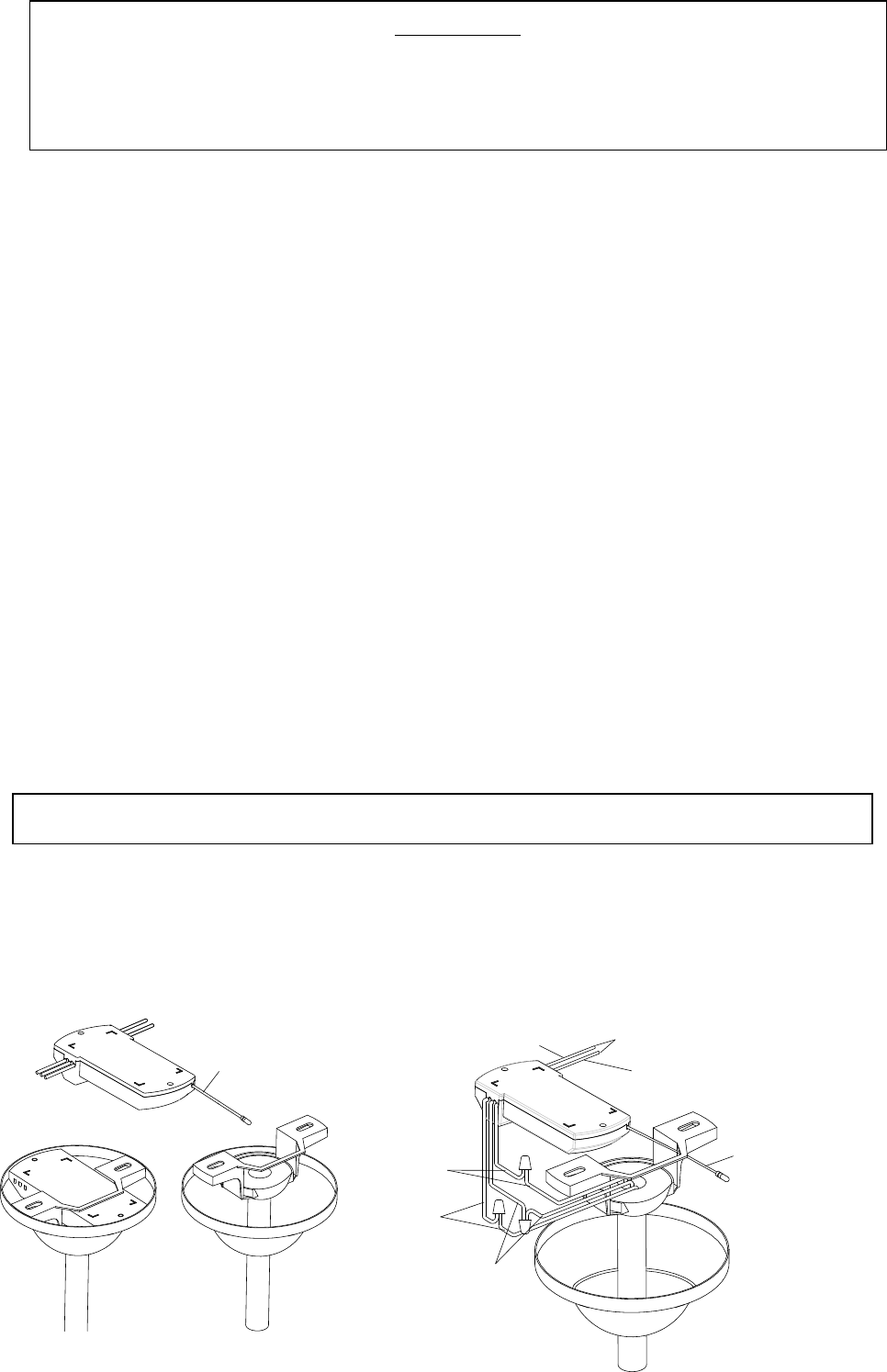

INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light
Switch” after installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
(Mains/Live)
BLACK
VIEW AFTER INSTALLATION
(Fan/Live)
BLACK
(Light/Live)
BLUE
WHITE
(Fan/Neutral)
do not cut)
(Leave unconnected and
ANTENNA
BLACK
ANTENNA
WHITE
(Mains/Neutral)
AC POWER SUPPLY
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT
(IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.

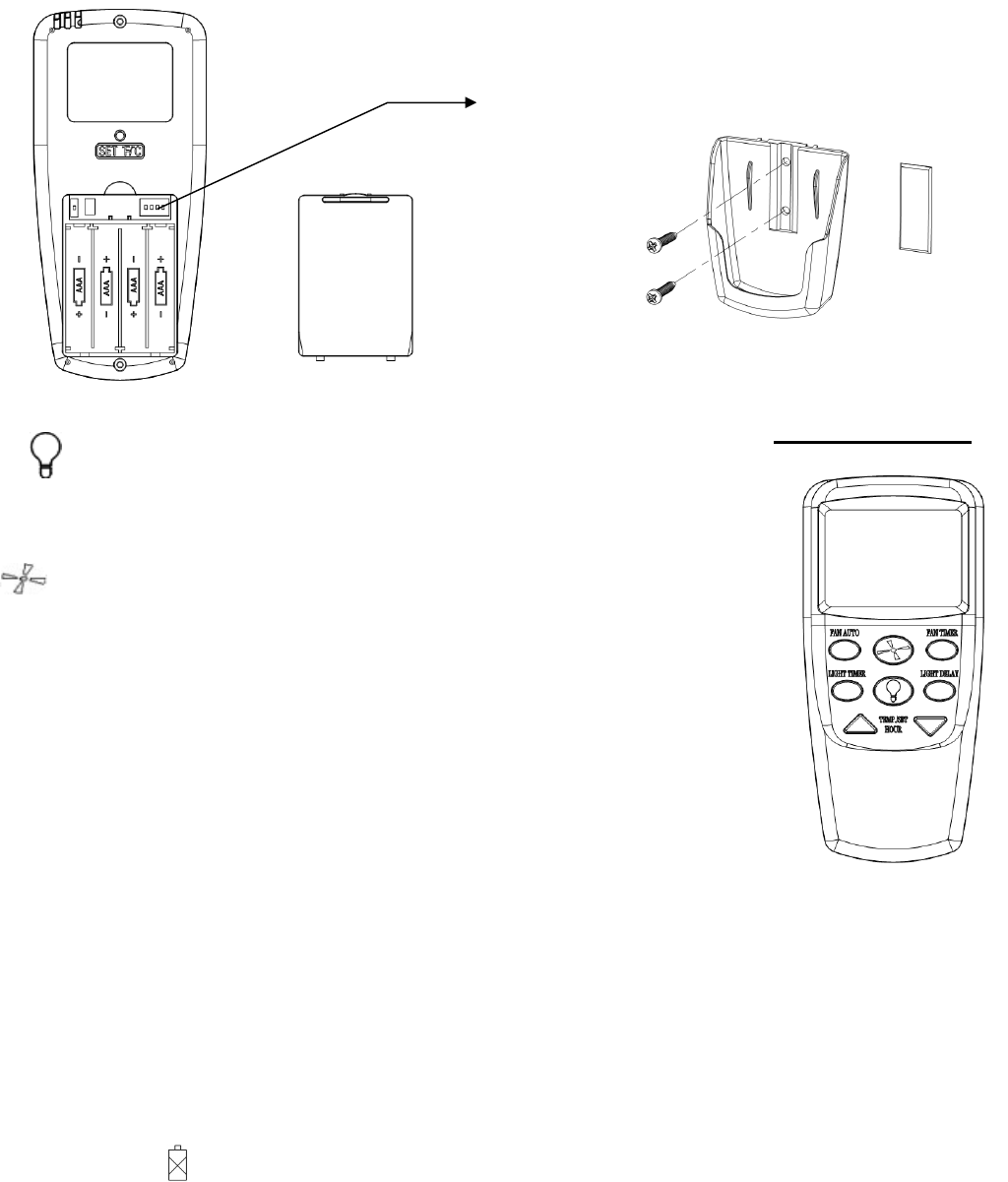

CODE SWITCH
1. CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the
code used for both transmitter and receiver is exactly the same, otherwise remote controller will
not work. Please note the code switch will enable you to operate a second remote controller
independently. For example, if you have two ceiling fans with 2 remote control units, set 2
different codes for each set of transmitter/receivers. This means you can operate each ceiling fan
independently.
2. Your remote control is ready for use after 4pcs DC1.5V,AAA, batteries installation.
3. Installation of Transmitter Wall Mount Holder with two screws.
FUNCTIONS OF TRANSMITTER
LIGHT : ON/OFF- Press and release immediately to turn on or off the light.
DIMMER-Press and hold to dim or brighten lights to the desired level and
release. (Only for the tungsten bulb.)
FAN :Press immediately, turn on the fan at high, medium or low speed, or turn off the
fan.
LIGHT DELAY: Press immediately, then light will automatically turn off after 3 minutes when
the light is on. But when light is off, press the “delay”, the light will turn on and
then turn off after 3 minutes.
LIGHT TIMER: Press this key, then use △or ▽key to select the desired time from 0.5 ~ 24
hours, then light will turn off automatically after that time.
FAN TIMER : Press this key, then use △or ▽key to select the desired time from 0.5 ~ 24
hours, then fan will turn off automatically after that time.
FAN AUTO : Setting the fan control at manual or automatic mode. The initial setting is manual mode.
TEMP. : When FAN AUTO is auto mode, use △or ▽key to select the desired room temperature, then there is
balance between the desired temperature and the actual room temperature.
-Balance ≧1℃, fan will turn on at low speed automatically.
-Balance ≧3℃, fan will turn on at medium speed automatically.
-Balance ≧4℃, fan will turn on at high speed automatically.
℃/℉: Set the temperature unit at ℃or ℉. (The key is on the back of remote.)
Note : when is shown on the LCD, you must change new batteries because the power is
shortage.
TRANSMITTER
CODE
SWITCH
TR201A
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE10305
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
