Chungear Co CE10317 CEILING FAN REMOTE CONTROLLER (TRANSMITTER) User Manual
Chungear Industrial Co Ltd CEILING FAN REMOTE CONTROLLER (TRANSMITTER)
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1.Read and save these instructions.
2.Please note that all fixed wiring appliances should be installed by a qualified electrician.
3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall
switch.
4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only.
7.Do not install in damp locations or immerse in water. (For indoor use only.)
8.Do not pull on or cut leads shorter.
9.Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place
as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of
children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable
(rheostat) wall control.
INSTALLATION INSTRUCTIONS
1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch”
after installation.
2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy
comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT
(IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
CODE SWITCH
1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used
for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please
note the code switch will enable you to operate a second remote controller independently. For example, if
you have two ceiling fans with 2 remote control units, set 2 different codes for each set of
transmitter/receivers. This means you can operate each ceiling fan independently.
2.Your remote control is ready for use after battery installation.
FUNCTIONS OF TRANSMITTER FAN
LIGHT
FAN : Turn on the fan at high ,med,low speed,or fan off.
LIGHT:Press and release immediately to turn on or off the light.
Press and hold to dim or brighten lights to the desired
level and release.

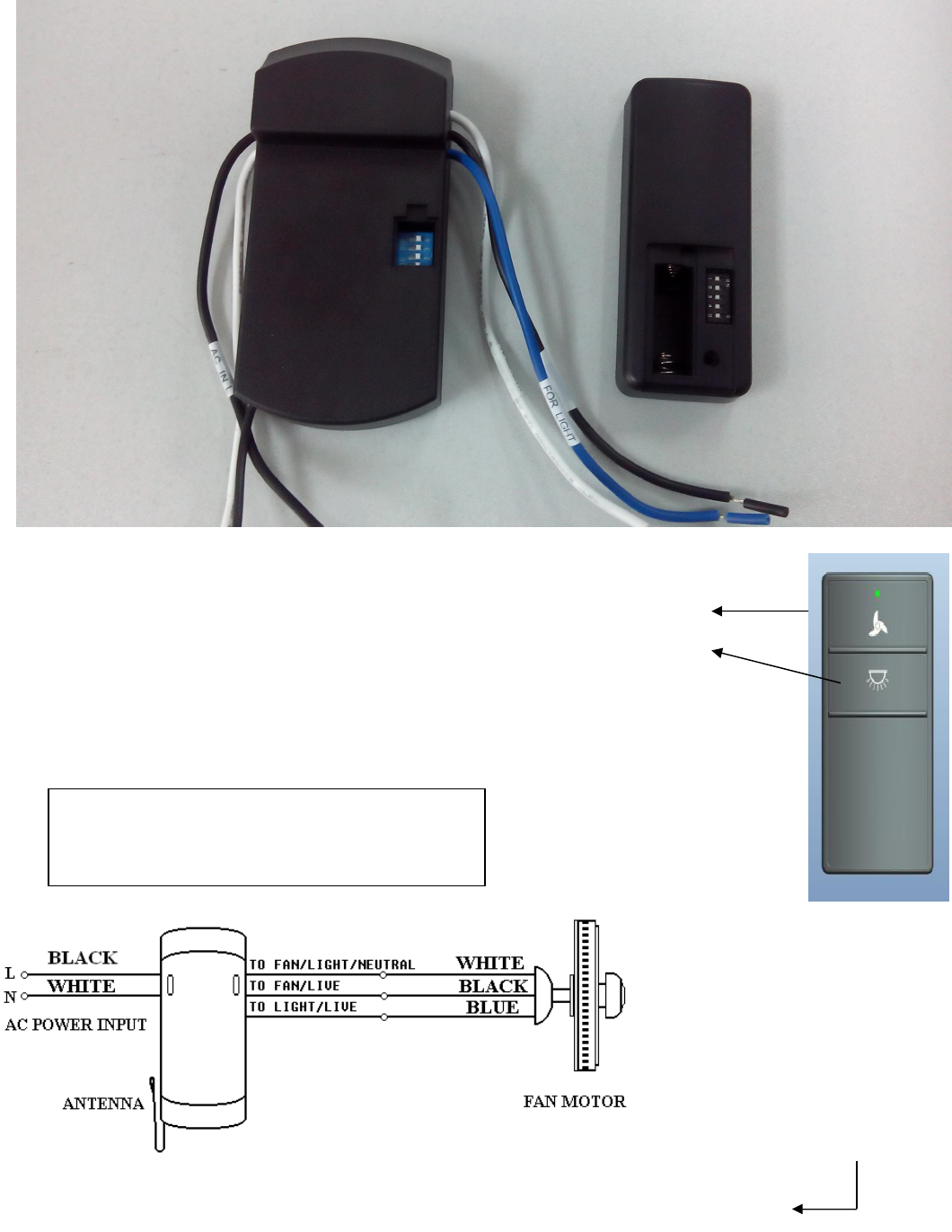

Ceiling Fan Remote Control
Wiring Connection
Installation of Transmitter
Wall Mount Holder with
two screws.
TR219A
CAUTION:
ToassurecontinuedFCCcompliance:
FCCID：KUJCE10317
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
Anychangesormodificationsnotexpresslyapprovedbythegranteeofthisdevicecould
voidtheuser'sauthoritytooperatetheequipment.
IC
ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationis
subjecttothefollowingtwoconditions:
(1)thisdevicemaynotcauseinterference,and
(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycause
undesiredoperationofthedevice.
ThisequipmentcomplieswithICradiationexposurelimitssetforthforanuncontrolled
environment.
French:CetappareilradioestconformeauCNR‐210d’IndustrieCanada.L’utilisationde
cedispositifestautoriséeseulementauxdeuxconditionssuivantes:(1)ilnedoitpas
produiredebrouillage,et(2)l’utilisateurdudispositifdoitêtreprêtàacceptertout
brouillageradioélectriquereçu,mêmesicebrouillageestsusceptibledecompromettre
lefonctionnementdudispositif.Cetéquipementestconformeauxlimitesd’exposition
auxrayonnementsICétabliespourunenvironnementnoncontrôlé.
