Chungear Co CE10326 CEILING FAN REMOTE CONTROLLER (TRANSMITTER) User Manual
Chungear Industrial Co Ltd CEILING FAN REMOTE CONTROLLER (TRANSMITTER)
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1.Read and save these instructions.
2.Please note that all fixed wiring appliances should be installed by a qualified electrician.
3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch.
4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6.This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7.Do not install in damp locations or immerse in water. (For indoor use only.)
8.Do not pull on or cut leads shorter.
9.Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will
damage the transmitter. Dispose of used battery properly, and keep the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat) wall
control.
INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after
installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to
cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT
KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
MR101F-3A
LEARNING PROCESS
1. This unit finished learning process inside manufactory, if replace transmitter or
receiver, user need to redo learning process before using this unit. Receiver
could remember up to 5pcs transmitter.
2. After installing the unit, please set one couple of codes by pushing dip switches
up or down first, then press and and hold ,fan off key, 1~3seconds when
turn ceiling fan power on, fan will turn to medium speed and light flicker twice
and turn off, which indicate that learning process finished. Learning effect
distance is same with remote’s. Please note that you must press the , fan off key, within 30 senconds after
power on. If just replace batteries, no need to re-learn. Every receiver can learned 5 different transmitter (with different
dip switch code).
3. Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure not learn
in other receiver. Suggest to separate power switches of fans in 2 meter range.

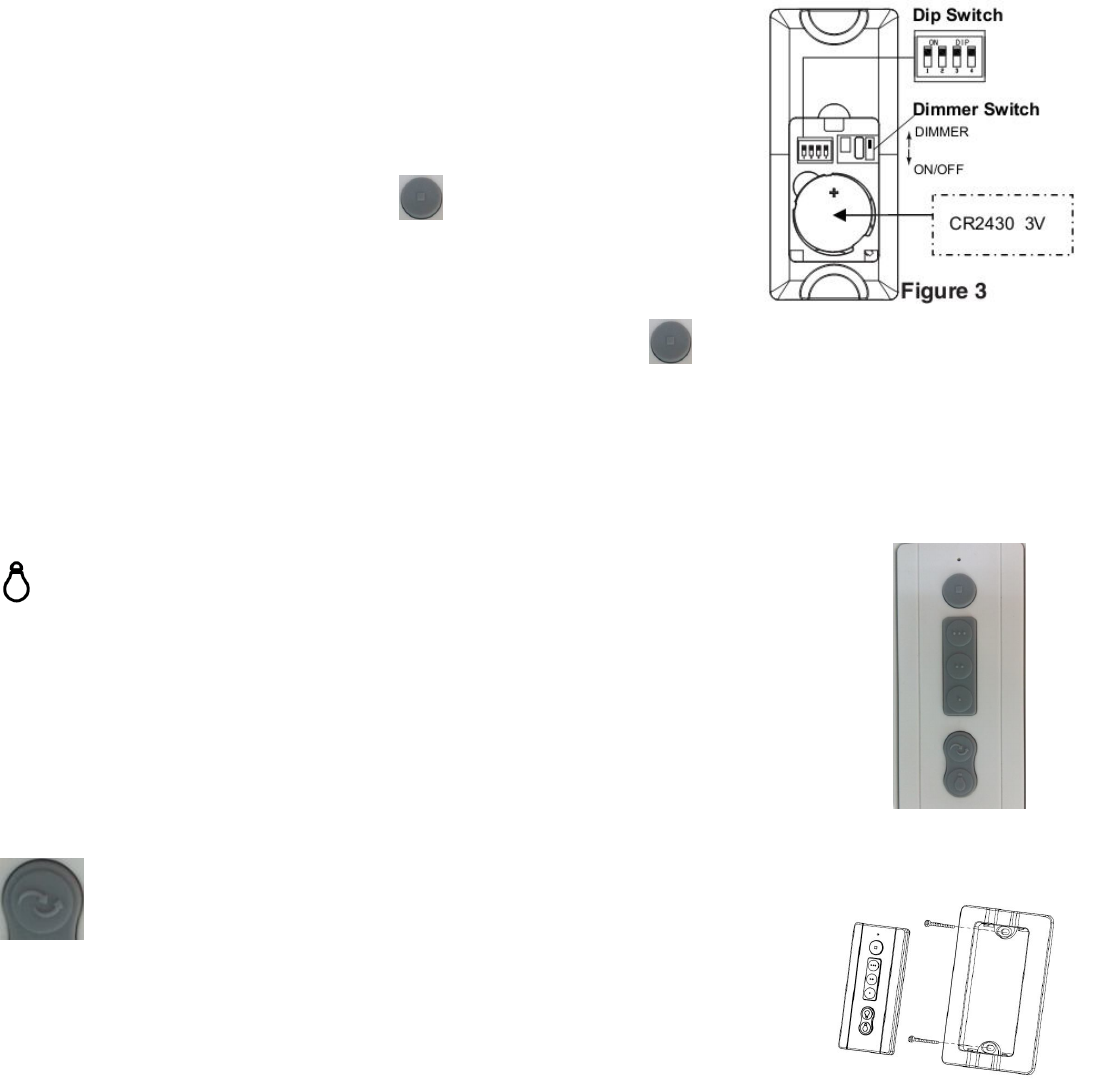

FUNCTIONS OF TRANSMITTER
LIGHT : ON/OFF- Press and release immediately to turn on or off light.
: DIMMER-Press and hold to dim or brighten light to the desired level and release.
(Tungsten only and light function select switch on dimmer position, as shown on
Figure 3, Dimmer switch.)
: Turn off the ceiling fan.
:Turn on the fan at high speed
:Turn on the fan at medium speed
: Turn on the fan at low speed
:Press and release immediately to set fan wind direction up or
down.
Use Bluetooth APP, fanLink, to control receiver.
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an
experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE10326
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
