CEILING FAN REMOTE CONTROLLER

OPERATION AND INSTALLATION INSTRUCTIONS

(Please keep this instruction pamphlet.)

IMPORTANT POINTS TO REMEMBER:

1.Read and save these instructions.

2.Please note that all fixed wiring appliances should be installed by a qualified electrician.

3.The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch.

4.Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.

5.Install receiver into the ceiling fan canopy of the fan to ensure proper protection.

6.This unit is to be used for the control of ceiling fan and in a AC110/120V 60Hz power supply only.

7.Do not install in damp locations or immerse in water. (For indoor use only.)

8.Do not pull on or cut leads shorter.

9.Do not drop or bump the unit.

10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will

damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children.

11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat)

wall control.

INSTALLATION INSTRUCTIONS

1.Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light Switch” after

installation.

2.Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes up to

cover the receiver and bracket.

3.For better remote performance with Wink system, let T-shape antenna stuck or screw on ceiling and outside of the

steel canopy.

IMPORTANT

YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT

(IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.

CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.

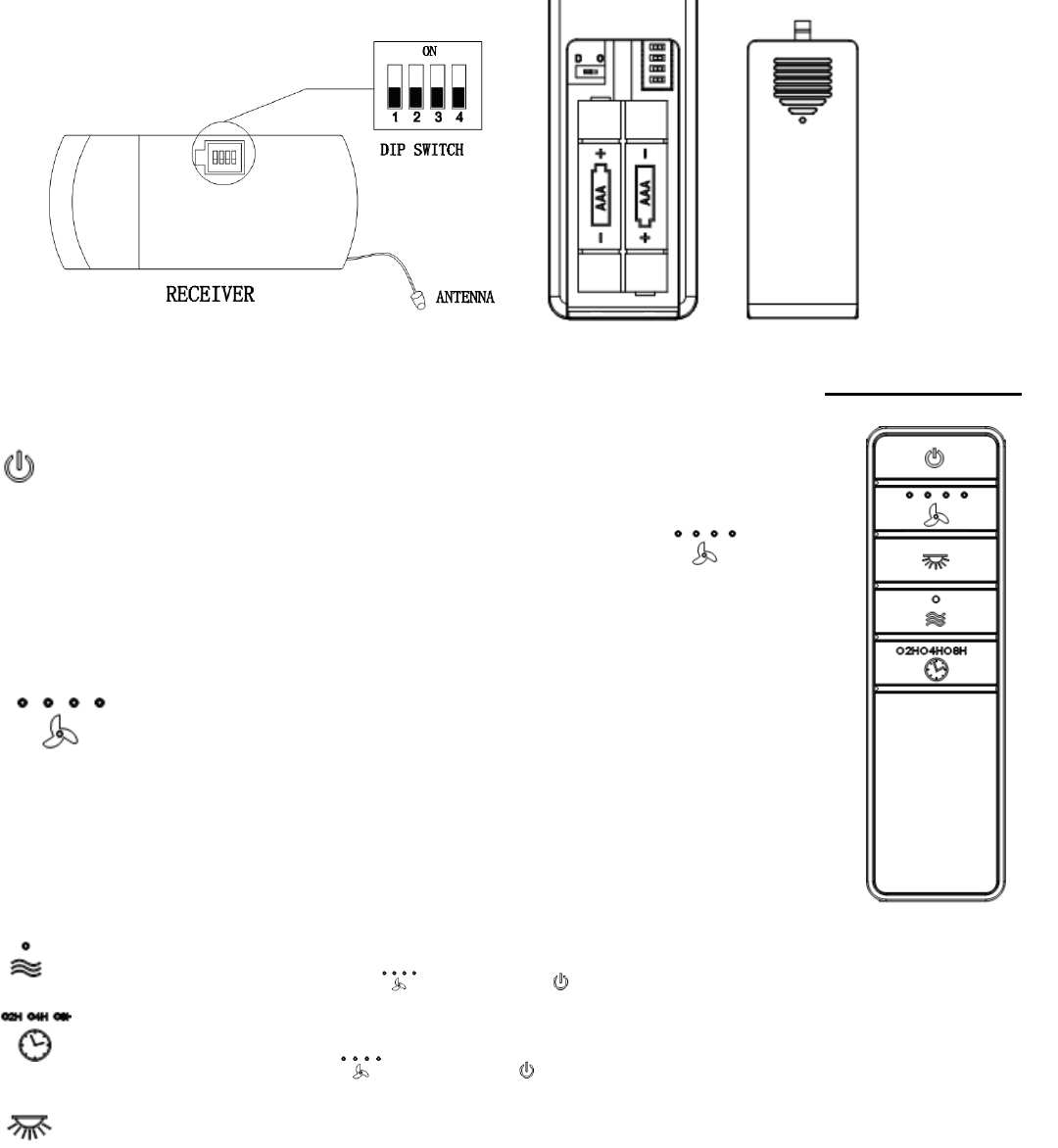

CODE SWITCH

1.CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used for both

transmitter and receiver is exactly the same, otherwise remote controller will not work. Please note the code switch

will enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2

remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each

ceiling fan independently.

2.Your remote control is ready for use after 2pcs DC1.5V/AAA batteries installation.

LIGHT FUNCTION SELECT SWITCH

If installed energy light onto ceiling fan, please set the “light function select switch” “light function select switch” to on/off

position,” O”. If installed tungsten light onto ceiling fan, please set the “light function select switch” to dimmer position,”

D”.

FUNCTIONS OF TRANSMITTER

The power button will turn the fan and light power on or off when press this button within 3

seconds. When you hold the power button over 3 seconds, the “walk away time delay”

function is activated. When press the button each time, the 4pcs LEDs will on. If

you want to cancel “walk away time delay” function, you could press any button of transmitter.

If dip switch to ON, then light kit will blink once, turn off in 30 seconds. If dip switch to DIM,

then light kit will dim to 50%, turn off in 30 seconds.

1st time press the button, four LEDs are on and turn fan on high speed

2nd time press the button, left three LEDs are on and turn fan on medium speed

3rd time press the button,left two LEDs is on and turn fan on low speed

4th time press the button, left one LED is on and turn fan on lower speed

5th time press the button, and turn fan off

Press the button, LEDs will on about 3 seconds, for set fan speed being turned and changed at random. If you

want

to cancel this function, press fan button or power button.

When fan is on, press this button for set fan turn off automatically after 2 hours, 4 hours, 8 hours or off

directly. The LED for each timer is on about 3 seconds as pressing the button for selection. If you want to

cancel this function, press fan button or power button or timer off.

ON/OFF- Press and release immediately to turn on or off the light

DIMMER- Press and hold on to dimmer or brighten the light. (For the tungsten bulb and “light function select

switch” is at D position.)

TRANSMITTER

MR101Z

To assure continued FCC compliance:

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect

the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or

an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to

operate the equipment.

FCC ID：KUJCE10406

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.



IC

ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationis

subjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)

thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired

operationofthedevice.

ThisequipmentcomplieswithICradiationexposurelimitssetforthforanuncontrolled

environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm

betweentheradiatorandyourbody.



French:

CetappareilradioestconformeauCNR‐247d’Industrie Canada.L’utilisationdecedispositif

estautoriséeseulementauxdeuxconditionssuivantes:(1)ilnedoitpasproduirede

brouillage,et(2)l’utilisateurdudispositifdoitêtreprêtàacceptertoutbrouillage

radioélectriquereçu,mêmesicebrouillageestsusceptibledecompromettrele

fonctionnementdudispositif.

Cetéquipementestconformeauxlimitesd’expositionauxrayonnementsICétabliespourun

environnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutiliséavecunminimum

de20cmdedistanceentrelasourcederayonnementetvotrecorps.


