Chungear Co CE10408 CEILING FAN REMOTE CONTROLLER (TRANSMITTER) User Manual
Chungear Industrial Co Ltd CEILING FAN REMOTE CONTROLLER (TRANSMITTER)
User Manual
TRANSMITTER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch.
4. Disconnect from power supply at switch before working on remote control receiver or ceiling fan.

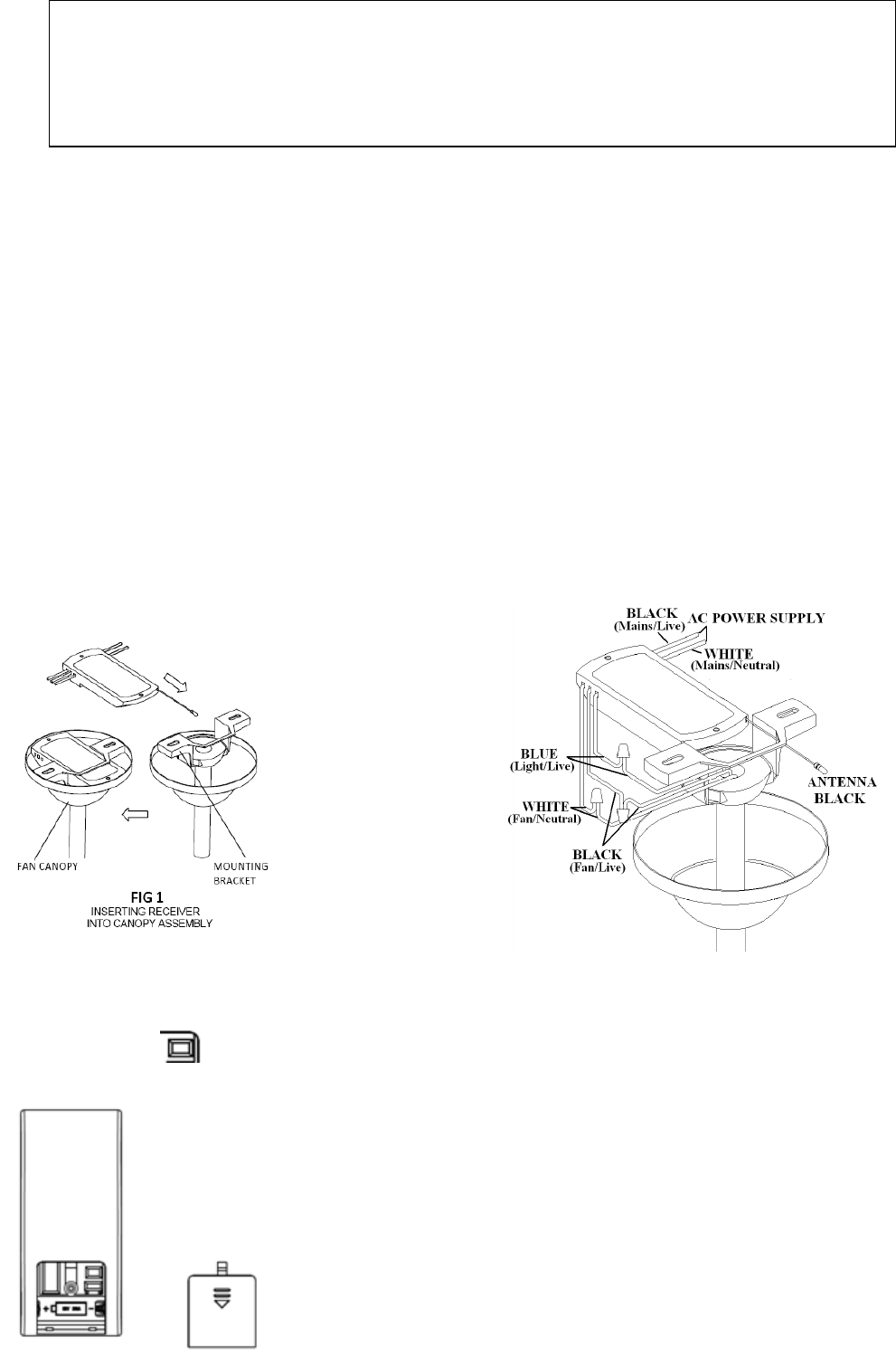

5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110/120V 60Hz power supply only.
7. Do not install in wee locations or immerse in water.
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place
as this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of
children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable
(rheostat) wall control.
INSTALLATION
INSTRUCTIONS
ACTIVATING THE LEARNING PROCESS

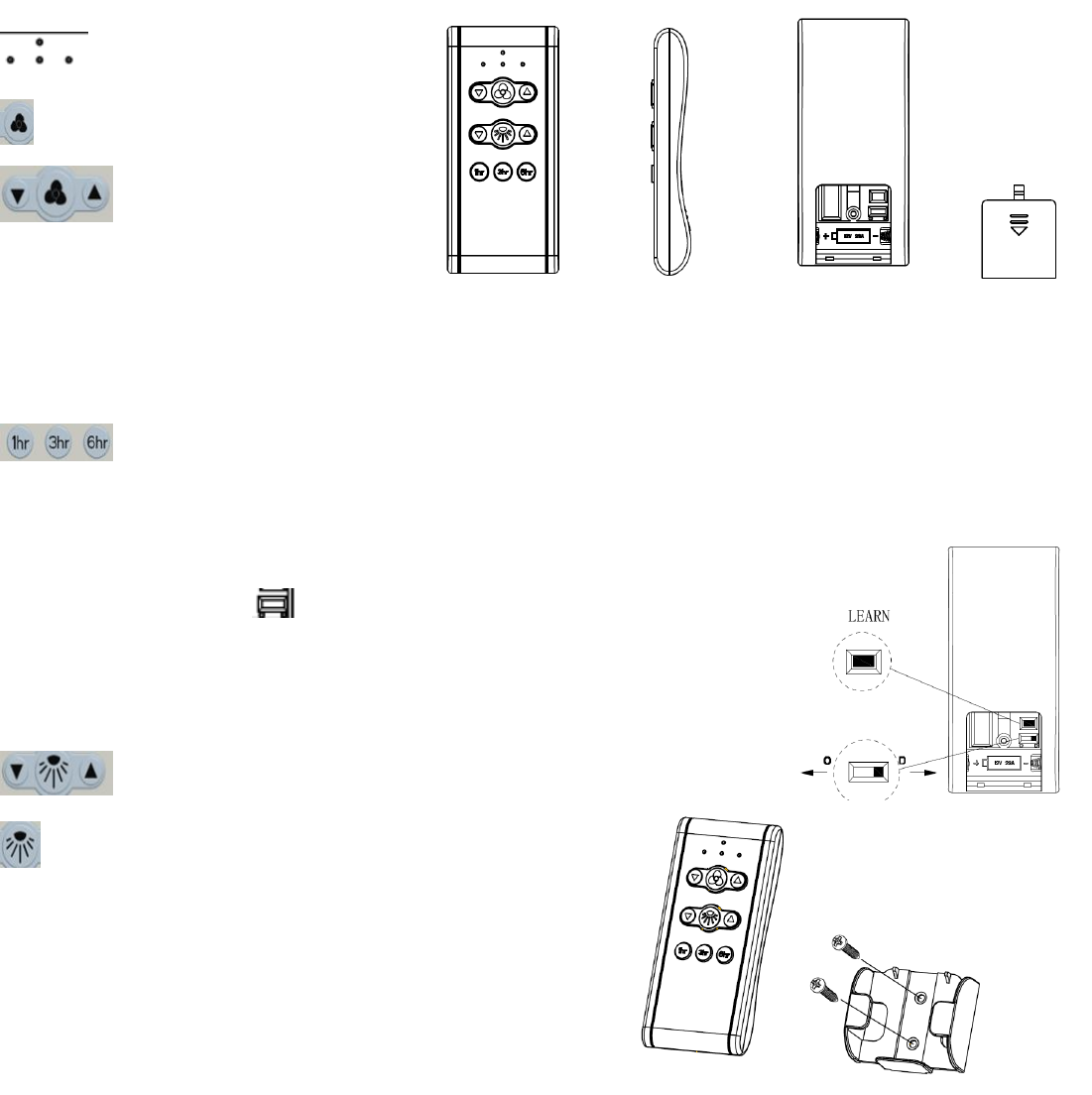

The learning key where you could find after black cover pick up, touch it for 3 seconds as
soon as the receiver power on within 30 second, ID learning process started.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED LIGHT KIT ON
POSTION BEFORE OPERATING REMOTE CONTROL.
FUCNCTIONS OF WALL CONTROL
INDICATION LED LIGHT
FAN key with function off
fan key with function speed
down/up ,
LED indicate for fan speed
NO.1 fan speed on LOW : 1
NO. 2 fan speed on MIDDLE : 2
NO. 3 fan speed on HIGH: 3
1hr：Setting up that the ceiling fan will turn off after 1 hour automatically,
3hr：Setting up that the ceiling fan will turn off after 3 hours automatically.
6hr：Setting up that the ceiling fan will turn off after 6 hours automatically.
T
he
ON/OFF/DIMMER
where
you
could
find
after
black
cover
pick
up. the key could be turn right and left. when the key was turn left to
“O” ,the light function only with on/off. When the key was turn right to “D”,
the light function should be on/off/dimmer function.
light key function with down/up
light key function with on and off
Installing Wall Control (TRANSMITTER):
Wall Mount Holder with two screws.
TR233A
