Chungear Co CE10411 CEILING FAN REMOTE CONTROLLER (TRANSMITTER) User Manual
Chungear Industrial Co Ltd CEILING FAN REMOTE CONTROLLER (TRANSMITTER)
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in a AC110V/120V 60Hz power supply
only.
7. Do not install in damp locations or immerse into water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes
place as this will damage the transmitter. Dispose of used battery properly, keep the battery out
of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.
INSTALLATION INSTRUCTIONS

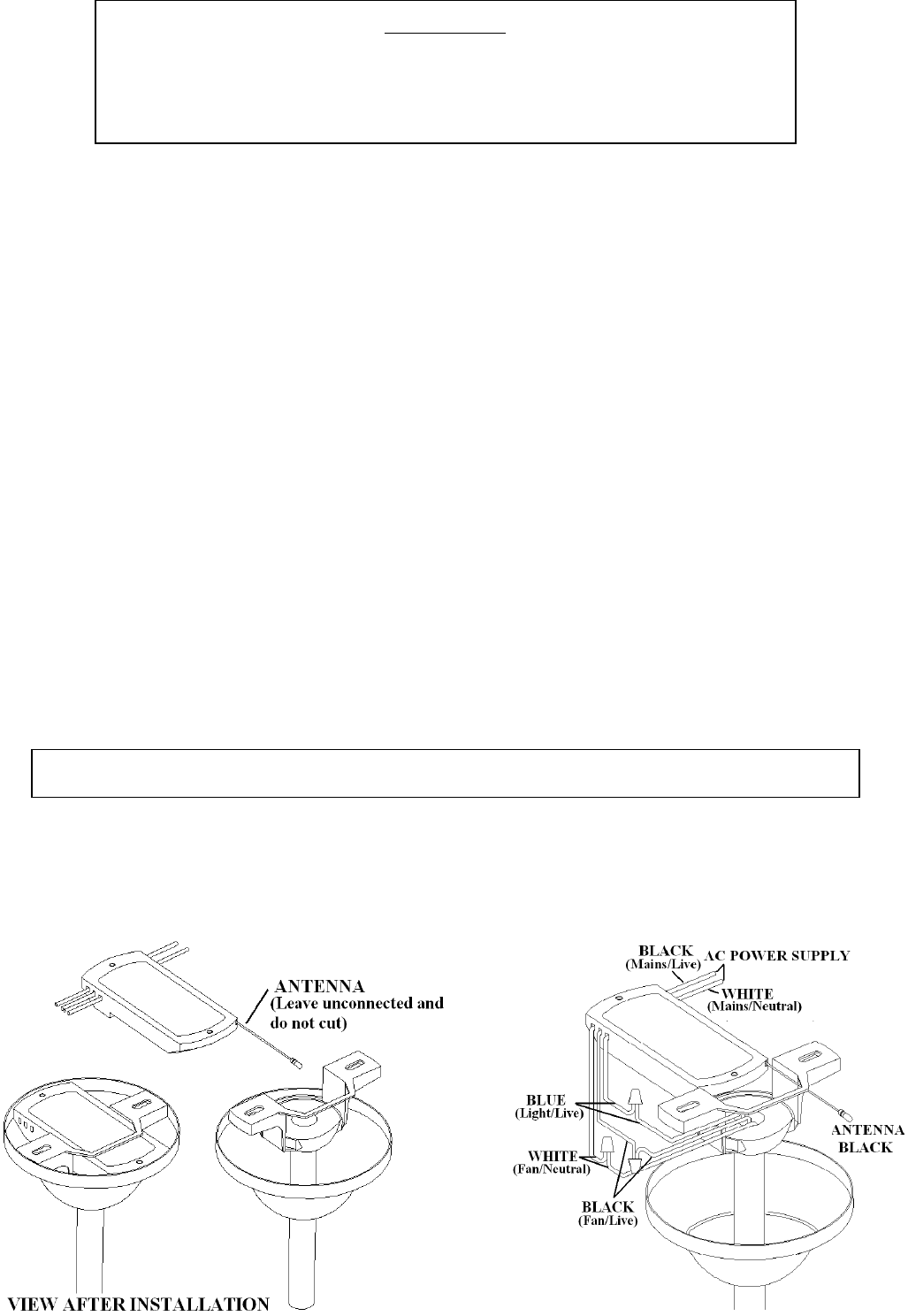

1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the “Pull
Switch” after installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
1.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED
AND LIGHT KIT (IF ANY) TO ON POSITION BEFORE OPERATING
REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.

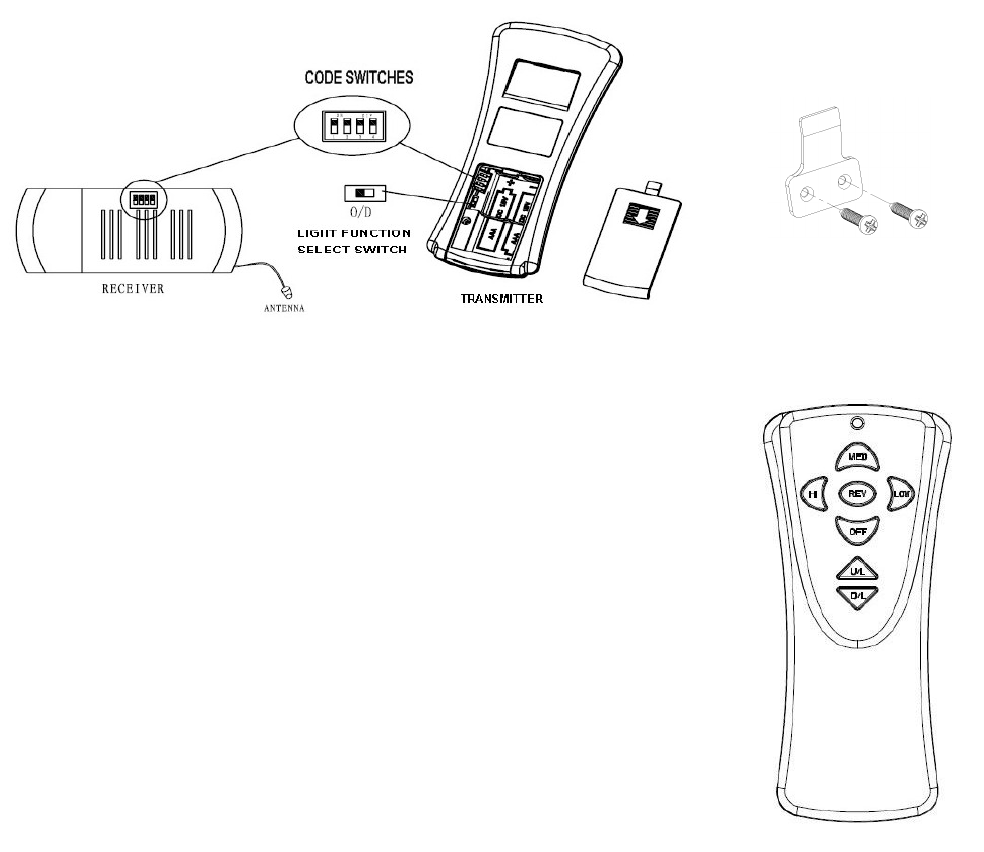

CODE SWITCH
2. CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the
code used for both transmitter and receiver is exactly the same, otherwise remote controller will
not work. Please note the code switch will enable you to operate a second remote controller
independently. For example, if you have two ceiling fans with 2 remote control units, set 2
different codes for each set of transmitter/receivers. This means you can operate each ceiling fan
independently.
3. Your remote control is ready for use after battery installation.
4. Installation of Transmitter Wall Mount Holder with two screws.
FUNCTIONS OF TRANSMITTER
HI : Turn on the fan at high speed
MED :Turn on the fan at medium speed
LOW : Turn on the fan at low speed
OFF : Turn off the ceiling fan
REV : Press and release immediately to set fan wind
direction up or down.
UP/DOWN LIGHT : ON/OFF- Press and release immediately to turn on
or off the up/down light
DIMMER-Press and hold to dim or brighten up/down
light to the desired level and release. (Tungsten only)
To
assure
continued
FCC
compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect
the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or
an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE10411
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
TRANSMITTER
TR241A
