Chungear Co CE10601 Ceiling Fan Remote Controller (Transmitter) User Manual
Chungear Industrial Co Ltd Ceiling Fan Remote Controller (Transmitter)
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110V/120V 60Hz power
supply only.
7. Do not install in damp locations or immerse into water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking
takes place as this will damage the transmitter. Dispose of used battery properly, keep the
battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.

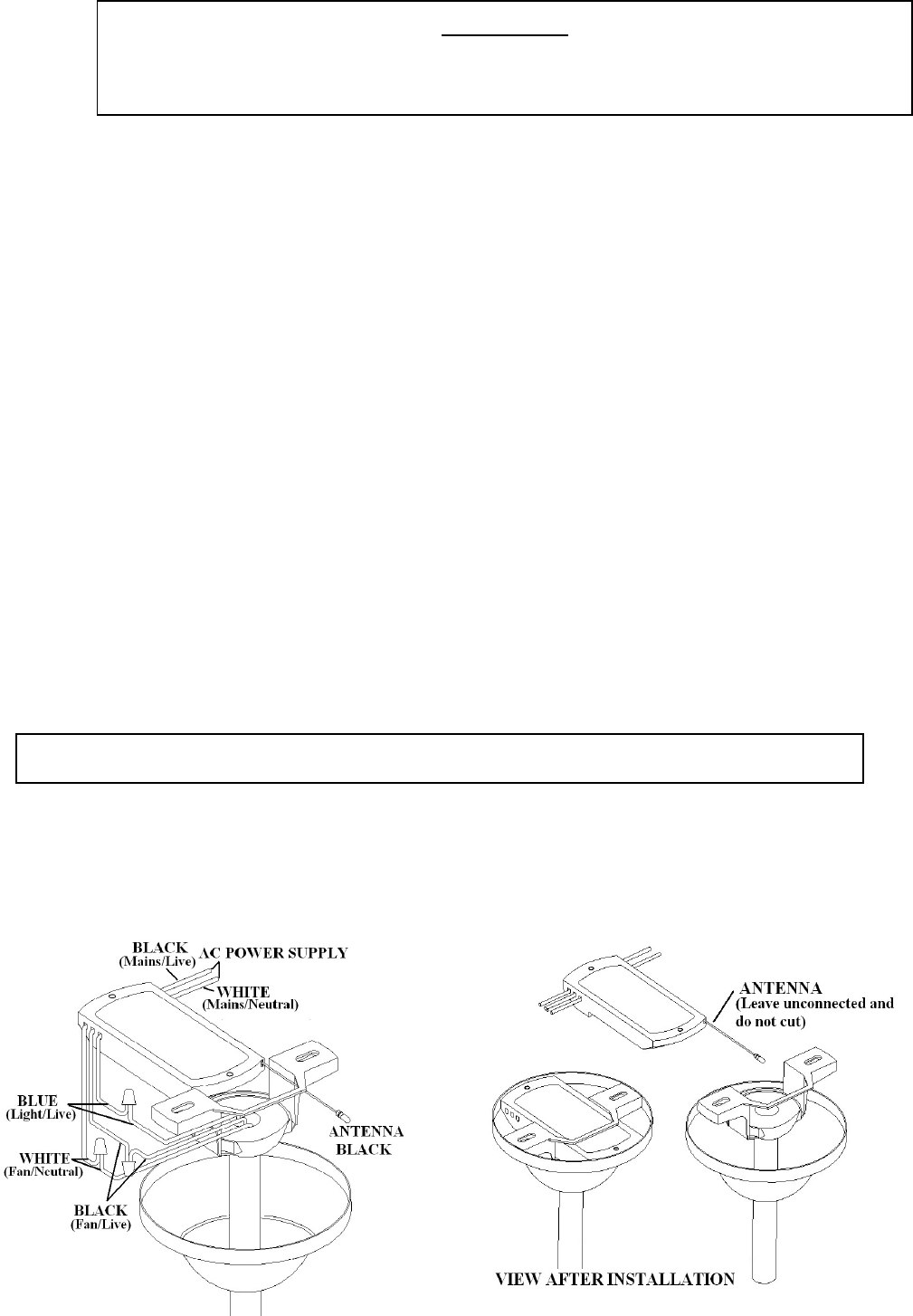

INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the
“Pull Switch” after installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT
KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
LEARNING PROCESS
1. After installing the unit and power on, open battery
cover (with batteries, DC1.5V/ AAA*2pcs, installed),
press any remote’s button to control ceiling fan for
learning process. Please note that press any button
within 3 minutes after power on. If just replace
batteries,
no need to re-learn.
2. Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure
not learn in other receiver.
NOTE: The transmitter and receiver had completed learning setting when in ex-factory.
You don’t need to execute the LEARNING PROCESS until replace a new
transmitter or interfered from other remote units

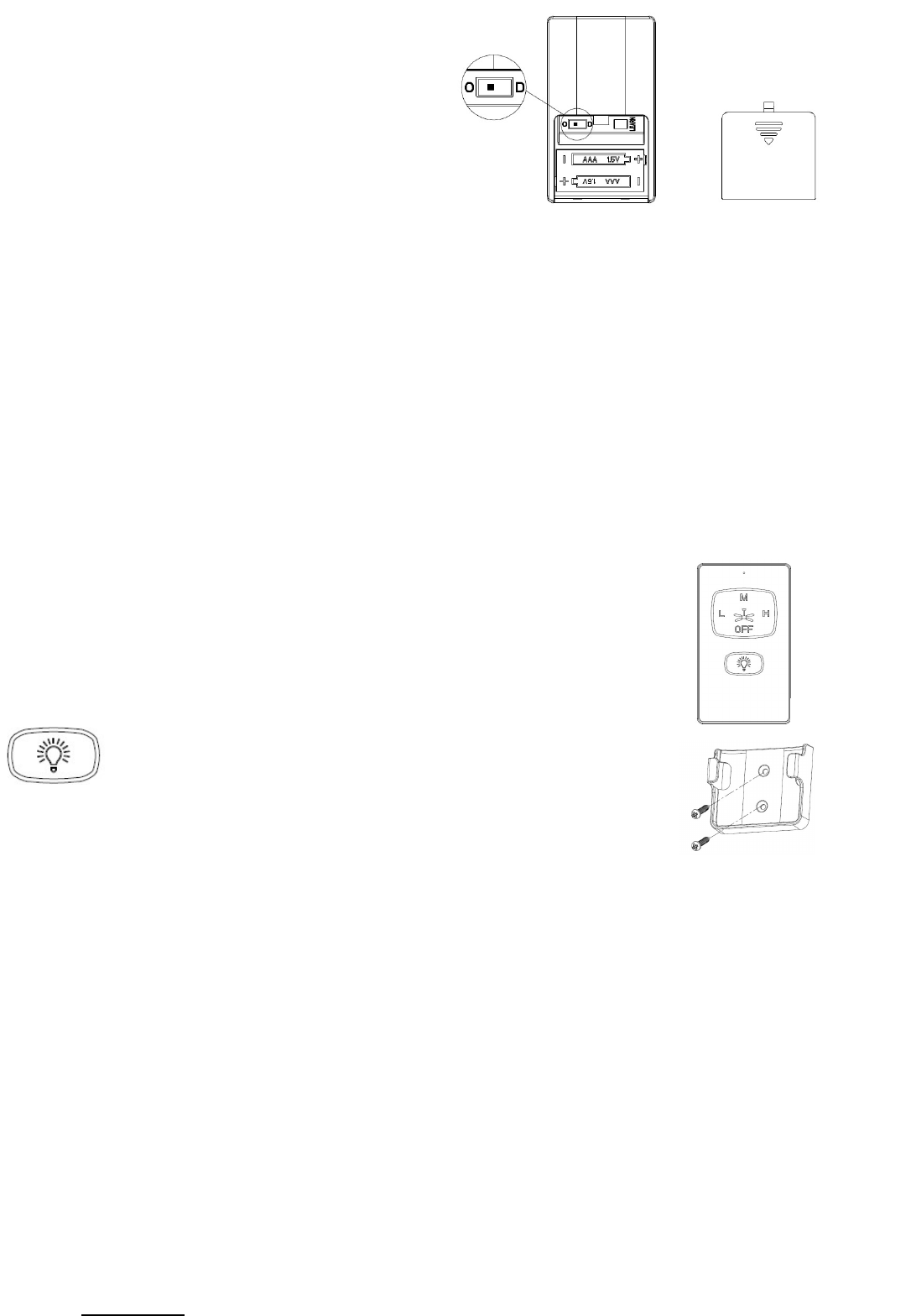

LIGHT FUNCTION SELECT SWITCH
If installed energy light onto ceiling fan, please set the “light function select switch” “light function select switch” to
on/off position,” O”. If installed tungsten light onto ceiling fan, please set the “light function select switch” to dimmer
position,” D”.
FUNCTIONS OF TRANSMITTER
H :Turn on the fan at high speed
M : Turn on the fan at medium speed
L : Turn on the fan at low speed
OFF: Turn off the ceiling fan.
ON/OFF- Press and release immediately to turn on or off the light
DIMMER- Press and hold on to dimmer or brighten the light. (For the tungsten bulb and
“light function select switch” is at D position.)
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult
the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority
to operate the equipment.
FCC ID：KUJCE10601
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Installation of transmitter wall
mount holder with two screws.
TR274A
