Chungear Co CE10602 Ceiling Fan Remote Controller User Manual
Chungear Industrial Co Ltd Ceiling Fan Remote Controller
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall
switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110/120V 60Hz power supply only.
7. The receiver is acceptable for installation in damp and wet rated fans, but cannot be submerged in water.
The wall transmitter is only to be installed indoors.
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as
this will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable
(rheostat) wall control.
INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed before installation.

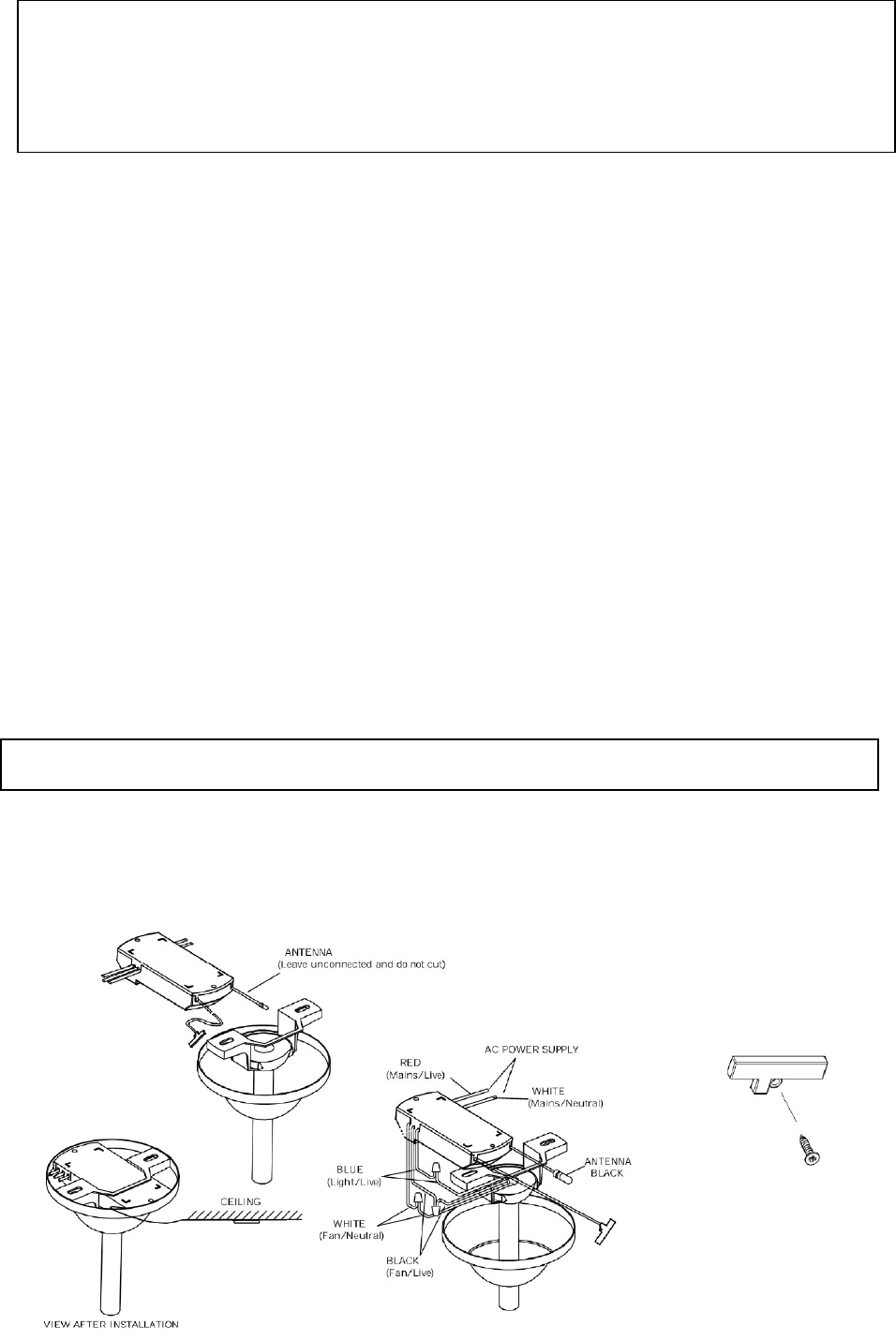

2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy
comes up to cover the receiver and bracket. (FIG 1)
FIG. 1
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND THE LIGHT KIT
TO THE ON POSITION BEFORE INSTALLING THE REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WILL DAMAGE THIS RECEIVER.
HANDSET TRANSMITTER OPERATION

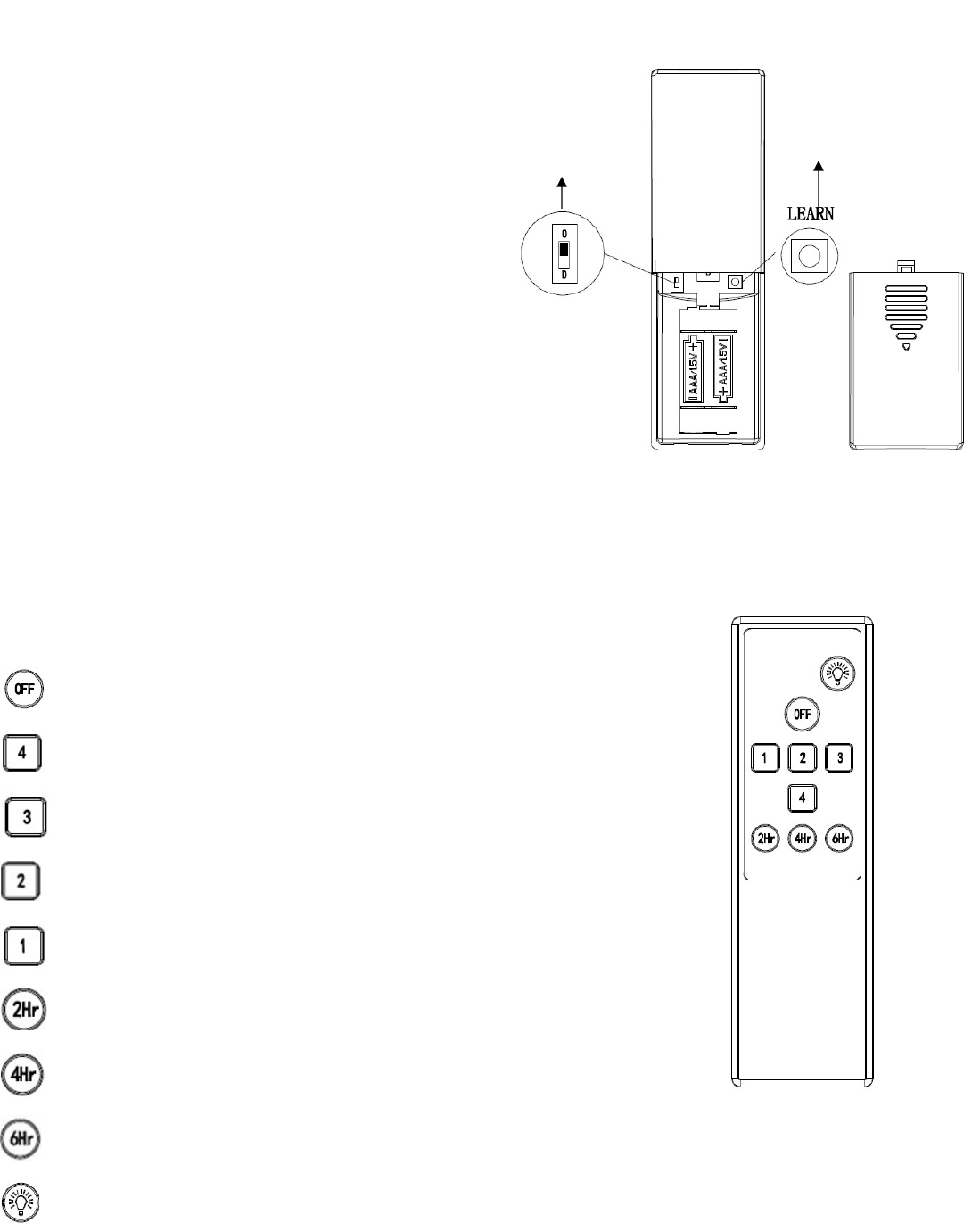

Activating the Learning process: Turn on the receiver
power, press and hold the LEARN key (on the back of
the
transmitter) for 1~3S. Refer to FIG. 2
Light (if installed) will flash twice and off. This confirms
that the learing setting is active and ok.
Transmitter use 2 pcs AAA/1.5V batteries.
LIGHT FUNCTION SELECT SWITCH
If the ceiling fan has fluorescent lighting, please slide the
“light function select switch” to “O” position. If the ceiling
fan has incandescent, halogen lighting or dimmerable LED, please slide the “light function select switch” to “D”
position. (FIG. 2)
FUNCTIONS:
:Turn off the ceiling fan.
: Turn on the fan at high speed.
: Turn on the fan at medium speed.
: Turn on the fan at low speed.
: Turn on the fan at lower speed.
: The fan will turn off after 2 hours automatically.
: The fan will turn off after 4 hours automatically.
: The fan will turn off after 6 hours automatically.
:
ON/OFF-Turn the light on or off.
DIMMER-Press and hold to dim or brighten light to the desired level
and release.
(Incandescent or halogen or dimmerable LED only and light function select switch on “D” position.)
Light
function
select switch
LEARN key
FIG. 2
Fanlight Sync APP manual

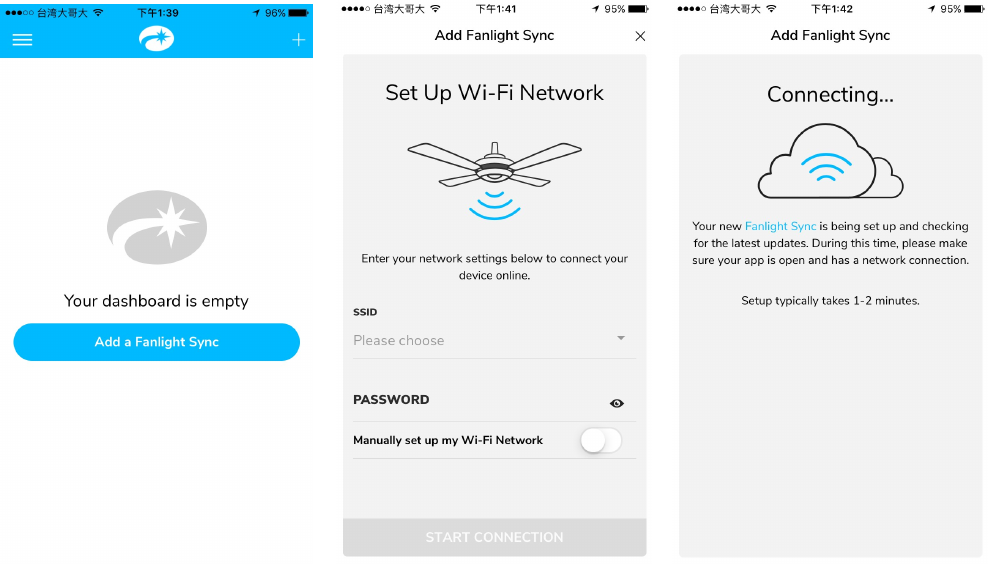

Downloading the Fanlight Sync Application
1. Using your smart device, navigate to the Apple App Store or Google Play. Download the free
Fan-light Sync app and create an account.
2. Be sure your ceiling fan Wi-Fi controller is plugged in and within range of your Wi-Fi router AP.
3. With the app open, select“add device.”
4. Follow the instructions on the app to add your fan.
NOTE: The device default Wi-Fi SSID : Satellite_xxxxxx (ex:Satellite_400942), PW : 5atell1te
When instructed, turn on your fan. Once setup is successful, the fan will turn off and the light will
blink 2 times.
NOTE: If using a dimmer with these lights, set dimmer at highest setting for best results.
NOTE: If the setup failed, please reset the device to original setting and re-start the setting.
Reset your fan if the setup is failed. Turn off your fan for 3 seconds, then turn it back on for 3 seconds.
Repeat these steps 5 times. The light will blink 1 times when factory reset is successful.
Setup a new device

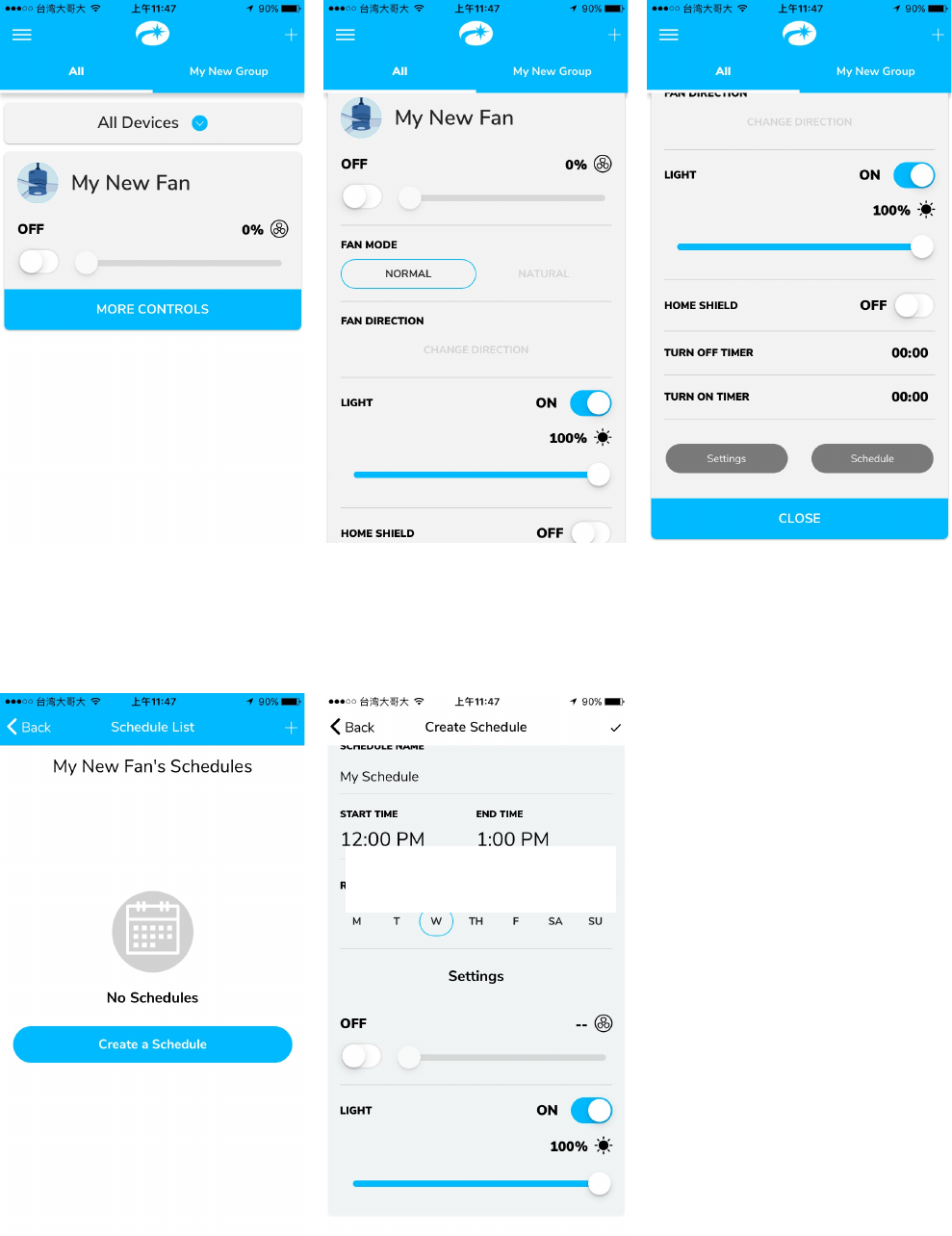

Control Overview
Fan Reverse (If supported)
Light - Turns light off or on. Select and slide to dim or brighten light.
Real-time Schedule

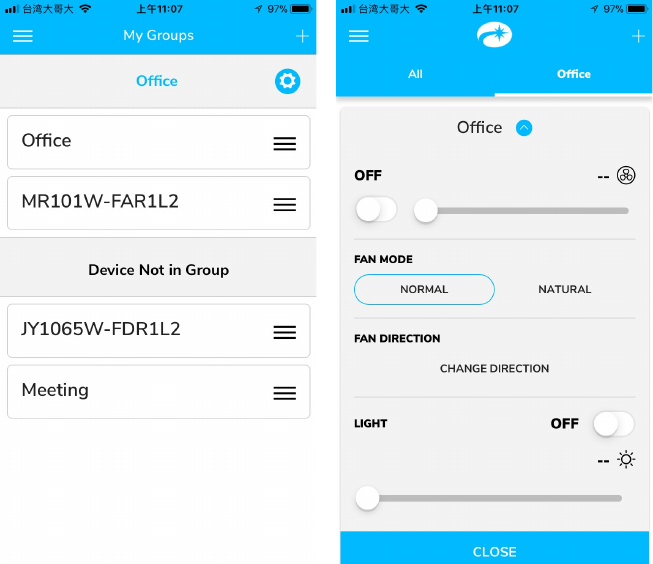

Group Control – Add devices as group.
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect
the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an
experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE10602
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Exposure to Radio Frequency Radiation:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
