Chungear Co CE10609 Ceiling Fan Remote Controller (Transmitter) User Manual

Chungear Industrial Co Ltd Ceiling Fan Remote Controller (Transmitter)

User Manual

WALL TRANSMITTER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall
switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110/120V 60Hz power supply only.
7. The receiver is acceptable for installation in damp and wet rated fans, but cannot be submerged in water. The
wall transmitter is only to be installed indoors.
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this
will damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable
(rheostat) wall control.
INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed before installation.

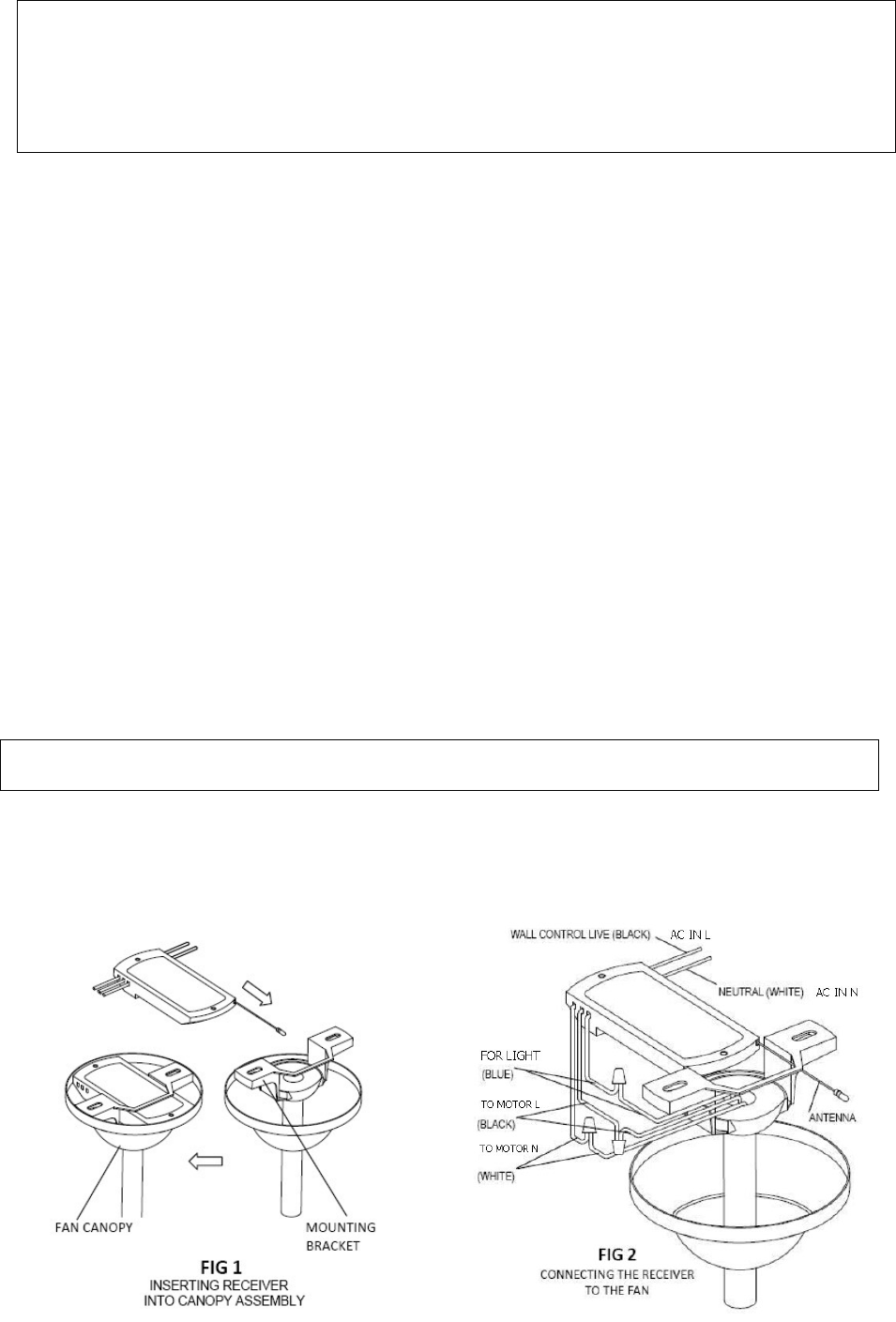

2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy
comes up to cover the receiver and bracket. (FIG 1and 2)
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND THE LIGHT KIT
TO THE ON POSITION BEFORE INSTALLING THE REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WILL DAMAGE THIS RECEIVER.
Installing Wall Bracket ( HANDSET TRANSMITTER):
The wall control can be used together with handset control,
You could install the bracket as the FIG.6 shows.

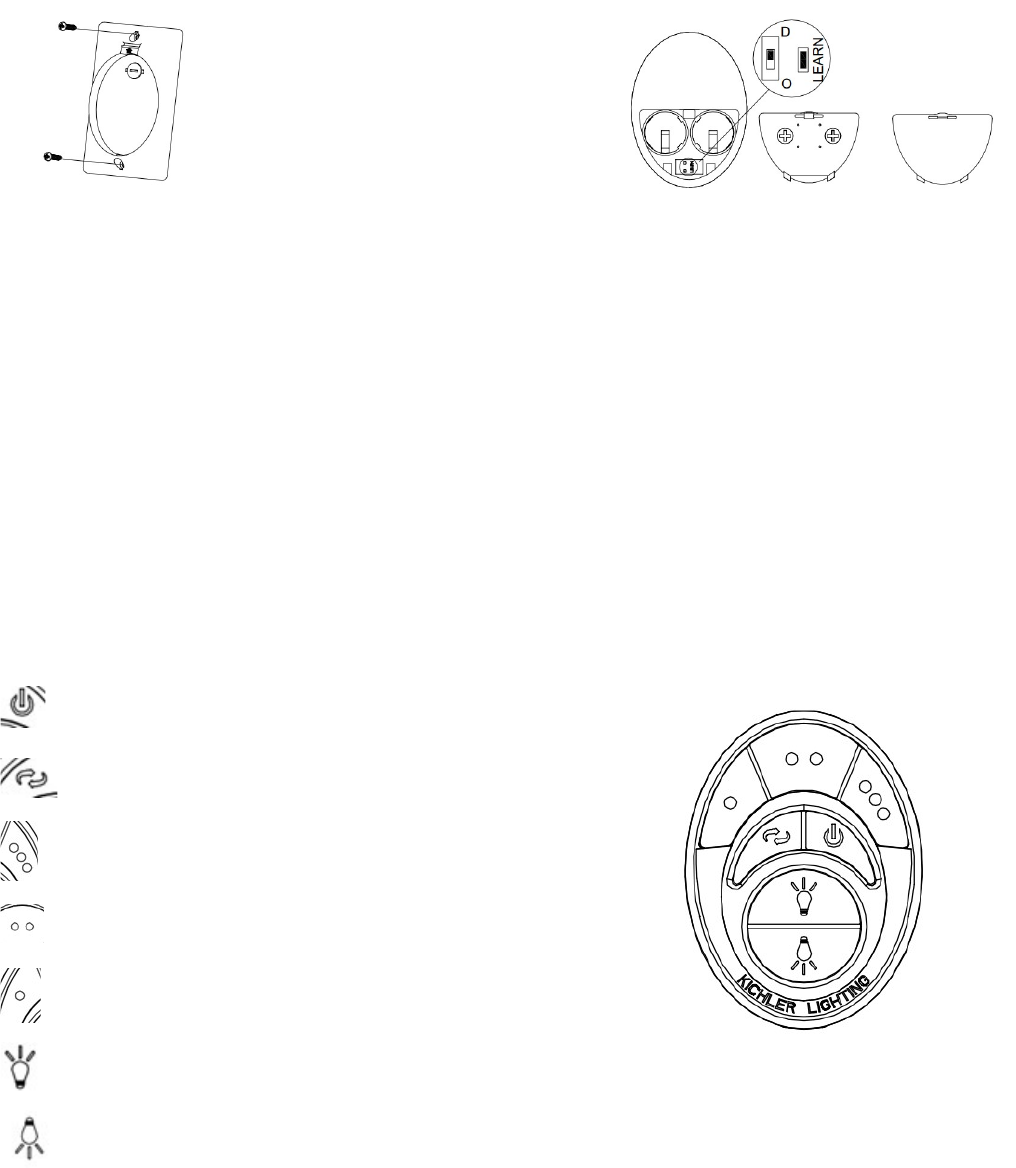

FIG. 6 FIG. 7
HANDSET TRANSMITTER OPERATION (FIG. 7)
Activating the Learning process: Turn on the receiver power, press and hold the LEARN key (on the back of the
transmitter) for 1~3S. Refer to FIG. 7
Fan will turn on at medium speed and light (if installed) will turn on. This confirms that the SMART SYNC setting is
active and ok.
Transmitter use 2 pcs CR2032 3V batteries.
LIGHT FUNCTION SELECT SWITCH
If the ceiling fan has fluorescent lighting, please slide the “light function select switch” to “O” position. If the ceiling
fan has incandescent or halogen lighting, please slide the “light function select switch” to “D” position. (FIG. 7)
Please note that the setting on wall transmitter and handset transmitter must the same.
:Turn off the ceiling fan.
：Press this button for forward/reverse airflow of ceiling fan.
: Turn on the fan at high speed.
: Turn on the fan at medium speed.
: Turn on the fan at low speed.
: Turn the light off.
:Turn the light on.
DIMMER-Press and hold to dim or brighten light to the desired level and release. (Incandescent or halogen only
and light function select switch on “D” position.)
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
TR250B
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an
experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate
the equipment.
FCC ID：KUJCE10609
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
