Chungear Co CE10611 Ceiling Fan Remote Controller (Transmitter) User Manual
Chungear Industrial Co Ltd Ceiling Fan Remote Controller (Transmitter)
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC110V/120V 60Hz power
supply only.
7. Do not install in damp locations or immerse into water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking
takes place as this will damage the transmitter. Dispose of used battery properly, keep the
battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.
INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the
“Pull Switch” after installation.

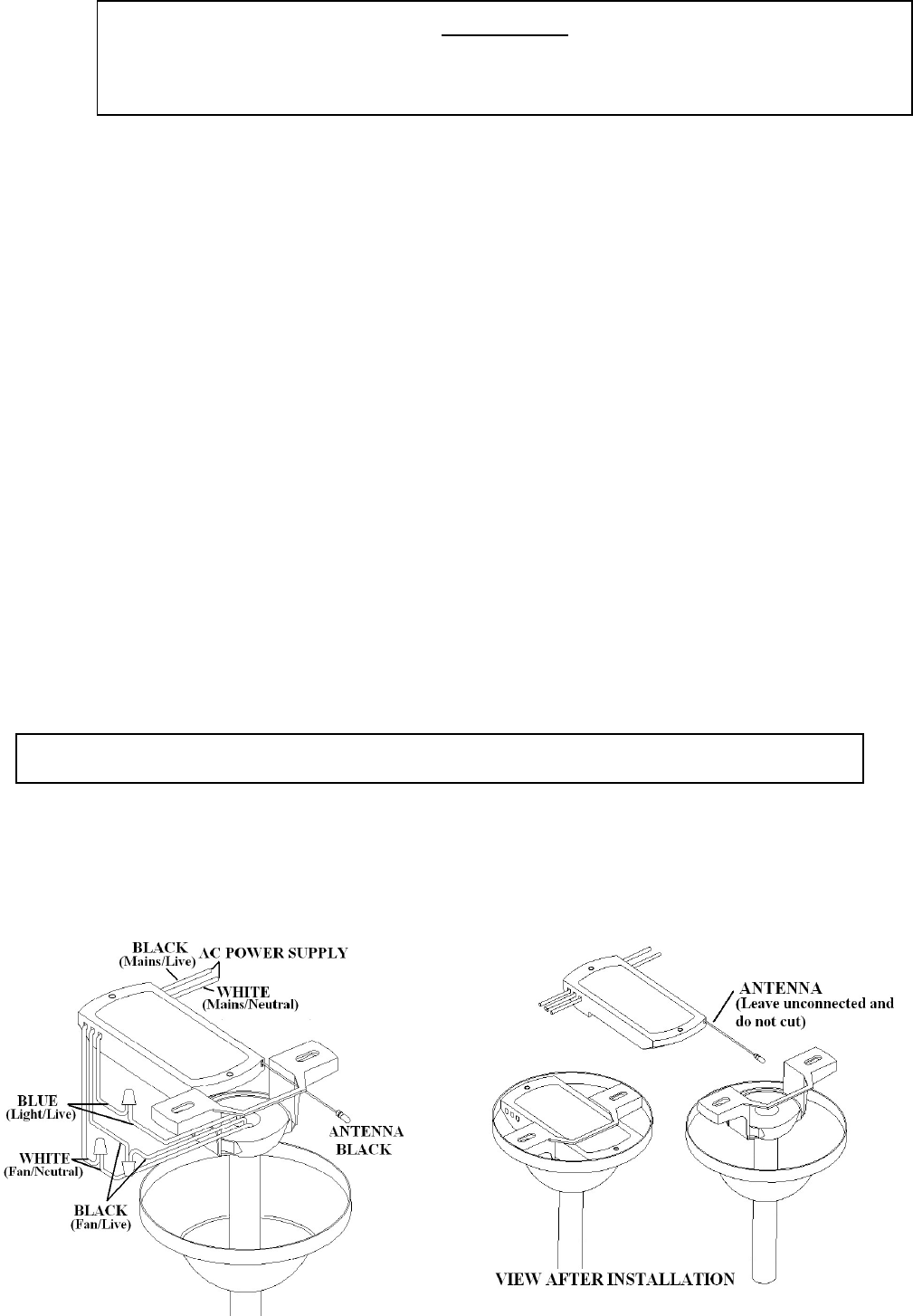

2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT
KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
CODE SWITCH
1. CODE SWITCH: Codes are set by pushing dip
switches up or down. It is imperative that the code
used for both transmitter and receiver is exactly the
same; otherwise remote controller will not work.
Please note the code switch will enable you to
operate a second remote controller independently.
For example, if you have two ceiling fans with 2
remote control units, set 2 different codes for each
set of transmitter/receivers. This means you can
operate each ceiling fan independently.
2. Your remote control is ready for use after battery, DC12V, installation.
FUNCTIONS OF TRANSMITTER
INDICATION LED LIGHT
FAN key with function off
fan key with function speed down/up ,
:
1hr：Setting up that the ceiling fan will turn off after 1 hour automatically,
3hr：Setting up that the ceiling fan will turn off after 3 hours automatically.
6hr：Setting up that the ceiling fan will turn off after 6 hours automatically.
LIGHT key with function off
UP or down key with function for dimmer or brighten the light
Installing Wall Control (TRANSMITTER): Wall Mount Holder with two screws.
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult
the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority
to operate the equipment.
FCC ID：KUJCE10611
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
TR289A
